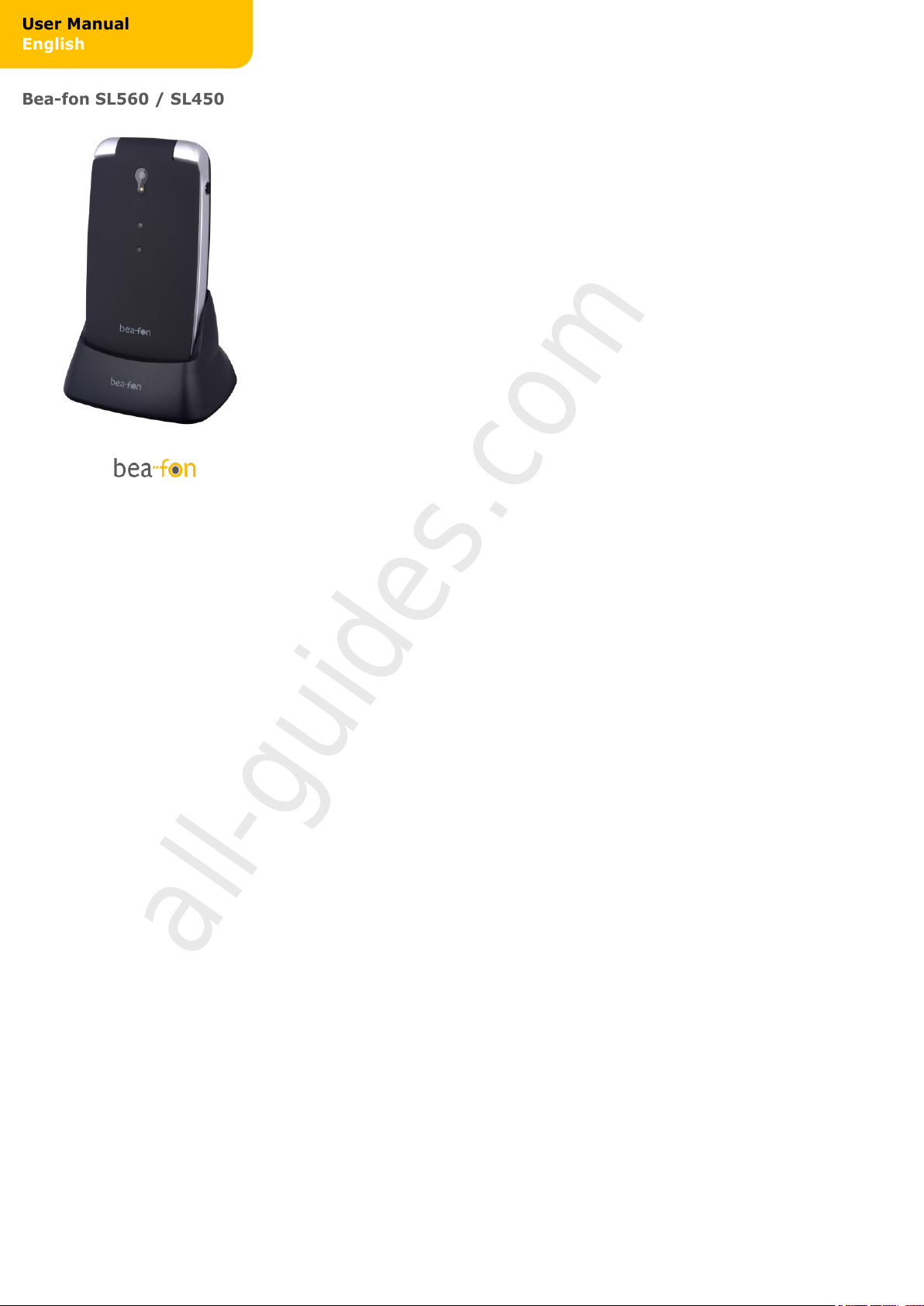

Page 1
User Manual
English
Bea-fon SL560 / SL450
All manuals and user guides at all-guides.com
all-guides.com
Page 2
2

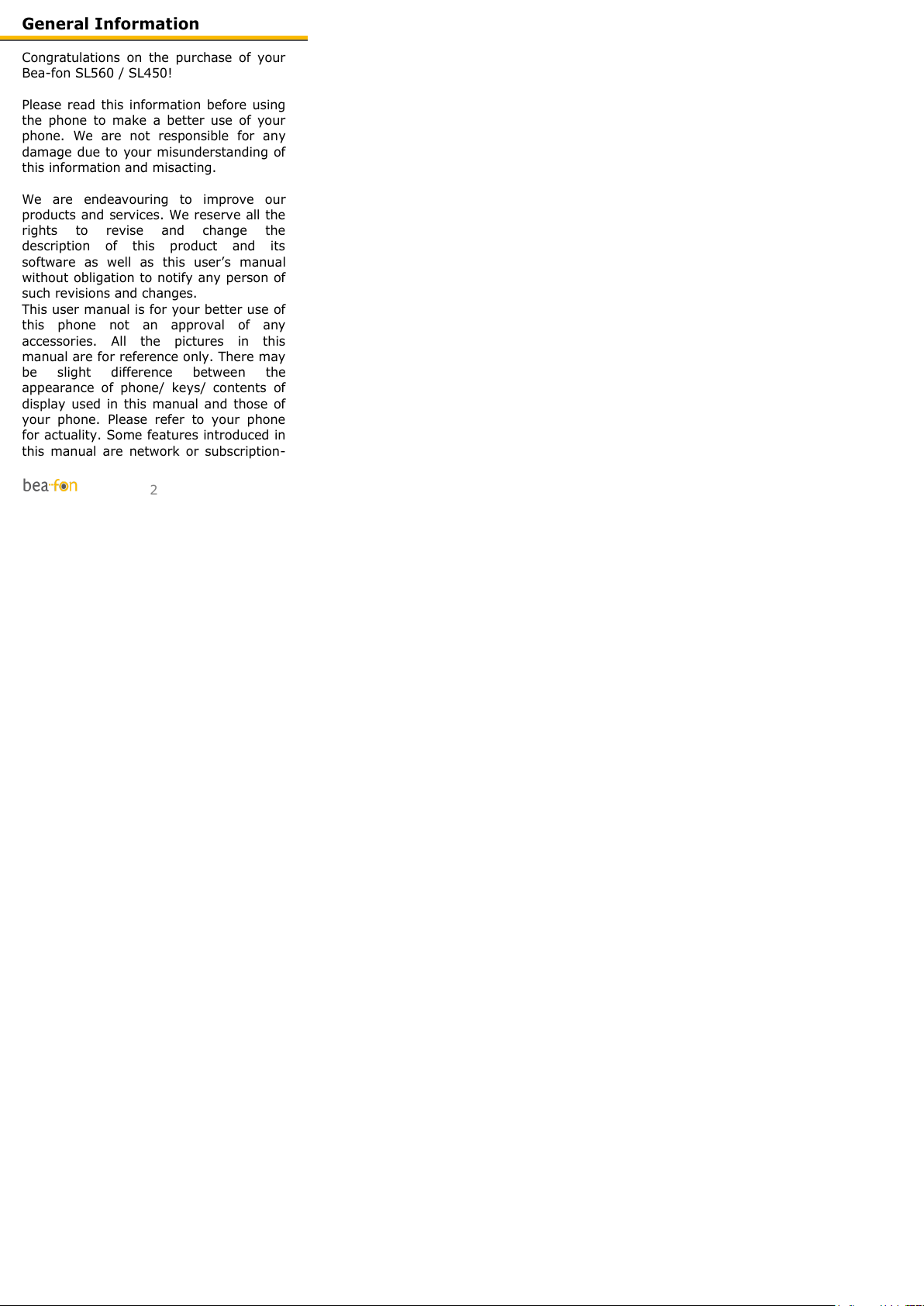

General Information
Congratulations on the purchase of your
Bea-fon SL560 / SL450!
Please read this information before using
the phone to make a better use of your
phone. We are not responsible for any
damage due to your misunderstanding of
this information and misacting.
We are endeavouring to improve our
products and services. We reserve all the
rights to revise and change the
description of this product and its
software as well as this user’s manual
without obligation to notify any person of
such revisions and changes.
This user manual is for your better use of
this phone not an approval of any
accessories. All the pictures in this
manual are for reference only. There may
be slight difference between the
appearance of phone/ keys/ contents of
display used in this manual and those of
your phone. Please refer to your phone
for actuality. Some features introduced in
this manual are network or subscription-
All manuals and user guides at all-guides.com
Page 3
3

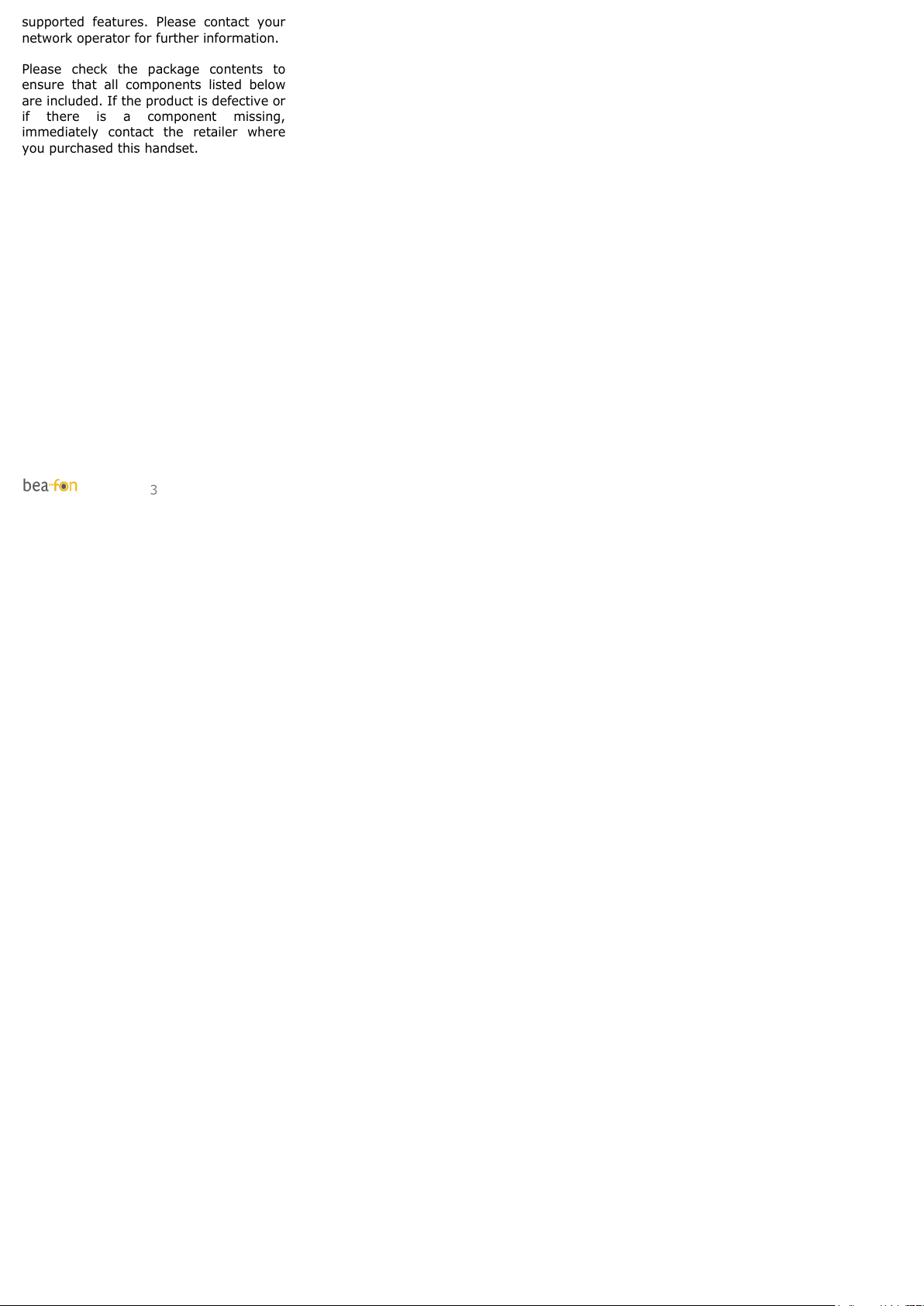

supported features. Please contact your
network operator for further information.
Please check the package contents to
ensure that all components listed below
are included. If the product is defective or
if there is a component missing,
immediately contact the retailer where
you purchased this handset.
All manuals and user guides at all-guides.com
Page 4
4

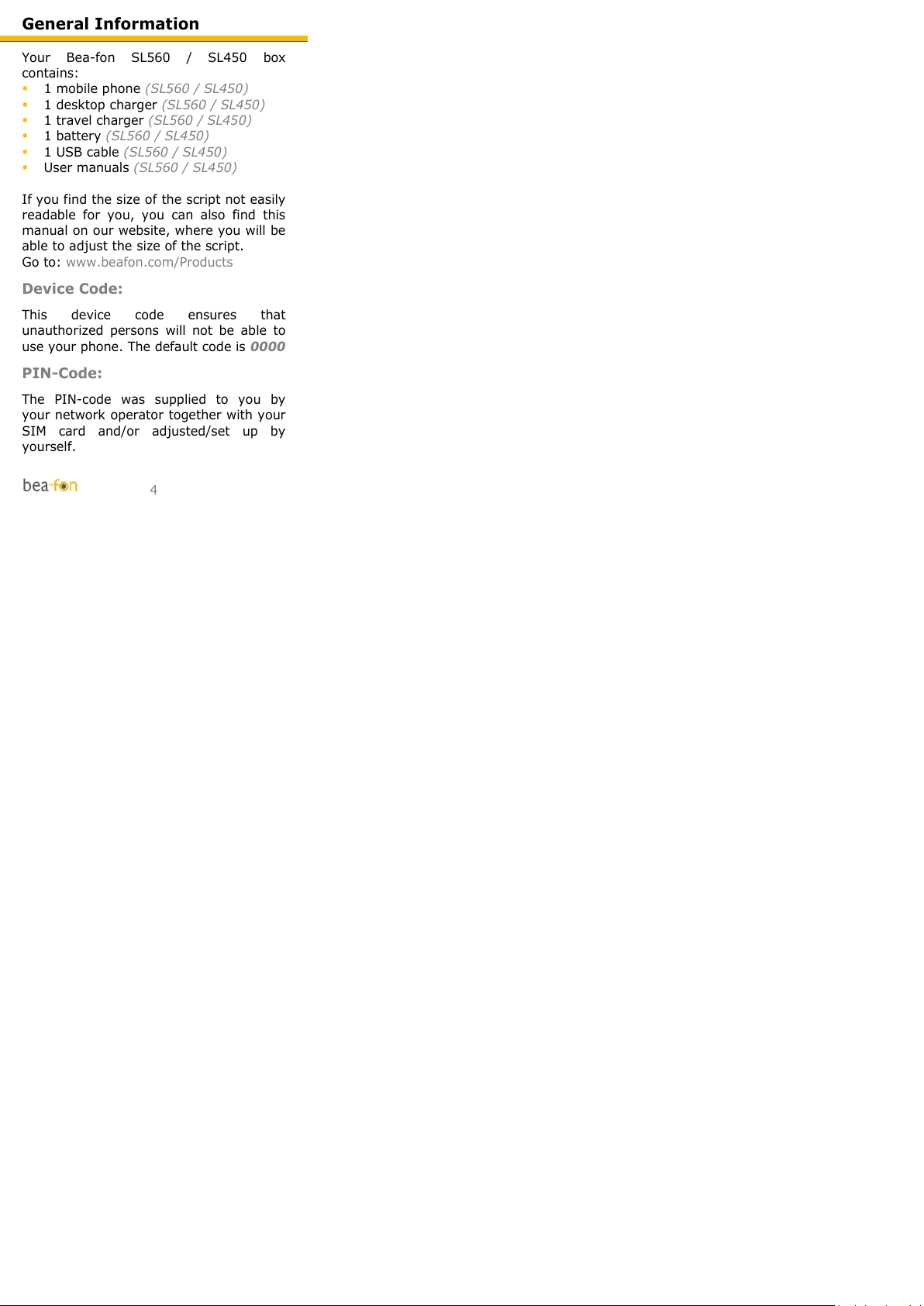

General Information
Your Bea-fon SL560 / SL450 box
contains:
• 1 mobile phone (SL560 / SL450)
• 1 desktop charger (SL560 / SL450)
• 1 travel charger (SL560 / SL450)
• 1 battery (SL560 / SL450)
• 1 USB cable (SL560 / SL450)
• User manuals (SL560 / SL450)
If you find the size of the script not easily
readable for you, you can also find this
manual on our website, where you will be
able to adjust the size of the script.
Go to: www.beafon.com/Products
Device Code:
This device code ensures that
unauthorized persons will not be able to
use your phone. The default code is 0000
PIN-Code:
The PIN-code was supplied to you by
your network operator together with your
SIM card and/or adjusted/set up by
yourself.
All manuals and user guides at all-guides.com
Page 5
5

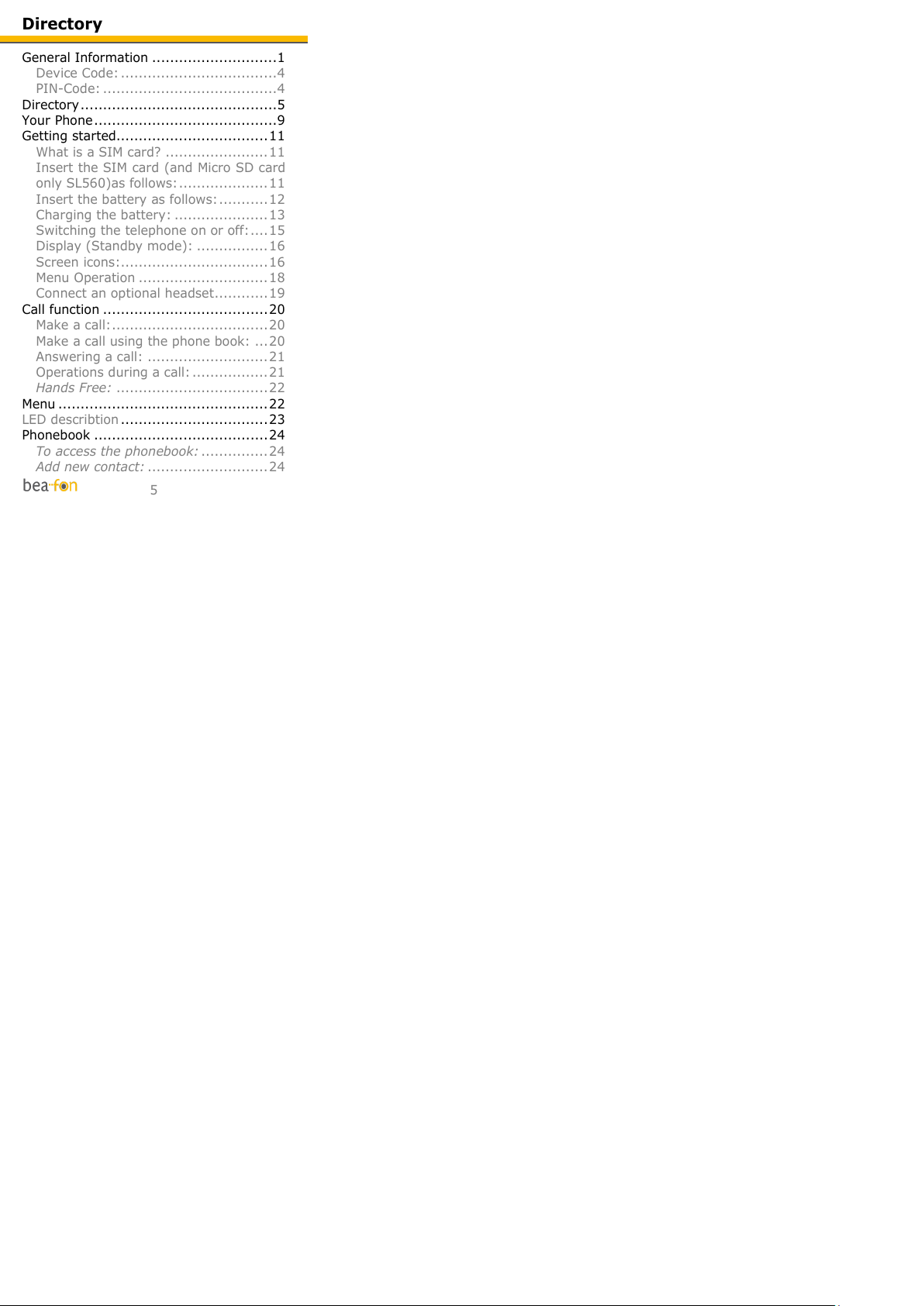

Directory
General Information ............................ 1
Device Code: ................................... 4
PIN-Code: ....................................... 4
Directory ............................................ 5
Your Phone ......................................... 9
Getting started.................................. 11
What is a SIM card? ....................... 11
Insert the SIM card (and Micro SD card
only SL560)as follows: .................... 11
Insert the battery as follows: ........... 12
Charging the battery: ..................... 13

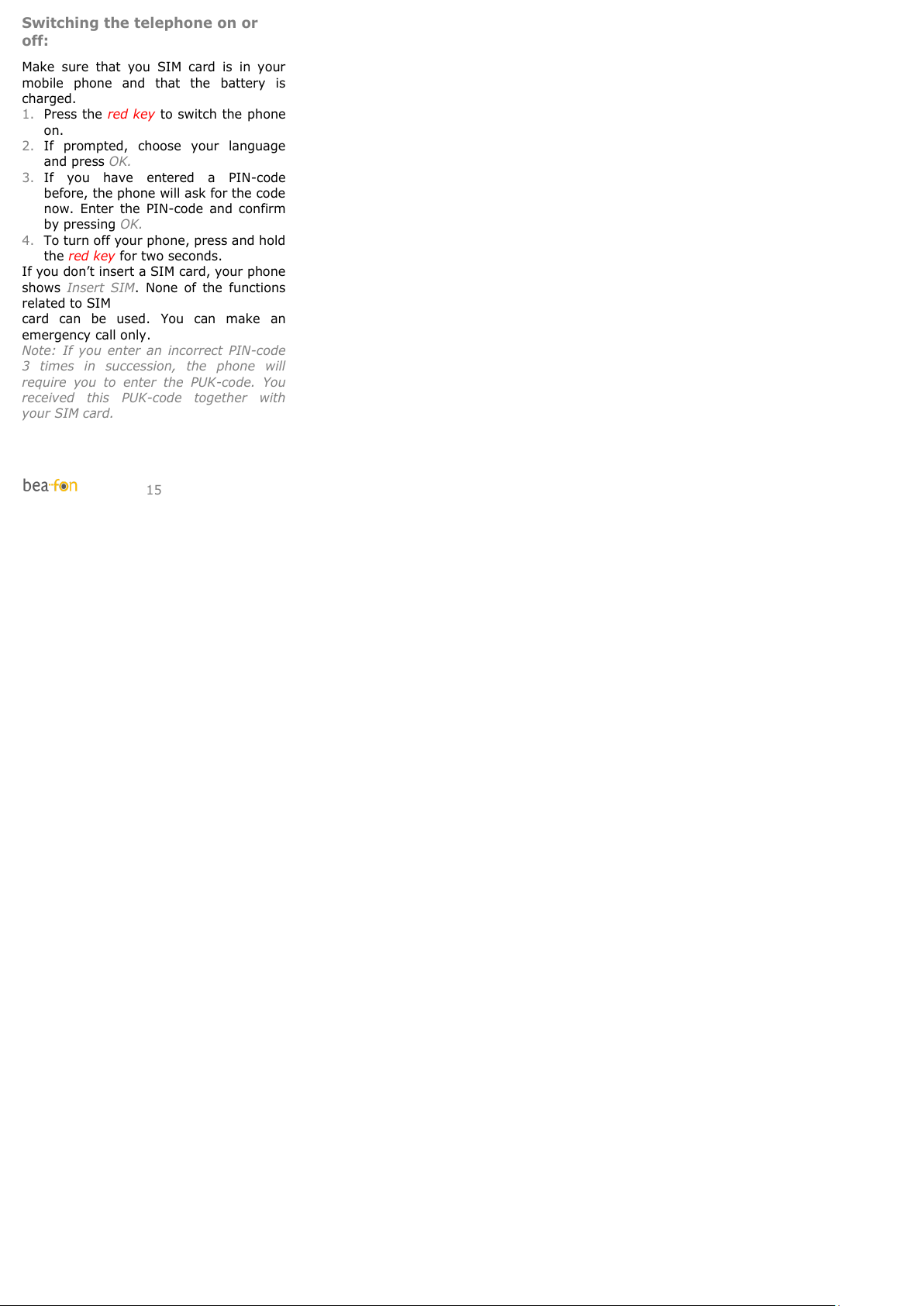

Switching the telephone on or off: .... 15

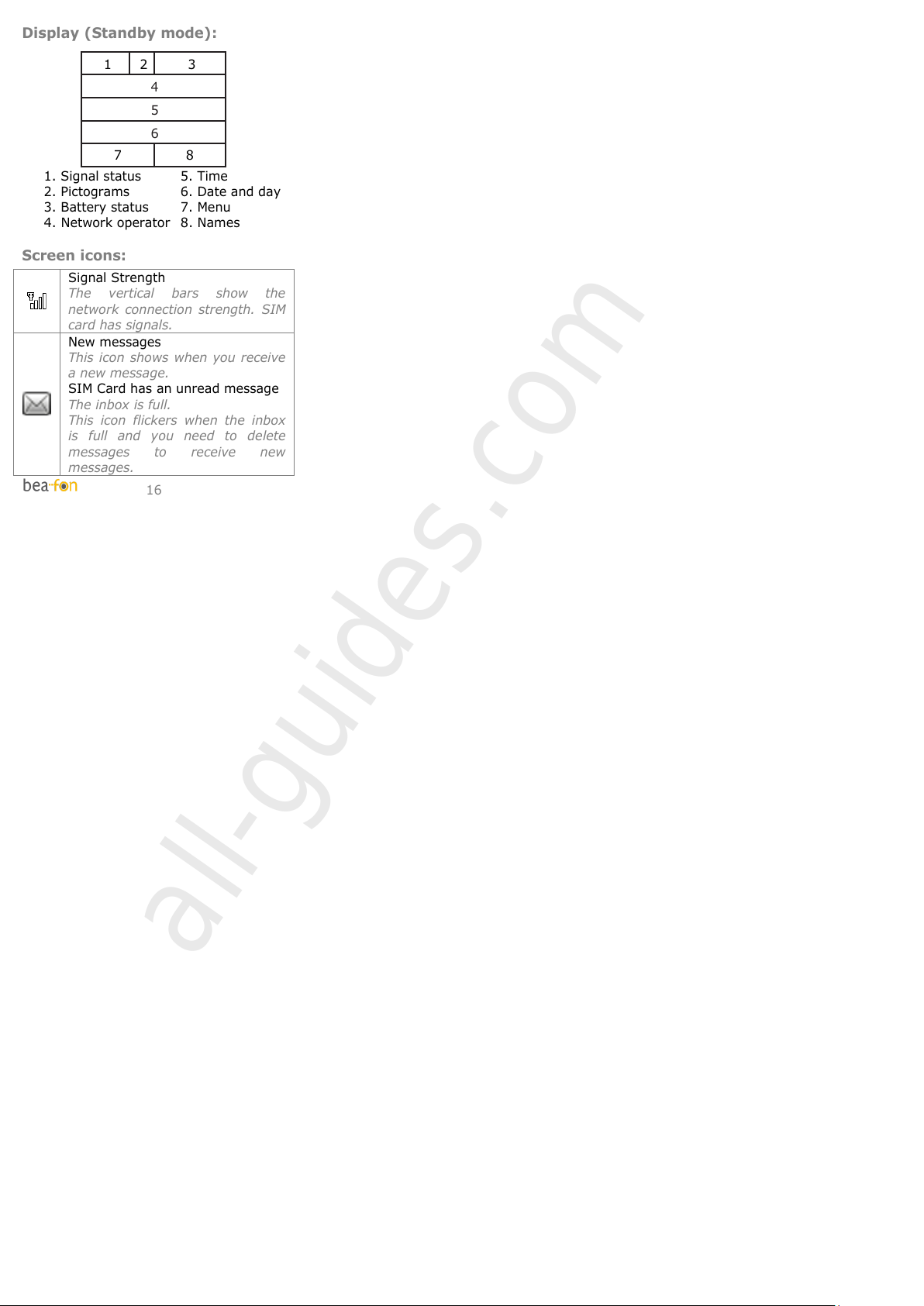

Display (Standby mode): ................ 16

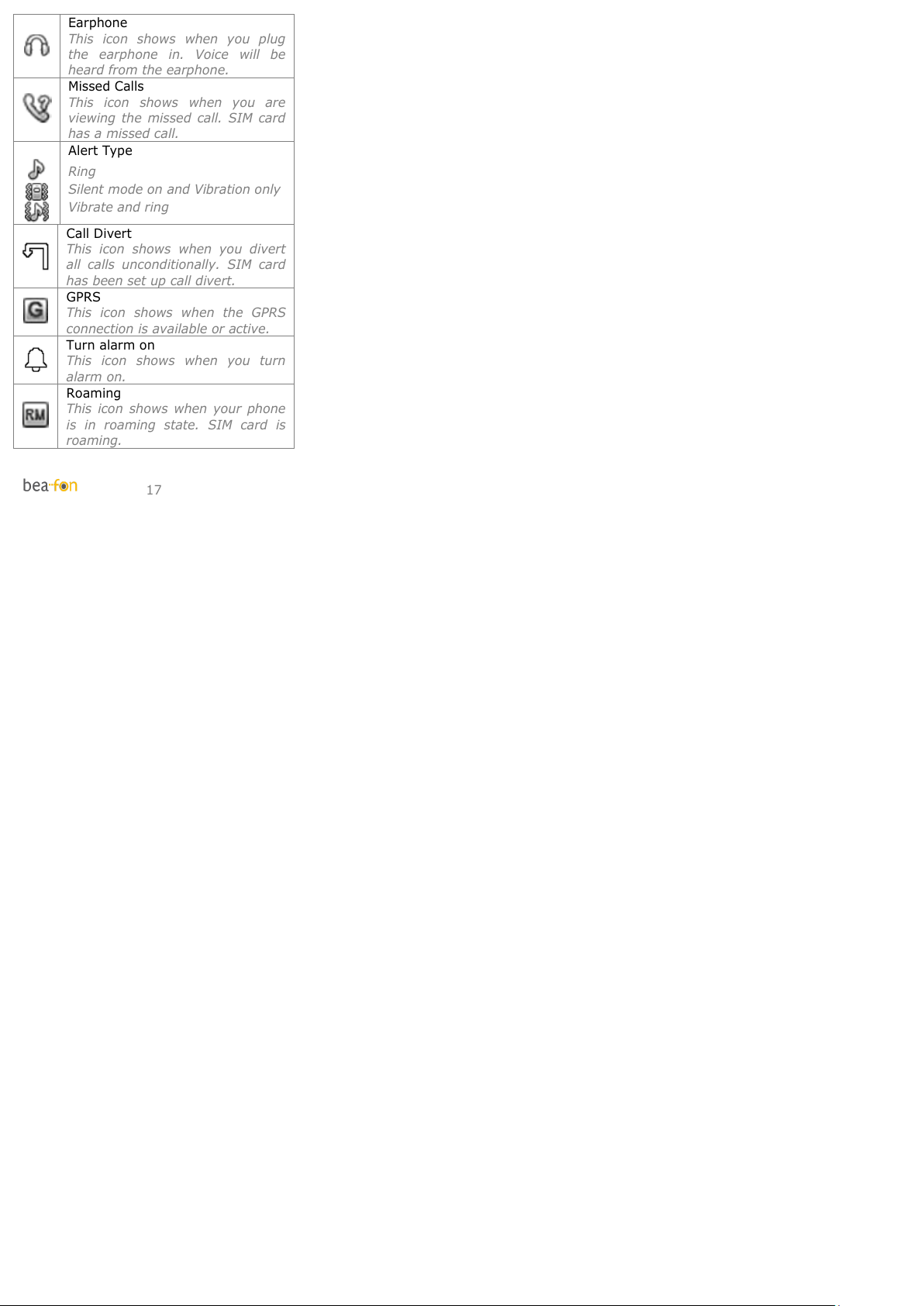

Screen icons:................................. 16

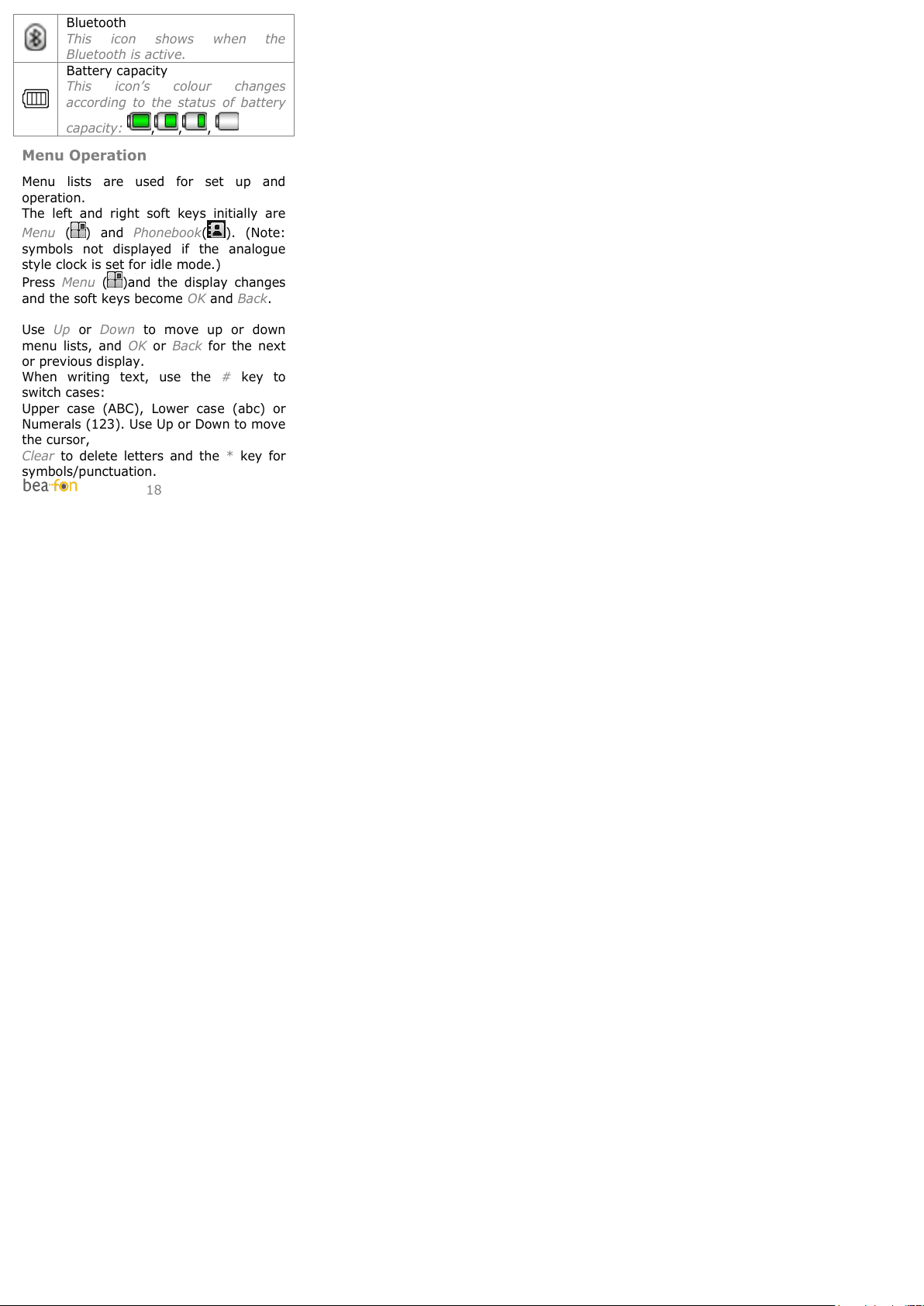

Menu Operation ............................. 18

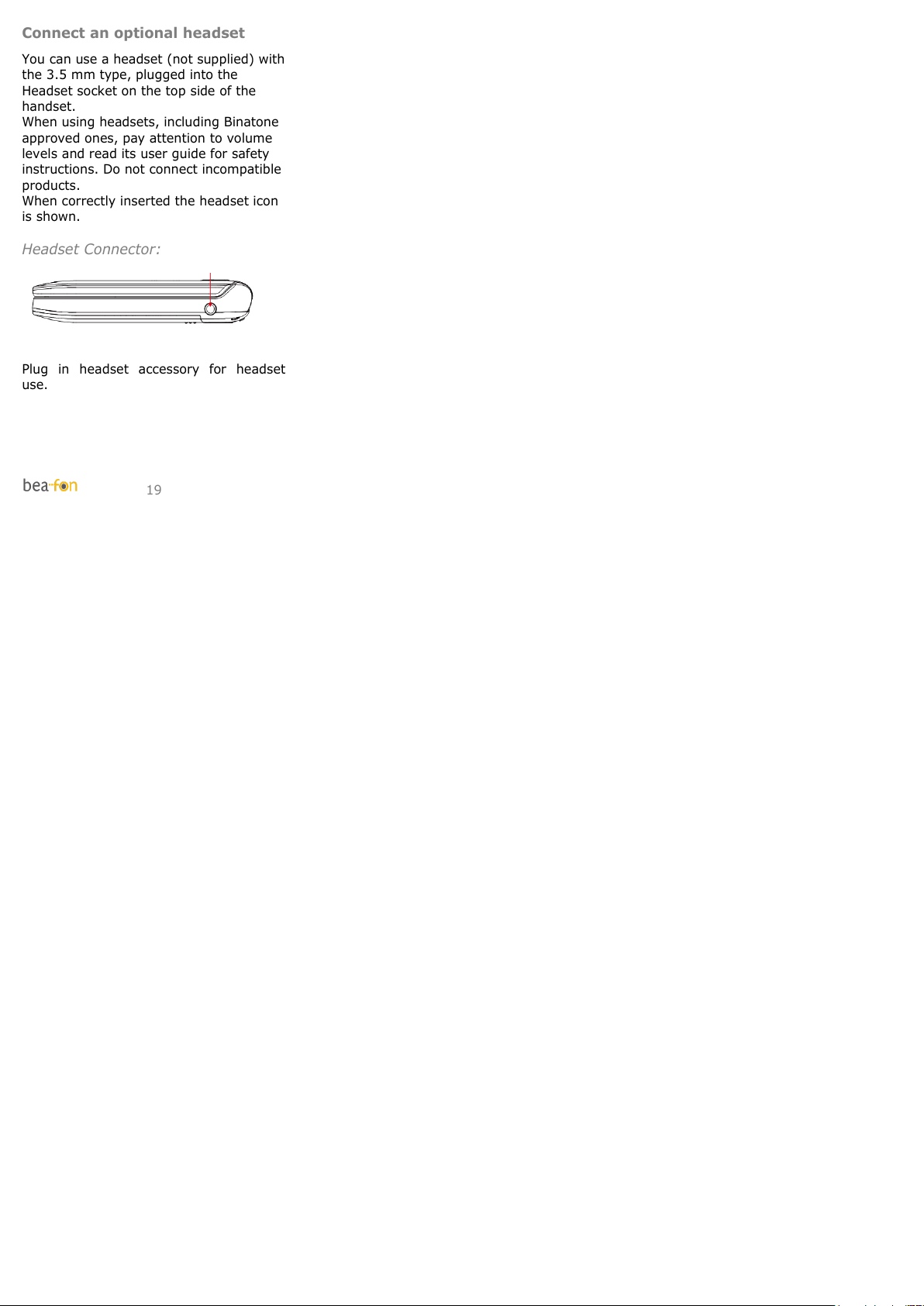

Connect an optional headset ............ 19

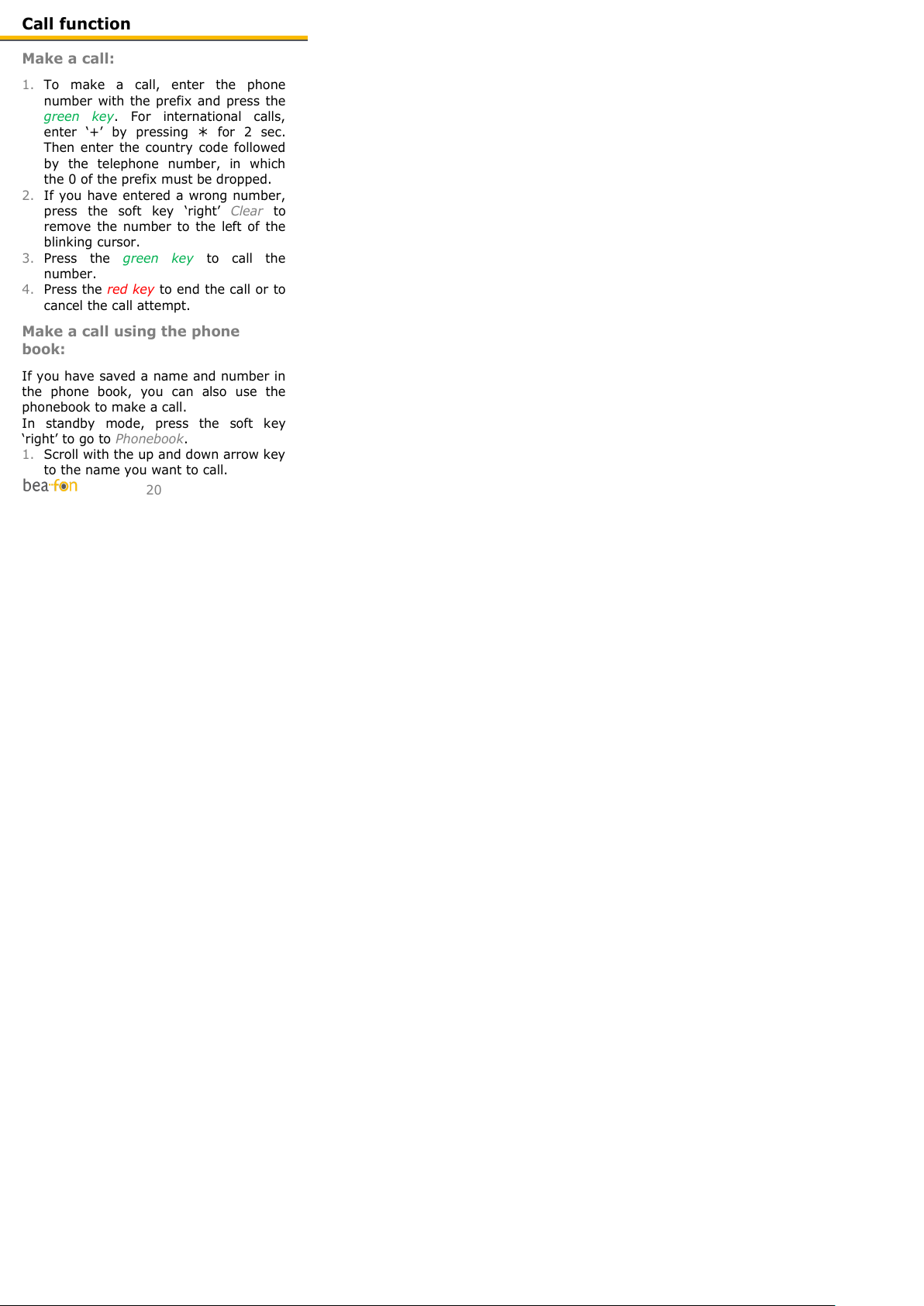

Call function ..................................... 20
Make a call: ................................... 20
Make a call using the phone book: ... 20

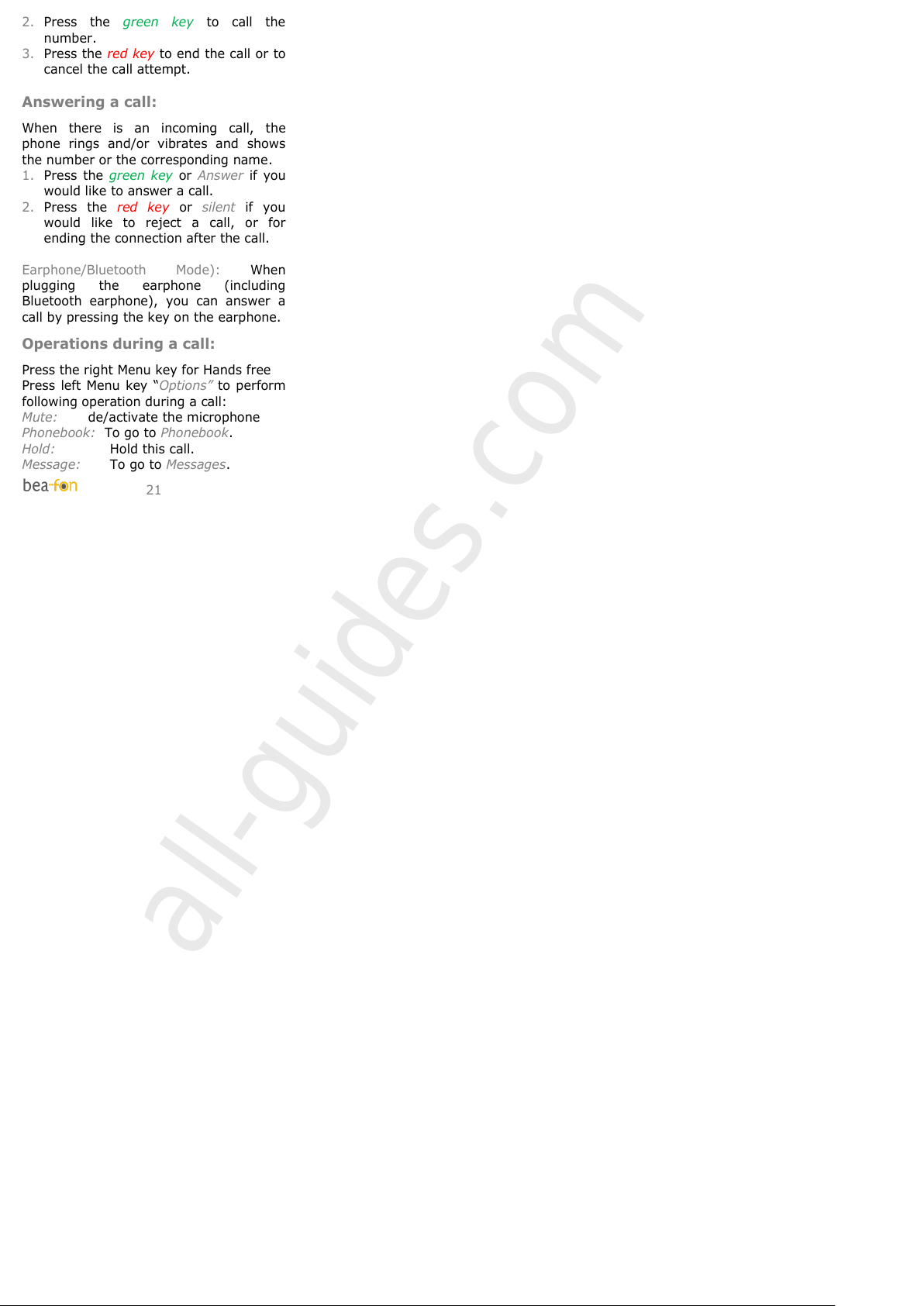

Answering a call: ........................... 21
Operations during a call: ................. 21

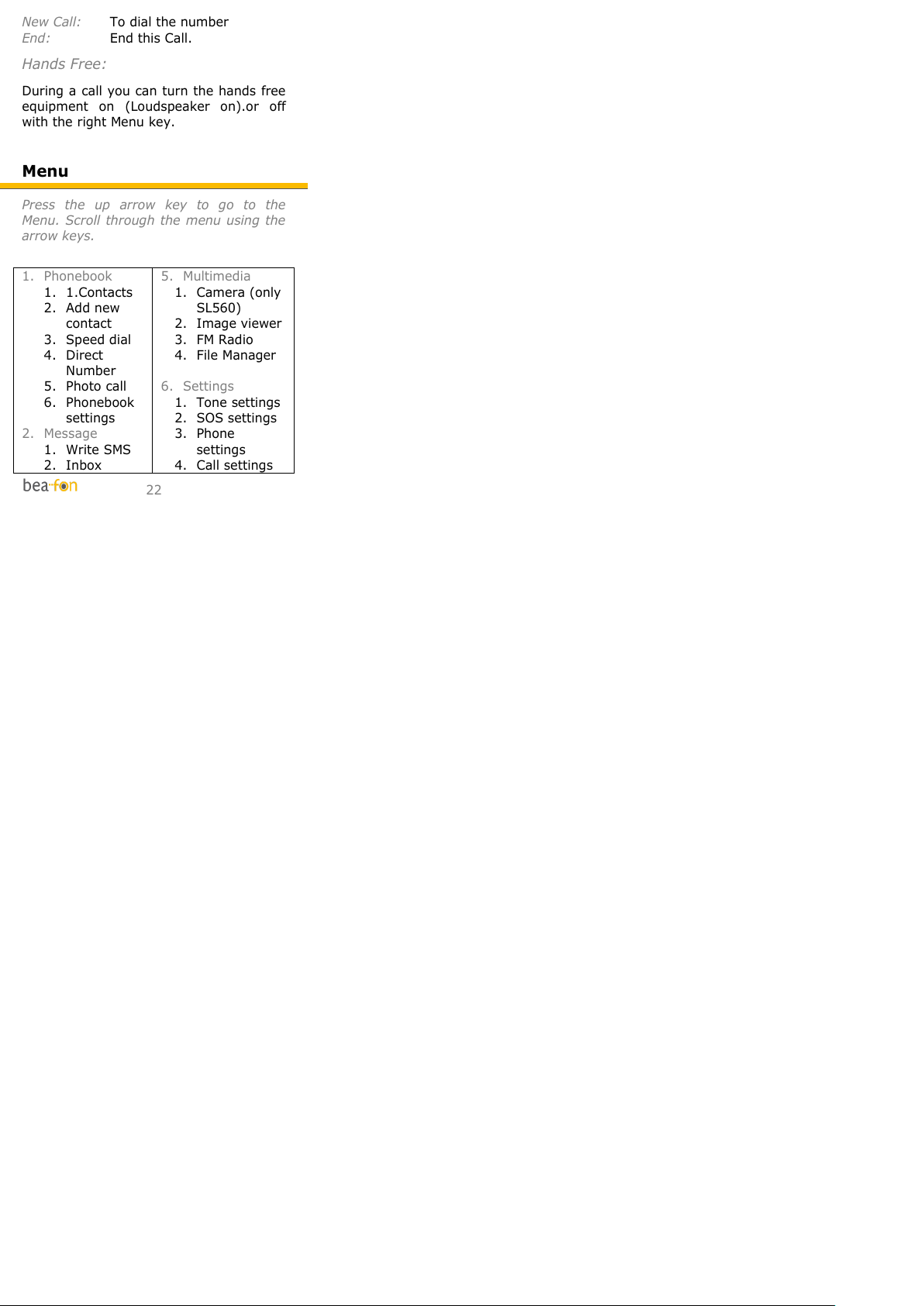

Hands Free: .................................. 22
Menu ............................................... 22

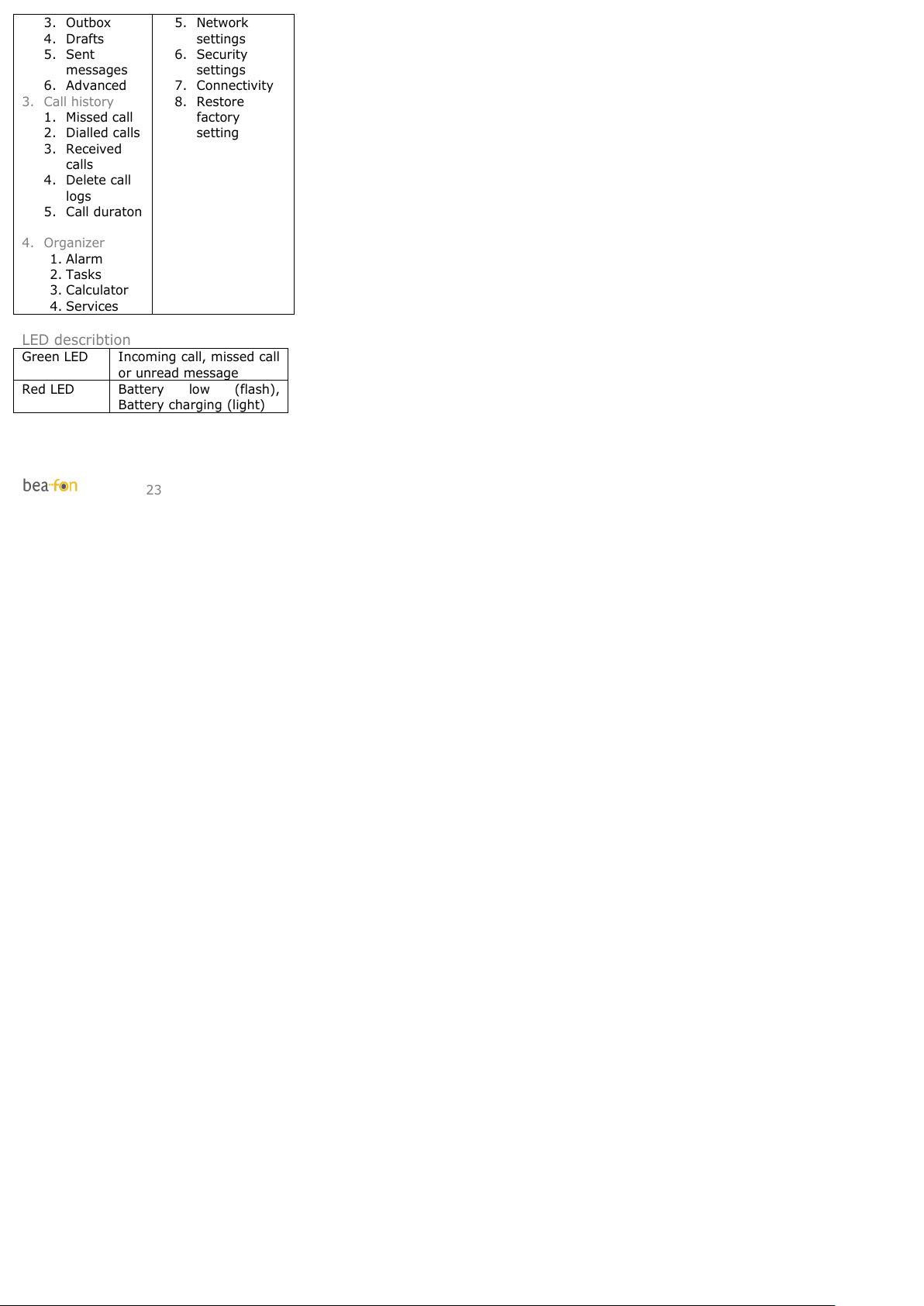

LED describtion ................................. 23

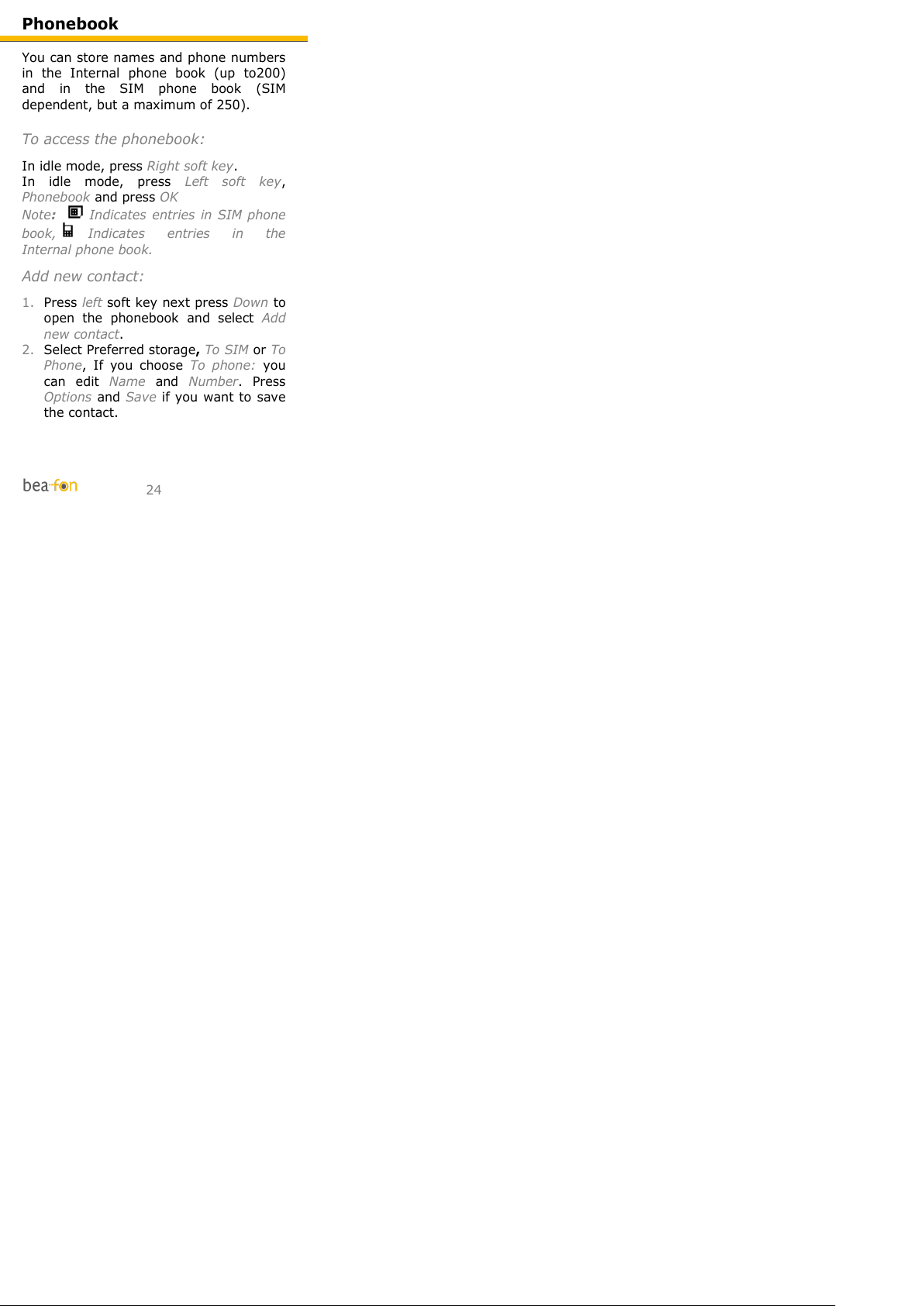

Phonebook ....................................... 24
To access the phonebook: ............... 24
Add new contact: ........................... 24
All manuals and user guides at all-guides.com
Page 6
6

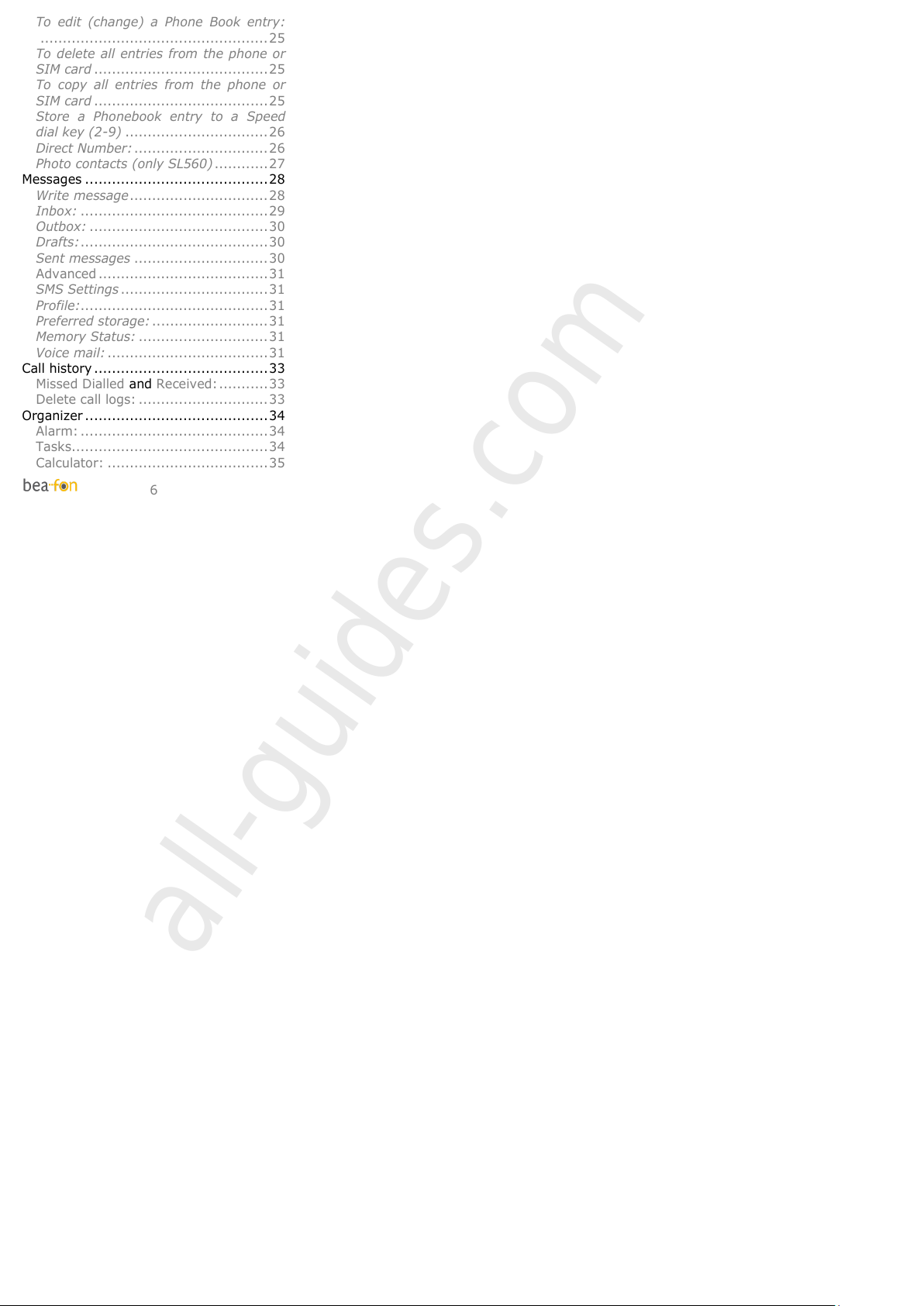

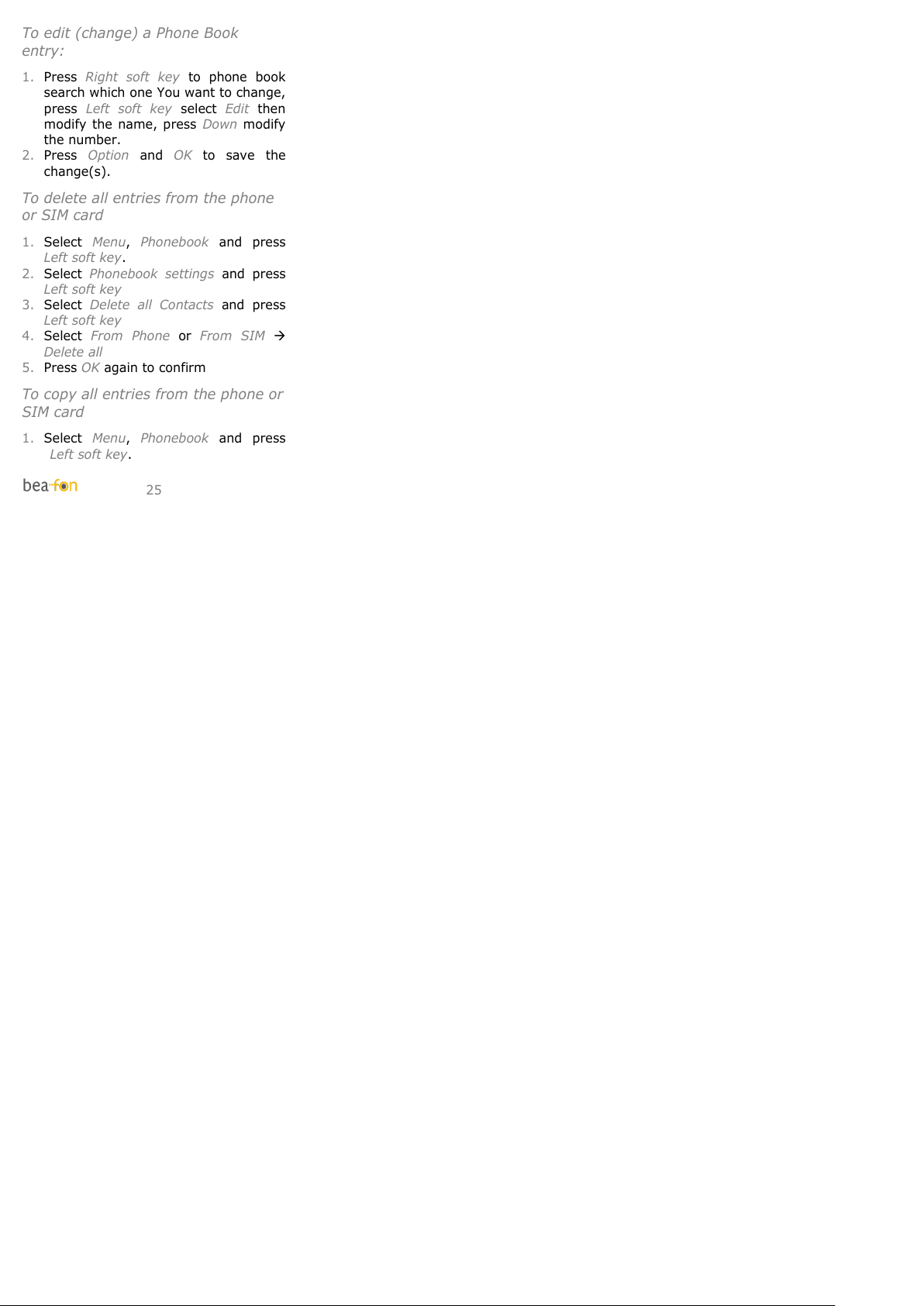

To edit (change) a Phone Book entry:
................................................... 25
To delete all entries from the phone or
SIM card ....................................... 25
To copy all entries from the phone or
SIM card ....................................... 25

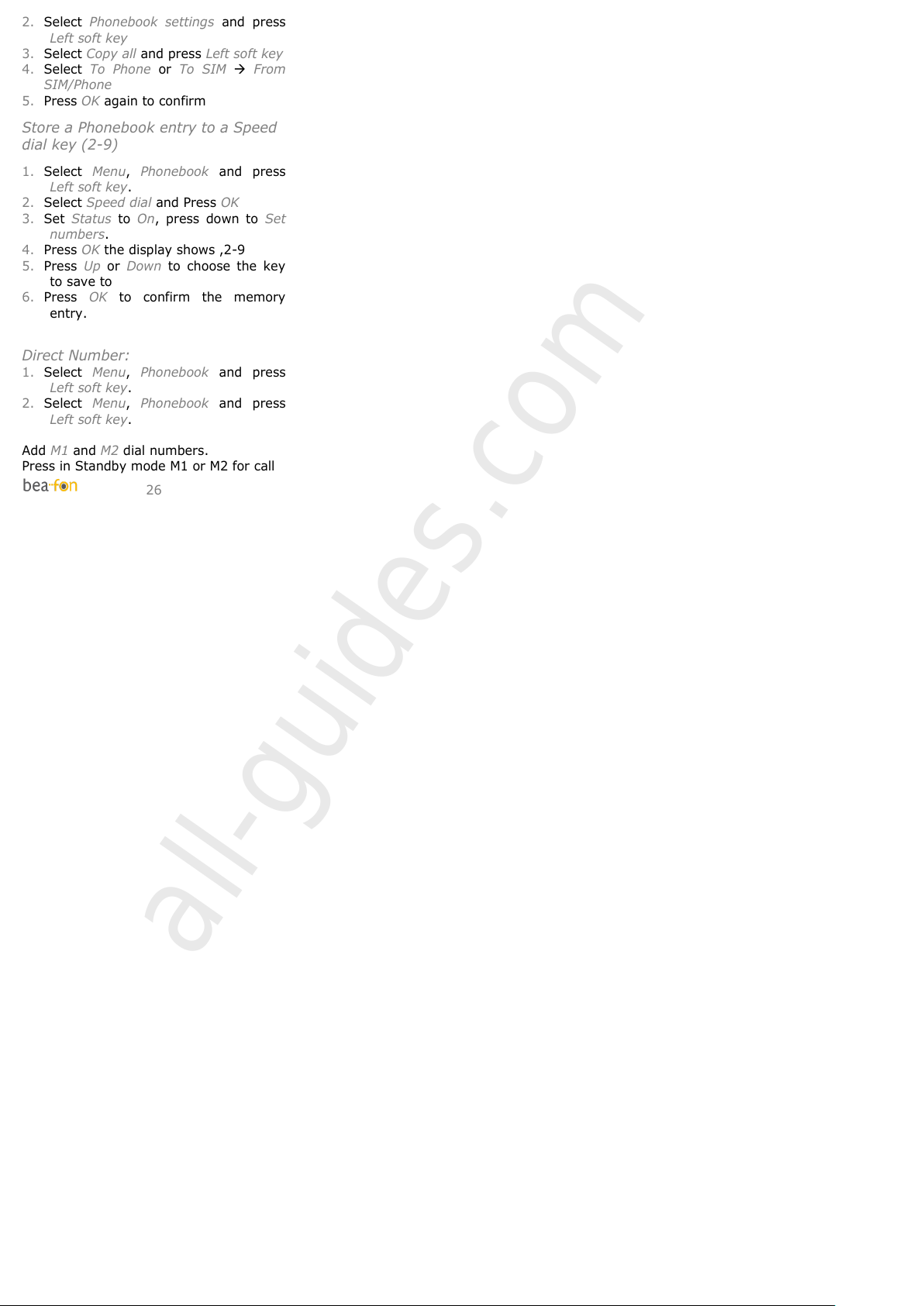

Store a Phonebook entry to a Speed
dial key (2-9) ................................ 26
Direct Number: .............................. 26

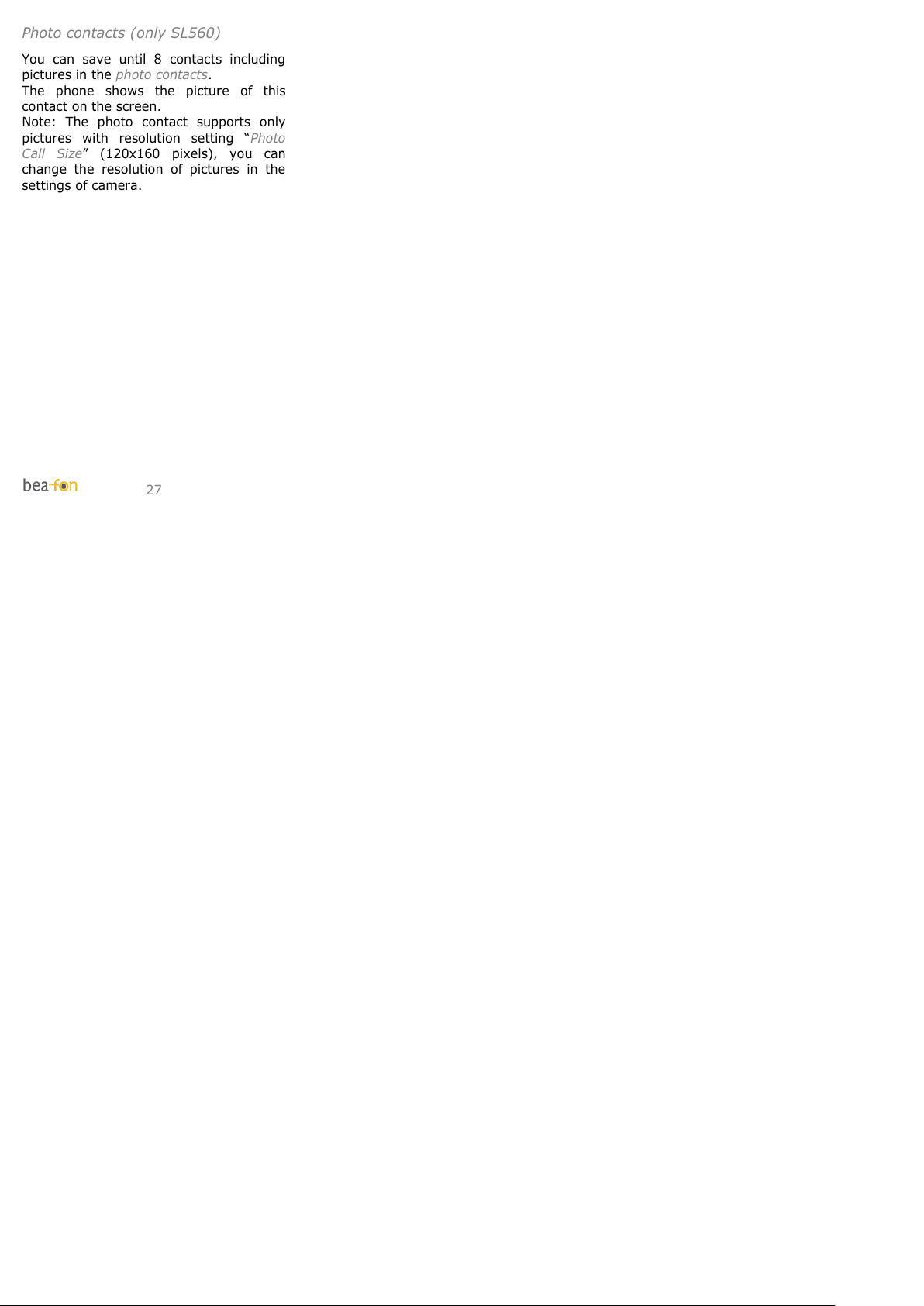

Photo contacts (only SL560) ............ 27

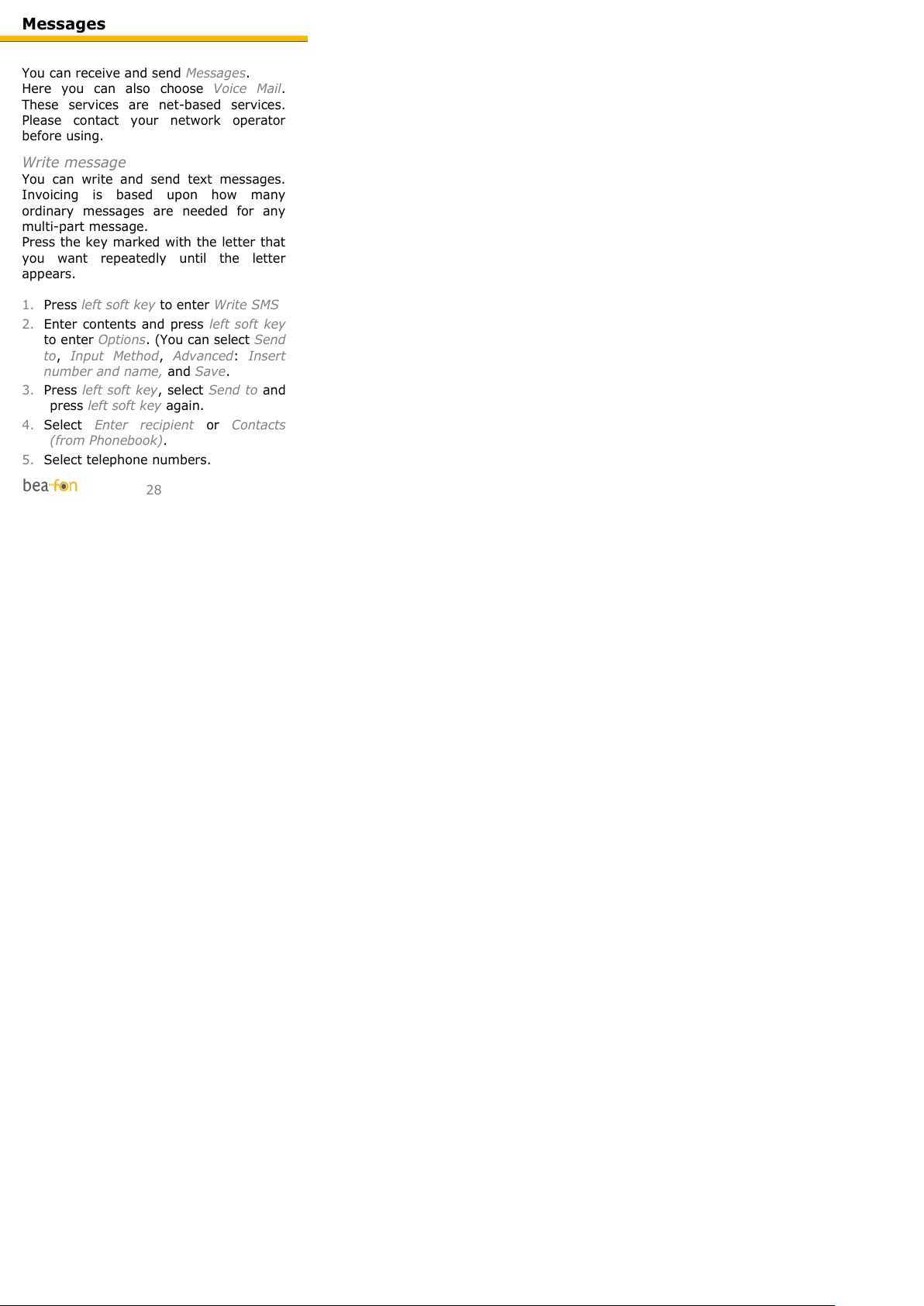

Messages ......................................... 28
Write message ............................... 28

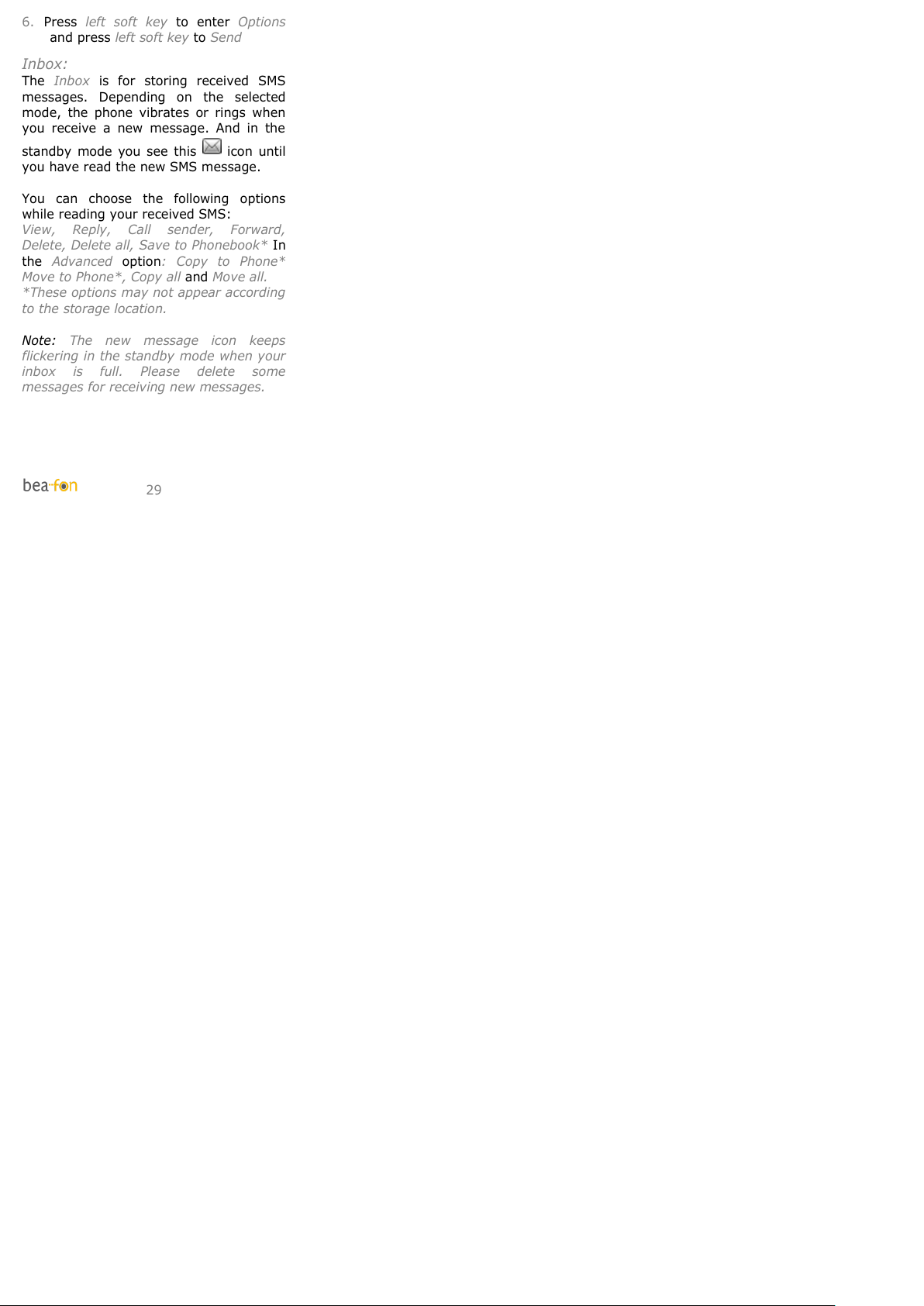

Inbox: .......................................... 29

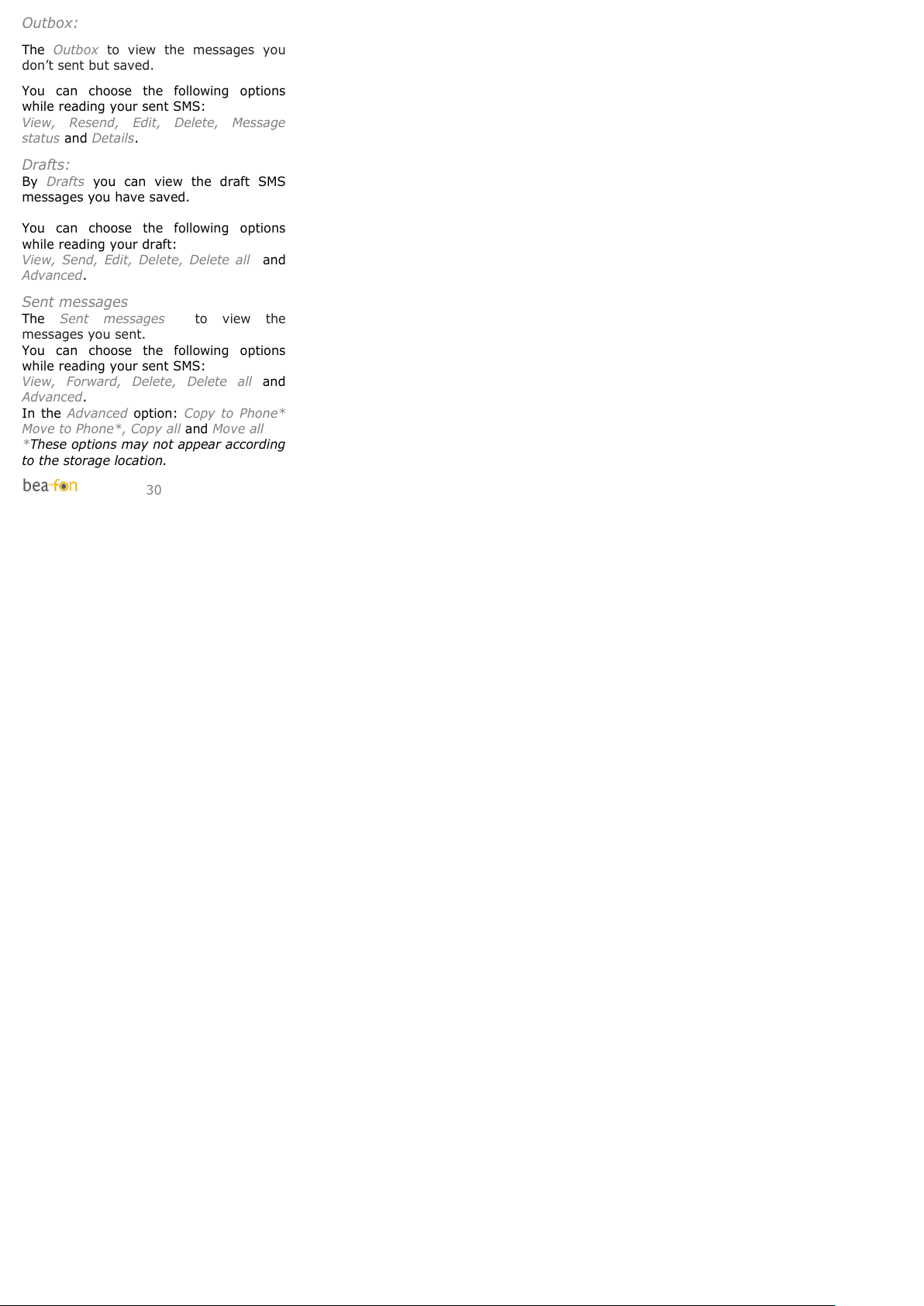

Outbox: ........................................ 30
Drafts: .......................................... 30
Sent messages .............................. 30

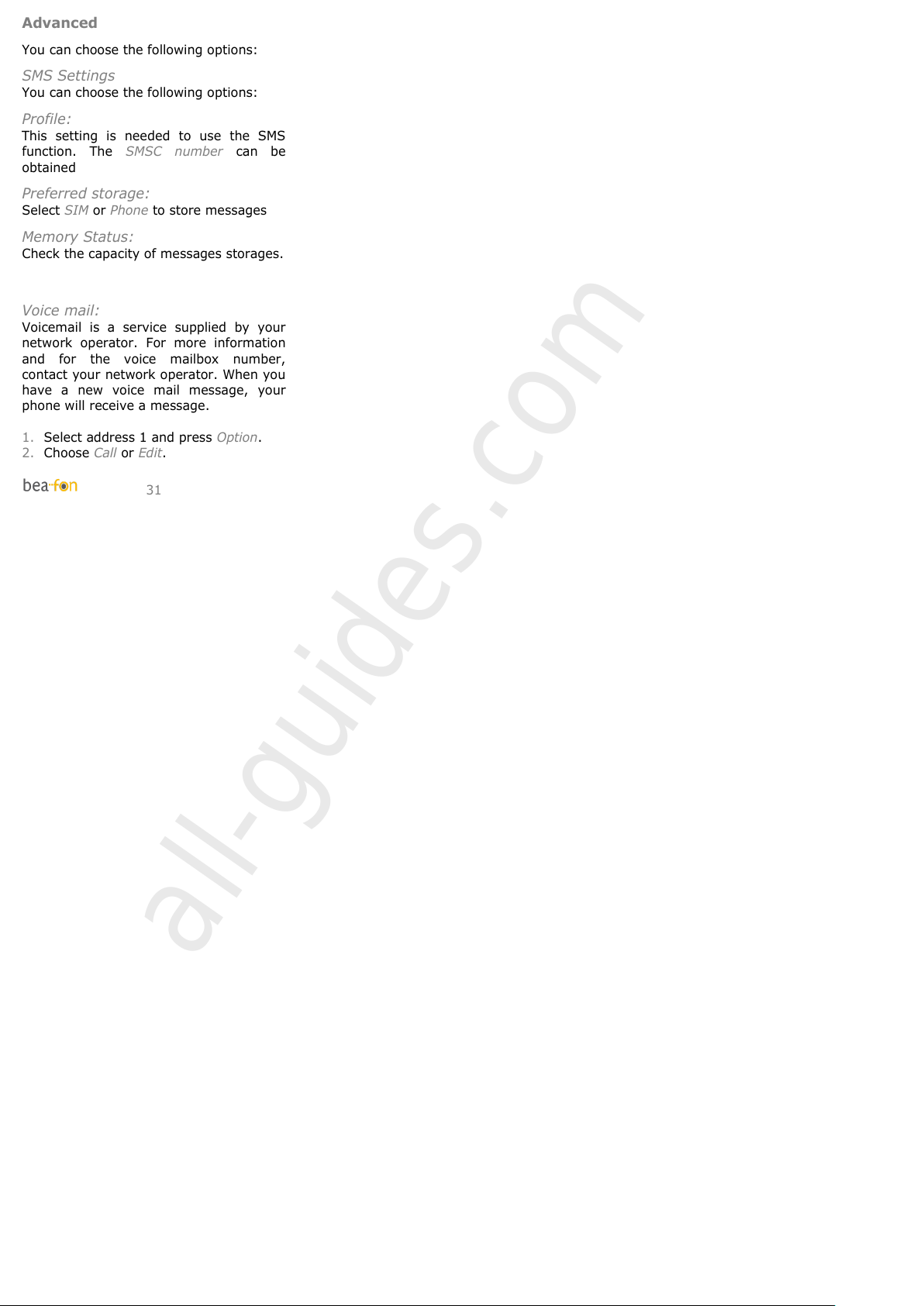

Advanced ...................................... 31
SMS Settings ................................. 31
Profile:.......................................... 31
Preferred storage: .......................... 31
Memory Status: ............................. 31

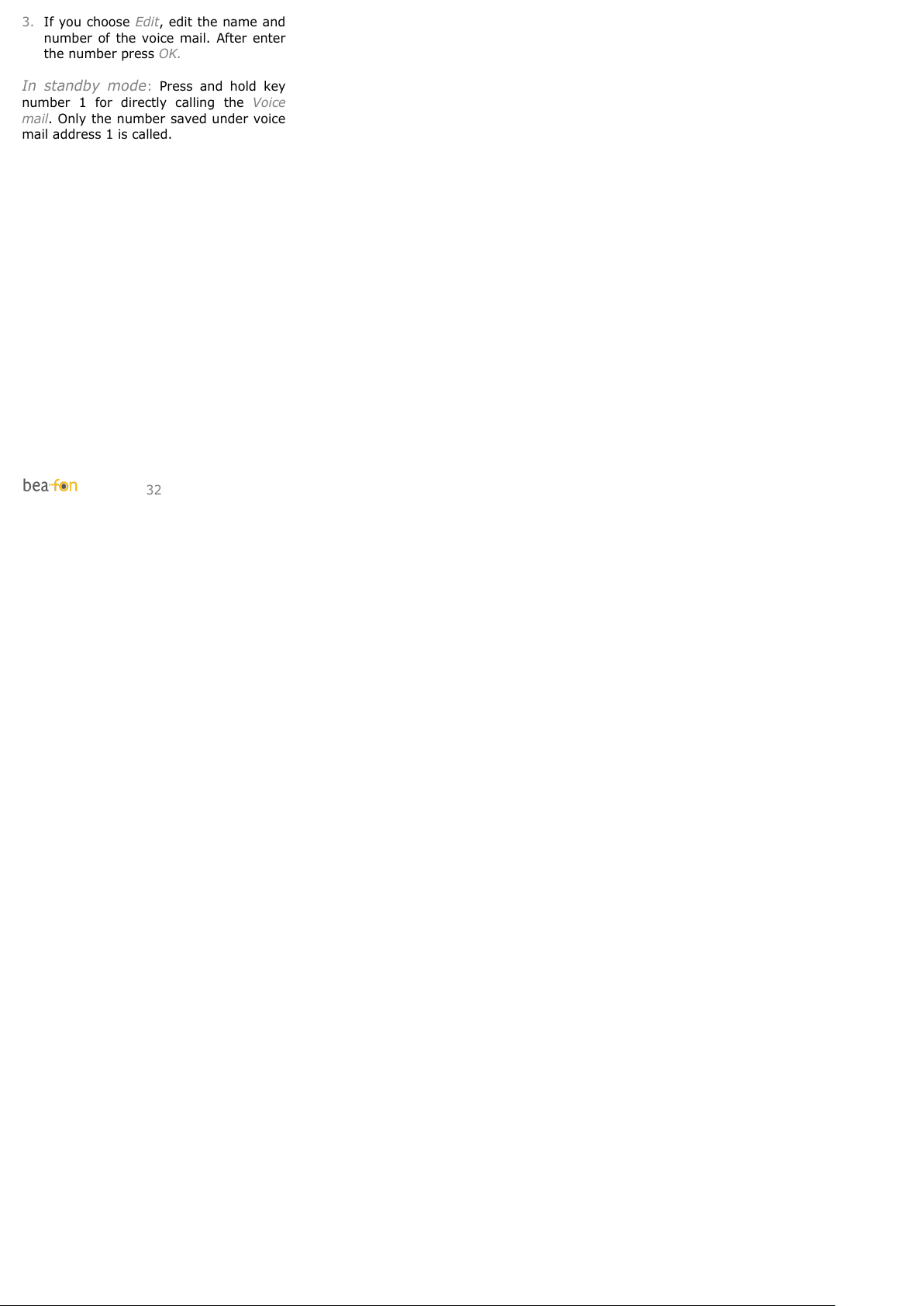

Voice mail: .................................... 31

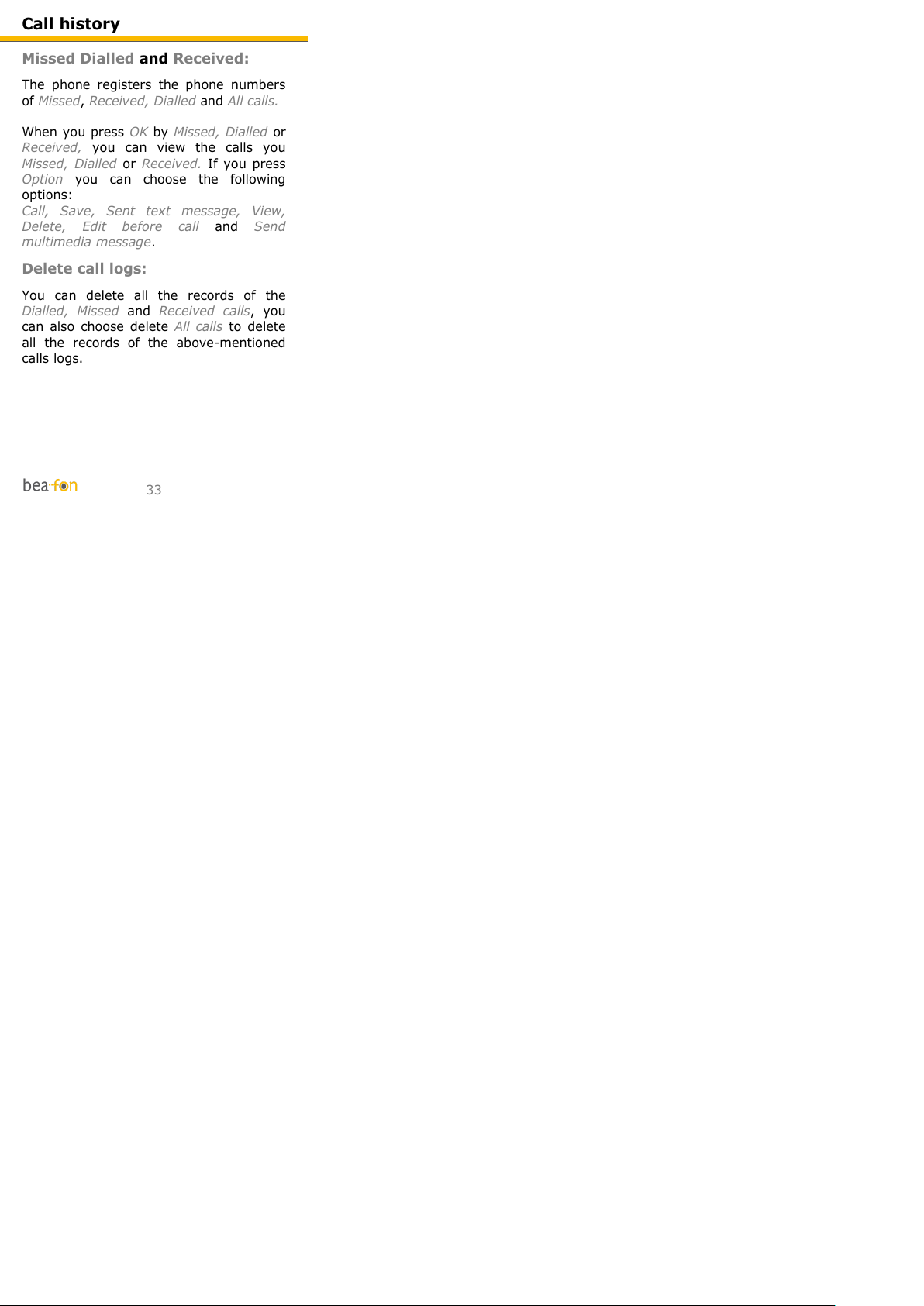

Call history ....................................... 33
Missed Dialled and Received: ........... 33
Delete call logs: ............................. 33

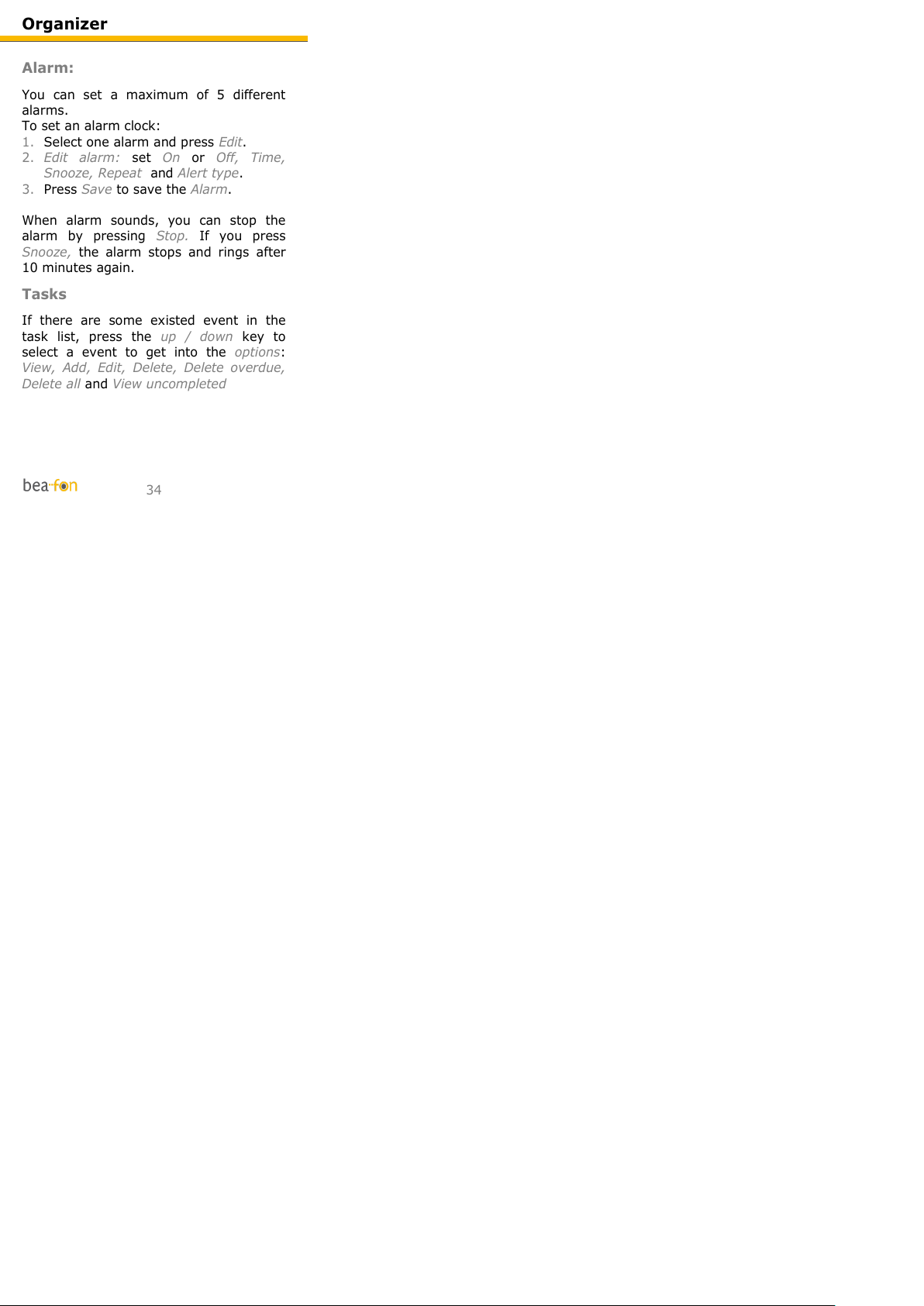

Organizer ......................................... 34
Alarm: .......................................... 34
Tasks ............................................ 34

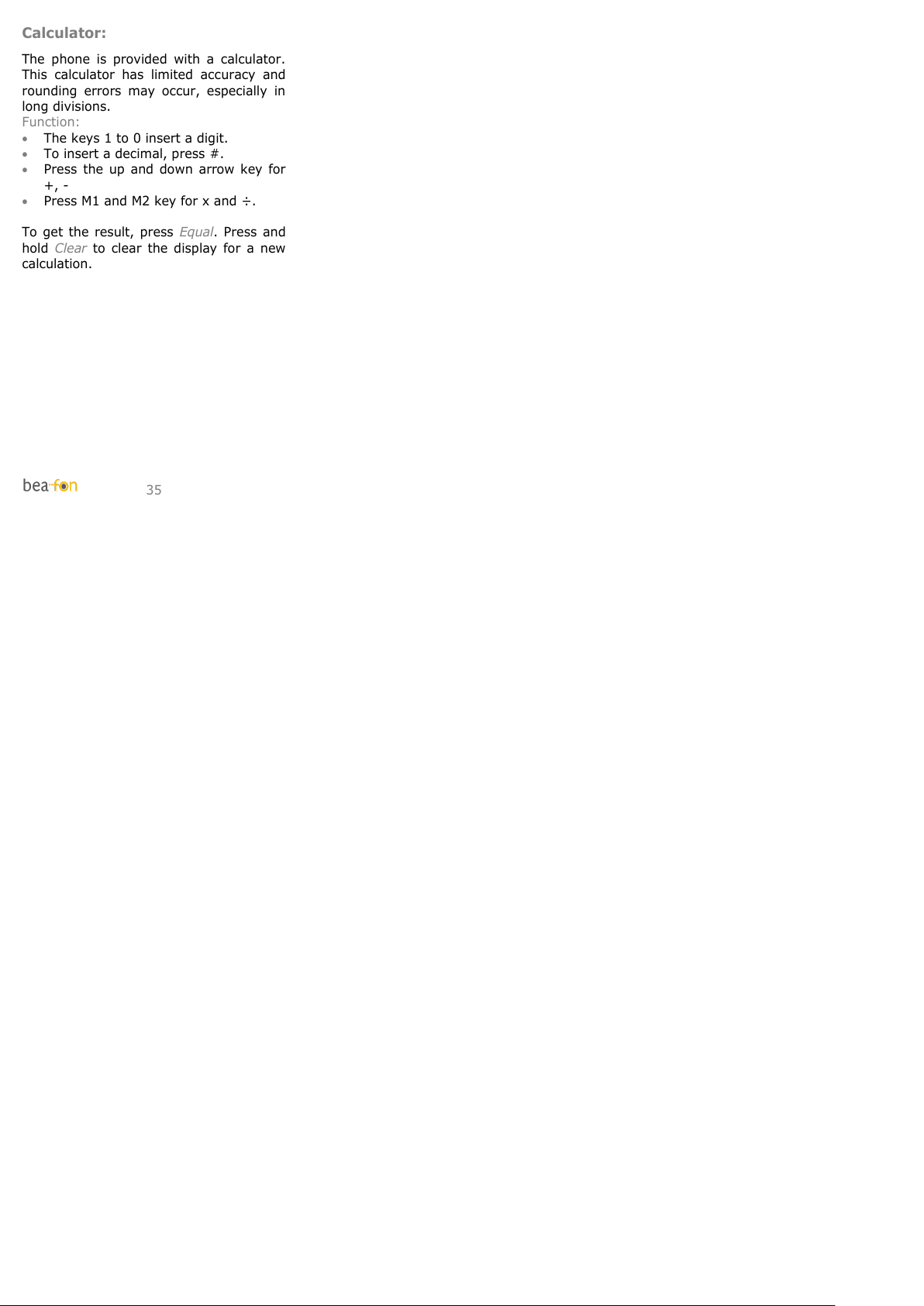

Calculator: .................................... 35
All manuals and user guides at all-guides.com
all-guides.com
Page 7
7

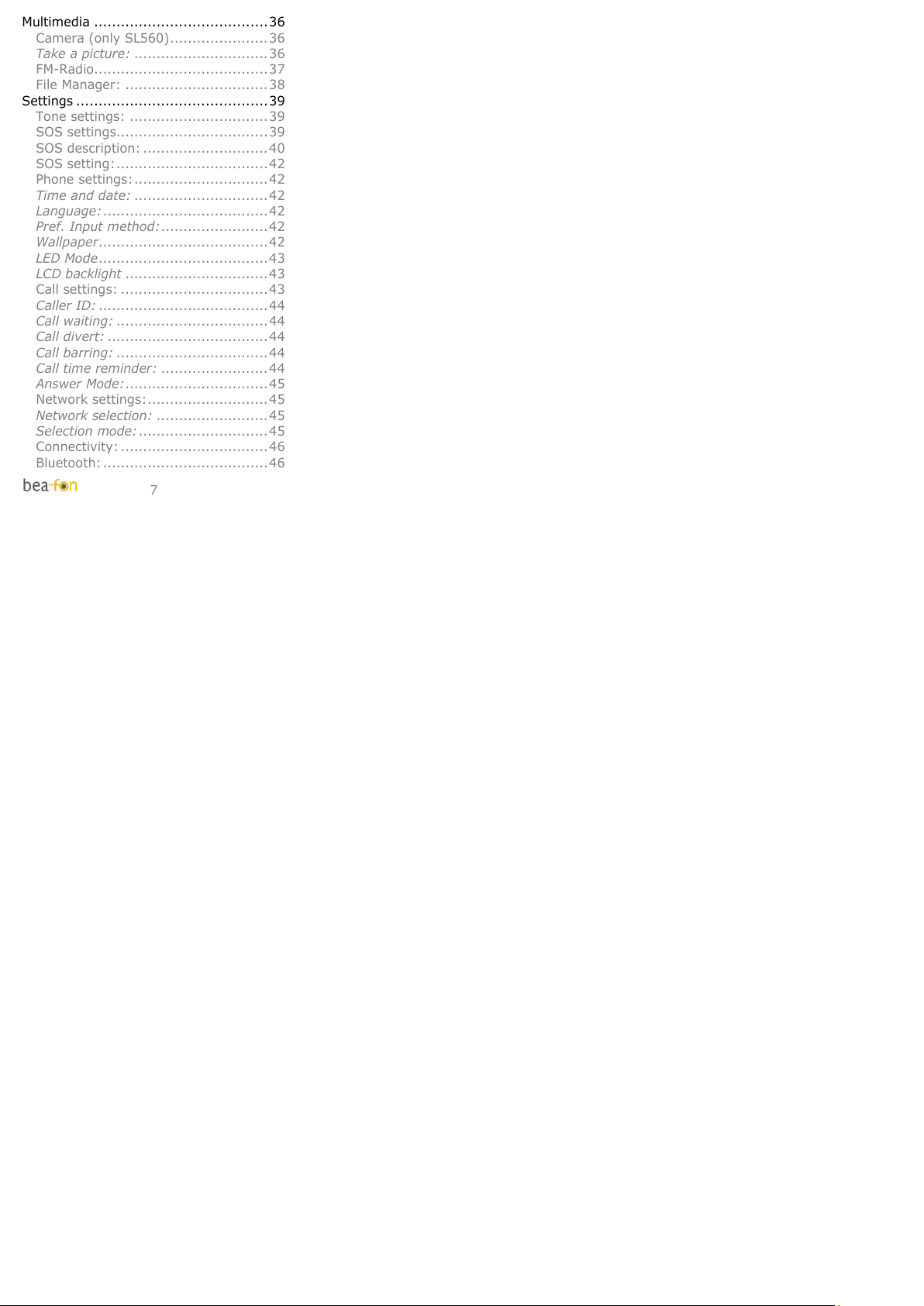

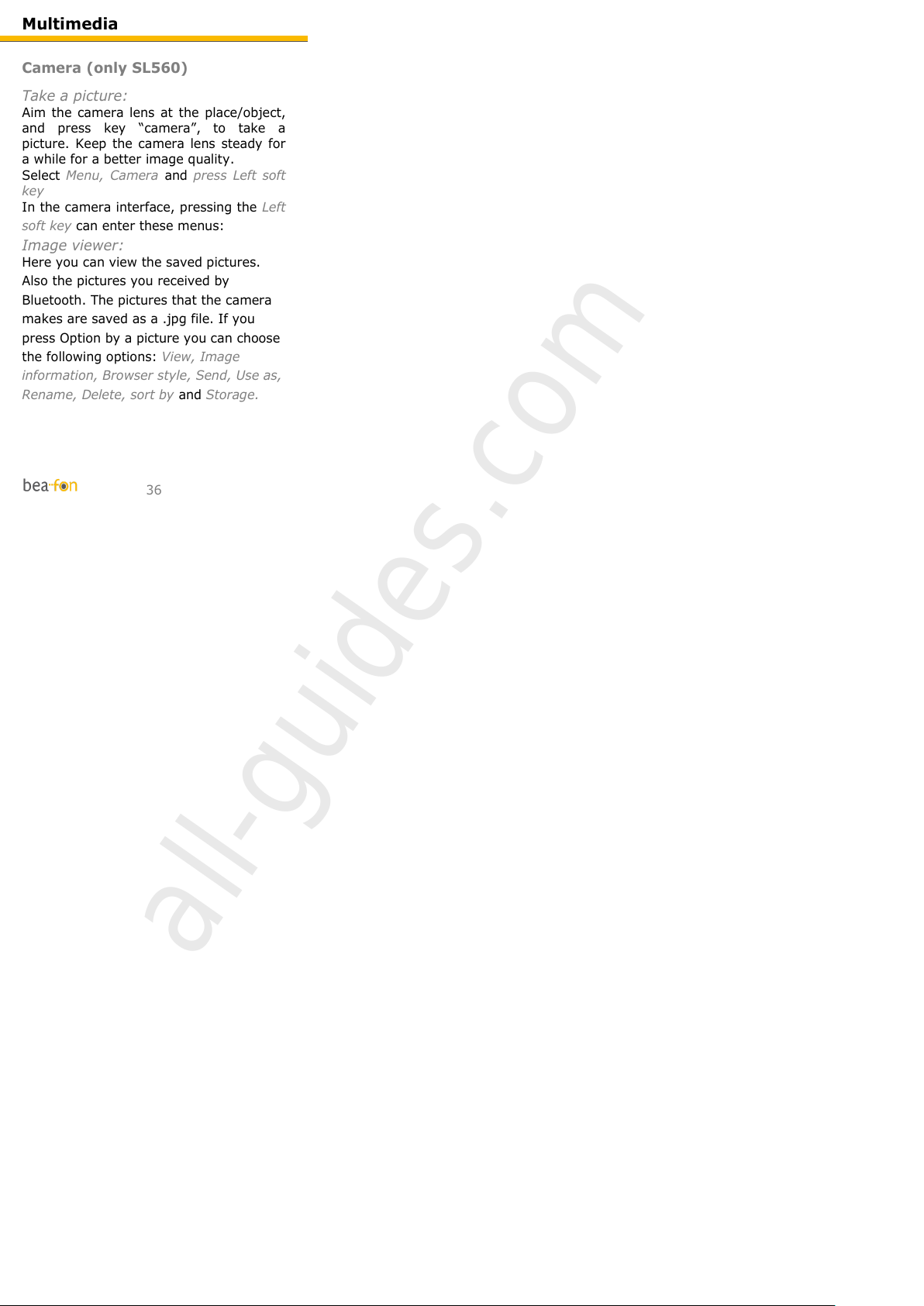

Multimedia ....................................... 36
Camera (only SL560) ...................... 36
Take a picture: .............................. 36

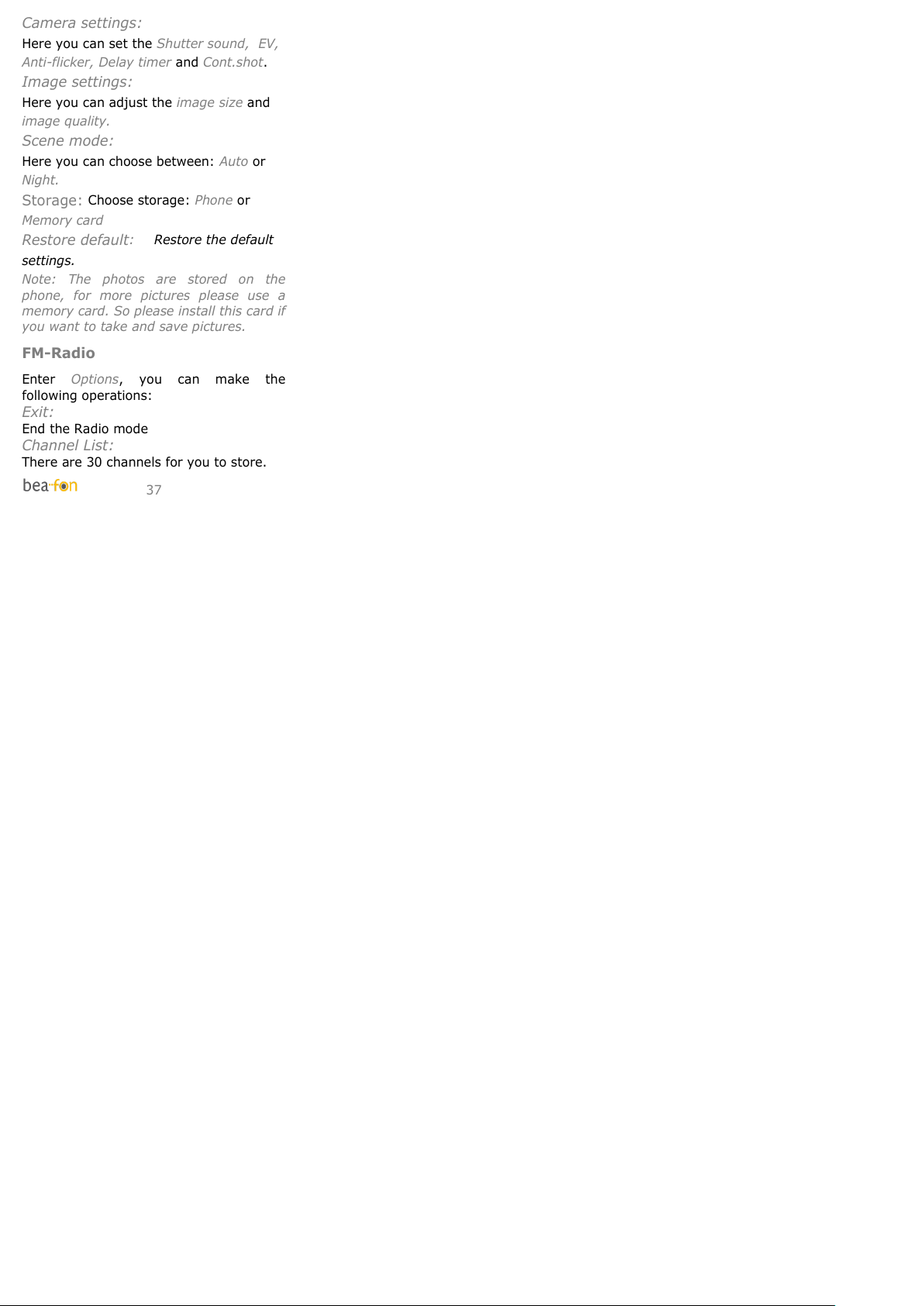

FM-Radio....................................... 37
File Manager: ................................ 38
Settings ........................................... 39

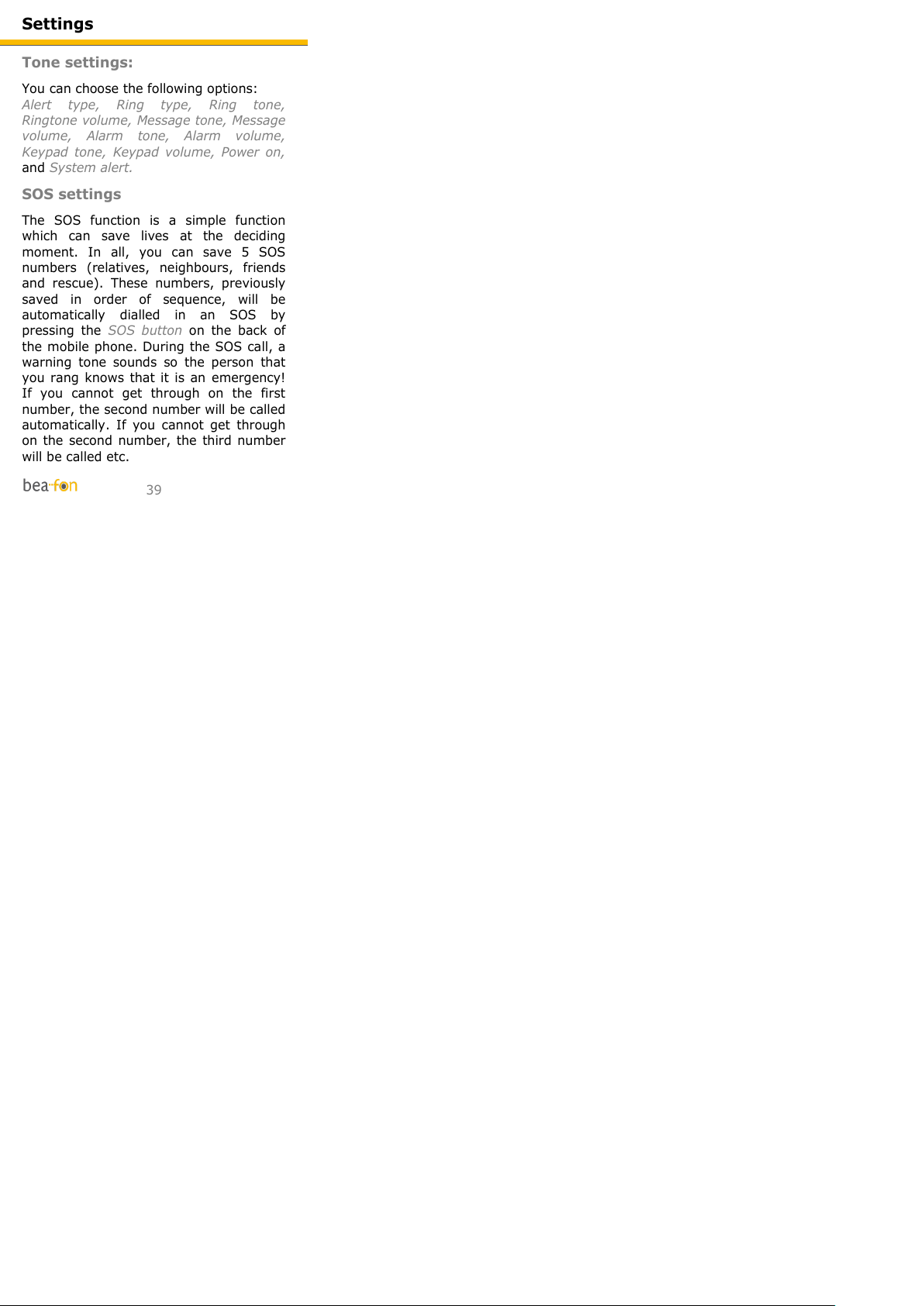

Tone settings: ............................... 39
SOS settings.................................. 39

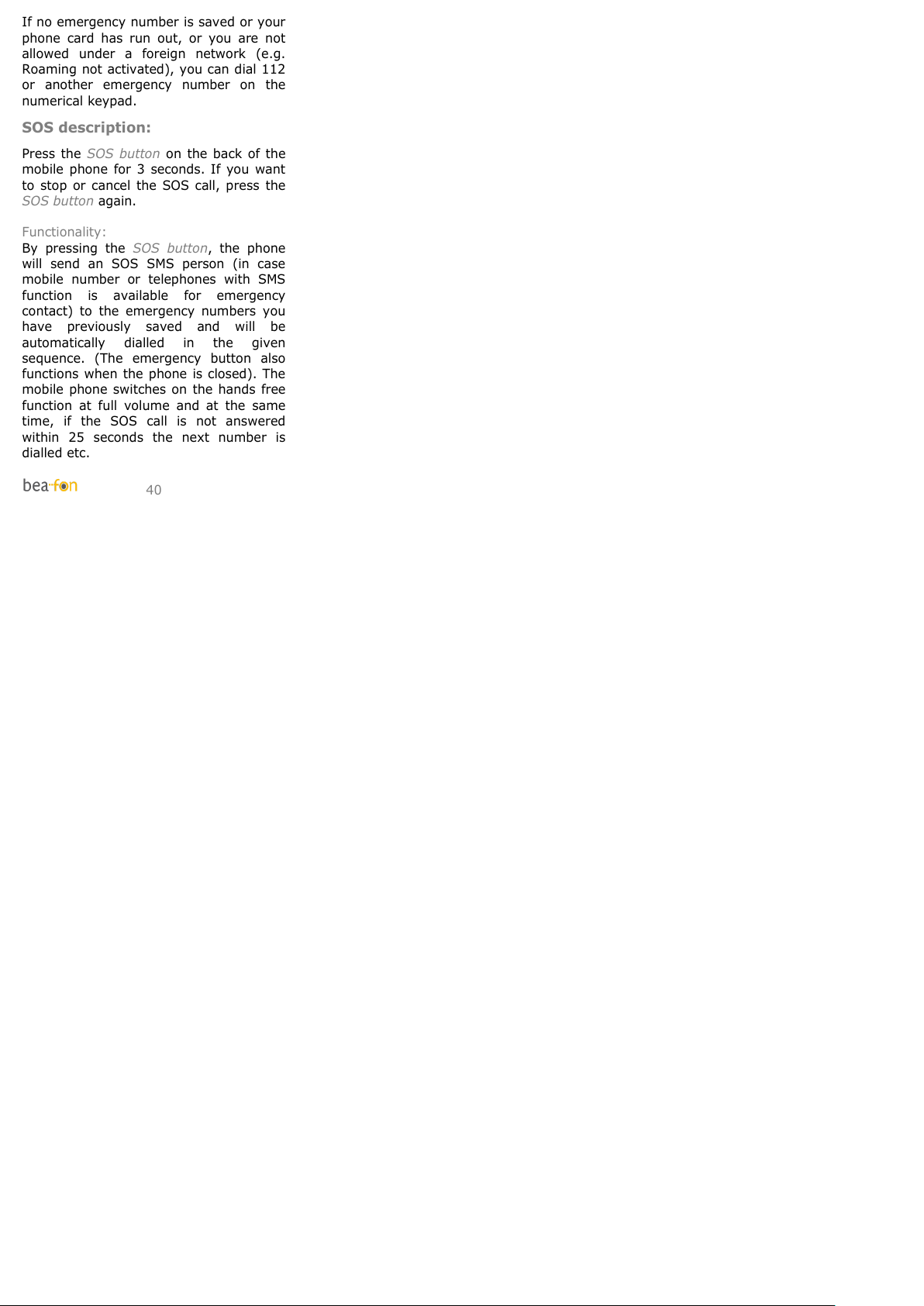

SOS description: ............................ 40

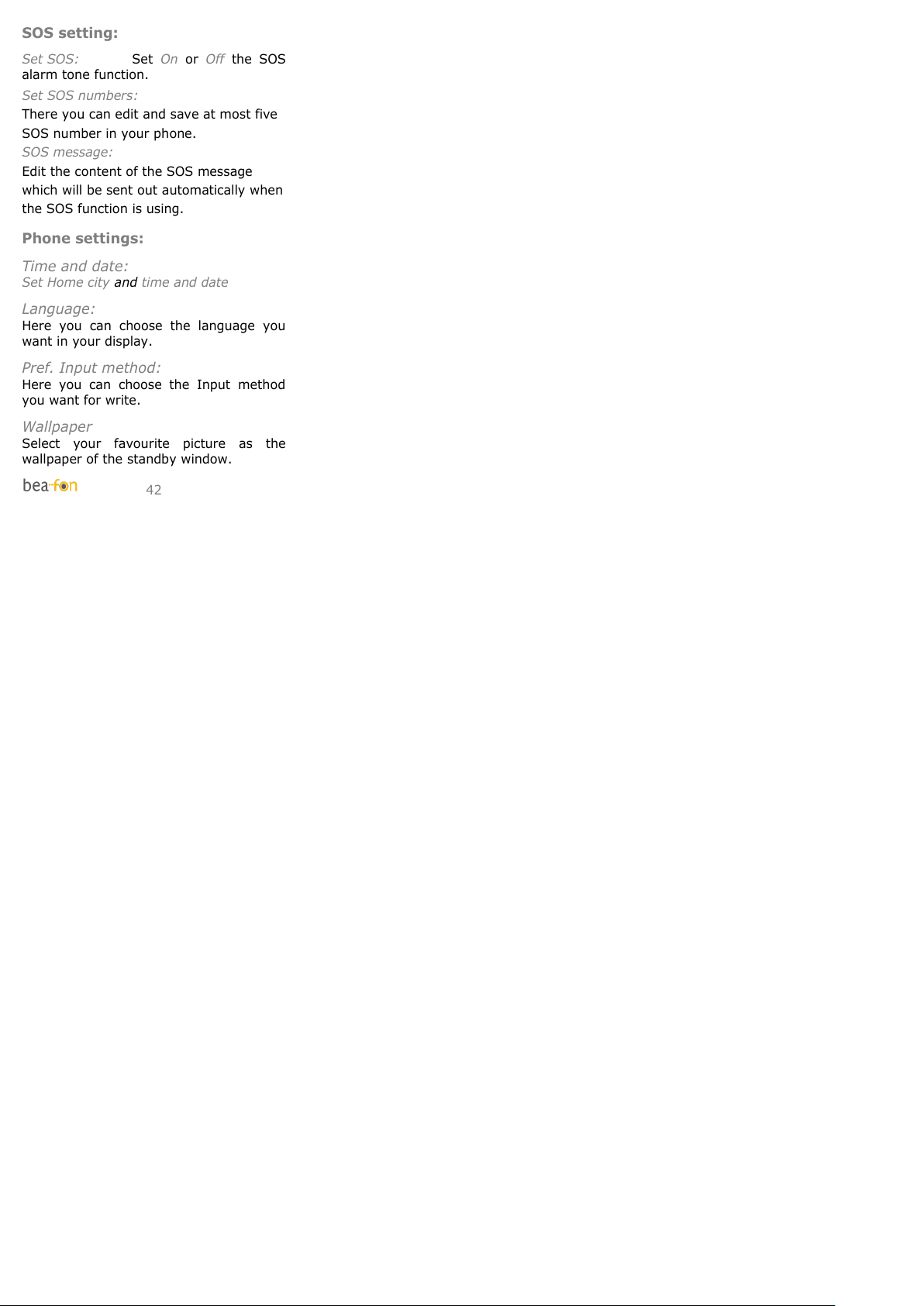

SOS setting: .................................. 42
Phone settings: .............................. 42
Time and date: .............................. 42
Language: ..................................... 42
Pref. Input method: ........................ 42
Wallpaper ...................................... 42

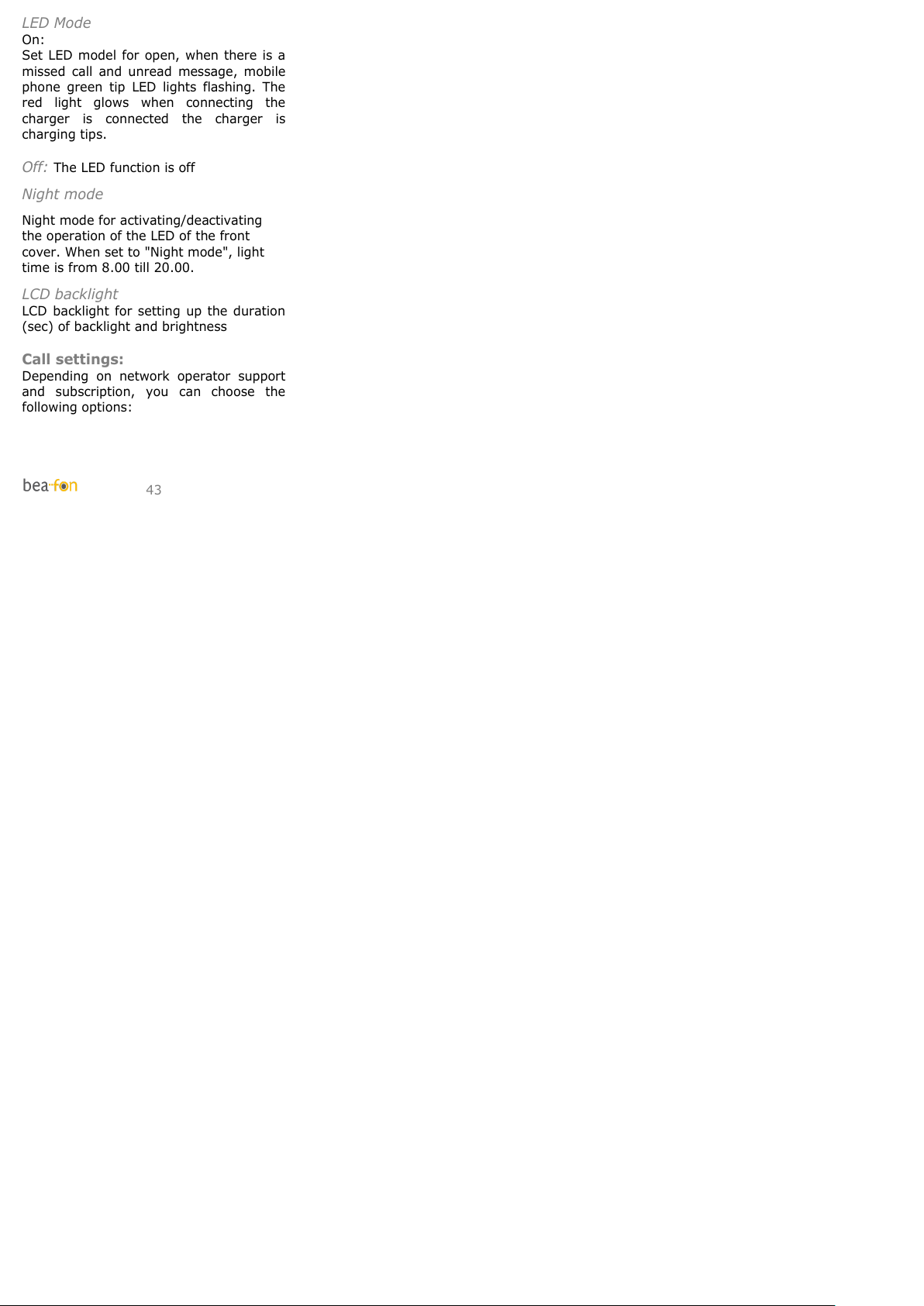

LED Mode ...................................... 43
LCD backlight ................................ 43
Call settings: ................................. 43
Caller ID: ...................................... 44
Call waiting: .................................. 44
Call divert: .................................... 44
Call barring: .................................. 44
Call time reminder: ........................ 44
Answer Mode: ................................ 45
Network settings: ........................... 45
Network selection: ......................... 45
Selection mode: ............................. 45
Connectivity: ................................. 46
Bluetooth: ..................................... 46
All manuals and user guides at all-guides.com
Page 8
8

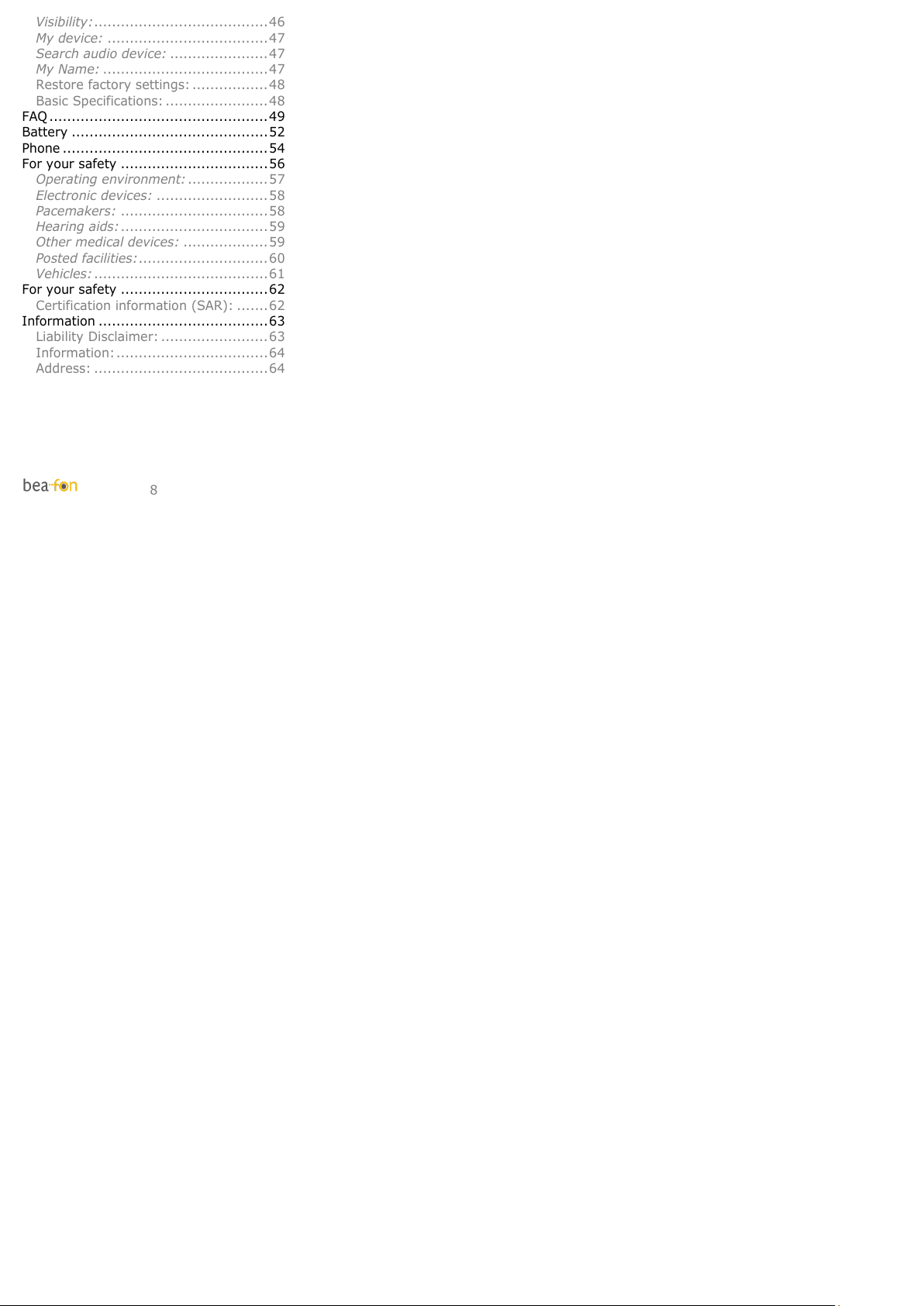

Visibility: ....................................... 46

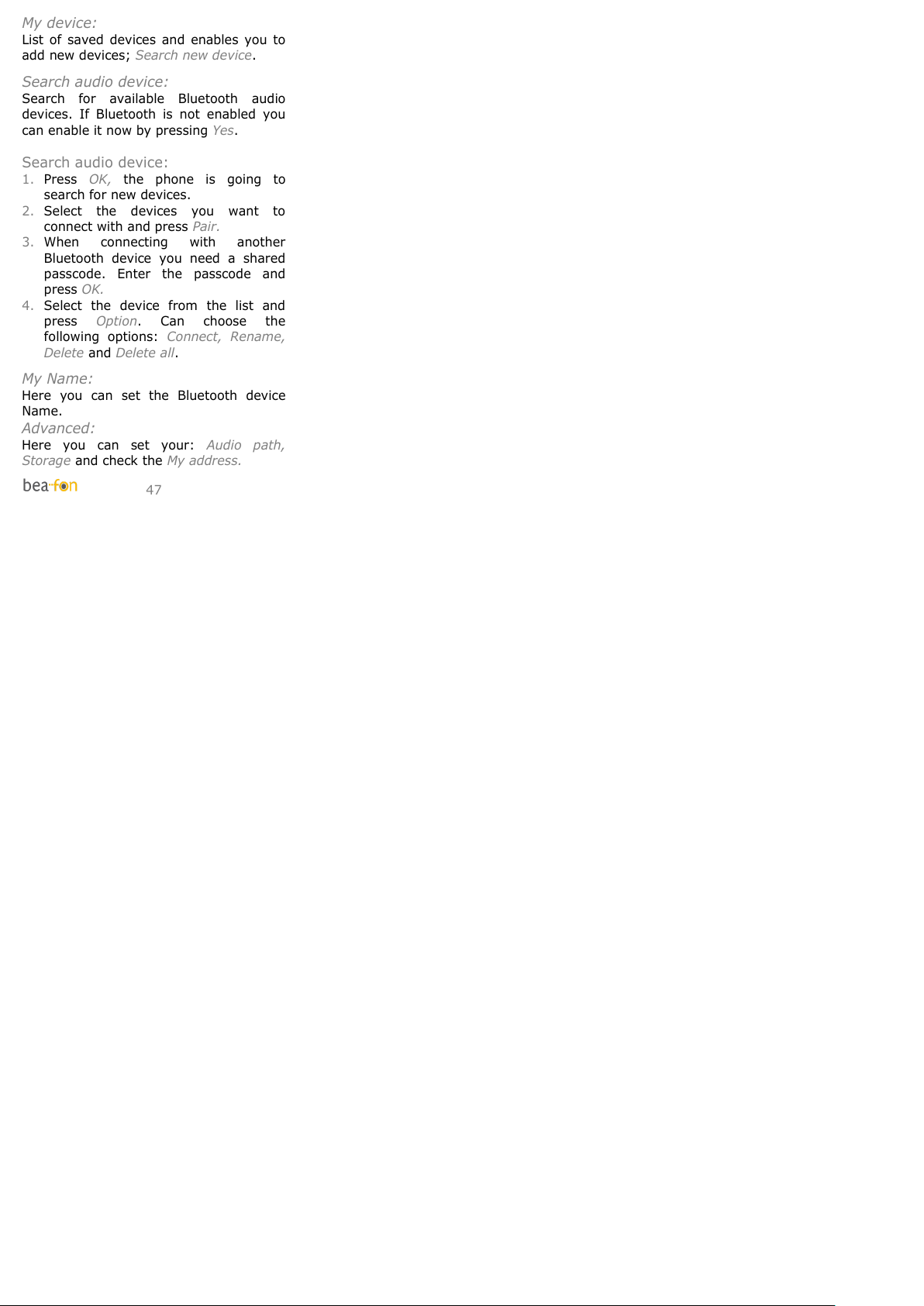

My device: .................................... 47
Search audio device: ...................... 47
My Name: ..................................... 47

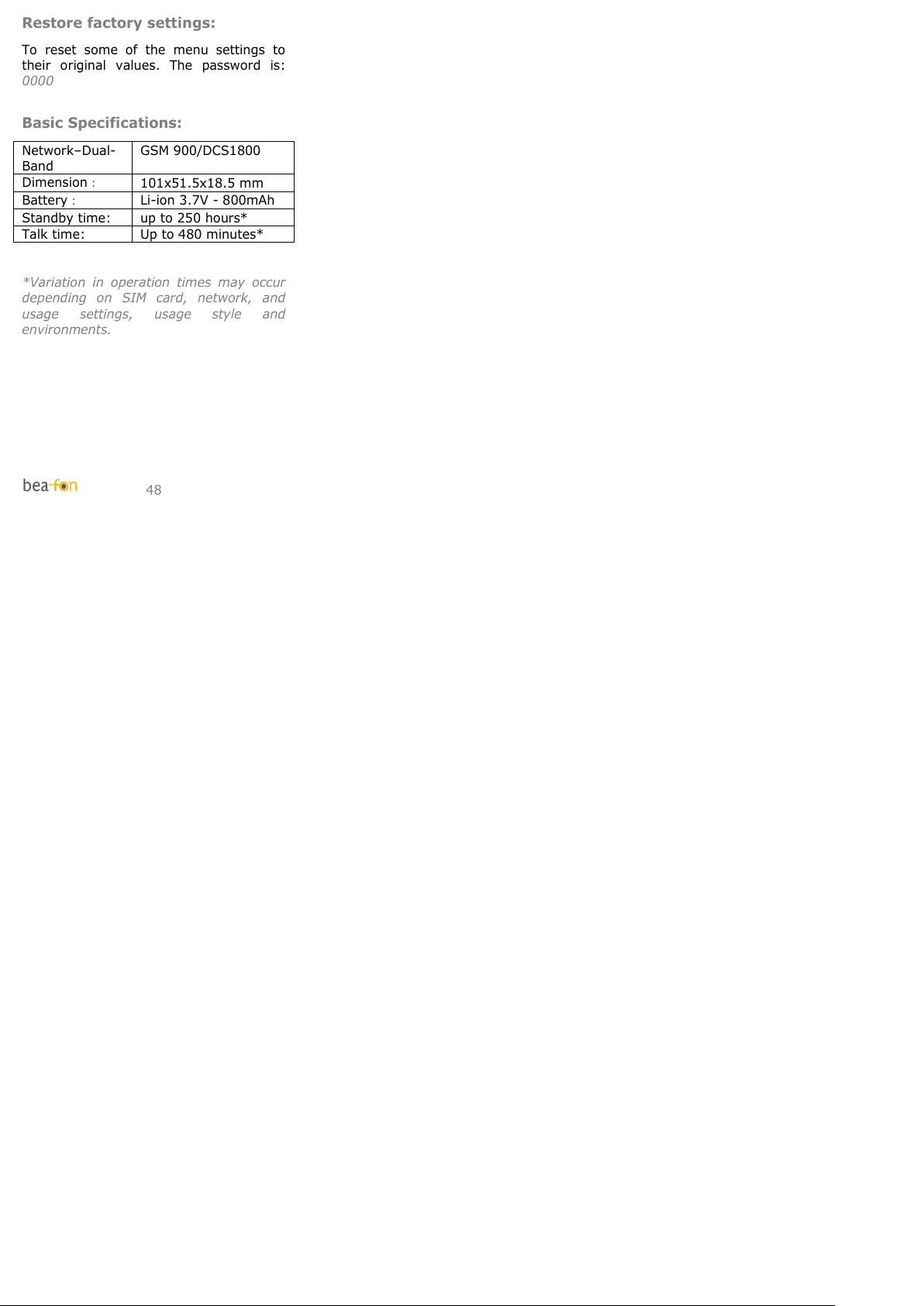

Restore factory settings: ................. 48
Basic Specifications: ....................... 48

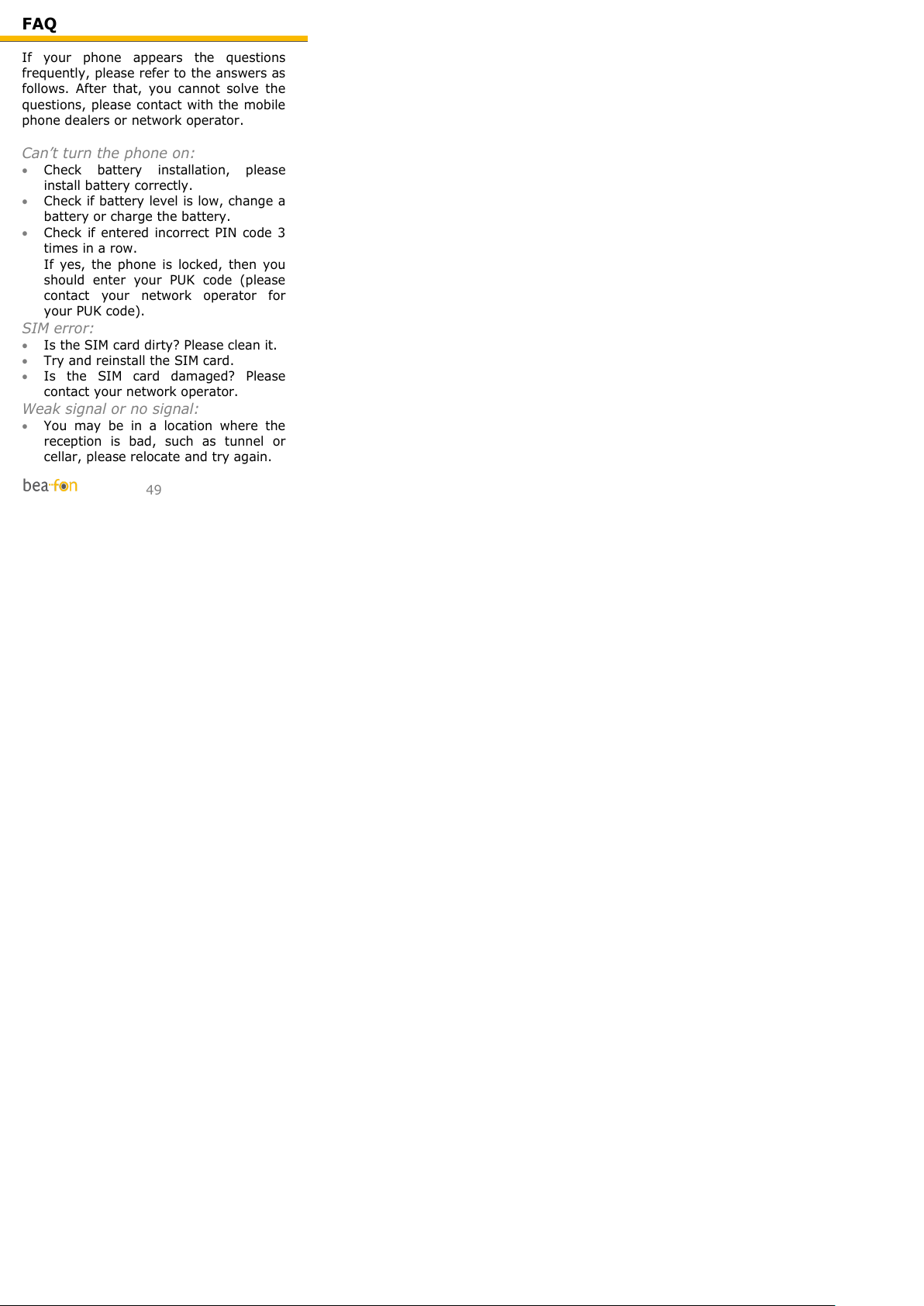

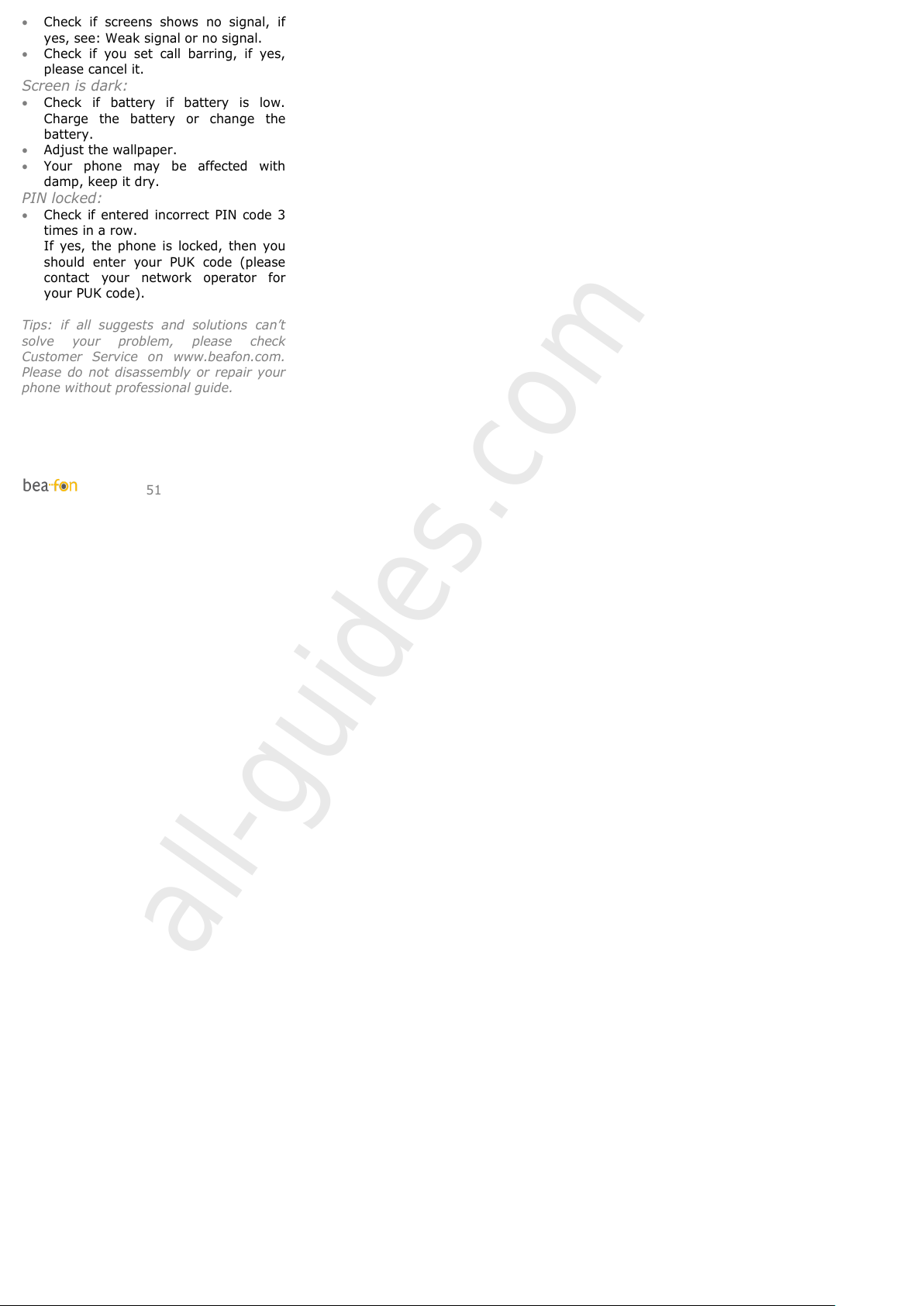

FAQ ................................................. 49

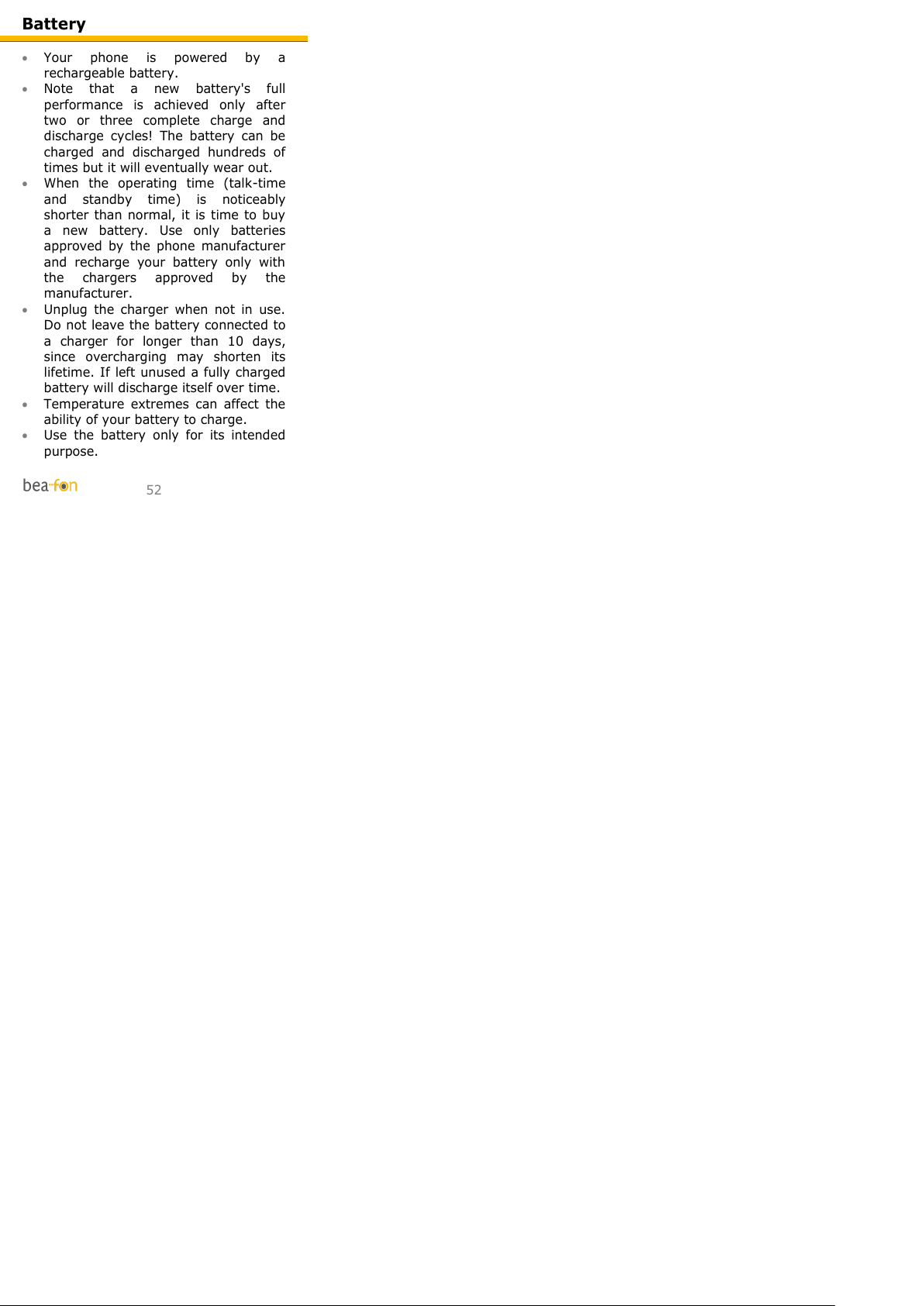

Battery ............................................ 52

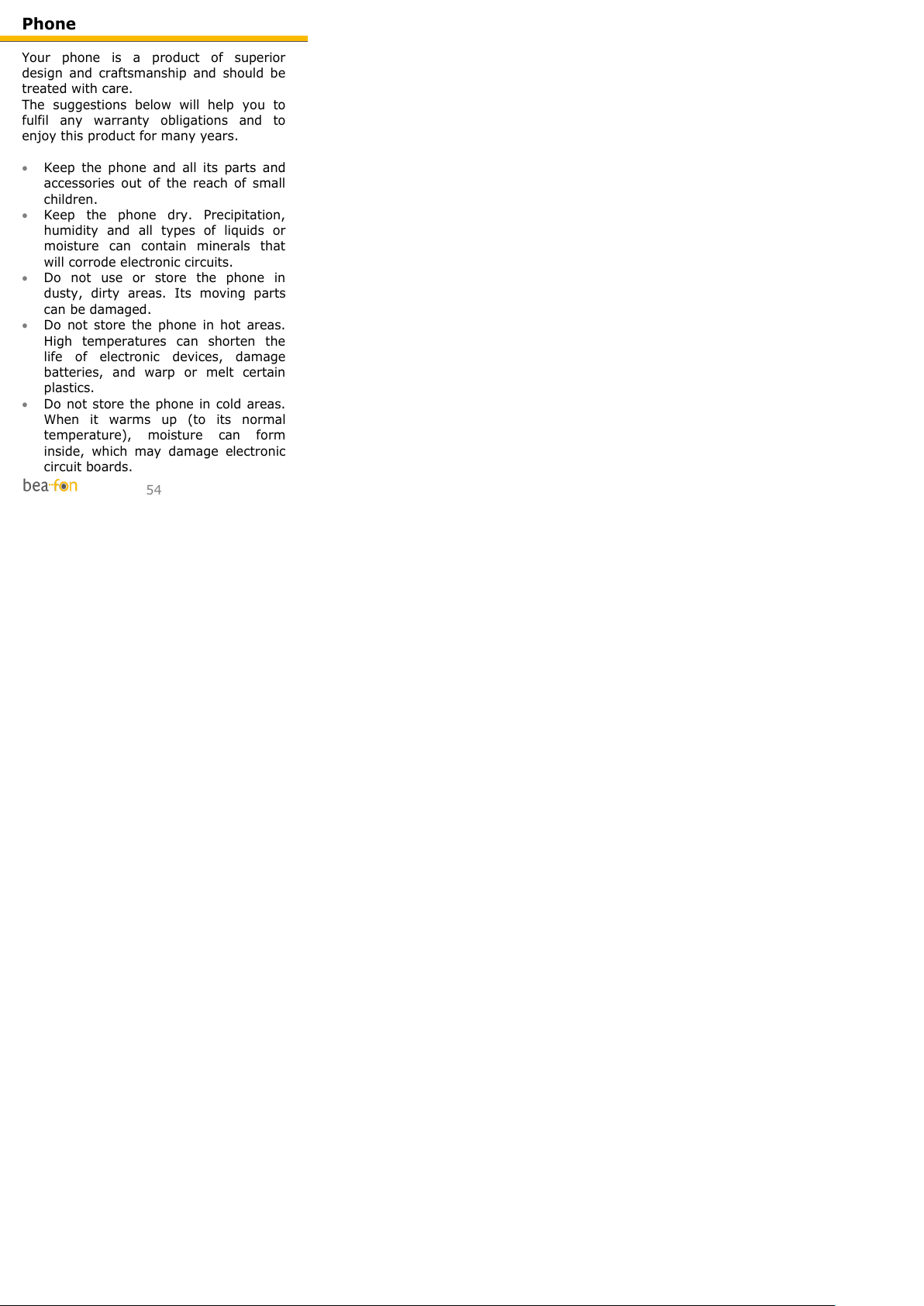

Phone .............................................. 54

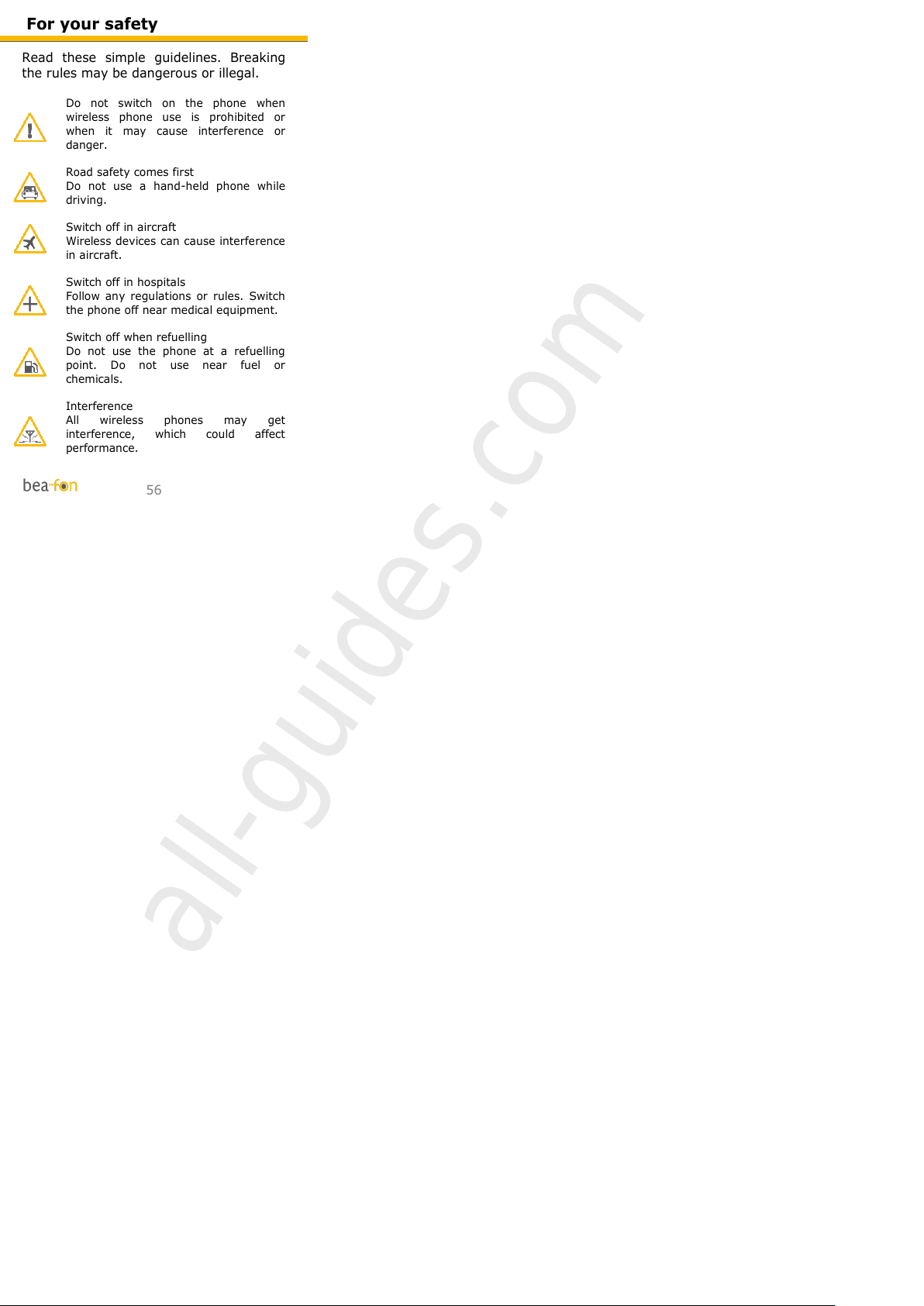

For your safety ................................. 56

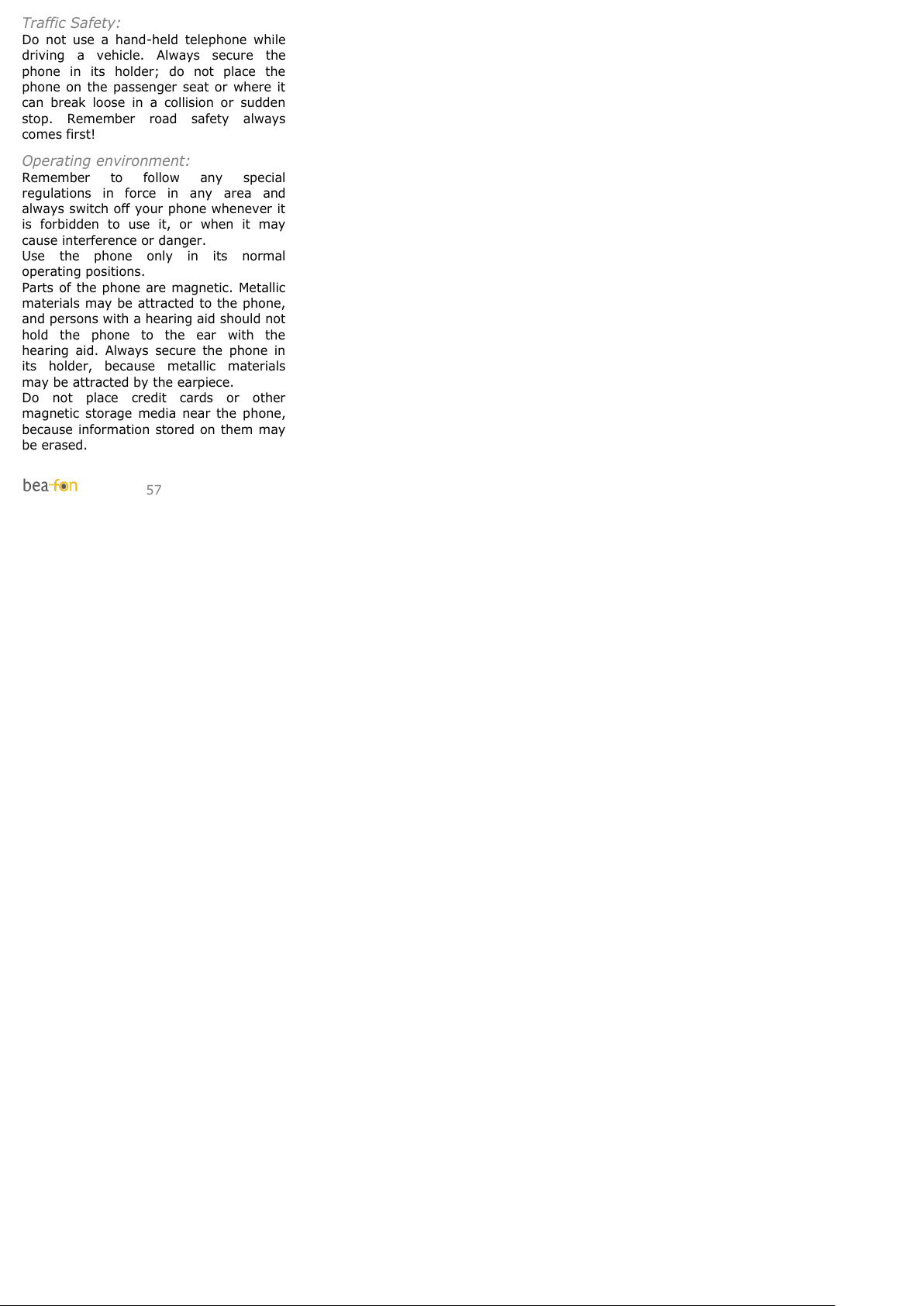

Operating environment: .................. 57

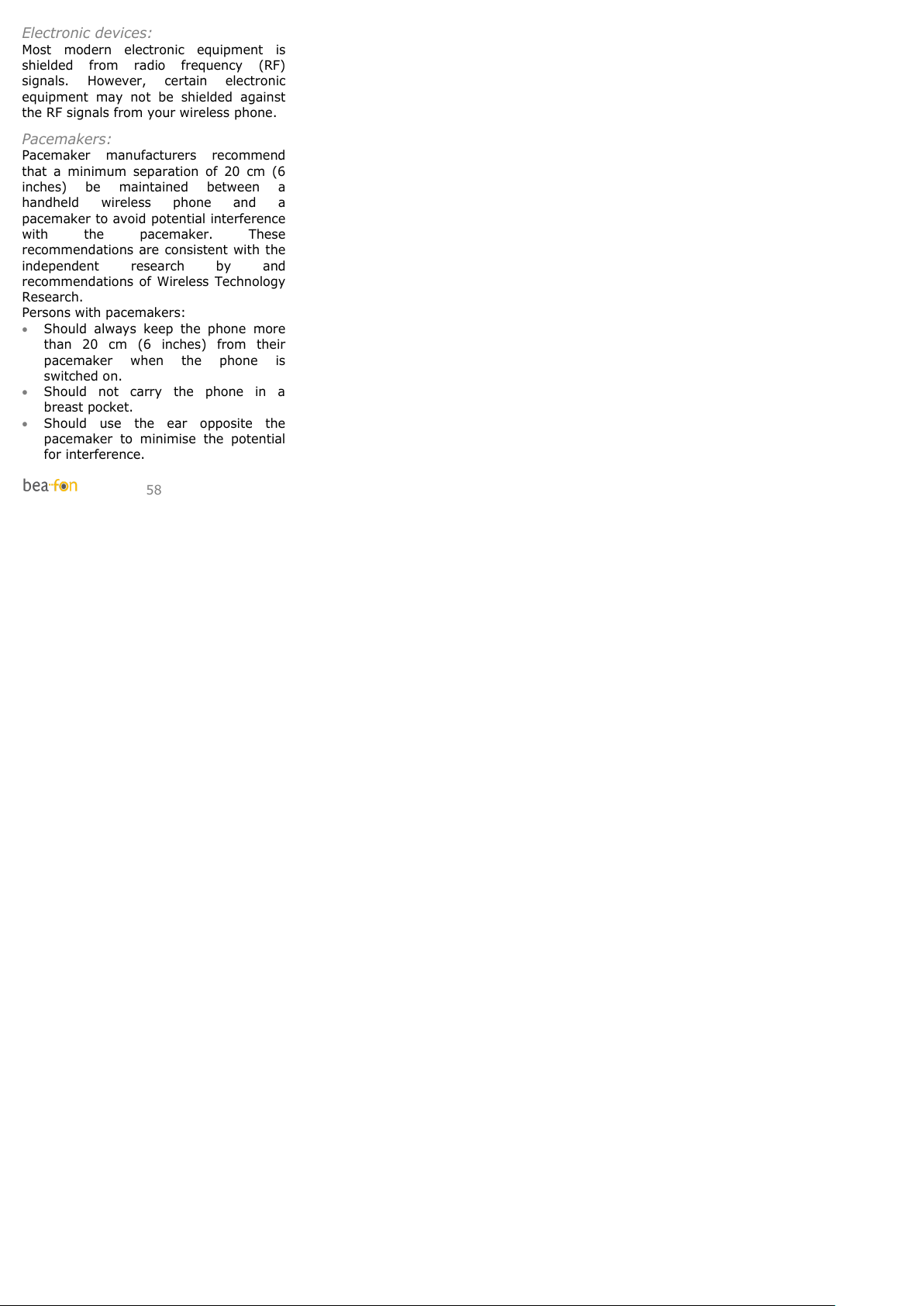

Electronic devices: ......................... 58
Pacemakers: ................................. 58

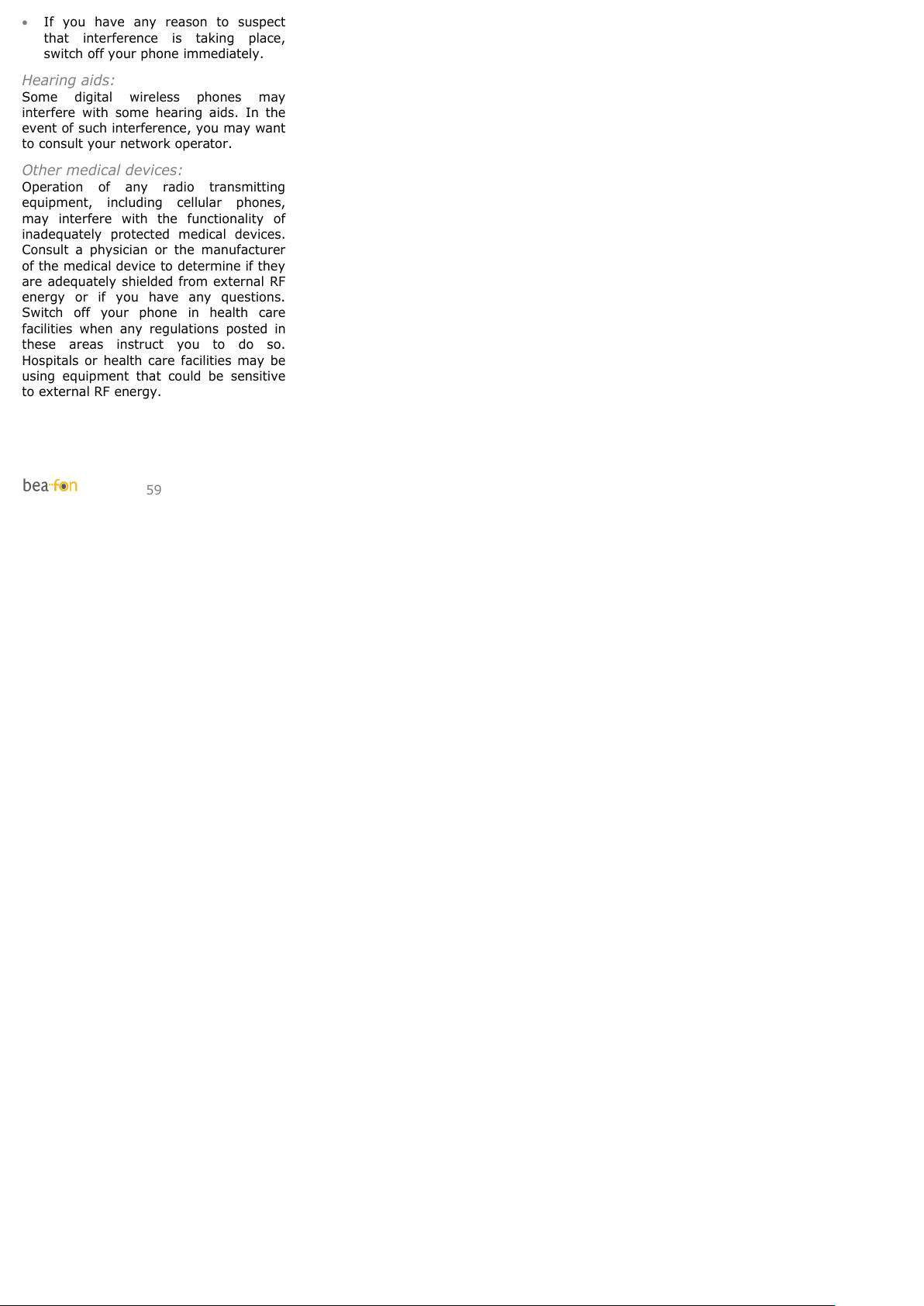

Hearing aids: ................................. 59
Other medical devices: ................... 59

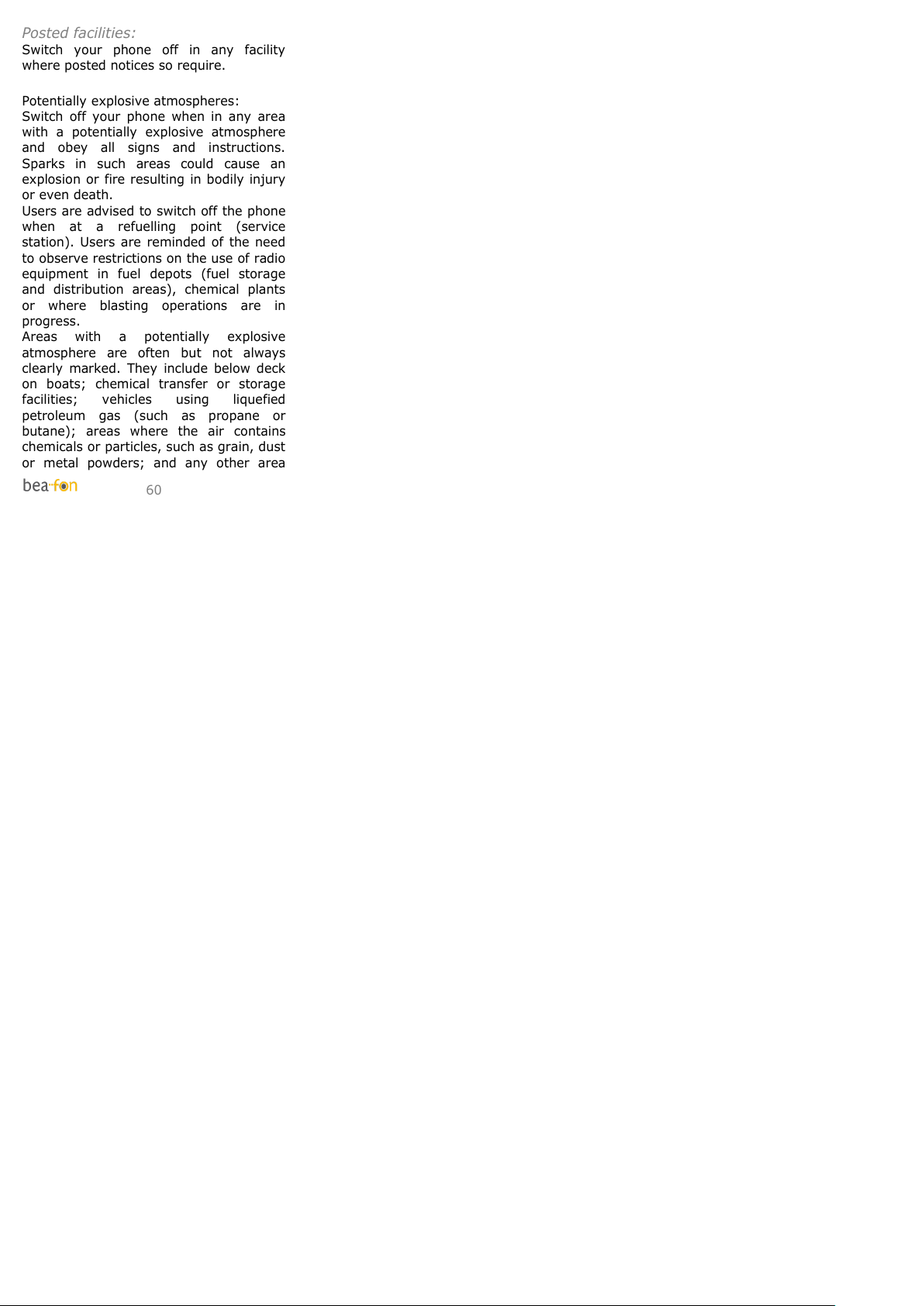

Posted facilities: ............................. 60

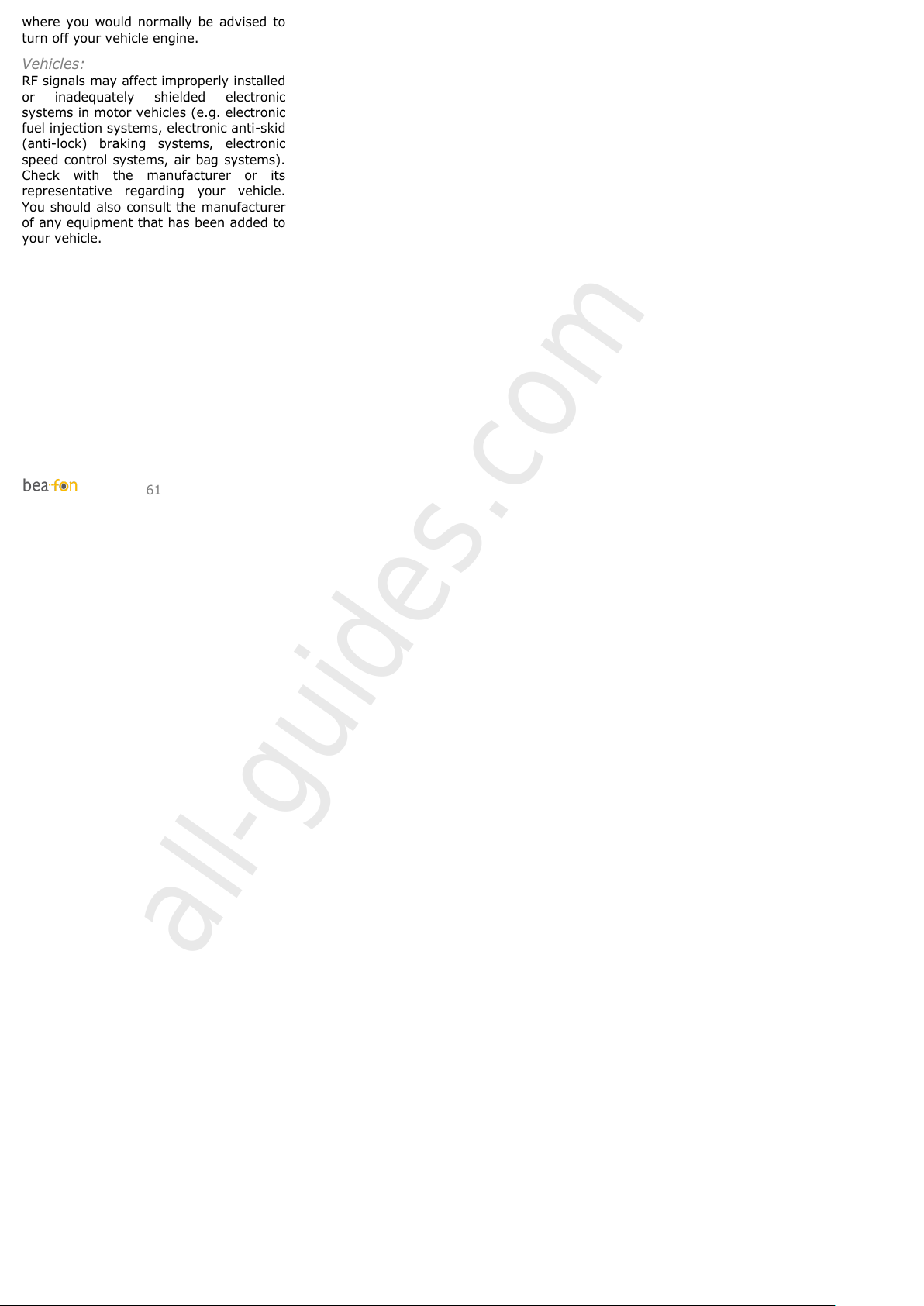

Vehicles: ....................................... 61
For your safety ................................. 62

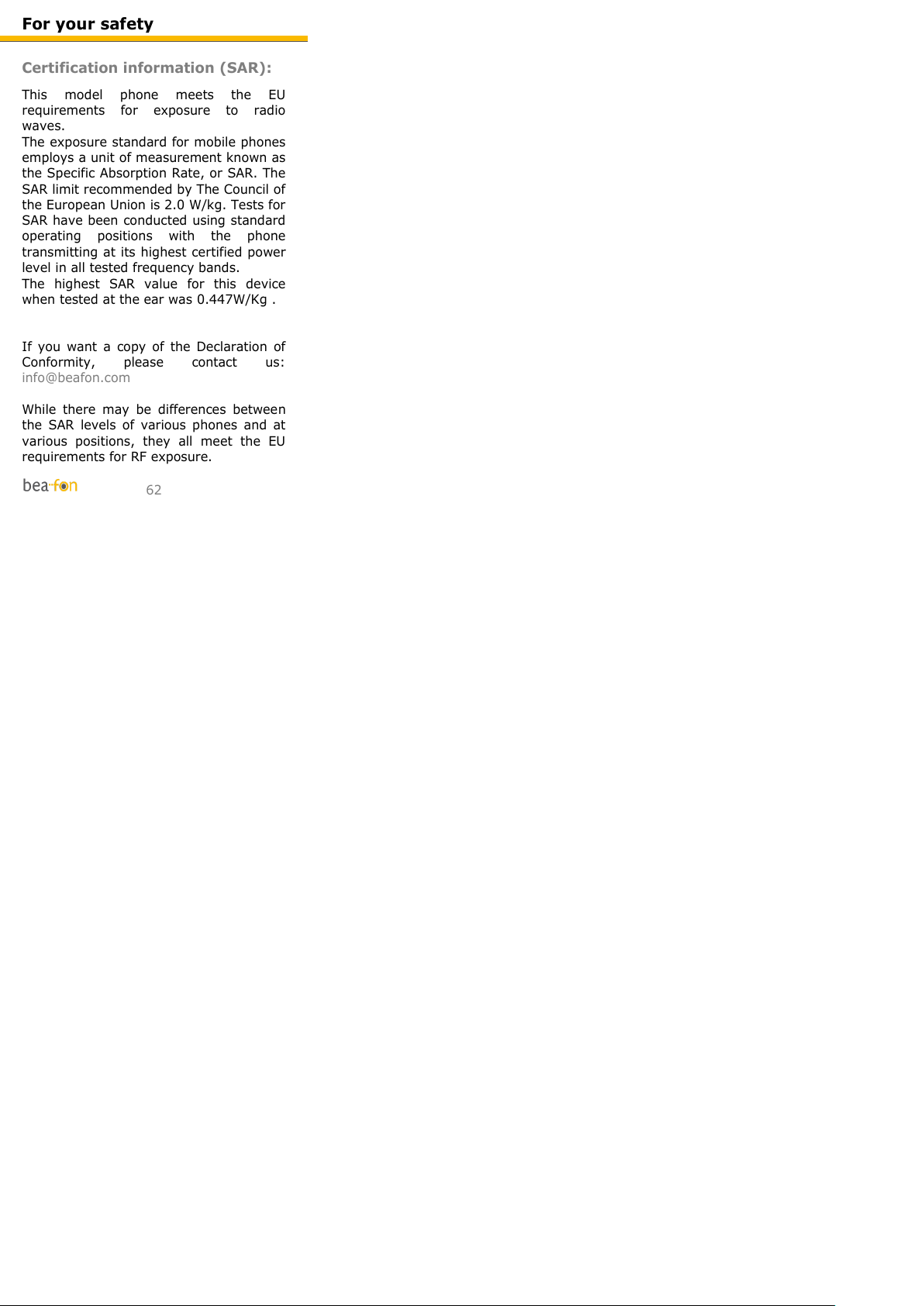

Certification information (SAR): ....... 62
Information ...................................... 63
Liability Disclaimer: ........................ 63

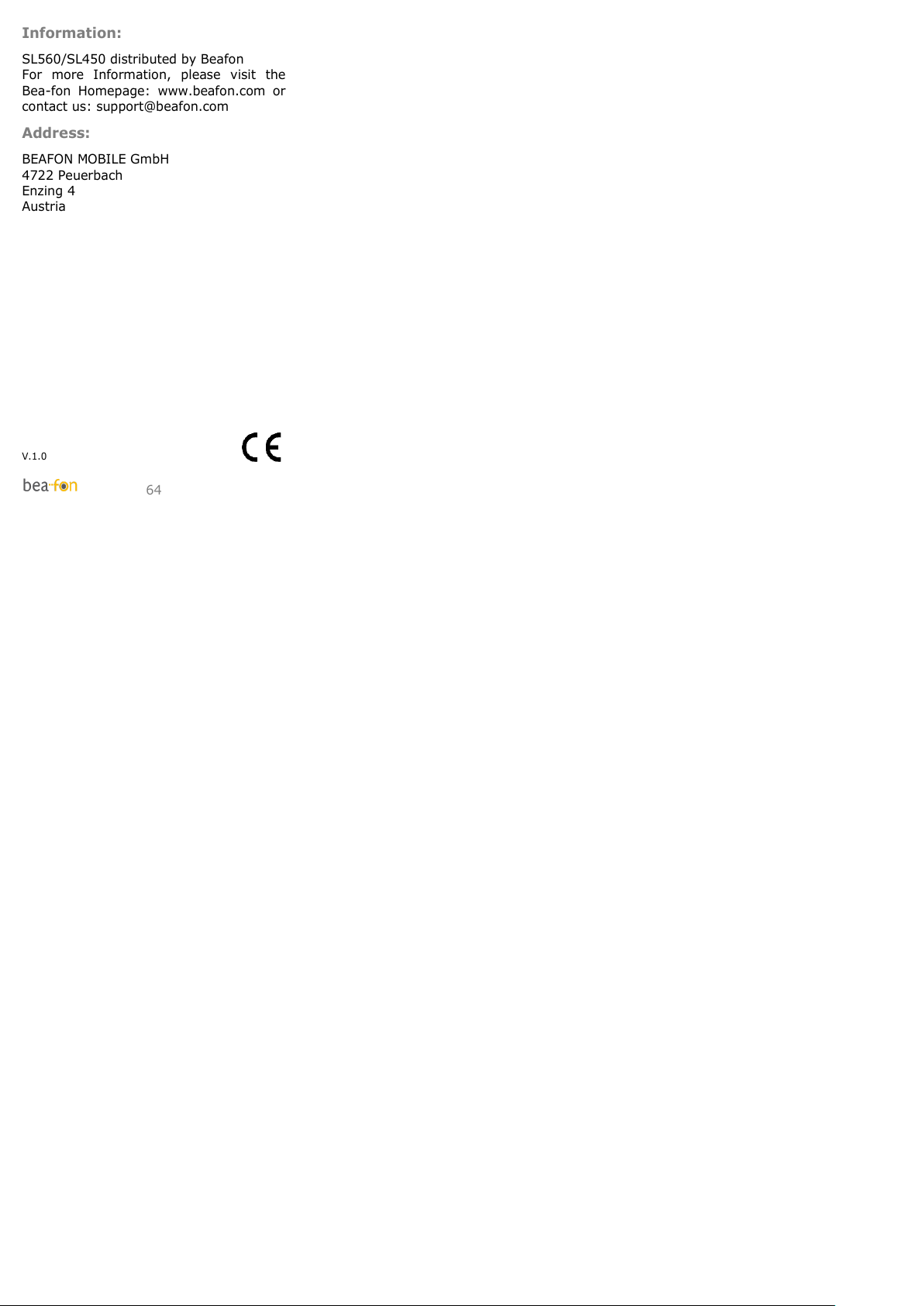

Information: .................................. 64
Address: ....................................... 64
All manuals and user guides at all-guides.com
Page 9
9

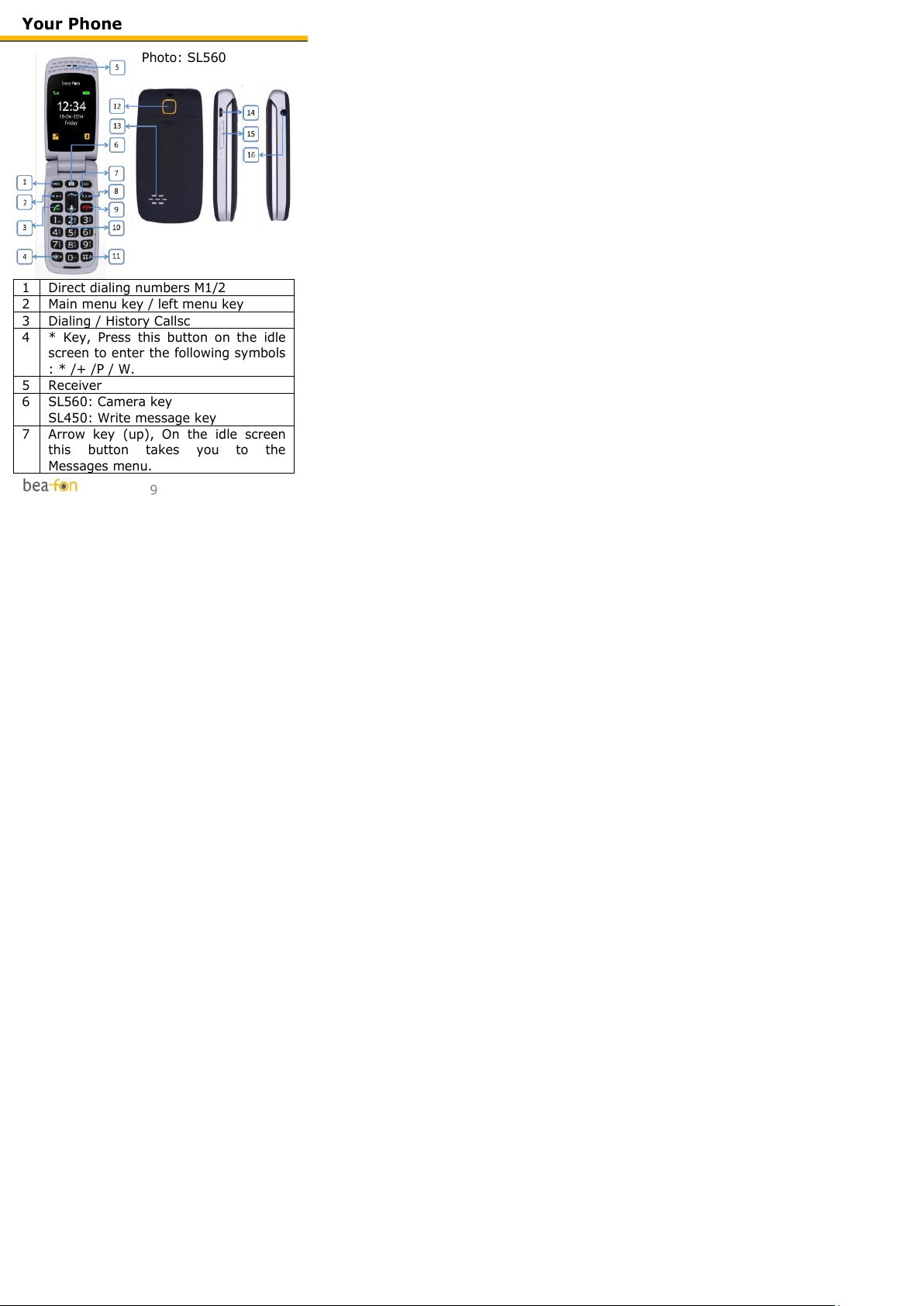

Your Phone
Photo: SL560
1
Direct dialing numbers M1/2
2
Main menu key / left menu key
3
Dialing / History Callsc
4
* Key, Press this button on the idle
screen to enter the following symbols
: * /+ /P / W.
5
Receiver
6
SL560: Camera key
SL450: Write message key
7
Arrow key (up), On the idle screen
this button takes you to the
Messages menu.
All manuals and user guides at all-guides.com
Page 10
10

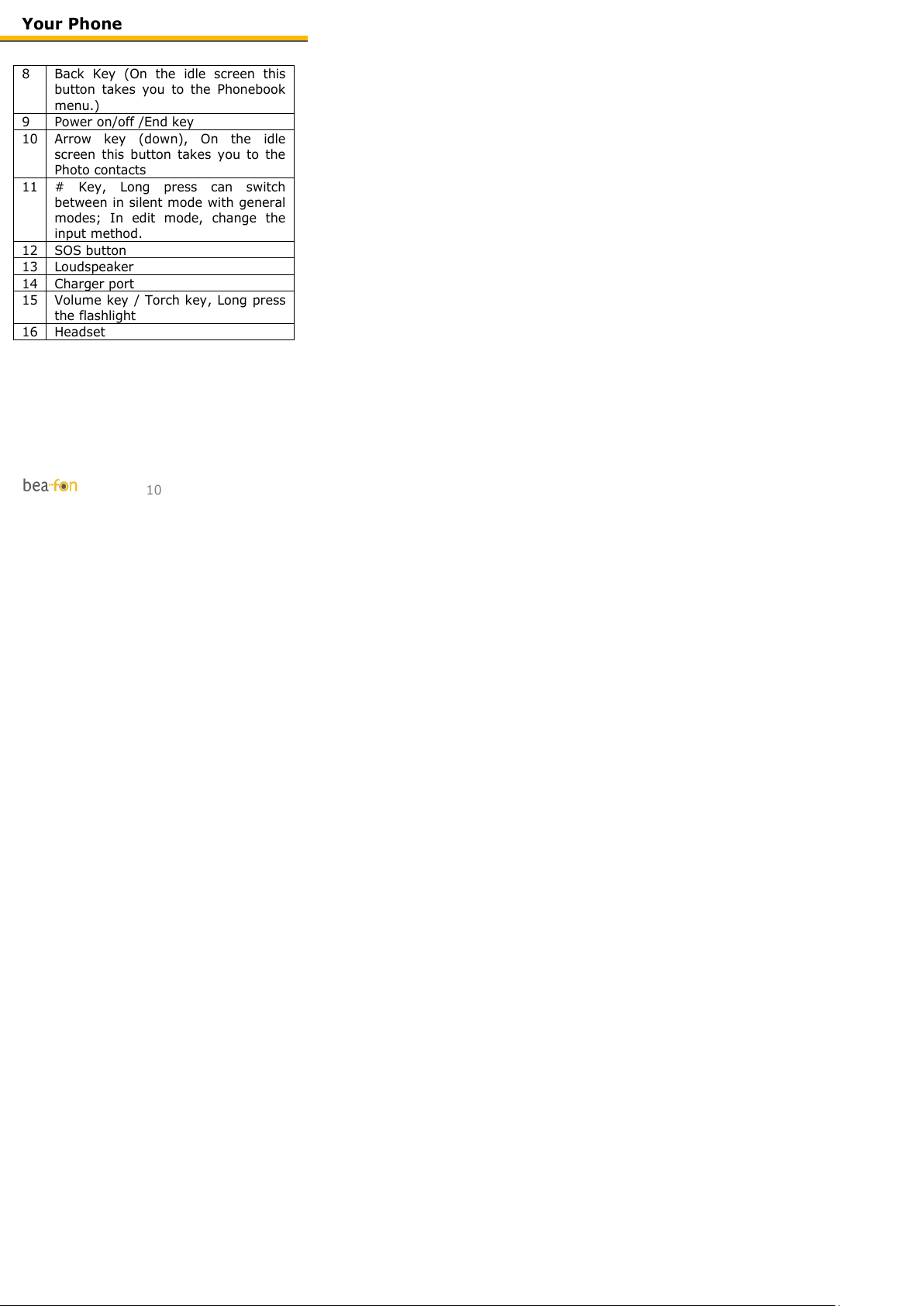

Your Phone
8
Back Key (On the idle screen this
button takes you to the Phonebook
menu.)
9
Power on/off /End key
10
Arrow key (down), On the idle
screen this button takes you to the
Photo contacts
11
# Key, Long press can switch
between in silent mode with general
modes; In edit mode, change the
input method.
12
SOS button
13
Loudspeaker
14
Charger port
15
Volume key / Torch key, Long press
the flashlight
16
Headset
All manuals and user guides at all-guides.com
Page 11
11

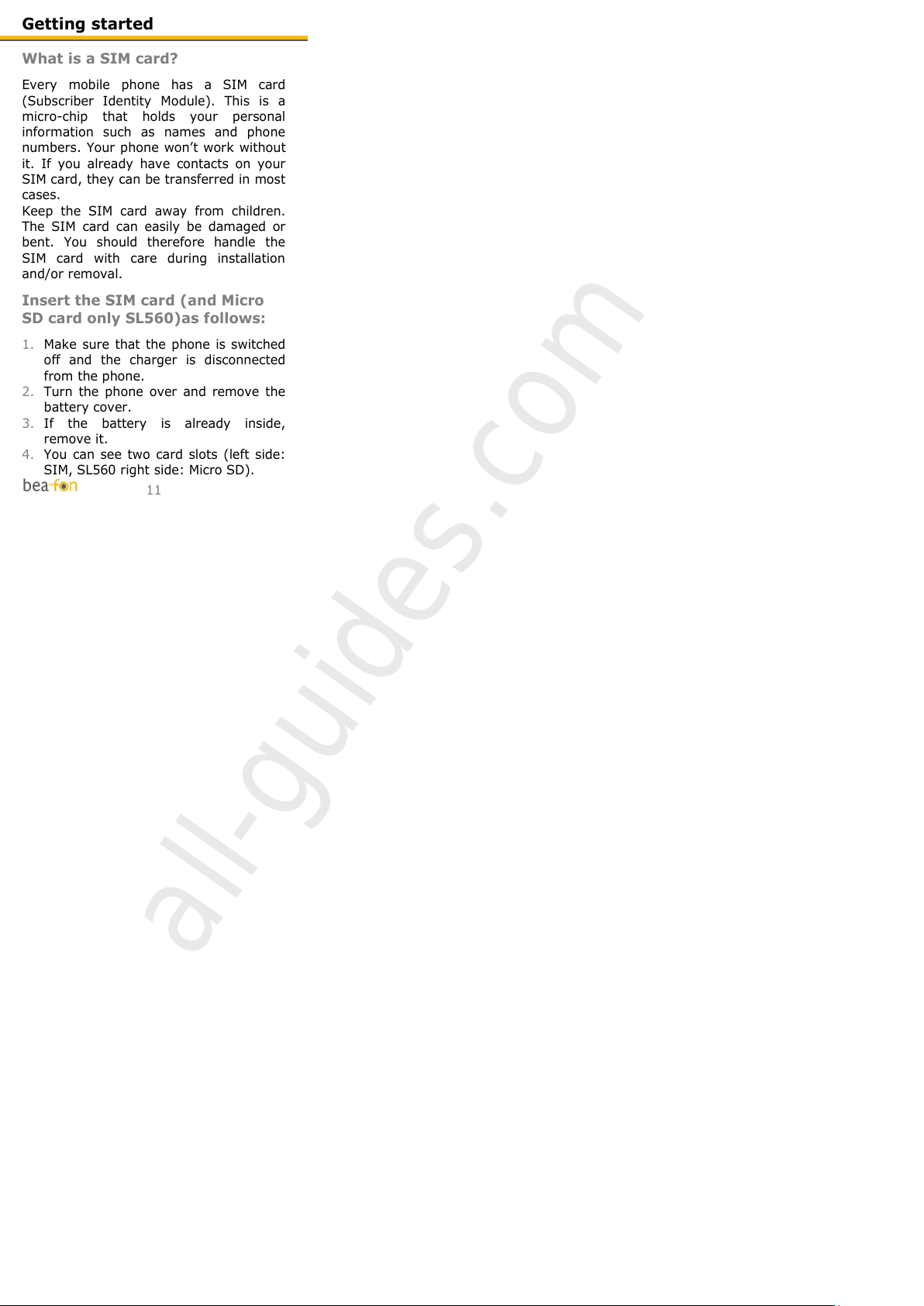

Getting started
What is a SIM card?
Every mobile phone has a SIM card
(Subscriber Identity Module). This is a
micro-chip that holds your personal
information such as names and phone
numbers. Your phone won’t work without
it. If you already have contacts on your
SIM card, they can be transferred in most
cases.
Keep the SIM card away from children.
The SIM card can easily be damaged or
bent. You should therefore handle the
SIM card with care during installation
and/or removal.
Insert the SIM card (and Micro
SD card only SL560)as follows:
1. Make sure that the phone is switched
off and the charger is disconnected
from the phone.
2. Turn the phone over and remove the
battery cover.
3. If the battery is already inside,
remove it.
4. You can see two card slots (left side:
SIM, SL560 right side: Micro SD).
All manuals and user guides at all-guides.com
all-guides.com
Page 12
12

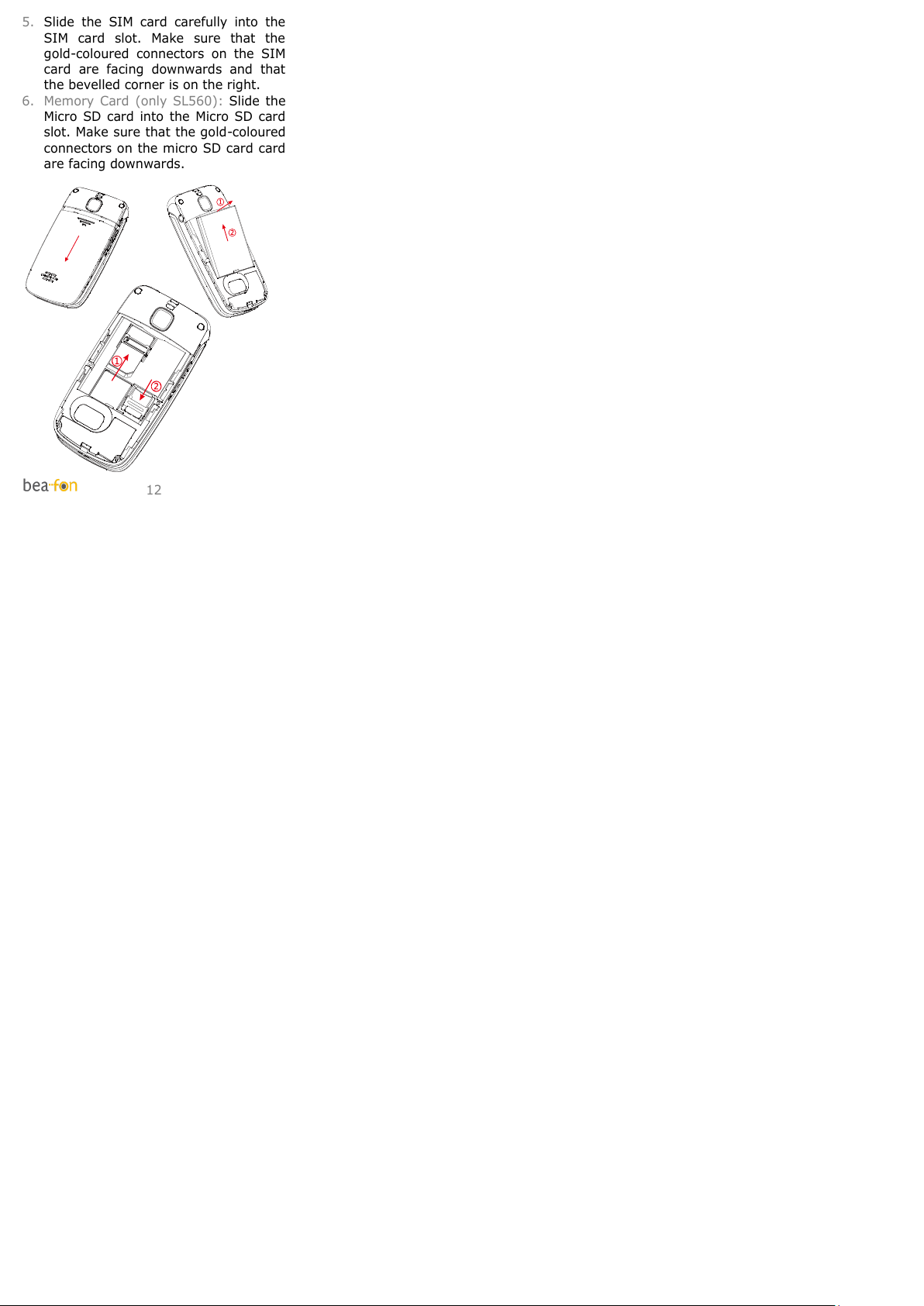

5. Slide the SIM card carefully into the
SIM card slot. Make sure that the
gold-coloured connectors on the SIM
card are facing downwards and that
the bevelled corner is on the right.
6. Memory Card (only SL560): Slide the
Micro SD card into the Micro SD card
slot. Make sure that the gold-coloured
connectors on the micro SD card card
are facing downwards.
All manuals and user guides at all-guides.com
Page 13
13

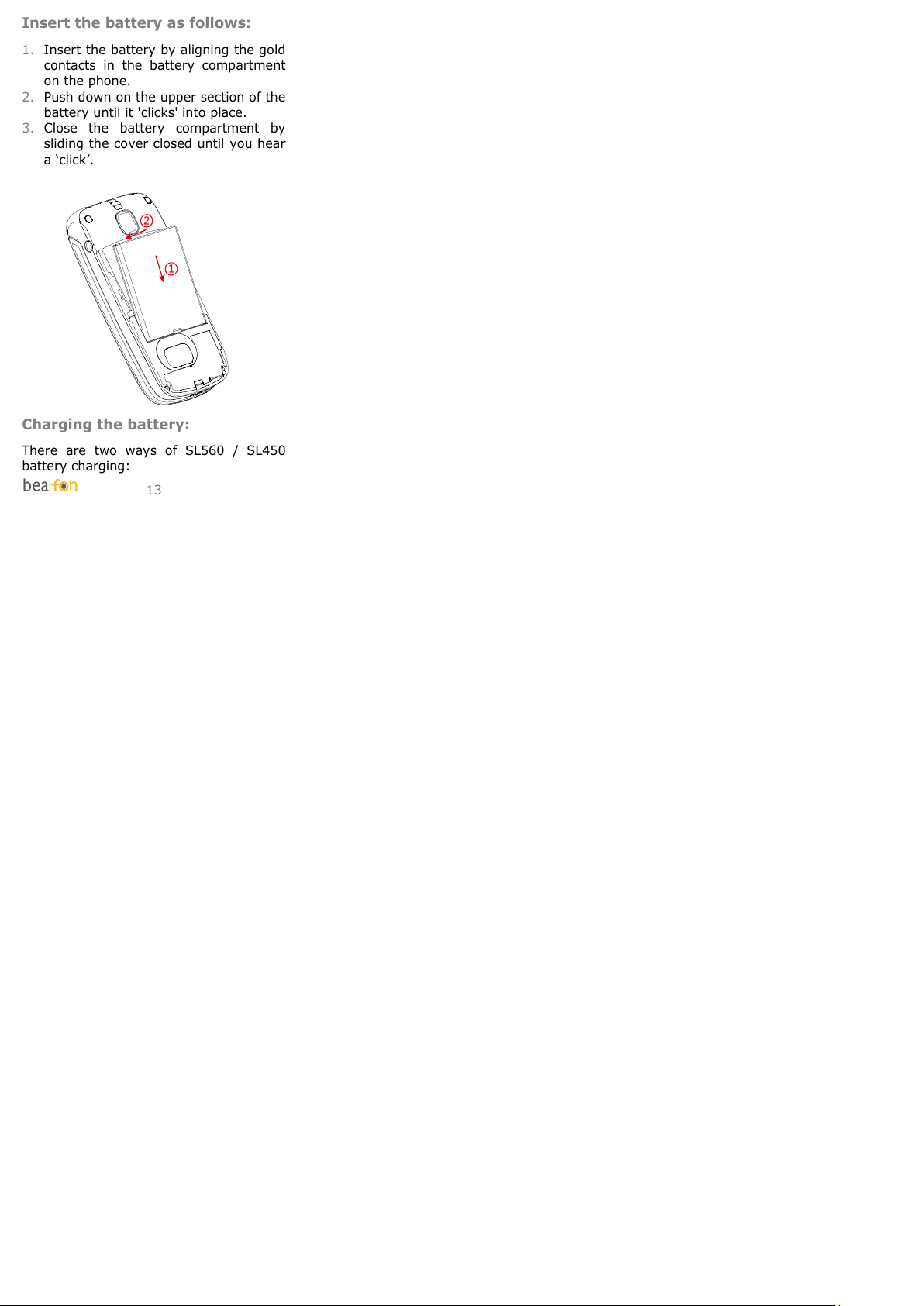

Insert the battery as follows:
1. Insert the battery by aligning the gold
contacts in the battery compartment
on the phone.
2. Push down on the upper section of the
battery until it 'clicks' into place.
3. Close the battery compartment by
sliding the cover closed until you hear
a ‘click’.
Charging the battery:
There are two ways of SL560 / SL450
battery charging:
All manuals and user guides at all-guides.com
Page 14
14

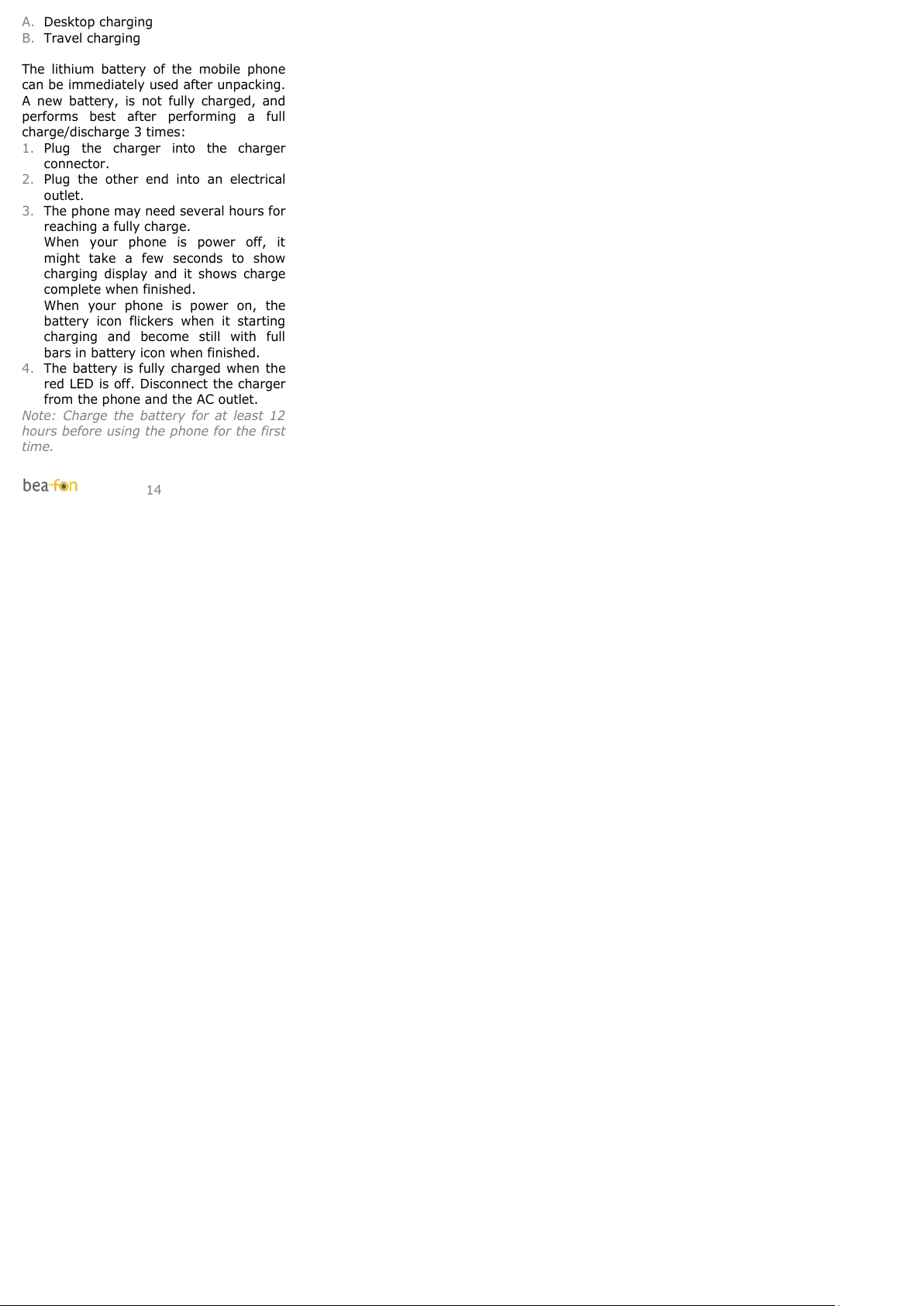

A. Desktop charging
B. Travel charging
The lithium battery of the mobile phone
can be immediately used after unpacking.
A new battery, is not fully charged, and
performs best after performing a full
charge/discharge 3 times:
1. Plug the charger into the charger
connector.
2. Plug the other end into an electrical
outlet.
3. The phone may need several hours for
reaching a fully charge.
When your phone is power off, it
might take a few seconds to show
charging display and it shows charge
complete when finished.
When your phone is power on, the
battery icon flickers when it starting
charging and become still with full
bars in battery icon when finished.
4. The battery is fully charged when the
red LED is off. Disconnect the charger
from the phone and the AC outlet.
Note: Charge the battery for at least 12
hours before using the phone for the first
time.
All manuals and user guides at all-guides.com
Page 15
15
Switching the telephone on or
off:
Make sure that you SIM card is in your
mobile phone and that the battery is
charged.
1. Press the red key to switch the phone
on.
2. If prompted, choose your language
and press OK.
3. If you have entered a PIN-code
before, the phone will ask for the code
now. Enter the PIN-code and confirm
by pressing OK.
4. To turn off your phone, press and hold
the red key for two seconds.
If you don’t insert a SIM card, your phone
shows Insert SIM. None of the functions
related to SIM
card can be used. You can make an
emergency call only.
Note: If you enter an incorrect PIN-code
3 times in succession, the phone will
require you to enter the PUK-code. You
received this PUK-code together with
your SIM card.
All manuals and user guides at all-guides.com
Page 16
16
Display (Standby mode):
1 2 3
4
5
6
7
8
1. Signal status 5. Time
2. Pictograms 6. Date and day
3. Battery status 7. Menu
4. Network operator 8. Names
Screen icons:
Signal Strength
The vertical bars show the
network connection strength. SIM
card has signals.
New messages
This icon shows when you receive
a new message.
SIM Card has an unread message
The inbox is full.
This icon flickers when the inbox
is full and you need to delete
messages to receive new
messages.
All manuals and user guides at all-guides.com
all-guides.com
Page 17
17
Earphone
This icon shows when you plug
the earphone in. Voice will be
heard from the earphone.
Missed Calls
This icon shows when you are
viewing the missed call. SIM card
has a missed call.
Alert Type
Ring
Silent mode on and Vibration only
Vibrate and ring
Call Divert
This icon shows when you divert
all calls unconditionally. SIM card
has been set up call divert.
GPRS
This icon shows when the GPRS
connection is available or active.
Turn alarm on
This icon shows when you turn
alarm on.
Roaming
This icon shows when your phone
is in roaming state. SIM card is
roaming.
All manuals and user guides at all-guides.com
Page 18
18
Bluetooth
This icon shows when the
Bluetooth is active.
Battery capacity
This icon’s colour changes
according to the status of battery
capacity: , , ,
Menu Operation
Menu lists are used for set up and
operation.
The left and right soft keys initially are
Menu ( ) and Phonebook( ). (Note:
symbols not displayed if the analogue
style clock is set for idle mode.)
Press Menu ( )and the display changes
and the soft keys become OK and Back.
Use Up or Down to move up or down
menu lists, and OK or Back for the next
or previous display.
When writing text, use the # key to
switch cases:
Upper case (ABC), Lower case (abc) or
Numerals (123). Use Up or Down to move
the cursor,
Clear to delete letters and the * key for
symbols/punctuation.
All manuals and user guides at all-guides.com
Page 19
19
Connect an optional headset
You can use a headset (not supplied) with
the 3.5 mm type, plugged into the
Headset socket on the top side of the
handset.
When using headsets, including Binatone
approved ones, pay attention to volume
levels and read its user guide for safety
instructions. Do not connect incompatible
products.
When correctly inserted the headset icon
is shown.
Headset Connector:
Plug in headset accessory for headset
use.
All manuals and user guides at all-guides.com
Page 20
20
Call function
Make a call:
1. To make a call, enter the phone
number with the prefix and press the
green key. For international calls,
enter ‘+’ by pressing for 2 sec.
Then enter the country code followed
by the telephone number, in which
the 0 of the prefix must be dropped.
2. If you have entered a wrong number,
press the soft key ‘right’ Clear to
remove the number to the left of the
blinking cursor.
3. Press the green key to call the
number.
4. Press the red key to end the call or to
cancel the call attempt.
Make a call using the phone
book:
If you have saved a name and number in
the phone book, you can also use the
phonebook to make a call.
In standby mode, press the soft key
‘right’ to go to Phonebook.
1. Scroll with the up and down arrow key
to the name you want to call.
All manuals and user guides at all-guides.com
Page 21
21
2. Press the green key to call the
number.
3. Press the red key to end the call or to
cancel the call attempt.
Answering a call:
When there is an incoming call, the
phone rings and/or vibrates and shows
the number or the corresponding name.
1. Press the green key or Answer if you
would like to answer a call.
2. Press the red key or silent if you
would like to reject a call, or for
ending the connection after the call.
Earphone/Bluetooth Mode): When
plugging the earphone (including
Bluetooth earphone), you can answer a
call by pressing the key on the earphone.
Operations during a call:
Press the right Menu key for Hands free
Press left Menu key “Options” to perform
following operation during a call:
Mute: de/activate the microphone
Phonebook: To go to Phonebook.
Hold: Hold this call.
Message: To go to Messages.
All manuals and user guides at all-guides.com
all-guides.com
Page 22
22
New Call: To dial the number
End: End this Call.
Hands Free:
During a call you can turn the hands free
equipment on (Loudspeaker on).or off
with the right Menu key.
Menu
Press the up arrow key to go to the
Menu. Scroll through the menu using the
arrow keys.
1. Phonebook
1. 1.Contacts
2. Add new
contact
3. Speed dial
4. Direct
Number
5. Photo call
6. Phonebook
settings
2. Message
1. Write SMS
2. Inbox
5. Multimedia
1. Camera (only
SL560)
2. Image viewer
3. FM Radio
4. File Manager
6. Settings
1. Tone settings
2. SOS settings
3. Phone
settings
4. Call settings
All manuals and user guides at all-guides.com
Page 23
23
3. Outbox
4. Drafts
5. Sent
messages
6. Advanced
3. Call history
1. Missed call
2. Dialled calls
3. Received
calls
4. Delete call
logs
5. Call duraton
4. Organizer
1. Alarm
2. Tasks
3. Calculator
4. Services
5. Network
settings

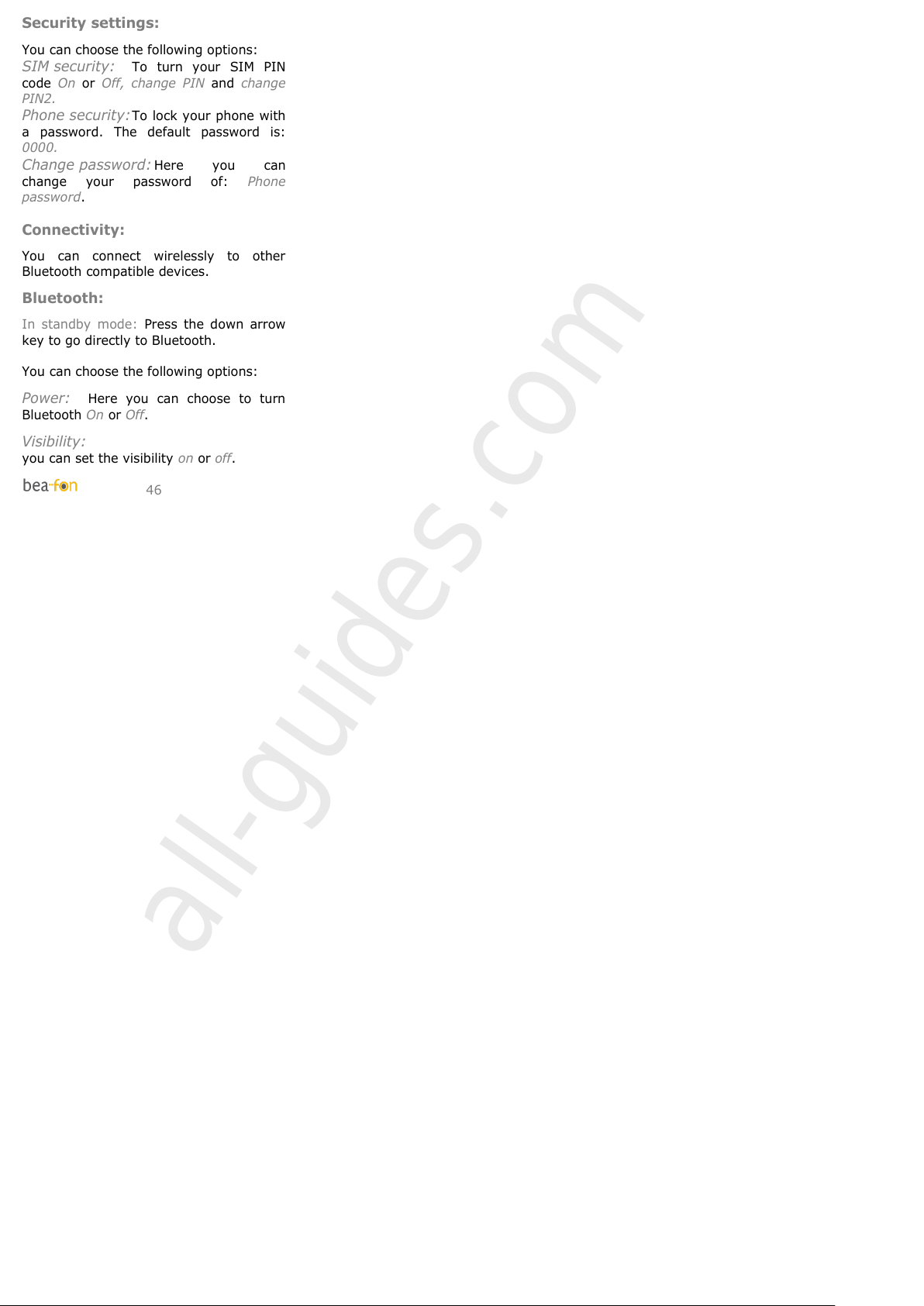

6. Security
settings
7. Connectivity
8. Restore
factory
setting
LED describtion
Green LED
Incoming call, missed call
or unread message
Red LED
Battery low (flash),
Battery charging (light)
All manuals and user guides at all-guides.com
Page 24
24
Phonebook
You can store names and phone numbers
in the Internal phone book (up to200)
and in the SIM phone book (SIM
dependent, but a maximum of 250).
To access the phonebook:
In idle mode, press Right soft key.
In idle mode, press Left soft key,
Phonebook and press OK
Note: Indicates entries in SIM phone
book, Indicates entries in the
Internal phone book.
Add new contact:
1. Press left soft key next press Down to
open the phonebook and select Add
new contact.
2. Select Preferred storage, To SIM or To
Phone, If you choose To phone: you
can edit Name and Number. Press
Options and Save if you want to save
the contact.
All manuals and user guides at all-guides.com
Page 25
25
To edit (change) a Phone Book
entry:
1. Press Right soft key to phone book
search which one You want to change,
press Left soft key select Edit then
modify the name, press Down modify
the number.
2. Press Option and OK to save the
change(s).
To delete all entries from the phone
or SIM card
1. Select Menu, Phonebook and press
Left soft key.
2. Select Phonebook settings and press
Left soft key
3. Select Delete all Contacts and press
Left soft key
4. Select From Phone or From SIM
Delete all
5. Press OK again to confirm
To copy all entries from the phone or
SIM card
1. Select Menu, Phonebook and press
Left soft key.
All manuals and user guides at all-guides.com
Page 26
26
2. Select Phonebook settings and press
Left soft key
3. Select Copy all and press Left soft key
4. Select To Phone or To SIM From
SIM/Phone
5. Press OK again to confirm
Store a Phonebook entry to a Speed
dial key (2-9)
1. Select Menu, Phonebook and press
Left soft key.
2. Select Speed dial and Press OK
3. Set Status to On, press down to Set
numbers.
4. Press OK the display shows ,2-9
5. Press Up or Down to choose the key
to save to
6. Press OK to confirm the memory
entry.
Direct Number:
1. Select Menu, Phonebook and press
Left soft key.
2. Select Menu, Phonebook and press
Left soft key.
Add M1 and M2 dial numbers.
Press in Standby mode M1 or M2 for call
All manuals and user guides at all-guides.com
all-guides.com
Page 27
27
Photo contacts (only SL560)
You can save until 8 contacts including
pictures in the photo contacts.
The phone shows the picture of this
contact on the screen.
Note: The photo contact supports only
pictures with resolution setting “Photo
Call Size” (120x160 pixels), you can
change the resolution of pictures in the
settings of camera.
All manuals and user guides at all-guides.com
Page 28
28
Messages
You can receive and send Messages.
Here you can also choose Voice Mail.
These services are net-based services.
Please contact your network operator
before using.
Write message
You can write and send text messages.
Invoicing is based upon how many
ordinary messages are needed for any
multi-part message.
Press the key marked with the letter that
you want repeatedly until the letter
appears.
1. Press left soft key to enter Write SMS
2. Enter contents and press left soft key
to enter Options. (You can select Send
to, Input Method, Advanced: Insert
number and name, and Save.
3. Press left soft key, select Send to and
press left soft key again.
4. Select Enter recipient or Contacts
(from Phonebook).
5. Select telephone numbers.
All manuals and user guides at all-guides.com
Page 29
29
6. Press left soft key to enter Options
and press left soft key to Send
Inbox:
The Inbox is for storing received SMS
messages. Depending on the selected
mode, the phone vibrates or rings when
you receive a new message. And in the
standby mode you see this icon until
you have read the new SMS message.
You can choose the following options
while reading your received SMS:
View, Reply, Call sender, Forward,
Delete, Delete all, Save to Phonebook* In
the Advanced option: Copy to Phone*
Move to Phone*, Copy all and Move all.
*These options may not appear according
to the storage location.
Note: The new message icon keeps
flickering in the standby mode when your
inbox is full. Please delete some
messages for receiving new messages.
All manuals and user guides at all-guides.com
Page 30
30
Outbox:
The Outbox to view the messages you
don’t sent but saved.
You can choose the following options
while reading your sent SMS:
View, Resend, Edit, Delete, Message
status and Details.
Drafts:
By Drafts you can view the draft SMS
messages you have saved.
You can choose the following options
while reading your draft:
View, Send, Edit, Delete, Delete all and
Advanced.
Sent messages
The Sent messages to view the
messages you sent.
You can choose the following options
while reading your sent SMS:
View, Forward, Delete, Delete all and
Advanced.
In the Advanced option: Copy to Phone*
Move to Phone*, Copy all and Move all
*These options may not appear according
to the storage location.
All manuals and user guides at all-guides.com
Page 31
31
Advanced
You can choose the following options:
SMS Settings
You can choose the following options:
Profile:
This setting is needed to use the SMS
function. The SMSC number can be
obtained
Preferred storage:
Select SIM or Phone to store messages
Memory Status:
Check the capacity of messages storages.
Voice mail:
Voicemail is a service supplied by your
network operator. For more information
and for the voice mailbox number,
contact your network operator. When you
have a new voice mail message, your
phone will receive a message.
1. Select address 1 and press Option.
2. Choose Call or Edit.
All manuals and user guides at all-guides.com
all-guides.com
Page 32
32
3. If you choose Edit, edit the name and
number of the voice mail. After enter
the number press OK.
In standby mode: Press and hold key
number 1 for directly calling the Voice
mail. Only the number saved under voice
mail address 1 is called.
All manuals and user guides at all-guides.com
Page 33
33
Call history
Missed Dialled and Received:
The phone registers the phone numbers
of Missed, Received, Dialled and All calls.
When you press OK by Missed, Dialled or
Received, you can view the calls you
Missed, Dialled or Received. If you press
Option you can choose the following
options:
Call, Save, Sent text message, View,
Delete, Edit before call and Send
multimedia message.
Delete call logs:
You can delete all the records of the
Dialled, Missed and Received calls, you
can also choose delete All calls to delete
all the records of the above-mentioned
calls logs.
All manuals and user guides at all-guides.com
Page 34
34
Organizer
Alarm:
You can set a maximum of 5 different
alarms.
To set an alarm clock:
1. Select one alarm and press Edit.
2. Edit alarm: set On or Off, Time,
Snooze, Repeat and Alert type.
3. Press Save to save the Alarm.
When alarm sounds, you can stop the
alarm by pressing Stop. If you press
Snooze, the alarm stops and rings after
10 minutes again.
Tasks
If there are some existed event in the
task list, press the up / down key to
select a event to get into the options:
View, Add, Edit, Delete, Delete overdue,
Delete all and View uncompleted
All manuals and user guides at all-guides.com
Page 35
35
Calculator:
The phone is provided with a calculator.
This calculator has limited accuracy and
rounding errors may occur, especially in
long divisions.
Function:
The keys 1 to 0 insert a digit.
To insert a decimal, press #.
Press the up and down arrow key for
+, -
Press M1 and M2 key for x and ÷.
To get the result, press Equal. Press and
hold Clear to clear the display for a new
calculation.
All manuals and user guides at all-guides.com
Page 36
36
Multimedia
Camera (only SL560)
Take a picture:
Aim the camera lens at the place/object,
and press key “camera”, to take a
picture. Keep the camera lens steady for
a while for a better image quality.
Select Menu, Camera and press Left soft
key
In the camera interface, pressing the Left
soft key can enter these menus:
Image viewer:
Here you can view the saved pictures.
Also the pictures you received by
Bluetooth. The pictures that the camera
makes are saved as a .jpg file. If you
press Option by a picture you can choose
the following options: View, Image
information, Browser style, Send, Use as,
Rename, Delete, sort by and Storage.
All manuals and user guides at all-guides.com
all-guides.com
Page 37
37
Camera settings:
Here you can set the Shutter sound, EV,
Anti-flicker, Delay timer and Cont.shot.
Image settings:
Here you can adjust the image size and
image quality.
Scene mode:
Here you can choose between: Auto or
Night.
Storage:
Choose storage: Phone or
Memory card
Restore default
: Restore the default
settings.
Note: The photos are stored on the
phone, for more pictures please use a
memory card. So please install this card if
you want to take and save pictures.
FM-Radio
Enter Options, you can make the
following operations:
Exit:
End the Radio mode
Channel List:
There are 30 channels for you to store.
All manuals and user guides at all-guides.com
Page 38
38

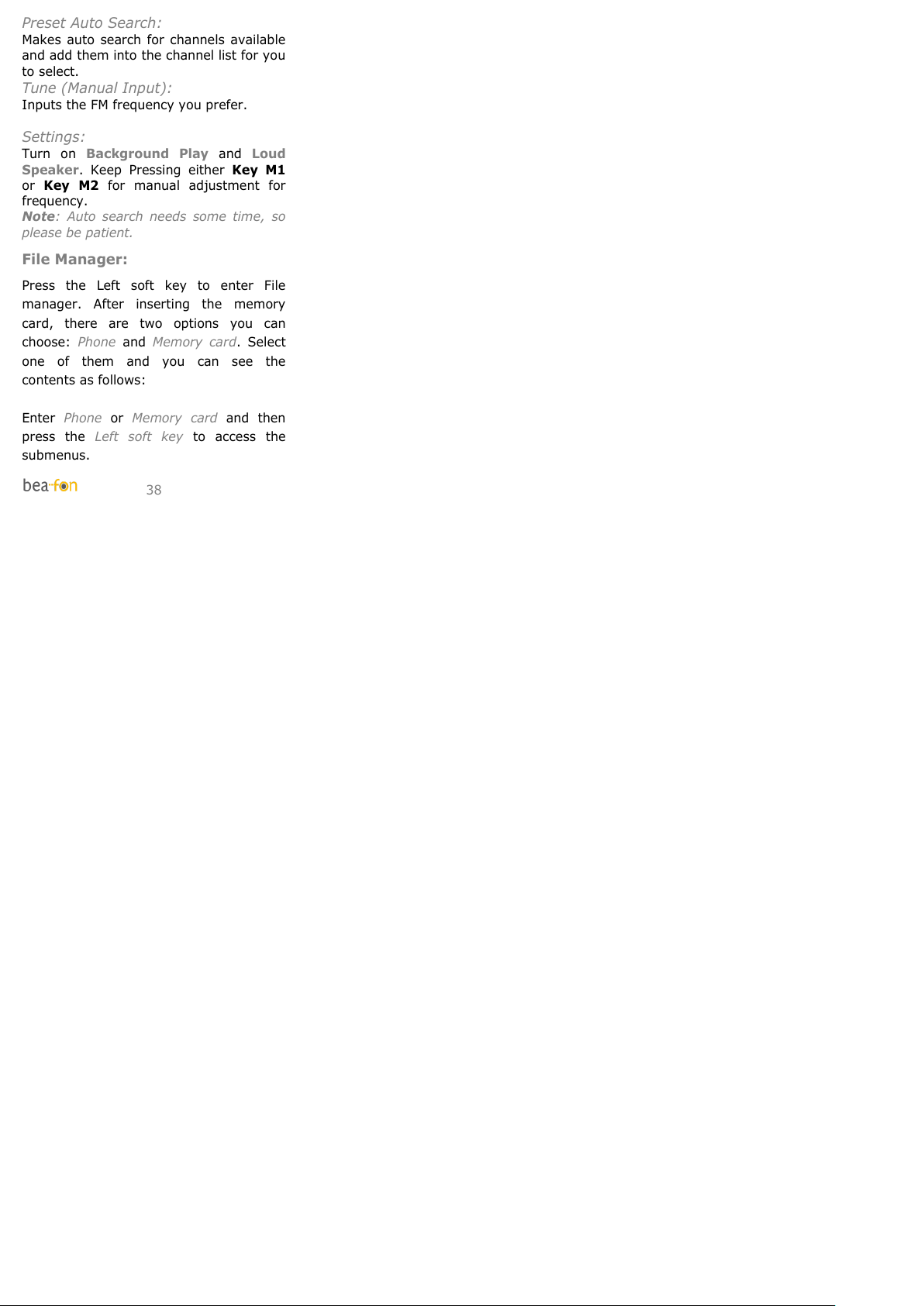

Preset Auto Search:
Makes auto search for channels available
and add them into the channel list for you
to select.
Tune (Manual Input):
Inputs the FM frequency you prefer.
Settings:
Turn on Background Play and Loud
Speaker. Keep Pressing either Key M1
or Key M2 for manual adjustment for
frequency.
Note: Auto search needs some time, so
please be patient.
File Manager:
Press the Left soft key to enter File
manager. After inserting the memory
card, there are two options you can
choose: Phone and Memory card. Select
one of them and you can see the
contents as follows:
Enter Phone or Memory card and then
press the Left soft key to access the
submenus.
All manuals and user guides at all-guides.com
Page 39
39
Settings
Tone settings:
You can choose the following options:
Alert type, Ring type, Ring tone,
Ringtone volume, Message tone, Message
volume, Alarm tone, Alarm volume,
Keypad tone, Keypad volume, Power on,
and System alert.
SOS settings
The SOS function is a simple function
which can save lives at the deciding
moment. In all, you can save 5 SOS
numbers (relatives, neighbours, friends
and rescue). These numbers, previously
saved in order of sequence, will be
automatically dialled in an SOS by
pressing the SOS button on the back of
the mobile phone. During the SOS call, a
warning tone sounds so the person that
you rang knows that it is an emergency!
If you cannot get through on the first
number, the second number will be called
automatically. If you cannot get through
on the second number, the third number
will be called etc.
All manuals and user guides at all-guides.com
Page 40
40
If no emergency number is saved or your
phone card has run out, or you are not
allowed under a foreign network (e.g.
Roaming not activated), you can dial 112
or another emergency number on the
numerical keypad.
SOS description:
Press the SOS button on the back of the
mobile phone for 3 seconds. If you want
to stop or cancel the SOS call, press the
SOS button again.
Functionality:
By pressing the SOS button, the phone
will send an SOS SMS person (in case
mobile number or telephones with SMS
function is available for emergency
contact) to the emergency numbers you
have previously saved and will be
automatically dialled in the given
sequence. (The emergency button also
functions when the phone is closed). The
mobile phone switches on the hands free
function at full volume and at the same
time, if the SOS call is not answered
within 25 seconds the next number is
dialled etc.
All manuals and user guides at all-guides.com
Page 41
41

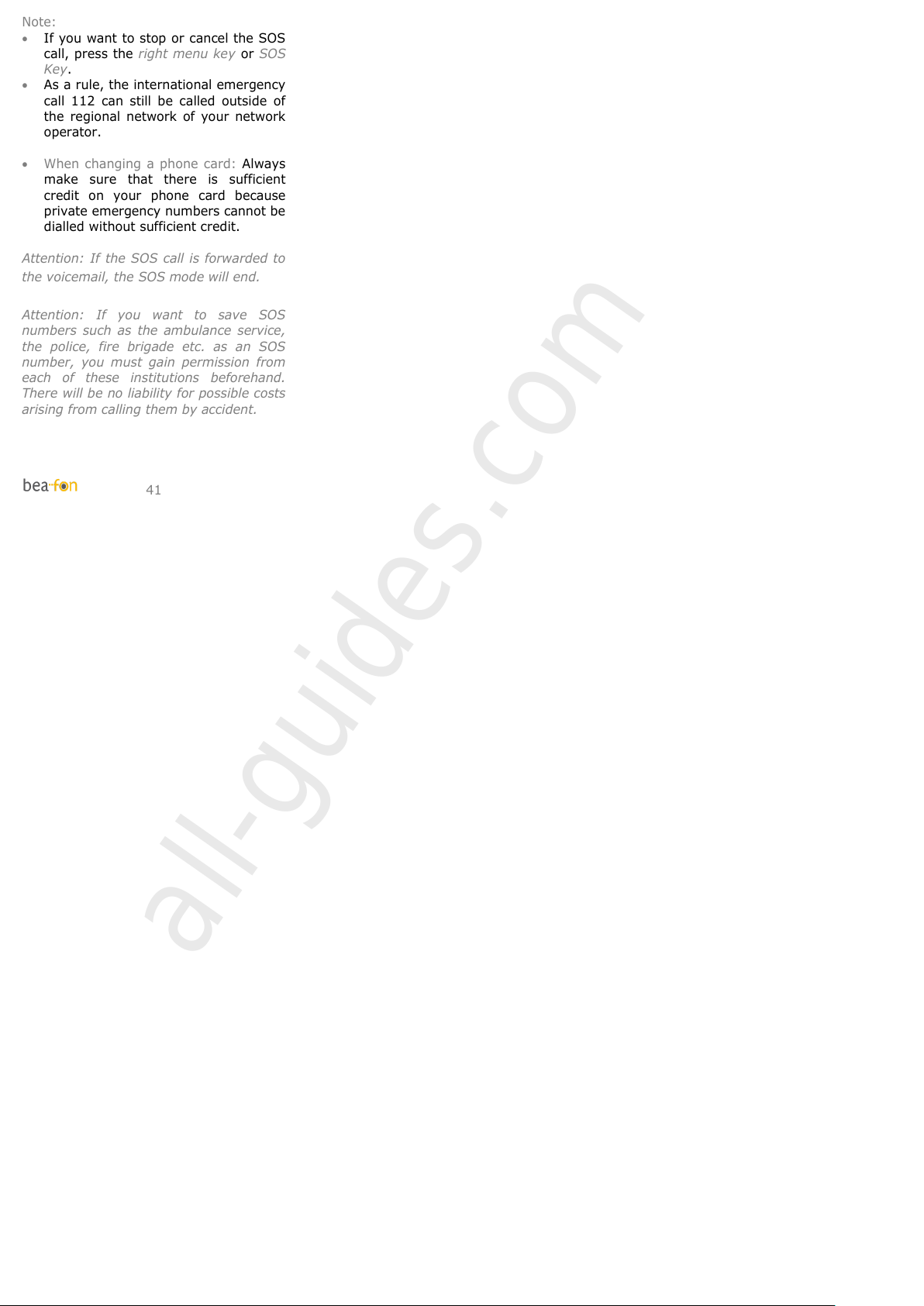

Note:
If you want to stop or cancel the SOS
call, press the right menu key or SOS
Key.
As a rule, the international emergency
call 112 can still be called outside of
the regional network of your network
operator.
When changing a phone card: Always
make sure that there is sufficient
credit on your phone card because
private emergency numbers cannot be
dialled without sufficient credit.
Attention: If the SOS call is forwarded to
the voicemail, the SOS mode will end.
Attention: If you want to save SOS
numbers such as the ambulance service,
the police, fire brigade etc. as an SOS
number, you must gain permission from
each of these institutions beforehand.
There will be no liability for possible costs
arising from calling them by accident.
All manuals and user guides at all-guides.com
all-guides.com
Page 42
42
SOS setting:
Set SOS: Set On or Off the SOS
alarm tone function.
Set SOS numbers:
There you can edit and save at most five
SOS number in your phone.
SOS message:
Edit the content of the SOS message
which will be sent out automatically when
the SOS function is using.
Phone settings:
Time and date:
Set Home city and time and date
Language:
Here you can choose the language you
want in your display.
Pref. Input method:
Here you can choose the Input method
you want for write.
Wallpaper
Select your favourite picture as the
wallpaper of the standby window.
All manuals and user guides at all-guides.com
Page 43
43
LED Mode
On:
Set LED model for open, when there is a
missed call and unread message, mobile
phone green tip LED lights flashing. The
red light glows when connecting the
charger is connected the charger is
charging tips.
Off: The LED function is off
Night mode
Night mode for activating/deactivating
the operation of the LED of the front
cover. When set to "Night mode", light
time is from 8.00 till 20.00.
LCD backlight
LCD backlight for setting up the duration
(sec) of backlight and brightness
Call settings:
Depending on network operator support
and subscription, you can choose the
following options:
All manuals and user guides at all-guides.com
Page 44
44

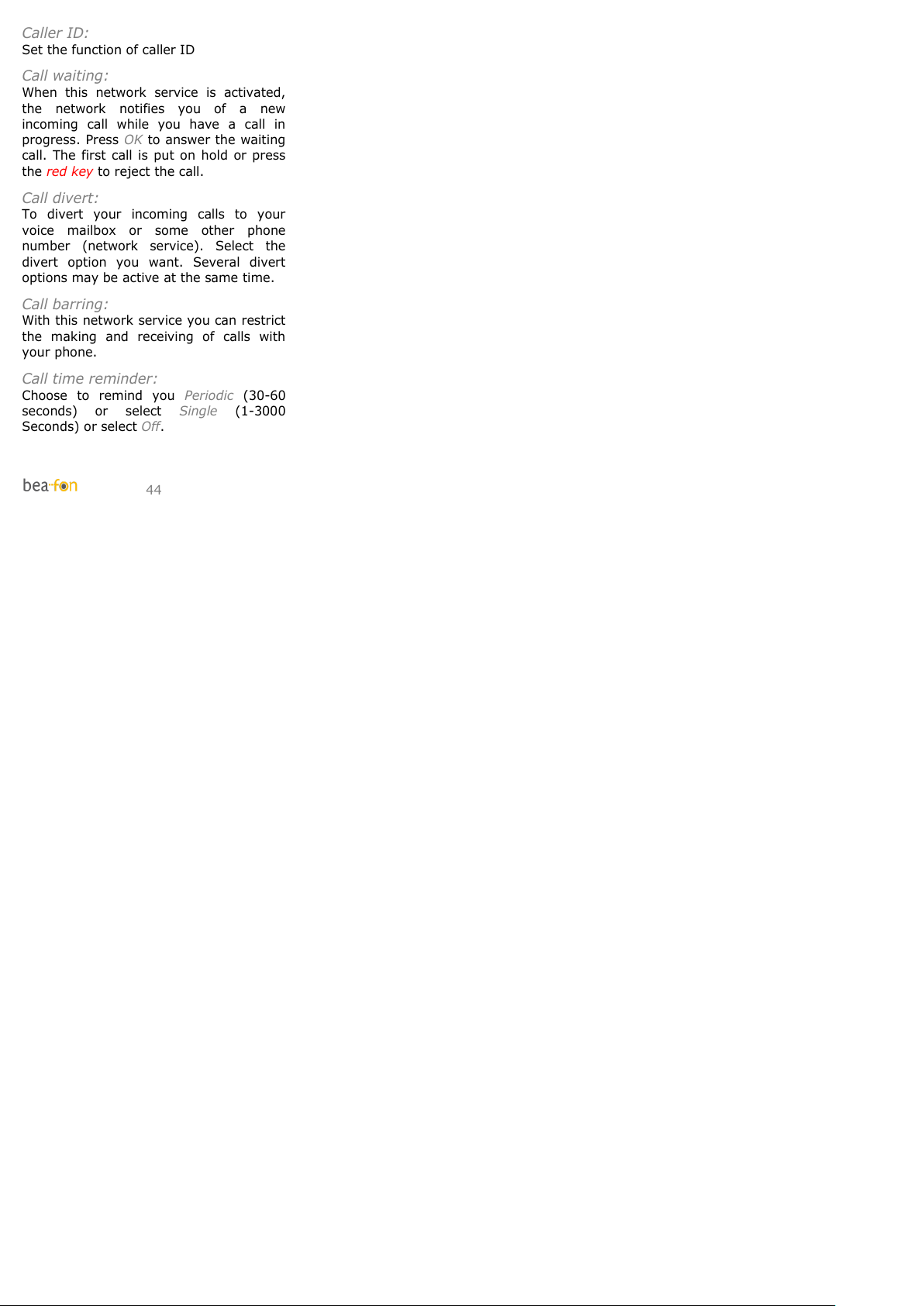

Caller ID:
Set the function of caller ID
Call waiting:
When this network service is activated,
the network notifies you of a new
incoming call while you have a call in
progress. Press OK to answer the waiting
call. The first call is put on hold or press
the red key to reject the call.
Call divert:
To divert your incoming calls to your
voice mailbox or some other phone
number (network service). Select the
divert option you want. Several divert
options may be active at the same time.
Call barring:
With this network service you can restrict
the making and receiving of calls with
your phone.
Call time reminder:
Choose to remind you Periodic (30-60
seconds) or select Single (1-3000
Seconds) or select Off.
All manuals and user guides at all-guides.com
Page 45
45

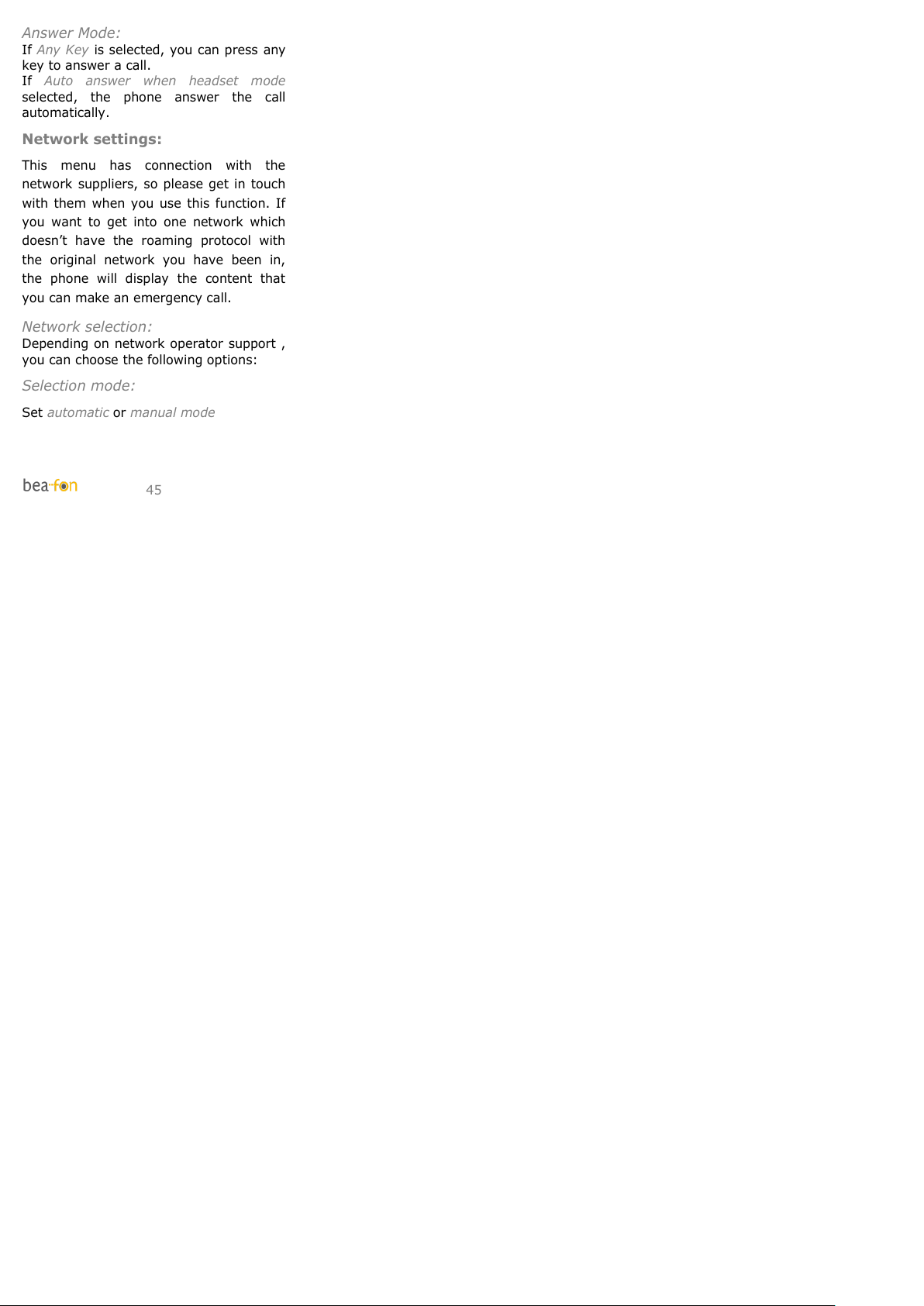

Answer Mode:
If Any Key is selected, you can press any
key to answer a call.
If Auto answer when headset mode
selected, the phone answer the call
automatically.
Network settings:
This menu has connection with the
network suppliers, so please get in touch
with them when you use this function. If
you want to get into one network which
doesn’t have the roaming protocol with
the original network you have been in,
the phone will display the content that
you can make an emergency call.
Network selection:
Depending on network operator support ,
you can choose the following options:
Selection mode:
Set automatic or manual mode
All manuals and user guides at all-guides.com
Page 46
46
Security settings:
You can choose the following options:
SIM security: To turn your SIM PIN
code On or Off, change PIN and change
PIN2.
Phone security: To lock your phone with
a password. The default password is:
0000.
Change password: Here you can
change your password of: Phone
password.
Connectivity:
You can connect wirelessly to other
Bluetooth compatible devices.
Bluetooth:
In standby mode: Press the down arrow
key to go directly to Bluetooth.
You can choose the following options:
Power: Here you can choose to turn
Bluetooth On or Off.
Visibility:
you can set the visibility on or off.
All manuals and user guides at all-guides.com
all-guides.com
Page 47
47
My device:
List of saved devices and enables you to
add new devices; Search new device.
Search audio device:
Search for available Bluetooth audio
devices. If Bluetooth is not enabled you
can enable it now by pressing Yes.
Search audio device:
1. Press OK, the phone is going to
search for new devices.
2. Select the devices you want to
connect with and press Pair.
3. When connecting with another
Bluetooth device you need a shared
passcode. Enter the passcode and
press OK.
4. Select the device from the list and
press Option. Can choose the
following options: Connect, Rename,
Delete and Delete all.
My Name:
Here you can set the Bluetooth device
Name.
Advanced:
Here you can set your: Audio path,
Storage and check the My address.
All manuals and user guides at all-guides.com
Page 48
48
Restore factory settings:
To reset some of the menu settings to
their original values. The password is:
0000
Basic Specifications:
Network–Dual-
Band
GSM 900/DCS1800
Dimension：
101x51.5x18.5 mm
Battery：
Li-ion 3.7V - 800mAh
Standby time:
up to 250 hours*
Talk time:
Up to 480 minutes*
*Variation in operation times may occur
depending on SIM card, network, and
usage settings, usage style and
environments.
All manuals and user guides at all-guides.com
Page 49
49
FAQ
If your phone appears the questions
frequently, please refer to the answers as
follows. After that, you cannot solve the
questions, please contact with the mobile
phone dealers or network operator.
Can’t turn the phone on:
Check battery installation, please
install battery correctly.
Check if battery level is low, change a
battery or charge the battery.
Check if entered incorrect PIN code 3
times in a row.
If yes, the phone is locked, then you
should enter your PUK code (please
contact your network operator for
your PUK code).
SIM error:
Is the SIM card dirty? Please clean it.
Try and reinstall the SIM card.
Is the SIM card damaged? Please
contact your network operator.
Weak signal or no signal:
You may be in a location where the
reception is bad, such as tunnel or
cellar, please relocate and try again.
All manuals and user guides at all-guides.com
Page 50
50

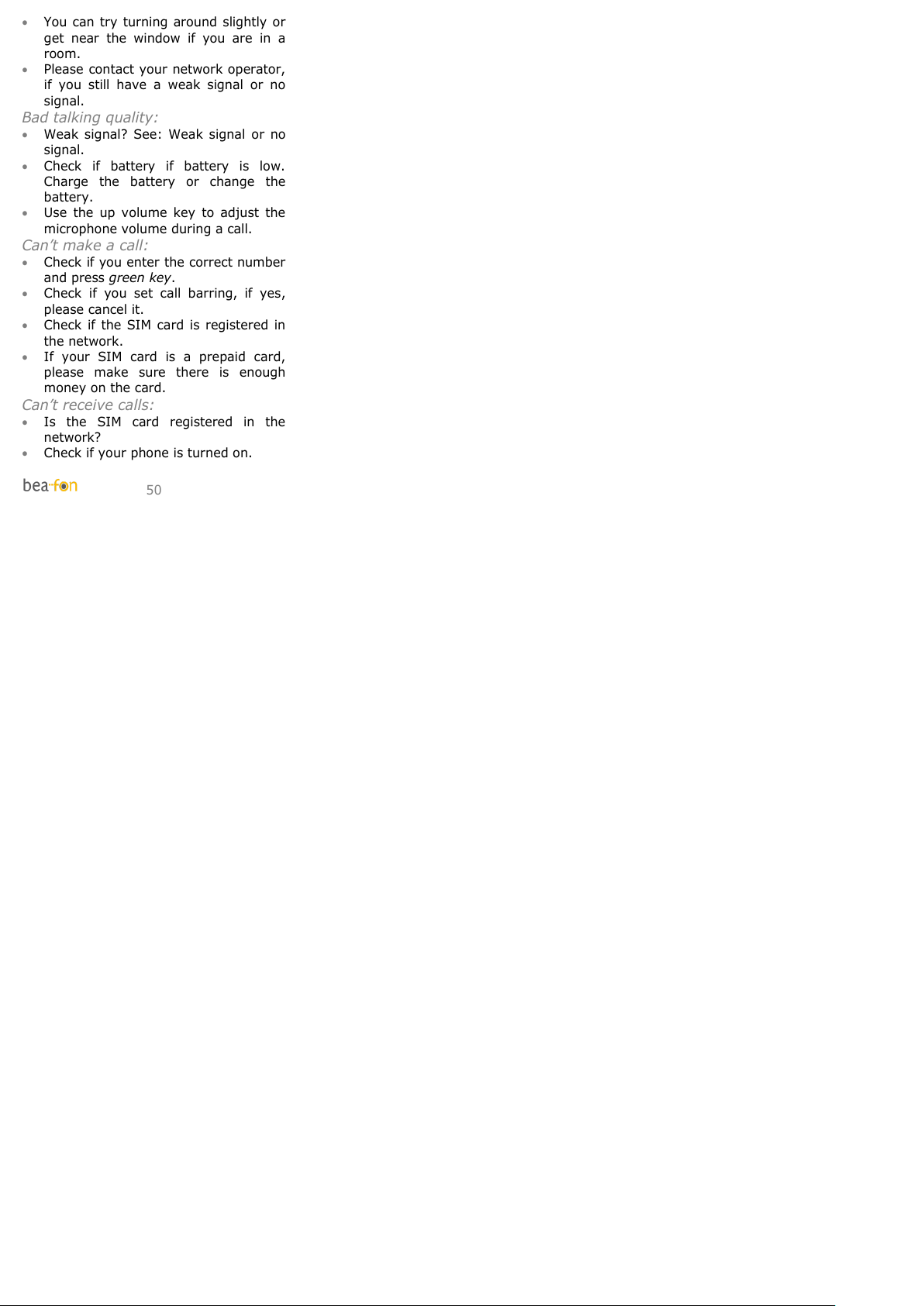

You can try turning around slightly or
get near the window if you are in a
room.
Please contact your network operator,
if you still have a weak signal or no
signal.
Bad talking quality:
Weak signal? See: Weak signal or no
signal.
Check if battery if battery is low.
Charge the battery or change the
battery.
Use the up volume key to adjust the
microphone volume during a call.
Can’t make a call:
Check if you enter the correct number
and press green key.
Check if you set call barring, if yes,
please cancel it.
Check if the SIM card is registered in
the network.
If your SIM card is a prepaid card,
please make sure there is enough
money on the card.
Can’t receive calls:
Is the SIM card registered in the
network?
Check if your phone is turned on.
All manuals and user guides at all-guides.com
Page 51
51
Check if screens shows no signal, if
yes, see: Weak signal or no signal.
Check if you set call barring, if yes,
please cancel it.
Screen is dark:
Check if battery if battery is low.
Charge the battery or change the
battery.
Adjust the wallpaper.
Your phone may be affected with
damp, keep it dry.
PIN locked:
Check if entered incorrect PIN code 3
times in a row.
If yes, the phone is locked, then you
should enter your PUK code (please
contact your network operator for
your PUK code).
Tips: if all suggests and solutions can’t
solve your problem, please check
Customer Service on www.beafon.com.
Please do not disassembly or repair your
phone without professional guide.
All manuals and user guides at all-guides.com
all-guides.com
Page 52
52
Battery
Your phone is powered by a
rechargeable battery.
Note that a new battery's full
performance is achieved only after
two or three complete charge and
discharge cycles! The battery can be
charged and discharged hundreds of
times but it will eventually wear out.
When the operating time (talk-time
and standby time) is noticeably
shorter than normal, it is time to buy
a new battery. Use only batteries
approved by the phone manufacturer
and recharge your battery only with
the chargers approved by the
manufacturer.
Unplug the charger when not in use.
Do not leave the battery connected to
a charger for longer than 10 days,
since overcharging may shorten its
lifetime. If left unused a fully charged
battery will discharge itself over time.
Temperature extremes can affect the
ability of your battery to charge.
Use the battery only for its intended
purpose.
All manuals and user guides at all-guides.com
Page 53
53

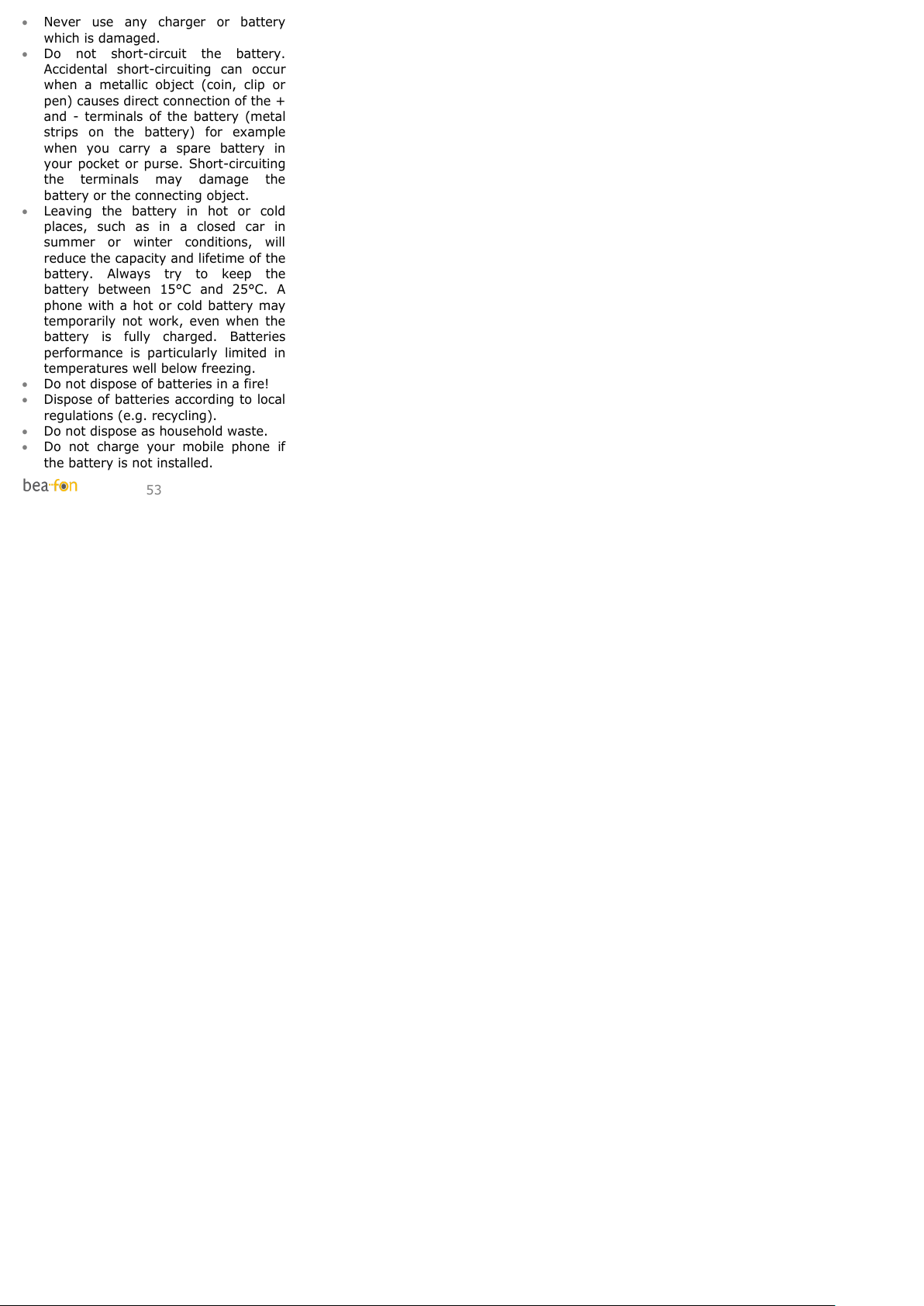

Never use any charger or battery
which is damaged.
Do not short-circuit the battery.
Accidental short-circuiting can occur
when a metallic object (coin, clip or
pen) causes direct connection of the +
and - terminals of the battery (metal
strips on the battery) for example
when you carry a spare battery in
your pocket or purse. Short-circuiting
the terminals may damage the
battery or the connecting object.
Leaving the battery in hot or cold
places, such as in a closed car in
summer or winter conditions, will
reduce the capacity and lifetime of the
battery. Always try to keep the
battery between 15°C and 25°C. A
phone with a hot or cold battery may
temporarily not work, even when the
battery is fully charged. Batteries
performance is particularly limited in
temperatures well below freezing.
Do not dispose of batteries in a fire!
Dispose of batteries according to local
regulations (e.g. recycling).
Do not dispose as household waste.
Do not charge your mobile phone if
the battery is not installed.
All manuals and user guides at all-guides.com
Page 54
54
Phone
Your phone is a product of superior
design and craftsmanship and should be
treated with care.
The suggestions below will help you to
fulfil any warranty obligations and to
enjoy this product for many years.
Keep the phone and all its parts and
accessories out of the reach of small
children.
Keep the phone dry. Precipitation,
humidity and all types of liquids or
moisture can contain minerals that
will corrode electronic circuits.
Do not use or store the phone in
dusty, dirty areas. Its moving parts
can be damaged.
Do not store the phone in hot areas.
High temperatures can shorten the
life of electronic devices, damage
batteries, and warp or melt certain
plastics.
Do not store the phone in cold areas.
When it warms up (to its normal
temperature), moisture can form
inside, which may damage electronic
circuit boards.
All manuals and user guides at all-guides.com
Page 55
55

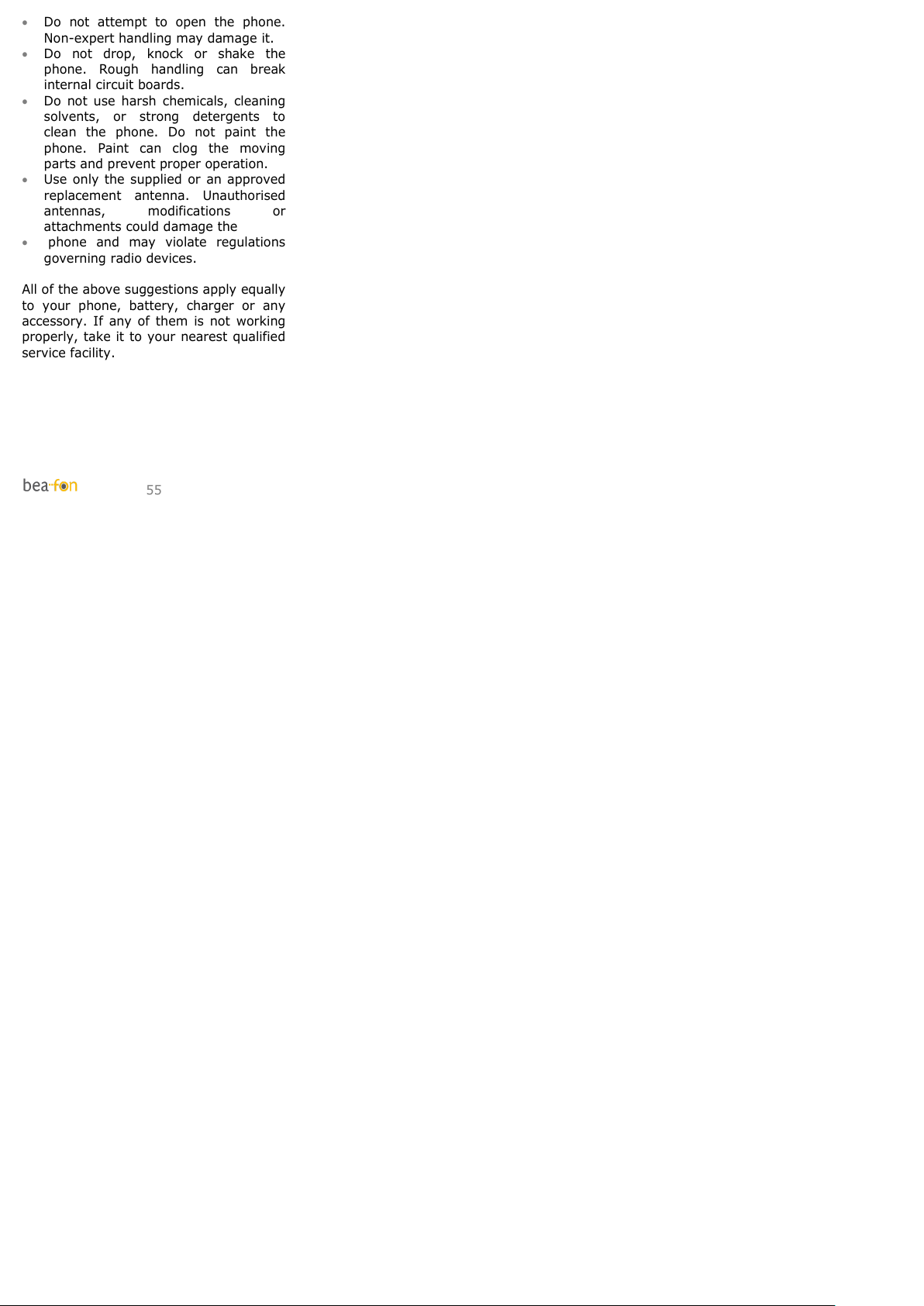

Do not attempt to open the phone.
Non-expert handling may damage it.
Do not drop, knock or shake the
phone. Rough handling can break
internal circuit boards.
Do not use harsh chemicals, cleaning
solvents, or strong detergents to
clean the phone. Do not paint the
phone. Paint can clog the moving
parts and prevent proper operation.
Use only the supplied or an approved
replacement antenna. Unauthorised
antennas, modifications or
attachments could damage the
phone and may violate regulations
governing radio devices.
All of the above suggestions apply equally
to your phone, battery, charger or any
accessory. If any of them is not working
properly, take it to your nearest qualified
service facility.
All manuals and user guides at all-guides.com
Page 56
56
For your safety
Read these simple guidelines. Breaking
the rules may be dangerous or illegal.
Do not switch on the phone when
wireless phone use is prohibited or
when it may cause interference or
danger.
Road safety comes first
Do not use a hand-held phone while
driving.
Switch off in aircraft
Wireless devices can cause interference
in aircraft.
Switch off in hospitals
Follow any regulations or rules. Switch
the phone off near medical equipment.
Switch off when refuelling
Do not use the phone at a refuelling
point. Do not use near fuel or
chemicals.
Interference
All wireless phones may get
interference, which could affect
performance.
All manuals and user guides at all-guides.com
all-guides.com
Page 57
57
Traffic Safety:
Do not use a hand-held telephone while
driving a vehicle. Always secure the
phone in its holder; do not place the
phone on the passenger seat or where it
can break loose in a collision or sudden
stop. Remember road safety always
comes first!
Operating environment:
Remember to follow any special
regulations in force in any area and
always switch off your phone whenever it
is forbidden to use it, or when it may
cause interference or danger.
Use the phone only in its normal
operating positions.
Parts of the phone are magnetic. Metallic
materials may be attracted to the phone,
and persons with a hearing aid should not
hold the phone to the ear with the
hearing aid. Always secure the phone in
its holder, because metallic materials
may be attracted by the earpiece.
Do not place credit cards or other
magnetic storage media near the phone,
because information stored on them may
be erased.
All manuals and user guides at all-guides.com
Page 58
58
Electronic devices:
Most modern electronic equipment is
shielded from radio frequency (RF)
signals. However, certain electronic
equipment may not be shielded against
the RF signals from your wireless phone.
Pacemakers:
Pacemaker manufacturers recommend
that a minimum separation of 20 cm (6
inches) be maintained between a
handheld wireless phone and a
pacemaker to avoid potential interference
with the pacemaker. These
recommendations are consistent with the
independent research by and
recommendations of Wireless Technology
Research.
Persons with pacemakers:
Should always keep the phone more
than 20 cm (6 inches) from their
pacemaker when the phone is
switched on.
Should not carry the phone in a
breast pocket.
Should use the ear opposite the
pacemaker to minimise the potential
for interference.
All manuals and user guides at all-guides.com
Page 59
59
If you have any reason to suspect
that interference is taking place,
switch off your phone immediately.
Hearing aids:
Some digital wireless phones may
interfere with some hearing aids. In the
event of such interference, you may want
to consult your network operator.
Other medical devices:
Operation of any radio transmitting
equipment, including cellular phones,
may interfere with the functionality of
inadequately protected medical devices.
Consult a physician or the manufacturer
of the medical device to determine if they
are adequately shielded from external RF
energy or if you have any questions.
Switch off your phone in health care
facilities when any regulations posted in
these areas instruct you to do so.
Hospitals or health care facilities may be
using equipment that could be sensitive
to external RF energy.
All manuals and user guides at all-guides.com
Page 60
60
Posted facilities:
Switch your phone off in any facility
where posted notices so require.
Potentially explosive atmospheres:
Switch off your phone when in any area
with a potentially explosive atmosphere
and obey all signs and instructions.
Sparks in such areas could cause an
explosion or fire resulting in bodily injury
or even death.
Users are advised to switch off the phone
when at a refuelling point (service
station). Users are reminded of the need
to observe restrictions on the use of radio
equipment in fuel depots (fuel storage
and distribution areas), chemical plants
or where blasting operations are in
progress.
Areas with a potentially explosive
atmosphere are often but not always
clearly marked. They include below deck
on boats; chemical transfer or storage
facilities; vehicles using liquefied
petroleum gas (such as propane or
butane); areas where the air contains
chemicals or particles, such as grain, dust
or metal powders; and any other area
All manuals and user guides at all-guides.com
Page 61
61
where you would normally be advised to
turn off your vehicle engine.
Vehicles:
RF signals may affect improperly installed
or inadequately shielded electronic
systems in motor vehicles (e.g. electronic
fuel injection systems, electronic anti-skid
(anti-lock) braking systems, electronic
speed control systems, air bag systems).
Check with the manufacturer or its
representative regarding your vehicle.
You should also consult the manufacturer
of any equipment that has been added to
your vehicle.
All manuals and user guides at all-guides.com
all-guides.com
Page 62
62
For your safety
Certification information (SAR):
This model phone meets the EU
requirements for exposure to radio
waves.
The exposure standard for mobile phones
employs a unit of measurement known as
the Specific Absorption Rate, or SAR. The
SAR limit recommended by The Council of
the European Union is 2.0 W/kg. Tests for
SAR have been conducted using standard
operating positions with the phone
transmitting at its highest certified power
level in all tested frequency bands.
The highest SAR value for this device
when tested at the ear was 0.447W/Kg .
If you want a copy of the Declaration of
Conformity, please contact us:
info@beafon.com
While there may be differences between
the SAR levels of various phones and at
various positions, they all meet the EU
requirements for RF exposure.
All manuals and user guides at all-guides.com
Page 63
63
Information
Liability Disclaimer:
Bea-fon Mobile GmbH shall not bear
any liability for any relevant, indirect,
special, incidental, or inevitable
injuries caused by using of this
product, including injuries which have
been considered, or unconsidered,
likely to happen.
For any losses caused by natural
disasters (such as earthquake, flood,
etc.) or any acts or accidents
(including deliberate or accidental
misuses by the user under these
accidents or other unusual
circumstances) which are beyond our
liability scope, non-responsibility
should be accounted on us.
All manuals and user guides at all-guides.com
Page 64
64
Information:
SL560/SL450 distributed by Beafon
For more Information, please visit the
Bea-fon Homepage: www.beafon.com or
contact us: support@beafon.com
Address:
BEAFON MOBILE GmbH
4722 Peuerbach
Enzing 4
Austria
V.1.0
All manuals and user guides at all-guides.com
Loading...
