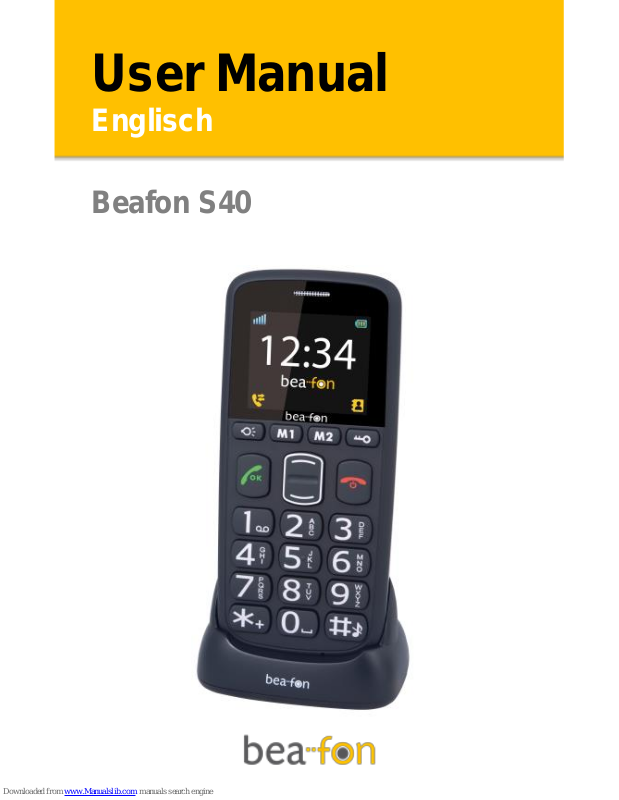

User Manual
Englisch
Beafon S40
General Information
Congratulations on the purchase of your Bea-fon
S40!
Please read this information before using the phone
to make a better use of your phone. We are not
responsible for any damage due to your
misunderstanding of this information and misacting.
We are endeavouring to improve our products and
services. We reserve all the rights to revise and
change the description of this product and its
software as well as this user’s manual without
obligation to notify any person of such revisions and
changes.
This user manual is for your better use of this phone
not an approval of any accessories. All the pictures
in this manual are for reference only. There may be
slight difference between the appearance of phone/
keys/ contents of display used in this manual and
those of your phone. Please refer to your phone for
actuality. Some features introduced in this manual
are network or subscription-supported features.
Please contact your network operator for further
information.
Please check the package contents to ensure that
all components listed below are included. If the
product is defective or if there is a component
missing, immediately contact the retailer where you
purchased this handset.
General Information
Your Bea-fon S40 box contains:
• 1 Mobile phone
• 1 Desktop charger
• 1 Travel charger
• 1 Battery
• User manuals
If you find the size of the script not easily readable
for you, you can also find this manual on our
website, where you will be able to adjust the size of
the script.
Go to: www.beafon.com/Products
Device Code:
This device code ensures that unauthorized
persons will not be able to use your phone. The
default code is 0000.
PIN-Code:
The PIN-code was supplied to you by your network
operator together with your SIM card and/or
adjusted/set up by yourself.
Note: All the illustrations, simulated screen and
related images used in this manual are for reference
only. Please refer to your handset for actuality.
Direction
General Information ................................................ 2
General Information ................................................ 3
Device Code: ................................................... 3
PIN-Code: ........................................................ 3
Direction ................................................................... 4
Your Phone .............................................................. 7
Your Phone .............................................................. 8
Display .............................................................. 8
Display symbols: .............................................. 8
Getting started ....................................................... 10
Install the SIM card ........................................ 10
Battery use and installation ........................... 10
Turn It On/Off ................................................. 11
Make a Call .................................................... 11
Answer or Reject a Call................................. 12
Operations during a Call ............................... 12
Menu ...................................................................... 13
Contacts ................................................................. 15
Add new contact ............................................ 15
Phonebook settings ....................................... 15
Message ................................................................ 16
Write message ............................................... 16
Inbox ............................................................... 17
Drafts .............................................................. 18
Outbox ............................................................ 19
Sent messages .............................................. 19
SMS settings .................................................. 20
Call center .............................................................. 20
Missed calls .................................................... 20
Dialled calls .................................................... 21
Received calls ................................................ 21
Delete call logs ............................................... 21
Organizer ............................................................... 21
Tasks .............................................................. 21
Alarm .............................................................. 23
Multimedia .............................................................. 23
Camera ........................................................... 23
Image viewer: ................................................. 24
FM-radio ......................................................... 24
File Manager: ................................................. 25
Settings .................................................................. 25
SOS ................................................................ 25
Sound & Alert ................................................. 25
Phone settings ............................................... 26
Call settings .................................................... 27
Network settings ............................................ 27
Security settings............................................. 27
Bluetooth ........................................................ 28
Restore factory settings ................................ 29
Special Functions .................................................. 29
One Key Torch .............................................. 29
One Key Key-lock .......................................... 29
One Key SOS ................................................ 29
SOS ................................................................ 30
SOS Functionality: ......................................... 30
Normal SOS ................................................... 31
FAQ ........................................................................ 31
Battery .................................................................... 34
Phone ..................................................................... 36
For your safety ....................................................... 41
Certification information (SAR): .................... 42
Basic Specifications:...................................... 42
Information ..................................................... 43
Liability Disclaimer: ........................................ 43
Information: .................................................... 43
Address: ......................................................... 44
Your Phone
1
Torch Key
2
Direct dial key (M1/M2)
3
Dial Key and left menu key
4
Key * / + / p / w / In write mode choose a
symbol
5
Loudspeaker
6
SOS button
7
Keylock
8
Arrow keys (During the call – volumen control)
9
Power on/off key, call end key and right menu
key
10
Polyphon speaker
11
# Key: on the starting screen, by holding this
button you activate / deactivate silent mode.
In edit mode, change the input method.
12
Camera
13
Charger micro USB port
14
Headset plug 2,5 mm
Your Phone
Display (standby)
1 2 3
4
5
6
7
1. Signal status 5. Date and day
2. Pictograms 6. Calls
3. Battery status 7. Phonebook
4. Time
Display symbols:
Signal Strength
The vertical bars show the network
connection strength.
New messages
This icon shows when you receive a new
message.
Phone has an unread message
The inbox is full.
This icon flickers when the inbox is
full and you need to delete messages to
receive new messages.
Missed Calls
This icon shows when you are viewing the
missed call.
Alert Type
Vibrate and ring
Silent
Only ring
Only vibrate
Call Divert
This icon shows when you divert all calls
unconditionally. SIM card has been set up
call divert.
Keypad Lock
The icons show the current state of your
keypad.
Keypad locked - currently the keypad is in
a locked state, the keystroke is of no use.
Bluetooth
This icon shows when the Bluetooth is
active.
Turn alarm on
This icon shows when you turn alarm on.
Roaming
This icon shows when your phone is in
roaming state. SIM card is roaming.
Battery capacity
This icon’s color changes according to the
status of battery capacity:
, , ,
Getting started
Install the SIM card
Keep your SIM cards away from the children.
Please consult your SIM card franchiser about the
services and usage. SIM franchiser can be the
service provider, network provider or other
franchisers.
Please turn off your mobile device and disconnect it
with charger before removing the battery.
Note: turn off your mobile device and disconnect it
with charger or any other device before removing
battery door. Place the door on the phone before
store and use your mobile phone.
Battery use and installation
Charging the battery:
There are two ways of S40 battery charging:
1. Desktop charging
2. Travel charging
The lithium battery of the mobile phone can be
immediately used after unpacking. A new battery, is
not fully charged, and performs best after
performing a full charge/discharge 3 times:
1. Plug the charger into the charger connector.
2. Plug the other end into an electrical outlet.
3. The phone may need several hours for
reaching a fully charge. When your phone is
power off, it might take a few seconds to show
charging display and it shows charge complete
when finished.
4. When your phone is power on, the battery icon
flickers when it starting charging and become
still with full bars in battery icon when finished.
5. Disconnect the charger from the phone and the
AC outlet.
Note: Charge the battery for at least 10 hours
before using the phone for the first time.
Turn It On/Off
Caution: To turn on your phone, press and hold the
power on/off key for two seconds. If prompted, enter
your four-to -eight-digit SIM card PIN code and/or
four-digit unlock code.
If you don’t insert a SIM card, your phone shows
Insert SIM. None of the functions related to SIM
card can be used and you can make an emergency
call only.
To turn off your phone, press and hold the power
on/off key for two seconds.
Make a Call
1. Under the sleep mode, input the telephone
number directly. Press dial key, then your
mobile will make a call according to the
numbers you press.
2. After calling, press power on/off key to end the
call.
Answer or Reject a Call
When there is an incoming call, the phone rings and
/or vibrates showing the number or the
corresponding name.
Press answer key or enter Option and then select
answer to receive a call. If you don’t want to
answer, press power on/off key for ending the
incoming call.
Earphone Mode: when plugging the earphone
(including blue-tooth earphone), you can answer a
call by pressing the key on the earphone; when you
are not convenient to press the key, you can turn on
the auto-answer mode (only in earphone mode) and
make sure the earphone is plugged, your phone
auto-answers a call 5 seconds after it rings and/or
vibrates.
Operations during a Call
Press Options to perform following operation during
a call:
H-Free:
Hands free
Hold:
Hold this call
End single call:
End the Call
Call center:
Enter Call center
Message:
Enter Messages
Mute:
Set mute on or off. When setting mute on, your
voice cannot be heard through the line.
Volume control:
During the call, press the arrow buttons (rocker) to
regulate the call volume.
Note: the menus marked with * must be supported
by your SIM card. For details, please contact your
service provider.
Insert International Access Code
When you need to dial an international call, keep
press * key twice till the international call prefix “+”
shows and then enter the number in the following
order:
+ →country code→ complete number→ dial
key
Menu
S40 offers you a series of functions as part of which
are shown below.
1 Contacts
1-1 Add new contact
2 Message
2-1 Write message
2-2 Inbox
2-3 Drafts
2-4 Outbox
2-5 Sent messages
2-6 SMS settings
3 Call Center
3-1 Missed calls
3-2 Dialed calls
3-3 Received calls
3-4 Delete call logs
4 Organizer
4-1 Tasks
4-2 Alarm
5 Multimedia
5-1 Camera
5-2 Image viewer
5-3 FM-radio
5-4 File Manager
6 Setting
6-1 SOS
6-2 Sound & Alert
6-3 Phone settings
6-4 Call settings
6-5 Network settings
Loading...
