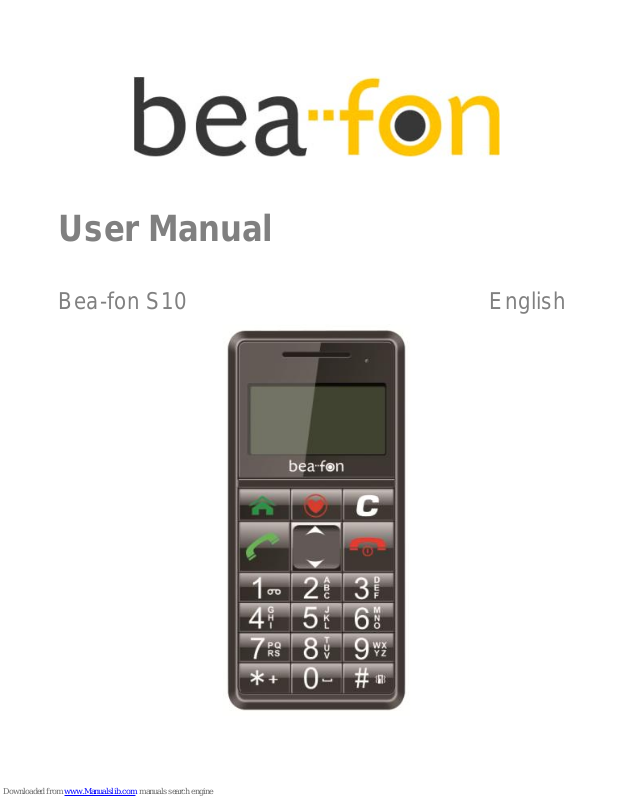

User Manual
Bea-fon S10 English
Product safety information
Please read these simple guidelines. Not following them may be dangerous or
illegal
Switch off the phone in the vicinity of chemical plants, gas stations and other
locations containing explosive objects.
Keep the phone far away from children.
When driving, please use the hands free calling device (purchased separately) to
ensure safety. Please park the car at roadside for communication unless in
emergency.
Switch off the phone when boarding an airplane and do not switch the phone on
during the flight.
Be careful when using the mobile phone in the vicinity of such devices as
pacemakers, hearing aids and other electro-medical equipment, which may be
interfered by the mobile phone.
No guarantee for the accessories and parts not produced by the original factory.
Never attempt to disassemble the phone by yourself. Contact the supplier in case
of any trouble with your mobile phone.
Do not recharge the phone without battery being installed.
Charge the phone in well-ventilated environment and keep away from
inflammable and high explosive articles.
To avoid demagnetization, keep the handset away from magnetic substances,
such as magnetic discs or credit cards.
Keep the phone away from liquid. If soaking or erosion occurs, take the battery
out and contact the supplier.
Avoid using the phone in too high or too low temperature environments. Never
leave the phone exposed under direct sunlight, in high humidity or in a dusty
environment.
Do not use liquid or a damp cloth with strong detergents to clean the handset.
Your phone
Earpiece
Display
Love key
Press it to enter the love
number.
Right soft key
Delete key
End / Power key
Up / Down key
In standby mode, press to
change ring tone volume.
# Key
In standby mode, long press
it to switch the user profiles.
In editor, press to change
input method.
ӿ Key
In standby mode, press it to input ӿ / + / p / w
In editor, press to input symbols.
Menu key
Perform the function indicated
at the bottom of the display.
Send key
Dial a phone number or
answer a call. In standby
mode, shows the history of
calls made, received and
missed.
Number key
In standby mode, press to
input numbers; Long press 2-9
to speed dial; In editor, press
them to input numbers or
words. In standby mode,
press and hold the 0 key to
on/off the audiphones.
Screen Icons
Signal Indicator, More bars indicates stronger signal.
Alarm clock
Battery Level Indicator
Keypad lock
Handset mode
Missed call(s)
Ring mode
Ring
Vibration Only
Vibration then Ring
Vibration and Ring
Battery
The lithium battery of the mobile phone can be immediately used
after unpacking. A new battery performs best after performing a
full charge/discharge 3 times.
Installing the battery
1. Insert the battery by aligning the gold contacts in the
battery compartment on the phone.
2. Push down on the upper section of the battery until it
clicks into place.
Pull down the battery press the cover
Removing the battery
1. Ensure that your mobile phone is switched off.
2. Remove the battery cover.
3. Pull the battery up and remove it from the mobile phone.
How to insert the SIM card
If you want a mobile Phone that is sophisticated and easy to use
and here it‟s in your hands! Naturally you are eager to star using
it, but first you need to insert the SIM card.
Insert the SIM card as follows:
Ensure that the phone is switched off and charger is
disconnected from the phone.
Turn the phone over and remove the back cover.
If the battery is already inside, remove it!
Hold your SIM card with the cut corner oriented as shown and
then slide it into the card holder face down.
Replace the battery first.
Replace the back cover.
What is a SIM card?
Every mobile phone has a SIM card (Subscriber Identity Module).
This is a micro-chip that holds your personal information such as
names and phone numbers. Your phone won‟t work without it. If
you already have contacts on your SIM card, they can be
transferred in most cases.
How to charge the battery
Your phone is powered by a rechargeable battery.
Connect your travel adapter to the bottom of your mobile
phone or the back of the charger that it has laid the mobile
phone.
Connect the other end of the travel adapter to the mains
socket.
If you are charging the battery when the mobile phone is
switched off, the display will show a large battery icon with
the bars moving from up and down. If charging the battery
when the mobile is switched on, the display will show a
smaller icon.
When the battery is fully charge, disconnect the charger.
Note: Please ensure the battery be charged for 12 hours or more
before its first use.
Power on/off
Ensure that you SIM card is in your mobile phone and that the
battery is charged.
Please hold END key to Power on/off the phone. The phone will
automatically search for the network.
Display information
Besides sending and receiving calls, you can also do:
In the standby mode, press Menu key to enter main Menu.
In the standby mode, press Right soft key to view phone
book list.
In the standby mode, press Send key to enter call list.
