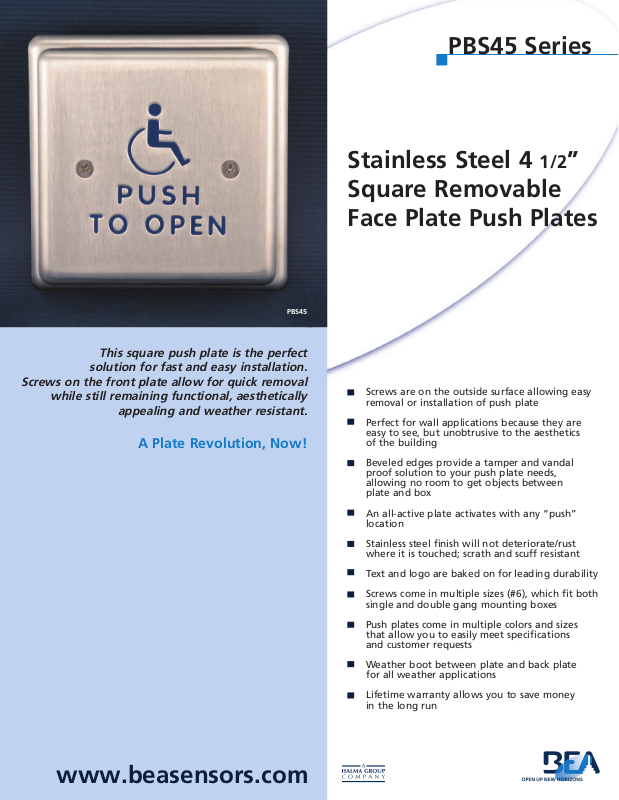

BEA PBS45 User Manual
PBS45 Series
PBS45
This square push plate is the perfect
solution for fast and easy installation.
Screws on the front plate allow for quick removal
while still remaining functional, aesthetically
appealing and weather resistant.
A Plate Revolution, Now!
Stainless Steel 4
1/2”
Square Removable
Face Plate Push Plates
Screws are on the outside surface allowing easy
removal or installation of push plate
Perfect for wall applications because they are
easy to see, but unobtrusive to the aesthetics
of the building
Beveled edges provide a tamper and vandal
proof solution to your push plate needs,
allowing no room to get objects between
plate and box
An all-active plate activates with any “push”
location
Stainless steel finish will not deteriorate/rust
where it is touched; scrath and scuff resistant
Text and logo are baked on for leading durability
Screws come in multiple sizes (#6), which fit both
single and double gang mounting boxes
Push plates come in multiple colors and sizes
that allow you to easily meet specifications
and customer requests
Weather boot between plate and back plate
for all weather applications
Lifetime warranty allows you to save money
in the long run
www.beasensors.com
34.43[ mm]
1.36"
1
1
4
.
3
0
[
m
m
]
4
.
5
"
114.30[ mm]
4
.5"
2
3
1
4
CCoommppoonneennttss
1
Front Plate
2
Back Plate
3
Cherry Switch
4
Weatherboot
TTeecchhnniiccaall SSppeecciiffiiccaattiioonnss// MMoouunnttiinngg HHaarrddwwaarree
a. 16 gauge, 304 2B Stainless Steel Faceplate
b. 16 gauge, 304 2B Stainless Steel Backplate
c. Stainless Steel 6-32 x 1” Phillips head mounting screws
d. Stainless Steel 6-32 x 1/4” Phillips or tamper-resistant Spanner head assem-
bly screw
e. Cherry Switch: Single-pole, 15A, COM/ NO/ NC contacts
f. Powdercoat then clear coated faceplates available on certain styles
g. Wire nuts
CCuussttoomm SSppeecciiffiiccaattiioonnss
BEA proposes a variety of custom solutions for your push plates:
AAbbrraassiivvee EEttcchhiinngg//EEnnggrraavveed
“scratch” in the plate that is then filled with paint to create the custom
logo/text on the surface of the plate.
PPaadd PPrriinntteedd
– Logo/text is stamped onto the surface of the steel plate using
a special pad. The logo is only printed on the surface of the plate.
EEmmbboossssiinngg
– This process requires the use of a special tool designed to
punch the back of the face plate with the custom information. A special
coating is added to create a dramatic 3D embossing for your push plate.
d
– This method creates a very accurate and deep
PBS45 Series
1100PPBBSS445511
1100PPBBSS4455LLLL
1100PPBBSS4455BB --
Text and Logo
-
- Logo Only
Text only blue
1100PPBBSS4455 --
1100PPBBSS445511BB
Text only
- Text and Logo blue
CCoonnttaacctt IInnffoorrmmaattiioonn
BBEEAA IInncc..
RIDC Park West
100 ENTERPRISE DRIVE
PITTSBURGH, PA 15275
PHONE 1-412-249-4100
FAX 1-888-523-2462
TOLL FREE 1-800-5 BEA INC
BBEEAA WWeesstt
190 East
Arrow Highway Suite A
San Dimas, CA 91773-3314
FAX 1-888-523-2462
TOLL FREE 1-877-232-9378
www.beasensors.com
