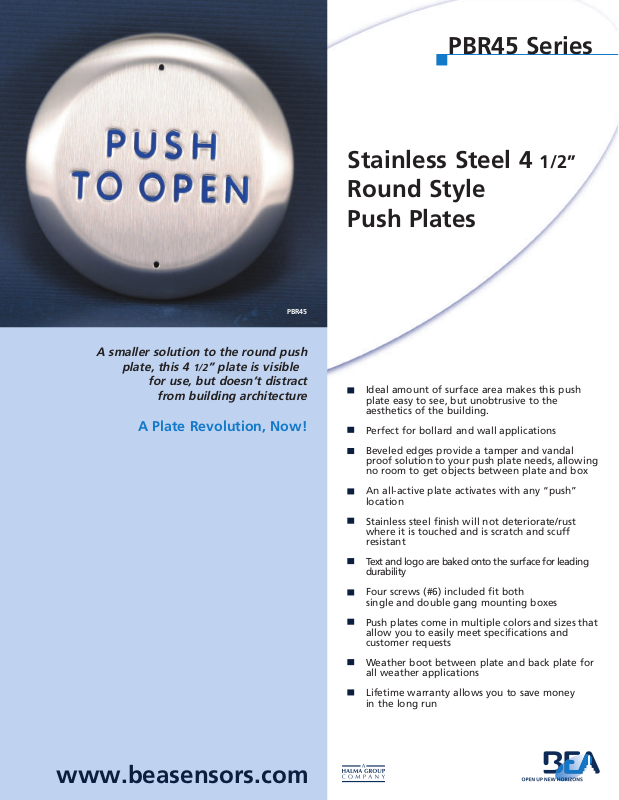

BEA PBR45 User Manual
PBR45 Series
PBR45
A smaller solution to the round push
plate, this 4
for use, but doesn’t distract
from building architecture
1/2” plate is visible
A Plate Revolution, Now!
Stainless Steel 4
1/2”
Round Style
Push Plates
Ideal amount of surface area makes this push
plate easy to see, but unobtrusive to the
aesthetics of the building.
Perfect for bollard and wall applications
Beveled edges provide a tamper and vandal
proof solution to your push plate needs, allowing
no room to get objects between plate and box
www.beasensors.com
An all-active plate activates with any “push”
location
Stainless steel finish will not deteriorate/rust
where it is touched and is scratch and scuff
resistant
Text and logo are baked onto the surface for leading
durability
Four screws (#6) included fit both
single and double gang mounting boxes
Push plates come in multiple colors and sizes that
allow you to easily meet specifications and
customer requests
Weather boot between plate and back plate for
all weather applications
Lifetime warranty allows you to save money
in the long run
32.49[ mm]
1
.28"
!
114. 30[ mm]
4
.50"
CCoommppoonneennttss
2
3
1
4
1
Front Plate
2
Back Plate
3
Cherry Switch
4
Weatherboot
TTeecchhnniiccaall SSppeecciiffiiccaattiioonnss//MM
a. 16 gauge, 304 2B Stainless Steel Faceplate
b. 1/8” thick, Aluminum Backplate
c. Stainless Steel 6-32 x 1” and 8-32 x 1” Allen head mounting screws
d. Cherry Switch: Single-pole, 15A, COM/ NO/ NC contacts
e. 5/64” Allen key removes both 6-32
f. Powdercoat then clear-coated faceplates available on certain styles
g. Wire nuts
CCuussttoomm SSppeecciiffiiccaattiioonnss
BEA proposes a variety of custom solutions for your push plates:
AAbbrraassiivvee EEttcchhiinngg//EEnnggrraavveed
onto the surface of the steel plate to create a very accurate and deep “scratch”
in the plate that is filled with paint to create the custom logo/text on the sur-
face of the plate.
PPaadd PPrriinntteedd
– Logo/text is stamped onto the surface of the steel plate using a
special pad. The logo is only printed on the surface of the plate.
EEmmbboossssiinngg
– This process requires the use of a special tool designed to punch
the back of the face plate with the custom information. A special coating is
added to the embossing process add a dramatic 3D effect to your push plate.
d
–Customized using fine sand shot very precisely
PBR45 Series
1100PPBBRR4455
1100PPBBRR445511
- Text only
- Text and Logo
Mounting Components
1100PPBBRR44551100 --
1100PPBBRR4455LLLL
Plain
- Logo only
CCoonnttaacctt IInnffoorrmmaattiioonn
BBEEAA IInncc..
RIDC Park West
100 ENTERPRISE DRIVE
PITTSBURGH, PA 15275
PHONE 1-412-249-4100
FAX 1-888-523-2462
TOLL FREE 1-800-5 BEA INC
BBEEAA WWeesstt
190 East
Arrow Highway Suite A
San Dimas, CA 91773-3314
FAX 1-888-523-2462
TOLL FREE 1-877-232-9378
www.beasensors.com
1100BBOOXX4455RRNNDDSSMM
Round Surface Mount
Box
1100BBOOLLLLAARRDD
1100BBOOXX4455RRNNDDFFMM
Round Flush Mount
Box
1100BBRRIINNGGCC
Beauty Ring
1100WWRRRRNNDD4455
Weather Ring
