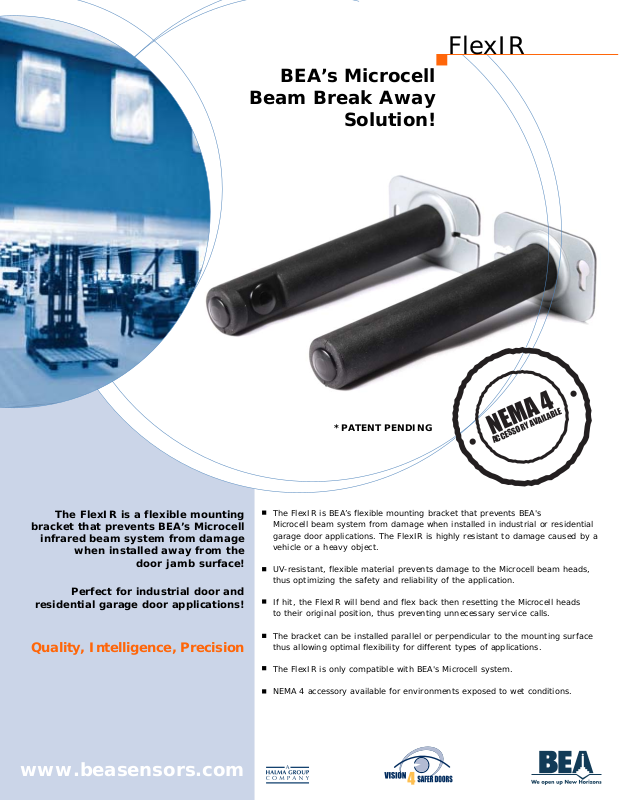

BEA Nema 4 Flex IR User Manual
FlexIR
BEA’s Microcell
Beam Break Away
Solution!
The FlexIR is a flexible mounting
bracket that prevents BEA’s Microcell
infrared beam system from damage
when installed away from the
door jamb surface!
Perfect for industrial door and
residential garage door applications!
Quality, Intelligence, Precision
The FlexIR is BEA’s flexible mounting bracket that prevents BEA's
Microcell beam system from damage when installed in industrial or residential
garage door applications. The FlexIR is highly resistant to damage caused by a
vehicle or a heavy object.
UV-resistant, flexible material prevents damage to the Microcell beam heads,
thus optimizing the safety and reliability of the application.
If hit, the FlexIR will bend and flex back then resetting the Microcell heads
to their original position, thus preventing unnecessary service calls.
The bracket can be installed parallel or perpendicular to the mounting surface
thus allowing optimal flexibility for different types of applications.
The FlexIR is only compatible with BEA's Microcell system.
NEMA 4 accessory available for environments exposed to wet conditions.
www.beasensors.com
NEMA 4
ACCESSORY AVAILABLE
*PATENT PENDING
FlexIR Technical Specifications
Materials:
Flexible Beam Holder Silicone
Mounting Brack Galvanized Steel
Button Plug ABS and Lexan
Screws 18/8 Stainless Steel
Dimensions:
Overall Length 6” (150 mm)
Width (of Bracket) 1 ¾” (45 mm)
Height (of Bracket) 2 ¾” (70 mm)
Installation Height See Mechanical Installation
Instructions in User’s Guide
Operating Temperature -30° to + 131° F
Bracket when used with Microcell (sold separately)
Minimum Distance
between pairs of beams 12” (beams must not be crossed)
Range of Detection
Minimum 3’ (1 m)
Maximum 16.5’ (5m) if mounted 8” (0.2m)
above ground
33’ (10m) if mounted 16” (0.4m)
above ground
Minimum Distance
from Plane of Door 1”(25.4 mm)
Alignment Tolerance 8°
www.beasensors.com
Contact Information
BEA Inc.
RIDC Park West
100 Enterprise Drive
Pittsburgh PA, 15275
Phone +1.412.249.4100
Fax +1.412.249.4101
Toll Free 1-800.523.2462
BEA West
2401 Pine Street
Los Angeles, CA 91767
Phone +1.909.596.3011
Fax +1.909.596.5411
Toll Free 1-877.232.9378
SBK30 LO Linx
3
1
2
5
4
Flex IR Components
Phillips Head Screw (6)
Mounting Box
Flexible Beam Holder
Button Plug
Microcell Beam
NEMA 4 Accessory
1
2
3
4
5
Applications
Flex IR protects the microcell against blunt hits from
tractor trailers, forklifts, or heavy objects in the
industrial setting.
Flex IR with Microcell provides safety accross garage
door openings to help prevent injuries from a closing
garage door. The Flex IR protects the microcell from
getting hit by cars or other heavy objects.
6
6
