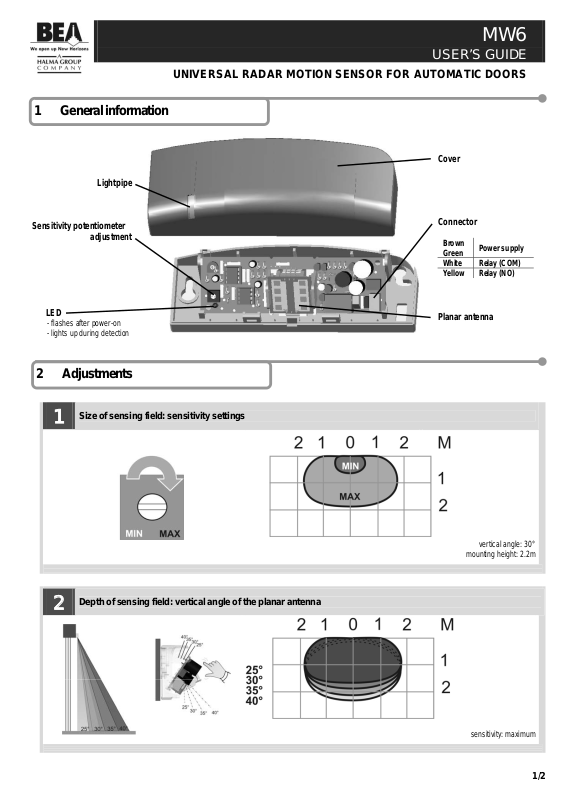

MW6
UNIVERSAL RADAR MOTION SENSOR FOR AUTOMATIC DOORS
1 General information
Lightpipe
Sensitivity potentiometer
adjustment
LED
- flashes after power-on
- lights up during detection
2 Adjustments
USER’S GUIDE
Cover
Connector
Brown
Green
White Relay (COM)
Yellow Relay (NO)
Power supply
Planar antenna
Size of sensing field: sensitivity settings
1
Depth of sensing field: vertical angle of the planar antenna
2
vertical angle: 30°
mounting height: 2.2m
sensitivity: maximum
1/2
3 Opening & closing of sensor
OPENING
CLOSING
4 Installation tips
Avoid vibrations! Do not cover the sensor!
Avoid moving objects
close to the sensor!
Avoid HF lamps or
fluorescent lighting
Avoid touching
close to the sensor!
5 Troubleshooting
SYMPTOMS PROBABLE CAUSES CORRECTIVE ACTION
The door will not open and LED is OFF. The sensor power is off. Check the wiring and the power supply.
The door opens and closes constantly. 1. The sensor "sees" the door moving. Increase the tilt angle and/or reduce the sensitivity.
the antenna!
2. When closing, the door creates
vibrations picked up by the sensor.
The door will not close.
LED is OFF.
ON-OFF switch at door control is in
wrong position or faulty.
Make sure that the sensor is correctly fixed.
Increase the tilt angle and/or reduce the sensitivity.
Make sure that the ON-OFF switch for the door is in the ON or
AUTOMATIC position.
6 Technical specifications
Technology : microwave and microprocessor
Transmitter frequency : 24.125 GHz
Transmitter radiated power : <20 dBm EIRP
Transmitter power density : < 5mW/cm²
Maximum mounting height : 3m
Tilt angles : 25°, 30°, 35°, 40°
Max. detection field (mounting height=2.2m) : 4m (W) x 2 m (D)
Detection mode : motion
Minimum speed : 5 cm/s (measured in the sensor axis)
Supply voltage : 12V to 24V AC +/- 10%; 12V to 30V DC
Mains frequency : 50 to 60 Hz
Power consumption : < 2W (VA)
Output relay (free of potential change-over contact)
Max. contact voltage
Max. contact current
Max. switching power
: 42V AC- 60V DC
: 1A (resistive)
: 30W (DC) / 60VA (AC)
Output hold time : 0.5s
Temperature range : -20°C to +55°C
Degree of protection : IP52
Material : ABS
Color of housing : black, aluminium finish
Dimensions : 142mm (W) x 46mm (H) x 45mm (D)
Weight : 0.100 kg
Length of cable : 2.5m
42.0399 / V1 – 01.06
Liege Science Park – Allée des Noisetiers 5, Angleur – BELGIUM – TEL +32.4.361.6565 – FAX +32.4.3612858 – E-mail: info@bea.be – www.beasensors.com
