BEA 10MATRIX User Manual

BACK VIEW
Main Connector (86CP11)
MATRIX
“The Peak Of Detection”
Power LED
Dip Switches
Detection State LED
Presence Time Adjustment Potentiometer
Sensitivity Adjustment Potentiometer (Dual Loop Only)
Detection State LED (Dual Loop Only)
Sensitivity Adjustment Potentiometer
FCC ID#: G9B-MATRIX IC ID#: 4680A-MATRIX
DIGITAL INDUCTIVE LOOP SENSORS

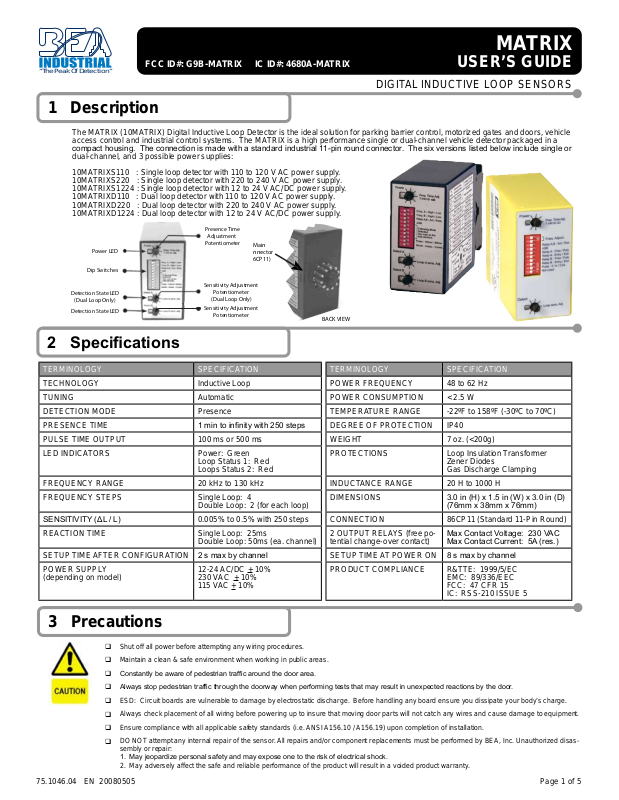

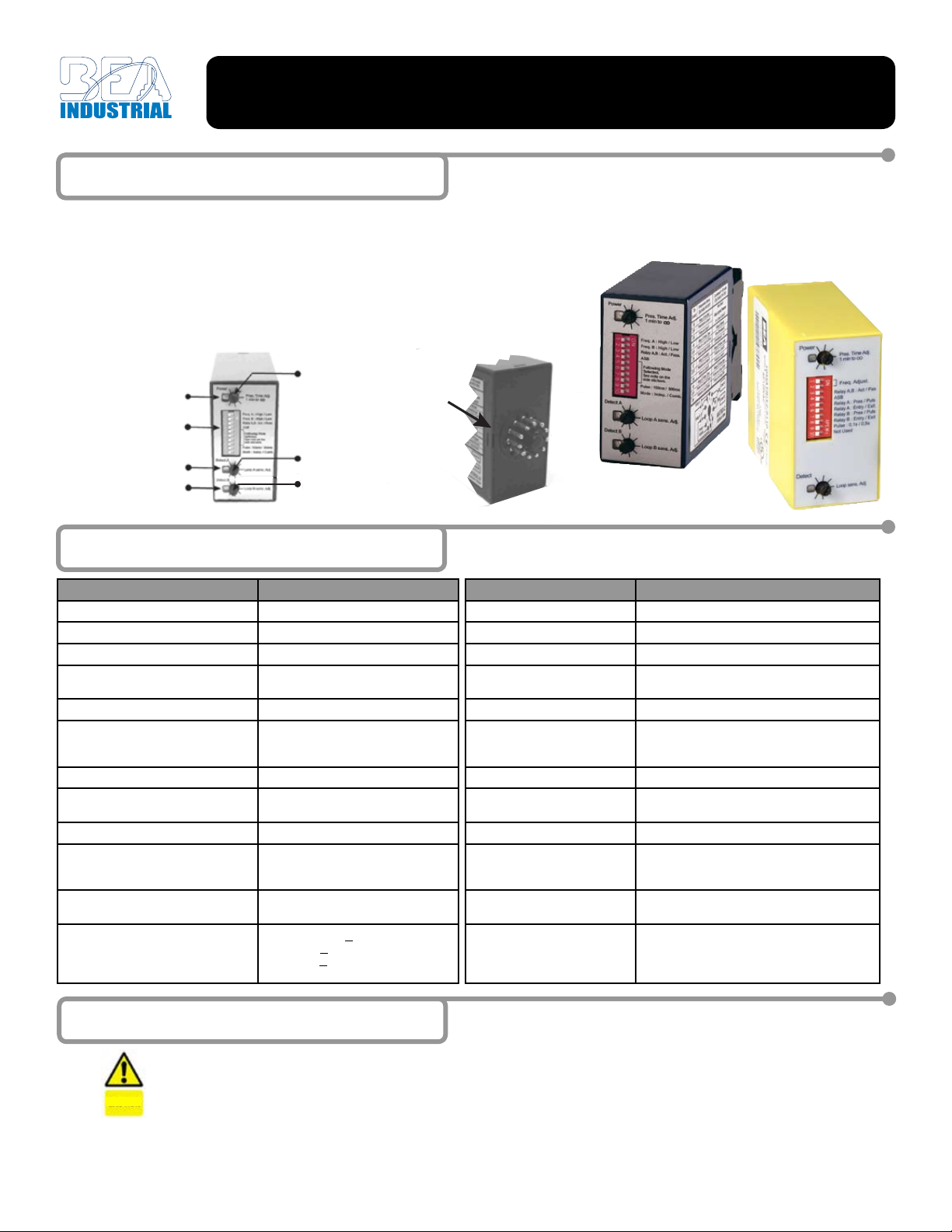

1 Description
The MATRIX (10MATRIX) Digital Inductive Loop Detector is the ideal solution for parking barrier control, motorized gates and doors, vehicle access control and industrial control systems. The MATRIX is a high performance single or dual-channel vehicle detector packaged in a
compact housing. The connection is made with a standard industrial 11-pin round connector. The six versions listed below include single or
dual-channel, and 3 possible power supplies: 10MATRIXS110 : Single loop detector with 110 to 120 V AC power supply.
10MATRIXS220 : Single loop detector with 220 to 240 V AC power supply. 10MATRIXS1224 : Single loop detector with 12 to 24 V AC/DC power supply. 10MATRIXD110 : Dual loop detector with 110 to 120 V AC power supply. 10MATRIXD220 : Dual loop detector with 220 to 240 V AC power supply. 10MATRIXD1224 : Dual loop detector with 12 to 24 V AC/DC power supply.
USER’S GUIDE
2 Specications
TERMINOLOGY SPECIFICATION TERMINOLOGY SPECIFICATION
TECHNOLOGY Inductive Loop POWER FREQUENCY 48 to 62 Hz TUNING Automatic POWER CONSUMPTION < 2.5 W DETECTION MODE Presence TEMPERATURE RANGE -22ºF to 158ºF (-30ºC to 70ºC) PRESENCE TIME 1 min to innity with 250 steps DEGREE OF PROTECTION IP40 PULSE TIME OUTPUT 100 ms or 500 ms WEIGHT 7 oz. (<200g) LED INDICATORS Power: Green
Loop Status 1: Red Loops Status 2: Red
PROTECTIONS Loop Insulation Transformer
Zener Diodes
Gas Discharge Clamping FREQUENCY RANGE 20 kHz to 130 kHz INDUCTANCE RANGE 20 H to 1000 H FREQUENCY STEPS Single Loop: 4
Double Loop: 2 (for each loop)
DIMENSIONS 3.0 in (H) x 1.5 in (W) x 3.0 in (D)
(76mm x 38mm x 76mm) SENSITIVITY (ΔL / L) 0.005% to 0.5% with 250 steps CONNECTION 86CP11 (Standard 11-Pin Round)
REACTION TIME Single Loop: 25ms
Double Loop: 50ms (ea. channel)
2 OUTPUT RELAYS (free po­tential change-over contact)
Max Contact Voltage: 230 VAC
Max Contact Current: 5A (res.)
SETUP TIME AFTER CONFIGURATION 2 s max by channel SETUP TIME AT POWER ON 8 s max by channel POWER SUPPLY
(depending on model)
12-24 AC/DC + 10% 230 VAC + 10% 115 VAC + 10%
PRODUCT COMPLIANCE R&TTE: 1999/5/EC
EMC: 89/336/EEC
FCC: 47 CFR 15
IC: RSS-210 ISSUE 5
3 Precautions
Shut off all power before attempting any wiring procedures.
Maintain a clean & safe environment when working in public areas.
Constantly be aware of pedestrian trafc around the door area.
Always stop pedestrian trafc through the doorway when performing tests that may result in unexpected reactions by the door.
ESD: Circuit boards are vulnerable to damage by electrostatic discharge. Before handling any board ensure you dissipate your body’s charge.
Always check placement of all wiring before powering up to insure that moving door parts will not catch any wires and cause damage to equipment. Ensure compliance with all applicable safety standards (i.e. ANSI A156.10 / A156.19) upon completion of installation. DO NOT attempt any internal repair of the sensor. All repairs and/or component replacements must be performed by BEA, Inc. Unauthorized disas-
sembly or repair:
1. May jeopardize personal safety and may expose one to the risk of electrical shock.
2. May adversely affect the safe and reliable performance of the product will result in a voided product warranty.
4 FCC Compliance
L
Ea
Eb
Area Number of turns
<32 ft² <3 m² 4
32 – 54 ft² 3 – 5 m² 3
65 – 108 ft² 6 – 10 m² 2
1 ¼ - 2” (30 –50mm) depending on the cable turns number
Cleananddryslotsprior toinsertingcable
Loop sealant
Ground
level
10MATRIXS110 : Single loop detector with 110 to 120 V AC power supply. 10MATRIXS220 : Single loop detector with 220 to 240 V AC power supply. 10MATRIXS1224 : Single loop detector with 12 to 24 V AC/DC power supply. 10MATRIXD110 : Dual loop detector with 110 to 120 V AC power supply. 10MATRIXD220 : Dual loop detector with 220 to 240 V AC power supply. 10MATRIXD1224 : Dual loop detector with 12 to 24 V AC/DC power supply.
The Digital Transmitters and Receivers comply with Part 15 of the FCC rules. Operation is subject to the following two conditions:
1) This device may not cause harmful interference and;
2) This device must accept any interference received including interference that may cause undesired operations.
Changes or modications not expressly approved by BEA, Inc. for compliance could void the user’s authority to operate the equipment.
FCC ID#: G9B-MATRIX IC ID#: 4680A-MATRIX

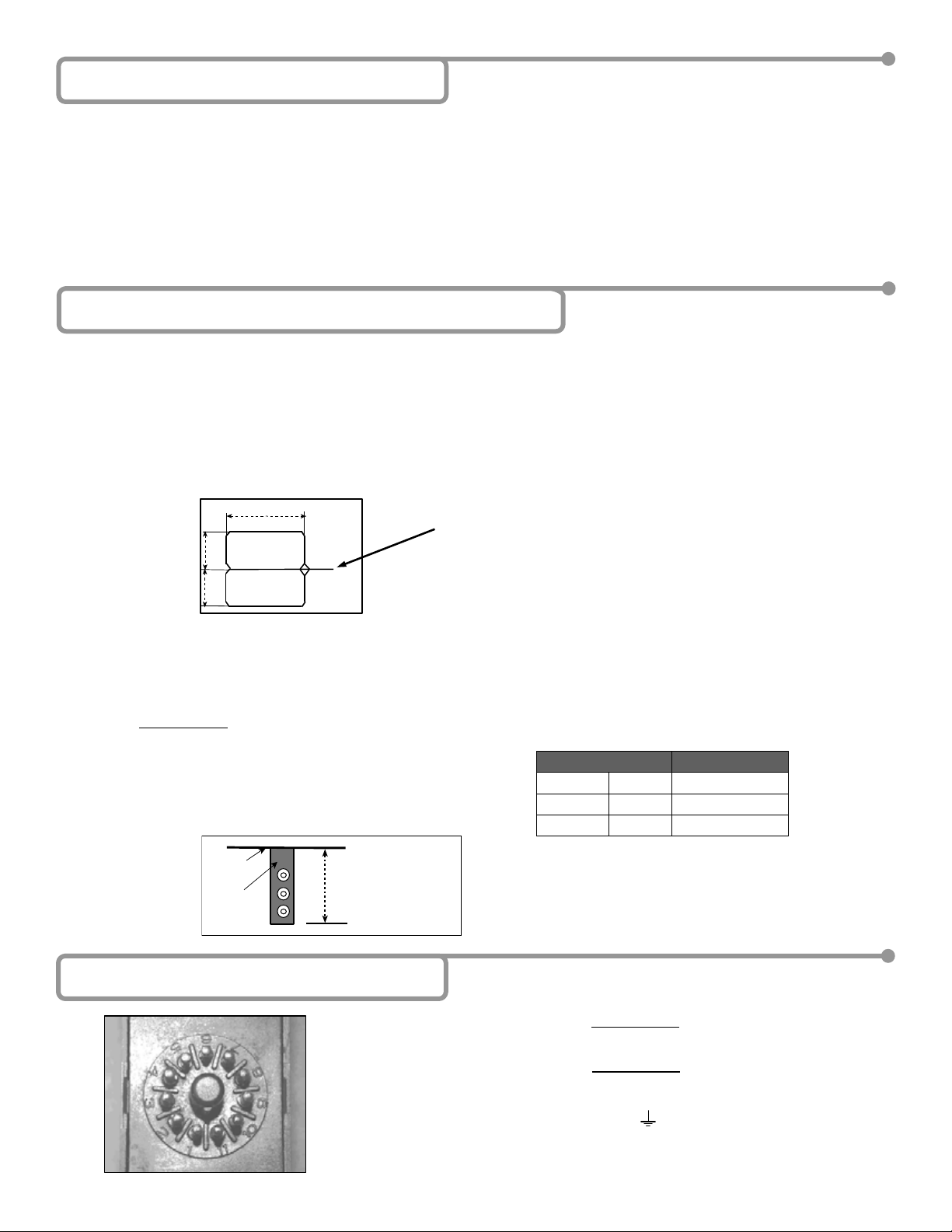

5 Loop Installation Tips
A . CABLE SPECIFICATIONS FOR LOOP AND FEEDER
• 16 AWG (1.5mm²) cross section area ;
• Multi-strand cable ;
• Insulation material : PVC or Silicone ;
• For the feeder cable, the wire must be twisted at least 15 times per yard for each cable.
• Feeder for long runs used for foil screened cable is recommended (earth at equipment end only)
• The feeder cable must be rmly xed to avoid any false detection (max length: 330 ft. / 100m).
• Waterproof cable junction box is required.
B. LOOP GEOMETRY
• When two adjacent loops are connected to a dual channel
sensor, it is possible for these loops to share a common
slot, if so required. As the channels are multiplexed, no
interference will occur.
• Avoid large loops or long feeder (max 330 ft. / 100 m),
or else the sensitivity will be affected.
C. NUMBER OF LOOP TURNS
• Measure the length (L) and width (Ea) of one loop. Multiply these numbers together to determine the loop surface area.
• For example: If L=10 ft, Ea= 3 ft, then the area = 30 ft2; 4 loop turns are recommended - or ­ If L=2m, Ea=1m, then the area = 2 m2 ; 4 loop turns are recommended.
WARNING: FOR CONFORMITY REASONS, IN ANY INSTALLATION, THE LOOP SURFACE MULTIPLIED BY THE NUMBER OF
Recommended values for the turns:
D. SLOT DEPTH
6 Wiring
Page 2 of 5 75.1046.04 EN 20080505
TURNS SHOULD NOT EXCEED 215 SQUARE FEET OR 20 SQUARE METERS.
PIN 1: Power Supply PIN 2: Power Supply PIN 3: Relay 2 (NO) PIN 4: Relay 2 (COM) PIN 5: Relay 1 (NO) PIN 6: Relay 1 (COM)
WARNING: DO NOT REMOVE THE GREASE ON
THE CONNECTOR’S PINS.
WARNING: PIN #8 MUST BE CONNECTED TO
THE LOOP AND TO GROUND.
PIN 7: Loop A PIN 8: Loop Common (Connect to Ground ) PIN 9: Loop B PIN 10: Relay 1 (NC) PIN 11: Relay 2 (NC)

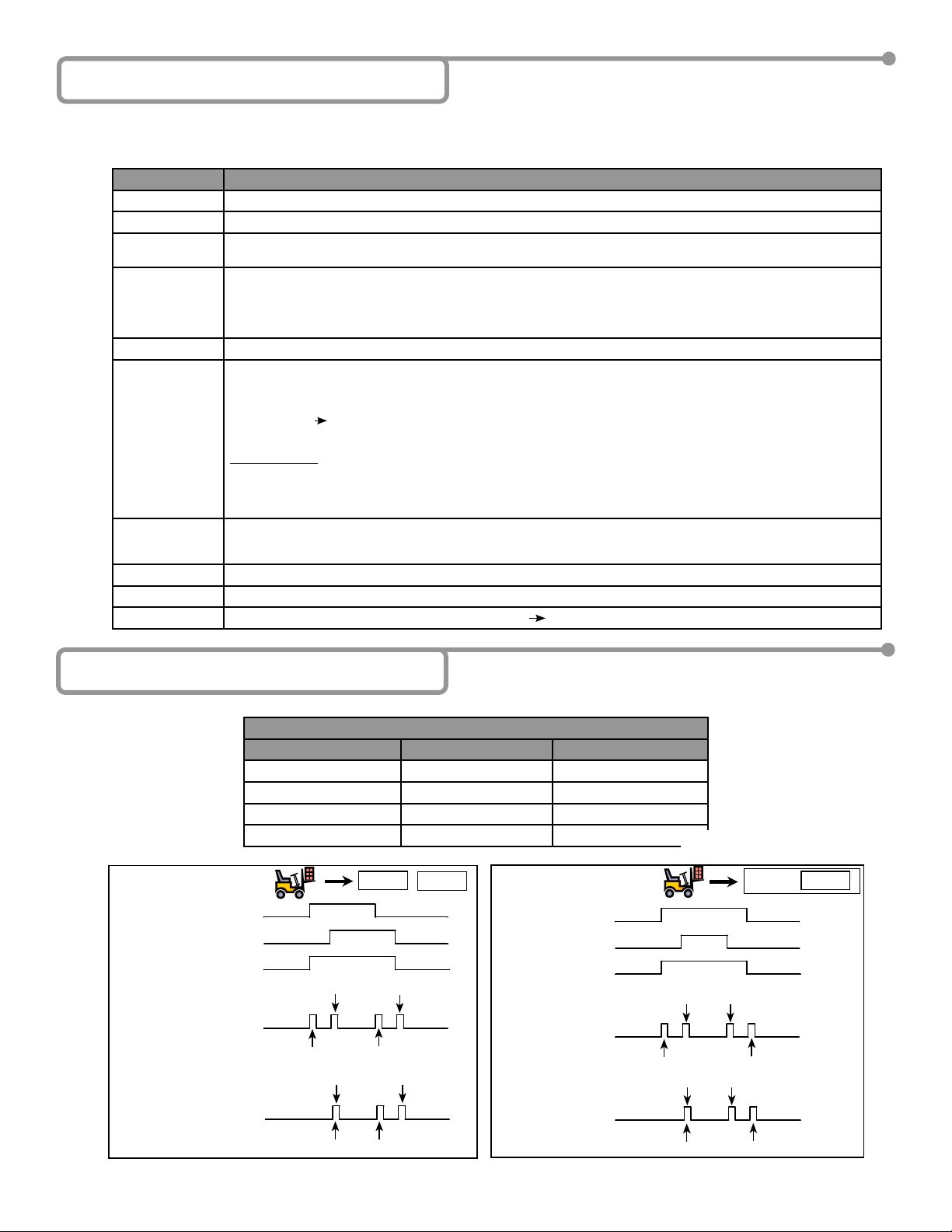

7 Programming
Configuration A
Single loop
Configuration B
Dual loop in independent mode
Configuration C
Dual loop in combined mode
Dip Switch
OFF ON OFF ON OFF ON
DS#1
High (loop A) Low (loop A)
[High –30%]
High (loop A) Low (loop A)
[High –30%]
DS#2
See next table
High (loop B) Low (loop B)
[High –30%]
High (loop B) Low (loop B)
[High –30%]
DS#3
Active mode Passive mode Active mode Passive mode Active mode Passive mode
DS#4
ASB OFF ASB ON ASB OFF ASB ON ASB OFF ASB ON
DS#5
Relay A : Presence on loop A
Relay A : Pulse on loop
Relay A : Presence on loop A
Relay A : Pulse on loop A
Not used Not used
DS#6
Relay A : Pulse on loop A entry
Relay A : Pulse on loop A exit
Relay A : Pulse on loop A entry
Relay A : Pulse on loop A Exit
Relay B : Non-Directional mode
Relay B: Directional AB mode
DS#7
Relay B : Presence on loop A
Relay B : Pulse on loop A
Relay B : Presence on loop B
Relay B : Pulse on loop B
Relay B : Pulse on loop B
Relay B : Pulse on loop A
DS#8
Relay B : Pulse on loop A entry
Relay B : Pulse on loop A exit
Relay B : Pulse on loop B entry
Relay B : Pulse on loop B exit
Relay B : Pulse on loop entry
Relay B : Pulse on loop exit
DS#9
100 ms 500 ms 100 ms 500 ms 100 ms 500 ms
DS#10
Not used Not used Independent Combined mode Independent Combined mode
MAX
1 min
10 min
1 hr
2
5
20
In
f
inity
PRESENCE TIME
hr
hr
hr
MIN
0.5%
0.44%
0.34%
0.25%
0.18%
0.1%
0
.005%
SENSITIVITY
MAX
MIN
DETECTION STATUS
FAIL-SECURE MODE (Active Mode) (Relay is not energized upon power-on) DIPSWITCH 3 = OFF
FAIL-SAFE MODE (Passive Mode) (Relay becomes energized upon power-on) DIPSWITCH 3 = ON
NO DETECTION
The COM and NO terminals are OPEN. COM and NC terminals are CLOSED. The relay is de-energized.
The COM and NO terminals are CLOSED. COM and NC terminals are OPEN. The relay is energized.
DETECTION
The COM and NO terminals are CLOSED. COM and NC terminals are OPEN. The relay is energized.
The COM and NO terminals are OPEN. COM and NC terminals are CLOSED. The relay is de-energized.
UPON POWER LOSS
The COM and NO terminals are OPEN. COM and NC terminals are CLOSED The relay is de-energized.
The COM and NO terminals are OPEN. COM and NC terminals are CLOSED. The relay is de-energized.
Same
Same
I. THE 3 CONFIGURATIONS
A. Conguration A: Single Loop Detector (MATRIX-S) B. Conguration B: Dual Loop Detector in Independent Mode with Dipswitch #10 OFF (MATRIX-D) C. Conguration C: Dual Loop Detector in Combined Mode with Dipswitch #10 ON (MATRIX-D)
II. POTENTIOMETERS
A Potentiometer for Adjustment of the Maximum Duration of a Presence Detection: from 1 min to Innity (See PRESENCE TIME)
A Potentiometer for Adjustment of the Linear Sensitivity ( f) for the Loop A: from 0.005% to 0.5% (See SENSITIVITY)
A Potentiometer for Adjustment of the Linear Sensitivity ( f) for the Loop B: from 0.005% to 0.5% (See SENSITIVITY)
III. RELAY CONFIGURATION (DIPSWITCH #3)
Δ
Δ
A 10 position dip switch is located on the front of the Matrix single detector. Dip switch 3, 5, 6, 7 and 8 congure the relay, while dip switch 9 controls the duration of the pulse when the Matrix is congured for pulse operation, (as opposed to presence). Congurations are as follows:
DIPSWITCH 3:
OFF= FAIL-SECURE MODE Relay is NOT energized when power is applied. Relay is energized upon detection only. In this mode, the NO
circuit is open, and the NC circuit is closed. Thus, if a closed circuit is required upon detection, one must use the NO and COM terminals
since they would close upon detection. When the Matrix is NOT powered, it is in the same state as it would be for non-detection.
ON = FAIL-SAFE MODE Relay is energized as soon as power is applied and de-energizes upon detection or power loss. In this mode, upon
powering the detector, the NO circuit becomes closed, and the NC circuit becomes open. Thus, if a closed circuit is required upon detection, one must use the NC and COM terminals, since they would now be OPEN during non-detection, and would close upon detection. When the
Matrix is NOT powered, it is in the same state as it would be for detection.
7 Programming (cont’d)
entryB
Pulseon exit
A
Pulse onexitB
Dual Loop Configuration A
RelayB
(DirectionalA-> B mode)
Pulse on entry A
Pulseonentry
Relay B
(Non-Directional)
LoopA
LoopB
Relay A
Pulse on entry A
Pulse on
B
Pulseonexit
A
PulseonexitB
Loop
A
LoopB
Dual LoopConfiguration B
LoopA
LoopB
Relay A
PulseonentryB PulseonexitB
Pulse on entry A
Pulse onexit
A
Relay B
(Non-Directional)
PulseonentryB
Pulse
onexitB
Pulse on entry A
Pulse onexit
A
RelayB
(DirectionalA-> B mode)
Loop
A
LoopB
IV. DIPSWITCHES A. After each dipswitch change the sensor launches a learning process.
DIPSWITCH LEARNING PROCESS
#1 Frequency Adjustments of Loop A (see ADJUSTMENTS) #2 Frequency Adjustments of Loop A (with single loop) or Loop B (with Dual Loops) #3 Relay conguration: Active (Fail-Secure) or Passive (Fail-Safe)(See Programming Step III.) #4 Automatic Sensitivity Boost (ASB option) [recommended for improved truck detection] :
#5 Relay A Function: Presence or Pulse (not used with dual loop in combined mode) #6
During a detection, the sensitivity increases automatically to 8 times the preset sensitivity given by the sensitivity
potentiometer adjustment. It is limited to the maximum sensitivity ( f = 0.005%). It goes back to the preset value after
detection stops.
Relay A Pulse type: Entry or Exit (used only at pulse function) or Relay B Mode (with dual loop in combined mode) (see drawing on next page)
• Non-Directional: Relay B provides a pulse according to the dip switches #7 and #8 setting.
• Directional A B: Relay B provides a pulse only if loop A is detecting before loop B. The logic detection takes place
according to dip switches #7 and #8. WARNING: DURING THE DETECTION, THE 2 LOOPS HAVE TO DETECT SIMULTANEOUSLY FOR A SHORT
PERIOD TO BE ABLE TO DETERMINE THE MOVEMENT DIRECTION. DURING LOOP INSTALLATION MAKE SURE THE 2 LOOPS ARE CLOSE ENOUGH TO EACH OTHER TO ENSURE A COMMON DETECTION (TYPICAL 3 FEET).
Δ
#7 Relay B Function: Presence or Pulse - or -
Loop Selection for Relay B Pulse: Pulse on Loop B or Pulse on Loop A (used with dual loop in combined mode) #8 Relay B Pulse Type: Entry or Exit (used only at pulse function) #9 Pulse Duration for Both Relays (used only at pulse function): 100 ms or 500 ms
#10 Dual Loop Mode: Independent or Combined A B (not used with single loop)

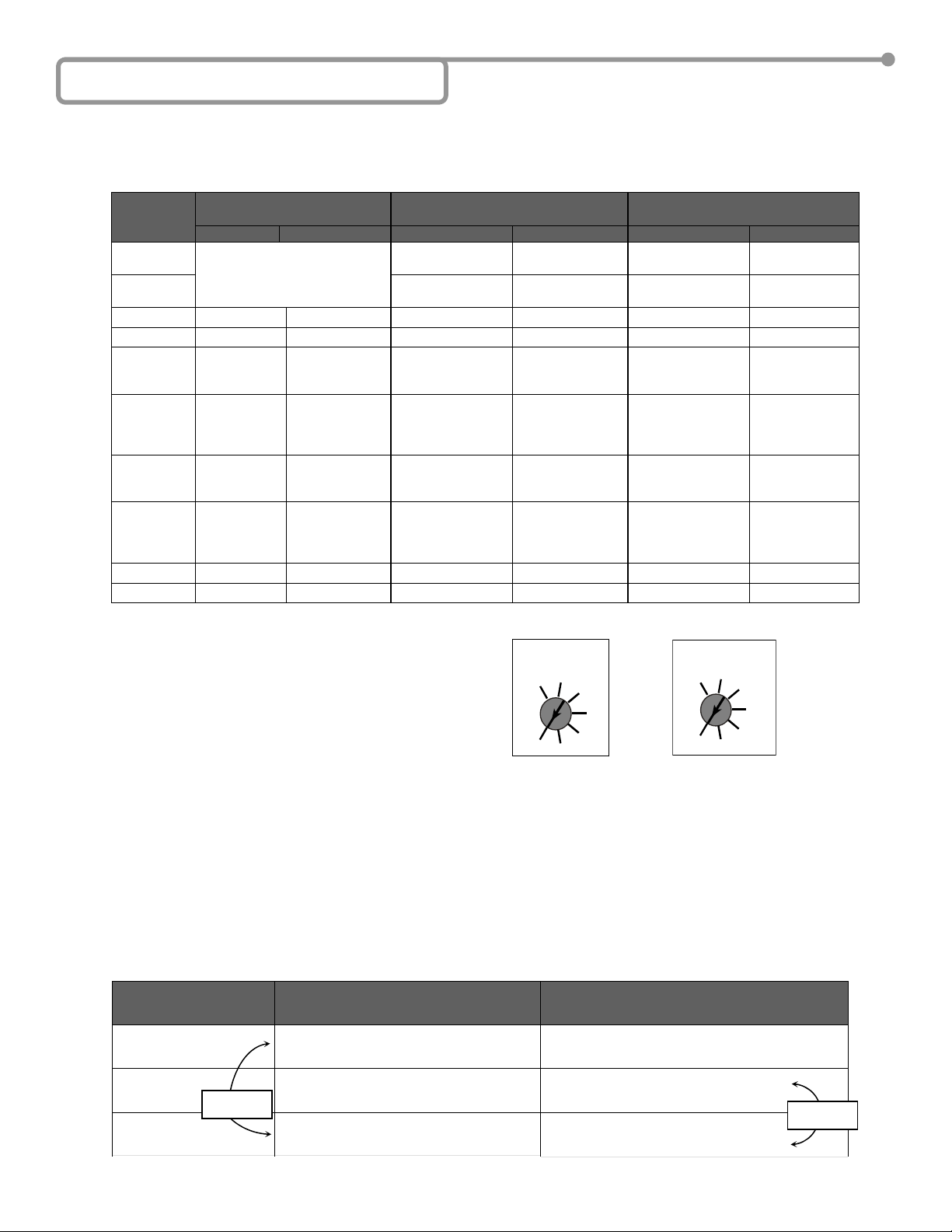

8 Adjustments
FREQUECY ADJUSTMENT FOR LOOP A FOR SINGLE LOOP DETECTOR
LOOP FREQUENCY DIPSWITCH #1 DIPSWITCH #2
HIGH Off Off
MID HIGH (High - 20%) On Off
MID LOW (High - 25%) Off On
LOW (High - 30%) On On
Page 4 of 5 75.1046.04 EN 20080505
