CORRIDOR SV™ 7129
4 BAY CONSOLE
Product Registration
Registering your new BDI product allows us to send you important
product updates, service information and helpful hints related to your BDI
products. Register today, and you will be entered to win free a BINK table
from BDI: www.bdiusa.com/register
Placement and Maintenance
Your Corridor Console is designed for indoor use on level floors. Clean
wood veneer and steel parts with a moist cloth.
Corridor is engineered for easy assembly. Carefully follow this procedure
to prevent any damage. Do not use power tools for assembly of
this product.
Step 1 Unpack and identify the parts listed below. The assembly
workspace should be a non-marring surface such as carpet. For missing
hardware pieces, contact BDI Customer Service at:
customerservice@bdiusa.com.
For all other concerns, please contact your BDI retailer.
bdiusa.com
customerservice@bdiusa.com
T1 Phillips Screwdriver x 1
T2 Hex Wrench x 1
H1 1/4-20 x 15 mm
Machine Screw x 8
H2 1/4-20 x 63 mm
Machine Screw x 8
H3 M4 x 35 mm
Machine Screw x 8
H4 Rubber Bumper x 8
H5 Door Pull x 4
C5 Glass Top x 1
A2 Sub Frame x 2
Designed by Matthew Weatherly.
These distinctive product configurations are protected by US and international patents, trade dress, and/or
copyright laws. Corridor & BDI are trademarks of Becker Designed, Inc. All rights reserved. ©2017, BDI
Made in China. 10.04.2017 V1
A1 Cabinet x 1
C3 Middle Shelf x 1
C4 Side Shelf x 2
A3 Leg Frame x 2
Step 2 - Attach the 2 Leg frames A3 to Sub-frame A2 with 8 Screws H1 using Hex wrench T2.
Make sure the red arrow on the sub-frame faces the same direction as the direction of the leg frames.
A3
Red arrow
T2
H1
A2
H1 Screw x 8
A2
T2
Step 3 Quad - With help from another person, carefully position the cabinet A1 upside-down (as shown) or on
its back. Caution-do not remove blocking above the shelves. Attach the base to the cabinet with 8 Screws
H2 using Hex Wrench T2. Do NOT fully tighten until all screws are started.
2 Person Ta sk
H2 x 8
T2
2
CORRIDOR 7129
CONSOLE
customerservice@bdiusa.com
bdiusa.com
Step 4 - With help from another person, carefully position the cabinet upright and install Door Pulls H5 using
Screws H3 and Screwdriver T1. Adhere Rubber Bumpers H4 about 1 inch (25mm) from edges of the cabi-
net as shown below.
2 Person Ta sk
H4
H4
H4
H4
H4
H4
H4
H4
H3
H5
H3
Step 5 - Place glass top C5 on top of the cabinet. Position glass flush with cabinet front doors.
H5
2 Person Ta sk
3
CORRIDOR 7129
CONSOLE
customerservice@bdiusa.com
bdiusa.com

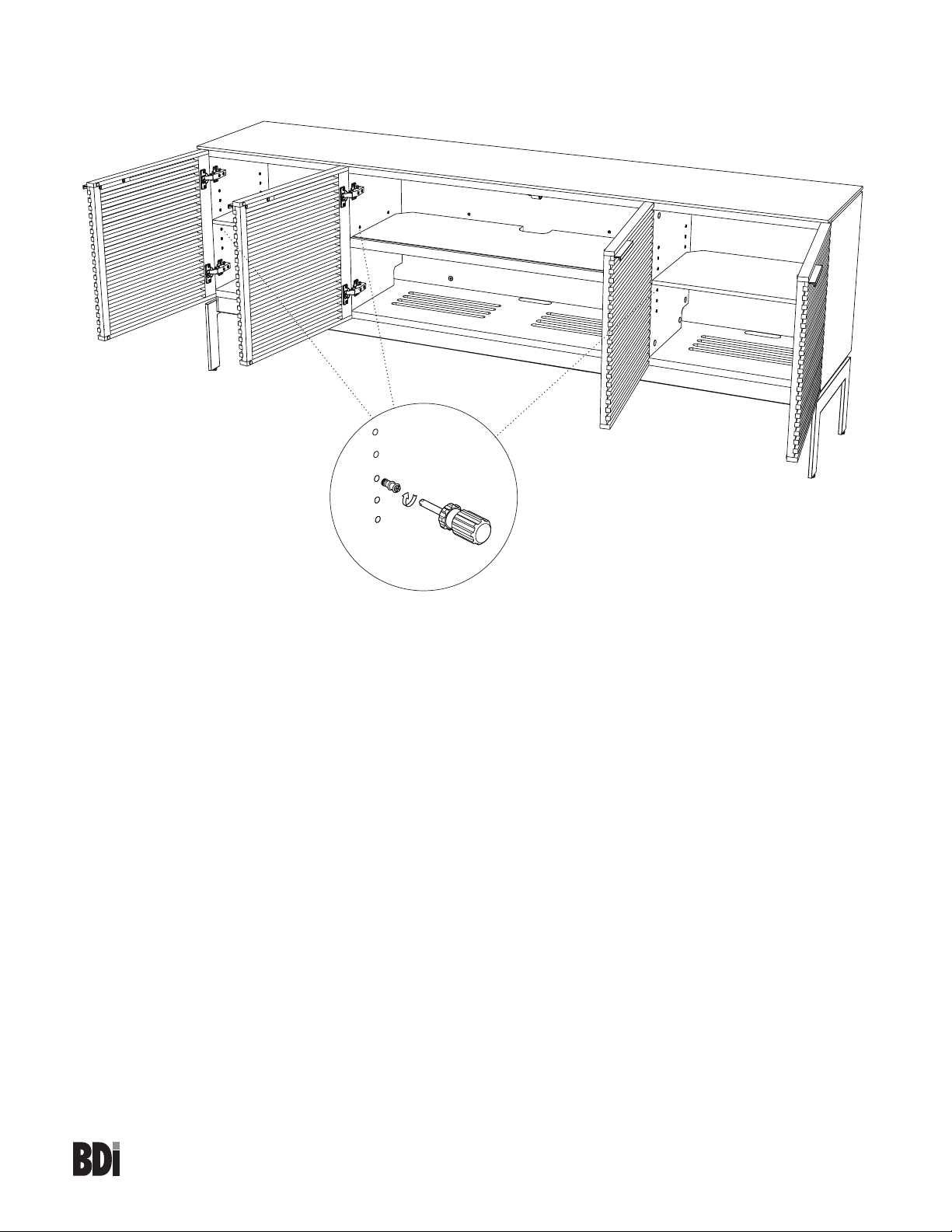

Step 6 - The shelf pins located inside all three cabinet spaces may be repositioned using Screwdriver T1,
allowing you to raise or lower Middle and Side Shelves C3 and C4 to the desired level.
C3
C4
T1
4
CORRIDOR 7129
CONSOLE
customerservice@bdiusa.com
bdiusa.com
Fine tuning your new BDI Corridor Home Theater Furniture
These steps are to be followed after you have unpacked and completed the simple assembly instructions for
your Corridor AV cabinet. Due to jostling in freight or perhaps an uneven floor, the doors on your Corridor cabinet
may not appear to be in perfect alignment. Making a few minor adjustments can rectify this situation. Be aware
that depending on your situation, patience and a bit of trial and error are required. The high-quality European
hinge hardware is infinitely adjustable, but changing one element can cause the need for further adjustments.
Through a little adjustment, you can modify the orientation of the cabinet doors to make sure that they are sitting
perfectly on your Corridor unit.
STEP 1 - Level your Corridor unit
Levelers are integrated into each leg assembly and are accessed at the bottom of each cabinet leg using Hex
Wrench (B2). If your floor is uneven, you may extend one or more levelers to attain a level, stable cabinet
placement. Turning the leveler clockwise will extend the leveler; turning it counter-clockwise will retract it.

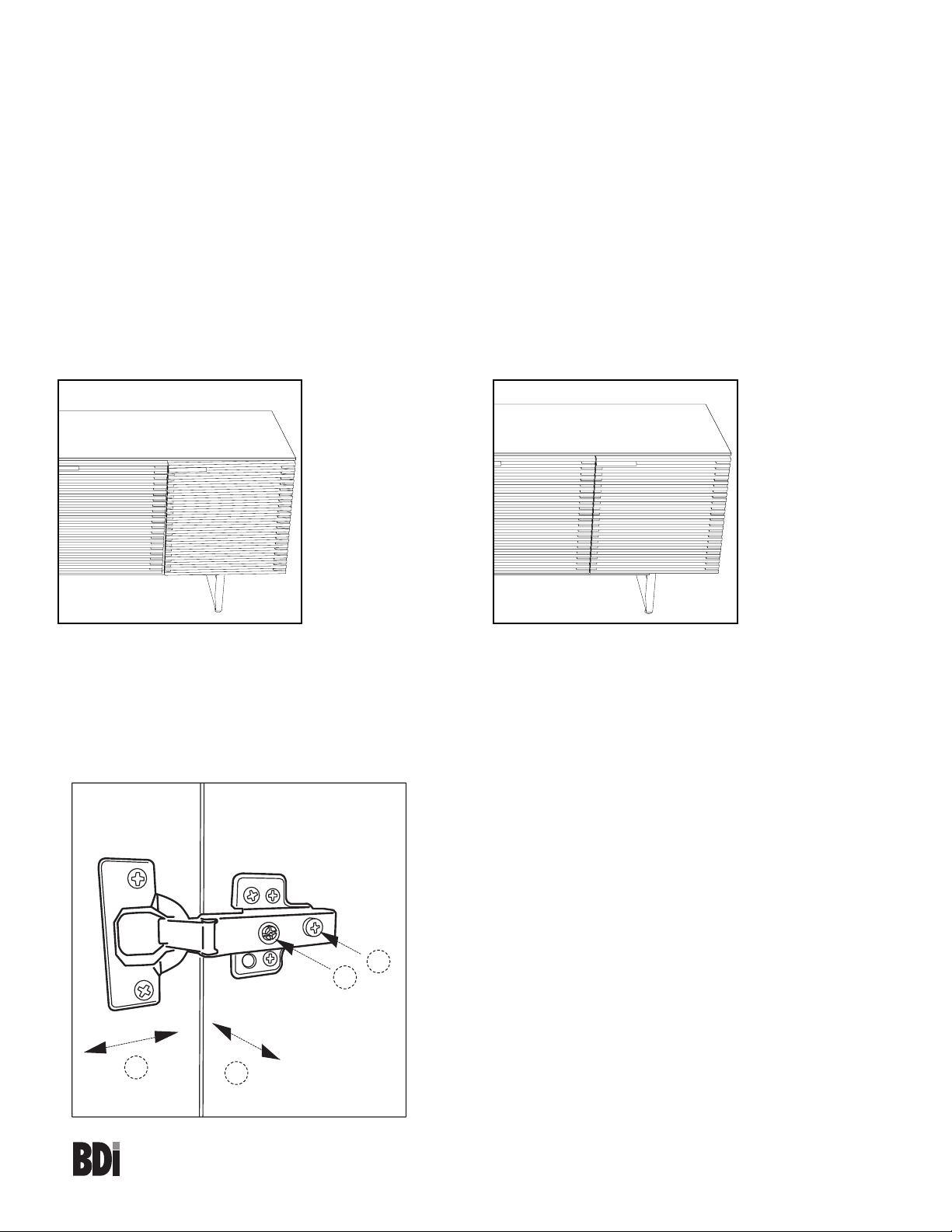

INCORRECT!
Door is
out of alignment with
the rest of the unit.
CORRECT! Door is
sitting squarely and evenly
spaced on tops and sides.
STEP 2 - Adjust Door Hinges (if needed)
The doors on your cabinet should be evenly spaced and the doors should open and close freely without rubbing
against the door frame.
If the cabinet’s doors appear out of alignment, this condition can be corrected with minor adjustment to the
European hinges on each door.
Because these hinges are infinitely adjustable, adjusting one
hinge element can sometimes cause the need for adjustments
to other elements. But with a few adjustments, you can modify
the orientation of the cabinet doors to make sure that they hang
perfectly within your cabinet.
Use the Phillips Screwdriver (A) supplied to adjust Corridor's
door hinges:
2
within the frame. Make minor adjustments at both top and
1
•By adjusting Screw 1, the door will move LEFT or RIGHT
bottom hinges for best results.
•By adjusting Screw 2 the entire door will move IN or OUT,
opening or closing the gap between the door frame and
cabinet. (This screw rarely needs adjustment.)
2
1
5
CORRIDOR 7129
CONSOLE
customerservice@bdiusa.com
bdiusa.com
