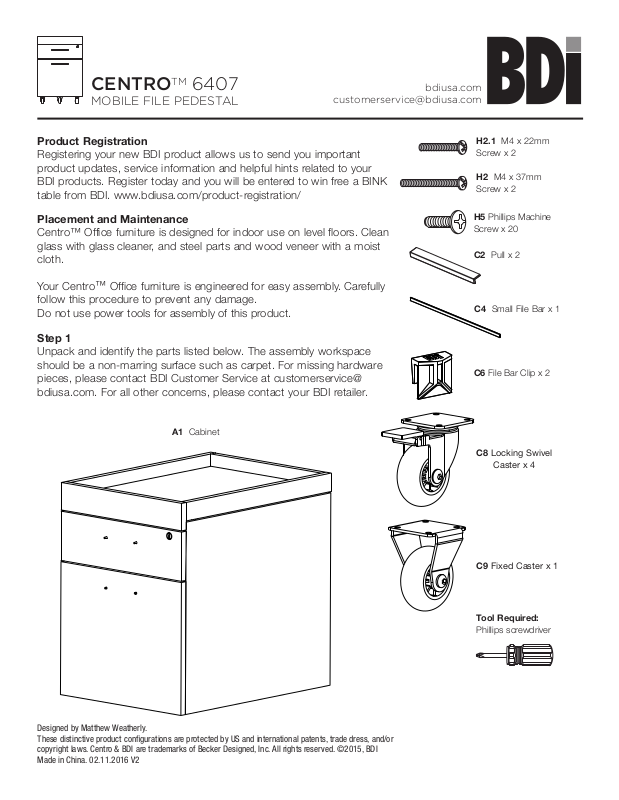

BDI 6407 User Guide

CENTROTM 6407

MOBILE FILE PEDESTAL

bdiusa.com

[e-mail]

Product Registration

Registering your new BDI product allows us to send you important
product updates, service information and helpful hints related to your
BDI products. Register today and you will be entered to win free a BINK
table from BDI. www.bdiusa.com/product-registration/

Placement and Maintenance

Centro™ Office furniture is designed for indoor use on level floors. Clean
glass with glass cleaner, and steel parts and wood veneer with a moist
cloth.

Your Centro™ Office furniture is engineered for easy assembly. Carefully
follow this procedure to prevent any damage.
Do not use power tools for assembly of this product.

Step 1

Unpack and identify the parts listed below. The assembly workspace
should be a non-marring surface such as carpet. For missing hardware
pieces, please contact BDI Customer Service at customerservice@
bdiusa.com. For all other concerns, please contact your BDI retailer.

A1 Cabinet

H2.1 M4 x 22mm

Screw x 2

H2 M4 x 37mm
Screw x 2

H5 Phillips Machine
Screw x 20

C2 Pull x 2

C4 Small File Bar x 1

C6 File Bar Clip x 2

Designed by Matthew Weatherly.
These distinctive product configurations are protected by US and international patents, trade dress, and/or
copyright laws. Centro & BDI are trademarks of Becker Designed, Inc. All rights reserved. ©2015, BDI
Made in China. 02.11.2016 V2

C8 Locking Swivel
Caster x 4

C9 Fixed Caster x 1

Tool Required:

Phillips screwdriver

Step 2 - Lay Cabinet on its back side. Attach Casters to Cabinet using Screws H5 and tighten with a
Phillips screwdriver.

H5

C8

C9

C9

Step 3 - Attach Pulls to top drawer using Screws H2.1, attach Pulls to bottom drawer using Screws H2 and

tighten with Phillips screwdriver.

H2.1

H2

H2

H2.1

C2

C2

2

CENTRO 6407
MOBILE FILE PEDESTAL
