BDI 2109 User Manual
D r o p
2109 a n d 2110
a s s e m b l y i n s t r u c t i o n s
2110
2109
b d i u s a .c o m c u s t o m e r s e r v i c e @b d i u s a .c o m
Component List
a
A - Table Top x 1
B - Table Shelf x 1
C - Glass Panel x 1
b
D - Metal Legs
(a, b, and c) x 1
Note: Model 2110
legs are same size.
c
Your Drop Furniture is engineered for easy assembly. Carefully follow
this procedure to prevent any damage.
NOTE: This instruction sheet is intended for the 2109 and 2110 of the
Drop Table collection; model 2109 is shown for illustration.
Placement and Maintenance
Drop Furniture is designed for indoor use on level floors. Clean glass with
glass cleaner, and steel parts and wood veneer with a moist cloth.
Step 1
Unpack and identify the parts listed. The assembly workspace should be a
non-marring surface such as carpet. For missing hardware pieces please
contact BDI Customer Service at customerservice@bdiusa.com. For all
other concerns, please contact your BDI Retailer.
Step 2

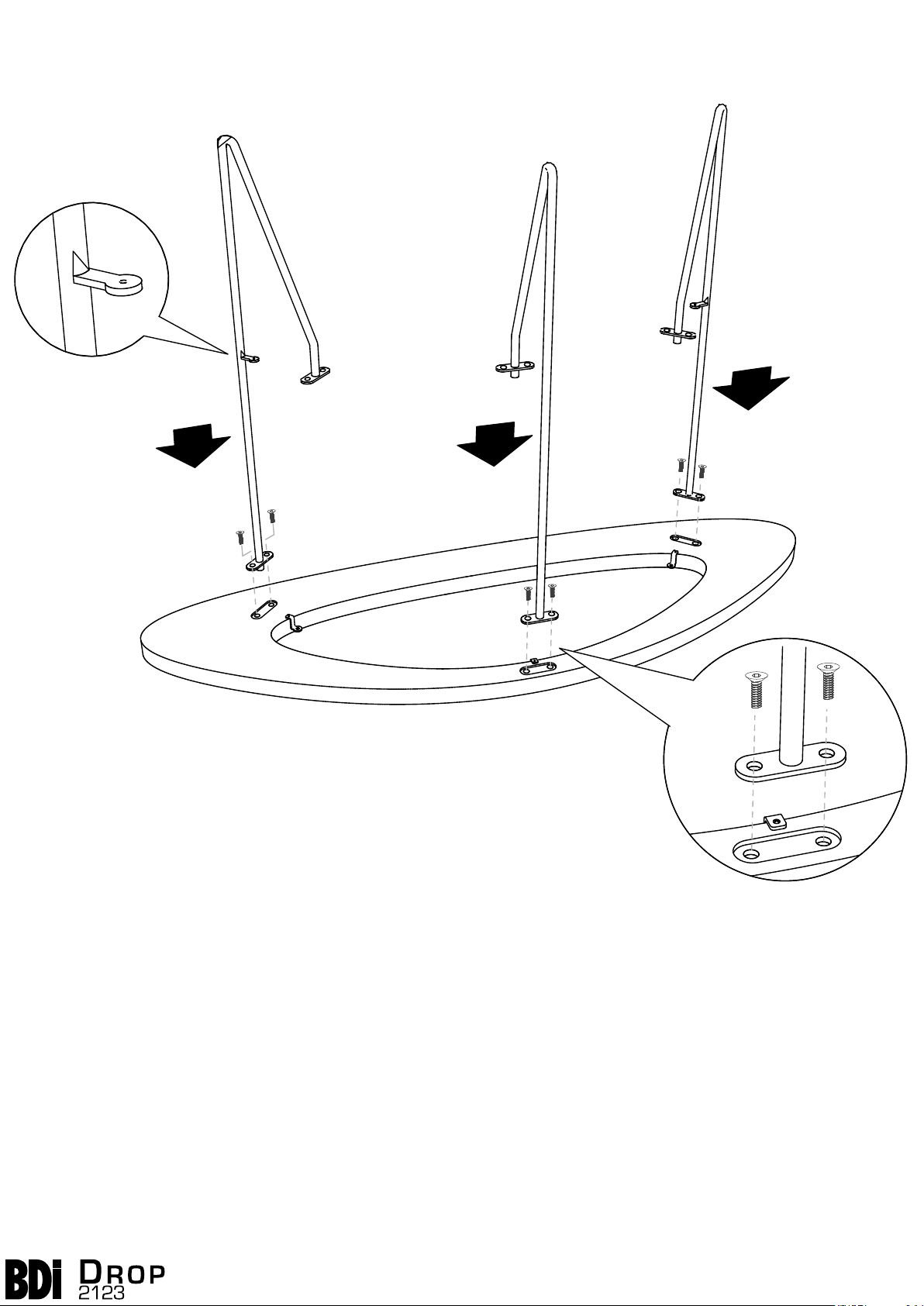

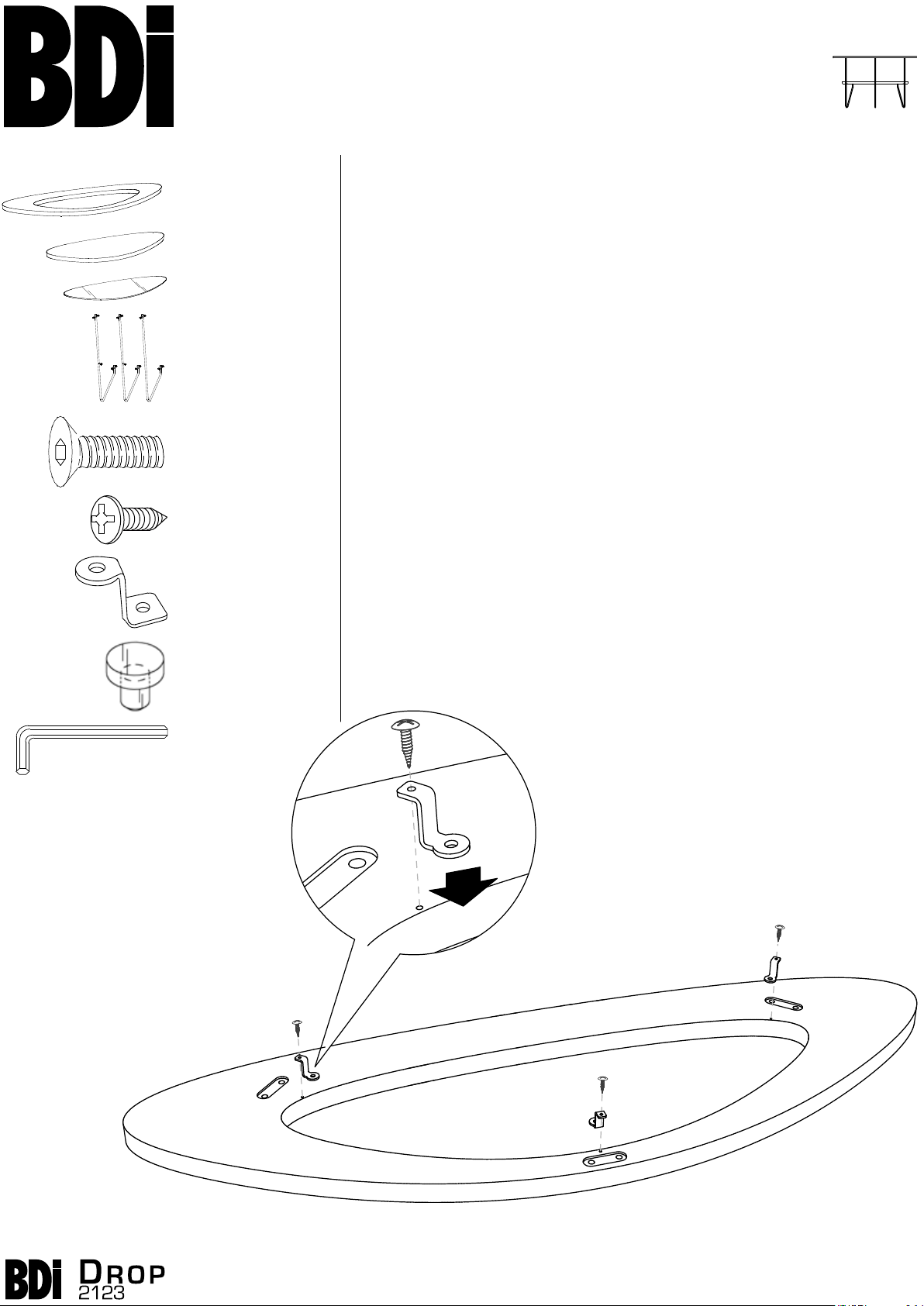

Lay Table Top (A) so that the exposed holes are facing up. Install Shelf
Bracket (G) to the bottom surface of Table Top (A). Install Metal Legs (D)
to the specified locations below using Machine Screw (E).
E - Machine Screw x 12
F - Wood Screw x 6
(Model 2110 x 3)
G - Shelf Bracket x 3
G - Shelf Bracket x 3
(Model 2110)
H - Rubber Bumper Insert
x 3
I - M4 Hex Wrench
F x 6
G x 3
A
Designed by Mark Palmquist
‘Drop’ is a trademark of Becker Designed, Inc.
All rights reserved. ©2009 Becker Designed, Inc.
Made in Taiwan. 21092110REV012510v5
C
B
1
Step 3

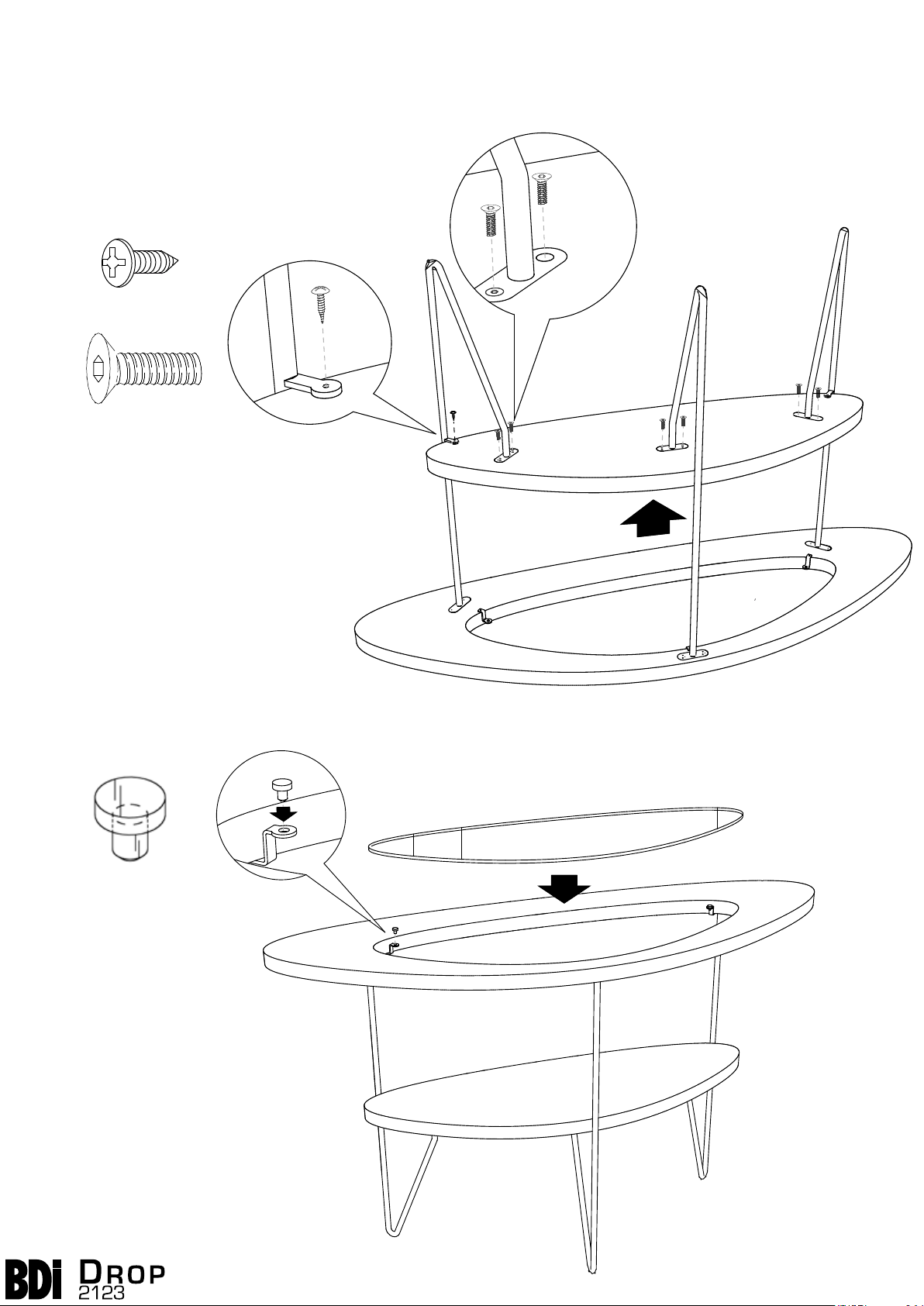

Using the M4 Hex Wrench (I) and Machine Screw (E), install Table
Shelf (B) as shown below. Note: This step may be a two person
assembly process.
Step 4
Install Rubber Bumper Inserts (H) to the three shelf bracket locations.
Lay Glass Panel (C) onto the installed rubber bumper inserts.
H x 3
2
