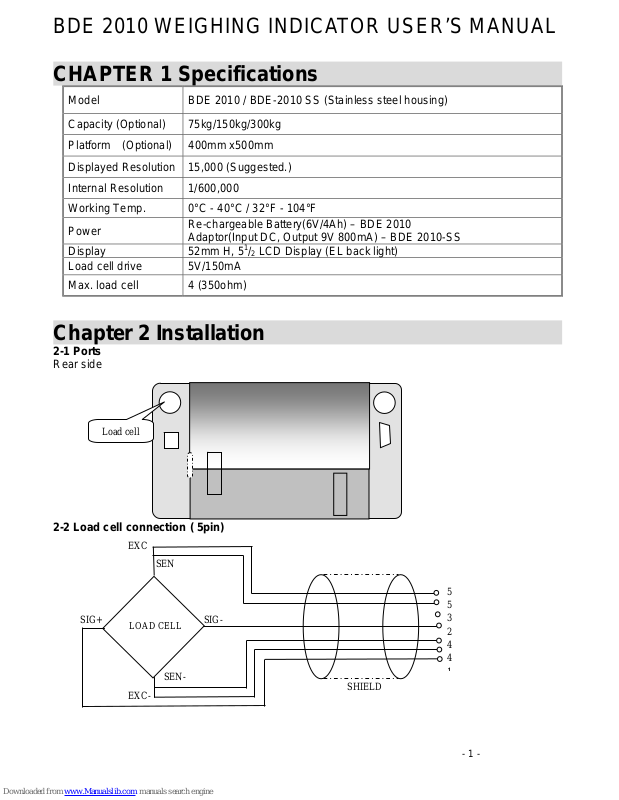

BDE 2010 WEIGHING INDICATOR USER’S MANUAL

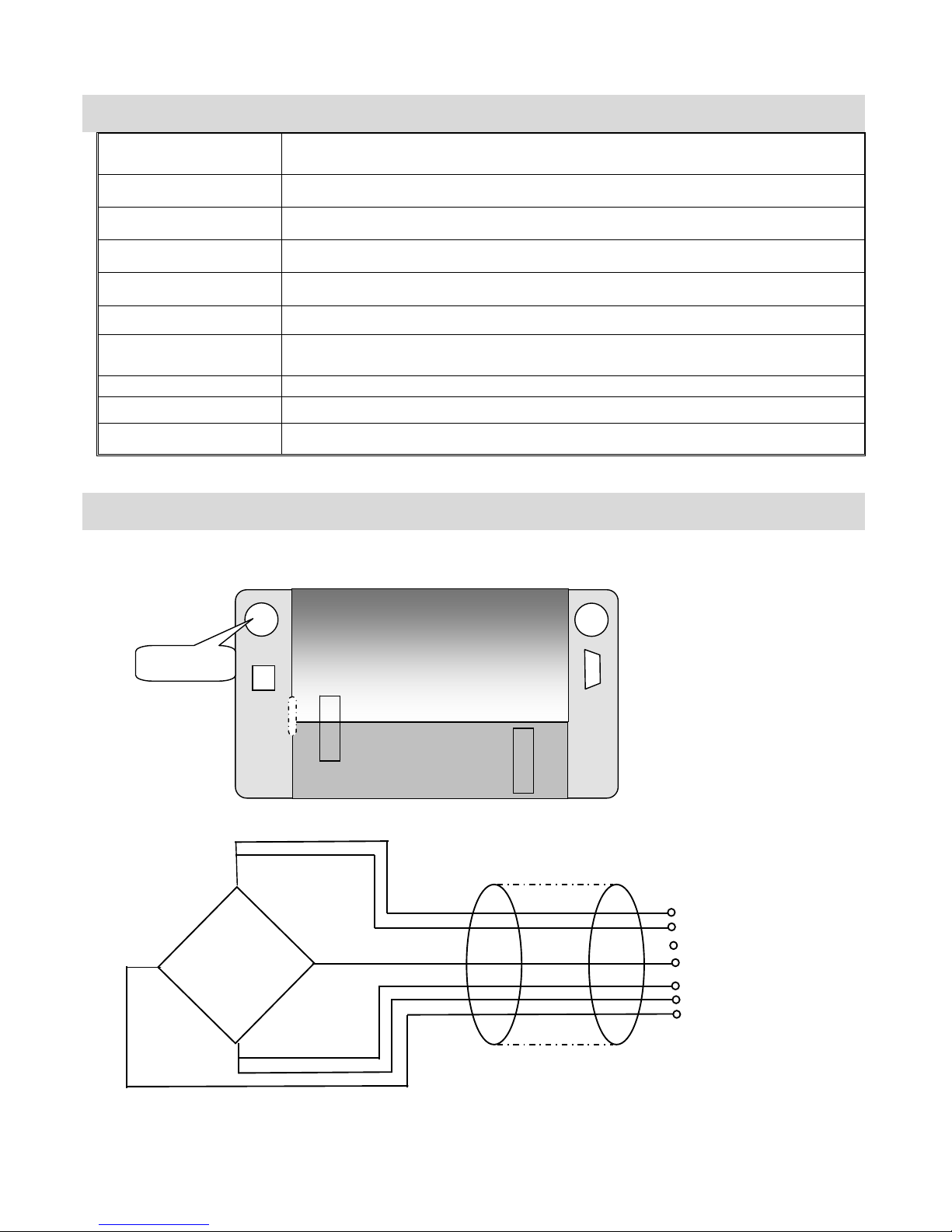

CHAPTER 1 Specifications
Model BDE 2010 / BDE-2010 SS (Stainless steel housing)
Capacity (Optional) 75kg/150kg/300kg
Platform (Optional) 400mm x500mm
Displayed Resolution 15,000 (Suggested.)
Internal Resolution 1/600,000
Working Temp. 0°C - 40°C / 32°F - 104°F
Power
Re-chargeable Battery(6V/4Ah) – BDE 2010
Adaptor(Input DC, Output 9V 800mA) – BDE 2010-SS
Display 52mm H, 51/2 LCD Display (EL back light)
Load cell drive 5V/150mA
Max. load cell 4 (350ohm)
Chapter 2 Installation
2-1 Ports
Rear side
2-2 Load cell connection ( 5pin)
EXC
SEN
SEN-
EXC-
SIG+ SIG-
SHIELD
5
5
3
2
4
4
LOAD CELL
Load cell
First Philippines Scales BDE 2010
- 2 -
Chapter 3 Keys
ON/ OFF Turn on or off the power.
Zero The indicator will return to the center of ZERO if the weight value is within the set zero range.
Press "Enter" key when setting parameters or other functions.
Tare The indicator switches to NET mode, ZERO’s the display and stores the TARE weight in
Memory. Press Zero and Tare key together in normal weighing mode will turn on/off animal
scale function. (when enter/escape animal scale mode, you will hear beep twice)
MR Memory recall key, show total accumulate weight in memory.
In setting mode, this key used to move active digits right.
M+ Accumulate key, store current weight in memory.
In setting mode, this key used to move active digits left.
Press M+ and MR key for MC (memory clear)
Print Press Print during self checking will enter setting mode.
G/N Weighing unit shift.
Secondary function (ESC) , is to return to normal operation when the scale is in a parameter
setting mode.
Press G/N and Print key together for setting check Weighing limit.
Chapter 4 Check Weighing (by buzzer)
4-1 About check-weighing
Check-weighing is a procedure to cause an alarm to sound when the weight on the scale meets or
exceeds values stored in memory. The memory holds values for a high limit and a low limit.
Check mode OK:
When checking the range, the display will show OK and the beeper will sound when the weight is
between the limits.
Check mode NG:
When check range, the display will show OK and the beeper will sound when the weight is out of the
limits.
4-2 Set limits
Press G/N and PRINT key together, it will display “set h”, use TARE key to select “SET H” or “SET L”,
press ZERO key to enter, use M+ and MR key to move digit, use TARE key to change value, use
Print key to clear value. After you enter the value, press ZERO key to confrim, press G/N key to
escape.
4-3 Set check weighing mode
Press G/N and print key together, it will display “set h”, use TARE key to reach beep, press ZERO
key to enter, press TARE key to select ok(check mode OK), NG (check mode NG), no(no beep), press
ZERO key to sure, press G/N key to escape.
4-4 NOTE
Check weighing function only available when weight more than 20 divisions. To disable the Check
Weighing function enter zero into both limits by pressing the PRINT key when the current limits are
shown then pressing ZERO to store the zero values.
Chapter 5 Accumulation
The weight displayed will be stored in memory when the M+ key is pressed and the weight is stable.
The display will show "ACC 1" and then the total in memory for 2 seconds before returning to normal.
(after do accumulate operate, “M+” indicator will turn on)
Remove the weight, allowing the scale to return to zero and put a second weight on. Press the M+ key,
the display will show "ACC 2" and then the new total.
- 3 -
Continue until all weights have been added.
Memory recall
To view the totals in memory press MR key.
Memory clear
To clear the memory, just press M+ and MR together
Automatically accumulate
Press Print key during self checking, enter setting mode, press Tare key until display show P32COM,
press ZERO key to enter, press TARE key to select “mode”, press ZERO key to sure, display will
show current RS-232 mode, press TARE key to select Auto. After you set, AUTO indicator on.
Press weight on platform, after stable, you will hear beep on twice, you can add or remote weight now,
scale will beep on again after stable, at last, remove all weight on platform, the last weight value will
store in memory
Chapter 6 Animal scale function
You can press ZERO TARE together to enter/escape animal weighing mode.
Let the animal on the platform, you can hear beep sound even the weight is drifting. The animal
function will lock the weight. In reading data lock mode, if you add/remove weight, display will still
update and lock new reading data.
Chapter 7 Key lock
After keyboard hasn’t use for 10 minutes, keyboard will be lock, after enter lock status, if you press
any key, display will show “K-LCK”.
If you want to escape lock mode and return work mode, hold PRINT, MR , ZERO key 2 seconds,
display will show “ULCK”, return to normal mode.
Chapter 8 Battery
Charge the battery when the charge symbol is on. To charge the battery simply plugs the power cord.
The battery should be charged for 12 hours to full. Under the display there is an LED to indicate the
battery need charging.
If the LED is green the battery has a full charge.
If it is Red the battery is nearly discharged and yellow indicates the battery is being charged.
When the battery fails to hold a full charge. Please contact your distributor for replacement.

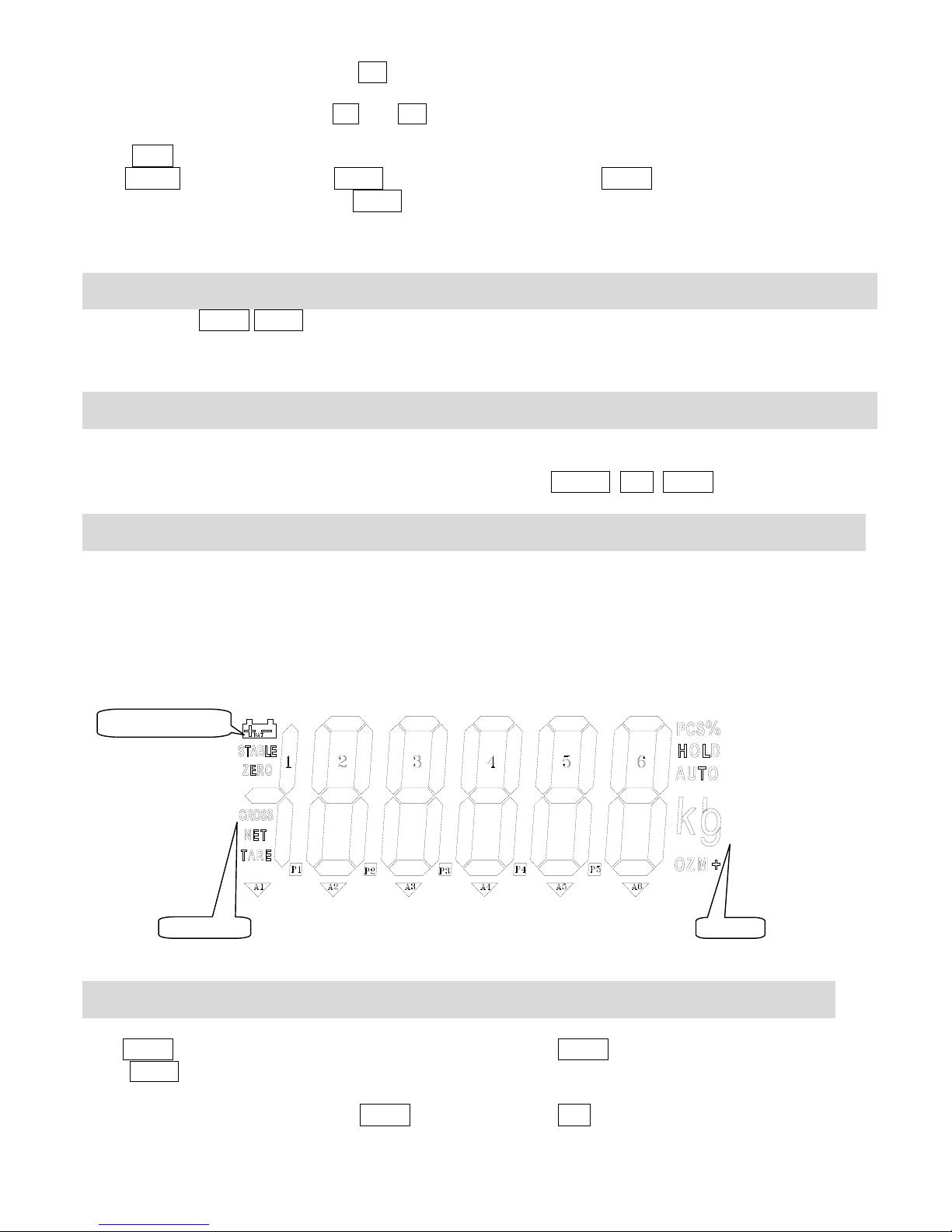

Chapter 9 Backlight
Backlight mode
Hold ZERO key 3 second, display will show ”setbl “, press ZERO key to enter backlight setting,
press TARE key to change backlight mode
(BL ON: always on, BL AU: auto backlight, backlight will on when press any key or add load on scale,
BLOFF: backlight always off), press ZERO key to sure, press G/N key to escape.
set auto power off
Low battery
Unit
Gross/Net
First Philippines Scales BDE 2010
- 4 -
Auto power off
Hold ZERO key 3 second, display will show ”setbl “, press TARE key, display show “setof”, press
ZERO key to enter auto power off setting, press TARE key to change auto power off time (of O:
always on, of 5: auto power off after standby 5 minutes, of 15: auto power off after standby 15
minutes), press ZERO key to sure, press G/N key to escape.
- 5 -
= = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =
Caution:
Dear customers, our company will charge fees if your operator mistakenly input incorrect internal
parameters below as a result of service.
Chapter 10 Functions (Only for Agent)
Power On, Press Print key once when counting down (before showing 0 weight).
The display shows: pn，Input M+, G/N, TARE as password. Now entering parameter setups.
The display shows " p0 chk ".
Press TARE Key to move down (Circle).
Press ZERO key to select.
Press M+ or MR to move left or right. Press G/N to escape.
Func.
Sub
Func.
Parameters
SET H
Set Hi limit, Press M+ MR to move left or right, Press TARE to add value,
press PRINT to clear value, Press ZERO to confirm.
SET LO
Set Low limit, Press M+ MR to move left or right, Press TARE to add
value, press PRINT to clear value, Press ZERO to confirm.
P0
CHK
BEEP Set buzzer mode
no: buzzer off
OK: buzzer on between hi and lo(OK)
ng: buzzer on out of tolerance (NG)
AZN 0
Auto zero tracking: 0.5d, 1d, 2d, 4d
0AUTO
Set zero range: 0%, 2%, 5%, 10%, 20%, 50%, 100%
0RAGE Manual zero range: 0%, 2%, 4%, 10%, 20%, 50%, 100%
0-Tare
Auto tare function: ON/OFF
SPEED Analog to Digital rate: 7.5/15/30/60 times/Second.
P1
REF
Zero Set zero point Value, when the scale shows zero, the screen will
show-–xxx.xxx
MODE RS-232 Mode CONT(Stream send data)
ST1: Stable and send once
STC: Stable and send stream
PR1: Manual press PRINT key to send once
PR2: Manual press PRINT and M+ key to send once and accumulation...
AUTO: Stable send once and accumulation.
ASK: two way communication.
R: Read T: Tare command Z: Zero Command
BAUD
Baud rate: 600/1200/2400/4800/9600
P2
COM
(Not
suitable
out
side of
Taiwan)
pr
Parity: 7E1/7O1/8N1
DECI 0, 0.0, 0.00, 0.000(Decimal Setting)
INC
Division 1, 2, 5, 10, 20, 50
CAP Full Capacity xxx.xxx
CAL
Calibration
P3 CAL
COUNT Internal count xxx.xxx
LOCK Release key lock OFF/ON P4
OTH
ANM ON (Animal Mode)
OFF (Normal Mode)
P5 unit Kg/lb
/lb-oz
/tj/ hj
Select unit（on）。
Tj (Taiwan Kg) and Hj (Hongkong kg) can not be used at the same time.
Shut off Taiwan Kg when Hongkong kg is used.
First Philippines Scales BDE 2010
- 6 -
Chapter 11 Calibration (Only for Agent)
Power On, Press Print key once when counting down (before showing 0 weight).
The display shows: pn，Input M+, G/N, TARE as password. Now entering parameter setups.
The display shows " p0 chk ".
Press TARE key to find “P3 cal ”,
Press TARE key to find “DECI”, use TARE key to find“ cal “(Decimal Setting).
Press ZERO key to enter “UNLOAD”, make sure the platform is empty
Press ZERO key to confirm zero weight. (Zero Setting)
Press ZERO key to enter “LOAD”,
Put the Calibration Mass on the platform, enter the calibration weight. Press the ZERO key to
confirm SPAN. (SPAN Setting)
Power on again and remove Mass, show zero and finished.
Errors:
Code Description Trouble shooting
- - - - - Overload Remove extra weight from platform.
Load cell wire is not connected.
Load cell wire is broken.
Load cell broken.
Err 4 Zero Error The weight on the load cell is out of zero range:
Remove the object from the platform.
Use TARE key to zero weight.
Other conditions please contact agent.
Err 6 A/D conversion
range is out of
tolerance.
A/D conversion count is out of range.
Remove extra weight from platform,
Load cell broken.
PCB broken.
