S5612 Hardware Installation Manual
Page 2
Table of Contents
- I -
Table of Contents
Table of Contents ................................................................................................................................ I
Chapter 1 S5612 Introduction ........................................................................................................... 1
1.1 Appearance Description for Standard Configuration ............................................................ 1
1.2 S5612 Systematic Characteristic Parameters ..................................................................... 2
1.3 ROHS Description ................................................................................................................ 4
Chapter 2 Installation Preparation ..................................................................................................... 5
2.1 Caution of Usage ................................................................................................................. 5
2.2 Safety Advice ........................................................................................................................ 5
2.2.1 Safety Principles ........................................................................................................ 5
2.2.2 Safety Notices ............................................................................................................ 5
2.2.3 Safety Principles for Live Working ............................................................................. 6
2.2.4 Electrostatic Discharge Damage Prevention ............................................................. 7
2.3 Requirements for Common Locations .................................................................................. 7
2.3.1 Environment ............................................................................................................... 7
2.3.2 Location Configuration Prevention ............................................................................. 7
2.3.3 Cabinet Configuration ................................................................................................ 7
2.3.4 Power Requirements ................................................................................................. 8
2.4 Installation Tools and Device ................................................................................................ 8
Chapter 3 Installing the S5612 Switch .............................................................................................. 9
3.1 Installation Flow of S5612 ................................................................................................. 9
3.2 Installing the Machine Box of the Switch ............................................................................. 9
3.2.1 Installing the Machine Box on the Desk ..................................................................... 9
3.2.2 Installing the Machine Box on the Cabinet .............................................................. 10
3.3 Connecting the Port ........................................................................................................... 10
3.3.1 Connecting the Console Port ................................................................................... 10
3.3.2 Connecting 10G Ethernet SFP+ Ports ..................................................................... 12
Page 3
Table of Contents
- II -
3.3.3 Connecting Gigabit Ethernet TX Ports ..................................................................... 12
3.4 Checking After Installation .................................................................................................. 13
Chapter 4 Maintaining Switch .......................................................................................................... 15
4.1 Opening the Machine Box .................................................................................................. 15
4.2 Closing Machine Box ......................................................................................................... 16
Chapter 5 Hardware Fault Analysis ................................................................................................. 17
5.1 Fault Separation ................................................................................................................. 17
5.1.1 Faults Relative with Power and Cooling System ..................................................... 17
5.1.2 Faults Relative with Port, Cable and Connection .................................................... 17
5.2 Indicator Description .......................................................................................................... 17
Page 4
S5612 Hardware Installation
- 1 -
Chapter 1 S5612 Introduction
The section describes the characteristics and parameters of S5612 and gives an
overview of S5612.
1.1 Appearance Description for Standard Configuration
The built-in ports of S5612 are: 8 gigabit Ethernet RJ45 ports, 12 10G SFP+ ports, 1
Console port.
See table 1-1.
Table 1-1 Attributes of the built-in port
Port
Attribute
Gigabit Ethernet port
RJ45 interface, LINK/ACT indicator
10G Ethernet port
SFP+ interface, LINK/ACT indicator
Console port
A rate of 9600bps, mini USB interface
S5612 has a grounding column, a power socket and a power on-off (ON: power on;
OFF: power off) at its back.

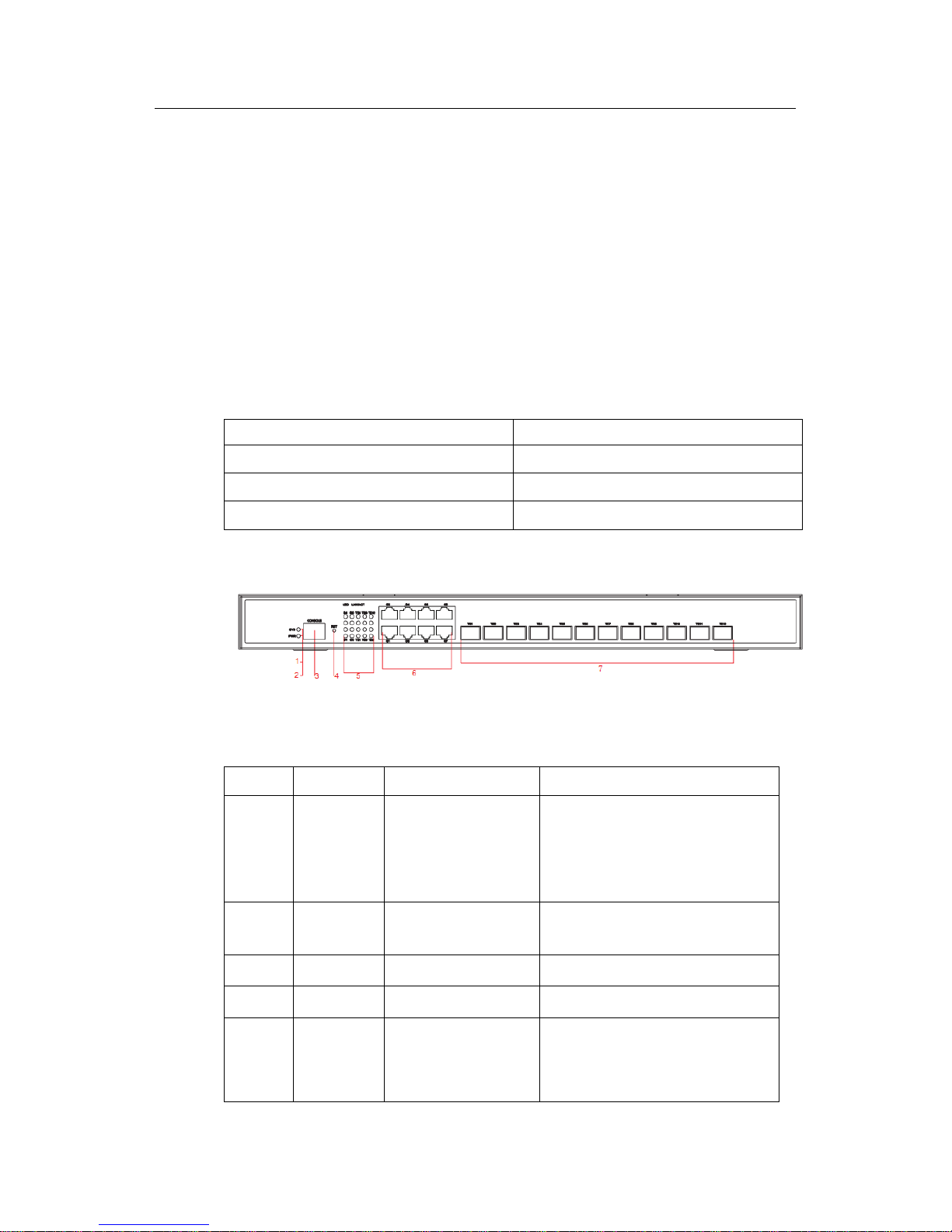

Figure 1-1 Front template of the S5612 switch
Table 1-2 Parts at the front template of the S5612 switch
No.
Abbrev.
Name
Description
1
SYS
System indicator
If the indicator is always on, the
system is normally started up.
If the indicator flickers, the system
works normally.
2
PWR
Power indicator
If the switch is powered on, the
indicator is on.
3
CONSOLE
Console port
Manages the switch locally.
4
RST
Reset
5
LINK/ACT
Port indicator
GE/10GE port link/ack indicator
If the indicator is always on, the
link on the port is normal.
Page 5
S5612 Hardware Installation
- 2 -
If the indicator flickers, the data is
received or transmitted through
the port.
6
RJ45
8 Gigabit TX ports
8 Gigabit TX ports
7
SFP+
10G SFP+ ports
12 10G SFP+ ports

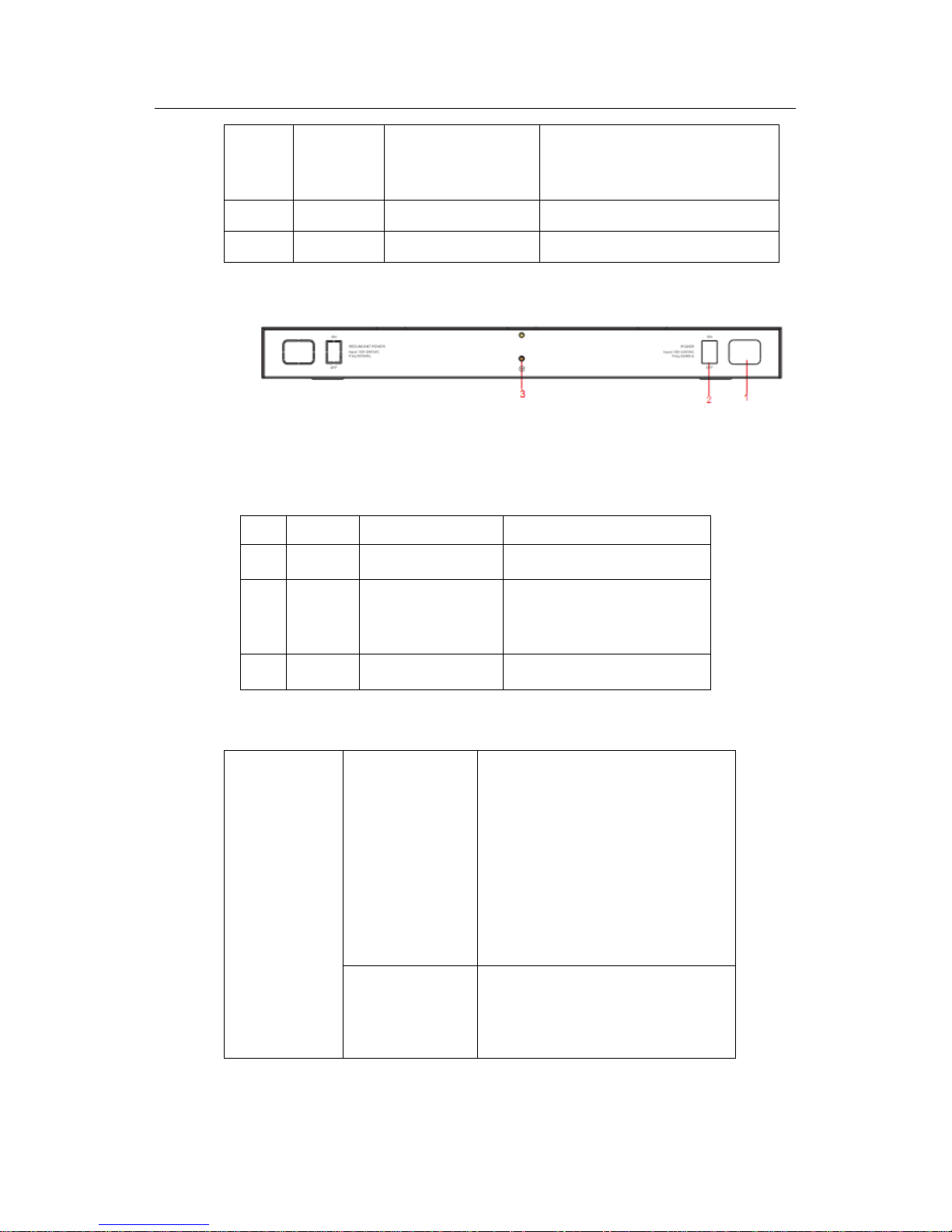

Figure 1-2 Back template of the S5612 switch
Table 1-3 Parts at the back template of the S5612 switch
No.
Abbrev.
Name
Description
1 / AC power socket
AC100～240V.
2
switch
Power on-off
Pressing upwards is to power
on. Pressing downwards is to
power off.
3 / Grounding column
The grounding must be fine.
1.2 S5612 Systematic Characteristic Parameters
Protocol
standard
Supported
standard
IEEE 802.1d Spanning Tree Protocol
IEEE 802.1s multiple spanning trees
IEEE 802.1p Class of Service
IEEE 802.1q tagged VLAN
IEEE 802.3x Flow control
IEEE 802.3z asymmetric flow control
IEEE 802.3ad Link aggregation
IP routing protocol
standard
RFC 1058 RIP
RFC 1723 RIP v2
RFC 1583 OSPF v2
Page 6
S5612 Hardware Installation
- 3 -
Network
management
standard
RFC 1157 SNMP v1/v2
RFC 1213 MIB II
RFC 1757 RMON 1,2,3,9
Hardware
characteristics
Memory
Flash Memory: 16M Bytes
SDRAM: 512MBytes；
Standard
configuration
8 10/100/1000BASE-T ports
12 10G SFP+ ports
1 Console port
Dimensions mm
(W×D×H)
442.50×315×44
Operating
temperature/
humidity
0
℃～40℃
; 10%
～
85%
non-condensation
Storage
temperature/
humidity
-40
℃ ～
80
℃
; 5%
～
95%
non-condensation
Power
characteristics
Input voltage: AC100～240V,
Input frequency: 47～63Hz
Input current: 2A (MAX)
Output voltage: 12VDC
Output current: 12.5A(MAX)
Power
consumption
55W
Page 7
S5612 Hardware Installation
- 4 -

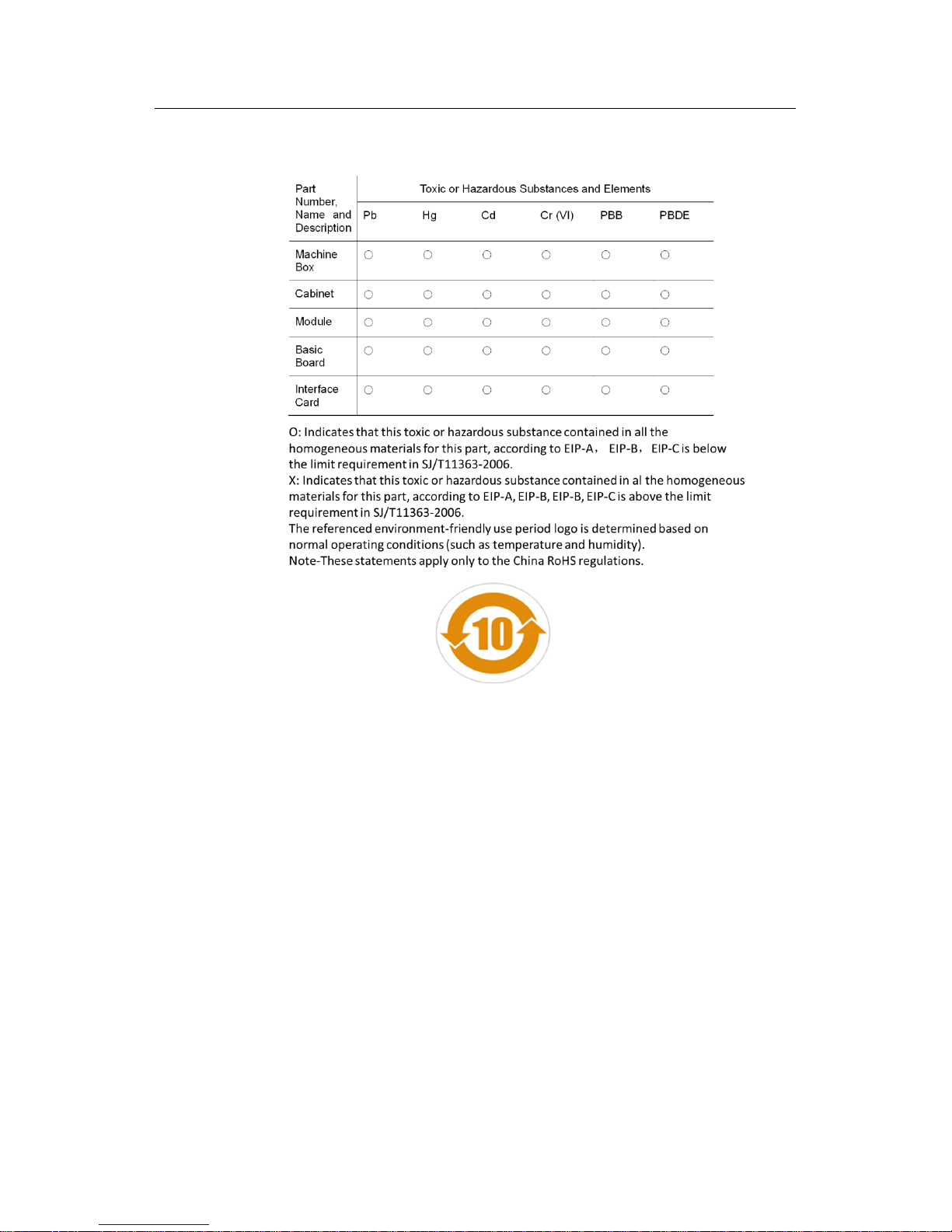

1.3 ROHS Description
Page 8
S5612 Hardware Installation
- 5 -
Chapter 2 Installation Preparation
2.1 Caution of Usage
Similar to other electronic products, the semiconductor chip easily gets damaged if you
power on or off abruptly and frequently. To restart up the switch of S5612, you have to
open the power on-off after the power is cut down for three to five seconds.
Avoid severe collision or falling down from the height to protect the parts in the switch.
Use correct outside ports to connect the switch of S5612. Do not put the Ethernet
plug into the console port (RJ45 8-line socket). Similarly, do not put the console cable
into the console port (RJ45 8-line socket).
Note:
1) When you plug or dial the power line, keep the power line horizontal with the
power socket.
2) When the lifetime of our products ends, handle them according to national laws
and regulations, or send these products to our company for collective processing.
2.2 Safety Advice
2.2.1 Safety Principles
Keep dustless and clean during or after the installation.
Put the cover at the safe place.
Put tools at the right place where they are not easily falling down.
Put on relatively tight clothes, fasten the tie or scarf well and roll up the sleeve,
avoiding stumbling the machine box.
Put on the protective glasses if the environment may cause damage to your
eyes.
Avoid incorrect operations that may cause damage to human or devices.
2.2.2 Safety Notices
The safety notices mentioned here means that improper operation may lead to body
damage.
Page 9
S5612 Hardware Installation
- 6 -
Read the installation guide carefully before you operate the system.
Only professionals are allowed to install or replace the switch.
Pull out the AC power socket and close the direct-current power before
operating on the machine box or working beside the power source.
The final configuration of products must comply with relative national laws and
regulations.
2.2.3 Safety Principles for Live Working
When you work under electricity, following the following principles:
Put off ornaments, such as ring, necklace, watch and bracelet, before you
operate under live working. When metal articles connect the power to the ground,
short circuit happens and components may be damaged.
Pull out the AC power socket and close the direct-current power before
operating on the machine box or working beside the power source.
When the power is on, do not touch the power.
Correctly connect the device and the power socket.
Only professionals are allowed to operate and maintain the device.
Read the installation guide carefully before the system is powered on.
Note:
1) Check potential dangers, such as the humid floor, ungrounded extensible power
line and tatty power line.
2) Install the emergent on-off at the working room for turning off the power when
trouble happens.
3) Turn off the power on-off of the switch and plug off the power line before
installing or uninstalling the machine box or working beside the power.
4) Do not work alone if potential dangers exist.
5) Cut off the power before checkout.
6) If trouble happens, take the following measures:
A. Cut off the system's power.
B. Alarm.
C. Take proper measures to help persons who are hit by the disaster. Artificial
respiration is needed if necessary.
D. Seek for medical help, or judge the loss and seek for available help.
Page 10
S5612 Hardware Installation
- 7 -
2.2.4 Electrostatic Discharge Damage Prevention
Electrostatic discharge may damage devices and circuits. Improper treatment may
cause the switch to malfunction completely or discontinuously.
Move or locate the devices according to the measures of electrostatic discharge
prevention, ensuring the machine box connects the ground. Another measure is to
wear the static-proof hand ring. If there is no hand ring, use the metal clip with the
metal cable to clip the unpainted metal part of the machine box. In this case, the static
is discharged to the ground through the metal cable of the clip. You can also discharge
the static to the ground through your body.
2.3 Requirements for Common Locations
This part describes the requirements for the installation locations.
2.3.1 Environment
The switch can be installed on the desk or the cabinet. The location of the machine
box, cabinet planning and indoor cabling are very important for normal system’s
function. Short distance between devices, bad ventilation and untouchable control
plate will cause maintenance problems, systematic faulty and breakdown.
For location planning and device locating, refer to section 2.3.2 “Location Configuration
Prevention”.
2.3.2 Location Configuration Prevention
The following preventive measures assist you to design the proper environment for the
switch.
Make sure that the workshop is well-ventilated, the heat of electrical devices is
well-discharged and sufficient air circulation is provided for device cooling.
Avoid to damage devices by following the electrostatic discharge prevention
procedure.
Put the machine box at the place where cool air can blow off the heat inside the
machine box. Make sure the machine box is sealed because the opened
machine box will reverse the cool air flow.
2.3.3 Cabinet Configuration
The following content assists you to make a proper cabinet configuration:
Each device on the cabinet gives off heat when it runs. Therefore, the sealed
cabinet must have the heat-discharge outlet and the cooling fan. Do not put the
devices too close, avoiding bad ventilation.
When you install the machine box at the open cabinet, prevent the frame of the
cabinet from blocking the airway of the machine box.
Page 11
S5612 Hardware Installation
- 8 -
Ensure that nice ventilation is provided for the devices installed at the bottom of
the cabinet.
The clapboard separates exhaust gas and inflow air, and boost cool air to flow in
the machine box. The best location of the clapboard is decided by the air flow
mode in the machine box, which can be obtained through different location tests.
2.3.4 Power Requirements
Make sure that the power supply has nice grounding and the power at the input side
of the switch is reliable. The voltage control can be installed if necessary. At least a
240 V, 10A fuse or a breaker is provided in the phase line if you prepare the
short-circuit prevention measures for a building.
Caution:
If the power supply system does not have good grounding, or the input power disturbs
too much and excessive pulses exist, the error code rate of communication devices
increases and even the hardware system will be damaged.
2.4 Installation Tools and Device
The tools and devices to install the S5612 switch are not provided by the S5612 switch.
You yourself need to prepare them. The following are the tools and devices needed for
the typical installation of the S5612 switch:
Screwdriver
Static armguard
Bolt
Ethernet cable
Other Ethernet terminal devices
Control terminal
Page 12
S5612 Hardware Installation
- 9 -
Chapter 3 Installing the S5612 Switch
Caution:
Only professionals are allowed to install or replace the devices.

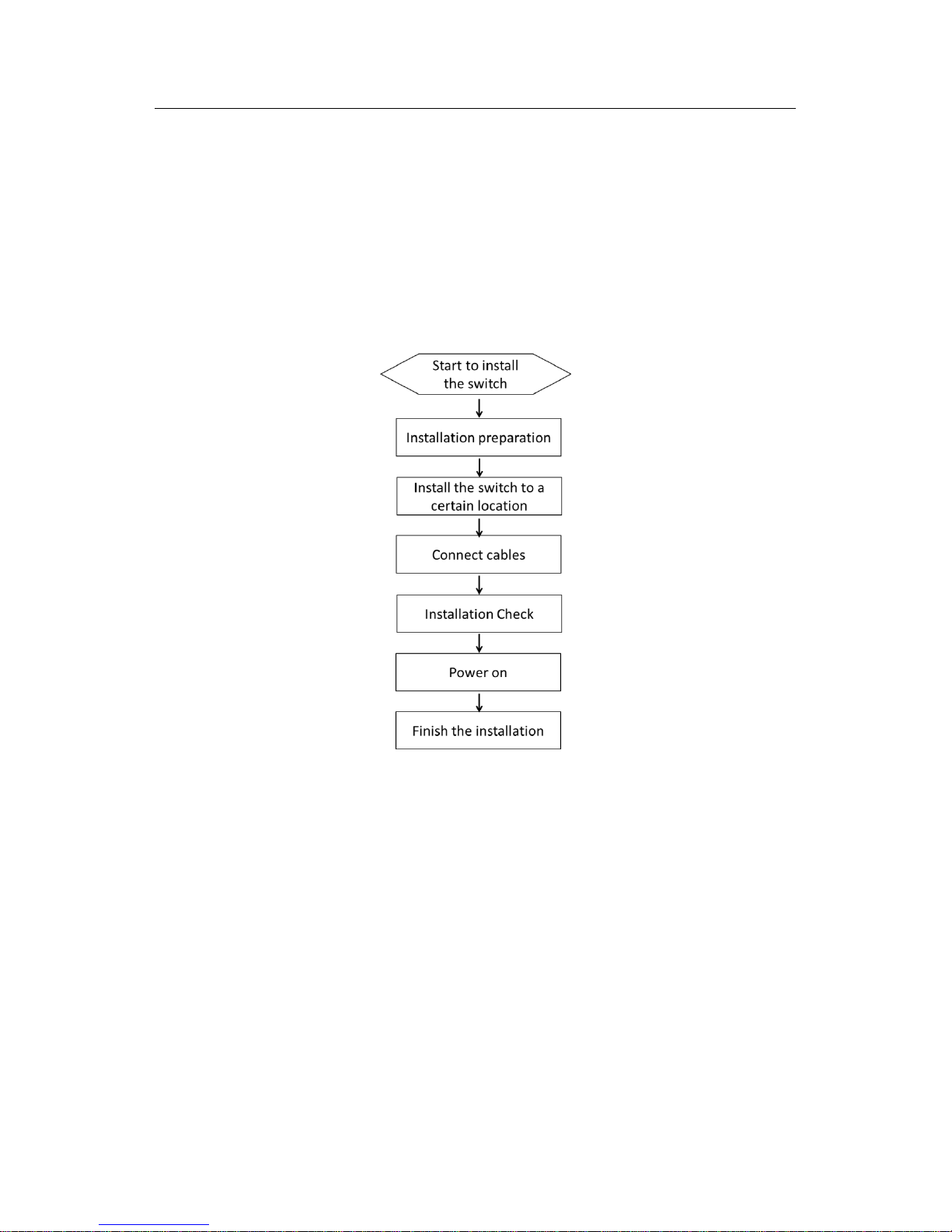

3.1 Installation Flow of S5612
3.2 Installing the Machine Box of the Switch
The installation of the machine box has two modes:
Installing the machine box on the desk
Installing the machine box on the cabinet
3.2.1 Installing the Machine Box on the Desk
The S5612 switch can be directly put on the smooth and safe desk.
Note:
Do not put things weighing 4.5 kg or over 4.5 kg on the top of the switch.
Page 13
S5612 Hardware Installation
- 10 -

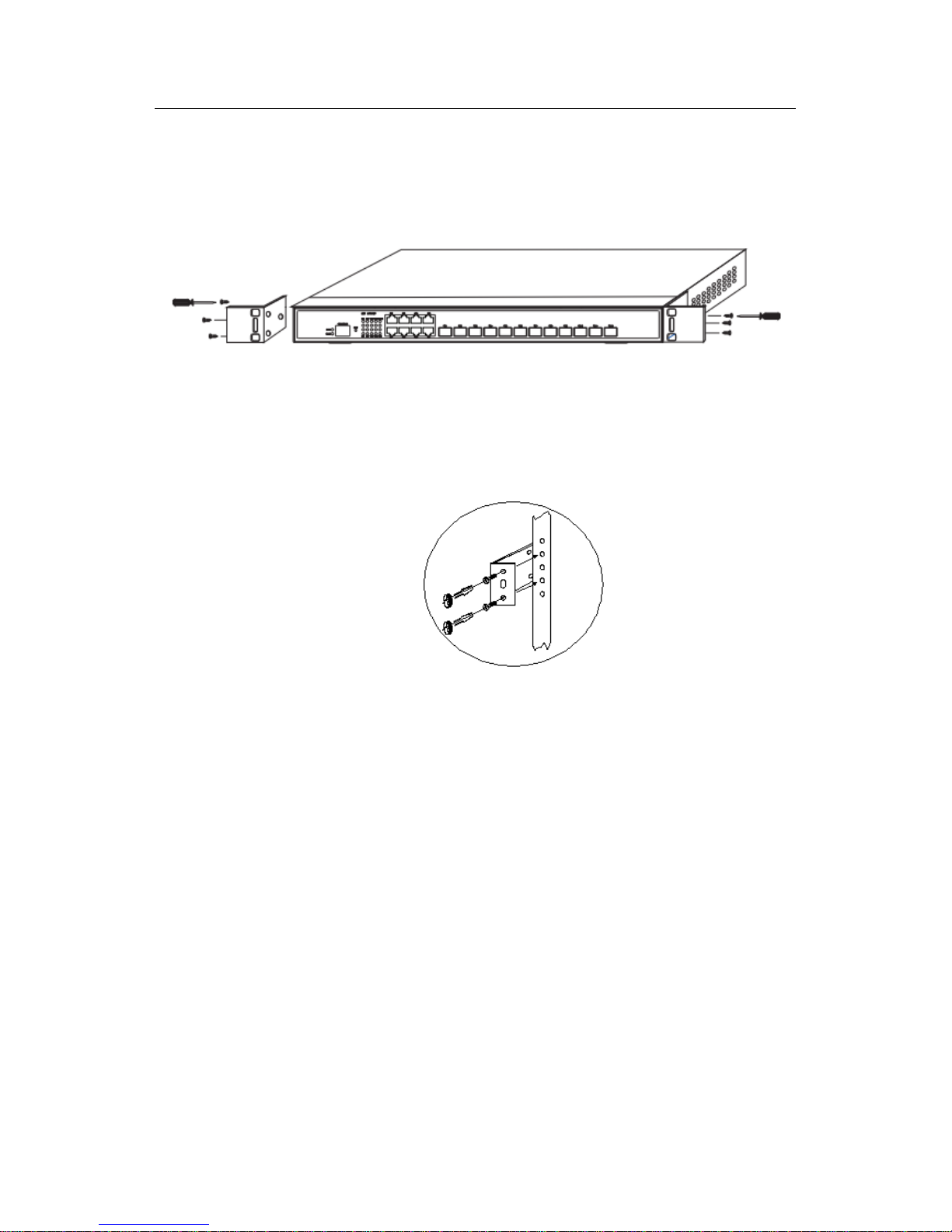

3.2.2 Installing the Machine Box on the Cabinet
The machine box of the switch is fixed on the cabinet through the brackets. When you
fix the brackets, the front template of the switch faces forward. The detailed operations
are shown in Figure 3-1.
Figure 3-1 Fixing the machine box of the switch
Caution:
The switch shown in figure 3-1 does not represent the material S5612.
After the brackets are installed, install the switch on the cabinet. See Figure 3-2.
Figure 3-2 Installing the switch on the cabinet
3.3 Connecting the Port
3.3.1 Connecting the Console Port
The switch of S5612 has a console port.
The rate of the console port is a value ranging from 1200bps to 115200bps. It has a
standard RJ45 plug. After you connect the console port to the serial port of PC through
a console cable, you can configure and monitor the switch of S5612 by running a
terminal emulation software, such as super Windows terminal. The cable is provided
according to the host. The communication parameters of the terminal serial port can be
set to a rate of 9600bps, eight data bits, one stop bit, no sum check bit and traffic
control.
The RJ45 connector of the console port is shown in the following figure. The RJ45 plug
corresponds to the RJ45 socket, whose pins can be aligned from left to right with the
value from 1 to 8.
Page 14
S5612 Hardware Installation
- 11 -

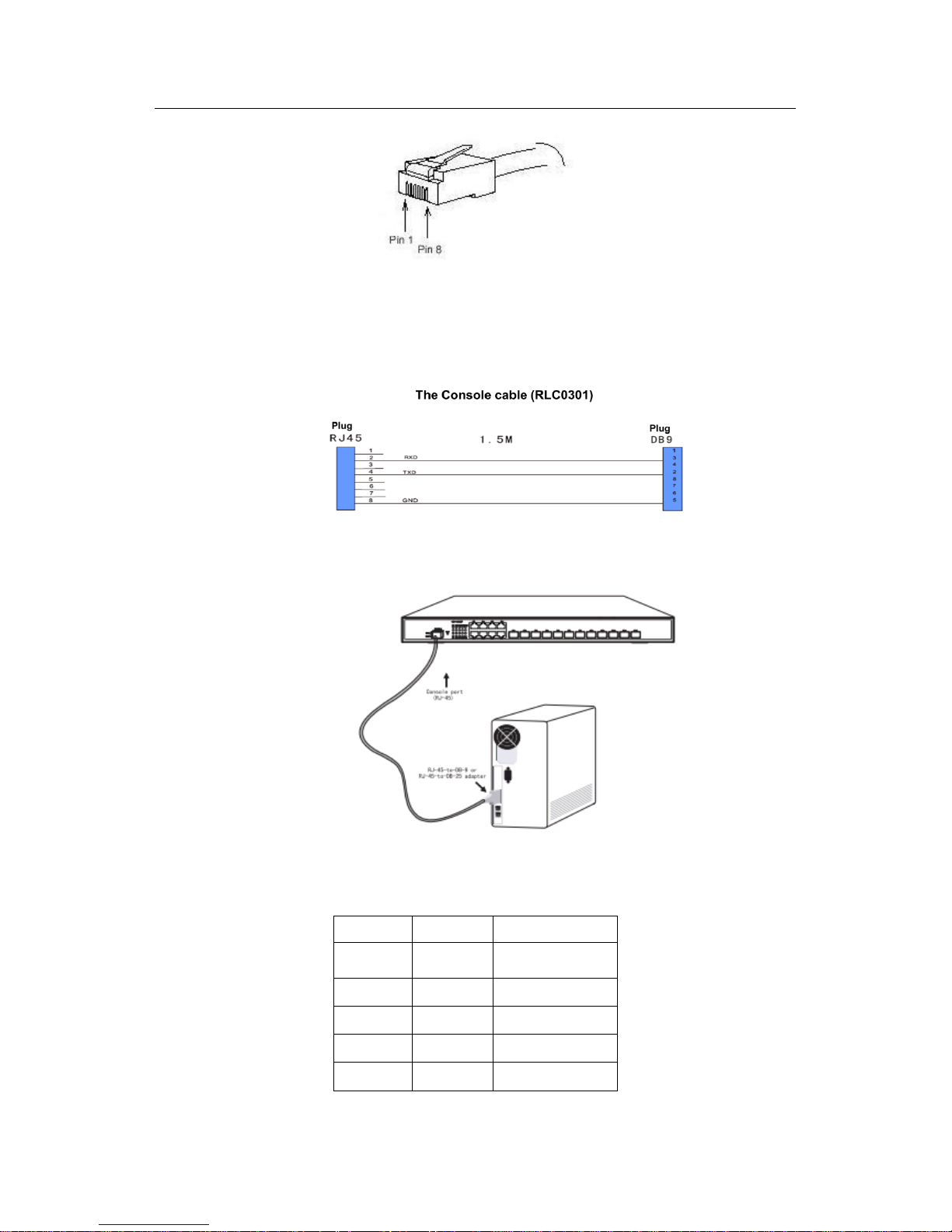

Figure 3-3 RJ-45 connector of the console port
The other end of the console cable is DB9, and the RJ45 plug is put into the socket of
the console port on the S5612 switch.
Figure 3-4 The inner connection of the 1-to-8 RJ45 cable (RLC0301).
Figure 3-5 Connecting the console port of S5612 and computer
Table 3-1 Pins of the console port
NO.
Name
Remark
1
CD
No connect
2
RXD
Input
3
DSR
No connect
4
TXD
Output
5
RTS
No connect
Page 15
S5612 Hardware Installation
- 12 -
6
CTS
No connect
7
DTR
No connect
8
SG
GND
Note:
The console port of S5612 does not support traffic control. Therefore, you must set the
option
data traffic control
to
none
when you configure the switch with the super
terminal. Otherwise, the single-pass problem will arise on the super terminal.
3.3.2 Connecting 10G Ethernet SFP+ Ports
The S5612 switch has 12 10G SFP+ ports. Each port has its corresponding indicator:
TE1~TE12. You can connect the SFP+ optical module to the SFP+ port and then you
can connect other Ethernet terminal devices through the optical cable.

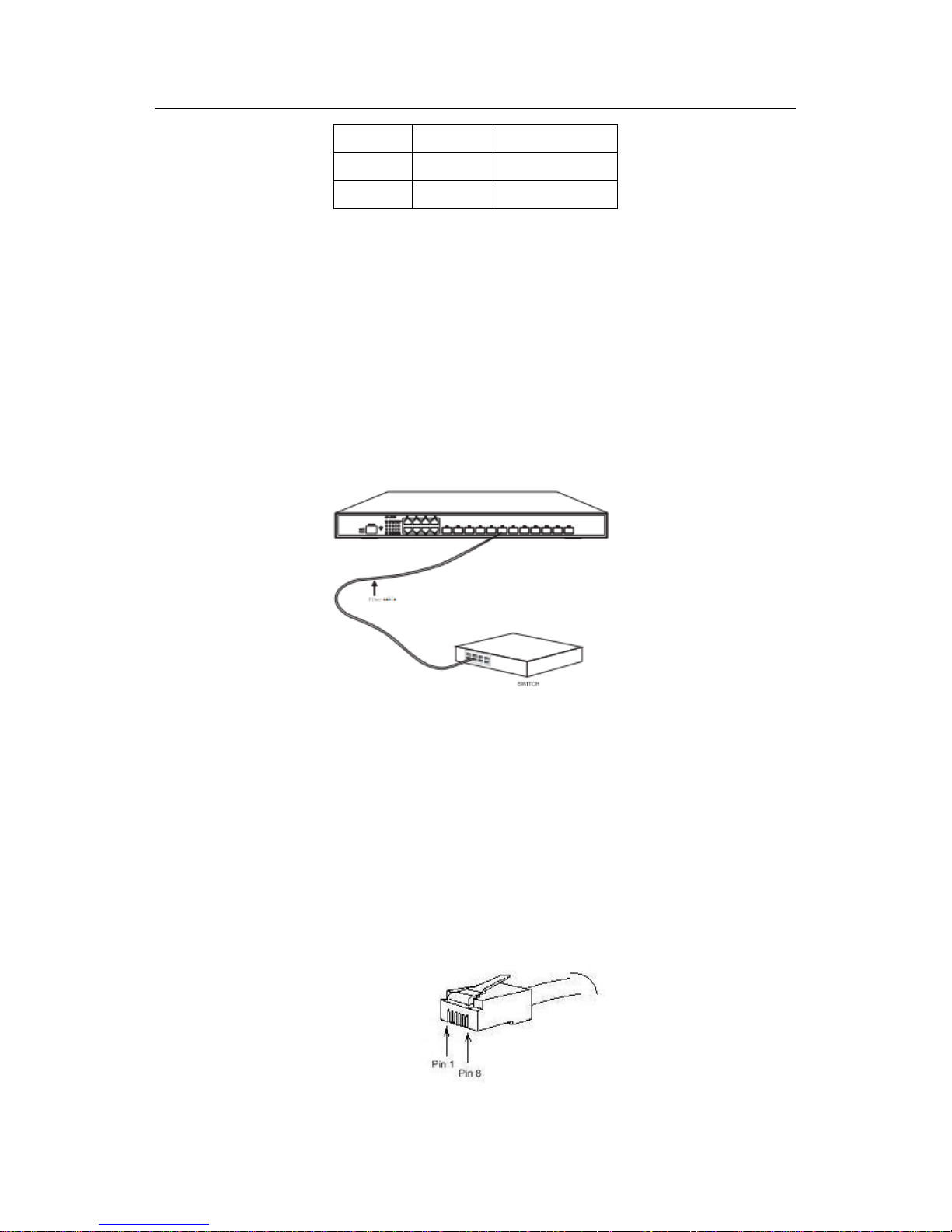

Figure 3-6 Connecting the 10G SFP+ port and other Ethernet terminals
Caution:
The switch shown in figure 3-6 does not represent the material S5612.
3.3.3 Connecting Gigabit Ethernet TX Ports
S5612 provides 8 10/100/1000Base-T ports. Each port has its corresponding
indicator:1-8. The indicators are used to indicate the LINK/ACT state. The ports can
connect other Ethernet terminal devices through the UTP port and the direct-through or
cross network cable. The numbering order of the pins in the UTP port is the same as
that in the console port. See figure 3-6.
Page 16
S5612 Hardware Installation
- 13 -
Figure 3-7 RJ-45 connector on the console port
Because the 8 10/100/1000Base-T ports of S5612 support the MDI/MDIX
self-identification of the cable, S5612 can adopt five types of direct-through/cross
network cables when it connects other Ethernet terminals.

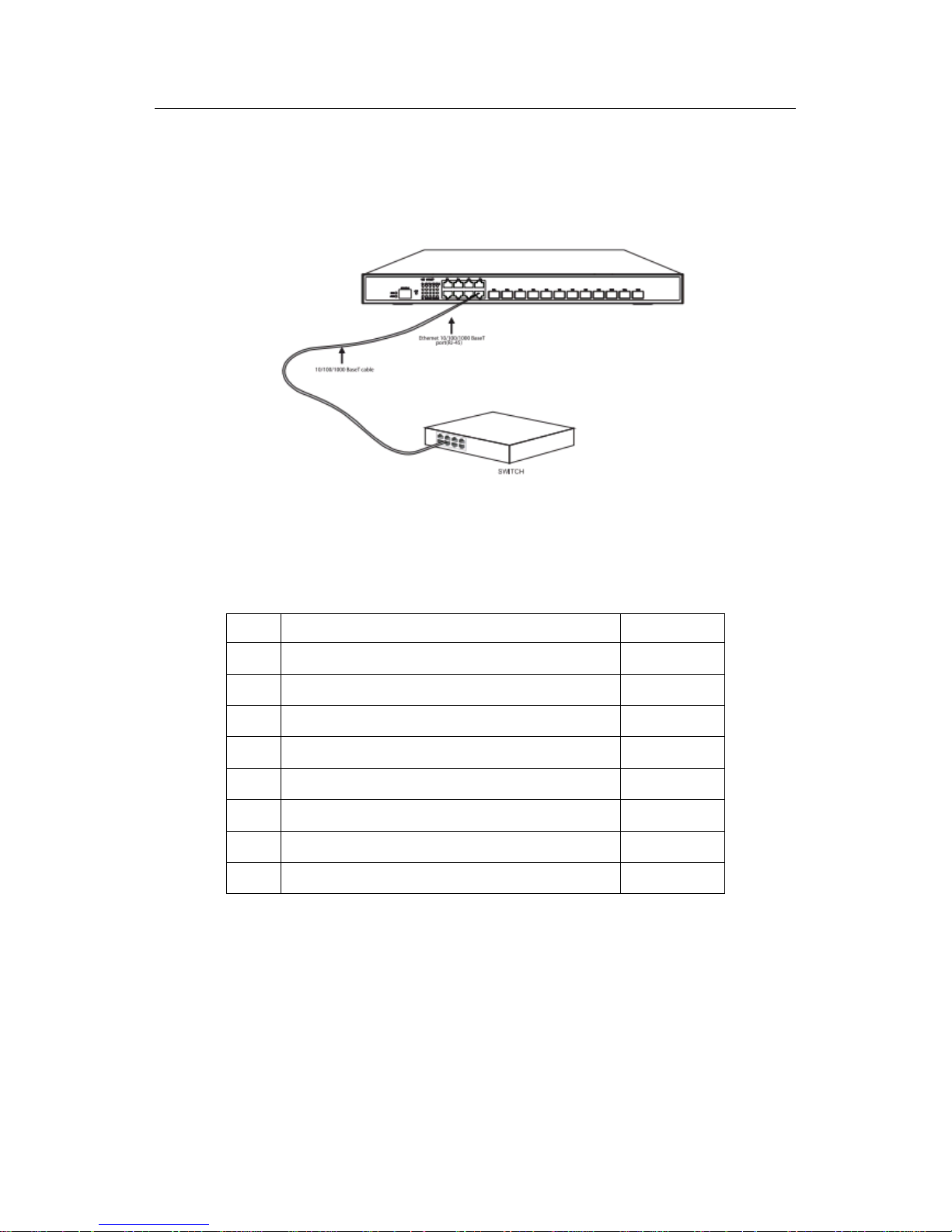

Figure 3-8 Connecting the 1000Base-TX port and other Ethernet terminals
Caution:
The switch shown in figure 3-8 does not represent the material S5612.
Table 3-1 Pins of Gigabit RJ45
No.
Pin Name
Remark
1
Sending/receiving the normal phase of data 0
TP0+
2
Sending/receiving the paraphase of the data 0
TP0-
3
Sending/receiving the normal phase of data 1
TP1+
4
Sending/receiving the normal phase of data 2
TP2+
5
Sending/receiving the paraphase of the data 2
TP2-
6
Sending/receiving the paraphase of the data 1
TP1-
7
Sending/receiving the normal phase of data 3
TP3+
8
Sending/receiving the paraphase of the data 3
TP3-
3.4 Checking After Installation
Before electrically starting up the switch, perform the following checkups after the
switch is installed:
If the switch is installed on the cabinet, check whether the installation point
between the cabinet and the switch is strong. If the switch is installed on the
desk, check whether there is enough space for the switch to discharge its heat
and whether the desk is stable.
Page 17
S5612 Hardware Installation
- 14 -
Check whether the connected power meets the power requirements of the
switch.
Check whether the grounding line is correctly connected.
Check whether the switch is correctly connected to other terminal devices.
Page 18
S5612 Hardware Installation
- 15 -
Chapter 4 Maintaining Switch
Caution:
1) Before opening the machine box, make sure that you have released the static
you carried and then turn off the power on-off of the switch. Before operating any
step in Appendix B, read the section “Safety Advice”.
2) Before performing operations beside the power source or on the machine box,
turn off the power on-off and plug out the power cable.
4.1 Opening the Machine Box
This section describes how to open the cover of the switch, required tools and
operation methods.
Caution:
When the power cable still connects the power source, do not touch it.
When you open the cover the switch, you may use the following tools:
Crossed screwdriver
Static armguard
Perform the following steps to open the cover of the switch:
(1) Turn off the power on-off of the switch.
(2) Plug out all cables connected the back of the switch.
(3) Take out the bolt from the machine box with the screwdriver.
Note:
The machine box comprises of two parts: cover and bottom.

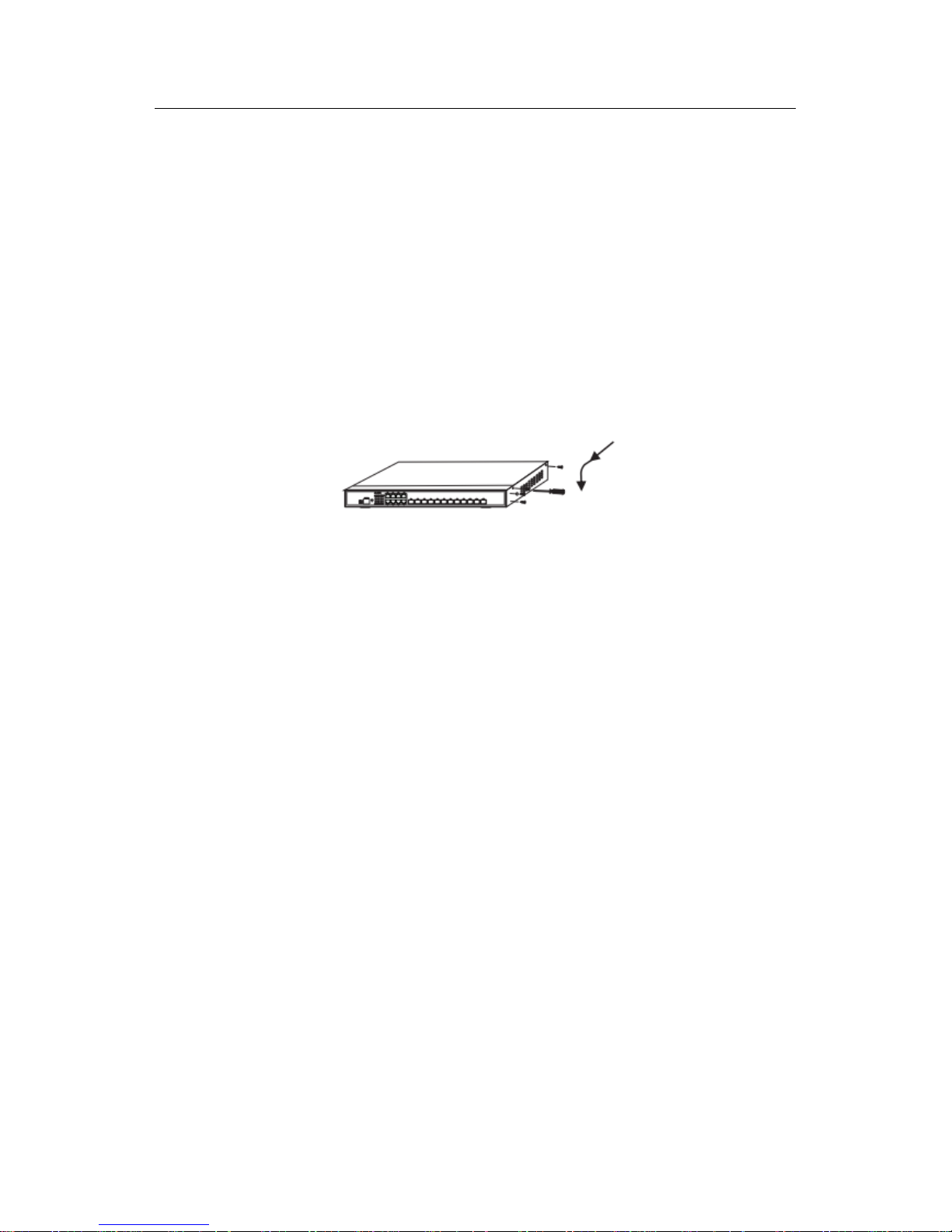

(4) Open the cover by holding two sides of the cover towards the direction of the
arrow key shown in the following figure:
Page 19
S5612 Hardware Installation
- 16 -
Caution:
The switch shown in the above figure does not represent the material S5612.
(5) When the cover is opened, put it aside. The mainboard of the system appears.
Note:
After taking off the cover, put it horizontally and avoid it to be crushed or collided.
Otherwise, the machine box is hard to install.
4.2 Closing Machine Box
The section mainly describes how to put the cover and close the machine box. Do as
follows:

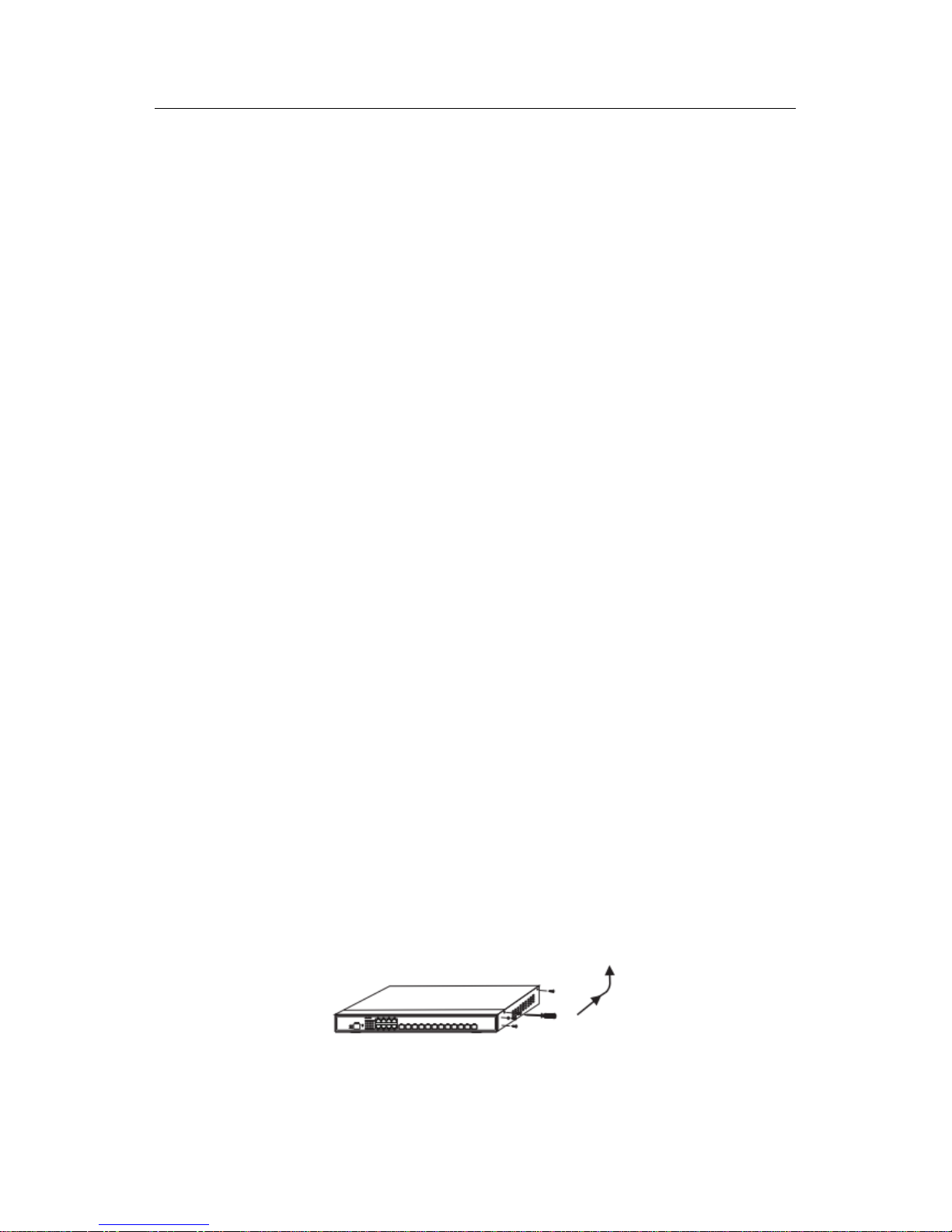

(1) Put them well according to their locations and joint them together along their
sides. See the following figure.
(2) When the cover and the bottom are closely tied, let the cover slide the slot of the
front template at the bottom.
(3) Nail the bolt and screw it tightly with the screwdriver.
(4) Reinstall the switch on the cabinet or the desk.
(5) Reconnect all cables of the switch.
Page 20
S5612 Hardware Installation
- 17 -
Chapter 5 Hardware Fault Analysis
The part describes how to remove the fault from the switch.
5.1 Fault Separation
The key for resolving the systematic faults is to separate the fault from the system. You
can compare what the system is doing with what the system should do to detect the
fault. You need to check the following subsystems:
Power and cooling systems—power and fan
Port, cable and connection—ports on the front template of the switch and the
cables connecting these ports
5.1.1 Faults Relative with Power and Cooling System
Do the following checkups to help remove the fault:
When the power on-off is at the “ON” location, check whether the fan works
normally. If the fan does not work well, check the fan.
The working temperature of the switch is from 0 to 40 Celsius degrees. If the
switch is too hot, check whether the air outlet and air inlet are clean and then do
relative operations in section 2.3 “Requirements for Common Locations”.
If the switch cannot be started and the PWR indicator is off, check the power.
5.1.2 Faults Relative with Port, Cable and Connection
Do the following checkups to help remove the fault:
If the port of the switch cannot be linked, check whether the cable is correctly
connected and whether the peer connection is normal.
If the power on-off is at the “ON” location, check the power source and the
power cable.
If the console port does not work after the system is started up, check whether
the console port is set to a baud rate of 9600 bps, eight data bits, no sum check
bit, one stop bit and no traffic control.
5.2 Indicator Description
The LED indicator shows that the switch is running. The following table shows the
indicators of the S5612 switch and their description:
Page 21
S5612 Hardware Installation
- 18 -
No.
Abbrev.
Name
Description
1
PWR
Power indicator
When the switch is powered on,
the indicator is on.
2
SYS
System indicator
When the indicator is always on,
the system is being started up.
When the indicator flickers, the
system works well.
3
LINK/ACT
Upper indicator for
each port
When the indicator is always on,
the port is linked.
When the indicator is off, the link is
not linked.
Copyright Claims
Without the written approval of the company , any person or group cannot transcribe,
copy or change partial or all contents of this manual, and must not broadcast it in any
manner.
Trademark claims
Trademarks, product names, service names and company names, which are written in
this manual but do not belong to the company, belong to their owners respectively.
Disclaimer of warranty
provides no evident or hinted guarantee towards the contents of this manual. In no
event, except for the company’s breach of law, shall the company be liable for
incidental, consequential, indirect or special damages of any kind or for loss of profits
or revenue or loss of business arising out of or relating to this manual.
Note: Customer shall not be notified of this manual’s content amendments.
Loading...
