S2210PB Hardware Installation Manual
Page 2
Table of Contents
Table of Contents
Chapter 1 S2210PB Switch Overview......................................................................................................1
1.1 Standard Configuration
1.2 Characteristic Parameters of S2210PB
1.3 ROHS Description....................................................................................................................... 4
Chapter 2 Installation Preparation............................................................................................................ 5
2.1 Cautions
2.2 Safety Advice............................................................................................................................... 5
2.2.1 Safety Principles...............................................................................................................5
2.2.2 Safety Notices...................................................................................................................5
2.2.3 Safety Principles for Live Working.................................................................................. 5
2.2.4 Electrostatic Discharge Damage Prevention................................................................. 6
2.3 Requirements for Common Locations....................................................................................... 6
2.3.1 Environment...................................................................................................................... 6
2.3.2 Location Configuration Prevention..................................................................................7
2.3.3 Cabinet Configuration
2.3.4 Power Requirements
2.4 Installation Tools and Device...................................................................................................... 7
........................................................................................................................................
...............................................................................................................
.....................................................................................
......................................................................................................
........................................................................................................
1
3
5
7
7
Chapter 3 Installing the S2210PB Switch................................................................................................ 8
3.1 Installation Procedures of S2210PB
3.2 Installing the Chassis of S2210PB............................................................................................. 8
3.2.1 Installing the Chassis on the Desk..................................................................................8
3.2.2 Installing the Chassis on the Cabinet............................................................................. 8
3.3 Connecting the Port.....................................................................................................................9
3.3.1 Connecting the Console Port.......................................................................................... 9
3.3.2 Connecting the SFP Ports............................................................................................. 11
3.3.3 Connecting 100M Ethernet TX Ports............................................................................12
3.4 Checkup after Installation
Chapter 4 S2210PB Maintenance..........................................................................................................14
4.1 Opening the Chassis................................................................................................................. 14
4.2 Closing the Chassis
Chapter 5 Hardware Fault Analysis........................................................................................................16
5.1 Fault Separation........................................................................................................................ 16
5.1.1 Faults Relative with Power and Cooling System
5.1.2 Faults Relative with Port, Cable and Connection
5.2 LED Description.........................................................................................................................16
.........................................................................................................
...................................................................................................................
..........................................................................................
.........................................................
........................................................
13
14
16
16
8
- I -
Page 3
S2210PB Hardware Installation Manual
Chapter 1 S2210PB Switch Overview
1.1 Standard Configuration
Port
Features
100M PoE ports
TX port: a rate of 10/100M auto-adaptation,
cable MDI/MDIX auto-identification,
UTP(RJ45) port
gigabit Ethernet optical ports
Optical port: 100/1000M SFP port, with LINK/
ACT indicators
Console port
A rate of 9600bps, RJ45 interface
No.
Abbrev.
Name
Remarks
1
PWR
power indicator
If the switch is powered on, the indicator is
on.
2
RESET
RESET
Resume to the default setting.
3
SYS
System indicator
If the indicator is always on, the system is
The document describes the characteristics and parameters of S2210PB and gives an
overview of S2210PB.
S2210PB switch has three parts: 8 IEEE802.3af/at 100M Ethernet TX ports, 2 gigabit
Ethernet SFP ports and 1 Console port. See the following table:
Table 1- 1 Attributes of necessary ports

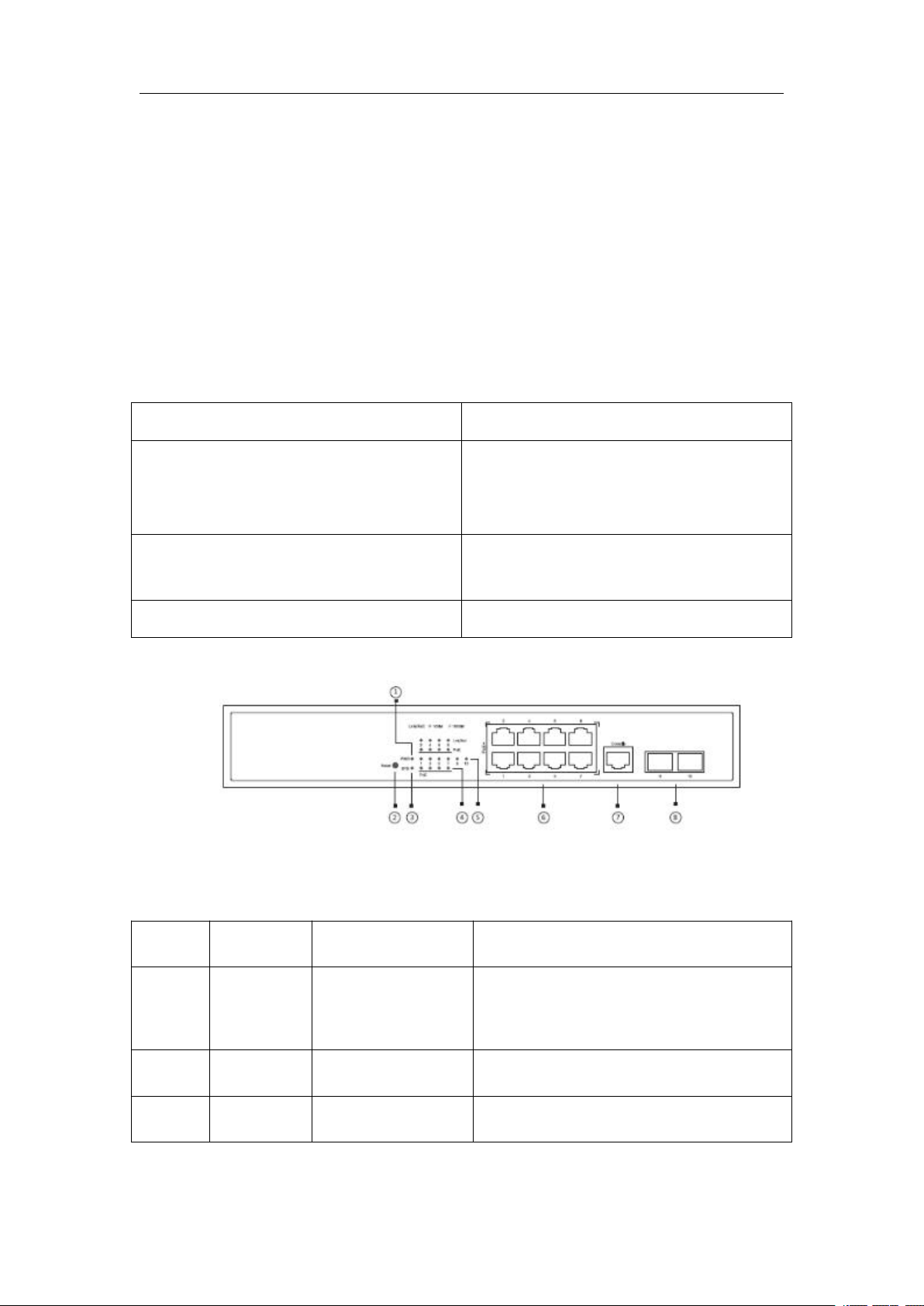

Figure 1- 1 Front template of the S2210PB switch
Table 1- 2 Parts at the front template of the S2210PB switch
- 1 -
Page 4
S2210PB Hardware Installation Manual
started up.
If the indicator flickers, the system works
normally.
4
PoE
PoE indicator
corresponding to
each port
If the indicator is always on, the PoE works
normally.
If the indicator is off, the PoE does not work.
5
Lnk/Act
Lnk/Act indicator
corresponding to
each port
Green indicator is on: 10/100M is
transmitted;
Red indicator is on: 1000M is transmitted;
No indicator is on: no signal is transmitted.
6/8 RJ45 interfaces
Realizes the PoE function and forwards
10/100M Ethernet electrical signals
7
Console
Console
Manages the switch locally.
8/2 SFP ports
Realizes the forward of gigabit Ethernet
optical signals.
No.
Abbrev.
Name
Remarks
1
/
Fan
/
2
/
AC power socket
100~240V AC
3
/
The grounding column
The grounding must be fine.
Besides, S2210PB provides with a grounding column, a power socket, and a silent fan.
Figure 1- 2 Back template of the S2210PB switch
Table 1- 3 Parts at the rear template of the S2210PB switch
- 2 -
Page 5
S2210PB Hardware Installation Manual
1.2 Characteristic Parameters of S2210PB
Protocol
standard
Supported standard
IEEE 802.1d Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1q tagged VLAN
IEEE 802.3x Flow control
IEEE 802.3ad Link aggregation
IEEE 802.3af Power via Media Dependent Interface
IEEE 802.3at DTE Power Enhancements
IP routing protocol
standard
RFC 1058 RIP
RFC 1723 RIP v2
Network management
standard
RFC 1157 SNMP v1/v2
RFC 1213 MIB II
RFC 1757 RMON 1,2,3,9
Hardware
features
Memory
Flash Memory: 16M Bytes;
DDR3: 128Mbytes
Standard configuration
2 Gigabit Ethernet SFP ports
1 Console port
8 100M Ethernet TX ports
Dimensions (W×H×D)
(mm)
280×180×44
Operating
temperature/humidity
0℃ to 40℃; 10%-90% non-condensing
Storage temperature/
humidity
-40℃ to 70℃; 5%-90% non-condensing
Power supply
Input voltage: AC100-240V;
Input frequency: 50-60Hz;
Input current: 2.5A/230V
Power consumption
140W
- 3 -
Page 6
S2210PB Hardware Installation Manual
1.3 ROHS Description
- 4 -
Page 7
S2210PB Hardware Installation Manual
Chapter 2 Installation Preparation
2.1 Cautions
2.2 Safety Advice
2.2.1 Safety Principles
Keep dustless and clean during or after the installation.
Put the cover at the safe place.
Put tools at the right place where they are not easily falling down.
Put on relatively tight clothes, fasten the tie or scarf well and roll up the sleeve,
Put on the protective glasses if the environment may cause damage to your
Avoid incorrect operations that may cause damage to human or devices.
2.2.2 Safety Notices
Read the installation guide carefully before you operate the system.
Only professionals are allowed to install or replace the switch.
Please cut off the direct-current connection when you operate the hull or work
The final configuration of products must comply with relative national laws and
2.2.3 Safety Principles for Live Working
Similar to other electronic products, the semiconductor chip easily gets damaged if
you power on and off abruptly and frequently. To restart up the switch of S2210PB, you
have to open the power on-off three or five seconds after the power is cut off.
Avoid severe collision or falling down from the height to protect the parts in the
switch.
Use correct outside ports to connect the switch of S2210PB. Do not insert the
Ethernet plug into the console port (RJ45 8-line socket). Similarly, do not insert the
console cable into the console port (RJ45 8-line socket).
Note:
1) When you plug or dial out the power line, keep the power line horizontal with the
power socket.
2) When the lifetime of our products ends, handle them according to national laws and
regulations, or send these products to our company for collective processing.
avoiding stumbling the chassis.
eyes.
The safety notices mentioned here means that improper operation may lead to body
damage.
near the power supply.
regulations.
When you work under electricity, following the following principles:
- 5 -
Page 8
S2210PB Hardware Installation Manual
Put off ornaments, such as ring, necklace, watch and bracelet, before you
Please cut off the direct-current connection when you operate the hull or work
When the power is on, do not touch the power.
Correctly connect the device and the power socket.
Only professionals are allowed to operate and maintain the device.
Read the installation guide carefully before the system is powered on.
1) Check potential dangers, such as the humid floor, ungrounded extensible
2) Install the emergent on-off at the working room for turning off the power
3) Plug off the power line before installing or uninstalling the machine box or
4) Do not work alone if potential dangers exist.
5) Cut off the power before checkout.
6) If trouble happens, take the following measures:
A. Cut off the system’s power.
B. Alarm.
C. Take proper measures to help persons who are hit by the disaster.
D. Seek for medical help, or judge the loss and seek for available help.
2.3 Requirements for Common Locations
2.3.1 Environment
operate under live working. When metal articles connect the power to the
ground, short circuit happens and components may be damaged.
near the power supply.
Note:
power line and tatty power line.
when trouble happens.
working beside the power.
Artificial respiration is needed if necessary.
2.2.4 Electrostatic Discharge Damage Prevention
Electrostatic discharge may damage devices and circuits. Improper treatment may cause
the switch to malfunction completely or discontinuously.
Move or locate the devices according to the measures of electrostatic discharge
prevention, ensuring the machine box connects the ground. Another measure is to wear the
static-proof hand ring. If there is no hand ring, use the metal clip with the metal cable to clip the
unpainted metal part of the machine box. In this case, the static is discharged to the ground
through the metal cable of the clip. You can also discharge the static to the ground through
your body.
This part describes the requirements for the installation locations.
S2210PB switch adopts the wall-mounted installation mode. The switch has no fan, so an
environment with good ventilation is needed for the heat cooling of the switch.
For location planning and device locating, refer to section 2.3.2 “Location Configuration
Prevention”.
- 6 -
Page 9
S2210PB Hardware Installation Manual
2.3.2 Location Configuration Prevention
Make sure that the workshop is well-ventilated, the heat of TX devices is
Put the chassis at the place where cool air can blow off the heat inside the
2.3.3 Cabinet Configuration
Each device on the cabinet gives off heat when it runs. Therefore, the sealed
When you install the chassis at the open cabinet, prevent the frame of the
Ensure that nice ventilation is provided for the devices installed at the bottom of
The clapboard separates exhaust gas and inflow air, and boost the cool air to
2.3.4 Power Requirements
2.4 Installation Tools and Device
Screwdriver
Static armguard
Bolt
Ethernet cable
Other Ethernet terminal devices
Control terminal
The following preventive measures assist you to design the proper environment for the
switch.
well-discharged and sufficient air circulation is provided for device cooling.
chassis. Make sure the chassis is sealed because the opened chassis will
reverse the cool air flow.
The following content assists you to make a proper cabinet configuration:
cabinet must have the heat-discharge outlet and the cooling fan. Do not put the
devices too close, avoiding bad ventilation.
cabinet from blocking the airway of the chassis.
the cabinet.
flow in the chassis. The best location of the clapboard is decided by the air flow
mode in the chassis, which can be obtained through different location tests.
Make sure that the power supply has nice grounding and the power at the input side of the
switch is reliable. The voltage control can be installed if necessary. At least a 240 V, 10A fuse
or a breaker is provided in the phase line if you prepare the short-circuit prevention measures
for a building.
Caution:
If the power supply system does not have good grounding, or the input power disturbs too
much and excessive pulses exist, the error code rate of communication devices increases and
even the hardware system will be damaged.
The tools and devices to install the S2210PB switch are not provided by the S2210PB
switch. You yourself need to prepare them. The following are the tools and devices needed for
the typical installation of the S2210PB switch:
- 7 -
Page 10
S2210PB Hardware Installation Manual
Chapter 3 Installing the S2210PB Switch
3.1 Installation Procedures of S2210PB
3.2 Installing the Chassis of S2210PB
Installing the Chassis on the Desk
Installing the Chassis on the Cabinet
3.2.1 Installing the Chassis on the Desk
3.2.2 Installing the Chassis on the Cabinet
Caution:
Only professionals are allowed to install or replace the devices of the switch.
The chassis of the switch can be put on the desk or fixed to the cabinet. Your network
installation requirements can be met if you conduct the operations according to the following
procedure. It can be described in the following two parts:
The S2210PB switch can be directly put on the smooth and safe desk.
Note:
Do not put things weighing 4.5 kg or over 4.5 kg on the top of the switch.
The chassis of the switch is fixed to the cabinet through the fixing mouth. When operation
it is enough to fix the back template of the switch through the fixing mouth to the cabinet.
- 8 -
Page 11
S2210PB Hardware Installation Manual
3.3 Connecting the Port
3.3.1 Connecting the Console Port
Figure 3- 1 Fixing the machine box of the switch
After the brackets are installed, install the switch on the cabinet. See Figure 3-2.
Figure 3- 2 Installing the switch on the cabinet
The switch of S2210PB has a Console port. The rate of the console port is a value of
1200bps—115200bps. It has a standard RJ45 plug. After you connect the console port to the
serial port of PC through a console cable, you can configure and monitor the switch of
S2210PB by running a terminal emulation software, such as super Windows terminal. The
cable is provided according to the host. The communication parameters of the terminal serial
port can be set to a rate of 9600bps, eight data bits, one stop bit, no sum check bit and traffic
control.
The RJ45 connector of the console port is shown in the following figure. The RJ45 plug
corresponds to the RJ45 socket, whose pins can be aligned from left to right with the value
from 1 to 8.
Figure 3- 3 RJ-45 connector of the console port
- 9 -
Page 12
S2210PB Hardware Installation Manual
No.
Name
Abbreviation
Remarks
1
Carrier Detecting
CD
No connect
2
Data receiving
RXD
Input
3
Data-line device ready
DSR
No connect
4
Data transmitting
TXD
Output
5
Transmission requesting
RTS
No connect
6
Response transmitting
CTS
No connect
7
Data terminal ready
DTR
No connect
8
Signal ground
SG
GND

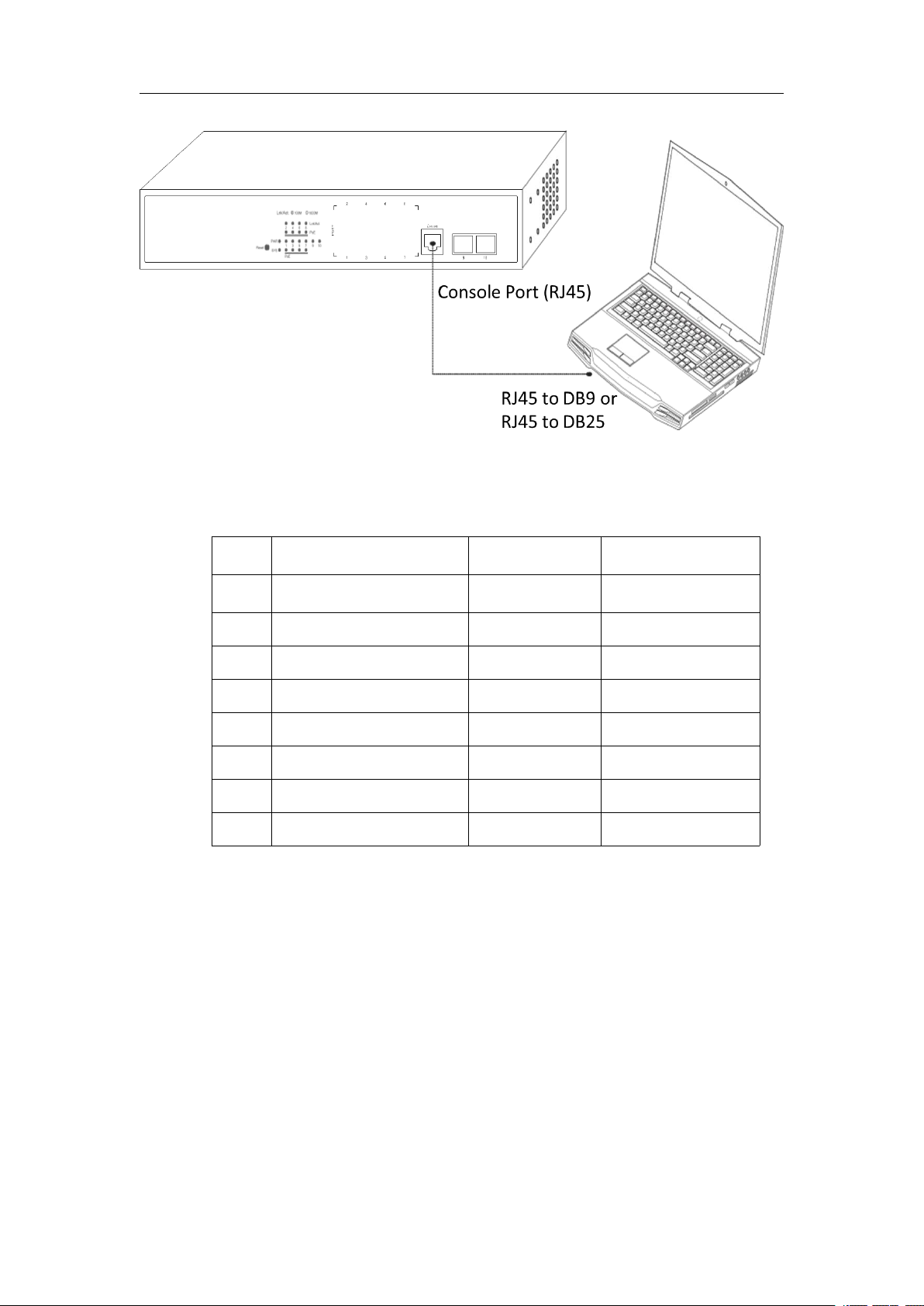

Figure 3-4 Connecting the console port of S2210PB and computer
Table 3- 1 Definition of the pins of the console port
Note:
Because the console port of S2210PB bears no flow control, you need to set Data
flow control to none when using a superior terminal to manage S2210PB
configurations, or the single-pass problem will arise from the superior terminal.
The cable is used to connect the console port of the S2210PB switch and the
outside console terminal device. One end of the cable is a 8-pin RJ45 plug and the
other end is a 25-hole plug (DB25) and a 9-hole plug (DB9). The RJ45 plug is put
into the socket of the console port on the S2210PB switch. DB25 or DB9 is applied
according to the requirement of the terminal serial port. The inner line connection
in the cable is shown in Figure 3-5.
- 10 -
Page 13
S2210PB Hardware Installation Manual
3.3.2 Connecting the SFP Ports
Figure 3- 5 Cable connection at the console port
S2210PB provides 2 gigabit SFP optical ports. Each port corresponds to one indicator
respectively, which is used for indicating the port Link/ACT state. When the indicator is always
on, the link is normal; when it flickers, the data receives and forwards. To use the optical port,
you need connect it to the SFP optical module, and then to other Ethernet terminal devices
through an optical fiber.
Figure 3- 6 Connecting the SFP ports and other Ethernet terminals
- 11 -
Page 14
S2210PB Hardware Installation Manual
3.3.3 Connecting 100M Ethernet TX Ports
No.
Pin name
Symbol
Note
1
Sending the normal phase of
the data
TXD1+
Output
The S2210PB switch has 8 10/100Base-TX ports. Each port has one indicator, which
indicates the state of Link/ACT. If the indicator is always on, the port is linked up; if the indicator
flickers, the data is transmitted on the port. The numbering order of the pins in the UTP port is
the same as the console port.

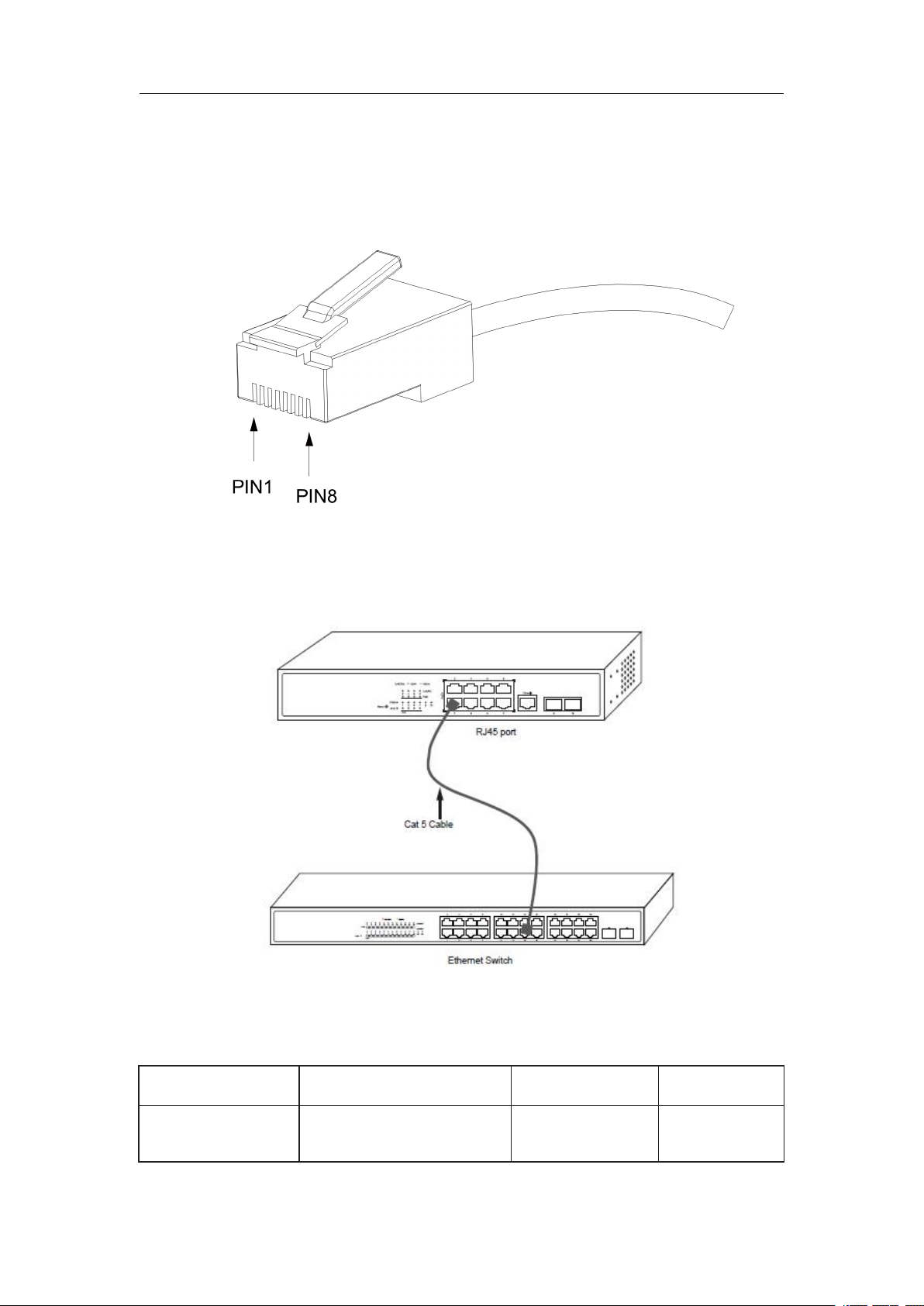

Figure 3-7 RJ-45 connector of the console port
Because 8 10/100Base-TX ports of S2210PB support the MDI/MDIX auto-identification of
the cable, S2210PB can adopt five classes of direct-through/cross network cables when it
connects other Ethernet terminals.
Figure 3-6 Connecting Base-T ports and other Ethernet terminal
Table 3- 3 Definition of the pins of the 1000M RJ45 port
- 12 -
Page 15
S2210PB Hardware Installation Manual
2
Sending the paraphase of the
data
TXD1-
Output
3
Receiving the normal phase of
the data
RXD1+
Input
4
Sending the normal phase of
the data
TXD2+
Output
5
Sending the paraphase of the
data
TXD2-
Output
6
Receiving the paraphase of
the data
RXD1-
Input
7
Receiving the paraphase of
the data
RXD2+
Input
8
Sending the paraphase of the
data
RXD1-
Input
3.4 Checkup after Installation
If the switch is installed on the DIN rail, check whether the installation is strong.
Check whether the connected power supply meets the power requirements of
Check whether the grounding line of S2210PB is correctly connected.
Check whether S2210PB is correctly connected to other terminal devices.
The direct-through or cross network cable has the function of auto-identification, so the five
classes of direct-through/cross network cables can be used to connect other Ethernet devices.
Before feeding power to start the switch, perform the following checkups after the switch is
installed:
If the switch is installed on the desk, check whether there is enough space for the switch to
discharge its heat and whether the desk is stable.
the switch.
- 13 -
Page 16
S2210PB Hardware Installation Manual
Chapter 4 S2210PB Maintenance
1) Before opening the chassis, make sure that you have released the static you
2) Before performing operations beside the power supply or on the chassis,
4.1 Opening the Chassis
Crossed screwdriver
Static armguard
(1) Cut off the power of the switch.
(2) Plug out all cables connected the back of the switch.
(3) Take out the bolt from the chassis with the screwdriver.
(4) Open the cover by holding two sides of the cover towards the direction of the
(5) When the cover is opened, put it aside. The main board of the system
4.2 Closing the Chassis
Caution:
carried and then turn off the power on-off of S2210PB. Before operating any
step in Appendix B, read the section “Safety Advice”.
turn off the power on-off and plug out the power cable.
This section describes how to open the cover of the switch, required tools and operation
methods.
Caution:
When the power cable still connects the power supply, do not touch it.
To uninstall the chassis, you need some tools which the standard configuration of
S2210PB does not provide. These tools are:
Perform the following steps to open the cover of the switch:
Note:
The chassis comprises of two parts: cover and bottom.
arrow key shown in the following figure:
appears.
Note:
After taking off the cover, put it horizontally and avoid it to be crushed or collided.
Otherwise, the chassis is hard to install.
The section mainly describes how to put the cover and close the chassis. Do as follows:
- 14 -
Page 17
(1) Following the directions shown on the above-mentioned figure, install the
cover and bottom of the frame box.
(2) Nail the bolt and screw it tightly with the screwdriver.
(3) Reinstall the switch on the DIN rail or on the desk.
(4) Reconnect all cables of the switch.
S2210PB Hardware Installation Manual
- 15 -
Page 18
S2210PB Hardware Installation Manual
Chapter 5 Hardware Fault Analysis
5.1 Fault Separation
Connection of the power supply and the cooling system — the power supply and
Port, cable and connection—ports on the front template of the switch and the
5.1.1 Faults Relative with Power and Cooling System
When the power on-off is at the “ON” location, check whether the fan works
If the switch is too hot, check whether the air outlet and air inlet are clean and
If the switch cannot be started and the PWR indicator is off, check the power.
5.1.2 Faults Relative with Port, Cable and Connection
If the port of the switch cannot be linked, check whether the cable is correctly
If the console port does not work after the system is started up, check whether
5.2 LED Description
No.
Abbrev.
Name
Remarks
1
PWR
Power LED
If the switch is powered, the indicator is on.
2
SYS
System LED
If the indicator is always on, the system is
being started up.
If the LED flickers, the system works
normally.
The part describes how to remove the faults from the switch.
The key for resolving the systematic faults is to separate the fault from the system. You
can compare what the system is doing with what the system should do to detect the fault. You
need to check the following subsystems:
the fan;
cables connecting these ports.
Do the following checkups to help remove the fault:
normally.
then do relative operations in section 2.3 “Requirements for Common
Locations”.
Do the following checkups to help remove the fault:
connected and whether the peer connection is normal.
the console port is set to a baud rate of 9600 bps, eight data bits, no sum check bit, one stop
bit and no traffic control.
The LED shows that the switch is running. The following table shows the LEDs of the
S2210PB switch and their description:
- 16 -
Page 19
S2210PB Hardware Installation Manual
3
LINK/ACT
port indicators
If the indicator is always on, it means that
the connection is linked.
If the indicator is off, the port is not linked.
4
PoE
PoE indicator
corresponds to each
port
If the indicator is always on, it means the
PoE works.
If the indicator is off, the PoE does not
work.
Copyright Claims
Without the written approval of
the company
, any person or group cannot transcribe, copy or
change partial or all contents of this manual, and must not broadcast it in any manner.
Trademark claims
Trademarks, product names, service names and company names, which are written in this
manual but do not belong to
the company
, belong to their owners respectively.
Disclaimer of warranty
provides no evident or hinted guarantee towards the contents of this manual. In no event,
except for
the company
’s breach of law, shall
the company
be liable for incidental,
consequential, indirect or special damages of any kind or for loss of profits or revenue or loss
of business arising out of or relating to this manual.
Note: Customer shall not be notified of this manual’s content amendments.
- 17 -
Loading...
