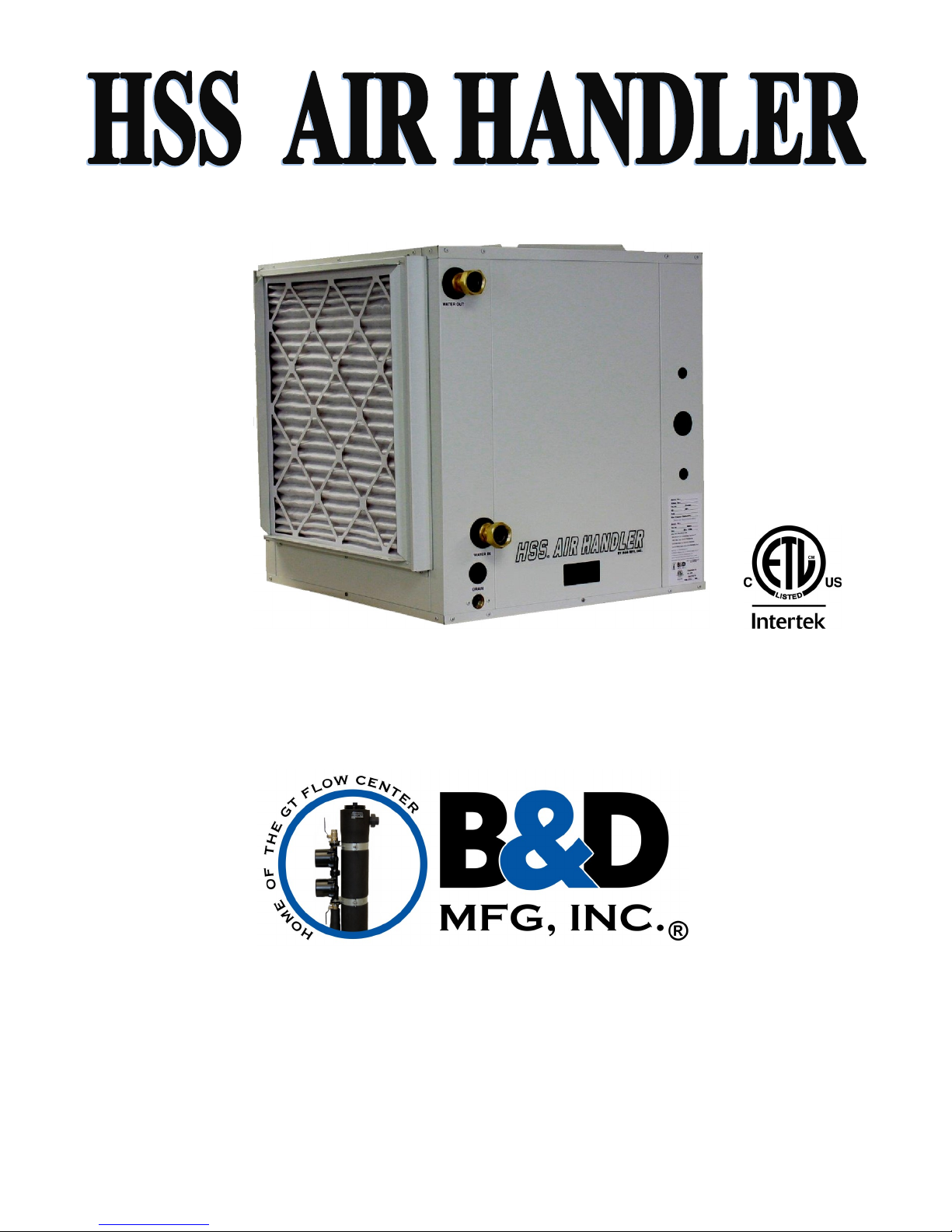

HSS AIR HANDLER INSTALLATION MANUAL
®
Page 2
TABLE OF CONTENTS
General Instructions………………………………………………………………………. 3
Warranty Information…………………………………………………………………….… 3
Terms of Limited Warranty Information………….…………………………………….… 3
Safety Considerations..…………...………………………………………………………. 4
Installation Precautions…….………..……………………………………………………. 4
Air Distribution Duct Information………...……………………………………...……….. 5
Electrical Wiring Information……………………………………………………………… 5
Mounting the Air Handler……..……..……………………………………………………. 5
Pre Start –Up………………………………………………………………………………. 6
Start-up & Maintenance .…………………………………………………………………. 6
Preventative Maintenance..………………………………………………………………. 6

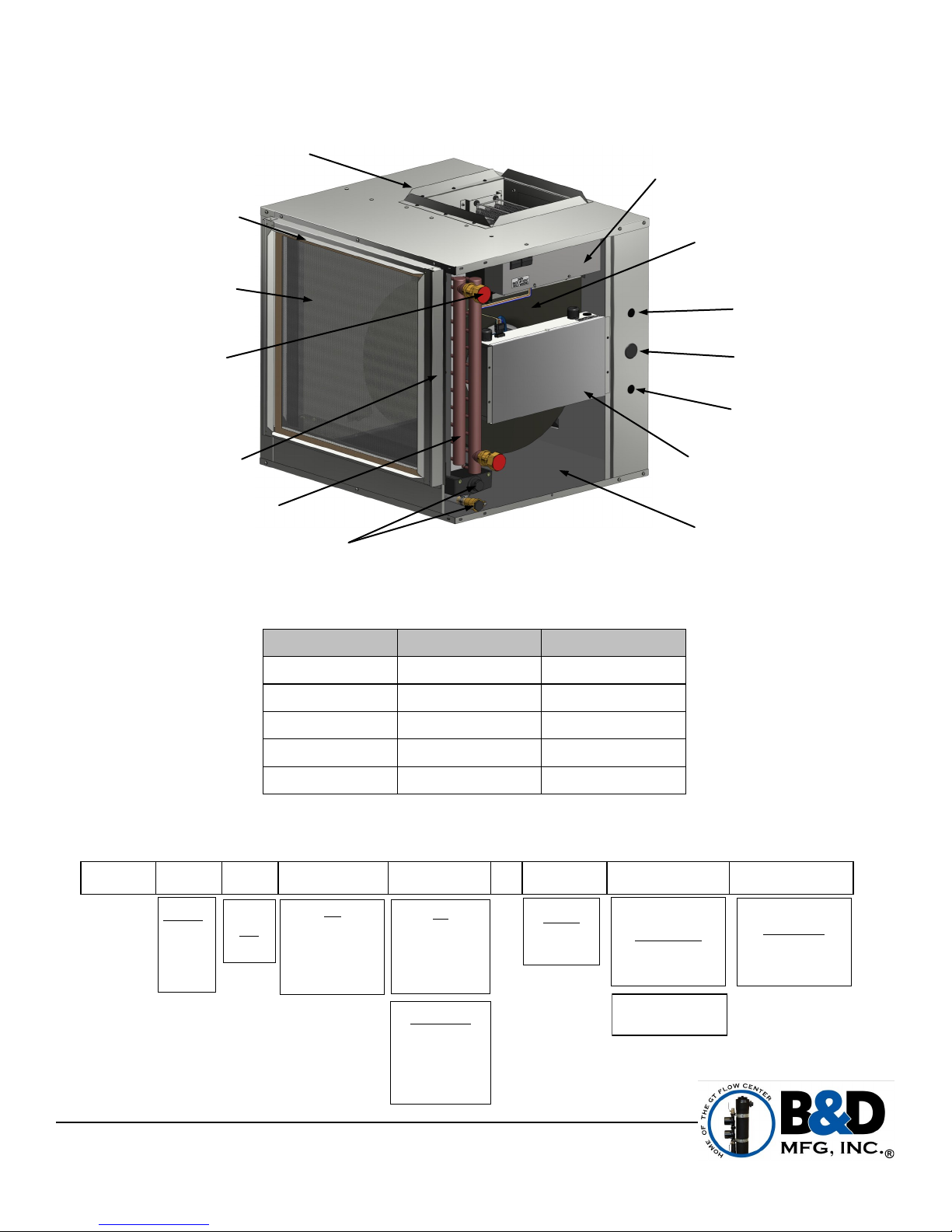

Air Handler Unit Information………………………………………………………………. 7

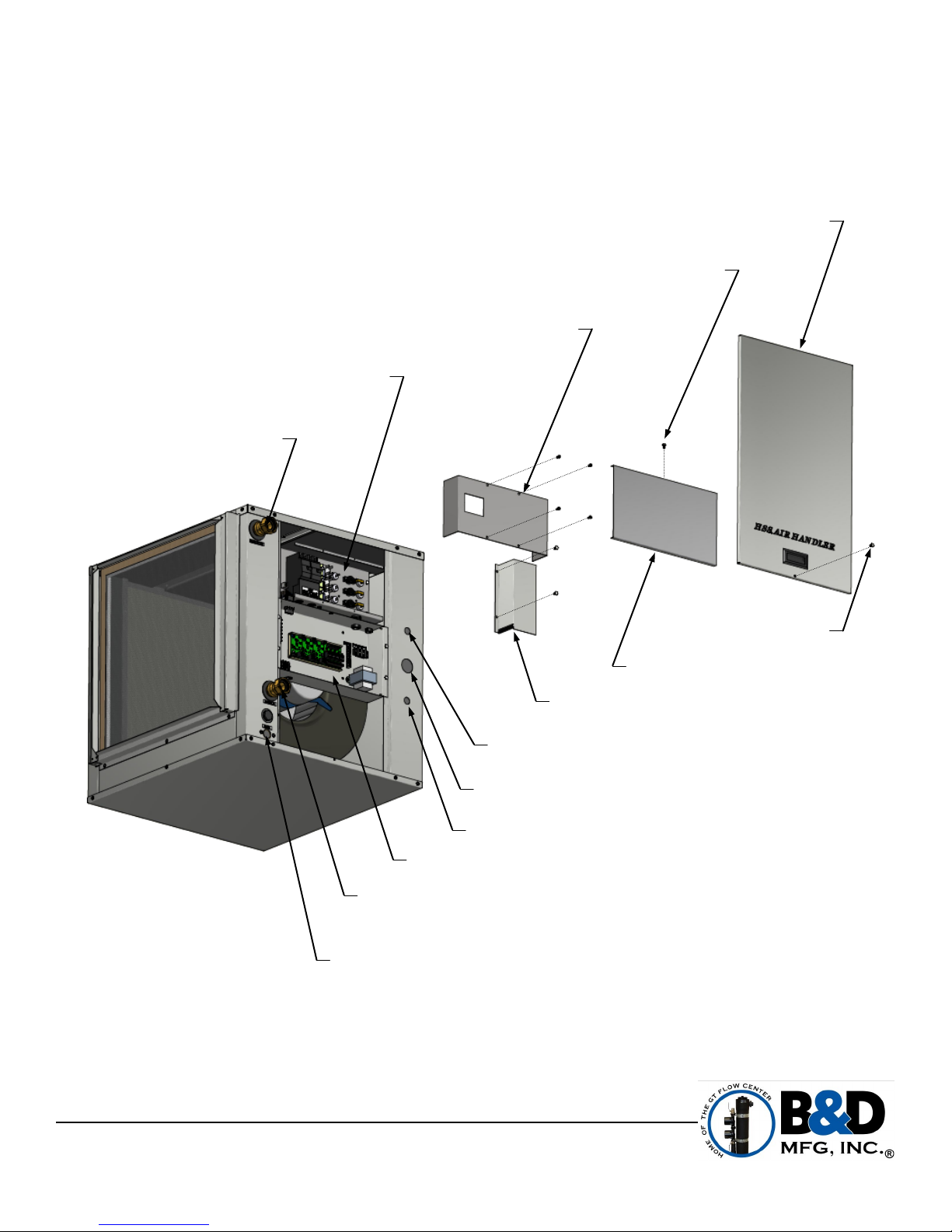

Air Handler Unit Access…………...………………...……………………………………. 8

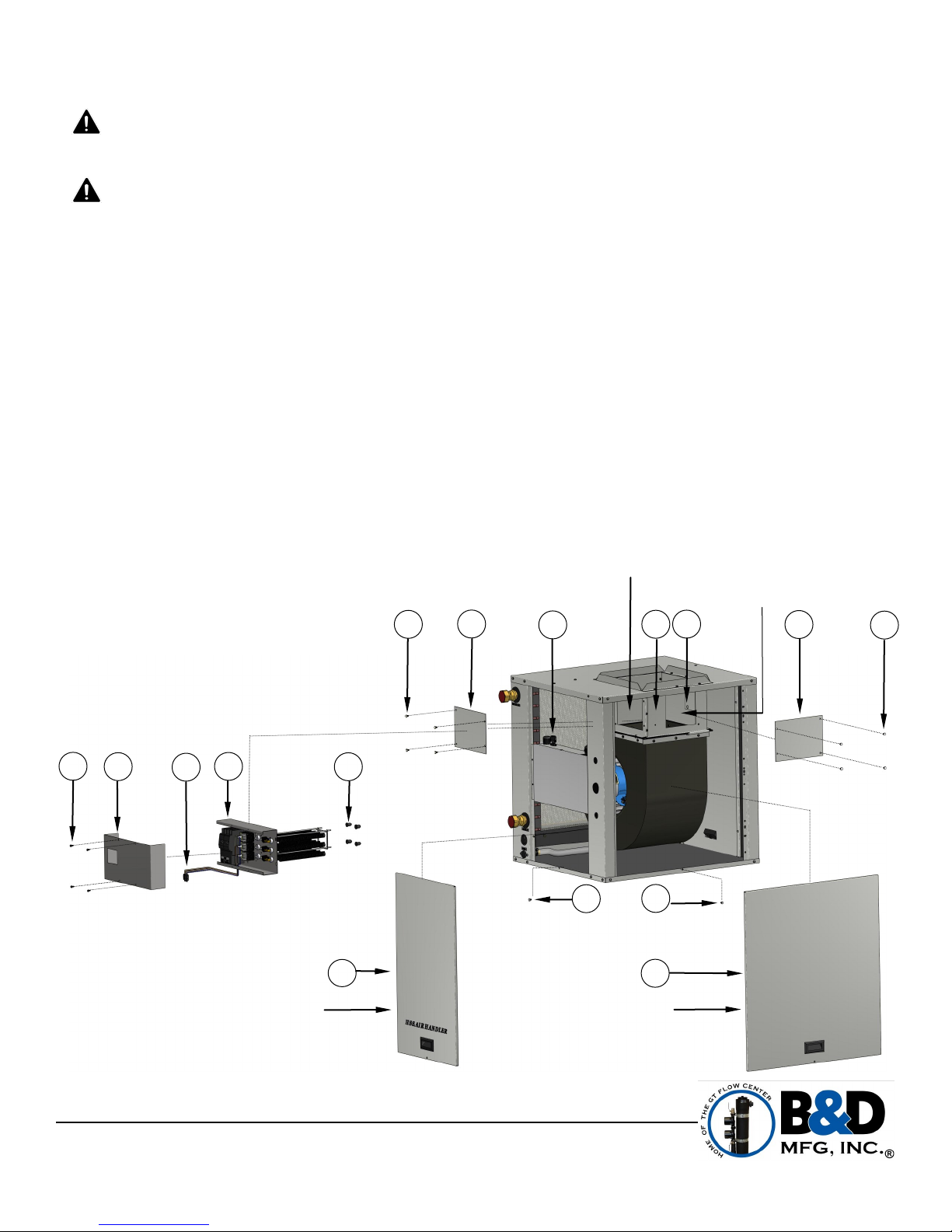

Heat Strip Installation Procedure…………………………..…………………………….. 9
Emergency Heat Sequence of Operation.……………………………………………. 10
Electrical Data Information All Units……………………………………………………... 11

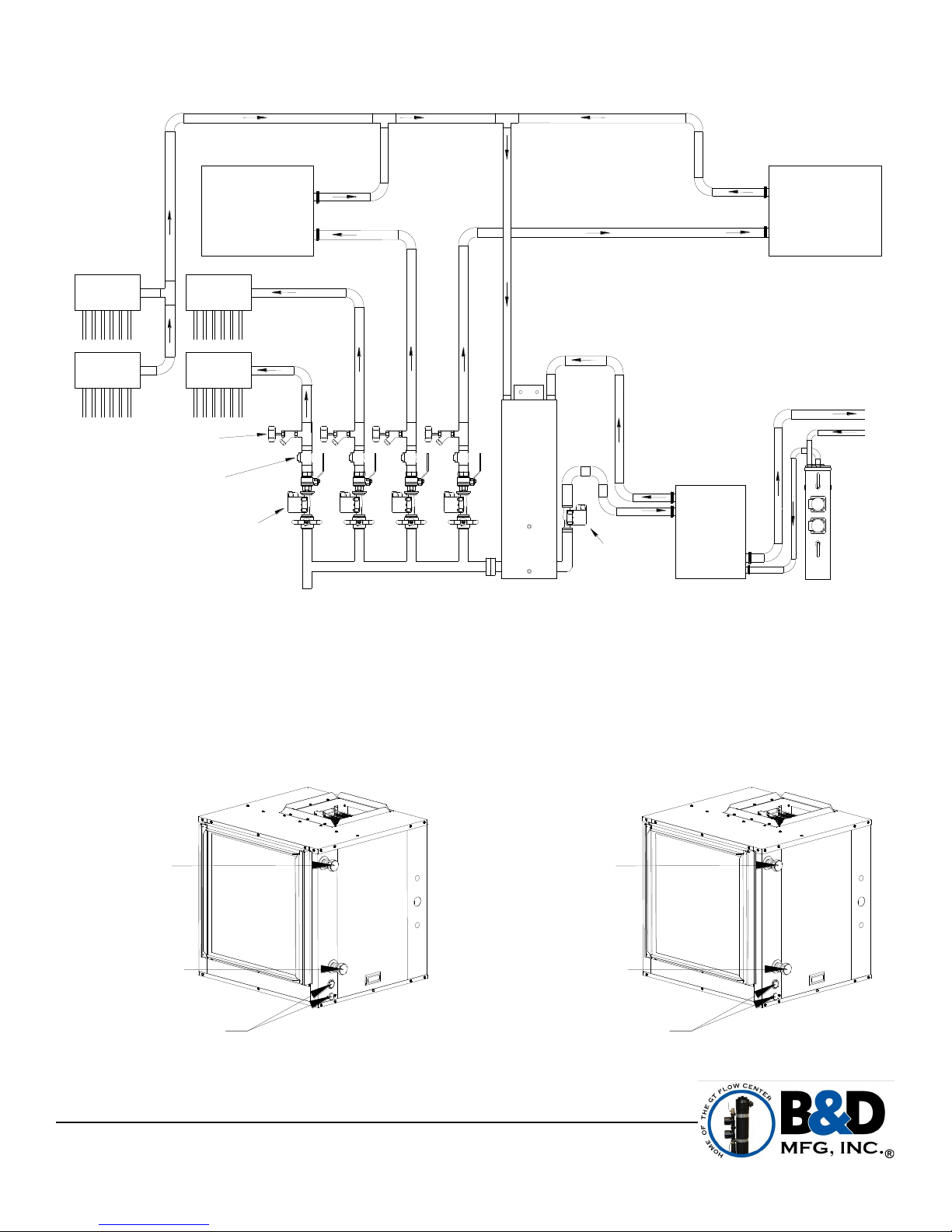

Air Handler Piping Diagram & Piping Connections…………………………………….. 12

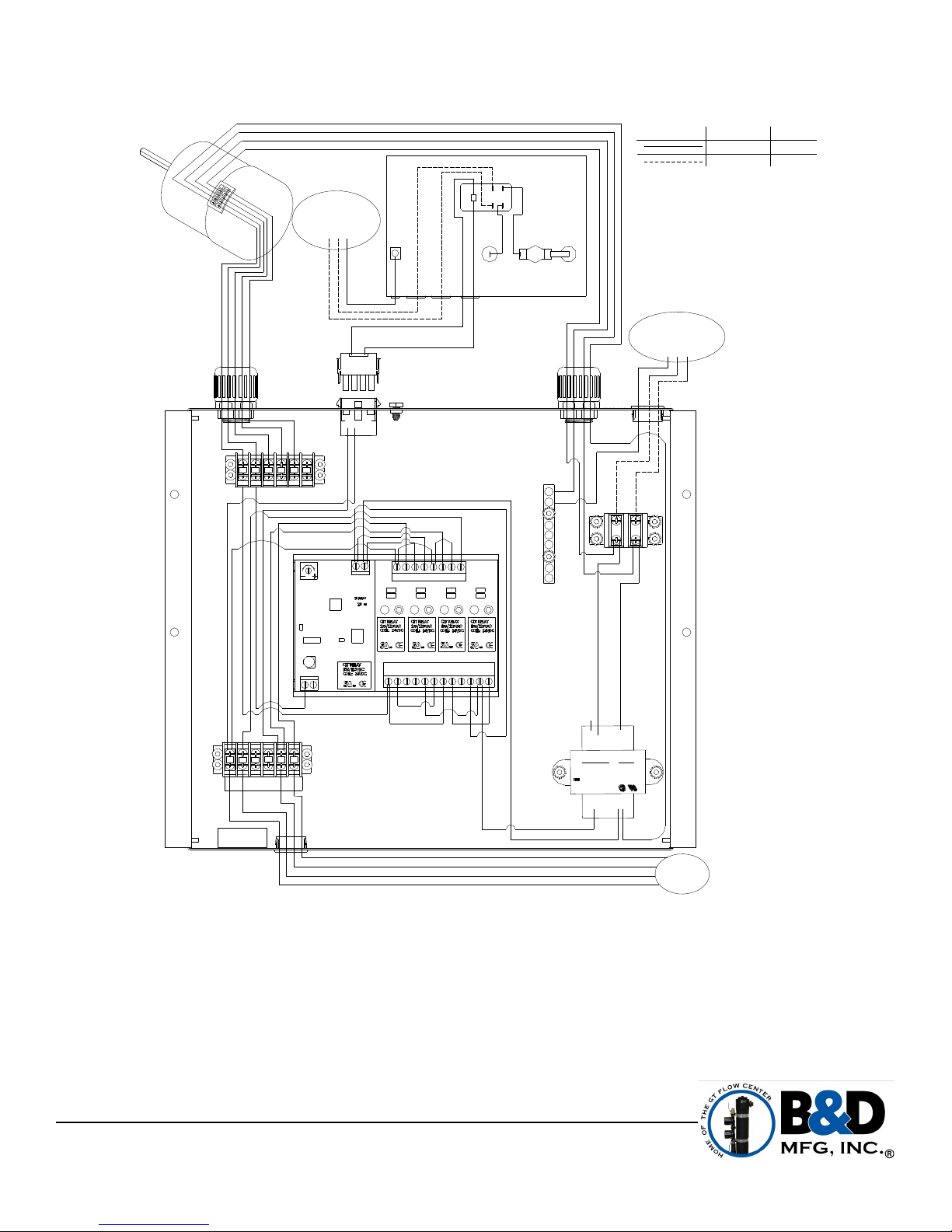

1 Ton, 2 Ton Wiring Schematic….………………………………...…………………….. 13

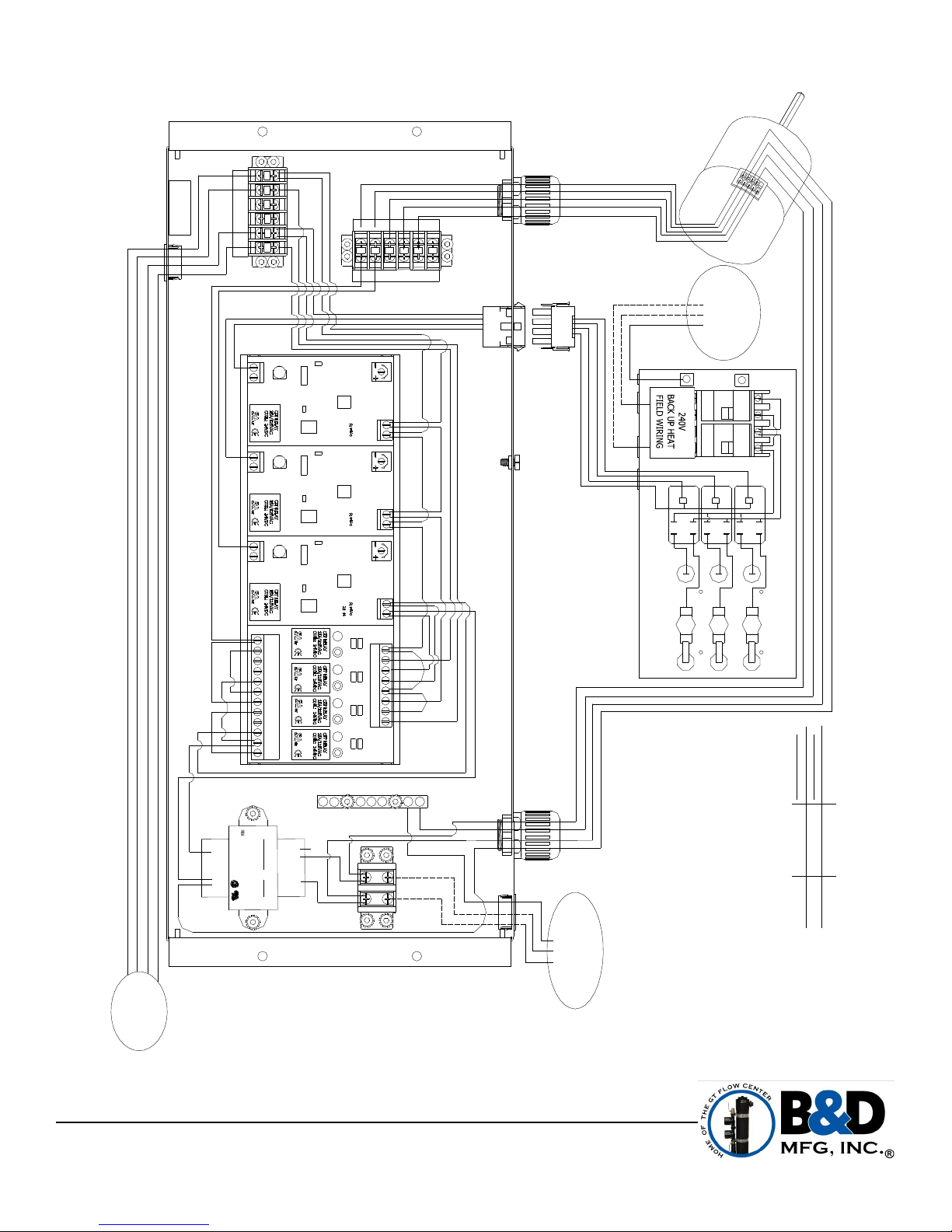

3 Ton, 4 Ton, 5 Ton Wiring Schematic………………………………………………….. 14

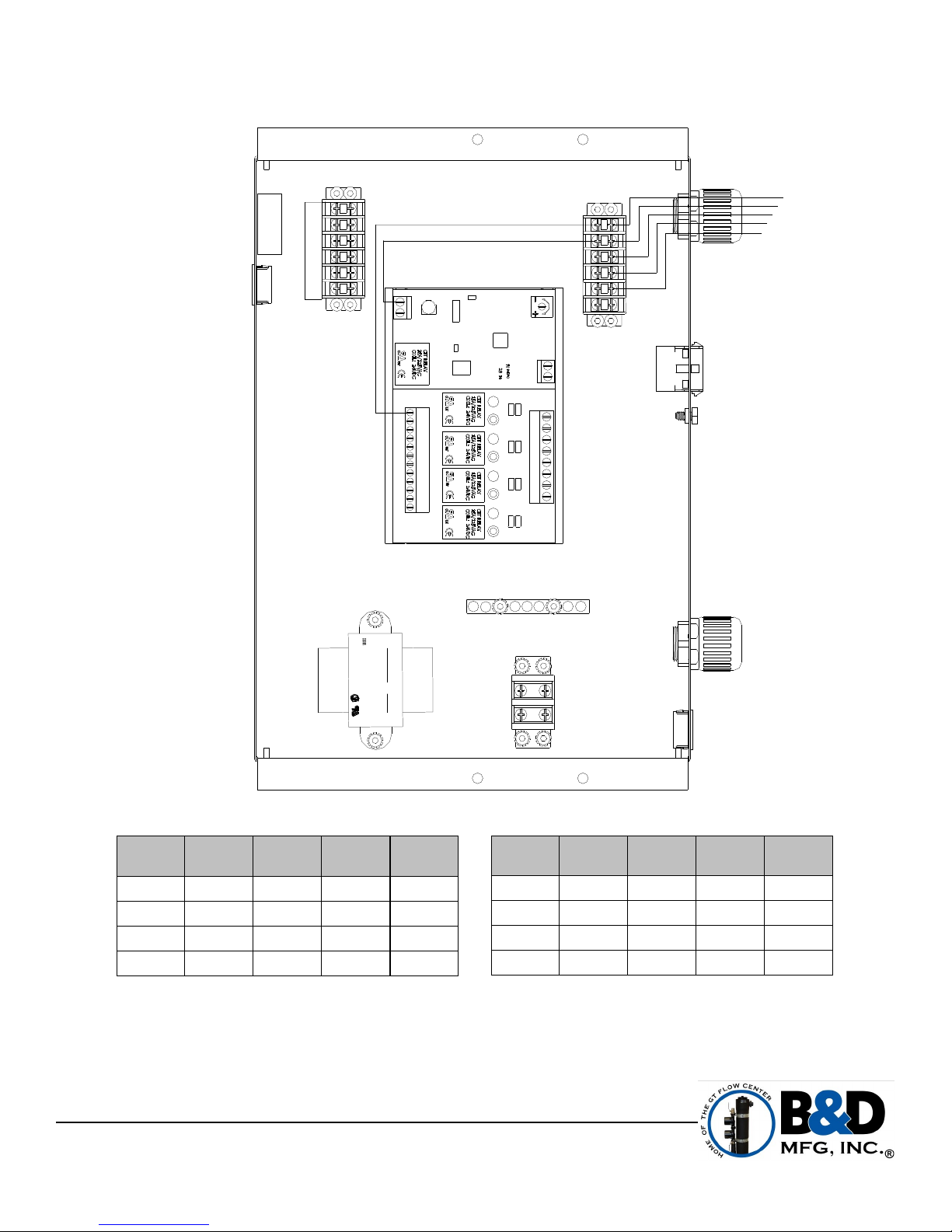

1 Ton, 2 Ton Speed Lug Terminal Lug Assignment…………….…...………………… 15

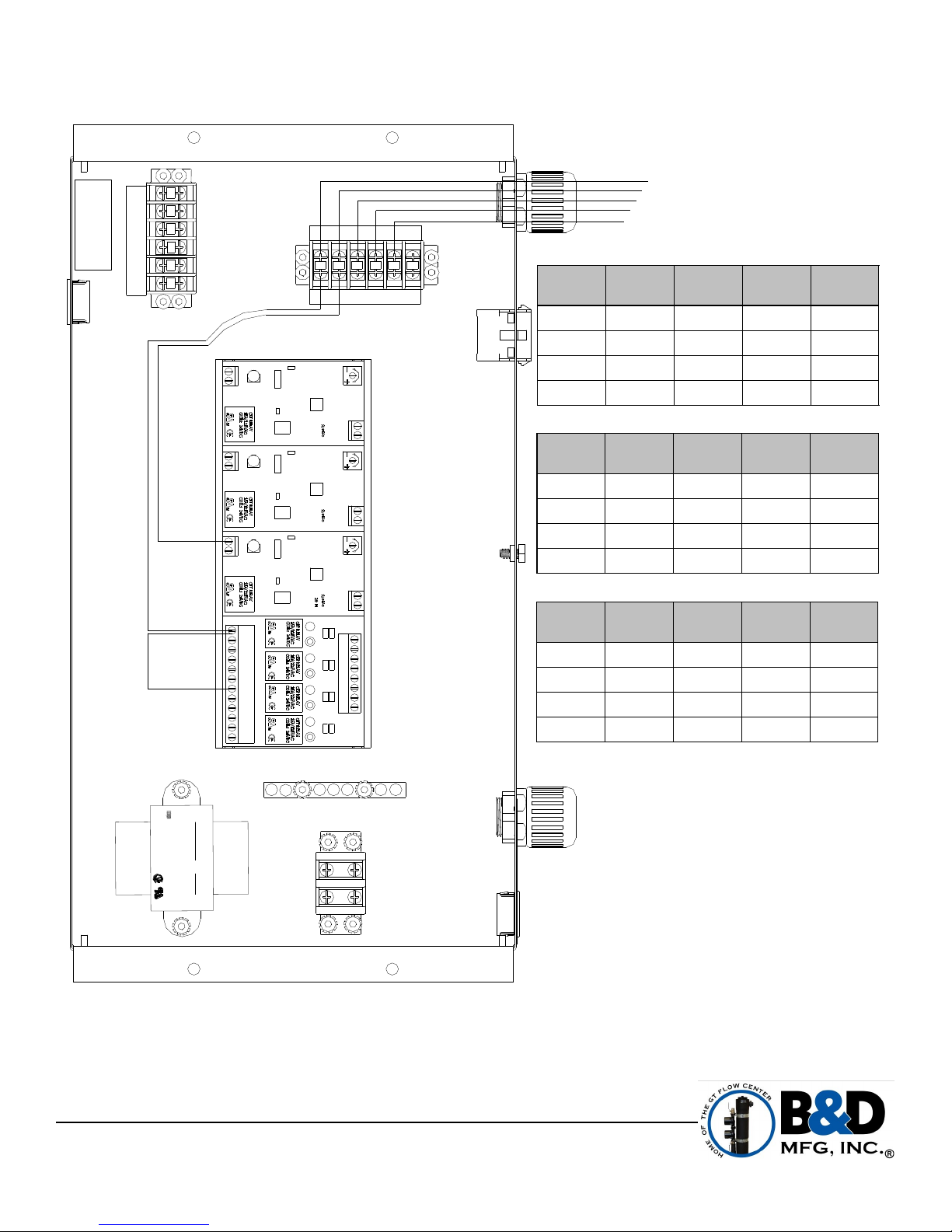

3 Ton, 4 Ton, 5 Ton Speed Lug Terminal Lug Assignment………...………………… 16

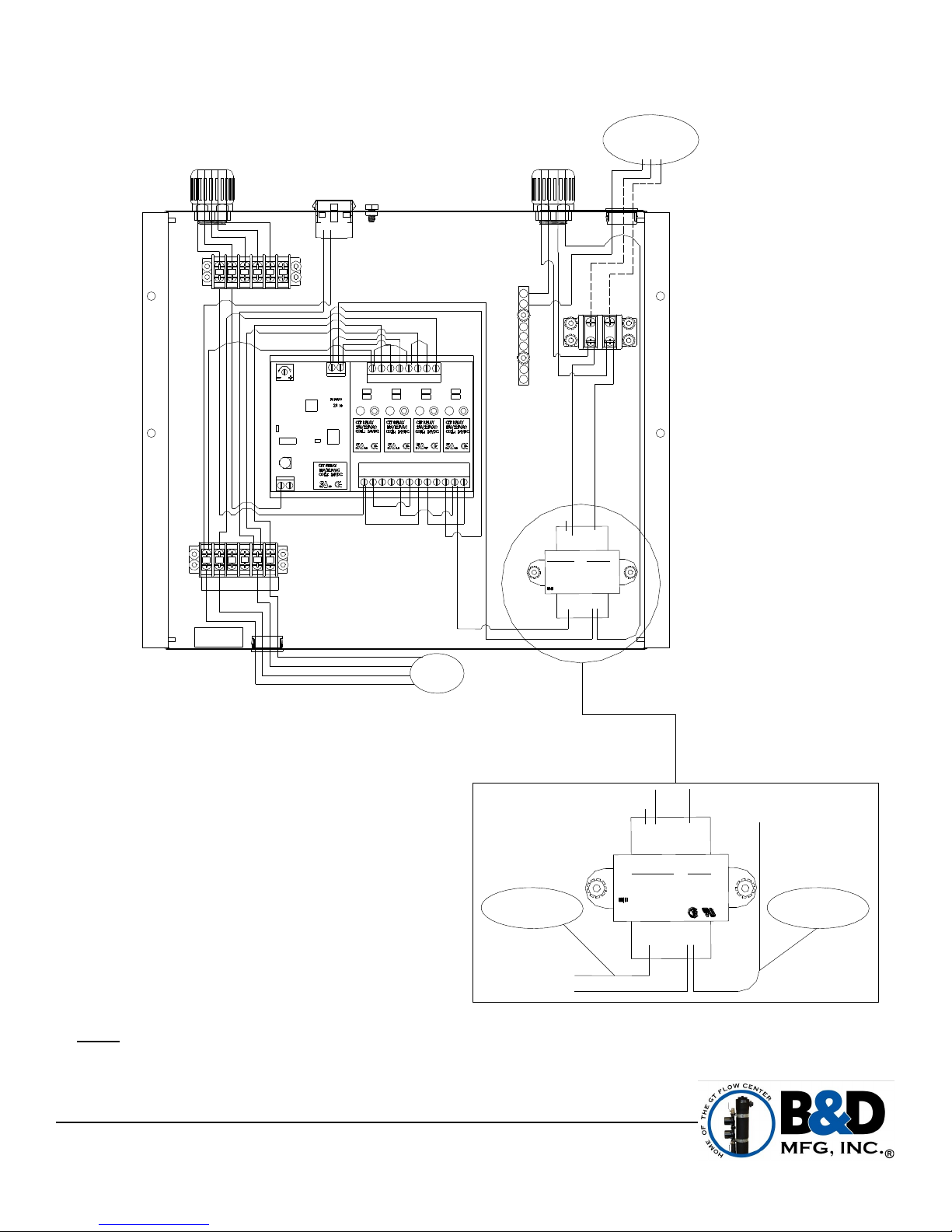

Additional 24V Source for 1 Ton, 2 Ton Units………………………………………….. 17

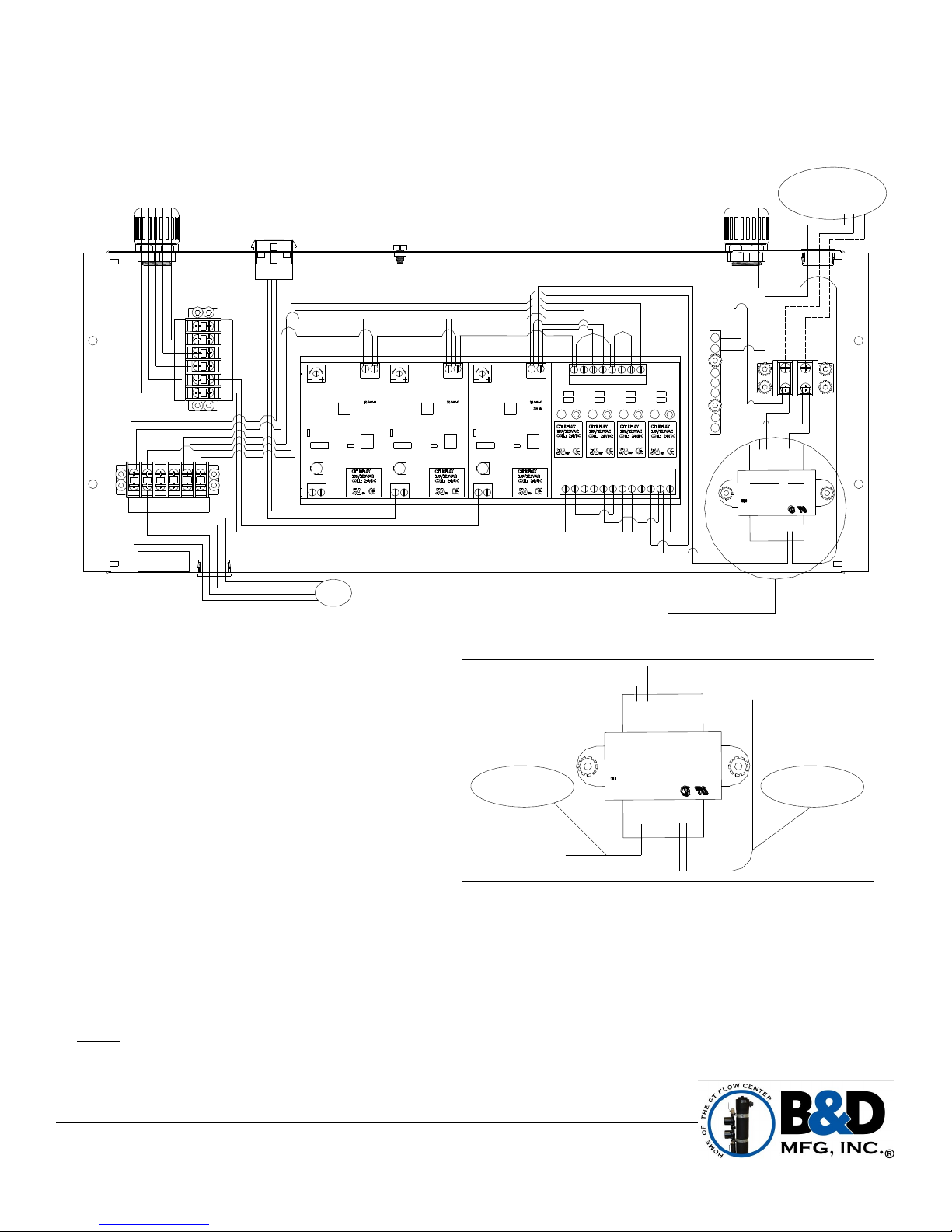

Additional 24V Source for 3 Ton, 4 Ton Unit & 5 Ton Units……………………...….. 18

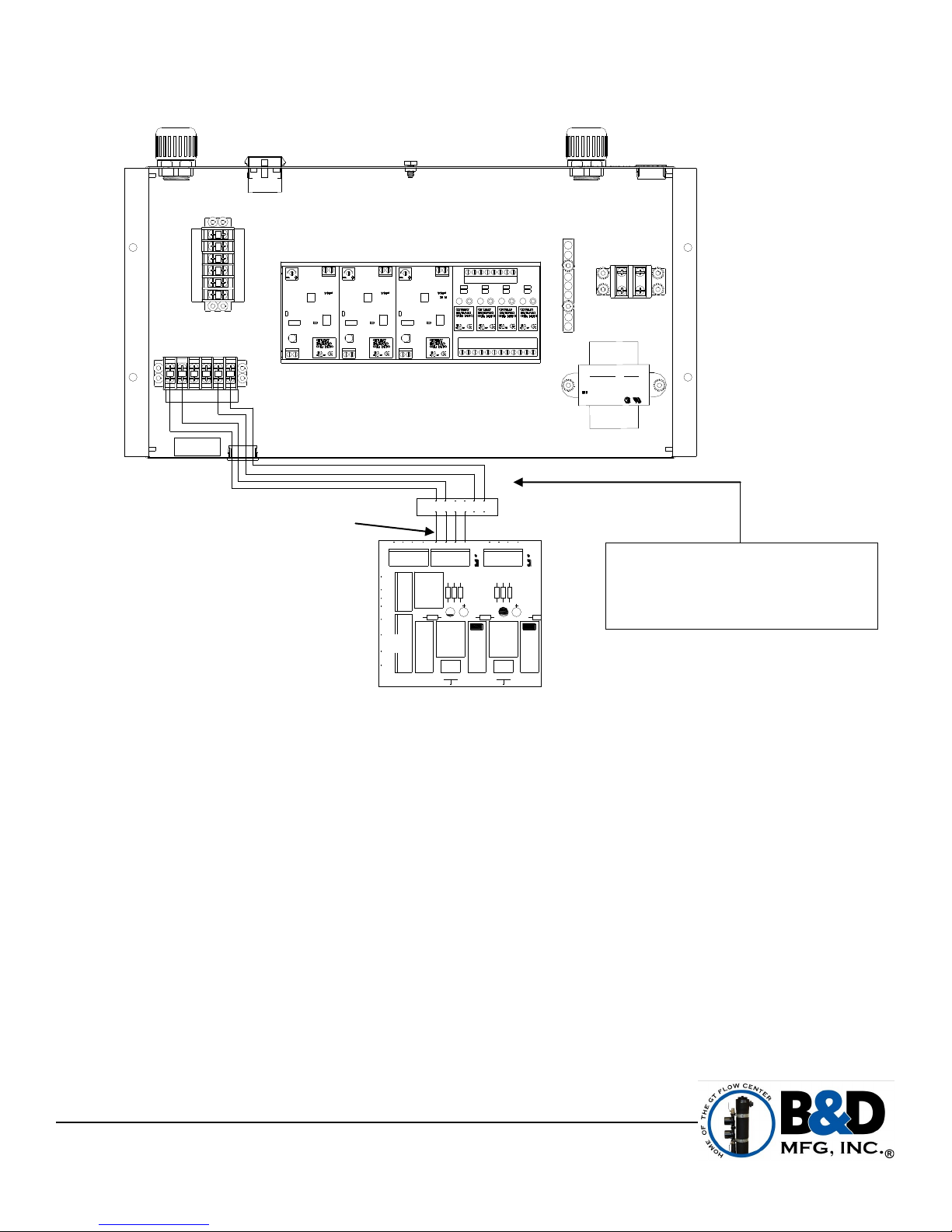

Wiring HSS® Air Handler to the HSS® Buffer Tank…..………………………………. 19

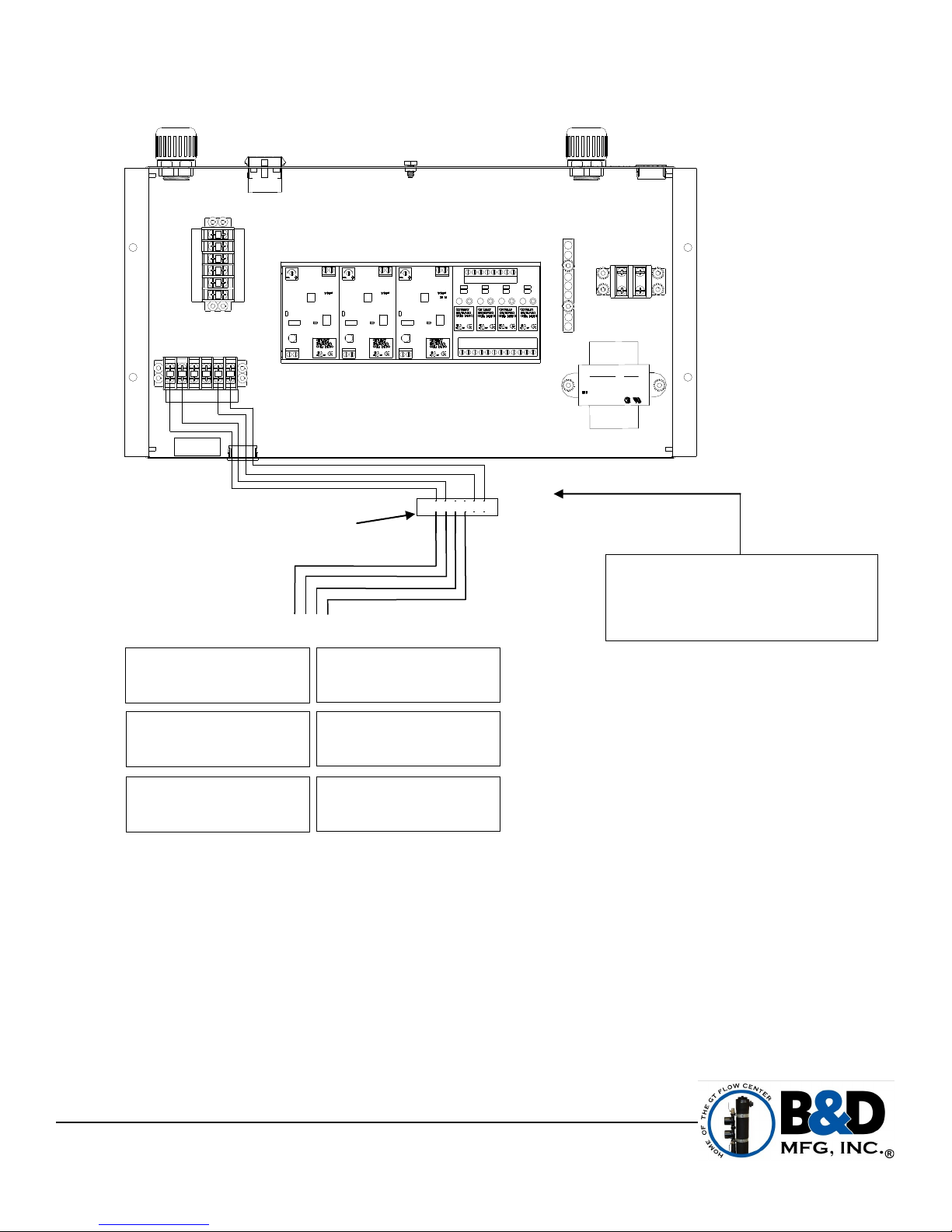

Wiring HSS® Air Handler to other Water/Water Equipment.…………………………. 20
1 Ton Cooling Data………………...……………………………………………………… 21
1 Ton Heating Data….…………………………………………………………………….. 22
1 Ton Electric Heat Strip Data…….……………………………………………………… 22
2 Ton Cooling Data………………………………………………………………………… 23
2 Ton Heating Data………………………………………………………………………... 24
2 Ton Electric Heat Strip Data.…………………………………………………………… 24
3 Ton Cooling Data………………...……………………………………………………… 25
3 Ton Heating Data….…………………………………………………………………….. 26
3 Ton Electric Heat Strip Data…….……………………………………………………… 26
4 Ton Cooling Data………………………………………………………………………… 27
4 Ton Heating Data……………………………………………………………………...… 28
4 Ton Electric Heat Strip Data.……………………………………………………....…… 28
5 Ton Cooling Data………………………………………………………………………… 29
5 Ton Heating Data………………………………………….…………………………….. 30
5 Ton Electric Heat Strip Data.…………………………………………………………… 30
Boiler Heating Data 1 & 2 Ton Unit.….………………………………………………….. 31
Boiler Heating Data 3 & 4 Ton Unit.….………………………………………………….. 32
Boiler Heating Data 5 Ton Unit.……....………………………………………………….. 33
Company Contact Information……………………………………………………………. 34
Scranton, IA 51462
Phone (712) 652-3424
www.bdmfginc.com
