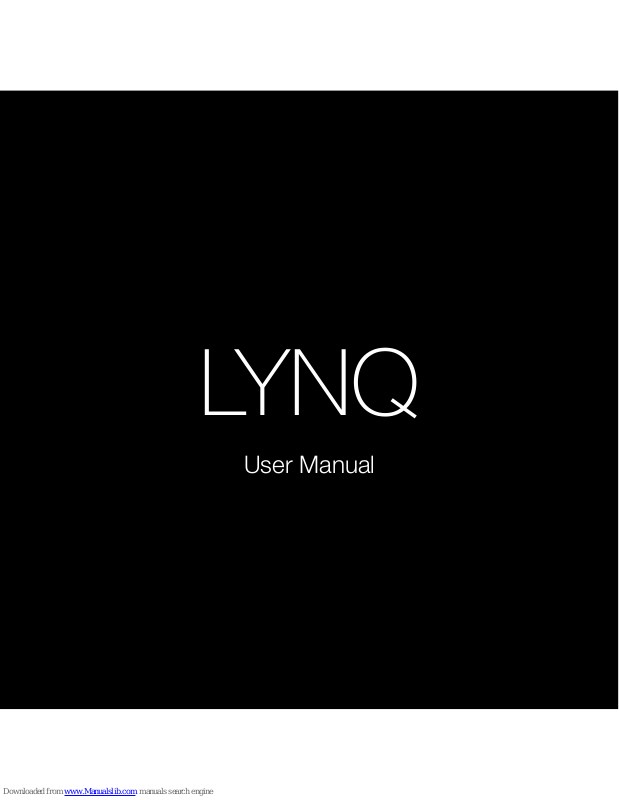

LYNQ
User Manual
Power up LYNQ with supplied wall plug power adapter,
connect power plug to LYNQ (DC).
Before use
DC power in
Legal
Manufacturer shall not in any way be liable to you or to any third party for any damages
you or any third party may suer as a result of use, intended or unintended, or misuse
of LYNQ in conjunction with any device or accessory other than the appropriate mobile
device for which LYNQ is designed.
Manufacturer will not be responsible for any damages you or any third party may suer
as a result of misuse of LYNQ as outlined above. If you are responsible for LYNQ use
with an unintended mobile device and damages result from such use, you agree to
indemnify Manufacturer for any resulting injuries to any third parties.
1. Wireless Speaker
Push and hold pairing button. Beep sound and enter pairing mode LED blue LED blinks
Turn on bluetooth scan mode on Mobile device. Select LYNQ in device list to connect.
Beep sound and LED will turn Blue for successful pairing
Audio Controls
Short press
play / pause
Short press: next song
Long press: volume up
Short press: previous song
Long press: volume up
3. USB Data Hub
Use the supplied USB-A to USB Type-C data cable to connect LYNQ to your computer.
To use USB hub function, connect your mobile devices via USB cable to LYNQ’s USB
data / charging port. LYNQ supports up to 4 external USB devices.
computer / laptop external device
Mobile phone must be connected to LYNQ already (see instructions: 1 Wireless Speaker)
You can accept call on mobile device.
Accept call on LYNQ by pressing button.
Use LYNQ for hands-free call by talking into LYNQ built in mic.
2. Conference Call 4. USB Charger
external device
To use USB charging function, connect your mobile devices via USB-A cable to LYNQ’s
USB charging / data port. LYNQ can charge up to 4 USB powered devices.
Cable organiser is located on LYNQ’s bottom plate.
Organise your cables with LYNQ’s cable organiser to create a clean organised desk.
SImply push your cables into the slits and organise.
LYNQ has 3 holders that ts most pens or stylusses.
Siply place your pen / stylus into the pen holes.
6. Cable organiser
7. Pen / Stylus holder
pen / stylus holder
Specications
1. Qi wireless charger
Standard WPC (Wireless Power Consortium) 1.1.2-compliant, support FOD(Foreign Object Detection)
Single Qi wireless charging transmission pad
Power level 5W
Eciency 73%
2. Bluetooth speaker with conference call
Wireless Bluetooth 4.0, A2DP/HFP/AVRCP
Output power(RMS) 3.5W*2(Stereo)
Freq. Response 100Hz-18KHz
Signal-to-Noise >95dB
THD <0.5%
Microphone Built in microphone
AUDIO OUT Integrated with a 3.5mm AUDIO OUT port
3. USB Hub
Ports 1x USB-C In & 4x USB-A Out
Distribution output for charging (2.1A*2 ports(with Dedicated Charging Port + Controller IC )+1A*2 ports). System USB 3.0, USB
2.0 or USB1.1 Ports.
Supports 4 external USB3.0 Type-A connectors and 1 Type-C Upstream connector Yes
4. Power supply
Input voltage 100~240V AC
Output 12V/5A DC
Rated power 36W
5. Environment
Working temp 0 ~+40°C
Working humidity 20 ~75% RH non-condensing
Storage temp -20~+85°C
Storage humidity 10~95% RH
Vibration EN 61131-2
Note:
1. All parameters NOT specially mentioned are measured at 230VAC input and rated load and 25°C of ambient temperature.
2. Ripple & Noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel
capacitor.
6. Accessories
Communication cable USB-A to USB-C 1.5M
Wall charger 36W 100~240V AC 12V/3A DC
Manual EN
FCC ID: 2AG5A-LYNQ
Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or m ore of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20cm
between the radiator & your body. This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
