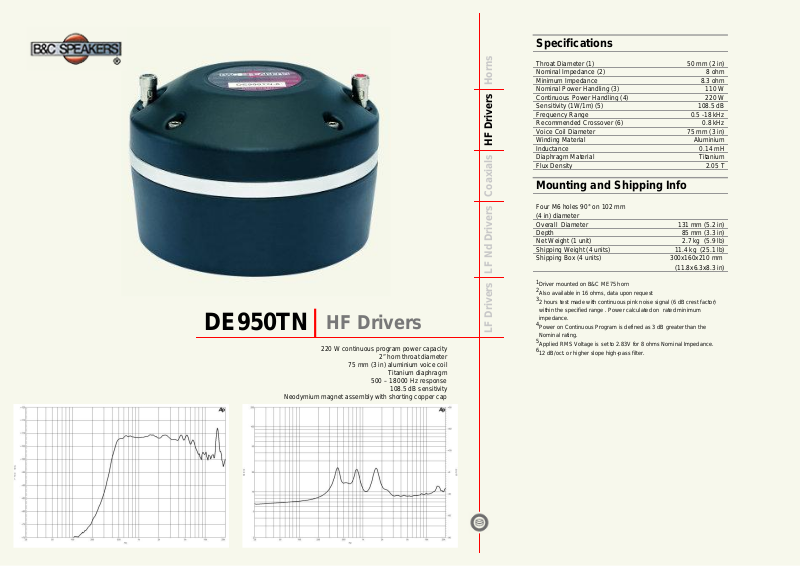

B&C Speakers DE950TN User Manual

DE950TN

Neodymium magnet assembly with shorting copper cap

HF Drivers

220 W continuous program power capacity

2” horn throat diameter

75 mm (3 in) aluminium voice coil

Titanium diaphragm

500 – 18000 Hz response

108.5 dB sensitivity

LF Drivers LF Nd Drivers Coaxials HF Drivers Horns

Specifications

Throat Diameter (1) 50 mm (2 in)
Nominal Impedance (2) 8 ohm
Minimum Impedance 8.3 ohm
Nominal Power Handling (3) 110 W
Continuous Power Handling (4) 220 W
Sensitivity (1W/1m) (5) 108.5 dB
Frequency Range 0.5 -18 kHz
Recommended Crossover (6) 0.8 kHz
Voice Coil Diameter 75 mm (3 in)
Winding Material Aluminium
Inductance 0.14 mH
Diaphragm Material Titanium
Flux Density 2.05 T

Mounting and Shipping Info

Four M6 holes 90° on 102 mm
(4 in) diameter
Overall Diameter 131 mm (5.2 in)
Depth 85 mm (3.3 in)
Net Weight (1 unit) 2.7 kg (5.9 lb)
Shipping Weight (4 units) 11.4 kg (25.1 lb)

Shipping Box (4 units) 300x160x210 mm

1

Driver mounted on B&C ME75 horn

2

Also available in 16 ohms, data upon request

3

2 hours test made with continuous pink noise signal (6 dB crest factor)
within the specified range . Power calculated on rated minimum
impedance.

4

Power on Continuous Program is defined as 3 dB greater than the
Nominal rating.

5

Applied RMS Voltage is set to 2.83V for 8 ohms Nominal Impedance.

6

12 dB/oct. or higher slope high-pass filter.

(11.8x6.3x8.3 in)
