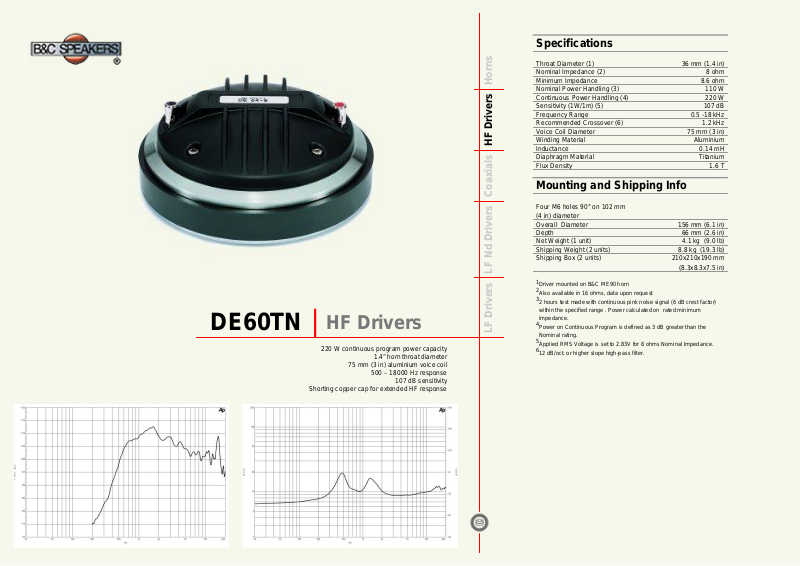

B&C Speakers DE60TN User Manual

DE60TN

HF Drivers

220 W continuous program power capacity

1.4” horn throat diameter

75 mm (3 in) aluminium voice coil

500 – 18000 Hz response

107 dB sensitivity

Shorting copper cap for extended HF response

LF Drivers LF Nd Drivers Coaxials HF Drivers Horns

Specifications

Throat Diameter (1) 36 mm (1.4 in)
Nominal Impedance (2) 8 ohm
Minimum Impedance 8.6 ohm
Nominal Power Handling (3) 110 W
Continuous Power Handling (4) 220 W
Sensitivity (1W/1m) (5) 107 dB
Frequency Range 0.5 -18 kHz
Recommended Crossover (6) 1.2 kHz
Voice Coil Diameter 75 mm (3 in)
Winding Material Aluminium
Inductance 0.14 mH
Diaphragm Material Titanium
Flux Density 1.6 T

Mounting and Shipping Info

Four M6 holes 90° on 102 mm
(4 in) diameter
Overall Diameter 156 mm (6.1 in)
Depth 66 mm (2.6 in)
Net Weight (1 unit) 4.1 kg (9.0 lb)
Shipping Weight (2 units) 8.8 kg (19.3 lb)

Shipping Box (2 units) 210x210x190 mm

1

Driver mounted on B&C ME90 horn

2

Also available in 16 ohms, data upon request

3

2 hours test made with continuous pink noise signal (6 dB crest factor)
within the specified range . Power calculated on rated minimum
impedance.

4

Power on Continuous Program is defined as 3 dB greater than the
Nominal rating.

5

Applied RMS Voltage is set to 2.83V for 8 ohms Nominal Impedance.

6

12 dB/oct. or higher slope high-pass filter.

(8.3x8.3x7.5 in)
