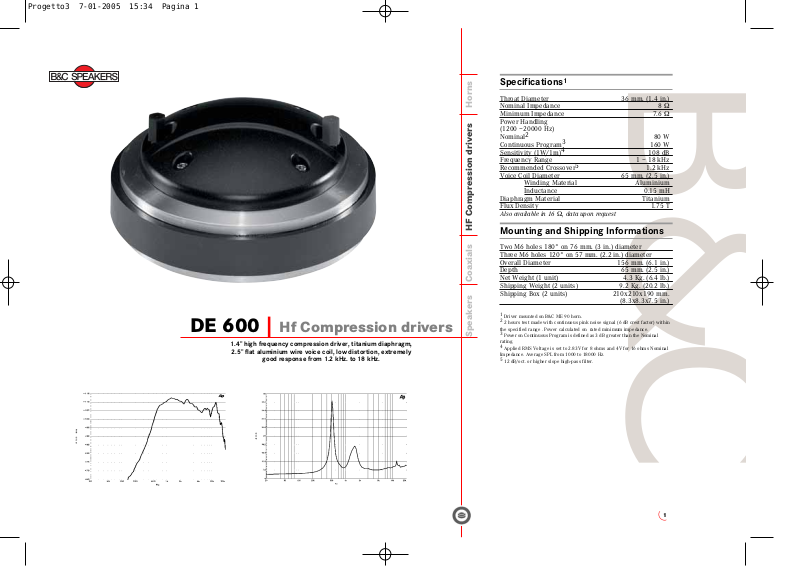

B&C Speakers DE 600 User Manual
Speakers Coaxials HF Compression drivers Horns
1
B&C
1.4” high frequency compression driver, titanium diaphragm,
2.5” flat aluminium wire voice coil, low distortion, extremely
good response from 1.2 kHz. to 18 kHz.
Specifications
1
Throat Diameter 36 mm. (1.4 in.)
Nominal Impedance 8 Ω
Minimum Impedance 7.6 Ω
Power Handling
(1200 –20000 Hz)
Nominal
2
80 W
Continuous Program
3
160 W
Sensitivity (1W/1m)
4
108 dB
Frequency Range 1 – 18 kHz
Recommended Crossover
5
1.2 kHz
Voice Coil Diameter 65 mm. (2.5 in.)
Winding Material Aluminium
Inductance 0.15 mH
Diaphragm Material Titanium
Flux Density 1.75 T
Also available in 16 Ω, data upon request
Mounting and Shipping Informations
Two M6 holes 180° on 76 mm. (3 in.) diameter
Three M6 holes 120° on 57 mm. (2.2 in.) diameter
Overall Diameter 156 mm. (6.1 in.)
Depth 65 mm. (2.5 in.)
Net Weight (1 unit) 4.3 Kg. (6.4 lb.)
Shipping Weight (2 units) 9.2 Kg. (20.2 lb.)
Shipping Box (2 units) 210x210x190 mm.
(8.3x8.3x7.5 in.)
1
Driver mounted on B&C ME 90 horn.
2
2 hours test made with continuous pink noise signal (6 dB crest factor) within
the specified range . Power calculated on rated minimum impedance.
3
Power on Continuous Program is defined as 3 dB greater than the Nominal
rating.
4
Applied RMS Voltage is set to 2.83V for 8 ohms and 4V for 16 ohms Nominal
Impedance. Average SPL from 1000 to 18000 Hz.
5
12 dB/oct. or higher slope high-pass filter.
DE 600 | Hf Compression drivers
