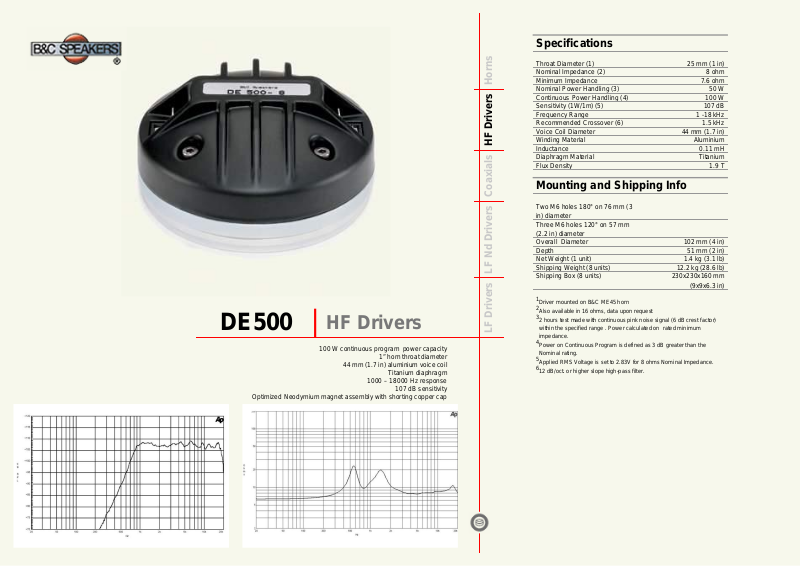

B&C Speakers DE500 User Manual

DE500

Optimized Neodymium magnet assembly with shorting copper cap

HF Drivers

100 W continuous program power capacity

1” horn throat diameter

44 mm (1.7 in) aluminium voice coil

Titanium diaphragm

1000 – 18000 Hz response

107 dB sensitivity

LF Drivers LF Nd Drivers Coaxials HF Drivers Horns

Specifications

Throat Diameter (1) 25 mm (1 in)
Nominal Impedance (2) 8 ohm
Minimum Impedance 7.6 ohm
Nominal Power Handling (3) 50 W
Continuous Power Handling (4) 100 W
Sensitivity (1W/1m) (5) 107 dB
Frequency Range 1 -18 kHz
Recommended Crossover (6) 1.5 kHz
Voice Coil Diameter 44 mm (1.7 in)
Winding Material Aluminium
Inductance 0.11 mH
Diaphragm Material Titanium
Flux Density 1.9 T

Mounting and Shipping Info

Two M6 holes 180° on 76 mm (3
in) diameter
Three M6 holes 120° on 57 mm
(2.2 in) diameter
Overall Diameter 102 mm (4 in)
Depth 51 mm (2 in)
Net Weight (1 unit) 1.4 kg (3.1 lb)
Shipping Weight (8 units) 12.2 kg (28.6 lb)

Shipping Box (8 units) 230x230x160 mm

1

Driver mounted on B&C ME45 horn

2

Also available in 16 ohms, data upon request

3

2 hours test made with continuous pink noise signal (6 dB crest factor)
within the specified range . Power calculated on rated minimum
impedance.

4

Power on Continuous Program is defined as 3 dB greater than the
Nominal rating.

5

Applied RMS Voltage is set to 2.83V for 8 ohms Nominal Impedance.

6

12 dB/oct. or higher slope high-pass filter.

(9x9x6.3 in)
