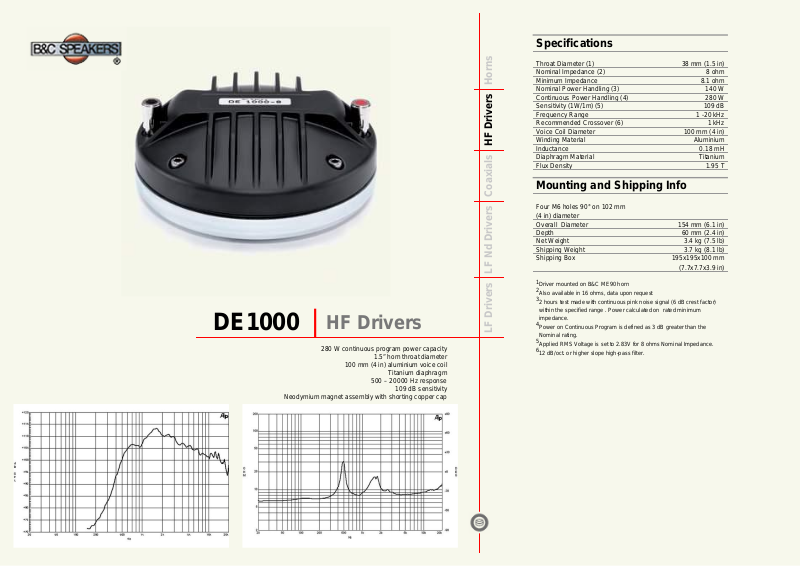

B&C Speakers DE1000 User Manual

DE1000

Neodymium magnet assembly with shorting copper cap

HF Drivers

280 W continuous program power capacity

1.5” horn throat diameter

100 mm (4 in) aluminium voice coil

Titanium diaphragm

500 – 20000 Hz response

109 dB sensitivity

LF Drivers LF Nd Drivers Coaxials HF Drivers Horns

Specifications

Throat Diameter (1) 38 mm (1.5 in)
Nominal Impedance (2) 8 ohm
Minimum Impedance 8.1 ohm
Nominal Power Handling (3) 140 W
Continuous Power Handling (4) 280 W
Sensitivity (1W/1m) (5) 109 dB
Frequency Range 1 -20 kHz
Recommended Crossover (6) 1 kHz
Voice Coil Diameter 100 mm (4 in)
Winding Material Aluminium
Inductance 0.18 mH
Diaphragm Material Titanium
Flux Density 1.95 T

Mounting and Shipping Info

Four M6 holes 90° on 102 mm
(4 in) diameter
Overall Diameter 154 mm (6.1 in)
Depth 60 mm (2.4 in)
Net Weight 3.4 kg (7.5 lb)
Shipping Weight 3.7 kg (8.1 lb)

Shipping Box 195x195x100 mm

1

Driver mounted on B&C ME90 horn

2

Also available in 16 ohms, data upon request

3

2 hours test made with continuous pink noise signal (6 dB crest factor)
within the specified range . Power calculated on rated minimum
impedance.

4

Power on Continuous Program is defined as 3 dB greater than the
Nominal rating.

5

Applied RMS Voltage is set to 2.83V for 8 ohms Nominal Impedance.

6

12 dB/oct. or higher slope high-pass filter.

(7.7x7.7x3.9 in)
