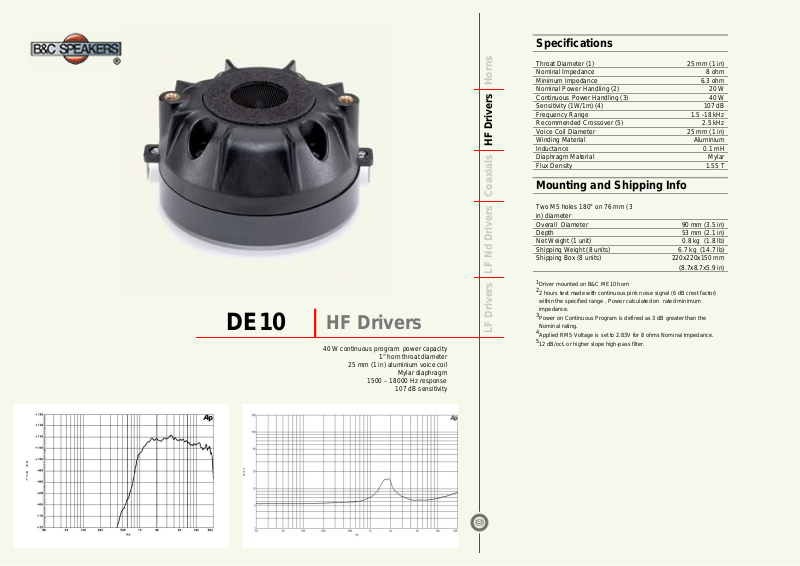

B&C Speakers DE10 User Manual

DE10

HF Drivers

40 W continuous program power capacity

1” horn throat diameter

25 mm (1 in) aluminium voice coil

Mylar diaphragm

1500 – 18000 Hz response

107 dB sensitivity

LF Drivers LF Nd Drivers Coaxials HF Drivers Horns

Specifications

Throat Diameter (1) 25 mm (1 in)
Nominal Impedance 8 ohm
Minimum Impedance 6.3 ohm
Nominal Power Handling (2) 20 W
Continuous Power Handling (3) 40 W
Sensitivity (1W/1m) (4) 107 dB
Frequency Range 1.5 -18 kHz
Recommended Crossover (5) 2.5 kHz
Voice Coil Diameter 25 mm (1 in)
Winding Material Aluminium
Inductance 0.1 mH
Diaphragm Material Mylar
Flux Density 1.55 T

Mounting and Shipping Info

Two M5 holes 180° on 76 mm (3
in) diameter
Overall Diameter 90 mm (3.5 in)
Depth 53 mm (2.1 in)
Net Weight (1 unit) 0.8 kg (1.8 lb)
Shipping Weight (8 units) 6.7 kg (14.7 lb)

Shipping Box (8 units) 220x220x150 mm

1

Driver mounted on B&C ME10 horn

2

2 hours test made with continuous pink noise signal (6 dB crest factor)
within the specified range . Power calculated on rated minimum
impedance.

3

Power on Continuous Program is defined as 3 dB greater than the
Nominal rating.

4

Applied RMS Voltage is set to 2.83V for 8 ohms Nominal Impedance.

5

12 dB/oct. or higher slope high-pass filter.

(8.7x8.7x5.9 in)
