Additional Assembly Instructions:
In case of diculty during assembly, please refer to
these instructions for clarification
Stainless Steel Patio Heater
SKU# 2386
ASSEMBLY MANUAL
Page 2

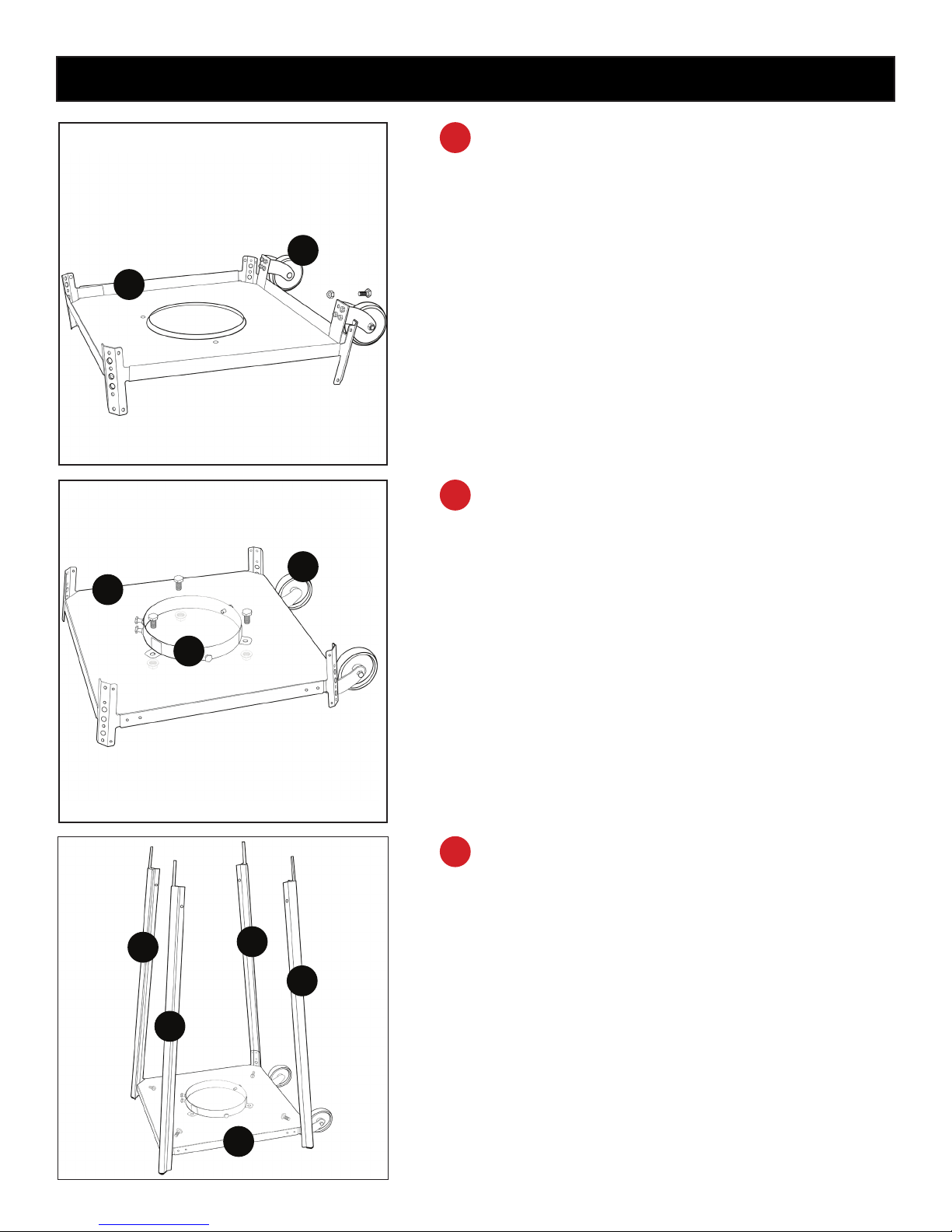

Attach wheels (12) to the bottom plate (3) and
1
secure using 4 screws on each wheel. Please
note the wheels are facing downward and the
bottom plate is upside down as well.
12
3
Turn assembly right side up and connect the
2
LPG cylinder fixed parts (21) to the bottom
plate (3). Please note the wheels now should
be facing upward.
12
3
21
Next, connect and fix the 4 lower support
3
beams (4) to the bottom plate (3) with screws
(17).
4
4
4
4
3
Page 3

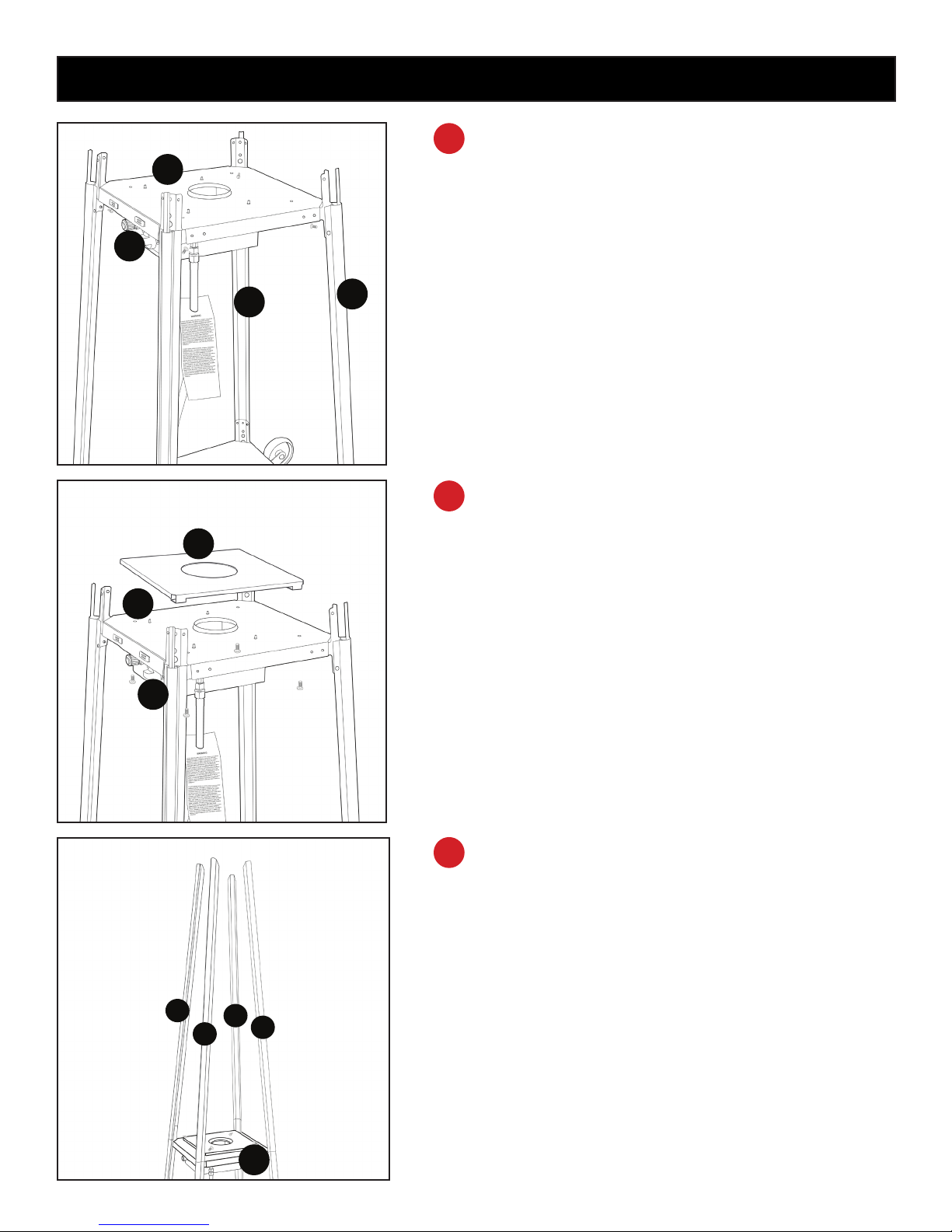

Connect the control box (2) to the middle
4
plate (1) if it is not connected already. Then
1
place the middle plate between the 4 support
beams (4) and attach with screws (17).
2
4
4
Next, connect the plate cover (7) to the mid-
5
dle plate using screws (17)
7
1
2
5
5
5
5
7
Connect the 4 upper supports (5) to the lower
6
supports (4) with screws (17).
Page 4

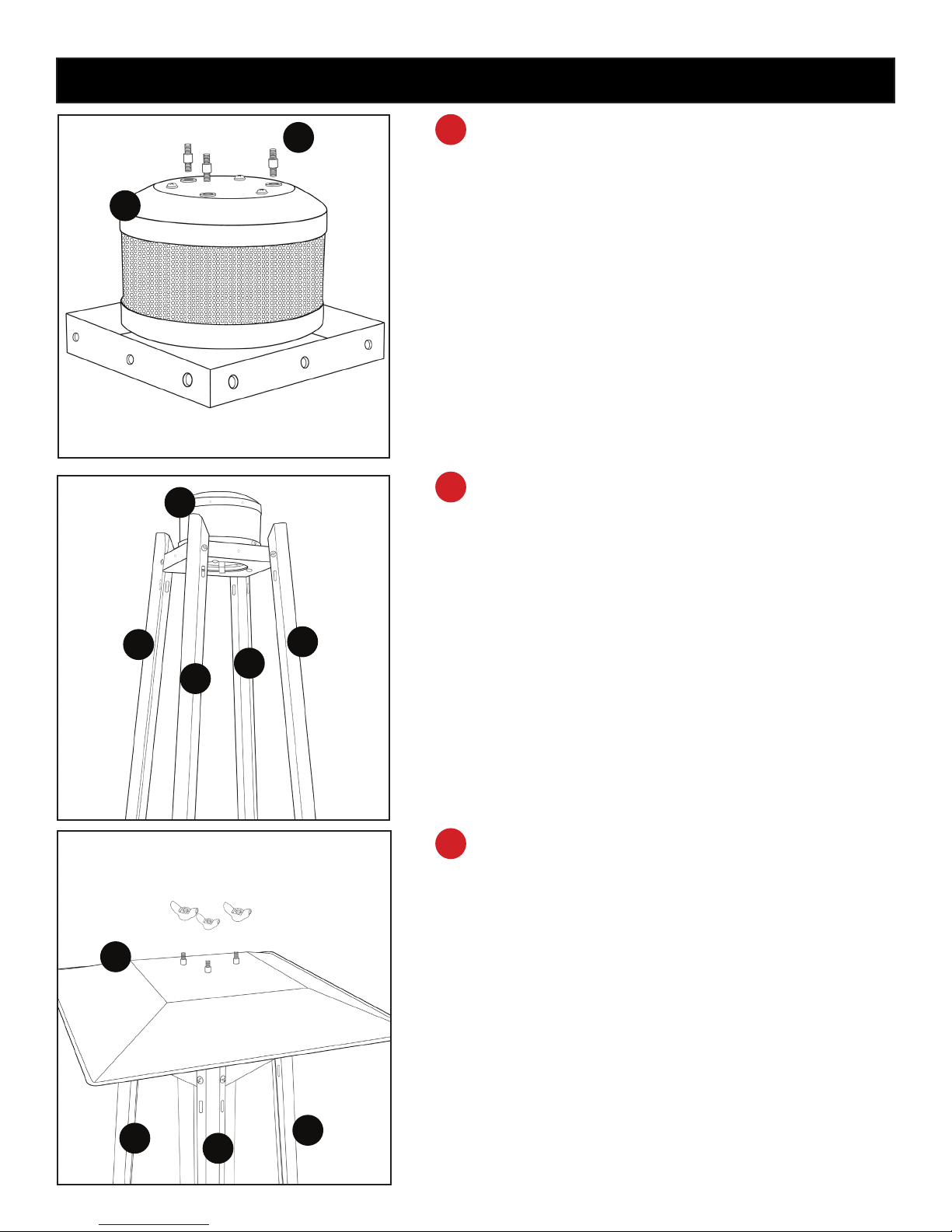

Screw in 3 double sided bolts (25) into the top
25
7
of the damper (9) if not already assembled.
9
Take the damper assembly and connect to the
8
9
top of the upper supports (5). Connect with
screws (17).
10
5
5
5
5
Fix the reflector (10) onto the damper (9) with
9
the wingnut (23), gasket (24) and bolt (25).
5
5
5
Page 5
16
8
15

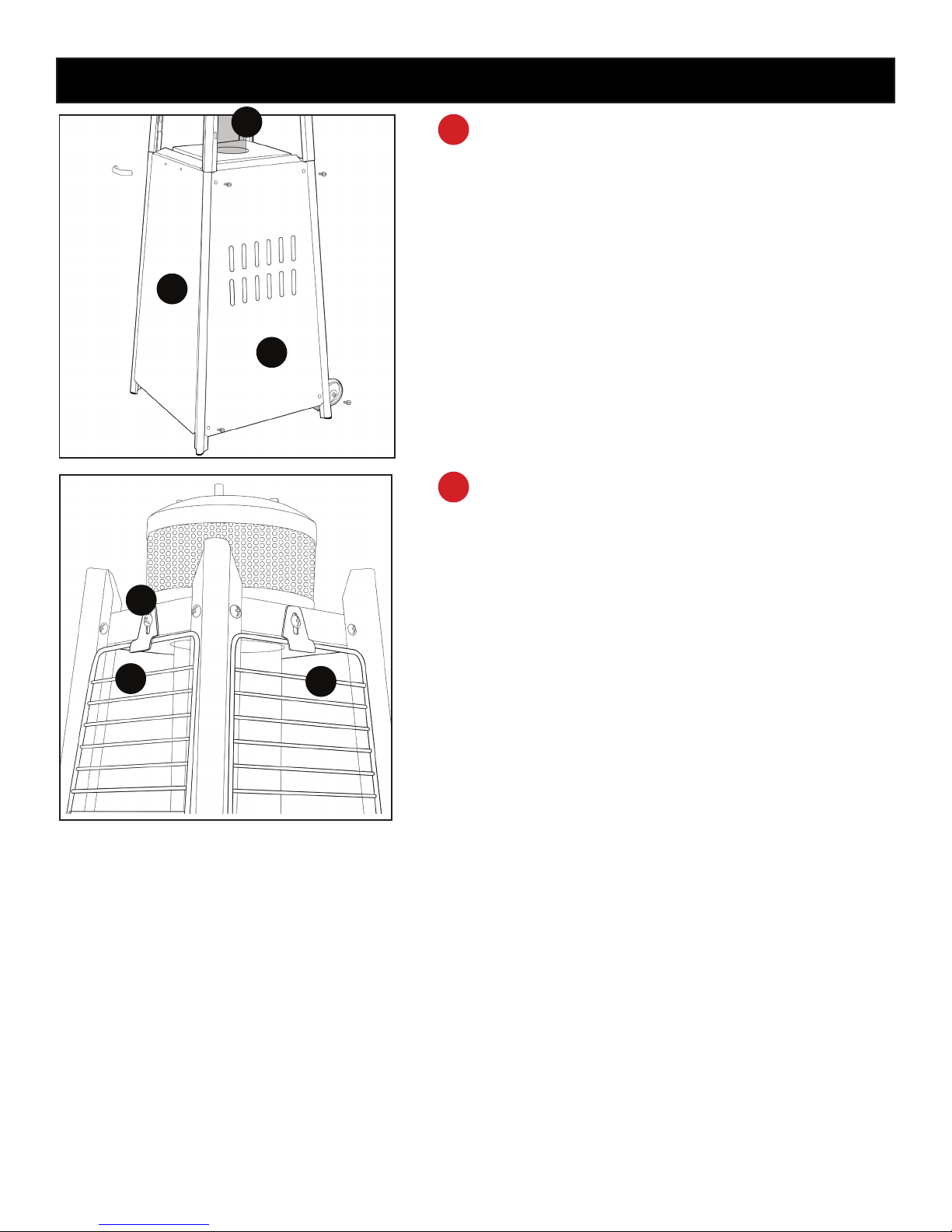

Next, carefully put the glass tube (8) up
10
through the center of the hole in the upper
plate (6). Make sure the rubber ring (22) is
attached on the lower end of the glass tube.
Check and ensure the that the glass tube covers the center hole of the middle plate. Fix 3
side panels (15) with screws (17). Make sure
front panel (16, with handle) is opposite of
wheels.
Lastly, attach the protection guards (11) onto
11
the upper frame by putting its hooks into the
holes of the frame. Secure the guards by fixing
the holders (14) with screws (17).
14
11
11
WARNING:
Manufacturer and seller expressly disclaim any and all liability for
personal injury, property damage or loss, whether direct, indirect, or
incidental, resulting from the incorrect attachment, improper use,
inadequate maintenance, or neglect of this product.
