Chapter 1 Introduction

Motherboard Specifications

Form Factor:

ATX Form Factor

•

Size 12” x 9.6” (30.5cm x 24.4cm)

•

Processor:

Socket mPGA478B

•

Intel® Pentium® 4 Willam ette/Northwood.

System Memory:

•

2 DIMM Sockets support up to 2GB. Support PC200/PC266 (PC1600/ PC2100) DDR SDRAM.

•

Core Logic Chipset:

Intel® GMCH 82845 (Graphics and Mem ory Controller Hub).

•

Intel® ICH2 82801BA (I/O Controller Hub).

•

PCI bus:

PCI 2.2 compliant

•

Audio/Video:

3D audio compliant with AC’97 revision 2.1 specification.

•

ADI AD1885 CODEC.

•

External 1.5V AGP slot. AGP 2.0 compliant.

BIOS:

2Mbit flash EEPROM

•

AMI® BI OS, PnP, ACPI, SMBIOS 2.3, Boot Block, DMI

•

___________________________________________________________________________

1

NA115 Motherboard

IDE Ports:

•

Promise PDC20265R ATA-100 RAID controller 4 IDE ports support up to 8 devices Support Ultra DMA 33/66/100

On Board I/O:

ATX power connector.

•

+12V power connector.

•

Aux power connector (option).

•

Floppy connector.

•

Front panel connector (Switch, LED, IRDA).

•

Header to support two USB ports at front side.

•

Header for front side LINE-OUT and MIC-IN (option).

•

3 Fan headers f or C PU, chassis and system.

•

ATAPI headers (CD IN, AUX IN).

•

Header for chassis intrusion (option)

•

Header for MONO-OUT (option)

•

Additional Features:

Hardware monitor capability.

•

Keyboard/ Mouse/USB wake up function.

•

Supports S1, S3, S4 and S5 ACPI states.

•

Expansion Slots:

1 AGP slot.

•

5 PCI slots.

•

1 CNR slot shared with one PCI slot.

•

2

NA115 Motherboard

M

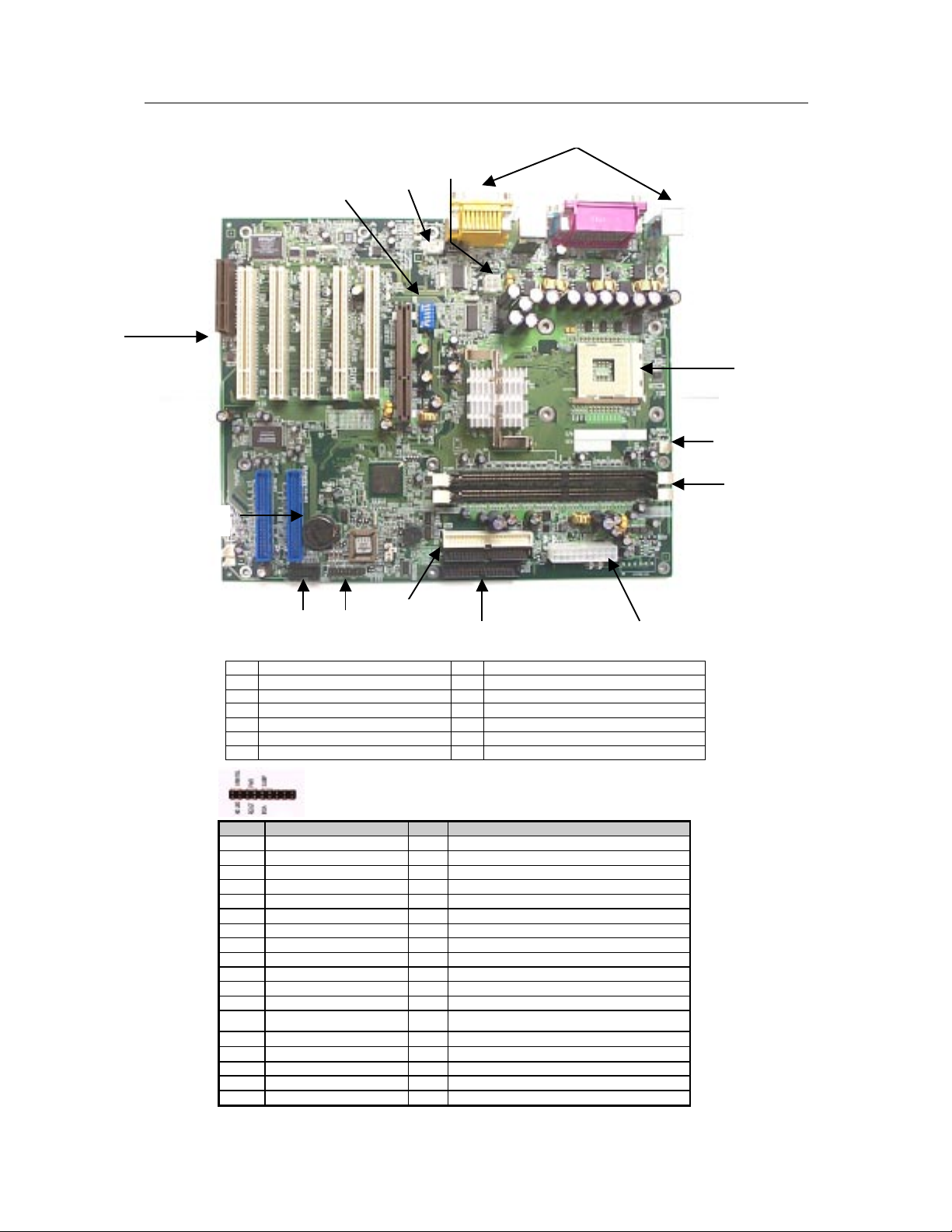

NA115 Motherboard Layout

J

I

K

L

D

A

B

C

G

A CPU Socket H Front Side USB B CPU Fan Socket I ATA-100 Raid IDE Connector C Memory Sockets J Expansion Slots D P ower Supply Connector K Audio Connector E Floppy Connector L Back Panel Connectors F IDE Connectors M Front Side B us Frequency Selec tor G Fr ont P anel Connector

H

Pin Signal Name I/O Description

1 HD_PWR O Hard Disk LED pull-up to VCC 2 HDR _BLNK_GRN O Front pane l Gr een LED signal 3 HDA* O Hard Disk Active LED signal 4 HDR _BLNK_YEL O Front pane l Yellow LED signal 5 GND - Ground 6 FPBUT_IN I Front panel On/Off button signal 7 FP_RESET* I Front panel Reset button signal 8 GND - Ground

9 VCC O 10 FPSLP* I Front panel sleep button signal 11 IRRX I IRDA seria l input 12 GND - Ground 13 GND - Ground

14 KEY - KEY 15 IRTX O IRDA serial output 16 VCC O 17 NC - not connected 18 NC - not connected

F

E

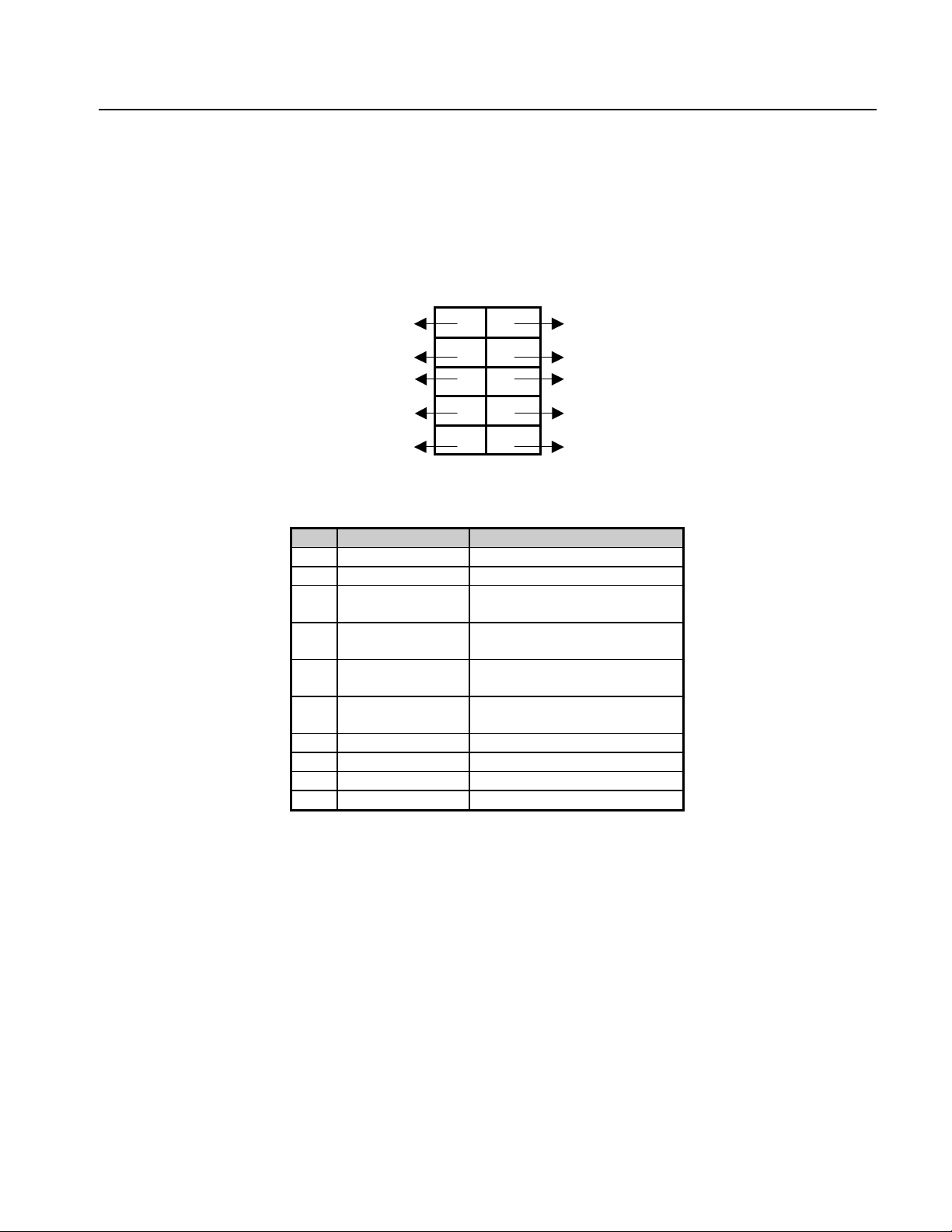

Front Panel Connector Pin Definition

D

3

NA115 Motherboard

Chapter 2 Hardware Installation Process

Installing the Central Process Unit (CPU)

CPU Installation

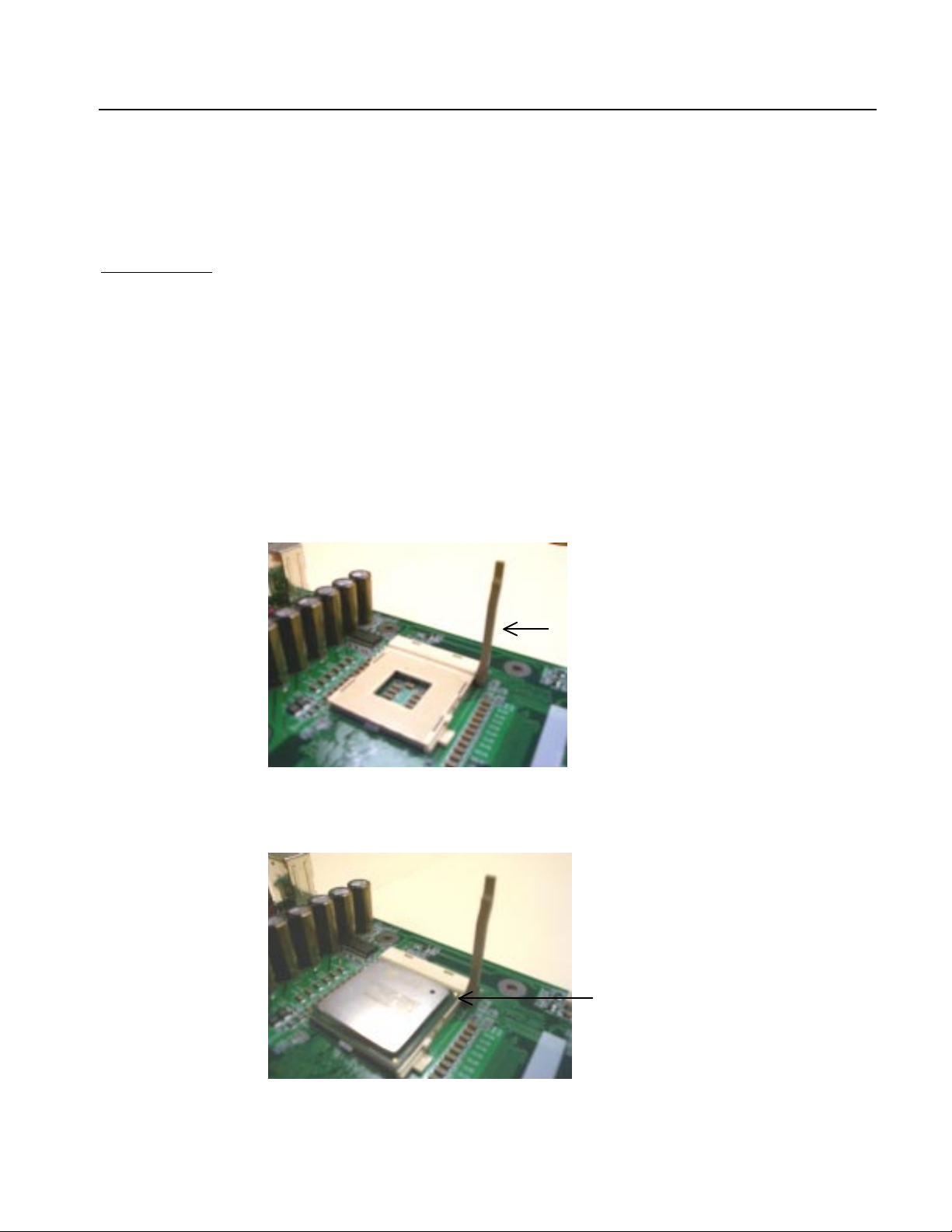

1. Unlock the CPU socket by pulling the lever up t o a 90- degr ee angle.

2. Position t he CP U above the socket such that the of the lever .

3. Place the CPU into the socket. If the CPU is unable to insert properly , check it s orientation and attempt to re-install.

Warning!

damage to the CP U.

4. Close the socket by l oweri ng the lever and lock ing the lever i n place.

Do not force the CPU into the socket. Doing so will prompt bending of the pins and create

Step 1

marked

corner (pin1) matches the corner near the base

90 degree angle

Step 2

Pin1

4

NA115 Motherboard

Installing the Central Process Unit (CPU)

cont.

CPU Heat Sink Installation

1. Read the related CP U heat sink user’s manual for m or e detailed installat ion procedures.

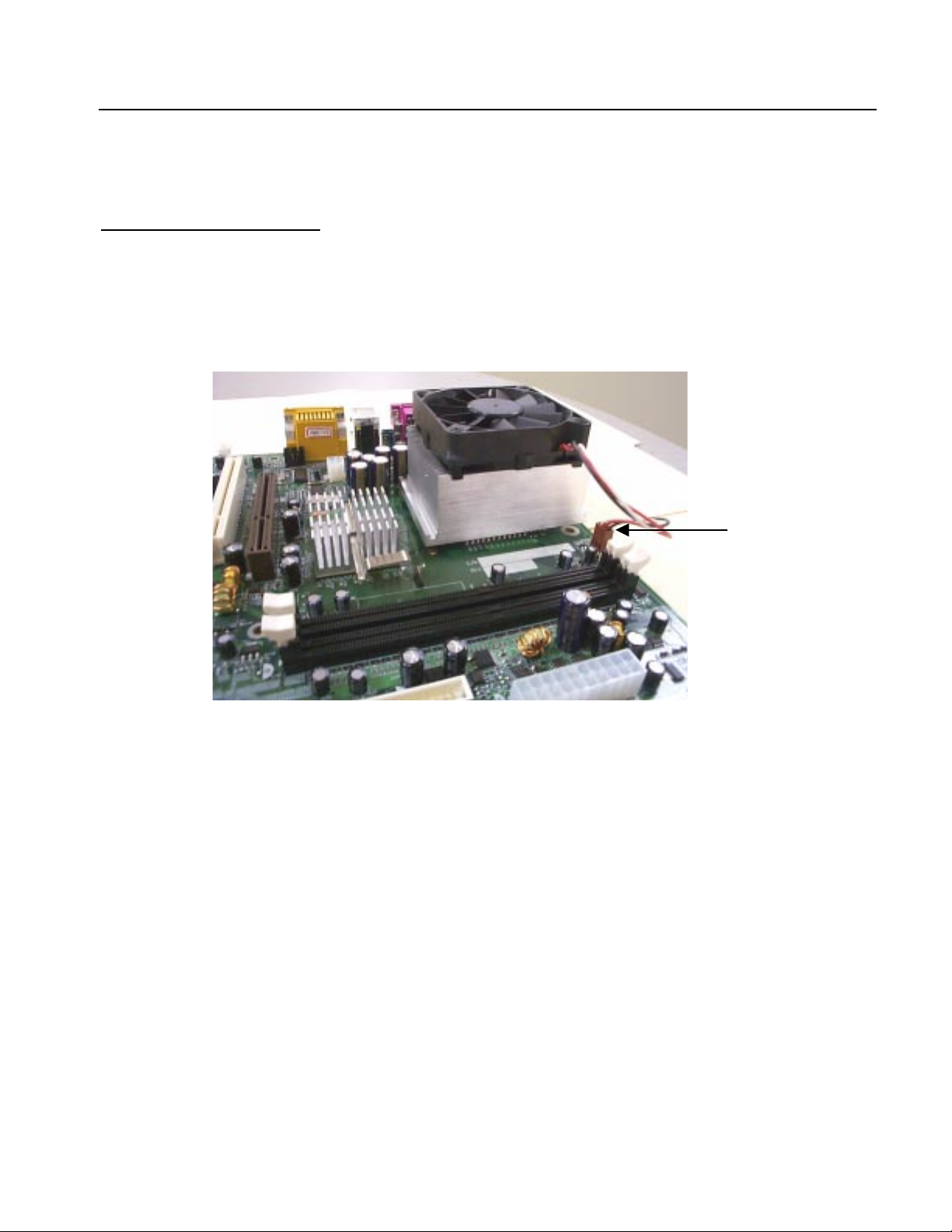

2. Connect CPU f an power cable into the CP U fan connect or on the motherboar d.

CPU Fan Connector

5

NA115 Motherboard

Installing Memory M odules

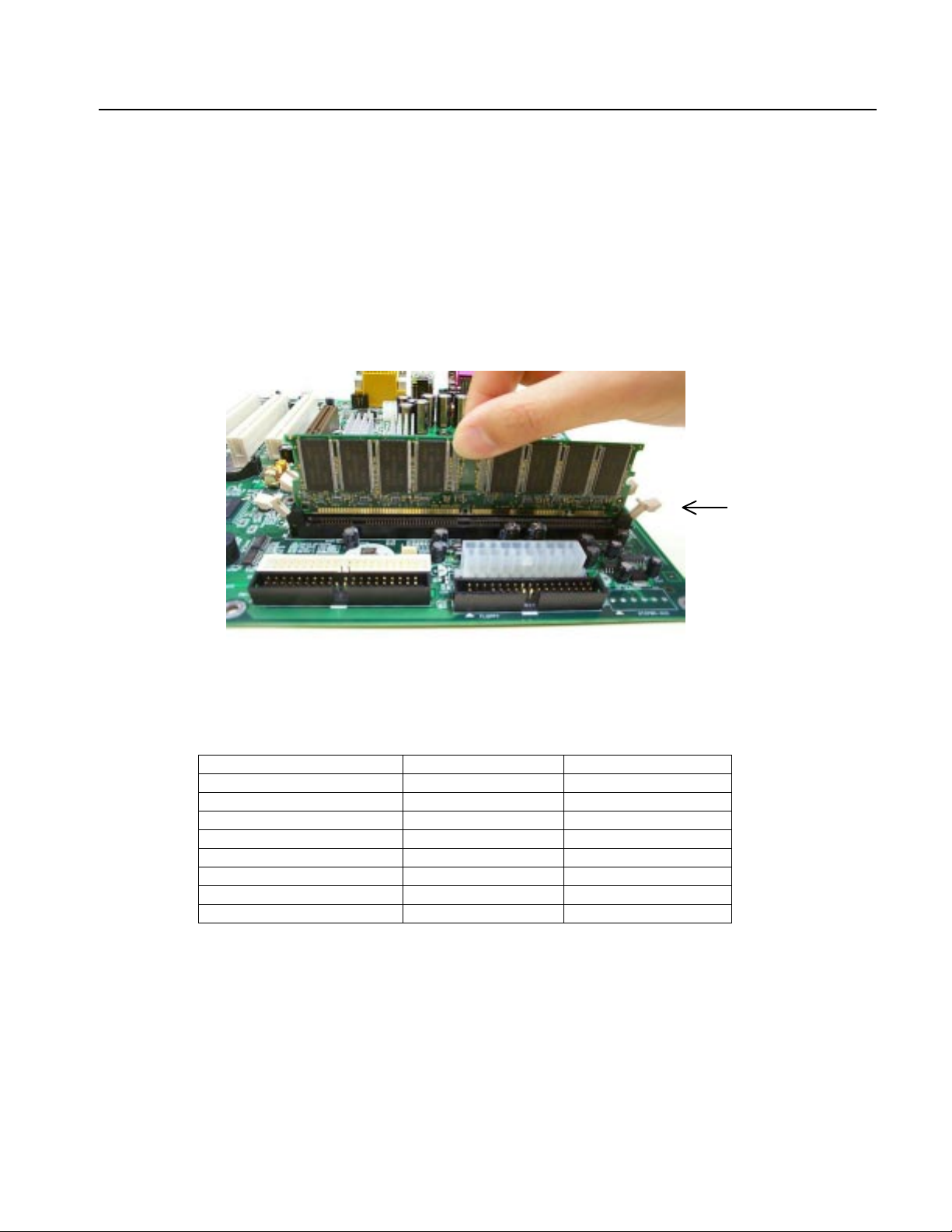

1. Push the white retai ning cli ps on each of the memory socket outwards.

2. Match the notc hes on the c ontact edge of the memory module to the ri dges i n the mem or y socket.

3. Insert the m emory m odule vertically i nto place. When properly inserted, the white retaining cl ips will move inward to loc k in the m odule.

4. Repeat installation proc ess when adding addit ional modules.

Retaining Clip

Total Memory Sizes With Unbuffered DDR DIMM

Devices used on DIMM 1 DIMMx64/x72

64 Mbit (2Mx8x4 banks) 128 MBytes 256 MBytes 64 Mbit (1Mx16x4 banks) 64 MBytes 128 MBytes 128 Mbit (4Mx8x4 banks) 256 MBytes 512 MBytes 128 Mbit (2Mx16x4 banks) 128 MBytes 256 MBytes 256 Mbit (8Mx8x4 banks) 512 MBytes 1 GByte 256 Mbit (4Mx16x4 banks) 256 MBytes 512 MBytes 512 Mbit (16Mx8x4 banks) 1 GByte 2 GBytes 512 Mbit (8Mx16x4 banks) 512 MBytes 1 GByte

6

2 DIMMsx64/x72

NA115 Motherboard

Connecting IDE and Floppy Disk Cabl es

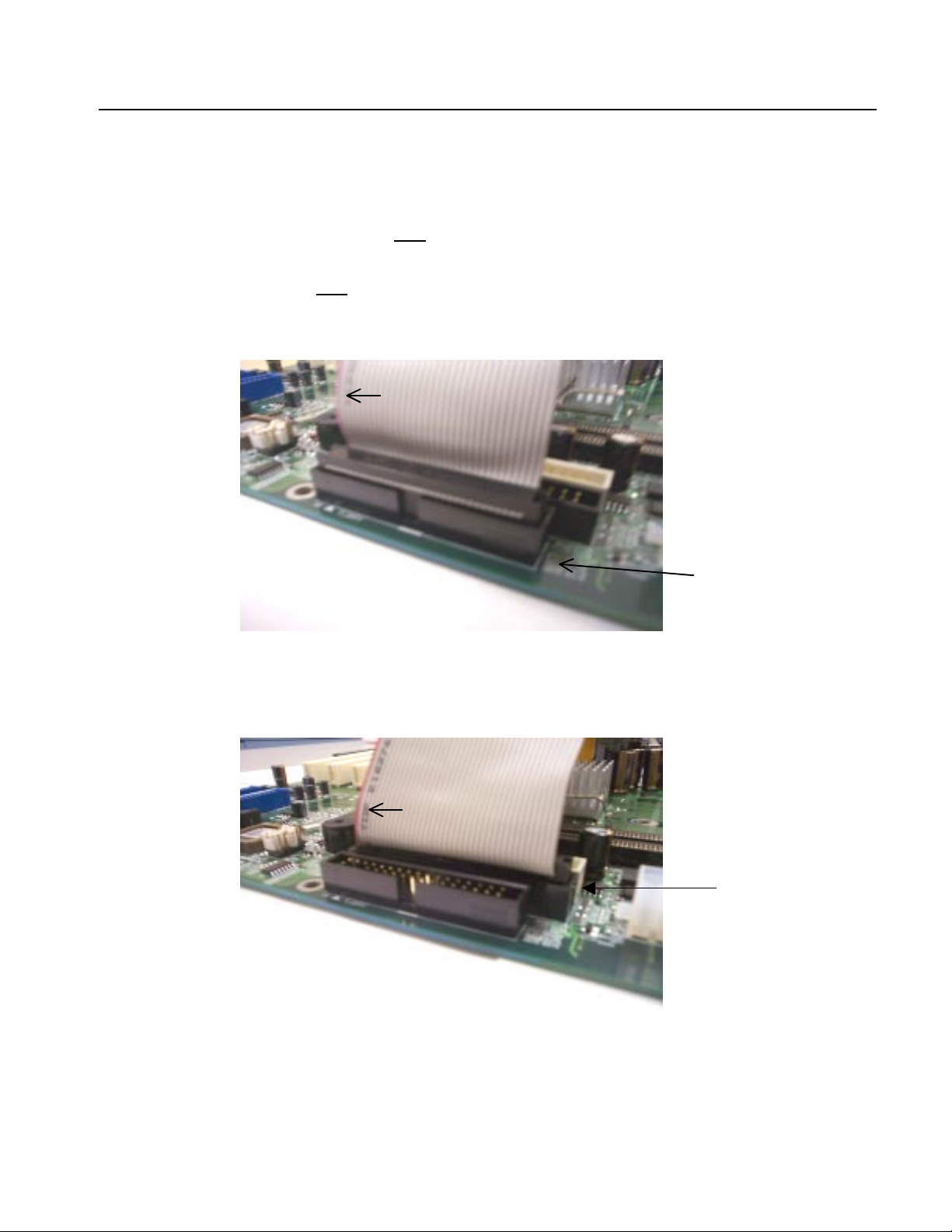

Connecting the floppy disk ribbon cable into the motherboard.

1. stripe needs to be inserted into the Pin1

Connecting the IDE ribbon cable into the motherboard.

2. should be inserted into Pin1

side of the IDE connector.

side of the floppy disk connector.

The side of the cable with t he r ed str ipe

Red Stripe to Pin1

The side of the cable with t he r ed

Floppy Connector

Red Stripe to Pin1

IDE Conn ect ors

7

NA115 Motherboard

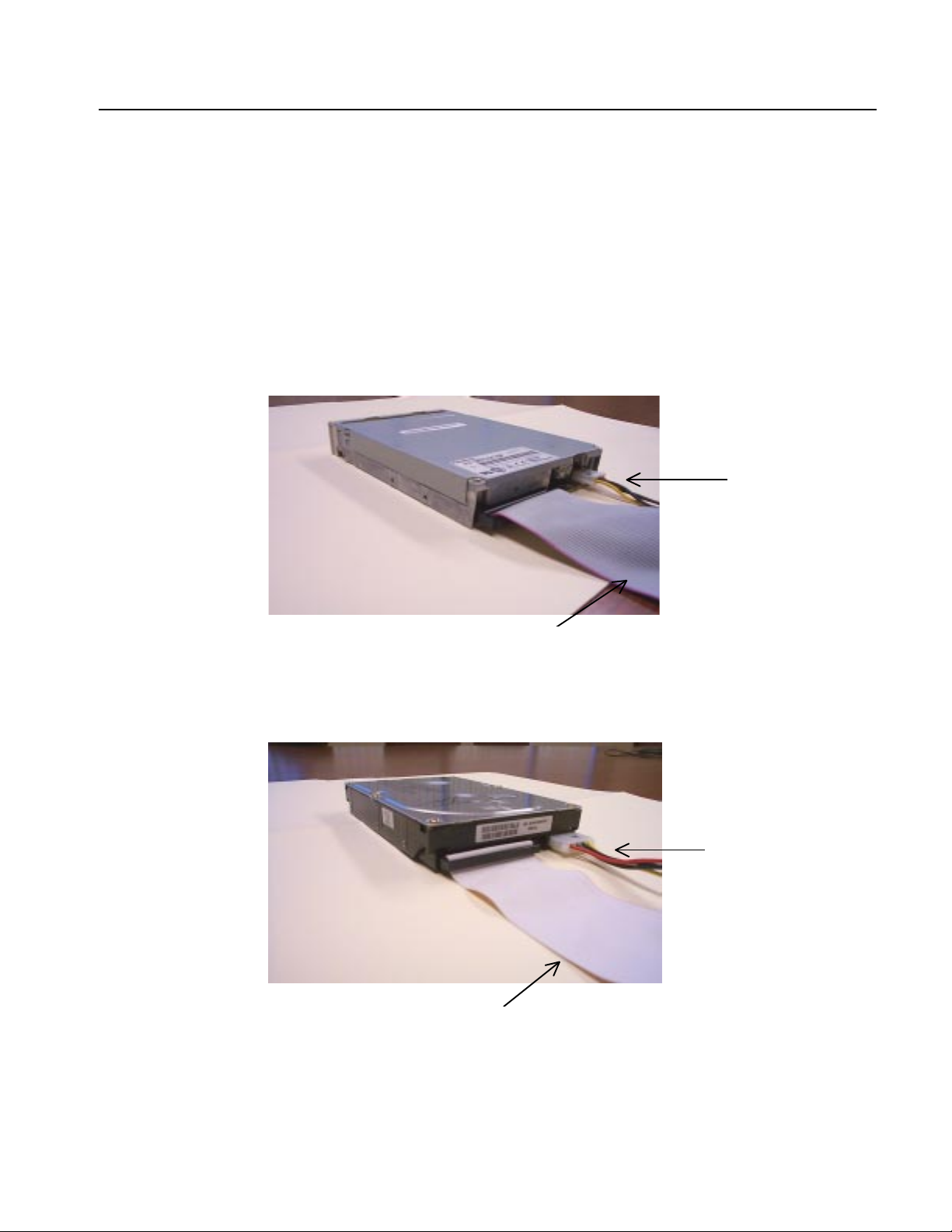

Connect Floppy and IDE Drives

NOTE:

1. Mount the desired driv es i nto the case.

2. Connect the floppy disk ribbon cable and power cabl e into the device.

3. Connect the IDE r ibbon cable and power cable into the devic e.

If installing two IDE devices on the same r ibbon cable, one devi c e is to be set as “master” and t he

second as “slave”. P lease refer t o IDE device m anuals for master and slave settings.

Floppy Disk Drive

Power Cabl e

Floppy Disk Ribbon Cable

Hard Disk Drive

Power Cabl e

IDE Ribbon Cable

8

NA115 Motherboard

Installing Expansion Cards

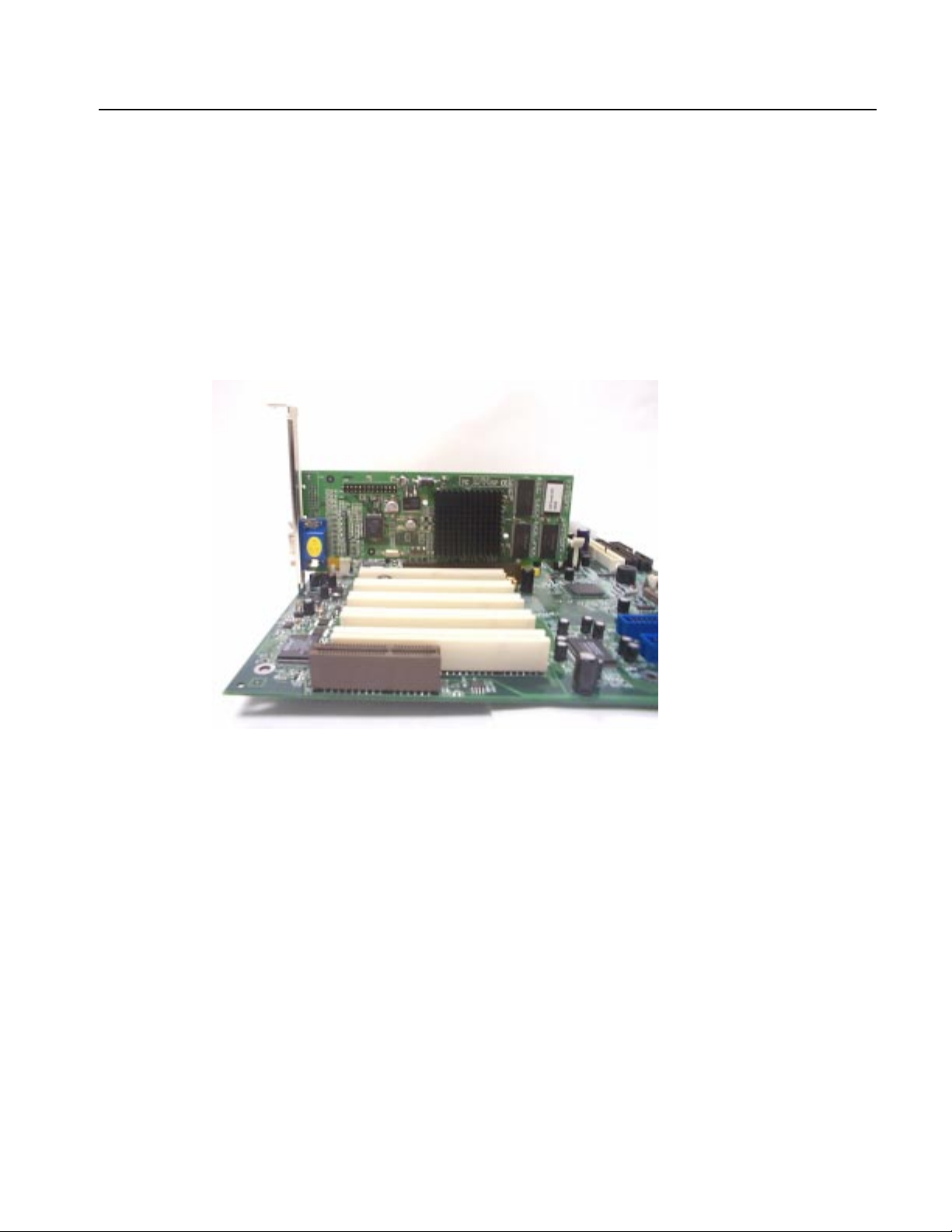

1. Read the related ex pansi on c ar d’s i nstallation instruct ions before i nsert ing the expansi on c ar d into the

motherboard.

2. Remove the slot covers fr om the chassis case where the expansion car ds will be placed.

3. Press the expansion card f irmly into the expansion slot of the motherboard.

4. Secure the card with the screw provided.

5. Repeat same procedure when adding addit ional expansion cards.

9

NA115 Motherboard

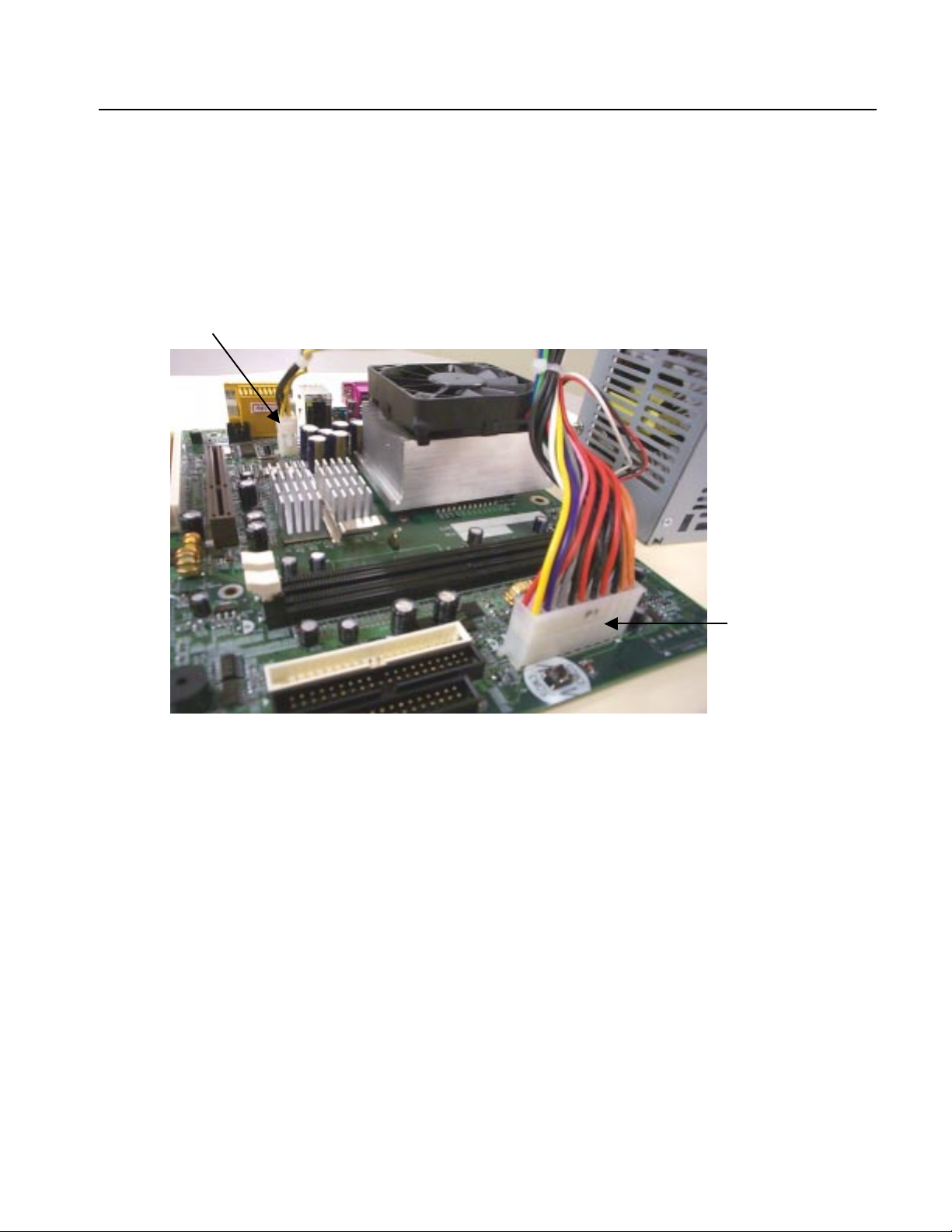

Connect the Power Supply Cables

NOTE: T he A TX power connector is keyed for proper insert ion.

1. Place the plastic cl ip of the power connector over the plastic tab on the motherboard power connector .

The plastic c lip should l oc k into the plastic tab.

Power Supply Connector

10

NA115 Motherboard

2

I/O Back Panel I ntr oducti on

1

3

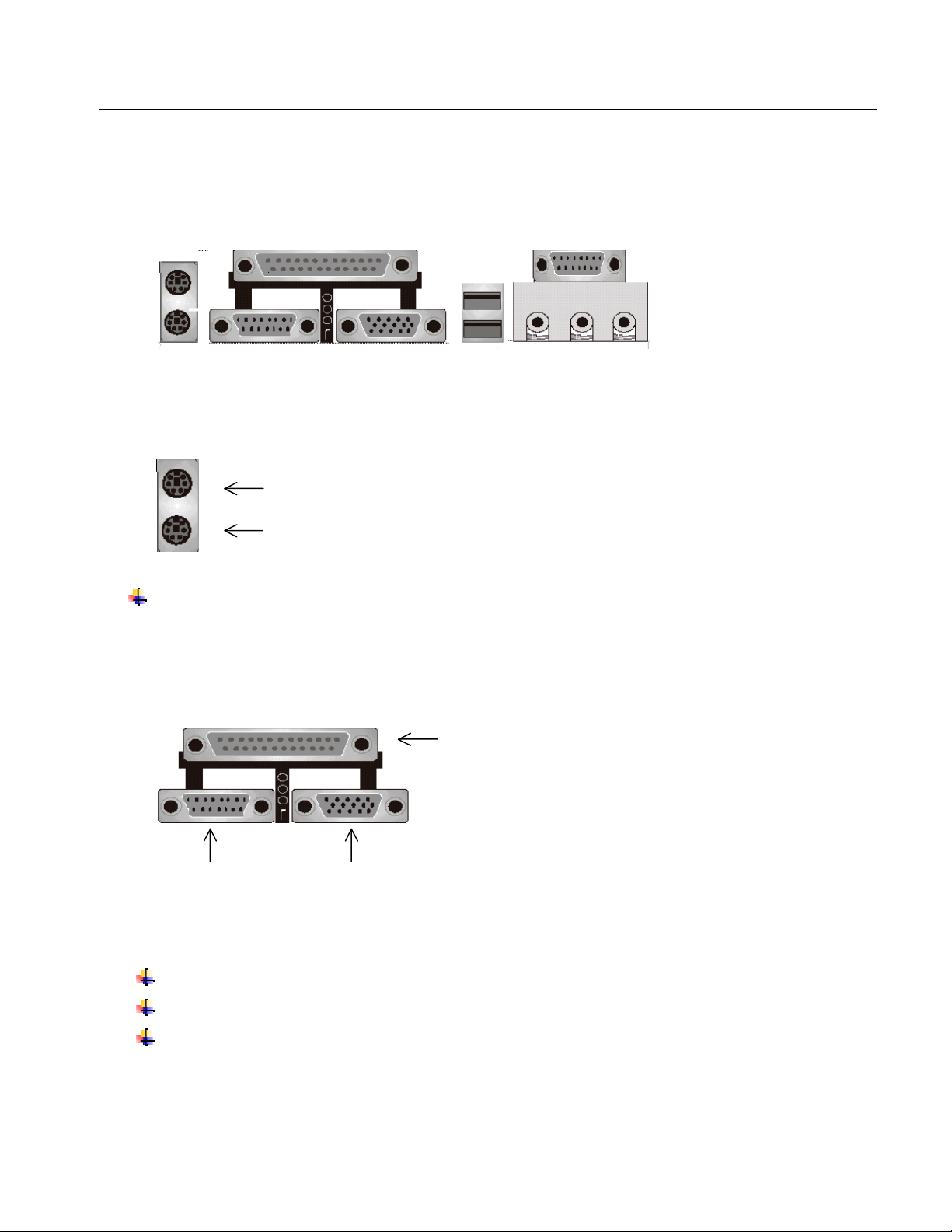

(1) PS/2 Keyboard and PS/ 2 M ouse Connector

PS/2 Mouse Connector (6 pin Female) PS/2 Keyboard Connector (6 pin Female)

This connector support s standard PS /2 keyboard and PS/2 mouse.

(2) Parallel P ort and Seri al Ports (CO M 1/COM2)

4

5

This connector support s 2 standard CO M por ts and 1 Parallel port. Devices (i.e. pr inter) can be c onnec ted into the P ar allel por t. Devices (i.e. mouse and modem etc. can be connec ted into the S er ial ports.

COM 1 COM 2

Serial Ports (9 pin Male)

Parallel Port (25 pin Female)

11

NA115 Motherboard

I/O Back Panel I ntr oducti on

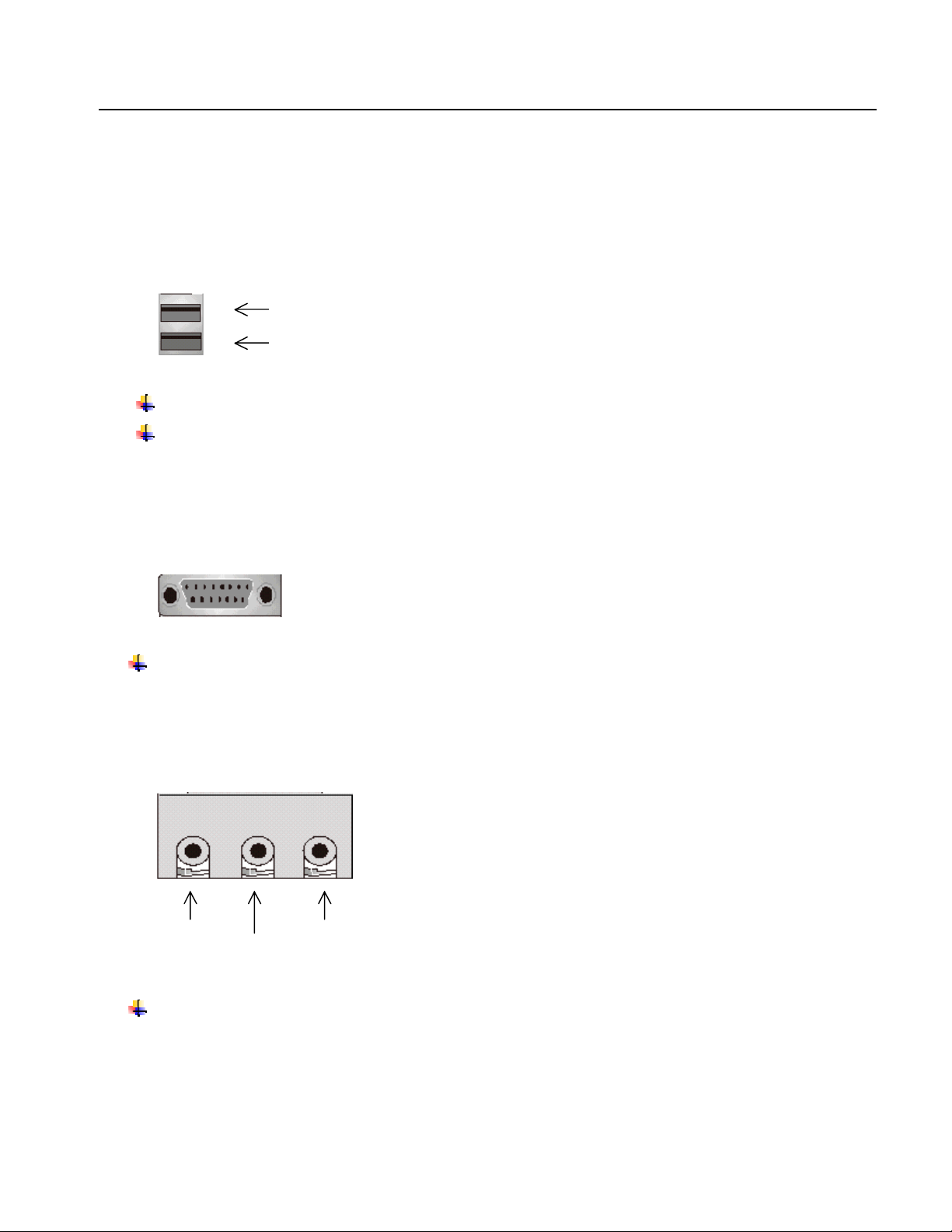

(3) USB Conn ect or

USB 1

Before connec ting device(s) into the USB connec tions, determine if devices have a standard int er face. Make sure your com puter Operating System ( OS) supports the USB cont r oller. If not, contact your OS

or device(s) vendors for more informat ion.

(4) Game Port

USB 2

cont….

This connector supports joystick, MIDI keyboard and other related audio devi c es.

(5) Audio Connectors

Line ou t

Line In

MIC in

Once onboard audio driv er has been i nstalled, the speakers may be connected into the Li ne out jack, audio devices such as CD-ROM etc. , and a mi c r ophone into the MI C in jack.

12

NA115 Motherboard

Jumper Introduction

Jumper Settings

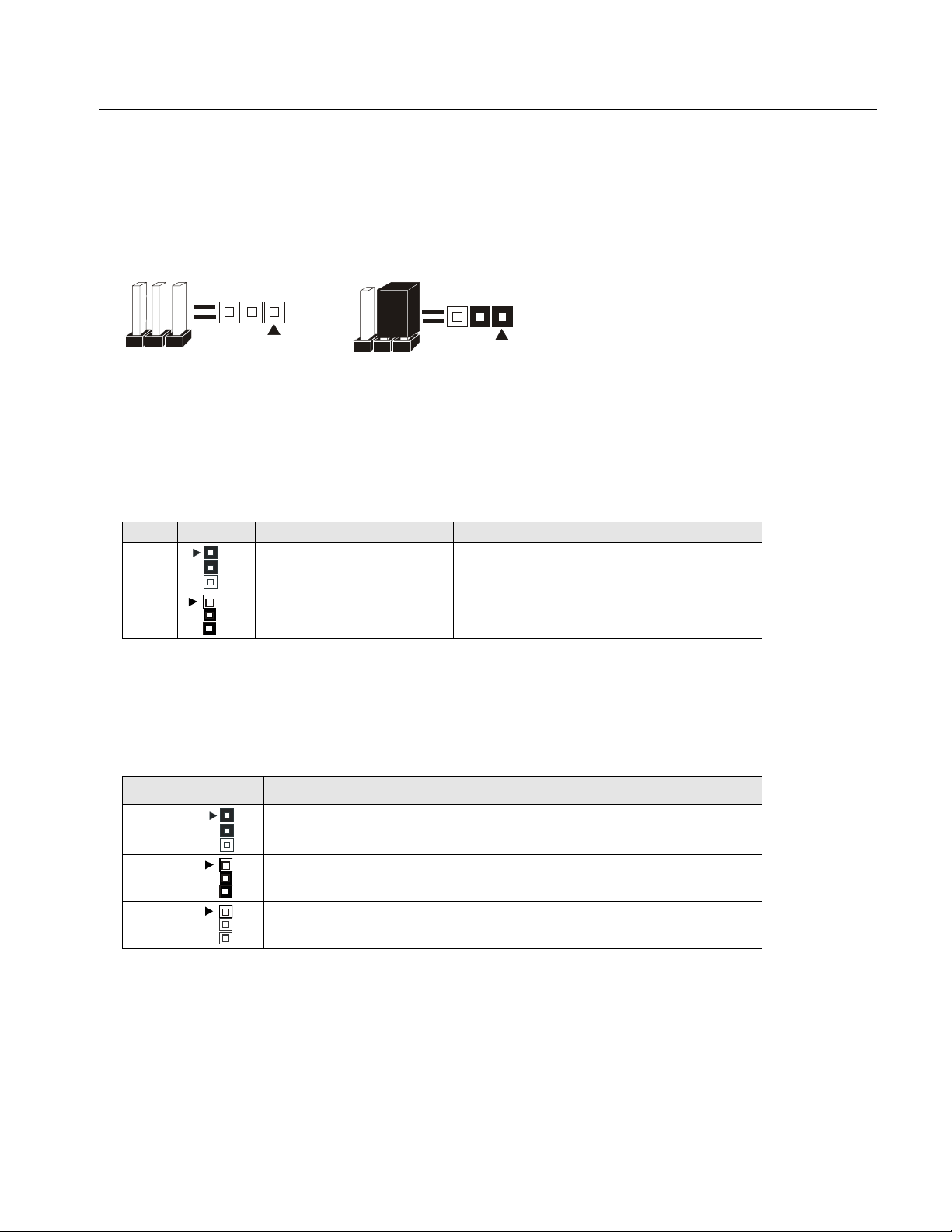

The following graphic shows the meaning of t he jumper wit h c over and wit hout cov er .

PIN 1

OFF ON (1-2)

PIN 1

FWH Lock

This jumper allows you to set FWH lock. Reference: JP2

Connector Type: 1 x 3

JP2 Description Jum per P lacement 1-2

2-3

BIOS Configuration

This jumper allows you to set CPU speed. Reference: JP3

Connector Type: 1 x 3

JP3 Description Jumper Placement

FWH Lock Put the jumper cover on pin1 and pin2.

FWH Unlock (Default ) Put the jumper cover on pin2 and pin3.

1-2

2-3

OPEN

Normal M ode ( Default ) Put the jumper cover on pi n1 and pin2.

BIOS Conf. (save speed) Put the jumper c over on pin2 and pin3.

BIOS Recovery Remove jum per from JP5.

13

NA115 Motherboard

Jumper Introduction

cont.

Clear CMOS (Optional)

This jumper allows you to clear the content of the CM OS. Reference: JP1

Connector Type: 1 x 3

JP1 Description Jum per P lacement 1-2

2-3

Normal Put the jumper cover on pin1 and pin2.

Clear content of CMOS Put the jumper cover on pin2 and pin3.

Clear Password

This jumper allows you to clear the password of the BI OS. Reference: JP4

Connector Type: 1 x 3

JP4 Description Jum per P lacement 1-2

Normal ( Default ) Put the jumper c over on pin1 and pin2.

2-3

Clear BIO S password Put the jumper cover on pin2 and pin3.

14

NA115 Motherboard

Jumper Introduction

cont.

The following tabl e shows the Front S ide Bus Frequency Selector settings.

Front Side Bus Frequency Selector

FSB SELECT SEL1 SEL2 SEL3 SEL4 SEL5 SEL6

AUTO OFF OFF OFF OFF OFF OFF 100MHZ ON OFF ON OFF OFF OFF 102MHZ ON ON ON ON ON ON 105MHZ ON OFF ON ON ON ON 108MHZ ON ON OFF ON ON ON 111MHZ ON OFF OFF ON ON ON 114MHZ ON ON ON OFF ON ON 117MHZ ON OFF ON OFF ON ON 120MHZ ON ON OFF OFF ON ON 123MHZ ON OFF OFF OFF ON ON 126MHZ ON ON ON ON OFF ON 130MHZ ON OFF ON ON OFF ON 133MHZ ON OFF OFF OFF OFF OFF 136MHZ ON ON OFF ON OFF ON 140MHZ ON OFF OFF ON OFF ON 144MHZ ON ON ON OFF OFF ON 148MHZ ON OFF ON OFF OFF ON 152MHZ ON ON OFF OFF OFF ON 156MHZ ON OFF OFF OFF OFF ON 160MHZ ON ON ON ON ON OFF 164MHZ ON OFF ON ON ON OFF 166MHZ ON ON OFF ON ON OFF 170MHZ ON OFF OFF ON ON OFF 175MHZ ON ON ON OFF ON OFF 180MHZ ON OFF ON OFF ON OFF 185MHZ ON ON OFF OFF ON OFF 190MHZ ON OFF OFF OFF ON OFF 200MHZ ON ON OFF OFF OFF OFF

15

NA115 Motherboard

Jumper Settings

cont.

The following tabl e shows the Front S ide USB Connector P in Definiti on.

J37

USB2+ USB2- USB1-

GND2 GND1

NC USBOC

Front Si de US B Connec tor Pin Defini tion

Pin Signal Name Description

1 V2+ Front S ide USB Port2 V CC 2 V1+ Front S ide USB Port1 V CC 3 USB2+ Front Side USB Port2

4 USB1+ Front Side USB Port1 5 USB2- Front Side USB Port2 6 USB1- Front Side USB Port1 7 GND2 Front Side USB P or t2 GND

8 GND1 Front Side USB P or t1 GND 9 NC No Connect

10 USBOC USB Over-Current Det ec t

Signal+ Signal+ SignalSignal-

V1+ V2+ USB1+

16

NA115 Motherboard

AMI® BIOS Setup

Entering Setup

To enter the setup menu, f irst power up the com puter and press <Delete> k ey to enter the CMO S setup.

The Main Menu

When y ou enter the AMI® HIFLEX Setup Utility, the below Main Menu will appear. The Main m enu allows you to select and modif y y our c omputer system. To navigate through the menu, simpl y use the ar r ow keys to selec t among the i tems and press <Enter> to accept or enter the sub-menu.

AMI HIFLEX SETUP UTILITY - VERSION 1.38

NA115 BIOS Rev: 0.00.02

Standard CMOS Features Advanced CMOS Features

Advanced Chipset Features

Power Management Setup

PCI / Plug and Play Setup

Peripheral Setup Hardware Monitor Setup Auto-Detect Hard Disks

Change User Password

Change Supervisor Password

Auto Configuration with Optimal Setting

Auto Configuration with Fail Safe Settings

Save Settings and Exit

Exit without Saving

Standard CMOS setup for changing time, date, hard disk type, etc.

ESC: Exit KL: Sel F2/F3: Color F10: Save and Exit

17

NA115 Motherboard

Standard CMOS Setup

The items listed i n the Standard CMO S Features Menu may include no or more than one setup items. Use the arrow keys to navigate through t he menu and use the <PgUp> or <PgDn> keys to selec t the desired value for each item.

AMIBIOS SETUP - STANDARD CMOS SETUP

Date (mm/dd/y yyy) : Wed Nov 28,2001 Base Memory: 639KB Time (hh/mm/s s) : Extd Memory: 127MB

Floppy Drive A: Floppy Drive B:

LBA BLK PIO 32Bit

Type Size Cyln Hea d Wpcom Se Mode Mode Mode Mod e Pri Master: Auto On Pri Slave: Auto On Sec Master: Auto On

Sec Slave: Auto On

Boot Sector V irus Protection: Disabl ed

Month: Jan-De c ESC: Exit KL: Sel Day: 01-31 PgUp/PgDn: Mo dify Year: 1980-2 099 F2/F3: Color

18

NA115 Motherboard

Advanced CMOS Setup

The items listed i n the Advanced CMOS Features Menu may i nc lude no or more than one setup items. Use the arrow keys to navigate through t he menu and use the <PgUp> or <PgDn> keys to selec t the desired option for each item.

AMIBIOS SETUP - ADVANCED CMOS SETUP

1st Boot Device Disabled Available Options: 2nd Boot Device Floppy 3rd Boot Device Disabled Try Other Boot Devices Yes S.M.A.R.T for Hard Disk Disabled BootUp Num-Lock On Floppy Drive Seek Disabled Primary Display VGA/EGA Password Check Setup Boot To OS/2 No CPU MicroCode Updation Enabled C000, 32K Shadow Cached C800, 16K Shadow Disabled CC00, 16K Shadow Disabled D000, 16K Shadow Disabled D400, 16K Shadow Disabled D800, 16K Shadow Disabled PgUp/PgDn: Modify DC00, 16K Shadow Disabled F2/F3: Color

ESC: Exit KL: Sel

19

NA115 Motherboard

Advanced Chipset Setup

The items listed i n the Advanced Chipset Setup M enu may include no or more than one setup items. Use the arrow keys to navigate through t he menu and use the <PgUp> or <PgDn> keys to selec t the desired option for each item.

AMIBIOS SETUP - ADVANCED CHIPSET SETUP

SDRAM Idle Timer Infinite Available Options: SDRAM Read Thermal Management Disabled DRAM Integrity Mode Disabled Memory Hole Disabled AGP Aperture Size 64MB USB Controller Enabled USB Device Legacy Support All Device Port 64/60 Emulation Disabled

ESC: Exit PgUp/PgDn: Modify F2/F3: Color

KL

: Sel

20

NA115 Motherboard

Power Management Setup

The items listed i n the Power Management S etup Menu may include no or more than one setup it ems. Use the arrow keys to navigate through t he menu and use the <PgUp> or <PgDn> keys to selec t the desired option for each item.

ACPI Standby State S3/STR Available Options: Re-Call VGA BIOS at S3 Resuming Disabled Power Management/APM Enabled Video Power Down Mode Suspend Hard Disk Power Down Mode Standby Standby Time Out (Minute) Disabled Suspend Time Out (Minute) Disabled Throttle Slow Clock Ratio 50.0% Fan Speed Control

CPU Fan’s Duty Cycle 100% SYS Fan’s Duty Cycle 100% Power Button Function On/Off Restore on AC/Power Loss Last State Resume on Ring Disabled

AMIBIOS SETUP – POWER MANAGEMENT SETUP

50°C ~ 65°C

Resume on LAN Disabled Resume On PME Disabled Resume On RTC Alarm Disabled Resume Alarm Date 15 Resume Alarm Hour 12 RTC Alarm Minute 30 RTC Alarm Second 30

ESC: Exit PgUp/PgDn: Modify F2/F3: Color

21

KL

: Sel

NA115 Motherboard

PCI/Plug and Play Setup

The items listed i n the PCI/Plug and Play Setup Menu may include no or more than one setup it ems. Use the arrow keys to navigate through t he menu and use the <PgUp> or <PgDn> keys to selec t the desired option for each item.

AMIBIOS SETUP – PCI/PLUG AND PLAY SETUP

Plug and Play Aware O/S No Available Options: Clear NVRAM No PCI Latency Timer (PCI Clocks) 32 Primary Graphics Adapter AGP PCI IDE BusMaster Enabled OffBoard PCI IDE Card Auto OffBoard PCI IDE Primary IRQ Disabled OffBoard PCI IDE Secondary IRQ Disabled

ESC: Exit PgUp/PgDn: Modify F2/F3: Color

KL

: Sel

22

NA115 Motherboard

Peripheral Setup

The items listed i n the Peripheral Setup Menu may incl ude no or more than one setup i tems. Use the arrow keys to nav igate through t he menu and use the <PgUp> or <PgDn> keys to selec t the desired option for eac h item.

OnBoard IDE Both Available Options: OnBoard AC’97 Auto OnBoard FDC Auto OnBoard Serial PortA Auto OnBoard Serial PortB Auto Serial PortB Mode Normal

IR Duplex Mode Half Duplex IR Receiver Polarity Active Low IR Xmitter Polarity Active Low OnBoard Parallel Port Auto Parallel Port Mode ECP Parallel Port IRQ Auto Parallel Port DMA Channel Auto OnBoard Game Port 200h

OnBoard Midi Port Midi IRQ Select 5

AMIBIOS SETUP – PERIPHERAL SETUP

290h

ESC: Exit

KL

: Sel PgUp/PgDn: Modify F2/F3: Color

23

NA115 Motherboard

Hardware Monitor Setup

The items listed i n the Hardware Monitor S etup may i nc lude no or more than one setup items. Use the arrow keys to nav igate through t he menu and use the <PgUp> or <PgDn> keys to selec t the desired option for eac h item.

CPU Ratio Selection 15.0x Available Options: CPU Volt Control Auto

--== System Hardware Monitor ==-- Chassis Intrusion Disabled CPU Temperature System Temperature CPU Fan Speed 0 RPM Chassis Fan Speed 0 RPM Vccp 1.717V

+1.5V 1.501V +1.8V 1.806V +3.3V 3.423V +5.0V 5.202V +12.0V 11.875V

AMIBIOS SETUP – HARDWARE MONITOR SETUP

51°C/123°F 35°C/95°F

Hvcc (+3.3VSB) 3.351V

ESC: Exit PgUp/PgDn: Modify F2/F3: Color

KL

: Sel

24

NA115 Motherboard

Auto-Detect Hard Disk

The items listed i n the Auto-Detec t Hard Disk Menu m ay include no or more than one setup items. Use the arrow keys to navigate through t he menu and use the <PgUp> or <PgDn> keys to selec t the desired option for each item.

AMIBIOS SETUP - STANDARD CMOS SETUP

Date (mm/dd/yyyy) : Wed Nov 28,2001 Base Memory: 639KB

Time (hh/mm/ss) : Extd Memory: 127MB

Floppy Drive A: Floppy Drive B:

LBA BLK PIO 32Bit

Type Size Cyln Head Wpcom Sec Pri Master: On

Pri Slave: On Sec Master: On Sec Slave: On

Mode Mode Mode Mode

Boot Sector Virus Protection: Disabled

Month: Jan-Dec Day: 01-31 PgUp/PgDn: Modify Year: 1980-2099 F2/F3: Color

ESC: Exit KL: Sel

25

NA115 Motherboard

Change User Password

The items listed i n the Auto-Detec t Hard Disk Menu m ay include no or more than one setup items. Use the arrow keys to navigate through t he menu and use the <PgUp> or <PgDn> keys to selec t the desired option for each item.

AMI HIFLEX SETUP UTILITY - VERSION 1.38

NA115 BIOS Rev: 0.00.02

Standard CMOS Features Advanced CMOS Features

Advanced Chipset Features

Power Management Setup

PCI / Plug and Play Setup

Peripheral Setup

Enter new user password: _

Hardware Monitor Setup

Auto-Detect Hard Disks

Change User Password

Change Supervisor Password

Auto Configuration with Optimal Setting

Auto Configuration with Fail Safe Settings

Save Settings and Exit

Exit without Saving

Enter the new user password

ESC: Exit KL: Sel F2/F3: Color F10: Save and Exit

26

NA115 Motherboard

Change Supervisor Password

The items listed i n the Change Supervisor Password Menu may inc lude no or more than one setup items. Use the arrow keys to navigate thr ough the menu and use the <P gUp> or<PgDn> k ey s to sel ec t the desired option for each item.

AMI HIFLEX SETUP UTILITY - VERSION 1.38

NA115 BIOS Rev: 0.00.02

Standard CMOS Features

Advanced CMOS Features

Advanced Chipset Features

Power Management Setup

PCI / Plug and Play Setup

Peripheral Setup

Enter new supervisor password: _

Hardware Monitor Setup Auto-Detect Hard Disks

Change User Password

Change Supervisor Password

Auto Configuration with Optimal Setting

Auto Configuration with Fail Safe Settings

Save Settings and Exit

Exit without Saving

Change the supervisor password

ESC: Exit KL: Sel F2/F3: Color F10: Save and Exit

27

NA115 Motherboard

Auto Configuration with Optimal Setting

The items listed i n the Auto Configuration with Optimal S etting Menu may include no or more than one setup item s. Use the ar r ow keys to navigate through the menu and use the <PgUp> or <PgDn> keys to selec t the desired option for each item.

AMI HIFLEX SETUP UTILITY - VERSION 1.38

NA115 BIOS Rev: 0.00.02

Standard CMOS Features Advanced CMOS Features

Advanced Chipset Features

Power Management Setup

PCI / Plug and Play Setup

Peripheral Setup

Load high performing setting (Y/N)? N

Auto Configuration with Optimal Setting

Auto Configuration with Fail Safe Settings

Load configuration settings giving highest performance

ESC: Exit KL: Sel F2/F3: Color F10: Save and Exit

Hardware Monitor Setup Auto-Detect Hard Disks

Change User Password

Change Supervisor Password

Save Settings and Exit

Exit without Saving

28

NA115 Motherboard

Auto Configuration with Fail Safe Settings

The items listed i n the Auto Configuration with Fail Safe S ettings Menu m ay include no or more than one setup item s. Use the ar r ow keys to navigate through the menu and use the <PgUp> or <PgDn> keys to selec t the desired option for each item.

AMI HIFLEX SETUP UTILITY - VERSION 1.38

NA115 BIOS Rev: 0.00.02

Standard CMOS Features Advanced CMOS Features

Advanced Chipset Features

Power Management Setup

PCI / Plug and Play Setup

Peripheral Setup

Hardware Monitor Setup

Load failsafe settings (Y/N)? N

Auto-Detect Hard Disks

Change User Password

Change Supervisor Password

Auto Configuration with Optimal Setting

Auto Configuration with Fail Safe Settings

Save Settings and Exit

Exit without Saving

Load failsafe configuration settings

ESC: Exit KL: Sel F2/F3: Color F10: Save and Exit

29

NA115 Motherboard

Save Settings and Exit

The items listed i n the Save Setti ngs and Exit Menu may include no or more than one setup items. Use the arrow keys to navigate through t he menu and use the <PgUp> or <PgDn> keys to selec t the desired option for each item.

AMI HIFLEX SETUP UTILITY - VERSION 1.38

NA115 BIOS Rev: 0.00.02

Standard CMOS Features Advanced CMOS Features

Advanced Chipset Features

Power Management Setup

PCI / Plug and Play Setup

Save current settings and exit (Y/N)? Y

Auto Configuration with Optimal Setting

Auto Configuration with Fail Safe Settings

Write the current settings to CMOS and exit

ESC: Exit KL: Sel F2/F3: Color F10: Save and Exit

Peripheral Setup Hardware Monitor Setup Auto-Detect Hard Disks

Change User Password

Change Supervisor Password

Save Settings and Exit

Exit without Saving

30

NA115 Motherboard

Exit without Saving

The items listed i n the Exit without Savi ng Features Menu may include no or more than one setup i tems. Use the arrow keys to navigate thr ough the menu and use the <P gUp> or<PgDn> k ey s to sel ec t the desired option for each item.

AMI HIFLEX SETUP UTILITY - VERSION 1.38

NA115 BIOS Rev: 0.00.02

Standard CMOS Features Advanced CMOS Features

Advanced Chipset Features

Power Management Setup

PCI / Plug and Play Setup

Peripheral Setup

Quit without saving (Y/N)? N

Hardware Monitor Setup Auto-Detect Hard Disks

Change User Password

Change Supervisor Password

Auto Configuration with Optimal Setting

Auto Configuration with Fail Safe Settings

Save Settings and Exit

Exit without Saving

Exit without saving the current settings

ESC: Exit KL: Sel F2/F3: Color F10: Save and Exit

31

NA115 Motherboard

NOTES

32
