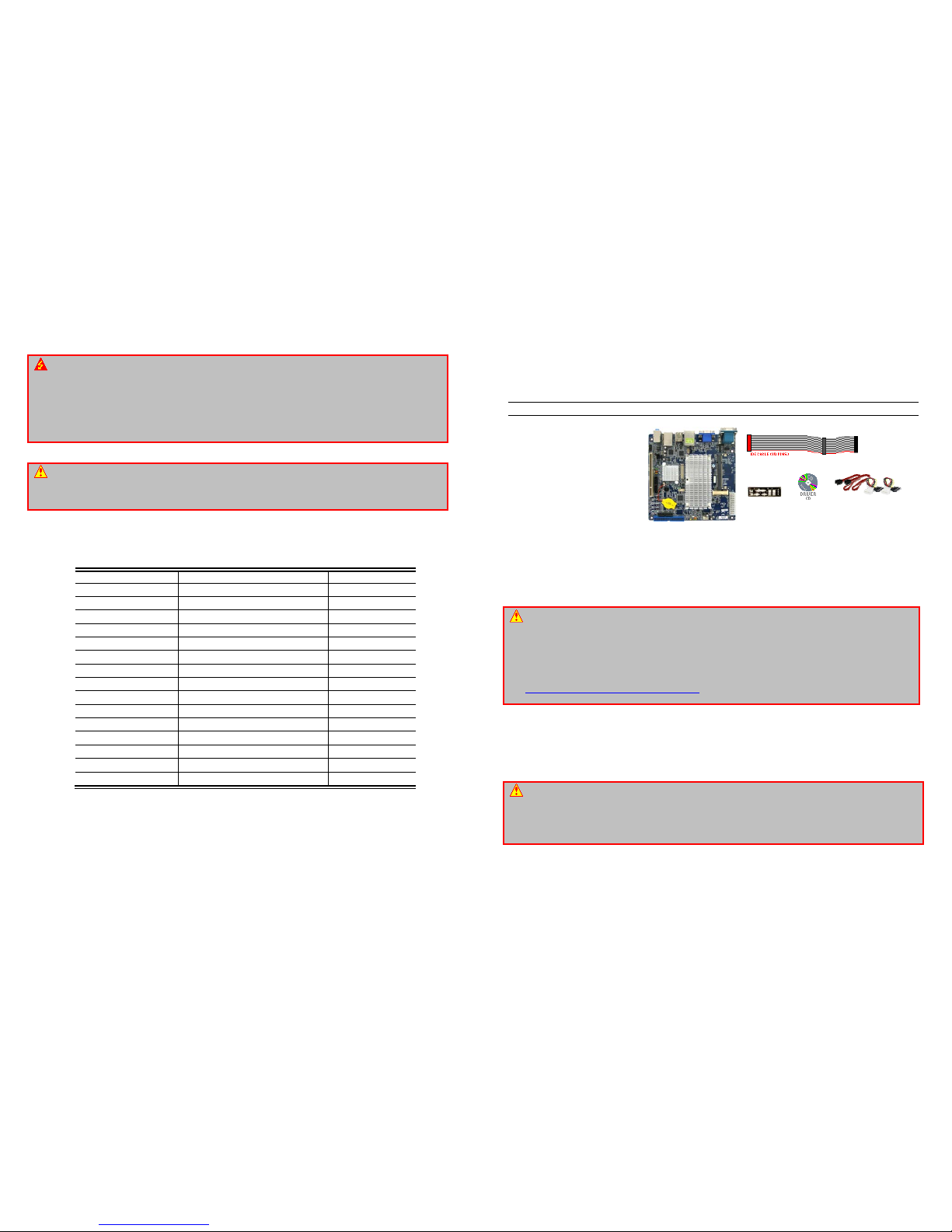

WARNING: Electrostatic Sensitive Device (ESD)
Static electricity can easily damage your motherboard and will void your motherboard warranty. Keep the motherboard
and other system components in their anti-static packaging until you are ready to install them. Touch a grounded surface
before you remove any system component from its protective anti-static packaging. Unpacking and installation should be
done on a grounded, anti-static mat. The operator should be wearing an anti-static wristband, grounded at the same
points as the anti-static mat. During configuration and installation touch a grounded surface frequently to discharge any
static electrical charge that may have built up in your body. Avoid touching the components when handling the
motherboard or a peripheral card. Handle the motherboard and peripheral cards either by the edges or by the peripheral
card case-mounting bracket.
WARNING: Misplaced Jumper Damage
Incorrect jumpers and connectors settings may lead to damage to your motherboard and will void your motherboard
warranty. Please pay special attention to not connect these headers in the wrong direction. DO NOT change ANY jumpers
while the motherboard has power.
Jumper / Connector
Name Description Note
COMP1-4 COM port
10 pin
CPUFAN1 CPU fan
3 pin
IDE1 IDE (PATA)
40 pin
J1 inverter
5 pin
JAMP1 amplified audio
4 pin
JAUD1 audio header
2x pin
JCI1 chassis intrusion
2 pin
JCOMP1-6 COM port power
3 pin
JFP1 front panel header
2x5 pin (keyed)
JLPT1 printer
2x13 pin (keyed)
JLVDS1 LVDS
2x20 pin
JSPDO1 S/PDIF
3 pin
JSPI1 SPI header
2x5 pin (keyed)
JUSB1 front USB header
2x5 pin (keyed)
JVDD1 LVDS power select
5 pin
SATA & Power cable

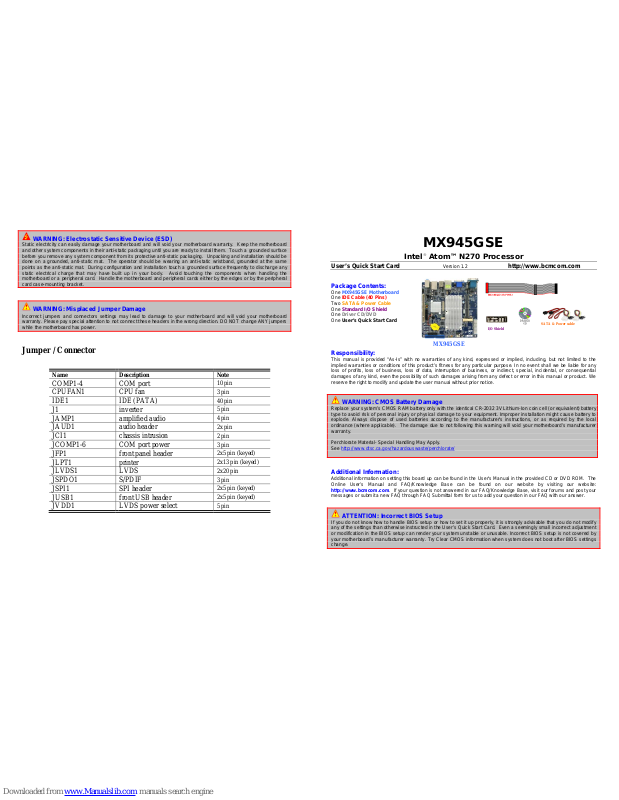

MX945GSE
MX945GSE
Intel® Atom™ N270 Processor
User’s Quick Start Card Version 1.2 http://www.bcmcom.com
Package Contents:
One MX945GSE Motherboard
One IDE Cable (40 Pins)
Two SATA & Power Cable
One Standard I/O Shield
One Driver CD/DVD
One User’s Quick Start Card
Responsibility:
This manual is provided “As-Is” with no warranties of any kind, expressed or implied, including, but not limited to the
implied warranties or conditions of this product’s fitness for any particular purpose. In no event shall we be liable for any
loss of profits, loss of business, loss of data, interruption of business, or indirect, special, incidental, or consequential
damages of any kind, even the possibility of such damages arising from any defect or error in this manual or product. We
reserve the right to modify and update the user manual without prior notice.
WARNING: CMOS Battery Damage
Replace your system’s CMOS RAM battery only with the identical CR-2032 3V Lithium-Ion coin cell (or equivalent) battery
type to avoid risk of personal injury or physical damage to your equipment. Improper installation might cause battery to
explode. Always dispose of used batteries according to the manufacturer’s instructions, or as required by the local
ordinance (where applicable). The damage due to not following this warning will void your motherboard’s manufacturer
warranty.
Perchlorate Material- Special Handling May Apply.
See http://www.dtsc.ca.gov/hazardouswaste/perchlorate/
Additional Information:
Additional information on setting this board up can be found in the User’s Manual in the provided CD or DVD ROM. The
Online User’s Manual and FAQ/Knowledge Base can be found on our website by visiting our website:
http://www.bcmcom.com. If your question is not answered in our FAQ/Knowledge Base, visit our forums and post your
messages or submit a new FAQ through FAQ Submittal form for us to add your question in our FAQ with our answer.
ATTENTION: Incorrect BIOS Setup
If you do not know how to handle BIOS setup or how to set it up properly, it is strongly advisable that you do not modify
any of the settings than otherwise instructed in the User’s Quick Start Card. Even a seemingly small incorrect adjustment
or modification in the BIOS setup can render your system unstable or unusable. Incorrect BIOS setup is not covered by
your motherboard’s manufacturer warranty. Try Clear CMOS information when system does not boot after BIOS settings
change.
I/O Shield
Page 2

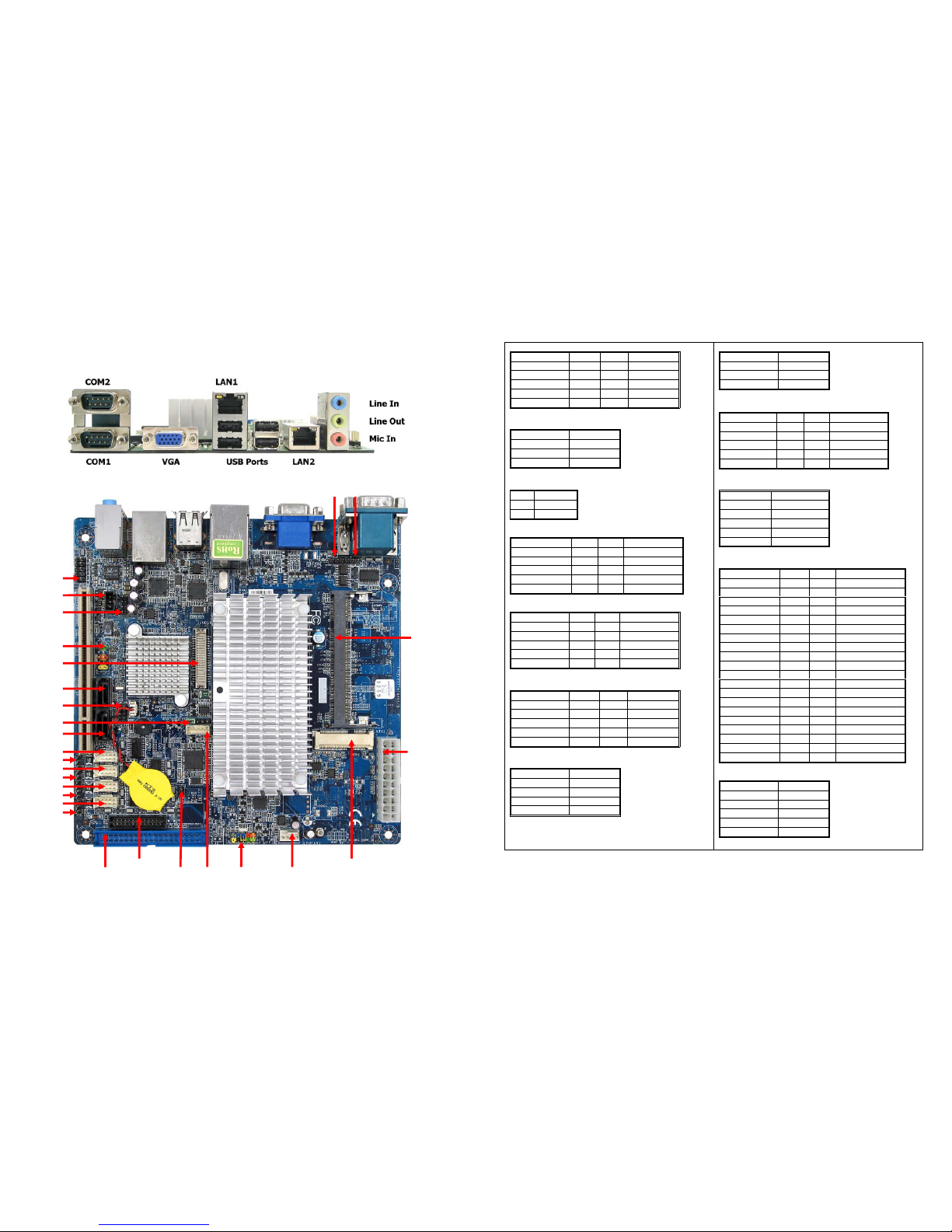

Motherboard Layout:
JUSB1
ATX
connector
JVDD1
CPUFAN1
Mini-PCIe
JLVDS1
JAUD1
JSPDO1
SO-DIMM
J1
JFP1
JCOMP2 JCOMP1
JAMP1
JLPT1
IDE1
JSPI1
SATA1
SATA2
COM4
COM3
COM2
COM1
JCOMP3
JCOMP4
JCOMP5
JCOMP6
JCI1
COM Port (COM1-4)
COM Port Power (JCOMP1-6)
Chassis Intrusion (JCI1)
Pin Signal
1 Open#
2 GND
Front Panel (JFP1)
Signal Pin Pin Signal
HD_LED+ 1 2 FP PWR/SLP
HD_LED- 3 4 FP PWR/SLP
RST_SW- 5 6 PWR_SW+
RST_SW+ 7 8 PWR_SW-
NC 9 10 [KEY]
Front USB (JUSB1)
SPI (JSPI1)
Amplified Audio (JAMP1)
Signal Pin Pin Signal
DCD3 1 2 RD3
TD3 3 4 DTR
GND 5 6 DSR
RTS 7 8 CTS
VCC_COM 9 10 [KEY]
Pin Signal
1 VCC5
2 VCC_COM
3 12V
Signal Pin Pin Signal
VCC 1 2 VCC
USB5- 3 4 USB4-
USB5+ 5 6 USB4+
GND 7 8 GND
[Key] 9 10 USBOC
Signal Pin Pin Signal
VCC3_SB 1 2 VCC3_SB
SPI_MISO_F 3 4 SPI_MOSI_F
SPI_CS0_F# 5 6 SPI_CLK_F
GND 7 8 GND
SPI_HOLD# 9 10 [KEY]
Pin Signal
1 AMP_L2 AMP_L+
3 AMP_R4 AMP_R+
S/PDIF (JSPDO1)
Audio (JAUD1)
Inverter (J1)
LVDS (JLVDS1)
JVDD1
*default: 1-2 (VCC3)
Pin Signal
1 VCC5
2 SPDIF_OUT
3 GND
Signal Pin Pin Signal
MIC_L 1 2 GND
MIC_R 3 4 NC
LINE_OUT_R 5 6 MIC_JD
FRONT_JD 7 8 [KEY]
LINE_OUT_L 9 10 LINE_OUT_JD
Pin Signal
1 12V
2 GND
3 INV_ON
4 L_BKLTCTRL
5 VCC5
Signal Pin Pin Signal
+12V 2 1 +12V
+12V 4 3 +12V
GND 6 5 +12V
GND 8 7 VCC3
LCD_VDD 10 9 LCD_VDD
LDDC_DATA 12 11 LDDC_CLK
LVDS_VDDEN 14 13 L_BKLTCTL
GND 16 15 L_BKLTEN
LA_DATA0 18 17 LA_DATA0#
LA_DATA1 20 19 LA_DATA1#
LA_DATA2 22 21 LA_DATA2#
LA_CLK 24 23 LA_CLK#
LA_DATA3 26 25 LA_DATA3#
GND 28 27 GND
LB_DATA0 30 29 LB_DATA0#
LB_DATA1 32 31 LB_DATA1#
LB_DATA2 34 33 LB_DATA2#
LB_CLK 36 35 LB_CLK#
LB_DATA3 38 37 LB_DATA3#
GND 40 39 GND
Pin Signal
1 VCC3
2 LCD_VDD
3 VCC5
4 LCD_VDD
5 12V
