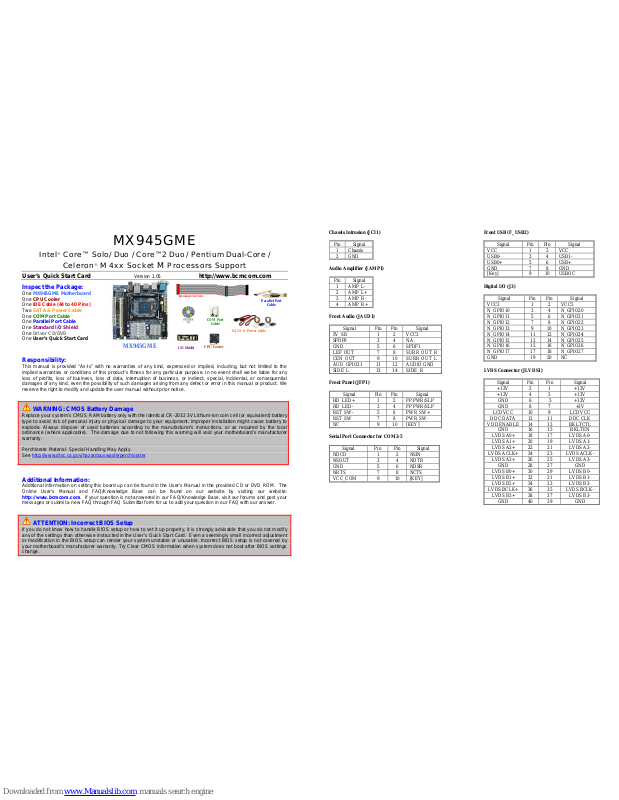

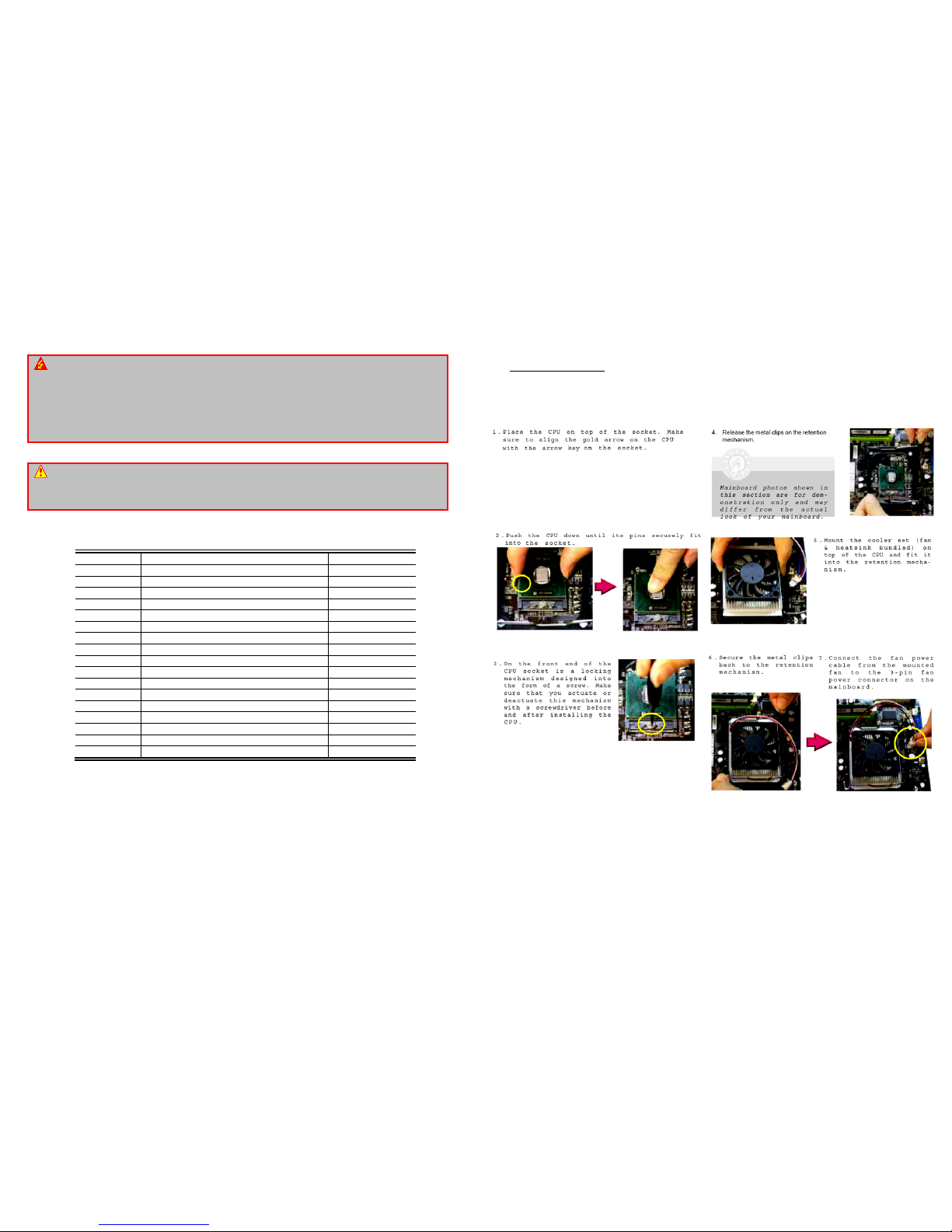

MX945GME
SATA & Power cable
COM Port
Cable
CPU Cooler
MX945GME
Intel® Core™ Solo/ Duo / Core™2 Duo / Pentium Dual-Core /
Celeron® M 4xx Socket M Processors Support
User’s Quick Start Card Version 1.05 http://www.bcmcom.com
Inspect the Package:
One MX945GME Motherboard
One CPU Cooler
One IDE Cable (44 to 40 Pins)
Two SATA & Power Cable
One COM Port Cable
One Parallel Port Cable
One Standard I/O Shield
One Driver CD/DVD
One User’s Quick Start Card
Responsibility:
This manual is provided “As-Is” with no warranties of any kind, expressed or implied, including, but not limited to the
implied warranties or conditions of this product’s fitness for any particular purpose. In no event shall we be liable for any
loss of profits, loss of business, loss of data, interruption of business, or indirect, special, incidental, or consequential
damages of any kind, even the possibility of such damages arising from any defect or error in this manual or product. We
reserve the right to modify and update the user manual without prior notice.
WARNING: CMOS Battery Damage
Replace your system’s CMOS RAM battery only with the identical CR-2032 3V Lithium-Ion coin cell (or equivalent) battery
type to avoid risk of personal injury or physical damage to your equipment. Improper installation might cause battery to
explode. Always dispose of used batteries according to the manufacturer’s instructions, or as required by the local
ordinance (where applicable). The damage due to not following this warning will void your motherboard’s manufacturer
warranty.
Perchlorate Material- Special Handling May Apply.
See http://www.dtsc.ca.gov/hazardouswaste/perchlorate/
Additional Information:
Additional information on setting this board up can be found in the User’s Manual in the provided CD or DVD ROM. The
Online User’s Manual and FAQ/Knowledge Base can be found on our website by visiting our website:
http://www.bcmcom.com. If your question is not answered in our FAQ/Knowledge Base, visit our forums and post your
messages or submit a new FAQ through FAQ Submittal form for us to add your question in our FAQ with our answer.
ATTENTION: Incorrect BIOS Setup
If you do not know how to handle BIOS setup or how to set it up properly, it is strongly advisable that you do not modify
any of the settings than otherwise instructed in the User’s Quick Start Card. Even a seemingly small incorrect adjustment
or modification in the BIOS setup can render your system unstable or unusable. Incorrect BIOS setup is not covered by
your motherboard’s manufacturer warranty. Try Clear CMOS information when system does not boot after BIOS settings
change.

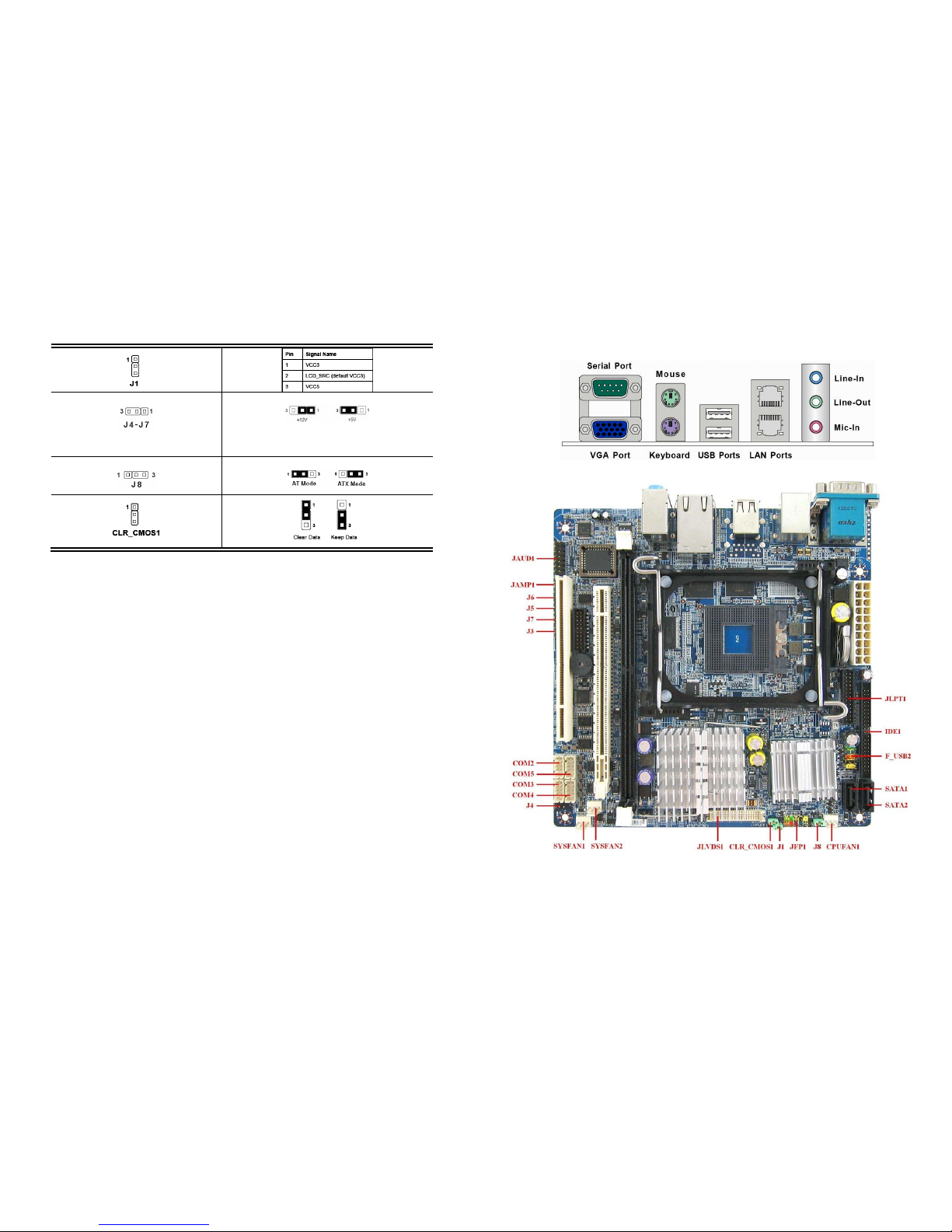

I/O Shield
MX945GME
Parallel Port
Cable
Chassis Intrusion (JCI1)
Pin Signal
1 Chassis
2 GND
Audio Amplifier (JAMP1)
Pin Signal
1 AMP_L2 AMP_L+
3 AMP_R4 AMP_R+
Front Audio (JAUD1)
Signal Pin Pin Signal
5V_SB 1 2 VCC3
SPDF0 3 4 NA
GND 5 6 SPDF1
LEF_OUT 7 8 SURR_OUT_R
CEN_OUT 9 10 SURR_OUT_L
AUD_GPIO21 11 12 AUDIO GND
SIDE_L 13 14 SIDE_R
Front Panel (JFP1)
Signal Pin Pin Signal
HD_LED+ 1 2 FP PWR/SLP
HD_LED- 3 4 FP PWR/SLP
RST_SW- 5 6 PWR_SW+
RST_SW 7 8 PWR_SWNC 9 10 [KEY]
Serial Port Connector for COM2-5
Signal Pin Pin Signal
NDCD 1 2 NSIN
NSOUT 3 4 NDTR
GND 5 6 NDSR
NRTS 7 8 NCTS
VCC_COM 9 10 [KEY]
Front USB (F_USB2)
Digital I/O (J3)
Signal Pin Pin Signal
VCC3 1 2 VCC5
N_GPIO10 3 4 N_GPIO20
N_GPIO11 5 6 N_GPIO21
N_GPIO12 7 8 N_GPIO22
N_GPIO13 9 10 N_GPIO23
N_GPIO14 11 12 N_GPIO24
N_GPIO15 13 14 N_GPIO25
N_GPIO16 15 16 N_GPIO26
N_GPIO17 17 18 N_GPIO27
GND 19 20 NC
LVDS Connector (JLVDS1)
Signal Pin Pin Signal
VCC 1 2 VCC
USB0- 3 4 USB1USB0+ 5 6 USB+
GND 7 8 GND
[Key] 9 10 USBOC
Signal Pin Pin Signal
+12V 2 1 +12V
+12V 4 3 +12V
GND 6 5 +12V
GND 8 7 +3V
LCDVCC 10 9 LCDVCC
DDC DATA 12 11 DDC CLK
VDD ENABLE 14 13 BKLTCTL
GND 16 15 BKLTEN
LVDS A0+ 18 17 LVDS A0LVDS A1+ 20 19 LVDS A1LVDS A2+ 22 21 LVDS A2-
LVDS ACLK+ 24 23 LVDS ACLK-
LVDS A3+ 26 25 LVDS A3-
GND 28 27 GND
LVDS B0+ 30 29 LVDS B0LVDS B1+ 32 31 LVDS B1LVDS B2+ 34 33 LVDS B2-
LVDS BCLK+ 36 35 LVDS BCLK-
LVDS B3+ 38 37 LVDS B3-
GND 40 39 GND
