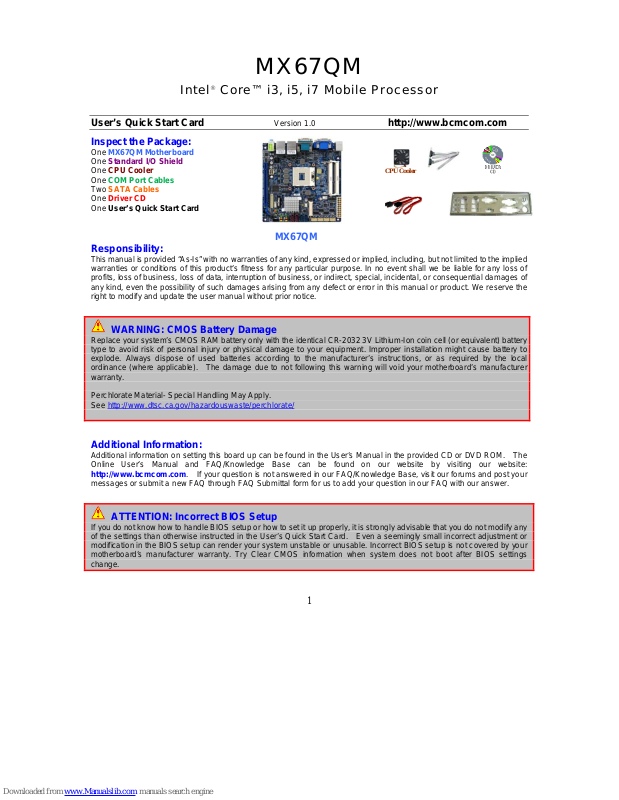

MX67QM
Intel® Core™ i3, i5, i7 Mobile Processor
User’s Quick Start Card Version 1.0 http://www.bcmcom.com

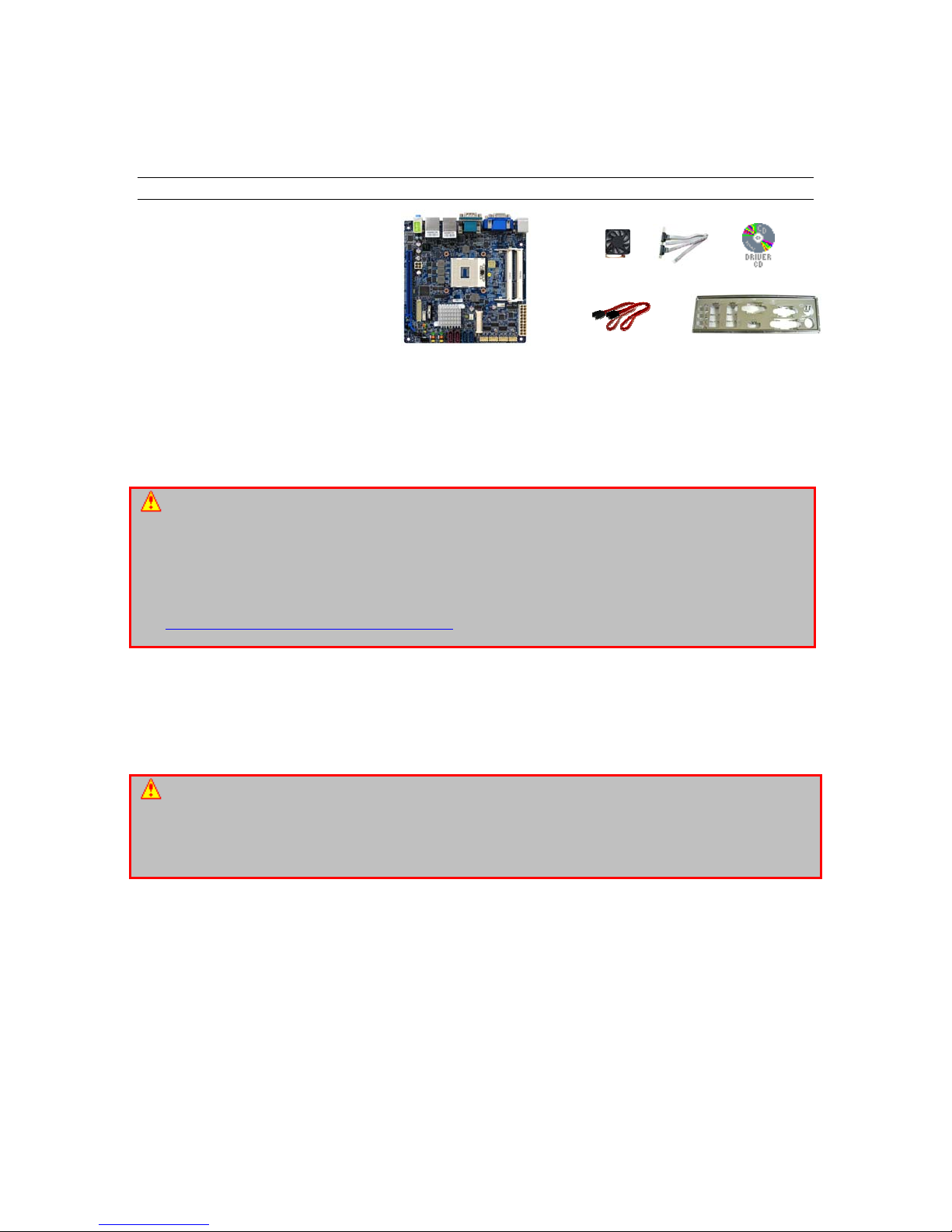

Inspect the Package:
One MX67QM Motherboard
One Standard I/O Shield
One CPU Cooler
One COM Port Cables
Two SATA Cables
One Driver CD
One User’s Quick Start Card
MX67QM
Responsibility:
This manual is provided “As-Is” with no warranties of any kind, expressed or implied, including, but not limited to the implied
warranties or conditions of this product’s fitness for any particular purpose. In no event shall we be liable for any lo ss of
profits, loss of business, loss of data, interruption of business, or indirect, special, incidental, or consequential damages of
any kind, even the possibility of such damages arising from any defect or error in this manual or product. We reserve the
right to modify and update the user manual without prior notice.
WARNING: CMOS Battery Damage
Replace your system’s CMOS RAM battery only with the identical CR-2032 3V Lithium-Ion coin cell (or equivalent) battery
type to avoid risk of personal injury or physical damage to your equipment. Improper installation might cause battery to
explode. Always dispose of used batteries according to the manufacturer’s instructions, or as required by the local
ordinance (where applicable). The damage due to not following this warning will void your motherboard’s manufacturer
warranty.
Perchlorate Material- Special Handling May Apply.
See http://www.dtsc.ca.gov/hazardouswaste/perchlorate/
Additional Information:
Additional information on setting this board up can be found in the User’s Manual in the provided CD or DVD ROM. The
Online User’s Manual and FAQ/Knowledge Base can be found on our website by visiting our website:
http://www.bcmcom.com. If your question is not answered in our FAQ/Knowledge Base, visit our forums and post your
messages or submit a new FAQ through FAQ Submittal form for us to add your question in our FAQ with our answer.
CPU Cooler
ATTENTION: Incorrect BIOS Setup
If you do not know how to handle BIOS setup or how to set it up properly, it is strongly advisable that you do not modify any
of the settings than otherwise instructed in the User’s Quick Start Card. Even a seemingly small incorrect adjustment or
modification in the BIOS setup can render your system unstable or unusable. Incorrect BIOS setup is not covered by your
motherboard’s manufacturer warranty. Try Clear CMOS information when system does not boot after BIOS settings
change.
1
WARNING: Electrostatic Sensitive Device (ESD)
Static electricity can easily damage your motherboard and will void your motherboard warranty. Keep the motherboard
and other system components in their anti-static packaging until you are ready to install them. Touch a grounded surface
before you remove any system component from its protective anti-static packaging. Unpacking and installation should be
done on a grounded, anti-static mat. The operator should be wearing an anti-static wristband, grounded at the same
points as the anti-static mat. During configuration and installation touch a grounded surface frequently to discharge any
static electrical charge that may have built up in your body. Avoid touching the components when handling the
motherboard or a peripheral card. Handle the motherboard and peripheral cards either by the edges or by the peripheral
card case-mounting bracket.
WARNING: Misplaced Jumper Damage
Incorrect jumpers and connectors settings may lead to damage to your motherboard and will void your motherboard
warranty. Please pay special attention to not connect these headers in the wrong direction. DO NOT change ANY jumpers
while the motherboard has power.
Jumpers
Label Function
JCMOS1 Clear CMOS Jumper
JAT1 AT/ATX Select Jumper
J1 COM port Power Jumper
JCMV2 COM port Power Jumper
J2 LVDS power jumper
2
Connectors & Headers
Label Function
ATX Power Connector ATX1
DC Power Connector: JPWR1
JCASE1 Chassis Intrusion Pin header:
SATA1 Serial ATA Connector
SATA2 Serial ATA Connector
SATA3 Serial ATA Connector
SATA4 Serial ATA Connector
JAMP1 Audio Amplifier Pin header:
CPUFAN1 Fan Power Connector:
SYSFAN1 Fan Power Connector:
JGPIO1 GPIO Pin header:
JFP1 Front Panel Pin header:
JUSB1 Front USB Pin header:
JUSB2 Front USB Pin header:
COM2 Serial Port Connector
COM3 Serial Port Connector
COM4 Serial Port Connector
COM5 Serial Port Connector
JINV1 LVDS Inverter Connector:
JLVDS1 LVDS Connector:
JSPDI1 S/PDIF Pin header:
JAUD1 Front Audio Pin header:
JDP1 Port 80 Pin header:
3

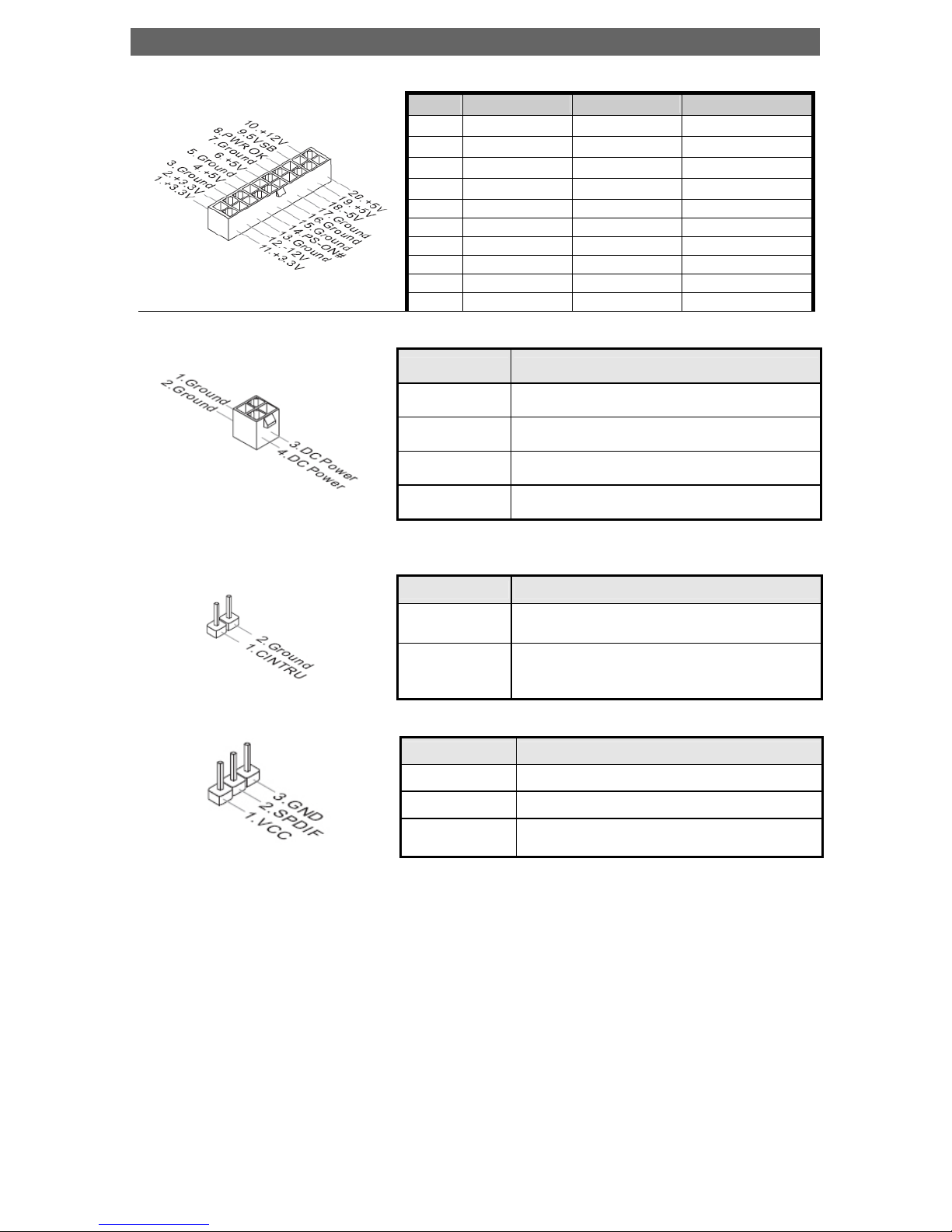

Internal Connector Pin Assignment
ATX Power Connector
Pin
1
2
3
4
5 GND GND 15
6 +5V GND 16
7 GND GND 17
DC Power Connector
8 PWR OK -5V 18
9 5VSB +5V 19
10 +12V +5V 20
Pin Signal
Signal Name Signal Name
+3.3V +3.3V
+3.3V +12V
GND GND
+5V PS-ON#
Pin
11
12
13
14
1 GND
2 GND
3 DC Power
JCASE1
JSPDI1
4 DC Power
Pin Signal
1 CINTRU
2 GND
Pin Signal
1 VCC
2 SPDIF
3 GND
4

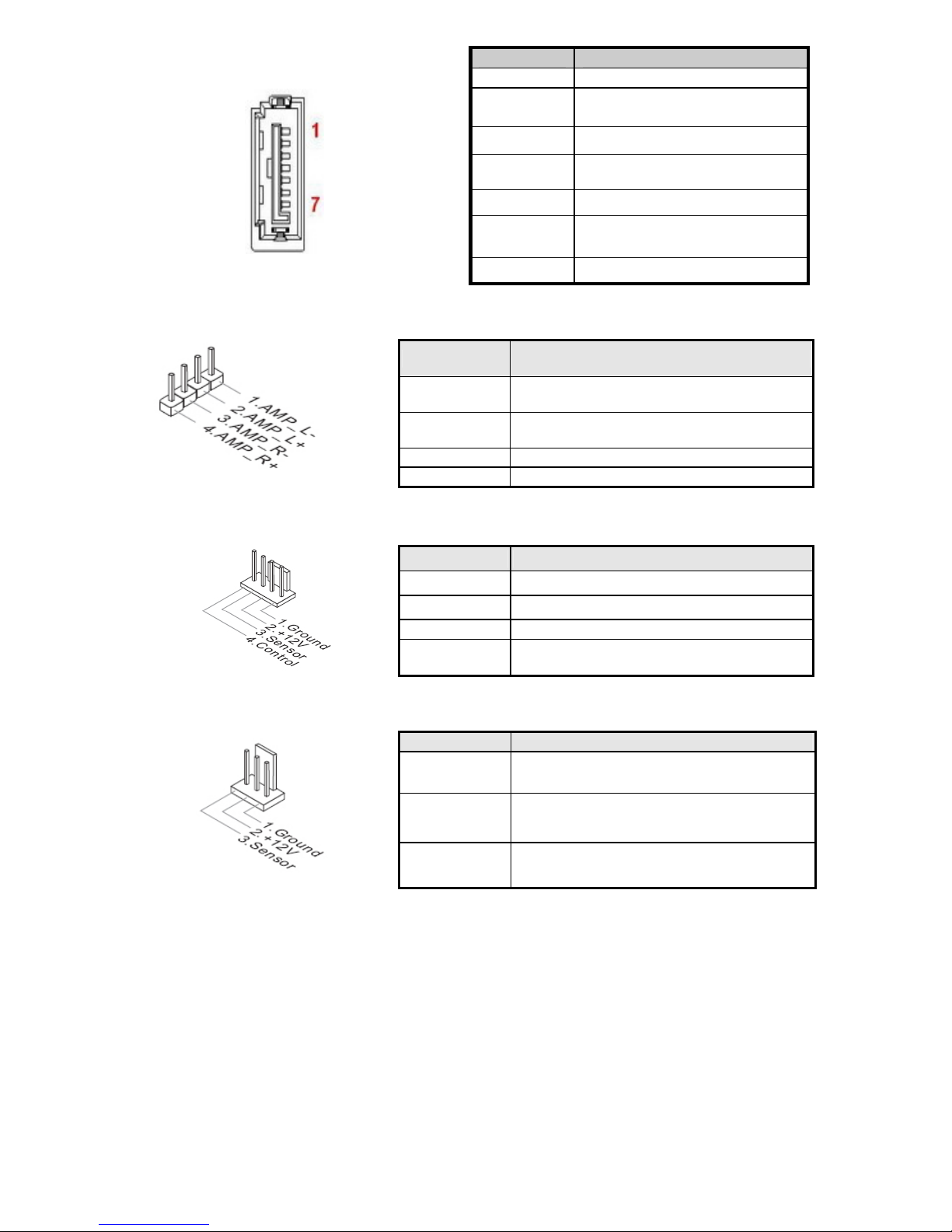

SATA1, SATA2, SATA3, SATA4
Pin Signal Name
1 GND
2 TX+
3 TX4 GND
5 RX-
6 RX+
7 GND
JAMP1
Pin Signal
1 AMP_L2 AMP_L+
3 AMP_R4 AMP_R+
CPUFAN1
Pin Signal
1 GND
2 12V
3 Sensor
SYSFAN1
4 Control
Pin Signal
1 GND
2 +12V
3 Sensor
5

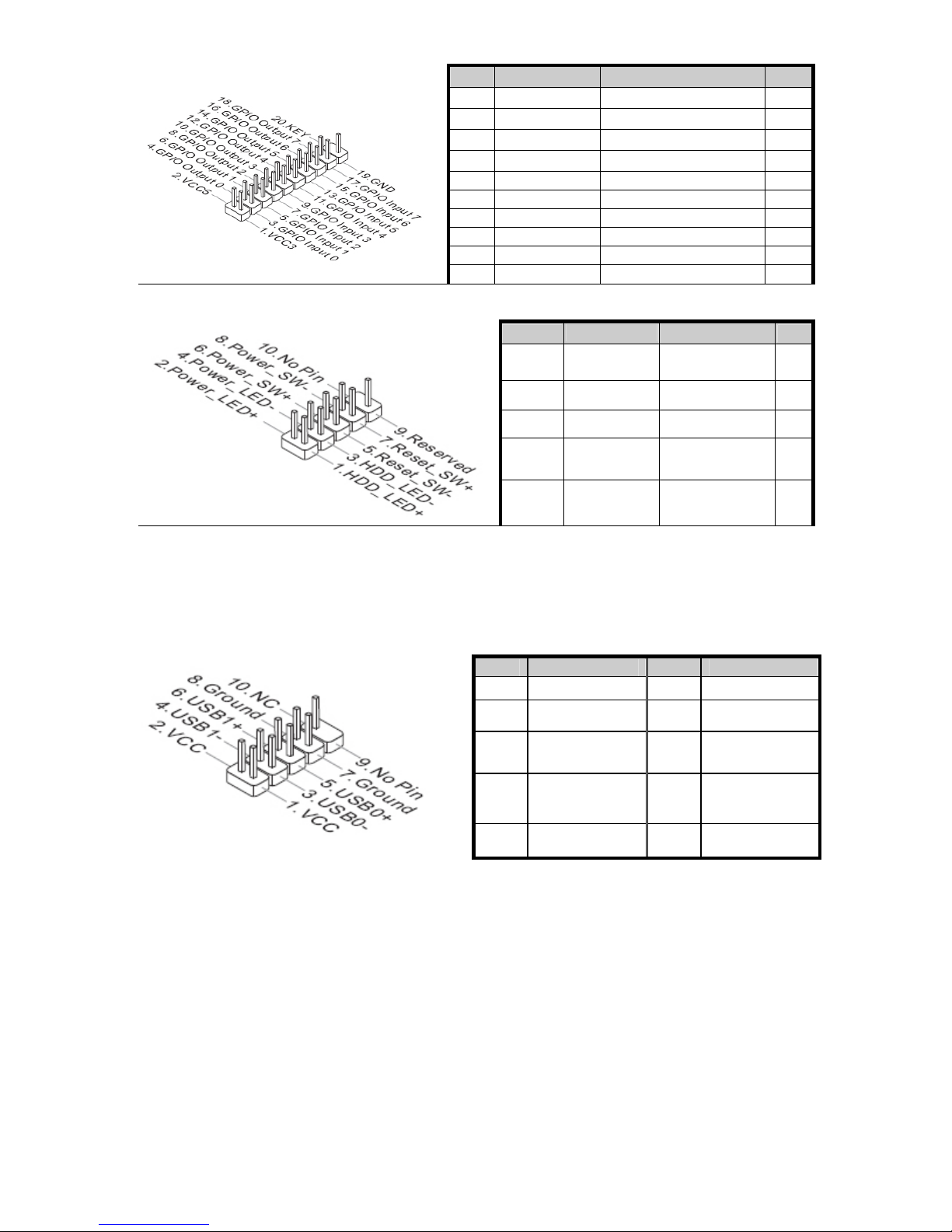

JGPIO1
JFP1
Signal Name Signal Name
Pin
1
3
5
6
VCC3 VCC5
GPIO INPUT0 GPIO OUTPUT0
GPIO INPUT1 GPIO OUTPUT1
GPIO INPUT2 GPIO OUTPUT2
Pin
2
4
6
8
9 GPIO INPUT3 GPIO OUTPUT3 10
11 GPIO INPUT4 GPIO OUTPUT4 12
13 GPIO INPUT5 GPIO OUTPUT5 14
15 GPIO INPUT6 GPIO OUTPUT6 16
17 GPIO INPUT7 GPIO OUTPUT7 18
19 GND KEY 20
Pin
1
3
5
7
ignal Name Signal Name
HDD_LED+ Power_LED+
HDD_LED- Power_LED-
RESET_SW- Power_SW+
ESET_SW+ Power_SW-
Pin
2
4
6
8
JUSB1, JUSB2
9
Reserved No Pin
Pin Signal Name Pin Signal Name
1 VCC 2 VCC
3 USB0- 4 USB1-
5 USB0+ 6 USB1+
7 GND 8 GND
9 No Pin 10 NC
6
10

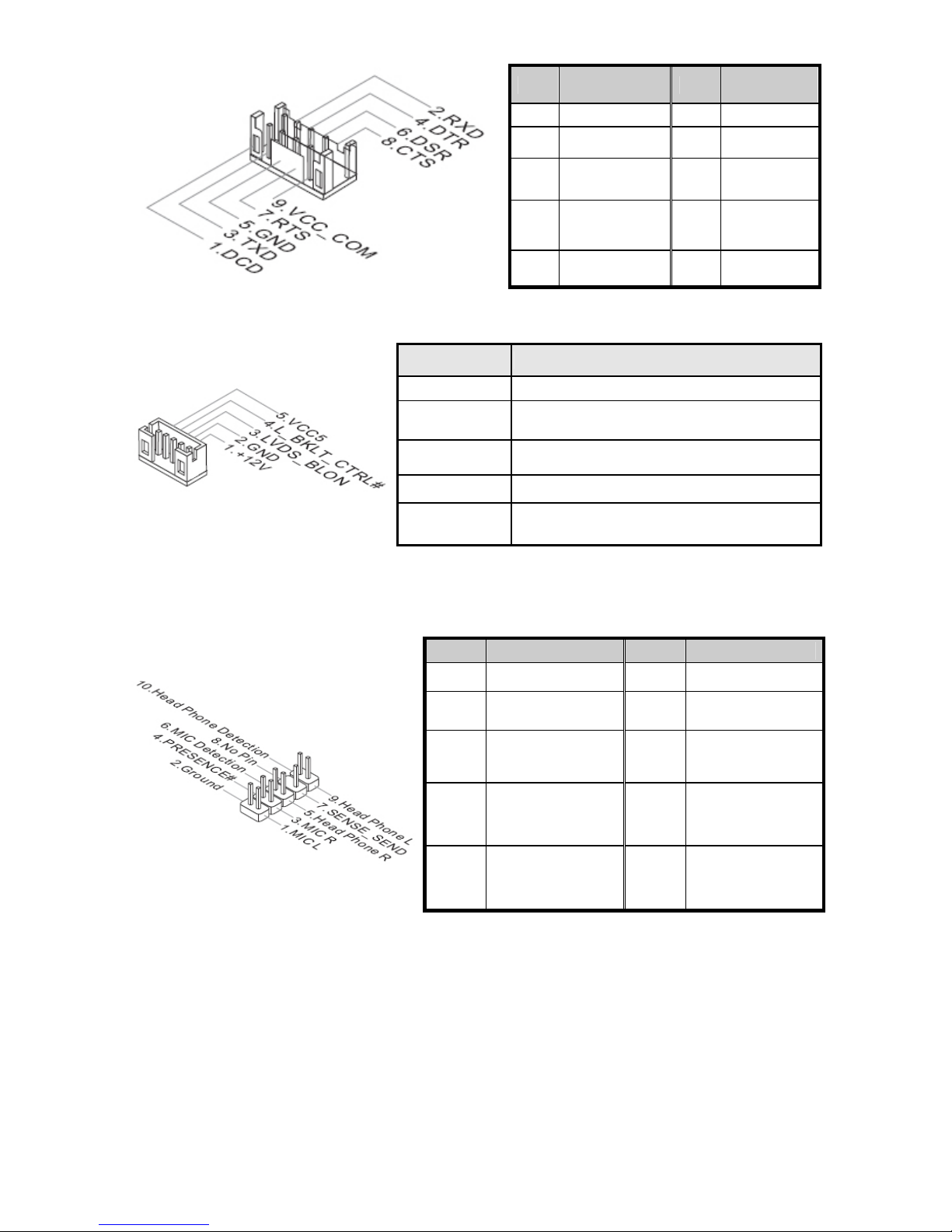

COM2, COM3, COM4, COM5
JINV1
Pin Signal Name Pin
Signal
Name
1 DCD 2 RXD
3 TXT 4 DTR
5 GND 6 DSR
7 RTS 8 CTS
9 VCC_COM
Pin Signal
1 +12V
2 GND
3 LVDS_BLON
JAUD1
4 L_BKLT+CTRL#
5 VCC5
Pin Signal Name Pin Signal Name
1 MIC L 2 GND
3 MIC R 4 PRESENCE #
5 HEAD PHONE R 6
MIC
DETECTION
7 SENSE_SEND 8 NO PIN
9 HEAD PHONE L 10
HEAD PHONE
DETECTION
7

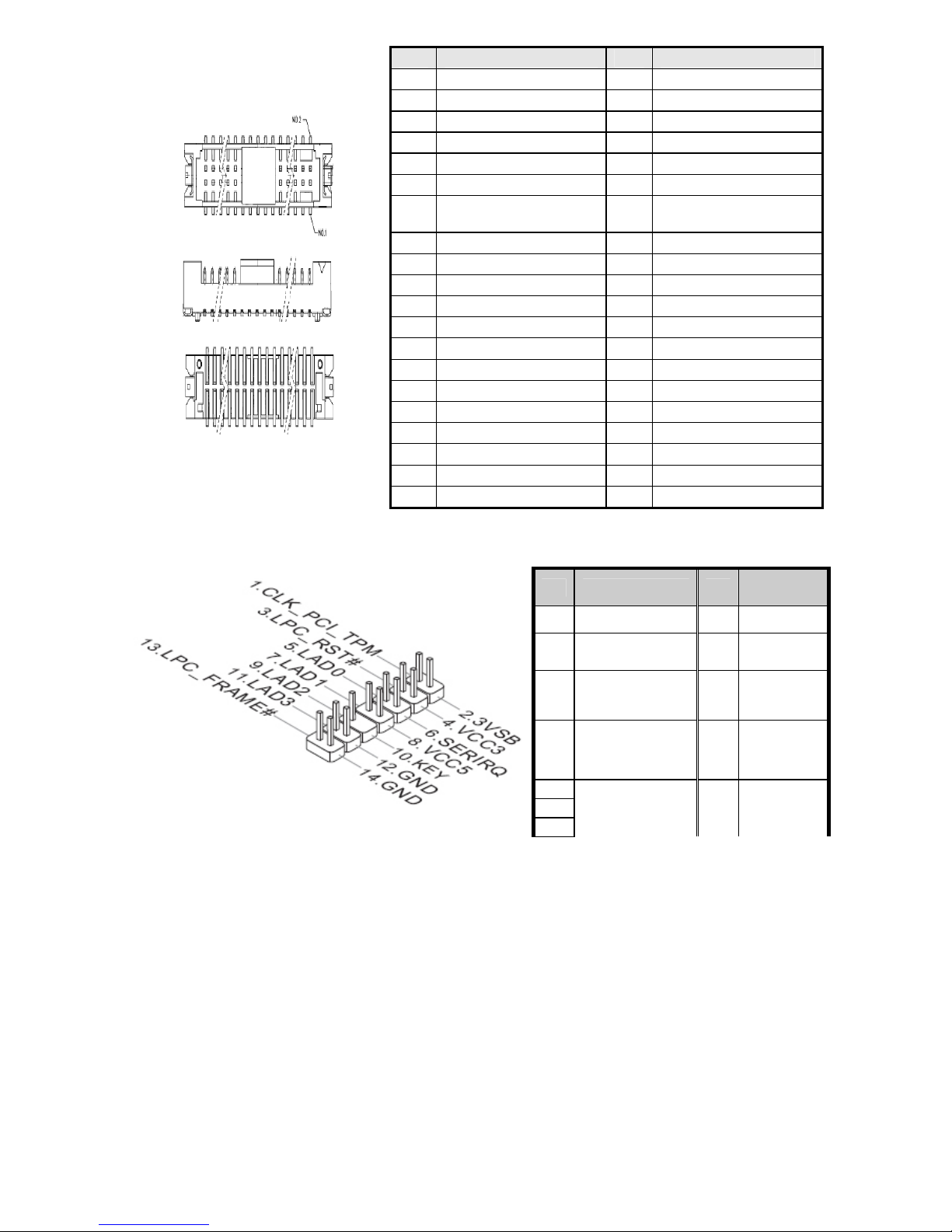

JLVDS1
JDP1
Pin Signal Name Pin Signal Name
1 +12V 2 +12V
3 +12V 4 +12V
5 +12V 6 GND
7 +3.3V 8 GND
9 LCD_VDD 10 LCD_VDD
11 LDDC_CLK 12 LDDC_DATA
13
15 BACKLIGHT ENABLE 16 GND
17 LVDS1_DATA0 N 18 LVDS1_DATA0 P
19 LVDS1_DATA1 N 20 LVDS1_DATA1 P
21 LVDS1_DATA2 N 22 LVDS1_DATA2 P
23 LVDS1_CK N 24 LVDS1_CK P
25 LVDS1_DATA3 N 26 LVDS1_DATA3 P
27 GND 28 GND
29 LVDS2_DATA0 N 30 LVDS2_DATA0 P
31 LVDS2_DATA1 N 32 LVDS2_DATA1 P
33 LVDS2_DATA2 N 34 LVDS2_DATA2 P
35 LVDS2_CK N 36 LVDS2_CK p
37 LVDS2_DATA3 N 38 LVDS2_DATA3 P
39 GND 40 GND
BACKLIGHT
CONTROL
Pin Signal Name Pin
1 CLK_PCI_TPM 2 3VSB
14 LVDS_VDDEN
Signal
Name
3 LPC_RST# 4 VCC3
5 LAD0 6 SERIRQ
7 LAD1 8 VCC5
9 LAD2 10 KEY
11 LAD3 12 GND
13 LPC_FRAME# 14 GND
8

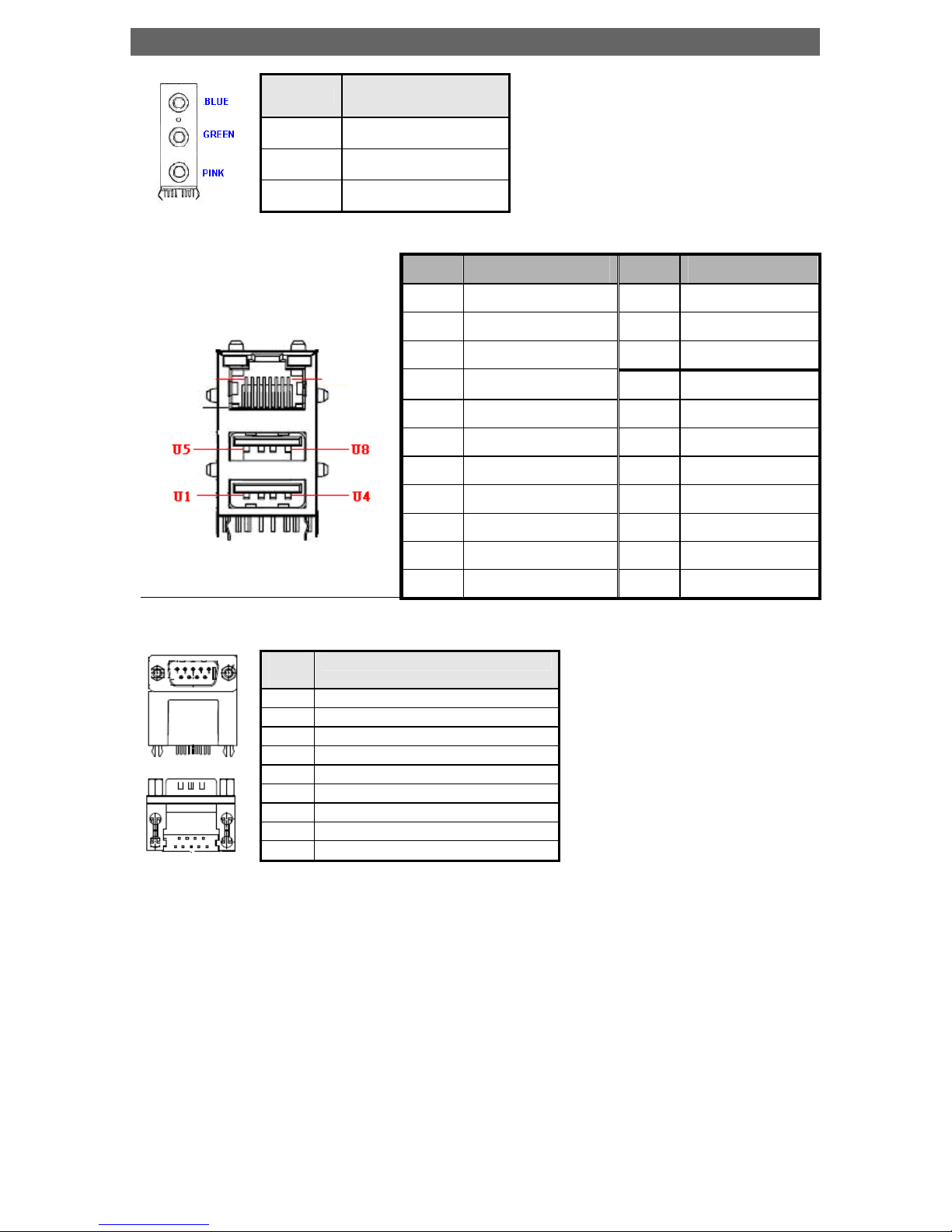

Rear Panel Connector List
AUDIO1 Audio Phone Jack
BLUE LINE IN
GREEN LINE OUT
PINK MIC IN
Signal Name
LAN1, LAN2 RJ-45 + USB Port-0&1 Connector
Pin Signal Pin Signal
1 VCC 12 Yellow LED
2 D0+ 13 Green LED#
3 D0- 14 Orange LED#
4 D1+ U1 USB_PWR
5 D1- U2 USB_N0
6 D2+ U3 USB_P0
7 D2- U4 GND
8 D3+ U5 USB_PWR
9 D3- U6 USB_N1
COM1 RS-232 DB-9 Connector
Pin
1 DCD, Data carrier detect
2 RXD, Receive data
3 TXD, Transmit data
4 DTR, Data terminal ready
5 GND, ground
6 DSR, Data set ready
7 RTS, Request to send
8 CTS, Clear to send
9 RI, Ring indicator
10 GND U7 USB_P1
11 Yellow LED# U8 GND
Signal
9

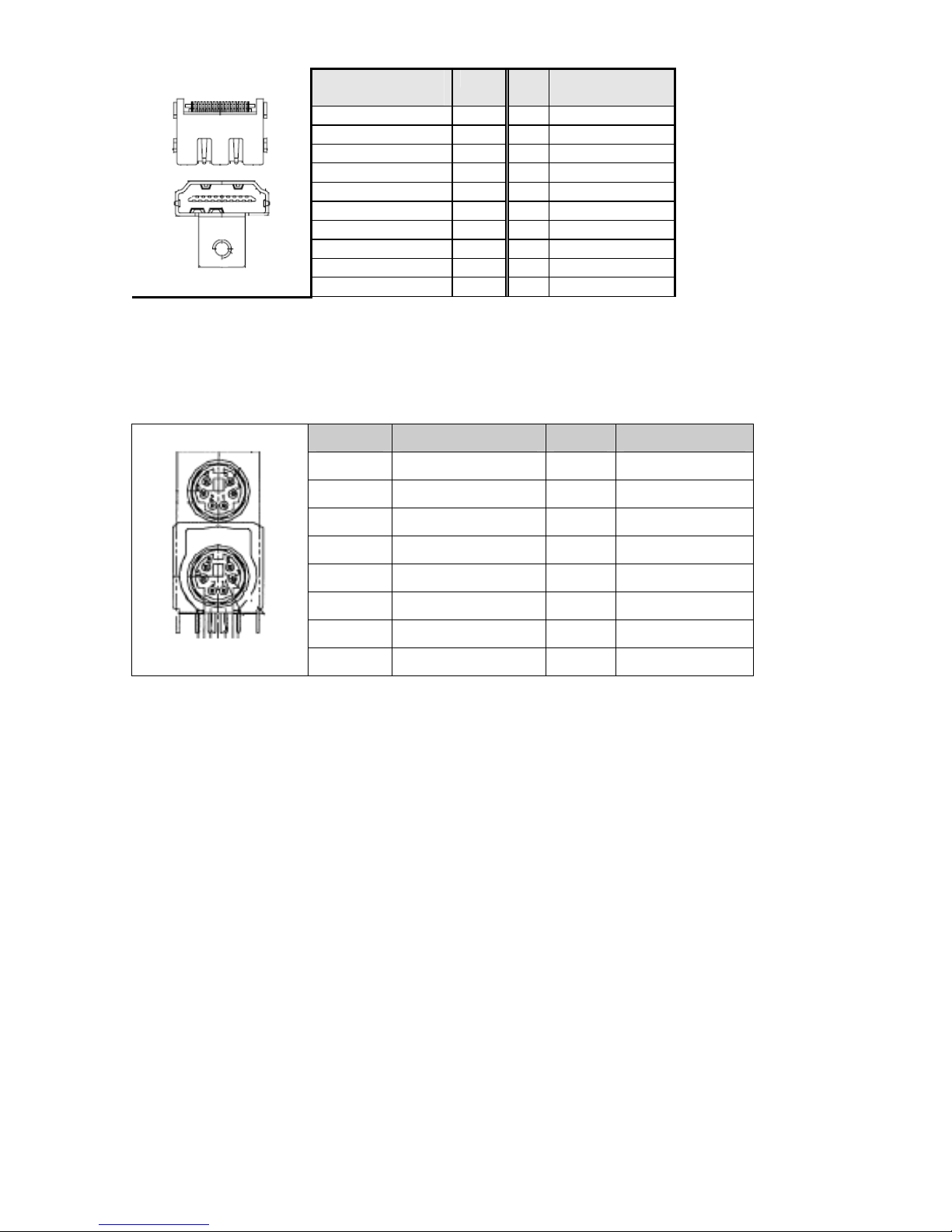

Hdmi1 Connector
PS-KBMS1 Internal PS/2 Keyboard & Mouse
Signal Name
TMD_DATA2+ 1 2 GND
TMD_DATA2- 3 4 TMD_DATA1+
GND 5 6 TMD_DATA1-
TMD_DATA0+ 7 8 GND
TMD_DATA0- 9 10 HDMI_TCLP
GND 11 12 HDMI_TCLN
NC 13 14 NC
DDC_CLK 15 16 DDC_DATA
GND 17 18 +5V
HPDET 19
Pin Signal Name Pin Signal Name
1 KB_DATA 2 NC
3 GND 4 KB_PWR
Pin Pin Signal Name
5 KB_CLK 6 NC
7 MS_DATA 8 NC
9 GND 10 KB_PWR
11 MS_CLK 12 NC
13 GND 14 GND
15 GND 16 GND
10
Jumper Settings
JCMOS1
1
2
3
JAT1 : AT/ATX SELECT JUMPER
1
2
3
J1 : COM PORT POWER JUMPER
1
2
3
JCMV2 : COM PORT POWER JUMPER
Jumper Status
1-2 (Default) CLEAR CMOS
2-3 KEEP CMOS
Jumper Status
1-2 (Default) AT POWER
2-3 ATX POWER
Jumper Status
1-2 (Default) 5V
2-3 12V
1
2
3
J2 : LVDS POWER
1
2
3
Jumper Status
1-2 (Default) 12V
2-3 5V
Jumper Status
1-2 (Default) 3.3V
2-3 5V
11

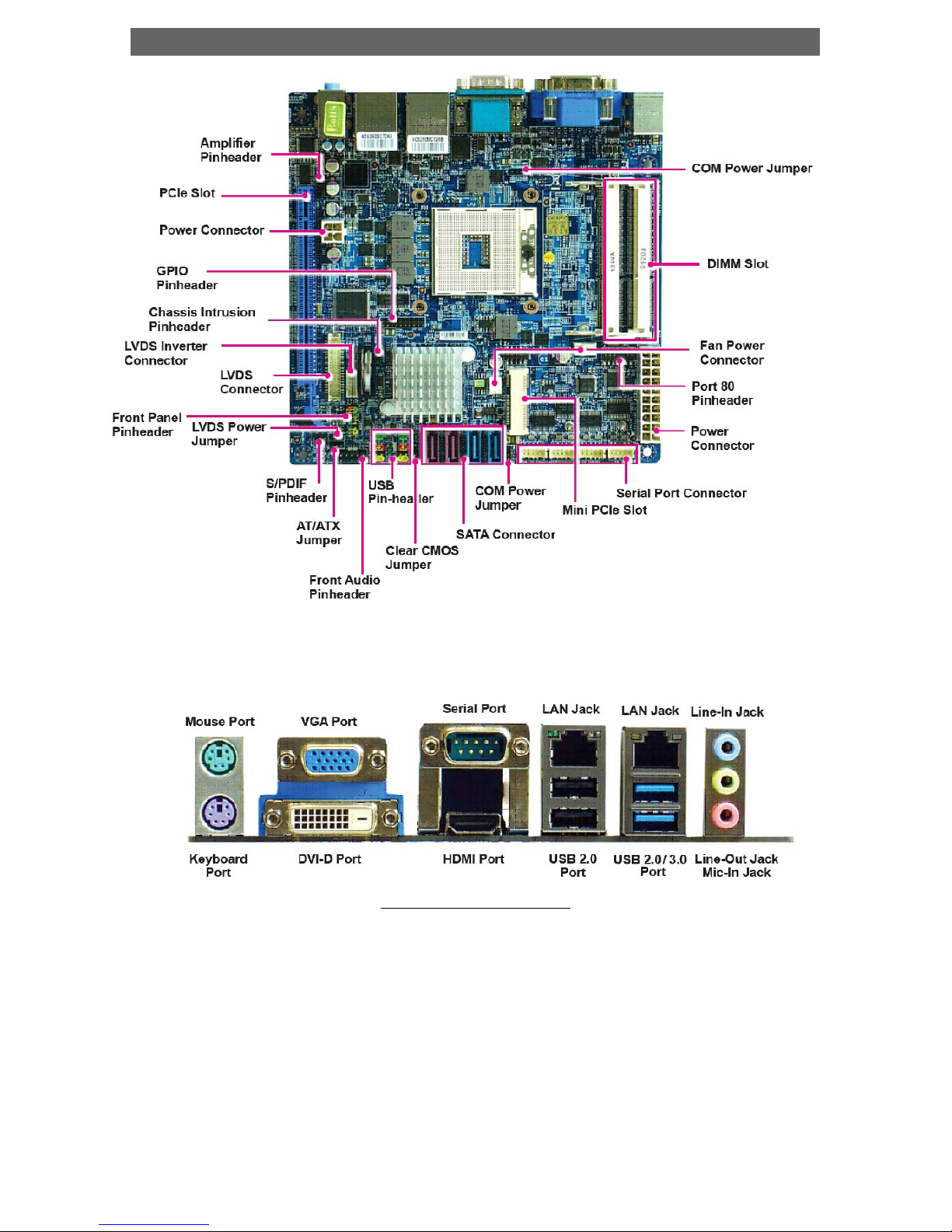

Motherboard Layout:
Note: USB 3.0 port is optional
12

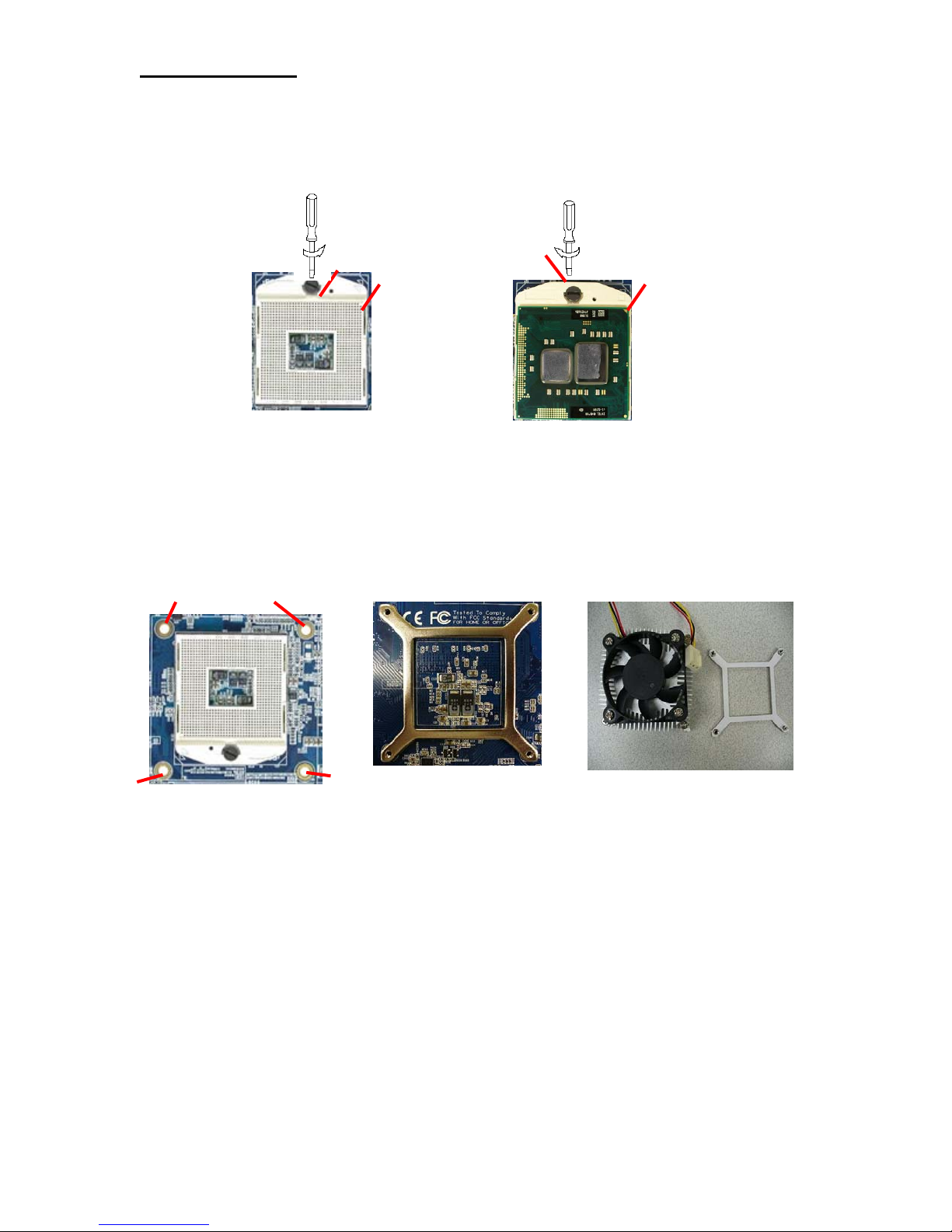

CPU Installation
This processor is intended to be professionally installed. Take proper electrostatics discharge (ESD)
precautions such as using appropriate ground strips, gloves, and ESD mats.
Insert CPU into CPU socket and turn the screw to the lock position.
Note: Do not force the CPU into the socket. It may bend the pins and damage the CPU.
Installing the CPU Cooler
-Insert the retention bracket through the screw hole from bottom side of motherboard.
-Match and place CPU cooler assembly on the top of CPU and retention bracket.
-Tighten the screws into the retention bracket.
Screw holes Retention bracket CPU cooler & Retention bracket
(rear side)
Note: Make sure CPU cooler assembly and CPU top surface are in total contact to avoid CPU
overheating problem which would cause the system to hang or unstable.
Unlock
Lock
Pin 1 of the
socket
Gold triangular
mark
13
