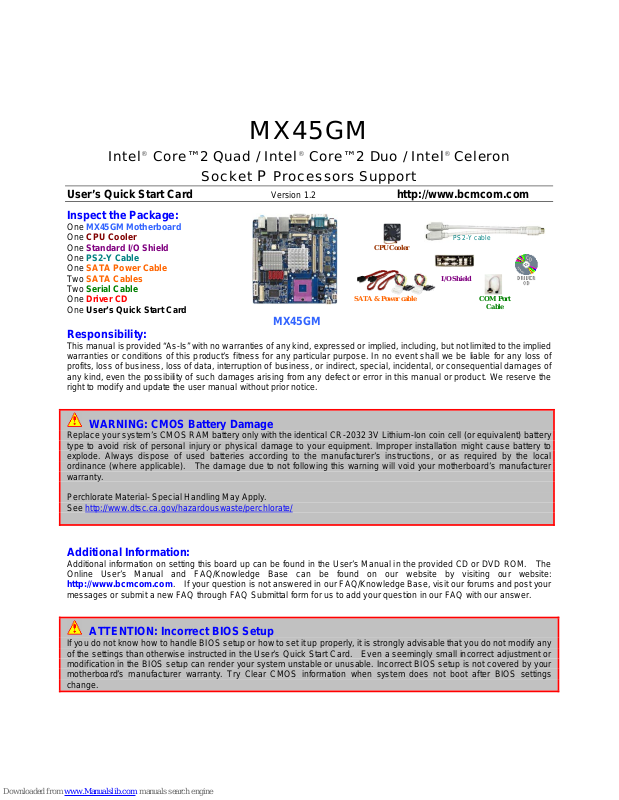

Page 1
COM Port
Cable
SATA & Power cable
CPU Cooler
MX45GM
Intel® Core™2 Quad / Intel® Core™2 Duo / Intel® Celeron
Socket
P Processors Support
User’s Quick Start Card Version 1.2 http://www.bcmcom.com

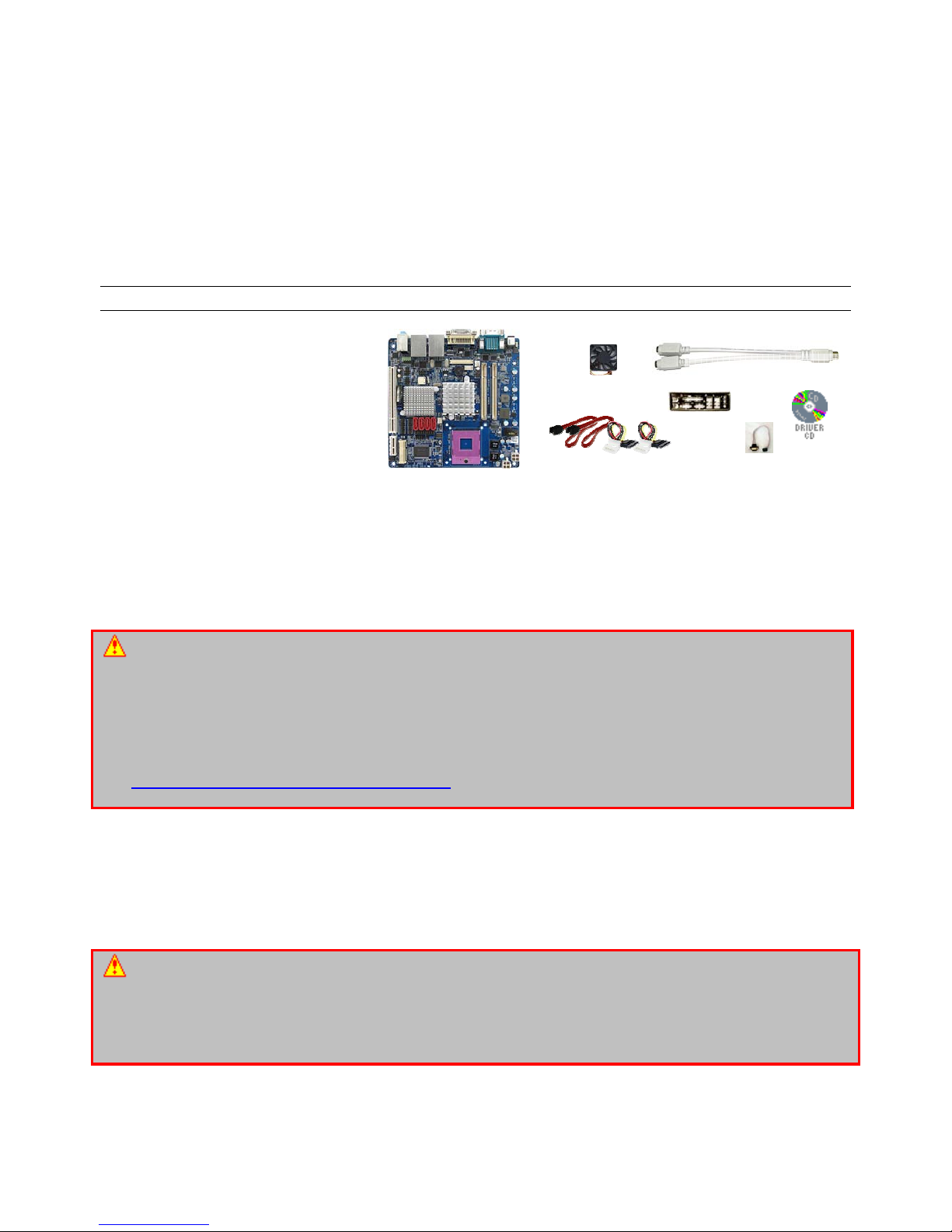

Inspect the Package:
One MX45GM Motherboard
One CPU Cooler
One Standard I/O Shield
One PS2-Y Cable
One SATA Power Cable
Two SATA Cables
Two Serial Cable
One Driver CD
One User’s Quick Start Card
MX45GM
Responsibility:
This manual is provided “As-Is” with no warranties of any kind, expressed or implied, including, but not limited to the implied
warranties or conditions of this product’s fitness fo r any particular purpose. In no event shall we be liable for any loss of
profits, loss of business, loss of data, interruption of business, or indirect, special, incidental, or consequential damag es of
any kind, even the possibility of such damage s arising from any defect or error in this manual or product. We reserv e the
right to modify and update the user manual without prior notice.
WARNING: CMOS Battery Damage
Replace your system’s CMOS RAM battery only with the identical CR-2032 3V Lithium-Ion coin cell (or equivalent) battery
type to avoid risk of personal injury or physical damage to your equipment. Improper installation might cause battery to
explode. Always dispose of used batteries according to the manufacturer’s instructions, or as required by the local
ordinance (where applicable). The damage d ue to not following this warning will void your motherboard’s manufacturer
warranty.
Perchlorate Material- Special Handling May Apply.
See http://www.dtsc.ca.gov/hazardouswaste/perchlorate/
Additional Information:
Additional information on setting this board up can be found i n the User’s Man ual in the provid ed CD or DVD ROM. The
Online User’s Manual and FAQ/Knowledge Base can be found on our website by visiting our website:
http://www.bcmcom.com. If you r questio n is not an swered i n our FAQ/Kn o wledge Base, v isit o ur forums and pos t you r
messages or submit a new FAQ through FAQ Submittal form for us to add your question in our FAQ with ou r answer.
ATTENTION: Incorrect BIOS Setup
If you do not know how to handle BIOS setup or how to set it up properly , it is stron gly advisa ble that you do not modif y any
of the settings than otherwise instructed in the Use r’s Quick Start Card. Even a seemingly small incorrect adjustme nt or
modification in the BIOS setup can render your system unstable or unusable. Incorrect BIOS setup is not covered by your
motherboard’s manufacturer warranty. Try Clear CMOS information when system does not boot after BIOS settings
change.
I/O Shield
PS2-Y cable
Page 2
WARNING: Electrostatic Sensitive Device (ESD)
Static electricity can easily damage your motherb oard and will void your motherboard warran ty. Keep the motherboard
and other system components in their anti-static packaging until you are re ady to install them. Touch a grounded surface
before you remove any system component from its protective anti-s tatic packaging. Unpacking and installation should be
done on a grounded, anti-static mat. The operator should be wearing an anti-static wristband, grounded at the same
points as the anti-static mat. During configuration a nd installation touch a grounde d surface frequently to dis charge any
static electrical charge that may have built up in your body. Avoid touching the components when handling the
motherboard or a peripheral card . Handle the motherboa rd and peri pheral card s ei ther b y the edge s or b y the peri ph eral
card case-mounting bracket.
WARNING: Misplaced Jumper Damage
Incorrect jumpers and connectors settings may lead to damage to your motherboard and will void your motherboard
warranty. Please pay special attention to not connect these headers in the wrong direction. DO NOT change ANY jumpers
while the motherboard has power.
Connectors & Headers
• Front panel audio (AAFP1)
Signal Pin Pin Signal
MIC2_L 1 2 AGND
MIC2_R 3 4 FP_PRES#
LIN2_R 5 6 SRTN1
SENSE_B 7 8 [KEY]
LIN2_L 9 10 SRTN2
• Audio Amplifier (JAMP1)
Pin Signal
1 AMP_L2 AMP_L+
3 AMP_R4 AMP_R+
• Digital Audio ( SPDI F_ O UT )
Pin Signal
1 +5V
2 [KEY]
3 SPDIF_O
4 GND
Page 3

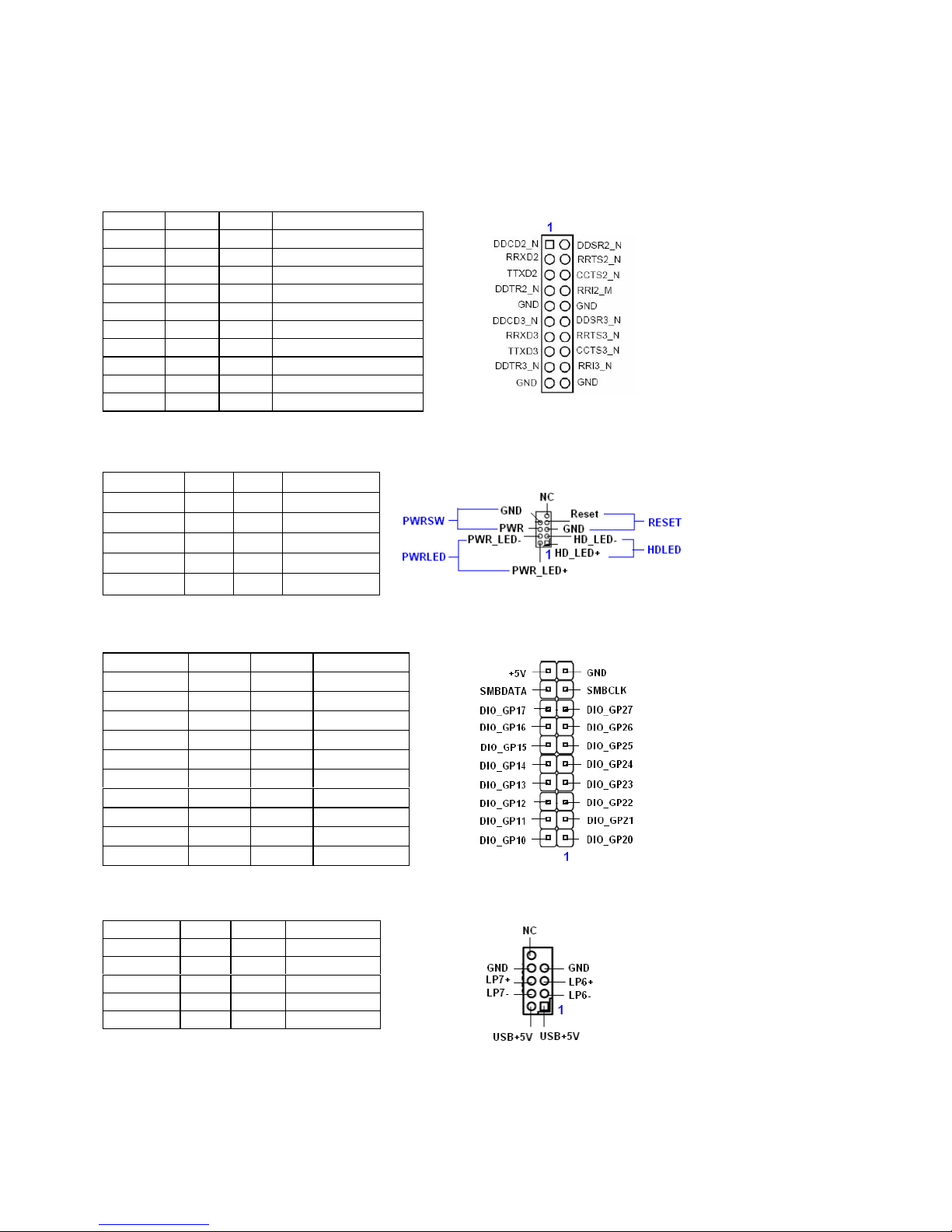

• Serial Port (COM2, COM3, COM4, COM5)
Signal Pin Pin Signal
DCD# 1 2 DSR#
RXD 3 4 RTS#
TXD 5 6 CTS#
DTR# 7 8 RI#(COM2 _PWR)
GND 9 10 GND
DCD# 11 12 DSR#
RXD 13 14 RTS#
TXD 15 16 CTS#
DTR# 17 18 RI#
GND 19 20 GND
• System Panel (F_PANEL1)
Signal Pin Pin Signal
HD_LED+ 1 2 PWR_LED+
HD_LED- 3 4 PWR_LED-
GND 5 6 PWR_BTN+
RST 7 8 PWR_BTN-
NC 9 10 [KEY]
• Digital IO (JDIO1)
Signal Pin Pin Signal
+5V 20 19 GND
SMBDATA 18 17 SMBCLK
DIO17 16 15 DIO27
DIO16 14 13 DIO26
DIO15 12 11 DIO25
DIO14 10 9 DIO24
DIO13 8 7 DIO23
DIO12 6 5 DIO22
DIO11 4 3 DIO21
DIO10 2 1 DIO20
• Front USB (USB1, USB2)
Signal Pin Pin Signal
NC 10 9 [KEY]
GND 8 7 GND
USB+ 6 5 USB+
USB- 4 3 USB-
USB+5V 2 1 USB+5V
Page 4

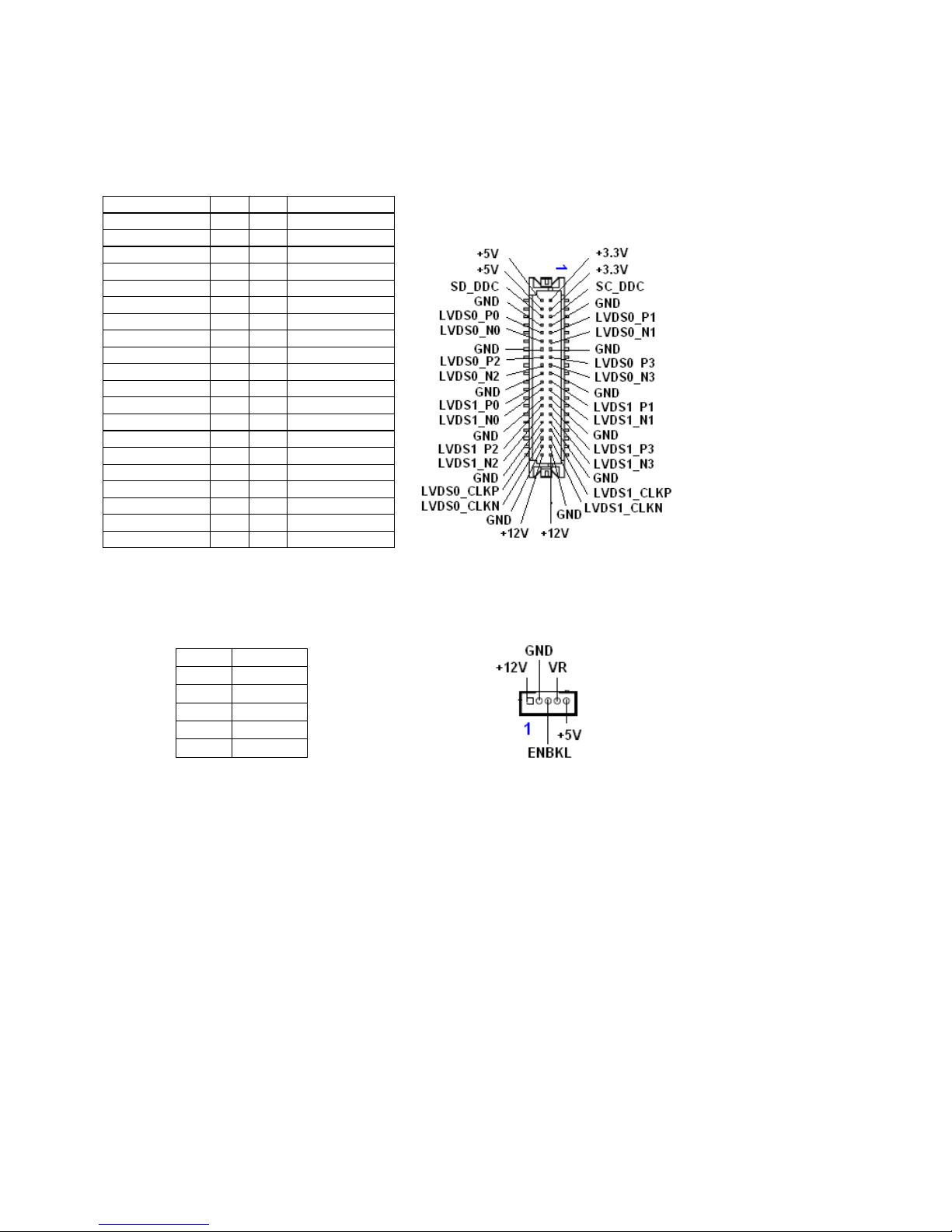

• LVDS (JLVDS1)
Signal Pin Pin Signal
+12V 39 40 +12V
GND 37 38 GND
LVDS1_CLKN 35 36 LVDS0_CLKN
LVDS1_CLKP 33 34 LVDS0_CLKP
GND 31 32 GND
LVDS1_N3 29 30 LVDS1_N2
LVDS1_P3 27 28 LVDS1_P2
GND 25 26 GND
LVDS1_N1 23 24 LVDS1_N1
LVDS1_P1 21 22 LVDS1_P0
GND 19 20 GND
LVDS0_N3 17 18 LVDS0_N2
LVDS0_P3 15 16 LVDS0_P2
GND 13 14 GND
LVDS0_N1 11 12 LVDS0_N0
LVDS0_P1 9 10 LVDS0_P0
GND 7 8 GND
SC_DDC 5 6 SD_DDC
+3.3V 3 4 +5V
+3.3V 1 2 +5V
• LCD Inverter (JBKL1)
Pin Signal
5 +5V
4 VR
3 ENBKL
2 GND
1 +12V
Page 5

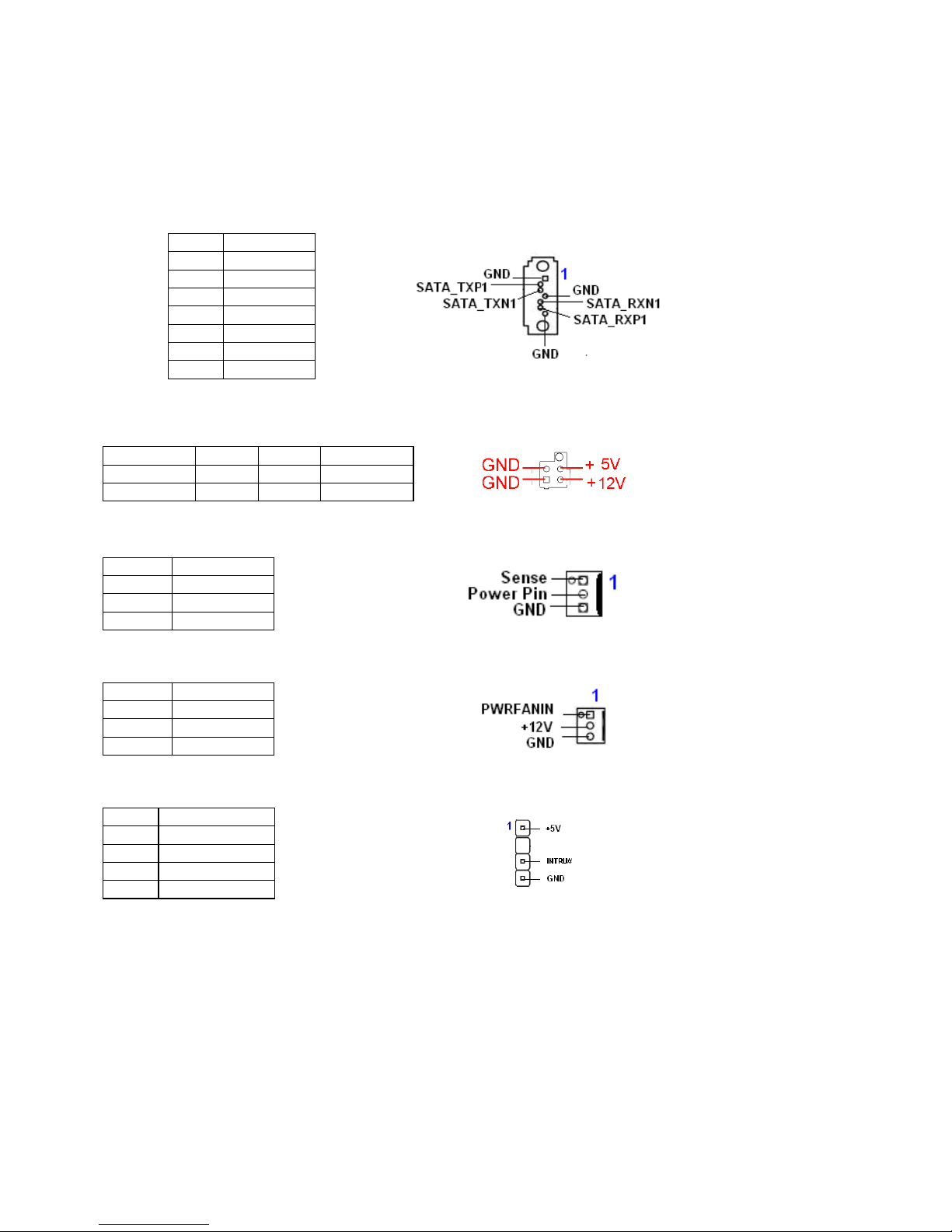

• Serial SATA (SATA1, SATA2, SATA3, SATA4)
Pin Signal
7 GND
6 SATA_RXN
5 SATA_RXP
4 GND
3 SATA_TXN
2 SATA_TXP
1 GND
• Serial SATA Power (SATA_POWER1, SATA_POWER2)
Signal Pin Pin Signal
GND 2 1 GND
+5V 4 3 +12V
• CPU Fan (CPU_FAN1)
Pin Signal
1 SENSE
2 POWER PIN
3 GND
• System Fan (SYS_FAN1)
Pin Signal
1 SENSE
2 POWER PIN
3 GND
•Chassis Intrusion (CHASSIS1)
Pin Signal
1 +5VSB
2 [KEY]
3 O_INTRUDER#
4 GND
Page 6

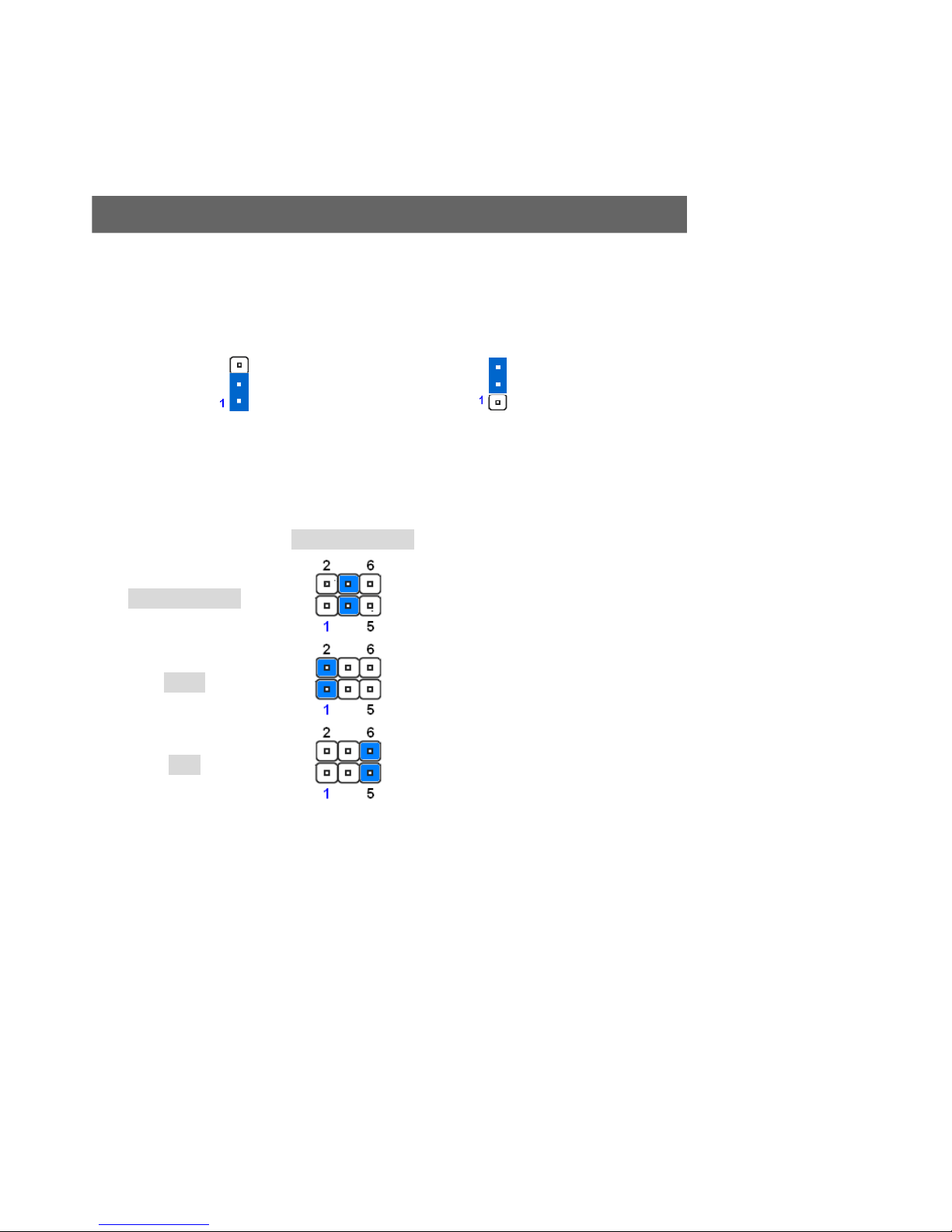

Jumpers
• Clear CMOS Jumper (CLRTC1)
Normal (Default)
Clear CMOS
• COM1, 2 RI/+5V/+12V Jumper (JCOMPWR2, 3)
JCOMPWR2,3
Ring (Default)
+12V
+5V
Page 7

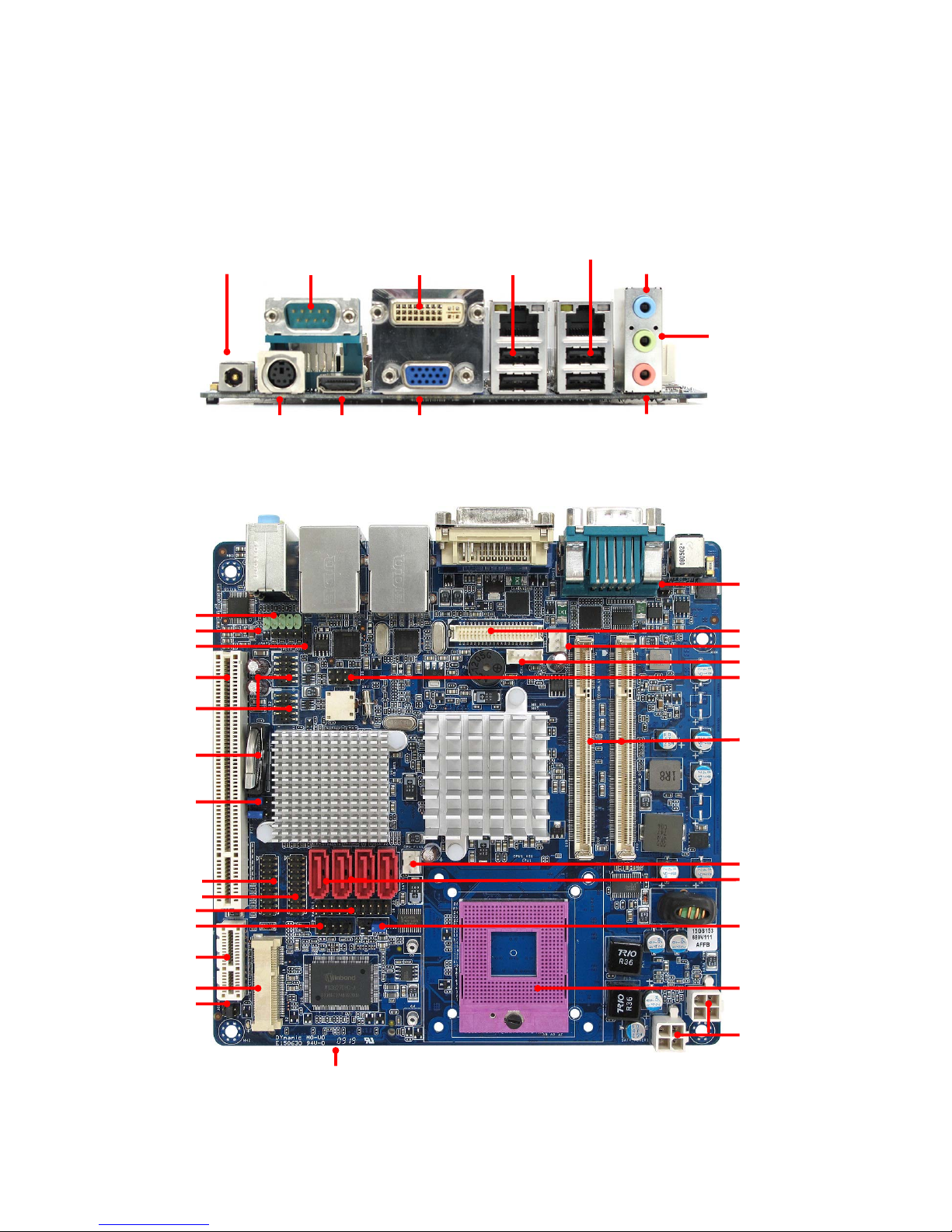

Motherboard Layout:
19V DC-IN COM1 DVI
LAN_USB2
LAN_USB1
PS2 KB/MS
HDMI VGA
LINE-IN
MIC
LINE-OUT
PCI 1
JAMP1
USB1, 2
BT1
CLRTC1
JDIO1
F_PANEL1
COM 4, 5
JPCIE X1
CF1 (BOTTOM SIDE)
CHASSIS1
SATA POWER1, 2
SATA1-4
SPI1
CPU SOCKET
SYS FAN1
CPU FAN1
JBKL1
JLVDS1
JCOMPWR3
SPDIF OUT
JCOMPWR2
SODIMM1, 2
AAFP1
MINI_PCIE1
COM 2, 3
Page 8

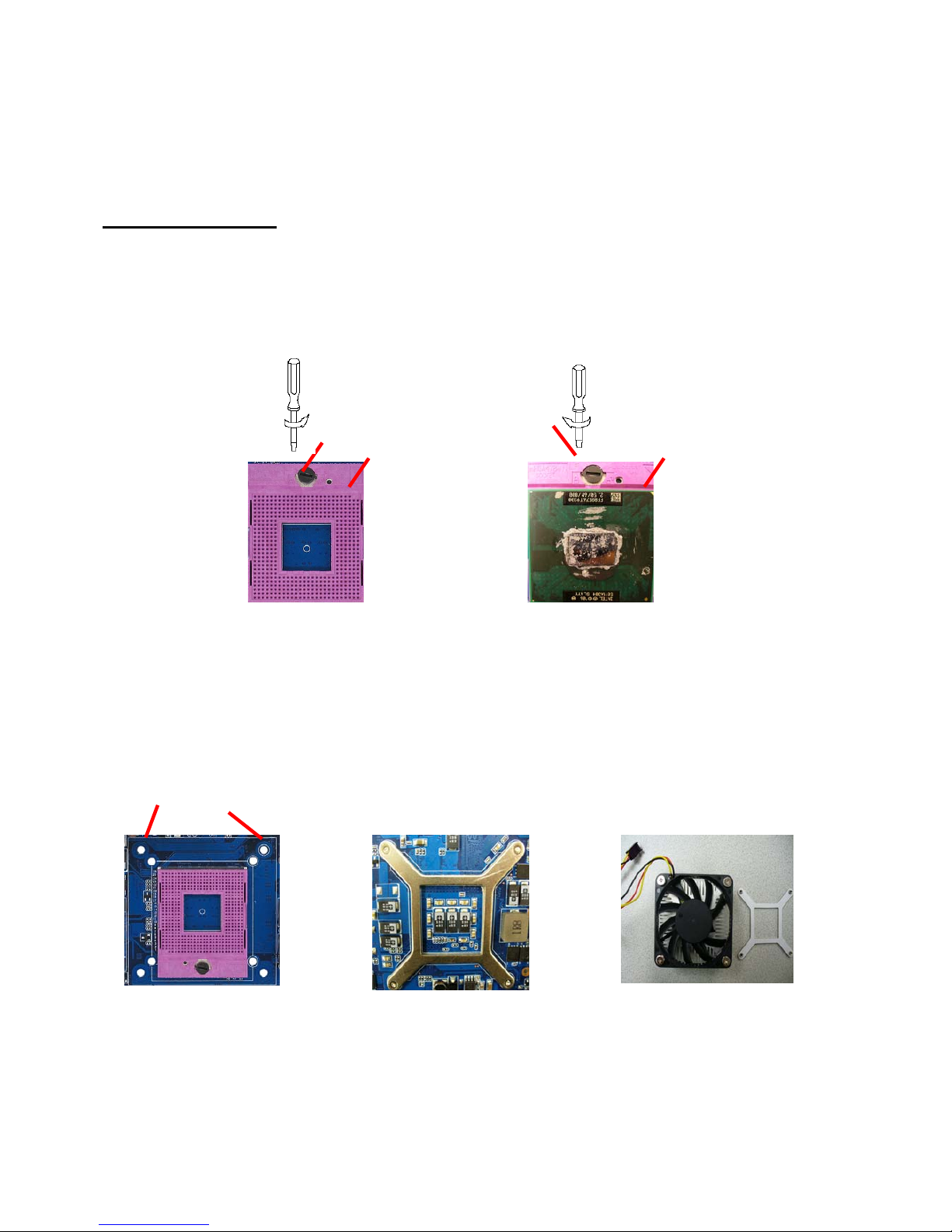

CPU Installation
This processor is intended to be professionally installed. Take proper electrostatics discharge (ESD)
precautions such as using appropriate ground strips, gloves, and ESD mats.
• Insert CPU into CPU socket and turn the screw to the lock position.
Note: Do not force the CPU into the socket. It may bend the pins and damage the CPU.
Installing the CPU Cooler
z -Insert the retention bracket through the screw hole from bottom side of motherboard.
-Match and place CPU cooler assembly on the top of CPU and retention bracket.
-Tighten the screws into the retention bracket.
Screw holes Retention bracket CPU cooler & Retention bracket
(rear side)
Note: Make sure CPU cooler assembly and CPU top surface are in total contact to avoid CPU
overheating problem which would cause the system to hang or unstable.
Unlock
Pin 1 of the
socket
Gold triangular
mark
Lock
