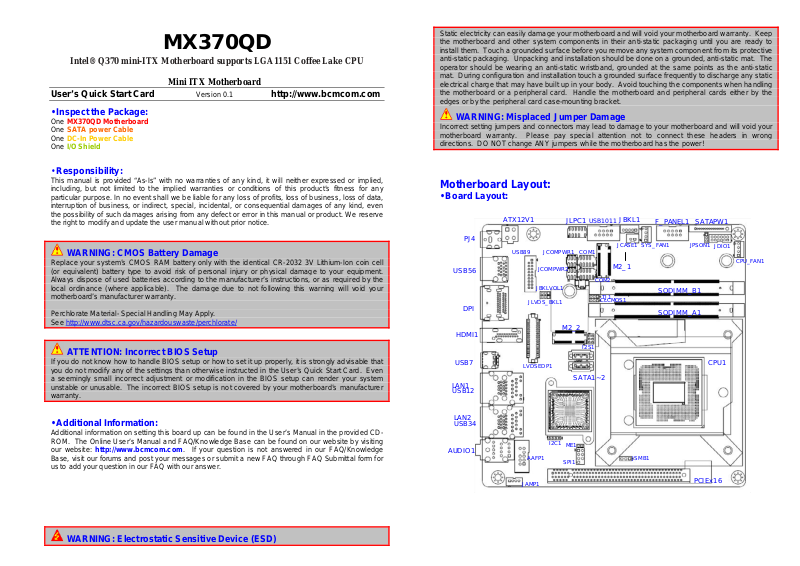

MX370QD
Intel® Q370 mini-ITX Motherboard supports LGA1151 Coffee Lake CPU
Mini ITX Motherboard
User’s Quick Start Card
• Inspect the Package:
One MX370QD Motherboard
One SATA power Cable
One
DC-In Power Cable
One I/O Shield
• Responsibility:
This manual is provided “As-Is” with no warranties of any kind, it will neither expressed or implied,
including, but not limited to the implied warranties or conditions of this product’s fitness for any
particular purpose. In no event shall we be liable for any loss of profits, loss of business, loss of data,
interruption of business, or indirect, special, incidental, or consequential damages of any kind, even
the possibility of such damages arising from any defect or error in this manual or product. We reserve
the right to modify and update the user manual without prior notice.
WARNING: CMOS Battery Damage
Replace your system’s CMOS RAM battery only with the identical CR-2032 3V Lithium-Ion coin cell
(or equivalent) battery type to avoid risk of personal injury or physical damage to your equipment.
Always dispose of used batteries according to the manufacturer’s instructions, or as required by the
local ordinance (where applicable). The damage due to not following this warning will void your
motherboard’s manufacturer warranty.
Perchlorate Material- Special Handling May Apply.
See http://www.dtsc.ca.gov/hazardouswaste/perchlorate/
ATTENTION: Incorrect BIOS Setup
If you do not know how to handle BIOS setup or how to set it up properly, it is strongly advisable that
you do not modify any of the settings than otherwise instructed in the User’s Quick Start Card. Even
a seemingly small incorrect adjustment or modification in the BIOS setup can render your system
unstable or unusable. The incorrect BIOS setup is not covered by your motherboard’s manufacturer
warranty.
• Additional Information:
Additional information on setting this board up can be found in the User’s Manual in the provided CDROM. The Online User’s Manual and FAQ/Knowledge Base can be found on our website by visiting
our website: http://www.bcmcom.com. If your question is not answered in our FAQ/Knowledge
Base, visit our forums and post your messages or submit a new FAQ through FAQ Submittal form for
us to add your question in our FAQ with our answer.
WARNING: Electrostatic Sensitive Device (ESD)
Version 0.1 http://www.bcmcom.com
Static electricity can easily damage your motherboard and will void your motherboard warranty. Keep
the motherboard and other system components in their anti-static packaging until you are ready to
install them. Touch a grounded surface before you remove any system component from its protective
anti-static packaging. Unpacking and installation should be done on a grounded, anti-static mat. The
operator should be wearing an anti-static wristband, grounded at the same points as the anti-static
mat. During configuration and installation touch a grounded surface frequently to discharge any static
electrical charge that may have built up in your body. Avoid touching the components when handling
the motherboard or a peripheral card. Handle the motherboard and peripheral c ards either by the
edges or by the peripheral card case-mounting bracket.
WARNING: Misplaced Jumper Damage
Incorrect setting jumpers and connectors may lead to damage to your motherboard and will void your
motherboard warranty. Please pay special attention not to connect these headers in wrong
directions. DO NOT change ANY jumpers while the motherboard has the power!
Motherboard Layout:
• Board Layout:
COM2
TJ1
CLCMOS1
JBKL1
JCASE1
M2_1
SYS_FAN1
JSMB1
F_PANEL1
SODIMM_B1
SODIMM_A1
SATAPW1
JPSON1
CPU1
PCIEx16
JDIO1
CPU_FAN1
AUDIO1
PJ4
USB56
DPI
HDMI1
USB7
LAN1
USB12
LAN2
USB34
ATX12V1
USB89
LVDSEDP1
JAMP1
JCOMPWR1
JCOMPWR2
JBKLVOL1
JLVDS_BKL1
I2C1
AAFP1
JLPC1
M2_2
SATA1~2
ME1
SPI1
USB1011
COM1
I2S1
• Back Panel:
9 USB34 USB 3.1
Connectors
These two Universal Serial Bus (USB) ports are
available for connecting USB 3.1 devices.
Item Name Function Description
1 PJ4 DC-in connector The connector is for DC-in (12-24V)
2 USB56 USB 3.1 port These two Universal Serial Bus (USB) ports are
3 DP1 Display Port The display port Connector
4 HDMI1 HDMI port This HDMI port connector
5 USB7 USB 3.1 type C
port
6 LAN1 Gigabit LAN
(RJ-45)
Connectors
7 USB12 USB 3.1
Connectors
8 LAN2. Gigabit LAN
(RJ-45)
Connectors
available for connecting USB 3.1 devices.
These one Universal Serial Bus (USB) ports are
available for connecting USB 3.1 devices.
This port allows Gigabit connection to a Local
Area Network (LAN) through a network hub. Refer
to the table below for the LAN port LED
indications.
ACT/Link LED Speed LED
Status Description Status Description
OFF No link OFF 10Mbps
connection
Orange Linked Green 100Mbps
connection
Blinking Data
activity
Orange 1Gbps
connection
These two Universal Serial Bus (USB) ports are
available for connecting USB 3.1 devices.
This port allows Gigabit connection to a Local
Area Network (LAN) through a network hub. Refer
to the table below for the LAN port LED
indications.
ACT/Link LED Speed LED
Status Description Status Description
OFF No link OFF 10Mbps
connection
Orange Linked Green 100Mbps
connection
Blinking Data
activity
Orange 1Gbps
connection
10 AUDIO1 Line-in port
(Light blue)
11 AUDIO1 Line-out port
(Lime)
12 AUDIO1 Microphone port
(Pink)
This port connects a tape, CD, DVD player, or
other audio sources.
This port connects a headphone or a speaker. In
4-channel, 6-channel, and 8-channel
configuration, the function of this port becomes
Front Speaker Out.
This port connects a microphone.
Jumpers, Connectors, & Headers:
• Clear CMOS Jumper: C LCMOS1
• COM1&2 Ring-In/ +12V/ +5V Select: JCOMPWR1, JCOMPWR2
Ring (Default)
• ATX/AT Mode Selection: JPSON1
Normal (Default)
Clear CMOS
+12V
+5V
• LVDS panel voltage Selection: JBKLVOL1
#
• LVDS brightness control mode Selection: JLVDS_BKL1
• LPC Connectors : JLPC1
• ATX Power Connectors: ATX12V1 (4-pin)
ATX12V1
Fan Connectors: CPU_FAN1, SYS_FAN1
1. NC
3. LPC_AD3
5. LPC_AD1
7. LPC_FRAME#
11. CK_24M_LPC
2. +3.3V
4.PLTRST_LPC
6. LPC_AD2
8. LPC_AD0
10. GND
12. GND
• Serial Port Connectors: COM1, COM2
SATA power connectors: SATAPW1
1. +3.3V
2. +3.3V
3. +3.3V
4. GND
5. GND
6. GND
7. +5V
8. +5V
9. +5V
10. GND
11. GND
12. GND
13. +12V
14. +12V
15. +12V
• SATA 3.0 Ports: SA TA1, SATA2
SATA
1
1. GND
2. TX+
3. TX-
4. GND
5. RX-
6. RX+
7. GND
• Front USB 3.0 Headers: USB89
USB56
1. +5V
19. +5V
18. USB3_RX-
17. USB3_RX+
16. GND
15. USB3_TX-
14. USB3_TX+
13. GND
12. USB-
11. USB+
2. USB3_RX-
3. USB3_RX+
4. GND
5. USB3_TX-
6. USB3_TX+
7. GND
8. USB-
9. USB+
10. NC
• Front USB 2.0 Headers: USB1011
• Front Panel Connector: F_PANEL1
USB
• Front Panel Audio Connector: AAFP1
12
10. LINE2-JD
8. NC
6. MIC2-JD
4. NC
2. GND
9. LINE2L
7. SENSEB
5. LINE2R
3. MIC2R
1. MIC2L
• Amplifier Connector: JAMP1
1
1
1. HDD LED+
3. HDD LED#
5. GND
7. RST
9. N/A
2
2. +3.3V
4. PWR LED#
6. PANSWIN#
8. GND
• Digital I/O Connector: JDIO1
• LVDS panel backlight connector: JBKL1
• LVDS panel connector: LVDSEDP1
1. SIO_GPIO0
3. SIO_GPIO1
5. SIO_GPIO2
7. SIO_GPIO3
9. SMB_CLK_
RESUME
11. GND
2. SIO_GPIO4
4. SIO_GPIO5
6. SIO_GPIO6
8. SIO_GPIO7
10. SMB_DATA_
RESUME
12. +5Vsb
•Chassis Intrusion Connector: JCASE1
