MX3350N

Intel® Apollo Lake N3350 Mini-ITX Motherboard

Mini-ITX Motherboard

User’s Manual

Edition 1.0 – July, 2017

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) this device may not cause harmful interference, and

2) this device must accept any interference received, including interference that may cause

undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the measures listed below:

￭ Reorient or relocate the receiving antenna. ￭ Increase the separation between the equipment and receiver. ￭ Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

￭ Consult the dealer or an experienced radio/television technician for help.

Notice

This guide is designed for experienced users to setup the system within the shortest time. For detailed information, please always refer to the electronic user's manual.

Copyright  2011 BCM Advanced Research, ALL RIGHTS RESERVED. No part of this document may be reproduced, copied, translated, or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the prior written permission of the original manufacturer.

Trademark Acknowledgement

Brand and product names are trademarks or registered trademarks of their respective owners.

Disclaimer

BCM Advanced Research reserves the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. BCM Advanced Research assumes no responsibility or liability for the use of the described product(s), conveys no license or title under any patent, copyright, or masks work rights to these products, and makes no representations or warranties that these products are free from patent, copyright, or mask work right infringement, unless otherwise specified. Applications that are described in this manual are for illustration purposes only. BCM Advanced Research makes no representation or warranty that such application will be suitable for the specified use without further testing or modification.

Life Support Policy

BCM Advanced Research PRODUCTS ARE NOT FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE PRIOR WRITTEN APPROVAL OF BCM Advanced Research. As used herein:

1. Life support devices or systems are devices or systems which, (a) are intended for surgical implant into

body, or (b) support or sustain life and whose failure to perform, when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in significant injury to the user.

2. A critical component is any component of a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system, or to affect its safety or effectiveness.

A Message to the Customer

BCM Customer Services

Each and every BCM product is built to the most exacting specifications to ensure reliable performance in the harsh and demanding conditions typical of industrial environments. Whether your new BCM device is destined for the laboratory or the factory floor, you can be assured that your product will provide the reliability and ease of operation for which the name BCM has come to be known.

Your satisfaction is our primary concern. Here is a guide to BCM customer services. To ensure you get the full benefit of our services, please follow the instructions below carefully.

Technical Support

We want you to get the maximum performance from your products. So if you run into technical difficulties, we are here to help. For the most frequently asked questions, you can easily find answers in your product documentation. These answers are normally a lot more detailed than the ones we can give over the phone. So please consult the user’s manual first.

To receive the latest version of the user’s manual; please visit our Web site at:

http://www.bcmcom.com.

If you still cannot find the answer, gather all the information or questions that apply to your problem, and with the product close at hand, call your dealer. Our dealers are well trained and ready to give you the support you need to get the most from your BCM products. In fact, most problems reported are minor and are able to be easily solved over the phone. In addition, free technical support is available from BCM engineers every business day. We are always ready to give advice on application requirements or specific information on the installation and operation of any of our products. Please do not hesitate to call or e-mail us.

BCM Advanced Research 11 Chrysler, Irvine, California, 92618 USA Tel : +1-949-470-1888 Fax : +1-949-470-0971

http://www.bcmcom.com

E-mail: support@bcmcom.com

Product Warranty

BCM warrants to you, the original purchaser, that each of its products will be free from defects in materials and workmanship during warranty period.

This warranty does not apply to any products which have been repaired or altered by persons other than repair personnel authorized by BCM, or which have been subject to misuse, abuse, accident or improper installation. BCM assumes no liability under the terms of this warranty as a consequence of such events. Because of BCM high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If any of BCM products is defective, it will be repaired or replaced at no charge during the warranty period. For out-of-warranty repairs, you will be billed according to the cost of replacement materials, service time, and freight. Please consult your dealer for more details. If you think you have a defective product, follow these steps:

1. Collect all the information about the problem encountered. (For example, CPU type and speed, BCM products model name, hardware & BIOS revision number, other hardware and software used, etc.) Note anything abnormal and list any on-screen messages you get when the problem occurs.

2. Call your dealer and describe the problem. Please have your manual, product, and any helpful information available.

3. If your product is diagnosed as defective, obtain an RMA (return material authorization) number from your dealer. This allows us to process your good return more quickly.

4. Carefully pack the defective product, a complete Repair and Replacement Order Card and a photocopy proof of purchase date (such as your sales receipt) in a shippable container. A product returned without proof of the purchase date is not eligible for warranty service.

Write the RMA number visibly on the outside of the package and ship it prepaid to your dealer.

Manual Objectives

This manual describes in detail the BCM MX3350N Main board.

We strongly recommend that you study this manual carefully before attempting to interface with MX3350N or change the standard configurations. Whilst all the necessary information is available in this manual we would recommend that unless you are confident, you contact your supplier for guidance.

Please be aware that it is possible to create configurations within the CMOS RAM that make booting impossible. If this should happen, clear the CMOS settings, (see the description of the Jumper Settings for details).

If you have any suggestions or find any errors concerning this manual and want to inform us of these, please contact our Customer Service department with the relevant details.

Safety Precautions

Warning!

Always completely disconnect the power cord from your chassis whenever you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sudden power surges. Only experienced electronics personnel should open the PC chassis.

Caution!

Always ground yourself to remove any static charge before touching the mainboard. Modern electronic devices are very sensitive to static electric charges. As a safety precaution, use a grounding wrist strap at all times. Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis.

Document Amendment History

Revision

Date

Comment

(0.01)

July, 2017

Initial

Contents

Chapter 1: System Setup ............................................................................................ 11

1.1 Welcome! ................................................................................................................. 11

1.2 Packing Contents .................................................................................................... 11

1.3 Features .................................................................................................................. 12

1.4 Before you proceed ................................................................................................. 13

1.5 Mainboard Overview ................................................................................................ 14

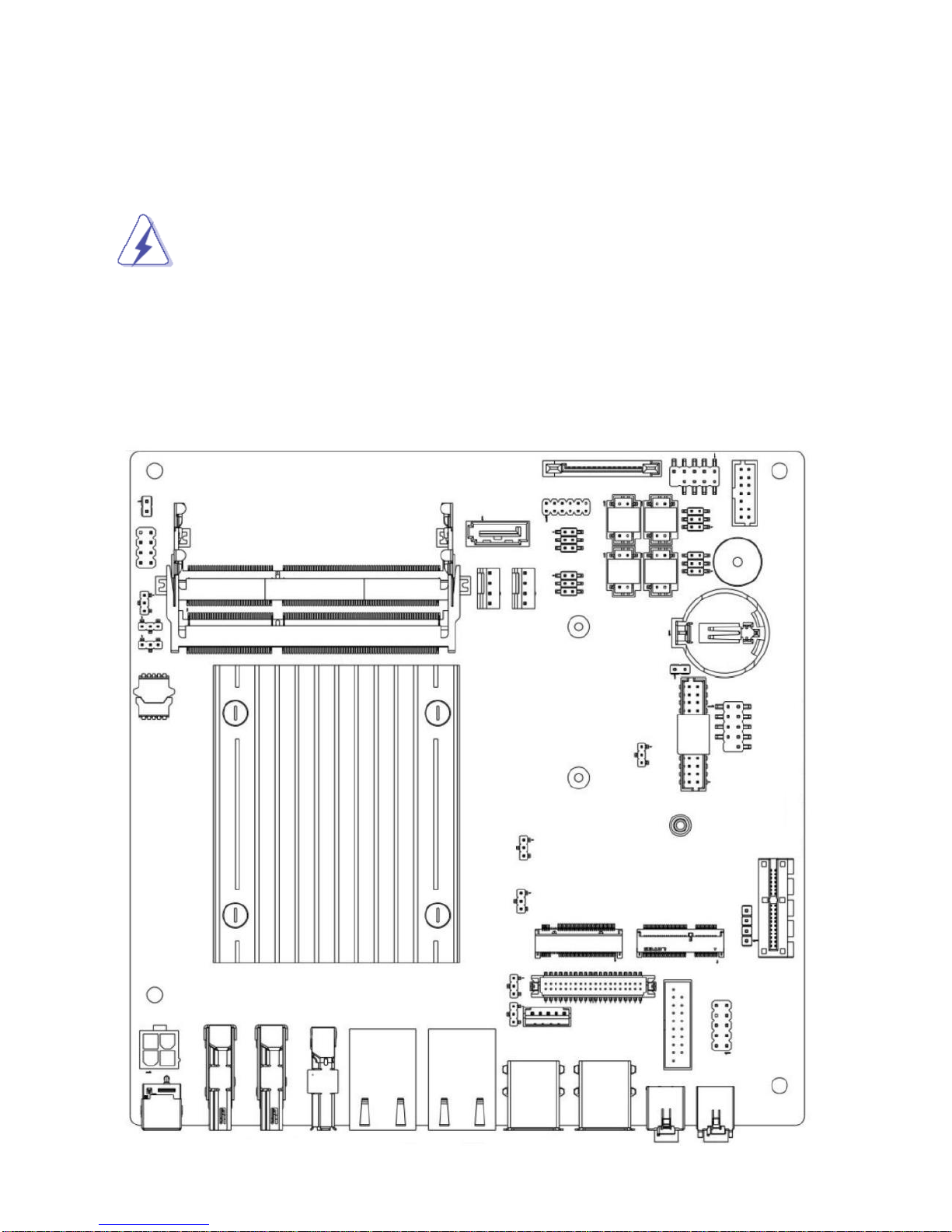

1.5.1 Placement Direction ....................................................................................................................... 14

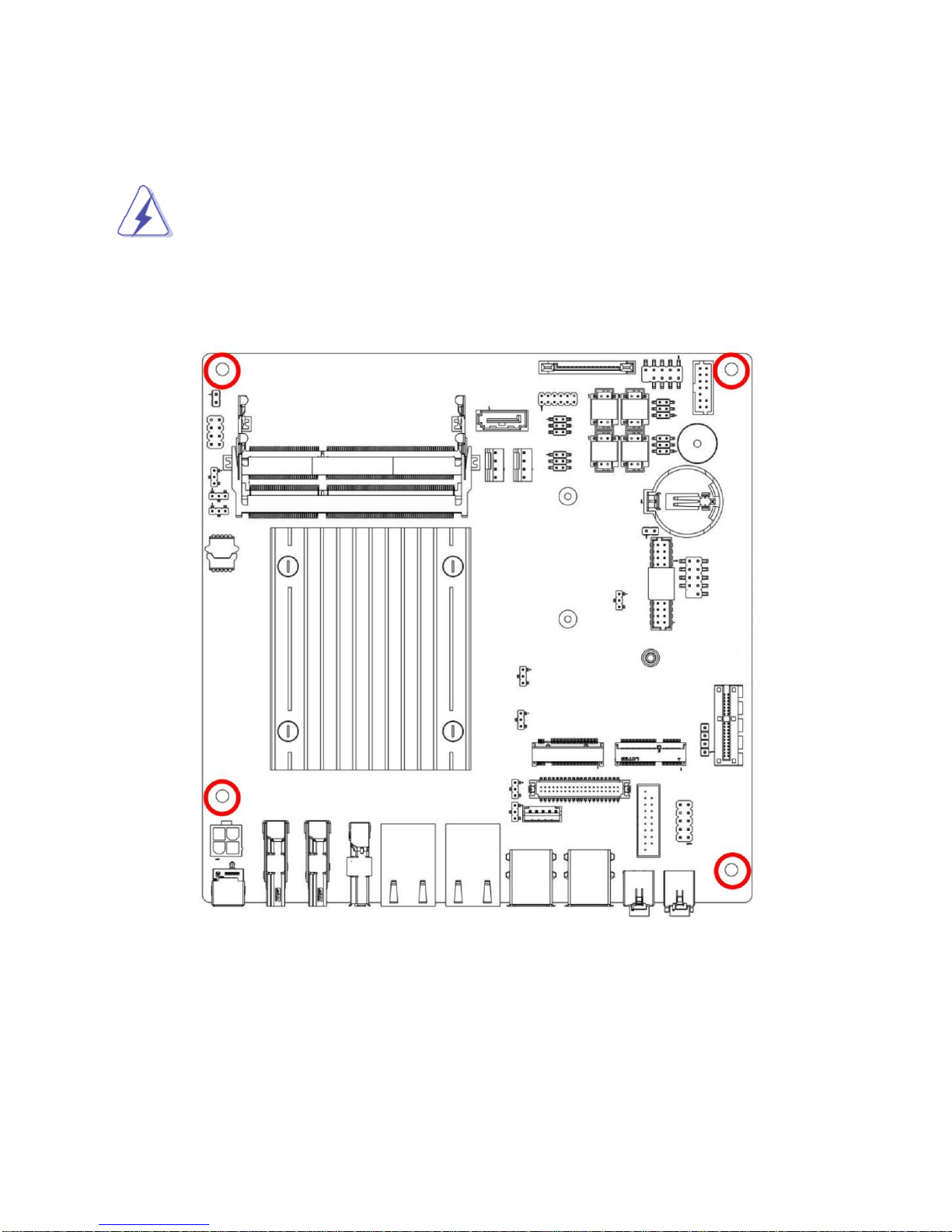

1.5.2 Mounting Holes .............................................................................................................................. 15

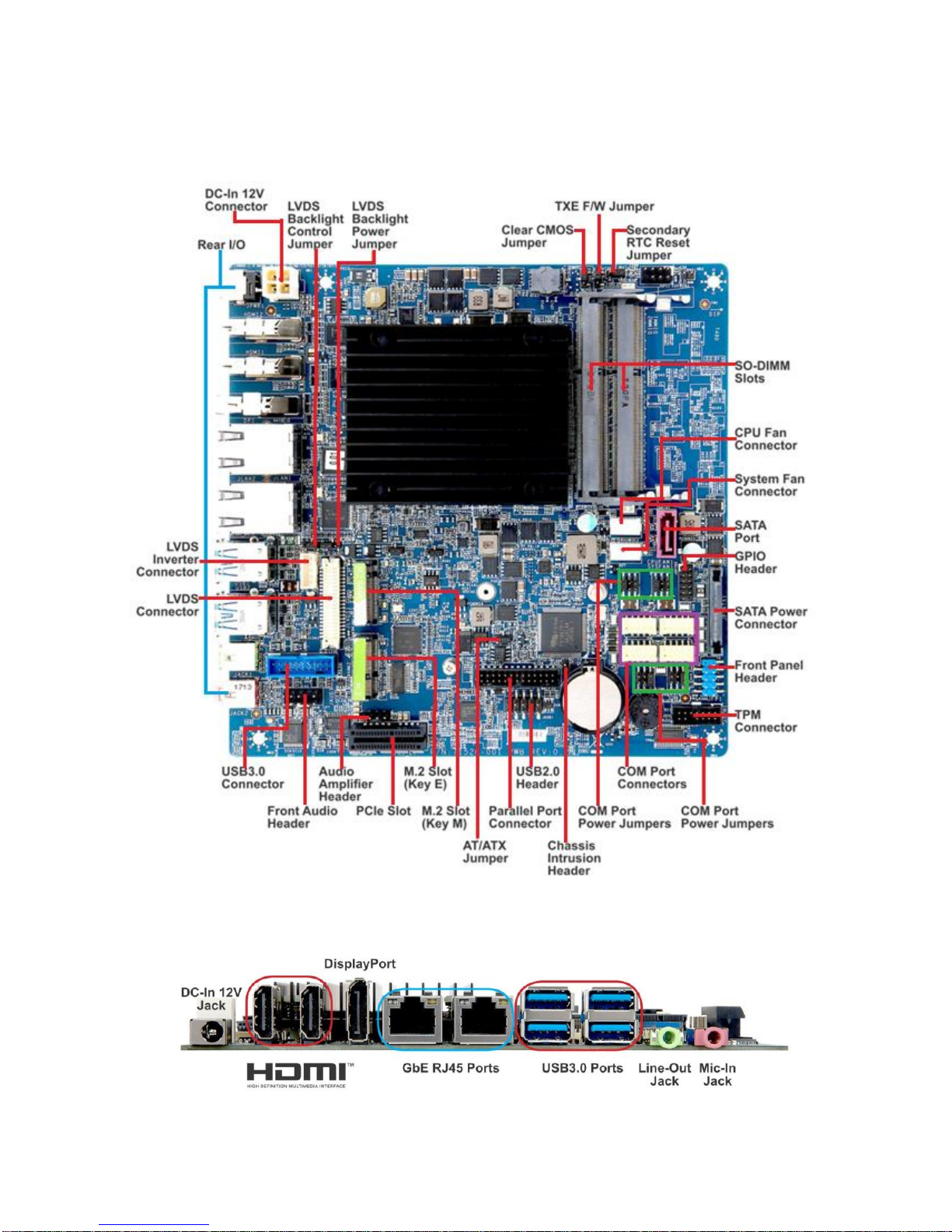

1.5.3 Mainboard Layout .......................................................................................................................... 16

1.5.4 Layout Content List ............................................................................................... 17

1.5.4.1 Slots ............................................................................................................................................ 17

1.5.4.2 Internal Jumpers ......................................................................................................................... 17

1.5.4.3 Internal Headers .......................................................................................................................... 17

1.5.4.4 Back Panel Connectors ............................................................................................................... 18

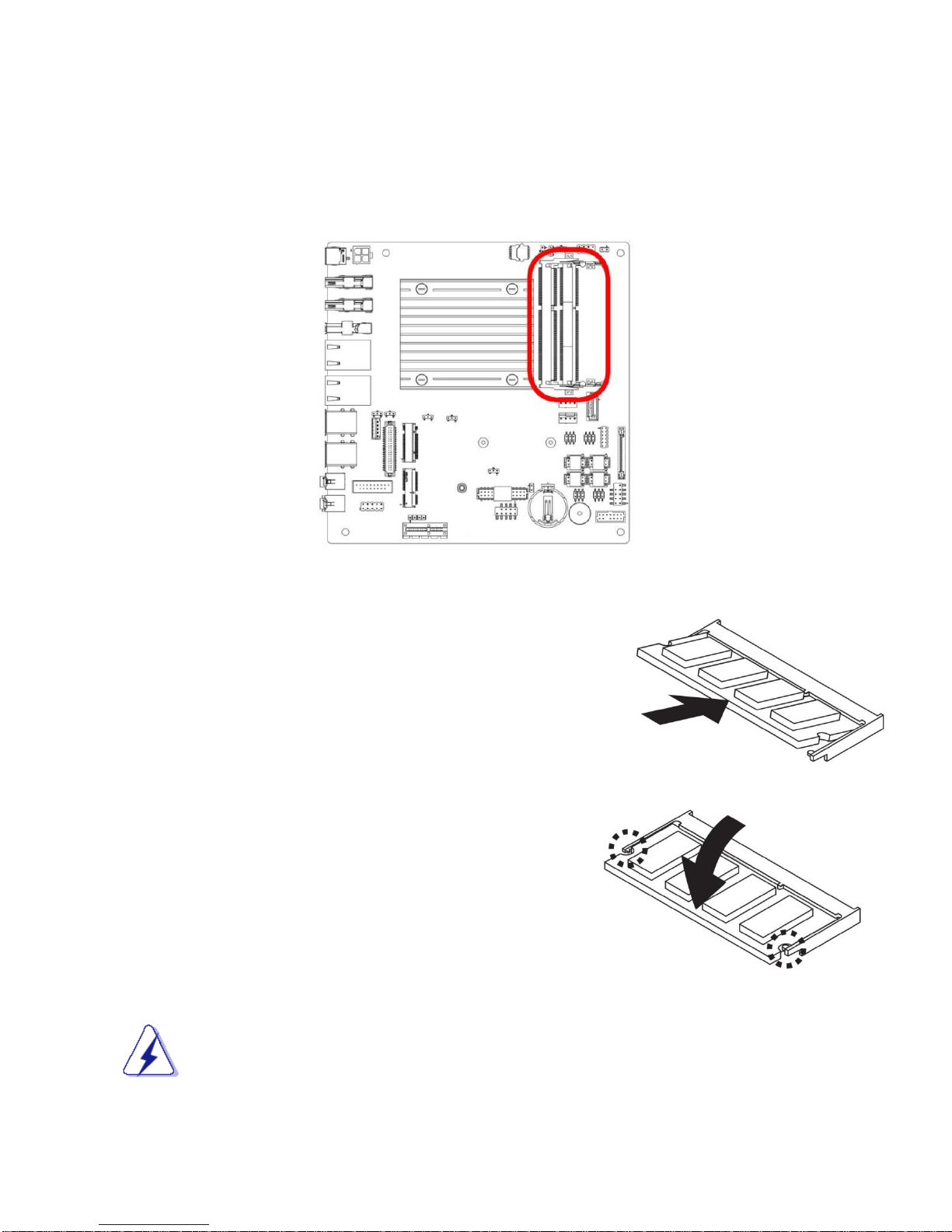

1.6 Installing DIMM ........................................................................................................ 20

1.6.1 The SO-DIMM slot is intended for memory modules. .................................................................... 20

1.7 Power Supply .......................................................................................................... 21

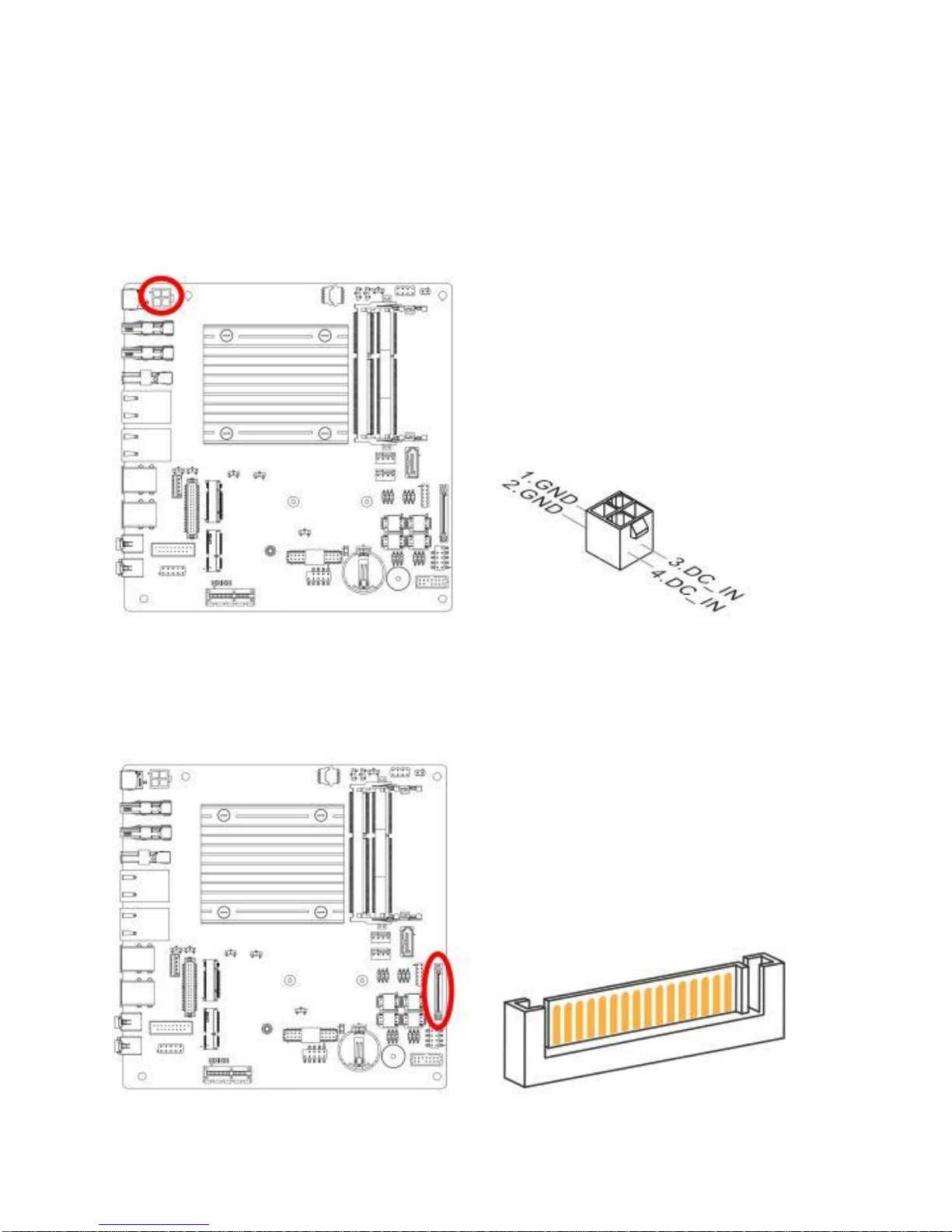

1.7.1 DC-In 12V Connector: PWR1 ........................................................................................................ 21

1.7.2 SATA Power Connector: JPSATA1 ............................................................................................... 21

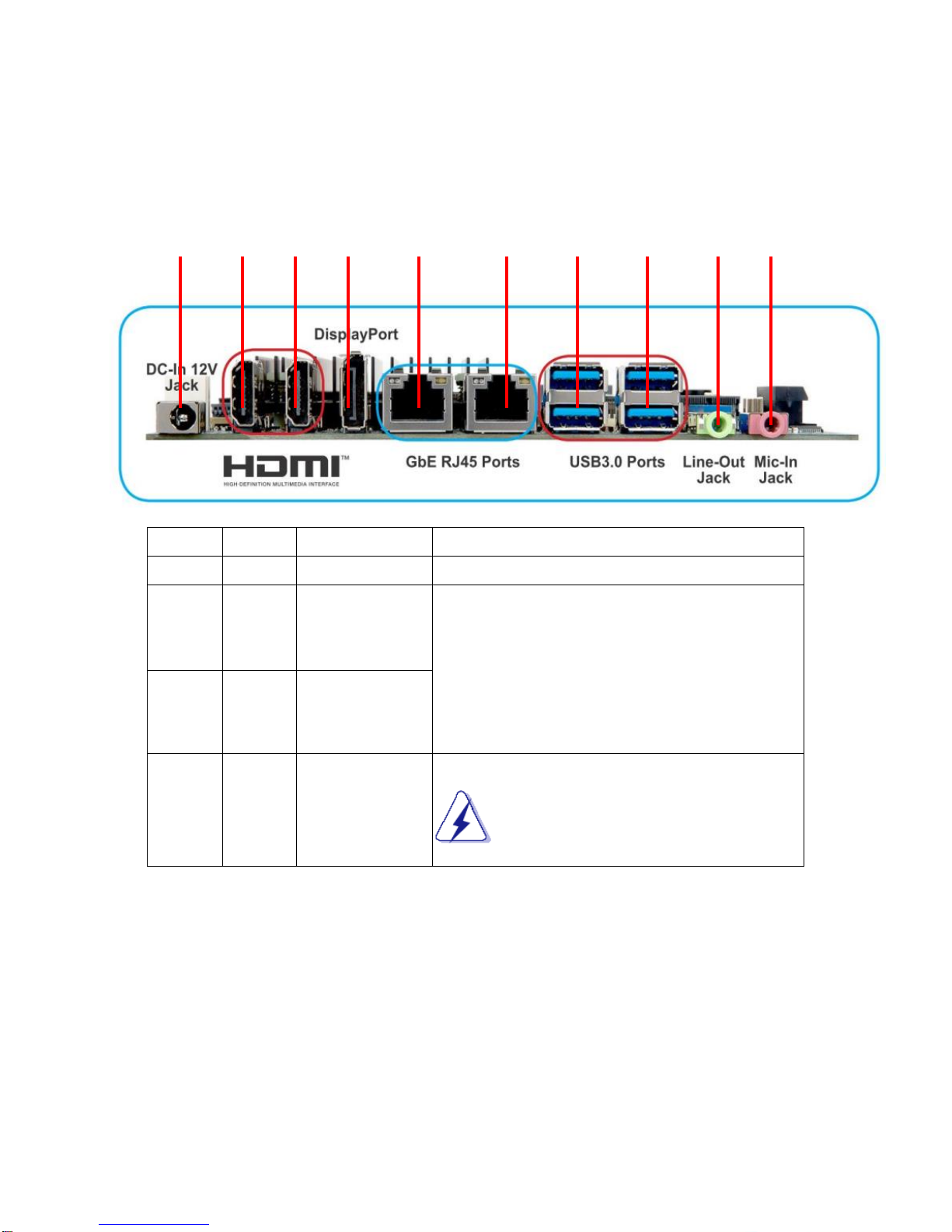

1.8 Back Panel .............................................................................................................. 22

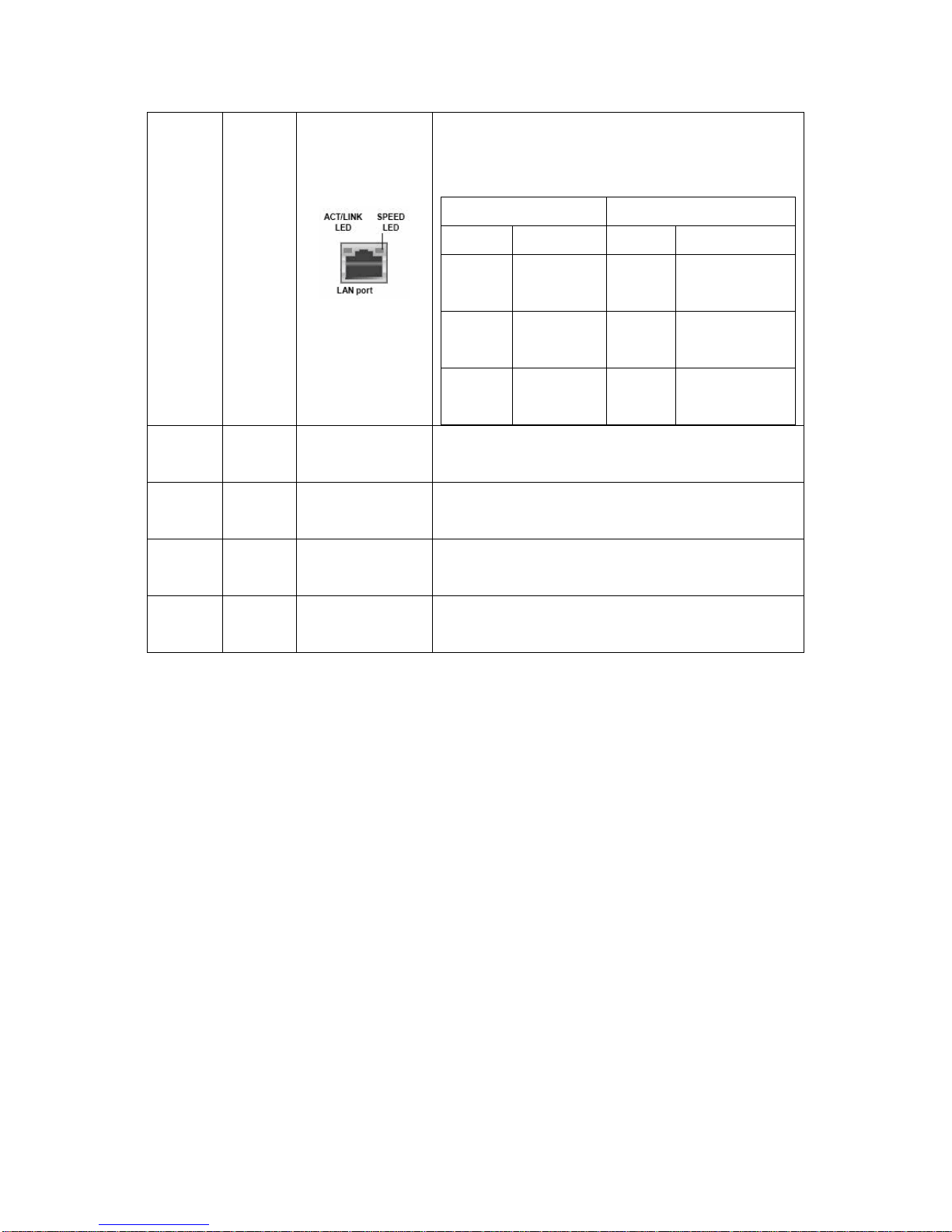

1.8.1 Back Panel Connectors .................................................................................................................. 22

1.9 Connectors/ Headers ............................................................................................... 24

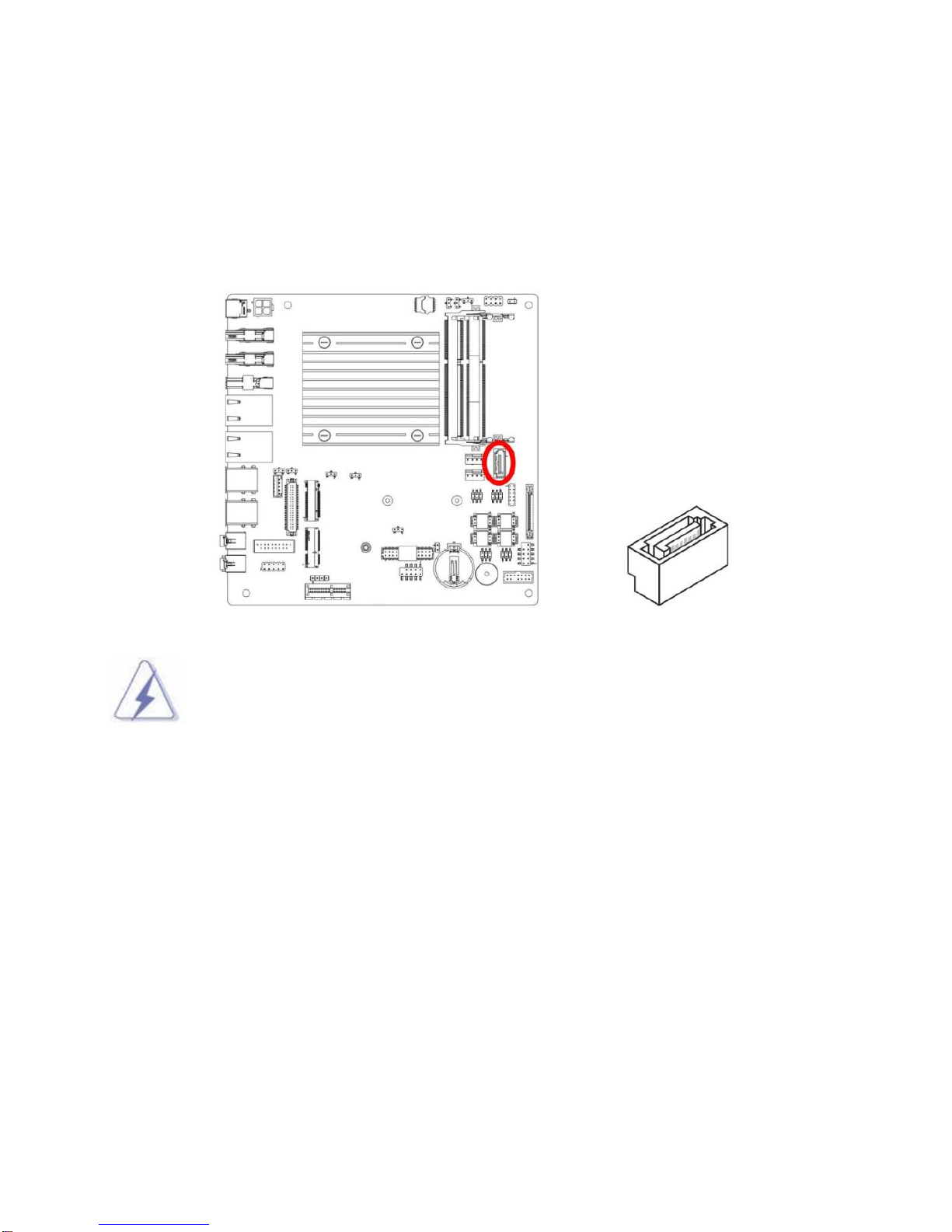

1.9.1 Serial ATA Connectors: SATA1 ................................................................................................................ 24

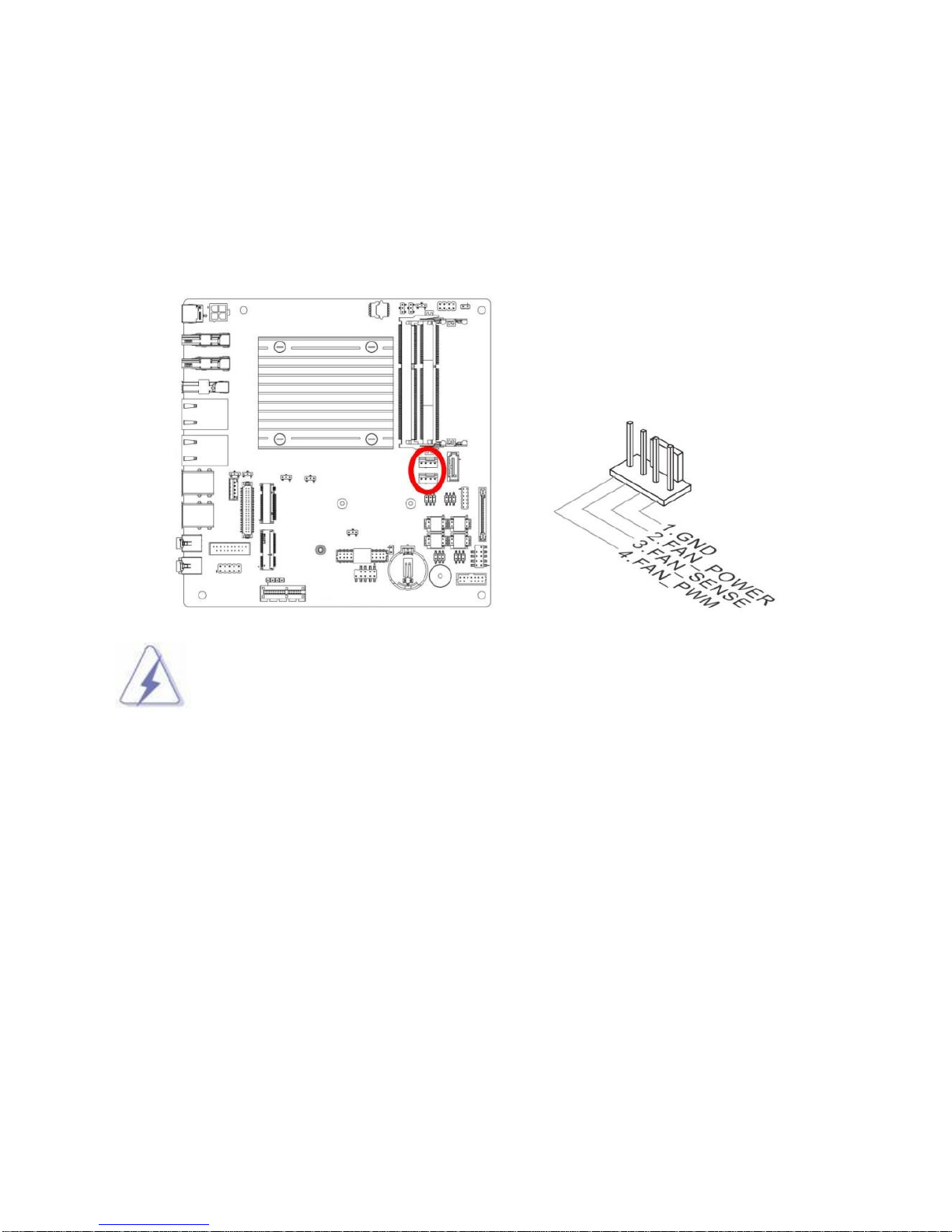

1.9.2 Fan Power Connectors: CPUFAN1, SYSFAN1 .......................................................................... 25

1.9.3 Chassis Intrusion Switch Connector: JCASE1 ............................................................................ 26

1.9.4 Front Panel Audio Connector: JAUDIO1 ..................................................................................... 26

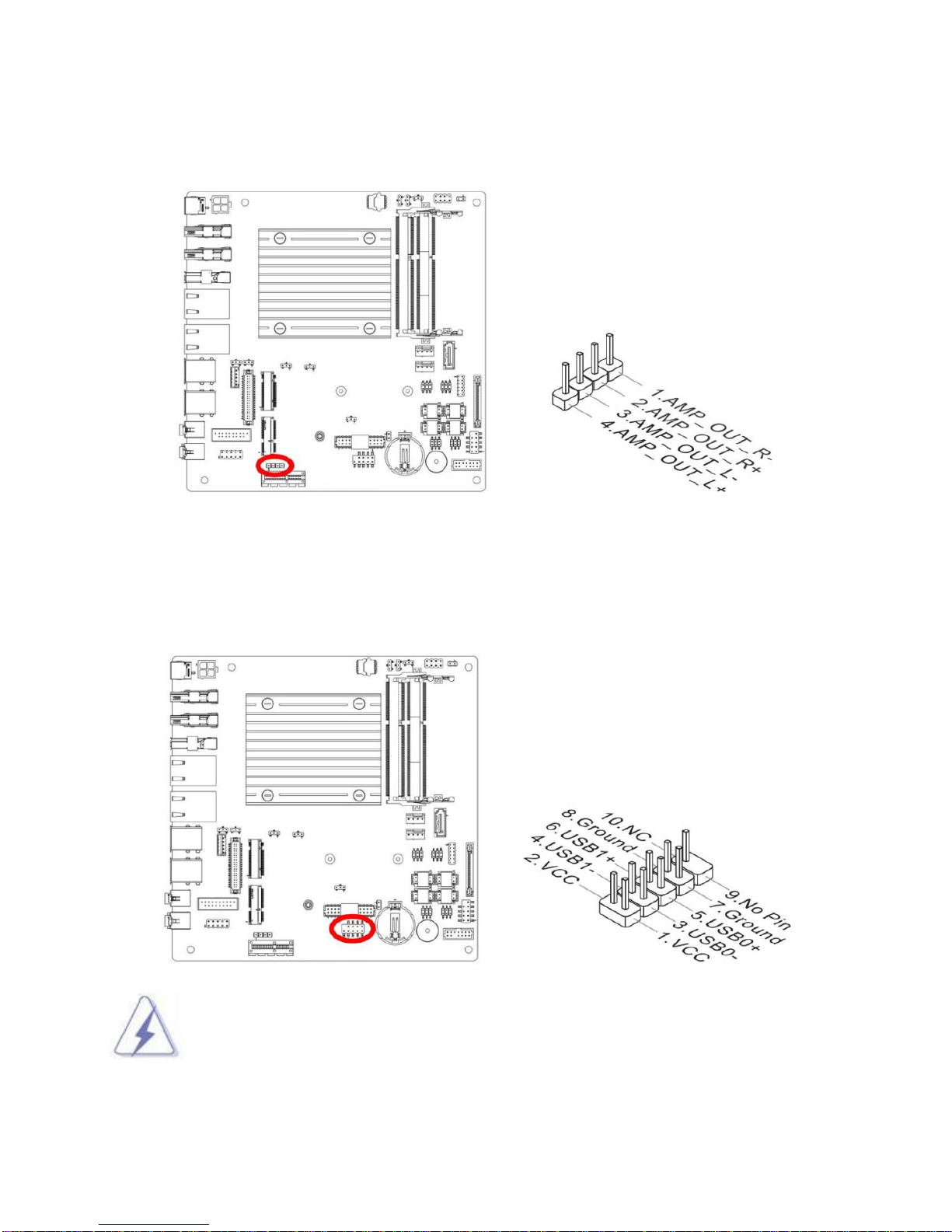

1.9.5 Amplifier Connector: JAMP1 ....................................................................................................... 27

1.9.6 Front USB2.0 Headers: JUSB1............................................................................................................... 27

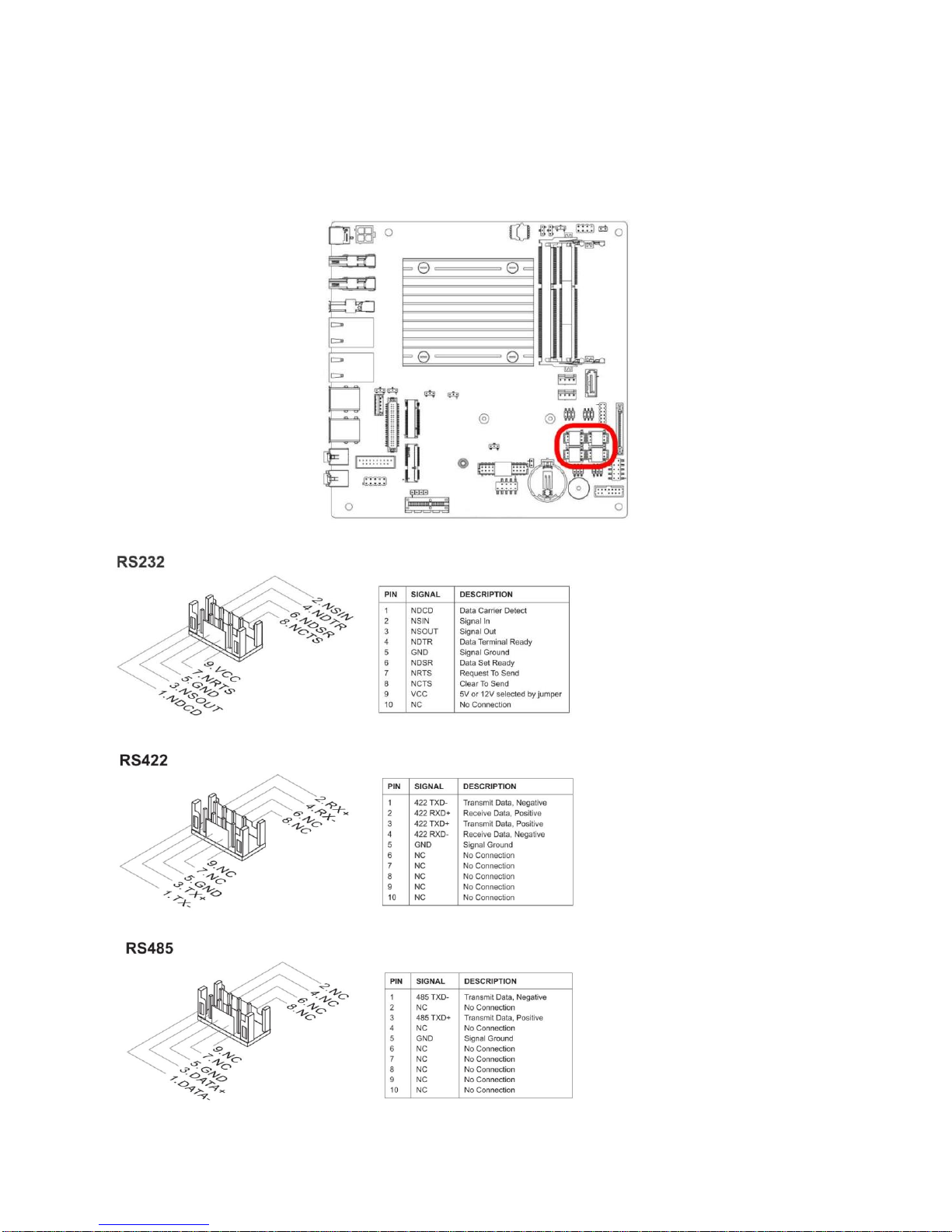

1.9.7 Serial Port Connectors: COM1, COM2, COM3, COM4 .............................................................. 28

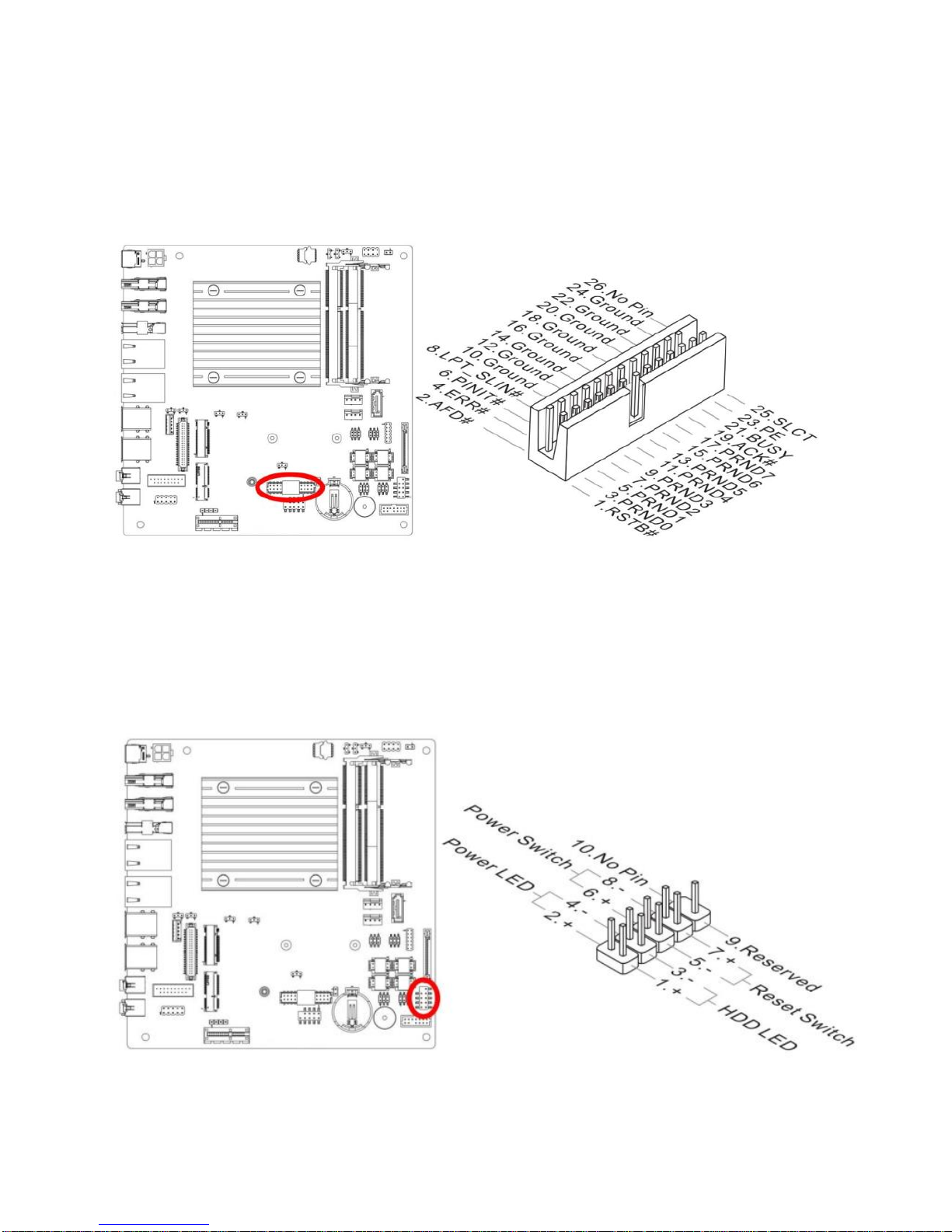

1.9.8 LPT Port Connector: JLPT1 ........................................................................................................ 29

1.9.9 Front Panel Connectors: JFP1 .................................................................................................... 29

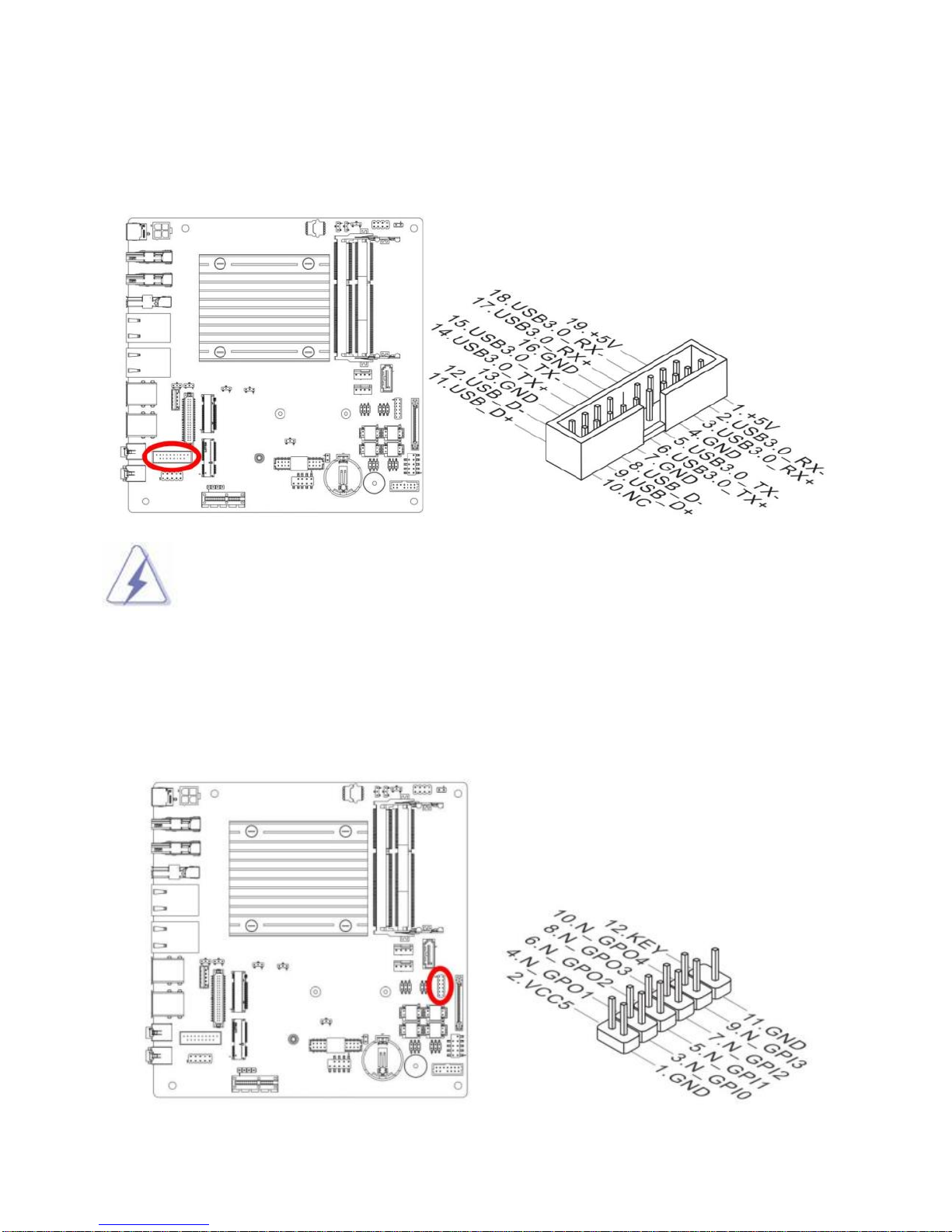

1.9.10 USB3.0 Connector: JUSB3 ....................................................................................................... 30

1.9.11 Digital I/O Connector: JGPIO2 .................................................................................................. 30

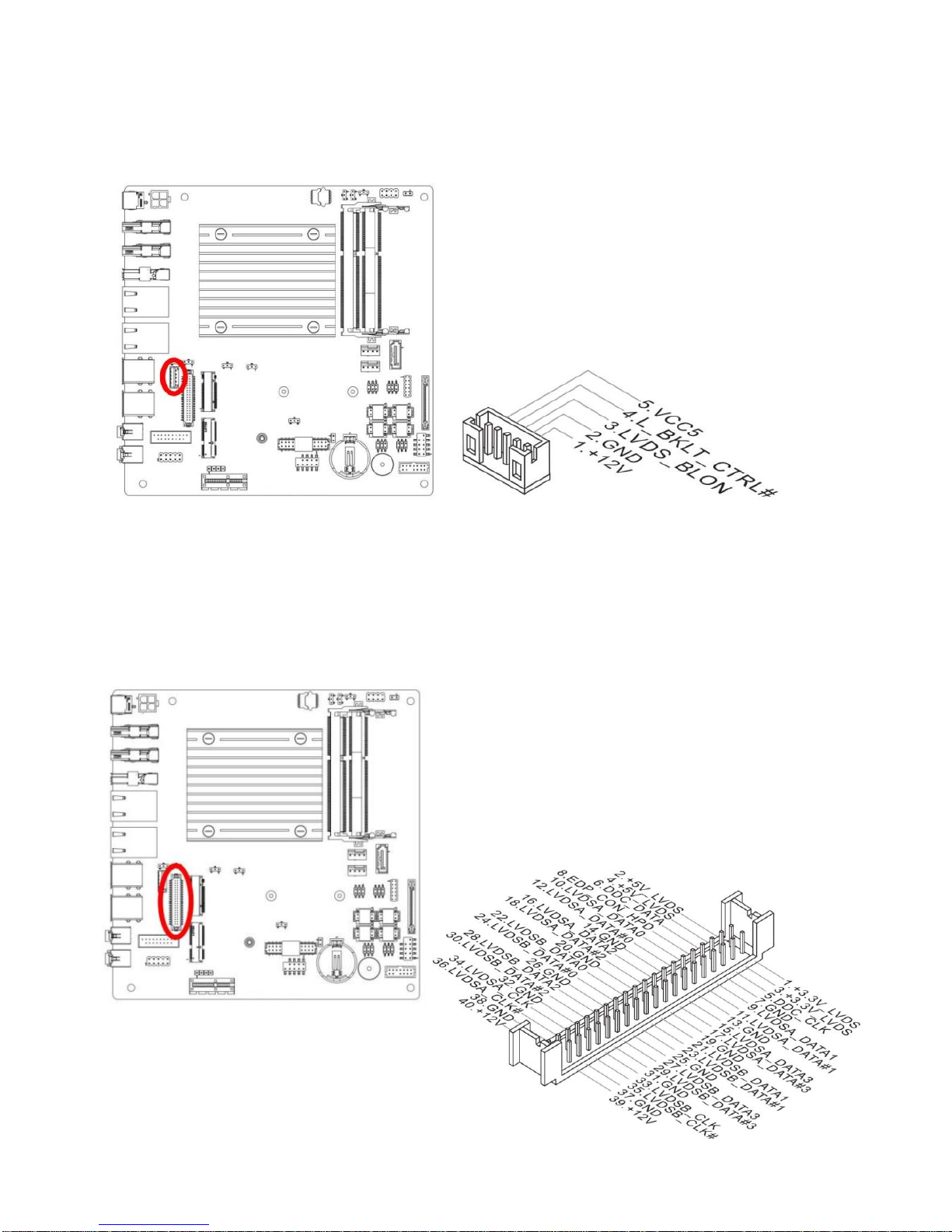

1.9.12 LVDS Inverter Connector: JINV1 .............................................................................................. 31

1.9.13 LVDS Connector: JLVDS1 ........................................................................................................... 31

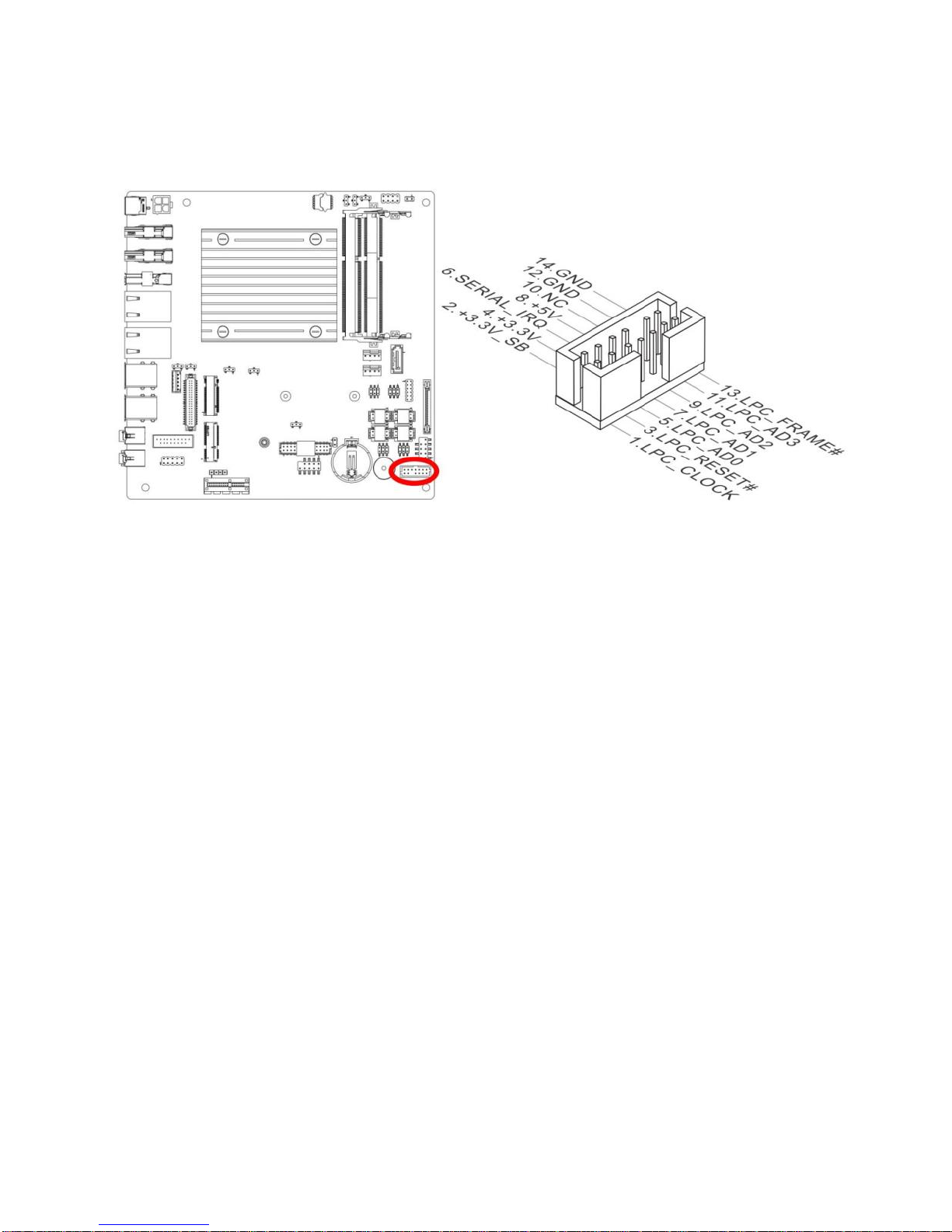

1.9.14 LPC Debug Port Connector: JTPM1 (With TPM Support) ........................................................... 32

1.10 Jumpers ................................ ................................ ................................................. 33

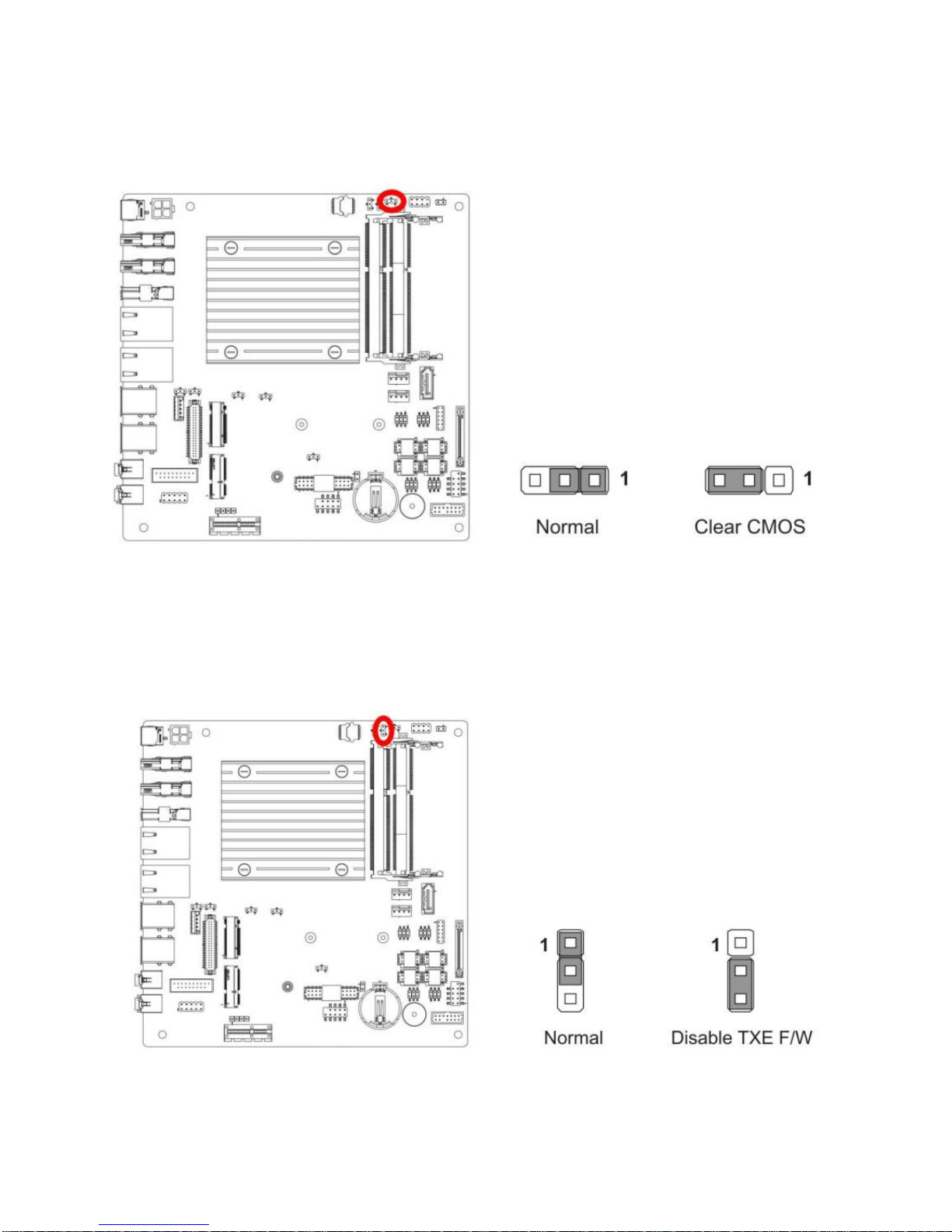

1.10.1 Clear CMOS Jumper: JCMOS1................................................................................................. 33

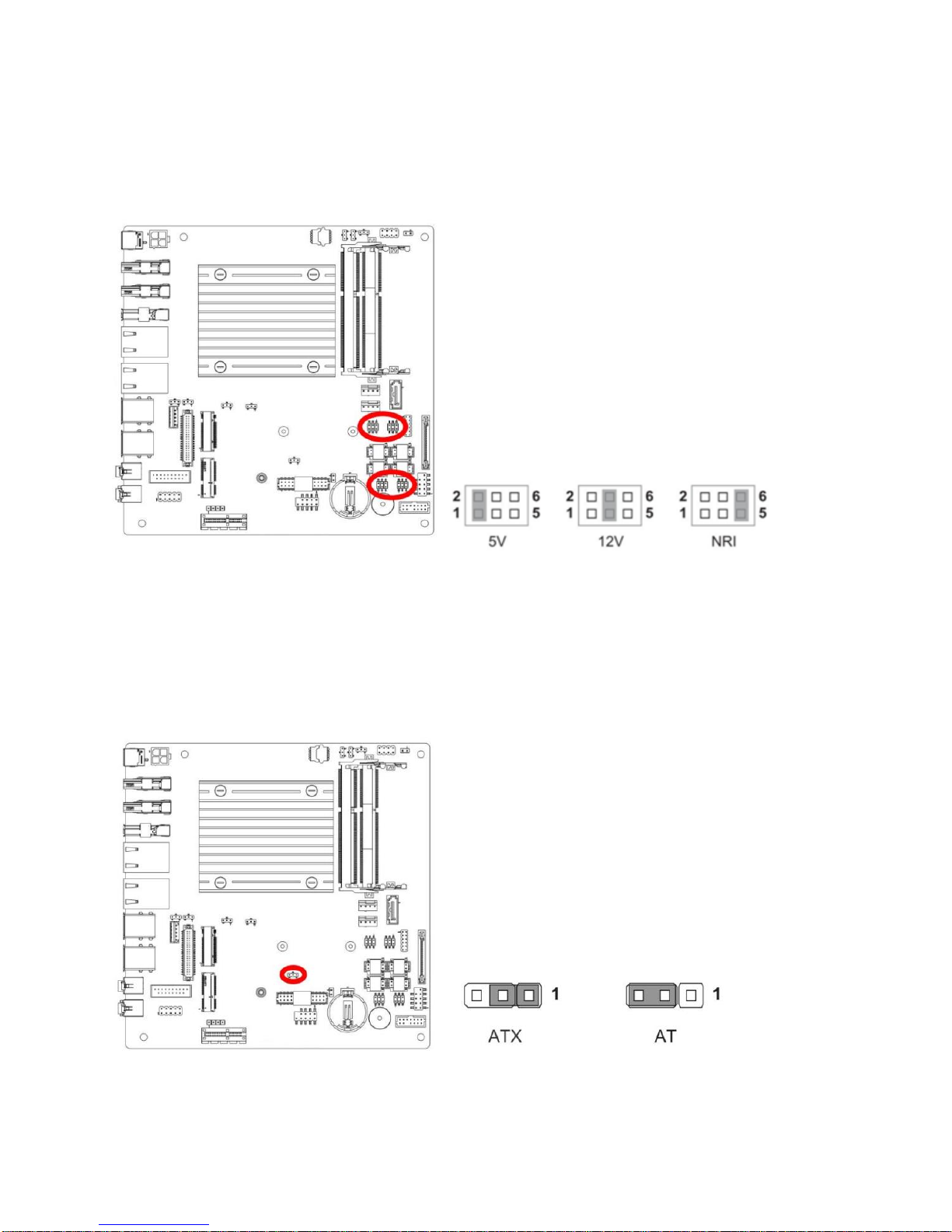

1.10.2 COM1, COM2, COM3 and COM4 Ring-in/ +12V/ +5V Power Select:......................................... 34

1.10.3 ATX/AT Mode Selection: JAT1 .................................................................................................. 34

1.10.4 Secondary RTC Reset Jumper: JBAT1 ....................................................................................... 35

1.10.5 TXE F/W Jumper: JTXE1 ............................................................................................................. 35

1.10.6 LVDS Backlight Power Jumper: JBKLVOL1 ................................................................................ 36

1.10.7 LVDS Backlight Control Jumper: JLVDS_BKL1 .......................................................................... 36

1.11 The Expansion Slots .............................................................................................. 37

1.11.1 Installation of Expansion Card ..................................................................................................... 37

1.11.2 PCI (Peripheral Component Interconnect) Express Slot ............................................................. 37

1.11.3 PCI-E x1 Slot: PCI_E1 ................................................................................................................. 38

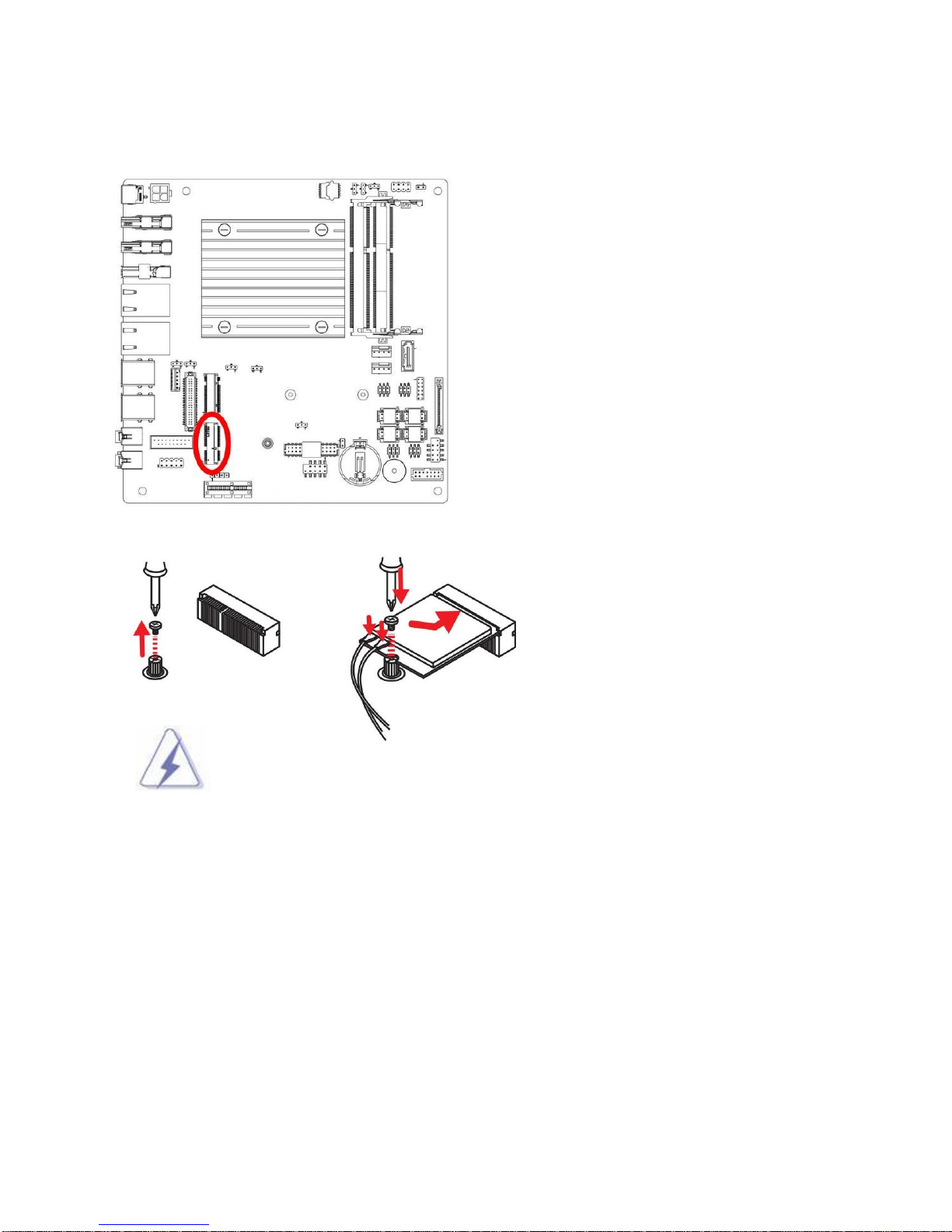

1.11.4 M.2 Slot (Key M, 2280 & 2242): JM1 ........................................................................................ 38

1.11.5 M.2 Slot (Key E, 2230): M2_1 ................................................................................................... 39

Chapter 2: Starting Up the System ............................................................................ 40

2.1 Starting Up Your System .................................................................................................................. 40

Chapter 3: BIOS SETUP .............................................................................................. 42

3.1 The Menu Bar ........................................................................................................................................ 44

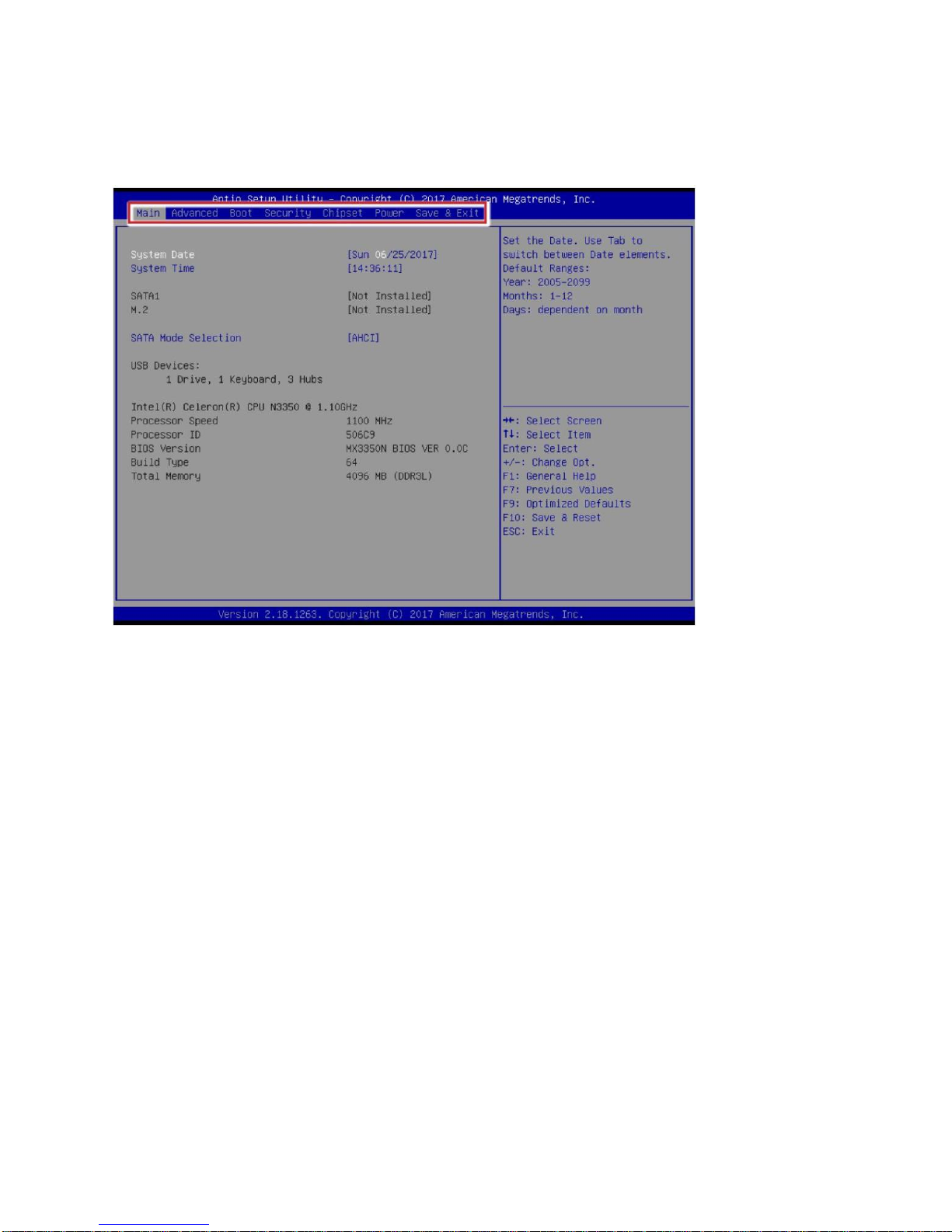

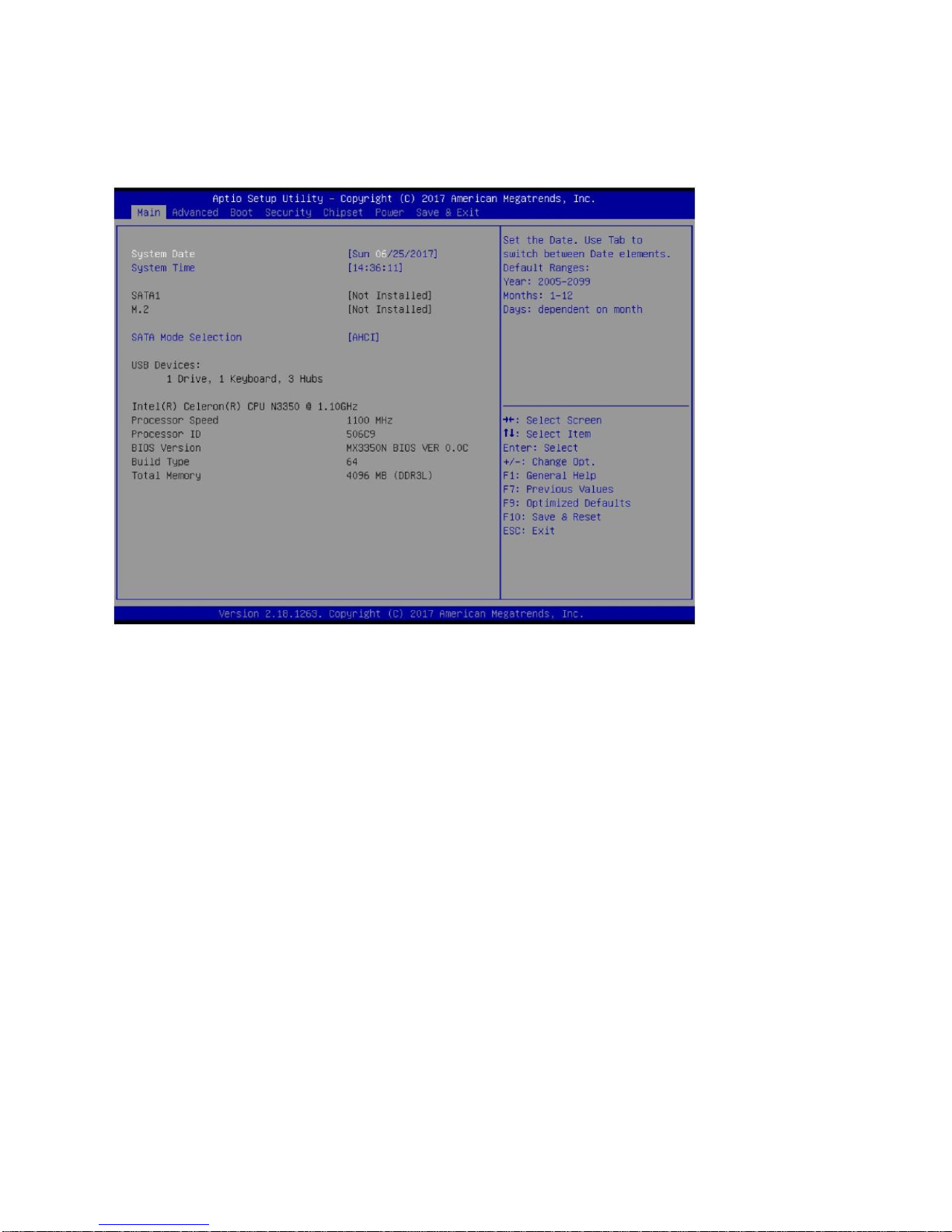

3.2 Main ....................................................................................................................................................... 45

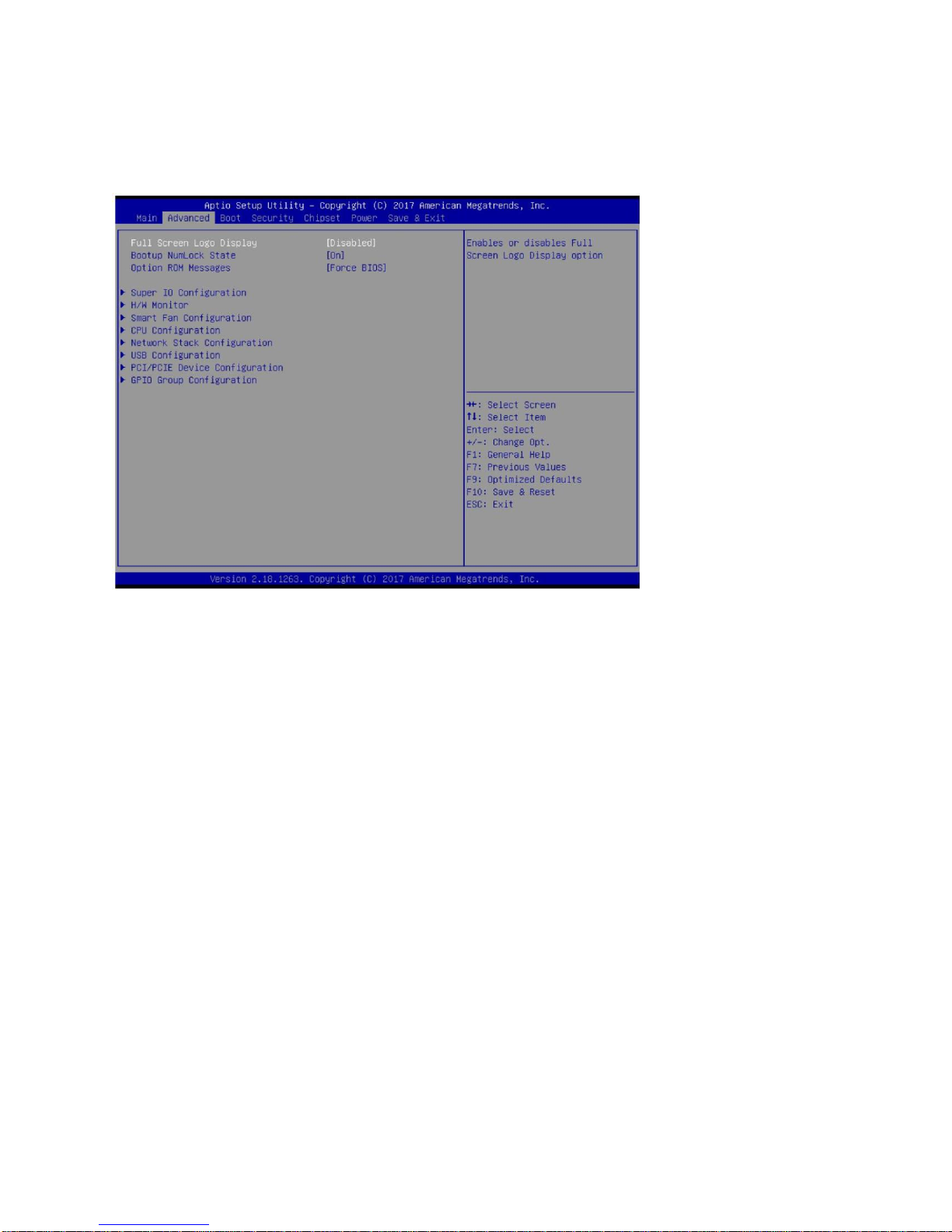

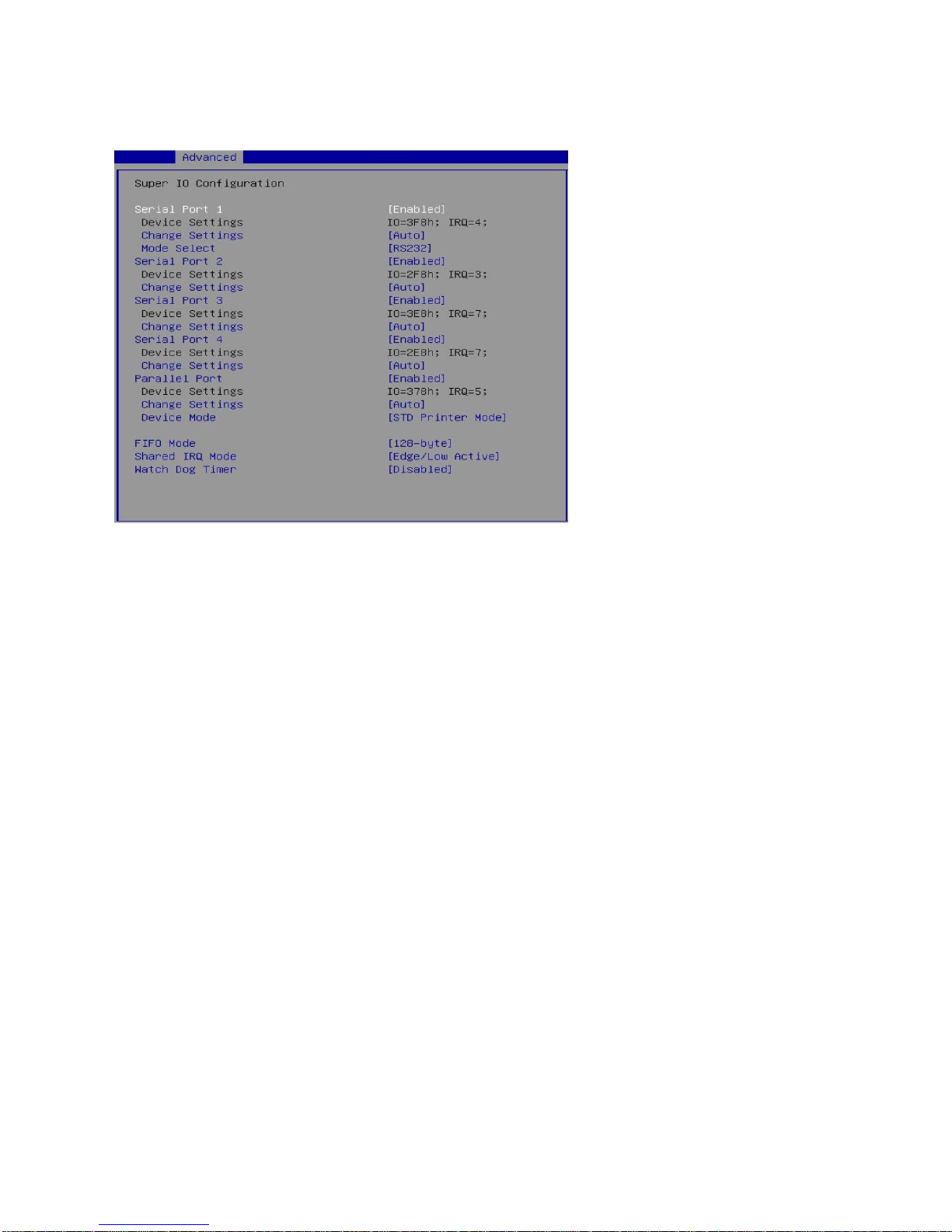

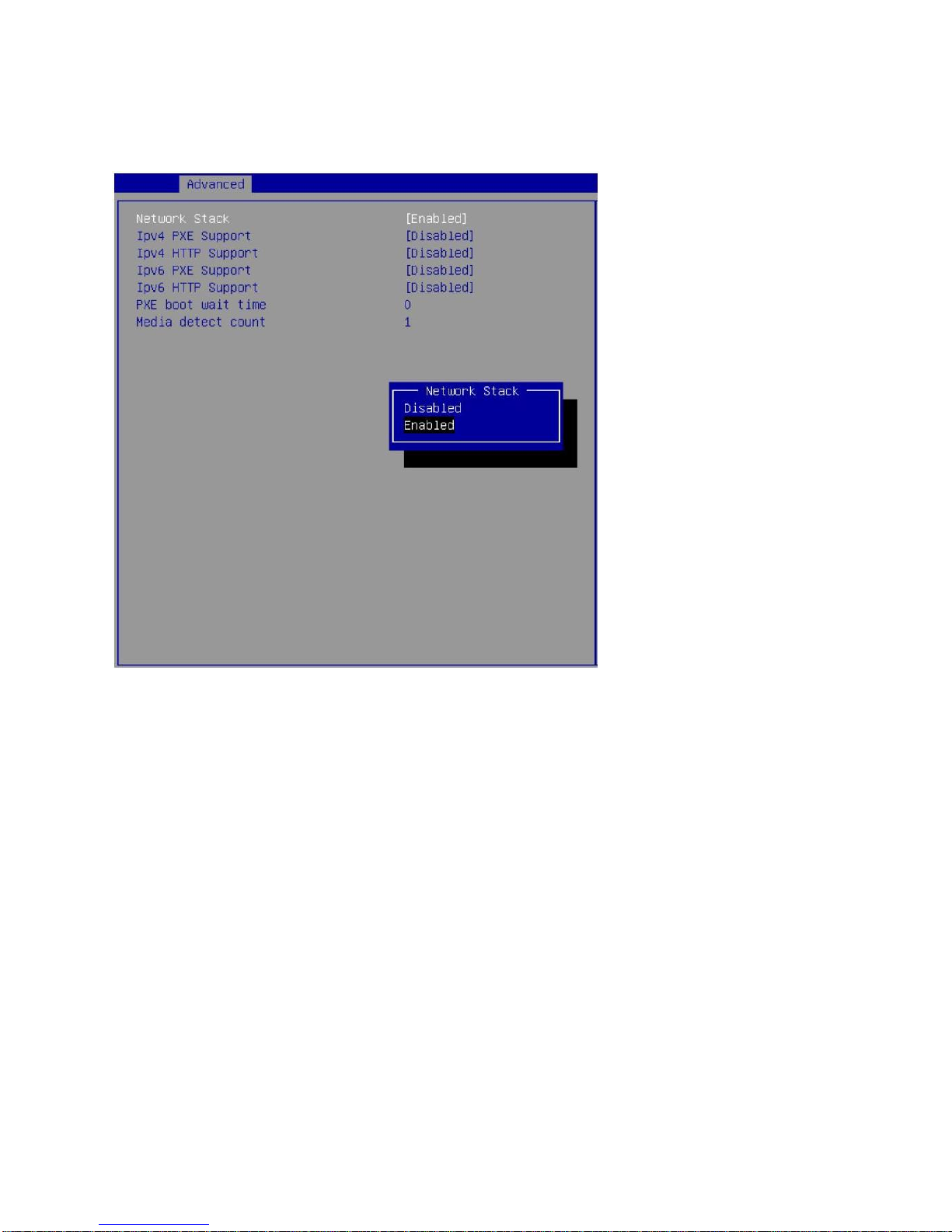

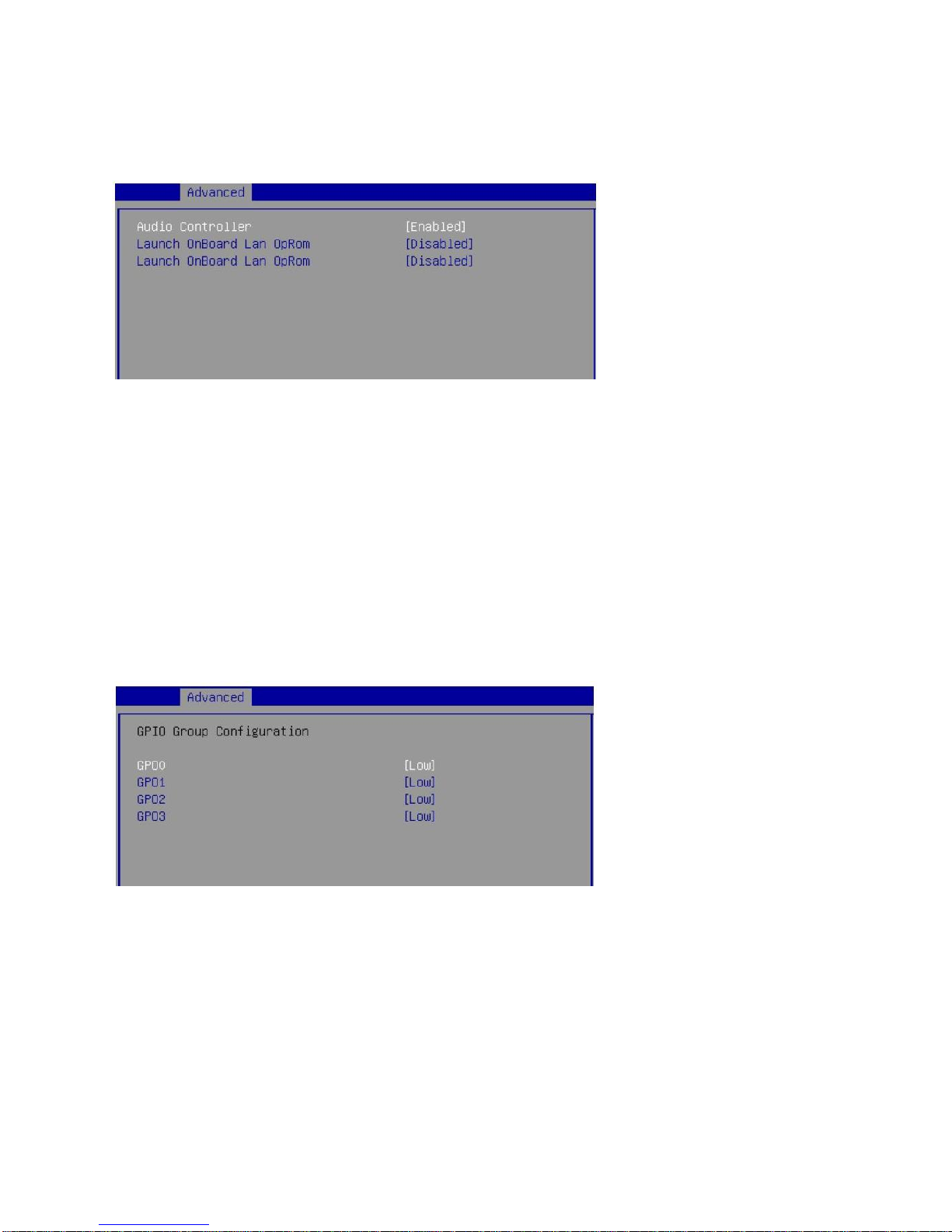

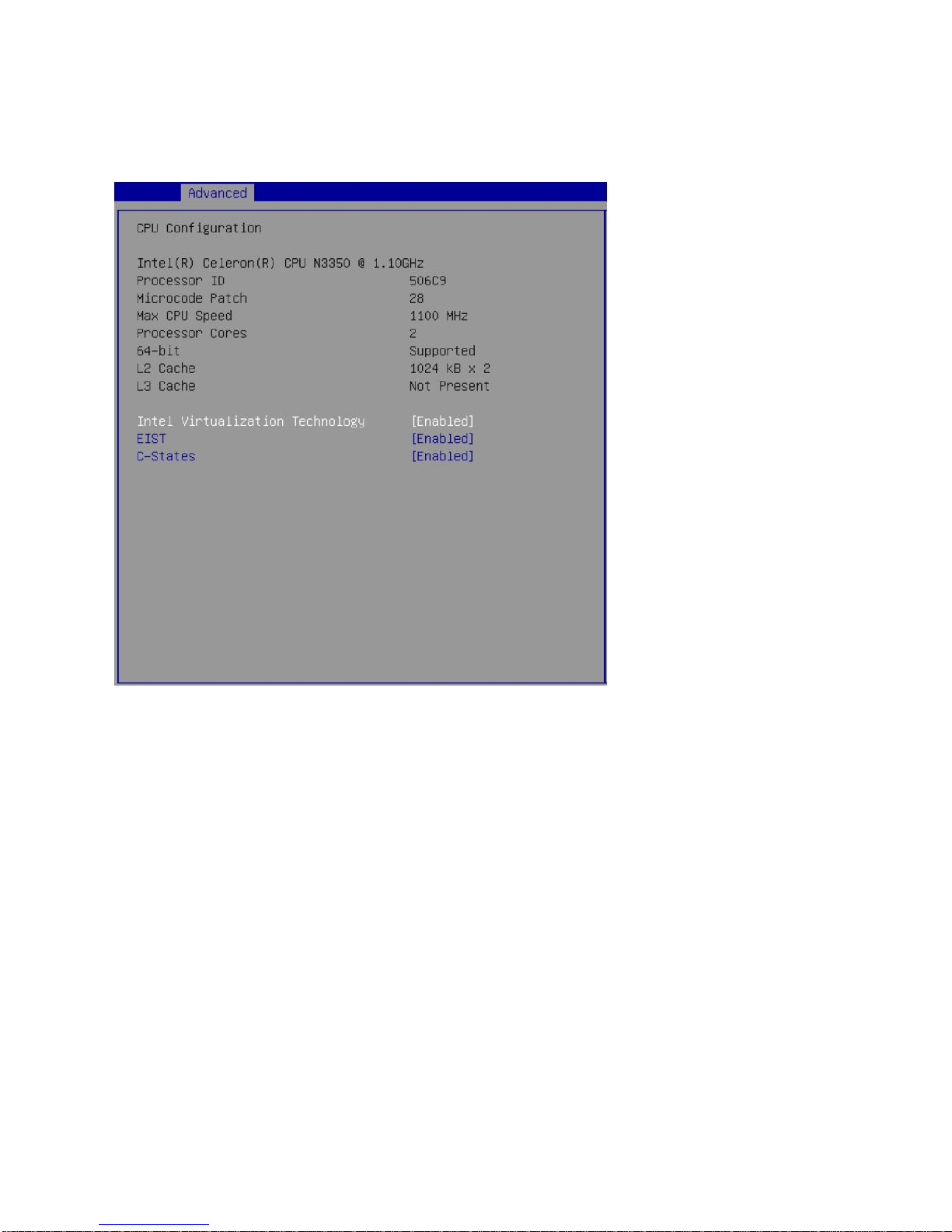

3.3 Advanced ............................................................................................................................................... 46

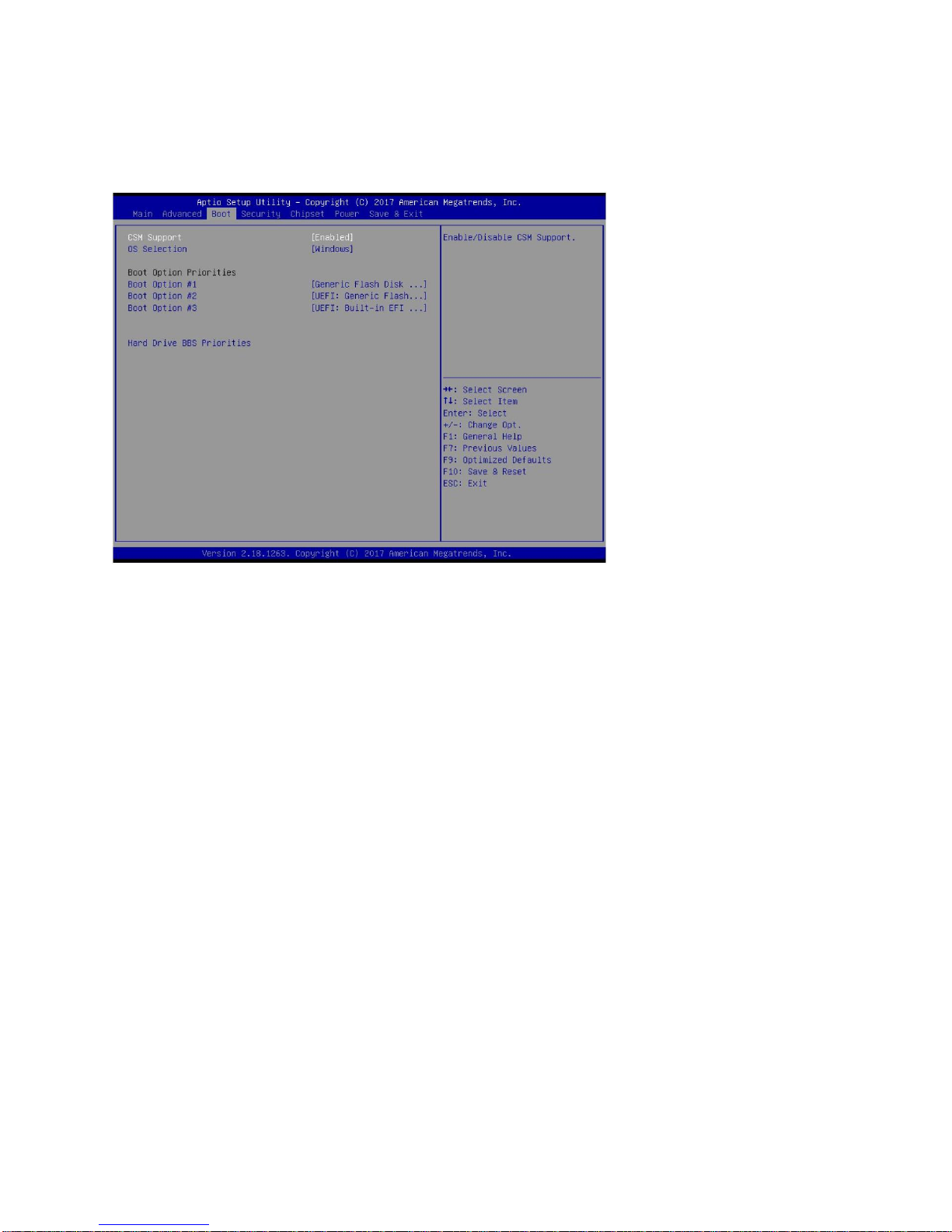

3.4 Boot ....................................................................................................................................................... 53

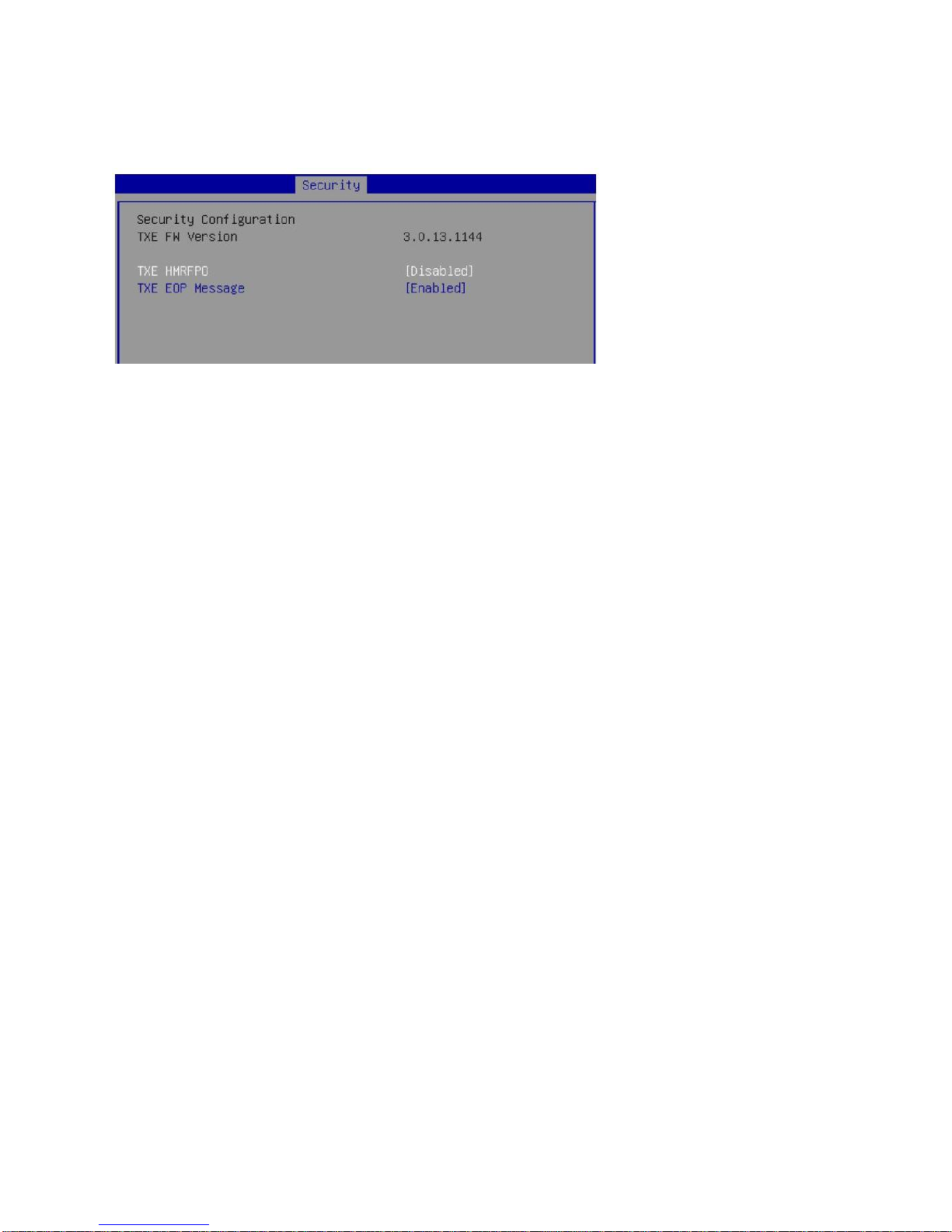

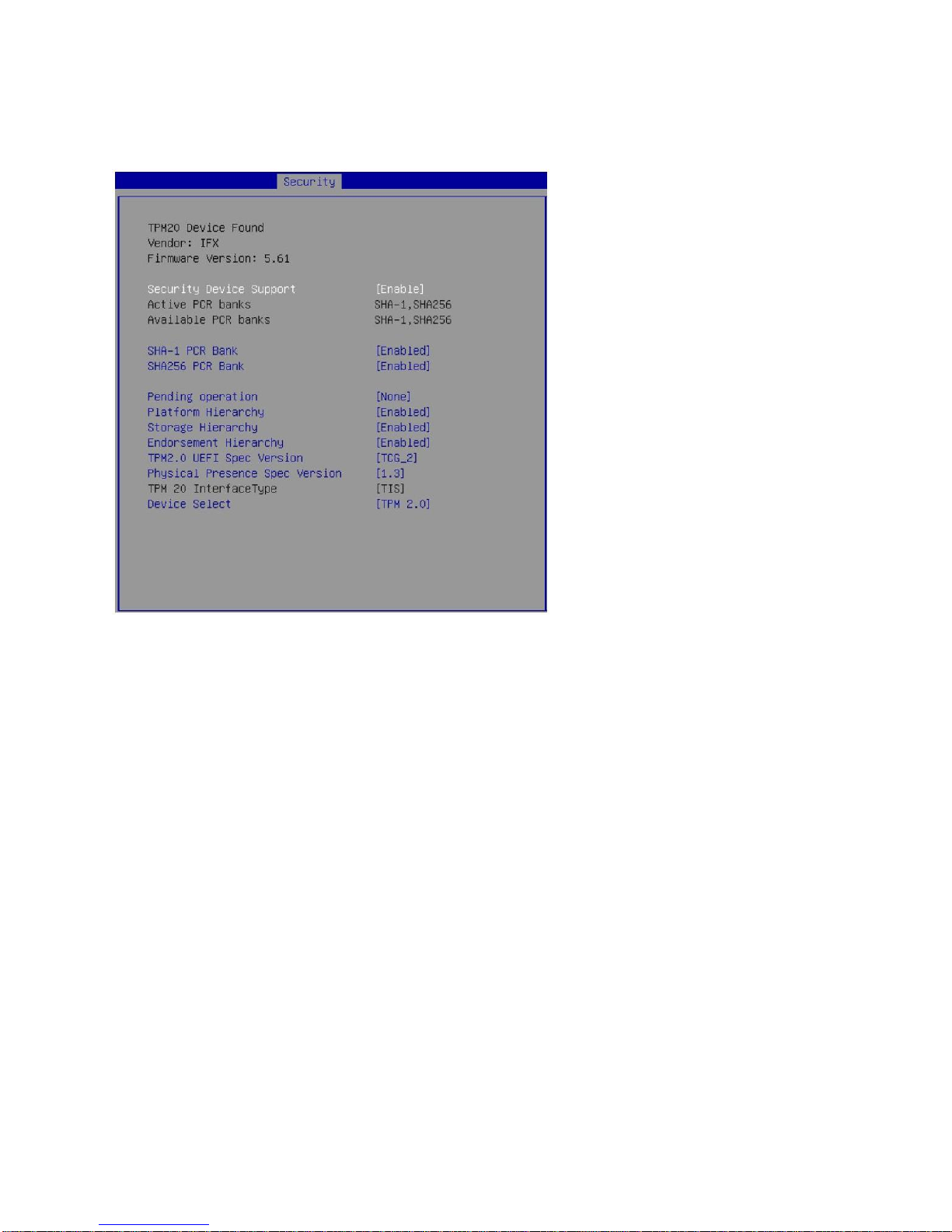

3.5 Security .................................................................................................................................................. 54

3.6 Chipset .................................................................................................................................................. 59

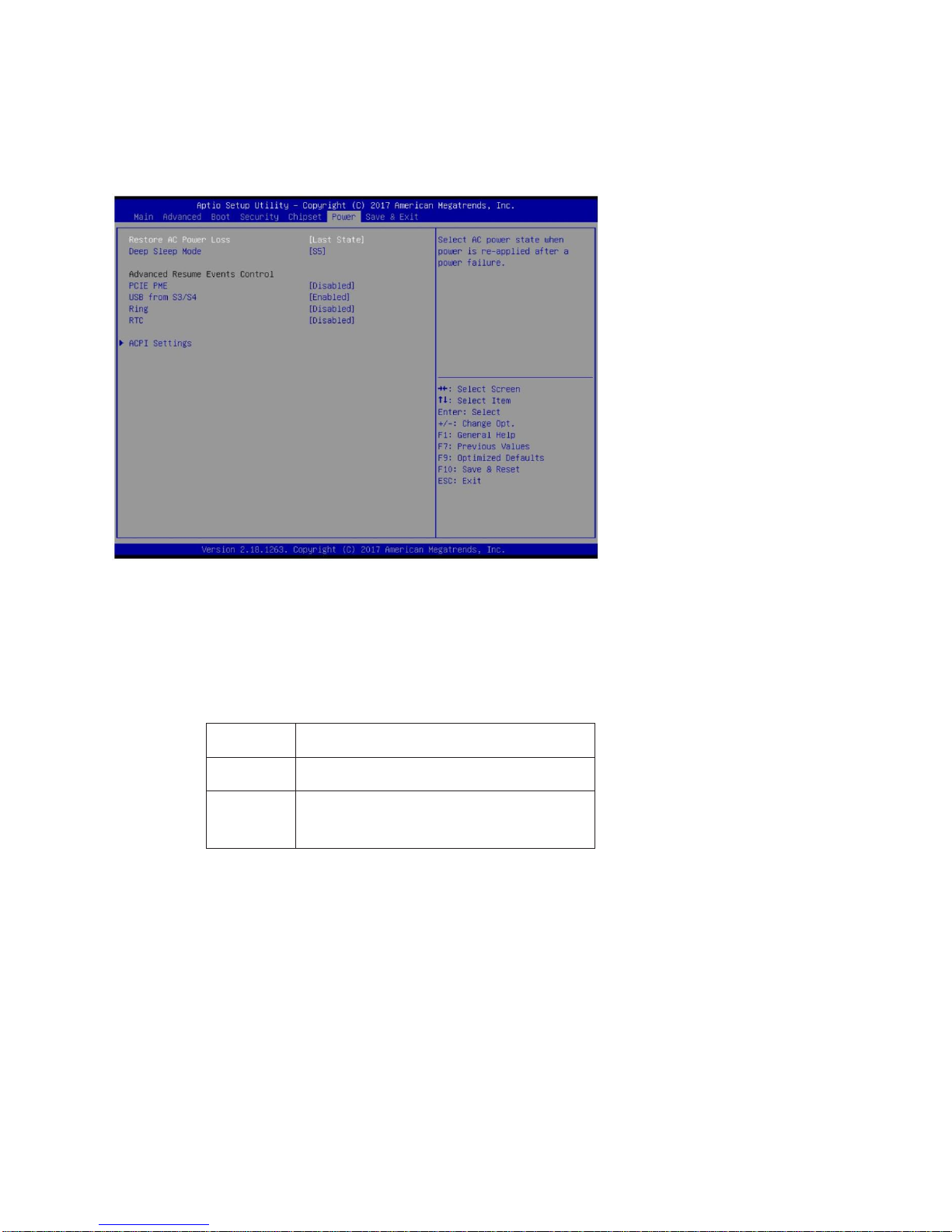

3.7 Power..................................................................................................................................................... 60

3.8 Save & Exit ............................................................................................................................................ 62

Chapter 4: WDT&GPIO ................................................................ ................................ 63

4.1 WDT Sample Code ................................................................................................................................ 63

4.2 GPIO Sample Code ............................................................................................................................... 65

Mainboard Specifications

Model

MX3350N

Processor

Intel ® Celeron ® Processor N3350 Dual Core (up to 2.4GHz)

Chipset

SoC

Memory

2 x DDR3L SO-DIMM slots (204 pin)

Dual channel Non-ECC DDR3L 1866/1600 MHz , Up to 16GB

Display

Intel® HD Graphic

3 x independent displays supported

■ 1 x LVDS 18/24-Bit Dual Channel

- Resolution up to 1366x768 @60Hz (18-Bit)

- Resolution up to 1920x1200 @60Hz (24-Bit)

■ 1 x DP

- Resolution up to 4096×2160 @60Hz

■ 2 x HDMI

- Resolution up to 3840x2160 @30Hz

SATA

1 x SATA III connectors supports Data Transfer rates 6.0Gb/s, 3.0Gb/s and 1.5Gb/s

PCIe

1 x PCIe x1 Slot

M.2

1 x 2230 M.2 slot E Key with PCIe x1 & USB 2.0 signal

1 x 2280 & 2242 M.2 Slot M Key with PCIe x2 & SATA3.0 signal

USB

4 x USB3.0 (4 x Rear I/O with USB2.0 signal)

2 x USB3.0 (2 x Internal I/O with USB2.0 signal)

2 x USB2.0 (2 x Internal I/O)

TPM Infineon SLB 9665TT2.0 TPM 2.0/FW 5.61 (Optional)

1 x TPM 2.0 Security Device

Super I/O Controller

Fintek® F81867AD-I

Serial Ports

1 x RS232/422/485 COM port connector (COM1) 3 x RS232 COM port connectors (COM2, COM3, COM4)

LPT

1 x LPT header

Watch Dog Timer

1 ~ 255 sec timer

HW Monitor

Yes

Audio Realtek® ALC887

HD Audio Codec with auto jack sensing

LAN

Intel® i211AT PCI-E Gigabit LAN

2 x 10/100/1000 LAN

BIOS AMI BIOS

AMI BIOS with 128Mb SPI ROM

Digital IO

8-Bit (4 x GPI, 4 x GPO)

Expansion Slots

PCIe

1 x PCIe x 1 slot

M.2

1 x 2230 M.2 slot E Key with PCIe x1 & USB 2.0 signal

1 x 2280 & 2242 M.2 Slot M Key with PCIe x2 & SATA3.0 signal

Internal I/O Headers

SATA

1 x Std. SATA Connectors

USB 2.0

1 x USB Headers (2 ports on headers)

USB 3.0

1 x USB Headers (2 ports on headers)

COM Port

4 x Headers

LPT

1 x Header

Front Audio

1 x Header (Line-in, Mic)

Amplifier

1 x Header

Front Panel

1 x Header

Fan Header

2 x Headers (4-pins)

Chassis Intrusion Header

1 x Header

LPC (TPM)

1 x Header

Digital IO

1 x Header

LVDS

1 x Header

LVDS Inverter

1 x Header

Internal Jumpers

COM Port Ring-In/ Power Select

4 x Headers provide selections of “Ring-In”, or “12V” or “5V” on COM ports

Chassis Intrusion

1 x Header

AT/ATX Select

1 x Header

Clear CMOS

1 x Header

TXE F/W Select

1 x Header

Secondary RTC Reset Select

1 x Header

LVDS Backlight Control Select

1 x Header

LVDS Backlight Power Select

1 x Header

Back I/O Panel

DC-in

1 x DC-in 12V Jack

HDMI

2 x HDMI Connectors

Displayport

1 x DisplayPort Connector

USB3.0

2 x Stack up USB Connectors

LAN

2 x RJ45 Connectors

Audio

2 x Audio Jacks (Line-Out, Mic)

Power & Connector

1 x DC-in 12V Jack

1 x 4 pin DC-in 12V Connector

Form Factor

Mini-ITX (6.7-in x 6.7-in)

Certification

FCC Class B, CE

Chapter 1: System Setup

This chapter describes the mainboard features and the new technologies it supports

1.1 Welcome!

The mainboard delivers a host of new features and latest technologies, making it another line of BCM long life mainboards! Before you start installing the mainboard, and hardware devices on it, check the items in your package with the list below. If any of the items listed below is damaged of missing, please contact with your vendor.

1.2 Packing Contents

• Mainboard

• 1 x MX3350N

• Cable

• 1 x Serial ATA Power Cable

• Accessories

• 1 x MX3350N STD I/O Shield

• 1 x MX3350N Thin I/O Shield

• Drivers

• Drivers is available for download at BCM website at WWW.BCMCOM.COM

• Documentation

• Manual is available for download at BCM website at WWW.BCMCOM.COM

1.3 Features

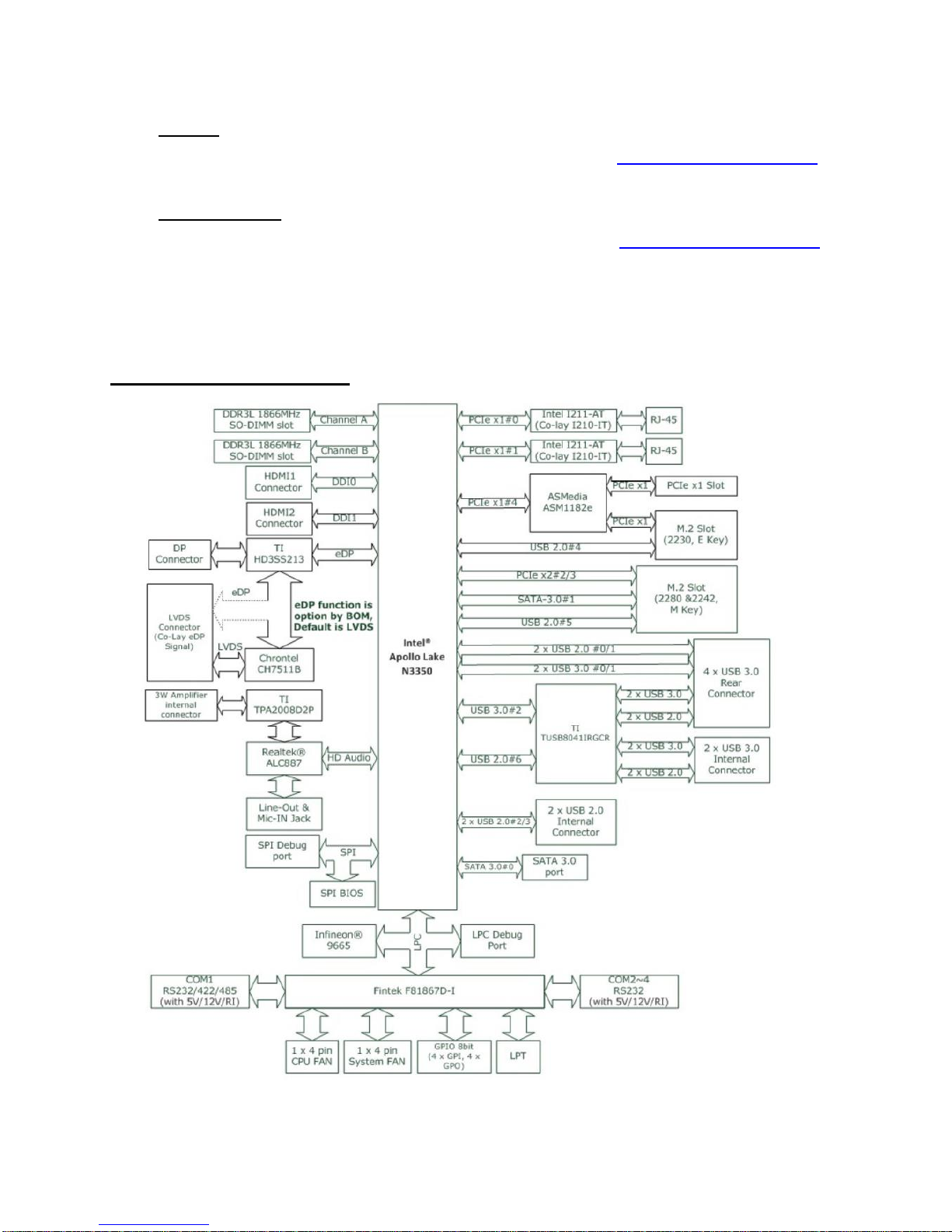

MX3350N block Diagram

1.4 Before you proceed

Take note of the following precautions before you install mainboard components or change any mainboard settings.

• Unplug the power cord from the wall socket before touching any component inside the

system.

• Use a grounded wrist strap or touch a safely grounded object or to a metal object, such as the

power supply case, before handling components to avoid damaging them due to static electricity.

• Hold components by the edges to avoid touching the ICs on them.

• Whenever you uninstall any component, place it on a grounded antistatic pad or in the bag

that came with the component.

• Before you install or remove any component, ensure that the ATX power supply is switched

off or the power cord is detached from the power supply. Failure to do so may cause severe damage to the mainboard, peripherals, and/or components.

1.5 Mainboard Overview

Before you install the mainboard, study the configuration of your chassis to ensure that the mainboard fits into it.

Make sure to unplug the power cord before installing or removing the mainboard. Failure to do so can cause you physical injury and damage mainboard components.

1.5.1 Placement Direction

When installing the mainboard, make sure that you place it into the chassis in the correct orientation. The edge with external port goes to the rear part of the chassis as indicated in the image below.

1.5.2 Mounting Holes

Place the screws into the mounting holes indicated by red squares to secure the mainboard to the chassis.

Do not over-tighten the screws! Doing so may damage the mainboard.

1.5.3 Mainboard Layout

• Back Panel:

1.5.4 Layout Content List

1.5.4.1 Slots

Label

Function

Note

Page

DIMM1

204-pin DIMM slot 1

If there is only one memory module being installed in the system, install it on this slot first.

DIMM2

204-pin DIMM slot 2

PCI_E1

PCI express x1 slot

M2_1

2230 M.2 slot E Key

JM1

2280 & 2242 M.2 Slot M Key

1.5.4.2 Internal Jumpers

Label

Function

Note

Page

JCMOS1

Clear CMOS

1 x 3 header, pitch 2.0mm

JTXE1

Enable/disable the Intel TXE F/W

1 x 3 header, pitch 2.0mm

JBAT1

Secondary RTC Reset Select

1 x 3 header, pitch 2.0mm

JLVDS_BKL1

LVDS Backlight Control Select

1 x 3 header, pitch 2.0mm

JBKLVOL1

LVDS Backlight Power 3V/5V Select

1 x 3 header, pitch 2.0mm

JCOMP1 JCOMP2 JCOMP3 JCOMP4

COM1, COM2, COM3, COM4 RI/+5V/+12V Select

2 x 3 header, pitch 2.0mm

JAT1

AT/ATX Power Select

1 x 3 header, pitch 2.0mm

1.5.4.3 Internal Headers

Label

Function

Note

Page

PWR1

DC-in 12V Connector

2 x 2 header

SATA1

Serial ATA Connectors

7-pin

CPUFAN1

CPU Fan Connector

1 x 4 wafer, pitch 2.54mm

SYSFAN1

System Fan Connector

1 x 4 wafer, pitch 2.54mm

JGPIO2

Digital I/O header

2 x 6 header, pitch 2.0mm

JPSATA1

SATA Power

15-pin

JFP1

System Panel Connector

2 x 5 header, pitch 2.54mm

COM1 COM2 COM3 COM4

Serial Port Connector 1, 2, 3, 4

2 x 5 wafer, pitch 2.00mm

JTPM1

LPC debug port and supports TPM modules

2 x 7 Box header, pitch 2.0mm

JCASE1

Chassis Intrusion Connector

1 x 2 header, pitch 2.54mm

JLPT1

Parallel Port Connector

2 x 13 Box header, pitch 2.00mm

JUSB1

USB 2.0 Connector

2 x 5 header, pitch 2.54mm

JAMP1

Amplifier Connector

1 x 4 header, pitch 2.54mm

JUSB3

USB 3.0 Connector

2 x 10 Box header, pitch 2.00mm

JAUD1

Front Panel Audio Connector

2 x 5 header, pitch 2.54mm

JINV1

LVDS Inverter Connector

1 x 5 header, pitch 2.0mm

JLVDS1

LVDS Connector

2 x 20 header, pitch 1.25mm

1.5.4.4 Back Panel Connectors

Label

Function

Note

Page

JPWR1

DC-in 12V Jack

HDMI1/HDMI2

HDMI x 2

DP1

Display Port x 1

1. This DisplayPort Does NOT support Hot Plug and Audio Output

JLAN1/ JLAN2

RJ-45 Ethernet Connector x 2

USB1/USB2

USB3.0 Connector x 4

JACK1/JACK2

Line-out Port, Microphone Port,

1.6 Installing DIMM

1.6.1 The SO-DIMM slot is intended for memory modules.

1. Locate the SO-DIMM slot. Align the notch on the DIMM with the key on the slot and insert the DIMM into the slot.

2. Push the DIMM gently downwards until the slot levers click and lock the DIMM in place.

3. To uninstall the DIMM, flip the slot levers outwards and the DIMM will be released instantly.

You can barely see the golden finger if the DIMM is properly inserted in the DIMM slot.

1.7 Power Supply

1.7.1 DC-In 12V Connector: PWR1

This connector is used to provide power to the motherboard.

1.7.2 SATA Power Connector: JPSATA1

This connector is used to provide power to SATA devices. Please use a SATA power cable connect onboard SATA power connector with SATA device’s power connector.

1.8 Back Panel

1.8.1 Back Panel Connectors

Item

Name

Function

Description

JPWR1

DC-In 12V Jack

This jack is used to provide power to motherboard.

HDMI1

HDMI Port 1

The High-Definition Multimedia Interface (HDMI) is an all-digital audio/video interface capable of transmitting uncompressed streams. HDMI supports all TV format, including standard, enhanced, or high-definition video, plus multi-channel digital audio on a single cable.

HDMI2

HDMI Port 2

DP1

Display Port 1

Provides “DisplayPort” type connection to monitor.

This DisplayPort Does NOT support “Hot

Plug” and “Audio Output”.

1 2 3

5 6 7

8 9 10

5/6

JLAN1/

JLAN2

Gigabit LAN

(RJ-45)

Connectors

This port allows Gigabit connection to a Local Area Network (LAN) through a network hub. Refer to the table below for the LAN port LED indications.

ACT/Link LED

Speed LED

Status

Description

Status

Description

OFF

No link

OFF

10Mbps connection

Orange

Linked

Orange

100Mbps connection

Blinking

Data activity

Green

1Gbps connection

USB1

USB 3.0

Connectors

These two 4-pin Universal Serial Bus (USB) ports are available for connecting USB 3.0/ 2.0 devices.

USB2

USB 3.0

Connectors

These two 4-pin Universal Serial Bus (USB) ports are available for connecting USB 3.0/ 2.0 devices.

JACK1

Line-out port

(Lime)

This port connects a headphone or a speaker.

JACK2

Microphone port

(Pink)

This port connects a microphone.

1.9 Connectors/ Headers

1.9.1 Serial ATA Connectors: SATA1

This connector is a high-speed Serial ATA interface port. Each connector can connect to one Serial ATA device. SATA3.0 standard, which is backward compatible with SATA2.0

Please do not fold the Serial ATA cable into 90-degree angle. Otherwise, data loss may occur during data transmission.

1.9.2 Fan Power Connectors: CPUFAN1, SYSFAN1

The fan power connectors support system cooling fan with +12V. When connecting the wire to these fan

connectors, please note that the red wire is designated as “Power” and should be connected to “+12V” pin;

the black wire is designated as “Ground” and should be connected to “GND”. In order to take the advantage

of System Hardware Monitor, be sure to use the fan which is specifically designed with speed sensor.

Please refer to the recommended CPU fans at processor’s official website or consult

with the vendor for proper CPU cooling fan.

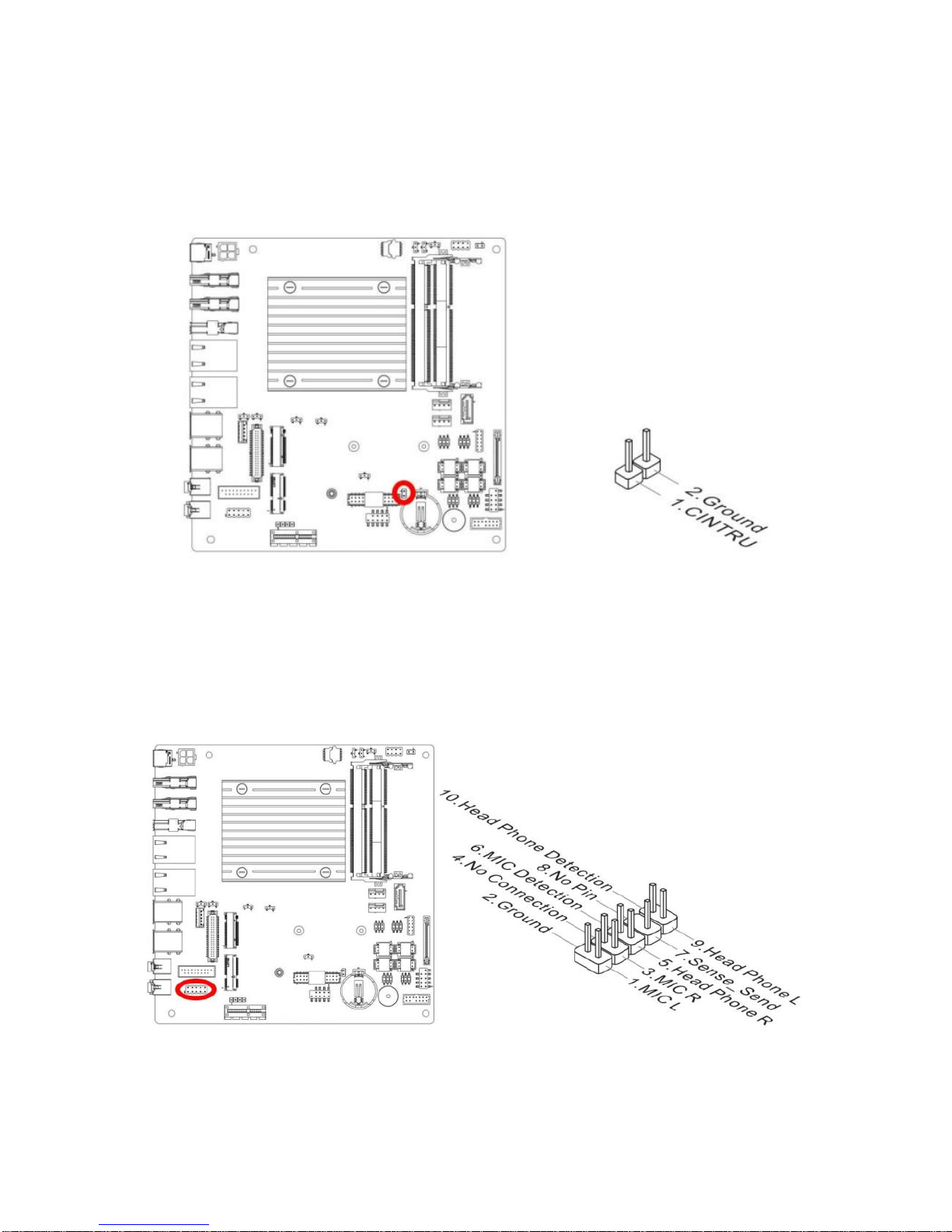

1.9.3 Chassis Intrusion Switch Connector: JCASE1

This connector connects to a 2-pin chassis switch. If the chassis is opened, the switch will be short. The system will record this status and show a warning message on the screen. To clear the warning message, you must enter the BIOS and clear the record.

1.9.4 Front Panel Audio Connector: JAUDIO1

This connector allows you to connect the front panel audio and is compliant with Intel® Front Panel I/O Connectivity Design Guide.

1.9.5 Amplifier Connector: JAMP1

This header provided amplified audio signals to external speakers (2-channels).

1.9.6 Front USB2.0 Headers: JUSB1

This connector is compliant with Intel® I/O Connectivity Design Guide, which is ideal for connecting high-speed USB peripherals such as USB HDD, USB digital cameras, USB MP3 players, USB printers, etc.

Be sure the pins of VCC and GND is connected to the connector correctly. Otherwise,

it may cause damage to the USB port and/or the connected USB device.

1.9.7 Serial Port Connectors: COM1, COM2, COM3, COM4

This connector is a 16550A high speed communications port that sends/receives 16 bytes FIFOs. You can attach a serial device to it. COM1 supports RS232/422/485. COM2~4 support RS232.

1.9.8 LPT Port Connector: JLPT1

The mainboard provides a 26-pin header for connection to an optional parallel port bracket. The parallel port is a standard printer port that supports Enhanced Parallel Port (EPP) and Extended Capabilities Parallel Port (ECP) mode.

1.9.9 Front Panel Connectors: JFP1

This front panel connector is provided for electrical connection to the front panel switches & LEDs and is compliant with Intel Front Panel I/O Connectivity Design Guide.

1.9.10 USB3.0 Connector: JUSB3

The USB3.0 port is backwards compatible with USB2.0 devices. It supports up to 5 Gbit/s (Su- perSpeed) data transfer rate.

1. Note that the pins of VCC and GND must be connected correctly to avoid possible damage.

2. To use a USB3.0 device, you must connect the device to a USB3.0 port through an optional USB3.0 compliant cable.

1.9.11 Digital I/O Connector: JGPIO2

This connector is provided for the General-Purpose Input/Output (GPIO) peripheral module.

1.9.12 LVDS Inverter Connector: JINV1

The connector is provided for LCD backlight options.

1.9.13 LVDS Connector: JLVDS1

The LVDS (Low Voltage Differential Signal) connector provides a digital interface typically used with flat panels. After connecting an LVDS interface flat panel to the JLVDS1, be sure

to check the panel datasheet and set the

LVDS jumper to proper power voltage.

1.9.14 LPC Debug Port Connector: JTPM1 (With TPM Support)

This connector works as LPC debug port and supports TPM modules through an adapter.

1.10 Jumpers

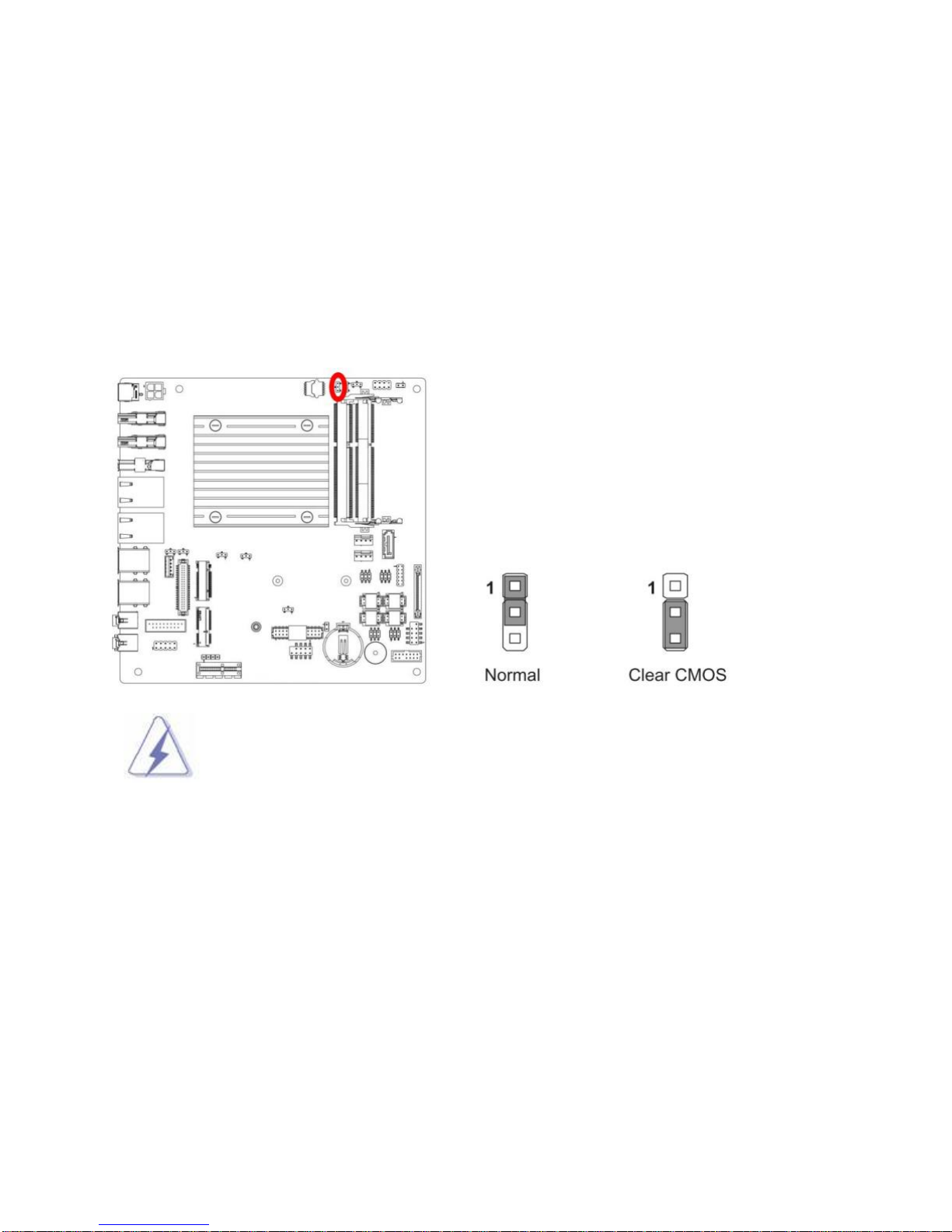

1.10.1 Clear CMOS Jumper: JCMOS1

There is a CMOS RAM onboard that has a power supply from an external battery to keep the data of system configuration. For normal state (default), the jumper is set on pin location 1 and 2. To clear the CMOS, set the jumper to pin location 2 and 3 for at least 30 seconds while the system is off.

1. You can clear CMOS by shorting pin 2-3 for at least 30 seconds (while the system is

OFF), then place the jumper back to pin 1-2 for normal operation.

2. Avoid clearing the CMOS while the system is ON; this will damage the mainboard.

1.10.2 COM1, COM2, COM3 and COM4 Ring-in/ +12V/ +5V Power Select: JCOMP1, JCOMP2, JCOMP3, JCOMP4

These headers provide ring-in, or 5V, or 12V on the com ports.

1.10.3 ATX/AT Mode Selection: JAT1

This header provides the option to boot the system in the form of ATX mode (default) or AT mode. When the system is set in AT mode, the system power on/off will be controlled directly by the power switch on power supply. And some of the power saving modes will not function as ATX mode provided.

1.10.4 Secondary RTC Reset Jumper: JBAT1

When the RTC battery is removed, this jumper resets the manageability register bits in the RTC.

1.10.5 TXE F/W Jumper: JTXE1

This jumper is used to enable/disable the Intel TXE F/W.

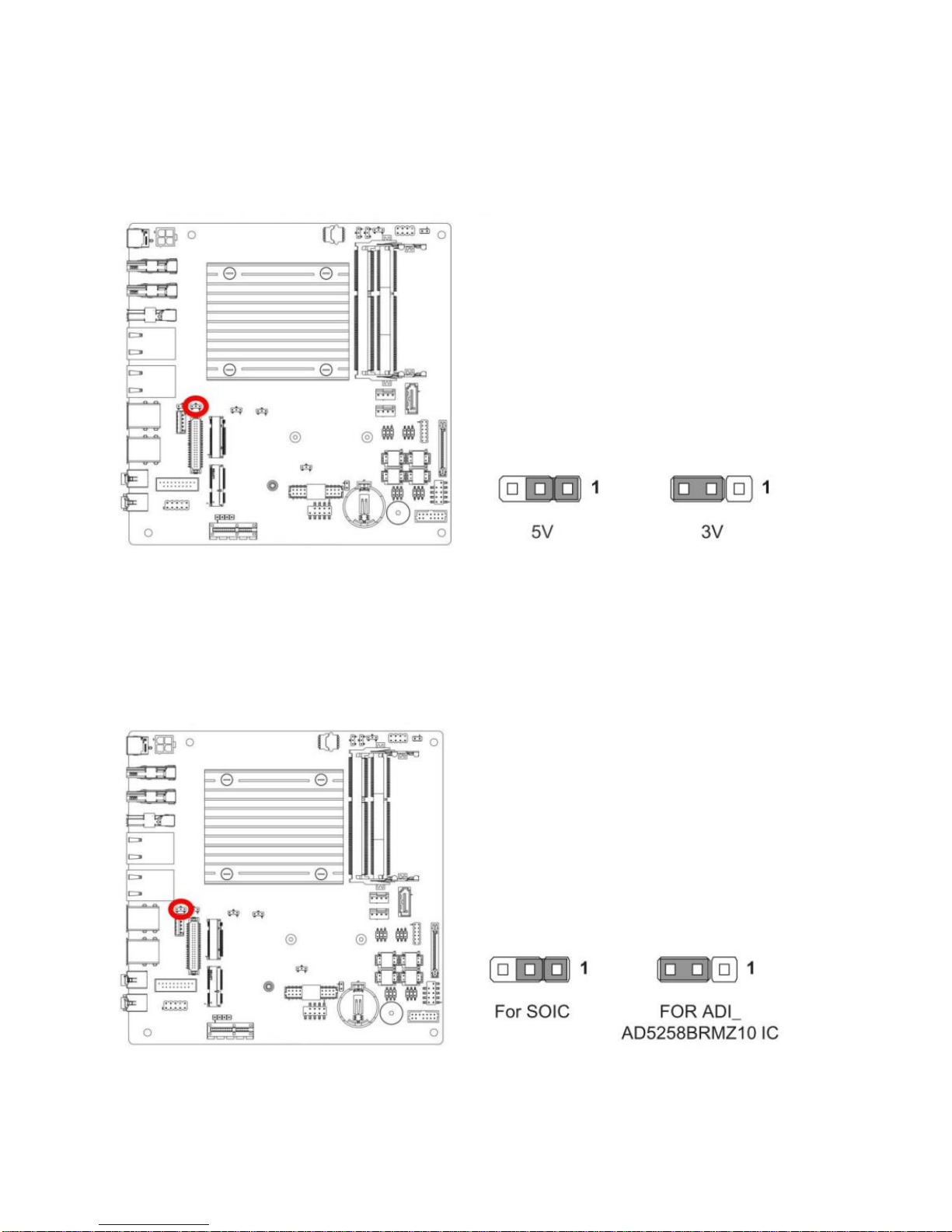

1.10.6 LVDS Backlight Power Jumper: JBKLVOL1

Use this jumper to specify the operation voltage of the LVDS display.

1.10.7 LVDS Backlight Control Jumper: JLVDS_BKL1

Use this jumper to specify the backlight control of the LVDS display.

1.11 The Expansion Slots

In the future, you may need to install expansion cards. The following sub-sections describe the expansion slots and the expansion cards that they support.

Make sure to unplug the power cord before adding or removing expansion cards. Failure to do so may cause you physical injury and damage mainrboard components.

1.11.1 Installation of Expansion Card

To install an expansion Card:

1. Before install the expansion card, read the documentation that came with it and make the necessary hardware setting for the card.

2. Remove the chassis cover (if the mainboard is installed in a chassis).

3. Remove the expansion slot bracket from the chassis on the slot that you intend to use. Keep the screw for later use.

4. Align the card connector with the slot and press it firmly until the card is completely seated on the slot.

5. Secure the card to the chassis with the screw that have been removed earlier (in step 3).

6. Place the chassis cover back on.

1.11.2 PCI (Peripheral Component Interconnect) Express Slot

The PCI Express slot supports the PCI Express interface expansion card. ▪ The PCI Express x1 (PCI-E x1) supports up to 250MB/s transfer rate.

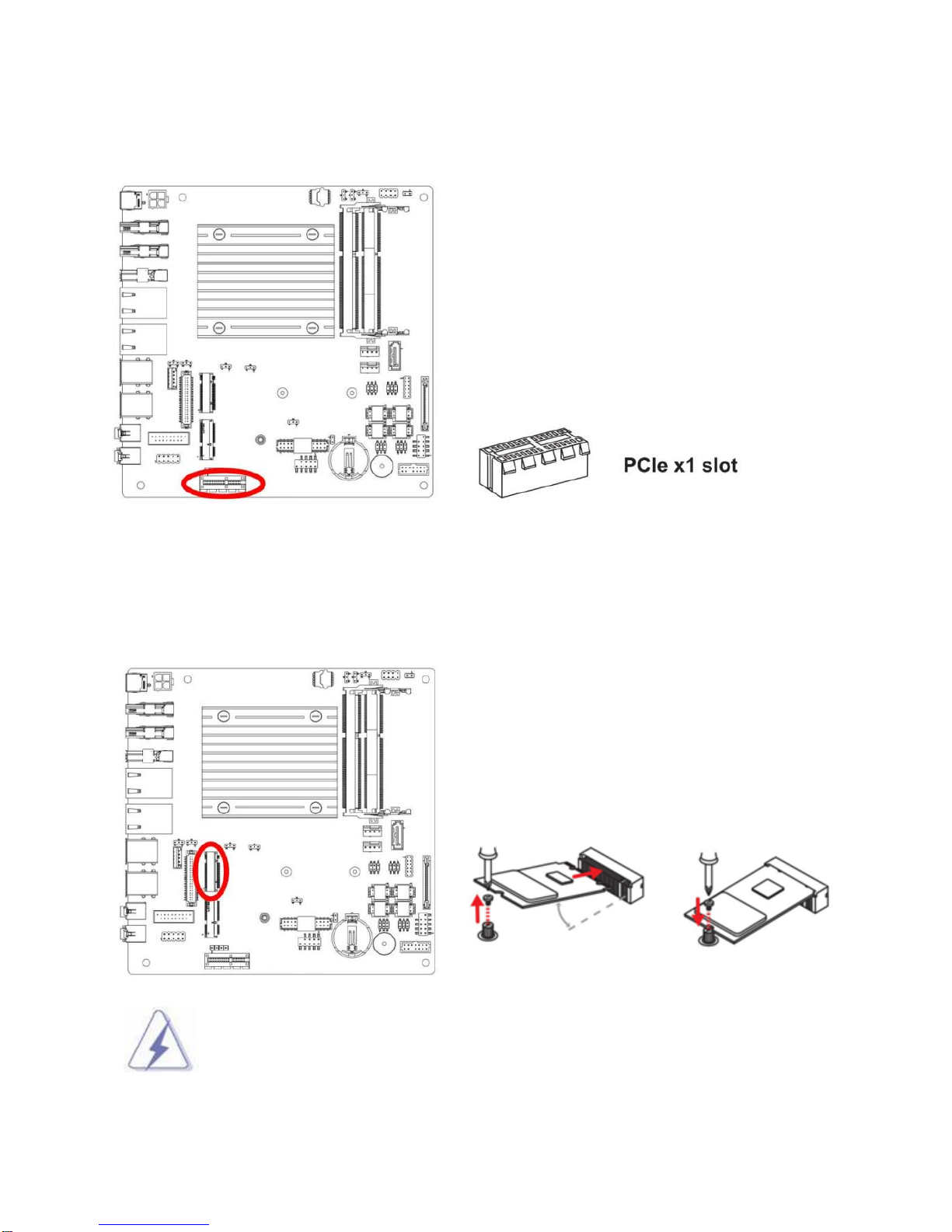

1.11.3 PCIe x1 Slot: PCI_E1

The PCI Express slot supports PCIe interface expansion cards.

1.11.4 M.2 Slot (Key M, 2280 & 2242): JM1

Please install the M.2 solid-state drive (SSD) into the M.2 slot as shown below.

1. When adding or removing expansion cards, make sure the system power is OFF.

2. Intel® RST only supports PCIe M.2 SSD with UEFI ROM and does not support. Legacy ROM.

1.11.5 M.2 Slot (Key E, 2230): M2_1

Please install the Wi-Fi/ Bluetooch card into the M.2 slot as shown below.

When adding or removing expansion cards, make sure that you unplug the power supply first. Meanwhile, read the documentation for the expansion card to configure any necessary hardware or software settings for the expansion card, such as jumpers, switches or BIOS configuration.

Chapter 2: Starting Up the System

2.1 Starting Up Your System

1. After all connections are made, close your computer case cover.

2. Connect the power supply cord into the power supply located on the back of your system case according to your system user’s manual.

3. Turn on your peripheral in following order: a. Your monitor.

b. Other external peripheral (Printer, Scanner, External Modem etc…) c. Your system power. For ATX power supplies, you need to turn on the power supply and press

the ATX power switch on the front side of the case.

4. The power LED on the front panel of the system case will light. The LED on the monitor may light up or switch between orange and green after the system is on. If it complies with green standards or if it is has a power standby feature. The system will then run power-on test. While the tests are running, the BIOS will alarm beeps or additional message will appear on the screen.

If you do not see any thing within 30 seconds from the time you turn on the power. The system may have failed on power-on test. Recheck your jumper settings and connections or call your retailer for assistance.

5. During power-on, press <Del> key to enter BIOS setup. Follow the instructions in BIOS SETUP.

6. If you wish to boot from a different bootable device other than the default arrangement under the BIOS, you may press <F11> key during the system power-on (post); a menu with all detected bootable devices which are attached to the system will be displayed. Then you may select the desired first bootable device from this menu.

7. Power off your computer: You must first exit or shut down your operating system before switch off the power switch. For ATX power supply, you can press ATX power switching after exiting or shutting down your operating system. If you use Windows Operating Systems, click “Start” button, click “Shut down” and then click “Shut down the computer” The power supply should turn off after windows shut down.

Chapter 3: BIOS SETUP

This chapter provides information on the BIOS Setup program and allows users to configure the system for optimal use. Users may need to run the BIOS Setup when:

1. An error message appears on the screen at system startup and requests users to run SETUP.

2. Users want to change the default settings for customized features.

Please note that BIOS update assumes technician-level experience. As the system BIOS is under continuous update for better system

performance, the illustrations in this chapter should be held for reference only.

Entering Setup

Power on the computer and the system will start POST (Power On Self Test) process. When the message appears on the screen, press <DEL> or <F2> key to enter Setup.

If the message disappears before you respond and you still wish to enter Setup, restart the system by turning it OFF and On or pressing the RESET button. You may also restart the system by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys.

The items under each BIOS category described in this chapter are under continuous update for better system performance. Therefore, the description may be slightly different from the latest BIOS and should be held for reference only.

Control Keys

← →

Select Screen

↑ ↓

Select Item

Enter

Select

+ -

Change Option

General Help

Previous Values

Optimized Defaults

F10

Save & Reset

Esc

Exit

Getting Help

After entering the Setup menu, the first menu you will see is the Main Menu.

Main Menu

The main menu lists the setup functions you can make changes to. You can use the arrow keys ( ↑↓ ) to

select the item. The on-line description of the highlighted setup function is displayed at the bottom of the screen.

Sub-Menu

If you find a right pointer symbol appears to the left of certain fields that means a sub-menu can be launched from this field. A sub-menu contains additional options for a field parameter. You can use arrow keys ( ↑↓ ) to highlight the field and press <Enter> to call up the sub-menu. Then you can use the control keys to enter values and move from field to field within a sub-menu. If you want to return to the main menu, just press the <Esc >.

General Help <F1>

The BIOS setup program provides a General Help screen. You can call up this screen from any menu by simply pressing <F1>. The Help screen lists the appropriate keys to use and the possible selections for the highlighted item. Press <Esc> to exit the Help screen.

3.1 The Menu Bar

▶

Main

Use this menu for basic system configurations, such as time, date, etc.

▶

Advanced

Use this menu to set up the items of special enhanced features.

▶

Boot

Use this menu to specify the priority of boot devices.

▶

Security

Use this menu to set supervisor and user passwords.

▶

Chipset

This menu controls the advanced features of the onboard chipsets.

▶

Power

Use this menu to specify your settings for power management. ▶ Save & Exit

This menu allows you to load the BIOS default values or factory default settings into the BIOS and exit the BIOS setup utility with or without changes

3.2 Main

▶

System Date

This setting allows you to set the system date. The date format is <Day>, <Month> <Date> <Year>.

▶

System Time

This setting allows you to set the system time. The time format is <Hour> <Minute> <Second>. ▶ SATA Mode Selection

This setting specifies the SATA controller mode.

3.3 Advanced

▶ Full Screen Logo Display

This BIOS feature determines if the BIOS should hide the normal POST messages with the motherboard or system manufacturer’s full-screen logo. When it is enabled, the BIOS will display the full-screen logo during the boot-up sequence, hiding normal POST messages. When it is disabled, the BIOS will display the normal POST messages, instead of the full-screen logo. Please note that enabling this BIOS feature often adds 2-3 seconds of delay to the booting sequence. This delay ensures that the logo is displayed for a sufficient amount of time. Therefore, it is recommended that you disable this BIOS feature for a faster boot-up time.

▶

Bootup NumLock State This setting is to set the Num Lock status when the system is powered on. Setting to [On] will turn on the Num Lock key when the system is powered on. Setting to [Off] will allow users to use the arrow keys on the numeric keypad.

▶ Option ROM Messages This item is used to determine the display mode when an optional ROM is initialized during POST. When set to [Force BIOS], the display mode used by AMI BIOS is used. Select [Keep Current] if you want to use the display mode of optional ROM.

▶ Super IO Configuration

▶ Serial Port 1/ 2/ 3/ 4

This setting enables/disables the specified serial port.

▶

Change Settings

This setting is used to change the address & IRQ settings of the specified serial port.

▶

Mode Select Select an operation mode for the Serial Port 1.

▶

Parallel Port This setting enables/disables the parallel port.

▶

Change Settings

This setting is used to change the address & IRQ settings of the parallel port.

▶

Device Mode

Select an operation mode for the parallel port.

▶

FIFO Mode

This setting controls the FIFO data transfer mode. ▶ Shared IRQ Mode

This setting provides the system with the ability to share interrupts among its serial ports. ▶ Watch Dog Timer

You can enable the system watch-dog timer, a hardware timer that generates a reset when the software that it monitors does not respond as expected each time the watch dog polls it.

▶

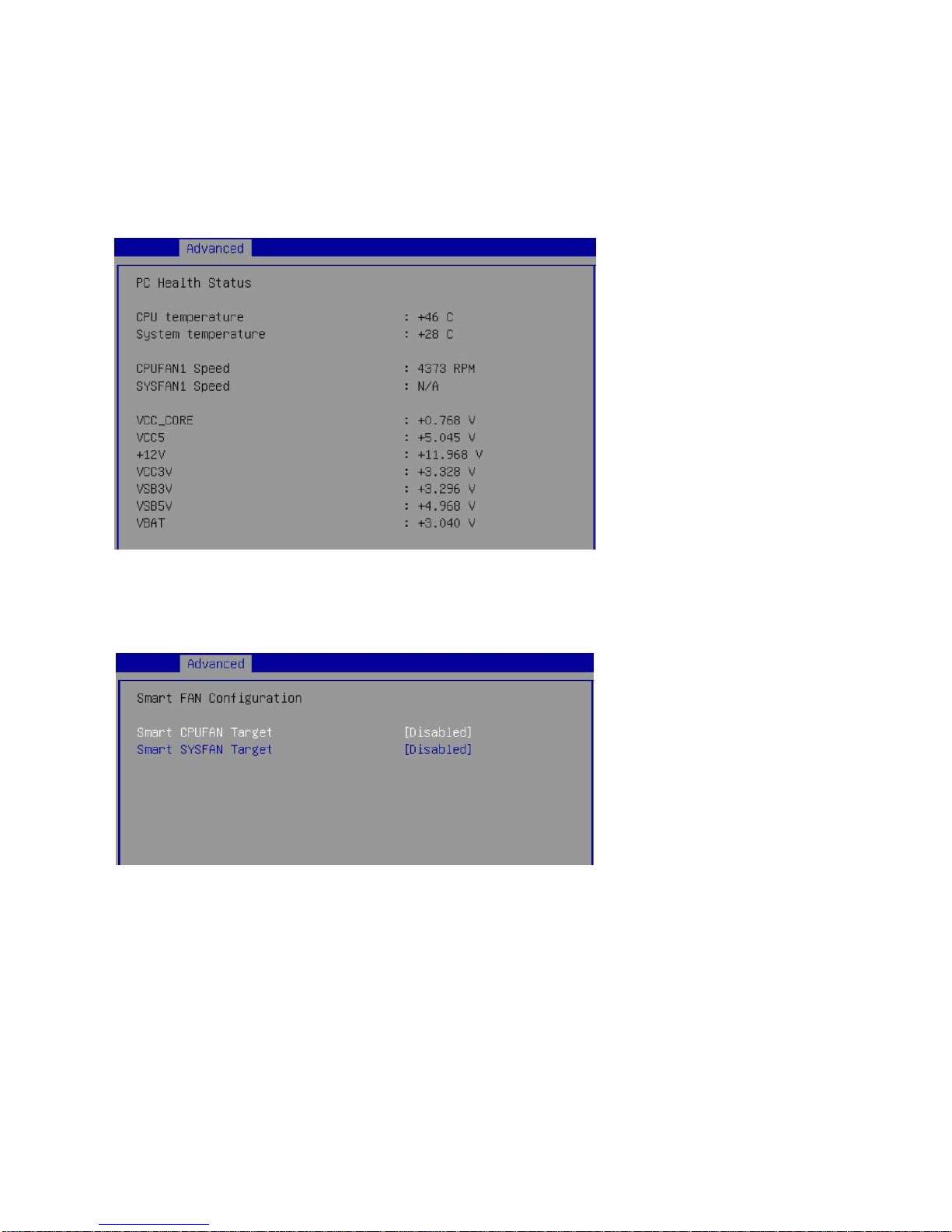

H/W Monitor

These items display the current status of all monitored hardware devices/ components such as voltages, temperatures and all fans’ speeds.

▶ Smart Fan Configuration

▶ Smart CPUFAN Target, Smart SYSFAN Target

The setting enables/disables the Smart Fan function. Smart Fan is an excellent feature which will adjust the CPU/system fan speed automatically depending on the current CPU/system temperature, avoiding the overheating to damage your system.

▶

CPU Configuration

▶ Intel Virtualization Technology Virtualization enhanced by Intel Virtualization Technology will allow a platform to run multiple operating systems and applications in independent partitions. With virtualization, one computer system can function as multiple “Virtual” systems.

▶

EIST

EIST (Enhanced Intel SpeedStep Technology) allows the system to dynamically adjust processor voltage and core frequency, which can result in decreased average power consumption and decreased average heat production. When disabled, the processor will return the actual maximum CPUID input value of the processor when queried.

▶

C-States C-state performance indicates the ability to run the processor in lower power states when the PC is idle. This setting enables/disables the C-State Configuration for power saving purposes.

▶ Network Stack Configuration

▶ Network Stack

The setting enables/disables UEFI Network Stack. ▶ Ipv4 PXE Support, Ipv4 HTTP Support, Ipv6 PXE Support, Ipv6 HTTP Support

The setting enables/disables Ipv4 PXE Support, Ipv4 HTTP Support, Ipv6 PXE Support and Ipv6 HTTP Support.

▶

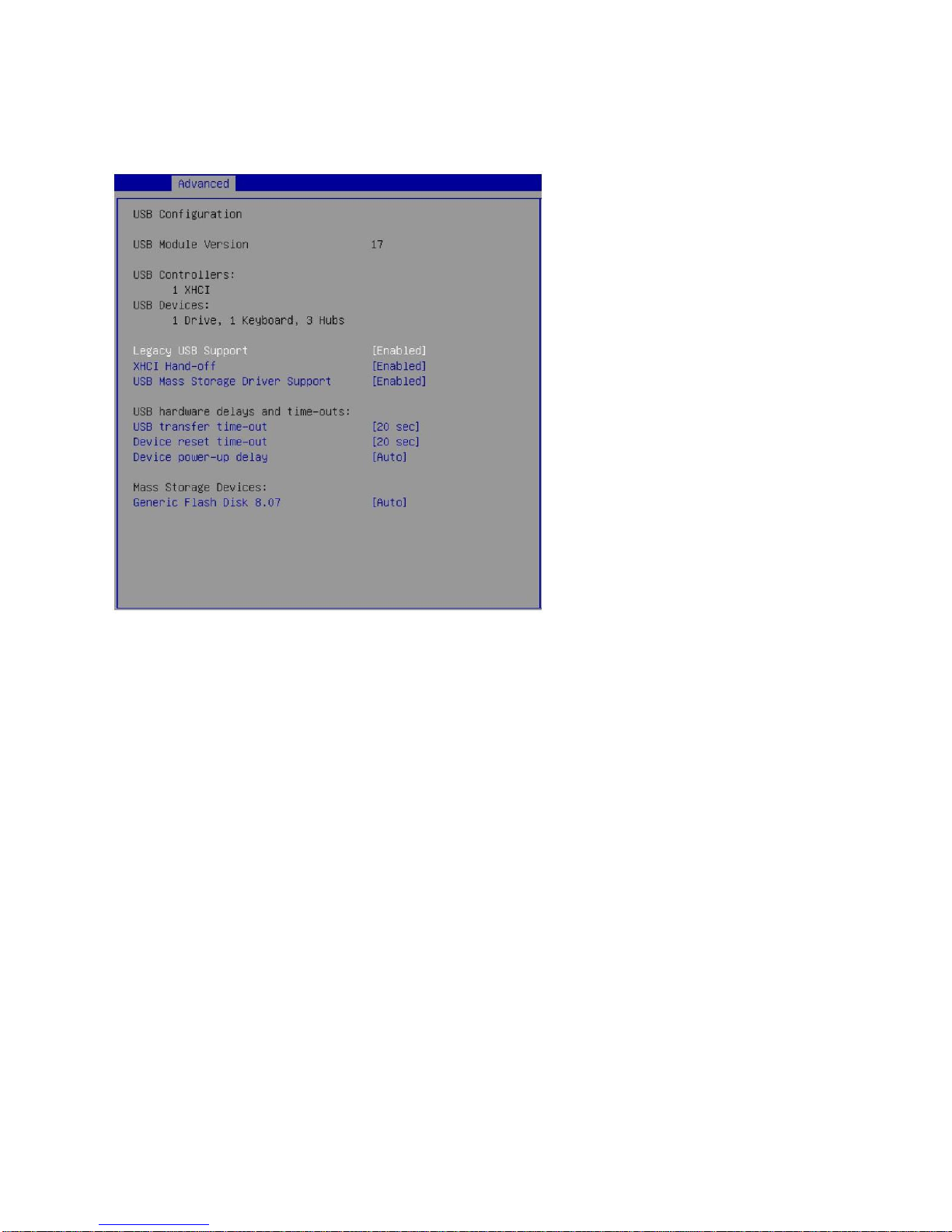

USB Configuration

▶ Legacy USB Support Set to [Enabled] if you need to use any USB 1.1/2.0 device in the operating system that does not support or have any USB 1.1/2.0 driver installed, such as DOS and SCO Unix.

▶

XHCI Hand-off This setting allows you to enable or disable a workaround for operating systems without eXtensible Host Controller Interface (XHCI) hand-off support. The eXtensible Host Controller Interface (XHCI) is a computer interface specification that defines a register-level description of a Host Controller for Universal Serial bus (USB), which is capable of interfacing to USB 1.0, 2.0, and 3.0 compatible devices. The specification is also referred to as the USB3.0 Host Controller specification.

▶ USB Mass Storage Driver Support This setting enables/disables the support for USB mass storage devices.

▶ USB Hardware Delays and Time-outs These settings control the USB transfer time-out, device reset time-out and device power-up delay.

▶

Mass Storage Devices

This setting controls the mass storage devices.

▶ PCI/PCIE Device Configuration

▶

Audio Controller

This setting enables/disables the onboard audio controller. ▶ Launch OnBoard LAN OpROM

These settings enable/disable the initialization of the onboard/onchip LAN Boot ROM during bootup. Selecting [Disabled] will speed up the boot process.

▶ GPIO Group Configuration

▶ GPO0, GPO1, GPO2, GPO3

These settings control the operation mode of the specified GPIO.

3.4 Boot

▶

CSM Support

This setting enables/disables the support for Compatibility Support Module, a part of the Intel Platform Innovation Framework for EFI providing the capability to support legacy BIOS interfaces.

▶

OS Selection

This setting allows users to select the Operating System.

▶ Boot Option Priorities

This setting allows users to set the sequence of boot devices where BIOS attempts to load the disk operating system.

▶ Hard Drive BBS Priorities

This setting allows users to set the priority of the specified devices. First press <Enter> to enter the sub-menu. Then you may use the arrow keys ( ↑↓ ) to select the desired device, then press <+>, <-> or <PageUp>, <PageDown> key to move it up/down in the priority list.

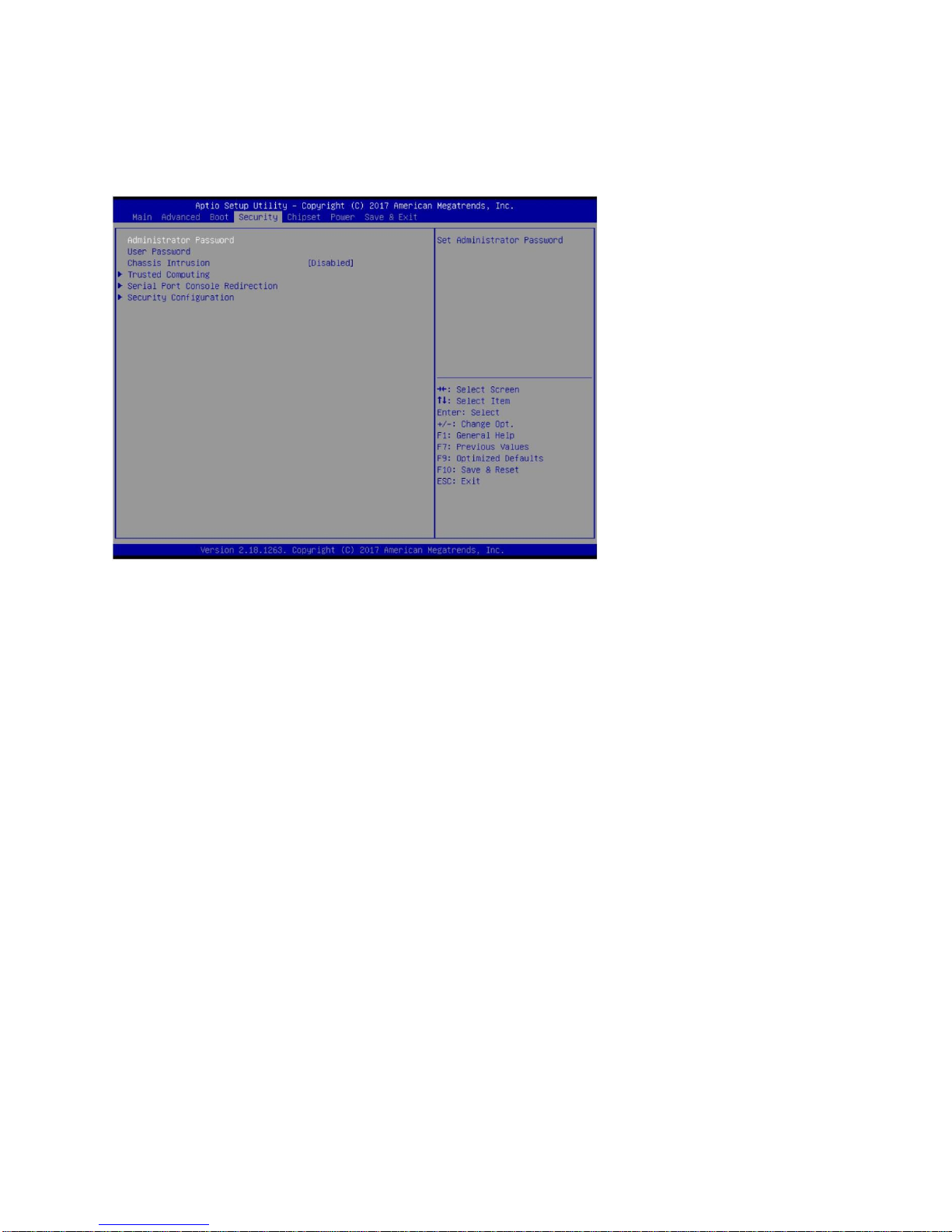

3.5 Security

▶

Administrator Password

Administrator Password controls access to the BIOS Setup utility.

▶

User Password

User Password controls access to the system at boot and to the BIOS Setup utility.

▶

Chassis Intrusion

The field enables or disables the feature of recording the chassis intrusion status and issuing a warning message if the chassis is once opened.

▶

Trusted Computing

▶ Security Device Support This setting enables/disables BIOS support for security device. When set to [Disable], the OS will not show security device. TCG EFI protocol and INT1A interface will not be available.

▶ SHA-1 PCR Bank, SHA256 PCR Bank These settings enable/disable the SHA-1 PCR Bank and SHA256 PCR Bank.

▶

Pending Operation This setting shows pending operation.

▶ Platform Hierarchy, Storage Hierarchy, Endorsement Hierarchy These settings enable/disable the Platform Hierarchy, Storage Hierarchy and Endorsement Hierarchy.

▶ TPM2.0 UEFI Spec Version, Physical Presence Spec Version This settings show the TPM2.0 UEFI Spec Version and Physical Presence Spec Version.

▶ TPM2.0 Interface Type This setting shows the TPM2.0 Interface Type.

▶

Device Select This setting allows users to select the security device.

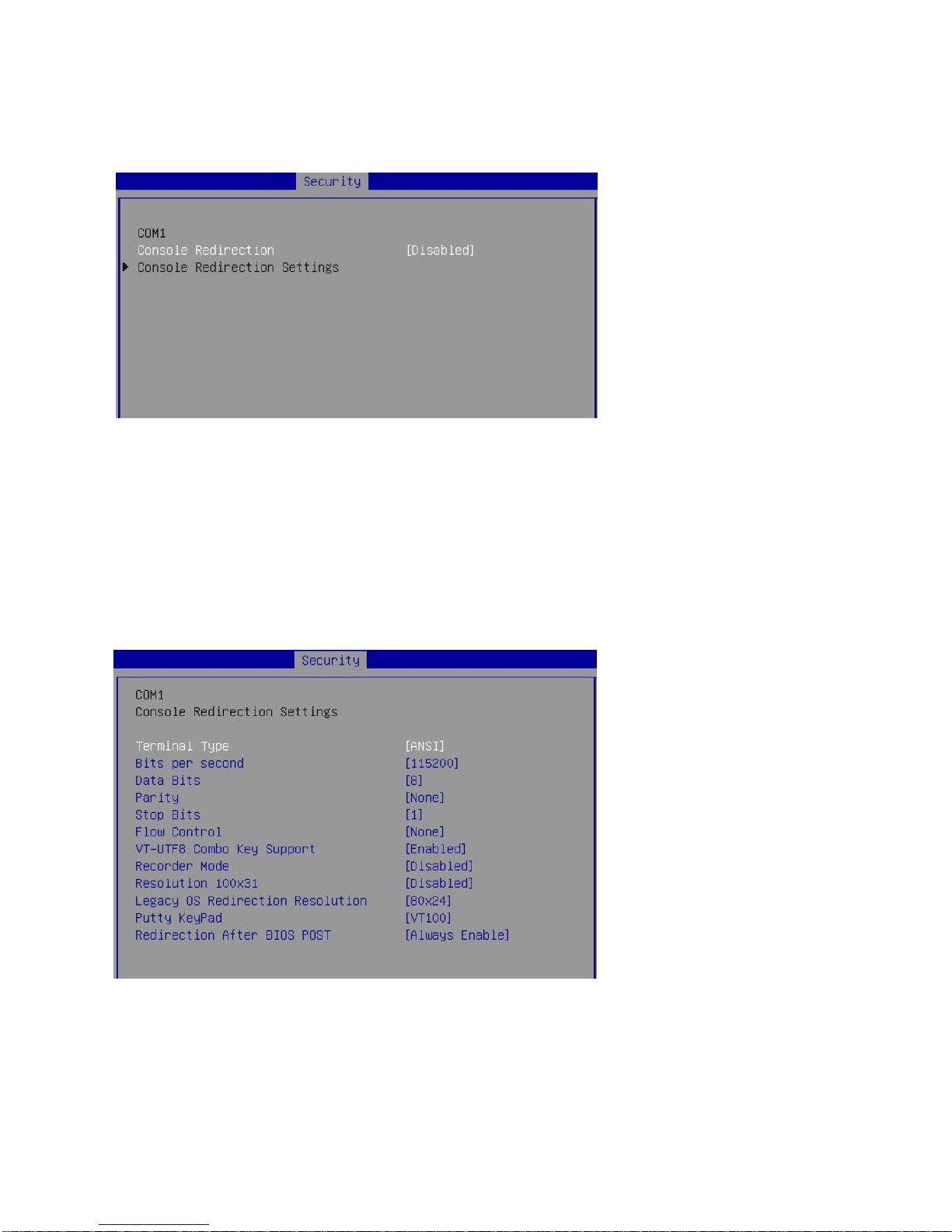

▶ Serial Port Console Redirection

▶

Console Redirection Console Redirection operates in host systems that do not have a monitor and keyboard attached. This setting enables/disables the operation of console redirection. When set to [Enabled], BIOS redirects and sends all contents that should be displayed on the screen to the serial COM port for display on the terminal screen. Besides, all data received from the serial port is interpreted as keystrokes from a local keyboard.

▶

Console Redirection Settings

▶

Terminal Type To operate the system’s console redirection, you need a terminal supporting ANSI terminal protocol and a RS-232 null modem cable connected between the host system and terminal(s). This setting specifies the type of terminal device for console redirection.

▶ Bits per second, Data Bits, Parity, Stop Bits This setting specifies the transfer rate (bits per second, data bits, parity, stop bits) of Console Redirection.

▶

Flow Control Flow control is the process of managing the rate of data transmission between two nodes. It is the process of adjusting the flow of data from one device to another to ensure that the receiving device can handle all of the incoming data. This is particularly important where the sending device is capable of sending data much faster than the receiving device can receive it.

▶ VT-UTF8 Combo Key Support This setting enables/disables the VT-UTF8 combination key support for ANSI/VT100 terminals.

▶ Recorder Mode, Resolution 100x31 These settings enable/disable the recorder mode and the resolution 100x31.

▶ Legacy OS Redirection Resolution This setting specifies the redirection resolution of legacy OS.

▶

Putty Keypad

PuTTY is a terminal emulator for Windows. This setting controls the numeric keypad for use in PuTTY. ▶ Redirection After BIOS POST

This setting determines whether or not to keep terminals’ console redirection running after the BIOS POST has booted.

▶

Security Configuration

▶ TXE FW Version The setting shows the firmware information of the Intel Trusted Execution Engine (TXE).

▶

TXE HMRFPO

The setting enables/disables TXE HMRFPO (Host ME Region Flash Protection Override). ▶ TXE EOP Message

This setting determines whether or not to send EOP (Exchange Online Protection) message before entering OS.

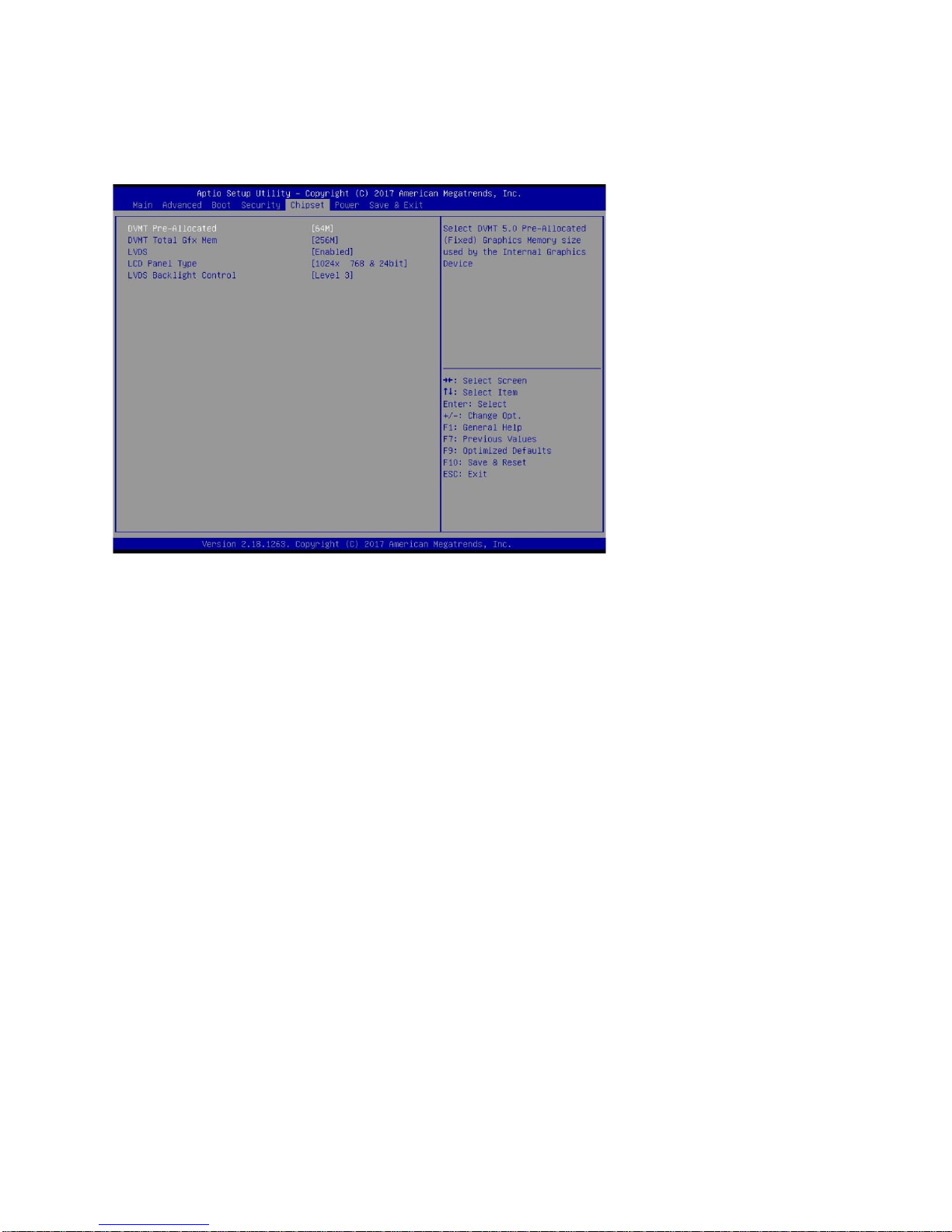

3.6 Chipset

▶

DVMT Pre-Allocated

This setting defines the DVMT pre-allocated memory. Pre-allocated memory is the small amount of system memory made available at boot time by the system BIOS for video. Pre-allocated memory is also known as locked memory. This is because it is "locked" for video use only and as such, is invisible and unable to be used by the operating system.

▶ DVMT Total Gfx Mem

This setting specifies the memory size for DVMT.

▶

LVDS

This setting enables/disables the LVDS support.

▶ LCD Panel Type

This setting specifies the LCD panel type.

▶

LVDS Backlight Control

This setting controls the intensity of the LVDS backlight.

3.7 Power

▶ Restore AC Power Loss

This setting specifies whether your system will reboot after a power failure or interrupt occurs. Available settings are:

[Power Off]

Leaves the computer in the power off state.

[Power On]

Leaves the computer in the power on state.

[Last State]

Restores the system to the previous status before power failure or interrupt occurred.

▶ Deep Sleep Mode

The setting enables/disables the Deep S5 power saving mode. S5 is almost the same as G3 Mechanical Off, except that the PSU still supplies power, at a minimum, to the power button to allow return to S0. A full reboot is required. No previous content is retained. Other components may remain powered so the computer can “wake” on input from the keyboard, clock, modem, LAN, or USB device.

** Advanced Resume Events Control **

▶

PCIE PME

This field specifies whether the system will be awakened from power saving modes when activity or input signal of onboard PCIE PME is detected. ▶ USB from S3/S4 The item allows the activity of the USB device to wake up the system from S3/ S4 sleep state.

▶

Ring An input signal on the serial Ring Indicator (RI) line (in other words, an incoming call on the modem) wakes the system from a soft off state.

▶

RTC When [Enabled], you can set the date and time at which the RTC (real-time clock) alarm wakes the system from suspend mode.

▶

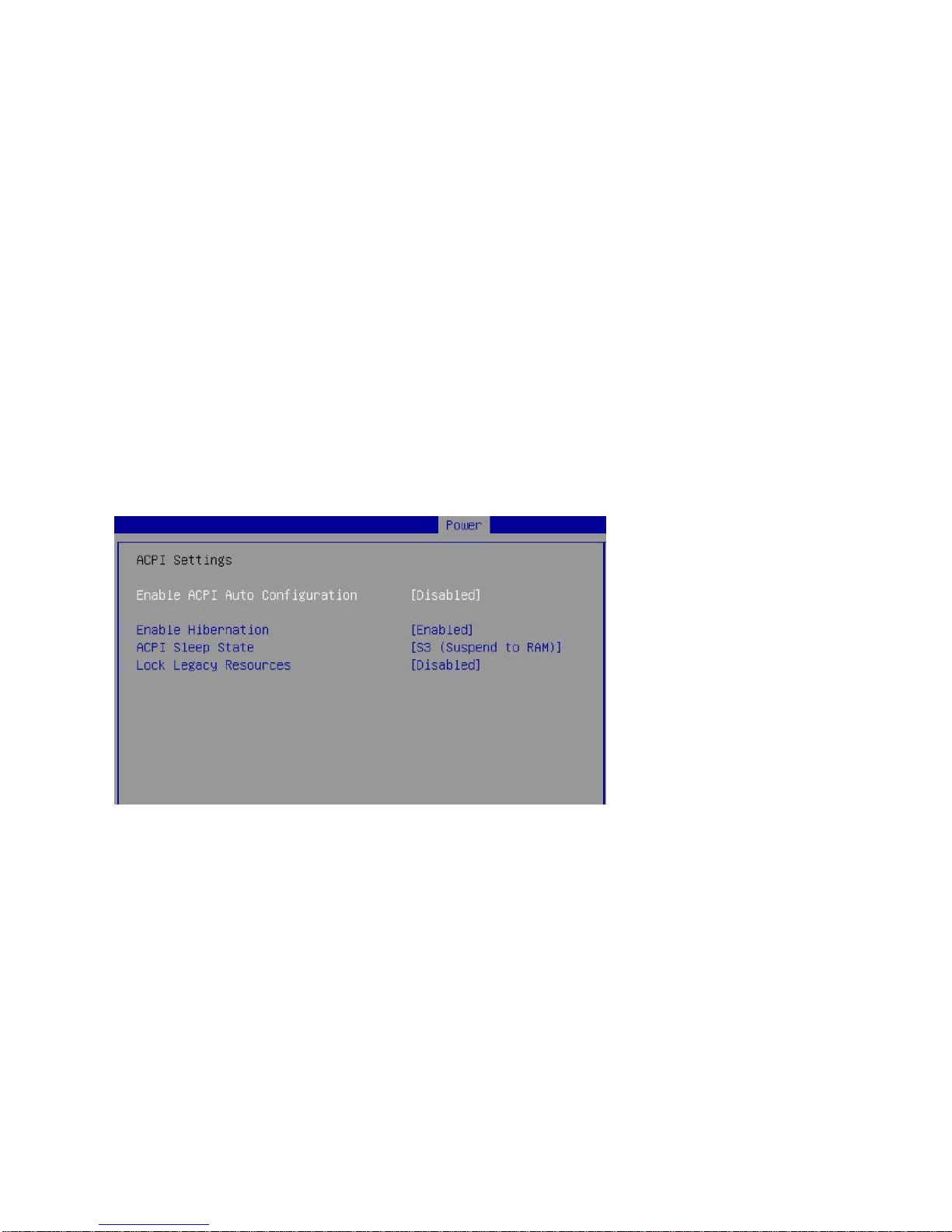

ACPI Settings

▶ Enable ACPI Auto Configuration This setting activates the ACPI (Advanced Configuration and Power Management Interface) auto configuration.

▶

Enable Hibernation

This setting enables/disables system hibernation. ▶ ACPI Sleep State

This setting specifies the power saving modes for ACPI function.

▶

Lock Legacy Resources When enabled (locked), this setting prevents the operating system from modifying assignments for legacy resources.

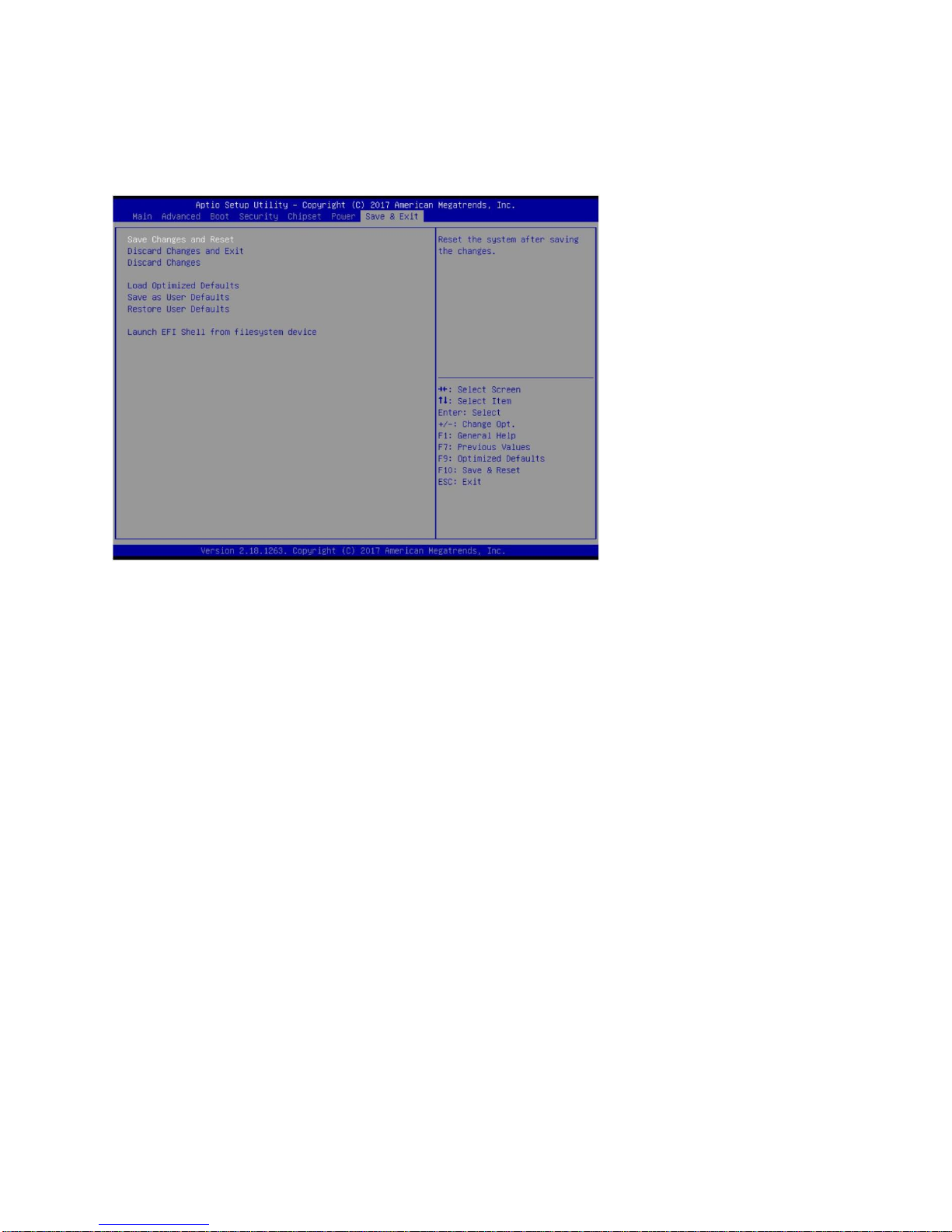

3.8 Save & Exit

▶ Save Changes and Reset

Save changes to CMOS and reset the system.

▶ Discard Changes and Exit

Abandon all changes and exit the Setup Utility.

▶

Discard Changes

Abandon all changes.

▶

Load Optimized Defaults

Use this menu to load the default values set by the motherboard manufacturer specifically for optimal performance of the motherboard.

▶ Save as User Defaults

Save changes as the user’s default profile.

▶

Restore User Defaults

Restore the user’s default profile.

▶ Launch EFI Shell from filesystem device

This setting helps to launch the EFI Shell application from one of the available file system devices.

Chapter 4: WDT&GPIO

4.1 WDT Sample Code

SIO_INDEX_Port equ 04Eh SIO_DATA_Port equ 04Fh SIO_UnLock_Value equ 087h SIO_Lock_Value equ 0AAh WatchDog_LDN equ 007h WDT_UNIT equ 60h ;60h=second, 68h=minute, 40h=Disabled Watchdog timer WDT_Timer equ 30 ;ex. 30 seconds

Sample code: ;Enable config mode mov dx, SIO_INDEX_Port mov al, SIO_UnLock_Value out dx, al jmp short $+2 ;Io_delay jmp short $+2 ;Io_delay out dx, al ;Change to WDT mov dx, SIO_INDEX_Port mov al, 07h out dx, al mov dx, SIO_DATA_Port mov al, WatchDog_LDN out dx, al ;Active WDT

mov dx, SIO_INDEX_Port

mov al, 30h out dx, al mov dx, SIO_DATA_Port in al, dx or al, 01h out dx, al

;set timer mov dx, SIO_INDEX_Port mov al, 0F6h out dx, al mov dx, SIO_DATA_Port mov al, WDT_Timer out dx, al ;set UINT mov dx, SIO_INDEX_Port mov al, 0F5h out dx, al mov dx, SIO_DATA_Port mov al, WDT_UNIT out dx, al ;enable reset mov dx, SIO_INDEX_Port mov al, 0FAh out dx, al mov dx, SIO_DATA_Port in al, dx or al, 01h out dx, al ;close config mode mov dx, SIO_INDEX_Port mov al, SIO_Lock_Value out dx, al

4.2 GPIO Sample Code

GPI 0 ~ GPI 3

GPI 0

GPI 1

GPI 2

GPI 3

IO Address

SIO GPIO Register

92h

Bit 0 1 2 3

Sample code

GPO 0 ~ GPO 3

GPO 0

GPO 1

GPO 2

GPO 3

IO Address

SIO GPIO Register

A2h

Bit 3 4 5 6

Sample code

SIO_INDEX_Port

equ

04Eh

SIO_DATA_Port

equ

04Fh

SIO_UnLock_Value

equ

087h

SIO_Lock_Value

equ

0AAh

SIO_LDN_GPIO

equ

06h

SIO_GPO_Data

equ

0A1h

SIO_GPO_Status

equ

0A2h

SIO_GPI_Status

equ

092h

GPI_0

equ

00000001b

GPO_0

equ

00010000b

GPO_2

equ

01000000b

Sample Code:

#1 : Get GPI 0 status ; Enable config mode mov dx, SIO_INDEX_Port mov al, SIO_UnLock_Value out dx, al jmp short $+2 ;Io_delay jmp short $+2 ;Io_delay out dx, al

A-3

; Switch GPIO Configuration for SIO LDN 0x06 mov dx, SIO_INDEX_Port mov al, 07h out dx, al mov dx, SIO_DATA_Port mov al, SIO_LDN_GPIO out dx, al ; Get GPI 0 Pin Status Register mov dx, SIO_INDEX_Port mov al, SIO_GPI_Status out dx, al mov dx, SIO_DATA_Port in al, dx ;al bit0 = GPI 0 status ; Exit SIO mov al, SIO_CONFIG_MODE_EXIT_VALUE out dx, al

#2 : Set GPO 0/GPO 2 to high status ; Enable config mode mov dx, SIO_INDEX_Port mov al, SIO_UnLock_Value out dx, al

jmp short $+2 ;Io_delay jmp short $+2 ;Io_delay out dx, al ; Switch GPIO Configuration for SIO LDN 0x06 mov dx, SIO_INDEX_Port mov al, 07h out dx, al mov dx, SIO_DATA_Port mov al, SIO_LDN_GPIO out dx, al ; Set GPO 0 to high mov dx, SIO_INDEX_Port mov al, SIO_GPO_Data out dx, al mov dx, SIO_DATA_Port in al, dx and al, not GPO_0 or al, GPO_0 out dx, al ; Set GPO 2 to high mov dx, SIO_INDEX_Port mov al, SIO_GPO_Data out dx, al mov dx, SIO_DATA_Port in al, dx and al, not GPO_2 or al, GPO_2 out dx, al ; Exit SIO mov al, SIO_CONFIG_MODE_EXIT_VALUE out dx, al

BCM MX3350N User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
