BCM MOR600 User Manual

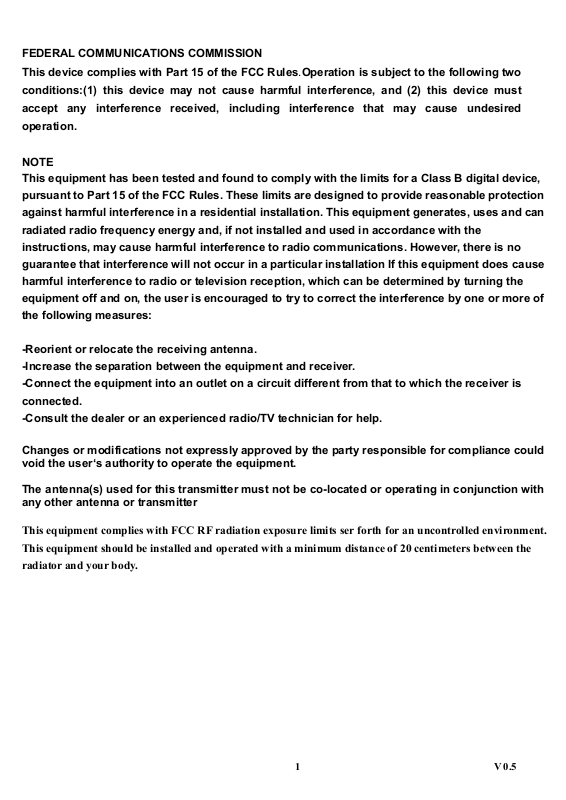

FEDERAL COMMUNICATIONS COMMISSION
This device complies with Part 15 of the FCC Rules.Operation is subject to the following two
conditions:(1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
NOTE This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiated radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment.
The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter
This equipment complies with FCC RF radiation exposure limits ser forth for an uncontrolled environment.
This equipment should be installed and operated with a minimum distance of 20 centimeters between the
radiator and your body.
1 V 0.5
MOR600 Mobile Router Quick Installation Guide
f
1.
any of the items are missing please contact your Reseller .
Verify Package Contents
The MOR600 Mobile Router package should contain the items Listed below . I
• MOR600 Router • Ethernet Cable
• DC 5V/2A Power Adapter • User Guide on CD-ROM
• Quick Installation Guide
2 V 0.5
2.
on the MOR600 Mobile Router .
Connections and LEDS
The following figures show the various connectors and status LED indicators
Power LED
PC Card Slot
Status LED
WiFi Secure Set Button
Default Button
USB Port (Optional)
Ethernet LAN Port
Power Jack
3 V 0.5
r
3.
Getting Start
Step 1 Plug in power adapter
4 V 0.5
When connect the power adapter to back panel power Jack The power LED Will Turn ON
to indicate power has been applied.
Powe LED
STEP 2Check Status LED
When Power ON the MOR600, the status LED Will Flash ON and OFF One by one as MOR600 Performs initialization and Internet connection processMOR600 Will Auto Configured properly for your Internet Service AccountIt Will take a few minutes When Complete, the status LED Will illuminate Green。Please refer the below Status
LED Activity table for each State
5 V 0.5
4.
any problem or need more advance feature Setting . Please refer the step 5 for more detail.
5.
Congratulation! You have Connected With Wireless Internet
MOR600 Will Auto Configuration and enable the Wireless LAN. If you have to
6 V 0.5
Advance Setting in Web page
STEP 1Connect your PC/Notebook to MOR600
LAN
STEP 2Open your browser Such as IE or Netscape and type Press
Enter http://192.168.1.1
in address bar.
STEP 3Login Mobile Router
Enter your user name in
Enter your passwor
Click OK.
d in
the User
the Password
7 V 0.5
name box. The
box. The
default user name is admin
default passwor
d is
admin
.
.
STEP 4Once logged in the following screen is displayed
8 V 0.5
STEP 5Click WLAN for wireless network setting
10 V 0.5
SSID
Enter your SSID name in the field provided. SSID names Can contain up to 32 ASCLL characters.
Encryption
Key Length Two levels of wireless encryption are available64 bits and 128 bits. Key Type Two type of WEP KeyHex or ASCII . choose the proper one for key
Key1~Key4
You may select from two levels of encryption to secure your wireless NetworkNone or WEP .
setting . You can enter the WEP key by manually and choose Key1~Key4 for enable.
STEP 7Click LAN for Local Network setting
11 V 0.5
DHCP Server
This setting is used to configure MOR600’s Dynamic Host Configuration Protocol (DHCP)server function. MOR600 can be used as a DHCP server for the internal LAN network . The DHCP server automatically assigns an IP address to each computer in the LAN network . If you choose to enable MOR600 s DHCP server option, you must configure all of PCs in the LAN network to connect to this DHCP server (MOR600), and make sure there is no other DHCP server on your network .
Start IP Address
End IP address
IP Address Net mask
Enter the values for start IP address. The default start IP address is
192.168.1.100. Enter the values for end IP address. The default end IP address is
192.168.1.200. The IP Address of the LAN . The default IP address is 192.168.1.1 The subnet mask of the LAN
Note: When the DHCP server IP address range is set , it must be assured that
there is no other device in the network to use the IP address located in this address range , such as printer server , file server , etc . Otherwise there is risk for address conflict .
12 V 0.5
