P4 Socket 478 Motherboard

IN845GV

User’s Manual

http://www.bcmcom.com

Declaration

Rights:

No part of this manual, including but not limited to the products and software described in it, may

be reproduced, transmitted, transcribes, stored in a retrieval system, or translated in any form or by

any means without the expressed written permission from the manufacturer.

Products and corporate names appearing in this manual may or may not be registered trademarks or

copyrights of their respective companies and are used only for identification or explanation

purposes without intent to infringe.

z Intel, Pentium

z Microsoft and Windows

z Phoenix



4 are registered trademarks of Intel Corporation.



are registered trademarks of Microsoft Corporation.



and Award are registered trademarks of Phoenix Technologies LTD..

Responsibility:

This manual is provided “As-Is” with no warranties of any kind, either expressed or implied,

including, but not limited to the implied warranties or conditions of this product’s fitness for any

particular purpose. In no event shall we be liable for any loss of profits, loss of business, loss of

data, interruption of business, or indirect, special, incidental, or consequential damages of any kind,

even the possibility of such damages arising from any defect or error in this manual or product.

We reserve the right to modify and update the user manual without prior notice.

WARNING:

Replace your system’s CMOS RAM battery only with the identical CR-2032 3V Lithium-Ion coin

cell (or equivalent) battery type to avoid risk of personal injury or physical damage to your

equipment. Always dispose of used batteries according to the manufacturer’s instructions, or as

required by the local ordinance (where applicable).

References:

This manual is created and written by BCM Technical Dept., but not limited, to the information

from the IN845GV External Production Specifications, and IN845GV Specifications. If any

comments, suggestions, or errors for this manual, please write an e-mail to support@bcmcom.com.

Compliance & Certificate

CCoommpplliiaannccee && CCeerrttiiffiiccaattee

ISO 9001 Certificate:

This device was produced in our plant with advanced quality system certified by DNV QA Ltd. in according to ISO 9001. This Certificate is valid for: DESIGN & MANUFACTURE OF MOTHERBOARD AND PERSONAL COMPUTERS.

CE Declaration:

CE marking is a visible declaration by the manufacturer or his authorized representatives that the electrical equipment to which it relates satisfies all the provisions of the 1994 Regulations.

FCC Compliance:

FCC stands for Federal Communications Commission. This product complies with FCC Rules Part 15 and has been tested, and complied with the EMI rules by a certified body. In normal operation, there shall be no harmful interference caused by this device nor shall this device accept any interference received, including interference that may cause undesired operation of this product.

Year 2000 Compliance:

This product is test to be qualified to bear the NSTL Year 2000 Compliant logo. Year 2000

problem is mainly a problem of computer software (OS), and the hardware issue. With the support

of BIOS on motherboard, the Y2K problem can be thoroughly conquered.

Easy Installation

EEaassyy IInnssttaallllaattiioonn

Easy Installation Steps

The following “Easy Installation” steps are for users

accustomed to the assembly of a computer system. For those

individuals requiring more specific information, please refer

to the more detailed descriptions located within the latter

chapters of this manual. Note: You must keep your power cable unplugged until the following installation steps are completed.

Getting Started

Touch a grounded metal surface to release static electricity

stored in your body before unpacking your motherboard. For

details please refer to Precaution.

Install the CPU by correctly aligning the CPU with the socket

478 as noted in the motherboard diagram. Once aligned,

press down on the CPU gently but firmly and lock it. Next,

install the 3.3 volt un-

pin DIMM slots.

Plug in any peripheral card(s) that you want to be included in

the setup.

Plug in all cables included in the package except for the

power cord.

Please recheck all steps to ensure no mistakes have been

made and then plug in the power cord and turn on the power

to enter the BIOS setup, Chapter 3.

uffered DDR SDRAM into the 184

TABLE OF CONTENT

USER’S NOTICE 1

MANUAL REVISION INFORMATION 1

COOLING SOLUTIONS 1

CHAPTER 1 INTRODUCTION OF IN845GV MOTHERBOARD

1-1 FEATURE OF MOTHERBOARD 2 1-2 SPECIFICATION 2 1-3 PERFORMANCE LIST 4 1-4 LAYOUT DIAGRAM & JUMPER SETTING 5

CHAPTER 2 HARDWARE INSTALLATION

2-1 HARDWARE INSTALLATION STEPS 7 2-2 CHECKING MOTHERBOARD'S JUMPER SETTING 7 2-3 INSTALL CPU 9

2-3-1 GLOSSARY 9

2-3-2 ABOUT INTEL PENTIUM 4 478-PIN CPU 10 2-4 INSTALL MEMORY 11 2-5 EXPANSION CARD 12

2-5-1 PROCEDURE FOR EXPANSION CARD INSTALLATION 12

2-5-2 ASSIGNING IRQ FOR EXPANSION CARD 12

2-5-3 INTERRUPT REQUEST TABLE FOR THIS MOTHERBOARD 13

2-5-4 AGP SLOT 14 2-6 CONNECTORS, HEADERS 15

2-6-1 CONNECTORS 15

2-6-2 HEADERS 18

2-7 STARTING UP YOUR COMPUTER 22

CHAPTER 3 INTRODUCING BIOS

3-1 ENTERING SETUP 23 3-2 GETTING HELP 23 3-3 THE MAIN MENU 24 3-4 STANDARD CMOS FEATURES 26 3-5 ADVANCED BIOS FEATURES 28 3-6 ADVANCED CHIPSET FEATURES 31 3-6-1 DRAM TIMING SETTINGS 32 3-7 INTEGRATED PERIPHERALS 33 3-7-1 ONBOARD IDE FUNCTION 34 3-7-2 ONBOARD DEVICE FUNCTION 35 3-7-3 ONBOARD SUPER IO FUNCTION 36 3-8 POWER MANAGEMENT SETUP 38 3-8-1 PM TIMER RELOAD EVENTS 40 3-9 PNP/PCI CONFIGURATION SETUP 40 3-9-1 IRQ RESOURCES 41 3-10 PC HEALTH STATUS 42 3-11 MISCELLANEOUS CONTROL 43 3-12 LOAD STANDARD/OPTIMIZED DEFAULTS 44 3-13 SET SUPERVISOR/USER PASSWORD 44

USER’S NOTICE

INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED

OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN

PERMISSION OF THE MANUFACTURER.

THIS MANUAL CONTAINS ALL INFORMATION NECESSARY TO USE OF RX845GL/IN845GL MOTHER-

BOARD AND WE DO ASSURE THIS MANUAL CONTENT AS MANY INFORMATION AS POSSIBLE, BUT WE

RESERVE RIGHT TO CHANGE, UPDATE ANYTIME WITHOUT PRIOR NOTICE. MANUFACTURER PROVIDES

THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, AND WILL NOT BE LIABLE FOR ANY

INDIRECT, SPECIAL, INCIDENTIAL OR CONSEQUENTIAL DAMAGES (INCLUDING DAMANGES FOR LOSS

OF PROFIT, LOSS OF BUSINESS, LOSS OF USE OF DATA, INTERRUPTION OF BUSINESS OF ANY KIND

ALIKE).

PRODUCTS AND CORPORATE NAMES APPEARING IN THIS MANUAL MAY OR MAY NOT BE

REGISTERED TRADEMARKS OR COPYRIGHTS OF THEIR RESPECTIVE COMPANIES, AND THEY ARE

USED ONLY FOR IDENTIFICATION OR EXPLANATION AND TO THE OWNER’S BENEFIT, WITHOUT INTENT TO INFRINGEMENT.

Manual Revision Information

Reversion Revision History Date

1.0 First Release Nov. 2003

Item Checklist

IN845GV

Cable for IDE/Floppy

CD for motherboard utilities

□

Cable for USB Port 3/4 (Optional)

IN845GV User’s Manual

Intel Pentium 4 Processor Family Cooling Solutions

As processor technology pushes to faster speeds and higher performance, thermal management becomes increasingly crucial when building computer systems. Maintaining the proper thermal environment is key to reliable, long-term system operation. The overall goal in providing the proper thermal environment is keeping the processor below its specified maximum case temperature. Heatsinks induce improved processor heat dissipation through increased surface area and concentrated airflow from attached fans. In addition, interface materials allow effective transfers of heat from the processor to the heatsink. For optimum heat transfer, Intel recommends the use of thermal grease and mounting clips to attach the heatsink to the processor. When selecting a thermal solution for your system, please refer to the website below for collection of heatsinks evaluated and recommended by Intel for use with Intel processors. Note, those heatsinks are recommended for maintaining the specified Maximum T case requirement. In addition, this collection is not intended to be a comprehensive listing of all heatsinks that support Intel processors.

For vendor list of heatsink and fan, please visit : http://developer.intel.com/design/Pentium4/components/index

Chapter 1

Introduction of IN845GV Motherboard

1-1 Feature of motherboard

The IN845GV motherboard is design for use Intel Pentium 4 Processor in 478 Pin Package Processor with Hyper-Threading Technology support, the Intel 845GV Chipset delivers a high performance and professional desktop platform solution. Which utilize the Socket 478 design and the memory size expandable to 2.0GB.

IN845GV motherboard use the Intel 845GV Chipset Supports 400/533MHz System Bus in data transfer rate, This motherboard provided a wide range of memory choices with 133MHz SDRAM clock frequency to support DDR333/266/200 SDRAM. This motherboard offers ULTRA ATA 100 to provide speedier HDD throughout that boosts overall system performance.

With integrated 2D/3D Graphics Accelerator which supports 256 bit graphics core, and supports hardware motion compensation assist for software MPEG/DVD decode, makes this board a low cost alternative to a add on video card. The IN845GV also provide an AGP connector for those who wish to use of a digital display equip with DVI , the IN845GV support digital channel via an AGP Digital Display card (ADD) The AGP connector support ADD card Only.

The IN845GV motherboard including PCI LAN Controller chip support 10/100 Mb/sec Base transfer rate.

Its also has integrated onboard an AC’97 2.1 CODEC support 3D surround positioning Audio, which is fully compatible with Sound Blaster Pro that gives you the best sound quality and compatibility.

With USB control as well as capability of expanding to 6 USB2.0 function ports to meet faster data transfer, built-in hardware monitor function. This enable system monitor and protect your computer. These motherboards provided design in hardware to protect BIOS from virus crash BIOS data.

These motherboards provides special function in BIOS Setup to setting CPU Host clock step by step increasing.

IN845GV provides high performance & meets future specification and needs. It is really wise choice of computing solution.

1-2 Specification

Spec Description

Design

Chipset

CPU Socket

(mPGA478B Socket)

Memory Socket

Expansion Slot & Headers

Integrate IDE

LAN On Board

Audio

BIOS Multi I/O

∗ Micro ATX form factor 4 layers PCB size: 9.5”(W) x 9(D)

(24.4x23.0cm)

∗ Intel 845GV Graphics Memory Controller Hub (GMCH)

Chipset for IN845GV

∗ Intel 82801DB I/O Controller Hub (ICH4) Chipset ∗ Support Intel Pentium 4 478 Pin package utilizes Flip-Chip Pin

Grid Array (FC-PGA2) package processor

∗ Support CPU Frequency 400MHz & 533MHz for IN845GV ∗ Support 1.5G∼3.0G (IN845GV) 478 Pin Pentium 4 processor ∗ Reserves support for future Intel Pentium 4 processors ∗ 184-pin DDR SDRAM module socket x2 ∗ Support Memory Type 64Mb to 512Mb Technology ∗ Support Only 8x and 16x SDRAM device with 4 banks ∗ Support DDR333/DDR266/DDR200 SDRAM (DDR333 at

533MHz FSB Only)

∗ Expandable to 2.0GB ∗ Supports AGP slot x1 (“ADD” Card ONLY) ∗ 32-bit PCI slot x3 ∗ CNR slot x1 ∗ Two PCI IDE controllers support PCI Bus Mastering, ATA

PIO/DMA and the ULTRA DMA 33/66/100 functions that deliver the data transfer rate up to 100 MB/s

∗ Realtek RTL8100BL PCI LAN Controller chip ∗ Supports 10/100 Mb/sec data transfer rate ∗ AC’97 Digital Audio controller integrated ∗ AC’97 2.1 Audio CODEC on board ∗ Sound Blaster Pro compliant ∗ Audio driver and utility included ∗ Award 2MB Flash ROM ∗ PS/2 keyboard and PS/2 mouse connectors ∗ Floppy disk drive connector x1 ∗ Parallel port x1, Serial port x2 ∗ USB 2.0 connector x2 ∗ USB 2.0 headers x2 (connecting cable option) ∗ Audio connector Line-in, Line-out, MIC & Game Port

1-4 Layout Diagram & Jumper Setting

PS/2 MOUSE

LAN

GAME/MIDI PORT

PS/2 Keyboard

K/B Power ON

Jumper (JP1)

PS2 KB/Mouse Port

USB Port

/LAN Connector

COM2 Connector

PC99 Back Panel

USB

ATX 12V Power Conn.

COM1

VGA

MIC

LINE-IN

LINE-OUT

CPU 478 Socket

CPU FAN

ATX P9 Power Conn.

DDR DIMM X2

ATX Power Conn.

Floppy Connector

(JP2)

CPU Frequency Select

ATA 100 IDE Conn.

Intel 845GV Chip

Front Panel Audio

CD Audio

PCI Slot

CNR Slot

IR Connector

(USB3, USB2)

USB Port

AGP Slot

(Supports “ADD” Card ONLY)

Wake On LAN

Clear CMOS (JP4)

SYSFAN2 Speaker

2MBit Flash ROM BIOS

Front Panel Connector

SYSFAN

Jumpers

Jumper Name Description Page

JP2 CPU Frequency Select 3-pin Block P.7 JP4 CMOS RAM Clear 3-pin Block P.7

JP1 Keyboard Power On Enable/Disabled 3-pin Block P.8

Connectors

Connector Name Description Page

ATXPWR ATX Power Connector 20-pin Block P.13 ATX12V ATX 12V Power Connector 4-pin Block P.13 ATXP9 ATX P9 Power Connector 6-pin Block P.13 PS2 KB/MOUSE PS/2 Mouse & PS/2 Keyboard

Connector

USB USB Port Connector 4-pin Connector P.14

LAN LAN Connector RJ-45 Connector P.14

LPT Parallel Port Connector 25-pin Female P.14 VGA VGA Display Connector 15-pin Female Connector COM1 Serial Port COM1 Connector 9-pin Connector P.14 GAME Audio/Game Connector 3 phone jack + 15-pin Connector P.14 FDD Floppy Driver Connector 34-pin Block P.15 IDE1/IDE2 Primary/Secondary IDE Connector 40-pin Block P.15

6-pin Female P.14

Headers

Header Name Description Page

COM2 Serial Port COM2 Header 9-pin Block P.16

AUDIO Line-In/Out, MIC header 9-pin Block P.16

USB2/USB3 USB Port Headers 9-pin Block P.16

SPEAKER Speaker Connector 4-pin Block P.17 FP (Power LED/Reset/ IDE LED/ Power Button)

WOL Wake On-LAN Headers 3-pin Block P.17

SYSFAN, SYSFAN2,

CPUFAN

IR IR infrared module Headers 5-pin Block P.18

CDIN CD Audio-In Headers 4-pin Block P.18

Expansion Sockets

Socket/Slot Name Description Page

ZIF Socket 478 CPU Socket 478-pin mPGAB CPU Socket P.9 DDR1, DDR2 DDR Module Socket 184-pin DDR SDRAM Module

PCI1 ∼ PCI3 AGP (for RX845GL) AGP 4X Mode Slot AGP Expansion Slot P.12 CNR CNR Slot Communication Network Riser Slot

Front Panel Header (including Power LED/IDE activity LED/ Reset switch/Power On Button lead)

FAN Speed Headers 3-pin Block P.17

9-pin Block P.17

P.10

Expansion Socket

PCI Slot 32-bit PCI Local Bus Expansion slots P.10

Chapter 2

Hardware installation

2-1 Hardware installation Steps

Before using your computer, you had better complete the following steps:

1. Check motherboard jumper setting

2. Install CPU and Fan

3. Install System Memory (DIMM)

4. Install Expansion cards

5. Connect IDE and Floppy cables, Front Panel /Back Panel cable

6. Connect ATX Power cable

7. Power-On and Load Standard Default

8. Reboot

9. Install Operating System

10. Install Driver and Utility

2-2 Checking Motherboard’s Jumper Setting

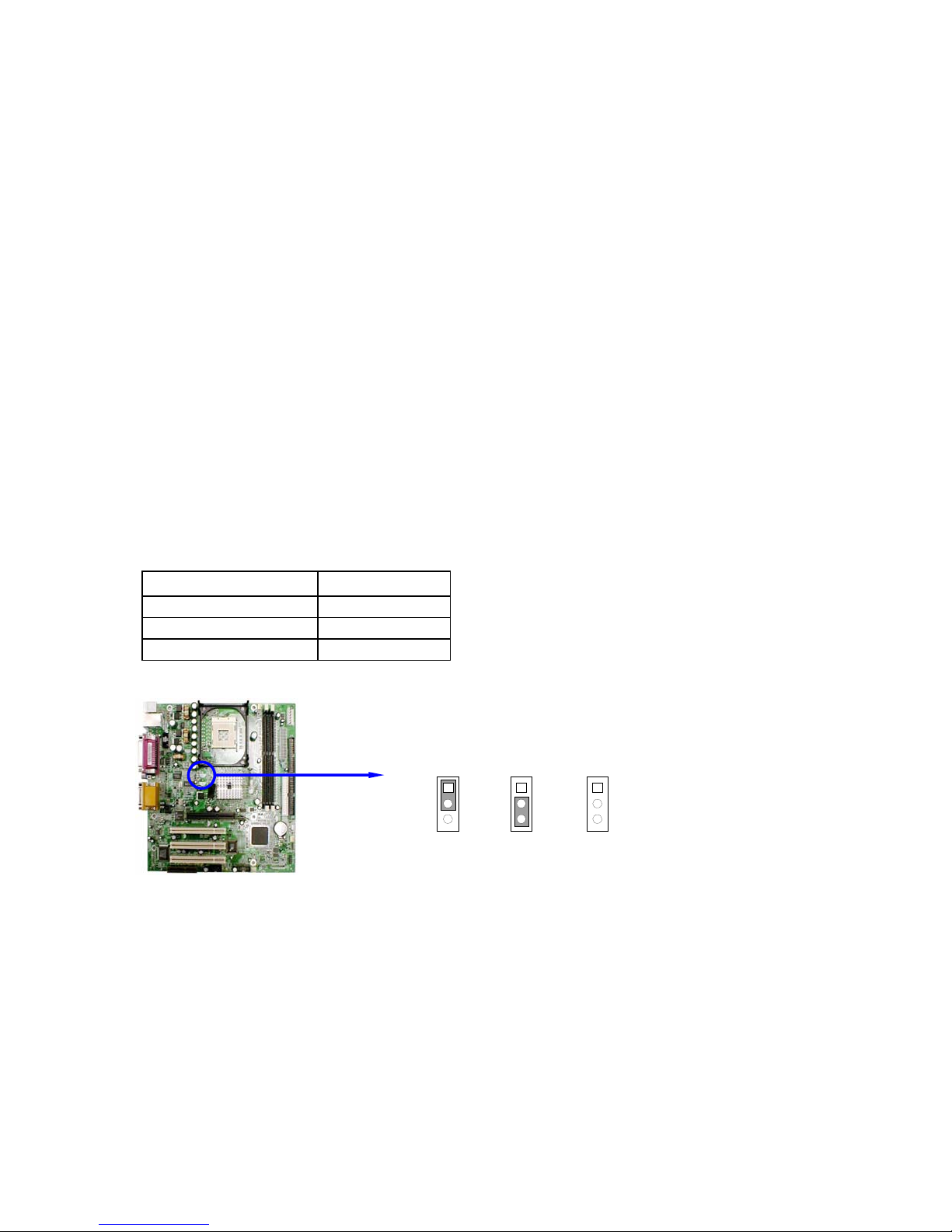

(1) CPU Frequency Select (3-pin) : JP2

CPU Clock JP2

AUTO 1-2 closed 100 (400) MHz 2-3 closed 133 (533) MHz Open

JP2

100MHz

JP2

AUTO 133MHz

CPU Frequency Select

(2) CMOS RAM Clear (3-pin) : JP4

A battery must be used to retain the motherboard configuration in CMOS RAM short 1-2 pins of JP4 to store the CMOS data.

To clear the CMOS, follow the procedure below:

1. Turn off the system and unplug the AC power

2. Remove ATX power cable from ATX power connector

3. Locate JP4 and short pins 2-3 for a few seconds

4. Return JP4 to its normal setting by shorting pins 1-2

5. Connect ATX power cable back to ATX power connector

Note: When should clear CMOS

1. Troubleshooting

2. Forget password

3. After over clocking system boot fail

1 3

JP4

1-2 closed Normal (Default)

CMOS RAM Clear Setting

1 3

JP4

2-3 closed Clear CMOS

(3) Keyboard Power On function Enabled/Disabled: JP1

When setting Enabled you can using keyboard by key in password to power on system.

JP1

1-2 closed K/B Power ON Disable

(Default)

Keyboard Power On Setting

JP1

2-3 closed K/B Power ON Enabled

2-3 Install CPU

2-3-1 Glossary

Chipset (or core logic) - two or more integrated circuits which control the interfaces between the system processor, RAM, I/O devises, and adapter cards. Processor slot/socket - the slot or socket used to mount the system processor on the motherboard.

Slot (AGP, PCI, ISA, RAM) - the slots used to mount adapter cards and system RAM. PCI - Peripheral Component Interconnect - a high speed interface for video cards, sound cards,

network interface cards, and modems; runs at 33MHz. ISA - Industry Standard Architecture - a relatively low speed interface primarily used for sound cards and modems; runs at approx. 8MHz.

Serial Port - a low speed interface typically used for mouse and external modems. Parallel Port - a low speed interface typically used for printers. PS/2 - a low speed interface used for mouse and keyboards. USB - Universal Serial Bus - a medium speed interface typically used for mouse, keyboards,

scanners, and some digital cameras.

Sound (interface) - the interface between the sound card or integrated sound connectors and speakers, MIC, game controllers, and MIDI sound devices.

LAN (interface) - Local Area Network - the interface to your local area network. BIOS (Basic Input/Output System) - the program logic used to boot up a computer and

establish the relationship between the various components. Driver - software, which defines the characteristics of a device for use by another device or other software. Processor - the "central processing unit" (CPU); the principal integrated circuit used for doing the "computing" in "personal computer"

Front Side Bus Frequency -

by the clock generator for CPU, DRAM and PCI BUS.

CPU L2 Cache -

the flash memory inside the CPU, normally Athlon CPU has 256K or above,

while Duron will have 64K.

the working frequency of the motherboard, which is generated

2-3-2 About Intel Pentium 4 478-pin CPU

This motherboard provides a 478-pin surface mount, Zero Insertion Force (ZIF) socket, referred to as the mPGA478B socket supports Intel Pentium 4 processor in the 478 Pin package utilizes Flip-Chip Pin Grid Array (FC-PGA2) package technology.

The CPU should have a cooling FAN attached to prevent overheating. If this is not the case, then purchase a correct cooling FAN before you turn on your system.

WARNING!

Be sure that there is sufficient air circulation across the processor’s heatsink and CPU cooling FAN is working correctly, otherwise it may cause the processor and motherboard overheat and damage, you may install an auxiliary cooling FAN, if necessary.

To install a CPU, first turn off your system and remove its cover. Locate the ZIF socket and open it by first pulling the level sideways away from the socket then upward to a 90-degree angle. Insert the CPU with the correct orientation as shown below. The notched corner should point toward the end of the level. Because the CPU has a corner pin for two of the four corners, the CPU will only fit in the orientation as shown.

mPGA478B

CPU ZIF mPGAB Socket

Colden Arrow

When you put the CPU into the ZIF socket. No force require to insert of the CPU, then press the level to Locate position slightly without any extra force.

2-4 Install Memory

This motherboard provides two 184-pin DUAL INLINE MEMORY MODULES (DIMM) sites for memory expansion available from minimum memory size of 64MB to maximum memory size of 2.0GB DDR SDRAM.

Valid Memory Configurations

Bank 184-Pin DIMM Total Memory

Bank 0, 1 (DDR1) DDR333/DDR266

DDR SDRAM Module

Bank 2, 3 (DDR2) DDR333/DDR266

DDR SDRAM Module

Total System Memory (Max. 2.0GB) 2

64MB∼1.0GB

64MB∼2.0GB

NOTE!

Make sure the installed memory are DDR266 SDRAM support 133MHz memory clock, otherwise the system may hang during startup. PC2100/ PC2700 DDR are recommended. Only 533MHz FSB Processor are capable of support DDR333 Memory performance, 400MHz FSB platforms does not support DDR333 .

Generally, installing DDR SDRAM modules to your motherboard is very easy, you can refer to figure 2-4 to see what a 184-Pin DDR333/DDR266 SDRAM module looks like.

DDR1 ( BAN K0 + BANK1)

DDR2 ( BAN K2 + BANK3)

NOTE! When you install DIMM module fully into the DIMM socket the eject tab should be

locked into the DIMM module very firmly and fit into its indention on both sides.

WARNING! For the DDR SDRAM CLOCK is set at 133MHz, use only DDR266-compliant DDR

Modules. When this motherboard operate at 133Mhz, most system will not even boot if non-compliant modules are used because of the strict timing issues, if your SDR Modules are not DDR266-compliant, set the DDR SDRAM clock to 100MHz to ensure system stability.

Figure 2-4

2-5 Expansion Cards

WARNING! Turn off your power when adding or removing expansion cards or other system

components. Failure to do so may cause severe damage to both your motherboard and expansion cards.

2-5-1 Procedure For Expansion Card Installation

1. Read the documentation for your expansion card and make any necessary hardware or

software setting for your expansion card such as jumpers.

2. Remove your computer’s cover and the bracket plate on the slot you intend to use.

3. Align the card’s connectors and press firmly.

4. Secure the card on the slot with the screen you remove above.

5. Replace the computer system’s cover.

6. Set up the BIOS if necessary.

7. Install the necessary software driver for your expansion card.

2-5-2 Assigning IRQs For Expansion Card

Some expansion cards need an IRQ to operate. Generally, an IRQ must exclusively assign to one use. In a standard design, there are 16 IRQs available but most of them are already in use.

Standard Interrupt Assignments

IRQ Priority Standard function

0 N/A System Timer 1 N/A Keyboard Controller 2 N/A Programmable Interrupt 3 * 8 Communications Port (COM2) 4 * 9 Communications Port (COM1) 5 * 6 Sound Card (sometimes LPT2) 6 * 11 Floppy Disk Controller 7 * 7 Printer Port (LPT1) 8 N/A System CMOS/Real Time Clock

9 * 10 ACPI Mode when enabled 10 * 3 IRQ Holder for PCI Steering 11 * 2 IRQ Holder for PCI Steering 12 * 4 PS/2 Compatible Mouse Port 13 N/A Numeric Data Processor 14 * 5 Primary IDE Channel 15 * 1 Secondary IDE Channel

* These IRQs are usually available for ISA or PCI devices.

2-5-3 Interrupt Request Table For This Motherboard

Interrupt request are shared as shown the table below:

INT A INT B INT C INT D INT E INT F INT G INT H

Slot 1 Slot 2 Slot 3 Onboard VGA Onboard LAN Onboard USB 1 Onboard USB 2 Onboard USB 3 AC97/MC97

√ √ √

√

√ √ √ √ √

IMPORTANT!

If using PCI cards on shared slots, make sure that the drivers support “Shared IRQ” or that the cards don’t need IRQ assignments. Conflicts will arise between the two PCI groups that will make the system unstable or cards inoperable.

2-5-4 AGP Slot

This motherboard provides an AGP Slot, which only supports the “ADD” card.

Do not use any AGP card in this motherboard. It might damage the motherboard.

AGP SLOT

2-6 Connectors, Headers

2-6-1 Connectors

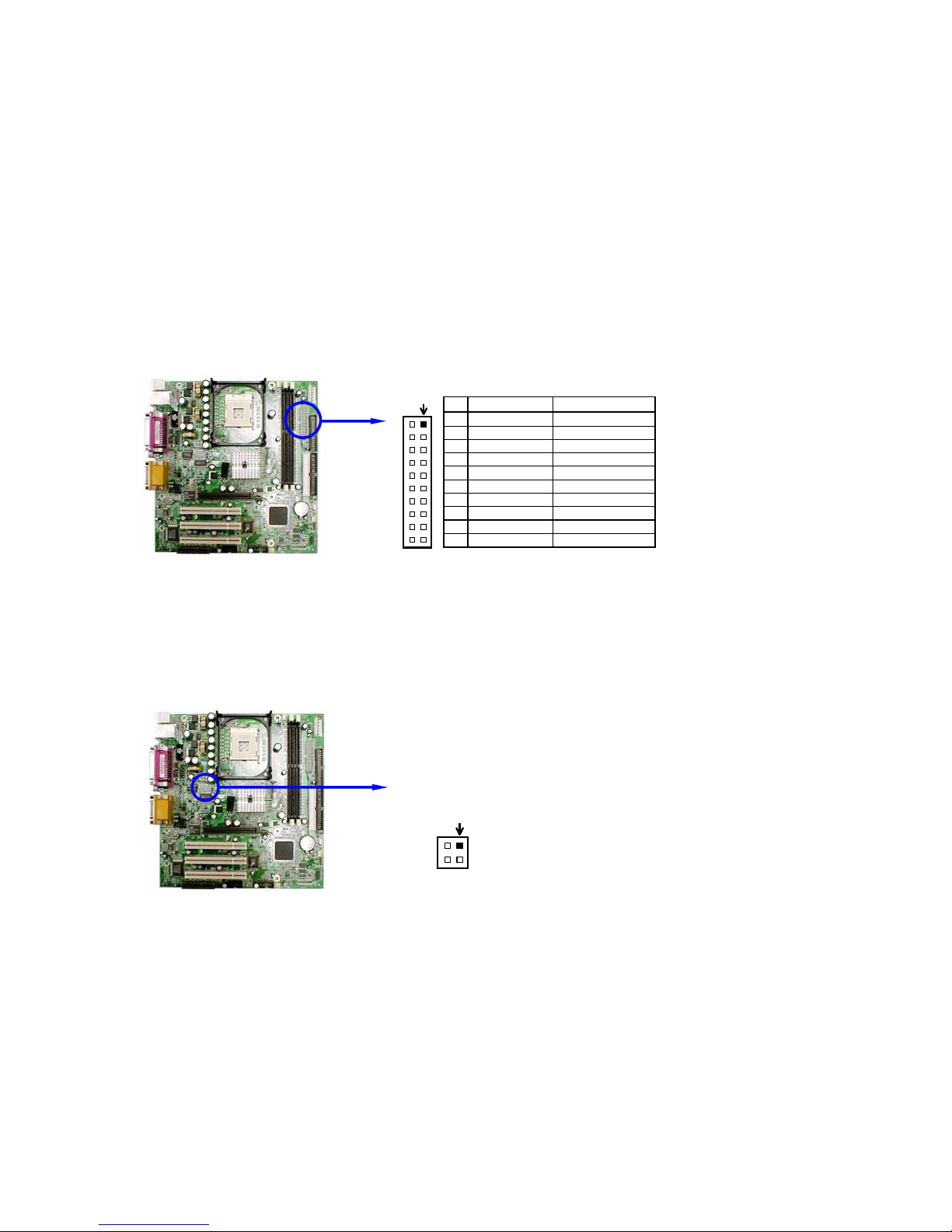

(1) Power Connector (20-pin block) : ATXPWR

ATX Power Supply connector. This is a new defined 20-pins connector that usually

comes with ATX case. The ATX Power Supply allows to use soft power on momentary switch that connect from the front panel switch to 2-pins Power On jumper pole on the motherboard. When the power switch on the back of the ATX power supply turned on, the full power will not come into the system board until the front panel switch is momentarily pressed. Press this switch again will turn off the power to the system board.

Pin 1

PIN ROW2 ROW1

1 3.3V 3.3V 2 -12V 3.3V 3 GND GND 4 Soft Power On 5V 5 GND GND 6 GND 5V 7 GND GND 8 -5V Power OK 9 +5V +5V (for Soft Logic) 10 +5V +12V

(2) ATX 12V Power Connector (4-pin block) : ATX12V

This is a new defined 4-pins connector that usually comes with ATX Power Supply. The

ATX Power Supply which fully support Pentium 4 processor must including this connector for support extra 12V voltage to maintain system power consumption. Without this connector might cause system unstable because the power supply can not provide sufficient current for system.

Pin 1

(3) ATX P9 Power Connector (6-pin block) : ATXP9

This is a new defined 6-pins connector that usually comes with ATX Power Supply. The ATX Power Supply which fully support Pentium 4 processor must including this connector for support extra 3.3V and 5V voltage to maintain system power consumption. Without this connector might cause system unstable because the power supply can not provide sufficient current for system.

GND

3.3V

BLK

BLK ORG

ORG

Power Plugs from Power Supply Power Connector on Motherboard

RED

(4) PS/2 Mouse & PS/2 Keyboard Connector: PS2 KB/MOUSE

The connectors for PS/2 keyboard and PS/2 Mouse.

(5) USB Port connector: USB (USB1)

The connectors are 4-pin connector that connect USB devices to the system board.

(6) LAN Port connector: LAN

This connector is standard RJ45 connector for Network connector.

(7) Parallel Port Connector (25-pin female): LPT

Parallel Port connector is a 25-pin D-Subminiature Receptacle connector. The On-board Parallel Port can be disabled through the BIOS SETUP. Please refer to Chapter 3 “INTEGRATED PERIPHERALS SETUP” section for more detail information.

(8) Audio and Game Connector : GAME

This Connector are 3 phone Jack for LINE-OUT, LINE-IN, MIC and a 15-pin D-Subminiature Receptacle Connector for joystick/MIDI Device.

Line-out : Line-in :

Audio input to sound chip

MIC : Game/MIDI :

Audio output to speaker

Microphone Connector

For joystick or MIDI Device

(9) VGA Connector (15-pin D-Sub) Connector: VGA

VGA is the 15-pin D-Subminiature female connector for display monitor.

(10) Serial Port COM1: COM1

COM1 is the 9-pin D-Subminiature mail connector. The On-board serial port can be disabled through BIOS SETUP. Please refer to Chapter 3 “INTEGRATED PERIPHERALS SETUP” section for more detail information.

PS/2

Mouse

PS/2

Keyboard

USB

PRINT GAME/MIDI PORT LAN

COM1 VGA

MIC

LINE-IN

LINE-OUT

(11) Floppy drive Connector (34-pin block): FDD

This connector supports the provided floppy drive ribbon cable. After connecting the single plug end to motherboard, connect the two plugs at other end to the floppy drives.

Floppy Drive Connector

FDD

Pin 1

(12) Primary IDE Connector (40-pin block): IDE1

This connector supports the provided IDE hard disk ribbon cable. After connecting the

single plug end to motherboard, connect the two plugs at other end to your hard disk(s). If you install two hard disks, you must configure the second drive to Slave mode by setting its jumpers accordingly. Please refer to the documentation of your hard disk for the jumper settings.

Primary IDE Connector

IDE1

Pin 1

(13) Secondary IDE Connector (40-pin block): IDE2

This connector connects to the next set of Master and Slave hard disks. Follow the same

procedure described for the primary IDE connector. You may also configure two hard disks to be both Masters using one ribbon cable on the primary IDE connector and another ribbon cable on the secondary IDE connector.

IDE2

Pin 1

Secondary IDE Connector

• Two hard disks can be connected to each connector. The first HDD is referred to as the

“Master” and the second HDD is referred to as the “Slave”.

• For performance issues, we strongly suggest you don’t install a CD-ROM or DVD-ROM

drive on the same IDE channel as a hard disk. Otherwise, the system performance on this channel may drop.

2-6-2 Headers

(1) Serial Port2 COM2 Header (9-pin) : COM2

COM2

ote: Orient the read marking on the

Pin 1

COM2 ribbon cable to pin 1

Serial Port2 COM2 Header

(2) Line-Out, MIC Header (9-pin): AUDIO

This header connect to Front Panel Line-out, MIC connector with cable.

UDI O

RET_L

AUD

RET_R

AUD

VCC

AUD

AUD_GND

Line-Out, MIC Headers

910

AUD

FPOUT_L

HP_ON

AUD_FPOUT_R

AUD_MIC_BI AS

Pin 1

AUD_MIC

(3) USB Port Headers (9-pin) : USB2, USB3

These headers are used for connecting the additional USB port plug. By attaching an option USB cable, your can be provided with two additional USB plugs affixed to the back panel.

USB3

VCC

DAT

+ DAT A

USB2

GND

VCC

GND

DAT

+ DAT A

(4) IDE Activity LED: IDE LED

This connector connects to the hard disk activity indicator light on the case.

(5) Reset switch lead: RESET

This 2-pin connector connects to the case-mounted reset switch for rebooting your computer without having to turn off your power switch. This is a preferred method of rebooting in order to prolong the lift of the system’s power supply. See the figure below.

Pin 1

VCC

GND

DAT

+ DAT A

USB Port Headers

VCC

GND

DAT

+ DAT A

VCC5

(6) Speaker connector: SPEAKER

This 4-pin connector connects to the case-mounted speaker. See the figure below.

(7) Power LED: PWR LED

The Power LED is light on while the system power is on. Connect the Power LED from the system case to this pin.

(8) Power switch: PWR BTN

This 2-pin connector connects to the case-mounted power switch to power ON/OFF the system.

Pin 1

Pi n 1

SPEAKER

GND

SPKR

RST S W

GND

HDDLED

VCC5

RESET

HDLED

PWRBT

PWR LED

GND

PWRBTN

CPI LED

System Case Connections

(9) Wake On-LAN Headers (3-pin) : WOL

This connector connects to a LAN card with a WAKE ON-LAN output. This connector power up the system when a wake up signal is received through the LAN card.

NOTE:

This feature requires that Wake On LAN or Ring In Wake up is enabled.

Wake-On-LAN Headers

WOL

WOL GND 5VSB

(10) FAN Speed Headers (3-pin) : SYSFAN, SYSFAN2, CPUFAN

These connectors support cooling fans of 350mA (4.2 Watts) or less, depending on the fan manufacturer, the wire and plug may be different. The red wire should be positive,

while the black should be ground. Connect the fan’s plug to the board taking into consideration the polarity of connector.

CPU FAN

SYSFAN2

SYSFAN

FAN Speed Headers

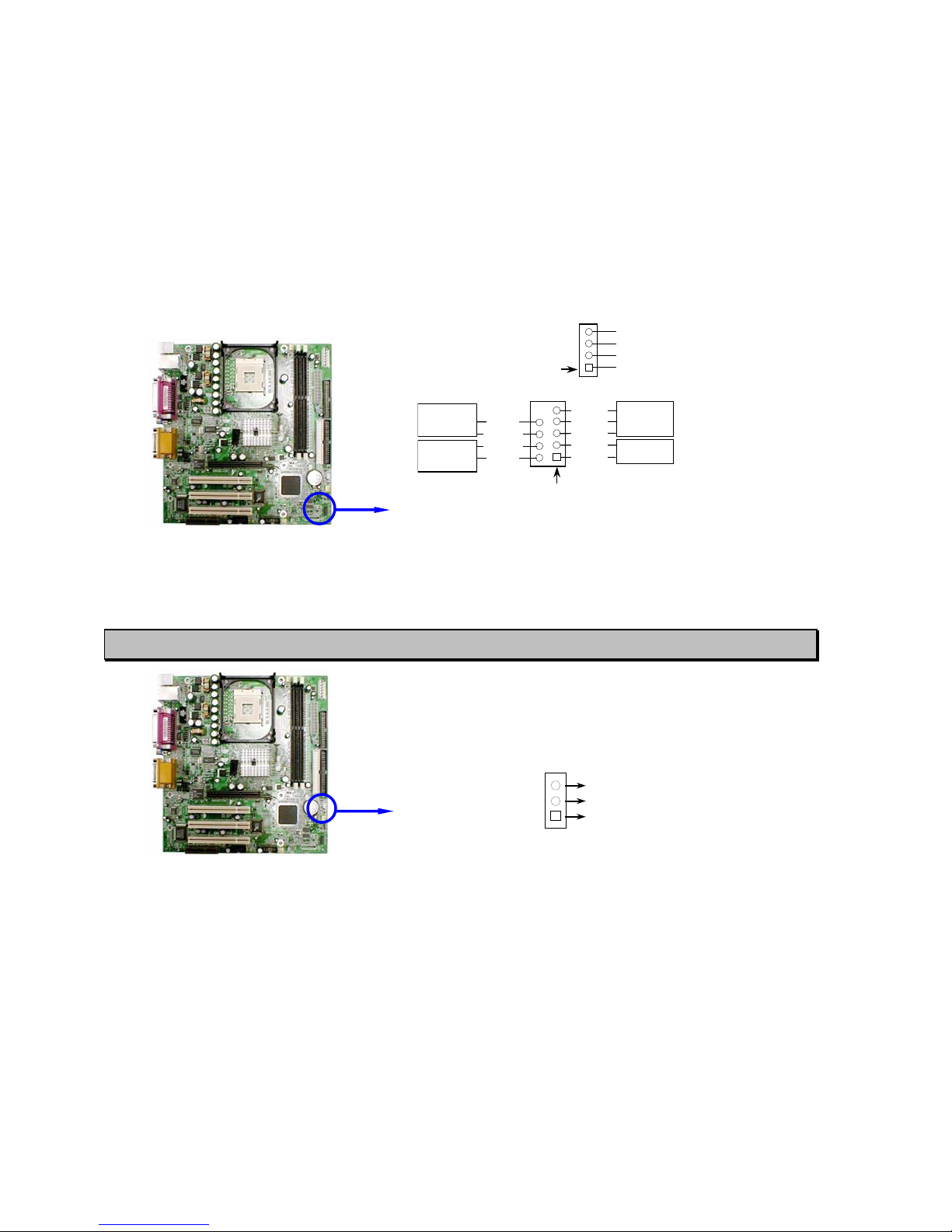

(11) IR infrared module Headers (5-pin) : IR

This connector supports the optional wireless transmitting and receiving infrared module. You must configure the setting through the BIOS setup to use the IR function.

GND

I RRX

IRTX

VCC5

Pi n 1

IR infrared module Headers

(12) CD Audio-In Headers (4-pin) : CDIN

CDIN are the connectors for CD-Audio Input signal. Please connect it to CD-ROM CDAudio output connector.

CDI N

CD Audio-In Headers

2-7 Starting Up Your Computer

1. After all connection are made, close your computer case cover.

2. Be sure all the switch are off, and check that the power supply input voltage is set to the

local voltage, usually in-put voltage is 220V∼240V or 110V∼120V depending on your country’s voltage used.

3. Connect the power supply cord into the power supply located on the back of your system

case according to your system user’s manual.

4. Turn on your peripheral as following order:

a. Your monitor. b. Other external peripheral (Printer, Scanner, External Modem etc…) c. Your system power. For ATX power supplies, you need to turn on the power supply

and press the ATX power switch on the front side of the case.

5. The power LED on the front panel of the system case will light. The LED on the monitor

may light up or switch between orange and green after the system is on. If it complies with green standards or if it is has a power standby feature. The system will then run power-on test. While the test are running, the BIOS will alarm beeps or additional message will appear on the screen.

If you do not see any thing within 30 seconds from the time you turn on the power. The system may have failed on power-on test. Recheck your jumper settings and connections or call your retailer for assistance.

Beep Meaning

One short beep when displaying logo No error during POST

Long beeps in an endless loop No DRAM install or detected

One long beep followed by three short beeps Video card not found or video card memory bad

High frequency beeps when system is working CPU overheated

System running at a lower frequency

6. During power-on, press <Del> key to enter BIOS setup. Follow the instructions in BIOS

SETUP.

Power off your computer:

You must first exit or shut down your operating system before switch off the power switch. For ATX power supply, you can press ATX power switching after exiting or shutting down your operating system. If you use Windows 9X, click

“Start”

button, click

“Shut down”

and then click

“Shut down the computer?”

The

power supply should turn off after windows shut down.

Chapter 3

Introducing BIOS

The BIOS is a program located on a Flash Memory on the motherboard. This program is a bridge between motherboard and operating system. When you start the computer, the BIOS program gain control. The BIOS first operates an auto-diagnostic test called POST (power on self test) for all the necessary hardware, it detects the entire hardware device and configures the parameters of the hardware synchronization. Only when these tasks are completed done it gives up control of the computer to operating system (OS). Since the BIOS is the only channel for hardware and software to communicate, it is the key factor for system stability, and in ensuring that your system performance as its best.

In the BIOS Setup main menu of Figure 3-1, you can see several options. We will explain these options step by step in the following pages of this chapter, but let us first see a short description of the function keys you may use here:

• Press <Esc> to quit the BIOS Setup.

• Press ↑↓←→ (up, down, left, right) to choose, in the main menu, the option you want to confirm

or to modify.

• Press <F10> when you have completed the setup of BIOS parameters to save these parameters and

to exit the BIOS Setup menu.

• Press Page Up/Page Down or +/– keys when you want to modify the BIOS parameters for the

active option.

3-1 Entering Setup

Power on the computer and by pressing <Del> immediately allows you to enter Setup.

If the message disappears before your respond and you still wish to enter Setup, restart the system to try again by turning it OFF then ON or pressing the “RESET” button on the system case. You may also restart by simultaneously pressing <Ctrl>, <Alt> and <Delete> keys. If you do not press the keys at the correct time and the system does not boot, an error message will be displayed and you will again be asked to

Press <F1> to continue, <Ctrl-Alt-Esc> or <Del> to enter Setup

3-2 Getting Help

Main Menu

The on-line description of the highlighted setup function is displayed at the bottom of the screen.

Status Page Setup Menu/Option Page Setup Menu

Press F1 to pop up a small help window that describes the appropriate keys to use and the possible selections for the highlighted item. To exit the Help Window, press <Esc>.

3-3 The Main Menu

Once you enter Award BIOS CMOS Setup Utility, the Main Menu (Figure 3-1) will appear on the screen. The Main Menu allows you to select from fourteen setup functions and two exit choices. Use arrow keys to select among the items and press <Enter> to accept or enter the sub-menu.

Standard CMOS Features

Advanced BIOS Features

Advanced Chipset Features

Integrated Peripherals

Power Management Setup

PnP/PCI Configurations

PC Health Status

Esc : Quit

F10 : Save & Exit Setup

Time, Date, Hard Disk Type...

Figure 3-1

Miscellaneous Control

Load optimized Defaults

Load Standard Defaults

Set Supervisor Password

Set User Password

Save & Exit Setup

Exit Without Saving

↑↓→ ←

: Select Item

Standard CMOS Features

Use this Menu for basic system configurations.

Advanced BIOS Features

Use this menu to set the Advanced Features available on your system.

Advanced Chipset Features

Use this menu to change the values in the chipset registers and optimize your system’s performance.

Integrated Peripherals

Use this menu to specify your settings for integrated peripherals.

Power Management Setup

Use this menu to specify your settings for power management.

PnP/PCI configurations

This entry appears if your system supports PnP/PCI.

PC Health Status

This entry shows your PC health status.

Miscellaneous Control

Use this menu to specify your settings for Miscellaneous control.

Load Optimized Defaults

Use this menu to load the BIOS default values that are settings for optimal performances system operations.

Load Standard Defaults

Use this menu to load the BIOS default values that are factory settings for the stable performance system operation.

Set Supervisor/User Password

Use this menu to set User and Supervisor Passwords.

Save & Exit Setup

Save CMOS value changes to CMOS and exit setup.

Exit Without Saving

Abandon all CMOS value changes and exit setup.

3-4 Standard CMOS Features

The items in Standard CMOS Setup Menu are divided into several categories. Each category includes no, one or more than one setup items. Use the arrow keys to highlight the item and then use the <PgUp> or <PgDn> keys to select the value you want in each item.

Standard CMOS Features

Date (mm:dd:yy) Tue, Jun, 18 2002

Time (hh:mm:ss) 11 : 26 : 48

> IDE Primary Master Press Enter None

> IDE Primary Slave Press Enter None

> IDE Secondary Master Press Enter None

> IDE Secondary Slave Press Enter None

Drive A 1.44M, 3.25 in.

Drive B None

Video EGA/VGA

Halt On All,But Keyboard

Base Memory 640K

Extended Memory 56320K

Total Memory 57344K

↑↓→←

Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

Date

The date format is <day><month><date><year>.

Item Help

Menu Level >

Change the day, month,

year and century

Day of the week, from Sun to Sat, determined by BIOS. Read-only.

Day

Month

Date

Year

Time

The month from Jan. through Dec.

The date from 1 to 31 can be keyed by numeric function keys.

The year depends on the year of the BIOS.

The time format is <hour><minute><second>.

Primary Master/Primary Slave

Secondary Master/Secondary Slave

Press PgUp/<+> or PgDn/<–> to select Manual, None, Auto type. Note that the specifications of your drive must match with the drive table. The hard disk will not work properly if you enter improper information for this category. If your hard disk drive type is not matched or listed, you can use Manual to define your own drive type manually.

If you select Manual, related information is asked to be entered to the following items. Enter the information directly from the keyboard. This information should be provided in the documentation from your hard disk vendor or the system manufacturer.

If the controller of HDD interface is SCSI, the selection shall be “None”.

If the controller of HDD interface is CD-ROM, the selection shall be “None”

Access Mode

Cylinder

number of cylinders

Head

Precomp

write precomp

Landing Zone

Sector

number of sectors

The settings are Auto Normal, Large, and LBA.

number of heads

landing zone

3-5 Advanced BIOS Features

Advanced BIOS Features

Anti-Virus Protection Disabled

CPU L1 & L2 Cache Enabled

Quick Power On Self Test Enabled

Hard Disk Boot Priority Press Enter

First Boot Device Floppy

Second Boot Device Hard Disk

Third Boot Device CDROM

Boot other Device Enabled

Swap Floppy Drive Disabled

Boot Up Floppy Seek Enabled

Boot Up NumLock Status On

Gate A20 Option Fast

Typematic Rate Setting Disabled

Typematic Rate (Chars/Sec) 6

Typematic Delay (Msec) 250

Security Option Setup

APIC Mode Disabled

MPS Version Control For OS 1.1

OS Select For DRAM > 64MB Non-OS2

HDD S.M.A.R.T. Capability Disabled

Item Help

Menu Level >

↑↓→←

Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

Anti-Virus Protection

Allows you to choose the VIRUS Warning feature for IDE Hard Disk boot sector protection. If this function is enabled and someone attempt to write data into this area, BIOS will show a warning message on screen and alarm beep.

Disabled

(default) No warning message to appear when anything attempts to access the

boot sector or hard disk partition table.

Enabled

Activates automatically when the system boots up causing a warning message to appear when anything attempts to access the boot sector of hard disk partition table.

CPU Internal Cache

The default value is Enabled.

Enabled

(default) Enable cache

Disabled

Disable cache

Note: The internal cache is built in the processor.

External Cache

Choose Enabled or Disabled. This option enables the Level 2 cache memory.

CPU L2 Cache ECC Checking

Choose Enabled or Disabled. This option enables the Level 2 cache memory ECC (error check correction).

Quick Power On Self Test

This category speeds up Power On Self Test (POST) after you power on the computer. If this is set to Enabled. BIOS will shorten or skip some check items during POST.

Enabled

Disabled

(default) Enable quick POST

Normal POST

First/Second/Third/Fourth Boot Device

The BIOS attempts to load the operating system from the devices in the sequence selected in these items. The settings are Floppy, LS/ZIP, HDD-0/HDD-1/HDD-3, SCSI, CDROM, LAD and Disabled.

Swap Floppy Drive

Switches the floppy disk drives between being designated as A and B. Default is Disabled.

Boot Up Floppy Seek

During POST, BIOS will determine if the floppy disk drive installed is 40 or 80 tracks. 360K type is 40 tracks while 760K, 1.2M and 1.44M are all 80 tracks.

Boot Up NumLock Status

The default value is On.

(default)

Off

Keypad is numeric keys.

Keypad is arrow keys.

Gate A20 Option

Normal

(default) The A20 signal is controlled by port 92 or chipset specific method.

Fast

The A20 signal is controlled by keyboard controller or chipset hardware.

Typematic Rate Setting

Keystrokes repeat at a rate determined by the keyboard controller. When enabled, the typematic rate and typematic delay can be selected. The settings are: Enabled/Disabled.

Typematic Rate (Chars/Sec)

Sets the number of times a second to repeat a keystroke when you hold the key down. The settings are: 6, 8, 10, 12, 15, 20, 24, and 30.

Typematic Delay (Msec)

Sets the delay time after the key is held down before is begins to repeat the keystroke. The settings are 250, 500, 750, and 1000.

Security Option

This category allows you to limit access to the system and Setup, or just to Setup.

System

The system will not boot and access to Setup will be denied if the correct password is not entered at the prompt.

Setup

(default) The system will boot, but access to Setup will be denied if the correct

password is not entered prompt.

OS Select For DRAM > 64MB

Allows OS2 to be used with >64MB or DRAM. Settings are Non-OS/2 (default) and OS2. Set to OS/2 if using more than 64MB and running OS/2.

3-6 Advanced Chipset Features

The Advanced Chipset Features Setup option is used to change the values of the chipset registers. These registers control most of the system options in the computer.

Advanced Chipset Features

> DRAM Timing Settings Press Enter

System BIOS Cacheable Enabled

Video RAM Cacheable Enabled

Memory Hole At 15M-16M Disabled

Delay Transaction Enabled

AGP Transfer Mode Auto

AGP Aperture Size 64MB

↑↓→←

Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

Item Help

Menu Level >

DRAM Timing Settings

Please refer to section 3-6-1

System BIOS Cacheable

Selecting Enabled allows caching of the system BIOS ROM at F0000h-FFFFFh, resulting in better system performance. However, if any program writes to this memory area, a system error may result. The settings are: Enabled and Disabled.

Video RAM Cacheable

Select Enabled allows caching of the video BIOS, resulting in better system performance. However, if any program writes to this memory area, a system error may result. The settings are: Enabled and Disabled.

Memory Hole At 15M-16M

You can reserve this area of system memory for ISA adapter ROM. When this area is reserved, it cannot be cached. The user information of peripherals that need to use this area of system memory usually discusses their memory requirements. The settings are: Enabled and Disabled.

Delay Transaction

The chipset has an embedded 32-bit posted write buffer to support delay transactions cycles. Select Enabled to support compliance with PCI specification version 2.1. The settings are: Enabled and Disabled.

AGP Transfer Mode

In this item you can select AGP transfer mode Auto/4X/1X the Default setting is Auto.

3-6-1 DRAM Timing Settings

DRAM Timing Settings

Auto Configuration Standard

SDRAM CAS Latency Time 2.5

SDRAM Cycle Time 7

SDRAM RAS# to CAS# Delay 3

SDRAM RAS# Precharge Time 3

↑↓→←

Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

Item Help

Menu Level >>

SDRAM CAS Latency Time

When synchronous DRAM is installed, the number of clock cycles of CAS latency depends on the DRAM timing. The settings are: 2T and 2.5T.

Note: Change these settings only if you are familiar with the chipset.

SDRAM RAS# to CAS# Delay

This field let’s you insert a timing delay between the CAS and RAS strobe signals, used when DRAM is written to, read from, or refreshed. Fast gives faster performance; and Slow gives more stable performance. This field applies only when synchronous DRAM is installed in the system. The settings are: 2T, 3T and 4T.

SDRAM RAS# Precharge Time

If an insufficient number of cycles is allowed for the RAS to accumulate its charge before DRAM refresh, the refresh may be incomplete and the DRAM may fail to retain date. Fast gives faster performance; and Slow gives more stable performance. This field applies only when synchronous DRAM is installed in the system. The settings are: 2T, 3T and 4T.

3-7 Integrated Peripherals

Integrated Peripherals

> Onboard IDE Function Press Enter

> Onboard Device Function Press Enter

> Onboard Super IO Function Press Enter

Init Display First PCI Slot

Power On Function Button Only

KB Power On Password Enter

Hot Key Power On Ctrl-F1

Power Loss Function Always Off

↑↓→←

Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

Onboard IDE Function

Please refer to section 3-7-1

Onboard Device Function

Please refer to section 3-7-2

Onboard Super IO Function

Please refer to section 3-7-3

Init Display First

Item Help

Menu Level >

This item allows you to decide to activate whether PCI Slot or AGP VGA first. The settings are: PCI Slot, AGP Slot.

3-7-1 Onboard IDE Function

Onboard IDE Function

OnChip Primary PCI IDE Enabled

OnChip Secondary PCI IDE Enabled

Primary Master PIO Auto

Primary Slave PIO Auto

Secondary Master PIO Auto

Secondary Slave PIO Auto

Primary Master UDMA Auto

Primary Slave UDMA Auto

Secondary Master UDMA Auto

Secondary Slave UDMA Auto

IDE 32-bit Transfer Mode Enabled

IDE HDD Block Mode Enabled

Delay For HDD (Secs) 0

↑↓→←

Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

Item Help

Menu Level >>

OnChip IDE Primary/Secondary

The integrated peripheral controller contains an IDE interface with support for two IDE channels. Select Enabled to activate each channel separately. The settings are: Enabled and Disabled.

Primary/Secondary Master/Slave PIO

The four IDE PIO (Programmed Input/Output) fields let you set a PIO mode (0-4) for each of the four IDE devices that the onboard IDE interface supports. Modes 0 through 4 provide successively increased performance. In Auto mode, the system automatically determines the best mode for each device. The settings are: Auto, Mode 0, Mode 1, Mode 2, Mode 3, Mode 4.

Primary/Secondary Master/Slave UDMA

Ultra DMA/33 implementation is possible only if your IDE hard drive supports it and the operating environment includes a DMA driver (Windows 95 OSR2 or a third-party IDE bus master driver). If your hard drive and your system software both support Ultra DMA/33 and Ultra DMA/66, select Auto to enable BIOS support. The settings are: Auto, Disabled.

IDE HDD Block Mode

Block mode is also called block transfer, multiple commands, or multiple sector read/write. If your IDE hard drive supports block mode (most new drives do), select Enabled for automatic detection of the optimal number of block read/writes per sector the drive can support. The settings are: Enabled, Disabled.

3-7-2 Onboard Device Function

Onboard Device Function

LAN Function Enabled

USB Controller Enabled

USB Keyboard Legacy Support Disabled

** Onboard AC97 Codec is ALC101 **

AC97 Audio Auto

AC97 Modem Auto

Game Port Address 201

Midi Port Address 330

x Midi Port IRQ 10

↑↓→←

Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

Item Help

Menu Level >>

AC97 Audio

This item allows you to decide to enable/disable the chipset family to support AC97 Audio. The settings are: Enabled, Disabled.

AC97 Modem

This item allows you to decide to enable/disable the 845G chipset family to support AC97 Modem. The settings are: Auto, Disabled.

Game Port Address/Midi Port Address

This will determine which Address the Game Port/Midi Port will use.

USB Controller

Select

Enabled

if your system contains a Universal Serial Bus (USB) controller and you have a

USB peripherals. The settings are: Enabled, Disabled.

USB Keyboard Legacy Support

Select

Enabled

if your system contains a Universal Serial Bus (USB) controller and you have a

USB keyboard. The settings are: Enabled, Disabled.

3-7-3 Onboard Super IO Function

Onboard Super IO Function

Onboard FDD Controller Enabled

Onboard Serial Port 1 3F8/IRQ4

Onboard Serial Port 2 2F8/IRQ3

UART2 Mode Normal

RxD, TxD Active Hi, Lo

IR Transmission Delay Enabled

IR Duplex Mode Half

Use IR Pins IRRX/IRTX

Onboard Parallel Port 378/IRQ7

Parallel Mode SPP

EPP Mode Select EPP1.9

ECP Mode Use DMA 3

↑↓→←

Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

Item Help

Menu Level >>

Onboard FDD Controller

Select Enabled if your system has a floppy disk controller (FDD) installed on the system board and you wish to use it. If you install add-on FDC or the system has no floppy drive, select Disabled in this field. The settings are: Enabled and Disabled.

Onboard Serial Port 1/Port 2

Select an address and corresponding interrupt for the first and the second serial ports. The settings are: 3F8/IRQ4, 2E8/IRQ3, 3E8/IRQ4, 2F8/IRQ3, Disabled, Auto.

UART2 Mode

This item allows you to determine which InfraRed(IR) function of the onboard I/O chip, this functions uses.

Onboard Parallel Port

There is a built-in parallel port on the on-board Super I/O chipset that Provides Standard, ECP, and EPP features. It has the following option:

Disabled

(3BCH/IRQ7)/ Line Printer port 0

(278H/IRQ5)/ Line Printer port 2

(378H/IRQ7) Line Printer port 1

Parallel Port Mode

SPP : Standard Parallel Port

EPP : Enhanced Parallel Port

ECP : Extended Capability Port

SPP/EPP/ECP/ECP+EPP

To operate the onboard parallel port as Standard Parallel Port only, choose “SPP.” To operate the onboard parallel port in the EPP modes simultaneously, choose “EPP.” By choosing “ECP”, the onboard parallel port will operate in ECP mode only. Choosing “ECP+EPP” will allow the onboard parallel port to support both the ECP and EPP modes simultaneously. The ECP mode has to use the DMA channel, so choose the onboard parallel port with the ECP feature. After selecting it, the following message will appear: “ECP Mode Use DMA” at this time, the user can choose between DMA channels 3 to 1. The onboard parallel port is EPP Spec. compliant, so after the user chooses the onboard parallel port with the EPP function, the following message will be displayed on the screen: “EPP Mode Select.” At this time either EPP 1.7 spec. or EPP 1.9 spec. can be chosen.

3-8 Power Management Setup

The Power Management Setup allows you to configure your system to most effectively save energy saving while operating in a manner consistent with your own style of computer use.

Power Management Setup

ACPI Function Enabled

Power Management User Define

Video Off Option Suspend -> off

Video off Method V/H SYNC+Blank

Video Off In Suspend Yes

Suspend Type Stop Grant

MODEM Use IRQ 3

Suspend Mode Disabled

HDD Power Down Disabled

Soft-off by PWR-BTTN Instant-off

Wake-Up by PCI card Disabled

Power On by Ring Disabled

Resume by Alarm Disabled

X Date (of Month) 0

X Time (hh:mm:ss) 0 : 0 :0

CPU Thermal Management Timer 32 Min

> PM Timer Reload Events Press Enter

↑↓→←

Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

Item Help

Menu Level >

ACPI Function

This item allows you to Enabled/Disabled the Advanced Configuration and Power Management (ACPI). The settings are Enabled and Disabled.

Video Off in Suspend

This determines the manner in which the monitor is blanked. The choice are Yes → Video will off , and No→ Video always On.

Video Off Method

This determines the manner in which the monitor is blanked.

DPMS (default) Initial display power management signaling.

Blank Screen This option only writes blanks to the video buffer.

V/H SYNC+Blank This selection will cause the system to turn off the vertical and horizontal

synchronization ports and write blanks to the video buffer.

Modem Use IRQ

This determines the IRQ in which the MODEM can use.

The settings are: 3, 4, 5, 7, 9, 10, 11, NA.

Power Button Function

Pressing the power button for more than 4 seconds forces the system to enter the Soft-Off state. The settings are: Delay 4 Sec, Instant-Off.

Wake-Up by PCI card /Power On by Ring

During Disabled, the system will ignore any incoming call from the PCI card/modem. During Enabled, the system will boot up if there’s an incoming call from the PCI card /modem.

Wake-Up on RTC Alarm

This function is for setting date and time for your computer to boot up. During Disabled, you cannot use this function. During Enabled, choose the Date and Time Alarm:

Date(of month) Alarm

You can choose which month the system will boot up. Set to 0, to boot every day.

Time(hh:mm:ss) Alarm

You can choose what hour, minute and second the system will boot up.

Note: If you have change the setting, you must let the system boot up until it goes to the operating system, before this function will work

PM Timer Reload Events

Please refer to section 3-8-1

3-8-1 PM Timer Reload Events

PM Timer Reload Events

Primary IDE 0 Disabled

Primary IDE 1 Disabled

Secondary IDE 0 Disabled

Secondary IDE 1 Disabled

FDD, COM, LPT Port Disabled

PCI PIRQ [A-D] # Disabled

Item Help

Menu Level >>

↑↓→←

Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

3-9 PnP/PCI Configuration Setup

This section describes configuring the PCI bus system. PCI, or Personal Computer Interconnect, is a system which allows I/O devices to operate at speeds nearing the speed the

CPU itself uses when communicating with its own special components. This section covers some very technical items and it is strongly recommended that only experienced users should make any changes to the default settings.

PnP/PCI Configurations

Reset Configuration Data Disabled

Resources Controlled By Manual

x IRQ Resources Press Enter

PCI/VGA Palette Snoop Disabled

Assign IRQ For VGA Enabled

Item Help

Menu Level >

↑↓→←

Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

Reset Configuration Data

Normally, you leave this field Disabled. Select Enabled to reset Extended System Configuration Data (ESCD) when you exit Setup if you have installed a new add-on and the system reconfiguration has caused such a serious conflict that the operating system can not boot. The settings are: Enabled and Disabled.

Resource Controlled By

The Award Plug and Play BIOS has the capacity to automatically configure all of the boot and Plug and Play compatible devices. However, this capability means absolutely nothing unless



you are using a Plug and Play operating system such as Windows

95/98. If you set this field to “manual” choose specific resources by going into each of the sub menu that follows this field (a sub menu is preceded by a “>”).

The settings are: Auto(ESCD), Manual.

IRQ Resources

When resources are controlled manually, assign each system interrupt a type, depending on the type of device using the interrupt.

Please refer to section 3-9-1

PCI/VGA Palette Snoop

Leave this field at Disabled. The settings are Enabled, Disabled.

3-9-1 IRQ Resources

IRQ Resources

IRQ-3 assigned to PCI Device

IRQ-4 assigned to PCI Device

IRQ-5 assigned to PCI Device

IRQ-7 assigned to PCI Device

IRQ-9 assigned to PCI Device

IRQ-10 assigned to PCI Device

IRQ-11 assigned to PCI Device

IRQ-12 assigned to PCI Device

IRQ-14 assigned to PCI Device

IRQ-15 assigned to PCI Device

↑↓→←

Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

Item Help

Menu Level >>

3-10 PC Health Status

This section shows the Status of you CPU, Fan, Warning for overall system status. This is only available if there is Hardware Monitor onboard.

PC Health Status

Shutdown Temperature Disabled

CPU Warning Temperature Disabled

Show PC Health in Post Enabled

Current System Temperature 25°C

Current CPU Temperature 38°C

Current CPUFAN Speed 5000 rpm

Current SYSFAN Speed 5000 rpm

Current SYSFAN2 Speed 5000 rpm

Vcore 1.71V

Vcc1.5 1.51V

Vcc3.3 3.31V

+ 5V 4.98V

+12V 12.22V

-12V -12.36V

- 5V -4.99V

VBAT(V) 3.21V

5VSB(V)

↑↓→←

Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

5.02V

Item Help

Menu Level >

Show PC Health in Post

During Enabled, it displays information list below. The choice is either Enabled or Disabled.

Current CPU Temperature/Current System Temp/Current FAN1, FAN2 Speed/Vcore/ Vdd/3.3V/+5V/+12V/-12V/VBAT(V)/5VSB(V)

This will show the CPU/FAN/System voltage chart and FAN Speed.

Shutdown Temperature

This item can let users setting the Shutdown temperature, when CPU temperature over this setting the system will auto shutdown to protect CPU.

3-11 Miscellaneous Control

This section is for setting CPU Frequency/Voltage Control.

Miscellaneous Control

CPU Clock Ratio X 8

Auto Detect PCI Clk Enabled

Spread Spectrum Disabled

** Current Host Clock is 100/33MHz **

HOST/PCI Clock at Next Boot is 100/33MHz

** Current DRAM Clock is 133MHz **

DRAM Clock at Next Boot is 133MHz

PCI Clock Ratio Host/3

CPU Vcore Select Default

Vcc1.5 Select 1.5V

VDIMM Select 2.5V

Flash Part Write Protect Enabled

↑↓→←

Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

Auto Detect PCI Clk

This item allows you to enable/disable auto detect PCI Clock.

The settings are: Enabled, Disabled.

Spread Spectrum

Item Help

Menu Level >

This item allows you to set the CPU Host/PCI clock and Spread Spectrum.

The settings are: Enabled, Disabled.

Host/PCI Clock at Next Boot

This item allows you to select CPU frequency step by step increasing. The choice are: 100MHz∼200MHz

DRAM Clock at Next Boot is

This item allows you select the DRAM Clock same as Host clock, or can add 33MHz when Host Clock is 100MHz.

PCI Clock Ratio

This item allows you to set PCI Clock Ratio. The choice are: Host/3, Host/4, Host/5, Host/6.

CPU Vcore Select (only for RX845GL)

This item allows you select CPU Vcore Voltage by increase 0.025V step by step from 1.600V to 1.850V the Default setting is Default (CPU manufacturer Default setting).

Vcc1.5 Select

This item allows you to select 1.5V of the AGP VGA card. The choice are: Default, 1.5V,

1.6V.

VDIMM Select

This item allows you to select DRAM Voltage. The choice are: 2.5V/2.6V/2.7V/2.8V.

Flash Part Write Protect

This item allows you protect your BIOS chip from Virus destroy data. When Flash BIOS you have Disabled this item.

3-12 Load Standard/Optimized Defaults

Load Standard Defaults

When you press <Enter> on this item, you get confirmation dialog box with a message similar to:

Load Standard Defaults (Y/N)? N

Pressing <Y> loads the BIOS default values for the most stable, minimal-performance system operations.

Load Optimized Defaults

When you press <Enter> on this item, you get a confirmation dialog box with a message similar to:

Load Optimized Defaults (Y/N)? N

Pressing <Y> loads the default values that are factory settings for optimal performance system operations.

3-13 Set Supervisor/User Password

You can set either supervisor or user password, or both of them. The differences are:

Supervisor password: Can enter and change the options of the setup menus.

User password: Can only enter but do not have the right to change the options of the

setup menus. When you select this function, the following message will appear at the center of the screen to assist you in creating a password.

ENTER PASSWORD:

Type the password, up to eight characters in length, and press <Enter>. The password typed now will clear any previously entered password from CMOS memory. You will be asked to confirm the password. Type the password again and press <Enter>. You may also press <Esc> to abort the selection and not enter a password.

To disable a password, just press <Enter> when you are prompted to enter the password. A message will confirm that the password will be disabled. Once the password is disabled, the system will boot and you can enter Setup freely.

PASSWORD DISABLED.

When a password has been enabled, you will be prompted to enter it every time you try to enter Setup. This prevents an unauthorized person from changing any part of your system configuration.

Additionally, when a password is enabled, you can also require the BIOS to request a password every time your system is rebooted. This would prevent unauthorized use of your computer.

You determine when the password is required within the BIOS Features Setup Menu and its Security option. If the Security option is set to “System”, the password will be required both at boot and at entry to Setup. If set to “Setup”, prompting only occurs when trying to enter Setup.

BCM IN845GV User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
