Advanced Socket 370
Motherboard
IN810
USER’S MANUAL
1
DECLARATION
DDEECCLLAARRAATTIIOON
Rights:
No part of this manual, including but not limited to the products and
software described in it, may be reproduced, transmitted, transcribes,
stored in a retrieval system, or translated in any form or by any means
without the expressed written permission of the manufacture.
Products and corporate names appearing in this manual may or may not be
registered trademarks or copyrights of their respective companies and are used
only for identification or explanation purposes without intent to infringe.
♦ Intel, MMX and Pentium are registered trademarks of Intel Corporation.
♦ IBM and OS/2 are registered trademarks of International Business Machines.
♦ AMI is a registered trademark of AMI Software Inc.
Responsibility:
This manual is provided “As is” with no warranties of any kind, either expressed
or implied, including, but not limited to the implied warranties or conditions of
this product’s fitness for any particular purpose. In no event shall we be liable for
any loss of profits, loss of business, loss of data, interruption of business, or
indirect, special, incidental, or consequential damages of any kind, even the
possibility of such damages arising from any defect or error in this manual or
product. We reserve the right to modify and update the user manual without prior
notice.
N
2
COMPLIANCE & CERTIFICATE
CCOOMMPPLLIIAANNCCEE &
&
ISO 9001 Certificate:
This device was produced in our plant with advanced quality
system certified by DNV QA Ltd. in according to ISO 9001.
This Certificate is valid for:
DESIGN & MANUFACTURE OF MOTHER BOARDS AND
PERSONAL COMPUTERS.
CE Declaration:
CE marking is a visible declaration by the manufacturer or
his authorized representatives that the electrical equipment to
which it relates satisfies all the provisions of the 1994
Regulations.
FCC Compliance:
FCC stands for Federal Communications Commission.
This product complies with FCC Rules Part 15 and has been
tested, and complied with the EMI rules by a certified body.
In normal operation, there shall be no harmful interference
caused by this device nor shall this devise accept any
interference received, including interference that may cause
undesired operation of this product.
CCEERRTTIIFFIICCAATTE
E
Year 2000 Compliance:
This product is tested to be qualified to bear the NSTL Year
2000 Compliant logo. Year2000 problem is mainly a
problem of computer software (OS), and the hardware issue.
With the support of BIOS on motherboard, the Y2K problem
can be thoroughly conquered.
3
EASY INSTALLATION
EEAASSYY IINNSSTTAALLLLAATTIIOON
HDD, FDD…
Easy Installation Steps
The following “Easy Installation” steps are for
users accustomed to the assembly of a computer
system. For those individuals requiring more
specific information please refer to the more
detailed descriptions located within the latter
chapters of this manual. Note: You must keep
your power cable unplugged until the following
installation steps are completed.
Getting Start:
Touch a grounded metal surface to release static electricity
stored in your body before unpacking your motherboard. For
details please refer to Precaution section in Chapter 3.
Install the CPU by correctly aligning the CPU with the
socket370 as noted in the motherboard diagram. Once aligned,
press down on the CPU gently but firmly and lock it. Next,
install the 3.3 volt unbuffered SDRAM into the 168 pin
DIMMs. See Sec. 3.2 & Sec. 3.3.
Set CPU speed in according to Sec.3.2.
N
Release
Static Electricity
Insert CPU &
RAM
Set Jumpers of
CPU
After completing the above steps, install any expansion
Cards( PCI, AMR) into riser card and have the riser card
installed firmly into the slot for riser card on board. See Sec. 3.4.
Plug in all cables included in the package except for the
power cord. Please see Sec. 3.5.
Please recheck all steps to ensure no mistakes
have been made and then plug in the power cord
and turn on the power to enter the BIOS setup, Chapter 4.
4
Install All
Expansion Slots
Couple
Connectors Of
CONTENTS
1 INTRODUCTION............................................................................... 7
2 FEATURES......................................................................................... 8
3 INSTALLATION.............................................................................. 11
3.1 SLOTS AND CONNECTORS....................................................... 15
3.2 CPU (CENTRAL PROCESSING UNIT) ........................................ 16
3.2.1 Install CPU ............................................................. 16
3.3 SYSTEM MEMORY (DRAM).................................................... 18
3.3.1 DIMM (Dual Inline Memory Module)...................... 18
3.3.2 Installation Procedure............................................. 18
3.3.3 DIMM Module Combinations.................................. 19
3.4 EXPANSION SLOTS.................................................................. 20
3.5 CONNECTORS......................................................................... 21
3.5.1 Primary IDE Connector (J31, 39-pin block) ............ 21
3.5.2 Secondary IDE Connector (J26, 39-pin block)......... 21
3.5.3 Floppy Drive Connector (J23, 33-pin block)............ 22
3.5.4 Power Input Connector (J22, 20-pin block) ............. 22
3.5.5 TV-Out/DFP connector (J13, 36-pin slot)................ 22
3.5.6 Front Panel connectors (J28 20-pin header) ............ 23
3.5.7 Back Panel Connectors ........................................... 25
Additional Connectors........................................................................ 28
4 BIOS SETUP..................................................................................... 35
4.1 HOW TO ENTER BIOS SETUP.................................................. 35
5
CONTENTS
4.1.1 Setup Keys............................................................... 36
4.1.2 Getting Help............................................................ 36
4.1.3 In Case of Problems ................................................ 36
4.2 MAIN SETUP MENU ................................................................ 37
4.3 STANDARD CMOS SETUP MENU ............................................ 39
4.4 ADVANCED CMOS SETUP MENU............................................ 43
4.5 ADVANCED CHIPSET SETUP MENU .......................................... 46
POWER MANAGEMENT SETUP MENU ......................................................... 48
PCI/PLUG AND PLAY SETUP MENU............................................................ 50
4.8 PERIPHERALS SETUP MENU..................................................... 52
4.9 AUTO-DETECTION IDE HDD ................................................. 56
4.10 CHANGE USER PASSWORD ...................................................... 56
4.11 CHANGE SUPERVISOR PASSWORD............................................ 56
4.12 AUTO CONFIGURATION WITH OPTIMAL SETTINGS.................... 57
4.13 AUTO CONFIGURATION WITH FAIL SAFE SETTINGS .................. 57
4.14 SAVE SETTING AND EXIT ........................................................ 57
4.15 EXIT WITHOUT SAVING.......................................................... 57
6
1. INTRODUCTION
1
I
N
T
R
O
D
U
C
1
I
N
T
R
O
D
1
I
N
T
R
O
How To Use This Manual
This manual provides information necessary
for Original Equipment Manufactures (OEMs)
and home users to build a PC-AT compatible
system using the Pentium II PCI/ISA/AGP
motherboard. Just follow the installation
procedure presented on the EASY
INSTALLATION Page and refer to the section number following each
step if you require more detailed instructions.
Check Your Device Items
The standard package should contain
following items marked with a “4”, If you
find any these items missing or damaged.
Please contact your retailer.
4The IN810 motherboard
41 IDE ribbon cable
41 floppy ribbon cable
41 CD with drivers of Intel810 VGA and AC’97 Audio codec.
D
U
U
C
C
T
T
T
I
O
I
N
O
O
N
N
I
7
2. FEATURES
2
F
E
2
F
2
F
Photo Of The Motherboard
E
E
A
A
A
T
T
T
U
U
U
R
R
R
E
E
E
S
S
S
8
2. FEATURES
Features Of The Motherboard
This product is based on the “Micro ATX” form factor. It features
the advanced Multimedia function and provides support for
business PC maker. This motherboard incorporates Intel 810DC100 chipset. Providing features such as integrated 2D/3D AGP
VGA controller, Ultra DMA 33/66 IDE Interface, ACPI power
management, and PCI 3D sound support.
Processor (+Cache)
l Single Intel Socket-370 mechanism for Intel Celeron Processor.
l Support 66/100 MHz FSB
Chipset
l Intel 810 Chipset includes GMCH0 (Memory Controller Hub), ICH(I/O Controller Hub)
and FWH(Firm Ware Hub).
l Winbond W83627F-AW super I/O Controller.
l Software Audio and Hardware AC’97 V2.1 CODEC.
System Memory
l Two 168-pin DIMM sockets.
l Minimum 8MB up to maximum 512 MB Memory Capacity.
l 100MHz SDRAM DIMM module.
Graphics Support
l Integrated H/W 3D AGP Graphic controller (2x mode)
l Supports AGP(Accelerated Graphics Port) for increased performance of Graphic Displays,
special 3D operations in multimedia, and higher speed to satisfy the users optical vision.
l Supports 3D hyper pipelined architecture, parallel data processing and compression,
precise pixel interpolation, full 2D hardware acceleration land motion video compression.
PCI Bus Master IDE Controller (I/O controller Hub)
l Two PCI Bus Master IDE Ports(Up to 4 IDE Devices) for Tape Backup machines and
CD-ROMs. Either the 5.25-inch or 3.5 inch(1.44MB or 2.88MB) floppy drives can be
used without requiring an external card. Additionally, Floppy 3 mode (Japanese standard
3.5 inch disk drive, 1.2MB) and LS-120 floppy disk drives(3.5 inch disk drive: 120MB,
1.44MB, 720K) are also supported.
l Support Ultra DMA 33/66 MB/sec (ATA33/ATA66)
l Support PIO Mode3,4, run in 17MB/sec. (Max)
Integrated I/O
l LPC revision 1.0 super I/O controller.
l 1 Floppy Port (up to 2.88 MB), 1 Parallel Port (ECP/EPP).
l 2 Serial Ports (16C550 Fast UART Compatible).
l 1 IrDA TX/RX Port. (option, shared with COM2)
l 1 PS/2 Mouse Connector, 1 PS/2 Keyboard connector.
9
2. FEATURES
l 1MIDI/Game port
l 2 Standard USB Connector (48MHz).
System BIOS
l 4M-bit Flash device in Firmware Hub(FWH).
l A unique Roandom Number Generatior in FWH to enable enhanced platform security.
l PC97 and PnP compatible. ACPI, APM and DMI support.
l Bootable from CD-ROM supported.
Green Features
l Power Management: APM 1.2.
l Additionally, with support for ACPI (Advanced Configuration and Power Interface)
feature and On-Now, your system will become more wise in management of power.
Sound System
l Software Audio and Hardware AC’97 V2.1 codec compliant.
l 3 Audio Phone Jacks (Line out, Line in, Mic. In)
l 1 MIDI/Game port, 1 CD in, 1 Modem in. 1 Aux in.
Additional features
l Wake-On-LAN and Wake-on-Ring header
l Keyboard/Mouse wake up with ICH.
l Modem Ring up function
l Front USB header.
l Hardware Monitor Capability (optional)
Expansion Slots
l 1 AMR, 3 PCI expansion slots.
Mechanical
l This motherboard complies with the Micro ATX Form Factor specifications and is a four
layers with dimensions of 9.6” x 8.5”.
10
3.INSTALLATION
3
I
N
S
T
A
L
L
3
I
N
S
T
A
3
I
N
S
T

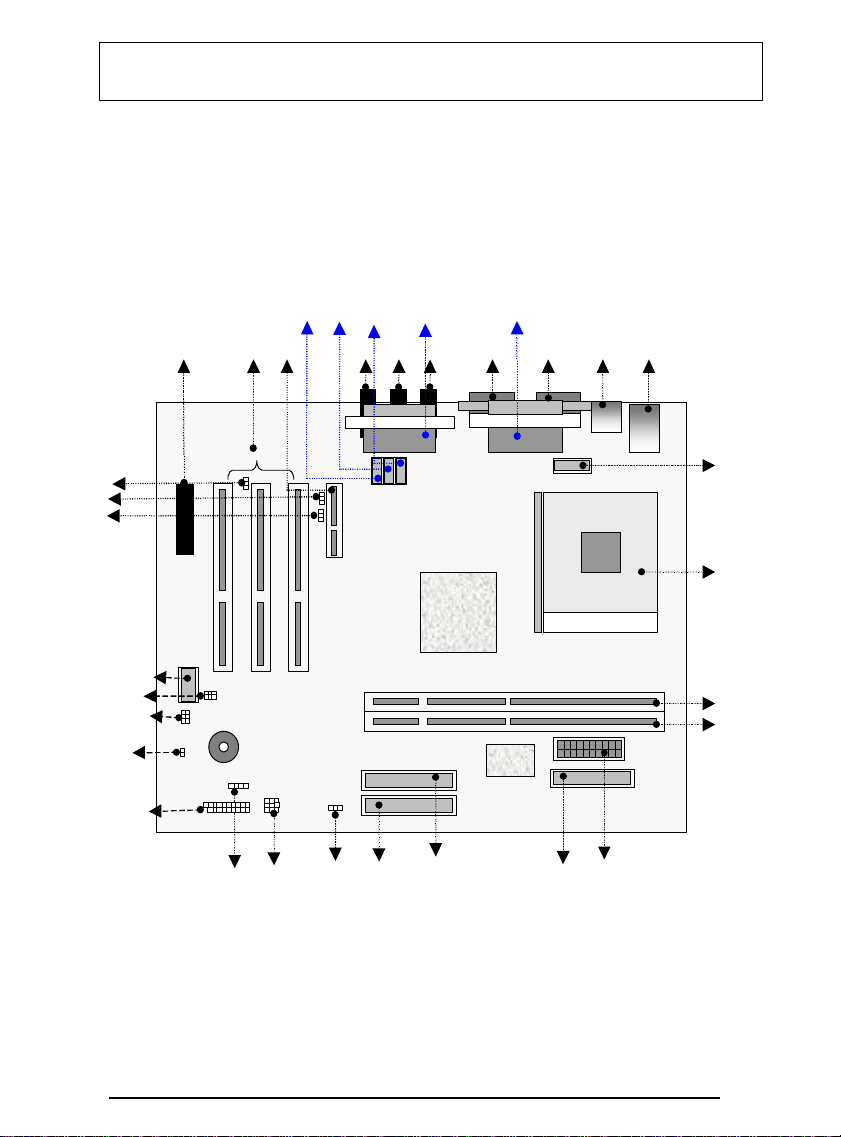

Motherboard Layout & Main Parts
A
L
L
L
L
A
A
A
T
T
T
I
O
I
N
O
O
N
N
I
WOL
JP1
JP2
FRONT USB
USB Select
PC/PCI Audio
RING-In
Front Panel
TV/DFP PCI AMR Mic-in Line-in Line-out VGA COM1 USB Mouse/Keyboard
Speaker JP7/JP9 FAN1 PRI-IDE SEC-IDE Floppy ATX Power
JP10/J29
CD-in AUX Telephony Game Printer
COM2
CPU
Socket
DIMM1
DIMM2
11
3.INSTALLATION
Significant Parts List
Front Panel Connectors
IrDA Sec. 3.5.6
Reset Switch Sec. 3.5.6
HDD LED Sec. 3.5.6
Sleep Switch Sec. 3.5.6
Power Switch Sec. 3.5.6
Power LED Sec. 3.5.6
Back Panel Connectors
PS/2-style keyboard and mouse connectors Sec. 3.5.7
USB connectors Sec. 3.5.7
One parallel port Sec. 3.5.7
One VGA port Sec. 3.5.7
One serials port Sec. 3.5.7
One Game/MIDI Port Sec. 3.5.7
Line-out Sec. 3.5.7
Line-in Sec. 3.5.7
MIC-in Sec. 3.5.7
Expansion Slots/Sockets
PGA370 CPU Socket Sec. 3.2
DIMM Sockets Sec. 3.3
PCI/AMR Slots Sec. 3.4
Power/IDE/FDD Connectors
IDE connectors Sec. 3.5.1
Power connector Sec. 3.5.4
FDD connector Sec. 3.5.3
TV/DFP Connector Sec. 3.5.5
Additional Connectors
Ring In
OnBoard Codec Sec. 3.5.8
Front USB Header Sec. 3.5.8
WOL Connector Sec. 3.5.8
CPU Fan Sec. 3.5.8
Telephony Header Sec. 3.5.8
CD-IN Sec. 3.5.8
PC/PCI Audio Header Sec. 3.5.8
AUX-IN Sec. 3.5.8
12
3.INSTALLATION
SB-LINK Sec. 3.5.8
UNLock Sec. 3.5.8
CLR PWD/CMOS Sec. 3.5.8
SAFE Mode Sec. 3.5.8
13
3.INSTALLATION
Precaution Before Start
Static Electricity Damage:
Static electricity can easily damage your motherboard. Observing
a few basic precautions can help safeguard against damage that
could result in expensive repairs. Follow the simple measures
below to protect your equipment from static electricity damage:
1. Keep the motherboard and other system components in their anti-static
packaging until you are ready to install them.
2. Touch a grounded surface before you remove any system component from
its protective anti-static packaging. Unpacking and installation should be
done on a grounded, anti-static mat. The operator should be wearing an antistatic wristband, grounded at the same points as the anti-static mat.
3. After removing the motherboard from its original packaging, only place it
on a grounded, anti-static surface component side up. Immediately inspect
the board for damage. Due to shifting during shipping, it is suggested that
the installer press down on the entire socket ICs to ensure they are properly
seated. Do this only with the board placed on a firm flat surface.
4. During configuration and installation touch a grounded surface frequently
to discharge any static electrical charge that may have built up in your body.
The best precaution is to wear a grounded wrist strap. When handling the
motherboard or an adapter card avoids touching its components. Handle the
motherboard and adapter cards either by the edges or by the adapter card
case-mounting bracket.
Misplaced Jumper Damage:
There are critical headers used for connectors or power sources.
These are clearly marked separately from the jumpers listed in
Motherboard Layout. Incorrectly setting jumpers and connectors
may lead to damage to your motherboard. Please pay special
attention not to connect these headers in wrong directions.
14
3.INSTALLATION
3.1 Slots And Connectors
PIN 1
PIN 1
List in sec.3.2.2.
In following pages, the triangle s mark stands for pin 1 of connectors.
Slots/Connectors List
J1: VGA J2: Keyboard/Mouse
J3: COM1 J4: USB0/USB1
J5: Game / MIDI Port J6: Line-in, Line-out and Mic-in
J7: Printer Port J8: COM 2 Header
J9: CD-In J10: AUX-In
J11: Telephony J12: AMR
J13: TV Out/DFP J15: PCI 3
J16: PCI 2 J17: PCI 1
J18: CPU Fan J19: WOL (Wake On LAN)
J20: Front USB Header J21: PC/PCI Audio Header
J22: ATX Power J23: Floppy
J24: Speaker J25: IRDA Header
J26: Secondary IDE J27: Ring-In
J28: Front Panel Header J29: Chassis Intrusion Header
J31: Primary IDE J33: Power LED
JP1: AMR Select Jumper
JP2: Codec select Jumper
JP4 USB select Jumper
JP5: USB select Jumper
JP7: UNLock
JP9: CLR PWD/CMOS
JP10: SAFE Mode
15
3.INSTALLATION
3.2 CPU (Central Processing Unit)
This motherboard support a PGA 370 Intel Celeron PGA family processor.
To complete CPU installation, please install CPU to socket firmly and arrange jumper
settings carefully, presented in sec. 3.2.1 and 3.2.2.
PGA370
3.2.1 Install CPU
Please follow the below steps to install your CPU, and configure the types and speed in
accordingly to the Processor Jumper Setting List.
Step 1: Pull the handling bar of the socket upward to the other end to loosen the
socket’s openings.
Step 2: Place the CPU on the middle of the socket, orienting its beveled corner to
line up with the socket’s beveled corner. Make sure the pins of the CPU fit
evenly to the socket openings.
Handling
Bar
Step 1: Pull handling bar Step 2: Place CPU
16
3.INSTALLATION
Step 3: Press the handling bar downward to fasten the CPU to the socket.
Step 3: Fasten the CPU to socket.
Warning : It is strongly recommended that a heatsink and CPU cooling fan be used
to prevent the CPU from overheating. Applying a thermal of jelly between the CPU and
the heatsink/fan will further cool the CPU.
17
3.INSTALLATION
3.3 System Memory (DRAM)
3.3.1 DIMM (Dual Inline Memory Module)
The IN810 features two168-pin DIMM sockets. You can configure the system memory
size from 8MB to 256MB in a variety of ways by using different combinations of the
two 168-pin DIMM. Note that you must use only PC/100 compliant DIMMs.
DIMM1
DIMM2
3.3.2 Installation Procedure
Step1: Pin 1 of the DIMM must match pin 1 of the DIMM socket.
Step2: Insert the DIMM module into the
DIMM socket vertically. After
inserting the DIMM module
completely into the socket, push
up on the socket latches securing
the DIMM into place.
If pin 1 of the DIMM module does
not line up with pin 1 of the
socket, the DIMM module will not be inserted correctly into the socket.
Be careful not to misfit the DIMM Module into DIMM sockets in wrong direction.
This module can be inserted into DIMM socket only one way. Please note the “s“ for
pin 1 location. To release the memory module, push both latches down and carefully
rock the module forward and backward while slowly lifting it upward.
18
3.INSTALLATION
3.3.3 DIMM Module Combinations
Select
Each DIMM socket can be inserted with 8MB, 16MB, 32MB, 64MB, 128MB, 256MB
DIMM or empty. You can refer to following figure to select one way to insert your
DIMM, for example:
DIMM 1
DIMM 2
Select
Empty 64MB32MB16MB8MB
DIMM 1: 16MB
DIMM 2: 32MB
Total
16+32 = 48 MB
128MB
64MB32MB16MB8MBEmpty
128MB
256MB
256MB
To select 1 out of 7 items (empty, 8MB, 16MB, 32MB, 64MB, 128MB, 256MB) in
DIMM1.
Then, repeat again in DIMM2 to go through your own path.
19
3.INSTALLATION
3.4 Expansion Slots
PCI3PCI2PCI1AMR
This motherboard contains 4 expansion slots onboard. Three 32-bit PCI expansion slots
and one AMR slot as shown above.
All three PCI expansion slots accept PCI us master cards and are fully supported by the
PCI 2.2 specification.
The Audio Modem Riser (AMR) connector which supports an industry-standard riser
board and interface for both audio and modem, while also addressing specific function
limitations of previous audio and modem subsystem. (AMR interface specification Rev.
1.01 compliant)
To install expansion cards, please read the expansion card’s documentation for
instructions and cautions.
20
3.INSTALLATION
3.5 Connectors
This IN810 motherboard contains IDE, floppy, power input, front panel, back panel
and additional connectors.
1 2
4039
Pri. IDE Sec IDE
3.5.1 Primary IDE Connector (J31, 39-pin block)
This connector supports two primary channel IDE devices via a ribbon cable. When
two IDE devices are installed using the primary IDE connector, make sure that the
second IDE device is set to slave mode as indicated in the device’s manual.
3.5.2 Secondary IDE Connector (J26, 39-pin block)
This connector supports two secondary channel IDE devices as well as the 120MB
Floppy drives via a ribbon cable. When two IDE devices are installed using the
secondary IDE connector, make sure that the second IDE device is adjusted to slave
mode as instructed in the device’s manual.
2
1
4039
WARNING: When you connect a ribbon cable to these ports, you must
orient the cable connector so that the PIN 1 edge of the
cable is at the PIN 1 edge of the onboard connector.
21
3.INSTALLATION
3.5.3 Floppy Drive Connector (J23, 33-pin block)
1 2
3433
3.5.4 Power Input Connector (J22, 20-pin block)
1 2
20
19
3.5.5 TV-Out/DFP connector (J13, 36-pin slot)
The FDC sub-system can control
three types of floppy drives (1.2,
1.44 and 2.88MB) or compatible
tape drives. The connection to the
floppy drive is via a header. The
floppy disk interface includes
48mA drivers and inputs on the
drive interface.
This connector supports a ATX
power supply. When connecting,
make sure the lock key matches the
hook attached on a power supply
cable. The power cord should be
unplugged when you connect it.
352136
22
This connector provides an interface
to support both the TV out function
and the Digital Flat Panel (DFP)
capability. The riser card also
contains the connectors to allow the
interconnection with a standard TV
and with a DFP display unit.
3.INSTALLATION
3.5.6 Front Panel connectors (J28 20-pin header)
Front Panel includes headers for the following six I/O connectors:
Power Switch, Power LED, Speaker, Reset, Sleep and HDD LED.
GRN/YEL PWR Sleep IrDA
Speaker
HD LED Reset
Infrared (IrDA) connector (4-pin)
The IN810 offers an IrDA infrared header that supports third party infrared modules.
The case must reserve space for the IR module if you want to use the IrDA function.
This option supports wireless transmission and reception of infrared data. The module
mounts in a small opening on the system case that supports this feature. The efficient
distance is 100cm and the transfer rate is 115,200 bits/sec.
Reset Switch Connector (2-pin)
This connector supports the front panel case-mounted reset button. It is advised that the
reset switch be used for rebooting the system in order to extend the life of the system’s
power supply.
HDD ( IDE ) LED Connector (2-pin)
The IN810 supports one straight 4-pin header for connecting to front Panel Hard Disk
activity LED indicator.
Sleep Switch (2-pin)
When the APM (Advanced Power Management) feature is enabled in the system BIOS
and the operating system’s APM driver is loaded, the system can enter the sleep
23
3.INSTALLATION
(standby) mode in one of the following ways:
♦ Optional front panel sleep/resume button
♦ Prolonged system inactivity using the BIOS inactivity timer feature
(Section 4.5)
The 2-pin header supports a front panel sleep/resume switch, which must be a
momentary SPST type that is normally open
Power Switch (2-pin)
This connector supports the ATX case-mounted Power Switch, which in turn supports
System Suspend function. When the BIOS sets the Power Button function to “Delay 4
sec.”, the system can be set to the suspended mode once you push the power switch for
no longer then 4 seconds. If the power switch is pushed down for over 4 seconds the
system will be totally Power Off. When the BIOS setting sets the Delay 4 second to
“Instant-off”, then Power Switch function work as regular power switch.
Power LED (2-pin)
This header can be connected to a LED that will light when the computer is powered
on.
Speaker Connector (4-pin)
It is used to drive a chassis-mounted speaker if desired.
24
3.INSTALLATION

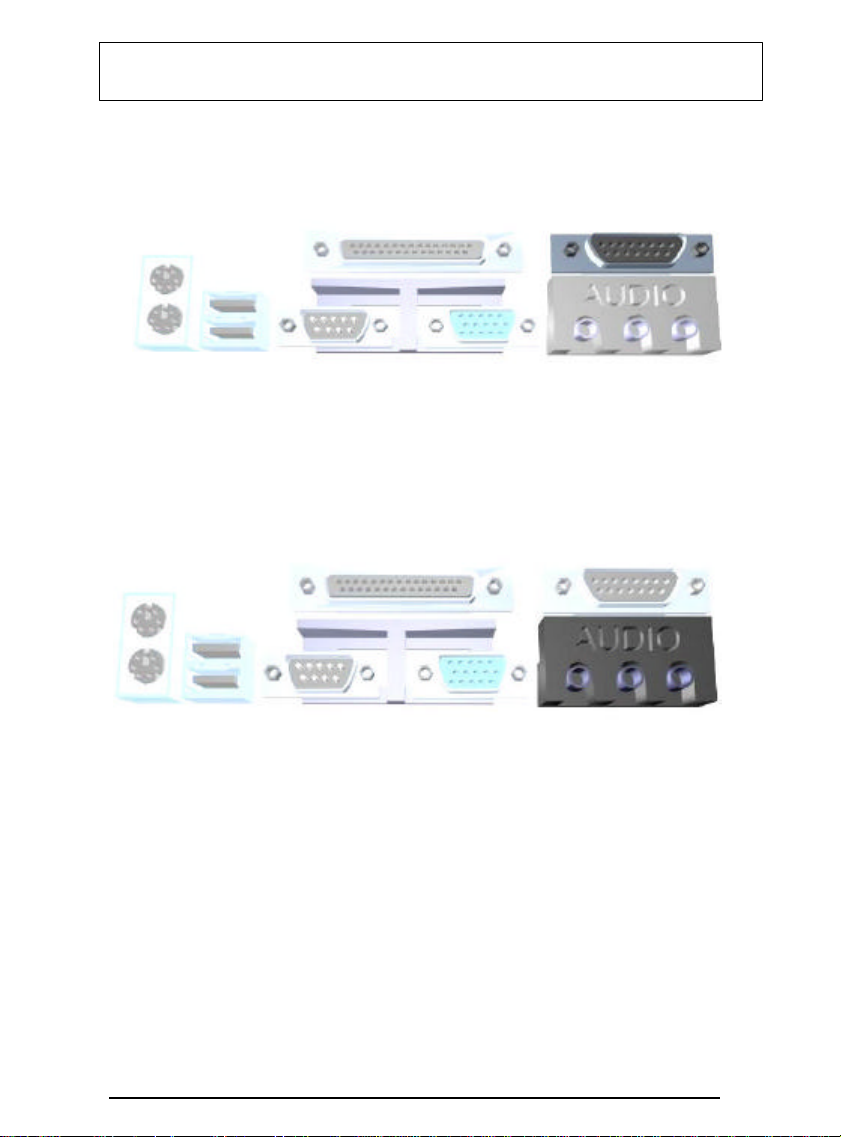

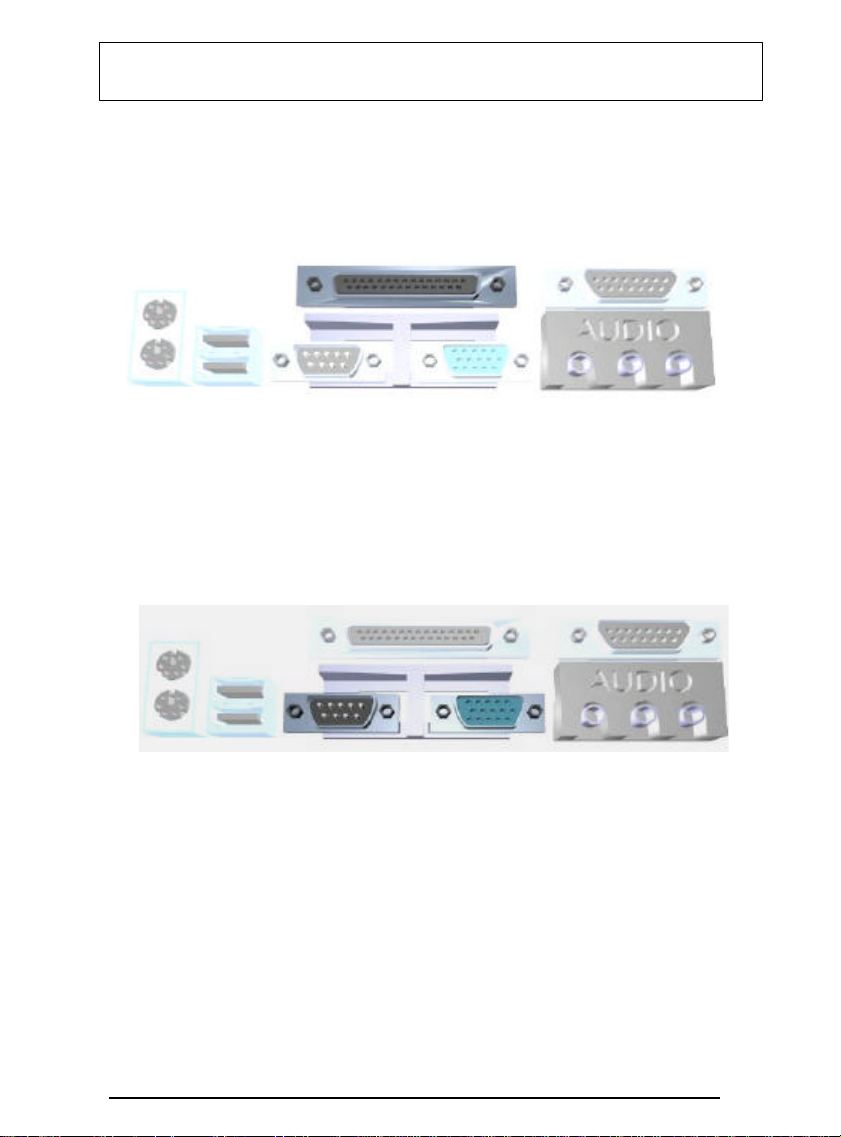

3.5.7 Back Panel Connectors
USB2
Printer Game / MIDI
PS/2 USB COM1 VGA Audio headers
PS/2 Keyboard and Mouse Ports (J2)
The motherboard offers 1 PS/2 Keyboard and 1 PS/2 Mouse port.
Mouse
Keyboard
Universal Serial Bus (USB) Ports (J4)
The motherboard has two USB connectors. USB devices provide a more convenient
operating environment and improve data transferring capacity. True Plug & Play, this
new bus technology will support over 127 different peripherals through a Hub.
USB1
25
3.INSTALLATION
Parallel Port (Printer, J7)
The IN810 includes a parallel port (EPP/ECP compatible). The parallel port is capable
of being disabled or remapped to either the secondary LPT address or the primary LPT
address through BIOS if another parallel port is installed.
Printer(Parallel )
Serial Port/VGA Port (COM1, J3/ VGA, J1)
The motherboard has two serial ports (one on rare panel, one on board). The electrical
characteristics are compliant with the EIA-232-D Serial Communications
Specifications. The serial ports may be remapped over other installable serial ports or
disabled through the BIOS.
COM1 VGA
This product integrate the AGP function via a VGA port beside the COM1. The
Accelerated Graphics Port (AGP or A.G.P.) is a high performance interconnect targeted
at 3D graphical display applications.
26
3.INSTALLATION
GAME / MIDI Port (J5)
TheIN810 integrate a Game/MIDI port. This port can let you pulg a joystick or MIDI
device.
GAME/MIDI
Audio Port ( Line-in, Line-out, MIC-in) (J6)
The IN810 also provides external sound system through a user accessible stereo jack
connector soldered to the PWA.This jack allow the connection of self-amplified
speakers, Line-in voice input and MIC-in voice input.
Line-out Line-in Mic-in
27
3.INSTALLATION

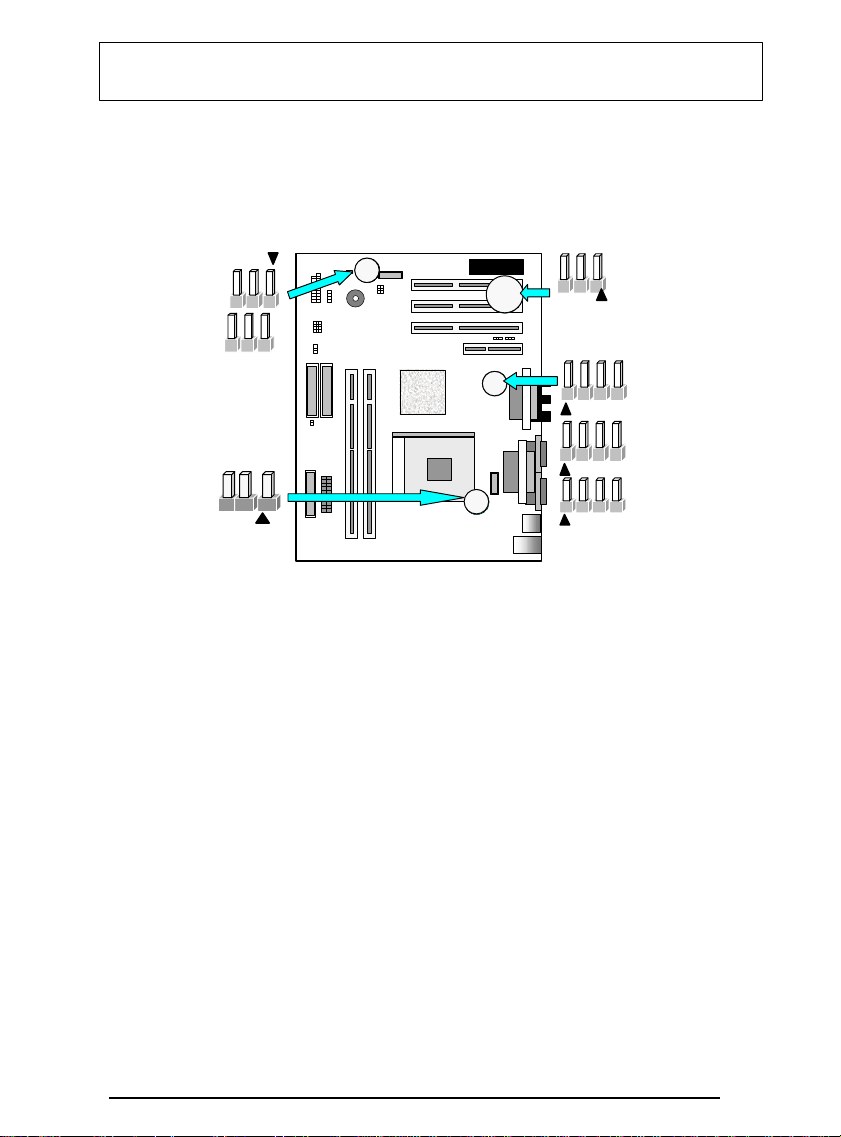

3.5.8 Additional Connectors
Front USB Header
Ring-In
JP10
JP7
J29
JP1 JP2
On board Codec
Ring In (J27, 2-pin)
This header is used for remote wakeup of the computer through a modem. Ring-In
requires an add-in modem card with remote wakeup capabilities. The remote wakeup
header on the add-in modem card must be connected to the onboard Ring-In header.
On board Codec (JP1, 2-pin &JP2, 3-pin)
Front USB Header and Jumper (JP4&5, 6-pin)

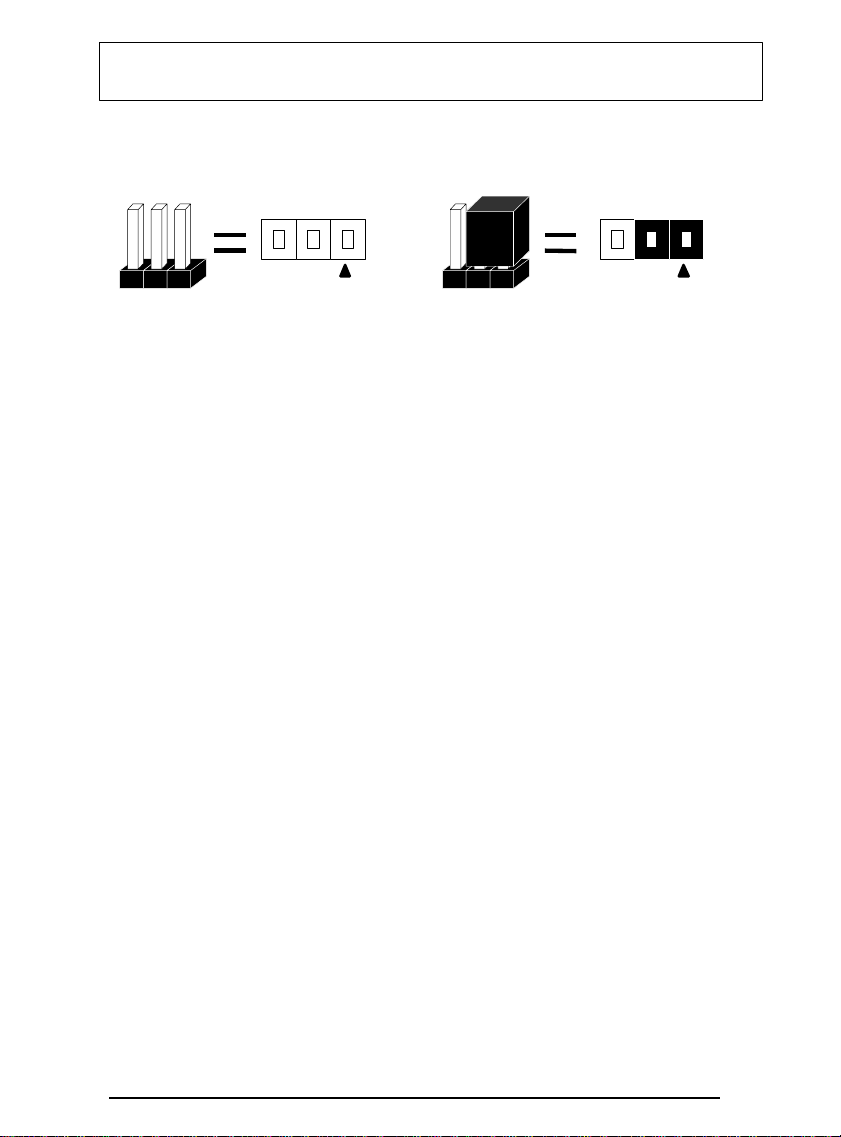

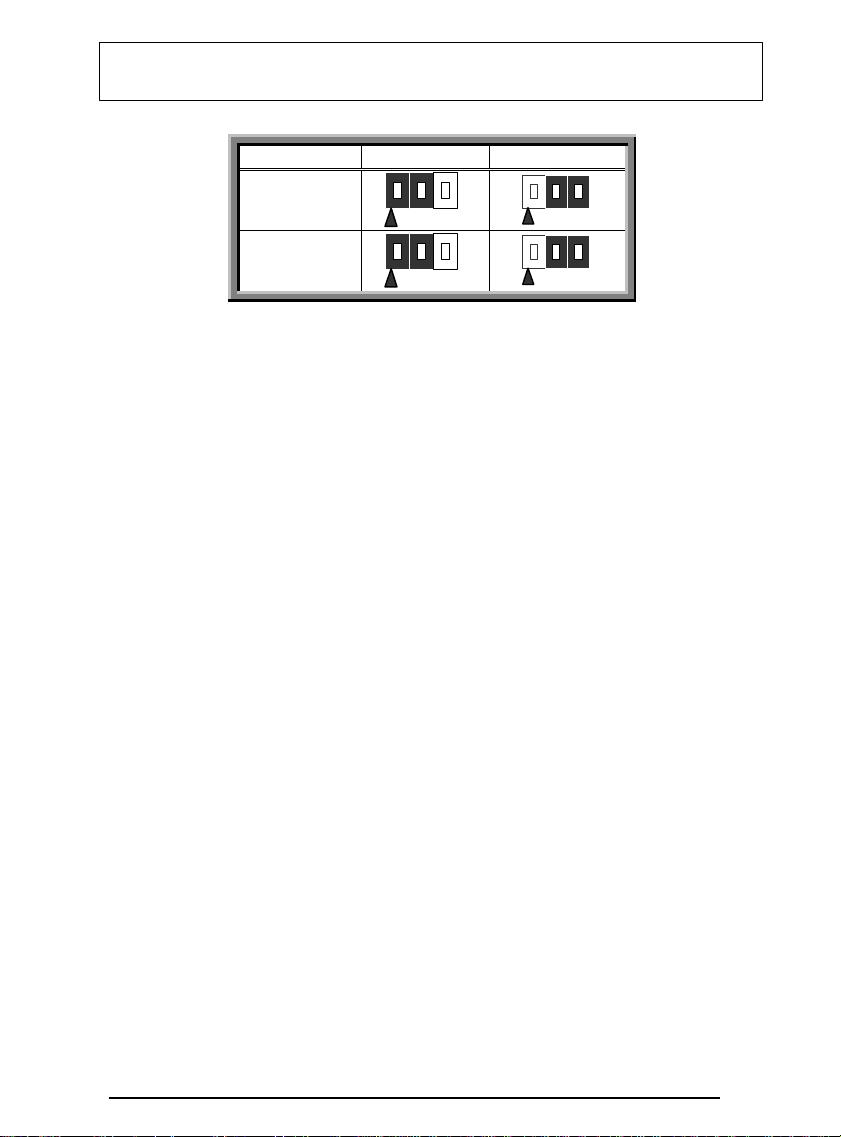

You can use either this Front USB or Back Panel USB by setting the USB Select
jumper. Following table shows the jumper settings.
28
On board
codec
JP1
JP2
Enable Disable
3.INSTALLATION
USB Select Jumper
USB Select Front USB Back USB
JP4
JP5
ON Unlock (JP7, 2-pin)
This Jumper for Flash BIOS. When you need flash BIOS will installed this Jumper.
CLR Power/CMOS (JP9, 3-pin)
This Jumper Choose for clear CMOS Setting you can clear password or all CMOS
Setting to Default.
SAFE Modem (JP10, 2-pin)
Usually socket 370 processors have locked frequency multiples. In this case, there is
no way to exceed the specified multiple whether through motherboard settings or BIOS
setup. With unlock socket 370 processors, exceeding the specified multiple is possible
through BIOS setup. Exceeding the specified multiple may result in hanging during
bootup. If this occurs, enable Sage Mode to force a multiple of 2 in order to enter
BIOS setup to correct the problem.
Chassis Intrusion (J29, 2-pin)
This leas is for a chassis designed for chassis intrusion detection. After-market toggle
switches may also be installed to the chassis panel or on any removable components.
Two wires should be available from the chassis to connect to this lead. When any
chassis component is removed, the contact should open and the motherboard will
record a chassis intrusion event. The event can then be processed by software such as
LDCM. If the chassis intrusion lead is not used, a jumper cap must be placed over the
pins to prevent unnecessary power loss.
29
3.INSTALLATION
WOL
PC/PCI
Audio
CPU FAN Telephony
WOL (Wake On LAN ) (J19, 3-pin)
This header is used for remote wakeup of the computer through a network. WOL
requires a PCI add-in network interface card (NIC) with remote wakeup capabilities.
The remote wakeup header on the NIC must be connected to the onboard Wake on
LAN header. For Wake on LAN, the 5-V standby line for the power supply must be
capable of delivering 5V±5% at 720mA.
CD-IN
AUX-IN
CPU Fan (J18, 3-pin)
Your Pentium Cartridge may have an attached heatsink and Fan; this connector is for
the CPU Fan.
Telephony Header (J11, 4-pin)
A 1x4 pin ATAPI style connector (J2F1) is available for connecting the monaural audio
signals of an internal telephony device to the audio subsystem. A monaural audio-in
30
3.INSTALLATION
and audio-out signal interface is necessary for telephony applications such as
speakerphones, fax modems, and answering machines..
CD-IN Header (J9, 4-pin, Black)
A connector is available for audio input from CD-ROM drives.
PC/PCI Audio Header (J21, 6-pin)
A connector provides Sound Blaster compatibility for some legacy PCI Audio Card.
AUX-IN Header (J10, 4-pin, White)
Access to the AUX-IN connector for audio input from AUX devices.
SB-Link
The mainboard provides a distributed DMA connector for PCI sound card with this
feature.
31
3.INSTALLATION
Ready To Turn On Power
♦ Check Again
1. Is the CPU installed exactly and firmly into socket (Sec.
3.2)?
2. Are all the DRAM modules installed properly (Sec. 3.3)?
3. Did you insert expansion card (VGA, Sound…. etc.)
already (Sec. 3.4)?
4. Are you sure that all the connectors (described in Sec 3.5)
have been connected to their variable devices (Sec. 3.5)?
♦ Yes, I have checked and assured the above steps!
Now get ready to turn on your device by the following steps.
1. Mount your motherboard to the chassis frame and close the
case cover.
2. Switch off all power.
3. Connect the power supply cord into inlet of the system
case.
4. Connect the power supply cord into an outlet of power
supply.
5. Connect Monitor signal cable to system VGA port, and the monitor power cord to
power outlet.
6. Now turn on monitor and system power.
After Power on, The power LED on the front panel of the system case will light. For
ATX power supplies, the system LED will light when the ATX power switch is
pressed.
The system will then do a power-on tests item by item, and additional messages will
appear on screen. If the screen blinks or the tests stops more than 30 seconds, the
system may have failed the power-on test. If so,
please recheck the above steps or call your retailer
for assistance.
If the power-on test goes well, hold down <Delete>
button on the keyboard to enter BIOS Setup. Next,
follow the instructions in the next chapter, BIOS
32
3.INSTALLATION
SETUP.
33
34
3.INSTALLATION
4. BIOS SETUP4. BIOS SETUP
4
B
I
O
S
S
E
T
U
4
B
I
O
S
S
E
4
B
I
O
S
S
The IN810 motherboard uses AMI BIOS,
which is stored in a Flash EEPROM and
can be upgraded by a floppy disk-based
program. The BIOS has a built-in Setup
Program that allows users to modify the
basic system configuration settings. The
settings are then stored in a dedicated
battery-backed memory, called CMOS
RAM that retains the information when the
power is turned off. The BIOS provides
critical low-level support for the system’s central processing, memory and I/O
subsystems. The AMI BIOS has been customized by adding important, nonstandard,
features such as virus and password protection, power management, and detailed finetuning of the chipset which controls the system. The remainder of this manual is
intended to guide you through the process of configuring your system using the BIOS
Setup.
4.1 How To Enter BIOS Setup
The AMI BIOS is immediately activated when you first turn on the computer. The
BIOS reads system configuration information in CMOS RAM and begins the process of
checking the system and configuring it through the power-on self test (POST). When
these preliminaries are finished, the BIOS seek an operation system on the data storage
devices (hard drive, floppy drive, etc.). The BIOS launches the operating system and
hands over control of system operation to it.
E
T
T
U
U
P
P
P
To start Setup, press the <Del> key during boot-up before or while a message similar
to this appears briefly at the bottom of the screen during POST (Power On Self Test):
Press DEL if you want to enter SETUP
If the above message disappears before you have responded and you still wish to enter
Setup, reboot the system to try again by pressing the “RESET” button on the system
case. You may also restart by simultaneously pressing the <Ctrl>, <Alt> and <Delete>
keys.
Press F1 to continue, DEL to enter SETUP
35
4. BIOS SETUP4. BIOS SETUP
4.1.1 Setup Keys

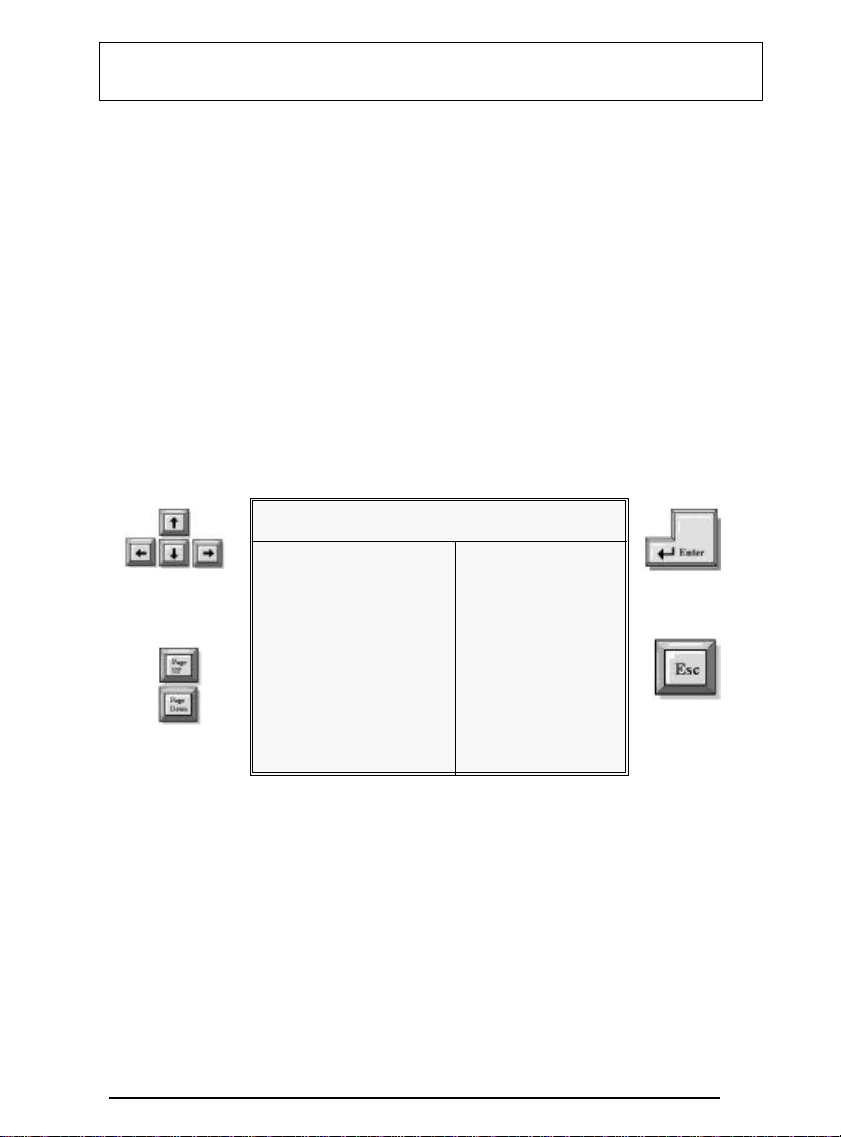

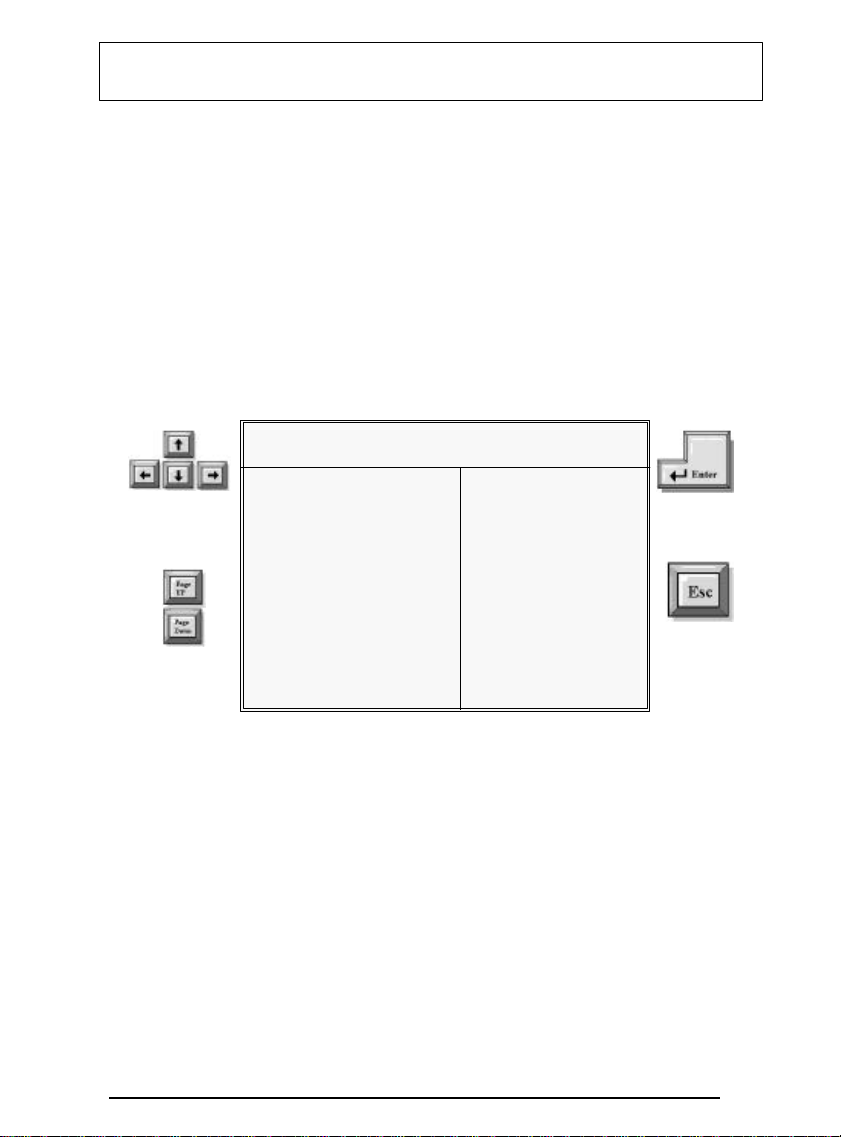

These keys help you navigate in Setup:
<↑> , <↓>
<←> , <→>
<Esc>
<PgUp> / <+>
<PgDn> / <−>
<F1>
<F2> / <3>
<F5>
<F7>
<F10>
4.1.2 Getting Help
Press F1 to pop up a small help window that describes the appropriate keys to use and
the possible selections for the highlighted item. To exit the Help Window press Esc or
the F1 key again.
4.1.3 In Case of Problems
If after making and saving system changes with Setup, you discover that your computer
no longer is able to boot, the AMI BIOS supports an override to the CMOS settings
that resets your system to its default configuration.
Move to previous / next item Change Values
Move to the item in the left or right hand
Main Menu – Quit and not save changes into CMOS
Other Pages -- Exit current page and return to Main Menu
Increase the numeric value or make changes
Decrease the numeric value or make changes
General help, only for Status Page Setup Menu and Option Page
Setup Menu
Change color from total 16 colors. F2 to select Shift-F2 color
forward, Shift-F2 to select color backward
Restore the previous CMOS value from CMOS, only for Option
Page Setup Menu
Load the Setup default
Save all the CMOS changes, only for Main Menu
The best advice is to alter only settings that you thoroughly understand. In particular,
do
not change settings in the Chipset screen without a good reason. Your system
manufacturer for the best performance and reliability has carefully chosen the Chipset
defaults. Even a seemingly small change to the Chipset setup may cause the system to
become unstable.
36
4. BIOS SETUP4. BIOS SETUP
4.2 Main Setup Menu
When you enter the AMI BIOS CMOS Setup Utility, a Main Menu (Figure 1) appears
on the screen. The Main Menu allows you to select from several Setup functions and
two exit choices. Use the arrow keys to select among the items and press Enter to
accept and enter the sub-menu.
A brief description of each highlighted selection appears at the bottom of the screen.
AMIBIOS HIFLEX SETUP UTILITY – VERSION 1.18
(C) 1998 American Megatrends, Inc. ALL Rights Reserved
STANDARD CMOS SETUP
Advanced CMOS Setup
Advanced Chipset Setup
Power Management Setup
PCI / Plug and Play Setup
Peripheral Setup
Auto-Detect Hard Disks
Change User Password
Change Supervisor Password
Change Language Setting
Auto Configuration with Optimal Settings
Auto Configuration with Fail Safe Settings
Save Settings and Exit
Exit Without Saving
Standard CMOS setup for changing time, date, hard disk type, etc.
ESC :Exit ↑↓ :Sel F2/F3 :Color F10 :Save & Exit
Figure 1: Main Menu
37
4. BIOS SETUP4. BIOS SETUP
Following is a brief summary of each Setup category.
Standard CMOS Options in the original PC AT-compatible BIOS.
Advanced CMOS
Setup
Advanced Chipset
Setup
Power
Management
Setup
PCI/Plug and Play
Setup
Peripherals
Setup
Auto - Detection
IDE HDD
Change User
Password
Change Supervisor
Password
Auto
Configuration with
Optimal Settings
Auto
Configuration with
Fail Safe Settings
Save & Exit Setup Save settings in nonvolatile CMOS RAM and exit Setup.
Exit Without Save Abandon all changes and exit Setup.
AMI enhanced BIOS options.
Options specific to your system chipset.
Advanced Power Management (APM) options.
Plug and Play standard and PCI Local Bus configuration
options.
I/O subsystems that depend on the integrated peripherals
controller in your system.
Automatically detect and configure IDE hard disk
parameters.
Change, set, or disable a password. In BIOS versions that
allow separate user and supervisor passwords, only the
supervisor password permits access to Setup. The user
password generally allows only power-on access.
Once this item is set with a password.
Setup defaults are factory settings for optimal-performance
system operations.
AMIBIOS will automatically set all AMIBIOS Setup
options to a complete set of default settings when you
choose this option.
38
4. BIOS SETUP4. BIOS SETUP
4.3 Standard CMOS Setup Menu
Year: 1901 – 2099 F1: Help F2/F3: Color
In the Standard CMOS Menu (Figure2) you can set the system clock and calendar,
record disk drive parameters and the video subsystem type, and select the type of errors
that stop the BIOS POST.
AMIBIOS SETUP – STANDARD CMOS SETUP
(C) 1998 American Megatrends, Inc. All Rights Reserved
Date (mm:dd:yy) : Wed, Jun 4, 1997 Base Memory: 640 KB
Move to items
Time (hh:mm:ss) : 8 : 53 : 11 Extd Memory: 126 MB
Floppy Drive A: 1.44 MB 3 ½
Floppy Drive B: Not Installed
LBA BLK PIO 32Bit
TYPE Size Cyln Head WPcom Sec Mode Mode Mode Mode
Primary Master :Auto On
Primary Slave :Auto On
Secondary Master :Auto On
Secondary Slave :Auto On
Boot Sector Virus Protection Disabled
Enter Sub-Menu
Exit to Main
Menu
Modify values
Month: Jan – Dec Esc: Exit ↑↓: Sel
Day: 01 – 31 PgUp/PgDn: Modify
Figure 2: Standard CMOS Setup
Date
The BIOS determines the day of the week from the other date information. This field is
for information only. Press the left or right arrow key to move to the desired field (date,
month, year). Press the PgUp or PgDn key to increment the setting, or type the desired
value into the field.
Time
The time format is based on the 24-hour military-time clock. For example, 1 p.m. is
13:00:00. Press the left or right arrow key to move to the desired field. Press the PgUp
or PgDn key to increment the setting, or type the desired value into the field.
Hard Disks
The BIOS supports up to four IDE drives. This section does not show information
about other IDE devices, such as a CD-ROM drive, or about other hard drive types,
such as SCSI drives.
NOTE: We recommend that you select type AUTO for all drives.
39
4. BIOS SETUP4. BIOS SETUP
The BIOS can automatically detect the specifications and optimal operating mode of
almost all IDE hard drives. When you select type AUTO for a hard drive, the BIOS
detects its specifications during POST, every time the system boots.
If you do not want to select drive type AUTO, other methods of selecting the drive type
are available:
1) Match the specifications of your installed IDE hard drive(s) with the
preprogrammed values for drive types 1 through 45.
2) Select USER and enter values into each drive parameter field.
3) Use the IDE HDD AUTO DECTECTION function in Setup.
Here is a brief explanation of drive specifications:
• Type: The BIOS contains a table of pre-defined drive types. Each defined drive
type has a specified number of cylinders, number of heads, write
precompensation factor, landing zone, and number of sectors. Drives whose
specifications do not accommodate any pre-defined type are classified as type
USER.
• Size: Disk drive capacity (approximate). Note that this size is usually slightly
greater than the size of a formatted disk given by a disk-checking program.
• Cyls: Number of cylinders
• Head: Number of heads
• Precomp: Write precompensation cylinder
• Landz: Landing zone
• Sector: Number of sectors
• Mode: Auto, Normal, large, or LBA
• Auto: The BIOS automatically determines the optimal mode.
• Normal: Maximum number of cylinders, heads, and sectors supported are 1024,
16, and 63.
• Large: For drives that do not support LBA and have more than 1024 cylinders.
• LBA (Logical Block Addressing): During drive accesses, the IDE controller
transforms the data address described by sector, head, and cylinder number into a
physical block address, significantly improving data transfer rates. For drives
with greater than 1024 cylinders.
40
4. BIOS SETUP4. BIOS SETUP
Drive A/B type
Select the correct specifications for the diskette drive(s) installed in the computer.
Not Installed No diskette drive installed
360K, 5.25 in 5-1/4 inch PC-type standard drive; 360 kilobyte capacity
1.2M, 5.25 in 5-1/4 inch AT-type high-density drive; 1.2 megabyte capacity
720K, 3.5 in 3-1/2 inch double-sided drive; 720 kilobyte capacity
1.44M, 3.5 in 3-1/2 inch double-sided drive; 1.44 megabyte capacity
2.88M, 3.5 in 3-1/2 inch double-sided drive; 2.88 megabyte capacity
Primary/Secondary IDE Master/Slave
Not Installed No diskette drive installed
1 to 46 Drive types 1 through 46 with preprogrammed values
User Enter values into each drive parameter field manually
Auto Detect HDD type automatically
ATAPI CDROM Use for ATAPI CD-ROM drives
ARMD
The BIOS supports up to four IDE drives. This section does not show information
about other IDE devices, such as a CD-ROM drive, or about other hard drive types,
such as SCSI drives.
NOTE: We recommend that you select type AUTO for all drives.
The BIOS can automatically detect the specifications and optimal operating mode of
almost all IDE hard drives. When you select type AUTO for a hard drive, the BIOS
detects its specifications during POST, every time the system boots.
If you do not want to select drive type AUTO, other methods of selecting the drive type
are available:
1) Match the specifications of your installed IDE hard drive(s) with the
preprogrammed values for drive types 1 through 45.
2) Select USER and enter values into each drive parameter field.
3) Use the IDE HDD AUTO DECTECTION function in Setup.
Here is a brief explanation of drive specifications:
• Type: The BIOS contains a table of pre-defined drive types. Each defined drive
type has a specified number of cylinders, number of heads, write precompensation
41
4. BIOS SETUP4. BIOS SETUP
factor, landing zone, and number of sectors, Drives whose specifications do not
accommodate any pre-defined type are classified as type USER.
• Size: Disk drive capacity (approximate). Note that this size is usually slightly
greater than the size of a formatted disk given by a disk-checking program.
• Cyln: Number of cylinders
• Head: Number of herds
• WPcom: Write precompensation cylinder
• Sec: Number of sectors
• Mode: LBA, Blk, PIO, 32Bit
• LBA (Logical Block Addressing): During drive accesses, the IDE controller
Transforms the data address described by sector, head, and cylinder number
into a physical block address, significantly improving data transfer rates. For
drives with greater than 1024 cylinders.
Boot Sector Virus Protection
This will enable a warning message if a virus attempts to write to the boot sector or the
partition table of the hard disk drive. Keep in mind that this feature not only protects
the boot sector, but the entire hard drive.
Memory
You cannot change any values in the Memory fields; they are only for your information.
The fields show the total installed random access memory (RAM) and amounts
allocated to base memory, extended memory, and other (high) memory. RAM is
counted in kilobytes (KB: approximately one thousand bytes) and megabytes (MB:
approximately one million bytes).
RAM is the computer's working memory, where the computer stores programs and data
currently being used, so they are accessible to the CPU. Modern personal computers
may contain up to 64 MB, 128 MB, or more.
Base Memory
Typically 640 KB. Also called conventional memory. The DOS operating system and
42
4. BIOS SETUP4. BIOS SETUP
conventional applications use this area.
Quick Boot
Available Options:
Extended Memory
Above the 126-MB boundary. Early IBM personal computers could not use memory
above 126 MB, but current PCs and their software can use extended memory.
4.4 Advanced CMOS Setup Menu
This screen (Figure 3) contains industry-standard options additional to the core PC AT
BIOS. This section describes all fields offered by AMI Software in this screen. Some
fields may vary from those in your Setup program. Your system board designer may
omit or modify some fields.
AMIBIOS SETUP – ADANCED CMOS SETUP
(C) 1998 American Megatrends, Inc. ALL Rights Reserved
Disabled
Floppy
1st IDE-HDD
ATAPI CDROM
Reas-Write
On
Disabled
Disabled
Enabled
Setup
No
Enabled
Enabled
Cached
Disabled
Disabled
?
Enabled
Esc : Quit ↑↓ : Sel
PU/PD/+/- : Modify
F1: Help F2/F3 : Color
Enter Sub-Menu
Exit to Main
Menu
Move to items
Modify values
1st Boot Device
2nd Boot Device
3rd Boot Device
Floppy Access Control
BootUp Num-Lock
Floppy Drive Swap
Floppy Drice Seek
PS/2 Mouse Support
Password Chesk
Boot To OS/2
CPU MicroCode Updation
System BIOS Cacheable
C000 Shadow (64K)
D000 Shadow (64K)
Figure 3: Advanced CMOS Setup Menu
Quick Boot
Set this option to Enabled to instruct AMIBIOS to boot quickly when the computer is
powered on. This option replaces the old Above 1 MB Memory Test Advanced Setup
option.
1st Boot Device
This option sets the type of device for the first boot drives that the AMIBIOS attempts
to boot from after AMIBIOS POST completes.
2nd Boot Device
43
4. BIOS SETUP4. BIOS SETUP
This option sets the type of device for the second boot drives that the AMIBIOS
attempts to boot from after AMIBIOS POST completes.
3rd Boot Device
This option sets the type of device for the third boot drives that the AMIBIOS attempts
to boot from after AMIBIOS POST completes.
Floppy Access Control
This option specifies the read/write access that is set when booting from a floppy drive.
BootUp Num-Lock
Set this option to Off to turn the Num Lock key off when the computer is booted so you
can use the arrow keys on both the numeric keypad and the keyboard.
Floppy Drive Swap
Switch the floppy disk drives between being designated as A and B. Default is
Disabled.
Floppy Drive Seek
During POST, BIOS will determine if the floppy disk drive installed is 40 or 80 tracks.
360K type is 40 tracks while 760K, 1.2M and 1.44M are all 80 tracks.
PS/2 Mouse Support
Set this option to Enabled to enable AMIBIOS support for a PS/2-type mouse. Pins 2-3
of the PS/2 Mouse Selector jumper on the motherboard must be shorted together to
enable PS/2 mouse support.
Password Chesk
This option enables password checking every time the system boots or when you run
AMIBIOS Setup. If Always is chosen, a user password prompt appears every time the
computer is turned on. If Setup is chosen, the password prompt appears if AMIBIOS is
executed. See the Advanced Setup chapter for instructions on changing a password.
The Optimal and Fail-Safe defaults are Setup.
Boot To OS/2
Set this option to Yes if running OS/2 operating system and using more than 64 MB of
44
4. BIOS SETUP4. BIOS SETUP
system memory on the motherboard.
CPU MicroCode Updation
Set this option to Enabled to permit the CPU to be updated online at any time.
System BIOS Cacheable
When set to Enabled, the contents of the F0000h system memory segment can be read
from or written to cache memory. The contents of this memory segment are always
copied from the BIOS ROM to system RAM for faster execution.
C000 Shadow (64K)
These options specify how the 64 KB of video ROM at C0000h is treated. The settings
are:
Setting Description
Disabled
Enabled
Cached
D000 Shadow (64K)
These options enable shadowing of the contents of the ROM area named in the option.
The ROM area not used by ISA adapter cards is allocated to PCI adapter cards. The
settings are:
The contents of the video ROM are not copied to RAM.
The contents of the video ROM area from C0000h – C7FFFh
are copied (shadowed) from ROM to RAM for
faster execution.
The contents of the video ROM area from C0000h – C7FFFh
are copied from ROM to RAM and can be written
to or read from cache memory.
Setting Description
Disabled
Cached
Enabled
The contents of the video ROM are not copied to RAM.
The contents of the video ROM area from C0000h – C7FFFh
The contents of the video ROM area from C0000h – C7FFFh
are copied from ROM to RAM and can be written
to or read from cache memory.
are copied (shadowed) from ROM to RAM for
faster execution.
45
4. BIOS SETUP4. BIOS SETUP
4.5 Advanced Chipset Setup Menu
AMIBIOS SETUP – ADVANCED CHIPSET SETUP
(C) 1998 American Megatrends, Inc. ALL Rights Reserved
USB Function
USB KB/Mouse Legacy Support
Onboard AC’97 Audio
Move to items
Modify values
Memory Hold
Graphics Mode Select
Display Cache Windows Size
DMA-0
DMA-1
DMA-2
DMA-3
DMA-4
DMA-5
DMA-6
DMA-7
Figure 4: Advanced Chipset Setup
USB Function
Set this option to Enabled to enable USB (Universal Serial Bus) support. The settings
are Enabled or Disabled.
USB KB/Mouse Legacy Support
Set this option to Enabled to enable support for older keyboards and mouse devices if
the USB Function option is set to Enabled
Enabled
Disabled
OnChip Audio
Disabled
UMA 1MB
64MB
LPC DMA
LPC DMA
LPC DMA
LPC DMA
LPC DMA
LPC DMA
LPC DMA
LPC DMA
Available Options:
Disabled
?
Enabled
Esc : Quit ↑↓ : Sel
PU/PD/+/- : Modify
F1: Help F2/F3 : Color
Enter Sub-Menu
Exit to Main
Menu
46
4. BIOS SETUP4. BIOS SETUP
Onboard AC’97 Audio
Allows the motherboard’s BIOS to detect whether you are using any audio device. If a
audio device is detected, the onboard audio controller will be enabled; if no audio
device is detevted, the onboard audio controller will be disabled. If you want to use
different controller cards to connect audio connectors, set these fields to Disabled.
Memory Hold
This option specifies the location of an area of memory that cannot be addressed on the
ISA bus.
Graphics Mode Select
This option selects the internal graphics device and the amount of system memory to be
used as video memory.
Display Cache Windows Size
This option specifies the amount of cache available for the graphics local memory
window.
Display Cache Windows Size DMA-0/1/2/3/4/5/6/7
These options specify the bus that the specified DMA channel can be used on.
47
4. BIOS SETUP4. BIOS SETUP
4.6 Power Management Setup Menu
Enabled
AMIBIOS SETUP – POWER MANAGEMENT SETUP
(C) 1998 American Megatrends, Inc. ALL Rights Reserved
Power Management/APM
Move to items
Modify values
Standby Time Out
Suspend Time Out
Power Button Mode
Green PC Monitor Power State
Video Power Down Mode
Hard Disk Power Down Mode
Hard Disk Time Out (Minute)
ADVANCED RESUME EVENT
RTC Resume
PME Resume
RI Resume
Disabled
Disabled
On/Off
Stand By
Suspend
Suspend
Disabled
CONTROLS
Enabled
Enabled
Enabled
Figure 5: Power Management Setup
Power Management/APM
Set this option to Enabled to enable the chipset power management and APM
(Advanced Power Management) features.
Standby Time Out
This option specifies the length of a period of system inactivity while in Full power on
state. When this length of time expires, the computer enters Standby power state.
Available Options:
No
?
Yes
Esc : Quit ↑↓ : Sel
PU/PD/+/- : Modify
F1: Help F2/F3 : Color
Enter Sub-Menu
Exit to Main
Menu
Suspend Time Out
This option specifies the length of a period of system inactivity while in Standby state.
When this length of time expires, the computer enters Suspend power state.
Power Button Mode
This option specifies how the power button mounted externally on the computer
chassis is used. The settings are:
Setting Description
On/Off Pushing the power button turns the computer on or off.
48
4. BIOS SETUP4. BIOS SETUP
Suspend Pushing the Power button places the computer in Suspend
mode or Full On power mode.
Green PC Monitor Power State
This option specifies the power state that the green PC-compliant video monitor enters
when AMIBIOS places it in a power saving state after the specified period of display
inactivity has expired.
Video Power Down Mode
This option specifies the power state that the video subsystem enters when AMIBIOS
places it in a power saving state after the specified period of display inactivity has
expired.
Hard Disk Power Down Mode
This option specifies the power conserving state that the hard disk drive enters after
the specified period of hard drive inactivity has expired.
Hard Disk Time Out (Minute)
This option specifies the length of a period of hard disk drive inactivity. When this
length of time expires, the computer enters power-conserving state specified in the
Hard Disk Power Down Mode option.
ADVANCED RESUME EVENT CONTROLS
RTC Resume
Set this option to Enabled to enable the SMI timer overflow.
PME Resume
Set this option to Enabled to enable PME resume.
RI Resume
Set this option to Enabled to enable RI resume.
49
4. BIOS SETUP4. BIOS SETUP
4.7 PCI/Plug and Play Setup Menu
AMIBIOS SETUP – PCI/PLUG AND PLAY SETUP
(C) 1998 American Megatrends, Inc. ALL Rights Reserved
Plug and Play Aware O/S
Primary Graphics Adapter
PCI VGA Palette Snoop
Move to items
Modify values
Allocate IRQ to PCI VGA
DMA Channel 0
DMA Channel 1
DMA Channel 3
DMA Channel 5
DMA Channel 6
DMA Channel 7
IRQ3
IRQ4
IRQ5
IRQ7
IRQ9
IRQ10
IRQ11
IRQ14
IRQ15
Figure 6: PCI/Plug and Play Setup
Plug and Play Aware O/S
Set this option to Yes to inform AMIBIOS that the operating system can handle plug
and Play (PnP) devices.
Primary Graphics Adapter
Leave on default setting if you want to use the onboard VGA. If this field is OffBoard,
all display cache configurations will not be available.
Yes
OnBoard
Disabled
Yes
Disabled
Disabled
PnP
PnP
PnP
PnP
PnP
PCI/PnP
PCI/PnP
PCI/PnP
PCI/PnP
PCI/PnP
PCI/PnP
PCI/PnP
PCI/PnP
PCI/PnP
Available Options:
No
?
Yes
↑↓ : Sel
PU/PD/+/- : Modify
F1: Help F2/F3 : Color
Enter Sub-Menu
Exit to Main
Menu
PCI VGA Palette Snoop
When this option is set to Enabled, multiple VGA devices operating on different buses
can handle data from the CPU on each set of palette registers on every video device.
Bit 5 of the command register in the PCI device configuration space is the VGA Palette
Snoop bit (0 is disabled). For example: if there are two VGA devices in the computer
(one PCI and one ISA) and the VGA Palette Snoop Bit is:
50
4. BIOS SETUP4. BIOS SETUP
VGA Palette
Snoop Bit
Action
Disabled
Enabled
This option must be set to Enabled if any ISA adapter card installed in the system
requires VGA palette snooping.
Allocate IRQ to PCI VGA
This options allow you to reserve IRQ for PCI VGA devices.
DMA Channel 0/1/3/5/6/7
These options allow you to specify the bus type used by each DMA channel.
IRQ3/4/5/7/9/10/11/14/15
These options specify the bus that the specified IRQ line is used on. These options
allow you to reserve IRQs for legacy ISA adapter cards. These options determine if
AMIBIOS should remove an IRQ from the pool of available IRQs passed to devices
that are configurable by the system BIOS. The available IRQ pool is determined by
reading the ESCD NVRAM. If more IRQs must be removed from the pool, the end user
can use these options to reserve the IRQ by assigning an ISA/EISA setting to it.
Onboard I/O is configured by AMIBIOS. All IRQs used by onboard I/O are configured
as PCI/PnP. IRQ12 only appears if the Mouse Support option in Advanced Setup is
set to Disabled. IRQ14 and 15 will not be available if the onboard PCI IDE is enabled.
If all IRQs are set to ISA/EISA and IRQ14 and 15 are allocated to the onboard PCI
IDE, IRQ9 will still be available for PCI and PnP devices, because at least one IRQ
must be available for PCI and PnP devices.
Data read and written by the CPU is only directed to the PCI
VGA device's palette registers.
Data read and written by the CPU is directed to the both the
PCI VGA device's palette registers and the ISA VGA
device palette registers, permitting the palette
registers of both devices to be identical.
51
4. BIOS SETUP4. BIOS SETUP
4.8 Peripherals Setup Menu
Figure 7: Peripherals Setup
AMIBIOS SETUP – PERIPHERAL SETUP
(C) 1998 American Megatrends, Inc. ALL Rights Reserved
CPU Frequency
CPU Ratio Select
-= System Hardware Monitor = -
Move to items
Modify values
AC Power Loss Control
Current CPU Temperature
Current System Temperature
Current CPU Fan Speed
Current Fan1 Speed
Current Fan2 Speed
CPU VID
Vcore
Vtt
Vio
+ 5.000V
+12.000V
-12.000V
- 5.000V
Battery
+5V SB
On Board FDC
On Board Serial PortA
OnBoard Parallel Port
Parallel Port Mode
Parallel Port IRQ
Parallel Port DMA Channel
OnBoard Midi Port
Midi IRQ Select
OnBoard Game Port
Keyboard PowerOn Function
Specific Key for PowerOn
Mouse PowerOn Function
OnBoard IDE
CPU Frequency
Check your processor and set this function accordingly. If you set this to Manual, you
can set the CPU Frequency accordingly.
66.8MHz
3.0x
Always Off
39¢J/102
36¢J/132
0 RPM
0 RPM
5400 RPM
2.00V
2.016 V
1.520 V
3.312 V
5.085 V
11.741 V
-11.989 V
¢K
¢K
Esc : Quit ↑↓ : Sel
PU/PD/+/- : Modify
F1: Help F2/F3 : Color
Available Options:
125MHz
?
127MHz
130MHz
72MHz
140MHz
Enter Sub-Menu
Exit to Main
Menu
CPU Ratio Select
This option sets the CPU frequency ratio
52
4. BIOS SETUP4. BIOS SETUP
System Hardware Monitor
AC Power Loss Control
The setting are power ON/OFF or Last status. During power ON, after every AC/Power
Loss, the system will be turned on. During last status, after every AC/Power Loss,
whatever the system status, it will be the same when AC power returns. During Off,
after every AC/Power Loss, the system will be shutdown.
Current CPU Temperature
The noboard hardware monitor is able to detect the CPU temperatures.
Current System Temperature
This field displays the current system temperature, if your computer contains a
monitoring system.
Current CPU Fan Speed
Current CPUFAN1 Speed these fields display the current speed of up to three CPU
fans, if your computer contains a monitoring system.
Current Fan1/Fan2 Speed
The onboard hareware monitor is able to detect the CPU fan speed in rotations pre
minute(PRM). The presence of the fans is automatically detected.
CPU VID
The onboard hardware are monitor is abled to detect the voltage output by the onboard
voltage regulators.
On Board FDC
Set this option to Enabled to enable the floppy drive controller on the motherboard.
On Board Serial PortA
This option specifies the base I/O port address of serial port A.
OnBoard Parallel Port
This option specifies the base I/O port address of the parallel port on the motherboard.
53
4. BIOS SETUP4. BIOS SETUP
Parallel Port Mode
This option specifies the parallel port mode. The Optimal default setting is Normal.
The Fail-Safe default setting is Disabled. The settings are:
Setting Description
Normal
EPP
ECP
Parallel Port IRQ
This option specifies the IRQ used by the parallel port. The settings are Auto, (IRQ) 5,
or (IRQ) 7
Parallel Port DMA Channel
This option is only available if the setting for the Parallel Port Mode option is ECP.
This option sets the DMA channel used by the parallel port.
OnBoard Midi Port
This field sets the address of the onboard MIDI connector.
Midi IRQ Select
This field is not available if you select Disabled in OnBoard Midi Port.
The normal parallel port mode is used.
The parallel port can be used with devices that adhere to the
Enhanced Parallel Port (EPP) specification. EPP
uses the existing parallel port signals to provide
asymmetric bidirectional data transfer driven by the
host device.
The parallel port can be used with devices that adhere to the
Extended Capabilities Port (ECP) specification. ECP
uses the DMA protocol to achieve data transfer rates
up to 2.5 Megabits per second. ECP provides
symmetric bidirectional communication.
OnBoard Game Port
This field sets the address of the onboard game port connector.
Keyboard/Mouse PowerOn Function
54
4. BIOS SETUP4. BIOS SETUP
Set this field to Enabled if you wishto use your PS2 keyboard(by pressing the
spacebar)or PS2 mouse(by clicking on the left button) to power up your computer. This
feature require an ATX power supply that can supply at least 300mA on the +5VSB
lead. The default is set to Disabled because not all computer have the appropriate ATX
power supply. Your computer will not power ON if you set this to Enabled and do not
have the appropriate ATX power supply.
Specific Key for PowerOn
This function allows you to select specific key which features the same function to
Power ON the system.
OnBoard IDE
You can select to enable the primary IDE channel, secondary IDE channel, both, or
disabled both channels.
55
4. BIOS SETUP4. BIOS SETUP
4.9 Auto-Detection IDE HDD
BIOS setup will display all possible modes that supported by the HDD including
NORMAL, LBA & LARGE. If HDD does not support LBA modes, no ‘LBA’ option
will be shown. If no of cylinders is less than or equal to 1024, no ‘LARGE’ option will
be show. Users can select a mode which is appropriate for them
4.10 Change User Password
When you select this function, a message appears at the center of the screen:
ENTER PASSWORD:
Type the password, up to eight characters, and press Enter. Typing a password clears
any previously entered password from CMOS memory. Now the message changes:
CONFIRM PASSWORD:
Again, type the password and press Enter.
To abort the process at any time, press Esc.
In the Security Option item in the BIOS Features Setup screen, select System or
Setup:
System Enter a password each time the system boots and whenever you enter
Setup.
Setup Enter a password whenever you enter Setup.
NOTE: To clear the password, simply press Enter when asked to enter a password.
Then the password function is disabled.
4.11 Change Supervisor Password
The BIOS Setup will not be accessible unless you enter the correct password. Select
“Set Supervisor Password” and press “Enter”, the screen will display start symbol ”*”
instead of the characters entered. After the new password is entered, retype the new
password as prompted and press “Enter”. If the password confirmation is incorrect, an
error message appears. If the new password is entered with out error, press ”ESC”. The
password is stored in NVRAM after AMIBIOS completes its cycle. Next time when
booting the system, a passwords prompt will appears if the password function is
enabled.
56
4. BIOS SETUP4. BIOS SETUP
4.12 Auto Configuration with Optimal Settings
The chipset defaults are settings which provide for maximum system performance.
While AMI has designed the custom BIOS to maximize performance, the manufacturer
has the right to change these defaults to meet their needs.
4.13 Auto Configuration with Fail Safe Settings
AMIBIOS will automatically set all AMIBIOS Setup options to a complete set of
default settings when you choose this option. The Fail-Safe settings are designed for
maximum system stability, but not maximum performance. Choose the Fail-Safe
AMIBIOS Setup options if your computer is experiencing system configuration
problems.
4.14 Save Setting and Exit
This feature allows the changes to be made to the CMOS setup to be saved.
The system will resume booting after a successful save.
4.15 Exit Without Saving
Abandon all CMOS value change without saving.
57
Loading...
