BCM ESM-KBLH User Manual

Part No. E2047289000R

ESM-KBLH

7th Gen Intel Core ™ Processor i7/i5/i3 Type6 COMe Basic

Module with Intel® QM175 Chipset

User’s Manual

1st Ed – 30 August 2017

Copyright Notice

ESM-KBLH User’s Manual

FCC Statement

THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:

(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE. (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS “A” DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTALLED AND USED IN ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL INTERFERENCE TO RADIO COMMUNICATIONS. OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.

Notice

This guide is designed for experienced users to setup the system within the shortest time. For detailed information, please always refer to the electronic user’s manual.

Copyright Notice

No part of this document may be reproduced, copied, translated, or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the prior written permission of the original manufacturer.

Trademark Acknowledgement

Brand and product names are trademarks or registered trademarks of their respective owners.

Disclaimer

We reserve the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. We assume no responsibility or liability for the use of the described product(s), conveys no license or title under any patent, copyright, or masks work rights to these products, and makes no representations or warranties that

2 ESM-KBLH User’s Manual

ESM-KBLH User’s Manual

3

ESM-KBLH User’s Manual

these products are free from patent, copyright, or mask work right infringement, unless otherwise specified. Applications that are described in this manual are for illustration purposes only. We make no representation or warranty that such application will be suitable for the specified use without further testing or modification.

Life Support Policy

OUR PRODUCTS ARE NOT FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE PRIOR WRITTEN APPROVAL.

As used herein:

1. Life support devices or systems are devices or systems which, (a) are intended for

surgical implant into body, or (b) support or sustain life and whose failure to perform, when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in significant injury to the user.

2. A critical component is any component of a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system, or to affect its safety or effectiveness.

A Message to the Customer

Customer Services

Each and every of our product is built to the most exacting specifications to ensure

reliable performance in the harsh and demanding conditions typical of industrial environments. Whether your new device is destined for the laboratory or the factory floor, you can be assured that your product will provide the reliability and ease of operation.

Your satisfaction is our primary concern. Here is a guide to our customer services. To ensure you get the full benefit of our services, please follow the instructions below carefully.

Technical Support

We want you to get the maximum performance from your products. So if you run into technical difficulties, we are here to help. For the most frequently asked questions, you can easily find answers in your product documentation. These answers are normally a lot more

detailed than the ones we can give over the phone. So please consult the user’s manual

first.

ESM-KBLH User’s Manual

4 ESM-KBLH User’s Manual

CONTENT

1. Getting Started ............................................................................................................ 7

1.1 Safety Precautions .................................................................................................... 7

1.2 Packing List ............................................................................................................... 7

1.3 Document Amendment History ................................................................................. 8

1.4 Manual Objectives ..................................................................................................... 9

1.5 System Specifications ............................................................................................. 10

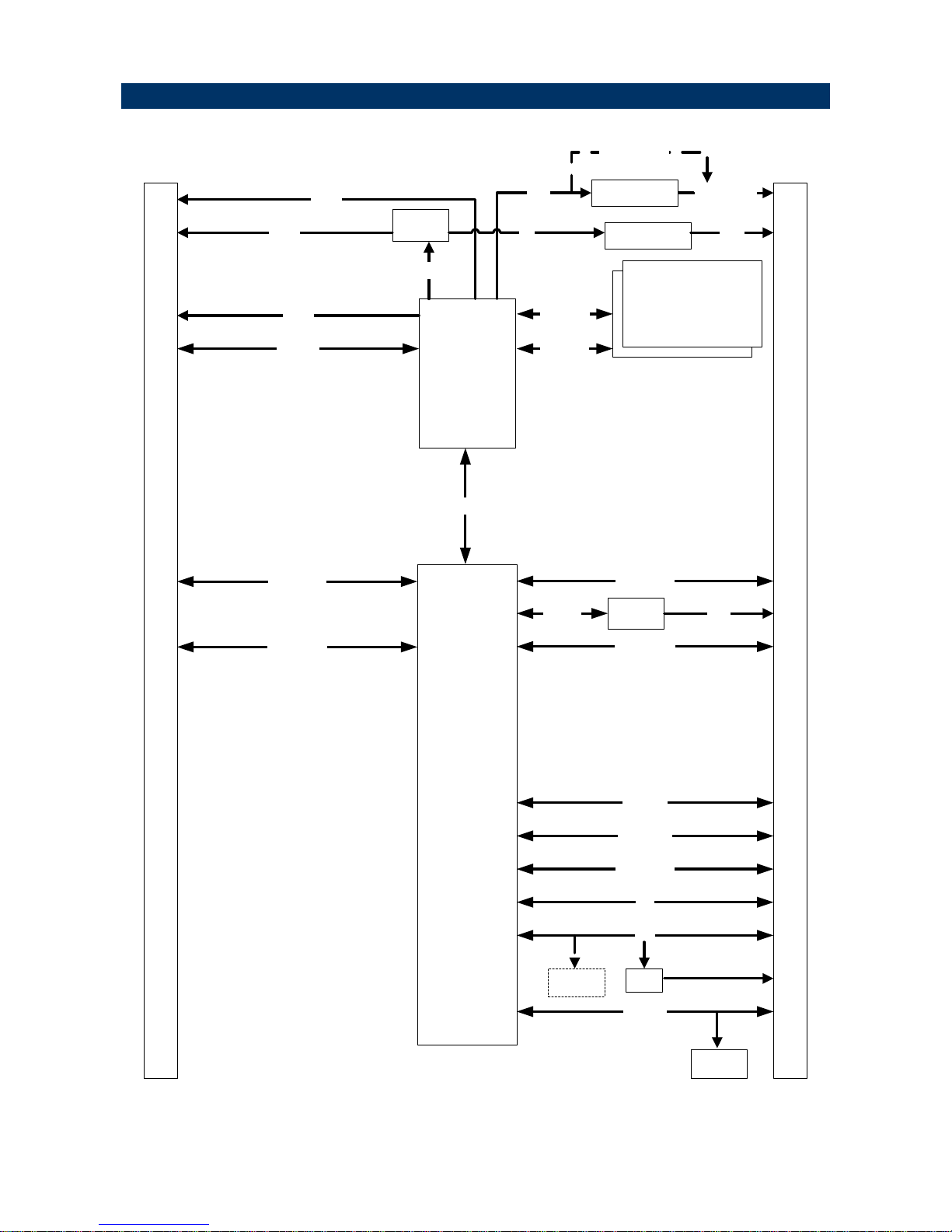

1.6 Architecture Overview—Block Diagram .................................................................. 12

2. Hardware Configuration ........................................................................................... 13

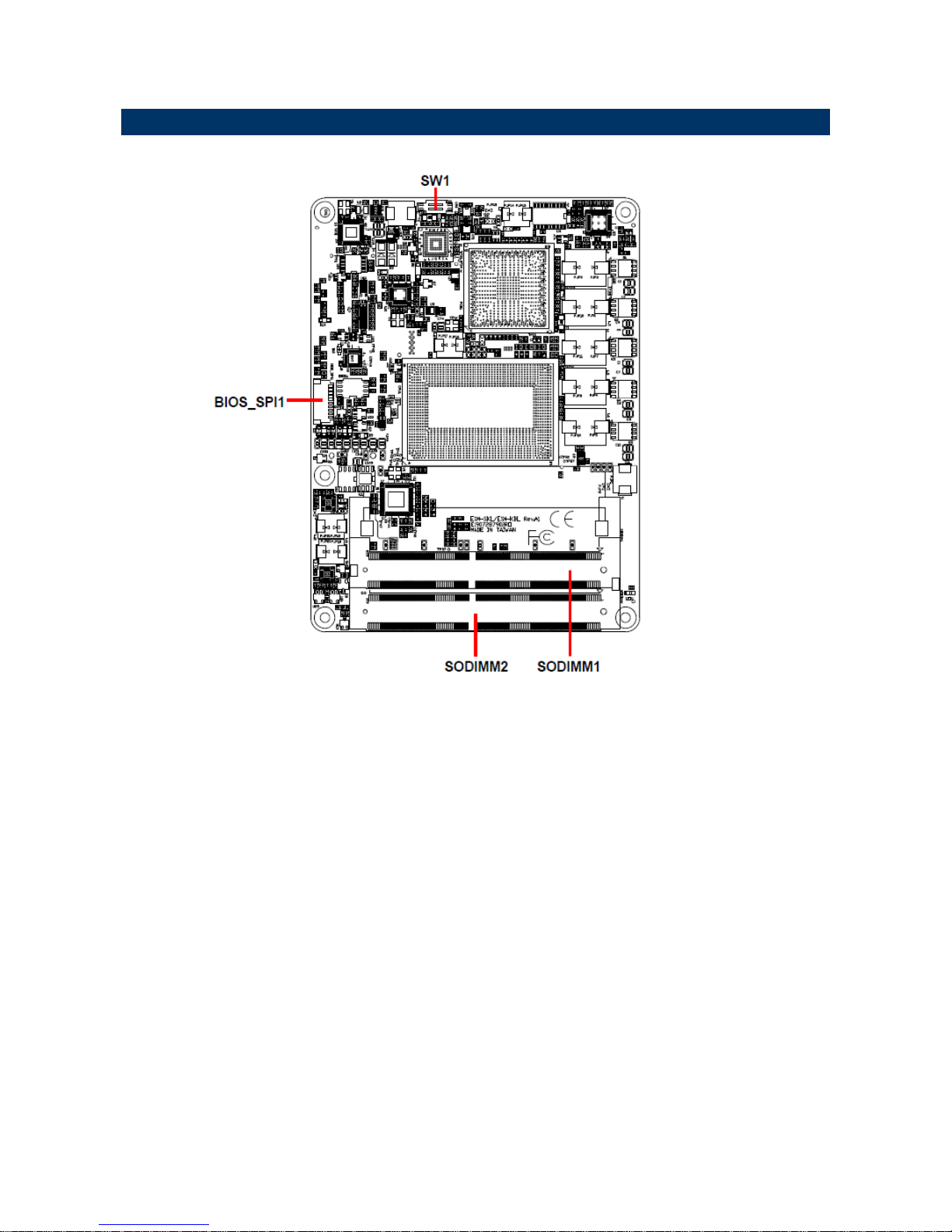

2.1 Product Overview .................................................................................................... 14

2.2 Installation Procedure ............................................................................................. 16

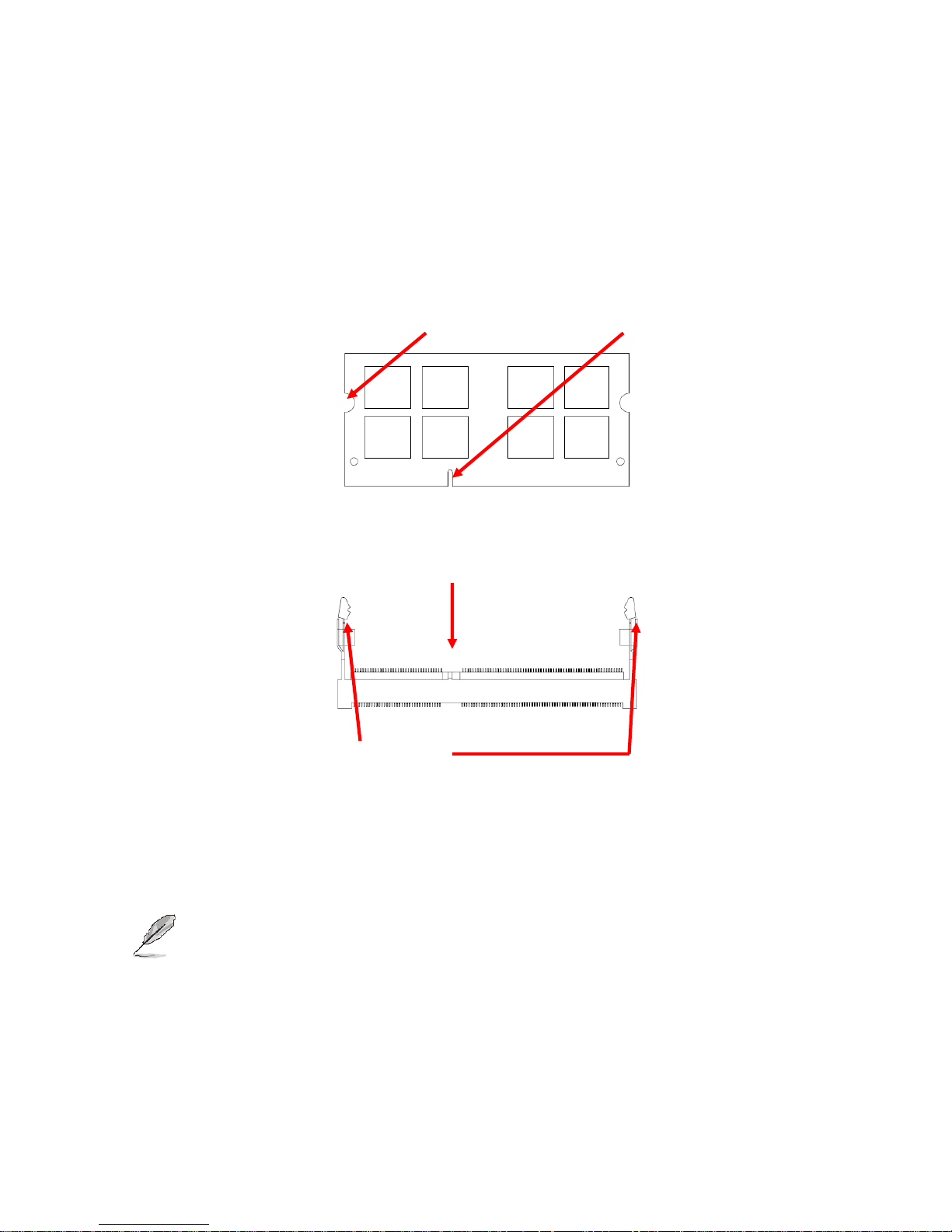

2.2.1 Main Memory .................................................................................................................................. 17

2.3 Connector List ................................................................................................ ......... 19

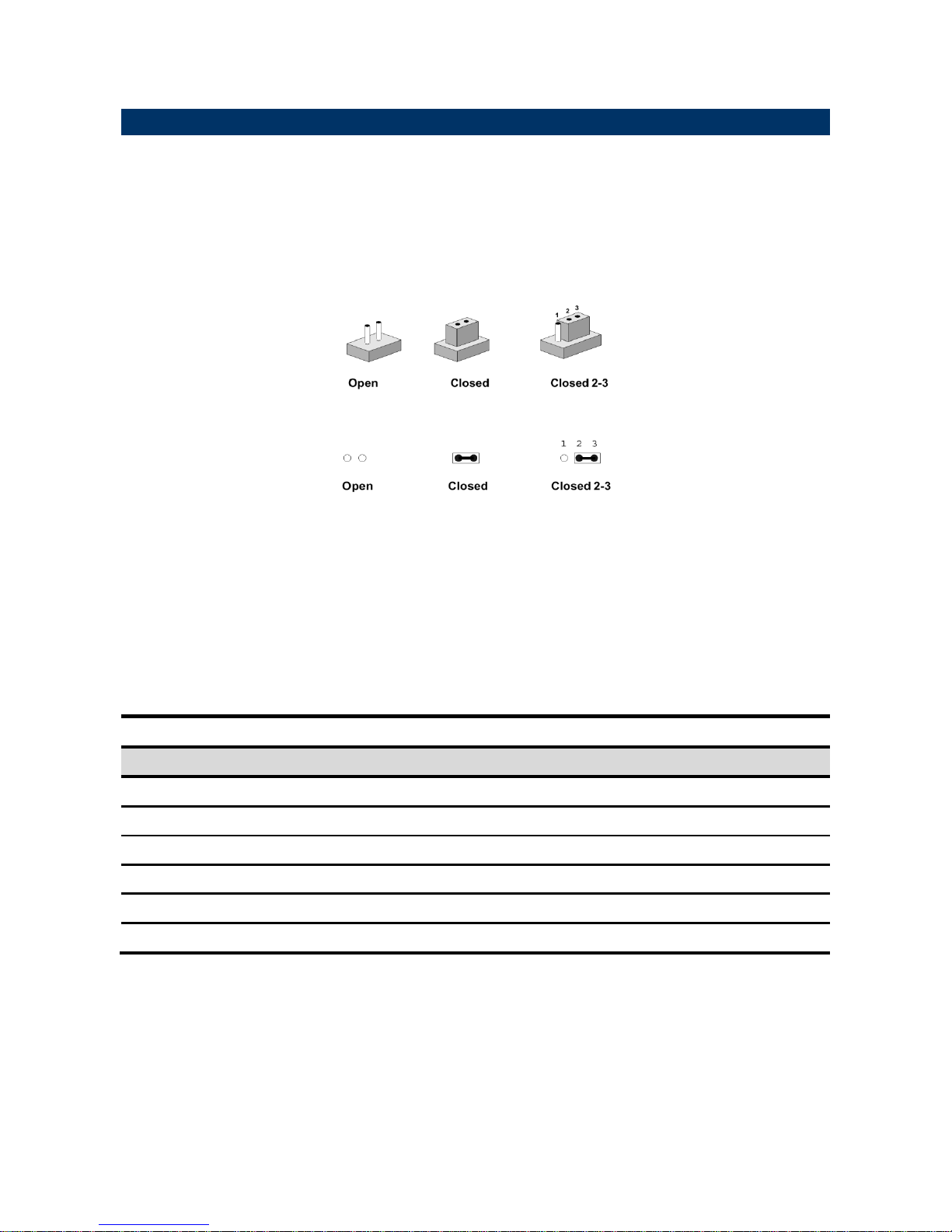

2.4 Setting Jumpers & Connectors ............................................................................... 20

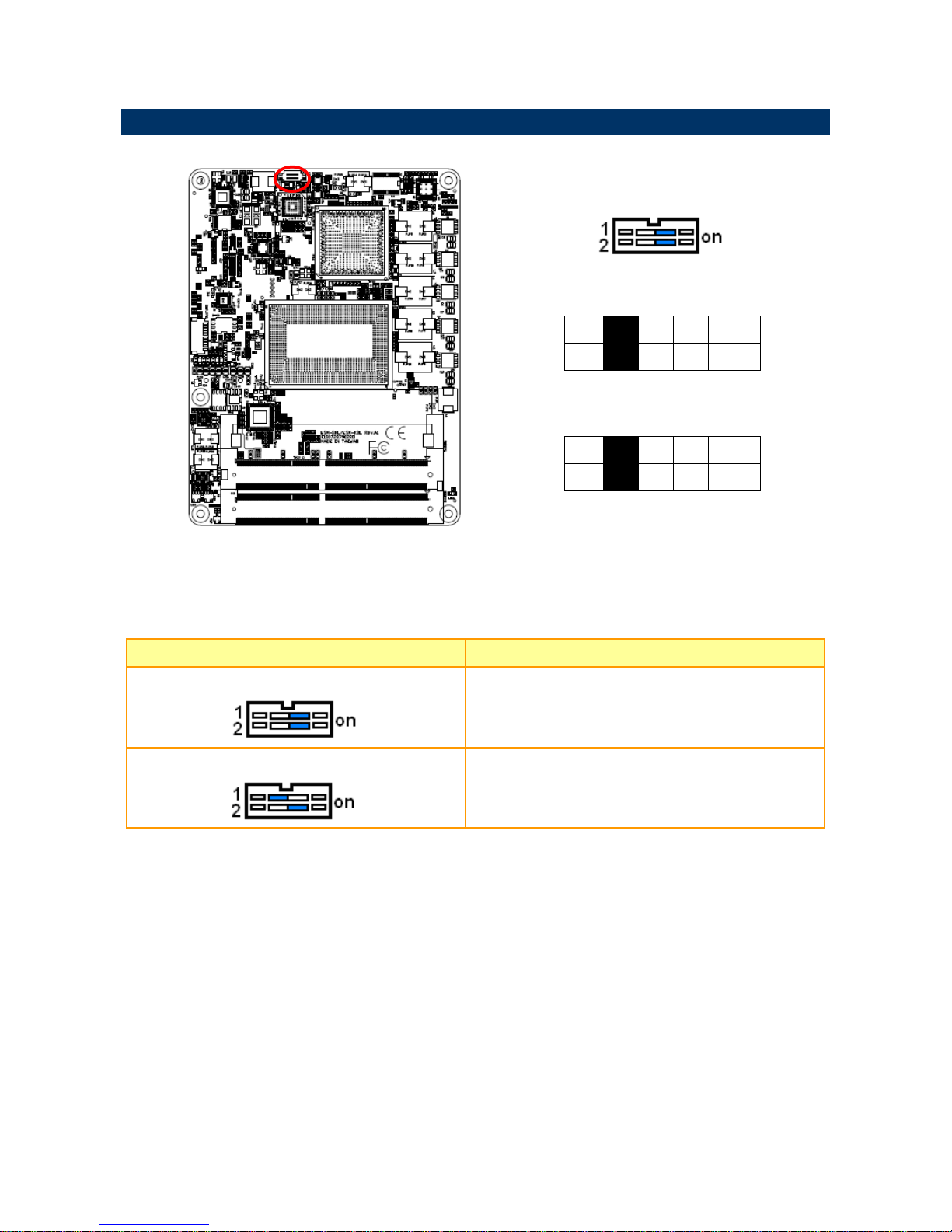

2.4.1 AT/ATX mode selector (SW1) ........................................................................................................ 20

2.4.1.1 Signal Description –AT/ATX mode selection ......................................................................... 20

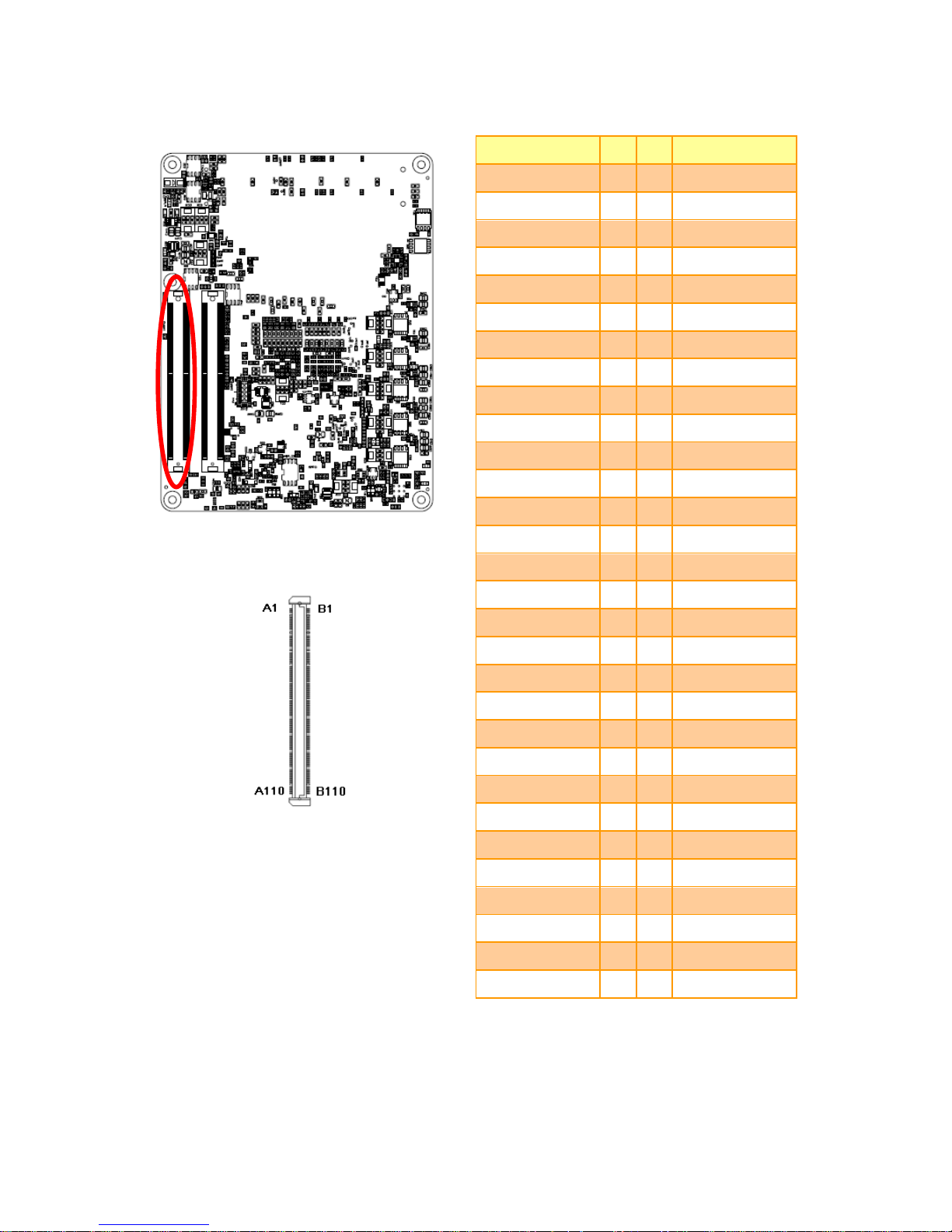

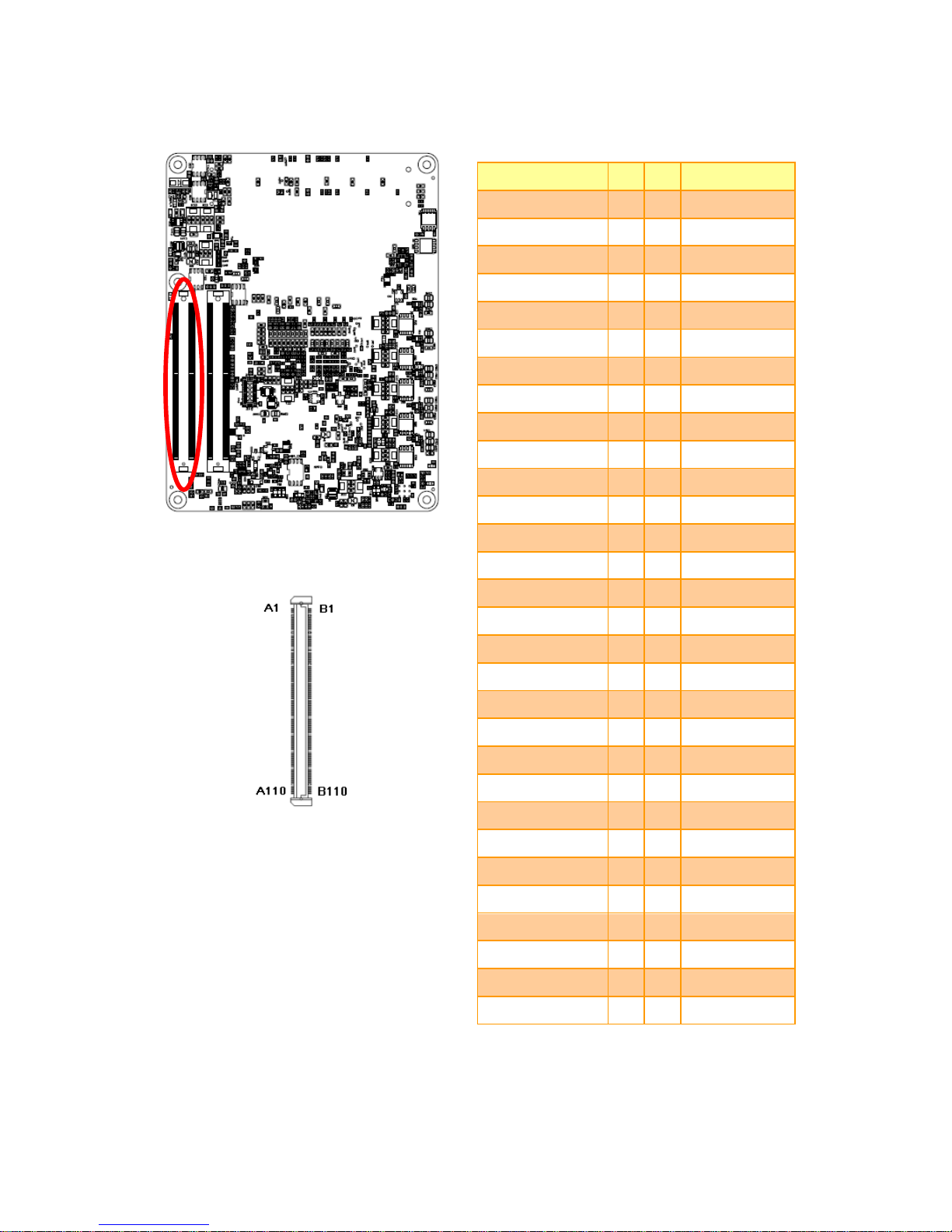

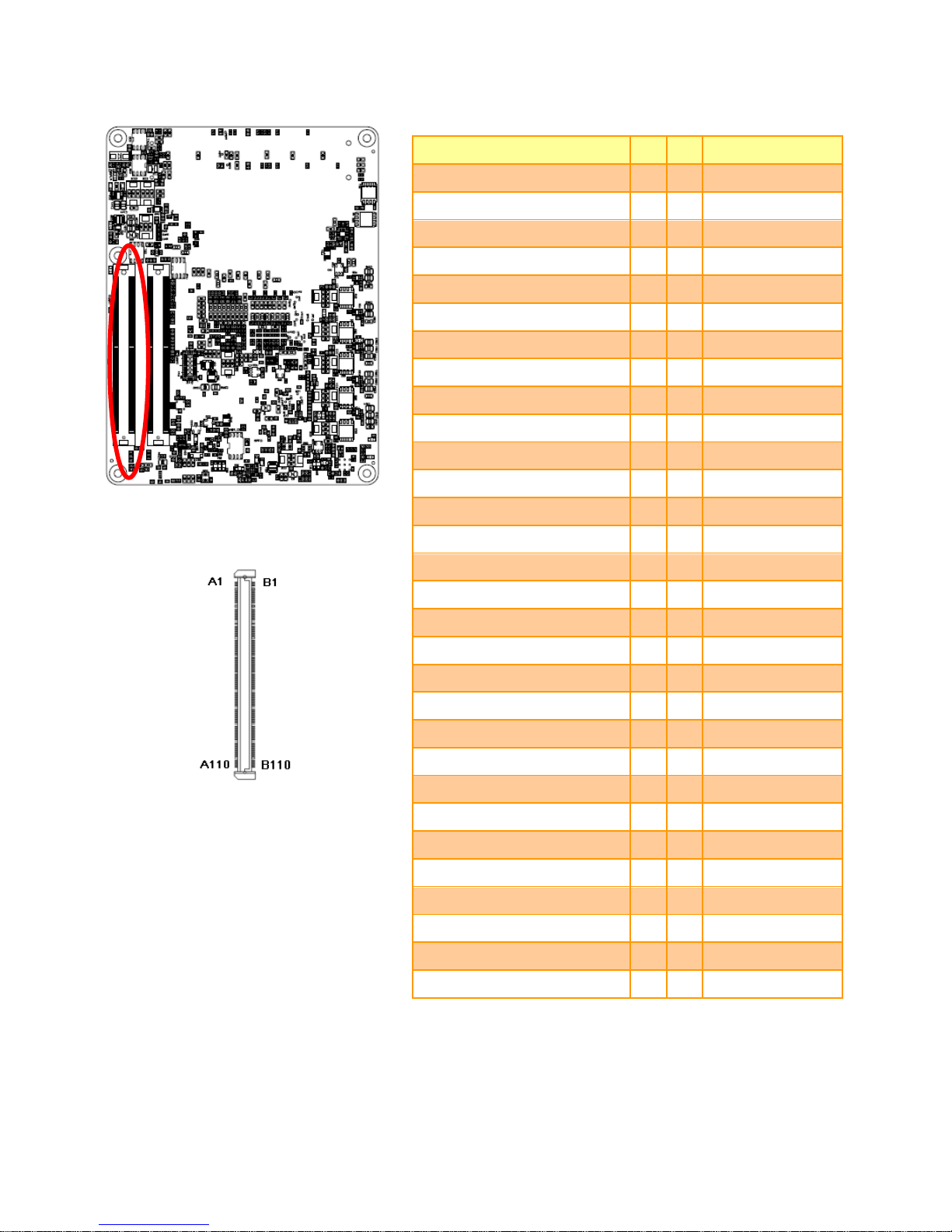

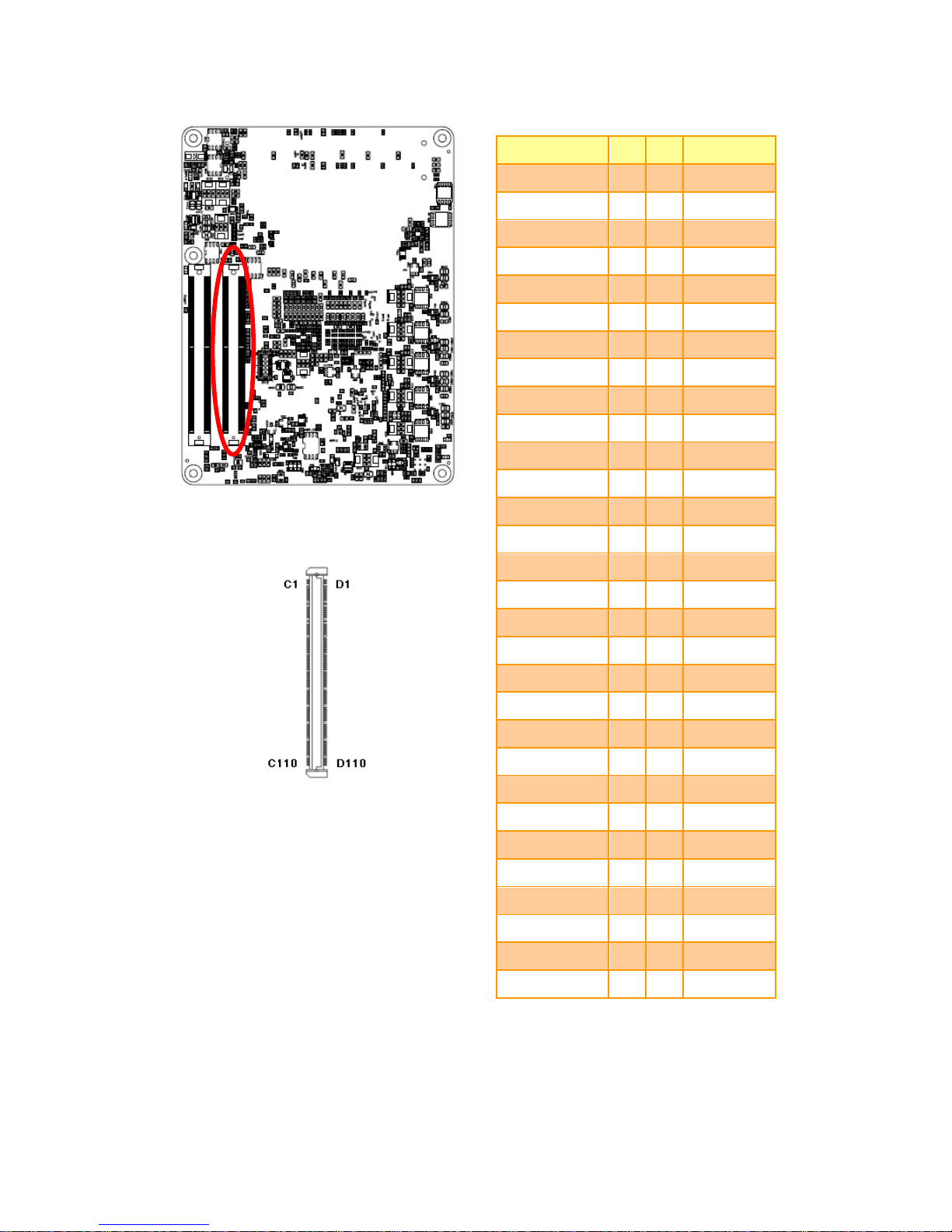

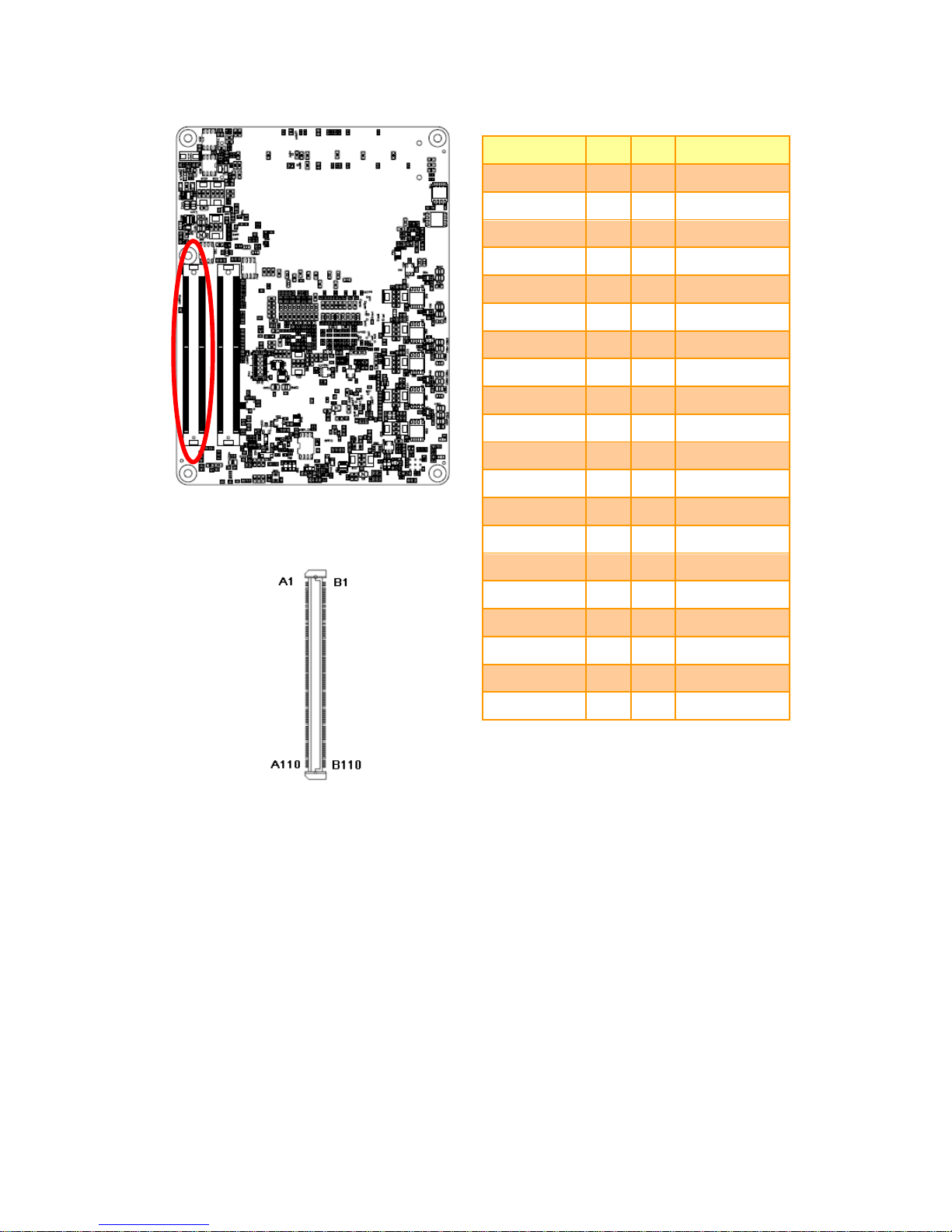

2.4.2 COM Express Connector 1 (CN1A) ............................................................................................... 21

2.4.2.1 Signal Description – COM Express Connector 1 (CN1A) ........................................................... 25

2.4.2.1.1 Audio Signals ....................................................................................................................... 25

2.4.2.1.2 Gigabit Ethernet Signals ................................................................................................... 25

2.4.2.1.3 PCI Express Signals.......................................................................................................... 25

2.4.2.1.4 Flat Panel LVDS Signals ................................................................................................... 26

2.4.2.1.5 LPC Signals ....................................................................................................................... 26

2.4.2.1.6 Miscellaneous Signals ....................................................................................................... 26

2.4.2.1.7 GPIO Signals ..................................................................................................................... 26

2.4.2.1.8 Power Signals ................................................................................................................... 27

2.4.2.1.9 Power & System Management Signals ............................................................................. 27

2.4.2.1.10 SATA Signals ................................................................................................................... 28

2.4.2.1.11 VGA Signals ..................................................................................................................... 28

2.4.2.1.12 USB Signals ..................................................................................................................... 28

2.4.2.1.13 I2C Signals ....................................................................................................................... 28

2.4.2.1.14 COM.0 Pins Signals ....................................................................................................... 28

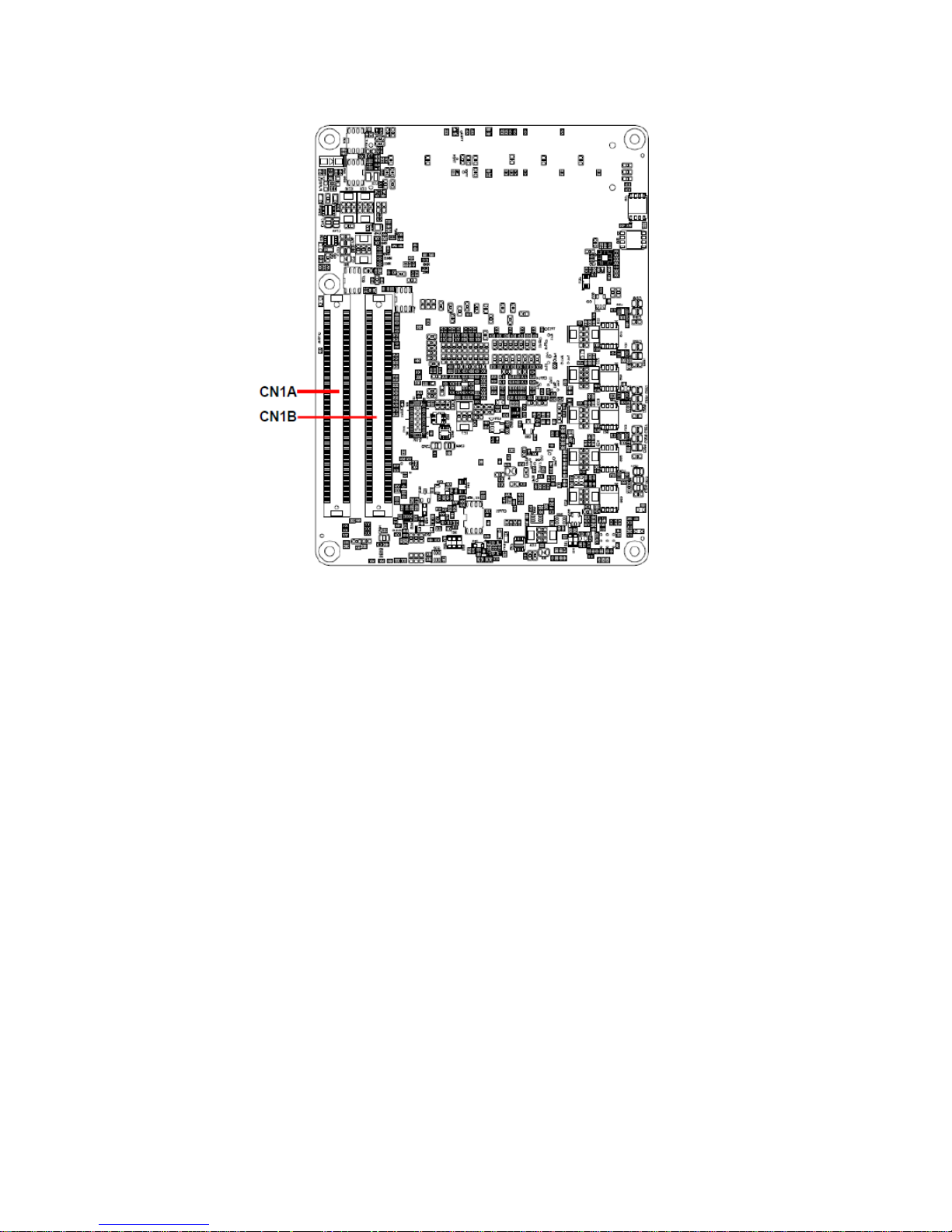

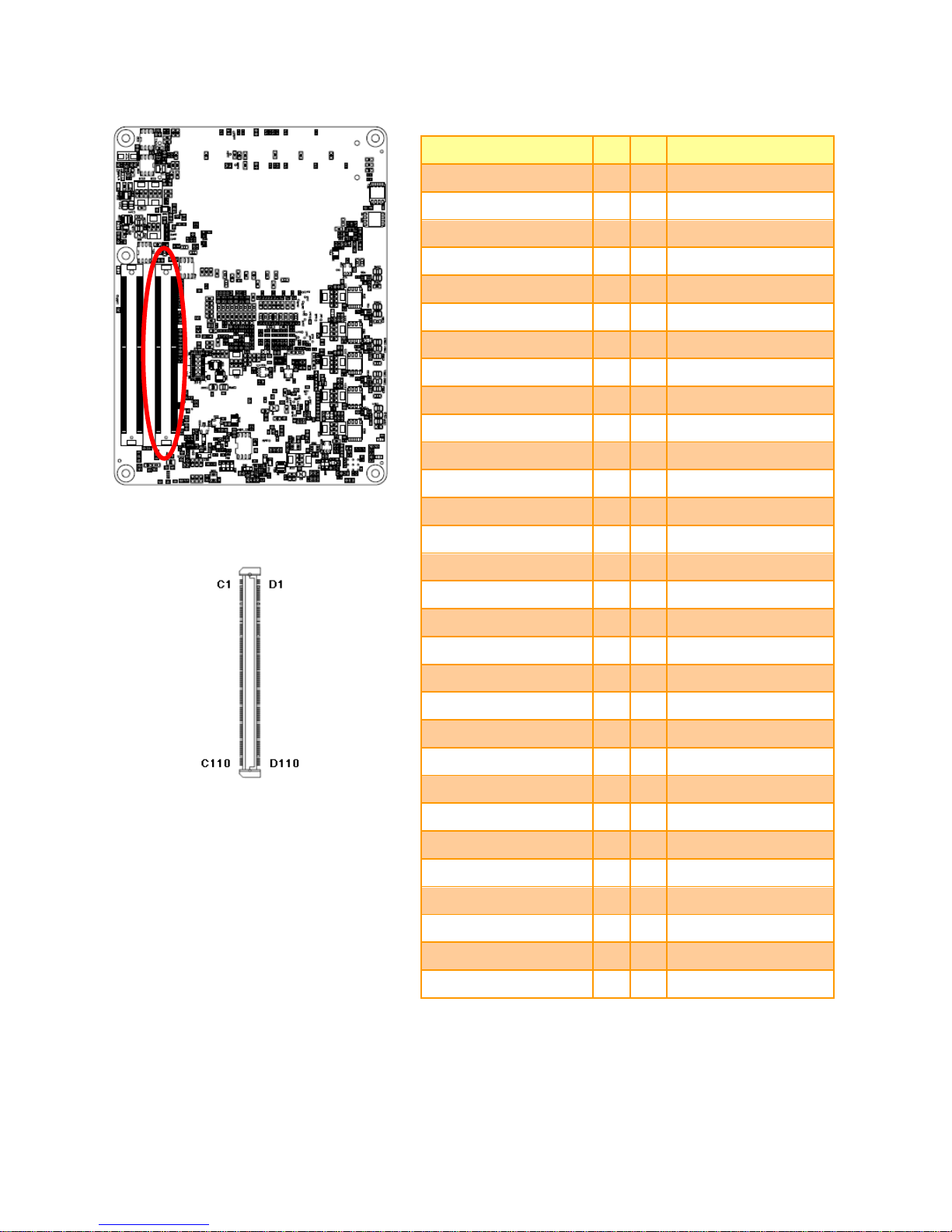

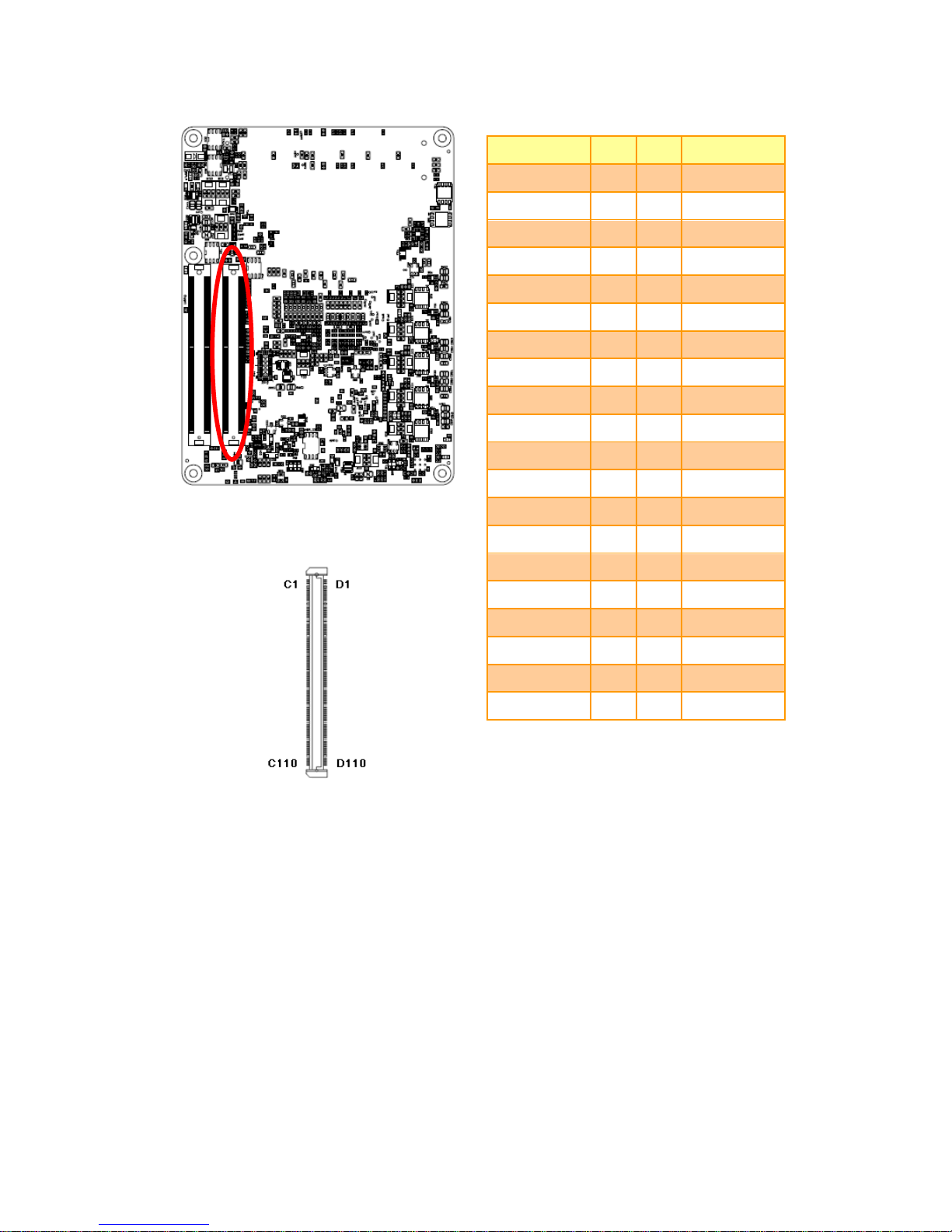

2.4.3 COM Express Connector 2 (CN1B) ............................................................................................... 29

2.4.3.1 Signal Description – COM Express Connector 2 (CN1B) ........................................................... 33

2.4.3.1.1 USB3.0 Signals ................................................................................................................... 33

ESM-KBLH User’s Manual

5

2.4.3.1.2 PEG Signals ........................................................................................................................ 33

2.4.3.1.3 DDI Signals .......................................................................................................................... 33

3.BIOS Setup .................................................................................................................... 34

3.1 Introduction ............................................................................................................. 35

3.2 Starting Setup ......................................................................................................... 35

3.3 Using Setup ............................................................................................................ 36

3.4 Getting Help ............................................................................................................ 37

3.5 In Case of Problems ................................................................................................ 37

3.6 BIOS setup .............................................................................................................. 38

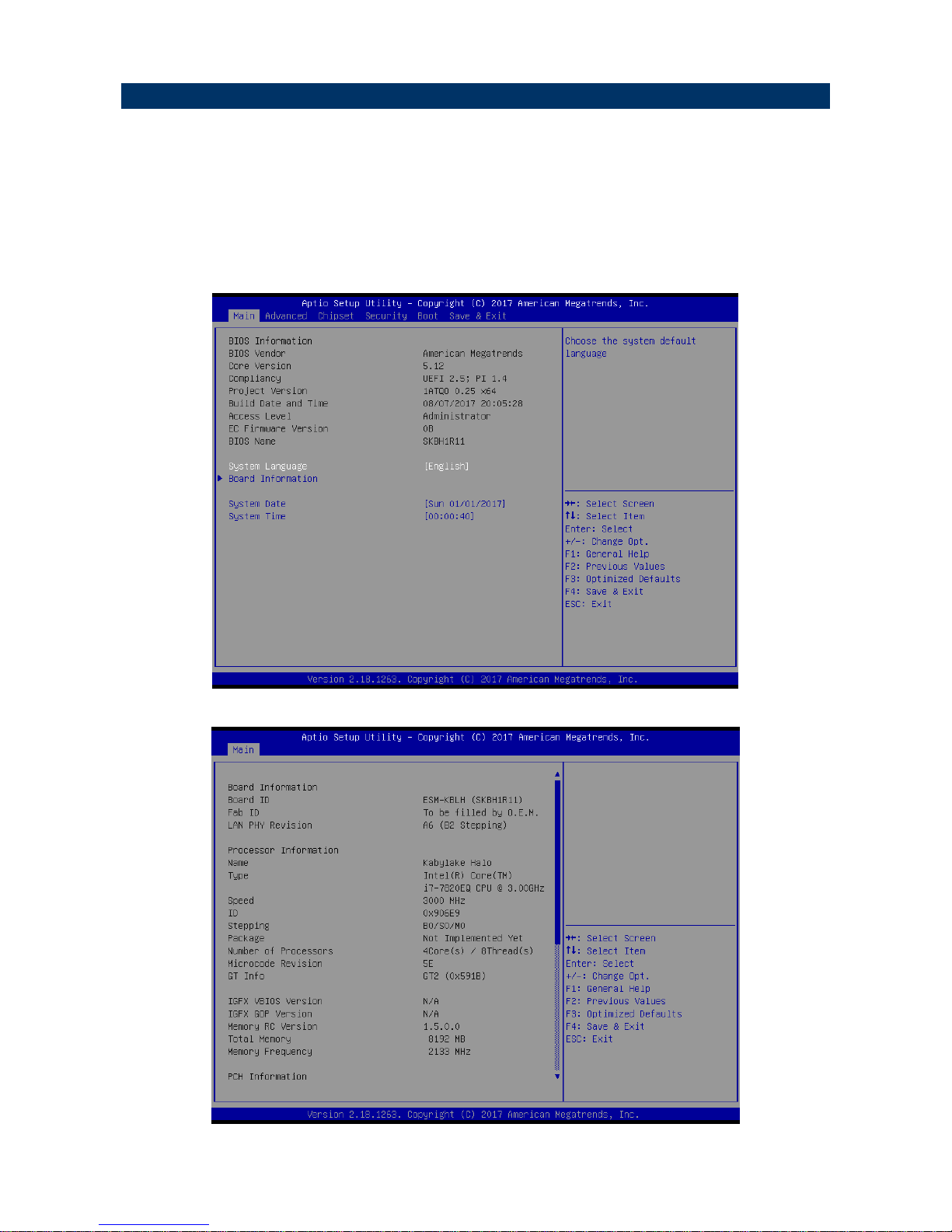

3.6.1 Main Menu ...................................................................................................................................... 38

3.6.1.1 System Language .................................................................................................................. 39

3.6.1.2 System Date .......................................................................................................................... 39

3.6.1.3 System Time .......................................................................................................................... 39

3.6.2 Advanced Menu ............................................................................................................................. 40

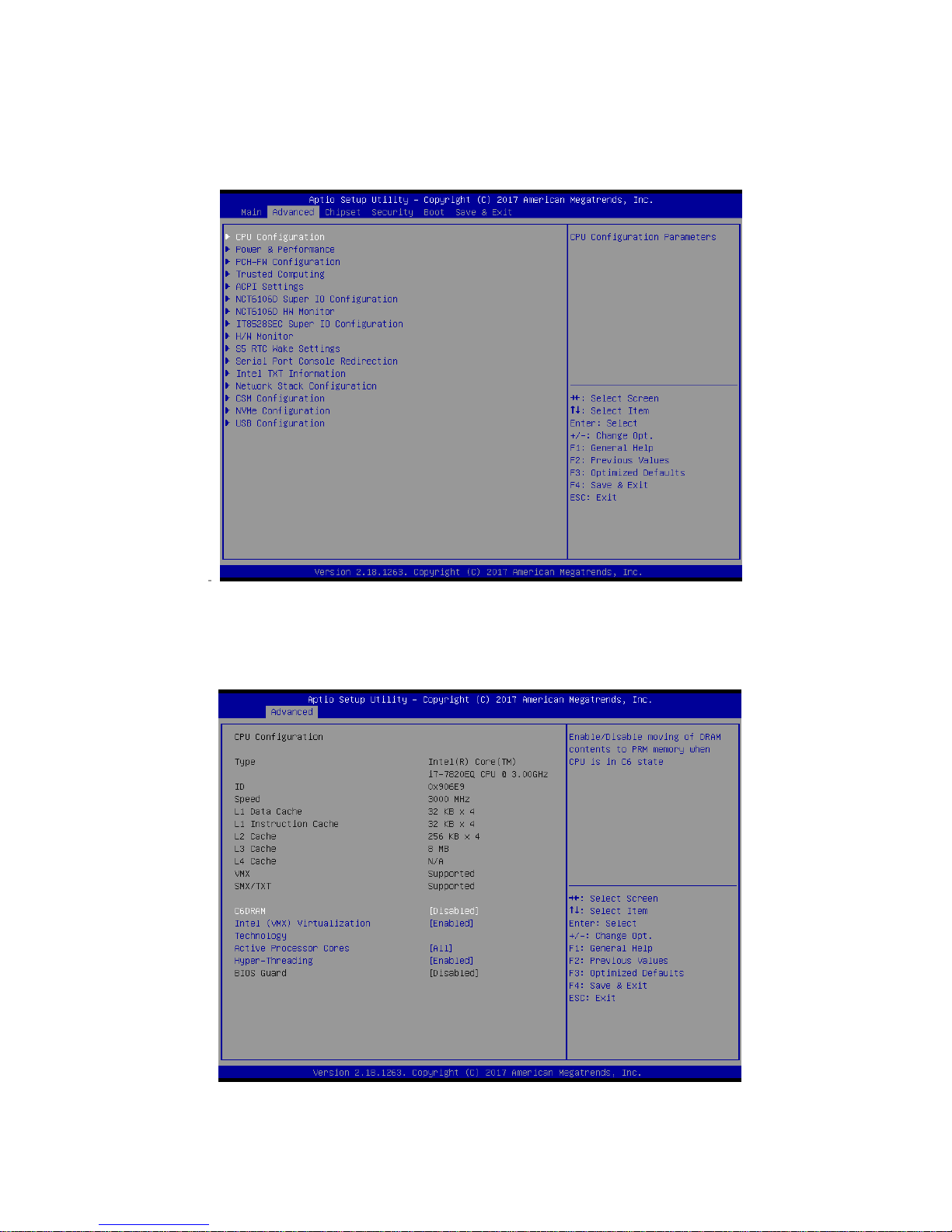

3.6.2.1 CPU Configuration ................................................................................................................. 40

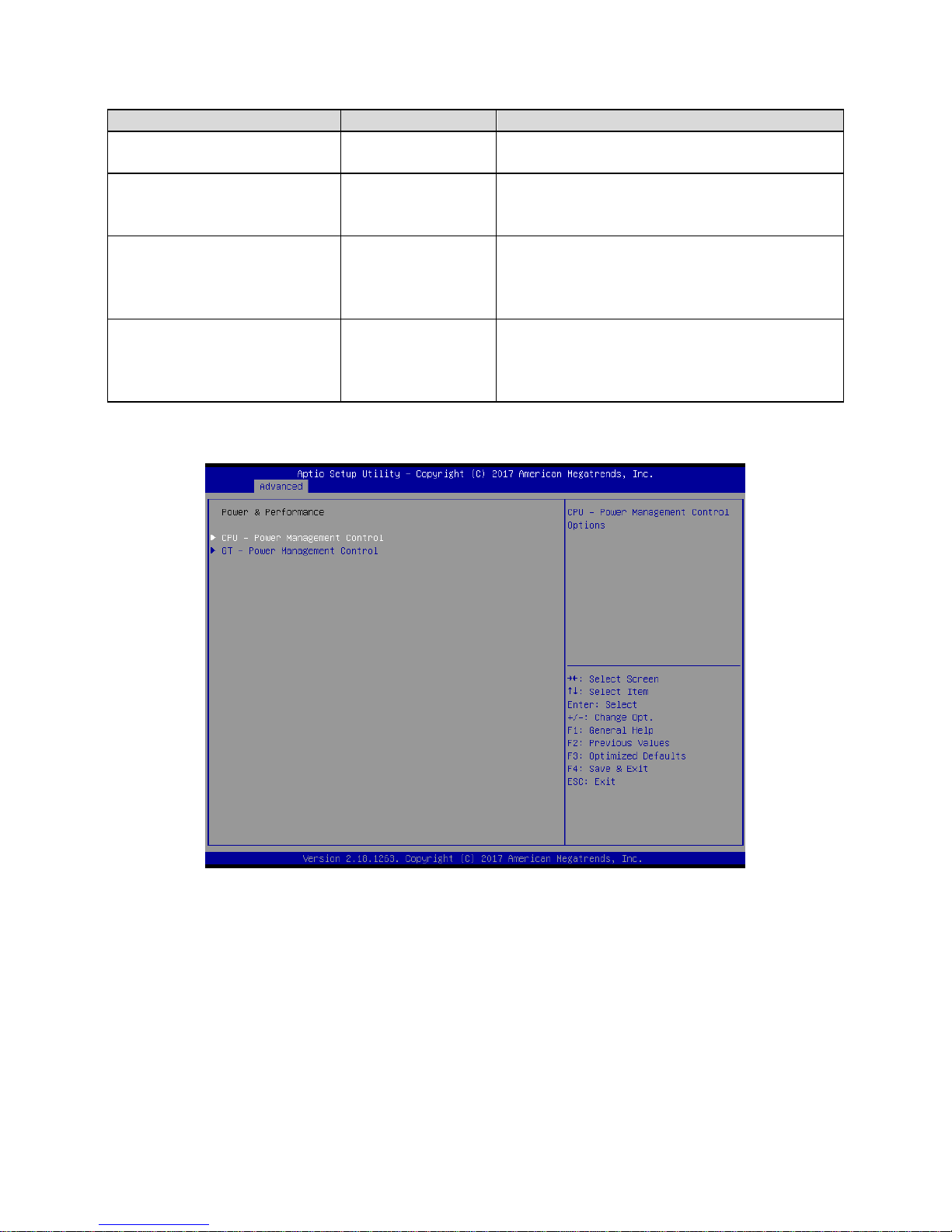

3.6.2.2 Power & Performance ........................................................................................................... 41

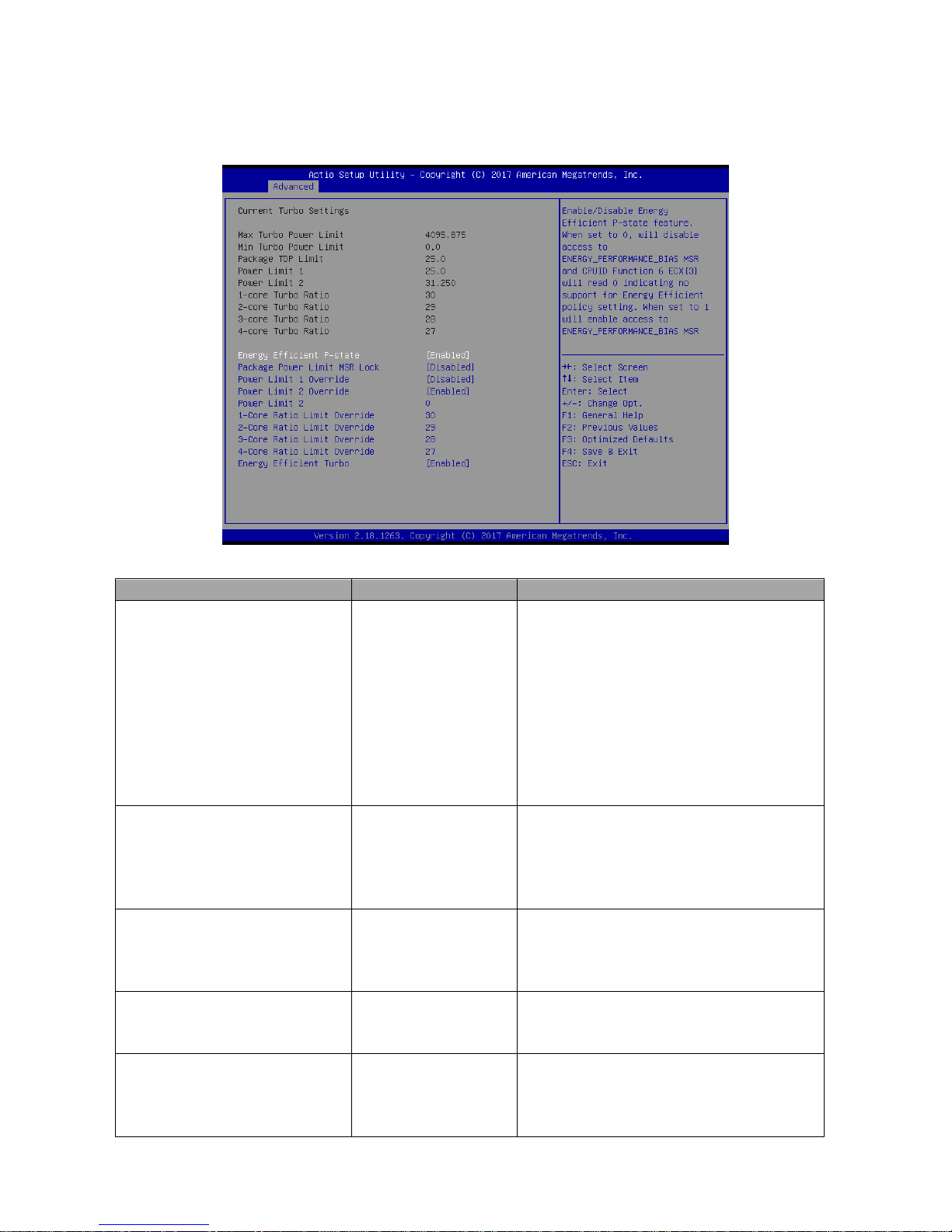

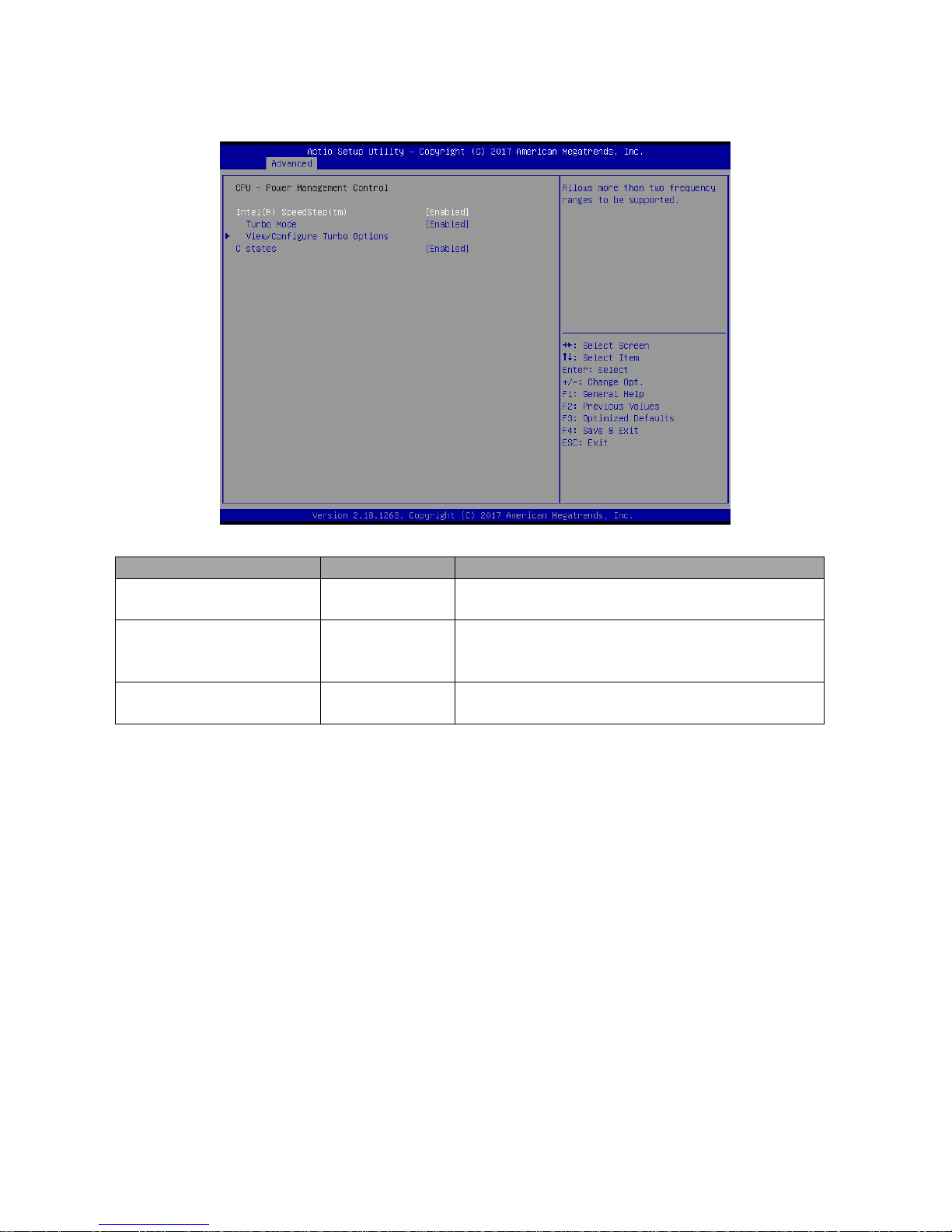

3.6.2.2.1 CPU – Power Management Control ...................................................................................... 42

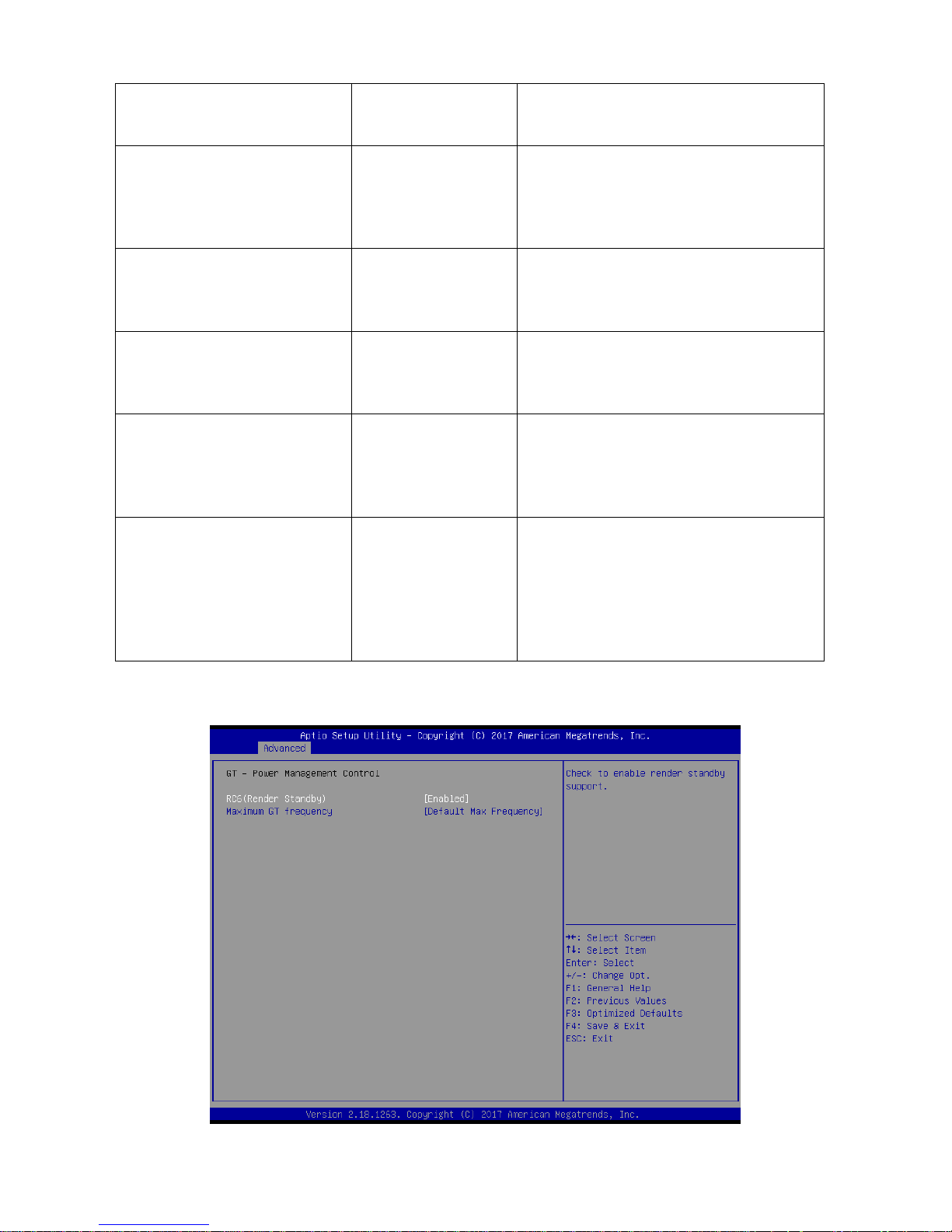

3.6.2.2.2 GT – Power Management Control ......................................................................................... 44

3.6.2.3 PCH-FW Configuration .......................................................................................................... 45

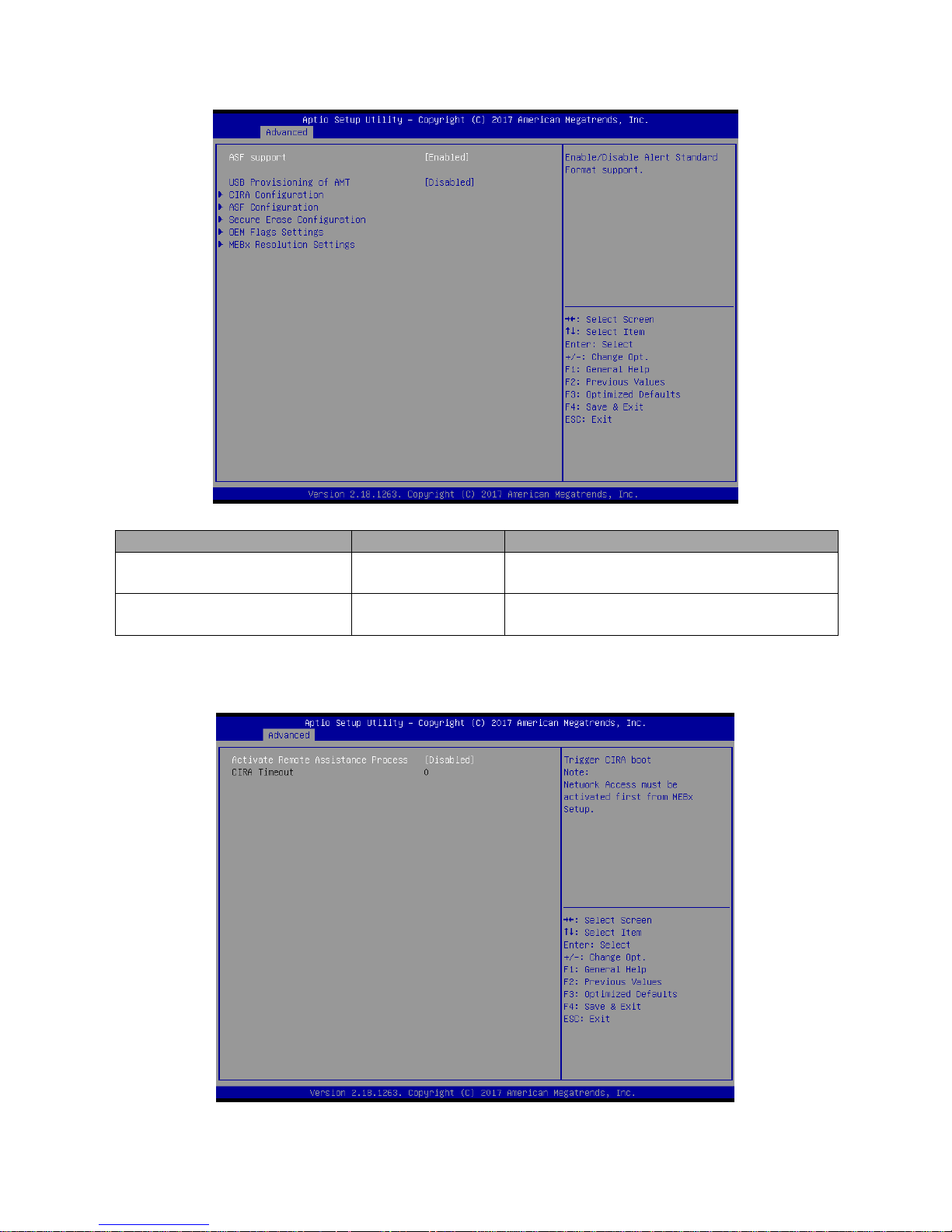

3.6.2.3.1 AMT Configuration ................................................................................................................. 46

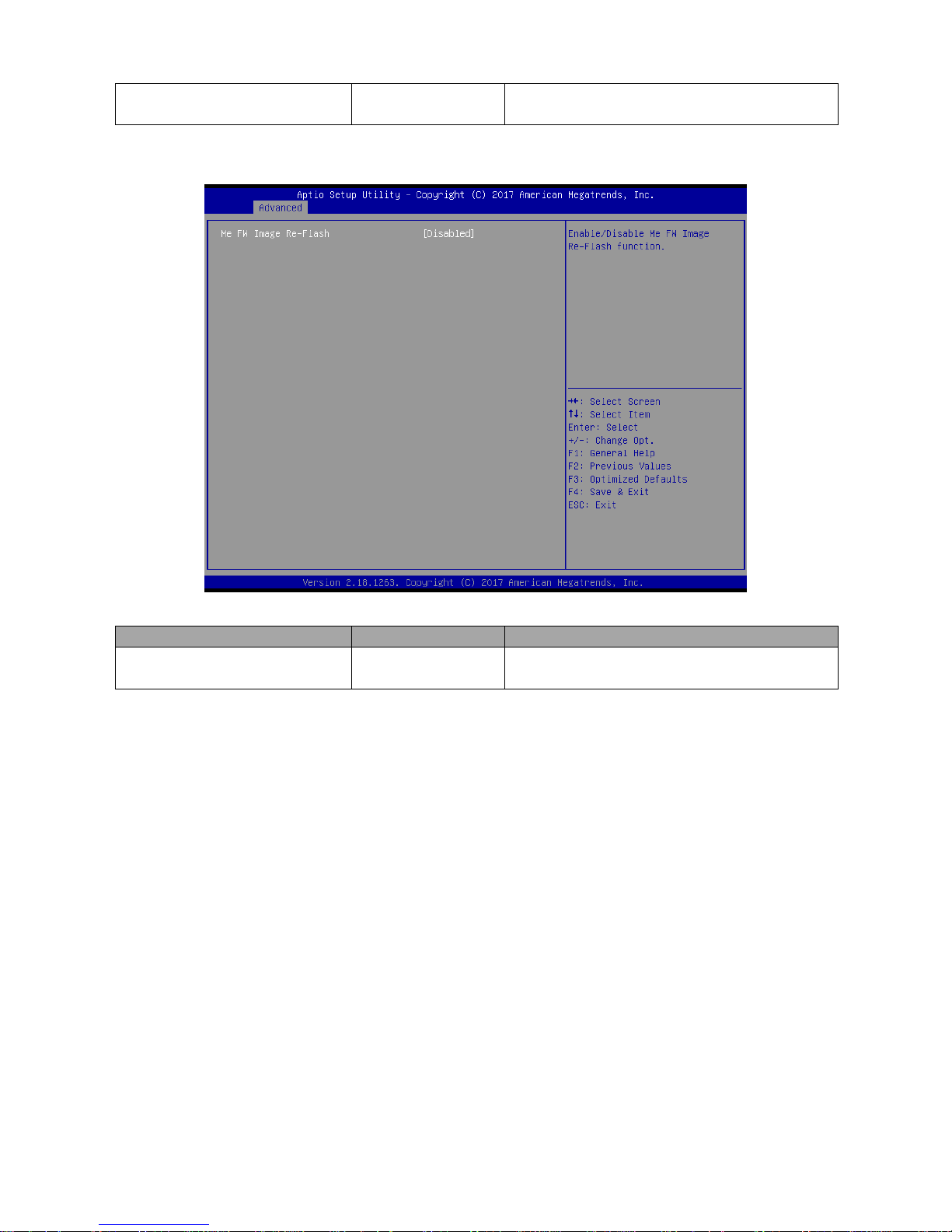

3.6.2.3.2 Firmware Update Configuration ............................................................................................. 50

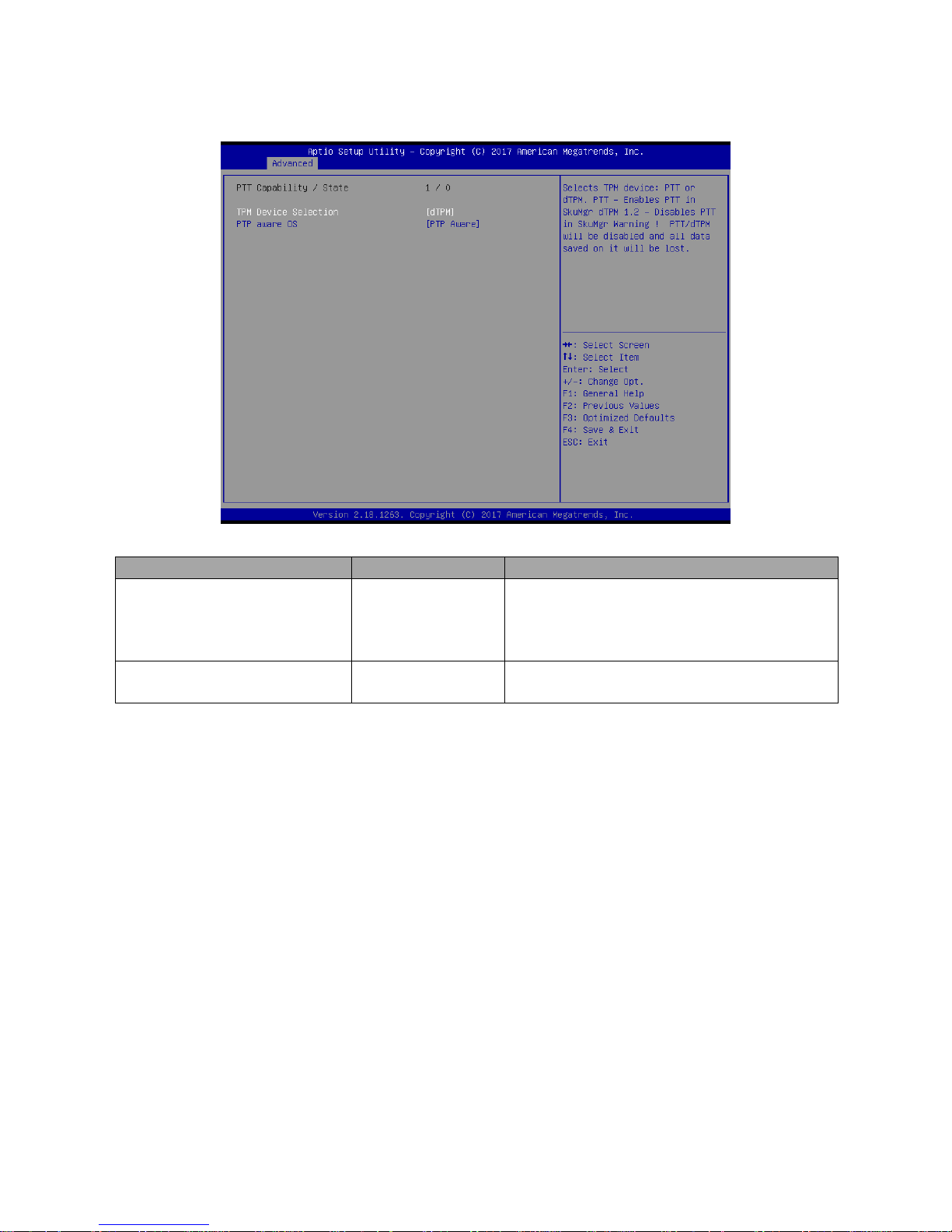

3.6.2.3.3 PTT Configuration.................................................................................................................. 51

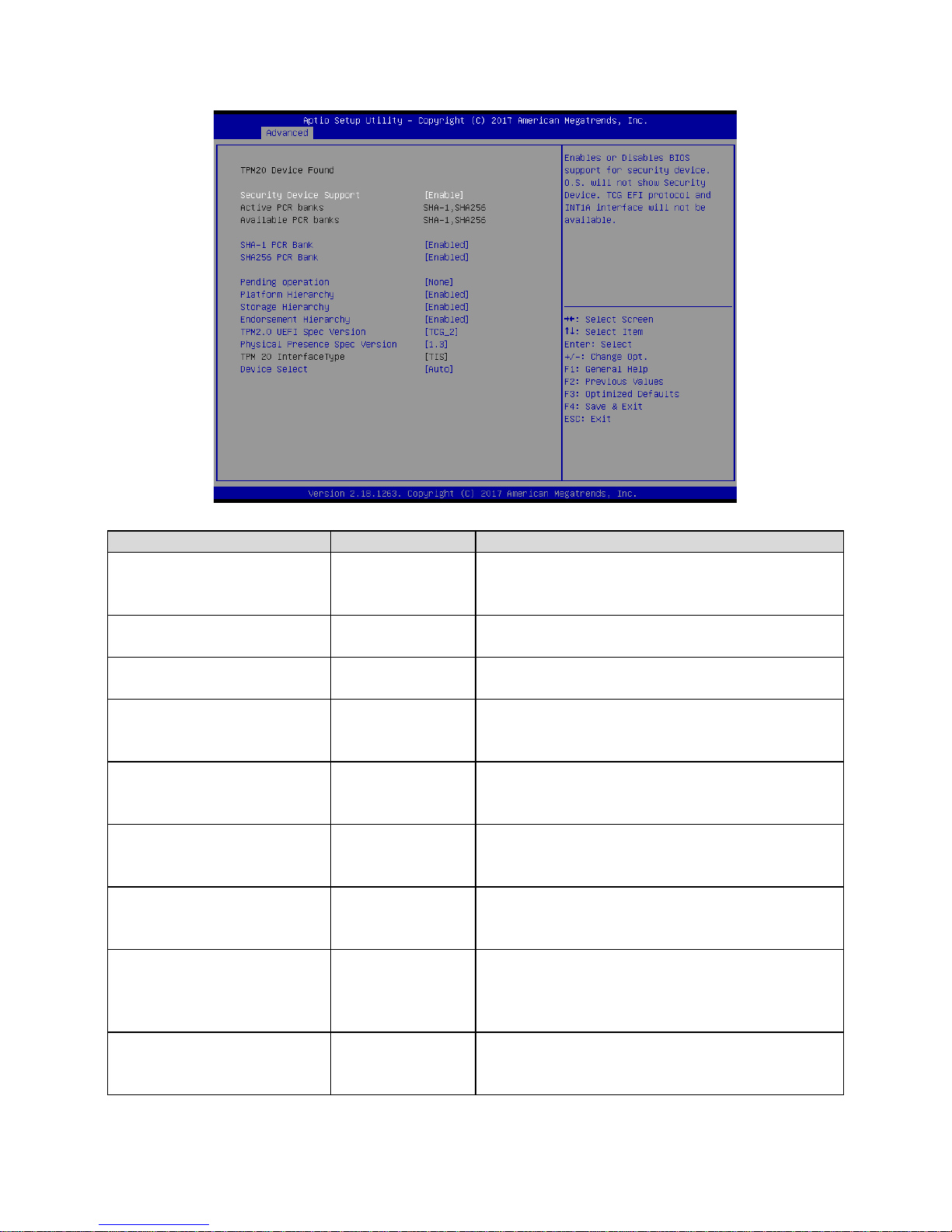

3.6.2.4 Trusted Computing ................................................................................................................ 52

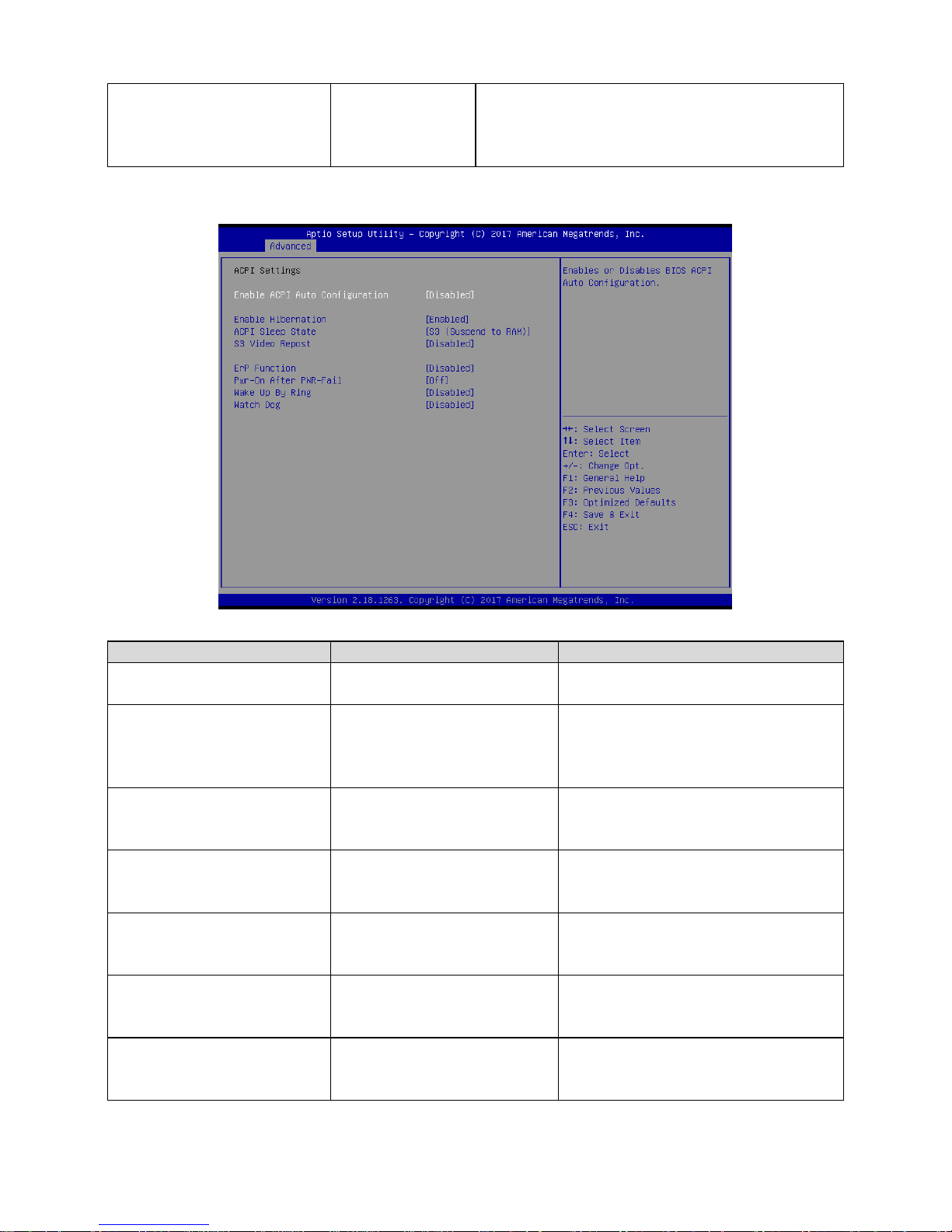

3.6.2.5 APCI Settings ........................................................................................................................ 53

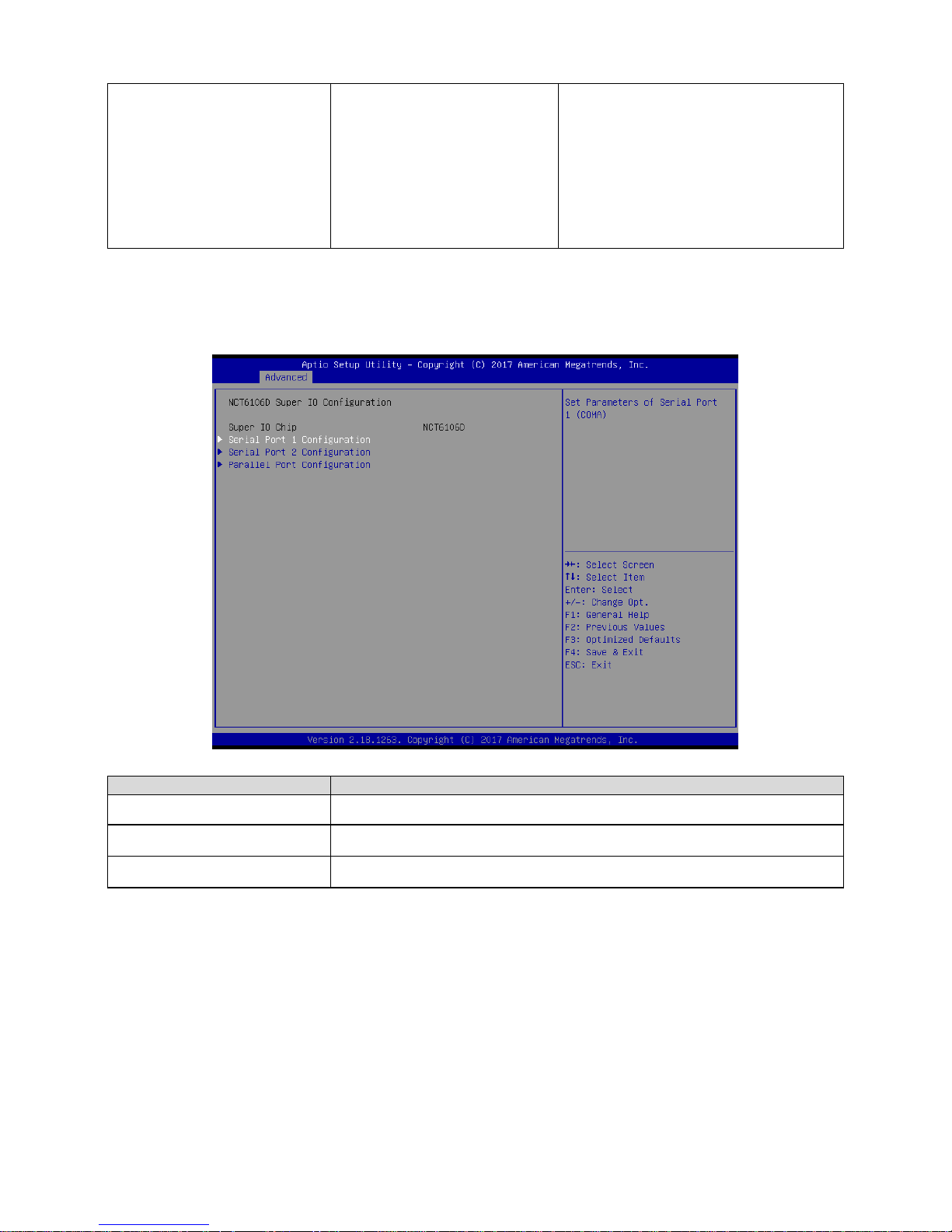

3.6.2.6 NCT6106D Super IO Configuration ....................................................................................... 54

3.6.2.6.1 Serial Port 1 Configuration .................................................................................................... 55

3.6.2.6.2 Serial Port 2 Configuration .................................................................................................... 55

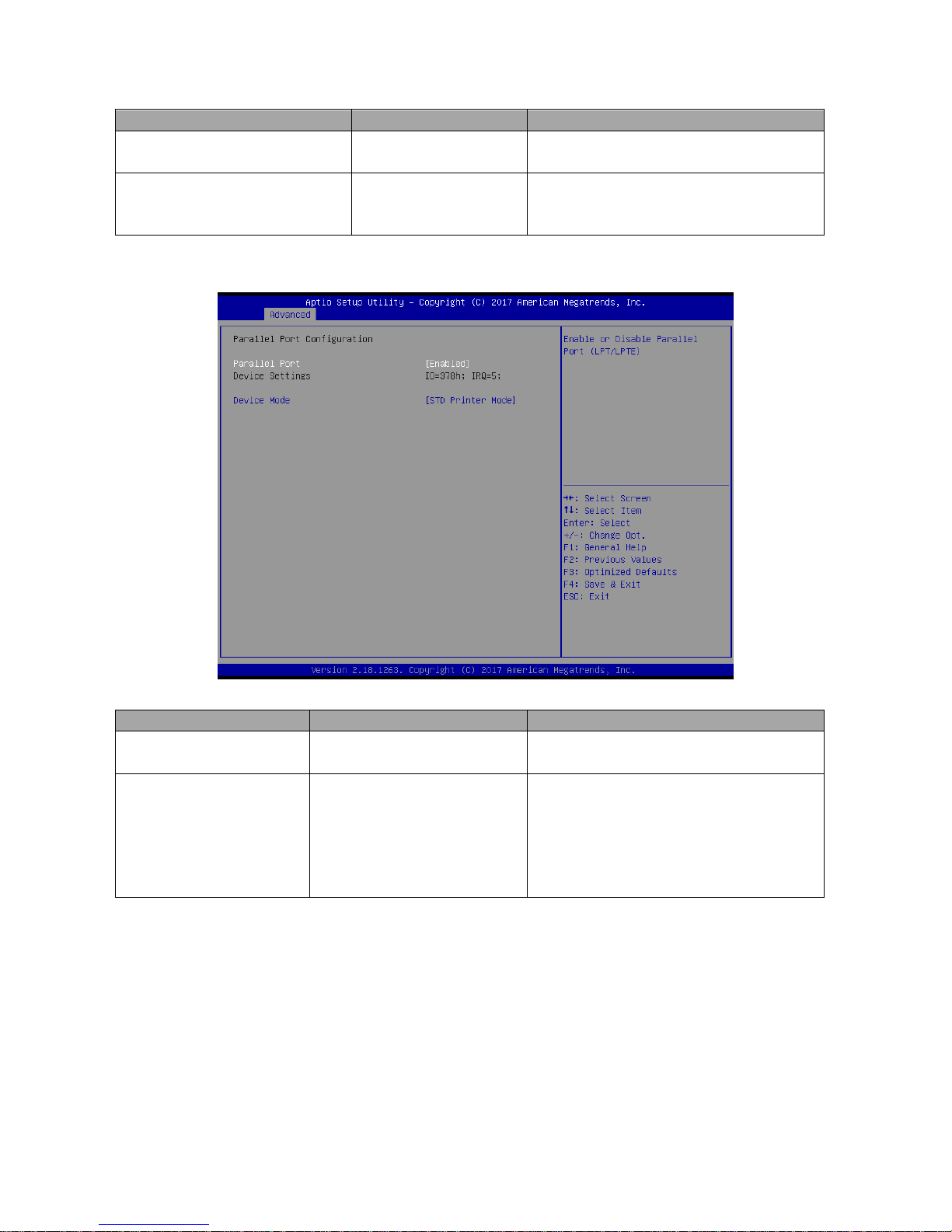

3.6.2.6.3 Parallel Port Configuration ..................................................................................................... 56

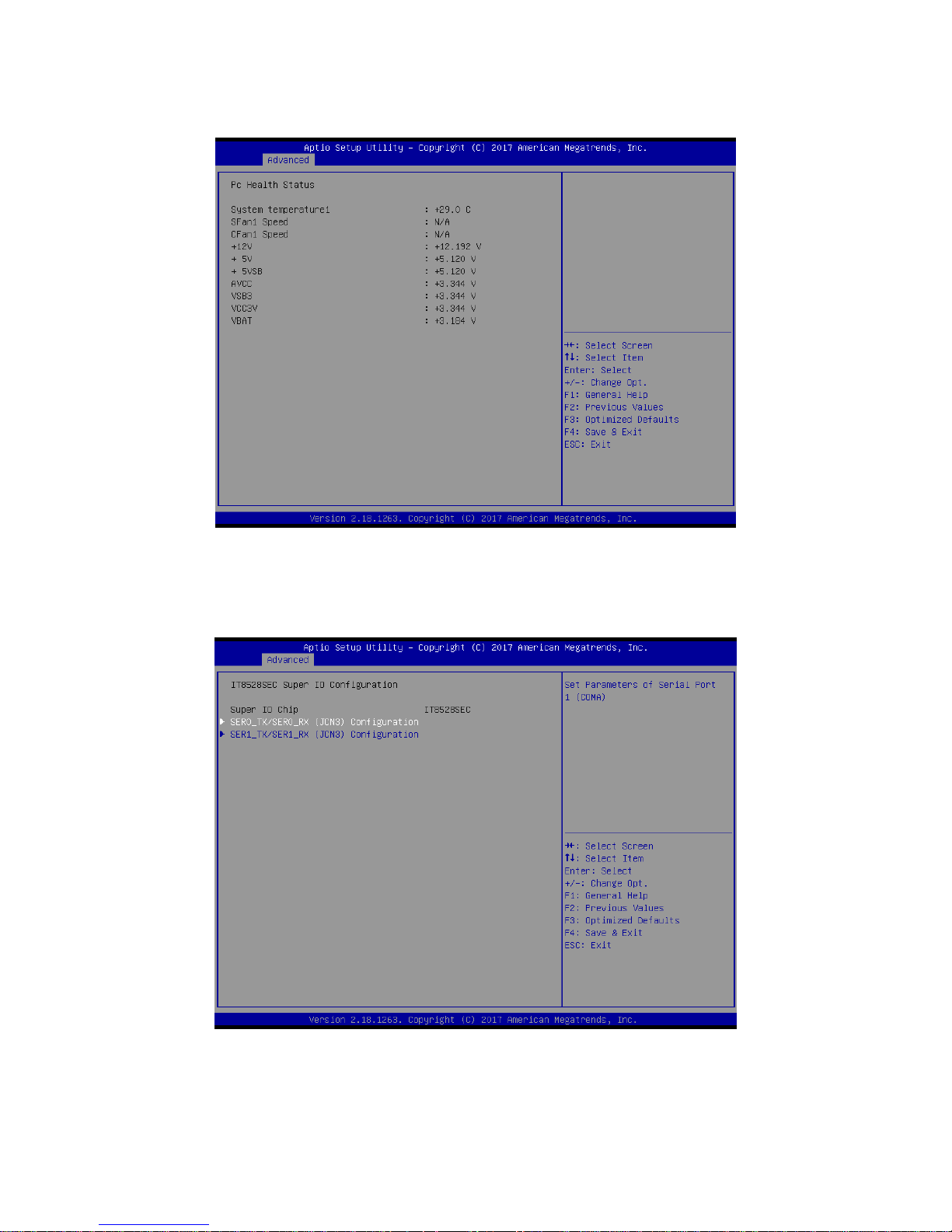

3.6.2.7 NCT6106D HW Monitor ......................................................................................................... 57

3.6.2.8 IT8528SEC Super IO Configuration ...................................................................................... 57

3.6.2.8.1 SER0_TX/SER0_RX (JCN3) Configuration .......................................................................... 58

3.6.2.8.2 SER1_TX/SER1_RX (JCN3) Configuration .......................................................................... 58

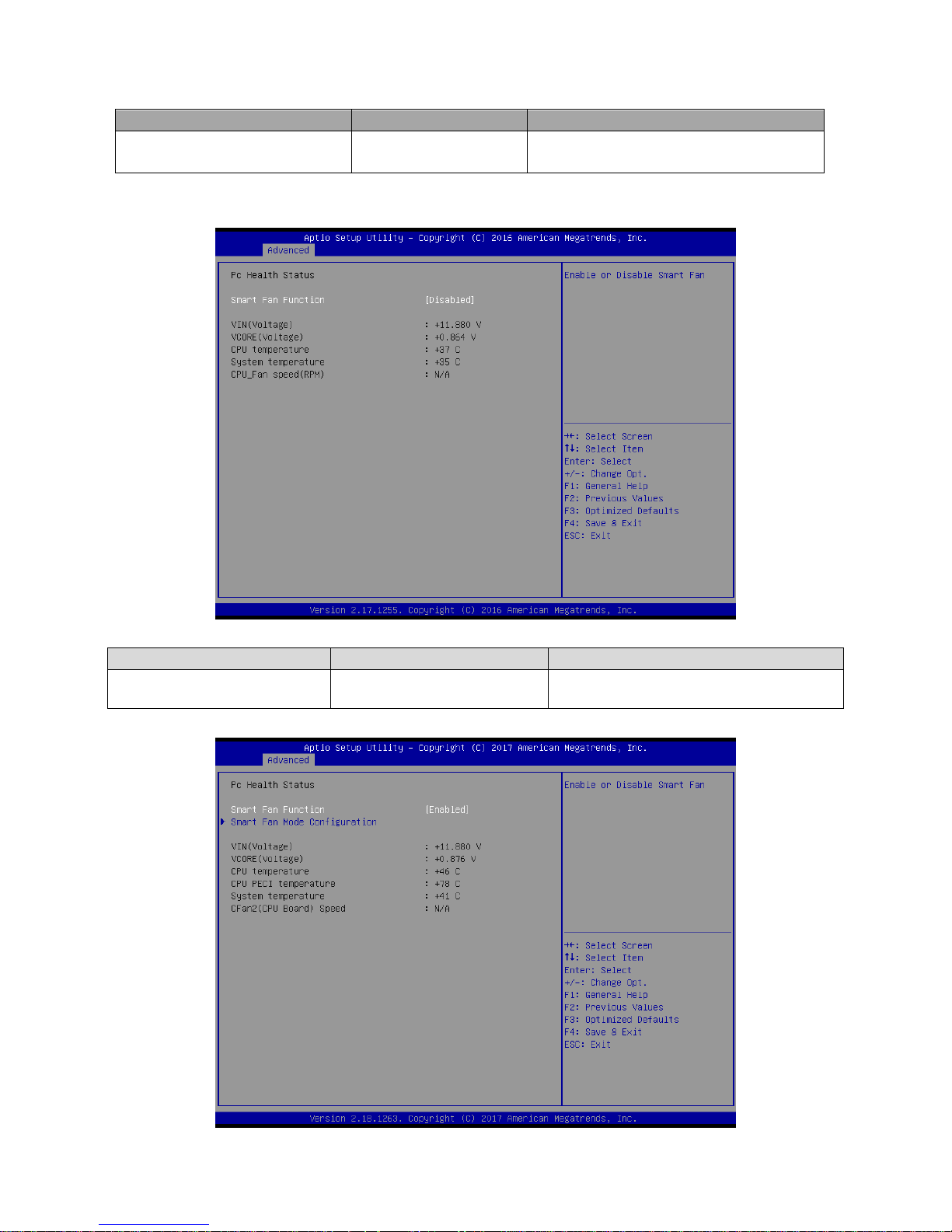

3.6.2.9 H/W Monitor ........................................................................................................................... 59

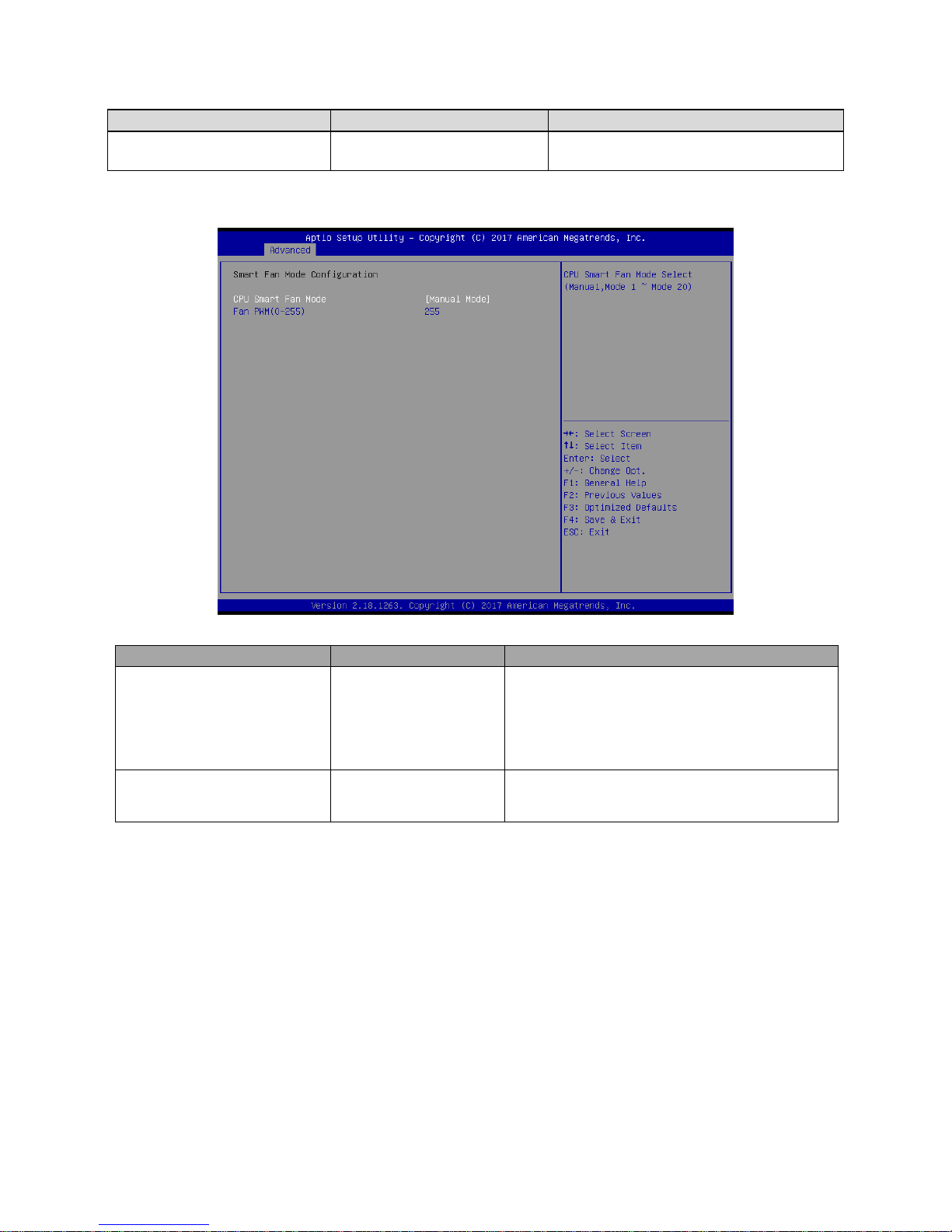

3.6.2.9.1 Smart Fan Mode Configuration ............................................................................................. 60

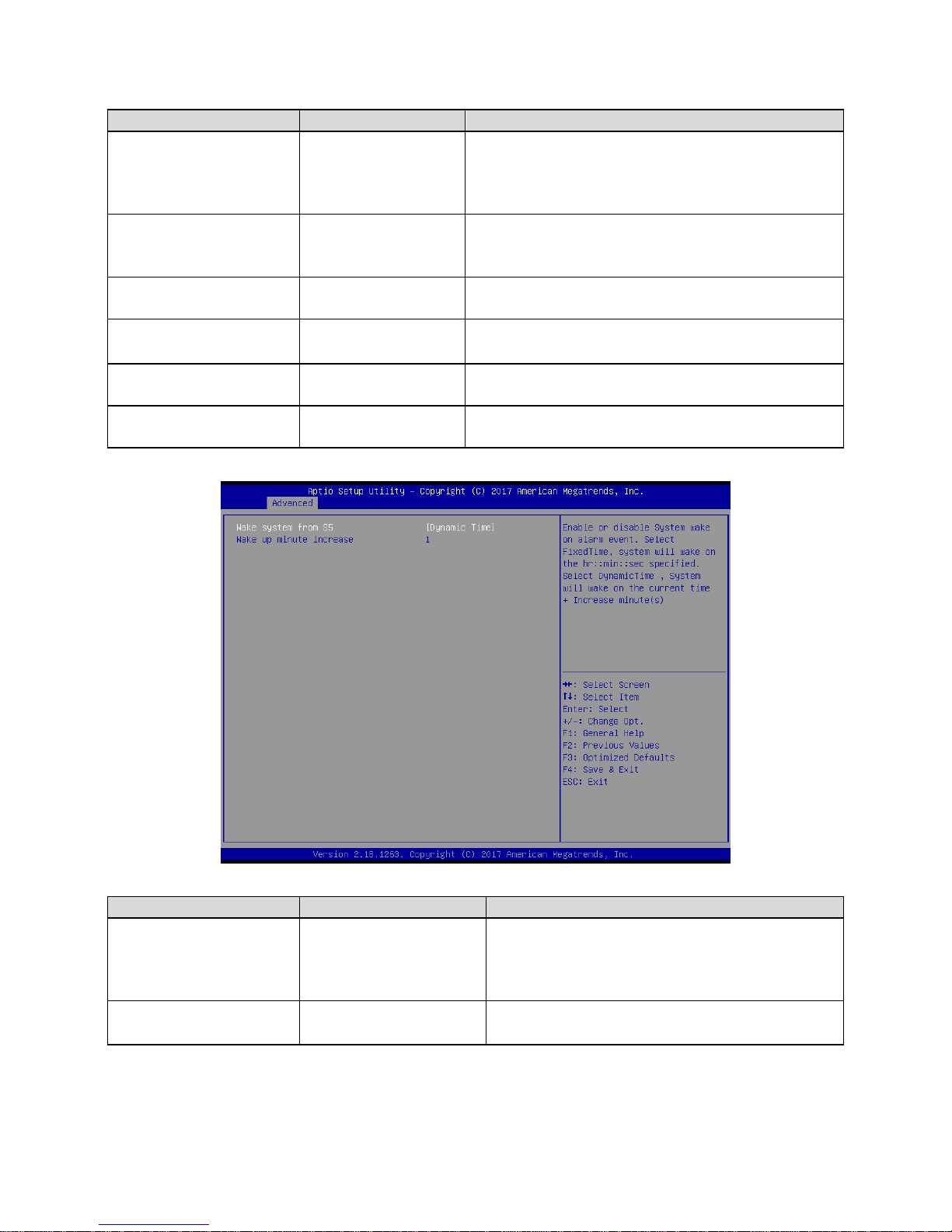

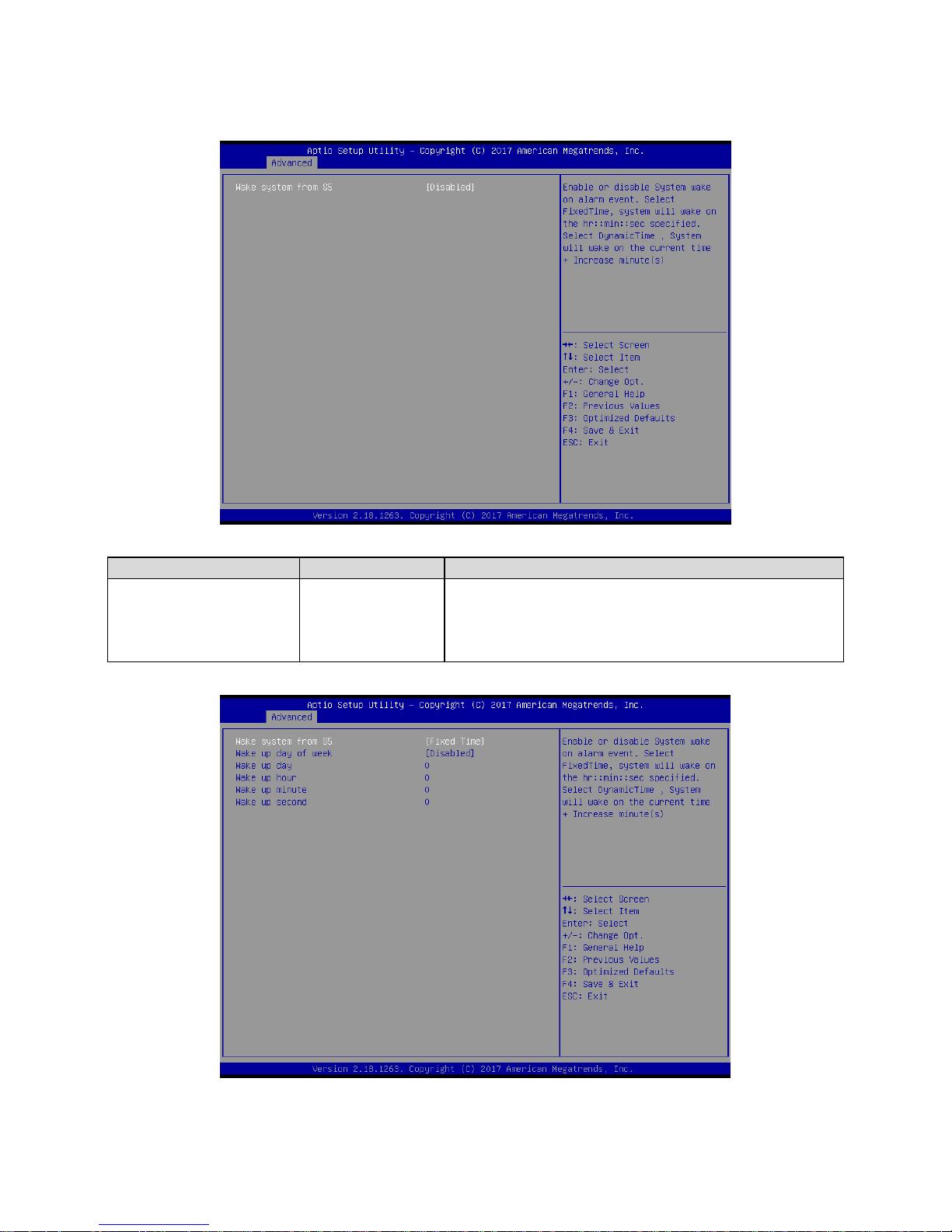

3.6.2.10 S5 RTC Wake Settings .......................................................................................................... 61

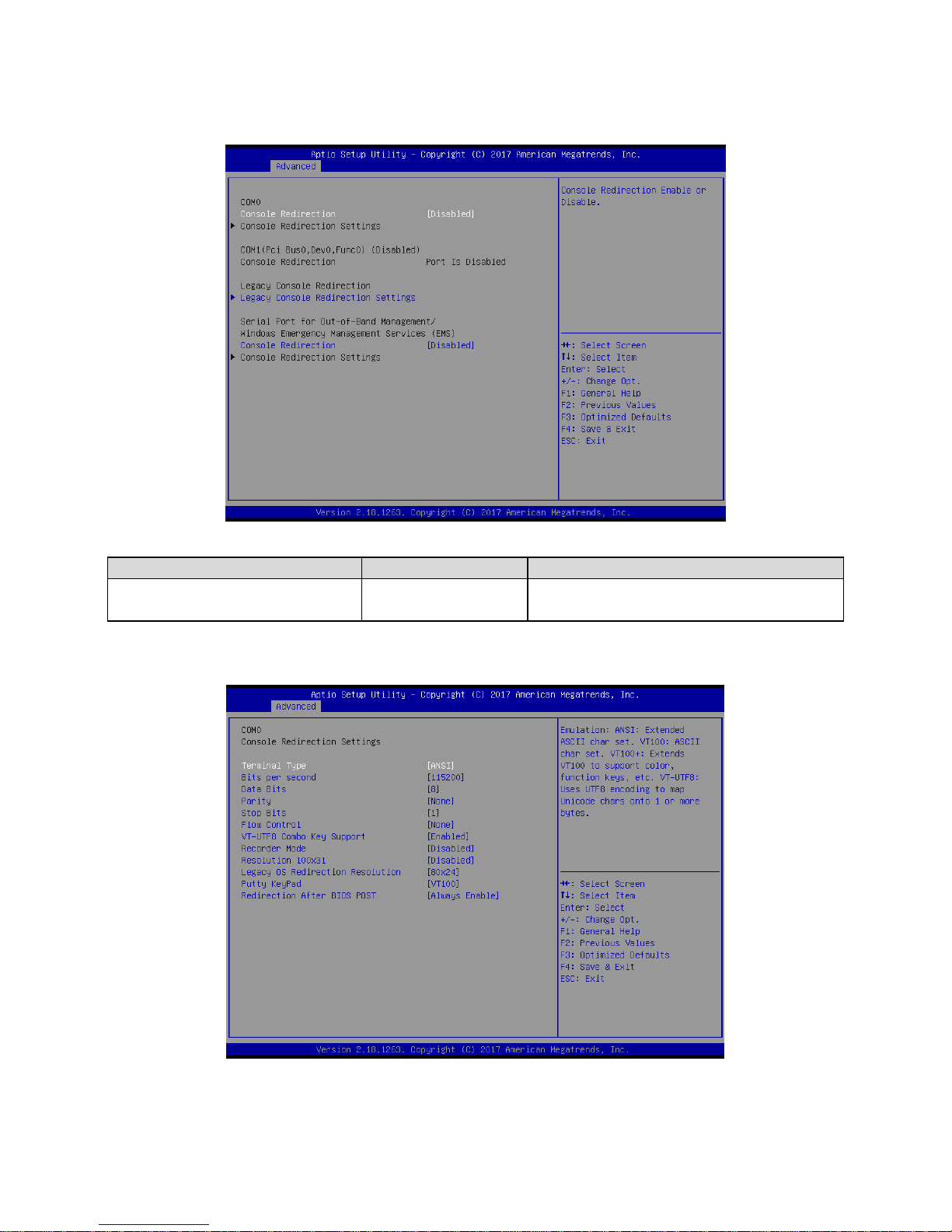

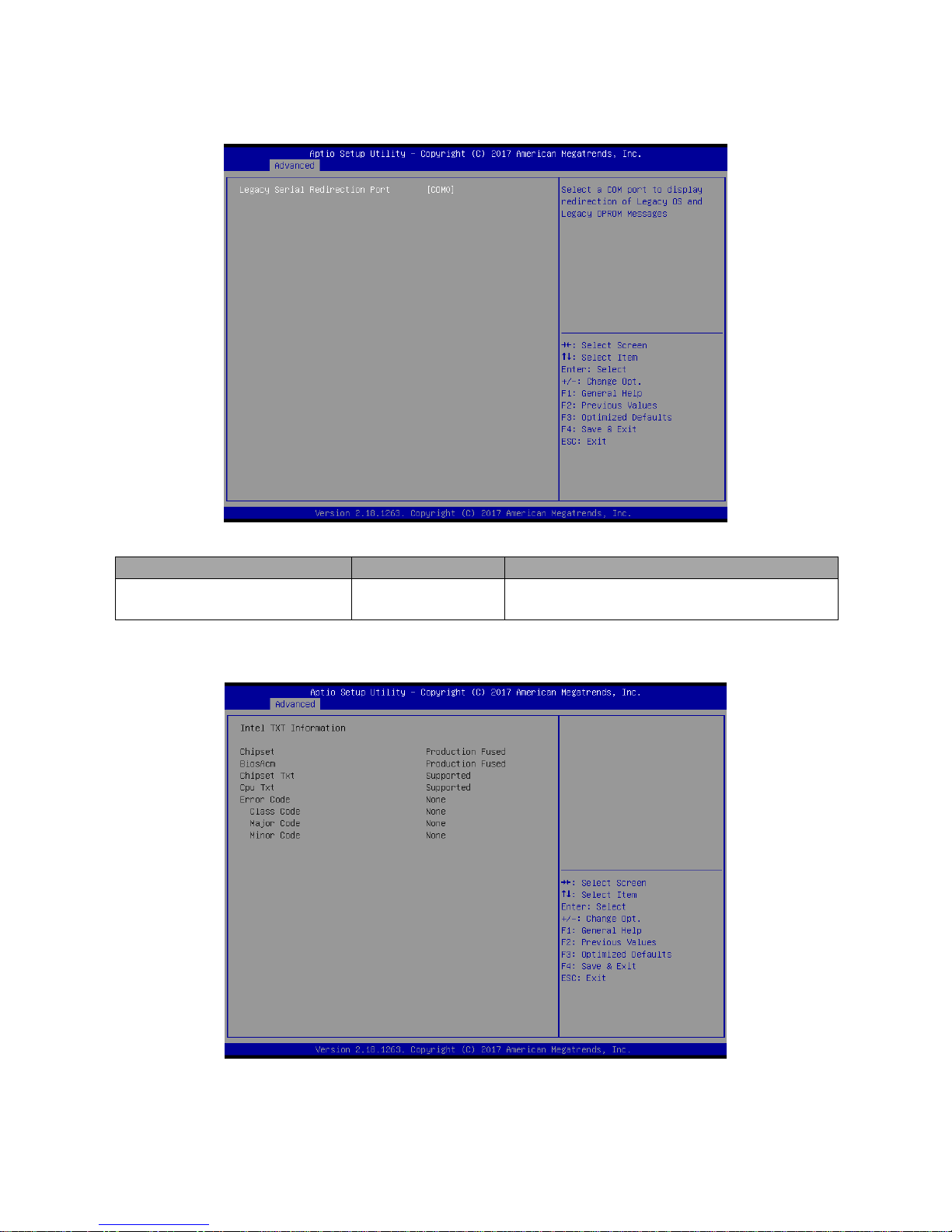

3.6.2.11 Serial Port Console Redirection ............................................................................................ 63

3.6.2.11.1 Smart Fan Mode Configuration ............................................................................................. 63

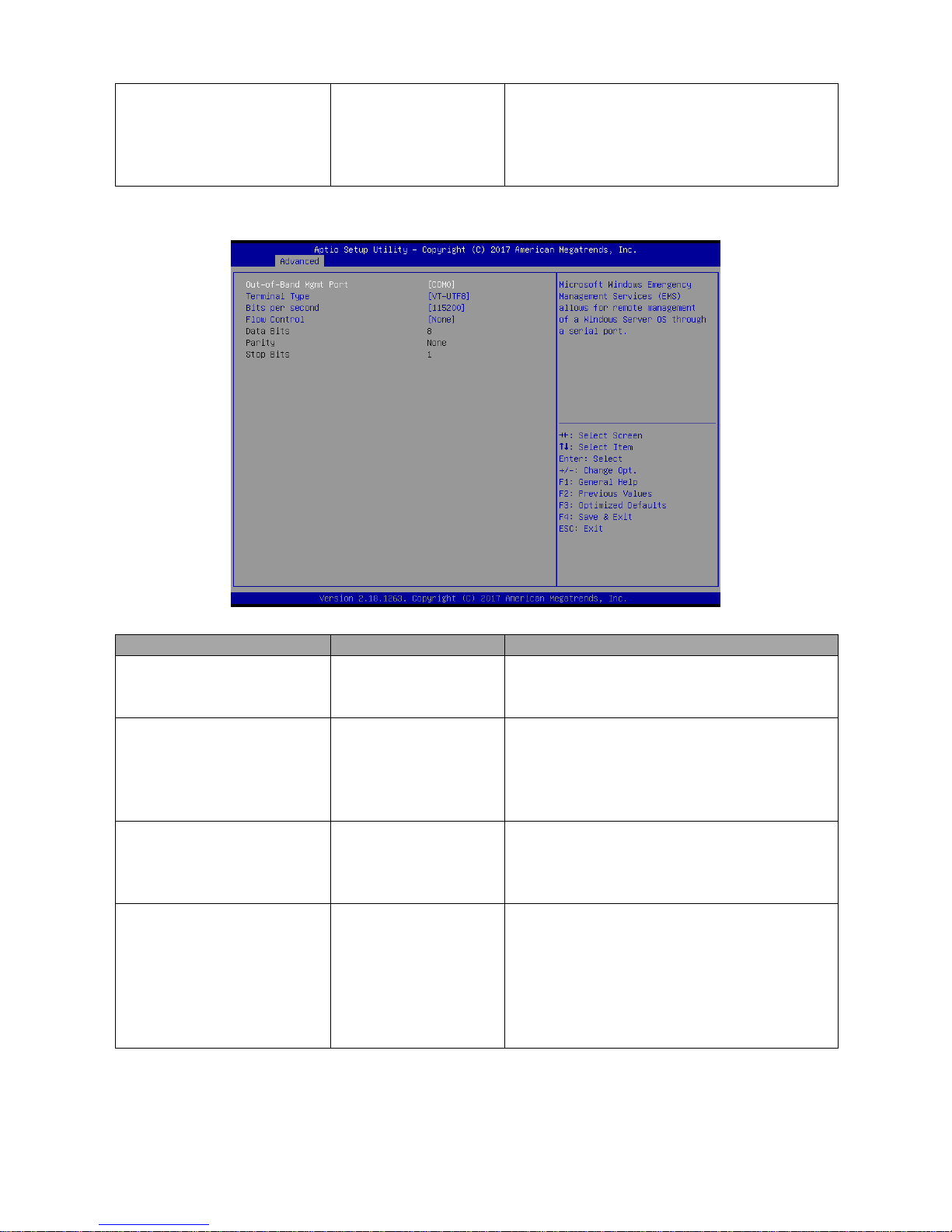

3.6.2.11.2 Console Redirection Settings ................................................................................................ 65

3.6.2.11.3 Console Redirection Settings ................................................................................................ 66

3.6.2.12 Intel TXT Configuration .......................................................................................................... 66

ESM-KBLH User’s Manual

6 ESM-KBLH User’s Manual

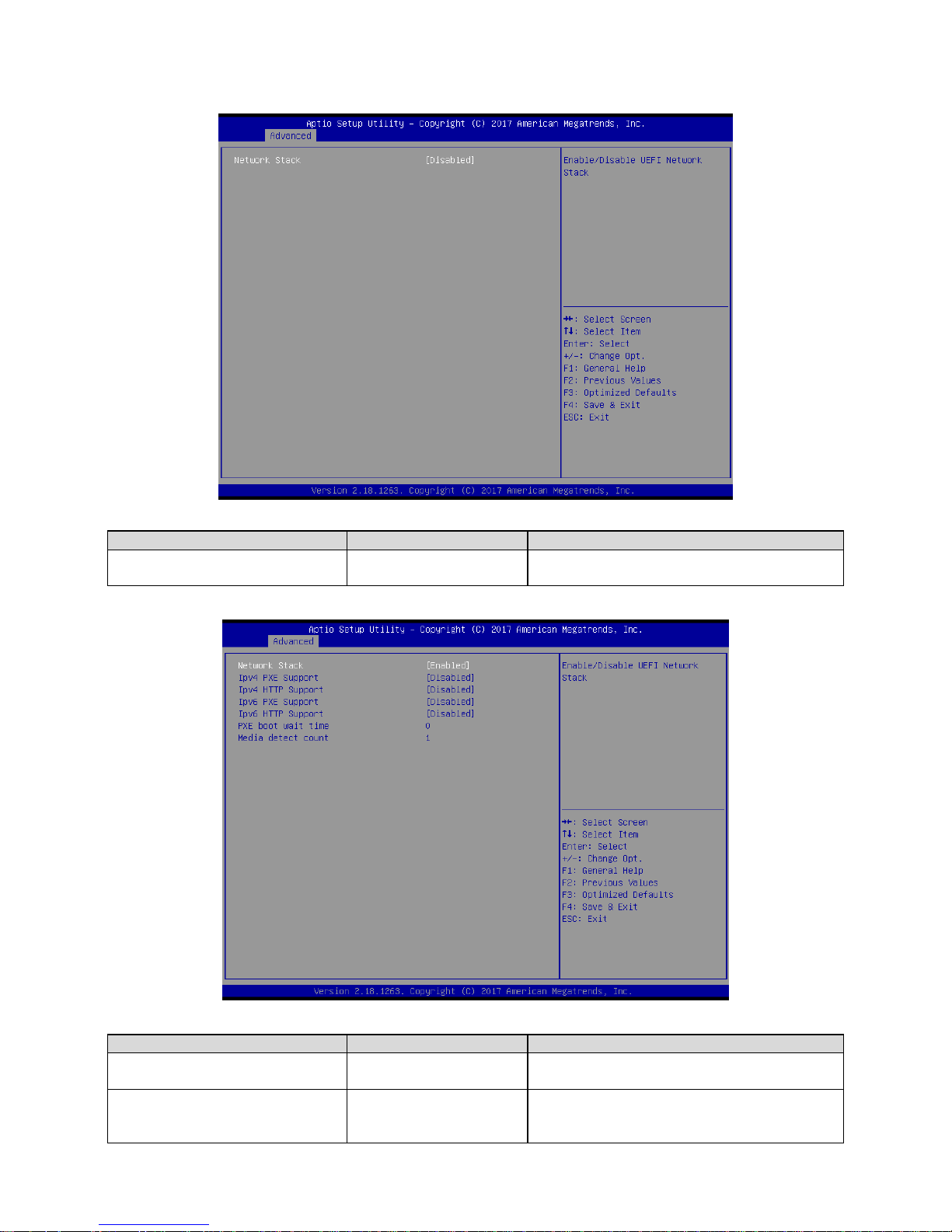

3.6.2.13 Network Stack Configuration ................................................................................................. 67

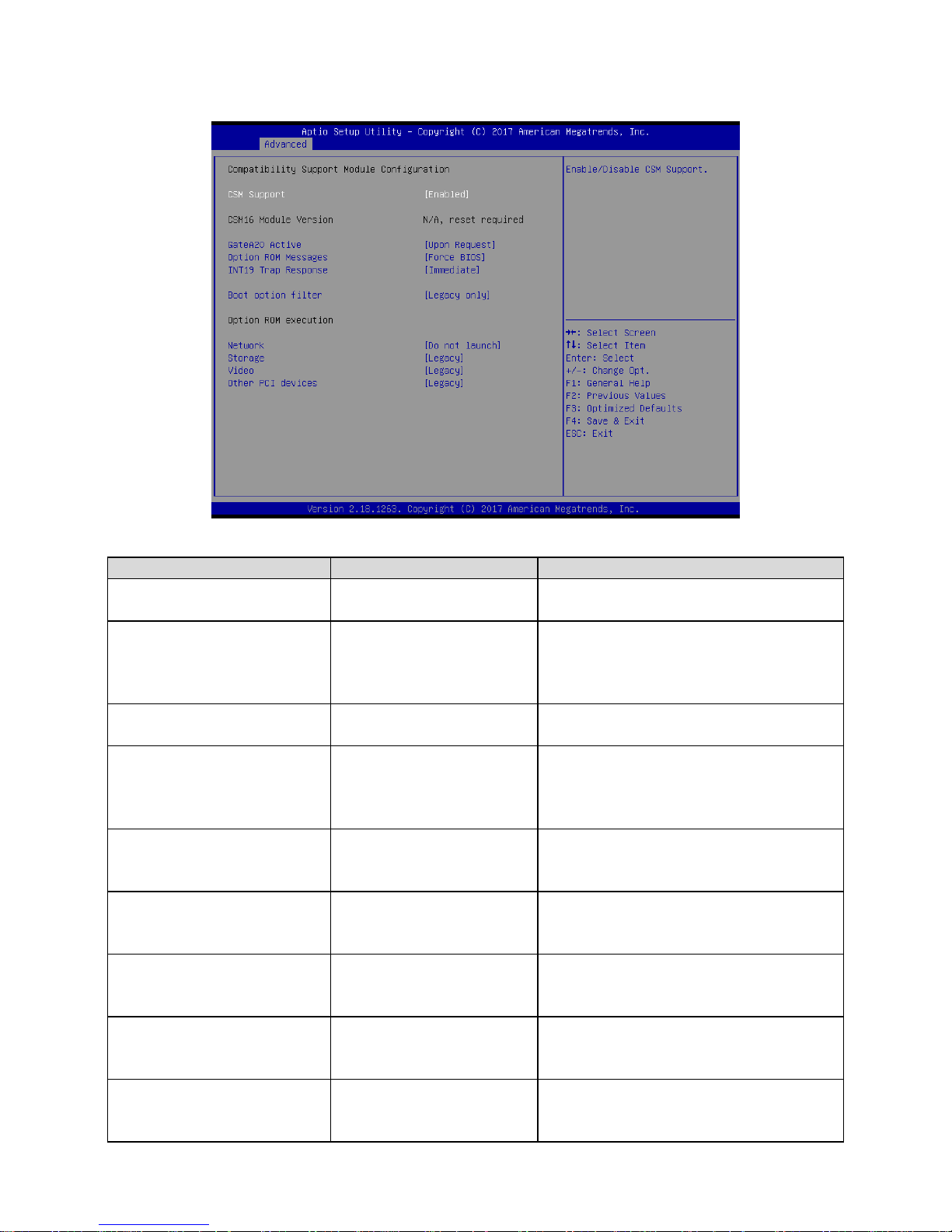

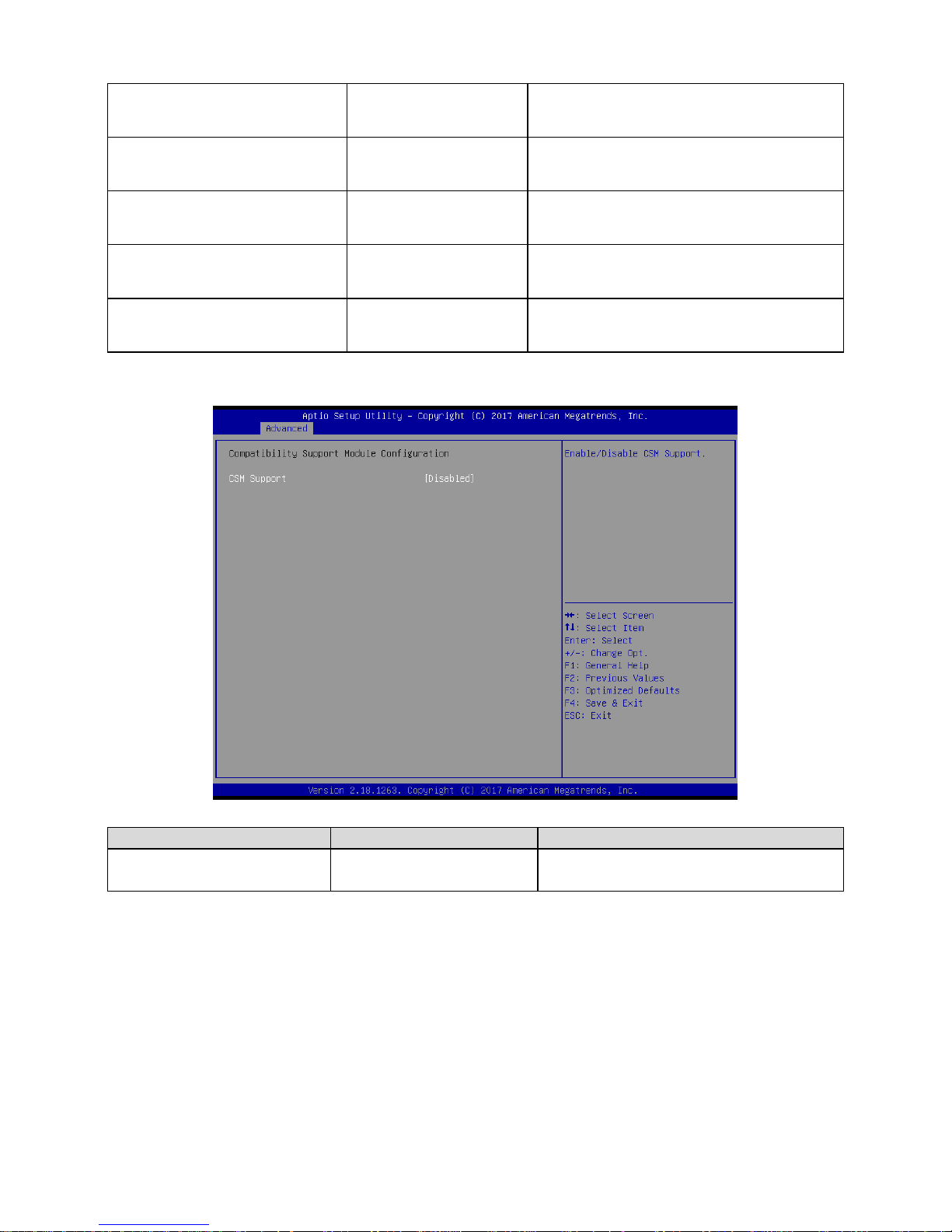

3.6.2.14 CSM Configuration ................................................................................................................ 68

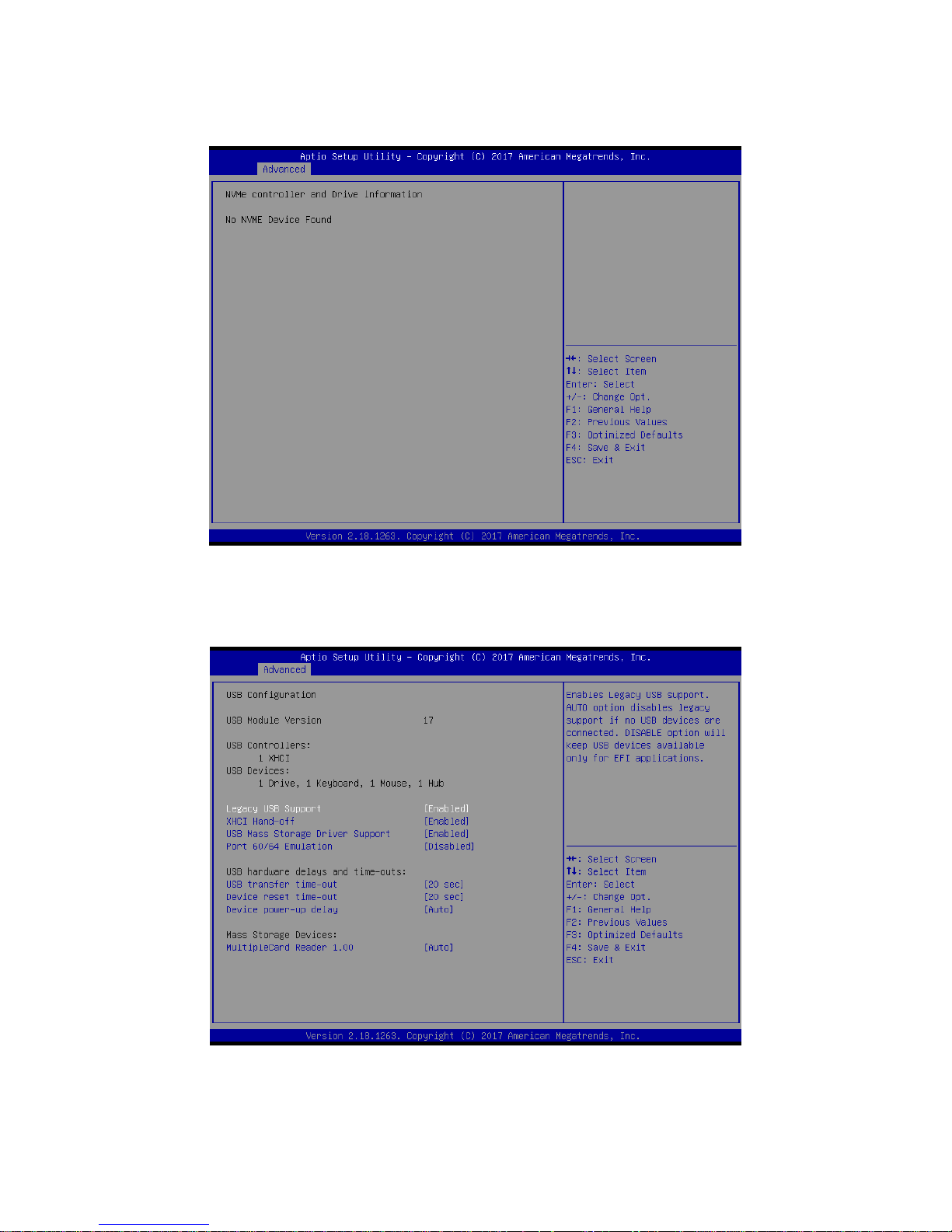

3.6.2.15 NVMe Configuration .............................................................................................................. 70

3.6.2.16 USB Configuration ................................................................................................................. 70

3.6.3 Chipset.......................................................................................................................................... 72

3.6.3.1 System Agent (SA) Configuration .......................................................................................... 72

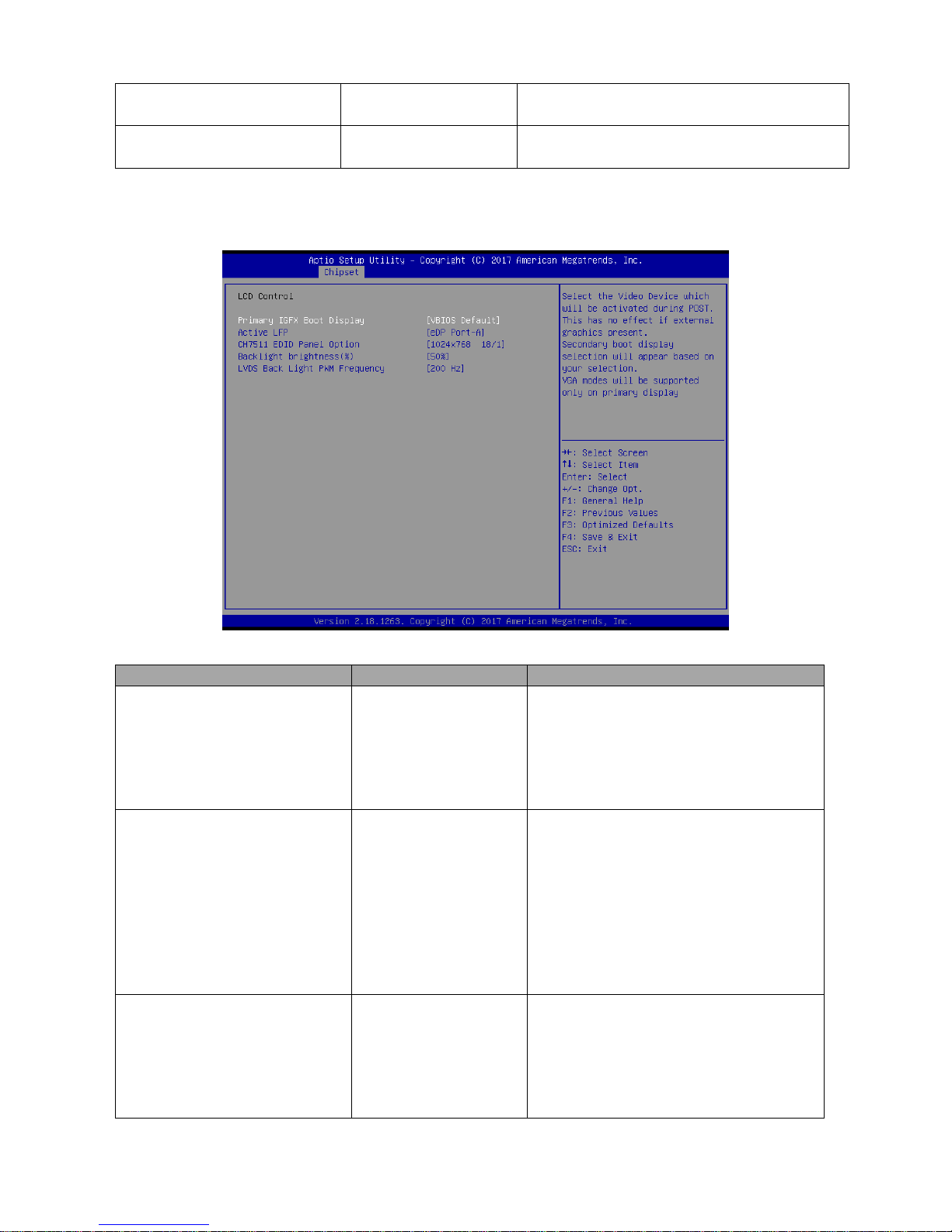

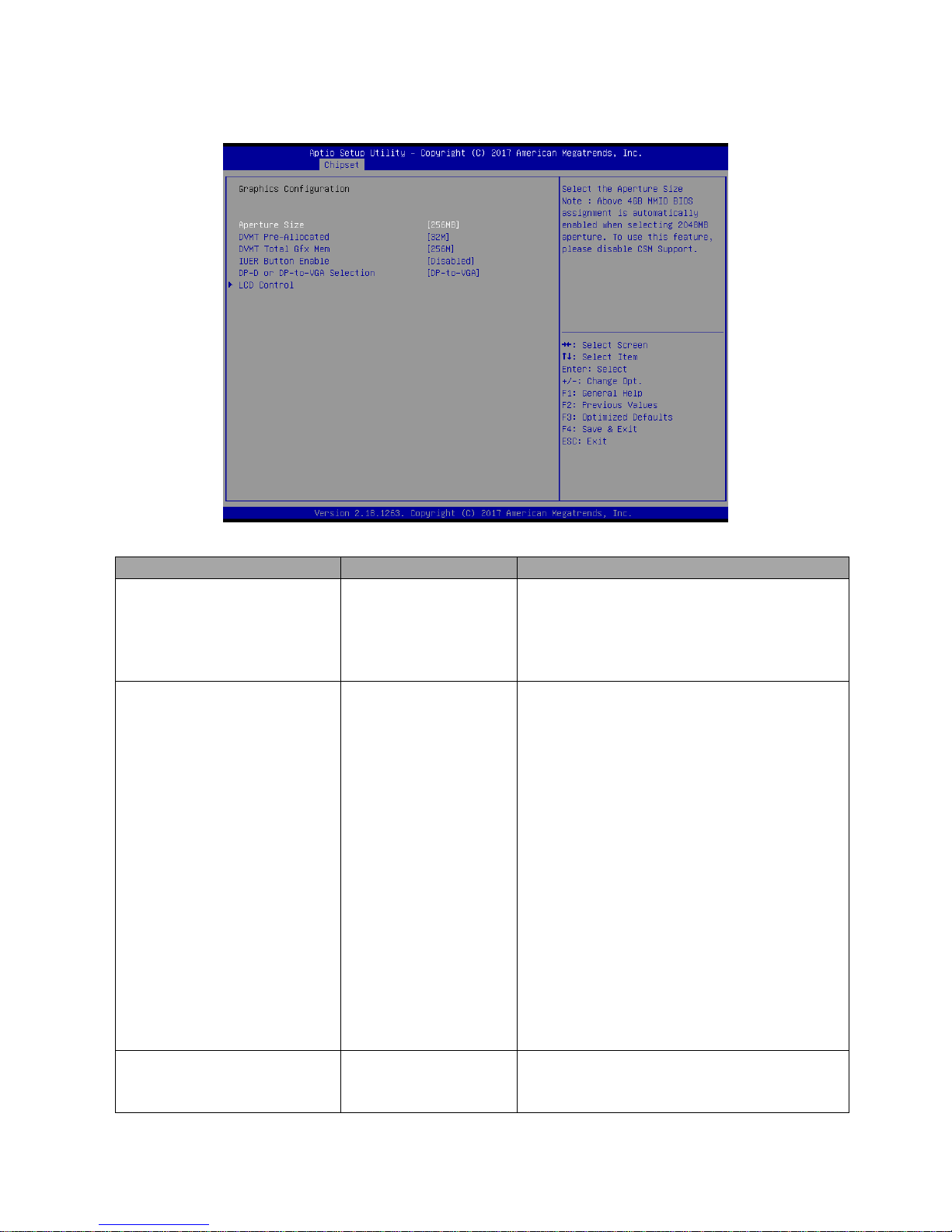

3.6.3.1.1 Graphics Configuration .......................................................................................................... 73

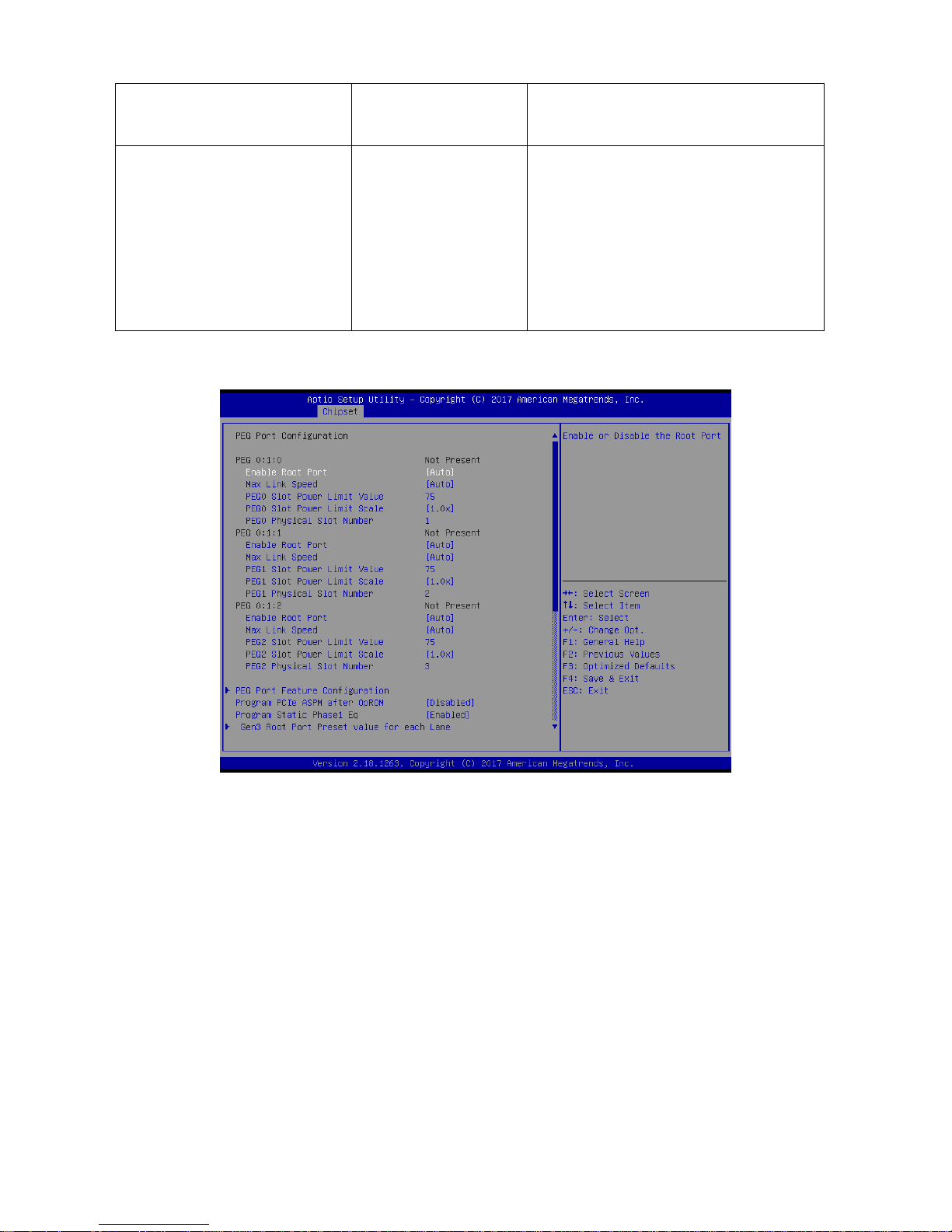

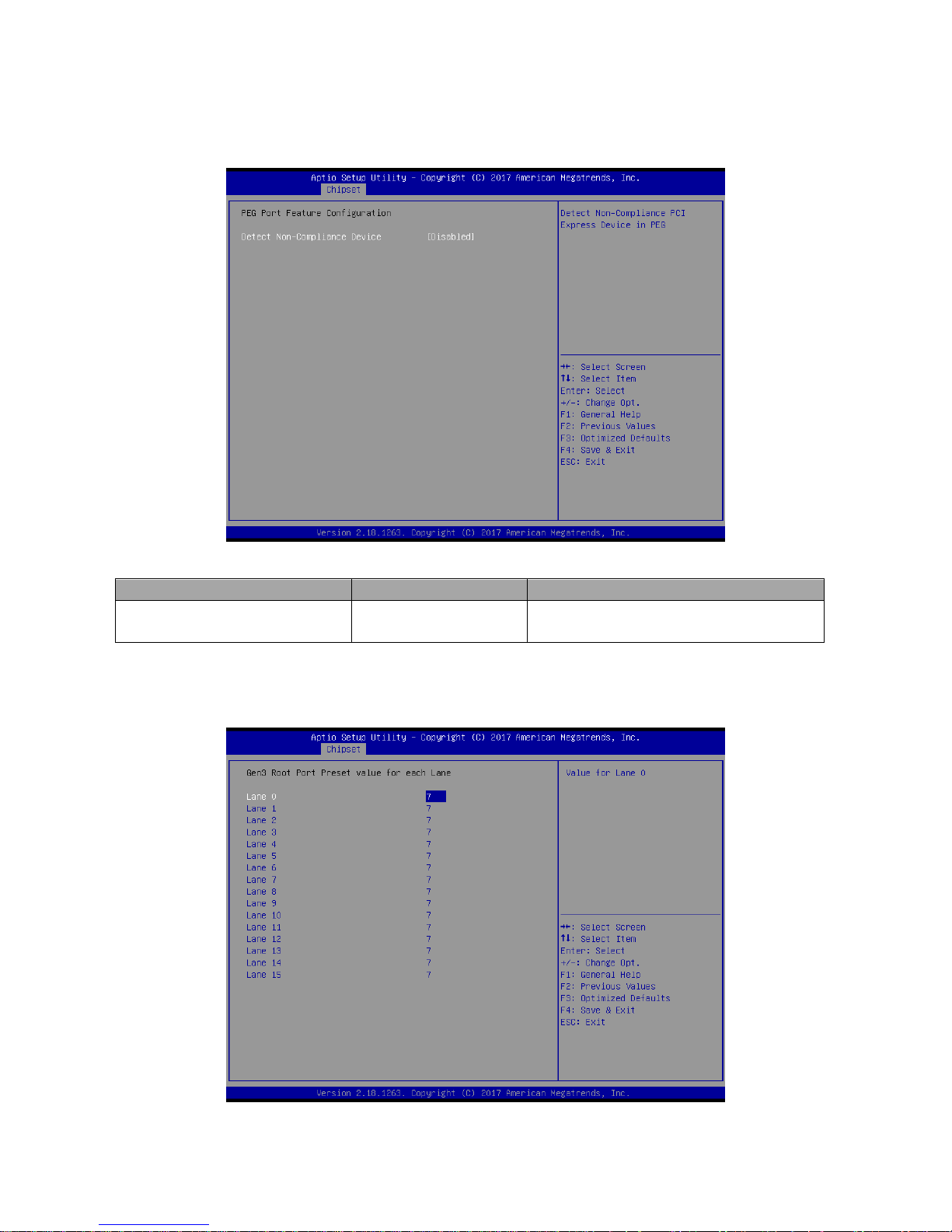

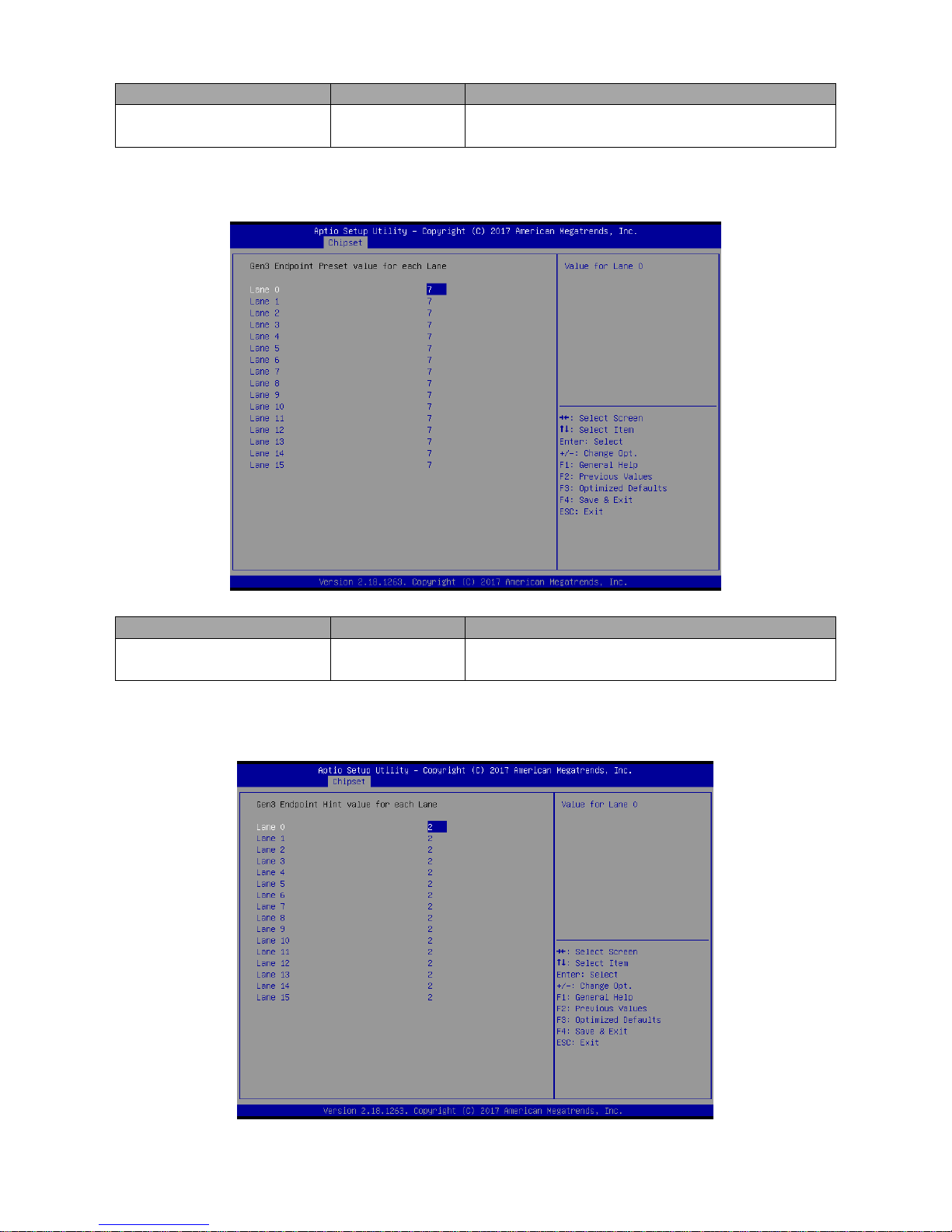

3.6.3.1.2 PEG Port Configuration ......................................................................................................... 76

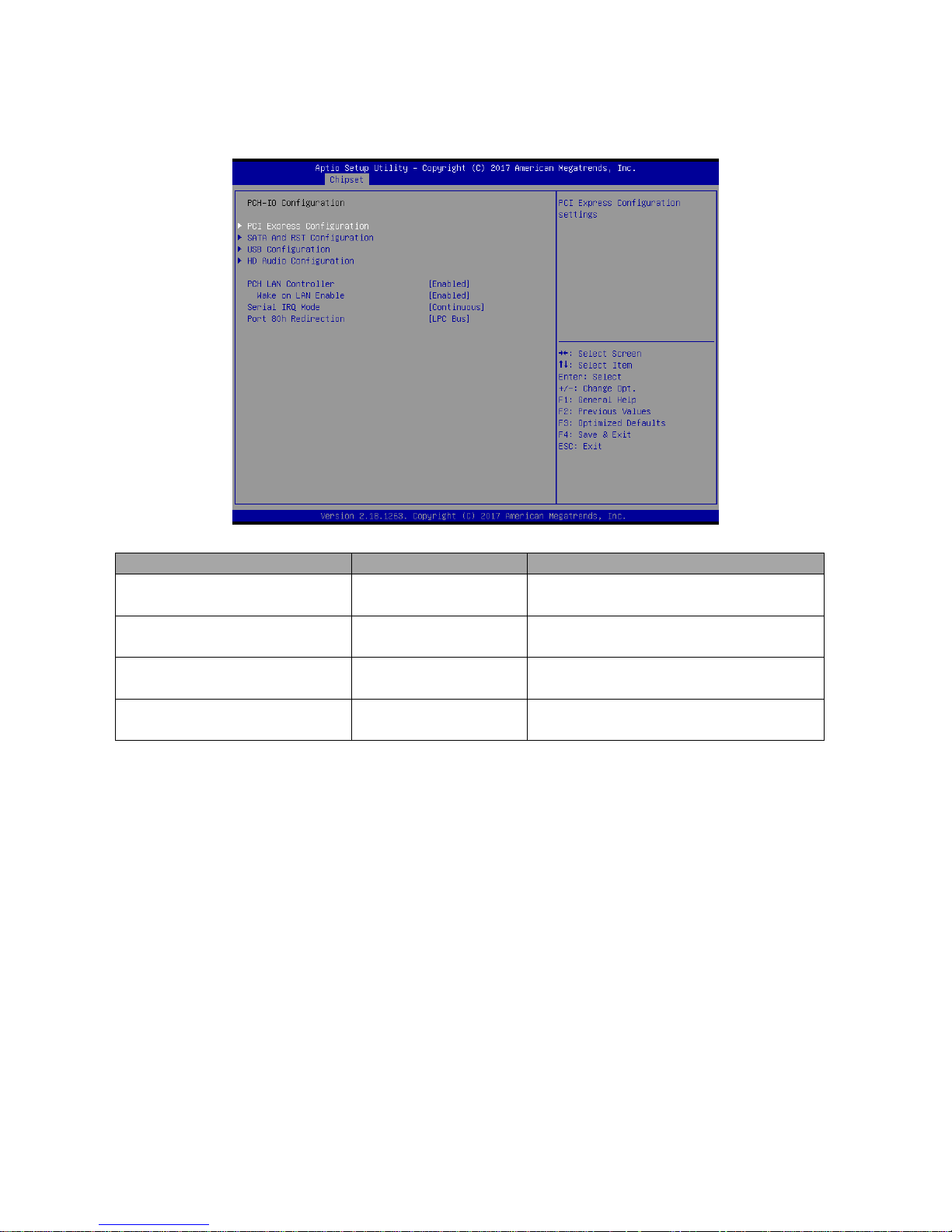

3.6.3.2 PCH-IO Configuration ............................................................................................................ 82

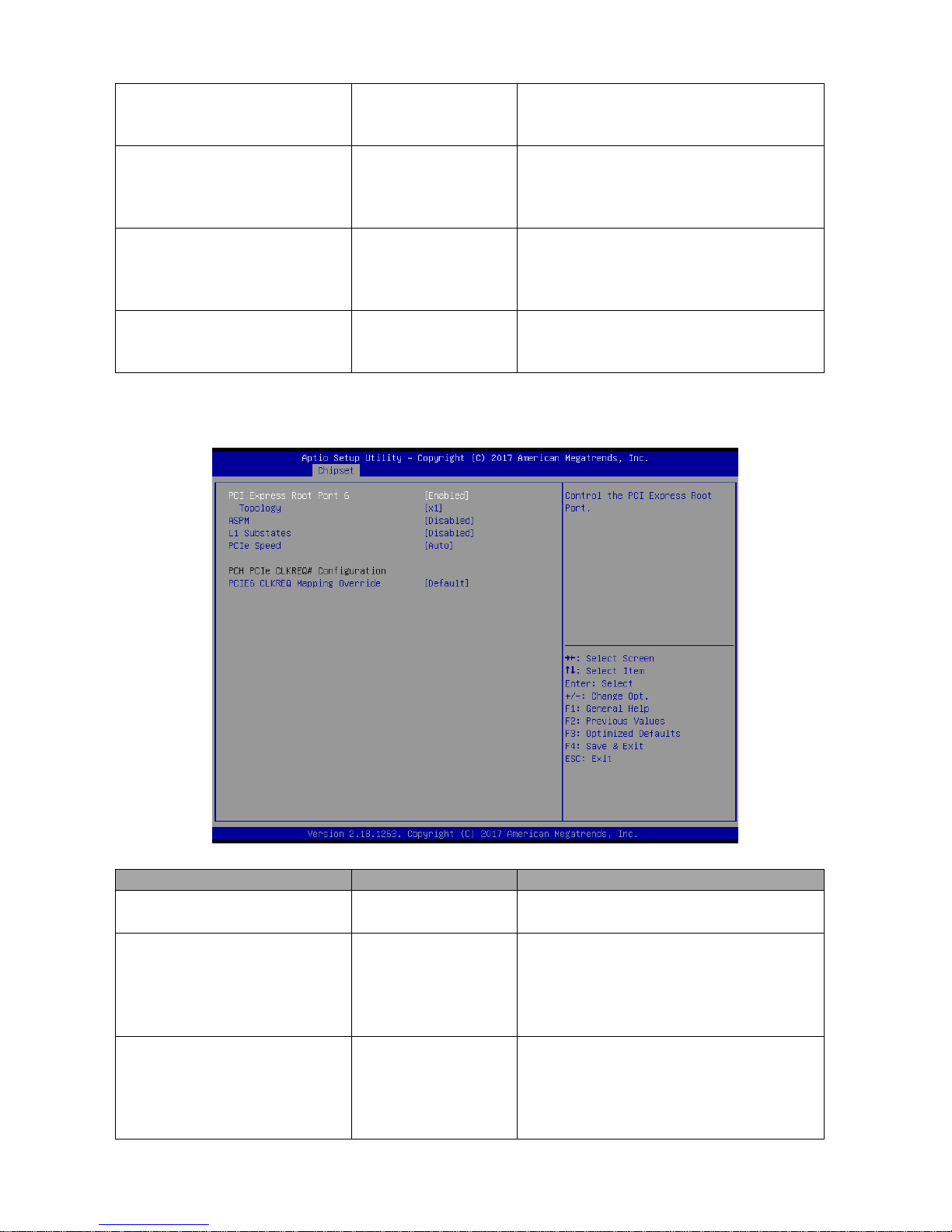

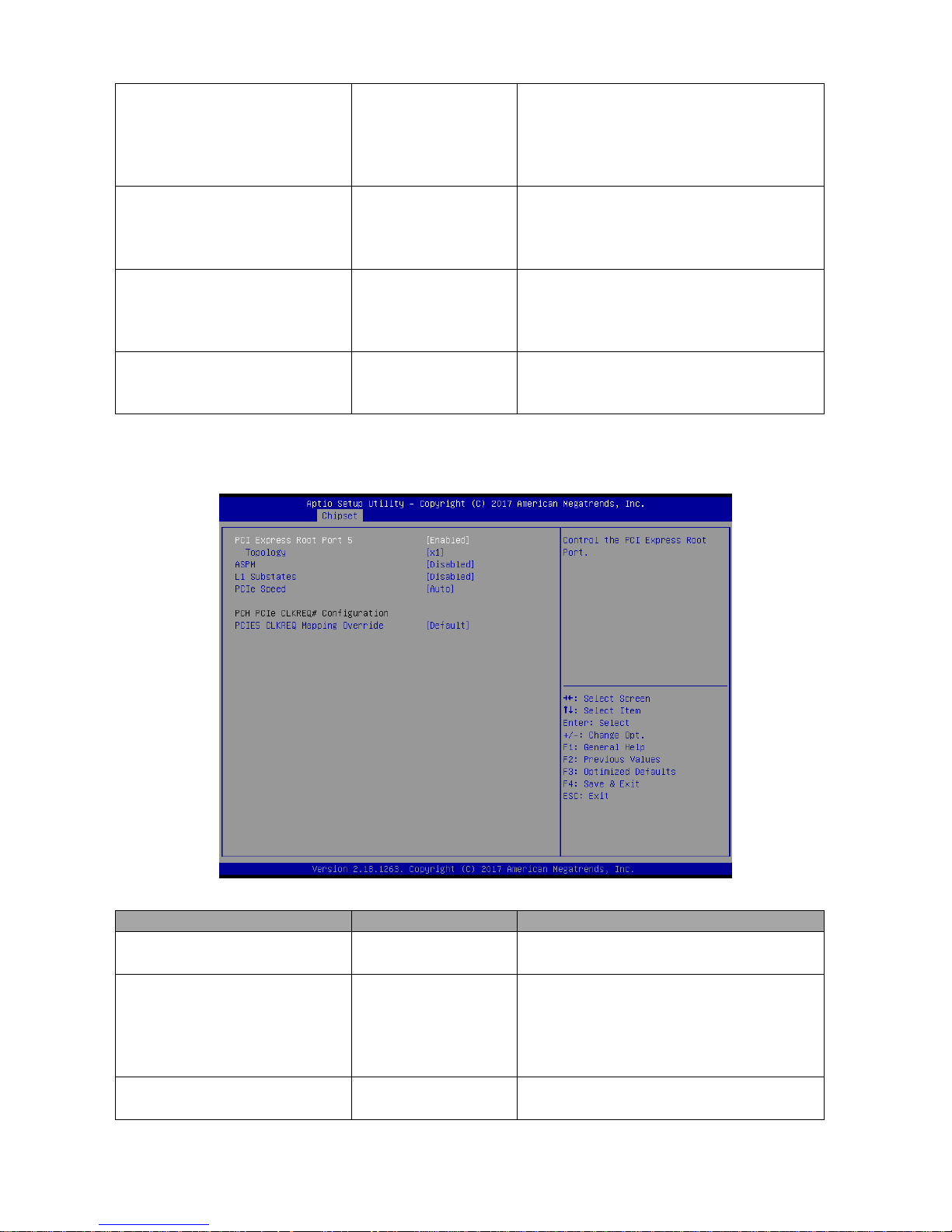

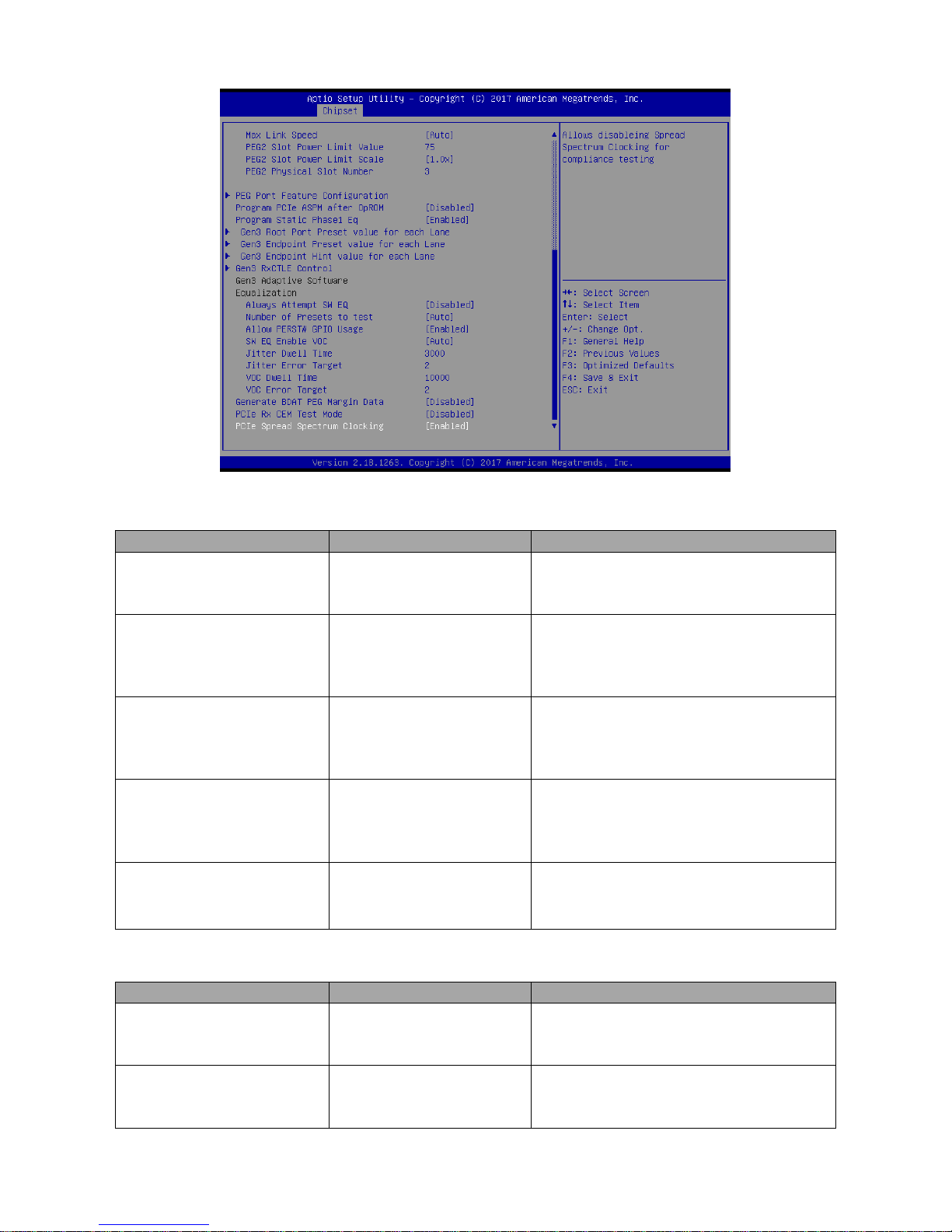

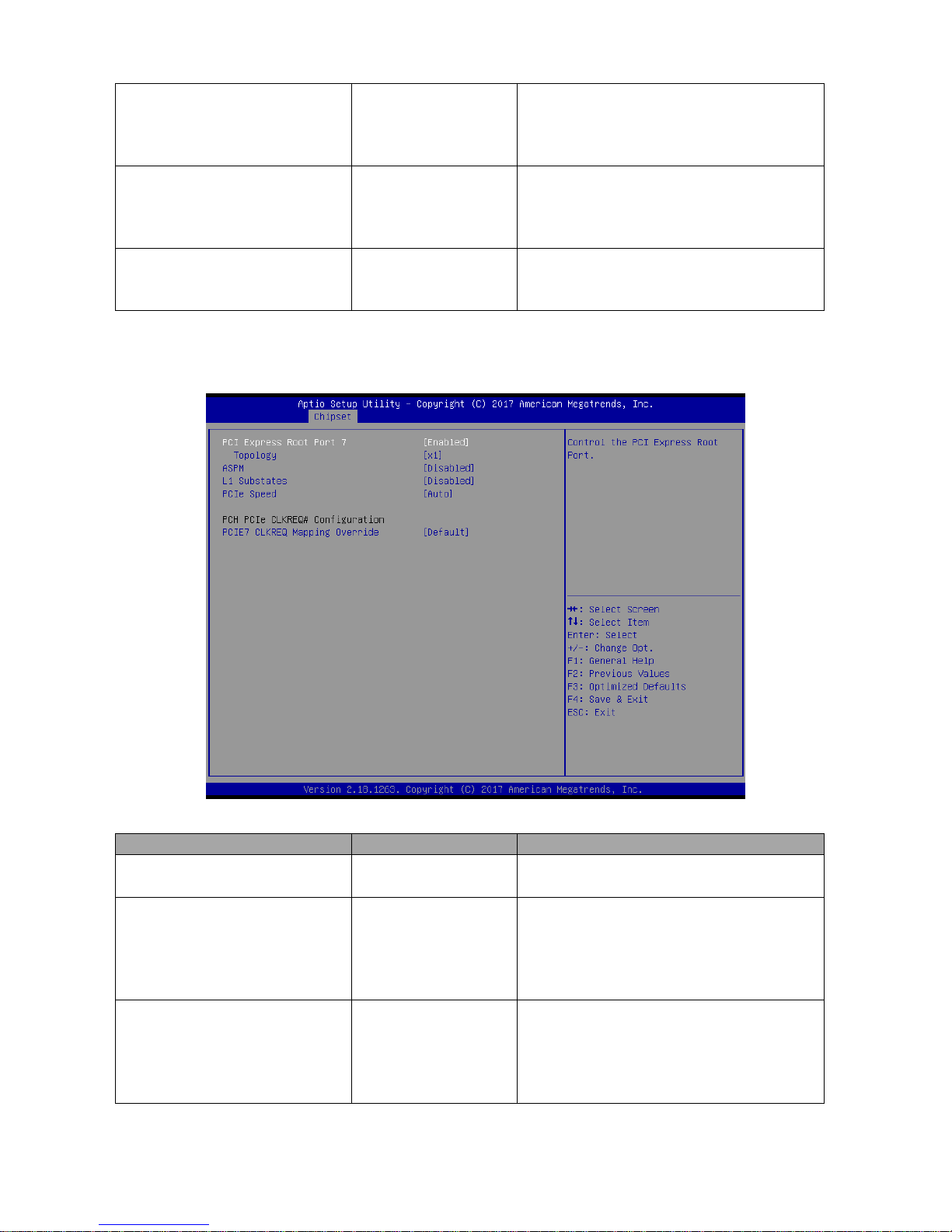

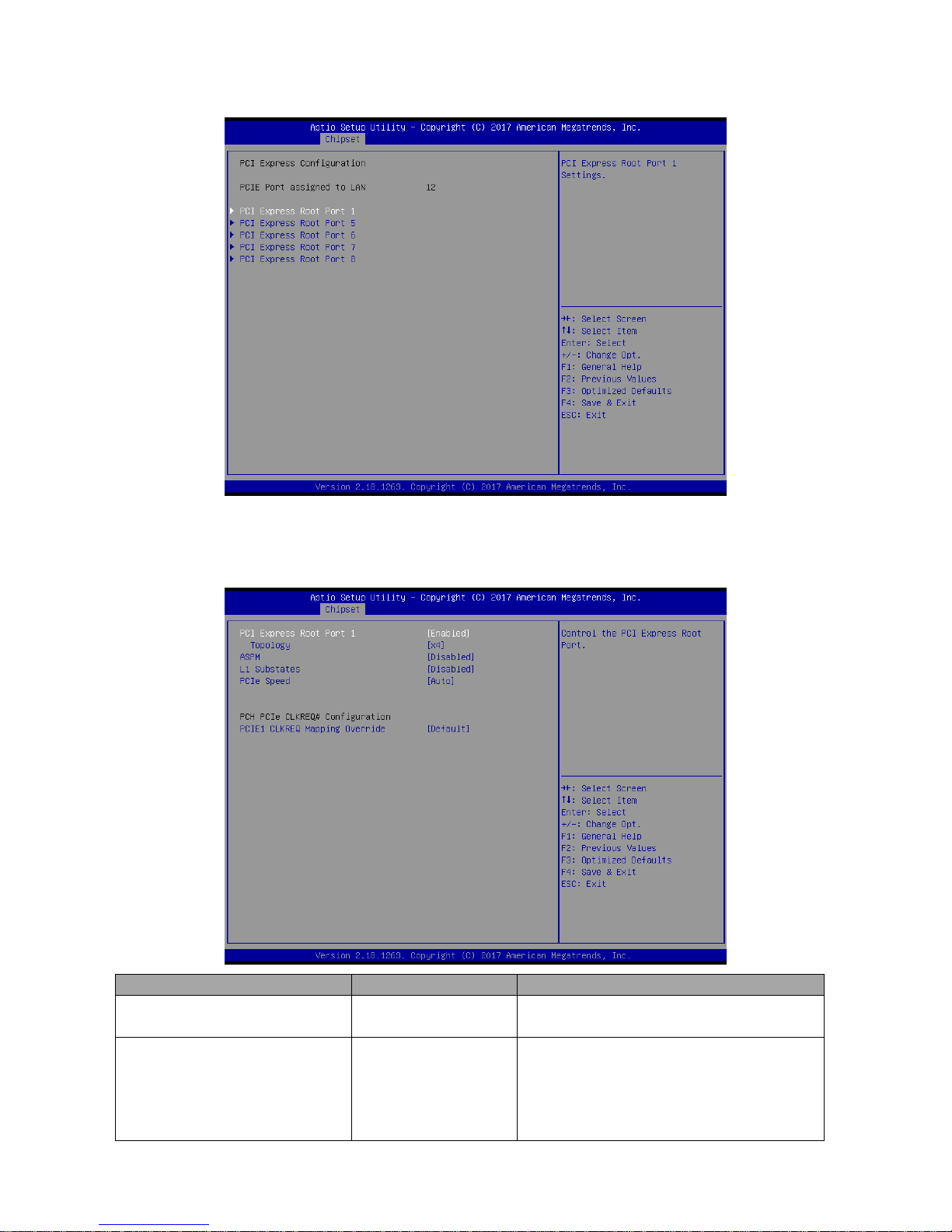

3.6.3.2.1 PCI Express Configuration .................................................................................................... 83

3.6.3.2.2 SATA And RST Configuration ............................................................................................... 88

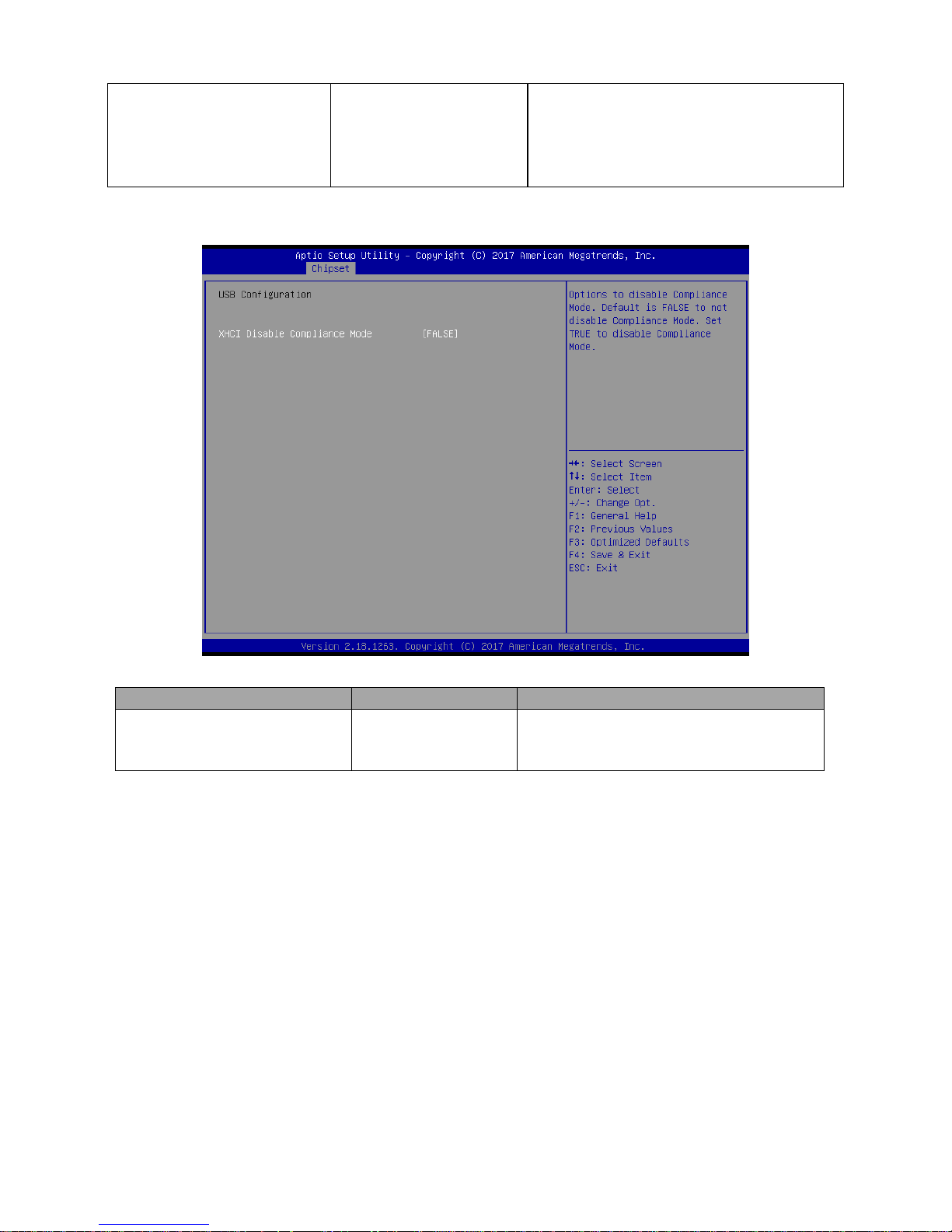

3.6.3.2.3 USB Configuration ................................................................................................................. 89

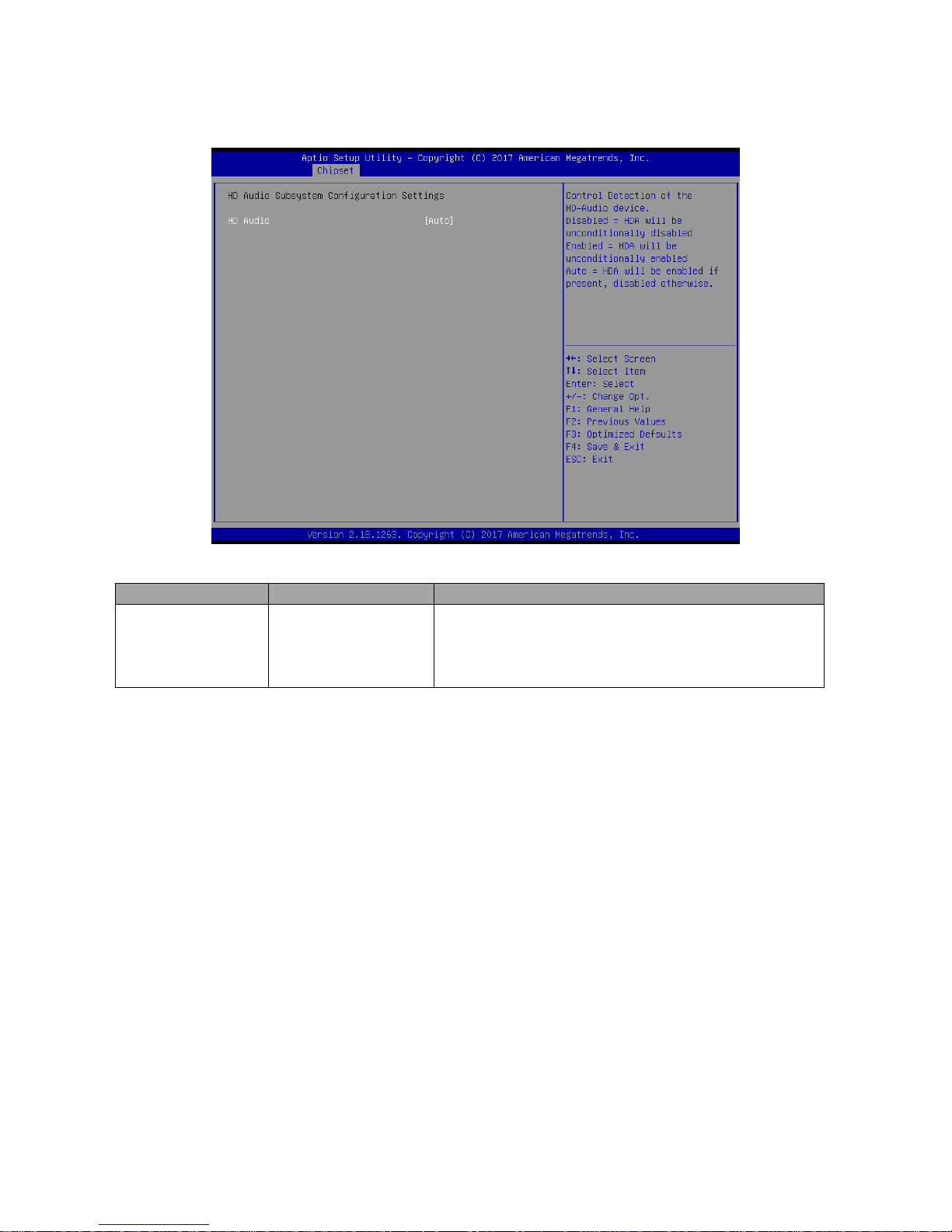

3.6.3.2.4 HD Audio Configuration ......................................................................................................... 90

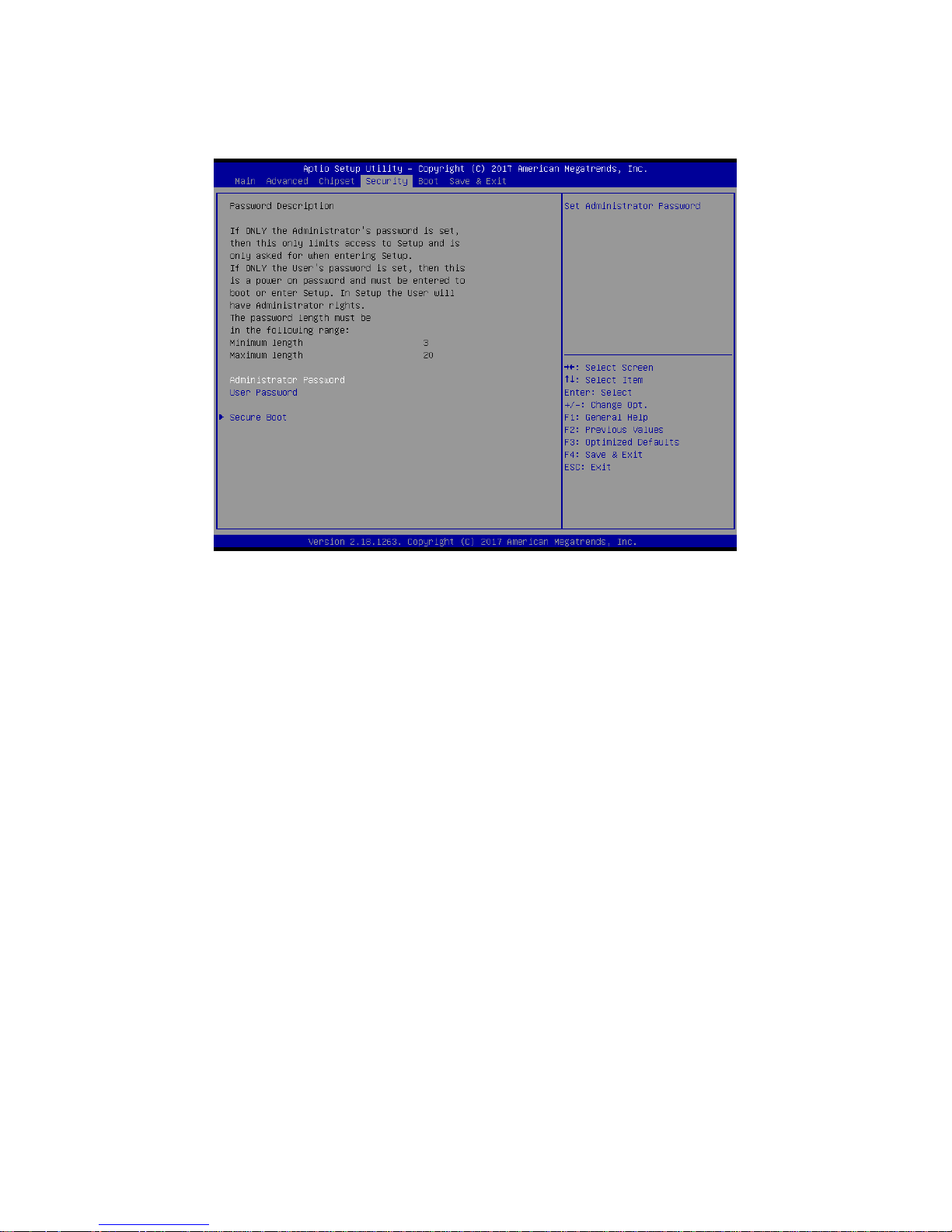

3.6.4 Security ......................................................................................................................................... 91

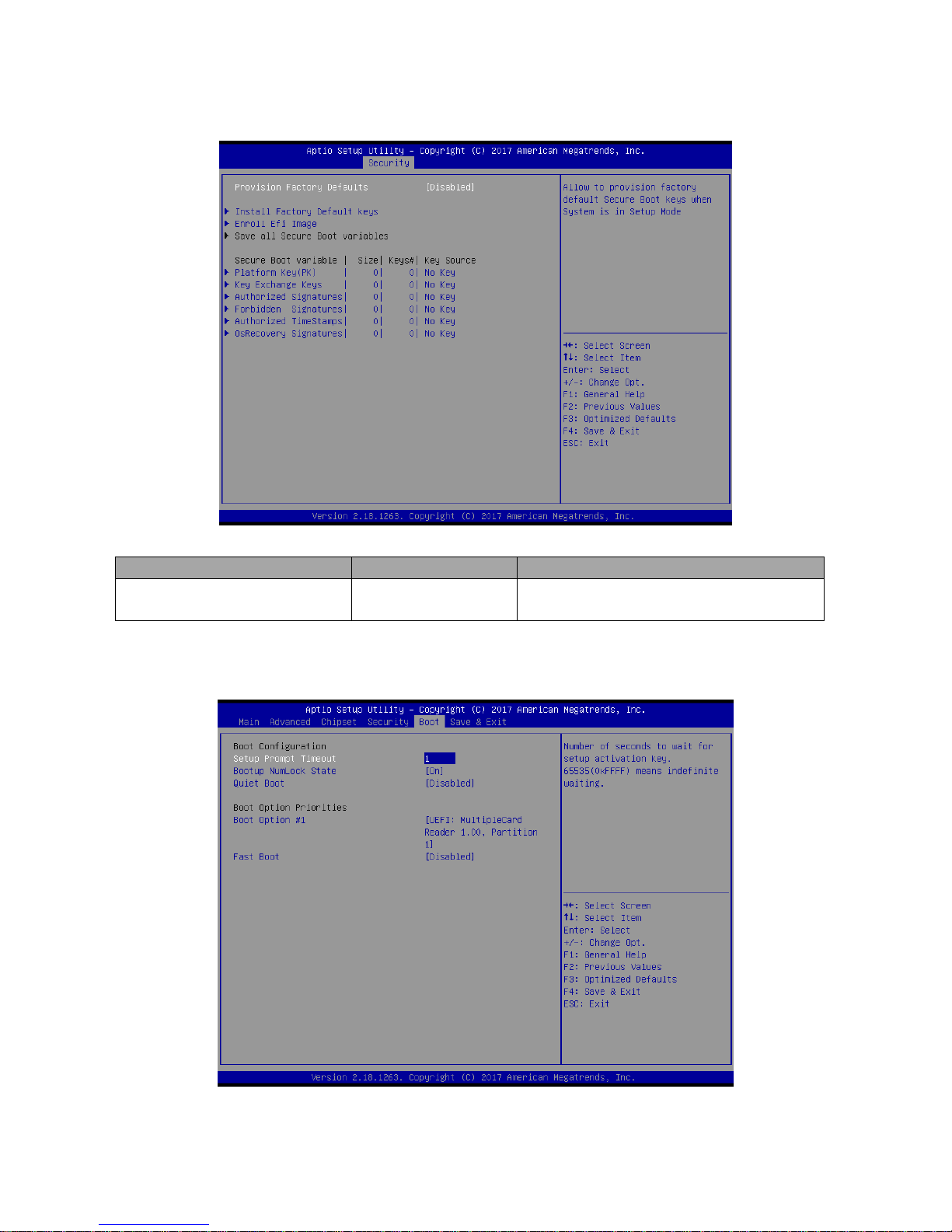

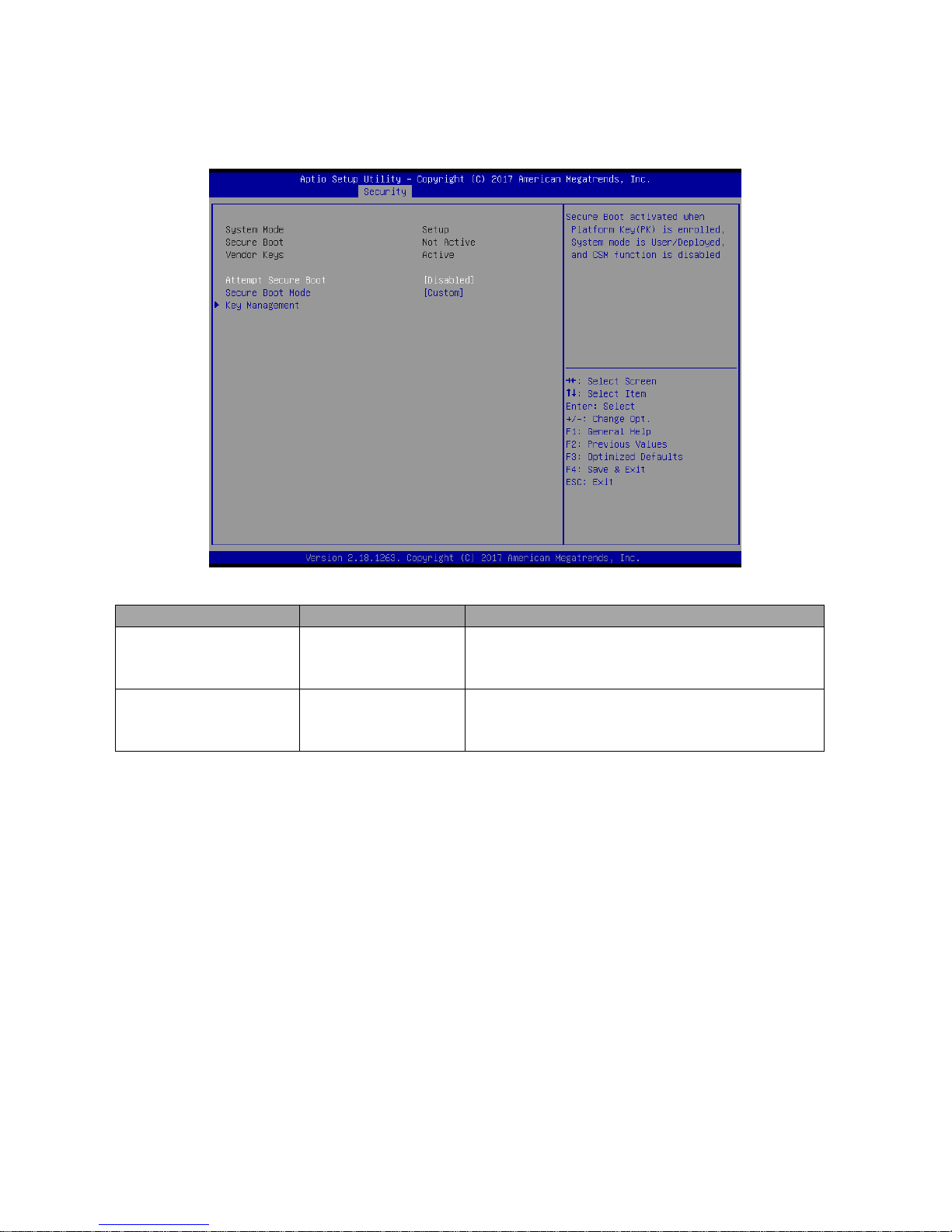

3.6.4.1 Secure Boot ........................................................................................................................... 92

3.6.4.1.1 Key Management ..................................................................................................................... 93

3.6.5 Boot .............................................................................................................................................. 93

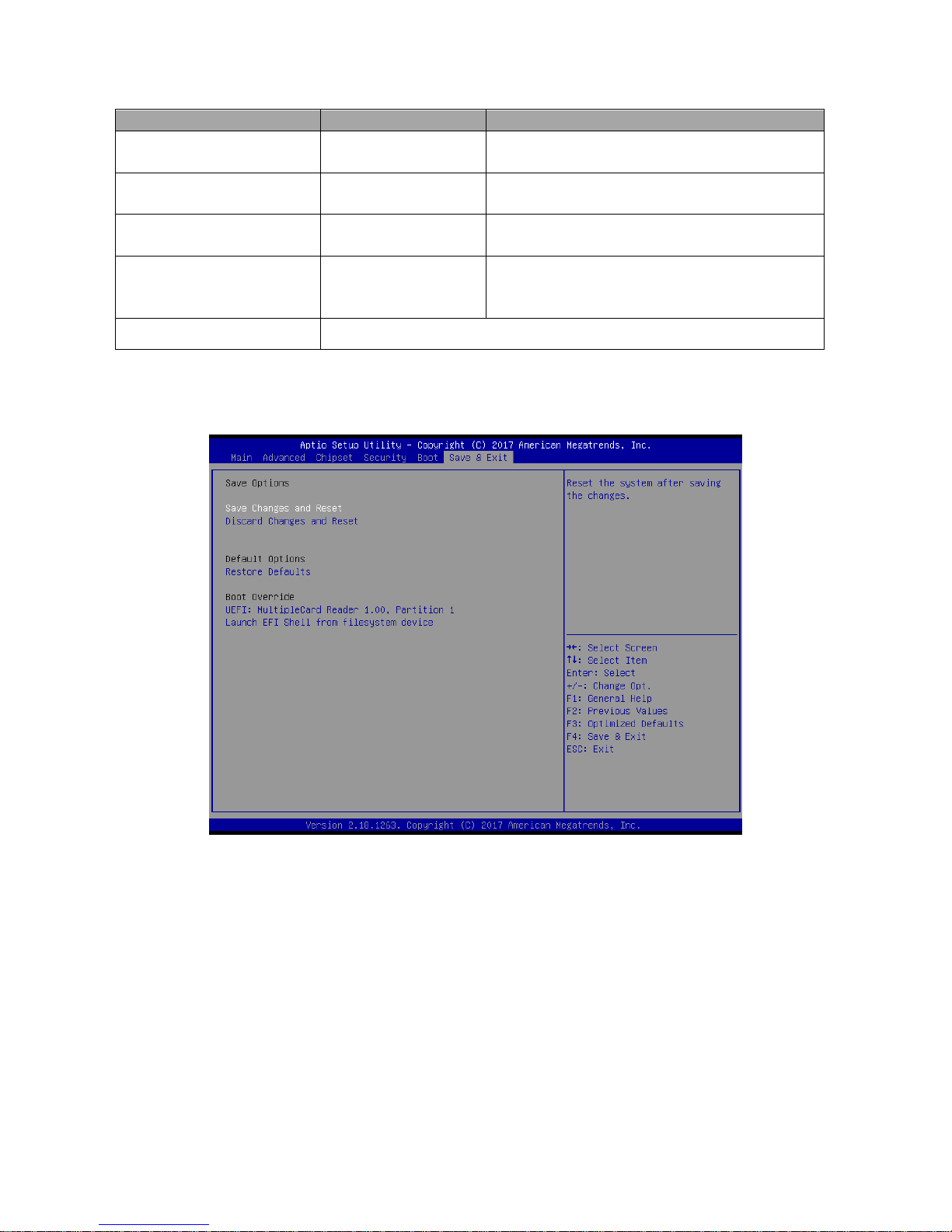

3.6.6 Save and exit ................................................................................................................................ 94

3.6.6.1 Save Changes and Reset ...................................................................................................... 94

3.6.6.2 Discard Changes and Reset .................................................................................................. 94

3.6.6.3 Restore Defaults .................................................................................................................... 95

3.6.6.4 Launch EFI Shell from filesystem device .............................................................................. 95

4. Drivers Installation....................................................................................................... 96

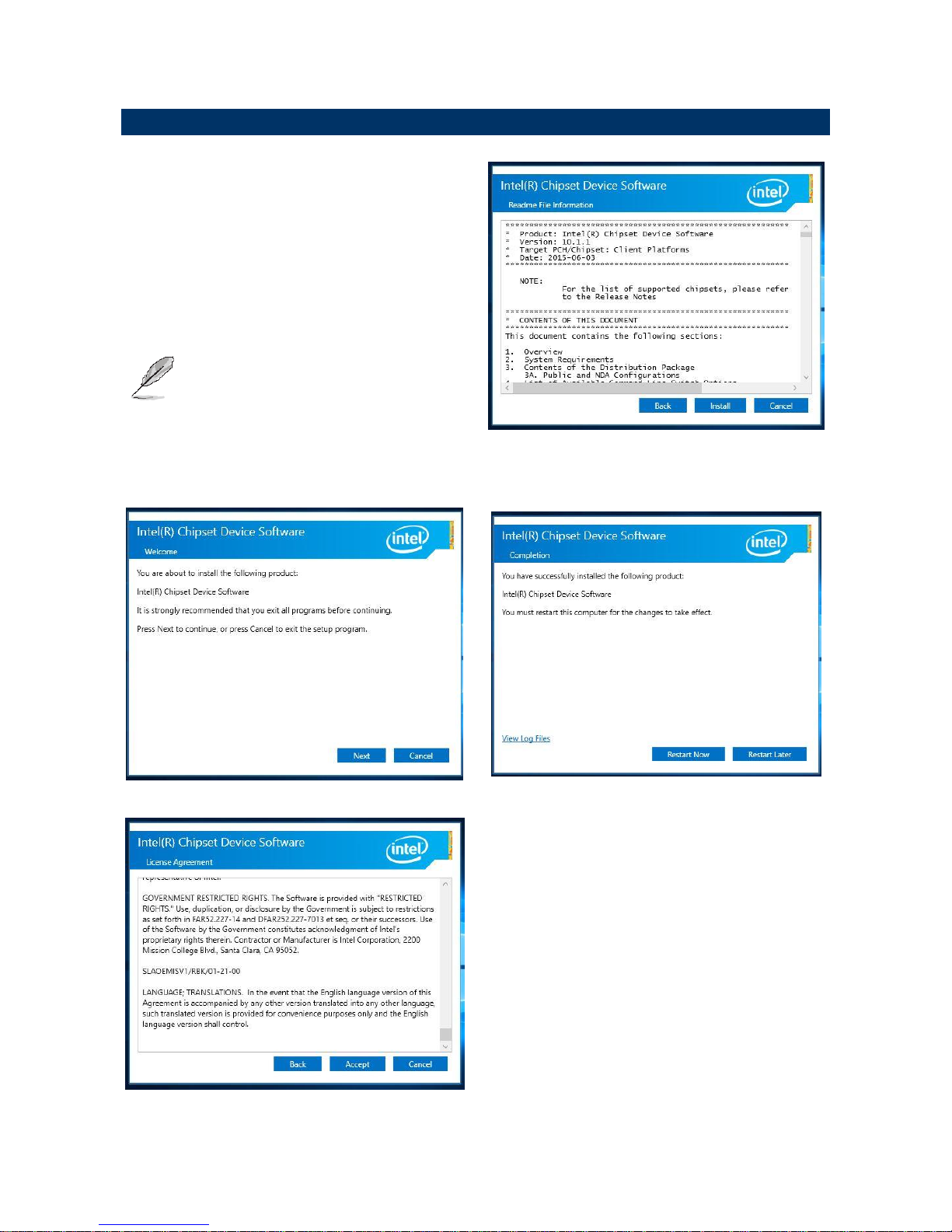

4.1 Install Chipset Driver ............................................................................................... 97

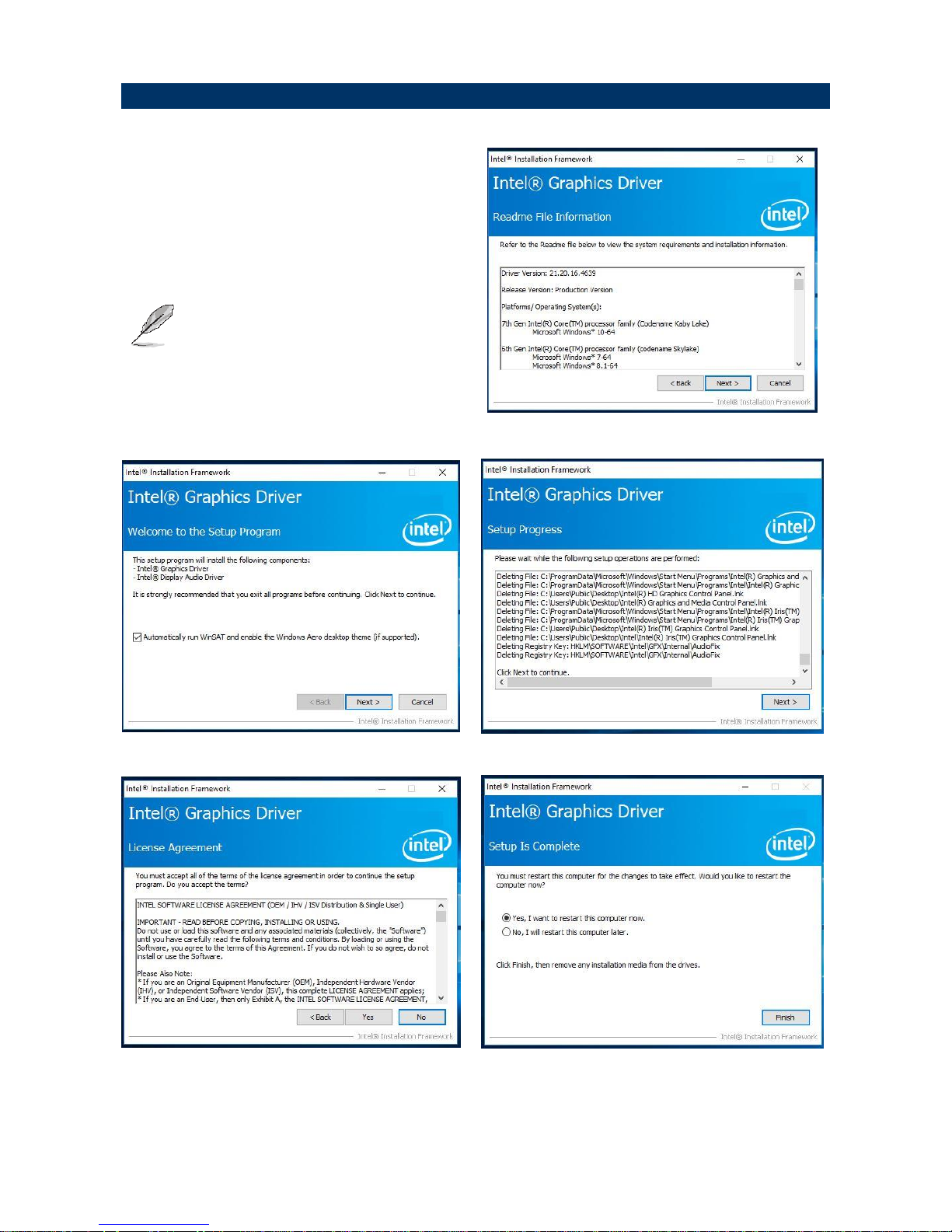

4.2 Install Display Driver ............................................................................................... 98

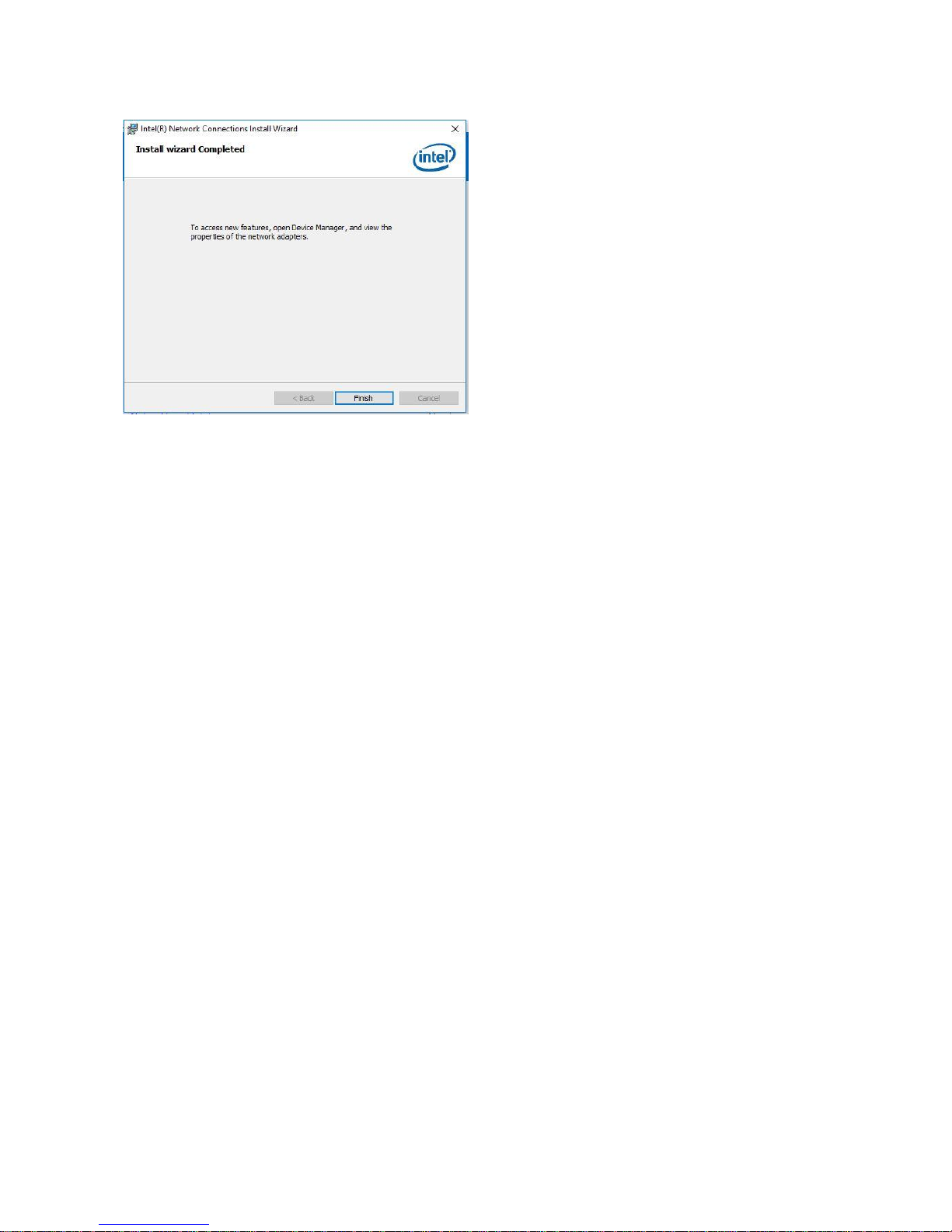

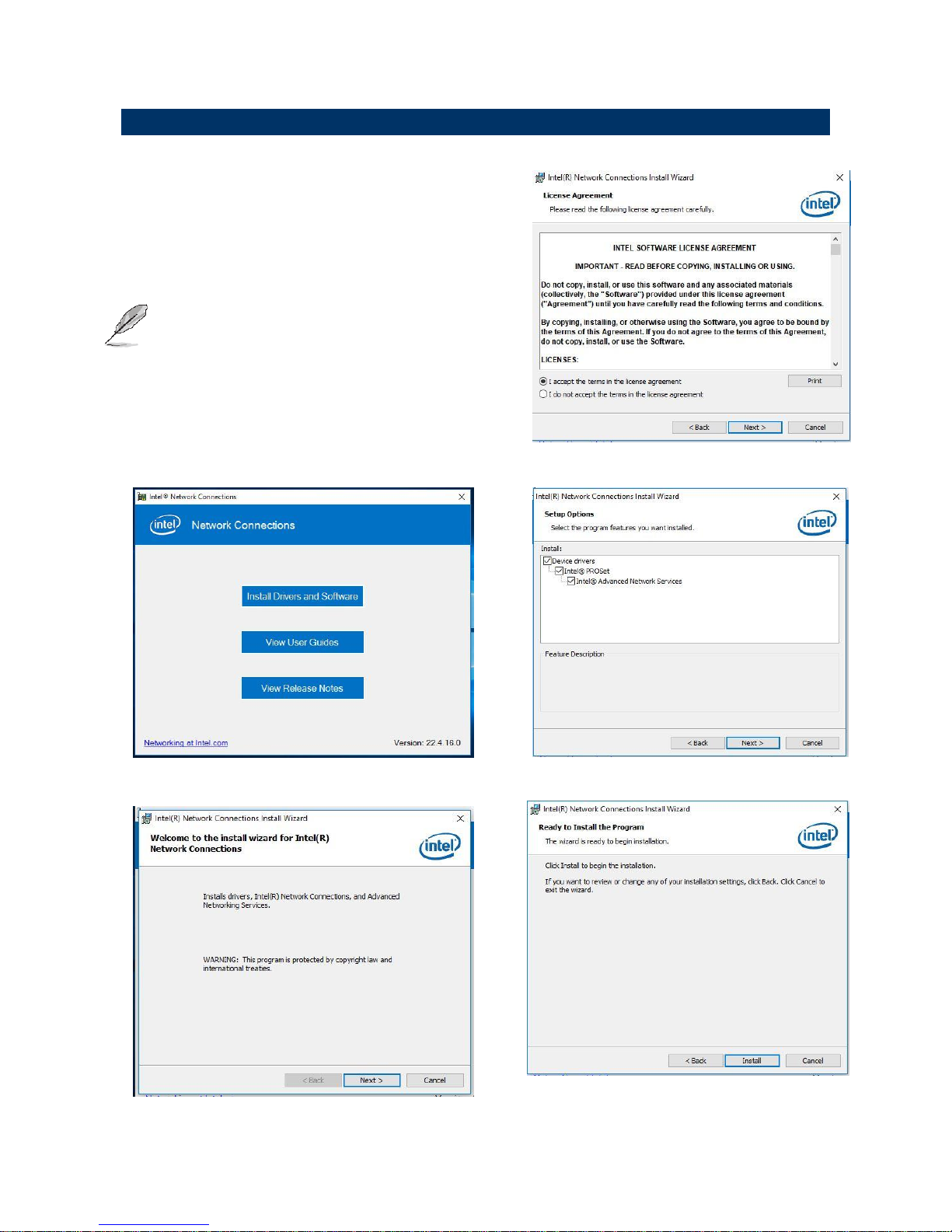

4.3 Install LAN Driver (For Intel I219LM) ....................................................................... 99

4.4 Install ME Driver .................................................................................................... 101

4.5 Install Serial IO Driver ............................................................................................ 102

5. Mechanical Drawing .................................................................................................. 103

ESM-KBLH User’s Manual

7

1. Getting Started

1.1 Safety Precautions

Warning!

Always completely disconnect the power cord from your chassis whenever you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sudden power surges. Only experienced electronics personnel should open the PC chassis.

Caution!

Always ground yourself to remove any static charge before touching the CPU card. Modern electronic devices are very sensitive to static electric charges. As a safety precaution, use a grounding wrist strap at all times. Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis.

1.2 Packing List

Before you begin installing your single board, please make sure that the following materials have been shipped:

 1 x ESM-KBLH COMe Module  1 x Driver/Utility DVD-ROM  5 x Screws  1 x Desiccant

ESM-KBLH User’s Manual

8 ESM-KBLH User’s Manual

1.3 Document Amendment History

Revision

Date

By

Comment

1st

August 2017

Initial Release

ESM-KBLH User’s Manual

9

1.4 Manual Objectives

This manual describes in details of the ESM-KBLH Single Board.

We have tried to include as much information as possible but we have not duplicated information that is provided in the standard IBM Technical References, unless it proved to be necessary to aid in the understanding of this board.

We strongly recommend that you study this manual carefully before attempting to set up ESM-KBLH series or change the standard configurations. Whilst all the necessary information is available in this manual we would recommend that unless you are confident, you contact your supplier for guidance.

Please be aware that it is possible to create configurations within the NVRAM that make booting impossible. If this should happen, clear the NVRAM settings, (see the description of the Jumper Settings for details).

If you have any suggestions or find any errors regarding this manual and want to inform us of these, please contact our Customer Service department with the relevant details.

ESM-KBLH User’s Manual

10 ESM-KBLH User’s Manual

1.5 System Specifications

System

CPU

Onboard IOTG 7th Generation Intel® Core™ Processors Kaby Lake-H Platform CoreTM i7-7820EQ 3GHz/45W CoreTM i5-7440EQ 2.9GHz/45W CoreTM i3-7100E 2.9GHz/35W

BIOS

AMI uEFI BIOS, 128 Mbit SPI Flash ROM iAMT (Optional)

System Chipset

Intel QM175

I/O Chip

EC(IT8528E)

System Memory

Two 260-pin SODIMM DDR4 2400 / 2133 SDRAM slot up to 32GB

Watchdog Timer

H/W Reset, 1sec. ~ 65535sec. and 1sec./step

H/W Status Monitor

Monitoring System Temperature, Voltage and FAN Status with Auto Throttling Control

Expansion

8 x PCIe * 1 (IBL #546717)

I/O

MIO

4 x SATAIII (Support RAID0, 1, 5, 10), LPC, I2C, SPI, SMBus, 2 x UART(2-wire), SDIO (optional)

USB

8 x USB 2.0, 4 x USB 3.0

GPIO

8bit GPIO

Display

Chipset

Intel® Kabylake Processor integrated Graphics

Resolution

HDMI 1.4: 4096 x 2160 @24Hz (only one display output) DP 1.2: 4096 x 2304 @60Hz (only one display output) eDP 1.4 (optional): 4096 x 2304 @60Hz (only one display output) LVDS (via eDP-to-LVDS): 1920 x 1080 @60Hz VGA (via DP-to-VGA): 1920 x 1080 @60Hz

Multiple Display

Active 3 Display Combinations : IBL#567387 rev 1.1 page 74

Display1

Display2

Display3

DP

HDMI

DP

VGA*

DP

HDMI

ESM-KBLH User’s Manual

11

DVI

HDMI

DVI

HDMI

Note: *For VGA, a DP to VGA converter is required.

Display1

Display2

Display3

eDP

DP

eDP

DP

HDMI

eDP

HDMI

DP

eDP

HDMI

eDP

HDMI

DVI

eDP

DVI

HDMI

eDP

DVI

DP

eDP

DP

DVI

Note: Depends on vary carrier board.

HDMI

HDMI 1.4

LCD Interface

LVDS via CH7511B VGA via RTL2168 (DP to VGA)

Audio

Audio Amp

intel HD audio I/F

Ethernet

Ethernet Interface

Intel I219LM Gigabit Ethernet PHY

Mechanical &

Environmental

Power Requirement

+9 ~ +19V

ACPI

Single power ATX Support S0, S3, S4, S5 ACPI 5.0 Compliant

Power Type

AT/ATX

Operating Temp.

Standard: 0 to 60C

Storage Temp.

-40°C to 75°C

Operating Humidity

0% ~ 90% relative humidity, non-condensing

Size (L x W)

125 mm x 95 mm

Weight

0.44lbs(0.2kg)

Note: Specifications are subject to change without notice.

ESM-KBLH User’s Manual

12 ESM-KBLH User’s Manual

1.6 Architecture Overview—Block Diagram

The following block diagram shows the architecture and main components of ESM-KBLH.

COMe CD Connector Type 6

COMe AB Connector Type 6

IOTG 7th

Generation

Intel® Core™

i7/i5/i3

QM175

DMI

DDR4 ChA

2 x DDR4

2400/2133MHz 260P

SO DIMM Socket upto

32GB

USB3.0 x 4

PEG x 1

1*PCIex16, 2*PCIex8,

1*PCIex8+2*PCIex4

eDP/LVDS

eDP toLVDS

CH7511B

eDP

DDI 1

Resistor select

Switch

DDI 3

DP

DP to VGA

RTL2168

DDI 3

DDI 2

VGA

USB2.0 x 8

PCIex1 * 6

PCIex1

Intel

I219LM

LAN

HD Audio

4 x SATAIII

I2C

SM BUS

LPC

EC

WDT/FAN/HW.M/UART

SPI BUS

SPI Flash

PCIex1 * 2

TPM 2.0

Optional

DDR4 ChB

ESM-KBLH User’s Manual

13

2. Hardware Configuration

ESM-KBLH User’s Manual

14 ESM-KBLH User’s Manual

2.1 Product Overview

ESM-KBLH User’s Manual

15

ESM-KBLH User’s Manual

16 ESM-KBLH User’s Manual

2.2 Installation Procedure

This chapter explains you the instructions of how to setup your system.

1. Turn off the power supply.

2. Insert the DIMM module (be careful with the orientation).

3. Insert all external cables for hard disk, keyboard, mouse, USB etc. except for flat panel. A CRT monitor must be connected in order to change NVRAM settings to support flat panel.

4. Connect power supply to the board via the ATXPWR.

5. Turn on the power.

6. Enter the BIOS setup by pressing the delete key during boot up. Use the "Save & Exit \ Restore Defaults" feature.

7. If TFT panel display is to be utilized, make sure the panel voltage is correctly set before connecting the display cable and turning on the power.

ESM-KBLH User’s Manual

17

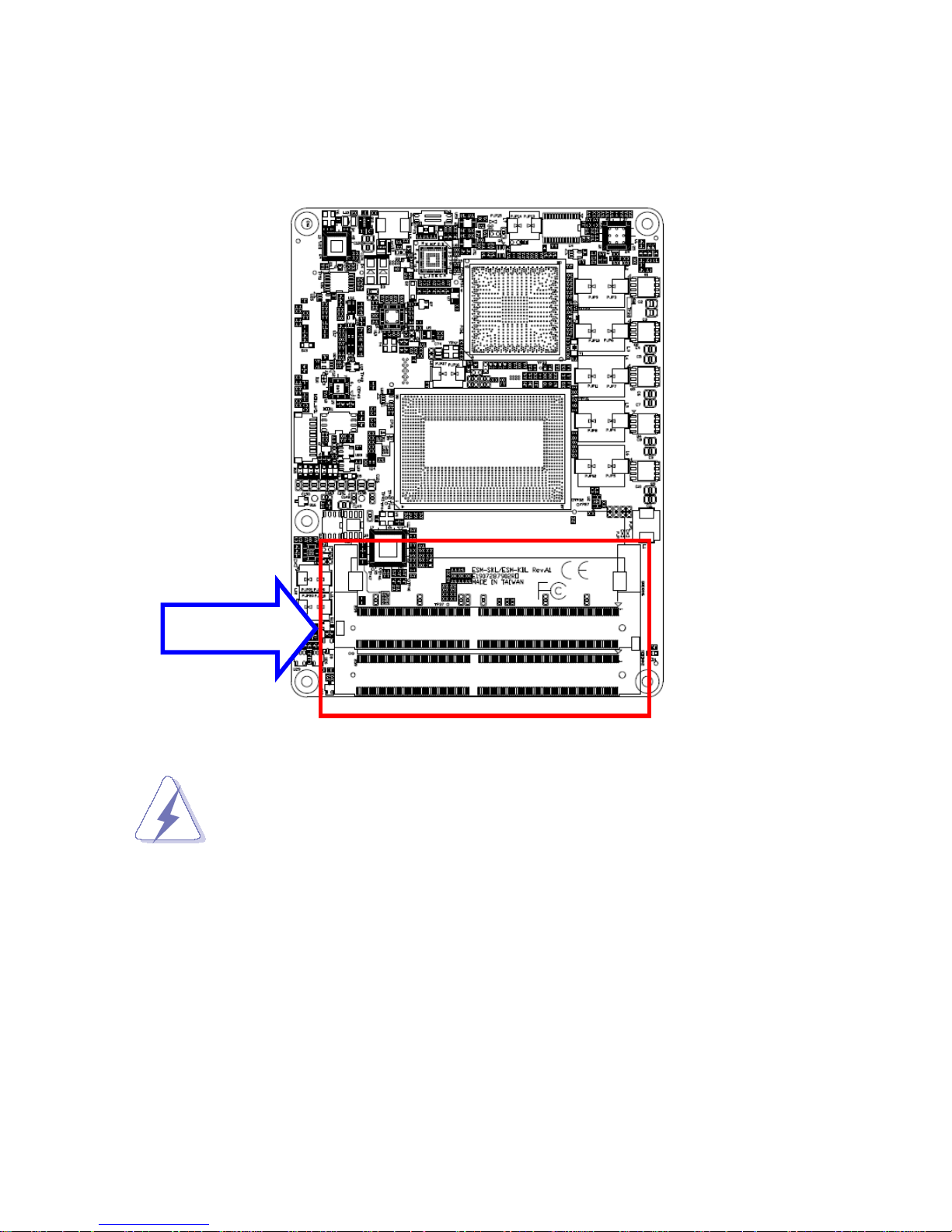

2.2.1 Main Memory

ESM-KBLH provides two 260-pin SODIMM socket, supports up to 32GB DDR4 2400/2133 SDRAM

Make sure to unplug the power supply before adding or removing DIMMs or other system components. Failure to do so may cause severe damage to board and components.

SODIMM

ESM-KBLH User’s Manual

18 ESM-KBLH User’s Manual

 Locate the SODIMM socket on the board.  Carefully hold two edges of the SODIMM module. avoid touching its connectors.  Align the notch key on the module with the rib on the slot.  Firmly press the modules into the socket which automatically snaps into the mounting

notch. Do not force the SODIMM module in with extra force as the SODIMM module only fits in one direction.

 To remove SODIMM modules, simultaneously push the two ejector tabs outward,

then pull out the SODIMM module.

Note:

(1) Please do not change any DDR4 SDRAM parameter in BIOS setup to increase

your system’s performance without acquiring technical information in advance.

(2) Static electricity can damage the electronic components of the computer or

optional boards. Before proceeding, ensure that you are discharged of static electricity by briefly touching a grounded metal object.

Mounting Notch

Notch Key

Ejector

260-pin DDR4 SODIMM

ESM-KBLH User’s Manual

19

2.3 Connector List

You can configure your board to match the needs of your application by setting jumpers. A jumper is the simplest kind of electric switch. It consists of two metal pins and a small metal clip (often protected by a plastic cover) that

slides over the pins to connect them. To “close” a jumper you connect the pins with the clip.

To “open” a jumper you remove the clip. Sometimes a jumper will have three pins, labeled 1,

2, and 3. In this case, you would connect either two pins.

The jumper settings are schematically depicted in this manual as follows:

A pair of needle-nose pliers may be helpful when working with jumpers. Connectors on the board are linked to external devices such as hard disk drives, a keyboard, or floppy drives. In addition, the board has a number of jumpers that allow you to configure your system to suit your application. If you have any doubts about the best hardware configuration for your application, contact your local distributor or sales representative before you make any changes.

The following tables list the function of each of the board’s jumpers and connectors.

Connectors

Label

Function

Note

BIOS_SPI1

(Reserved for BIOS programming)

5 x 2 header, pitch 2.00mm

CN1A

COM Express connector 1

CN1B

COM Express connector 2

SODIMM1

260-pin DDR4 SDRAM DIMM socket

SODIMM2

260-pin DDR4 SDRAM DIMM socket

SW1

AT/ATX mode selector

ESM-KBLH User’s Manual

20 ESM-KBLH User’s Manual

2.4 Setting Jumpers & Connectors

2.4.1 AT/ATX mode selector (SW1)

*Default

AT/ATX mode

AT mode*

ATX mode

OFF

1



ON 2 OFF

1



ON 2

2.4.1.1 Signal Description –AT/ATX mode selection

AT/ATX mode

Description

AT mode

Auto-power on, no need to press Power button to enable power on/off

ATX mode

Press the power button to enable power on/off

ESM-KBLH User’s Manual

21

2.4.2 COM Express Connector 1 (CN1A)

Signal

GND

A1

B1

GND

GBE0_MDI3-

A2

B2

GBE0_ACT#

GBE0_MDI3+

A3

B3

LPC_LFRAME#

GBE0_LINK100#

A4

B4

LPC_AD0

GBE0_LINK1000#

A5

B5

LPC_AD1

GBE0_MDI2-

A6

B6

LPC_AD2

GBE0_MDI2+

A7

B7

LPC_AD3

GBE0_LINK#

A8

B8

NC

GBE0_MDI1-

A9

B9

NC

GBE0_MDI1+

A10

B10

CLK_24M_CB

GND

A11

B11

GND

GBE0_MDI0-

A12

B12

PWRBTN#

GBE0_MDI0+

A13

B13

SMB_CK_A

GBE0_CTREF

A14

B14

SMB_DAT_A

SUS_S3#

A15

B15

SMB_ALERT#

SATA0_TX+

A16

B16

SATA1_TX+

SATA0_TX-

A17

B17

SATA1_TX-

SUS_S4#

A18

B18

SUS_STAT#

SATA0_RX+

A19

B19

SATA1_RX+

SATA0_RX-

A20

B20

SATA1_RX-

GND

A21

B21

GND

SATA2_TX+

A22

B22

SATA3_TX+

SATA2_TX-

A23

B23

SATA3_TX-

SUS_S5#

A24

B24

PWR_OK

SATA2_RX+

A25

B25

SATA3_RX+

SATA2_RX-

A26

B26

SATA3_RX-

BATLOW#

A27

B27

WDT

SATA_ACT#

A28

B28

NC

HDA_SYNC

A29

B29

HDA_SDI1

HDA_RST#

A30

B30

HDA_SDI0

ESM-KBLH User’s Manual

22 ESM-KBLH User’s Manual

Signal

GND

A31

B31

GND

HDA_BITCLK

A32

B32

SPKR

HDA_SDOUT

A33

B33

I2C_CLK

BIOS_DIS0#

A34

B34

I2C_DATA

THRMTRIP

A35

B35

THRM#

USB6-

A36

B36

USB7-

USB6+

A37

B37

USB7+

USB_6_7_OC#

A38

B38

USB_4_5_OC#

USB4-

A39

B39

USB5-

USB4+

A40

B40

USB5+

GND

A41

B41

GND

USB2-

A42

B42

USB3-

USB2+

A43

B43

USB3+

USB_2_3_OC#

A44

B44

USB_0_1_OC#

USB0-

A45

B45

USB1-

USB0+

A46

B46

USB1+

VCC_RTC

A47

B47

EXCD1_PERST#

EXCD0_PERST#

A48

B48

EXCD1_CPPE#

EXCD0_CPPE#

A49

B49

SYS_RESET#

SERIRQ

A50

B50

CB_RESET#

GND

A51

B51

GND

PCIE_TX5+

A52

B52

PCIE_RX5+

PCIE_TX5-

A53

B53

PCIE_RX5-

GPI0

A54

B54

GPO1

PCIE_TX4+

A55

B55

PCIE_RX4+

PCIE_TX4-

A56

B56

PCIE_RX4-

GND

A57

B57

GPO2

PCIE_TX3+

A58

B58

PCIE_RX3+

PCIE_TX3-

A59

B59

PCIE_RX3-

GND

A60

B60

GND

ESM-KBLH User’s Manual

23

Signal

PCIE_TX2+

A61

B61

PCIE_RX2+

PCIE_TX2-

A62

B62

PCIE_RX2-

GPI1

A63

B63

GPO3

PCIE_TX1+

A64

B64

PCIE_RX1+

PCIE_TX1-

A65

B65

PCIE_RX1-

GND

A66

B66

PCIE_WAKE#

GPI2

A67

B67

WAKE1#

PCIE_TX0+

A68

B68

PCIE_RX0+

PCIE_TX0-

A69

B69

PCIE_RX0-

GND

A70

B70

GND

LVDS_A0+/EDP_TX2+

A71

B71

LVDS_B0+

LVDS_A0-/EDP_TX2-

A72

B72

LVDS_B0-

LVDS_A1+/EDP_TX1+

A73

B73

LVDS_B1+

LVDS_A1-/EDP_TX1-

A74

B74

LVDS_B1-

LVDS_A2+/EDP_TX0+

A75

B75

LVDS_B2+

LVDS_A2-/EDP_TX0-

A76

B76

LVDS_B2-

LVDS_VDD_EN/EDP_VDD_EN

A77

B77

LVDS_B3+

LVDS_A3+

A78

B78

LVDS_B3-

LVDS_A3-

A79

B79

LVDS_BKLT_EN

GND

A80

B80

GND

LVDS_A_CK+/EDP_TX3+

A81

B81

LVDS_B_CK+

LVDS_A_CK-/EDP_TX3-

A82

B82

LVDS_B_CK-

LVDS_I2C_CK/EDP_AUX+

A83

B83

LVDS_BKLT_CTRL

LVDS_I2C_DAT/EDP_AUX-

A84

B84

+ATX5VSB

GPI3

A85

B85

+ATX5VSB

KBRST#

A86

B86

+ATX5VSB

CB_EDP_HDP

A87

B87

+ATX5VSB

PCIE_CLK_REF+

A88

B88

BIOS_DIS1#

PCIE_CLK_REF-

A89

B89

VGA_RED

GND

A90

B90

GND

ESM-KBLH User’s Manual

24 ESM-KBLH User’s Manual

Signal

SPI_POWER

A91

B91

VGA_GRN

SPI_MISO

A92

B92

VGA_BLU

GPO0

A93

B93

VGA_HSYNC

SPI_CLK

A94

B94

VGA_VSYNC

SPI_MOSI

A95

B95

VGA_I2C_CK

PP_TPM

A96

B96

VGA_I2C_DAT

NC

A97

B97

SPI_CS#

SER0_TX

A98

B98

NC

SER0_RX

A99

B99

NC

GND

A100

B100

GND

SER1_TX

A101

B101

FAN_PWMOUT

SER1_RX

A102

B102

FAN_TACHIN

LID#

A103

B103

SLEEP#

+VIN_9V_19V

A104

B104

+VIN_9V_19V

A105

B105

+VIN_9V_19V

A106

B106

+VIN_9V_19V

A107

B107

+VIN_9V_19V

A108

B108

+VIN_9V_19V

A109

B109

+VIN_9V_19V

GND

A110

B110

GND

ESM-KBLH User’s Manual

25

2.4.2.1 Signal Description – COM Express Connector 1 (CN1A)

2.4.2.1.1 Audio Signals

Signal

Signal Description

HDA_SYNC

HD Audio Sync

HDA _RST#

HD Audio Reset

HDA _SDI[0:1]

Audio CODEC Serial Data

HDA _BITCLK

HD Audio Clock

HDA _SDOUT

HD Audio Data

2.4.2.1.2 Gigabit Ethernet Signals

Signal

Signal Description

GBE0_MD[0:3] +/-

Gigabit Ethernet Controller 0: Media Dependent Interface Differential Pairs 0,1,2,3. The MDI can operate in 1000, 100 and 10 Mbit / sec modes. Some pairs are unused in some modes, per the following:

1000B-T

100B-T

10B-T

MDI[0]+/-

B1_DA+/

TX+/-

MDI[1]+/

B1_DB+/

RX+/-

MDI[2]+/

B1_DC+/

X

MDI[3]+/

B1_DD+/

X

GBE0_ACT#

Gigabit Ethernet Controller 0 activity indicator, active low.

GBE0_Link#

Gigabit Ethernet Controller 0 link indicator, active low.

GBE0_Link100#

Gigabit Ethernet Controller 0 100 Mbit / sec link indicator, active low.

GBE0_Lin1000#

Gigabit Ethernet Controller 0 1000 Mbit / sec link indicator, active low.

2.4.2.1.3 PCI Express Signals

Signal

Signal Description

PCIE_TX[0:6] +/-

PCI Express Differential Transmit Pair 0-6

PCIE_RX[0:6] +/-

PCI Express Differential Receive Pair 0-6

PCIE0_CK_REF+/-

Reference clock output for PCI Express lanes 0-6 and for PCI Express Graphics lanes 0-15

ESM-KBLH User’s Manual

26 ESM-KBLH User’s Manual

2.4.2.1.4 Flat Panel LVDS Signals

Signal

Signal Description

LVDS_BKLT_CTRL/ EDP_BKLT_CTRL

Controls panel digital power.

ENBKL#

Controls backlight power enable.

LVDS_I2C_CK

I2C clock output for LVDS display use.

LVDS_I2C_DAT

I2C data line for LVDS display use.

LVDS_A/EDP_TX [0:3] +/-

LVDS Channel A differential pairs.

LVDS_B[0:3] +/-

LVDS Channel B differential pairs.

LVDS_VDD_EN/EDP_VDD_EN

LVDS panel power enables.

LVDS_A_CK/EDP_TX3 +/-

LVDS Channel A differential clock.

LVDS_B_CK +/-

LVDS Channel A differential clock.

2.4.2.1.5 LPC Signals

Signal

Signal Description

LPC_LFRAME#

LPC frame indicates the start of an LPC cycle

LPC_AD[0:3]

LPC multiplexed address, command and data bus

LPC_DRQ[0:1]#

LPC serial DMA request

LPC_CLK

LPC clock output - 33MHz nominal

SERIRQ

LPC serial interrupt

2.4.2.1.6 Miscellaneous Signals

Signal

Signal Description

SPKR

Output for audio enunciator - the "speaker" in PC-AT systems

BIOS_DIS0# BIOS_DIS1#

Selection straps to determine the BIOS boot device

BIOS_DIS1#

BIOS_DIS0#

Chipset

SPI CS1#

Destination

Chipset

SPI CS0#

Destination

Carrier

SPI_CS#

SPI

Descriptor

Bios Entry

Ref

Line

1

Module

High

Module

SPI0/SPI1

0

1

0

Module

High

Module

Carrier

FWH 1 0

1

Module

Carrier

SPI0

Carrier

SPI0/SPI1

2 0 0

Carrier

Module

SPI1

Module

SPI0/SPI1

3

2.4.2.1.7 GPIO Signals

Signal

Signal Description

GPI[0:4]

General purpose input pins.

GPO[0:4]

General purpose output pins.

ESM-KBLH User’s Manual

27

2.4.2.1.8 Power Signals

Signal

Signal Description

+ATX5VSB

Standby power input: +5.0V nominal. See Electrical Specifications for allowable input range. If VCC5_SBY is used, all available +ATX5VSB pins on the connector(s) must be used. Only used for standby and suspend functions. May be left unconnected if these functions are not used in the system design.

VCC_RTC

Real-time clock circuit-power input. Nominally +3.0V.

2.4.2.1.9 Power & System Management Signals

Signal

Signal Description

SUS_S3#

Indicates system is in Suspend to RAM state. Active low output.

SUS_S4#

Indicates system is in Suspend to Disk state. Active low output.

SUS_S5#

Indicates system is in Soft Off state.

BATLOW#

Indicates that external battery is low

PWRBTN#

Power button to bring system out of S5 (soft off), active on rising edge.

SMB_CK

System Management Bus bidirectional clock line.

SMB_DTA

System Management Bus bidirectional data line.

SMB_ALERT#

System Management Bus Alert - input can be used to generate an SMI# (System Management Interrupt) or to wake the system.

SUS_STAT#

Indicates imminent suspend operation.

PWR_OK

Power OK from main power supply

SYS_RESET#

Reset button input. Active low input.

WAKE0#

PCI Express wake up signal.

WAKE1#

General purpose wake up signal.

ESM-KBLH User’s Manual

28 ESM-KBLH User’s Manual

2.4.2.1.10 SATA Signals

Signal

Signal Description

SATA[0:3]_TX +/-

Serial ATA Channel 0-3 transmit differential pair.

SATA[0:3]_RX +/-

Serial ATA Channel 0-3receive differential pair.

ATA_ACT#

ATA (parallel and serial) activity indicator, active low.

2.4.2.1.11 VGA Signals

Signal

Signal Description

VGA_RED

Red for monitor. Analog DAC output.

VGA_GRN

Green for monitor. Analog DAC output.

VGA_BLU

Blue for monitor. Analog DAC output.

VGA_HSYNC

Horizontal sync output to VGA monitor

VGA_VSYNC

Vertical sync output to VGA monitor

VGA_ I2C_CK

DDC clock line (I2C port dedicated to identify VGA monitor capabilities)

VGA_ I2C_DAT

DDC data line.

2.4.2.1.12 USB Signals

Signal

Signal Description

USB[0:7] +/-

USB differential pairs, channels 0 through 7

USB_0_1_OC#

USB over-current sense, USB channels 0 and 1

USB_2_3_OC#

USB over-current sense, USB channels 2 and 3

USB_4_5_OC#

USB over-current sense, USB channels 4 and 5

USB_6_7_OC#

USB over-current sense, USB channels 6 and 7

2.4.2.1.13 I2C Signals

Signal

Signal Description

I2C_CLK

General purpose I2C port clock output.

I2C_DATA

General purpose I2C port data I/O line.

2.4.2.1.14 COM.0 Pins Signals

Signal

Signal Description

SER0/1_TX

TTL level outputs from the Module.

SER0/1_RX

TTL level inputs from the Module.

ESM-KBLH User’s Manual

29

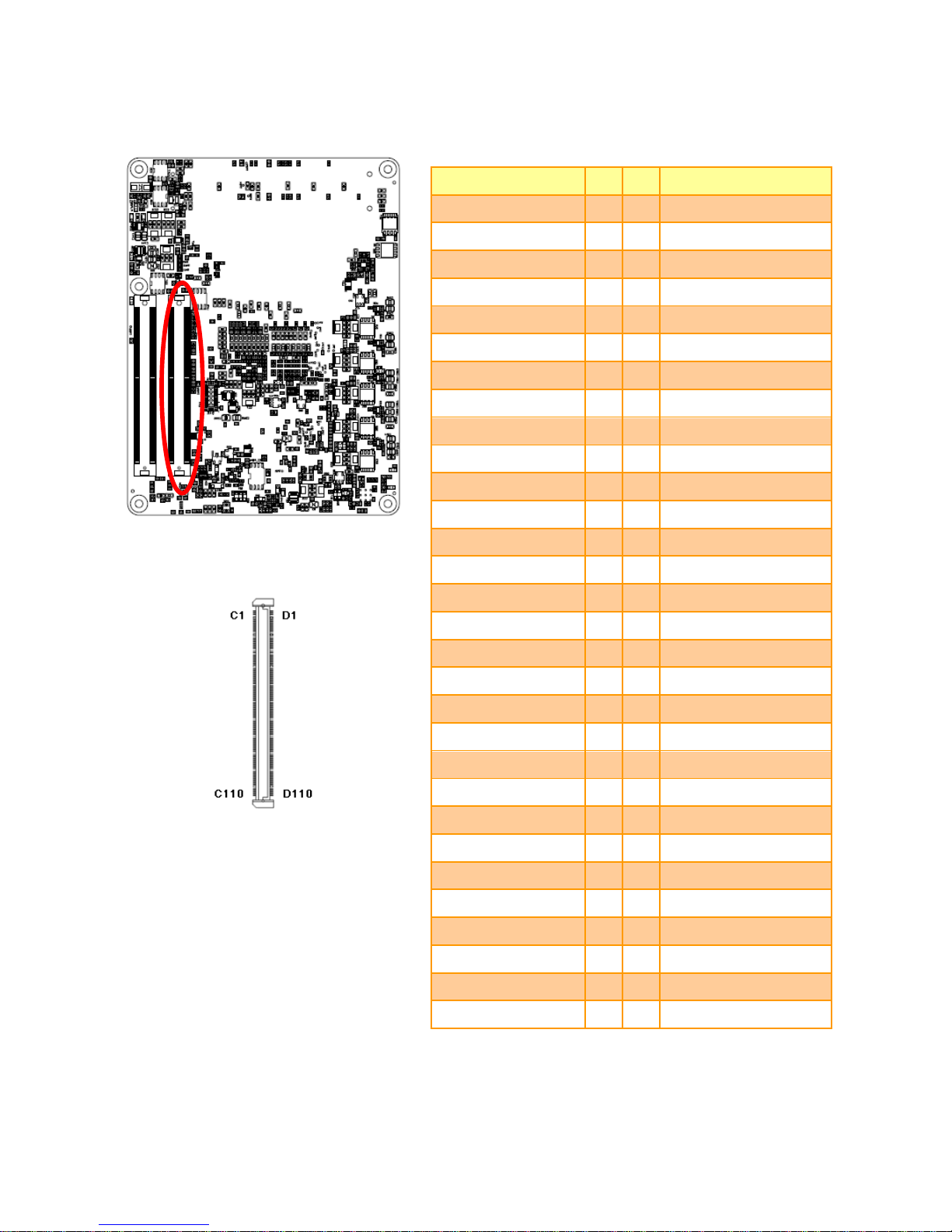

2.4.3 COM Express Connector 2 (CN1B)

Signal

GND

C1

D1

GND

C2

D2

GND

USB_SSRX0-

C3

D3

USB_SSTX0-

USB_SSRX0+

C4

D4

USB_SSTX0+

GND

C5

D5

GND

USB_SSRX1-

C6

D6

USB_SSTX1-

USB_SSRX1+

C7

D7

USB_SSTX1+

GND

C8

D8

GND

USB_SSRX2-

C9

D9

USB_SSTX2-

USB_SSRX2+

C10

D10

USB_SSTX2+

GND

C11

D11

GND

USB_SSRX3-

C12

D12

USB_SSTX3-

USB_SSRX3+

C13

D13

USB_SSTX3+

GND

C14

D14

GND

NC

C15

D15

DDI1_CTRLCLK_AUX+

NC

C16

D16

DDI1_CTRLDATA_AUX-

LVDS_BLUP

C17

D17

NC

LVDS_BLDN

C18

D18

NC

PCIE_RX6+

C19

D19

PCIE_TX6+

PCIE_RX6-

C20

D20

PCIE_TX6-

GND

C21

D21

GND

PCIE_RX7+

C22

D22

PCIE_TX7+

PCIE_RX7-

C23

D23

PCIE_TX7-

DDI1_HPD

C24

D24

NC

C25

D25

NC

C26

D26

DDI1_PAIR0+

PEG_GEN3_RESTE#

C27

D27

DDI1_PAIR0-

NC

C28

D28

NC

C29

D29

DDI1_PAIR1+

NC

C30

D30

DDI1_PAIR1-

ESM-KBLH User’s Manual

30 ESM-KBLH User’s Manual

Signal

GND

C31

D31

GND

DDI2_CTRLCLK_AUX+

C32

D32

DDI1_PAIR2+

DDI2_CTRLDATA_AUX-

C33

D33

DDI1_PAIR2-

DDI2_DDC_AUX_SEL

C34

D34

DDI1_DDC_AUX_SEL

NC

C35

D35

NC

DDI3_CTRLCLK_AUX+

C36

D36

DDI1_PAIR3+

DDI3_CTRLDATA_AUX-

C37

D37

DDI1_PAIR3-

DDI3_DDC_AUX_SEL

C38

D38

NC

DDI3_PAIR0+

C39

D39

DDI2_PAIR0+

DDI3_PAIR0-

C40

D40

DDI2_PAIR0-

GND

C41

D41

GND

DDI3_PAIR1+

C42

D42

DDI2_PAIR1+

DDI3_PAIR1-

C43

D43

DDI2_PAIR1-

DDI3_HPD

C44

D44

DDI2_HPD

NC

C45

D45

NC

DDI3_PAIR2+

C46

D46

DDI2_PAIR2+

DDI3_PAIR2-

C47

D47

DDI2_PAIR2-

NC

C48

D48

NC

DDI3_PAIR3+

C49

D49

DDI2_PAIR3+

DDI3_PAIR3-

C50

D50

DDI2_PAIR3-

GND

C51

D51

GND

PEG_RX0+

C52

D52

PEG_TX0+

PEG_RX0-

C53

D53

PEG_TX0-

TYPE0#

C54

D54

PEG_LAN_RV#

PEG_RX1+

C55

D55

PEG_TX1+

PEG_RX1-

C56

D56

PEG_TX1-

TYPE1#

C57

D57

TYPE2#

PEG_RX2+

C58

D58

PEG_TX2+

PEG_RX2-

C59

D59

PEG_TX2-

GND

C60

D60

GND

ESM-KBLH User’s Manual

31

Signal

PEG_RX3+

C61

D61

PEG_TX3+

PEG_RX3-

C62

D62

PEG_TX3-

NC

C63

D63

NC

C64

D64

NC-

PEG_RX4+

C65

D65

PEG_TX4+

PEG_RX4-

C66

D66

PEG_TX4-

NC

C67

D67

GND

PEG_RX5+

C68

D68

PEG_TX5+

PEG_RX5-

C69

D69

PEG_TX5-

GND

C70

D70

GND

PEG_RX6+

C71

D71

PEG_TX6+

PEG_RX6-

C72

D72

PEG_TX6-

GND

C73

D73

GND

PEG_RX7+

C74

D74

PEG_TX7+

PEG_RX7-

C75

D75

PEG_TX7-

GND

C76

D76

GND

NC

C77

D77

NC

PEG_RX8+

C78

D78

PEG_TX8+

PEG_RX8-

C79

D79

PEG_TX8-

GND

C80

D80

GND

PEG_RX9+

C81

D81

PEG_TX9+

PEG_RX9-

C82

D82

PEG_TX9-

NC

C83

D83

NC

GND

C84

D84

GND

PEG_RX10+

C85

D85

PEG_TX10+

PEG_RX10-

C86

D86

PEG_TX10-

GND

C87

D87

GND

PEG_RX11+

C88

D88

PEG_TX11+

PEG_RX11-

C89

D89

PEG_TX11-

GND

C90

D90

GND

ESM-KBLH User’s Manual

32 ESM-KBLH User’s Manual

Signal

PEG_RX12+

C91

D91

PEG_TX12+

PEG_RX12-

C92

D92

PEG_TX12-

GND

C93

D93

GND

PEG_RX13+

C94

D94

PEG_TX13+

PEG_RX13-

C95

D95

PEG_TX13-

GND

C96

D96

GND

NC

C97

D97

NC

PEG_RX14+

C98

D98

PEG_TX14+

PEG_RX14-

C99

D99

PEG_TX14-

GND

C100

D100

GND

PEG_RX15+

C101

D101

PEG_TX15+

PEG_RX15-

C102

D102

PEG_TX15-

GND

C103

D103

GND

+VIN_9V_19V

C104

D104

+VIN_9V_19V

C105

D105

+VIN_9V_19V

C106

D106

+VIN_9V_19V

C107

D107

+VIN_9V_19V

C108

D108

+VIN_9V_19V

C109

D109

+VIN_9V_19V

GND

C110

D110

GND

ESM-KBLH User’s Manual

33

2.4.3.1 Signal Description – COM Express Connector 2 (CN1B)

2.4.3.1.1 USB3.0 Signals

Signal

Signal Description

USB_SSTX[0:3]+ USB_SSTX[0:3]-

Additional transmit signal differential pairs for the SuperSpeed USB data path.

USB_SSRX[0:3]+ USB_SSRX[0:3]-

Additional receive signal differential pairs for the SuperSpeed USB data path.

2.4.3.1.2 PEG Signals

Signal

Signal Description

PEG_TX[ 0:15]+ PEG_TX[ 0:15]-

PCI Express Graphics transmit differential paris.

PEG_RX[ 0:15]+ PEG_RX[ 0:15]-

PCI Express Graphics recevie differential paris.

PEG_LAN_RV#

PCI Express Graphics lane reversal input strap. Pull low on the Carrier board to reverse lane order.

2.4.3.1.3 DDI Signals

Signal

Signal Description

DDI[1:3]_PAIR[0:3]+ DDI[1:3]_PAIR [0:3]-

Digital Display Interface 1 to 3 Pair[0:3] differential pairs

DDI[1:3]_DDC_AUX_SEL

Selects the function of DDI[1:3]_CTRLCLK_AUX+ and DDI[1:3]_CTRLDATA_AUX-. If this input is floating the AUX pair is used for the DP AUX+/- signals. If pulled-high the AUX pair contains the CRTLCLK and CTRLDATA signals.

DDI[1:3]_CTRLCLK_AUX+

DP AUX+function if DDI[1:3]_DDC_AUX_SEL is no connect HDMI/DVI 12C CTRLCLK if DDI[1:3]_DDC_AUX_SEL is pulled high

DDI[1:3]_CTRLDATA_AUX-

DP AUX-function if DDI[1:3]_DDC_AUX_SEL is no connect HDMI/DVI 12C CTRLDATA if DDI[1:3]_DDC_AUX_SEL is pulled high

DDI[1:3]_HPD

Digital Display Interface Hot-Plug Detect

ESM-KBLH User’s Manual

34 ESM-KBLH User’s Manual

3.BIOS Setup

ESM-KBLH User’s Manual

35

I

3.1 Introduction

The BIOS setup program allows users to modify the basic system configuration. In this following chapter will describe how to access the BIOS setup program and the configuration options that may be changed.

3.2 Starting Setup

AMI BIOS™ is immediately activated when you first power on the computer. The BIOS reads the system information contained in the NVRAM and begins the process of checking out the system and configuring it. When it finishes, the BIOS will seek an operating system on one of the disks and then launch and turn control over to the operating system.

While the BIOS is in control, the Setup program can be activated in one of two ways: By pressing <F2> or <Del> immediately after switching the system on, or By pressing the <F2> or <Del> key when the following message appears briefly at the left-top of the screen during the POST (Power On Self Test).

Press <F2> or <Del> to enter SETUP

If the message disappears before you respond and you still wish to enter Setup, restart the system to try again by turning it OFF then ON or pressing the "RESET" button on the system case. You may also restart by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys.

ESM-KBLH User’s Manual

36 ESM-KBLH User’s Manual

3.3 Using Setup

In general, you use the arrow keys to highlight items, press <Enter> to select, use the PageUp and PageDown keys to change entries, press <F1> for help and press <Esc> to quit. The following table provides more detail about how to navigate in the Setup program using the keyboard.

Button

Description

↑

Move to previous item

↓

Move to next item

←

Move to the item in the left hand

→

Move to the item in the right hand

Esc key

Main Menu -- Quit and not save changes into NVRAM Status Page Setup Menu and Option Page Setup Menu -- Exit current page and return to Main Menu

+ key

Increase the numeric value or make changes

- key

Decrease the numeric value or make changes

F1 key

General help, only for Status Page Setup Menu and Option Page Setup Menu F2 key

Previous Values

F3 key

Optimized defaults

F4 key

Save & Exit Setup

 Navigating Through The Menu Bar

Use the left and right arrow keys to choose the menu you want to be in.

Note: Some of the navigation keys differ from one screen to another.

 To Display a Sub Menu

Use the arrow keys to move the cursor to the sub menu you want. Then press <Enter>. A “” pointer marks all sub menus.

ESM-KBLH User’s Manual

37

3.4 Getting Help

Press F1 to pop up a small help window that describes the appropriate keys to use and the possible selections for the highlighted item. To exit the Help Window press <Esc> or the F1 key again.

3.5 In Case of Problems

If, after making and saving system changes with Setup, you discover that your computer no longer is able to boot, the BIOS supports an override to the NVRAM settings which resets your system to its defaults.

The best advice is to only alter settings which you thoroughly understand. To this end, we strongly recommend that you avoid making any changes to the chipset defaults. These defaults have been carefully chosen by both your systems manufacturer to provide the absolute maximum performance and reliability. Even a seemingly small change to the chipset setup has the potential for causing you to use the override.

ESM-KBLH User’s Manual

38 ESM-KBLH User’s Manual

3.6 BIOS setup

Once you enter the Aptio Setup Utility, the Main Menu will appear on the screen. The Main Menu allows you to select from several setup functions and exit choices. Use the arrow keys to select among the items and press <Enter> to accept and enter the sub-menu.

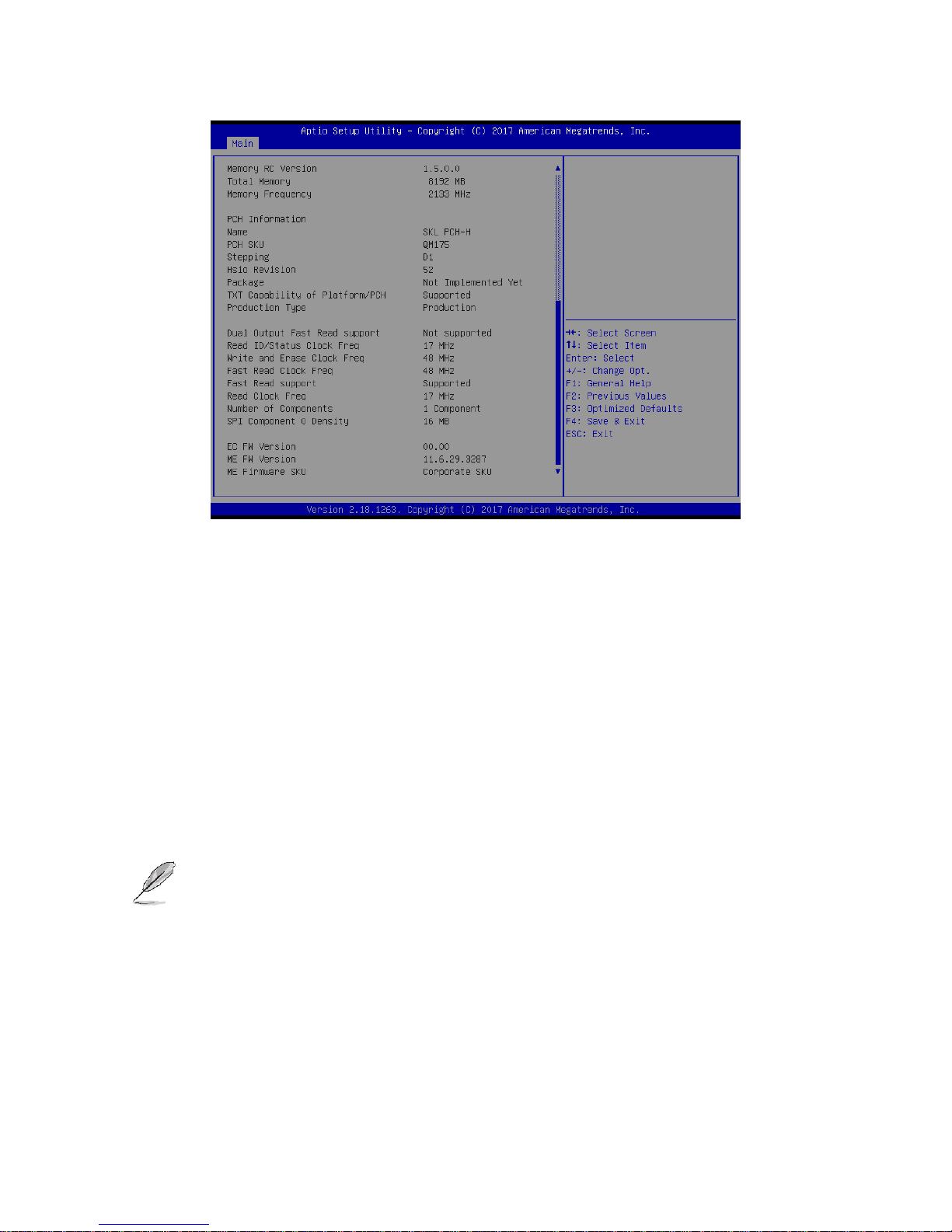

3.6.1 Main Menu

This section allows you to record some basic hardware configurations in your computer and set the system clock.

ESM-KBLH User’s Manual

39

3.6.1.1 System Language

This option allows choosing the system default language.

3.6.1.2 System Date

Use the system date option to set the system date. Manually enter the day, month and year.

3.6.1.3 System Time

Use the system time option to set the system time. Manually enter the hours, minutes and seconds.

Note: The BIOS setup screens shown in this chapter are for reference purposes

only, and may not exactly match what you see on your screen.

ESM-KBLH User’s Manual

40 ESM-KBLH User’s Manual

3.6.2 Advanced Menu

This section allows you to configure your CPU and other system devices for basic operation through the following sub-menus.

3.6.2.1 CPU Configuration

Use the CPU configuration menu to view detailed CPU specification and configure the CPU.

ESM-KBLH User’s Manual

41

Item

Options

Description

C6DRAM

Disabled[Default]

Enabled

Enable/Disable moving of DRAM contents to PRM memory when CPU is in C6 state.

Intel (VMX) Virtualization

Technology

Disabled

Enabled[Default]

When enabled, a VMM can utilize the additional hardware capabilities provided by Vanderpool Technology.

Active Processor Cores

All[Default]

1 2 3

Number of cores to enable in each processor package.

Hyper-Threading

Disabled,

Enabled[Default]

Enabled for Windows XP and Linux (OS optimized for Hyper- Threading Technology) and Disabled for other OS (OS not optimized for Hyper- Threading Technology).

3.6.2.2 Power & Performance

ESM-KBLH User’s Manual

42 ESM-KBLH User’s Manual

3.6.2.2.1 CPU – Power Management Control

Item

Option

Description

Intel® SpeedStep™

Enabled[Default],

Disabled

Allows more than two frequency ranges to be supported.

Turbo Mode

Enabled[Default],

Disabled

Enable/Disable processor Turbo Mode (requires EMTTM enabled too). AUTO means enabled, unless max turbo ratio is bigger than 16 – SKL a0 W/A.

C States

Enabled[Default],

Disabled

Enable/Disable CPU Power Management. Allows CPU to go to C states when it’s not 100291697032tilized.

ESM-KBLH User’s Manual

43

3.6.2.2.1.1 View/Configure Turbo Options

Item

Option

Description

Energy Efficient P-state

Enabled[Default],

Disabled

Enable/Disable Energy Efficient P-state feature. When set to 0, will disable access to ENERGY_PERFORMANCE_BIAS MSR and CPUID Function 6 ECX[3] will read 0 indicating no support for Energy Efficient policy setting. When set to 1 will enable access to ENERGY_PERFORMANCE_BIAS MSR 1B0h and CPUID Function 6 ECX[3] will read 1 indicating Energy Efficient policy setting is.

Package Power Limit MSR Lock

Disabled[Default]

Enabled

Enable/Disable locking of Package Power Limit settings. When enabled, PACKAGE_POWER_LIMIT MSR will be locked and a reset will be required to unlock the register.

Power Limit 1 Override

Disabled[Default]

Enabled

Enable/Disable Power Limit 1 override. If this option is disabled, BIOS will program the default values for Power Limit 1 and Power Limit 1 Time Window.

Power Limit 2 Override

Disabled

Enabled[Default]

Enable/Disable Power Limit 2 override. If this option is disabled, BIOS will program the default values for Power Limit 2.

Power Limit 2

0

Power Limit 2 value in Milli Watts. BIOS will round to the nearest 1/8W when programming. If the value is 0, BIOS will program this value as 1.25*TDP. For

ESM-KBLH User’s Manual

44 ESM-KBLH User’s Manual

12.50W, enter 12500. Processor applies control policies such that the package power does not exceed this limit.

1-Core Ratio Limit Override

0-83

1-Core Ratio Limit with range 0 to 83. The Minimum range may vary between Processors. This 1-Core Ratio Limit Must be greater than or equal to 2-Core ratio Limit, 3-Core Ratio Limit, 4-Core Ratio Limit.

2-Core Ratio Limit Override

0-83

2-Core Ratio Limit with range 0 to 83. The Minimum range may vary between Processors. This 2-Core Ratio Limit Must be Less than or equal to 1-Core Ratio Limit.

3-Core Ratio Limit Override

0-83

4-Core Ratio Limit with range 0 to 83. The Minimum range may vary between Processors. This 4-Core Ratio Limit Must be Less than or equal to 1-Core Ratio Limit.

4-Core Ratio Limit Override

0-83

1-Core Ratio Limit with range 0 to 83. The Minimum range may vary between Processors. This 1-Core Ratio Limit Must be greater than or equal to 2-Core ratio Limit, 3-Core Ratio Limit, 4-Core Ratio Limit.

Energy Efficient Turbo

Disabled,

Enabled[Default]

Enable/Disable Energy Efficient Turbo Feature. This feature will opportunistically lower the turbo frequency to increase efficiency. Recommended only to disable in overclocking situations where turbo frequency must remain constant. Otherwise, leave enabled.

3.6.2.2.2 GT – Power Management Control

ESM-KBLH User’s Manual

45

Item

Option

Description

RC6(Render Standby)

Enabled[Default],

Disabled

Check to enable render standby support.

Maximum GT frequency

Default Max Frequency[Default]

100Mhz/150Mhz/200Mhz/250Mhz/300Mhz /350Mhz/400Mhz/450Mhz/500Mhz/550Mhz /600Mhz/650Mhz/700Mhz/750Mhz/800Mhz

/850Mhz/900Mhz/950Mhz/1000Mhz/1050Mhz

/1100Mhz/1150Mhz/1200Mhz

Auto Updated.

3.6.2.3 PCH-FW Configuration

Item

Options

Description

AMT BIOS Features

Disabled,

Enabled[Default]

When disabled AMT BIOS Features are no longer supported and user is no longer able to access MEXb Setup. Note: This option does not disable Manageability Features in FW.

ME Unconfig on RTC Clear

Disabled,

Enabled[Default]

When Disabled ME will not be unconfigured on RTC Clear.

ESM-KBLH User’s Manual

46 ESM-KBLH User’s Manual

3.6.2.3.1 AMT Configuration

Item

Option

Description

ASF support

Disabled,

Enabled[Default]

Enable/Disable Alert Standard Format support.

USB Provisioning of AMT

Disabled[Default],

Enabled

Enable/Disable of AMT USB Provisioning.

3.6.2.3.1.1 CIRA Configuration

ESM-KBLH User’s Manual

47

Item

Description

Activate Remote Assistance Process

Trigger CIRA boot. Note: Network Access must be activated first from MEBx Setuup.

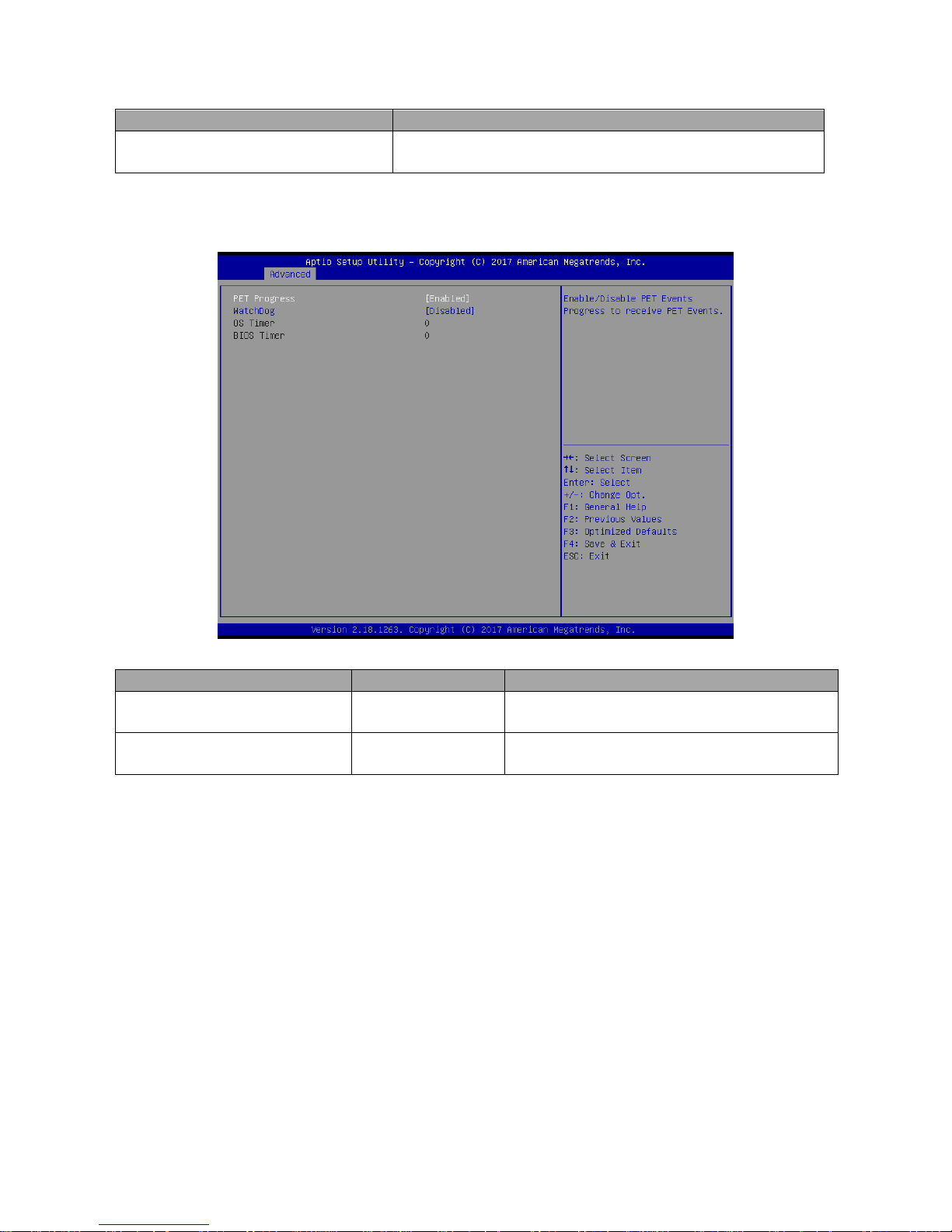

3.6.2.3.1.2 ASF Configuration

Item

Option

Description

PET Progress

Disabled,

Enabled[Default]

Enable/Disable PET Events Progress to receive PET Events.

WatchDog

Disabled[Default],

Enabled

Enable/Disable WatchDog Timer.

ESM-KBLH User’s Manual

48 ESM-KBLH User’s Manual

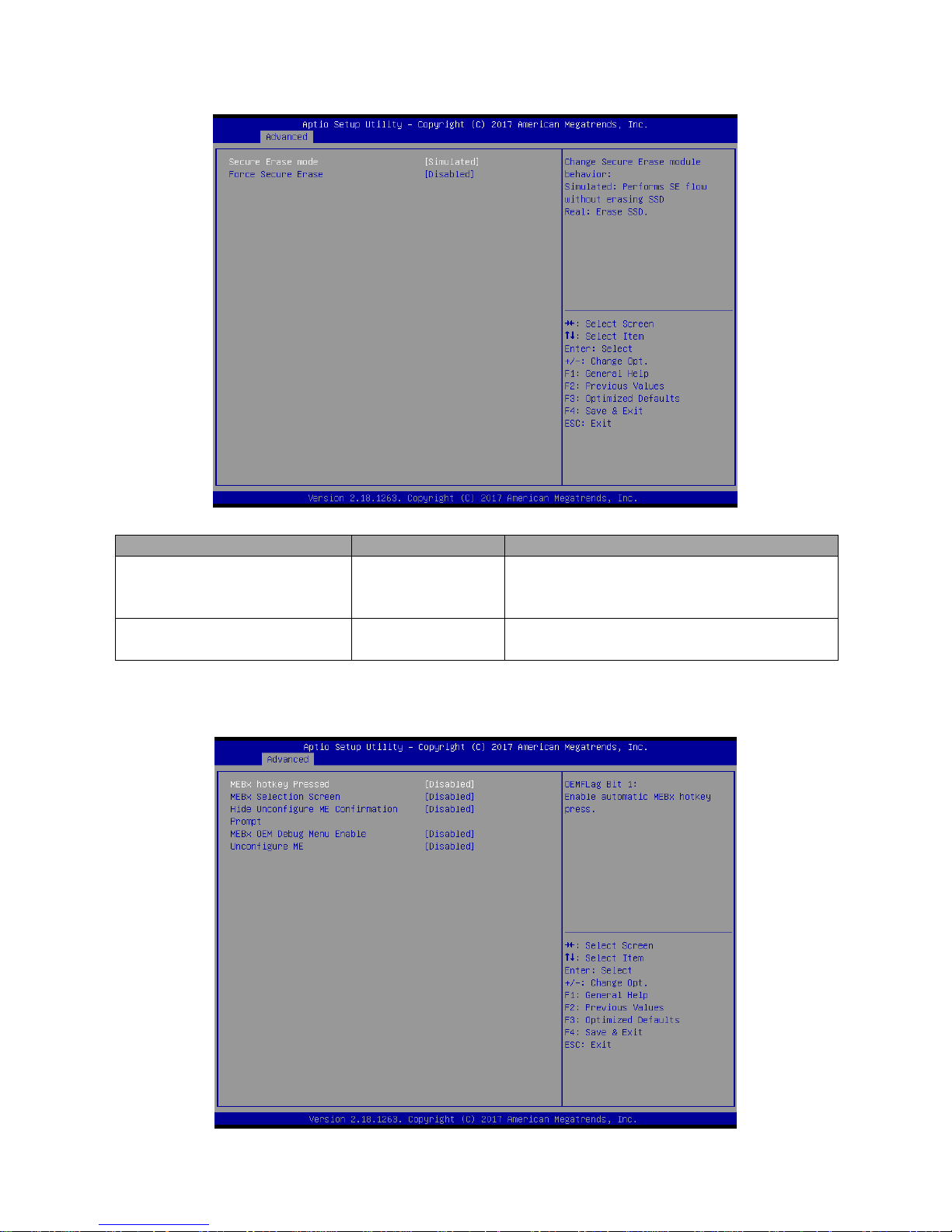

3.6.2.3.1.3 Secure Erase Configuration

Item

Option

Description

Secure Erase mode

Simulated[Default]

Real

Change Secure Erase module behavior: Simulated: Performs SE flow without erasing SSD Real: Erase SSD.

Force Secure Erase

Disabled[Default],

Enabled

Force Secure Erase on next boot.

3.6.2.3.1.4 OEM Flags Settings

ESM-KBLH User’s Manual

49

Item Description

MEBx hotkey Pressed

Disabled[Default],

Enabled

OEMFLag Bit 1: Enable automatic MEBx hotkey press.

MEBx Selection Screen

Disabled[Default],

Enabled

OEMFLag Bit 2: Enable MEBx selection screen with 2 options: Press 1 to enter ME Configuration Screens Press 2 to initiate a remote connection Note: Network Access must be activated from MEBx Setup for this screen to be displayed.

Hide Unconfigure ME

Confirmation

Disabled[Default],

Enabled

OEMFlag Bit 6: Hide Unconfigure ME confirmation prompt when attempting ME unconfiguration.

MEBx OED Debug Menu Enable

Disabled[Default],

Enabled

OEMFlag Bit 14: Enable OEM debug menu in MEBx.

Unconfigure ME

Disabled[Default],

Enabled

OEMFlag Bit 15: Unconfigure ME with resetting MEBx password to default.

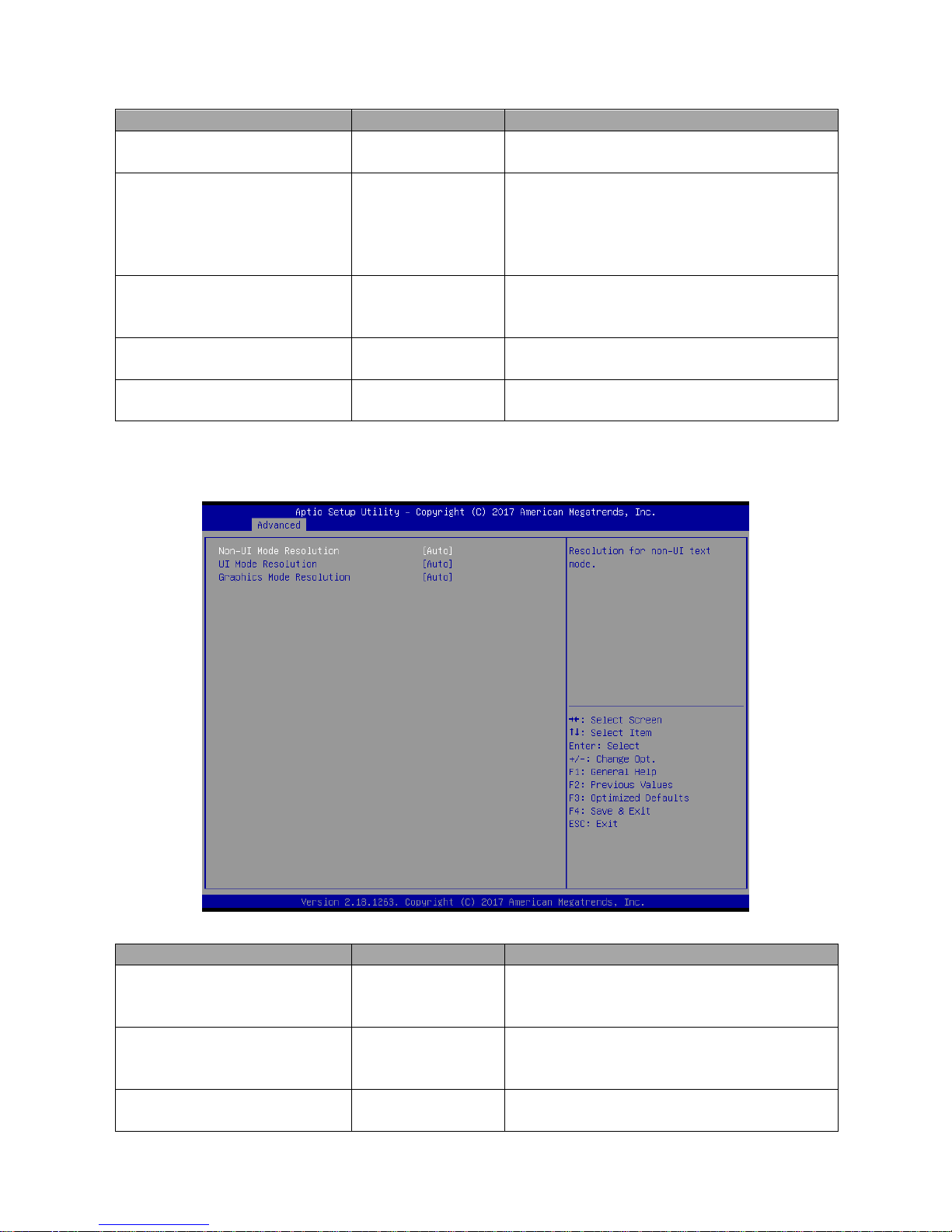

3.6.2.3.1.5 MEBx Resolution Settings

Item Description

Non-UI Mode Resolution

Auto[Default],

80x25

100x31

Resolution for non-UI text mode.

UI Mode Resolution

Auto[Default],

80x25

100x31

Resolution for UI text mode.

Graphics Mode Resolution

Auto[Default],

640x480

Resolution for graphics mode.

ESM-KBLH User’s Manual

50 ESM-KBLH User’s Manual

800x600

1024x768

3.6.2.3.2 Firmware Update Configuration

Item

Option

Description

ME FW Image Re-Flash

Disabled [Default],

Enabled

Enable/Disable Me FW Image Re-Flash function.

ESM-KBLH User’s Manual

51

3.6.2.3.3 PTT Configuration

Item

Option

Description

TPM Device Selection

dTPM[Default],

PTT

Selects TPM device: PTT or dTPM. PTT – Enables PTT in SkuMgr dTPM 1.2 – Disables PTT in SkuMgr Warning! PTT/dTPM will be disabled and all data saved on it will be lost.

PTP aware OS

PTP Aware[Default]

Not PTP Aware

Select whether or not the OS you will boot to will be PTP aware.

ESM-KBLH User’s Manual

52 ESM-KBLH User’s Manual

3.6.2.4 Trusted Computing

Item

Options

Description

Security Device Support

Disable,

Enable[Default]

Enables or Disables BIOS support for security device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available.

SHA-1 PCR Bank

Disabled

Enabled[Default],

Enable or Disable SHA-1 PCR Bank.

SHA256 PCR Bank

Disabled

Enabled[Default],

Enable or Disable SHA256 PCR Bank.

Pending operation

None[Default],

TPM Clear

Schedule an Operation for the Security Device. NOTE: Your Computer will reboot during restart in order to change State of Security Device.

Platform Hierarchy

Disabled

Enabled[Default],

Enable or Disable Platform Hierarchy.

Storage Hierarchy

Disabled

Enabled[Default],

Enable or Disable Storage Hierarchy.

Endorsement Hierarchy

Disabled

Enabled[Default],

Enable or Disable Endorsement Hierarchy.

TPM2.0 UEFI Spec Version

TCG_1_2

TCG_2[Default],

Select the TCG2 Spec Version Support, TCG_1_2: the Compatible mode for Win8/Win10, TCG_2: Support new TCG2 protocol and event format for Win10 or later.

Physical Presence Spec

Version

1.2

1.3[Default],

Select to Tell O.S. to support PPI Spec Version 1.2 or

1.3. Note some HCK tests might not support 1.3.

ESM-KBLH User’s Manual

53

Device Select

TPM 1.2 TPM 2.0

Auto[Default],

TPM 1.2 will restrict support to TPM 1.2 devices, TPM

2.0 will restrict support to TPM 2.0 devices, Auto will support both with the default set to TPM 2.0 devices if not found, TPM 1.2 devices will be enumerated.

3.6.2.5 APCI Settings

Item

Options

Description

Enable ACPI Auto

Configuration

Disabled[Default],

Enabled

Enables or Disables BIOS ACPI Auto Configuration.

Enable Hibernation

Disabled

Enabled[Default],

Enables or Disables System ability to Hibernate (OS/S4 Sleep State). This option may not be effective with some OS.

ACPI Sleep State

Suspend Disabled,

S3 (Suspend to RAM) [Default]

Select the highest ACPI sleep state the system will enter when the SUSPEND button is pressed.

S3 Video Repost

Disabled[Default],

Enabled

Enable or Disable S3 Video Repost.

ErP Function

Disabled[Default],

Enabled

ErP Function (Deep S5).

Pwr-On After PWR-Fail

Off[Default]

On

Last state

Select the power station after power failure.

Wake Up By Ring

Disabled[Default],

Enabled

System wake up by ring (from S3~S5).

ESM-KBLH User’s Manual

54 ESM-KBLH User’s Manual

Watch Dog

Disabled[Default],

30 sec 40 sec 50 sec

1 min

2 min 10 min 30 min

Select Watch Dog Timer (WDT) Mode.

3.6.2.6 NCT6106D Super IO Configuration

You can use this item to set up or change the NCT6106D Super IO configuration for serial ports. Please refer to 3.6.2.6.1~ 3.6.2.6.3 for more information.

Item

Description

Serial Port 1 Configuration

Set Parameters of Serial Port 1 (COMA).

Serial Port 2 Configuration

Set Parameters of Serial Port 2 (COMB).

Parallel Port Configuration

Set Parameters of Parallel Port (LPT/LPTE).

ESM-KBLH User’s Manual

55

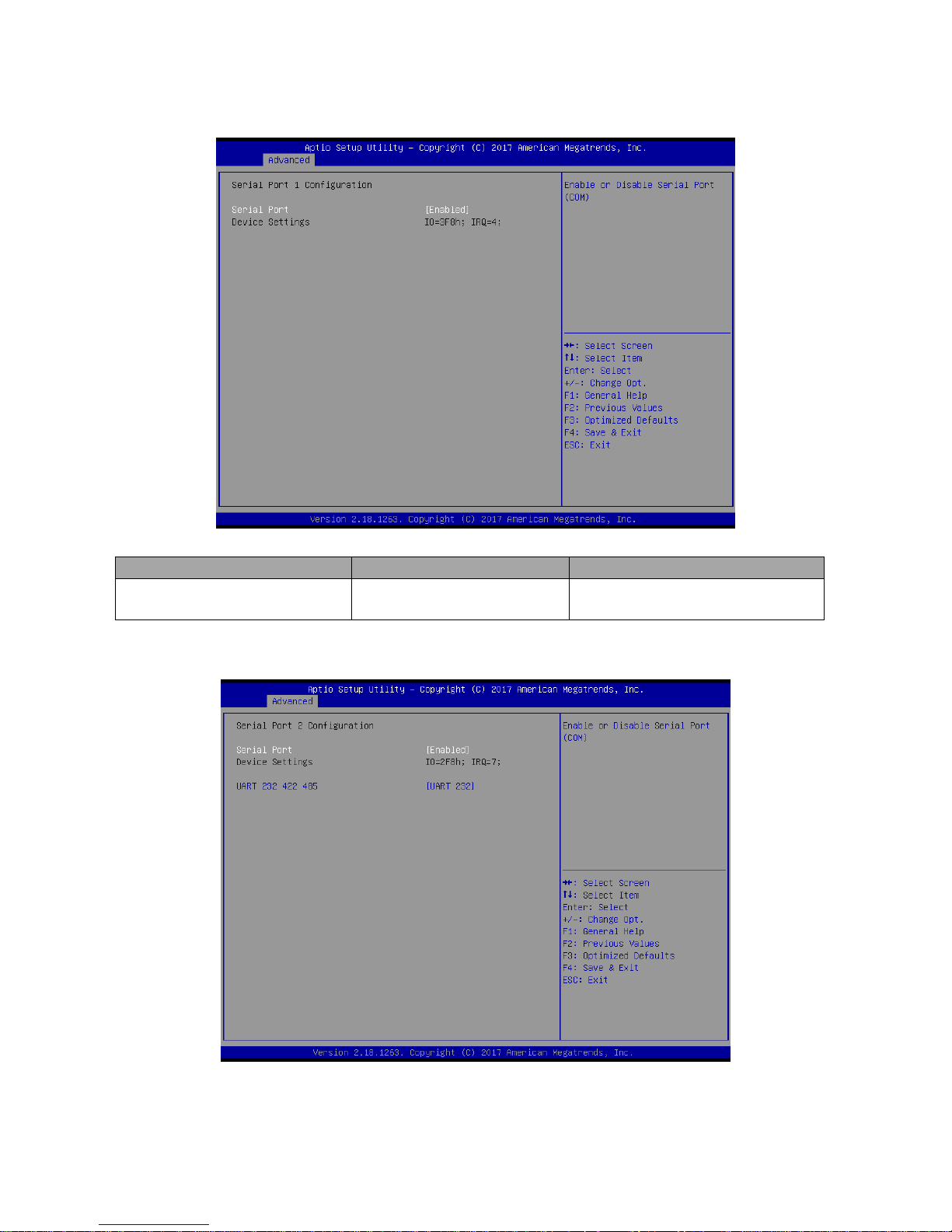

3.6.2.6.1 Serial Port 1 Configuration

Item

Option

Description

Serial Port

Enabled[Default],

Disabled

Enable or Disable Serial Port (COM).

3.6.2.6.2 Serial Port 2 Configuration

ESM-KBLH User’s Manual

56 ESM-KBLH User’s Manual

Item

Option

Description

Serial Port

Enabled[Default],

Disabled

Enable or Disable Serial Port (COM).

UART 232 422 485

UART 232[Default]

UART 422 UART 485

Change the Serial Port as RS232/422/485.

3.6.2.6.3 Parallel Port Configuration

Item

Option

Description

Parallel Port

Enabled[Default],

Disabled

Enable or Disable Parallel Port (LPT/LPTE).

Device Mode

STD Printer Mode[Default]

EPP-1.9 and SPP Mode EPP-1.7 and SPP Mode

ECP Mode ECP and EPP 1.9 Mode ECP and EPP 1.7 Mode

Change the Printer Port mode.

ESM-KBLH User’s Manual

57

3.6.2.7 NCT6106D HW Monitor

3.6.2.8 IT8528SEC Super IO Configuration

You can use this item to set up or change the IT8528SEC Super IO configuration for serial ports. Please refer to 3.6.2.8.1~ 3.6.2.8.2 for more information.

ESM-KBLH User’s Manual

58 ESM-KBLH User’s Manual

3.6.2.8.1 SER0_TX/SER0_RX (JCN3) Configuration

Item

Option

Description

Serial Port

Enabled[Default],

Disabled

Enable or Disable Serial Port (COM).

3.6.2.8.2 SER1_TX/SER1_RX (JCN3) Configuration

ESM-KBLH User’s Manual

59

Item

Option

Description

Serial Port

Enabled[Default],

Disabled

Enable or Disable Serial Port (COM).

3.6.2.9 H/W Monitor

Item

Options

Description

Smart Fan Function

Enabled,

Disabled[Default]

Enables or Disables Smart Fan.

ESM-KBLH User’s Manual

60 ESM-KBLH User’s Manual

Item

Options

Description

Smart Fan Function

Enabled[Default],

Disabled

Enables or Disables Smart Fan.

3.6.2.9.1 Smart Fan Mode Configuration

Item

Option

Description

CPU Smart Fan Mode

Manual Mode[Default]/,

Mode 01/02/03/04/05

/06/07/08/09/10 /11/12/13/14/15 /16/17/18/19/20

CPU Smart Fan Mode Select (Manual, Mode 1~Mode 20).

Fan PWM (0-255)

0-255[Default]

Fan PWM duty (0-255).

ESM-KBLH User’s Manual

61

3.6.2.10 S5 RTC Wake Settings

Item

Options

Description

Wake system from S5

Disabled[Default],

Fixed Time

Dynamic Time

Enable or disable System wake on alarm event. Select Fixed Time, system will wake on the hr::min::sec specified. Select Dynamic Time, System will wake on the current time + Increase minute(s).

ESM-KBLH User’s Manual

62 ESM-KBLH User’s Manual

Item

Options

Description

Wake system from S5

Disabled,

Fixed Time[Default]

Dynamic Time

Enable or disable System wake on alarm event. Select Fixed Time, system will wake on the hr::min::sec specified. Select Dynamic Time, System will wake on the current time + Increase minute(s).

Wake up day of week

Disabled[Default]

Monday-Friday

Monday-Saturday

Wake up day of week. (Monday-Friday) or (Monday-Saturday).

Wake up day

1-31

Select 0 for daily system wake up 1-31 for which day of the month that you would like the system to wake up.

Wake up hour

0-23

Select 0-23 For example enter 3 for 3am and 15 for 3pm.

Wake up minute

0-23

Select 0-23 For example enter 3 for 3am and 15 for 3pm.

Wake up second

0-23

Select 0-23 For example enter 3 for 3am and 15 for 3pm.

Item

Options

Description

Wake system from S5

Disabled,

Fixed Time

Dynamic Time[Default]

Enable or disable System wake on alarm event. Select Fixed Time, system will wake on the hr::min::sec specified. Select Dynamic Time, System will wake on the current time + Increase minute(s).

Wake up minute increase

1-5

1-5.

ESM-KBLH User’s Manual

63

3.6.2.11 Serial Port Console Redirection

Item

Options

Description

Console Redirection

Disabled[Default],

Enabled

Console Redirection Enable or Disable.

3.6.2.11.1 Smart Fan Mode Configuration

ESM-KBLH User’s Manual

64 ESM-KBLH User’s Manual

Item

Option

Description

Terminal Type

VT100

VT100+

VT-UTF8

ANSI[Default]/

Emulation: ANSI: Extended ASCII char set. VT100: ASCII char set. VT100+: Extends VT100 to support color, function keys, etc. VT-UTF8: Uses UTF8 encoding to map Unicode chars onto 1 or more bytes.

Bits per second

9600 19200 38400 57600

115200[Default]

Select serial port transmission speed. The speed must be matched on the other side. Long or noisy lines may require lower speeds.

Data Bits

7

8[Default]

Data Bits.

Parity

None[Default]

Even

Odd

Mark

A parity bit can be sent with the data bits to detect some transmission errors. Even: parity bit is 0 if the num of 1’s in the data bits is even. Odd: parity bit is 0 if num of 1’s in the data bits is odd. Mark: parity bit is always 1. Space: Parity bit is always 0. Mark and Space Parity do not allow for error detection. They can be used as an additional data bit.

Stop Bits

1[Default]

2

Stop bits indicate the end of a serial data packet. (A start bit indicates the beginning). The standard setting is 1 stop bit. Communication with slow devices may require more than 1 stop bit.

Flow Control

None[Default]

Hardware RTS/CTS

Flow control can prevent data loss from buffer overflow. When sending data, if the receiving buffers are full, a ‘stop’ signal can be sent to stop the data flow. Once the buffers are empty, a ‘start’ signal can be sent to re-start the flow. Hardware flow control uses two wires to send start/stop signals.

VT-UTF8 Combo Key

Support

Disabled

Enabled[Default]

Enable VT-UTF8 Combination Key Support for ANSI/VT100 terminals.

Recorder Mode

Disabled[Default]

Enabled

With this mode enabled only text will be sent. This is to capture Terminal data.

Resolution 100x31

Disabled[Default]

Enabled

Enables or disables extended terminal resolution.

Legacy OS Redirection

Resolution

80x24[Default]

80x25

On Legacy OS, the Number of Rows and Columns supported redirection.

Putty KeyPad

VT100[Default]

LINUX

XTERMR6

SCO

ESCN

VT400

Select FunctionKey and KeyPad on Putty.

ESM-KBLH User’s Manual

65

Redirection After BIOS

POST

Always Enable[Default]

BootLoader

The Settings specify if BootLoader is selected then Legacy console redirection is disabled before booting to Legacy OS. Default value is Always Enable which means Legacy console Redirection is enabled for Legacy OS.

3.6.2.11.2 Console Redirection Settings

Item

Option

Description

Out-of-Band Mgmt Port

COM0[Default]

Microsoft Windows Emergency Management Services (EMS) allows for remote management of a Windows Server OS through a serial port.

Terminal Type

VT100

VT100+

VT-UTF8[Default]

ANSI

VT-UTF8 is the preferred terminal type for out-of-band management. The next best choce is VT100+ and then VT100. See above, in Console Redirection Settings page, for more Help with Terminal Type/Emulation.

Bits per second

9600 19200 57600

115200[Default]

Selects serial port transmission speed. The speed must be matched on the other side. Long or noisy lines may require lower speeds.

Flow Control

None[Default]

Hardware RTS/CTS

Software Xon/Xoff

Flow control can prevent data loss from buffer overflow. When sending data, if the receiving buffers are full, a ‘stop’ signal can be sent to stop the data flow. Once the buffers are empty, a ‘start’ signal can be sent to re-start the flow. Hardware flow control uses two wires to send start/stop signals.

ESM-KBLH User’s Manual

66 ESM-KBLH User’s Manual

3.6.2.11.3 Console Redirection Settings

Item

Option

Description

Legacy Serial Redirection Port

COM0[Default]

Select a COM port to display redirection of Legacy OS and Legacy OPROM Messages.

3.6.2.12 Intel TXT Configuration

ESM-KBLH User’s Manual

67

3.6.2.13 Network Stack Configuration

Item

Options

Description

Network Stack

Enabled

Disabled[Default]

Enable/Disable UEFI Network Stack.

Item

Options

Description

Network Stack

Enabled[Default]

Disabled

Enable/Disable UEFI Network Stack.

Ipv4 PXE Support

Enabled

Disabled[Default]

Enable Ipv4 PXE Boot Support. If disabled IPV4 PXE boot option will not be created.

ESM-KBLH User’s Manual

68 ESM-KBLH User’s Manual

Ipv4 HTTP Support

Enabled

Disabled[Default]

Enable Ipv4 HTTP Boot Support. If disabled IPV4 HTTP boot option will not be created.

Ipv6 PXE Support

Enabled

Disabled[Default]

Enable Ipv6 PXE Boot Support. If disabled IPV6 PXE boot option will not be created.

Ipv6 HTTP Support

Enabled

Disabled[Default]

Enable Ipv6 HTTP Boot Support. If disabled IPV6 HTTP boot option will not be created.

PXE boot wait time

0

Wait time to press ESC key to abort the PXE boot.

Media detect count

1

Number of times presence of media will be checked.

3.6.2.14 CSM Configuration

Item

Options

Description

CSM Support

Enabled

Disabled[Default]

Enable/Disable CSM Support.

ESM-KBLH User’s Manual

69

Item

Options

Description

CSM Support

Enabled[Default]

Disabled

Enable/Disable CSM Support.

GateA20 Active

Upon Request[Default]

Always

UPON REQUEST – GA20 can be disabled using BIOS service. ALWAYS – do not allow disabling GA20; this option is useful when any RT code is executed above 1MB.

Option ROM Messages

Force BIOS[Default]

Keep Current

Set display mode for Option ROM.

INT19 Trap Response

Immediate[Default]

Postponed

BIOS reaction on INT19 trapping by Option ROM: IMMEDIATE – execute the trap right away; POSTPONED – execute the trap during legacy boot.

Boot Option filter

UEFI and Legacy

Legacy only[Default]

UEFI only

This option controls Legacy/UEFI ROMs priority.

Network

Do not launch[Default]

UEFI

Legacy

Controls the execution of UEFI and Legacy PXE OpROM.

Storage

Do not launch

UEFI

Legacy[Default]

Controls the execution of UEFI and Legacy Storage OpROM.

Video

Do not launch

UEFI

Legacy[Default]

Controls the execution of UEFI and Legacy Video OpROM.

Other PCI devices

Do not launch

UEFI

Legacy[Default]

Determines OpROM execution policy for devices other than Network, Storage, or Vide.

ESM-KBLH User’s Manual

70 ESM-KBLH User’s Manual

3.6.2.15 NVMe Configuration

3.6.2.16 USB Configuration

The USB Configuration menu helps read USB information and configures USB settings.

ESM-KBLH User’s Manual

71

Item

Options

Description

Legacy USB Support

Enabled[Default]

Disabled

Auto

Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep SUB devices available only for EFI applictions.

XHCI Hand-off

Enabled[Default]

Disabled

This is a workaround for OSew without XHCI hand-off support. The XHCI ownership change should be claimed by XHCI driver.

USB Mass Storage Driver Support

Enabled[Default]

Disabled

Enable/Disable USB Mass Storage Driver Support.

Port 60/64 Emulation

Enabled

Disabled[Default]

Enable I/O port 60h/64h emulation support. This should be enabled for the complete USB keyboard legacy support for non-USB aware OSes.

USB transfer time-out

1 sec 5 sec

10 sec

20 sec[Default]

The time-out value for Control, Bulk, and Interrupt transfers.

Device reset time-out

10 sec

20 sec[Default]

30 sec 40 sec

USB mass storage device Start Unit command time-out.

Device power-up delay

Auto[Default]

Manual

Maximum time the device will take before it properly reports itself to the Host Controller. ‘Auto’ uses default value: for a Root port it is 100ms, for a Hub port the delay is taken form Hub descriptor.

Mass Storage Devices

Auto[Default]

Floppy

Forced FDD

Hard Disk

CD-ROM

Mass storage device emulation type. ‘AUTO’ enumerates devices according to their media format. Optical drives are emulated as ‘CDROM’, drives with no media will be emulated according to a drive type.

ESM-KBLH User’s Manual

72 ESM-KBLH User’s Manual

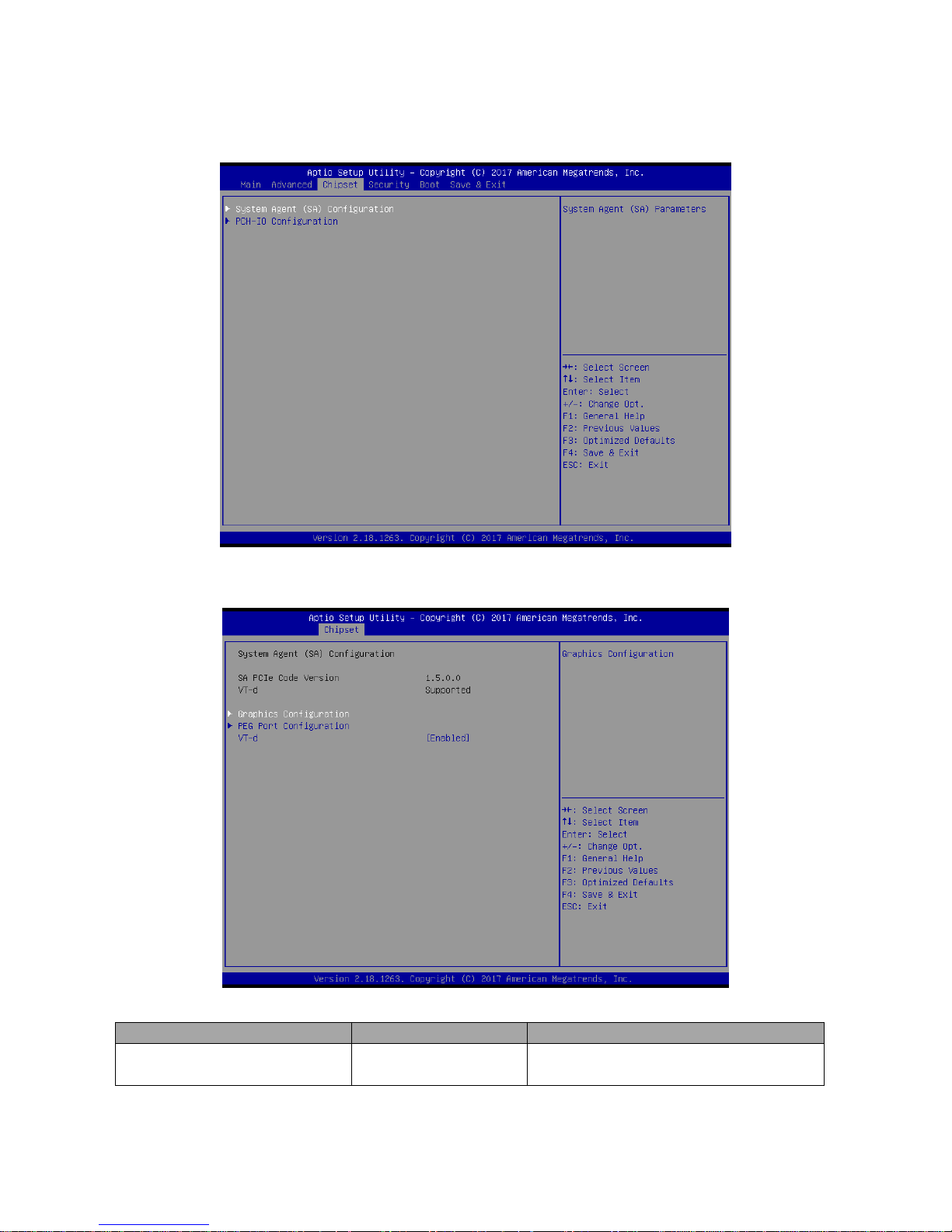

3.6.3 Chipset

3.6.3.1 System Agent (SA) Configuration

Item

Option

Description

VT-d

Enabled[Default]

Disabled

VT-d capability.

ESM-KBLH User’s Manual

73

3.6.3.1.1 Graphics Configuration

Item

Option

Description

Aperture Size

128MB 256MB 512MB

1024MB

2048MB[Default]

Select the Aperture Size. Note: Above 4GB MMIO BIOS assignment is automatically enabled when selecting 2048MB aperture. To use this feature, please disable CSM Support.

DVMT Pre-Allocated

0M 32M 64M

4M

8M 12M 16M 20M 24M 28M

32M/F7[Default]

36M 40M 44M 48M 52M 56M 60M

Select DVMT 5.0 Pre-Allocated (Fixed) Graphics Memory size used by the Internal Graphics Device.

DVMT Total Gfx Mem

256M[Default]

128M

MAX

Select DVMT 5.0 Total Graphics Memory size used by the Internal Graphics Device.

ESM-KBLH User’s Manual

74 ESM-KBLH User’s Manual

IUER Button Enable

Disabled[Default]

Enabled

Enable/Disable IUER Button Functionality.

DP-D or DP-to-VGA Selection

DP-D

DP-to-VGA[Default]

Selection of DP Port-D output.

3.6.3.1.1.1 LCD Control

Item

Option

Description

Primary IGFX Boot Display

VBIOS Default[Default],

EFP LFP

EFP3 EFP2 EFP4

Select the Video Device which will be activated during POST. This has no effect if external graphics present. Secondary boot display selection will appear based on your selection. VGA modes will be supported only on primary display.

Active LFP

No eDP

eDP Port-A[Default],

Select the Active LFP Configuration. No LVDS:VBIOS does not enable LVDS. Int-LVDS:VBIOS enable LVDS driver by Integrated encoder. SDVO LVDS:VBIOS enables LVDS driver by SDVO encoder. eDP Port-A:LFP Driven by Int-DisplayPort encoder from Port-A. eDP Port-D:LFP Driven by Int-DisplayPort encoder from Port-D(through PCH).

CH7511 EDID Panel Option

1024x768 18/1[Default]

1366x768 18/1 1024x600 18/1 1280x800 18/1

1920x1200 24/2

640x480 18/1

Port1-EDP to LVDS (Chrotel 7511) Panel EDID Option.

ESM-KBLH User’s Manual

75

800x480 18/1 1920x1080 18/2 1280x1024 24/2

1440x900 18/2

1600x1200 24/2

1366x768 24/1 1920x1080 24/2 1680x1050 24/2

Backlight brightness (%)

00% 25%

50%[Default]

75%

100%

Select LVDS back light PWM duty.

LVDS Back Light PWM

Frequency

200 Hz[Default]

300 Hz 400 Hz 500 Hz 700 Hz

1kHz 2kHz 3kHz

5kHz 10kHz 20kHz

Select LVDS back light PWM Frequency.

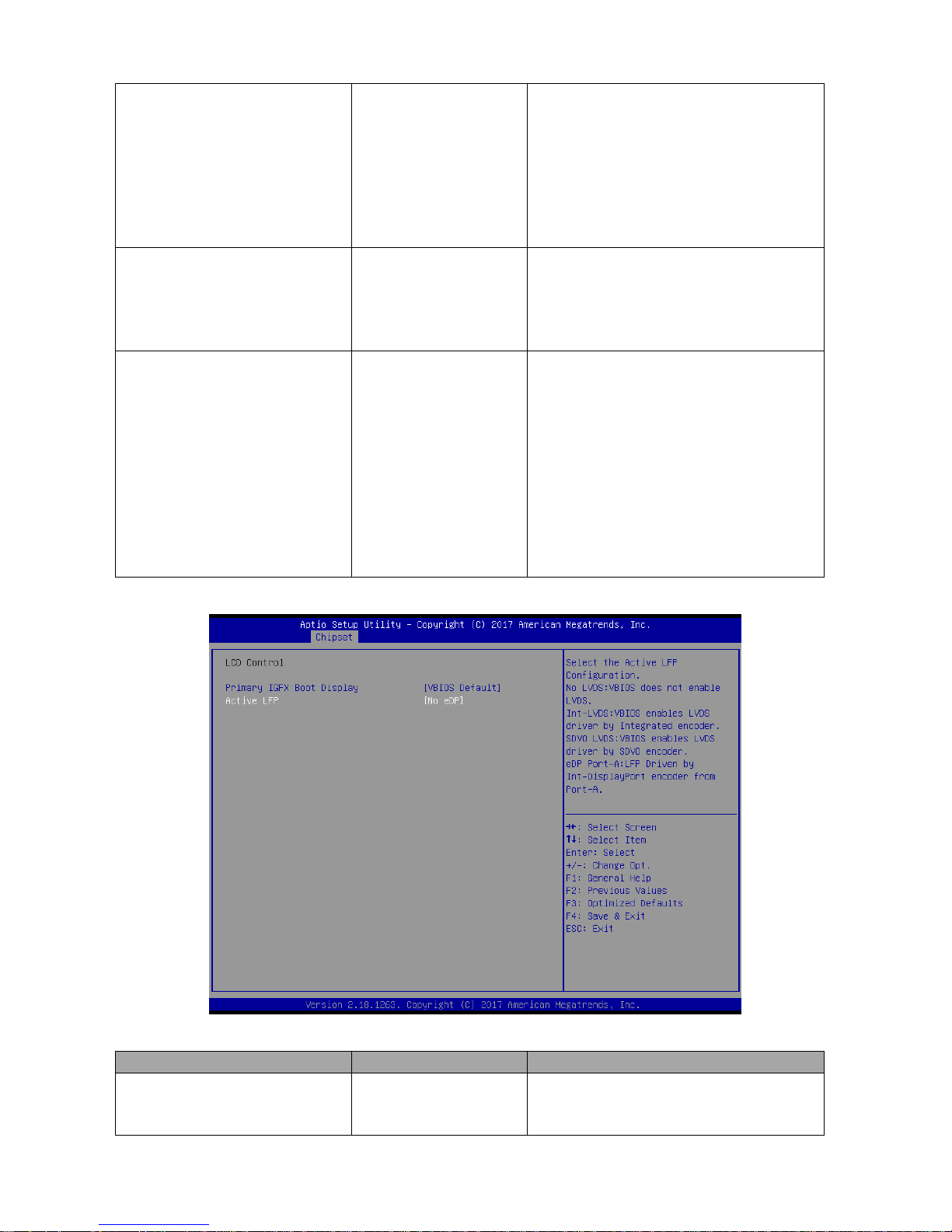

Item

Option

Description

Primary IGFX Boot Display

VBIOS Default[Default],

EFP LFP

Select the Video Device which will be activated during POST. This has no effect if external graphics present. Secondary boot

ESM-KBLH User’s Manual

76 ESM-KBLH User’s Manual

EFP3 EFP2 EFP4

display selection will appear based on your selection. VGA modes will be supported only on primary display.

Active LFP

No eDP[Default],

eDP Port-A

Select the Active LFP Configuration. No LVDS:VBIOS does not enable LVDS. Int-LVDS:VBIOS enable LVDS driver by Integrated encoder. SDVO LVDS:VBIOS enables LVDS driver by SDVO encoder. eDP Port-A:LFP Driven by Int-DisplayPort encoder from Port-A. eDP Port-D:LFP Driven by Int-DisplayPort encoder from Port-D(through PCH).

3.6.3.1.2 PEG Port Configuration

ESM-KBLH User’s Manual

77

PEG 0:1:0

Item

Option

Description

Enable Root Port

Disabled

Enabled

Auto[Default]

Enable or Disable the Root Port.

Max Link Speed

Auto[Default]

Gen1 Gen2 Gen3

Configure PEG 0:1:0 Max Speed.

PEG0 Slot Power Limit

Value

0-255

75[Default]

Sets the upper limit on power supplied by slot, Power limit (in Watts) is calculated by multiplying this value by the Slot Power Limit Scale. Values 0-255.

PEG0 Slot Power Limit

Scale

1.0x[Default]

0.1x

0.01x

0.001x

Select the scale used for the Slot Power Limit Value.

PEG0 Physical Slot Number

0-8191

1[Default]

Set the physical slot number attached to this Port. The number has to be globally unique within the chassis. Values 0-8191.

PEG 0:1:1

Item

Option

Description

Enable Root Port

Disabled

Enabled

Auto[Default]

Enable or Disable the Root Port.

Max Link Speed

Auto[Default]

Gen1 Gen2

Configure PEG 0:1:1 Max Speed.

ESM-KBLH User’s Manual

78 ESM-KBLH User’s Manual

Gen3

PEG1 Slot Power Limit

Value

0-255

75[Default]

Sets the upper limit on power supplied by slot, Power limit (in Watts) is calculated by multiplying this value by the Slot Power Limit Scale. Values 0-255.

PEG1 Slot Power Limit

Scale

1.0x[Default]

0.1x

0.01x

0.001x

Select the scale used for the Slot Power Limit Value.

PEG1 Physical Slot Number

0-8191

2[Default]

Set the physical slot number attached to this Port. The number has to be globally unique within the chassis. Values 0-8191.

PEG 0:1:2

Item

Option

Description

Enable Root Port

Disabled

Enabled

Auto[Default]

Enable or Disable the Root Port.

Max Link Speed

Auto[Default]

Gen1 Gen2 Gen3

Configure PEG 0:1:2 Max Speed.

PEG2 Slot Power Limit

Value

0-255

75[Default]

Sets the upper limit on power supplied by slot, Power limit (in Watts) is calculated by multiplying this value by the Slot Power Limit Scale. Values 0-255.

PEG2 Slot Power Limit

Scale

1.0x[Default]

0.1x

0.01x

0.001x

Select the scale used for the Slot Power Limit Value.

PEG2 Physical Slot Number

0-8191

3[Default]

Set the physical slot number attached to this Port. The number has to be globally unique within the chassis. Values 0-8191.

Program PCIe ASPM after

OpROM

Disabled[Default]

Enabled

Enabled: PCIe ASPM will be programmed after OpROM. Disabled: PCIe ASPM will be programmed before OpROM.

Program Static Phase1 Eq

Disabled

Enabled[Default]

Program Phase1 Presets/CTLEp.

ESM-KBLH User’s Manual

79

3.6.3.1.3.1 PEG Port Feature Configuration

Item

Option

Description

Detect Non-Compliance Device

Disabled[Default],

Enabled

Detect Non-Compliance PCI Express Device in PEG.

3.6.3.1.3.2 Gen3 Root Port Preset value for each Lane

ESM-KBLH User’s Manual

80 ESM-KBLH User’s Manual

Item

Option

Description

Lane0/1/2/3/4/5/6/7

/8/9/10/11/12/13/14/15

0-7

Value of Lane 0/1/2/3/4/5/6/7/8/9/10/11/12/13/14/15.

3.6.3.1.3.3 Gen3 Endpoint Preset value for each Lane

Item

Option

Description

Lane0/1/2/3/4/5/6/7

/8/9/10/11/12/13/14/15

0-7

Value of Lane 0/1/2/3/4/5/6/7/8/9/10/11/12/13/14/15.

3.6.3.1.3.4 Gen3 Endpoint Hint value for each Lane

ESM-KBLH User’s Manual

81

Item

Option

Description

Lane0/1/2/3/4/5/6/7

/8/9/10/11/12/13/14/15

0-2

Value of Lane 0/1/2/3/4/5/6/7/8/9/10/11/12/13/14/15.

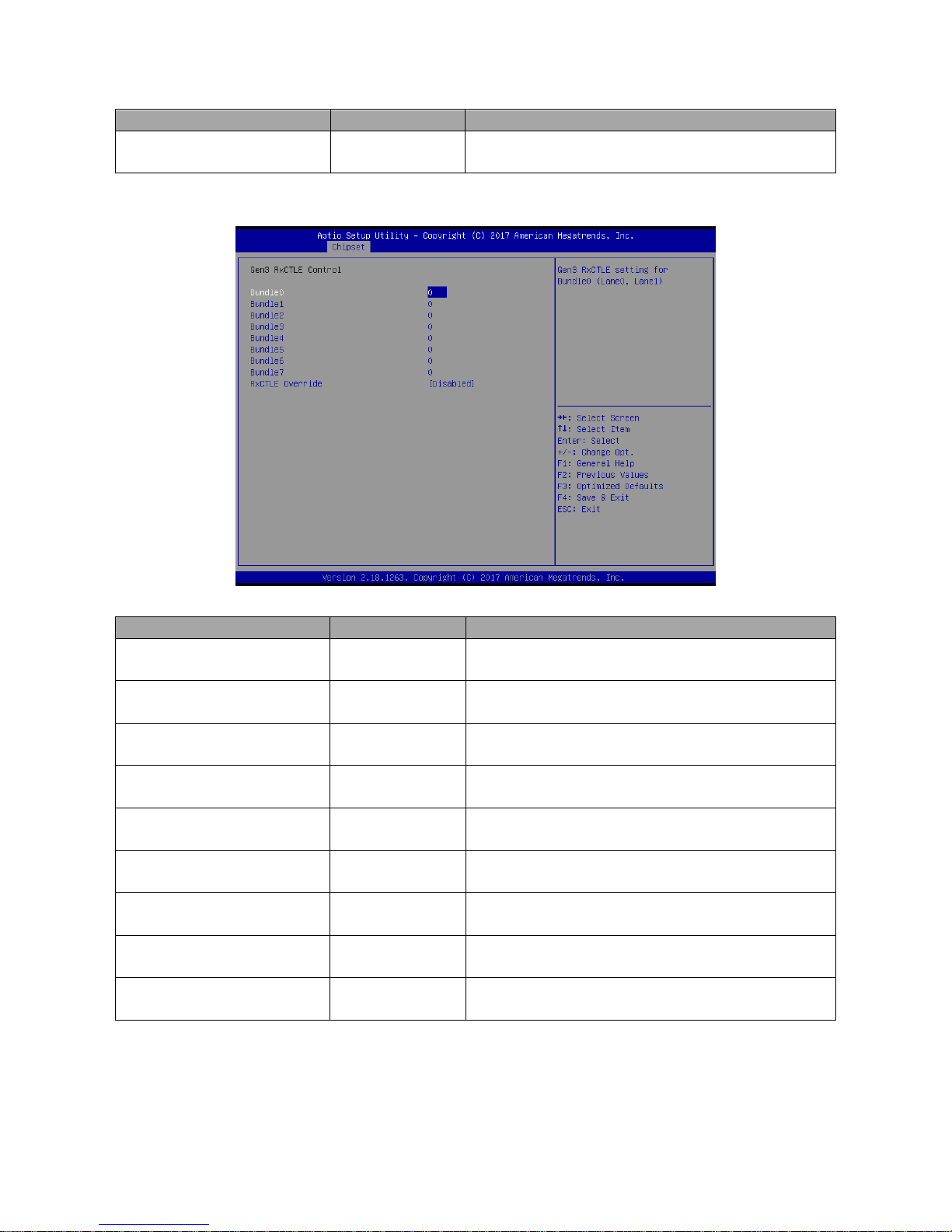

3.6.3.1.3.5 Gen3 RxCTLE Control

Item

Option

Description

Bundle0

0

Gen3 RxCTLE setting for Bundle0 (Lane0, Lane1).

Bundle1

0

Gen3 RxCTLE setting for Bundle1 (Lane2, Lane3).

Bundle2

0

Gen3 RxCTLE setting for Bundle2 (Lane4, Lane5).

Bundle3

0

Gen3 RxCTLE setting for Bundle3 (Lane6, Lane7).

Bundle4

0

Gen3 RxCTLE setting for Bundle4 (Lane8, Lane9).

Bundle5

0

Gen3 RxCTLE setting for Bundle5 (Lane10, Lane11).

Bundle6

0

Gen3 RxCTLE setting for Bundle6 (Lane12, Lane13).

Bundle7

0

Gen3 RxCTLE setting for Bundle7 (Lane14, Lane15).

RxCTLE Override

Disabled[Default],

Enabled

When Enabled, it overrides PEG’s RxCTLE adaptive behaviour.

ESM-KBLH User’s Manual

82 ESM-KBLH User’s Manual

3.6.3.2 PCH-IO Configuration

Item

Option

Description

PCH LAN Controller

Disabled

Enabled[Default]

Enable or disable onboard NIC.

Wake on LAN Enable

Disabled

Enabled[Default]

Enable or disable integrated LAN to wake the system.

Serial IRQ Mode

Quiet

Continuous[Default]

Configure Serial IRQ Mode.

Port 80h Redirection

LPC Bus[Default]

PCIE Bus

Control where the Port 80h cycles are sent.

ESM-KBLH User’s Manual

83

3.6.3.2.1 PCI Express Configuration

3.6.3.2.1.1 PCI Express Root Port1

Item

Option

Description

PCI Express Root Port 1

Enabled[Default],

Disabled

Control the PCI Express Root Port.

Topology

Unknown

x1,

x4[Default]

Sata Express

M2

Identify the SATA Topology if it is Default or ISATA or Flex or DirectConnect or M2.

ESM-KBLH User’s Manual

84 ESM-KBLH User’s Manual

ASPM

Auto

L0sL1

L1

L0s

Disabled[Default],

Set the ASPM Level: Force L0s – Force all links to L0s State AUTO – BIOS auto configure DISABLE – Disables ASPM.

L1 Substates

Disabled[Default],

L1.1 L1.2

L1.1 & L1.2

PCI Express L1 Substates settings.

PCIe Speed

Auto[Default]

Gen1 Gen2 Gen3

Configure PCIe Speed.

PCIE1 CLKREQ Mapping

Override

Default[Default]

No CLKREQ

Custom number

PCIE CLKREQ Qverride for default platform mapping.

3.6.3.2.1.2 PCI Express Root Port5

Item

Option

Description

PCI Express Root Port 5

Enabled[Default],

Disabled

Control the PCI Express Root Port.

Topology

Unknown

x1[Default],

x4

Sata Express

M2

Identify the SATA Topology if it is Default or ISATA or Flex or DirectConnect or M2.

ASPM

Auto,

L0sL1

Set the ASPM Level: Force L0s – Force all links to L0s State AUTO – BIOS auto

ESM-KBLH User’s Manual

85

L1

L0s

Disabled[Default]

configure DISABLE – Disables ASPM.

L1 Substates

Disabled[Default],

L1.1 L1.2

L1.1 & L1.2

PCI Express L1 Substates settings.

PCIe Speed

Auto[Default]

Gen1 Gen2 Gen3

Configure PCIe Speed.

PCIE5 CLKREQ Mapping

Override

Default[Default]

No CLKREQ

Custom number

PCIE CLKREQ Qverride for default platform mapping.

3.6.3.2.1.3 PCI Express Root Port6

Item

Option

Description

PCI Express Root Port 6

Enabled[Default],

Disabled

Control the PCI Express Root Port.

Topology

Unknown

x1[Default],

x4

Sata Express

M2

Identify the SATA Topology if it is Default or ISATA or Flex or DirectConnect or M2.

ASPM

Auto,

L0sL1

L1

L0s

Disabled[Default]

Set the ASPM Level: Force L0s – Force all links to L0s State AUTO – BIOS auto configure DISABLE – Disables ASPM.

ESM-KBLH User’s Manual

86 ESM-KBLH User’s Manual

L1 Substates

Disabled[Default],

L1.1 L1.2

L1.1 & L1.2

PCI Express L1 Substates settings.

PCIe Speed

Auto[Default]

Gen1 Gen2 Gen3

Configure PCIe Speed.

PCIE6 CLKREQ Mapping

Override

Default[Default]

No CLKREQ

Custom number

PCIE CLKREQ Qverride for default platform mapping.

3.6.3.2.1.4 PCI Express Root Port7

Item

Option

Description

PCI Express Root Port 7

Enabled[Default],

Disabled

Control the PCI Express Root Port.

Topology

Unknown

x1[Default],

x4

Sata Express

M2

Identify the SATA Topology if it is Default or ISATA or Flex or DirectConnect or M2.

ASPM

Auto,

L0sL1

L1

L0s

Disabled[Default]

Set the ASPM Level: Force L0s – Force all links to L0s State AUTO – BIOS auto configure DISABLE – Disables ASPM.

ESM-KBLH User’s Manual

87

L1 Substates

Disabled[Default],

L1.1 L1.2

L1.1 & L1.2

PCI Express L1 Substates settings.

PCIe Speed

Auto[Default]

Gen1 Gen2 Gen3

Configure PCIe Speed.

PCIE7 CLKREQ Mapping

Override

Default[Default]

No CLKREQ

Custom number

PCIE CLKREQ Qverride for default platform mapping.

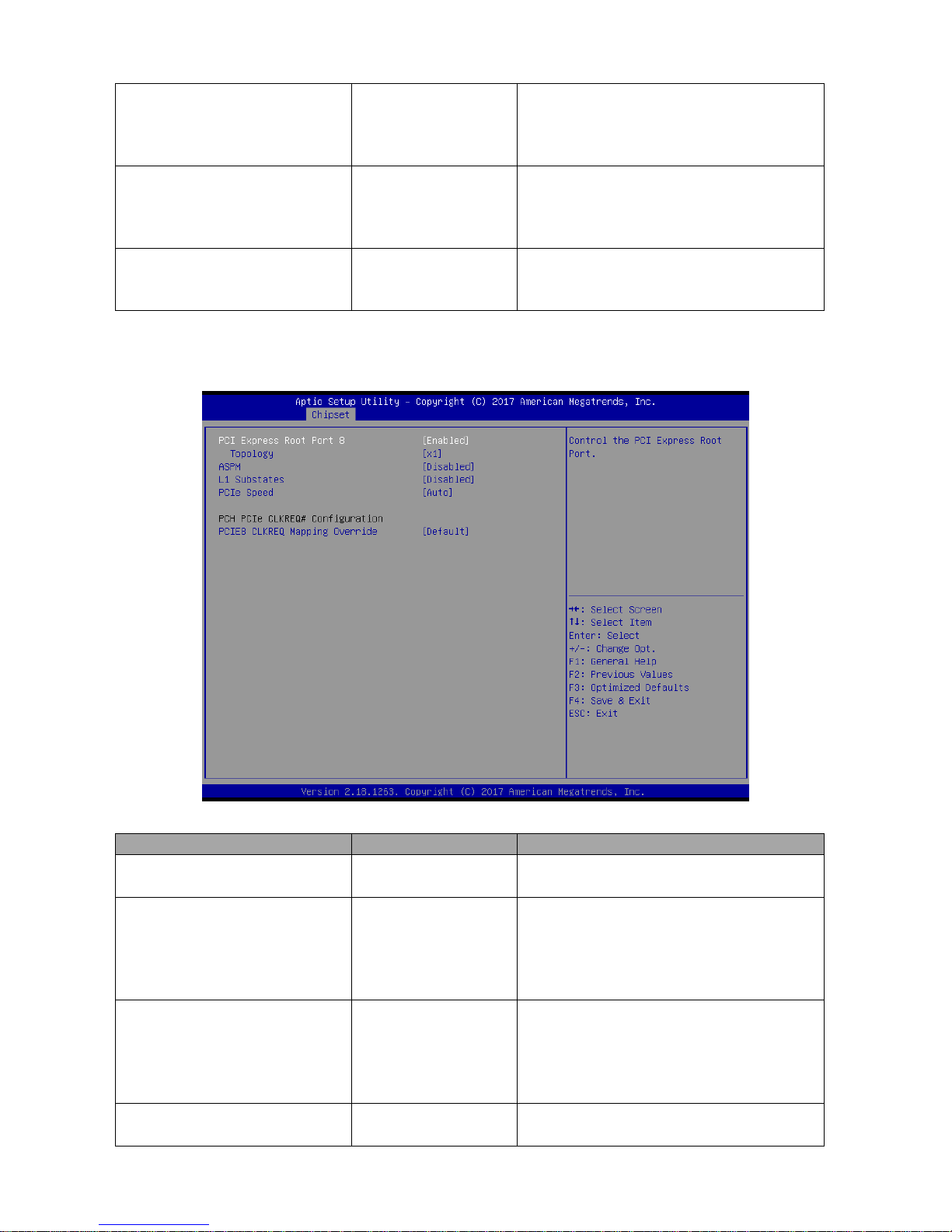

3.6.3.2.1.5 PCI Express Root Port8

Item

Option

Description

PCI Express Root Port 8

Enabled[Default],

Disabled

Control the PCI Express Root Port.

Topology

Unknown

x1[Default],

x4

Sata Express

M2

Identify the SATA Topology if it is Default or ISATA or Flex or DirectConnect or M2.

ASPM

Auto,

L0sL1

L1

L0s

Disabled[Default]

Set the ASPM Level: Force L0s – Force all links to L0s State AUTO – BIOS auto configure DISABLE – Disables ASPM.

L1 Substates

Disabled[Default],

L1.1

PCI Express L1 Substates settings.

ESM-KBLH User’s Manual

88 ESM-KBLH User’s Manual

L1.2

L1.1 & L1.2

PCIe Speed

Auto[Default]

Gen1 Gen2 Gen3

Configure PCIe Speed.

PCIE8 CLKREQ Mapping

Override

Default[Default]

No CLKREQ

Custom number

PCIE CLKREQ Qverride for default platform mapping.

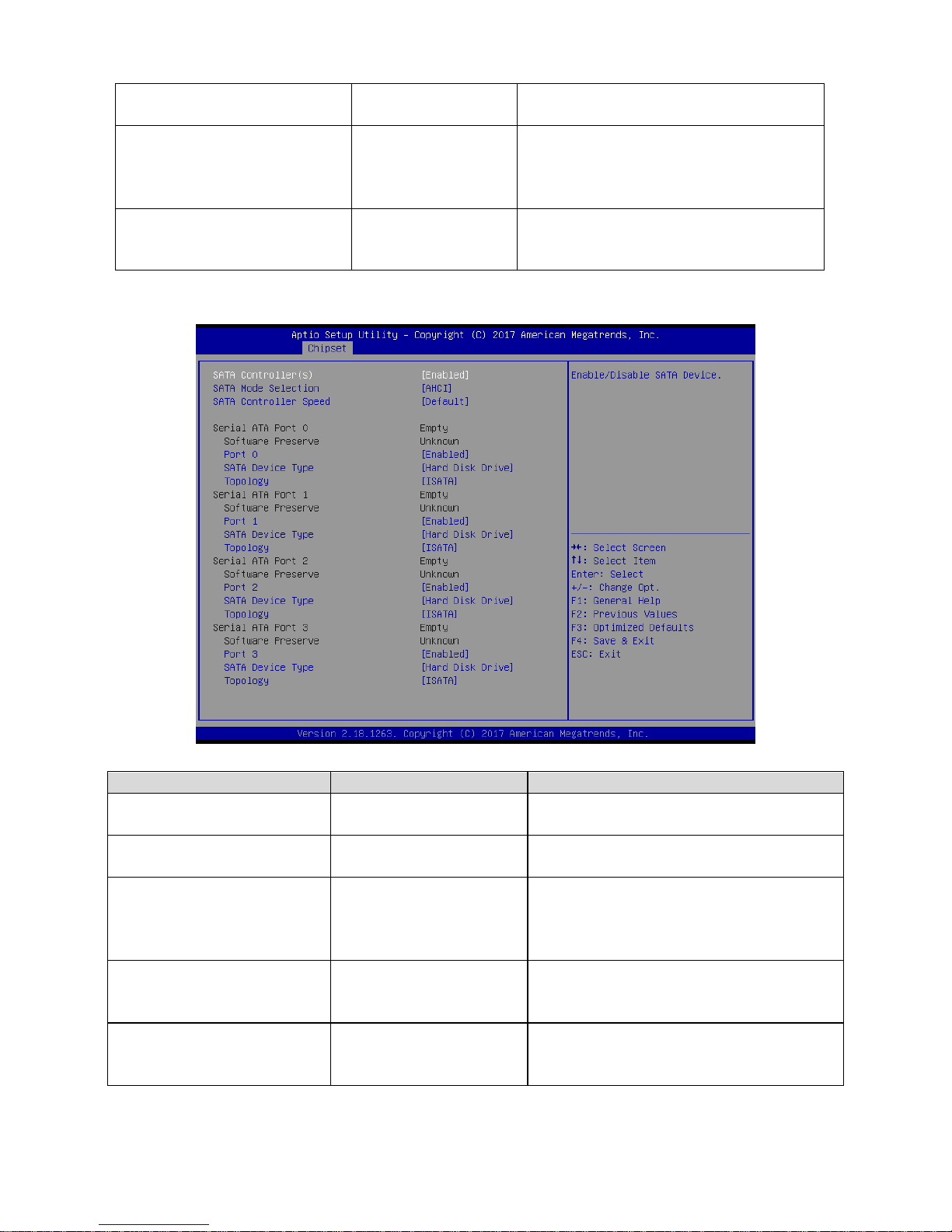

3.6.3.2.2 SATA And RST Configuration

Item

Options

Description

SATA Controller(s)

Enabled[Default]

Disabled,

Enable/Disable SATA Device.

SATA Mode Selection

AHCI[Default],

RAID

Determines how SATA controller(s) operate.

SATA Controller Speed

Default[Default]

Gen1 Gen2 Gen3

Indicates the maximum speed the SATA controller can support.

Port 0/1/2/3

Enabled[Default]

Disabled

Enable or Disable SATA Port.

SATA Device Type

Hard Disk Drive[Default]

Solid State Drive

Identify the SATA port is connected to Solid State Drive or Hard Disk Drive.

ESM-KBLH User’s Manual

89

Technology

Unknown

ISATA[Default]

Direct Connect

Flex

M2

Identify the SATA Topology if it is Default or ISATA or Flex or DirectConnect or M2.

3.6.3.2.3 USB Configuration

Item

Option

Description

XHCI Disable Compliance Mode

FALSE[Default],

TRUE

Option to disable Compliance Mode. Default is FALSE to not disable Compliance Mode. Set TRUE to disable Compliance Mode.

ESM-KBLH User’s Manual

90 ESM-KBLH User’s Manual

3.6.3.2.4 HD Audio Configuration

Item

Option

Description

HD Audio

Disabled

Enabled

Auto[Default],

Control Detection of the HD-Audio device. Disable = HDA will be unconditionally disabled Enabled = HDA will be unconditionally enabled Auto = HDA will be enabled if present, disabled otherwise.

ESM-KBLH User’s Manual

91

3.6.4 Security

 Administrator Password Set setup Administrator Password

 User Password Set User Password

ESM-KBLH User’s Manual

92 ESM-KBLH User’s Manual

3.6.4.1 Secure Boot

Item

Option

Description

Attempt Secure Boot

Disabled[Default]

Enabled

Secure Boot can be enabled if 1.System running in User mode with enrolled Platform Key(PK) 2.CSM function is disabled.

Secure Boot Mode

Standard

Custom[Default]

Secure Boot mode selector: Standard/Custom. In Custom mode Secure Boot Variables can be configured without authentication.

ESM-KBLH User’s Manual

93

3.6.4.1.1 Key Management

Item

Option

Description

Provision Factory Defaults

Disabled[Default]

Enabled

Allow to provision factory default Secure Boot keys when System is in Setup Mode.

3.6.5 Boot

ESM-KBLH User’s Manual

94 ESM-KBLH User’s Manual

Item

Option

Description

Setup Prompt Timeout

1~ 65535

Number of seconds to wait for setup activation key. 65535(0xFFFF) means indefinite waiting.

Bootup NumLock State

On[Default]

Off

Select the Keyboard NumLock state

Quiet Boot

Disabled[Default]

Enabled

Enables or disables Quiet Boot option

Fast Boot

Disabled[Default]

Enabled

Enables or disables boot with initialization of a minimal set of devices required to launch active boot option. Has no effect for BBS boot options.

Boot Option #1

Set the system boot order.

3.6.6 Save and exit

3.6.6.1 Save Changes and Reset

Reset the system after saving the changes.

3.6.6.2 Discard Changes and Reset

Any changes made to BIOS settings during this session of the BIOS setup program are discarded. The setup program then exits and reboots the controller.

ESM-KBLH User’s Manual

95

3.6.6.3 Restore Defaults

This option restores all BIOS settings to the factory default. This option is useful if the controller exhibits unpredictable behavior due to an incorrect or inappropriate BIOS setting.

3.6.6.4 Launch EFI Shell from filesystem device

Attempts to Launch EFI Shell application (Shellx64.efi) from one of the available filesystem devices.

ESM-KBLH User’s Manual

96 ESM-KBLH User’s Manual

4. Drivers Installation

Note: Installation procedures and screen shots in this section are

for your reference and may not be exactly the same as shown on your screen.

ESM-KBLH User’s Manual

97

4.1 Install Chipset Driver

Insert the Supporting DVD-ROM to DVD-ROM drive, and it should show the index page of our products automatically. If not, locate Index.htm and choose the product from the menu left, or link to

/Driver_Chipset/Intel/ESM-KBLH_KBLA.

Note: The installation procedures and

screen shots in this section are based on Windows 10 operation system. If the warning message appears while the installation process, click Continue to go on.

Step 3. Click Install. Step1. Click Next.

Step 4. Complete setup.

Step 2. Click Accept.

ESM-KBLH User’s Manual

98 ESM-KBLH User’s Manual

4.2 Install Display Driver

Insert the Supporting DVD-ROM to DVD-ROM drive, and it should show the index page of our products automatically. If not, locate Index.htm and choose the product from the menu left, or link to /

VGA/ESM-KBLH_KBLA.

Note: The installation procedures and

screen shots in this section are based on Windows 10 operation system.

Step 3. Click Next.

Step 1. Click Next to continue installation.

Step 4. Click Next.

Step 2. Click Yes to accept license

agreement.

Step 5. Click Finish to complete setup.

ESM-KBLH User’s Manual

99

4.3 Install LAN Driver (For Intel I219LM)

Insert the Supporting DVD-ROM to DVD-ROM drive, and it should show the index page of our products automatically. If not, locate Index.htm and choose the product from the menu left, or link to

/Driver_Gigabit/Intel//I219LM/ESM-KBLH_KBLA_LAN.

Note: The installation procedures and screen shots in

this section are based on Windows 10 operation system.

Step 3. Click Next.

Step 1. Click Install Drivers and Software.

Step 4. Click Next.

Step 2. Click Next to complete setup.

Step 5. Click Install.

ESM-KBLH User’s Manual

100 ESM-KBLH User’s Manual

Step 6. Click Finish to complete setup.

BCM ESM-KBLH User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
