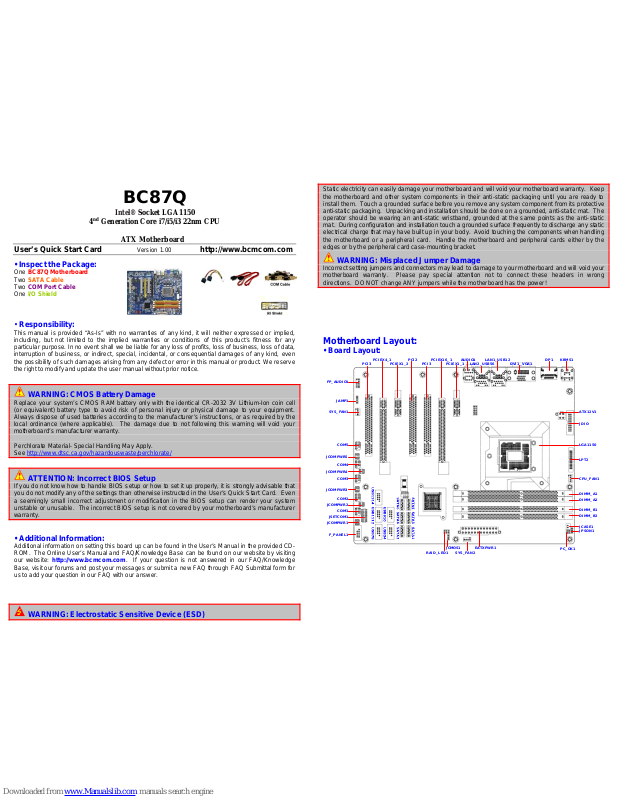

Page 1

BC87Q

Intel® Socket LGA1150

Generation Core i7/i5/i3 22nm CPU

ATX Motherboard

User’s Quick Start Card

Version 1.00 http://www.bcmcom.com

• Inspect the Package:

One BC87Q Motherboard Two SATA Cable Two COM Port Cable One I/O Shield

• Responsibility:

This manual is provided “As-Is” with no warranties of any kind, it will neither expressed or implied, including, but not limited to the implied warranties or conditions of this product’s fitness for any particular purpose. In no event shall we be liable for any loss of profits, loss of business, loss of data, interruption of business, or indirect, special, incidental, or consequential damages of any kind, even the possibility of such damages arising from any defect or error in this manual or product. We reserve the right to modify and update the user manual without prior notice.

WARNING: CMOS Battery Damage

Replace your system’s CMOS RAM battery only with the identical CR-2032 3V Lithium-Ion coin cell (or equivalent) battery type to avoid risk of personal injury or physical damage to your equipment. Always dispose of used batteries according to the manufacturer’s instructions, or as required by the local ordinance (where applicable). The damage due to not following this warning will void your motherboard’s manufacturer warranty.

Perchlorate Material- Special Handling May Apply. See http://www.dtsc.ca.gov/hazardouswaste/perchlorate/

ATTENTION: Incorrect BIOS Setup

If you do not know how to handle BIOS setup or how to set it up properly, it is strongly advisable that you do not modify any of the settings than otherwise instructed in the User’s Quick Start Card. Even a seemingly small incorrect adjustment or modification in the BIOS setup can render your system unstable or unusable. The incorrect BIOS setup is not covered by your motherboard’s manufacturer warranty.

• Additional Information:

Additional information on setting this board up can be found in the User’s Manual in the provided CDROM. The Online User’s Manual and FAQ/Knowledge Base can be found on our website by visiting our website: http://www.bcmcom.com. If your question is not answered in our FAQ/Knowledge Base, visit our forums and post your messages or submit a new FAQ through FAQ Submittal form for us to add your question in our FAQ with our answer.

WARNING: Electrostatic Sensitive Device (ESD)

Static electricity can easily damage your motherboard and will void your motherboard warranty. Keep the motherboard and other system components in their anti-static packaging until you are ready to install them. Touch a grounded surface before you remove any system component from its protective anti-static packaging. Unpacking and installation should be done on a grounded, anti-static mat. The operator should be wearing an anti-static wristband, grounded at the same points as the anti-static mat. During configuration and installation touch a grounded surface frequently to discharge any static electrical charge that may have built up in your body. Avoid touching the components when handling the motherboard or a peripheral card. Handle the motherboard and peripheral cards either by the edges or by the peripheral card case-mounting bracket.

WARNING: Misplaced Jumper Damage

Incorrect setting jumpers and connectors may lead to damage to your motherboard and will void your motherboard warranty. Please pay special attention not to connect these headers in wrong directions. DO NOT change ANY jumpers while the motherboard has the power!

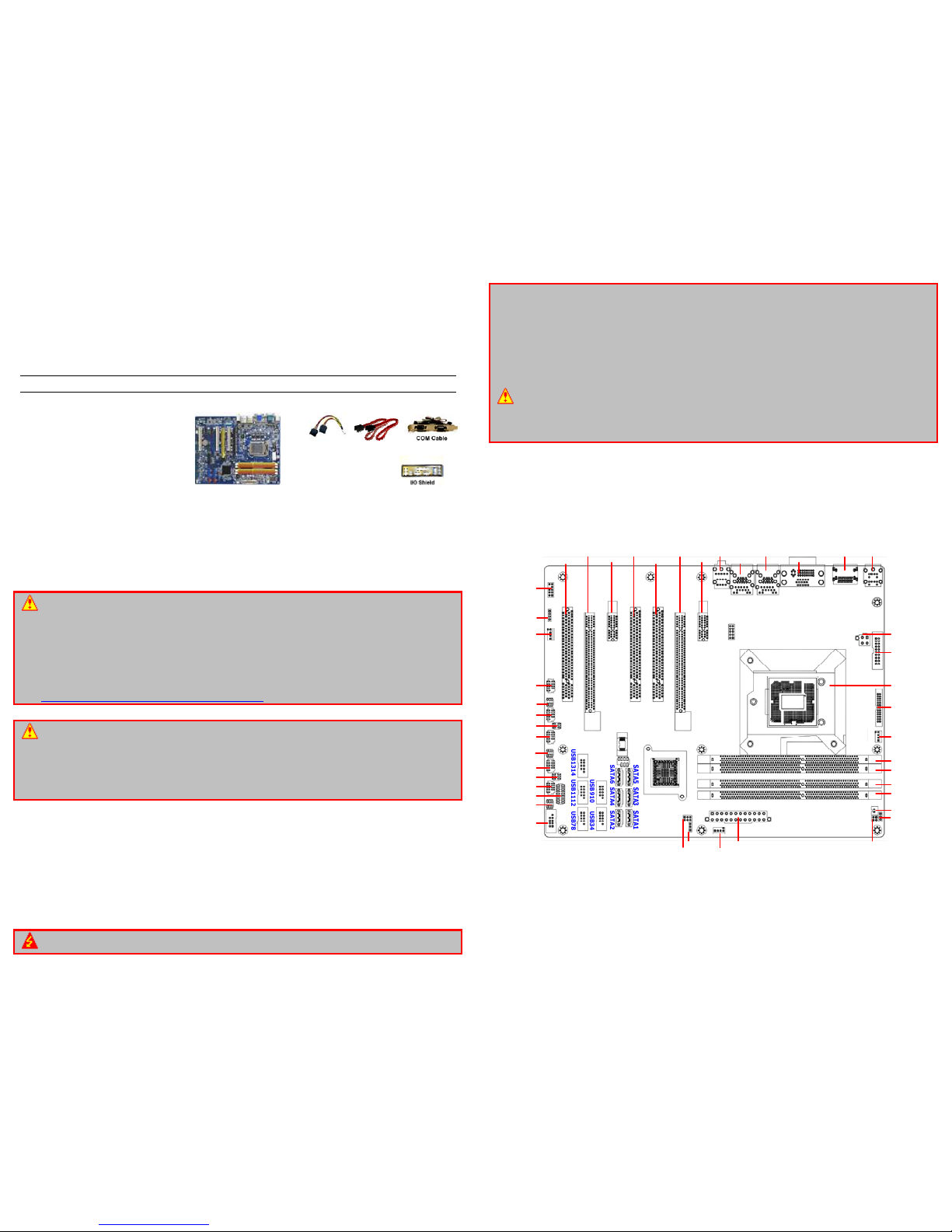

Motherboard Layout:

• Board Layout:

LGA1150

ATX12V1

JDIO

LPT2

CPU_FAN1

DIMM_A1 DIMM_A2

DIMM_B1 DIMM_B2

JCASE1 JPSON1

PC_OK1

EATXPWR1

SYS_FAN2

JCMOS1

RAID_LED1

F_PANEL1

JCOMPWR1

JSETCOM1

JCOMPWR2

JCOMPWR3

JCOMPWR4

JCOMPWR5

COM1

COM2

COM3

COM4

COM5

FP_AUDIO1

JAMP1

PCI3

PCIEX4_1

PCIEX1_2

PCI2

PCI3

PCIEX16_1

PCIEX1_1

AUDIO1

LAN2_USB56

LAN1_USB12

DVI1_VGA1

DP1 KBMS1

SYS_FAN1

Page 2

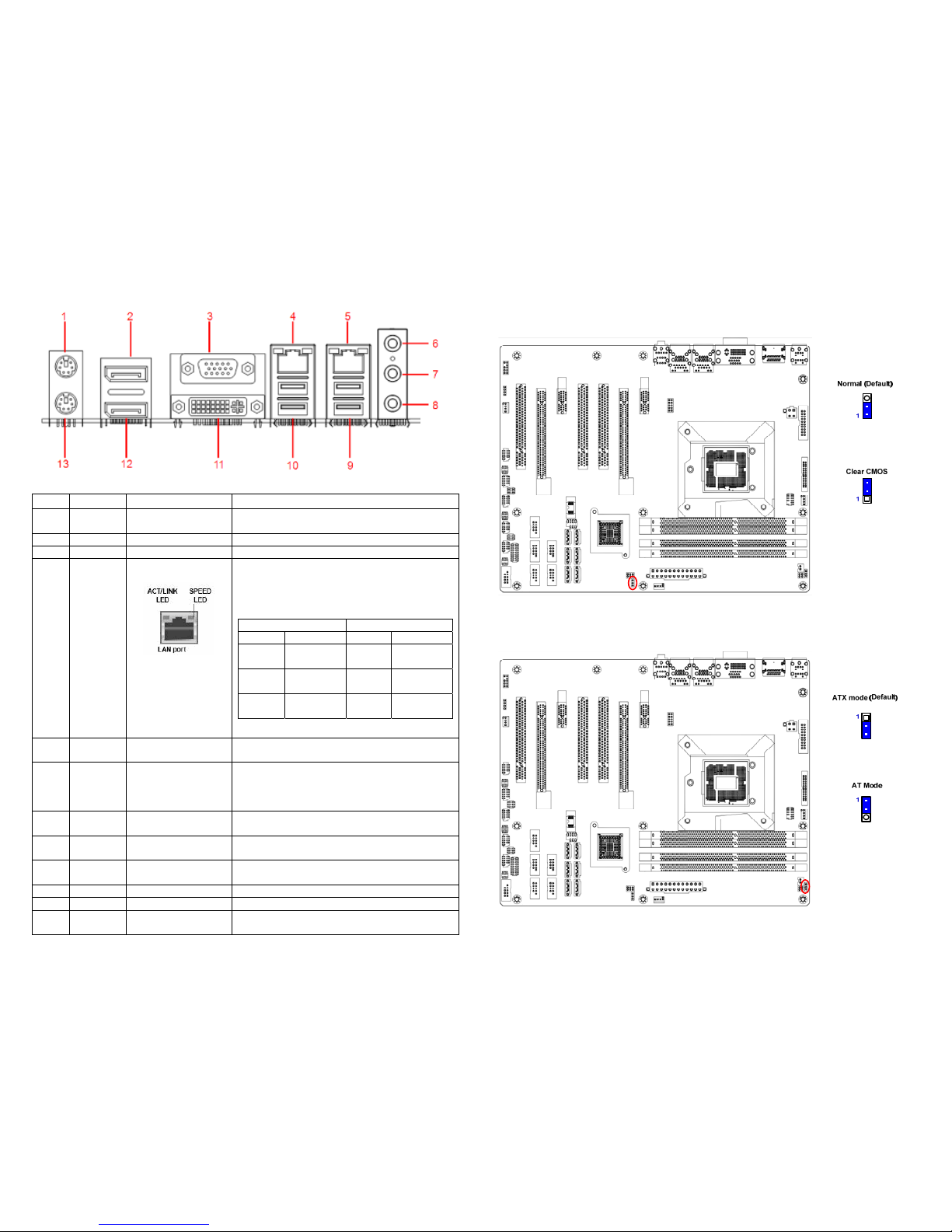

• Back Panel:

Item Name Function Description

1 KBMS PS/2 Mouse

Connector

The port is for a PS/2 mouse.

2 DP1 Display Port 2 3 VGA VGA Video Port The VGA15-pin Connector.

4/5 LAN1/

LAN2

Gigabit LAN

(RJ-45) Connectors

This port allows Gigabit connection to a Local Area Network (LAN) through a network hub. Refer to the table below for the LAN port LED indications.

ACT/Link LED Speed LED Status Description Status Description OFF No link OFF 10Mbps

connection

Orange Linked Orange 100Mbps

connection

Blinking Data

activity

Green 1Gbps

connection

6 AUDIO Line-in port

(Light blue)

This port connects a tape, CD, DVD player, or other audio sources.

7 AUDIO Line-out port

(Lime)

This port connects a headphone or a speaker. In 4-channel, 6-channel, and 8-channel configuration, the function of this port becomes Front Speaker Out.

8 AUDIO Microphone port

(Pink)

This port connects a microphone.

9 USB USB 3.0 Connectors These two 4-pin Universal Serial Bus (USB) ports

are available for connecting USB 3.0 devices.

10 USB USB 3.0 Connectors These two 4-pin Universal Serial Bus (USB) ports

are available for connecting USB 3.0 devices. 11 DVI DVI Video Port DVI-D 24-Pin Connector. 12 DP1 Display Port 1 13 KBMS PS/2 Keyboard

Connector

This port is for a PS/2 keyboard.

Connectors, Jumpers, & Headers:

• Clear CMOS Jumper: JCOMS1

• ATX/AT Mode Selection: PSON1

Page 3

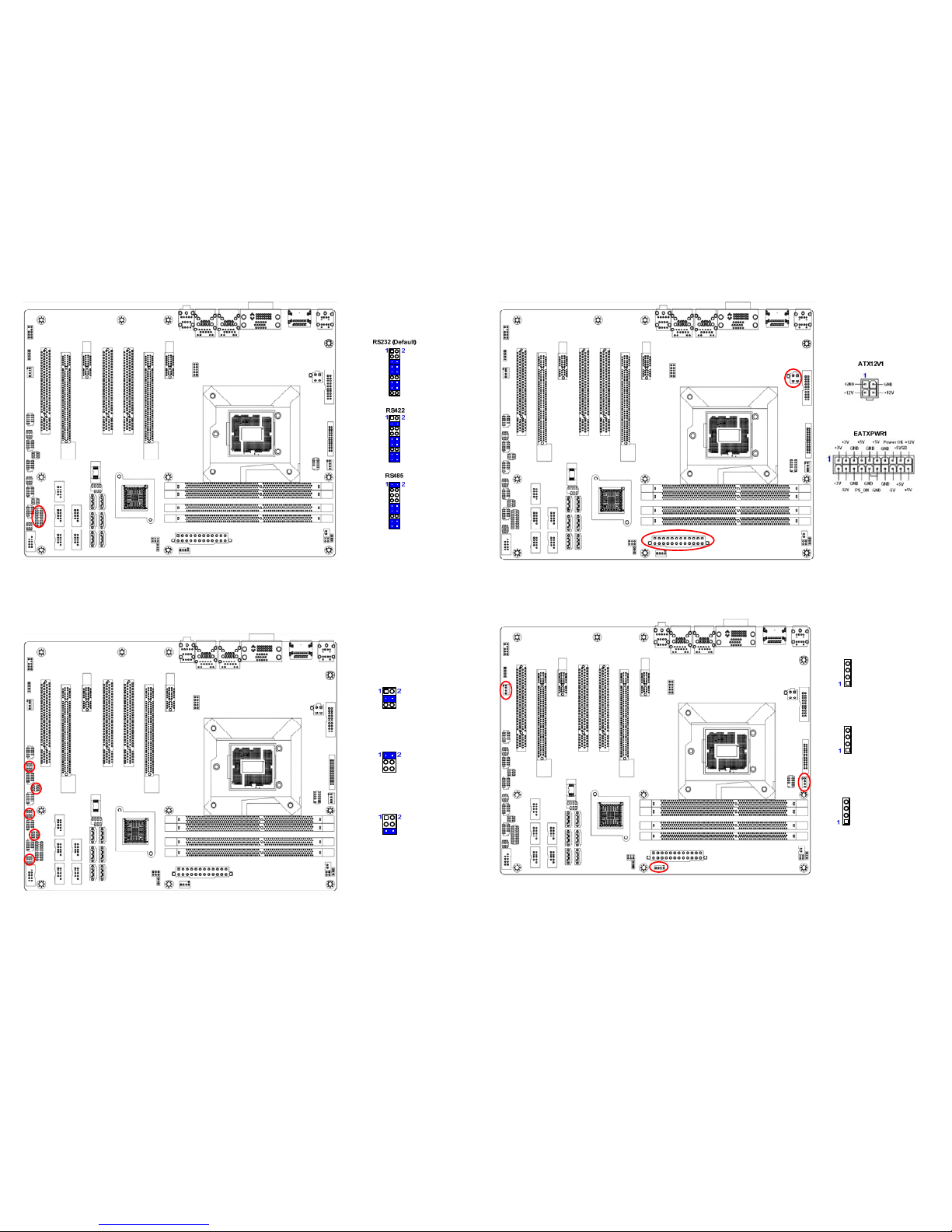

• COM1 RS232/ RS422/ RS485 Select: JSETCOM1

• COM1, COM2, COM3, COM4, COM5 Ring-In/ +12V/ +5V Select: JCOMPWR1, JCOMPWR2, JCOMPWR3, JCOMPWR4, JCOMPWR5

Ring (Default)

+12V

+5V

• ATX Power Connectors: EATXPWR1 (24-Pin), ATX12V1 (4-pin)

Fan Connectors: CPU_FAN1, SYS_FAN1, SYS_FAN2

CPU_FAN1

SYS_FAN1

SYS_FAN2

4. FAN_PWM3

3. FAN_SPEED3

2. +V12

1. GND

4. FAN_PWM2

3. FAN_SPEED2

2. +V12

1. GND

4. FAN_PWM1

3. FAN_SPEED1

2. +V12

1. GND

Page 4

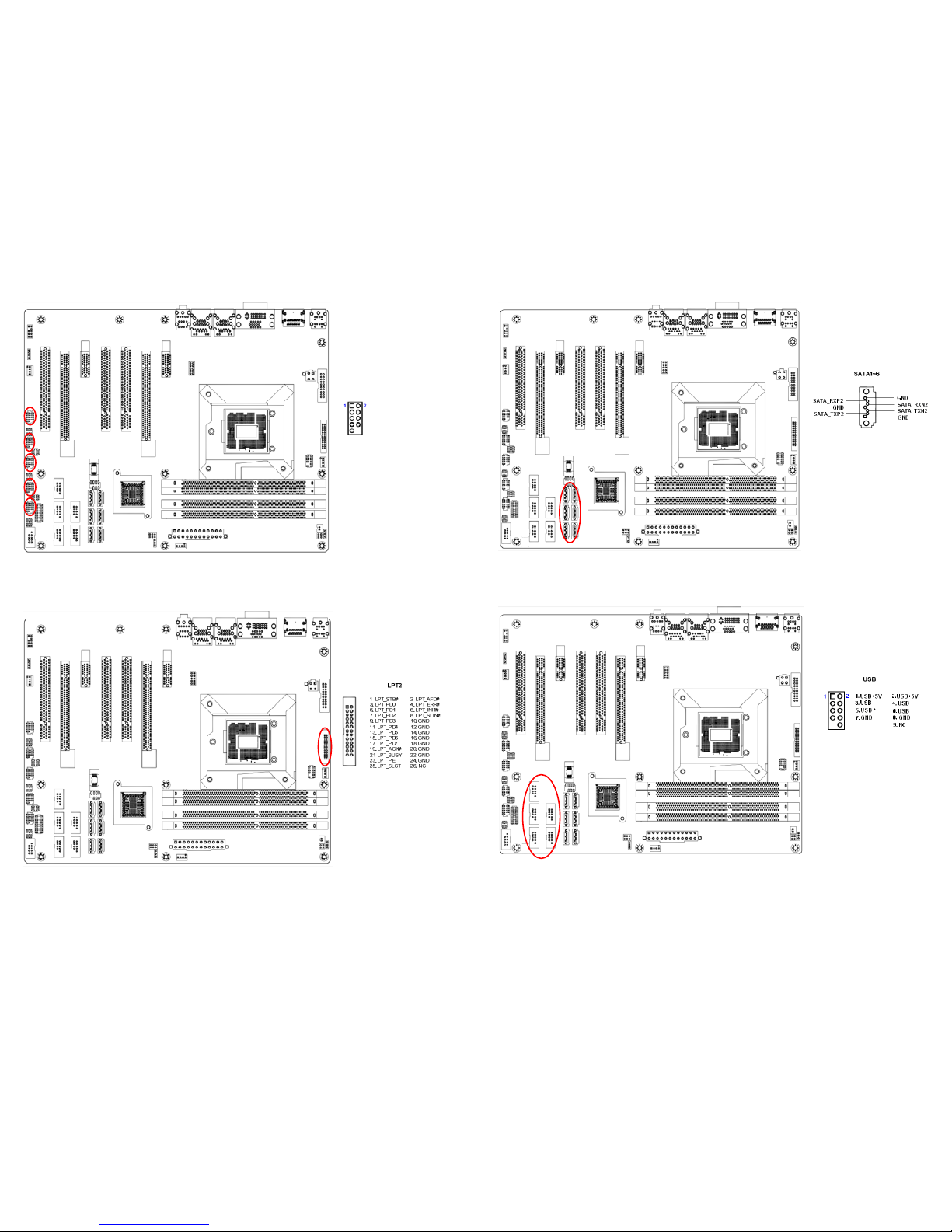

• Serial Port Connectors: COM1, COM2, COM3, COM4, COM5

1. DCD#

3. TX

5. GND

7. RTS#

9. RI3xPOWERxJMP

2. RX

4. DTR#

6. DSR#

8. CTS#

COM1~5

• LPT Port Connector: LPT2

• SATA 3.0 Ports: SATA1, SATA2, SATA3, SATA4, SATA5, SATA6

• Front USB Headers: USB34, USB78, USB910, USB1112, USB1314

Page 5

• Front Panel Connector: F_PANEL1

F_PANEL1

9. NC

7. SRST#

5. GND

3. SATA_LED#

1. HDD_LED+

8. GND

6. PANSWIN#

4. SUPLED1

2. +V5_DUAL

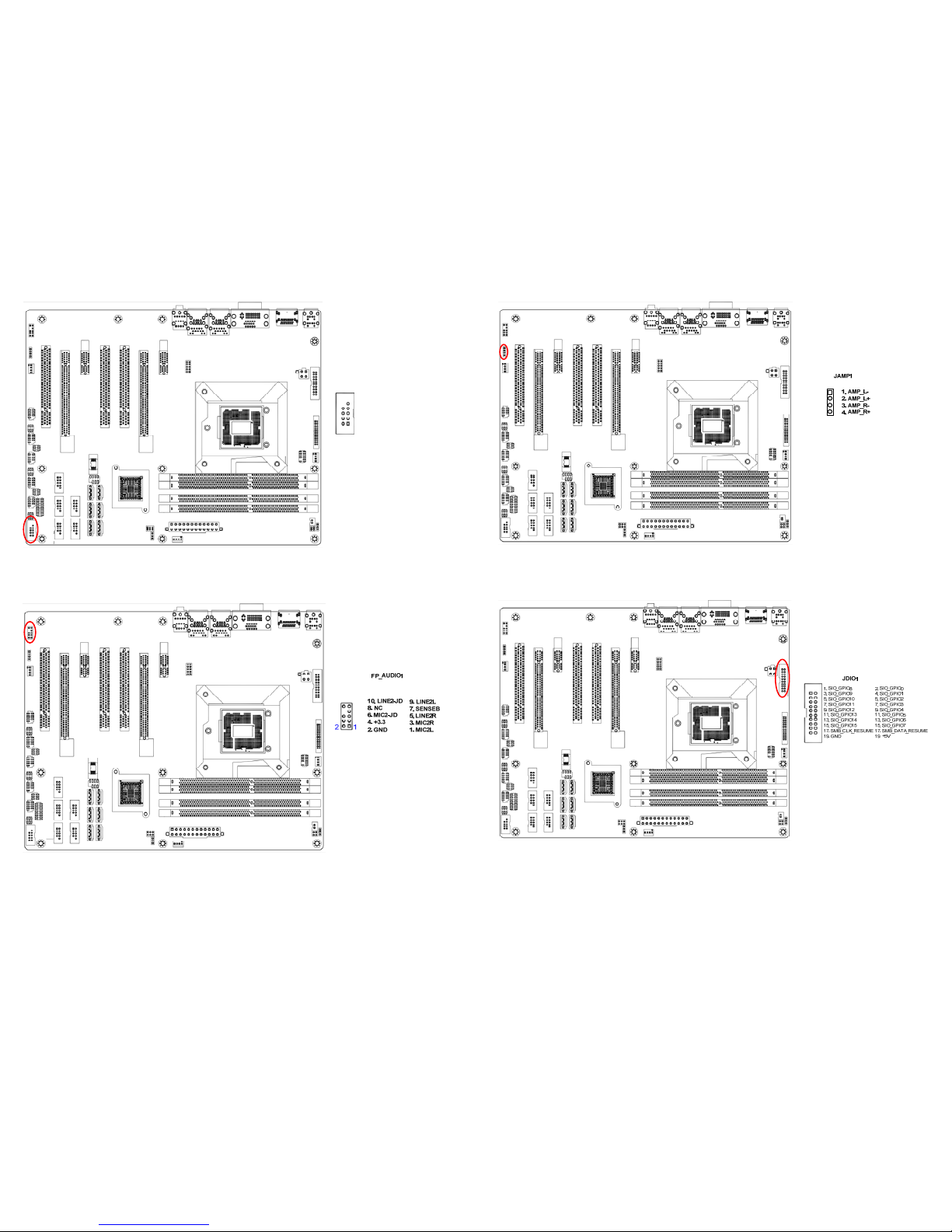

Front Panel Audio Connector: FP_AUDIO1

• Amplifier Connector: JAMP1

• Digital I/O Connector: JDIO1

Page 6

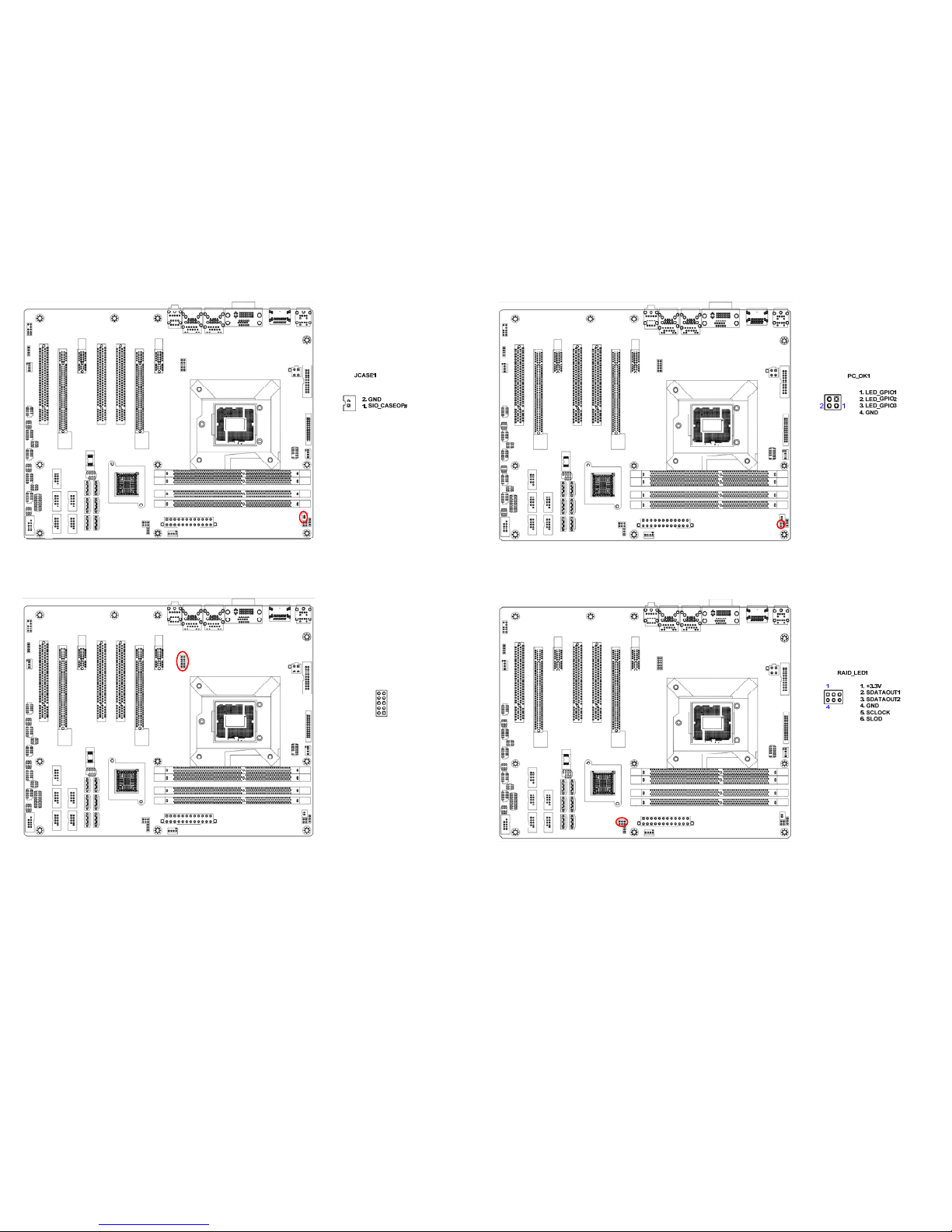

• Chassis Intrusion Connector: JCASE1

• LAN LED Header: LANLED1

LANLED1

9. LAN1_SPEED_100

7. GND

5. LAN1_SPEED_1G

3. GND

1. LAN1_ACT

10. LAN1_SPEED_100

8. GND

6. LAN1_SPEED_1G

4. GND

2. LAN1_ACT

• PC OK Connector: PC_OK1

RAID LED Connector: RAID_LED1

Page 7

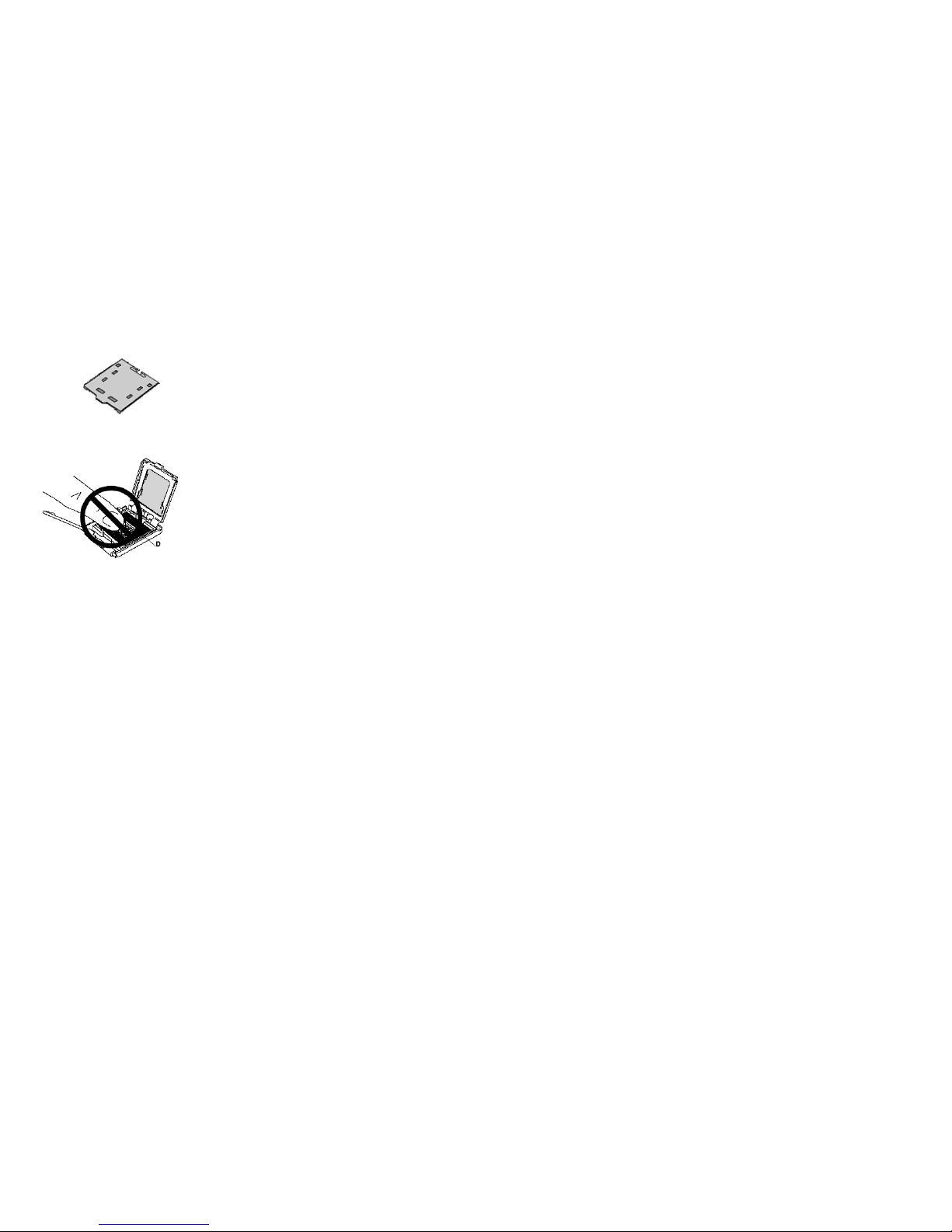

• Save the Processor Socket Cover

After removing the processor cover during processor installation, please save the processor socket cover. In the event that the desktop board needs to be returned for service or any time the processor is removed, the cover should be replaced on the processor socket.

• Do not Touch Socket Contact
