Quick Start Guide
Ver 0.1
AR6MX- Series
This Quick Start Guide is for BCM AR6MXQ (Quad Core) and AR6MXS (Solo Core) ARM
motherboards based on Freescale i.MX6 Cortex A9 platform.
Page 2

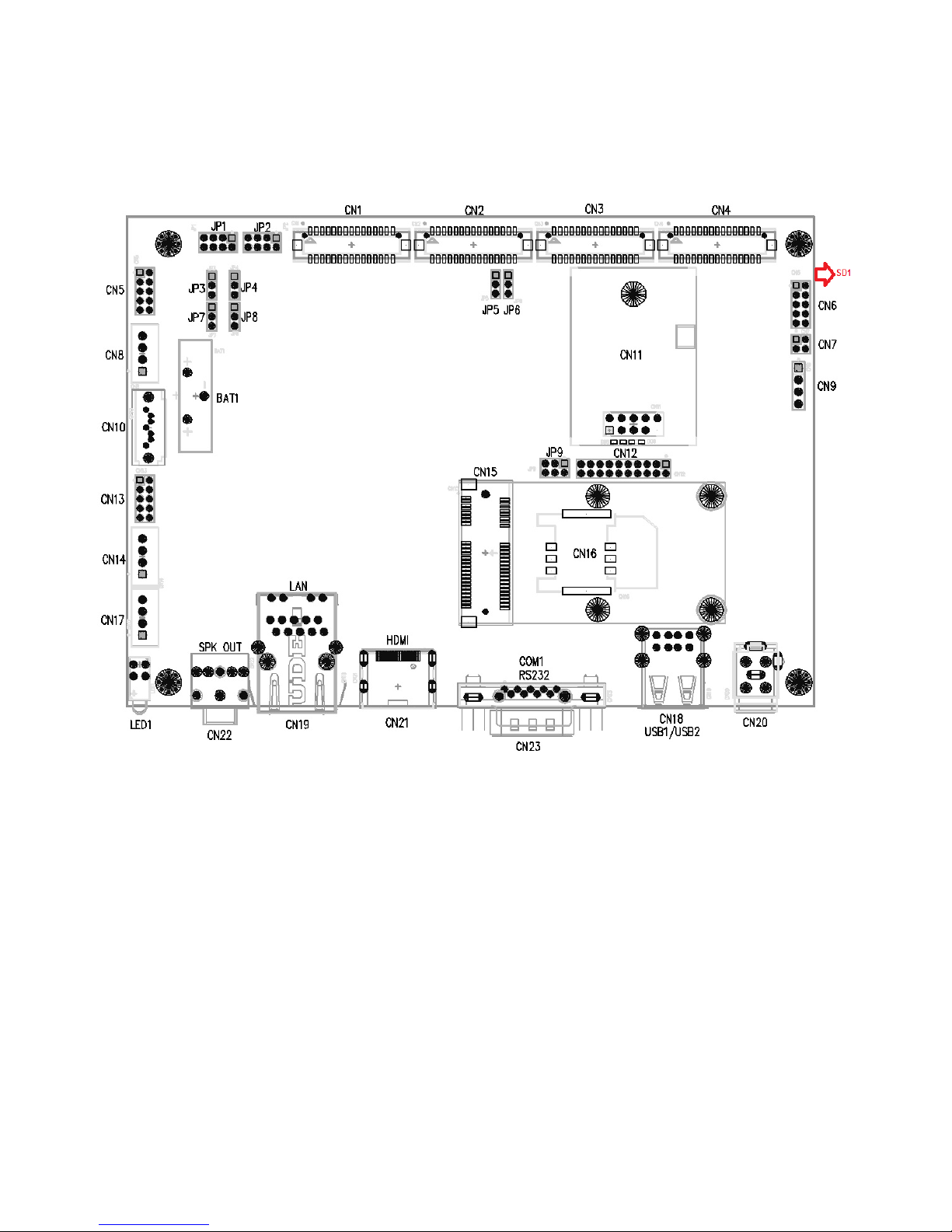

1. Mainboard illustration: Locations of IO ports & Jumper settings definition
Board Top view：
AR6MXQ / AR6MXS Quick Start Guide Page 2
Page 3
1.1 Getting started

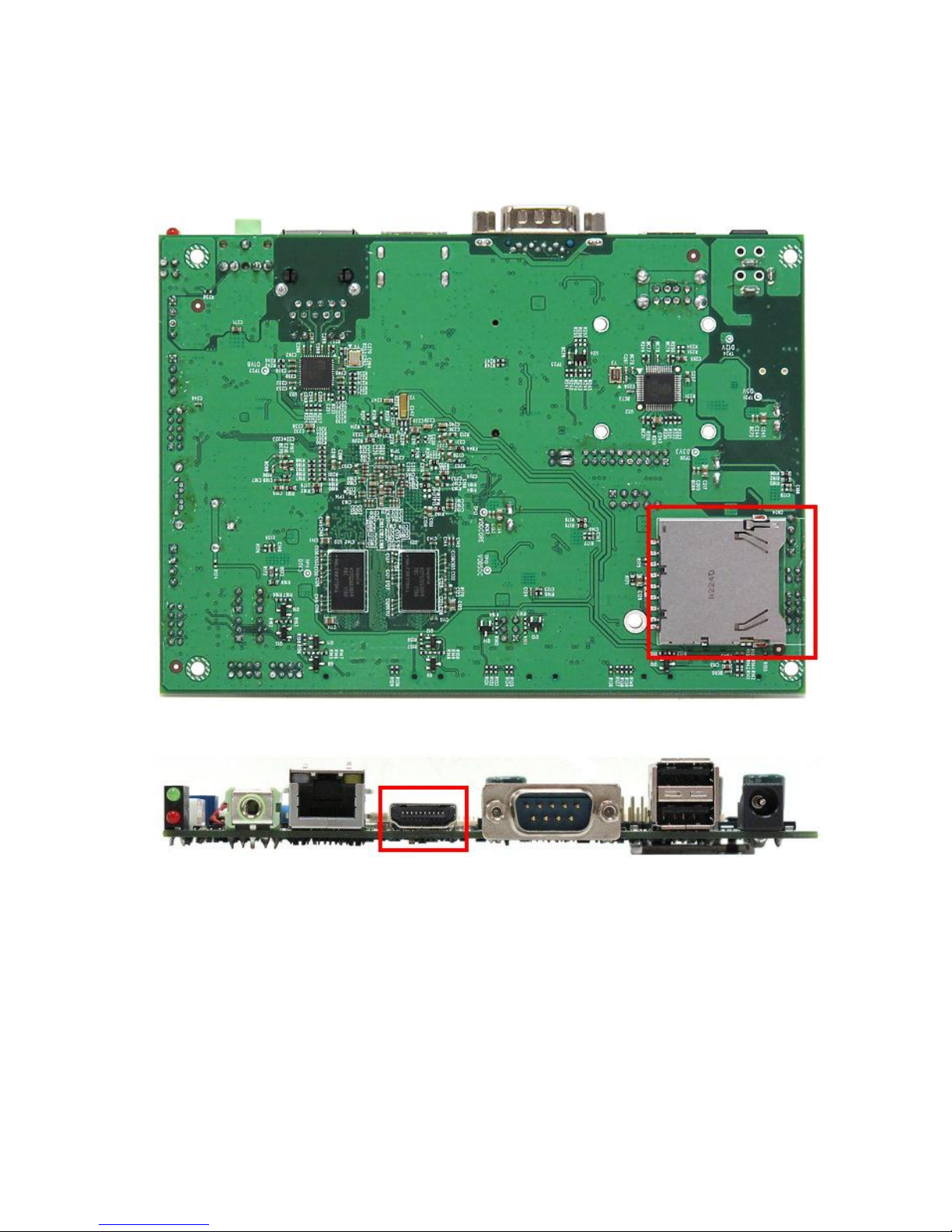

1. Insert the SD card into slot CN24.
Note: do not force the card into the slot; it should go in with moderate pressure
2. Connect an HDMI monitor to CN21
AR6MXQ / AR6MXS Quick Start Guide Page 3
Page 4

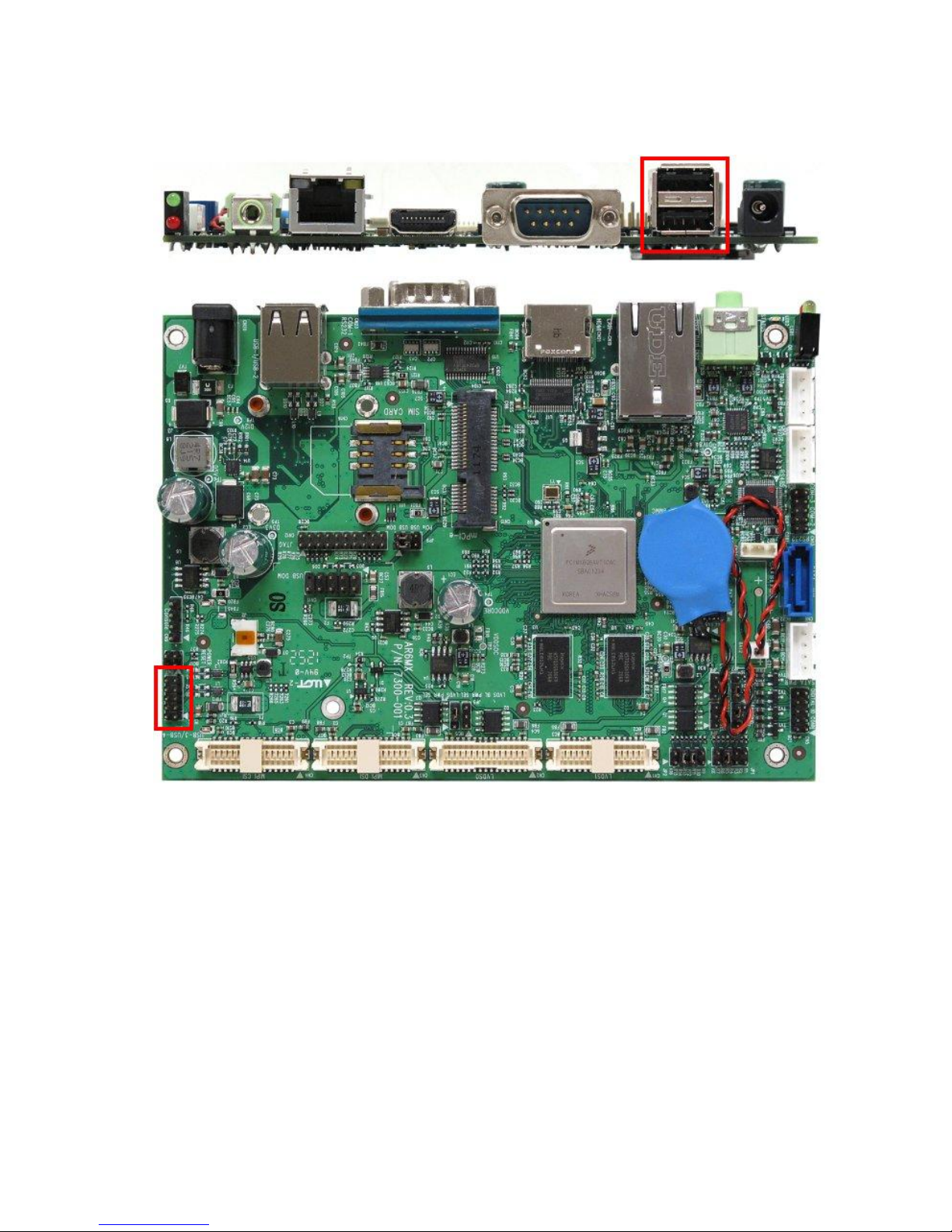

3. Connect a USB mouse/keyboard either to the rear I/O USB connectors (CN18), or
through the onboard header CN6 (USB cable not included)
AR6MXQ / AR6MXS Quick Start Guide Page 4
Page 5

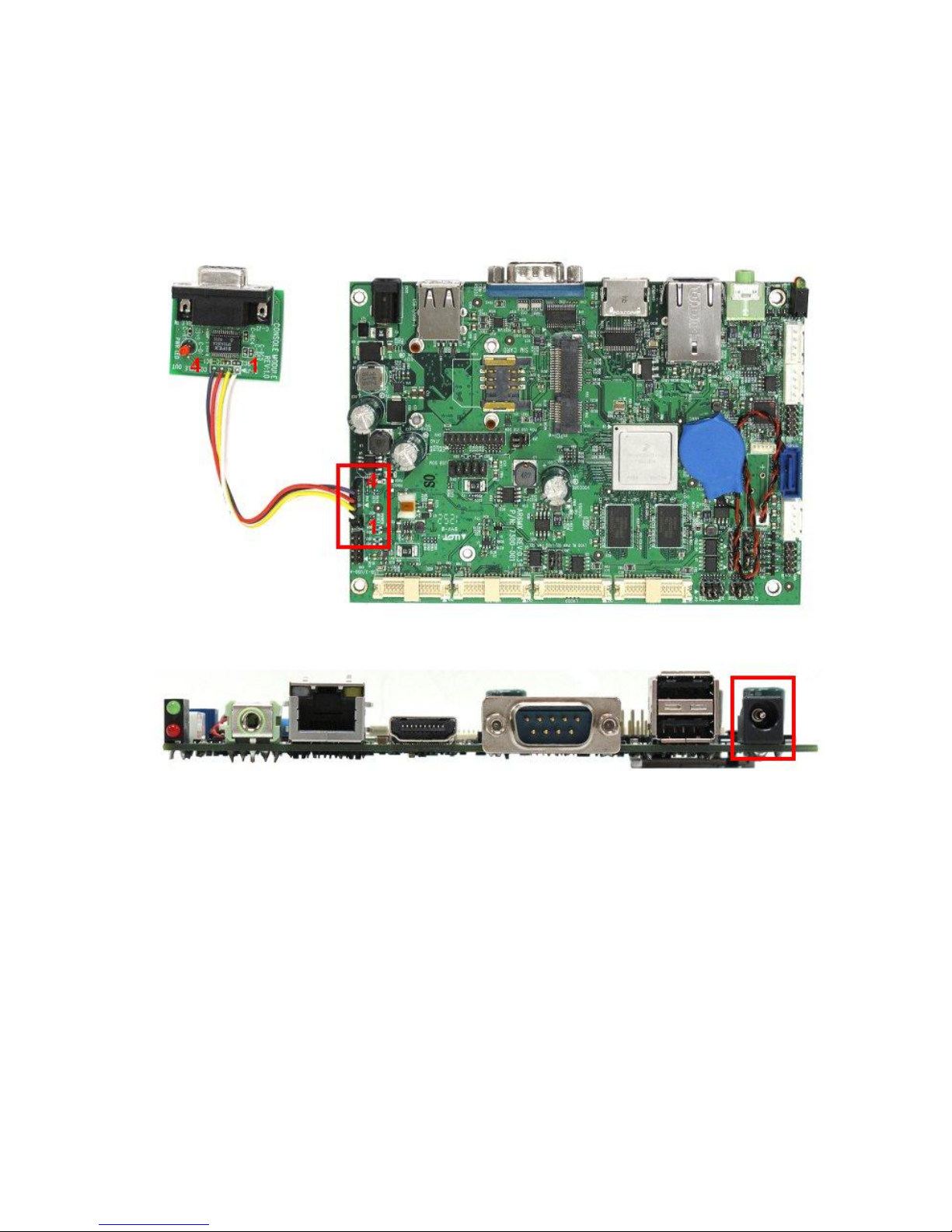

4. if you need console access, connect the serial connector adapter (included) to CN9,
and a serial cable (not included) from this adapter to your workstation.
4.1 Set your terminal settings to the following: 115200 bps, 8bits, no parity, 1 stop bit,
and no flow control
5. Connect the power adapter to CN20
6. Plug in the power adapter to an outlet and the board will boot up
AR6MXQ / AR6MXS Quick Start Guide Page 5
Page 6
1.
JP1
JP2
Connector type：HDR 2x4 2.0mm DIP
Pin
Definition
Pin
Definition
1
D3V3 5 D3V3 2 BTCFG1_7
6
BT_CFG1_5
3
3V3 7 D3V3 4 BT_CFG1_6
8
BT_CFG1_4
Default
JP1
BOOT MODES
3－4、7－8
SD on CPU
3－4、5－6
MMC on CPU
5－6
SATA HDD
5－6、7－8
Serial NOR
Connector type：HDR 2x4 2.0mm DIP
Pin
Definition
Pin
Definition
1
D3V3 5 D3V3 2 BT_CFG2_6
6
B_CFG2_4
3
D3V3 7 D3V3 4 BT_CF2_5
8
BT_CFG2_3
Default
JP2
BOOT MODES
3－4、5－6
SD on CPU
3－4、5－6、7－8
MMC on CPU
NA
SATA HDD
NA
Serial NOR
2.
JP3
JP7
Connector type：HDR 1X3 2.0mm
Pin
Definition
1
VSNVS_3V
2
BOOT_MODE0
3
GND
Connector type：HDR 1X3 2.0mm
Pin
Definition
1
VSNVS_3V
2
BOOT_MODE1
3
GND
Default
Jumper selector
BOOT MODES
00(JP3:2－3、JP7:2
－3)
Boot from fuses
01(JP3:1－2、JP7:2
－3)
Serial downloader
10(JP3:2－3、JP7:1
－2)
Boot from board
settings
3.
JP6 4.
JP5
Connector type：HDR 1X3 2.0mm
Pin
Definition
1
D5V 2 L0_PWR
3
D3V3
Connector type：HDR 1X3 2.0mm
Pin
Definition
1
D12V 2 BL0_PWR
3
D5V
1.2 Jumper Settings and Pin Definition
AR6MXQ / AR6MXS Quick Start Guide Page 6
Page 7
Default
Jumper selector
LVDS0 PWR SEL
1 － 2
5V
2 － 3
3.3V
Default
Jumper selector
LVDS0 PWR SEL
1 － 2
12V
2 － 3
5V
5.
JP8 6.
JP4
Connector type：HDR 1X3 2.0mm
Pin
Definition
1
D5V 2 L1_PWR
3
D3V3
Default
Jumper selector
LVDS0 PWR SEL
1 － 2
5V
2 － 3
3.3V
Connector type：HDR 1X3 2.0mm
Pin
Definition
1
D12V 2 BL1_PWR
3
D5V
Default
Jumper selector
LVDS0 PR SEL
1 － 2
12V
2 － 3
5V
7.
JP9 8.
CN7
Connector type：CON2X3_2MM
Pin
Definition
Pin
Definition
1
USBDOM_D+
4
USB_O_DN
2
USBDOM_D-
5
USBPI_D+
3
USB_O_DP
6
USBPCI_D-
Default
Jumper
selector
USB DOM & PCIE USB
JUMPER
1－3、2－4
USBDOM
3－5、4－6
USBPCI
Connector type：HDR 2x2 2.0mm DIP
Pin
Definition
Pin
Definition
1
PWR_BUT
3
GND 2 RST_BUT_IN
4
GND
Default
Jumper
selector
POWER &
RESETBUTTON CONN
1 － 3
POWER BUTTON
2 － 4
RESET BUTTON
9.
CN1 : LVDS1
2930
2 1
LVDS CONN.
Connector type：HIROSE DF13A-30DP-1.25
Pin
Definition
Pin
Definition
Pin
Definition
1
LBL1_PWR
11
LVDS_TX3_P
21
GND 2 LBL1_PWR
12
LVDS1_TX2_P
22
GND 3 GND
13
LVDS1_TX3_N
23
LVDS1_SDA
4
GND
14
LVDS1_TX2_N
24
LVDS1_TX0_P
5
BL1EN
15
GND
25
LVDS1_SCL
6
LVDS1_CLK_P
16
GND
26
LVDS1_TX0_N
7
LBL1_PWM
17
NC
27
GND 8 LVDS1_CLK_N
18
LVDS1_TX1_P
28
GND
AR6MXQ / AR6MXS Quick Start Guide Page 7
Page 8
9
GND
19
NC
29
LCD1_PWR
10
GND
20
LVDS1_TX1_
30
LCD1_PWR
10.
CN2 : LVDS0
2930
2 1
LVDS CONN.
Connector type：HIROSE DF13A-30DP-1.25
Pin
Definition
Pin
Definition
Pin
Definition
1
LBL0_PWR
11
LVS0_TX3_P
21
GND 2 LBL0_PWR
12
LVDS0_TX2_P
22
GND 3 GND
13
LVDS0_TX3_N
23
LVDS0_SDA
4
GND
14
LVDS0_TX2_N
24
LVDS0_TX0_P
5
BL0EN
15
CAP_TCH_INT0
25
LVDS_SCL
6
LVD0_CLK_P
16
GND
26
LVDS0_TX0_N
7
LBL0_PWM
17
LVS0_TH_SCL
27
GND 8 LVDS0_CLK_N
18
LVDS0_TX1_P
28
GND 9 GND
19
LVDS0_TH_SDA
29
LCD0_PWR
10
GND
20
LVDS0_TX1_N
30
LCD0_PWR
11.
CN3：MIPI DSI Conn
1
2930
2
Connector type：HIROSE DF13A-30DP-1.25
Pin
efinition
Pin
Definition
Pin
Definition
1
CSO_PWR1
11
NC
21
GND 2 CSO_PWR1
12
NC
22
GND 3 GND
13
NC
23
DSI0_SDA
4
GND
14
NC
24
DSI_D0P
5
DISP_PWR_EN
15
GND
25
DSI0_SCL
6
DSI_CLK0P
16
GND
26
DSI_D0P
7
DSI_PWM
17
DISP_RST_B
27
GND 8 DSI_CLK0M
18
DSI_D1P
28
GND 9 GND
19
DSI_MCLK
29
CSO_PWR2
10
GND
20
DSI_D1M
30
CSO_PWR2
12.
CN4：MIPI CSI Conn
1
2930
2
Connector type：HIROSE DF13A-30DP-1.25
Pin
Definition
Pin
Definition
Pin
Definition
1
CSI_PWR1
11
CSI_D3M
21
CSI_PWR3
2
CSI_PWR1
12
CSI_D2P
22
GND 3 GND
13
CSI_D3P
23
CSI0_SDA
4
GND
14
CSI_D2M
24
CSI_D0P
5
BL3EN#
15
GND
25
CS0_SCL
AR6MXQ / AR6MXS Quick Start Guide Page 8
Page 9
6
CSI_CLK0P
16
GND
26
CSI_D0M
7
CSI_PWN
17
CSI_RST_B
27
GND 8 CSI_CLK0M
18
CSI_D1P
28
GND 9 GND
19
CSI_MCLK
29
CSI_PWR2
10
GND
20
CSI_D1M
30
CSI_PWR2
13.
CN6：USB-3/USB-4
14.
CN9：Console
Connector type：HDR 2x5 2.0mm DIP
Pin
Definition
Pin
Definiton
1
UBV3
6
USB4P+
2
USBV3
7
GND 3 USB3P-
8
GND 4 USB4P-
9
GND 5 USB3P+
10
GND
Connector type：Header 1X4 2.54
Pin
Definition
1
D3V3 2 GND 3 CON_TD
4
CON_RXD
15.
CN20：POWER JACK
16.
CN18：USB-1/USB-2
Connector type：DC-JACK 6.5/2.0mm
Pin
Definition
1
VIN 2 GND 3 GND
Connector type：USAF-8D-HNR0SPJ
Pin
Definition
Pin
Definition
1
USBV1
5
USBV2
2
USB1P-
6
USB2P-
3
USB1P+
7
USB2P+
4
GND 8 GND
17.
CN23：COM-1 RS232
18.
CN21：HDMI Conn
Connector type：9P D-CONN
Pin
Definition
Pin
Definition
1
NDCDA
7
NRTSA
2
NRXA
8
NCTSA
3
NTXA
9
NRIA 4 NDTRA
10
GND 5 GND
11
GND 6 NDSRA
Pin
Definition
Pin
Definition
1
HDMI_D2P
13
HDMI_CEC_OUT
2
GND
14
NC 3 HDMI_D2M
15
H_CLK_OUT
4
HDMI_D1P
16
H_DAT_OUT
5
GND
7
GND 6 HDMI_D1M
18
HDMI_5V_OUT
7
HDMI_D0P
19
HP_DET_OUT
8
GND
20
GND 9 HDMI_D0M
21
GND
10
HDMI_CLKP
22
GND
11
GND
23
GND
12
HDMI_CLKM
19.
CN19：LAN Conn
20.
CN22：SPK OUT
Connector type：RTA-164AAK1A
Connector type：3.5mm Phone Jack Green
AR6MXQ / AR6MXS Quick Start Guide Page 9
Page 10
Pin
Definition
Pin
Definition
1
GE_MDI0+
9
GE_MDI3+
2
GE_MDI0-
10
GE_MDI3-
3
GE_MDI1+
11
LED2 4 GE_MDI1-
12
D3V3 5 GND
13
D3V3 6 GND
14
LED1 7 GE_MDI2+
15
GND 8 GE_MDI2-
16
GND
Pin
Definition
1
AD_AGND
2
LOUT_R
3
L-DET
4
AD_AGND
5
LOUT_L
21.
CN17：MIC IN
22.
CN14：COM-3 RS485
Connector type：HDR Wafer 1x4 2.5mm
DIP
Pin
Definition
1
MIC_DET
2
MICBIAS_J
3
MIC_J
4
AD_AGND
Connector type：HDR Wafer 1x4 2.5mm DIP
Pin
Definition
1
D5V 2 485TR-
3
485TR+
4
GND
23.
CN13：COM-2 RS232
24.
CN10：SATA CONN
9
1 2
10
Connector type：HDR 2x5 2.0mm DIP
Pin
Definition
Pin
Definition
1
NC 6 NTXB
2
NC 7 NC 3 NRTSB
8
NC 4 NRXB
9
NC 5 NCTSB
10
GND
Connector type：SATA-II (BlUE)
Pin
Definition
1
GND 2 SATA_TXP
3
SATA_TXN
4
GND 5 SATA_RXN
6
SATA_RXP
7
GND
25.
CN8：SATA-POWER CONN
26.
CN5：DIGITAL IO CONN
Connector type：HDR Wafer 1x4 2.5mm
DIP
Pin
Definition
1
D12V 2 GND 3 D3V3 4 D5V
9
1 2
10
Connector type：HDR 2x5 2.0mm DIP
Pin
Definition
Pin
Definition
1
DIO0 6 DIO6 2 D5V 7 DIO3 3 DIO1 8 DIO5 4 DIO7 9 GND 5 DIO2
10
DIO4
27.
CN11：USB-0 FOR USB DOM
28.
CN16：SIM Card Slot
AR6MXQ / AR6MXS Quick Start Guide Page 10
Page 11
Connector type：Header_2X5_K9
Pin
Definition
Pin
Definition
1
USBV0
6
NC 2 OTG_ID
7
GND 3 USBDOM_D-
8
NC 4 NC 5 USBDOM_D+
10
USB_RESET
Connector type：SIM_Socket
Pin
Definition
C1
CCVCC
C2
CCRST
C3
CCCLK
C5
GND
C6
NC
C7
CCIO
29.
CN15：mPCI-e Port 1
Connector type：PCI-e_MINI_CARD
Pin
Definition
Pin
Definition
Pin
Definition
Pin
Definition
1
NC
16
NC
31
PCIE_TXM
46
NC 2 PCIE_3V3
17
NC
32
MPCIE_SDA
47
NC 3 NC
18
GND
33
PCIE_TXP
48
D1V5 4 GND
19
NC
34
GND
49
NC 5 NC
20
PCIE_DIS_B
35
GND
50
GND 6 D1V5
21
GND
36
USBPCI_D-
51
NC 7 NC
22
PCIE_RST_B
37
GND
52
PCIE_3V3
8
CCVCC
23
PCIE_RXM
38
USBPCI_D+
53
GND 9 GND
24
PCIE_3V3
39
PCIE_3V3
54
GND
10
CCIO
25
PCIE_RXP
40
GND
11
CLK1_N
26
GND
41
PCIE_3V3
12
CCCLK
27
GND
42
NC
57
GND
13
CLK1_P
28
D1V5
43
GND
58
GND
14
CCRST
29
GND
44
NC
59
GND
15
GND
30
MPCIE_SCL
45
NC
60
GND
30.
CN12：JTAG
Connector type：HDR 2x10 2.0mm DIP
Pin
Definition
Pin
Definition
Pin
Definition
Pin
Definition
1
JTAG_VREF
6
GND
11
JTAG_RTCK
16
GND 2 JTAG_PWR
7
JTAG_TMS
12
GND
17
JTAG_DE
3
JTAG_nTRST
8
GND
13
JTAG_TDO
18
GND 4 GND 9 JTAG_TCK
14
GND
19
JTAG_DACK
5
JTAG_TDI
10
GND
15
JTAG_nSRST
20
GND
AR6MXQ / AR6MXS Quick Start Guide Page 11
