300mA FIXED OUTPUT VOLTAGE LDO REGULATOR AP2117
Description
The AP2117 is positive voltage regulator IC designed by
CMOS process. The AP2117 has features of low dropout
voltage, low noise, high output voltage accuracy and low
current consumption. It consists of a voltage reference, an
error amplifier, a resistor network for setting output voltage, a current limit circuit for current protection, a circuit
for over-temperature protection, and a chip enable circuit.
Thus, the AP2117 is suitable for various power sources
for portable application.
Features
· High Ripple Rejection: 70dB at f=1KHz
· Ultra Low Dropout Voltage: 0.3V Typical at
=300mA
I
OUT
· Low Operation Current: 80µA Typical
· High Line Regulation: 4mV Typical
· High Load Regulation: 12mV Typical at
I
=300mA
OUT
· High Output Voltage Accuracy: ± 2%
· Output Voltage: 1.8V, 2.5V, 2.8V, 3.0V, 3.3V
Applications
· Mobile Phones, Cordless Phones
· Portable Games
· Cameras
· Portable AV Equipment
· Battery Powered Equipment
Benefits
· Low Noise
· High PSRR
· Very Competitive Price
Parametric Table
I
(Min) (A)
OUT
0.3
Quiescent Current (Typ) (mA) 0.08
V
DROP
(Min) (V)
V
IN
(Max) (V)
V
IN
(Typ) (V)
0.3
(Except 1.8V)
2.2
6.5
1.8, 2.5,
(V)
V
OUT
2.8, 3.0,
3.3
PSRR (dB) 70
Accuracy (%)
± 2
Load Regulation (Typ) (mV) 12 (3.0V)
Line Regulation (Typ) (mV) 4 (3.0V)
On/Off Pin Yes
Error Flag No
Operating Junction Temperature
o
(Min) (
C)
Operating Junction Temperature
o
(Max) (
C)
-40
125
Additional Available Materials
· Samples
· Preliminary Datasheet
· Reliability Report
· ESD Report
Pin Configuration
SOT-23-5
1
V
GND
CE/CE
IN
5
2
34
Sep. 2005 BCD Semiconductor Manufacturing Limited
V
BYP
OUT
Page 2

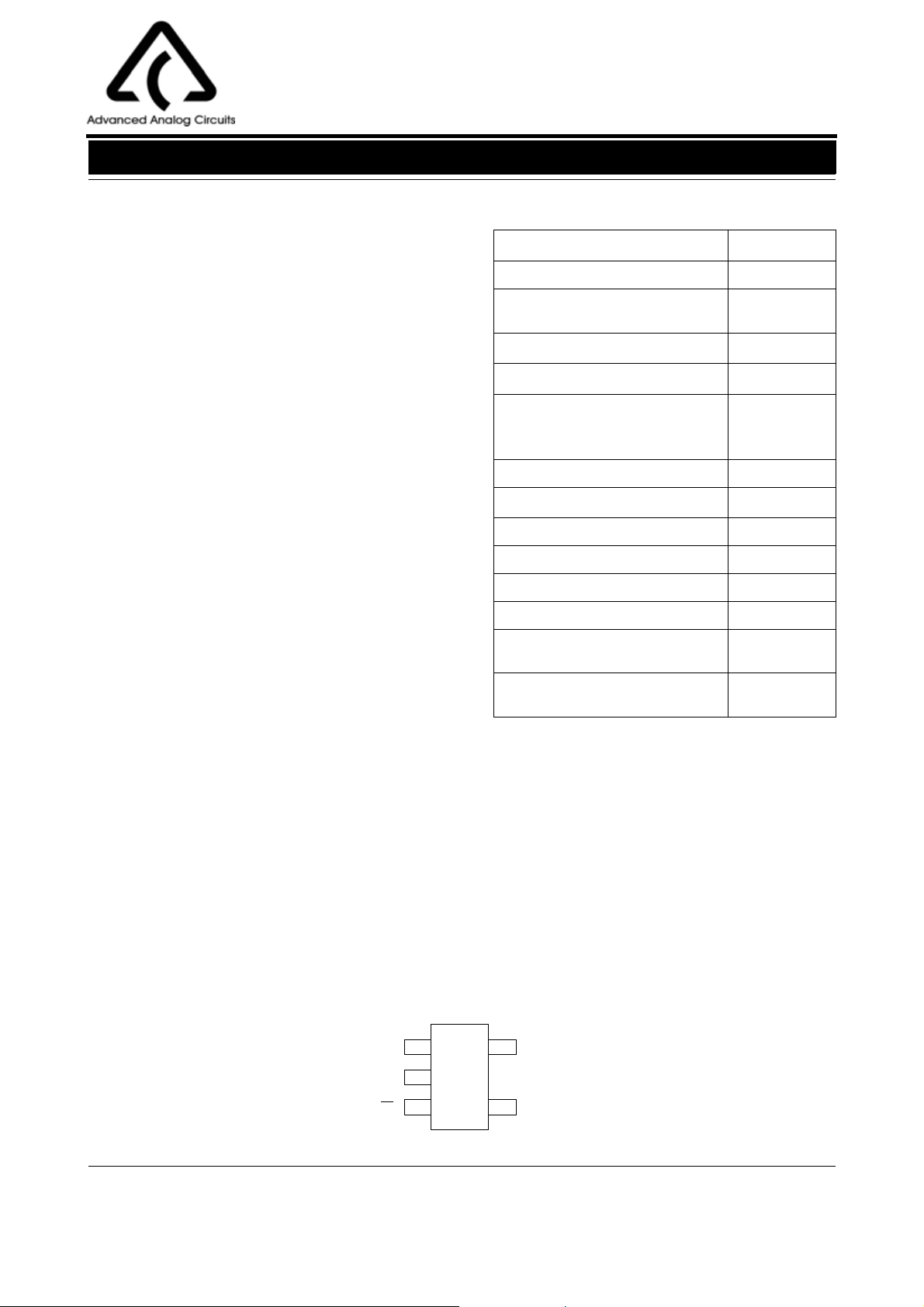

Product Brief
300mA FIXED OUTPUT VOLTAGE LDO REGULATOR AP2117
Ordering Information Example
Package
Temperature
Range
Tin Lead Lead Free Tin Lead Lead Free
Part Number Marking ID
AP2117BK-1.8TR AP2117BK-1.8TRE1 K9B E9B Tape & Reel
AP2117BK-2.5TR AP2117BK-2.5TRE1 K9D E9D Tape & Reel
SOT-23-5
-40 to 125
o
AP2117BK-2.8TR AP2117BK-2.8TRE1 K9F E9F Ta pe & Reel
C
AP2117BK-3.0TR AP2117BK-3.0TRE1 K9H E9H Tape & Reel
AP2117BK-3.3TR AP2117BK-3.3TRE1 K9J E9J Tape & Reel
Detailed information please refer to the relevant datasheet.
Packing
Type
