BBV CODATA Installation Manual

Building Block Video Ltd

17 Apex Park,

Diplocks Industrial Estate,
Hailsham, East Sussex, BN27 3JU, UK
Tel: + 44 (0) 1323 842727
Fax: [phone]

www.bbvcctv.com

V2

CODATA

Installation Guide

CODATA Installation Manual V2 - OCT 12.doc - 2 -

Contents

Pre Installation Checks and Safety Procedures.

3 & 4
Introduction

5
Technical Specification

6
Box Dimensions

7
Basic Deployment

8
Advanced Deployment

9
Cabling Recommendation

10
Mounting Plate

11

CODATA Installation Manual V2 - OCT 12.doc - 3 -

1. PRE-INSTALLATION CHECKS AND SAFETY PROCEDURES

UNPACKING
Check packaging - Upon taking delivery of the unit, inspect the packaging for signs of

damage. If damage has occurred, advise the carriers and/or the suppliers immediately.
Check contents - Upon taking delivery of the unit, unpack the unit carefully and check

that all the items are present and correct. If any items are missing or damaged, contact
your equipment dealer.

Retain packaging - The shipping carton is the safest container in which to transport the
unit. Retain undamaged packaging for possible future use.

IMPORTANT SAFETY PRECAUTIONS
Read instructions - All relevant safety, installation and operating instructions should be

read before attempting to install, connect or operate the unit.
Retain Instructions - All safety, installation and operating instructions should be retained

for future reference.
Heed warnings - All warnings on the unit and in any relevant safety, installation or

operating instructions should be adhered to.
Cleaning - Unplug the unit from the power outlet before cleaning. Do not use liquid

cleaners or aerosol cleaners. Use a damp cloth for cleaning.
Attachments - Do not use attachments not recommended by the product manufacturer as

they may cause hazards.
Water and moisture - Do not expose the internal electronics of this unit to water or

dampness; for example, in an unprotected outdoor installation, or in any area classified
as a wet location.

Accessories - Do not attach this unit to an unstable stand, bracket or mount. The unit
may fall, causing serious injury to a person and serious damage to the unit.

Power sources - This unit should be operated only from the type of power source
indicated on the manufacturer’s label. If you are not sure of the type of power supply you
intend to use, consult your equipment dealer or local power company. For units intended
to operate from battery power or other sources, refer to operating instructions.

Power connector - This unit is equipped with a single 2 pole power connector, mounted at
the rear of the CoData for low voltage power input. Do not attempt to alter this connector
in any way.

CODATA Installation Manual V2 - OCT 12.doc - 4 -

Power cord protection - Power supply cords should be routed so that they are not likely
to be trapped, pinched or otherwise damaged by items in close proximity to them,
whether inside the unit or outside it. Particular attention should be paid to cords at plugs,
connection units and the point of exit from the unit.

Overloading - Do not overload outlets and extension cords, as this can result in fire or
electric shock.

Object and liquid entry - Never push objects of any kind into the unit, as they may touch
dangerous voltage points or short out parts that could result in fire or electric shock.
Never spill liquid of any kind on or inside the unit.

Servicing - Servicing of the unit should only be undertaken by qualified service personnel,
as opening or removing covers may expose you to dangerous voltages or other hazards.

Damage requiring service - Servicing by qualified personnel should be carried out under
the following conditions:

(a) When the power-supply cord or plug is damaged.
(b) If liquid has been spilled or objects have fallen into the unit
(c) If the internal electronics of the unit have been exposed to rain or water

(d) If the unit does not operate normally by following the operating instructions.

Adjust only those controls that are covered by the operating instructions, as
improper adjustment of other controls may result in damage and will often require

extensive work by a qualified technician to restore the unit to normal operation.
(e) If the unit has been dropped or the enclosure is damaged.
(f) If the unit exhibits a distinct change in performance. This indicates a need for

service.
Replacement parts - If replacement parts are required, ensure that only replacement

parts recommended by the product manufacturer are used.
Safety check - Upon completion of any service or repairs to the unit, safety checks

should be performed to ensure that the unit is in proper operating condition.
Pre-installation checks - It is recommended that the unit be bench tested prior to

installation on the site.
Safety during installation or servicing - Particular care should be taken to isolate the

data source in order to prevent operation while engineering work is being carried out on
the CODATA.

Adhere to safety standards - All normal safety precautions as laid down by British
Standards and the Health and Safety at Work Act should be observed.

WARNING

TO PREVENT DANGER OF FIRE OR SHOCK, DO NOT EXPOSE THE INTERNAL

COMPONENTS OF THIS EQUIPMENT TO RAIN OR MOISTURE.

CODATA Installation Manual V2 - OCT 12.doc - 5 -

2. INTRODUCTION

GENERAL

The Omnivision CODATA transceivers offer a cost sensitive solution to the reuse coaxial
cables in your existing building structures as the transport medium for Ethernet data;
camera or switch data.

The Omnivision CODATA transceiver modules offer a full duplex connection with data
rates of up to 130MBits/s over distances of 500m. This technology allows the upgrade of
analogue CCTV cameras with IP and Mega Pixel cameras while utilising the existing
building infrastructure. Ethernet switches can also be connected using these devices.

Applications include retail outlets, education facilities, banking halls and finance,
Transport, etc.

CODATA Installation Manual V2 - OCT 12.doc - 6 -

CODATA TECHNICAL SPECIFICATION

CODATA
Power
Input Voltage

12Vdc at 1.0A on 2 pin Green IMO
Power
Consumption

1.9W

Ethernet

130MBits/s over a distance of 500m (RG59)
Connectors

Ethernet: 10/100 port RJ45
Interconnection: Female 75 Ohm BNC connector
Input Power: 2 pin Green IMO

Diagnostics LEDS

POST : Power On Self Test
ETHERNET: Ethernet connection detected on local RJ45 port
LINK: Communication successfully established between local and
remote device

Dimensions

116mm (w) x 105mm (d) x 34mm (h)
Weight

0.5kg
Features:

 Single RJ45 Socket in both transceiver modules for Ethernet

connectivity

Ethernet 130MBits/s over a distance of 500m (RG59)
 Uses existing Coax to transport IP data

Engineering
Facilities:
Diagnostics LEDS
POST : Power On Self Test
ETHERNET: Ethernet connection detected on local RJ45 port
LINK: Communication successfully established between local
and remote device

Temperature
range:

32°F (0°C) to 122°F (50°C) operating

-13°F (-25°C) to 158°F (70°C) non-operating and storage
10% to 90% (non-condensing) operating

CODATA Installation Manual V2 - OCT 12.doc - 7 -

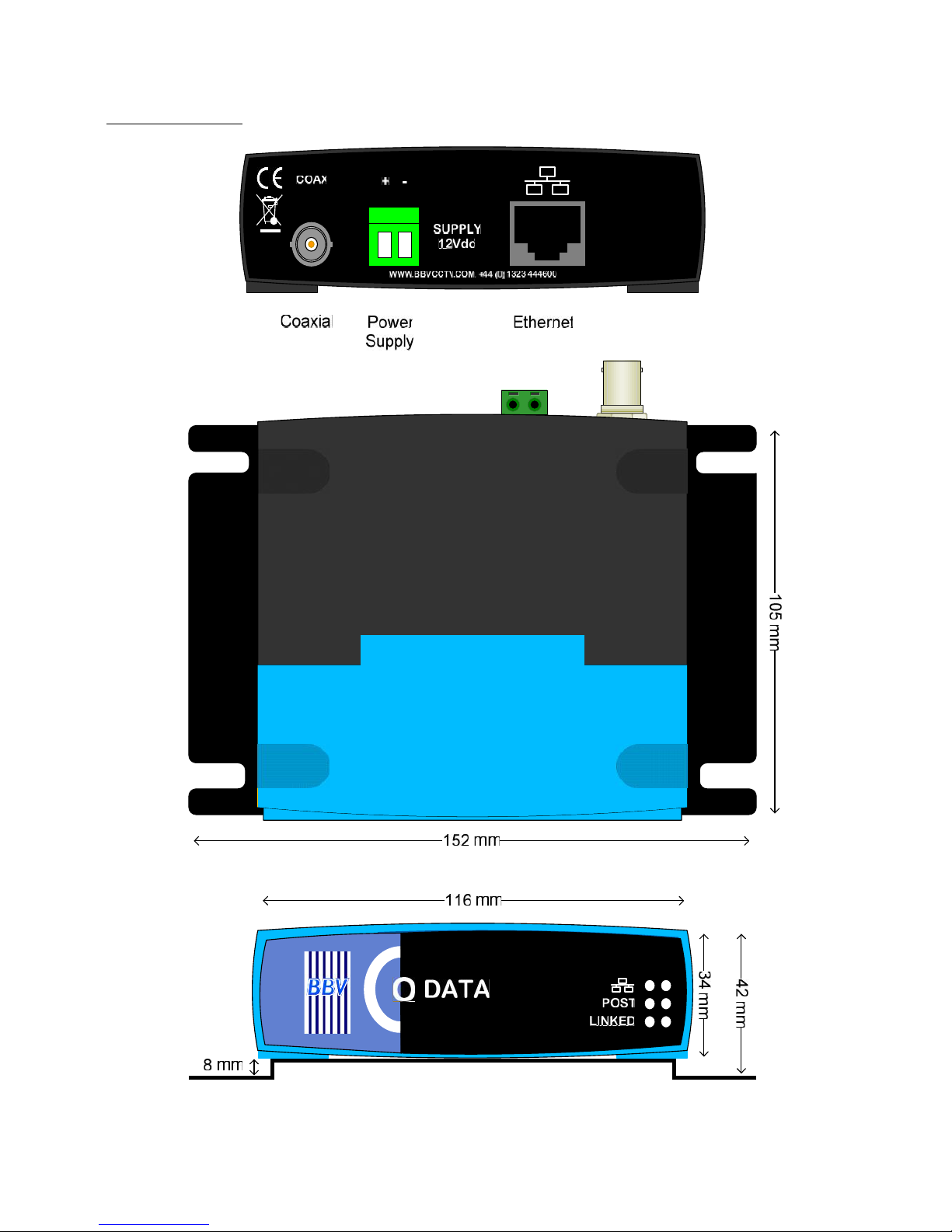

Box Dimensions

CODATA Installation Manual V2 - OCT 12.doc - 8 -

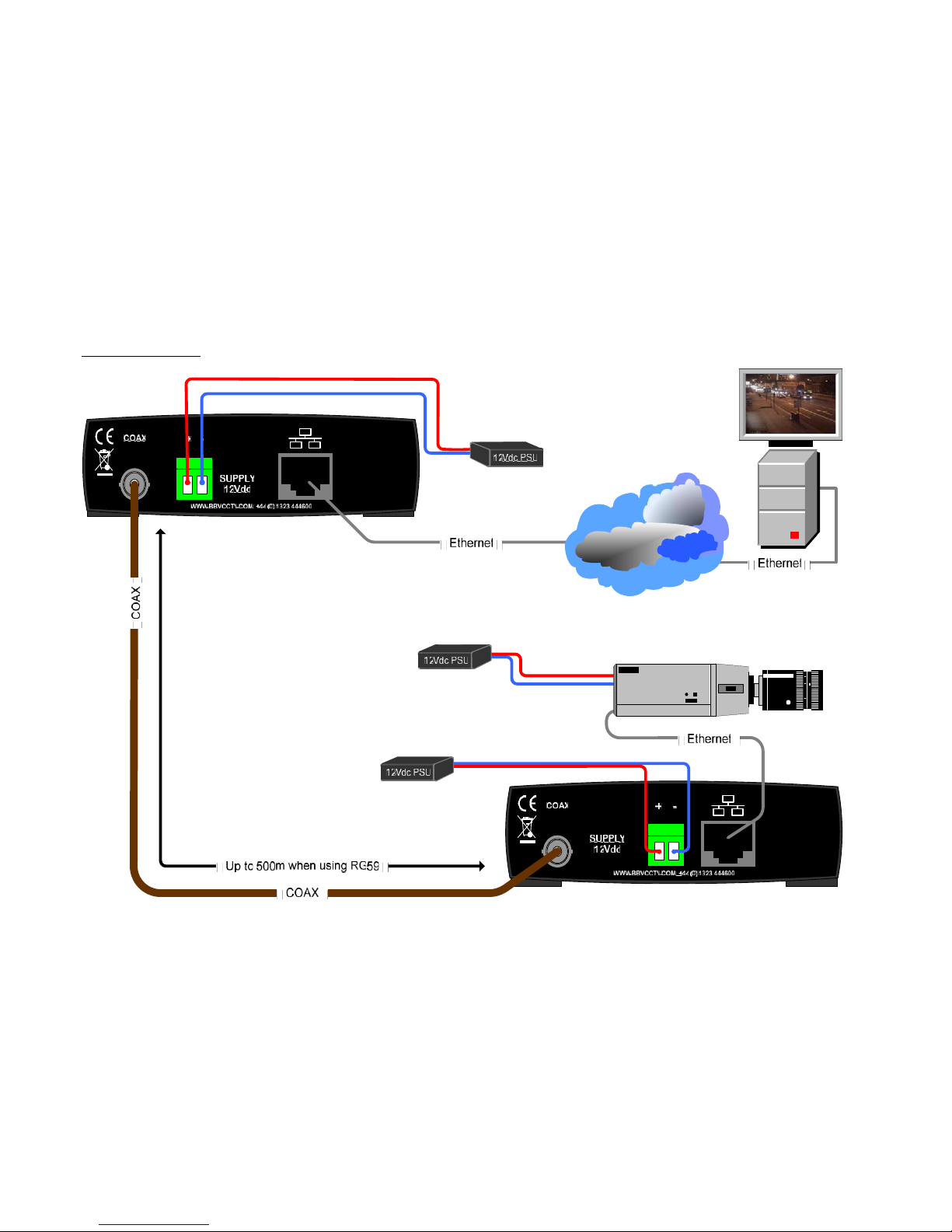

Basic Deployment

CODATA Installation Manual V2 - OCT 12.doc - 9 -

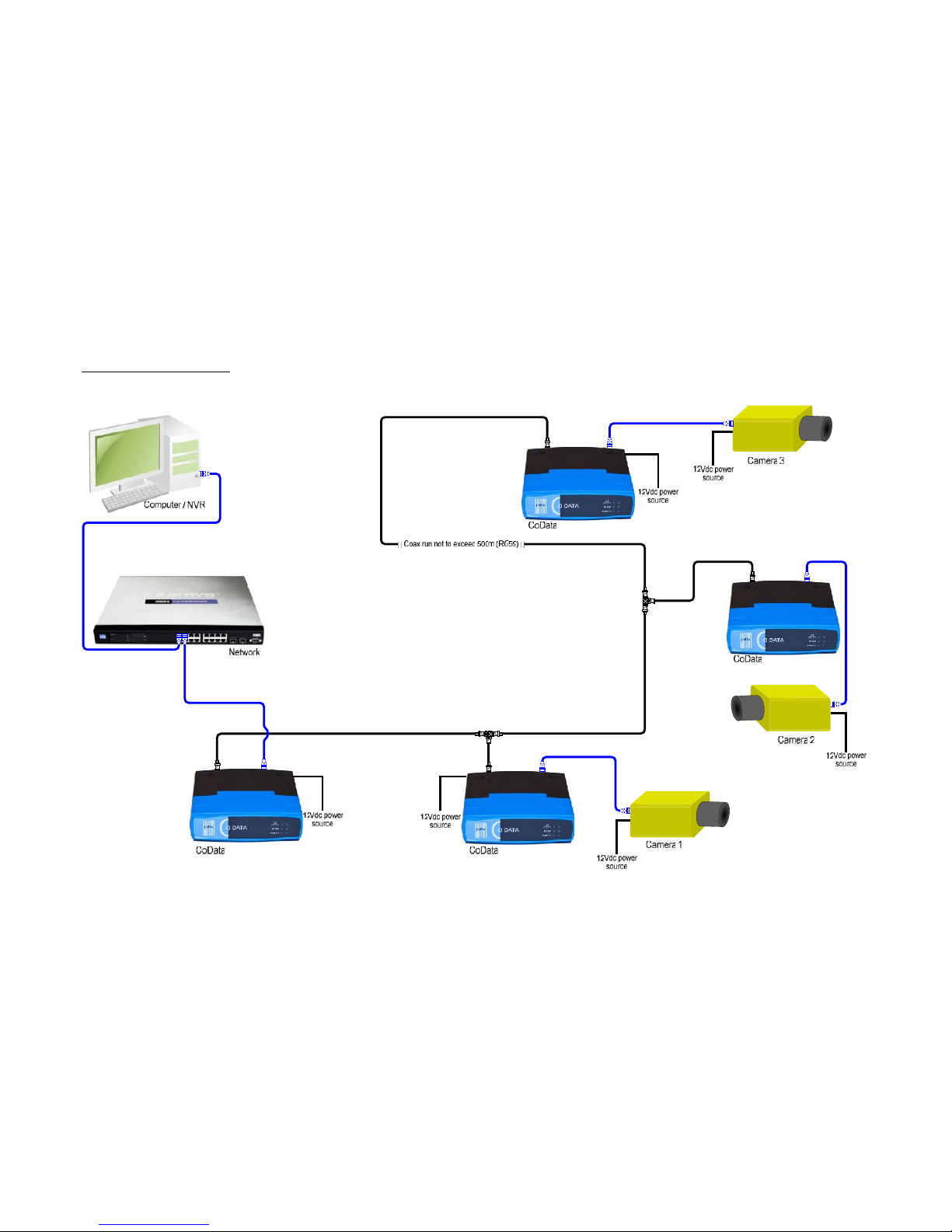

Advanced Deployment

CODATA Installation Manual V2 - OCT 12.doc - 10 -

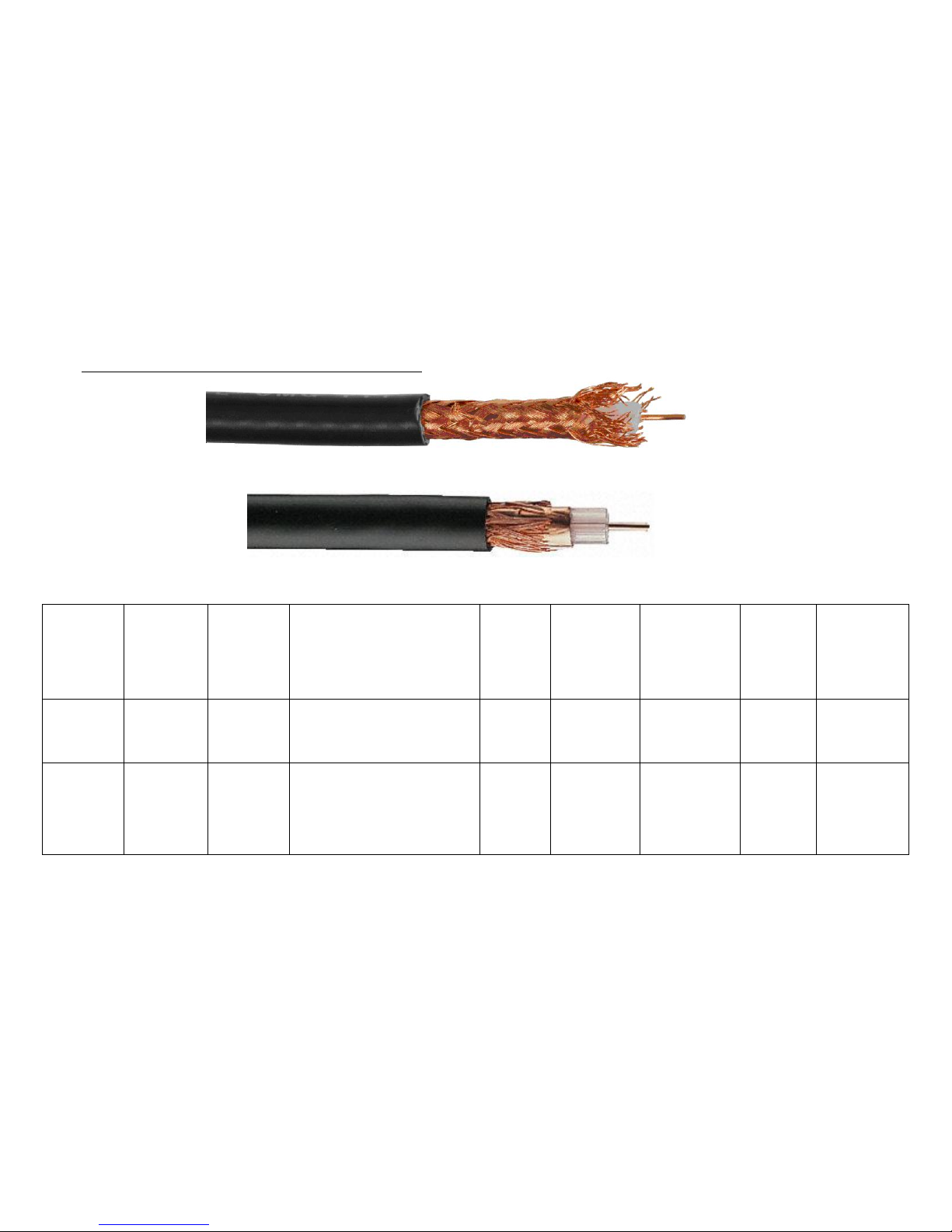

CABLING RECOMMENDATIONS FOR THE CODATA.

RG59 COAX

CT125 COAX

Cable
Type

Inner

conductor

Dielectric

Braiding

Outer

cover:

Impedance

Capacitance

External

Diameter

Attenuation

figures in

dB/100m at

5Mz.

RG59

COAX

Solid core

0.58mm

Polythene

Plain copper, >90%

coverage

Black

PVC, UV

resistant

75 Ω ± 1Ω

53 pF/metre

nominal

6.2mm

nominal

≤2.1

dB/100m

CT125

COAX

Solid core

1.25mm

Cell PE

SEMI Air

Spaced

0.15mm x 64 ( Braid )
BARE COPPER + CU FOIL
COVERAGE:55%
PITCH : 65:80

Black

PVC, UV

resistant

75 Ω ± 1Ω

54 pF/metre

nominal

9.8mm

nominal

≤2.0

dB/100m

CODATA Installation Manual V2 - OCT 12.doc - 11 -

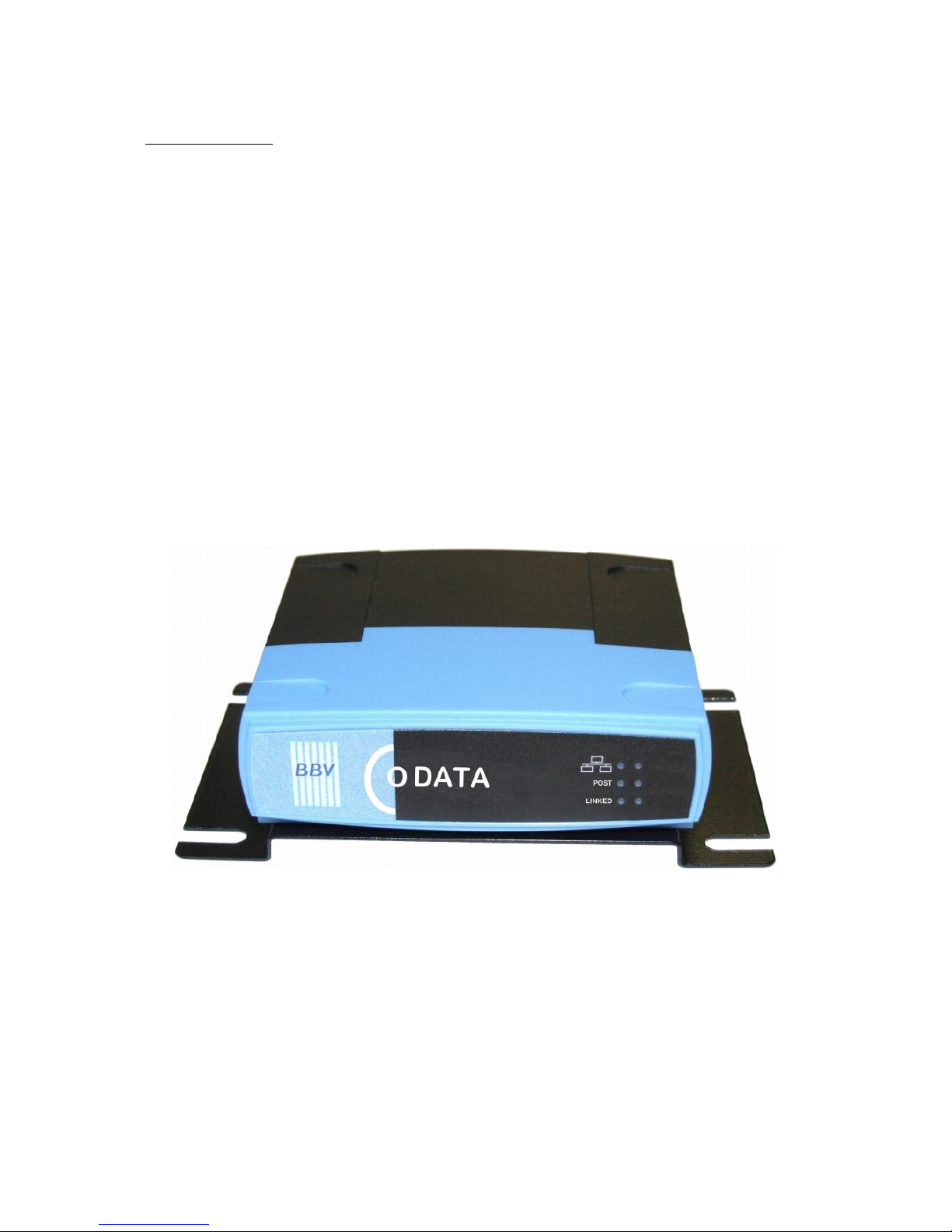

Mounting Plate

The Mounting Plate is to be used with a number of products within the
Omnivision family. The mounting plate is designed to provide
simple installation; it will allow the mounting of the Omnivision CoData to a
hard surface or rack shelving.

Compatible Omnivision products:

 CoData
 Decoder
 Transcoder
 Relay

CODATA Installation Manual V2 - OCT 12.doc - 12 -

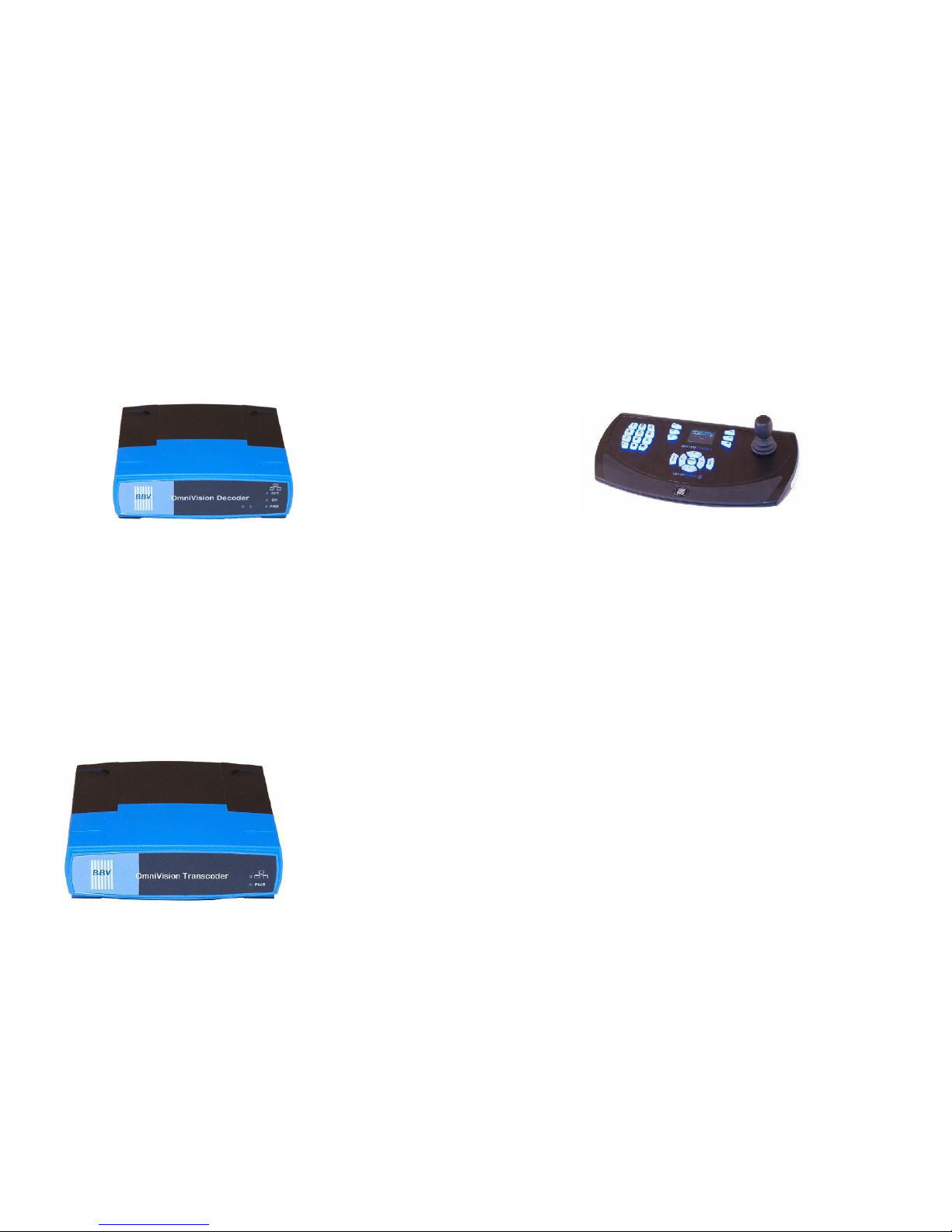

Other Products in the Range

The BBV Omnivision ViewPoint keyboard is a unique camera control
system with an inbuilt video decoder for intuitive control of IP cameras.
This can be connected directly to one or more Cisco Media Servers.
Operation is achieved without the use of an additional PC, simplifying
system setup and offering a robust high-security solution, with no user
internet access.

The strength of the Omnivision ViewPoint keyboard lies in its flexibility and
simplicity as a standalone, easily deployed system without the need for any
other control equipment. By attaching an HDMI monitor, the Omnivision
ViewPoint will be in full control of all the available cameras on the system.
Cameras are selected by entering the camera number to display the
required picture. Cameras equipped with PTZ functionality will be

The BBV Omnivision Decoder is a standalone unit, which
facilitates the streaming of camera images from one or more
Cisco media servers or other manufacturers NVRs or cameras,
without the need of a PC. This enables display monitors to be
mounted remotely around the premises or network. The unit is
controlled by simple CGI commands from control workstations or
hand held devices.

The strength of the Omnivision Decoder is in its flexibility and
simplicity driving a standalone monitor, easily deployed without
the need for any other control equipment. By attaching a HDMI or
composite monitor, the Omnivision Decoder will be display any of
the cameras on the system. Cameras maybe selected by a CGI
commands to display the required picture. These can be
displayed in full screen or quad.

The Omnivision Transcoder converts high data rate video streams to a lower data rate. Enabling
transmission across limited bandwidth networks. Applications might include hand held devices,
mobile phones and bandwidth limited ADSL networks.

The Omnivision Transcoder is simple to use, easily deployed via web pages in environments with
limited bandwidth.

Applications include retail outlets, education facilities, banking halls and finance, Transport, etc.
