Trantec S5 Wireless Microphone Series

Q U I C K I N S T A L L A T I O N G U I D E

Trantec S5 Wireless Microphone Series

S5_manualV1.2.indd 1 25/10/07 17:18:09

CONTENTS

Page

1. Introduction and system overview

2. Important safety instructions and getting started

3. Receiver set-up

4. Receiver frequency selection

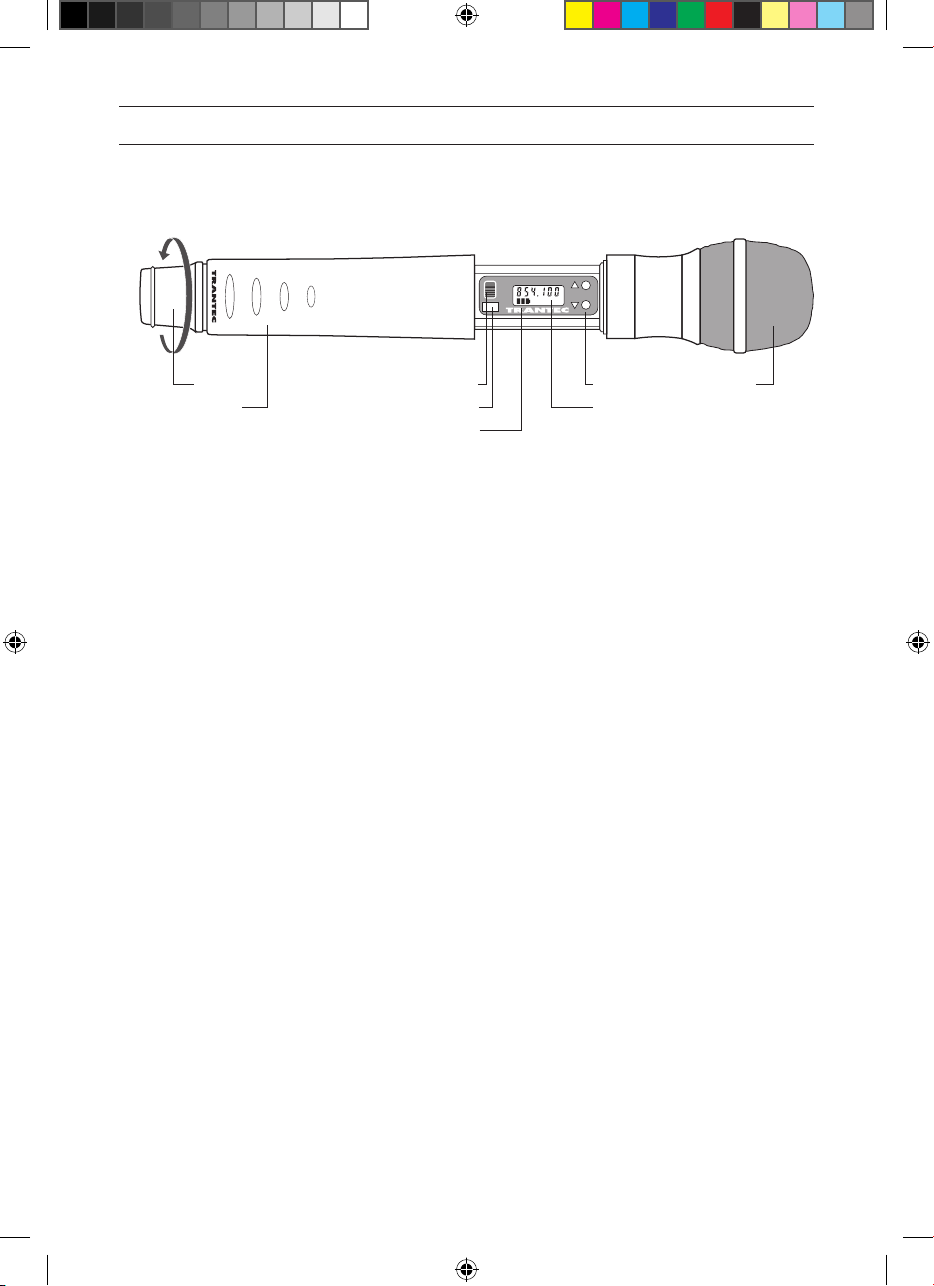

5. Handheld transmitter set-up

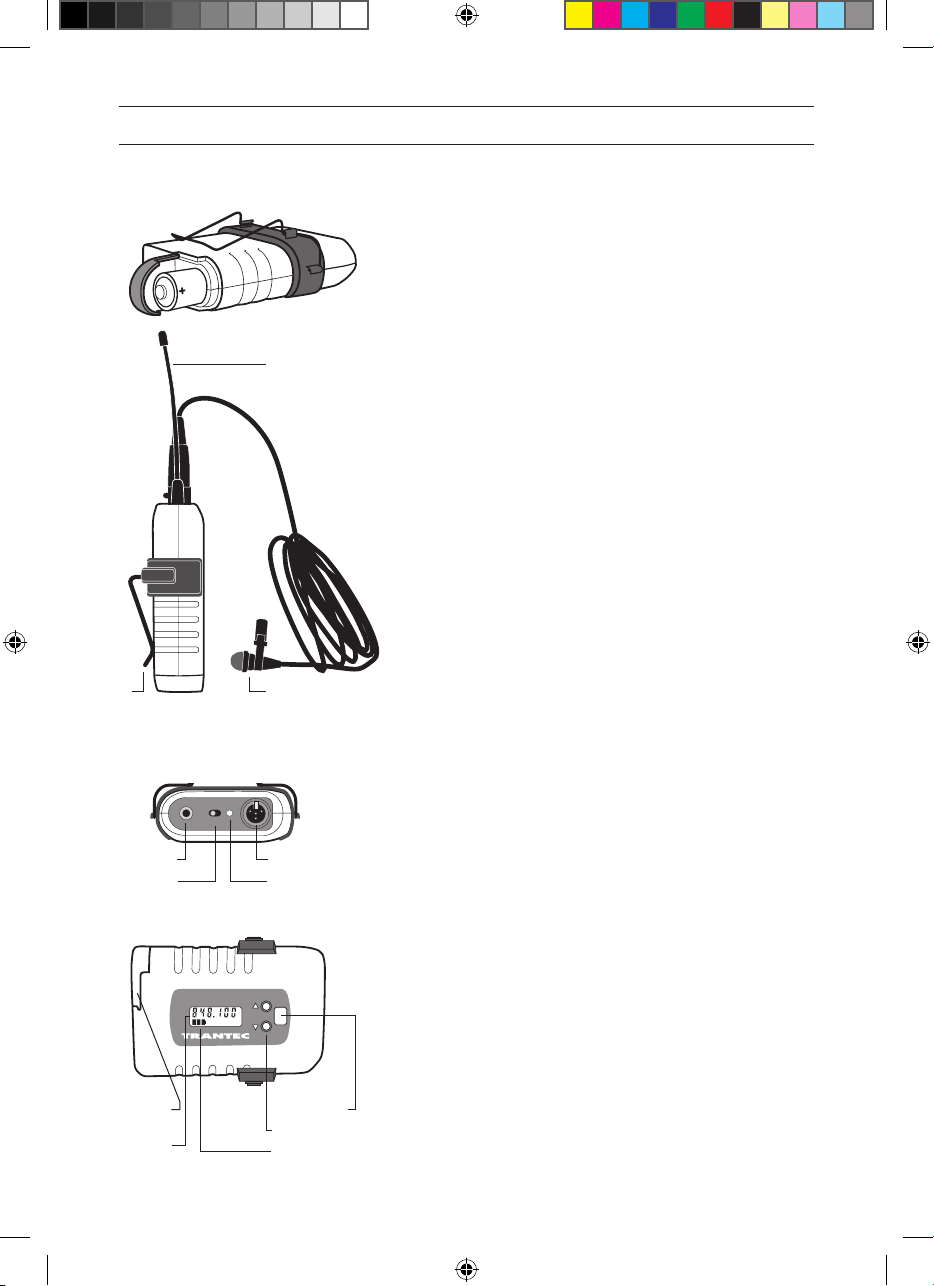

6. Beltpack transmitter set-up

7. Operating hints and troubleshooting guide

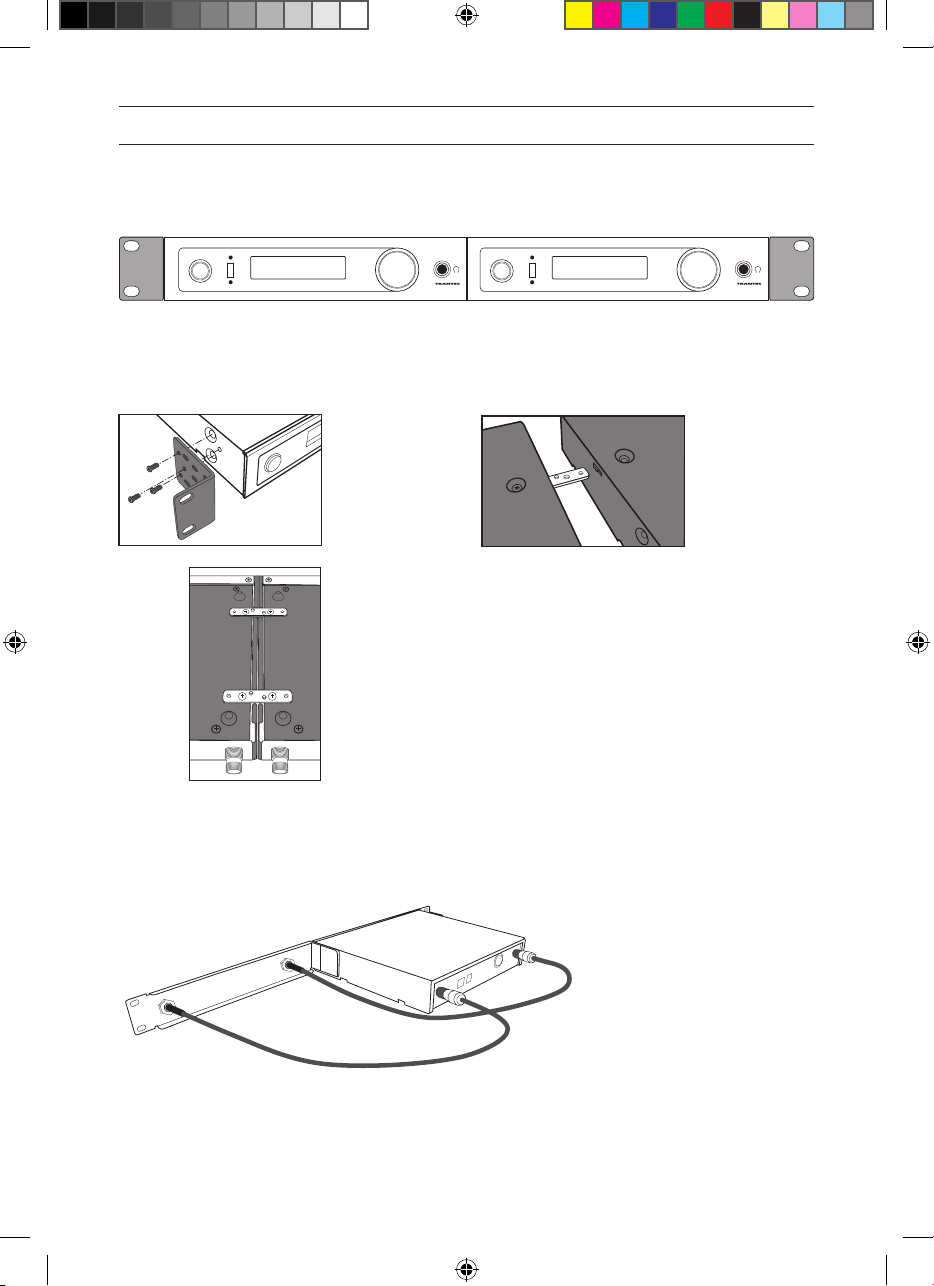

8. Receiver rack mount kit

9. Technical specifications

10. WEEE statement and warranty

INTRODUCTION

The Trantec S5 series represents our commitment to our customers by providing high­quality, reliable wireless audio links using our considerable design expertise gained over
many years as a leading edge manufacturer.

We would like to thank you for purchasing this product and would like you to spend a
few moments studying this Quick Installation Guide, especially the safety instructions,
before going on to ‘read’ the full manual supplied on the CD Rom with this equipment.

S5 SERIES SYSTEM OVERVIEW

The S5 series is a professional UHF wireless microphone system with features
including:

• 24 channel simultaneous operation (12 channel S5.3)

• 10 preset banks including 1 custom user. (9 Banks S5.3)

• True “dual receiver” diversity – to minimise drop-outs

• Intuitive LCD and operating system on both receiver and transmitter

• Infra-red programming for fast system set-up

• Software transmitter function locks

• Headphone monitoring as standard

• Both XLR (switchable mic and line) and 1⁄4” jack AF outputs

• AF processing menu (S5.5 only)

• Over 1400 customer selectable channels

• Fully integrated PC software monitoring facility via USB port

• All metal construction of receiver and transmitters

• Rack kit and front mounting antenna adaptors included (S5.5 only)

1

S5_manualV1.2.indd 2 25/10/07 17:18:09

SAFETY

Our aim is to supply you with a product that provides you with countless hours of
trouble free use. In order to achieve these goals we recommend the following:

• Keep the system away from direct sources of heat e.g. central heating

radiators, heaters and direct sunlight.

• Do not expose the unit to an environment where it could be splashed with

liquids as this may result in fire or electric shocks.

• Should the transmitters not be used for extended periods of time we

recommend that the batteries are removed to avoid any potential leakage.

• Keep the system clean by using a slightly damp cloth. Never use household

cleaning agents or solvents.

• Avoid using or storing the system in damp conditions.

• Always use the AC power adaptor supplied with the receiver and always
disconnect from the AC outlet when not in use. And never remove the
external covers of the equipment, so as to expose the electronics, or modify
the unit in any way.

Should the covers be removed, or any other breach of the above instruction,
the warranty becomes null and void in addition to personal risk from burns
and/or electric shock.

When using the unit should any of the following conditions occur, switch off the unit
and remove AC adaptor from AC outlet immediately and contact your nearest dealer.

• Smoke or unusual smell

• Water or foreign metallic object inside unit

• Damaged housings caused by physical damage

Never pull cord of AC adaptor, always grasp main body of unit when connecting/
disconnecting to AC power outlet

Never touch any part of the system during a thunderstorm, as this may result in severe
electric shock

GETTING STARTED

The S5 series is a high quality, fully featured wireless microphone system with many
features including an intuitive operating system. To enable you to get started we
recommend you initially set up the system as outlined in the next few pages.

2

S5_manualV1.2.indd 3 25/10/07 17:18:09

RECEIVER SET-UP

Rear View

Front View

1. Attach the supplied antennae (2) to the rear panel TNC antenna connectors as
shown in above illustration.

2. Connect the AC/DC adaptor into the DC inlet as marked on the rear panel
using the attached cable strain relief. Observe the front panel on-off switch
surround is illuminated red.

3. Connect the rear panel AF output from either the 1/4” Jack or XLR to your
mixing console or amplifier. Note: the XLR balanced output can be switched
for either mic or line. The system can be also monitored from the headphone
socket using the “Jog-Wheel” to adjust Volume level.

4. Switch On-Off switch to “On” position and the receiver will default to initial
setting as per illustration above. (BK1.01)

The system is now ready for use.

DC inlet 1/4” jack output

DC strain relief Mic/Line switch

USB port XLR output

Diversity switch A/B indicators

Infra-red port

Power switch indicator

Power On/Off

LCD

Jog wheel

Mute indicator

Headphone output
