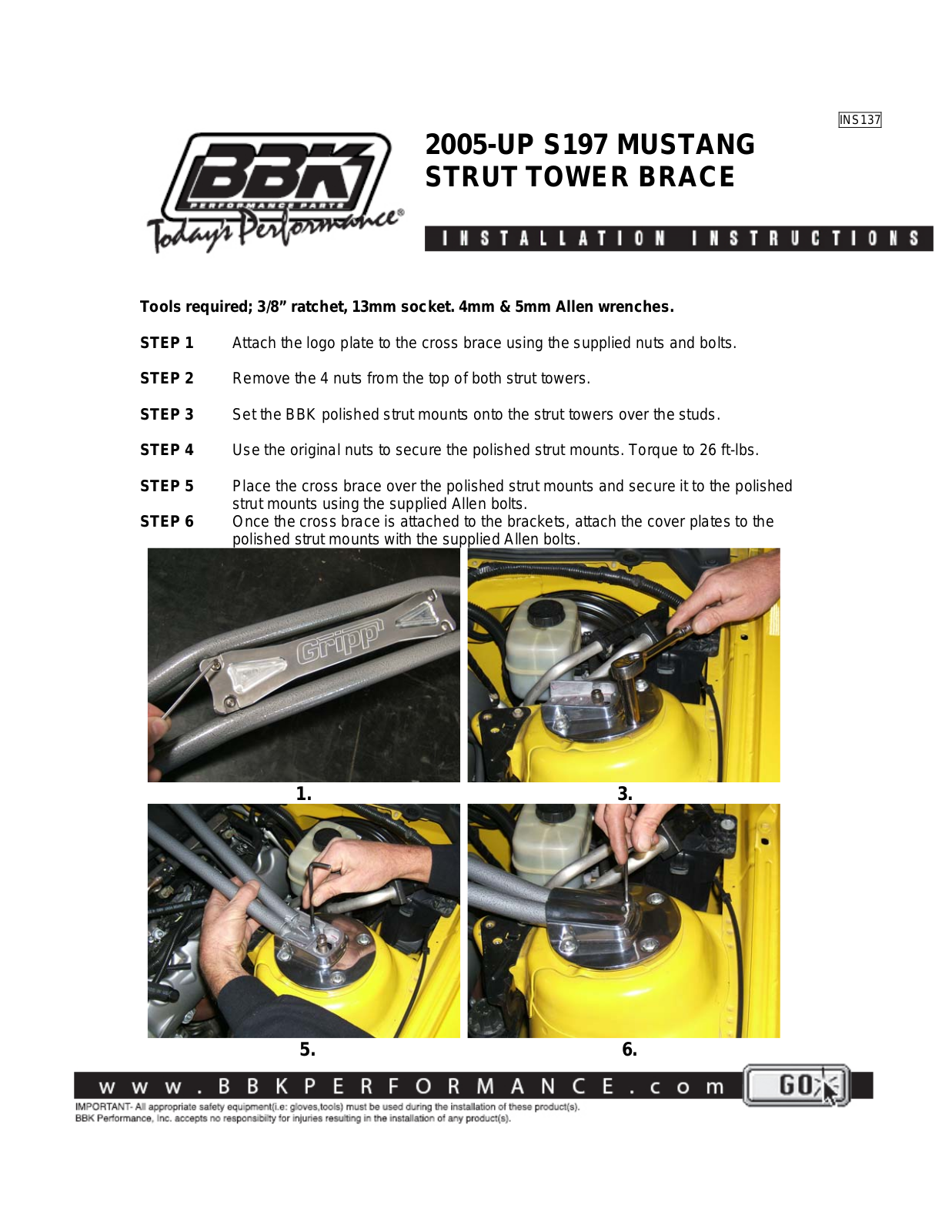

BBK Performance 2618 User Manual

2005-UP S197 MUSTANG
STRUT TOWER BRACE

Tools required; 3/8” ratchet, 13mm socket. 4mm & 5mm Allen wrenches.
STEP 1
STEP 2
STEP 3
STEP 4
STEP 5
STEP 6

Attach the logo plate to the cross brace using the supplied nuts and bolts.
Remove the 4 nuts from the top of both strut towers.
Set the BBK polished strut mounts onto the strut towers over the studs.
Use the original nuts to secure the polished strut mounts. Torque to 26 ft-lbs.
Place the cross brace over the polished strut mounts and secure it to the polished

strut mounts using the supplied Allen bolts.
Once the cross brace is attached to the brackets, attach the cover plates to the
polished strut mounts with the supplied Allen bolts.

INS137

1. 3.

5. 6.
