BBK 2553 Installation Instructions Manual

27427 BOSTIK COURT

TEMECULA, CA 92590

For any questions, email us:

[e-mail]

INSTALLATION INSTRUCTIONS
INS247

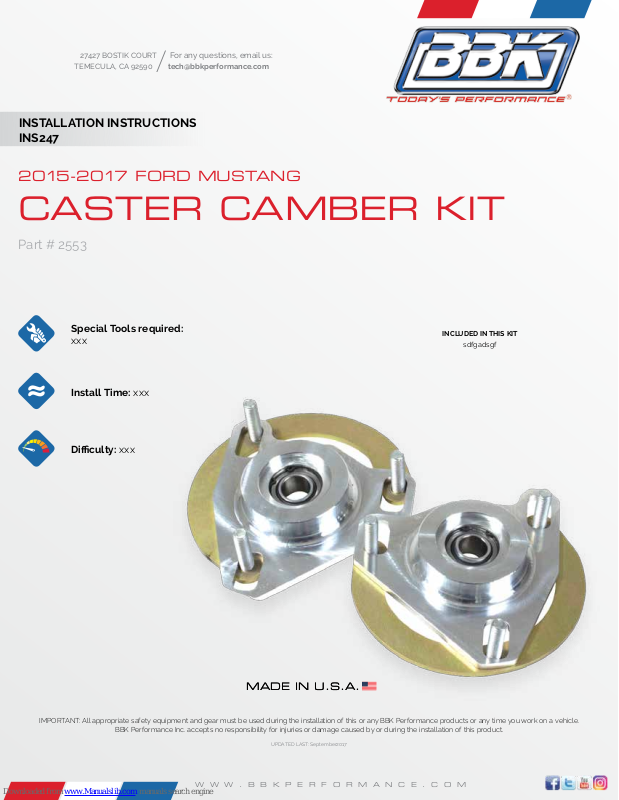

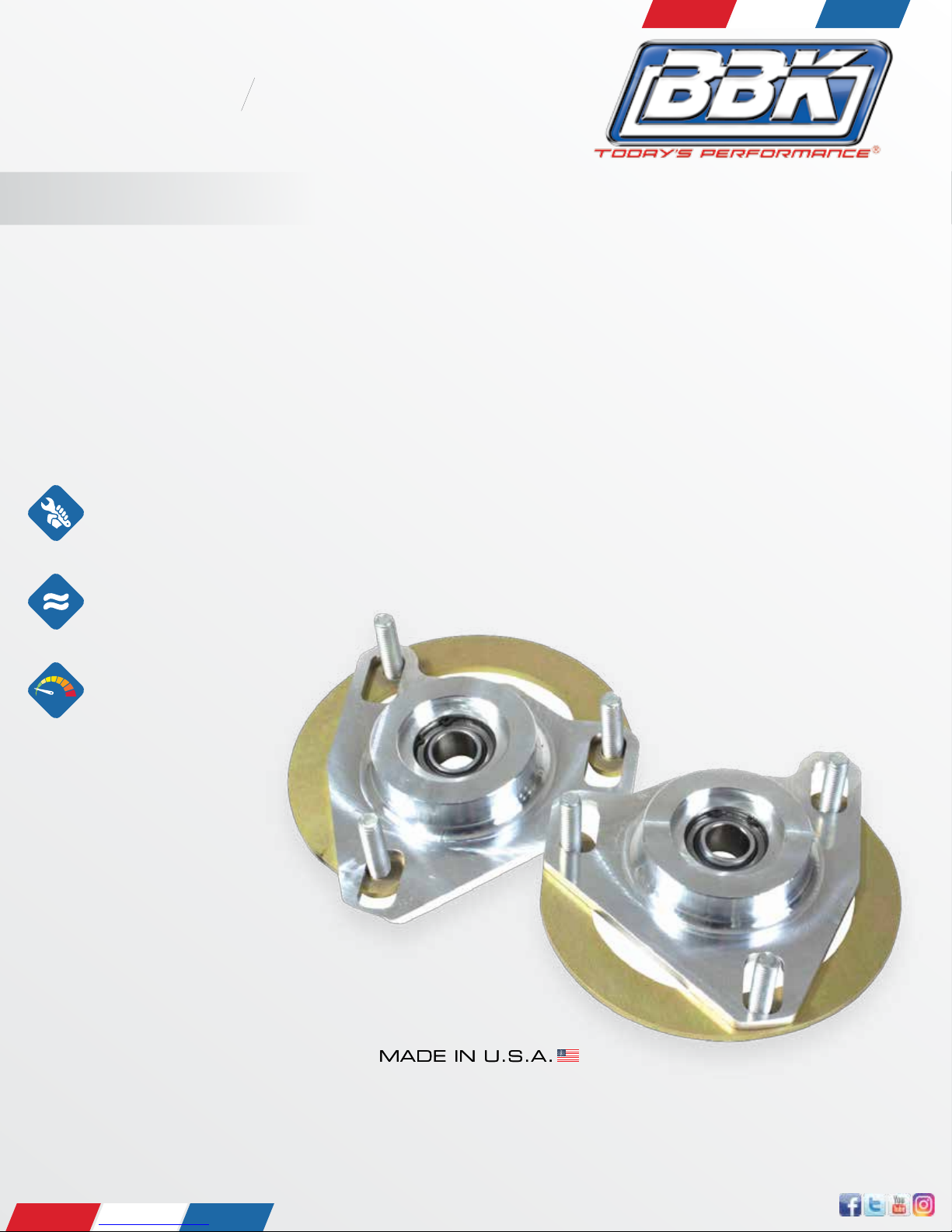

2015-2017 FORD MUSTANG

CASTER CAMBER KIT

Part # 2553

Special Tools required:
xxx

Install Time: xxx

Diculty: xxx

INCLUDED IN THIS KIT

sdfgadsgf

IMPORTANT: All appropriate safety equipment and gear must be used during the installation of this or any BBK Performance products or any time you work on a vehicle.

BBK Performance Inc. accepts no responsibility for injuries or damage caused by or during the installation of this product.

WWW.BBKPERFORMANCE.COM

MADE IN U.S.A.

MADE IN U.S.A.

UPDATED LAST: September2017

27427 BOSTIK COURT

TEMECULA, CA 92590

For any questions, email us:

[e-mail]

FOLLOW THESE INSTRUCTIONS CAREFULLY TO ENSURE CORRECT FITMENT AND OPERATION

STEP 1

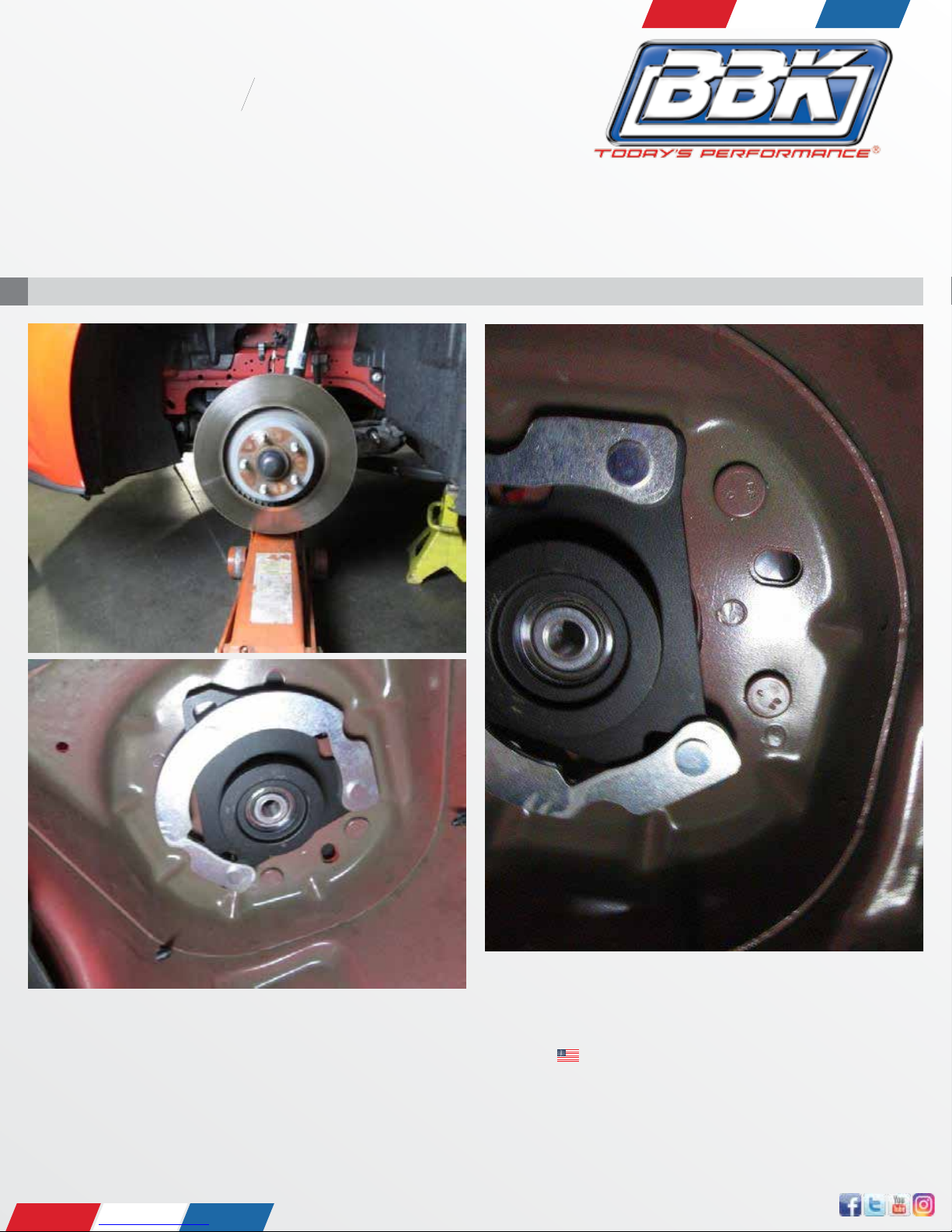

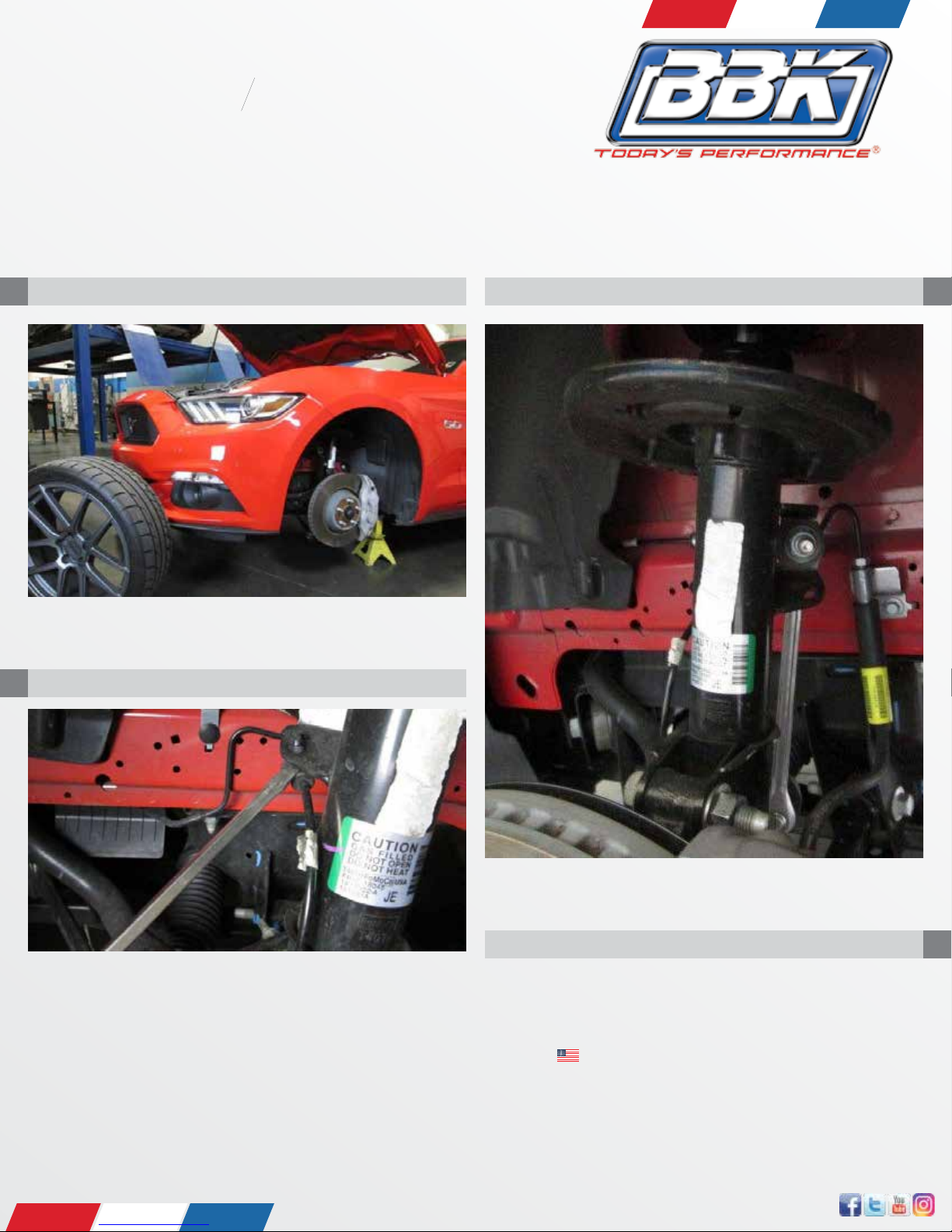

Place the front of the vehicle onto jack stands so that the wheels are o the

ground.

STEP 2

STEP 3

Remove the strut tower brace is applicable. Starting with either driver side

or passenger side remove the wheel. Disconnect the brake line bracket and

detach the ABS sensor wire from the strut body.

MADE IN U.S.A.

IMPORTANT: All appropriate safety equipment and gear must be used during the installation of this or any BBK Performance products or any time you work on a vehicle.

BBK Performance Inc. accepts no responsibility for injuries or damage caused by or during the installation of this product.

WWW.BBKPERFORMANCE.COM

Remove the sway bar end link from the strut, then loosen but do not remove

the strut mounting bolts.

STEP 4

If equipped, remove the strut tower brace. Remove the 4 upper strut mount

nuts, located on top of the strut tower.

UPDATED LAST: September2017

27427 BOSTIK COURT

TEMECULA, CA 92590

For any questions, email us:

[e-mail]

FOLLOW THESE INSTRUCTIONS CAREFULLY TO ENSURE CORRECT FITMENT AND OPERATION

STEP 5

IMPORTANT: All appropriate safety equipment and gear must be used during the installation of this or any BBK Performance products or any time you work on a vehicle.

BBK Performance Inc. accepts no responsibility for injuries or damage caused by or during the installation of this product.

WWW.BBKPERFORMANCE.COM

Support the lower control arm with a oor jack, remove the lower strut

mounting bolts and lower the oor jack to remove the strut assembly.

MADE IN U.S.A.

UPDATED LAST: September2017

27427 BOSTIK COURT

TEMECULA, CA 92590

For any questions, email us:

[e-mail]

FOLLOW THESE INSTRUCTIONS CAREFULLY TO ENSURE CORRECT FITMENT AND OPERATION

STEP 6

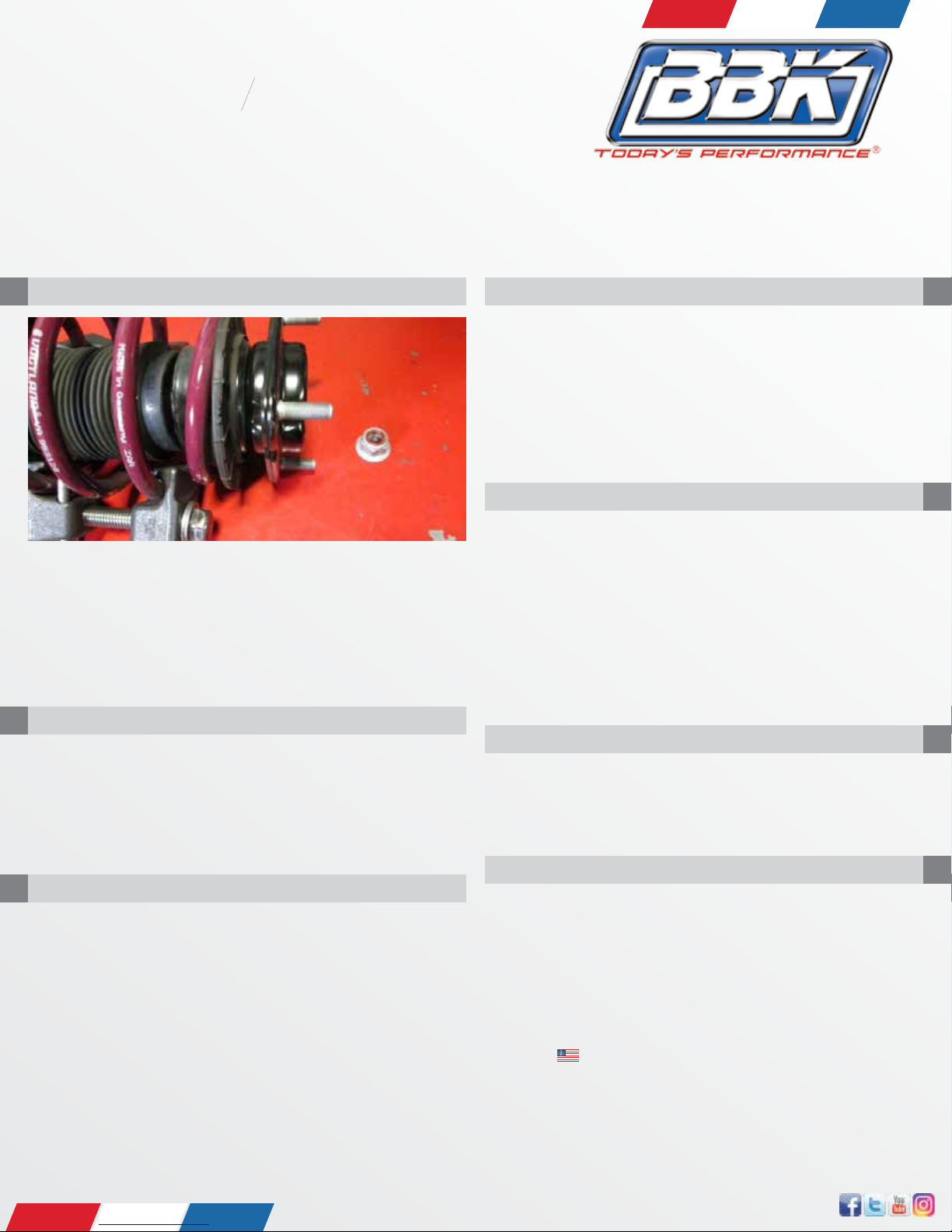

With a spring compressor, slowly depress the spring, then remove the upper

strut retaining nut, then remove the upper strut mount assembly from the

strut shaft.

NOTE! RECOMMEND THE USE OF AN IMPACT GUN.

CAMBER/CASTER PLATE ASSEMBLY

STEP 7

Determine which Camber/Caster Plate is driver or passenger side by looking

at the engraved SUB768D for Driver side and SUB768P for Passenger side.

Install the 2 provided stud plates from the bearing plate, with the studs

protruding through the slots. NOTE! Make sure the larger radius between the

2 studs of each plate face the bearing.

STEP 9

Install the Camber/Caster Assembly to the supplied Ford Strut Tower Pivot

Assembly.

NOTE! Use extreme caution, once the Camber/Caster Plate is installed

to the Pivot Assembly it CAN NOT be removed. If removed it can cause

serious damage to the top strut mount.

STRUT AND SPRING RE-ASSEMBLY

STEP 10

Place the Camber/Caster Assembly onto the Strut Assembly.

NOTE! There is a supplied spacer for the 2005-2010 Mustang GT Models

that needs to be placed onto the strut shaft before sliding the Camber/

Caster Plate on.

Make sure to correctly align the top “pigtail” of the spring with the vertical face

on the stock rubber isolator, and the bottom “pigtail” of the spring with the

vertical face on the lower spring perch.

STEP 11

Re-install the upper strut retaining nut and washer if used. Make sure both

pigtails are properly located both in the lower spring perch and on the upper

rubber isolator as you loosen the spring compressor.

STEP 8

Place the Caster Plate on top of the bearing plate. Make sure that the raised

lip around the bearing plate protrudes up through the center slot of the Caster

Plate. NOTE! The use of a rubber band will help hold the stud plates in position

while installing. Be sure the plates move from side to side smoothly.

MADE IN U.S.A.

IMPORTANT: All appropriate safety equipment and gear must be used during the installation of this or any BBK Performance products or any time you work on a vehicle.

BBK Performance Inc. accepts no responsibility for injuries or damage caused by or during the installation of this product.

WWW.BBKPERFORMANCE.COM

STEP 12

Check the bottom of the strut tower housing for any roughness. Use a Sander

or sand paper to smooth out the Housing.

NOTE! Must be smooth to allow the Camber/Caster Assembly to slide

freely when adjusting.

UPDATED LAST: September2017

27427 BOSTIK COURT

TEMECULA, CA 92590

For any questions, email us:

[e-mail]

FOLLOW THESE INSTRUCTIONS CAREFULLY TO ENSURE CORRECT FITMENT AND OPERATION

STEP 13

Re-install the strut assembly, place the cover over the strut tower where the

studs protrude, don’t fully tighten the top nuts. The factory strut tower brace

can be used with this kit by placing the 2 ends above the decorative cover.

NOTE! Remember to remove the rubber band holding the Camber/Caster

Kit.

STEP 14

Snug all 5 nuts on the Camber/Caster assembly.

STEP 15

Re-attach the strut to the spindle and torque the lower mounting bolts to 166

ft-lbs. Re-attach the brake line bracket and ABS sensor wire. Re-attach the

sway bar end-link to the strut and torque the mounting nut to 85 ft-lbs.

DRIVE-ABLE ALIGNMENT SETTINGS

STEP 16

Loosen the 5 nuts on the Camber/Caster Plate assembly very slightly, until

the plate can barely slide. Slide the entire assembly towards the front of the

vehicle and tighten the 17mm Nut.

STEP 18

Re-install the wheels and safely lower the vehicle, torque the lug nuts to

factory specications.

IMPORTANT INFORMATION!

• The vehicle must now have a proper front end alignment.

STEP 17

Center the strut shaft in the strut tower opening side to side. Once its center

then tighten the 4 13mm nuts.

MADE IN U.S.A.

IMPORTANT: All appropriate safety equipment and gear must be used during the installation of this or any BBK Performance products or any time you work on a vehicle.

BBK Performance Inc. accepts no responsibility for injuries or damage caused by or during the installation of this product.

WWW.BBKPERFORMANCE.COM

UPDATED LAST: September2017

27427 BOSTIK COURT

TEMECULA, CA 92590

For any questions, email us:

[e-mail]

FOLLOW THESE INSTRUCTIONS CAREFULLY TO ENSURE CORRECT FITMENT AND OPERATION

• Make sure the technician knows that the Camber/Caster Plate will not move

if the front suspension is loaded. The front end must be raised. BOTH front

wheels must be o the ground in order to adjust the camber and caster.

• This Camber/Caster Plate Assembly has 1.68-degree continuous range of

camber adjustment and 0.9-degree continuous range of caster adjustment

and provides correction for OEM production tolerances.

IMPORTANT: All appropriate safety equipment and gear must be used during the installation of this or any BBK Performance products or any time you work on a vehicle.

BBK Performance Inc. accepts no responsibility for injuries or damage caused by or during the installation of this product.

WWW.BBKPERFORMANCE.COM

MADE IN U.S.A.

UPDATED LAST: September2017
