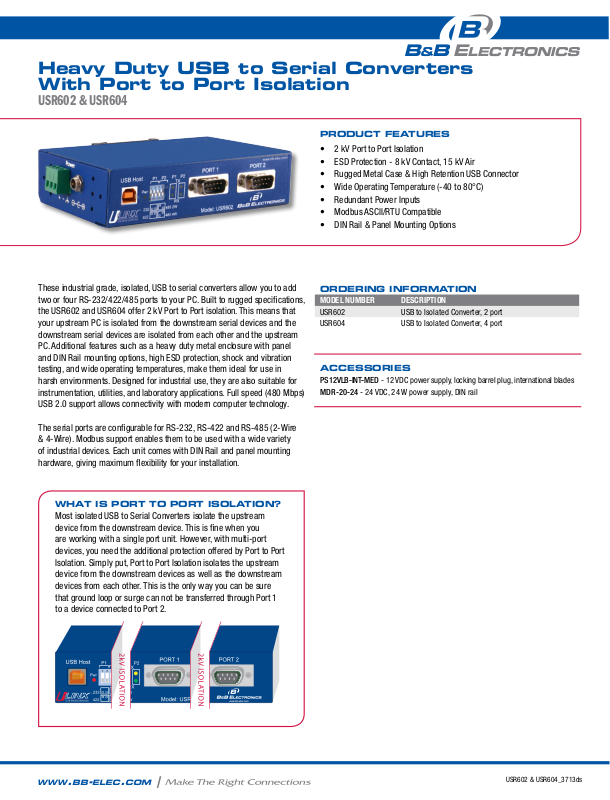

B&B Electronics USR604 Datasheet
Heavy Duty USB to Serial Converters
With Port to Port Isolation
USR602 & USR604
PRODUCT FEATURES
• 2kVPorttoPortIsolation
• ESDProtection-8kVContact,15kVAir
• RuggedMetalCase&HighRetentionUSBConnector
• WideOperatingTemperature(-40to80°C)
• RedundantPowerInputs
• ModbusASCII/RTUCompatible
• DINRail&PanelMountingOptions
These industrial grade, isolated, USB to serial converters allow you to add
two or four RS-232/422/485 ports to your PC. Built to rugged specifications,
the USR602 and USR604 offer 2 kV Port to Port isolation. This means that
your upstream PC is isolated from the downstream serial devices and the
downstream serial devices are isolated from each other and the upstream
PC. Additional features such as a heavy duty metal enclosure with panel
and DIN Rail mounting options, high ESD protection, shock and vibration
testing, and wide operating temperatures, make them ideal for use in
harsh environments. Designed for industrial use, they are also suitable for
instrumentation, utilities, and laboratory applications. Full speed (480 Mbps)
USB 2.0 support allows connectivity with modern computer technology.
The serial ports are configurable for RS-232, RS-422 and RS-485 (2-Wire
& 4-Wire). Modbus support enables them to be used with a wide variety
of industrial devices. Each unit comes with DIN Rail and panel mounting
hardware, giving maximum flexibility for your installation.
WHAT IS PORT TO PORT ISOLATION?
Most isolated USB to Serial Converters isolate the upstream
device from the downstream device. This is fine when you
are working with a single port unit. However, with multi-port
devices, you need the additional protection offered by Port to Port
Isolation. Simply put, Port to Port Isolation isolates the upstream
device from the downstream devices as well as the downstream
devices from each other. This is the only way you can be sure
that ground loop or surge can not be transferred through Port 1
to a device connected to Port 2.
ORDERING INFORMATION
Model nuMBer deSCriPtion
USR602 USB to Isolated Converter, 2 port
USR604 USB to Isolated Converter, 4 port
ACCESSORIES
PS12VLB-INT-MED - 12 VDC power supply, locking barrel plug, international blades
MDR-20-24 - 24 VDC, 24 W power supply, DIN rail
www.bb-elec.com
|
USR602 & USR604_3713ds
Heavy Duty USB to Serial Converters
3.5 cm
With Port to Port Isolation
SPECIFICATIONS
Serial teChnology
RS-232 TD, RD, RTS, CTS, DTR, DSR, DCD, GND
RS-422/485 4-Wire TDA(-), RDA(-), TDB(+), RDB(+), GND
RS-485 2-Wire DATA A(-), DATA B(+), GND
Connector DB9 Male
Data Rate 921.6 Kbps
Isolation 2 kV – Port to Port
Surge Protection +/- 0.5 kV DC Ports, +/- 1 kV Signal Ports
Industrial Bus Modbus ASCII/RTU
Bias 1 KΩ on receive lines in RS-422/485 mode
uSB teChnology
USB Compatibility 1.1 and 2.0
Speed 1.5, 12, and 480 Mbps
Connector
Operating System
Power
Source External (Dual Input)
Power Connector
Input Voltage 10 to 48 VDC
Power Consumption
indiCatorS
Power Green LED
TD / RD (Each Port) Green / Amber LED
MeChaniCal
Dimensions USR602 13.8x3.5x8.8 cm (5.4x1.4x3.5 in)
Dimensions USR604 20.3x3.5x12.0 cm (8.0x1.4x4.7in)
Enclosure IP 30, Metal
Weight USR602 = 0.38 kg, USR604 = 0.68 kg
MTBF USR602 90,013 hours
MTBF USR604 51,098 hours
MTBF Calc. Method MIL 217F Parts Count Reliability
enVironMental
Operating Temperature -40 to 80°C
Storage Temperature -40 to 85°C
Operating Humidity 0 to 95% Non-condensing
Type B High Retention
(15 N / 3.4 lbs-force withdrawal)
Windows 2000, XP (32/64 bit)
Vista (32/64 bit), 7 (32/64 bit), 8 (32/64 bit),
2003 & 2008 Server (32/64 bit)
Terminal Block
Locking Barrel Plug
USR602 – 3.5 Watts Maximum
USR604 – 4.5 Watts Maximum
USR602 & USR604
aPProValS / CertiFiCationS
Emissions FCC Class B, CISPR Class B (EN55022:2006)
CE EN61000-6-1:2007 (Light Industrial)
EN61000-4-2:2008 (ESD) +/-4kV Contact, +/-8kV Air
EN61000-4-3:2006 (RI)
EN61000-4-4:2004 (EFT Burst) +/-1kV signal ports
EN61000-4-6:2005 (CI) 3 VRMS, 0.15 to 80 MHz
EN61000-4-8:2001 (Magnetic) 10A/m, 50Hz & 60Hz
Shock IEC60068-2-27 50G peak, 11ms, 3 axes
Vibration IEC60068-2-6 10-500Hz, 4G, 3 axes
Freefall
(Drop)
inForMation – FCC ruleS
This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference that may cause undesired operation.
inForMation – ul ClaSS 1 diV 2
Suitable for use in Class 1, Division 2, Groups A, B, C and D Hazardous Locations, or
Nonhazardous locations only.
WARNING - EXPLOSION HAZARD – DO NOT DISCONNECT EQUIPMENT WHILE
THE CIRCUIT IS LIVE UNLESS THE AREA IS KNOWN TO BE FREE OF IGNITABLE
CONCENTRATIONS.
WARNING - EXPLOSION HAZARD - SUBSTITUTION OF ANY COMPONENT MAY IMPAIR
SUITABILITY FOR CLASS I, DIVISION 2
Install in accordance with control drawing number 9340R0.
Ind. Cont. Eq.
For HAZ LOC
3HTV
E245458
Class I, Div. 2, Groups A, B, C & D
Temp. Code: T4A
MECHANICAL DIAGRAM
USR604
IEC60068-2-32 10 total drops from sides, corner and edges, 1M
3V/m, 80-1000MHz; 1V/m,
1.3 to 2.7 GHz
orders@bb-elec.com
support@bb-elec.com
12.0 cm
4.7in
20.3 cm
8.0 in
1.4 in
International Office: 707 Dayton Road PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office: Westlink Commercial Park Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
