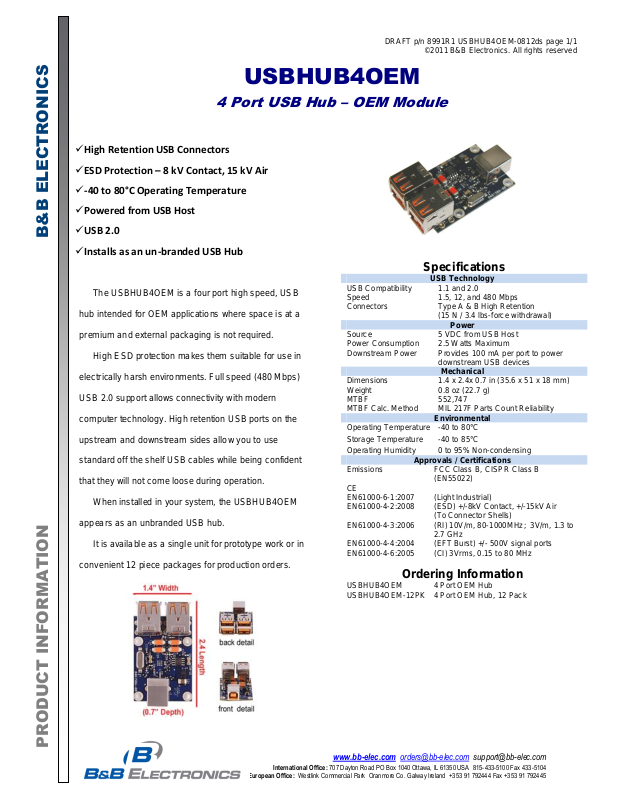

B&B Electronics USBHUB4OEM-12PK Datasheet

www.bb-elec.com [e-mail] [e-mail]

International Office: 707 Dayton Road PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax [phone]

PRODUCT INFORMATION B&B ELECTRONICS

Specifications

USB Technology

USB Compatibility

1.1 and 2.0

Speed

1.5, 12, and 480 Mbps

Connectors

Type A & B High Retention

(15 N / 3.4 lbs-force withdrawal)

Power

Source

5 VDC from USB Host

Power Consumption

2.5 Watts Maximum

Downstream Power

Provides 100 mA per port to power

downstream USB devices

Mechanical

Dimensions

1.4 x 2.4x 0.7 in (35.6 x 51 x 18 mm)

Weight

0.8 oz (22.7 g)

MTBF

552,747

MTBF Calc. Method

MIL 217F Parts Count Reliability

Environmental

Operating Temperature

-40 to 80°C

Storage Temperature

-40 to 85°C

Operating Humidity

0 to 95% Non-condensing

Approvals / Certifications

Emissions

FCC Class B, CISPR Class B

(EN55022)

CE

EN61000-6-1:2007

(Light Industrial)

EN61000-4-2:2008

(ESD) +/-8kV Contact, +/-15kV Air

(To Connector Shells)

EN61000-4-3:2006

(RI) 10V/m, 80-1000MHz; 3V/m, 1.3 to

2.7 GHz

EN61000-4-4:2004

(EFT Burst) +/- 500V signal ports

EN61000-4-6:2005

(CI) 3Vrms, 0.15 to 80 MHz

Ordering Information

USBHUB4OEM

4 Port OEM Hub

USBHUB4OEM-12PK

4 Port OEM Hub, 12 Pack

USBHUB4OEM

4 Port USB Hub – OEM Module

 High Retention USB Connectors
 ESD Protection – 8 kV Contact, 15 kV Air
 -40 to 80°C Operating Temperature
 Powered from USB Host
 USB 2.0
 Installs as an un-branded USB Hub

The USBHUB4OEM is a four port high speed, USB

hub intended for OEM applications where space is at a
premium and external packaging is not required.
High ESD protection makes them suitable for use in
electrically harsh environments. Full speed (480 Mbps)
USB 2.0 support allows connectivity with modern
computer technology. High retention USB ports on the
upstream and downstream sides allow you to use
standard off the shelf USB cables while being confident
that they will not come loose during operation.
When installed in your system, the USBHUB4OEM
appears as an unbranded USB hub.
It is available as a single unit for prototype work or in
convenient 12 piece packages for production orders.

DRAFT p/n 8991R1 USBHUB4OEM-0812ds page 1/1

©2011 B&B Electronics. All rights reserved
