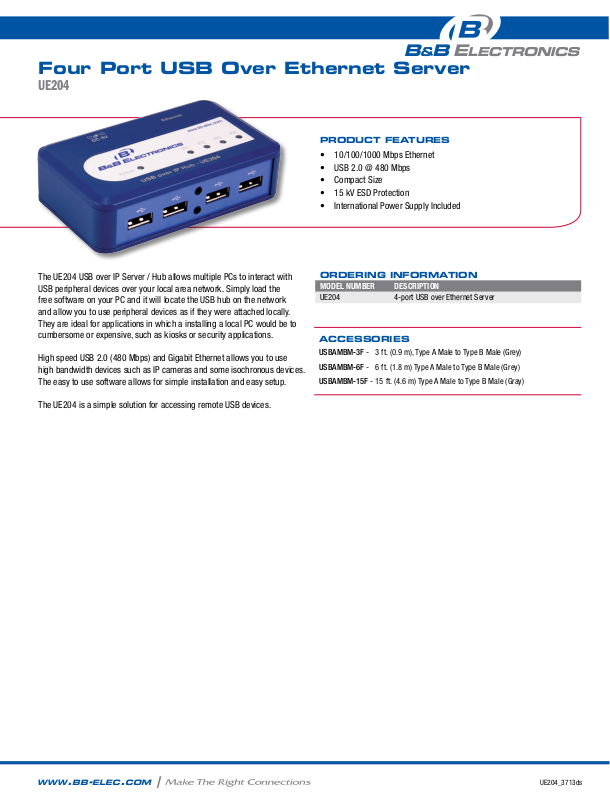

B&B Electronics UE204 Datasheet

Four Port USB Over Ethernet Server

UE204

PRODUCT FEATURES

• 10/100/1000MbpsEthernet

• USB2.0@480Mbps

• CompactSize

• 15kVESDProtection

• InternationalPowerSupplyIncluded

The UE204 USB over IP Server / Hub allows multiple PCs to interact with
USB peripheral devices over your local area network. Simply load the
free software on your PC and it will locate the USB hub on the network
and allow you to use peripheral devices as if they were attached locally.
They are ideal for applications in which a installing a local PC would be to
cumbersome or expensive, such as kiosks or security applications.

High speed USB 2.0 (480 Mbps) and Gigabit Ethernet allows you to use
high bandwidth devices such as IP cameras and some isochronous devices.
The easy to use software allows for simple installation and easy setup.

The UE204 is a simple solution for accessing remote USB devices.

ORDERING INFORMATION

Model nuMBer deSCriPtion

UE204 4-port USB over Ethernet Server

ACCESSORIES

USBAMBM-3F - 3 ft. (0.9 m), Type A Male to Type B Male (Grey)

USBAMBM-6F - 6 ft. (1.8 m) Type A Male to Type B Male (Grey)

USBAMBM-15F - 15 ft. (4.6 m) Type A Male to Type B Male (Gray)

www.bb-elec.com

|

UE204_3713ds

SPECIFICATIONS

uSB & ethernet teChnology

USB Compatibility 1.1 and 2.0
USB Speed 1.5, 12, and 480 Mbps
USB Connector 4 x USB Type A Female
Ethernet 10/100/1000 Base T
Ethernet Connector RJ-45
IP Address Default = DHCP

169.254.10.10 if DHCP Not Available
User Configurable

Operating System

Configuration Software Included with User Manual on CD

Power

Source External PSU
Power Connector 5.5 mm Barrel Plug, Center Positive
Input Voltage 5 VDC
Power Consumption 2.5 A
USB Downstream Power 500 mA per Port
PSU Input 100 to 240 VAC, 50 / 60 Hz, 0.8 A
AC Input Blades US, EU, UK Included
PSU Output 5 VDC, 3A

Window 8, 32 & 64 bit
Windows 7, 32 & 64 bit
Windows 2008 Server, 32 & 64 bit
Windows Vista, 32 & 64 bit
Windows Server 2003 32 and 64 bit
Windows XP 32 and 64 bit

Four Port USB Over

Ethernet Server

UE204

indiCatorS

Power / Active Green LED – ON when power applied
P1 – P4 Green LED – ON when USB Port connected

MeChaniCal

Dimensions 10.0 x 6.0 x 28.9 cm (3.9 x 2.4 x 1.1 in)
Enclosure Plastic with panel mount slots on back
Weight UE204 – 0.21 lbs, 95.3 g

PSU – 0.38 lbs, 172.4 g
MTBF UE204 63,124 Hours
MTBF Calc. Method MIL 217F Parts Count Reliability

enVironMental

Operating Temperature 0° to 60°C
Storage Temperature 0° to 70°C
Operating Humidity 0 to 95% Non-condensing

aPProValS / CertiFiCationS

Emissions FCC Class B, CISPR Class B (EN55022)

EN61000-4-2:2008 (ESD) +/-8kV Contact, +/-15kV Air
EN61000-4-3:2006 (RI) 10V/m, 80-1000MHz; 3V/m, 1.3 to 2.7 GHz
EN61000-4-4:2004 (EFT Burst) ±0.5V Power, ±1kV Data
EN61000-4-5:2005 (Surge) ±0.5kV DC, 2kV AC ±1kV Data
EN61000-4-6:2005 (CI) 10Vrms all ports
EN61000-4-8:2001 (Magnetic) 30 A/m

MECHANICAL DIAGRAM

6.0 cm

2.36 in

10.0 cm

3.94 in

2.89 cm

1.14 in
