B&B Electronics RT3G-30xB1003 Quick Start Manual

Product Overview

SMA Antenna
connector

LEDs

3 V or 1.8 V
SIM card
readers

SMA Antenna
connector

Power

Ethernet
and/o r
Aux ports

USB Port

I/O Port

The router will not work unless an antenna is attached,
power is applied, and an activated SIM card is inserted.

Register your Jazz card

Powering the router with no antenna
attached can damage the router

Use the following link:

https://prepaid.jazzwirelessdata.com/prepaid/#

If you have an existing account, please login and
proceed to Step 2.

If you do not have an existing, account please
click “Register” to create an account.

Enter your personal information and create a
password. When entering your SIM card
number(s), use the 19 digit number located on the
bottom left of the card.

Do not include the letter (F) at the end of the number.

1

2

Digi-Key Sample SIM Activation Portal

Enter the activation code (key) 41295876. Then
press “Submit.”

Now check your email, where you will have
received a link to complete activation. The link will
send you to the login screen. Log in and proceed to
Step 2.

Note: The “username” is the email address supplied
during registration.

To add additional SIM(s), click “Register SIMs”.
The link is located at the bottom right corner of
the table.

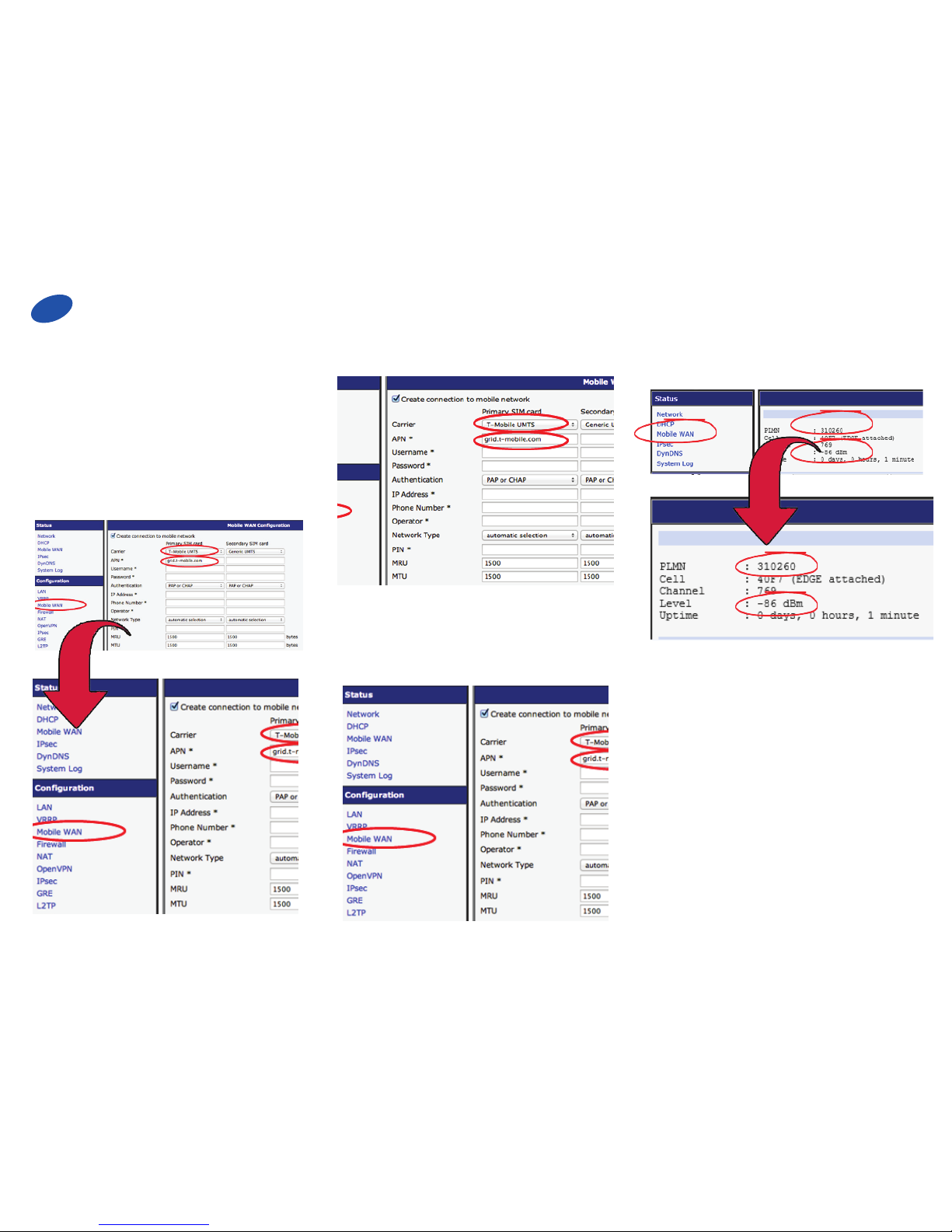

If you see red text, as shown in the screen
captures below, please wait for the SIM card to
fully register with JAZZ. You may need to
manually refresh the page.

SIM Registration page shows red text

Troubleshooting

Two Easy Ways to Avoid a Call...

Fast and easy on the web:

www.bb-elec.com

Cellular Networking Kit

SPECTRE RT3G-30xB1003

and JAZZ SIM

© 2011 B&B Electronic s Manufacturing Compa ny

1-888-948-2248 | Europe: [phone]

www.bb-elec.com

Recommended Accessories

You can use your
smart phone to access
complete documentation
on our website. Simply
scan the code to the
right.

First Things First...

Before you begin, be sure you have
the following:

707 Dayton Road | PO Box 1040 | Ottawa, IL 61350

Phone: [phone] | Fax: [phone]
www.bb-elec.com | E-mail: [e-mail]

Document number – pn710_00012_00_R000_SPECTRE_3G_JAZZ_R001_1313qsg

Q. How much data will my router use?

A. This highly depends upon on the application. A
typical Video frame uses 340K bytes. 32k/HR is
used in carrier/router admin data. Features such as
“Check Connection to Mobile Network” can cause
data to be used.

Q. My JAZZ portal shows 0 0 0 for data
activity.

A. The SIM is not activated correctly. Contact
DigiKey.

Q. JAZZ portal is rejecting SIM card # and/
or Activation ID#.

A. This is most likely the activation key DigiKey sent.
Contact Digikey directly. This may require DigiKey
to update customer info with JAZZ

Q. Does B&B have access to the JAZZ
customer portal for the purposes of
troubleshooting customer issues?

A. No. Digikey will need to be contacted for all
portal and SIM issues.

Q. Is SMS Supported?

A. No. This means Router SMS features will not
operate.

SPECTRE 3G

SIM Card

Power Supply

Crossover UTP cable

External Antennas

DIN rail adapter

Installation CD

Q

uick

S

tart

G

uide

Cellular Antennas

http://search.bb-elec.
com/?s=485success&q=antenna

Ethernet Cables

http://search.bb-elec.com/
?q=ethernet+cable
