B&B Electronics RS-422 User Manual

Optically Isolated

Single-Port Multi-Interface

(RS-232/RS-422/RS-485)

PCI Bus Serial Card

with Send Data Control

3PCIO1

Documentation Number 3PCIO1-0903

This product designed and manufactured in Ottawa, Illinois USA

of domestic and imported parts by

International Headquarters

B&B Electronics Mfg. Co. Inc.

707 Dayton Road -- P.O. Box 1040 -- Ottawa, IL 61350 USA

Phone [phone] -- General Fax [phone]

Home Page: www.bb-elec.com

Orders e-mail: [e-mail]

Technical Support e-mail: [e-mail]

-- Fax [phone]

-- Fax [phone]

European Headquarters

B&B Electronics Ltd.

Westlink Commercial Park, Oranmore, Co. Galway, Ireland

Phone [phone] -- Fax [phone]

Home Page: www.bb-europe.com

Orders e-mail: [e-mail]

Technical Support e-mail: [e-mail]

 2003 B&B Electronics

Documentation Number 3PCIO1-0903 Manual Cover Page

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

 2003 B&B Electronics . No part of this publication may be reproduced or transmitted in any form or by any

means, electronic or mechanical, including photography, recording, or any information storage and retrieval
system without written consent. Information in this manual is subject to change without notice, and does not
represent a commitment on the part of B&B Electronics.

B&B Electronics shall not be liable for incidental or consequential damages resulting from the furnishing,
performance, or use of this manual.

All brand names used in this manual are the registered trademarks of their respective owners. The use of
trademarks or other designations in this publication is for reference purposes only and does not constitute an
endorsement by the trademark holder.

TABLE OF CONTENTS

CHAPTER 1: GENERAL INFORMATION......................................1

I

NTRODUCTION........................................................................................1

F

EATURES................................................................................................ 1

Q

UICK START ..........................................................................................2

S

PECIFICATIONS ......................................................................................3

CHAPTER 2: SETUP.......................................................................... 5

I

NSPECTION .............................................................................................5

B

EFORE STARTING… ..............................................................................5

S

ELECTION OF OPERATING MODE ..........................................................6

J

UMPER/MODE TABLE FOR RS-232/422/485..........................................6

I

NSTALL THE CARD..................................................................................7

CHAPTER 3: SOFTWARE DRIVER INSTALLATION ..................9

W

INDOWS 95 OR 98 ................................................................................8

S

ET DTR OPERATION............................................................................ 13

C

HANGING COM PORT NUMBER............................................................14

R

EMOVAL OF DRIVERS/CARD ...............................................................16

W

INDOWS 2000 PROFESSIONAL............................................................17

W

INDOWS XP PROFESSIONAL...............................................................24

S

YSTEM PROPERTIES/HARDWARE/DEVICE MANAGER..........................29

S

ET DTR OPERATION............................................................................ 31

C

HANGING COM PORT NUMBER............................................................32

R

EMOVAL OF DRIVERS/CARD ...............................................................34

S

HOW HIDDEN FILES AND FOLDERS......................................................36

CHAPTER 4: SETTING DRIVER OPTIONS................................. 37

DTR O

PERATION...................................................................................37

A

DVANCED - COM PORT RENAMING ..................................................... 38

D

ATA RATE 1X/4X CLOCK SPEED........................................................ 39

FIFO S

ETTINGS .....................................................................................40

CHAPTER 5: RS-232 CONNECTIONS/OPERATION..................43

RS-232 P
RS-232 O
DTR O

Documentation Number 3PCIO1-0903 Manual Table of Contents i

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

INOUTS ...................................................................................43

PERATION .............................................................................. 43

PERATION IN RS-232 MODE ......................................................44

CHAPTER 6: RS-422/RS-485 CONNECTIONS/OPERATION.....45

RS-422/485 P
RS-422 & RS-485 D
RS-422 O
RS-485 O
DTR O
RS-485 N

INOUTS............................................................................ 45

IFFERENTIAL SIGNALS.......................................... 47

PERATION .............................................................................. 47

PERATION .............................................................................. 48

PERATION IN RS-485 MODE ......................................................48

ETWORK BIASING ..................................................................49

CHAPTER 7: TROUBLESHOOTING.............................................51

APPENDIX A: JUMPER/MODE TABLES...................................A-1

APPENDIX B: CONNECTOR PINOUTS......................................B-1

APPENDIX C: TROUBLESHOOTING WITH COMTEST.........C-1

APPENDIX D: DECLARATION OF CONFORMITY ................. D-1

ii Table of Contents Documentation Number 3PCIO1-0903 Manual

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

CAUTION: ELECTROSTATIC SENSITIVE DEVICE

Use ESD precautions for safe handling.

Before removing the card from the anti-static protective packaging:

• Discharge any static electricity buildup on your body by touching
a large grounded metal surface or the metal chassis on
equipment connected to earth ground by a 3-wire power cord.

• Avoid touching the gold connectors or other parts on the card
except as necessary to set the configuration jumpers.

• Remove AC power from the computer before inserting the card.

• Retain the ESD bag for handling the card.

Documentation Number 3PCIO1-0903 Manual Table of Contents iii

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

Chapter 1:

General Information

Introduction

The 3PCIO1 Optically Isolated Single Port serial interface card is
designed to work with Windows based IBM compatible computers
equipped with a PCI Bus. The card is Plug and Play compatible
which permits the Windows Operating System and driver to set the
addresses and IRQ used by the card.

If you are developing your own software, make sure that the
communications routines support Windows communication drivers
and a wide range of COM ports (Com1 to Com16 or higher).

Features

• Optically Isolated Multiple Interface PCI Serial Card

• Windows 95/98/2000/XP Compatible Drivers

• Buffered high speed 16C950A UARTs (16C550 compatible) 128

byte FIFOs for input/output with selectable trigger thresholds

• Supports baud rates to 460.8K baud

• Provides 2000 VDC minimum isolation on all lines from the DB9

male connector to the host computer

• Selectable RS-232/RS-422/RS-485 mode

• RS-232 Mode – All eight signals including DCD & RI

• RS-422 Mode – Supports Transmit & Receive signal pairs

• RS-485 Mode – Supports Transmit & Receive signal pairs for

half or full duplex connections.

• 2-wire or 4-wire RS-485 Operation (Half or Full Duplex)

• Automatic Send Data Control for RS-485 Operation

• Com Port Rename – Advanced Driver Function

• Standard DB9 Male Connector

Documentation Number 3PCIO1-0903 Manual Chapter 1 1

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

Quick Start

CAUTION: ELECTROSTATIC SENSITIVE DEVICE

1. Before removing the card from the anti-static protective

packaging, discharge any static electricity on yourself.

2. Set the Operating Mode Jumpers to match the mode

desired.

3. Unplug the computer Power Cord to prevent accidentally

turning the computer on during installation.

4. Install the Card, replace the cover.

5. Reconnect the Power Cord.

6. While power is off, connect your cables (or wait for Step 15)

7. Start the computer (as Administrator 2000/XP).

8. Insert the driver disc in your CD-ROM drive

9. Wait until new hardware is detected.

10. Proceed with Installation according to your Operating

System. See Chapter 3.

11. Check for new com ports in Device Manager.

12. Select Driver Settings for DTR Control

Use the Jumper/Mode Table in Chapter 2.

13. Set Com number as needed.

14. Prepare your cable connections to match the connector

pinouts

. See Chapter 5 (RS-232) or Chapter 6 (RS-422/RS-

485).

15. Shut down the computer before connecting the cable.

16. Connect your cable.

17. Power up your computer.

18. Verify operation with your hardware.

2 Chapter 1 Documentation Number 3PCIO1-0903 Manual

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

Specifications

y

Bus: PCI bus (33MHz/32-bit) +5V bus power

Slot: Requires one PCI slot

Dimensions: 4.79 x 3.77 in (12.16 x 9.57 cm) card edge

(Mounting bracket, 1.23 x 12.06 x 0.85cm)

I/O Connections: One 9-pin male D-sub (DB9M) connector

OS Supported: Windows 95, 98, 2000, XP

Baud rates: 460.8K baud maximum - RS-232/422/485

UARTs: 16C950 (128-byte FIFO TX and RX buffers)

16C550 Compatible

Character length: 5, 6, 7 or 8 bits

Parity: Even, odd or none

Stop bits: 1, 1.5, or 2

Optical Isolation:

Data Line Device: HCPL0600 (or equivalent)
Handshake Line Device: IL207 (or equivalent)

RS-232 Data Lines Drivers/Receivers:

Transceiver Device: SP211H (or equivalent)
High level output voltage: 5.0 V minimum
Low level output voltage: −5.0 V minimum
Output current limited to: ±25 mA
Input high threshold voltage: 1.7 V maximum
Input low threshold voltage: 0.8 V minimum
Device will withstand: ±15 V

RS-422/485 Driver/Receiver:

Transceiver device: SP491 (or equivalent)
Differential driver output voltage: 1.5 - 5 V
Differential input high-threshold voltage: 0.2 V maximum
Differential input low-threshold voltage: −0.2 V minimum

Automatic RS-485 Driver Control Timing:

Driver is enabled b

Tx input buffer data. Driver remains

enabled until all data in Tx buffer is sent.

Documentation Number 3PCIO1-0903 Manual Chapter 1 3

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

Receiver Biasing:

4.7K pull-up/pull-down for 32 standard (12-15K) nodes
Provision for custom biasing (R14, R13)

Termination: None. Provision for custom termination (R15)

Max Power Consumption: loaded

Voltage

(V)

Current

(mA)

Power

(W)

+5 300 1.5

Typical Baud Rates

75
110
134
150
300
600
1200
1800
2400
4800
7200
9600

14.4K

19.2K

38.4K

57.6K

115.2K

230.4K

460.8K

Any baud rate which is a common divisor of 460.8K can be used if
the application software supports it.

Accessories:

Software: Driver CD-ROM disc for Windows 95/98/2000/XP

Manual: Instruction Manual (paper copy of this booklet)

4 Chapter 1 Documentation Number 3PCIO1-0903 Manual

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

Chapter 2:

Setup

Inspection

Your 3PCIO1 serial card was tested for proper operation before
packaging. It should be in perfect mechanical and electrical condition
upon receipt.

CAUTION: ELECTROSTATIC SENSITIVE DEVICE

Use ESD precautions for safe handling.

Before removing the card from the anti-static protective packaging:

• Discharge any static electricity buildup on your body by touching
a large grounded metal surface or the metal chassis on
equipment connected to earth ground by a 3-wire power cord.

• Avoid touching the gold connectors or other parts on the card
except as necessary to set the configuration jumpers.

• Remove AC power from the computer before inserting the card.

• Retain the ESD bag for handling the card.

Save the packaging for storage or shipping.

Before Starting…

The card is normally pre-configured for RS-232 operation.

Check/Set 3 Operating Mode Jumpers for Mode desired.

Device Driver Setting for RS-485 Mode:

After driver installation, set DTR Operation to RS-485 Mode.

See Chapter 4,

Continued next page

Documentation Number 3PCIO1-0903 Manual Chapter 2 5

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

Setting Driver Options.

Selection of Operating Mode

The hardware address and IRQ is set by the Windows Operating
System using driver information files and the Plug and Play OS.

The Operating Mode is set using Jumpers, Device Manager Driver
Settings and by your cable connections and software.

Set the Jumpers

Set the 3 JP1 Jumpers to match your Operating Mode.

Jumpers RS-232 RS-422

JP1 Top 232

(Right)

JP1 Middle -----

No effect

JP1 Bottom -----

No effect

4-Wire

422/485

(left)

TX ENABLE

(right)

RX ENABLE

(right)

RS-485

4-Wire

422/485

(left)

TX SD

(left)

RX ENABLE

(right)

RS-485

2-Wire

422/485

(left)

TX SD

(left)

RX SD

(left)

Table 1 – Jumper/Mode Table

The top jumper sets DB9 connections for either 232 or 422/485

RS-232 operation requires setting only the Top jumper.

The middle jumper sets the RS-422/RS-485 transmitter for RS-485
or RS-422 operation

. In RS-485 mode, the transmitter is tri-stated
when not sending data.In RS-422 mode, the transmitter is always
enabled.

The bottom jumper sets the RS-422/RS-485 receiver for half-duplex
RS-485 operation or full-duplex RS-422/RS-485 operation

.InHalf
Duplex RS-485, the Receiver is Enabled when not transmitting. In
Full Duplex RS-422/485 operation, the receiver is always enabled

For more operating mode information, see the related chapter.

6 Chapter 2 Documentation Number 3PCIO1-0903 Manual

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

.

Install the Card

1. Shut down your computer.

2. Unplug the power cord to remove power to prevent accidentally

turning on the computer during installation.

3. Remove the cover of the computer.

4. Locate an empty PCI expansion slot.

5. Remove the expansion slot cover. Save the retaining screw.

6. Ground yourself to the computer chassis before and while

inserting the card.

7. Install the card into the unused slot. Be certain that the card is

inserted completely (fully seated) in the slot.

8. Secure the card with the mounting screw from step 5.

9. Replace the cover, plug in the power cord.

10. Connect your cables.

11. Power up the system.

12. Install the drivers as indicated in chapter 3.

Documentation Number 3PCIO1-0903 Manual Chapter 2 7

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

(Next page)

Chapter 3:

Software Driver Installation

Windows 95 or 98

The 3PCIO1 drivers are unique to this series of cards. If at some
point in the future you want to update these drivers, remove these
drivers before installing the new version. See Removal at page 16.

Windows 98 screens are shown for this section. Windows 95 will
have other screen names and text shown.

1. Configure the jumpers on card and install it – see Chapter 2.

2. Make sure PnP OS is set in the BIOS. Power up the computer.

3. Windows will detect the PCI card, start the Add New Hardware

Wizard, and begin driver installation.

4. The driver installation goes through several steps, after finding

the driver files. The first part installs the driver for the card, then
after Finish, the second part installs the serial driver for the Com
port. Do not remove the disc until completed.

5. Click Next.

8 Chapter 3 Documentation Number 3PCIO1-0903 Manual

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

6. Select Search, Click Next.

6. Insert Disc. Select CD-ROM Drive, Click Next.

Documentation Number 3PCIO1-0903 Manual Chapter 3 9

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

Windows will find “B&B 3PCIO1 Single-Port Isolated Serial Card”
and the driver BBPCI.inf file.

7. Click Next.

8. Click Finish. Installation will complete automatically.

10 Chapter 3 Documentation Number 3PCIO1-0903 Manual

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

Another similar screen will be shown before the above. After the
above is shown, installation will have completed. Wait for the
process to complete.

To verify the installation: Open Start, Settings, Control Panel,
System.

Then select the Device Manager Tab.

Documentation Number 3PCIO1-0903 Manual Chapter 3 11

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

Click the Multifunction adapters view the card. If you want other
details, Select Properties.

Click Ports (COM & LPT) to view the COM numbers assigned by
Windows to the card.

You will have 1 new B&B Com port as shown.

Select Properties or double-click on the new com port.

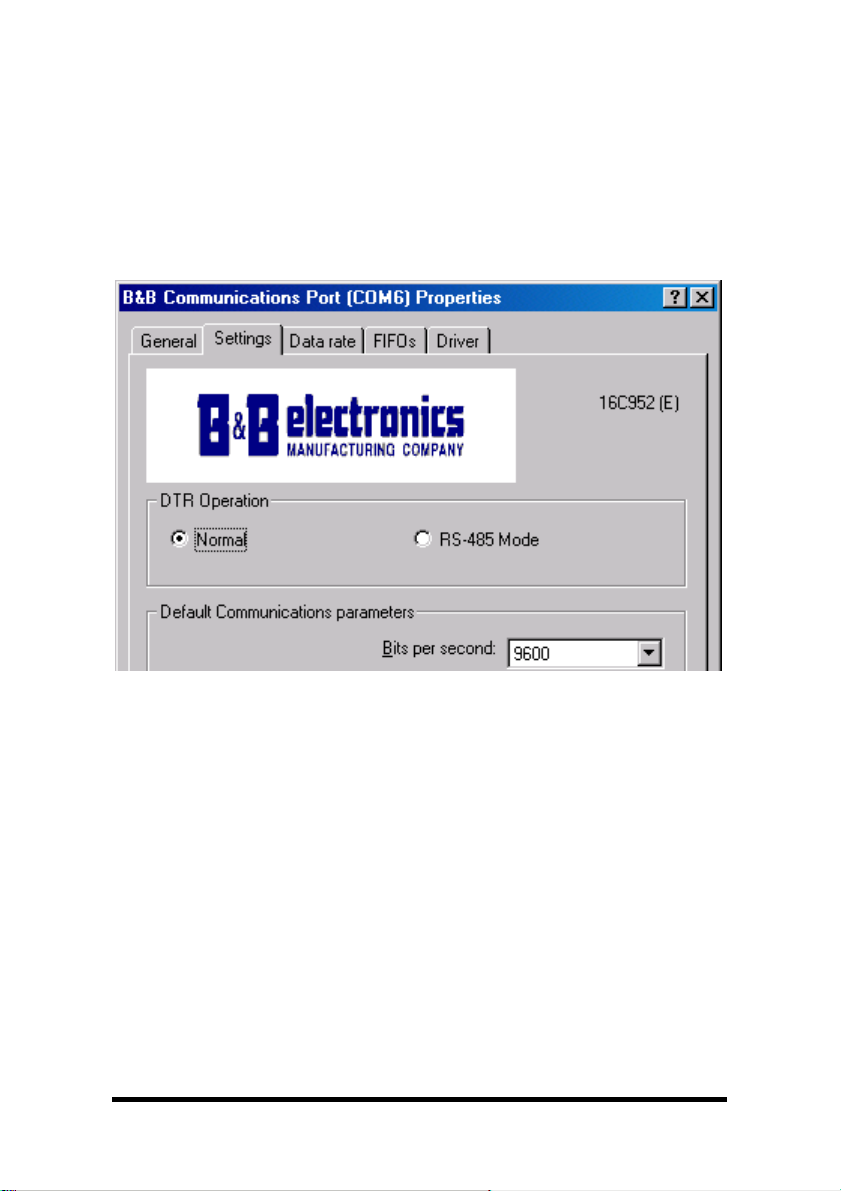

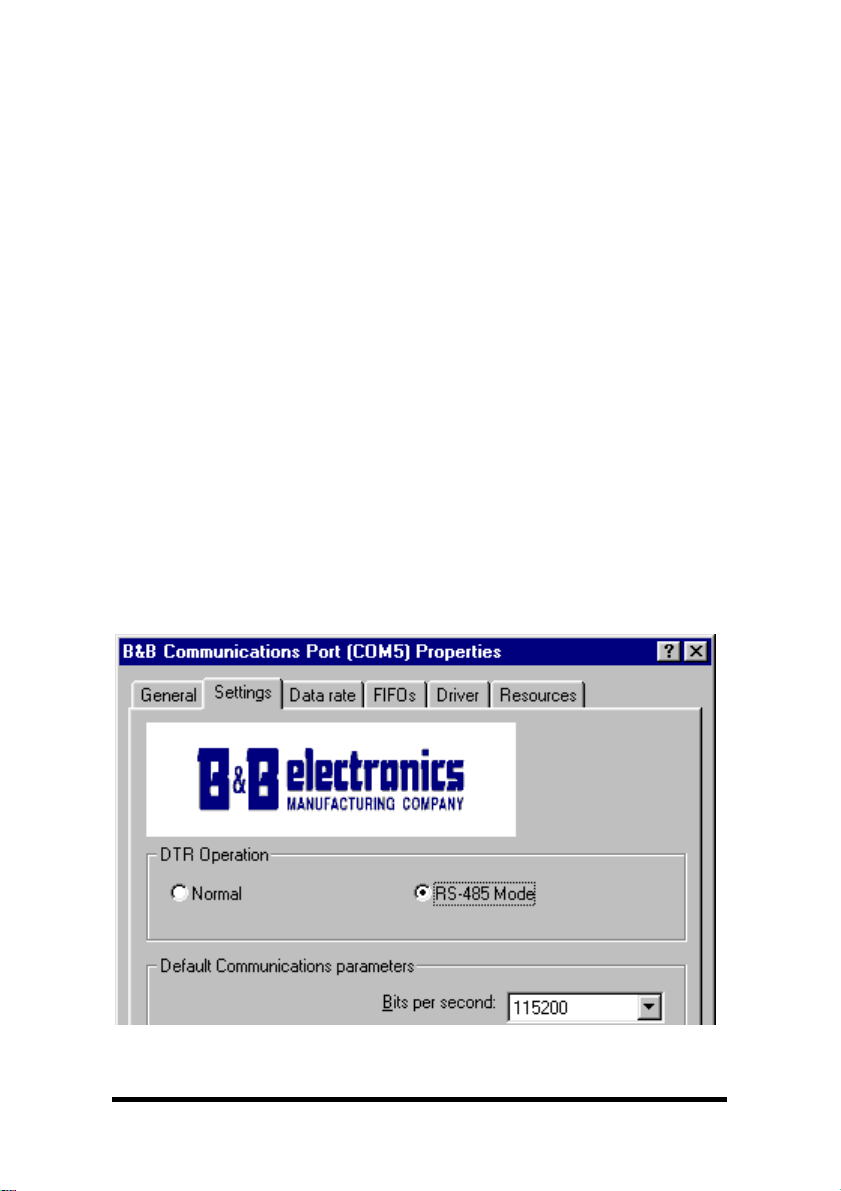

Set DTR Operation

Set DTR Operation to Normal for RS-232.

Set DTR Operation to RS-485 Mode for2-wireor4-wireRS-485
operation.

Either setting can be used for RS-422.

The card jumpers must be set for the same mode. See Chapter 2.

The Default Com parameters are normally overridden by the
software application so it is not necessary to change them.

You can now remove the driver disc, close the Windows, and check
the new ports with your software.

Continued next page

12 Chapter 3 Documentation Number 3PCIO1-0903 Manual

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

Changing Com Port Number

From the Device Manager, Select Properties, Settings, Advanced.

Available names for Com numbers are shown. Select a new number
from those not “in use”. Com numbers from Com1 to Com256 may
be available. Com numbers “in use” may be used by motherboard
ports, Modems, virtual com ports for network serial server devices or
FAX modem. Formerly installed USB to serial adaptors, PCI cards or
other hardware may have reserved a com number. The device may
need to be added back to the system, or the registry may need to be
edited with Reg. Edit or a similar utility.

After selecting a new com number, Click OK, then OK again on the
Settings page.

Documentation Number 3PCIO1-0903 Manual Chapter 3 13

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

After returning to the Device Manager screen, select Refresh. Then
double-click Ports again.

You should see the B&B port renamed. As shown below:

Example – After renaming B&B Port from Com5 to Com3

The Default Com parameters are normally overridden by the
software application.

Continue in Chapter 4, Setting Driver Options for Data Rate Clock
Speed and FIFO settings.

Make your connections, RS-232 in Chapter 5 or RS-422/485 in
Chapter 6.

14 Chapter 3 Documentation Number 3PCIO1-0903 Manual

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

Removal of Drivers/Card

If you need to install a possible future driver update or want to
remove the card from your system:

1. Open My Computer, Control Panel, System (or Start, Setting,

Control Panel, System).

2. Select the Device Manager page.

3. Select the B&B Com port. Click the Remove button.

4. Click Multifunction Adaptors, then select B&B 3PCIO1

Single-Port Isolated Serial Card which matches the card
installed.

5. Click the Remove button.

Next find the C:\WINDOWS\INF directory, select View, Details,
Arrange Icons, By Name. (You can use Windows Explorer instead)

6. Find the files, Bbpci.inf, Bbpic2.inf, bbpci2.PNF, and remove
them.

The bbpci2.PNF is a compiled version of the same named .inf and
can be viewed with Notepad if you want to confirm the content
before removing.

7. Remove Bbpci.inf in Other subdirectory within INF.

Documentation Number 3PCIO1-0903 Manual Chapter 3 15

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

If the inf folder can’t be found, select My Computer, View, Folder
Options, View, Files and Folders, select Show all files.

Removing the card first in the device manager clears up the registry.

8. Shut down the computer, then remove the card.

16 Chapter 3 Documentation Number 3PCIO1-0903 Manual

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

Windows 2000 Professional

This section covers device driver installation for Windows 2000
Professional. Windows Classic settings used as standard.

The 3PCIO1 drivers are unique to this series of cards. If at some
point in the future, you want to update these drivers, remove these
drivers before installing the new version. See Removal on page 34.

1. Configure the card to the desired RS-232/422/485 mode using

the3JP1jumpers.

2. Install the card in the slot. Start the computer as Administrator or

ask your system administrator to install the software.

3. Windows will detect the PCI card and start Found New

Hardware Wizard, to begin driver installation

4. Windows 2000 will find new hardware twice. After the driver for

the PCI Serial Card installs, a new Com Port will be found and
the serial drivers for the Com Port will be installed.

5. Click Next to continue.

Documentation Number 3PCIO1-0903 Manual Chapter 3 17

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

6. Select Search and Click Next to continue.

7. Insert the driver disc in the CD-ROM drive. Click Next.

18 Chapter 3 Documentation Number 3PCIO1-0903 Manual

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

8. Click Next.

9. Click Finish to complete the first part of installation.

Documentation Number 3PCIO1-0903 Manual Chapter 3 19

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

10. Next Windows finds a new type of serial port. Click Next.

11. Click Next to search a second time.

20 Chapter 3 Documentation Number 3PCIO1-0903 Manual

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

12. Select CD-ROM drives. Click Next.

13. Click Next when the bbpci2.inf file is found.

Documentation Number 3PCIO1-0903 Manual Chapter 3 21

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

14. Click Finish.

Wait for the process to complete. Check to verify that a new B&B
Com port is now available.

13. Open Start, Settings, Control Panel, System. Then select the

Hardware tab on System Properties.

14. Skip over the first part of software driver installation for XP which

follows. The second part applies to both 2000 and XP.

Continued on page 29:

System Properties/Hardware/Device Manager

22 Chapter 3 Documentation Number 3PCIO1-0903 Manual

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

Windows XP Professional

This section covers the first part of device driver installation for
Windows XP Professional. Windows Classic settings used as
standard.

The 3PCIO1 drivers are unique to this series of cards. If at some
point in the future, you want to update these drivers, remove these
drivers before installing the new version. See Removal at page 34.

1. Configure the port on the Card for the desired RS-232/422/485

mode using the 3 jumpers. See Chapter 2.

2. Install the card in the slot. Start the computer as Administrator or

ask your system administrator to install the software.

3. Windows will detect the PCI card and start Found New

Hardware Wizard, to begin driver installation. Windows XP will
find new hardware two times. After the driver for the PCI Serial
Card installs, the serial driver for the Com port will be installed.

4. Insert your driver disc in the CD-ROM drive.

5. Select Install the software automatically. Allow a few seconds

for the drive to become ready after inserting disc. Click Next.

Documentation Number 3PCIO1-0903 Manual Chapter 3 23

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

6. Windows will find the drivers on the CD, then provide a notice

concerning Windows Logo testing for XP.

This new feature of XP simply indicates that these drivers have
not yet undergone the Microsoft testing procedures required to
use the Windows XP Logo on the packaging. Driver
compatibility is not affected.

7. Click Continue Anyway.

Continued next page

24 Chapter 3 Documentation Number 3PCIO1-0903 Manual

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

8. Click Finish to continue installation.

9. Select Next.

10. Windows provides the Logo notice for Com Port Driver.

Documentation Number 3PCIO1-0903 Manual Chapter 3 25

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

11. Click Continue Anyway.

12. Click Finish.

26 Chapter 3 Documentation Number 3PCIO1-0903 Manual

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

13. After Finish for the Com port, this part of software driver

installation is complete.

Check to verify that a new B&B Com port is now available within the
Control Panel, System, Device Manager.

If you are more familiar with Windows 95/98/2000, you may want to
select the Windows Classic look for the Start Menu.

Position the mouse pointer over the Taskbar, then Right Click,
Select Properties.

Select the Start Menu tab, then select Classic Start Menu.

Open Start, Settings, Control Panel, System. Then select the
Hardware tab on System Properties.

Continued next page

Documentation Number 3PCIO1-0903 Manual Chapter 3 27

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

System Properties/Hardware/Device Manager

Select Device Manager, then view the hardware list.

Continued next page.

28 Chapter 3 Documentation Number 3PCIO1-0903 Manual

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

Under Multifunction Adapters, the B&B 3PCIO1 Single-Port
Isolated Serial Card is installed.

Under Ports, B&B Com Port (COM6) was assigned.

If Com ports between COM1 and COM6 are not “in use” by other
hardware or software, we can change the B&B Com port to another
available Com number using Properties, Settings, Advanced.

Double-click on B&B Com Port (COM6) to access the Properties.

Next select Settings.

Continued next page.

Documentation Number 3PCIO1-0903 Manual Chapter 3 29

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

Set DTR Operation

Set DTR Operation to Normal for RS-232.

Set DTR Operation to RS-485 Mode for2-wireor4-wireRS-485
operation.

Either setting can be used for RS-422.

The card jumpers must be set for the same mode. See Chapter 2.

The Default Com parameters are normally overridden by the
software application.

You can now remove the driver disc, close the Windows, and check
the new ports with your software.

Continued next page

30 Chapter 3 Documentation Number 3PCIO1-0903 Manual

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

Changing Com Port Number

From the Device Manager, Select Properties, Settings,
Advanced.

Available names for Com numbers are shown. Select a new number
from those not “in use”. Com numbers from Com1 to Com256 may
be available. Com numbers “in use” may be used by motherboard
ports, Modems, virtual com ports for network serial server devices or
FAX modem. Formerly installed USB to serial adaptors, PCI cards or
other hardware may have reserved a com number. The device may
need to be added back to the system, then the software removed.
Advanced editing of the registry may needed to clean up the
problem. Special permissions are required with 2000 or XP.

Documentation Number 3PCIO1-0903 Manual Chapter 3 31

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

After selecting a new com number, Click OK, then OK again on the
Settings page.

After returning to the Device Manager screen, it should refresh
automatically. Then double-click Ports again.

You should see B&B port renamed as shown below:

Example – After renaming B&B Port from Com6 to Com2

Double-click or select the port to finish selecting other properties.

Continue in Chapter 4, Setting Driver Options.

Software installation is complete.

Make your connections, RS-232 in Chapter 5 or RS-422/485 in
Chapter 6.

32 Chapter 3 Documentation Number 3PCIO1-0903 Manual

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

Removal of Drivers/Card

If you need to remove the card from your system or remove the
current driver before installing a possible future driver upgrade:

1. Click on the B&B Com Port under Ports (COM & LPT) and

select Uninstall (right click).

2. Click on Multifunction Adapters, select the B&B 3PCIO1 Single-

Port Isolated Serial Card. Select Uninstall.

This step clears the entries in the Registry which cannot be
easily edited under 2000 or XP.

3.

Remove the two sets of driver files from the Windows INF
directory.

(These are named by the OS in the sequence of installation. On
a clean system they are: Oem0.inf & Oem0.PNF and Oem1.inf
& Oem1.PNF. The .inf versions should be verified by opening it
with Notepad, then checking that it is a B&B Electronics file for
the card. The PNF version is a compiled copy of the same
information.)

See the screen on the next page.

You can use the Find,

3PCIO1orB&B or 3pci

text

File or Folder

within the files.

function to search for the

Windows Explorer can also be used to find the OEM files.
Explorer view shown next page.

You may need to set your Views (under My Computer) to show
all files and folders if the INF directory and .inf files are not
visible. Example after Windows Explorer screen.

4. Shut down the system and remove the card.

Documentation Number 3PCIO1-0903 Manual Chapter 3 33

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

Windows Explorer, WINNT, INF, Oem2 and Oem3 files.

Finding the OEMx.inf and OEMxPNF files for removal

Showing hidden files, next page.

34 Chapter 3 Documentation Number 3PCIO1-0903 Manual

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

Show Hidden Files and Folders

End of Remove section.

Documentation Number 3PCIO1-0903 Manual Chapter 3 35

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

Chapter 4

: Setting Driver Options

DTR Operation

Example - DTR Operation Screen (Windows 98)

Select Normal for RS-232 operation.

Select RS-485 Mode for Automatic RS-485 Driver Control.

Use either setting for RS-422 operation.

Continued next page

36 Chapter 4 Documentation Number 3PCIO1-0903 Manual

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

Advanced - Com Port Renaming

Select to change port name to another Com number.

From the Device Manager, Select Properties, Settings, Advanced.

Example - Advanced Settings (Windows 98)

Available names for Com numbers are shown. Select a new number
from those not “in use”. Com numbers from Com1 to Com256 may
be available. Com numbers “in use” may be used by motherboard
ports, Modems, virtual com ports for network serial server devices or
FAX modem. Formerly installed USB to serial adaptors, PCI cards or
other hardware may have reserved a com number.

Continued next page

Documentation Number 3PCIO1-0903 Manual Chapter 4 37

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

Data Rate - 1X or 4X Clock Speed

The 3PCIO1 port in the Device Manager has Data Rate, Clock
Speed settings for 1X or 4X.

The 4X position provides a compatibility mode for software which
requires it. In the 4X position, all standard baud rate settings are
multiplied 4 times. For example, if the software sets 57.6K baud, the
actual baud rate will be 230.4K baud, 115.2K becomes 460.8K.

Example – Data Rate, Clock Speed, 4x (Windows 98)

Refer to Specifications in Chapter 1 for baud rates available.

In many systems, faster baud rates can improve throughput
significantly. Actual throughput and faster baud rates are only
proportional if the system can keep up with the communications,
otherwise increasing the baud rate effectively only increases the idle
time between characters.

Continued next page

38 Chapter 4 Documentation Number 3PCIO1-0903 Manual

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

FIFO Settings

The default FIFO settings should minimize overhead and work well
for most users.

The FIFO Interrupt Trigger levels setting determines how often the
host processor services the serial port to send or receive data.

The Transmitter Trigger level sets how low the output buffer gets
before it triggers a request for more data from program memory.

The Receiver Trigger level sets how much data is in the input buffer
before it triggers a request to read the data from the buffer to
program memory.

Documentation Number 3PCIO1-0903 Manual Chapter 4 39

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

The optimum setting for each depends on the nature of your
data,how it fits within the buffer, how fast your computer operates,
etc..

Receiver FIFO applies when Handshaking is used for Hardware or
Software control.

For Connections, refer to Chapter 5, RS-232 or Chapter 6, RS-422
or RS-485.

40 Chapter 4 Documentation Number 3PCIO1-0903 Manual

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

Chapter 5:

RS-232 Connections/Operation

The DB-9 male connector is configured as a standard RS-232 (DTE)
serial port. Table 3 shows the signal names and pin numbers.

Table 3: RS-232 Pinouts

Name Description Direction

(DTE)

DB9M

Pin

DCD Data Carrier Detect Input 1

RD Receive Data Input 2
TD Transmit Data Output 3

DTR Data Terminal Ready Output 4

GND Signal Ground ------ 5

DSR Data Set Ready Input 6

RTS Request to Send Output 7
CTS Clear to Send Input 8

RI Ring Indicator Input 9

RS-232 Operation

RS-232 signal lines are referenced to Ground, and each signal can
alternate above and below ground by the rated voltage (see
Specifications for RS-232 Transmitter/Receiver). Typical input
voltage levels range from –11 to –3 Volts or +3 to +11 Volts.

The primary RS-232 signals are Transmit (Tx) and Receive (Rx), so
together with Ground, they make a “3-wire” interface.

The RTS and CTS signals are Handshaking lines used to indicate to
the other device that data can be sent or received. These lines may
be enabled or disabled on a byte-by-byte basis and are used to
prevent buffer overrun or the loss of data.

Two secondary Handshaking signals are DTR and DSR. They are
usually enabled when the device is powered up and the port is open.
They may be used for flow control by some devices instead of RTS
and CTS.

DCD is used by a modem to indicate Carrier to the computer so data
can be sent/received. RI is output by a modem to indicate that the
phone or FAX line has a incoming call, so it can be handled.

Documentation Number 3PCIO1-0903 Manual Chapter 5 41

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

There are two types of RS-232 ports, DTE (Computer) and DCE
(Modem). Connected directly together using a modem cable wired
pin to pin, the inputs match the outputs of the other.

When two of the same type (DTE to DTE or DCE to DCE) are
interconnected, a crossover (null modem) cable is needed to route
the outputs of one to the inputs of the other. This type of cable is
needed to interconnect two computers with RS-232.

RS-232 devices which require hardware handshaking require
connection of RTS/CTS and/or DTR/DSR lines in order to operate
properly.

Programs for RS-232 may chose to use only Receive and Transmit
and ignore hardware handshaking (None) inputs, or may require
connections to verify that a cable and device is ready for access.

Some devices may use Software Handshaking using Xon/Xoff
characters to start and stop the incoming or outgoing data. These
unprintable characters have the decimal value (17) and (19), and
can often be generated in a terminal program with CTL+Q or CTL+S.

DTR Operation In RS-232 Mode

Example – DTR Operation – Select Normal (Windows 98)

In RS-232 mode, the card supports software and hardware
handshaking. Set the DTR Operation driver Setting to Normal.

42 Chapter 5 Documentation Number 3PCIO1-0903 Manual

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

Chapter 6:

RS-422/RS-485 Connections/Operation

These modes support 2 channels (transmit and receive). The
pinouts of the DB-9 male connector are given in Table 4.

Table 4: RS-422/485 Pinouts

Name Description Direction DB9M

Pin

RD(A) −−−−

Receive Data A Input 1
TD(B) + Transmit Data B Output 2
TD(A) −−−−

Transmit Data A Output 3

GND Signal Ground ------ 5

RD(B) + Receive Data B Input 9

Connect only to specified pins for proper operation.

2-Wire RS-485 Connections

Fig. 6.1

2-Wire RS-485 Mode: Your cables must bridge pins #1 & #3 and

pins #2 & #9 in order to receive and transmit. Connect from Pin #2 to
Data B(+) of your devices and from pin #3 to Data A(-) of your
devices. Make sure your Mode/Jumpers are set, and that the driver
Setting for DTR Operation is RS-485 Mode in the Device Manager.

Note that the EIA RS-422 Specification labels data lines with an "A"
and "B" designator. Some RS-422 or RS-485 equipment uses a "−"
and "+" designator. In most cases, the "A" line is the equivalent of
the "−" line and the "B" line is the equivalent of the "+" line. Some
device manufacturers may not follow the standard designation for
RS-422 or RS-485, using the A connection for “+” and the B for “-“.
In such cases, reversing the line pair permits operation.

Documentation Number 3PCIO1-0903 Manual Chapter 6 43

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

4-Wire RS-422 or RS-485 Connections

Figure 6.2

Note: With RS-422 Devices, connect only one device to computer..

Connect the TD(B) pin #2 on the computer to RD(B) on the device.

Connect the TD(A) pin #3 on the computer to RD(A) on the device.

Connect the RD(B) pin #9 on the computer to TD(B) on the device.

Connect the RD(A) pin #1 on the computer to TD(A) on the device.

Connect the Signal Ground pin #5 to Signal Ground on the device.

In a 4-wire RS-485 system, each receive line connects to the same
receive terminal on all slaves, and each transmit line connects to the
same transmit terminal on all slaves. The master to the first slave is
connected as above.

In a multi-slave RS-422 connection, TD(B) and TD(A) connect to
RD(B) and RD(A) on all the slaves. If the slaves have Transmit
connections, only one device can be connected back to the master.

See Fig. 6.3 on next page

44 Chapter 6 Documentation Number 3PCIO1-0903 Manual

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

.

Figure 6.3

RS-422 & RS-485 Differential Signals

In RS-422 and RS-485 modes, each signal is differential, when one
line is high (4.4V) , the other is low (0V), they alternate voltage with
data. The receiver is differential so that common mode noise picked
up on the twisted pair of wires is cancelled. Receiver sensitivity is
rated at 200mV. A separate signal ground/common connection
provides a common mode reference for the transmitter and receiver.
These factors provide reliable communications at much greater
distances than RS-232.

RS-422 Operation

In RS-422 mode, the transmitter is enabled (TX ENABLE) all the
time, and the receiver is enabled (RX ENABLE) all the time. Typical
connections are for two devices, one device at each end. The
transmit lines of one device are connected to the matching receive
lines of another. The second device transmit lines are connected to
the receive lines of the first.

In another common mode of connection, the transmit lines of the
master device are connected to the receive lines of many listening
slave devices. None of the listening devices reply to the master.

Documentation Number 3PCIO1-0903 Manual Chapter 6 45

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

This limitation is due to the fact that the transmitter is active all the
time, and the line pair is set so the TD(B) line is high during Mark
state, and the TD(A) line is set low. If another transmitter output is
connected to the same wire pair, and attempts to send data by
setting the line pair to Space state, the first transmitter is still trying to
hold the opposite state and neither can communicate. To overcome
this limitation, the RS-485 mode was established, where each
transmitter tri-states to a high impedance when not transmitting. See
following section on RS-485.

RS-485 Operation

In RS-485 mode the transmit driver must be enabled during transmit
(TX SD) and tri-stated to a high impedance when the data has been
sent. In the 2-wire (half duplex) mode, the receiver is enabled when
not transmitting, and disabled (RX SD) during transmit (echo off).

The 3PCIO1 provides Send Data (SD) Control for the RS-485 Driver
and Receiver. This is hardware controlled based on the contents of
the UART output buffer. When data is present, the driver is enabled,
when the output buffer becomes empty, it is disabled. This
automatically handles whatever baud rate is used.

The RS-485 transmitter and receiver have separate settings for 2­wire modes (TX SD, RX SD) or 4-wire (TX SD, RX ENABLE).

Example - Settings, DTR Operation, RS-485 Mode selected.
(Windows 98 shown)

46 Chapter 6 Documentation Number 3PCIO1-0903 Manual

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

The RS-485 mode is set using 3 jumpers, and by selecting the RS­485 Mode for DTR Operation on the com Port.

RS-485 Network Biasing

In a RS-485 network, the transmitter tri-states to a high impedance
state. Unlike RS-422 where the transmitter holds the TD(B) line high
and the TD(A) line low (Mark state) when not transmitting data.

To establish and maintain the Mark state for all RS-485 receivers,
Biasing is required. Biasing maintains a positive voltage difference
from RD(B) relative to RD(A) above the receiver threshold of 200mV
for all devices on that section of the network. If the biasing is not
maintained, the first data bit of a signal may not be detected, and
one or more devices may not respond to commands, or may operate
intermittently.

TheRS-485receiveronthe3PCIO1isbiasedwitha4.7KΩ pull-up
resistor on the Receive Data B line and a 4.7 KΩ pull-down resistor
on the Receive Data A line. These values are usually adequate for
networks without termination and 31 or fewer nodes. When
termination is used, biasing must be increased, calculated according
to the termination value and number of nodes. Through hole pads
are provided for adding smaller value pull-up and pull-down
resistors.

Port Bias: (Low: R2/14, Hi: R3/13) R2 = R3 = 4.7K

Combination of termination and bias must not fall below 54 ohms.

Termination: Not installed. Not required for baud rates 19.2K or
less.

Termination Resistor Location: R15 (R15 ≥ 120 ohms)

Documentation Number 3PCIO1-0903 Manual Chapter 6 47

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

Chapter 7

: Troubleshooting

If you have any trouble starting your system after installing the card,
the card may not be properly seated in the slot. Remove and re­insert it or try a different slot. Check BIOS is set for PnP OS.

If you are unable to communicate with the card using your software
and hardware devices:

1. Check your pinouts. In RS-422 or RS-485 mode the "A" lines
should match your "A" or "−" lines. "B" lines should match your
"B" or "+" lines.

Note: RS-422/485 pinouts are non-standard.

2. Use the ComTest program provided on the Disc with a
loopback to check the card. Double-click on the ComTest folder
to open it.

3. Run Setup.exe to install COMTest on your program menu
under B&B Electronics.

48 Chapter 7 Documentation Number 3PCIO1-0903 Manual

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

4. Check your Card Jumpers, and Driver Settings. See Chapter 2.

5. Make sure you have DTR Operation set to the correct mode.
Normal for RS-232, RS-485 Mode for RS-485. RS-422 mode
works in either setting provided that the mode jumpers are set
correctly.

6. A loopback connection for RS-232 connects the Transmit
output to the Receive input (pins #2 & #3 on the DB9
connector). Use connections below to check all.

Fig. 7.1 RS-232 Loopback w/Handshaking Connections

7. For RS-422 or 4-wire RS-485, connect the TD(A) to RD(A) and
the TD(B) to RD(B). Then use the COMTest program to send
characters, and observe the characters being received.

Fig. 7.2 RS-422 or 4-wire RS485 Loopback Connections

Documentation Number 3PCIO1-0903 Manual Chapter 7 49

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]
B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph 353-91-792444 – Fax [phone]

8. To check 2-wire RS-485, you must either enable the receiver
by moving the receive jumper to RX ENABLE mode (Table 1),
or use one Port to transmit to another 2-wire RS-485 port or
converter by cross connecting and loading COMTest twice, one
copy for each port.

Characters typed in one copy of COMTest will appear in the
receive window of the other. Note that software must ignore the
RS-232 handshaking lines in RS-422/RS485 mode, the input
lines (CTS, DSR, DCD, RI) are not pulled high.

Some manufacturers label their data connections for A and B

9.

reverse of the standard for RS-422 or RS-485, so that the A
line is (+) and B line is inverted (-) following the IC standard. In
such a case, just swap the wires and try it. No damage occurs
in the RS-485 mode, just no devices will respond. The EIA
standard for signal labels defines the B line as positive relative
to A during the “MARK” state.

10. Try another software package for troubleshooting. Some
applications try to bypass the Windows drivers and access the
hardware directly.

11. Check our website for available FAQ's or troubleshooting hints.

12. Contact B&B Electronics Technical Support for troubleshooting
assistance.

USA Office

Technicians are available at [phone] to answer your
questions from 8 AM - 5 PM weekdays (Central Time).

Email: <[e-mail]>

European Office

Technicians are available at [phone] to answer your
questions from 8:30 AM – 5 PM weekdays (GMT Time).

Email: [e-mail]

50 Chapter 7 Documentation Number 3PCIO1-0903 Manual

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

Appendix A – Jumper/Mode Settings

Set the 3 JP1 Jumpers to match your Operating Mode.

Jumpers RS-232 RS-422

JP1 Top 232

(Right)

JP1 Middle

JP1 Bottom

-----

No effect

-----

No effect

4-Wire

422/485

(left)

TX ENABLE

(right)

RX ENABLE

(right)

RS-485

4-Wire

422/485

(left)

TX SD

(left)

RX ENABLE

(right)

RS-485

2-Wire

422/485

(left)

TX SD

(left)

RX SD

(left)

Table A – Jumper/Mode

The top jumper sets either RS-232 or RS422/485 DB9 connections.

Only the Top Jumper position affects RS-232 mode

.

The middle jumper sets either RS-485 or RS-422 transmit enable.

The bottom jumper sets either RS-485 (half-duplex) or receive
enable.

Full-duplex 4-wire modes must select RX ENABLE.

Documentation Number 3PCIO1-0903 Manual Appendix A A-1

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

Appendix B:

CONNECTOR PINOUTS

Table B.1: RS-232 Pinouts

Name Description Direction

DB9M

(DTE)

DCD Data Carrier Detect Input 1

RD Receive Data Input 2
TD Transmit Data Output 3

DTR Data Terminal Ready Output 4

GND Signal Ground ------ 5

DSR Data Set Ready Input 6

RTS Request to Send Output 7
CTS Clear to Send Input 8

RI Ring Indicator Input 9

Table B.2: RS-232 DB9 to DB25 Conversion Cable

Name DB9 Pin

(DTE)

DB25 Pin

(DTE)

DCD 1 8

RD 2 3

TD 3 2

DTR 4 20

GND 5 7

DSR 6 6

RTS 7 4

CTS 8 5

RI 9 22

Chassis

GND

Shield

(DB9

1

Shell)

Pin

Documentation Number 3PCIO1-0903 Manual Appendix B B -1

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

Table B.3: RS-422/485 Pinouts

Name Description Direction DB9M

Pin

RD(A) −−−−

Receive Data A Input 1
TD(B) + Transmit Data B Output 2
TD(A) −−−−

Transmit Data A Output 3

GND Signal Ground ------ 5

RD(B) + Receive Data B Input 9

With 2-wire RS-485 mode operation, your connection cable must
jumper TD(A) to RD(A) and TD(B) to RD(B). Connect from TD(A)
and TD(B) to the Data A(−−−−) and Data B(+) wires of your RS-485
network.

See Chapter 2 for example connections.

Note that the EIA RS-422 Specification labels data lines with an "A"
and "B" designator. Some RS-422 equipment uses a "−" and "+"
designator. In almost all cases, the "A" line is the equivalent of the
"−" line and the "B" line is the equivalent of the "+" line.

More
information on RS-422 communications can be found in the B&B
Electronics RS-422/485 Application Note (available on our
website)

.

B-2 Appendix B Documentation Number 3PCIO1-0903 Manual

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

Appendix C:

Troubleshooting With ComTest

Included on the CD-ROM disc is a test program called ComTest.
See Chapter 7.

ComTest is a simple 32-bit Windows (Windows 95, 98, 2000, XP or
NT 4.0) COM port test program. It allows multiple ports at any
address and IRQ, to be opened at any given time.

ComTest can also be found on our Support webpage at:

www.bb-elec.com

.

B&B Com Test

• A Windows Terminal Program for Simple Checks of Serial Ports.

Works with USB Serial Converters & ISA or PCI Serial Cards

• Serial Port Access under Windows 95/98/2000/XP – Com1-

Com8 or above.

• Dual Windows show typed transmit characters in separate

window from received characters.

• Transmit & Receive Activity Indicators

• Unprintable Characters Shown in Hex – 2 Digits Within Left &

Right Angle Brackets.

• Visual Indication of Handshaking Lines – DTR DSR DCD and

RTS CTS. (Red = Hi)

• Option for Setting DTR or RTS lines high or low.

• Option for Repeat Mode – last character or Function Character

Sequence is repeated until set off.

• Configuration Settings:

- Baud Rates 150, 300, 600, 1200, 2400, 9600, 19.2, 28.4, 57.6,

115.2K (9600 default and recommended)

- Parity: None, Odd, Even, Mark, Space (None default)

- DataBits:5,6,7,8(8default)

- Stop Bits: 1, 1.5, 2 (1 default)

Documentation Number 3PCIO1-0903 Manual Appendix C C-1

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

Start ComTest

1. Make loopback connections.

2. Select Start, Programs, B&B Electronics, ComTest, ComTest.

3. ComTest Starts with a Select Port Window.

4. Select the Com port to access or test. (The drop down box

shows available ports not in use).

5. Click OK. Configure Port is shown.

6. Select the needed baud rate, parity, data bits, stop bits.

(Defaults are common settings).

7. Type characters – they will appear in the upper window.

8. If performing a loopback test, observe the received characters in

the lower window.

9. Use the Option to set DTR high or low, observe the DSR line

and if connected the DCD line follow.

10. Use the Option to set the RTS line high or low, observe the CTS

input line follow.

Exit

When testing is completed, close the program.

C-2 Appendix C Documentation Number 3PCIO1-0903 Manual

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]

Appendix D: Declaration of Conformity Statement

Manufacturer’s Name: B&B Electronics Manufacturing Company

DECLARATION OF CONFORMITY

Manufacturer’s Address: P.O. Box 1040

Model Numbers: 3PCIO1
Description: 1-port RS232/422/485 PCI Serial Card
Type: Light industrial ITE equipment
Application of Council Directive: 89/336/EEC
Standards: EN 55022

William H. Franklin III, Director of Engineering

707 Dayton Road
Ottawa, IL 61350 USA

EN 50082-1
EN 61000 (-4-2, -4-3, -4-4, -4-6)

Documentation Number 3PCIO1-0903 Manual Appendix D D-1

B&B Electronics Mfg Co – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics Ltd – Westlink Comm. Pk. – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone]
