Stepping up to wireless?
We’ll help you pick the wireless option
you can trust!
In the past, it has not always been possible, practical, or cost
Communication
effective to run network cables to every device, sensor, or
roving unit on the factory floor. Today’s wireless technologies
eliminate those physical and cost barriers, opening a new
world of remote communication solutions. Reliable, ondemand communication with control and monitoring down to
an individual embedded machine-level sensor is now possible
with wireless networking.
Ethernet
USB
Serial
Wireless Modbus Radio Modems (page 63)
Zlinx Modbus radio modems provide fast, reliable, secure, and cost-effective transmission of critical data to
remote sites. Easy to install and transparent to use.
As wireless network equipment emerges, interest and demand
in using wireless in industrial environments has surged. Yet,
understanding the technical aspects of various wireless
technologies and standards is essential in choosing suitable
equipment for your application. Selecting the right equipment
will lead to a successfully installed, well-designed, reliable and
efficient communication system. Call B&B Electronics today for
a wireless system consultation.
Wireless Proprietary Radio Modems (page 64)
Industrial grade, wireless radio modems transmit serial data up to 40 miles without costly cabling. These
Wireless
robust radio modems provide long-range data connections. No site license required!

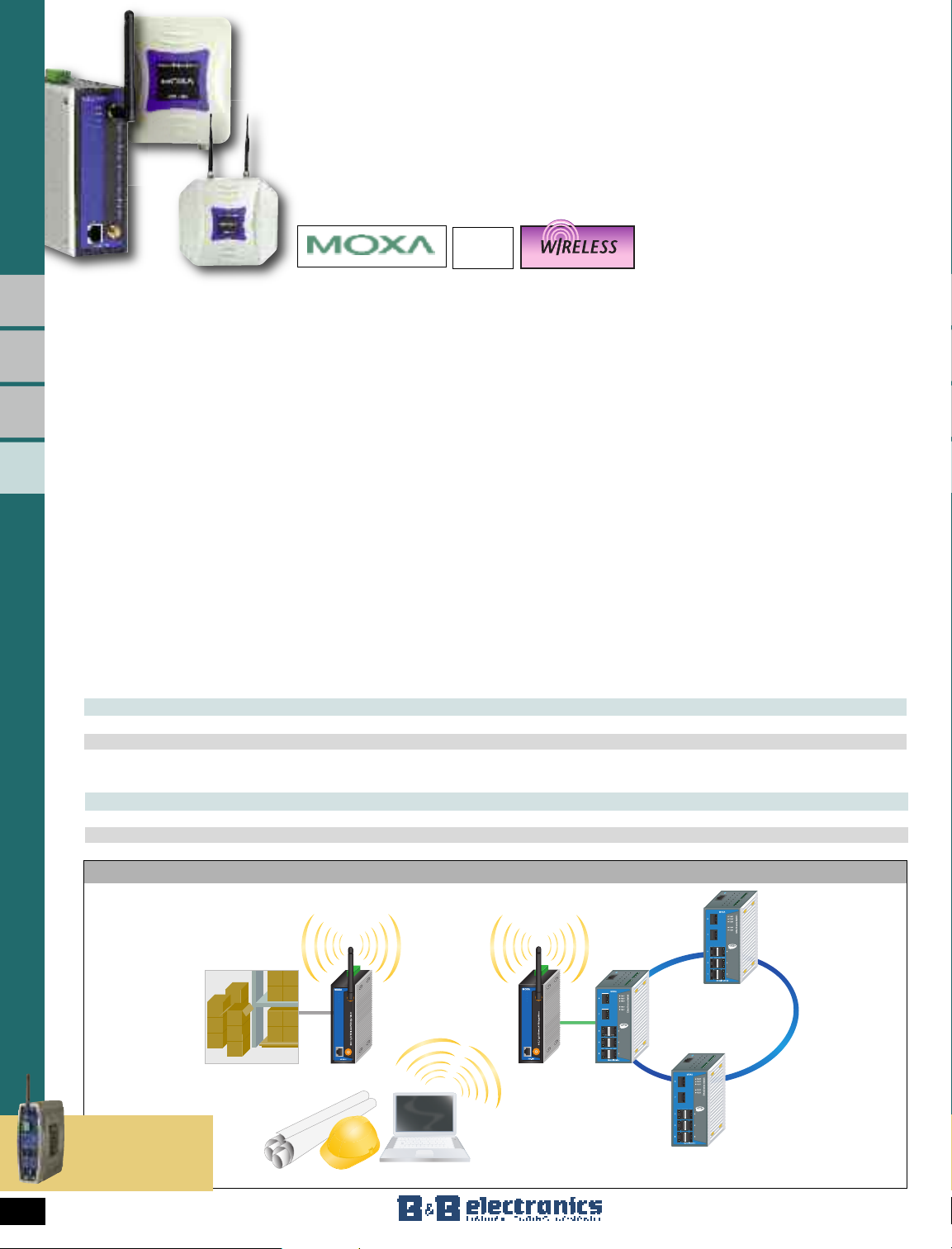

Wireless 802.11B & G (pages 66-68)
Wirelessly connect your legacy serial devices via your LAN with VlinxTM of wireless Ethernet serial servers.
Combine wireless data networking with proven asynchronous connectivity when running cable is not an option.
Cellular Data Modems (page 69)
Transmit Ethernet and serial data via cellular technology. Wireless cellular networks allow remote devices to
communicate easily and economically to a central office through standard TCP/UDP communications.

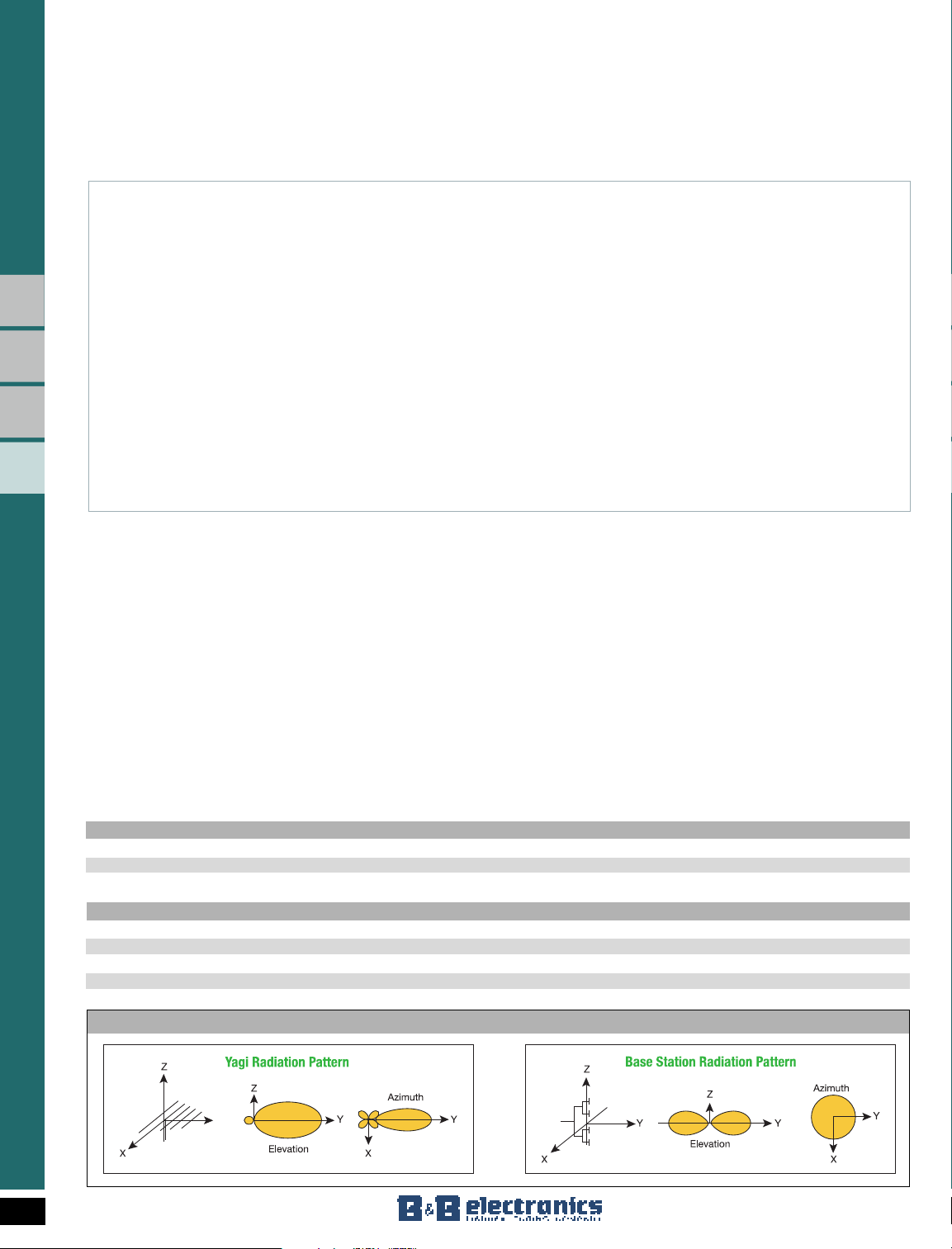

Antenna Options - for longer ranges, special applications (pages 70-71)
B&B Electronics has solutions for long-range, point-to-point, or multipoint systems. These are high quality
accessories are built to handle your rugged application needs.
Which B&B Electronics wireless solution is right for your needs?
Low data rate embedded Ethernet / computer Compressed video Multi-channel digital video
Wireless Cellular (page 69)
Proprietary radio
(pages 63-64, 70-71, 73-76)
802.15.4
Distance
short long
&
ZigBee
(pages
63,
73-76)
low high
802.11 (pages 66-68)
802.11a & 802.11g Wi-Fi (pages 66-68)
802.1a Bluetooth
WUSB
Capacity – Throughput – Power Requirements
802.16 WMAN / WiMAX
62
www.bb-elec.com
1.815.433.5100

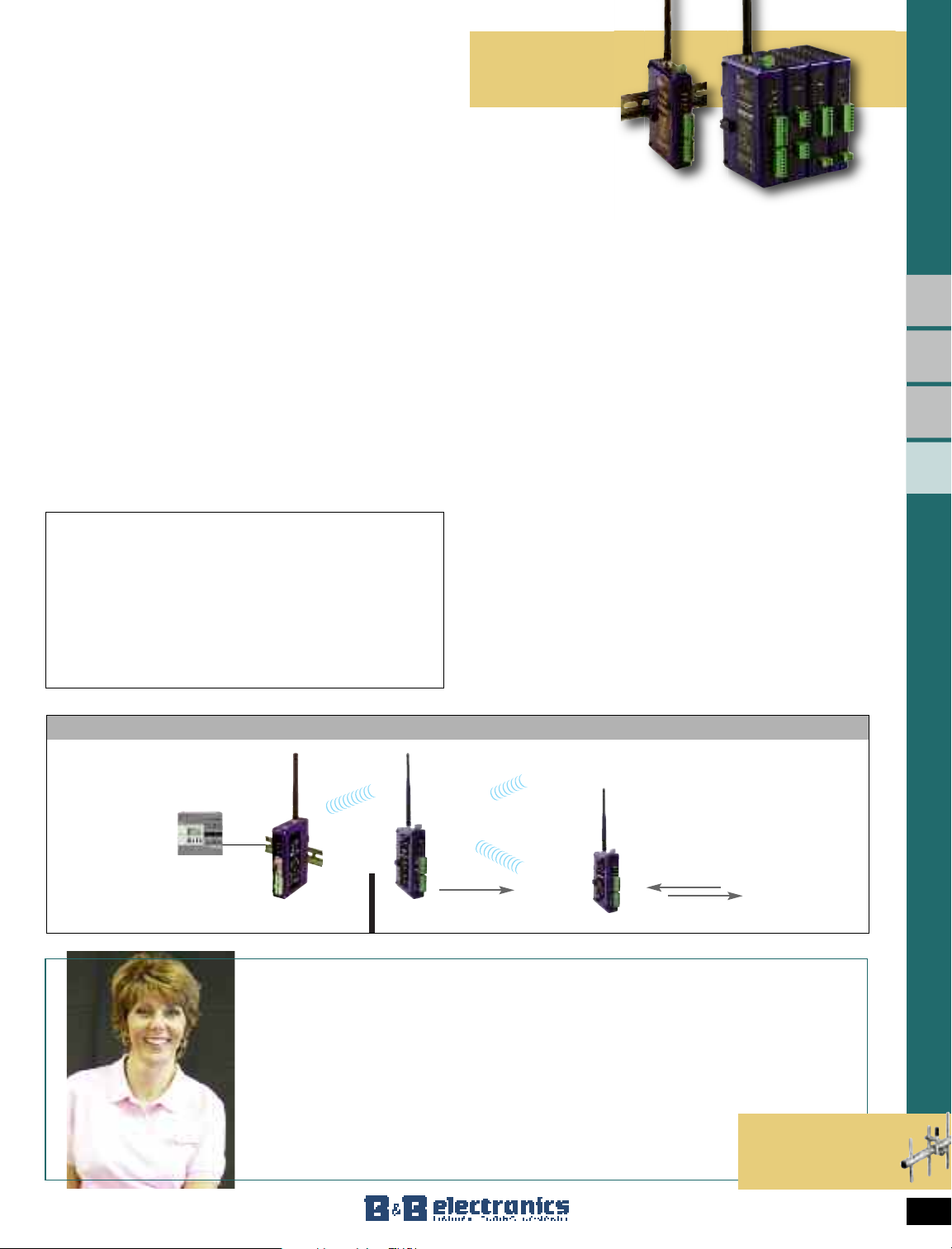

Industrial Grade Radio Modems
D
esigned & Manufactured by
Easy to install and maintain, long ranges
U L
Features
• DIN rail mount - saves panel or cabinet space
• Constant signal strength feedback - during installation
and troubleshooting later
• Rugged circuitry, wide temperature - for indoor and
outside applications
• Handles most industrial control power configurations and
power supplies
• RS-232, 422, 485 serial communications
Now Available! Starter Kits, Including:
Power Supplies • Programming Cables • Programming Software
odel No. Description Price
M
RM-LR-KIT Radio Modem LR (Long Range) Starter Kit $748.00
M-SR-KIT Radio Modem SR (Short Range) Starter Kit 398.00
R
Specifications
• Modbus compatible - no additional converters needed
• Heavy duty DIN mount industrial grade case and
components
• Frequency: ISM band, 902 to 928 MHz or 2.400 to 2.4385 GHz
• Modulation: FSK- Frequency Shift Keying
• Signal strength indicator aids trouble shooting
• 3dBi for 900 MHz; 2.1 dBi for 2.4 GHz RPSMA male dipole,
antenna included
• Wide temperature range -40° to 85°C
• Versatile power: 10 to 48 VDC or 24 VAC
• 256-bit encryption (Model ZP9D-115RM-LR)
• Class 1 Div 2 (Model ZP9D-115RM-LR)
ZP9D-115RM-LR)
(
Communication
ZP9D-115RM-LR
Ethernet
USB
Serial
Need to get a digital signal across a highway or river? Or just
to the other end of your big warehouse? Zlinx radio modems
can do the job faster, easier, and less expensively than stringing
cable. Easy plug-and-play set-up saves installation and
maintenance time. These compact and rugged units are
Despite their low prices, these are not wimpy consumer or
office products. Select the power level you need to punch
through whatever distance and interference situations you
encounter. Zlinx radio modems are built to handle the heat,
cold, and environments of industrial operations.
compatible with Modbus and Profibus so no additional
converters are required.
Model No Frequency Radio Power RF Data Rate Range: indoor/outdoor Price
ZP24D-250RM-SR 2.4 GHz 100 mW 250 Kbps up to 300 ft/up to 1 mi $178.00
ZP24D-192RM-MR 2.4 GHz 50 mW 19.2 Kbps up to 600 ft/up to 3 mi 278.00
ZP24D-96RM-MR 2.4 GHz 50 mW 9600 bps up to 600 ft/up to 3 mi 278.00
ZP9D-192RM-MR 900 MHz 100 mW 19.2 Kbps up to 1500 ft/up to 7 mi 318.00
ZP9D-96RM-MR 900 MHz 100 mW 9600 bps up to 1500 ft/up to 7 mi 318.00
ZP9D-115RM-LR 900 MHz 1 mW to 1W (selectable) 115 Kbps up to 3000 ft/ up to 14 mi 358.00
Higher distances available with high gain antenna. (See page 71)
Accessories & Power Supply
Model No. Description Price
ZP24D-ANT1 Zlinx Radio Modem - Spare Antenna, 2.4 GHz $15.00
ZP24D-DIN1 Zlinx Radio Modem - Spare DIN Mount Clip, Spring 2.00
ZP24D-TB1 Zlinx Radio Modem - Spare Terminal Block Kit, Dip Switch Cover 9.00
ZP9D-ANT1 Zlinx Radio Modem - Spare Antenna, 900 MHz 15.00
ZP9D-DIN1 Zlinx Radio Modem - Spare DIN Mount Clip, Spring 2.00
ZP9D-TB1 Zlinx Radio Modem - Spare Terminal Block Kit, Dip Switch Cover 9.00
MDR-60-24 24VDC, 2.5A DIN Rail Power Supply, Slimline 69.00
Free Zlinx software for network configuration,
Modbus addressing, and alarms
ZP24D Radio Modems
Features
• New, simplified programming
• Basic screen and an advanced screen
• Auto search function if radio settings are forgotten
• Easy field firmware updates
Wireless
Easy-to-program system! Zlinx radio modems and Zlinx
Modbus I/O use the same software manager suite.
Configuration software is
free (download from
B&B Electronics website.)
Or a CD can be purchased –
absolutely no registration
fees or worries about
installing it on any
computer you have.
www.bb-elec.com
PLC
ZP24D Radio Modems
1.815.433.5100
PLC
63
Communication
T09-4II-RA
X
T09-PKI-RA
X
Ethernet
USB
Applications
• SCADA
• Instrumentation
Serial
• Waste water plants
• Oil and gas fields
• Homeland security
Wireless
Overview
Some data communications applications defy cabling. Whether
you’re facing long distances, impossible cable routing, or
frequent re-location of devices, the simplicity, functionality, and
reliability of these wireless modems is your answer. These radio
modems are easy to install and transparent to use.
Need to reach up to 40 miles? 900MHz RF modems provide
outstanding range at a low cost. RS-232/422/485 compatible.
Available in an anodized aluminum case or weatherproof
NEMA case.
• Remote monitoring
• Building automation
• Automated teller machines
• Point-of-sale terminals
• Keyless/remote access
Wireless Proprietary RF Radio Modems
Range and reliability puts these modems in
front of their competition
Features and Benefits
Operation Modes: Peer-to-Peer, Point to Multi-Point, Point-to-Point, Multi-drop
Transparent Network, Modbus
Configuration: AT Command Line, Windows Software
Spread Spectrum: FHSS (Frequency Hopping Spread Spectrum)
Frequency: SM Band, 902 to 928MHz or 2.400 to 2.4385 GHz
Modulation: FSK (Frequency Shift Keying)
Antenna: Reverse Polarity SMA 2.1 dB1/2 Wave Dipole (included except for
XT09-4EI-RA and EXB09-I)
Interface: RS-232/422/485 unless specified as USB or Ethernet
Mounting: Panel mountable
Power Supply: Included
These modems feature market-leading receiver sensitivity down
to -110dBm (market average is -93 dBm). The FCC restricts the
power of all radio modems’ output, so it is receiver sensitivity
that governs how well a radio modem system works. This
range and reliability, at lower prices, sets these modems apart
from their competition.
Packed Radios – Outdoor distance are specified using high gain antenna.
Frequency Throughput Transmit Power Distance Special Features Model No. Price Model No. Price
900 MHz 115 kbps 1mW to 1 Watt 3000 ft / 40 mi 256-bit encryption – XT09-PKI-RA $299.95
900 MHz 115 kbps 1mW to 1 Watt 3000 ft / 40 mi NEMA enclosure – XT09-4EI-RA 498.95
900 MHz 115 kbps 1mW to 1 Watt 3000 ft / 40 mi NEMA enclosure – XT09-4II-RA 498.95
900 MHz 9600 bps 100 mW 1500 ft / 20 mi – X09-009PKC-RA $249.95 X09-009PKI-RA 264.95
900 MHz 19.2 kbps 100 mW 1500 ft / 20 mi – X09-019PKC-RA 249.95 X09-019PKI-RA 264.95
900 MHz 9600 bps 100 mW 1500 ft / 20 mi USB interface X09-009PKC-UA 249.95
900 MHz 9600 bps 100 mW 1500 ft / 20 mi Ethernet interface X09-009PKC-EA 349.95
900 MHz 9600 bps 4 mW 300 ft / 1000 ft – XC09-009PKC-RA 99.95 XC09-009PKI-RA 114.95
900 MHz 38.4 kbps 4 mW 300 ft / 1000 ft – XC09-038PKC-RA 99.95 XC09-038PKI-RA 114.95
2.4 GHz 9600 bps 50 mW 600 ft / 10 mi – X24-009PKC-RA 199.95 X24-009PKI-RA 213.95
2.4 GHz 19.2 kbps 50 mW 600 ft / 10 mi – X24-019PKC-RA 199.95 X24-019PKI-RA 213.95
2.4 GHz 9600 bps 50 mW 600 ft / 10 mi USB interface X24-009PKC-UA 198.95
2.4 GHz 9600 bps 50 mW – Ethernet interface X24-009PKC-EA 249.95
USB and Ethernet options are designed to work with an RS-232/422/485 radio on one end; not to be used as a USB or Ethernet bridge.
(0º to 70ºC) (-40º to 85ºC)
Ethernet Bridge Products (do not have all the common
features and benefits of the other Maxstream products)
• Sold in preconfigured pairs only (point-to point-communications)
• Autocross Ethernet port
• 12 unique channels allows up to 12 pairs of radios in one location
Frequency Throughput Transmit Power Distance Special Features Indoor Model Price Outdoor Model Price
Indoor/Outdoor (-40° to 70°C) (-40° to 70°C)
900 MHz 935 kbps 125mW 1000ft / 15 miles 128 bit encryption XEB09-C $698.95 XEB09-I $998.95
• Direct Sequence Spread Spectrum (DSSS)
• NEMA packaged outdoor product allows panel mounting, indoor
model is designed for the desktop
64
www.bb-elec.com
1.815.433.5100
Zlinx Modular Remote I/O
Send digital and analog I/O signals
Full Zlinx I/O
Product Line
pages 73-76
wirelessly – and securely!
Features Benefits
DIN Rail Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Easy installation, conserves panel space (versus panel mount modems).
3 Ranges Available. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Short, Medium, Long range. Don’t spend more money on longer
distance radios if you don’t need the distance.
Active Repeaters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Place I/O modules where they need to go, by the sensors. With
repeater built-in functionality, you can build up a security path for
all your critical communications.
Modular . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Tailor to your specific application needs. Just snap on your I/O and
you’re ready to go.
10-48 VDC Power Input. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Rugged input power circuit allows insertion to most control power
configurations. Can utilize industrial power supplies.
Wide Temp/Industrial Grade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Meets most indoor or outdoor applications. Rugged circuitry
prevents signal degradation versus lower temperature rated
wireless devices.
Modbus Compatible . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Interface using industry standard Modbus protocol. Connect to
Wonderware, Labview or other Modbus compatible software.
Allows data to be directly LEDs brought into most PLC systems.
Custom-build Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Designed and built specifically to your application requirements.
Call B&B Electronics today!
Communication
Ethernet
USB
Serial
Wireless
Build your System:
1. Start by selecting a base module - that meets your
wireless distance and I/O needs.
2. Snap-on expansion I/O modules - choose from various
DI, DO, AI, AO configurations.
3. Add a radio modem for Modbus applications - also
available from B&B Electronics.
4. Finish with free configuration software and
accessories.
Repeater Mode
Wireless Modem
(page 63)
PLC
(page 93)
Wall or barrier
B&B Electronics Customer Service
Sending digital/analog inputs/outputs over the air! These
wireless, plug-n-play modules combine Modbus RTU remote
analog and discrete I/O with built-in wireless connectivity reducing cost, simplifying installation and support. Wireless RTU
serves as Modbus slave RTU in radio-based SCADA systems, or
as a peer-to-peer communication platform.
Zlinx wireless products provide point-to-point communication
replacing or eliminating wire. With bi-directional flow control,
these modular I/O controllers allow full-duplex transmissions
to optimize communication efficiency.
Wireless Modbus
(active repeater)
Address 2
Address 1
I/O
Wireless Modbus
Up to 150 Addresses
I/O
Karla: I can help with all your customer service needs!
Call today to place your order! Our friendly customer services representatives will be happy
to help you with your product order, expedited shipping, payment options, and return
authorizations.
Call our Customer Service Department
at (815) 433-5100 or visit: www.bb-elec.com
www.bb-elec.com
1.815.433.5100
Antennas, Cables &
Surge Arrestors
page 71
65
Wireless Ethernet Serial Servers
Designed & Manufactured by
Wirelessly connect legacy serial
devices to your Ethernet LAN with
802.11g/b
ESR901W232 ESR901WB ES1AWB
Communication
SR904W
E
Price Reduced!
Benefits
• WiFi performance up to 54 Mbps 802.11g/b connectivity
• Wirelessly connect legacy serial devices to your LAN;
Eliminates cable installation cost
• Ease of installation and setup via integrated web server
Ethernet
General Features
• 2.4 GHz IEEE 802.11g DSSS radio
• 802.11g provides 100% 802.11b compatibility
USB
• Rugged, IP30 enclosure, DIN or panel mount options
• Protocols: TCP, IP, ARP, DHCP, HTTP, UDP, ICMP
Serial
• LEDs provide at-a-glance operational status: power, signal
strength, LAN-link, data
• Supports TCP server, TCP client, virtual COM
• Status indicators: power, link activity, signal strength
• External antenna, omni-directional included – reverse SMA connector
Wireless
Specifications
• Wireless transmission rates (Mbps): 54, 11, 5.5, 2, 1
• 12 to 30 VDC, 24 VAC terminal block input
• RF power 15 dBm
• RJ-45 Ethernet configuration port
• Serial data rates: 110 bps to 230.4 kbps
• Operating temperature: 0° to 60° C
• Dimensions:
ESR90xW: 6.9 x 5.7 x 2.3 in (17.4 x 14.5 x 5.8 cm)
ES1AWB: 1.5 x 2.1 x 3.4 in (3.8 x 5.4 x 8.5 cm)
• Power:
ESR90xW-2: 10 – 30 VDC terminal block
ES1AWB: 5 VDC @ 500 mA (included)
• Remote device monitoring and diagnostics
• Ideal for applications requiring virtual COM ports, serial
tunneling, TCP socket, or UDP socket
• Scalable and field upgradeable to protect investments
ES1AWB/ESR901WB Additional Features
• 2.4 GHz IEEE 802.11b DSSS radio, antennas included
• Operating temperature: -30° to 70° C
• Built-in web server, web browser
• Protocols supported: TCP, UDP, DHCP, SNMP, SSL/TLS, TELNET,
RLOGIN, RFC22A, LPD, HTTP/HTTPS, SMTP, ILMP, IGMP, ARP
• Security: WEP, WPA, PEAP, 802.11i admin/config
password protection
• The ultra compact design of Model ES1AWB fits almost
anywhere and is powered by 5 VDC power supply (included).
Applications
• Retail/Point-of-sale • Building automation • Security
Ethernet Serial Servers transparently connects, configures, and
communicates with serial devices over industry leading
802.11g 54Mbps, and 802.11b 11Mbps compatible WiFi
wireless connections. For applications where running cable is
not an option, these economical devices combine wireless
data networking with proven asynchronous connectivity.
Available in 1, 2, and 4 port versions with support for RS-232,
RS-422, and RS-485 interfaces. The ESR servers have a range of
up to 100 meters outdoors and 50 meters indoors. Range can
be extended with directional antennas.
Model No. Description 802.11 Mounting Price
ESR901W232 Single-port RS-232 DB9 g/b DIN $279.00
ESR901W485 Single-port RS-422/485 terminal block g/b DIN 279.00
ESR902W Dual-port DB9: one RS-232 only; one RS-232/422/485 g/b DIN 359.00
ESR904W 4-port DB9: two RS-232 only, two RS-232/422/485 g/b DIN 519.00
ES1AWB Wireless single port RS-232 converter b Inline 249.95
ESR901WB Industrial wireless single port RS-232/422/485 converter b DIN 279.00
PMAD10 Panel mount adapter (pair) —— 4.95
9FTB6 DB9 to 6-position terminal (pair) —— 39.95
DR-75-24 DIN rail power supply, 24VDC, 6A —— 99.00
Wireless Ethernet Serial Servers
Antennas, Cables
& Surge Arrestors
page 71
Wired Terminal
ESR Family
page 10
66
RFID Reader
PLC
www.bb-elec.com
ESR902W
ES1AWB
Meter
Moxa AWK 1100-US
(page 68)
NOT EXACTLY
WHAT YOU NEED?
CUSTOMIZEit
See page 104
1.815.433.5100
Wireless Serial Device Servers
Wirelessly enable your serial devices
using 802.11a/b/g to serial technology
®
Communication
NPORT W2004
NPORT W2250 PLUS
Features/Benefits – all models
• Wirelessly connect your serial devices with 802.11 technology
• Signal strength LED indicator
• No need to change COM software (includes COM
e-director that is transparent to your application)
r
• DIN mountable with accessory item DRAD35
• Transmission rate: 54 Mbps max. with auto fallback
• Protocols: ICMP, IP, TCP, UDP, DHCP, BootP, Telnet, SNMP,
HTTP, SMTP
• Operation modes: TCP server, TCP client, UDP, Real COM, Pair
connection
• Utilities: Windows 98, ME, 2000, XP, 2003
• Power: 12 to 48 VDC (power supply included)
Serial Interface: RS-232/422/485
•
• Communicates with host computer up to 100 meters away
• Includes power supply
Applications
• Industrial automation • Factory automation • Building automation • Kiosk • Point of sale
Overview
The NPort Wireless Serial Device Servers offer wireless
networking capabilities to printers, weighing scales, medical
equipment, manufacturing machinery, bar code readers, card
readers, point-of-sale equipment and other data collection
devices. Each serial port is configured with RS-232/422/485
making it suitable for use with most serial devices.
802.11 wireless connectivity to serial devices
In hard-to-wire situations, the NPort Wireless Serial Device
Server is the ideal solution to reduce the number of connection
cables. When using Infrastructure Mode or Ad-Hoc Mode, they
can communicate with any host computer via an access point
or another NPort Wireless Serial Device Server.
Model No. Description Connector 802.11 Ports Price
NPORT W2150 PLUS RS-232/422/485 serial server (1) DB9m a/b/g 1 $348.95
NPORT W2250 PLUS RS-232/422/485 serial server (2) DB9m a/b/g 2 398.95
NPORT W2004-US RS-232/422/485 serial server (4) RJ45 b/g 4 798.95
Optional Accessories
DRAD35 DIN rail adapter clips (set of two) 4.95
CBL-RJ45M9-150 RJ45 to DB9 male 150cm cable for NPORT W2004-US 14.95
CBL-RJ45F9-150 RJ45 to DB9 female 150cm cable for NPORT W2004-US 14.95
CBL-RJ45M25-150 RJ45 to DB25 male 150cm cable for NPORT W2004-US 14.95
CBL-RJ45F25-150 RJ45 to DB25 female 150cm cable for NPORT W2004-US 14.95
Works with existing software, saving you time and money
The NPort Wireless Serial Device Server supports field proven Real
COM/TTY drivers for Windows and Linux systems, ensuring that
existing PC software will still work when used with the new Wireless
LAN infrastructure. TCP server, TCP client and UDP modes are also
supported so that IP-based software (e.g. Telnet) can directly access
each device by knowing the IP and TCP port number.
Easy-to-use remote management and configuration tools
These NPort Wireless Serial Device Servers provide a Windows
utility that automatically searches and locates the Wireless Serial
Device Server over the Ethernet network. An easy-to-use Wizard
in the web console guides you through the entire installation
within minutes.
Ethernet
USB
Serial
Wireless
Secure Wireless Serial Device Server
Wirelessly transmit sensitive/business critical data with network security
Features/Benefits
• Compact enclosure design with integrated mounting tabs
• Fully switch-selectable RS-232/422/485 high-speed serial
interface
• Flexible 9-30VDC power input
• Wireless 802.11b network interface – data rates up to 11 Mbps
• Industry’s first secure wireless device server solution
supporting enterprise-class WPA2/802.11i security
The introduction of wireless technology into fully networked
electronic devices creates a new dimension of issues. The
significant benefits of wireless technology often come with
potential risk, and choosing the right product can provide you
with peace-of-mind. The Digi Connect Wi-Sp is the industry’s
first wireless device server to provide wireless security with
WPA2 compliant authentication and 802.11i standards.
www.bb-elec.com
• Easy-to-use Digi plug-and-play firmware offers complete
serial-to-network connectivity and unique product
customization flexibility
• Strong SSL/TLS encryption with NIST-certified AES
encryption for security sensitive environments
• Patented RealPort technology for COM/TTY port
redirection and control
Model No. Description Price
DC-WSP-01-S Digi Connect Wi-SP w/power supply $336.95
and dipole antenna
1.815.433.5100
®
DC-WSP-01-S
67
Communication
Ethernet
USB
Serial
Wireless
Industrial Ethernet Wireless AP Bridge/AP Client
Access all your resources wirelessly with access points
Features Benefits
Industrial IP30 or IP67/68 Enclosures. . . . . . . . . Ensures reliability in harsh industrial or
WK-1200-AC
A
WK-1100-US
A
WK-1200-AP
A
Advanced Security Capability
64/128-bit WEP (Wired Equivalent Privacy)
•
• Enable/disable SSID Broadcasts
• MAC-address based access control
• IEE802.1x / RADIUS
• WPA (Wi-Fi Protected Access)
Useful Utilities and Remote Configuration
• Firmware upgrade from TFTP or HTTP
• Configuration backup and reset
• Web-based Management
• Supports SNMP and UPnP
Tired of the hassle of finding a place to plug into your Ethernet
system? Are you ready for the convenience of sending your
Ethernet packets over the air instead of through a wire? Now
you can access your network resources without having to plug
in or dock into your LAN. B&B Electronics has carefully selected
the AWK-1100 and AWK-1200-AP/AC to enable industrial users
to access their network resources wirelessly.
Power-over-Ethernet Compatible. . . . . . . . . . . . A power supply is not required if your network
Web Based Management. . . . . . . . . . . . . . . . . . Easy to remotely configure
64/128-bit WEP and WPA . . . . . . . . . . . . . . . . . Ensures your data remains secure
®
outdoor applications
features PoE
P O E
The AWK-1100-US can be configured as an Access Point
ridge or Client. A rugged, IP30, DIN rail mountable case and
B
dual power inputs make this product a perfect fit for industrial
applications. Class 1 Div 2 is also a favorite feature for the oil
and gas industry. Each unit includes two 2dBi antennas.
The AWK-1200 series is sold either as a Bridge or as a Client.
These products have superior weather resistance with the IP67
and IP68 case ratings and are mountable to a mast or panel
mountable (both mounting options are included with each
radio). A PoE connection is required to power these Access
Points. The Access Point Bridge AWK-1200-AP-US includes two
5dBi antennas while the Access Point Client AWK-1200-AC-US
includes one internal 9dBi antenna.
Bridge vs Client Modes
Bridge Mode allows one-to-many while Client Mode allows
one-to-one. Networks are typically set up with an Access Point
Bridge at the main, hard-wired Ethernet connection and the
peripheral Access Points will be set up as Clients. In this
particular case, the Clients are set up in Infrastructure Mode.
Another way to use Clients is in Ad-hoc Mode, which allows
two Clients to communicate one-to-one.
Model Function Input Power Temperature Enclosure Antenna Other Features Price
AWK-1100-US AP Bridge/Client Dual 12-45VDC or PoE 0 to 60°C DIN Mount / IP30 (2) 2 dBi external (RPSMA) Class 1 Div 2 $648.95
AWK-1200-AP-US AP Bridge PoE -20 to 70°C Outdoor / IP67 (2) 5 dBi external (N-type) WPA2 NEW! 1248.95
AWK-1200-AC-US AP Client PoE -20 to 70°C Outdoor / IP68 (1) 9 dBi internal NEW! 748.95
Accessories & Power Supply
Model No. Description Price
EDS-WK Panel Mount Kit for AWK-1100-US $11.95
MDR-40-24 24VDC, 1.7A DIN Rail Power Supply, Slimline 59.00
Application
EDS508
(page 31)
Moving process
Fast Ethernet Turbo Ring
EDS508
(page 31)
EDS508
(page 31)
Wireless Ethernet
Serial Servers
page 66
AWK-1100
AWK-1100
Field engineers
68
www.bb-elec.com
1.815.433.5100
Wireless Cellular Gateway/Router/VPN
SCADA or Metering
Application
Central Office
Internet/
Frame Relay
Cellular
Wireless
Network
Ethernet
Serial
PLC
Digi Connect®WAN IA
Transmit Ethernet and serial data with
cellular technology
Benefits
• Ethernet and serial over cellular network
• RS-232/422/485 support
• LEDs for Ethernet, power on, cellular link/activity, signal strength
• Easy-to-use web interface and set-up wizard
• Security: SSL, SSH v.2, FIPS 197, HTTPS
Router/Firewall features: NAT, port forwarding, VPN pass-through, access control lists
•
(IP filtering)
• Extended temperature range (-30˚ to 60˚ C CDMA) (-30˚ to 70˚ C GSM)
• Includes power supply, 0˚ to 60˚ C (excluded Connect WAN IA)
• Optional -35˚ to 70˚ C power supply
• Includes dipole antenna
• “SureLink” always-on maintains wireless connections
• RealPort - COM redirection software
®
C-WAN-GE10A
D
Communication
Ethernet
USB
Connect WAN VPN – all above benefits plus:
• Integrated IPSec VPN (AES, DES, 3DES)
• IKE/ISAKMP
Connect WAN IA – all WAN VPN benefits plus:
• DIN rail mounting bracket included
• Class 1 Division 2
• Modbus support
• 9 to 30 VDC power input via terminal blocks GSM models
GSM models
• Quad band 1900/850 and 1800/900 MHz
• EDGE class 10, GPRS class 12
• Throughput up to 240 Kbps, 100-130 Kbps typical
• Certified networks: Cingular, Rogers Wireless, Midwest Wireless
CDMA models
• 800 MHz cellular, 1900 MHz PCS
• 1 x RTT
• Throughput up to 153 Kbps, 60-80 Kbps typical
• Certified networks: Sprint, Verizon, Centennial Wireless,
Alltel Wireless
Application
Three Easy Steps to Successful Cellular
Data Communications
1. Understand your application
2. Select the hardware that best suits your needs
3. Activate the hardware with a cellular data plan
Overview
The Connect WAN family of commercial-grade wireless WAN
cellular routers, gateways and VPN appliances provide secure
high-speed wireless connectivity to remote sites and devices.
These cellular products selected by B&B Electronics can be
used for reliable primary wireless network connectivity to
equipment at remote locations, as well as for a backup to
existing land-line communications. Ideal where wired networks
(e.g., leased line/frame relay, ISDN, DSL) are not feasible.
Optional Connectware Manager software management suite
provides easy setup, configuration, and maintenance of large
installations. Users can upgrade firmware, or change settings
on thousands of devices with only a few clicks. It makes troubleshooting simple by identifying rogue devices, or network
issues. A five-user license per site is included with the Connect
WAN products. Contact B&B Electronics for larger license
requirements.
GSM models
Model No. Family Price
DC-WAN-F501 Connect WAN IA $697.95
DC-VPN-GE10A Connect WAN VPN 697.95
DC-WAN-GE10A Connect WAN 634.95
CDMA models
Model No. Family Network Price
DC-WAN-G510 Connect WAN IA Sprint $797.95
DC-VPN-S1XA Connect WAN VPN Sprint 797.95
DC-WAN-S1XA Connect WAN Sprint 734.95
DC-WAN-D311 Connect WAN VPN Verizon 797.95
DC-WAN-D111 Connect WAN Verizon 734.95
DC-WAN-D316 Connect WAN VPN Alltel 797.95
DC-WAN-D116 Connect WAN Alltel 734.95
Accessories
Model No. Description Price
76000682 DIN mount bracket $27.95
76000717 Extended temp power supply (-35 to 70 °C) 80.95
MDR-40-24 24VDC, 1.7A DIN Rail Power Supply, Slimline 59.00
Serial
Wireless
www.bb-elec.com
1.815.433.5100
69
Wireless Proprietary RF
R.F. Antenna and Cable Selection
When designing an antenna system there are several items to
consider. Factors that affect the performance of the antennas
are highlighted below. An RF communications system should
level arrives at the receiver. This will allow some “link margin”
in situations where conditions change and the environment
degrades the signal.
be designed such that more than the absolute minimum signal
Communication
Radio Output Power. RF power is rated in watts or milli-watts.
ypical B&B Electronics Zlinx products are rated in 1mw,
T
10mw, 100mw, 500mw and 1watt, outputs. As RF power
increases so will the current demand on the power supplying
your system.
USB
Radio Receive Sensitivity. Receive sensitivity is basically the ability
to detect and decode a specific radio frequency. Typically this is
measured in dBm - the lower the better. Typical Zlinx products
are approximately -114dBm.
USB
Transmit/Receive Distance. Keep in mind that if you have lots of
Antenna Type. If at all possible your system’s antennas should be
ble to “see” each other. This is not always possible so it’s critical
a
to select the proper antenna components to keep signal loss or
decrease receive sensitivity. If obstacles are present, you may
consider a higher gain antenna.
Cable Type. Selecting the incorrect cable could cause
significant signal loss. A rule of thumb is for every 3db of loss,
your system will lose one half the output power emitted from
the radio. Visit our antenna selection tech paper a helpful
selection guide and more information:
www.bb-elec.com/techpapers.
transmit power but poor receive sensitivity, bidirectional
Serial
communication may be a problem. The type of cable and antenna
used will affect the receive sensitivity and RF output power.
Obstacles. Obstacles are always a problem. General rule: Try
to avoid them. When placing an antenna, keep in mind that
trees grow, new buildings are constructed. Plan for future
Cable Impedance. It’s important to select a cable that matches
Wireless
the radio’s impedance. A mismatch will cause the radio link to
become inefficient or may cause damage to the radio.
More is Not Better…
Keeping the above in mind, one of the most important
obstructions.
omni-directional antenna on the master and Yagi antennas
pointing at the master antenna.
components in an antenna system is the transmission cable.
The wrong type, wrong impedance, wrong length, etc., and
your system could go south quick. When selecting RF coax
type cable keep cable runs as short as possible. Long cable
runs will cause additional signal loss.
Antenna Selection…
The same rule applies for the gain of an antenna: for every 3db
of gain, you will double the effective radiated power out of the
respective antenna. A gain of 8.1db using a 100wm radio is
approximately 270mw of output power. (Keep in mind we
Peer to Peer vs. Peer to Multi-Peer…
have not included any cable or connector losses.)
When selecting an antenna also keep in mind the type of
system architecture. Simple systems, such as peer-to-peer, can
be easily designed using Yagi antennas on both ends. A multipeer system, such as a Modbus master to several slave devices,
needs a little more thought. When designing a multi-peer
system the master needs to communicate to all the respective
slave devices. This is typically accomplished by designing an
Cable Specifications
Cable Type Loss at 900 MHz - per 100 feet Loss at 2.4 GHz - per 100 feet Diameter
LMR-195 11.5 dB 19.0 dB 0.195 in.
LMR-400 3.9 dB 6.8 dB 0.405 in.
70
Antenna Gain Rule-of-Thumb
Frequency and Wattage 300 feet 1000 feet 1 mile 5 miles 10 miles
900 MHz, 100 mW 2.1 dB 2.1 dB >6 dB >10 dB n/a
900 MHz, 1 W 2.1 dB 2.1 dB >3 dB >6 dB >10 dB
2.4 GHz, 50 mW 2.1 dB >6 dB >10 dB n/a n/a
2.4 GHz, Zigbee 2.1 dB >6 dB >10 dB n/a n/a
Typical radiation patterns using Yagi and Dipole type antennas.
www.bb-elec.com
1.815.433.5100
S8963
Wireless Accessories
Antenna and cabling options
G9023
Shown with optional FM2 brackets
F
Y
for longer range & special
applications
Antenna options
Model No. Frequency Gain Style Connector Dimensions Bracket Price
FG24008 2.4 GHz 8 dB Omni (fiber glass) N female 24 in (60.9 cm) long FM2 $194.95
E240015 2.4 GHz 12.5 dB Yagi N female 18 in (45.7 cm) long Included 244.95
Y
G9023 900 MHz 3 dB Omni (fiber glass) N female 25 in (63.4 cm) long FM2 139.95
F
G9026 900 MHz 6 dB Omni (fiber glass) N female 65 in (165.1 cm) long FM2 179.95
F
YS8963 900 MHz 6 dB Yagi N female 16.8 in (42.7 cm) long Included 69.95
YS8966 900MHz 9dB Yagi N female 27.8 in (70.6 cm) long Included 89.95
YS89612 900MHz 11dB Yagi N female 49 in (124.5 cm) long Included 154.95
FM2 Brackets for Omni-directional antennas, package of two (used for one antenna) 29.95
For long range point-to-point applications, use Yagi antennas. Multi-point applications may require a mixture of Yagi and Omni-directional antennas.
Cables to connect optional antennas
odel No. Connector 1 Connector 2 Length Material Price
M
95M-SLSW-24 SMA Reverse polarity plug RPSMA Jack bulkhead 2 ft LMR195 $29.95
1
400M-NMSL-24 SMA Reverse polarity plug N Male 2 ft LMR400 29.95
400M-NISL-24 SMA Reverse polarity plug N Bulkhead (female) 2 ft LMR400 32.95
400M-NMSL-120 SMA Reverse polarity plug N Male 10 ft LMR400 49.95
00M-NMSL-240 SMA Reverse polarity plug N Male 20 ft LMR400 59.95
4
00M-NMSL-600 SMA Reverse polarity plug N Male 50 ft LMR400 119.95
4
400M-NMTL-24 TNC Reverse polarity plug N Male 2 ft LMR400 29.95
400M-NITL-24 TNC Reverse polarity plug N Bulkhead (female) 2 ft LMR400 32.95
400M-NMTL-120 TNC Reverse polarity plug N Male 10 ft LMR400 49.95
400M-NMTL-600 TNC Reverse polarity plug N Male 50 ft LMR400 119.95
400M-NMNM-120 N Male N Male 10 ft LMR400 39.95
400M-NMNM-240 N Male N Male 20 ft LMR400 59.95
400M-NMNM-480 N Male N Male 40 ft LMR400 99.95
400M-NFNM-120 N Female N Male 10 ft LMR400 39.95
400M-NFNM-480 N Female N Male 40 ft LMR400 99.95
FG24008
Mounting
E240015
Y
Communication
Ethernet
USB
Serial
Wireless
Lighting Arrestors &
MOCAP Silicone Installation Tape
Protect your antenna from weather
LABH350NN
Features – Lighting Arrestors
• Impedance: 50 Ohms (nom.)
• Connector 1: N female
• Connector 2: N female (bulkhead)
Max. Breakdown Insertion
Model No. Power Voltage Loss VSWR Protection Configuration Price
LABH350NN 1000 W 350 VAC 27 to 500 MHz < 0.1 dB 0 to 150 MHz < 1.1 to 1 5000 A Bulkhead, Pass-through $78.95
0 to 1 GHz 1000 MHz < 0.25 dB 150 to 1000 MHz < 1.2 to 1
LABH2400NN 70 W 90 to 130 0 to 1 GHz < 0.03 dB 0 to 1 GHz < 1.1 to 1 1 shock = 20 kA Bulkhead, Pass-through 78.95
0 to 4 GHz VAC 1 to 4 GHz < 0.29 dB 1 to 4 GHz < 1.2 to 1 10 shocks = 10 kA
LAIL350NN 1000 W 350 VAC 27 to 500 MHz < 0.1 dB 0 to 150 MHz < 1.1 to 1 5000 A In-line applications NEW! 78.95
0 to 1 GHz 1000 MHz < 0.25 dB 150 to 1000 MHz < 1.2 to 1
Features & Benefits – Silicone Installation Tape
• Save installation time and labor
• Protect valuable equipment
• Material will not crack or melt in temperatures from -51 to 260° C
• Dielectric strength of 400 Volts per mil
• Tensile strength of 600 psi
• Insulates to 8000 Volts
Model No. Description Price
IASFST10 MOCAP tape - (6) ten inch strips, 1 inch wide $5.95
IASFST MOCAP tape - 36 foot roll, 1 inch wide 29.95
When installed properly in the feedline, a lightning arrestor
can prevent antenna damage due to lightning strikes. These
units are designed with a rugged housing and high quality
plated brass “N” connectors.
Easy-to-use self-fusing installation tape bonds to itself in
seconds forming a permanent air and water tight seal within 24
hours. Adhesive-free formula leaves no sticky residue after
removal. Stretches up to 300% allowing it to conform to any
shape. Safe replacement for heat shrinkable sleeving. Ideal for
termination splicing, wire connections, bundling wires and
cables, masking applications and quick emergency repairs.
LABH2400NN
IASFST
IASFST10
www.bb-elec.com
1.815.433.5100
71
Loading...
