B&B Electronics MESP211D-T User Manual

Vlinx MESP211

Ultra Compact Modbus Gateway

www.bb-elec.com

www.bb-europe.com

by any means, electronic or mechanical, including photography, recording, or any information storage and retrieval system without written consent. Information in this manual is subject to change without notice, and does not represent a commitment on the part of B&B Electronics Mfg. Co. Inc.B&B Electronics Mfg. Co. Inc. shall not be liable for incidental or consequential damages resulting from the furnishing, performance, or use of this manual.All brand names used in this manual are the registered trademarks of their respective owners. The use of trademarks or other designations in this publication is for reference purposes only and does not constitute an endorsement by the trademark holder.

International Headquarters

B&B Electronics Mfg. Co. Inc.

707 Dayton Road

Ottawa, IL 61350 USA

Phone (815) 433-5100 -- General Fax (815) 433-5105

Website: www.bb-elec.com

European Headquarters

B&B Electronics Ltd.

Westlink Commercial Park, Oranmore, Co. Galway, Ireland

Phone +353 91-792444 -- Fax +353 91-792445

Website: www.bb-europe.com

www.bb-europe.com

www.bb-elec.com

Introduction Vlinx MESP211 Modbus Gateway

TAB L E OF CONTENTS

1. Introduction ......................................................................................................................................................... 5

About MESP211 Modbus Gateways ................................................................................................................................ 5

MESP211 Model Numbering ............................................................................................................................................. 5

Model Number .................................................................................................................................................................... 5

Serial Protocol .................................................................................................................................................................... 5

Serial port ........................................................................................................................................................................... 5

Ethernet Port ...................................................................................................................................................................... 5

MESP211D .......................................................................................................................................................................... 5

RS-232/422/485 ................................................................................................................................................................ 5

DB9M ................................................................................................................................................................................... 5

RJ45 ..................................................................................................................................................................................... 5

MESP211T ........................................................................................................................................................................... 5

RS-232/422/485 ................................................................................................................................................................ 5

Removable Terminal Block ............................................................................................................................................... 5

RJ45 ..................................................................................................................................................................................... 5

MESP211 Features ............................................................................................................................................................. 6

Configuration Software ..................................................................................................................................................... 6

2. MESP211 Hardware .......................................................................................................................................... 7

Package Checklist .............................................................................................................................................................. 7

MESP211 Enclosures and Mounting ................................................................................................................................ 7

LED Indicators .................................................................................................................................................................... 7

Mode Switch ....................................................................................................................................................................... 8

Ethernet Connector ................................................................................................................................ ........................... 9

Serial Port Connectors .......................................................................................................................................................... 9

Power Connector .............................................................................................................................................................. 10

Mounting Hardware ......................................................................................................................................................... 10

Introduction Vlinx MESP211 Modbus Gateway

3. Setup and Connections .................................................................................................................................. 11

Connecting the Power Supply ........................................................................................................................................ 11

Connecting MESP211 Modbus Gateways to Modbus networks ................................................................................ 11

Connecting the MESP211 ................................................................................................................................ ............... 12

Connecting MESP211 Modbus Gateways to a Network ............................................................................................. 13

MESP211 Configuration Connections ........................................................................................................................... 14

Installing Modbus Gateway Manager Software .......................................................................................... 14

Configuring the MESP211 via the Network Connection ........................................................................... 18

Configuring the Modbus Gateway Manager ................................................................................................. 18

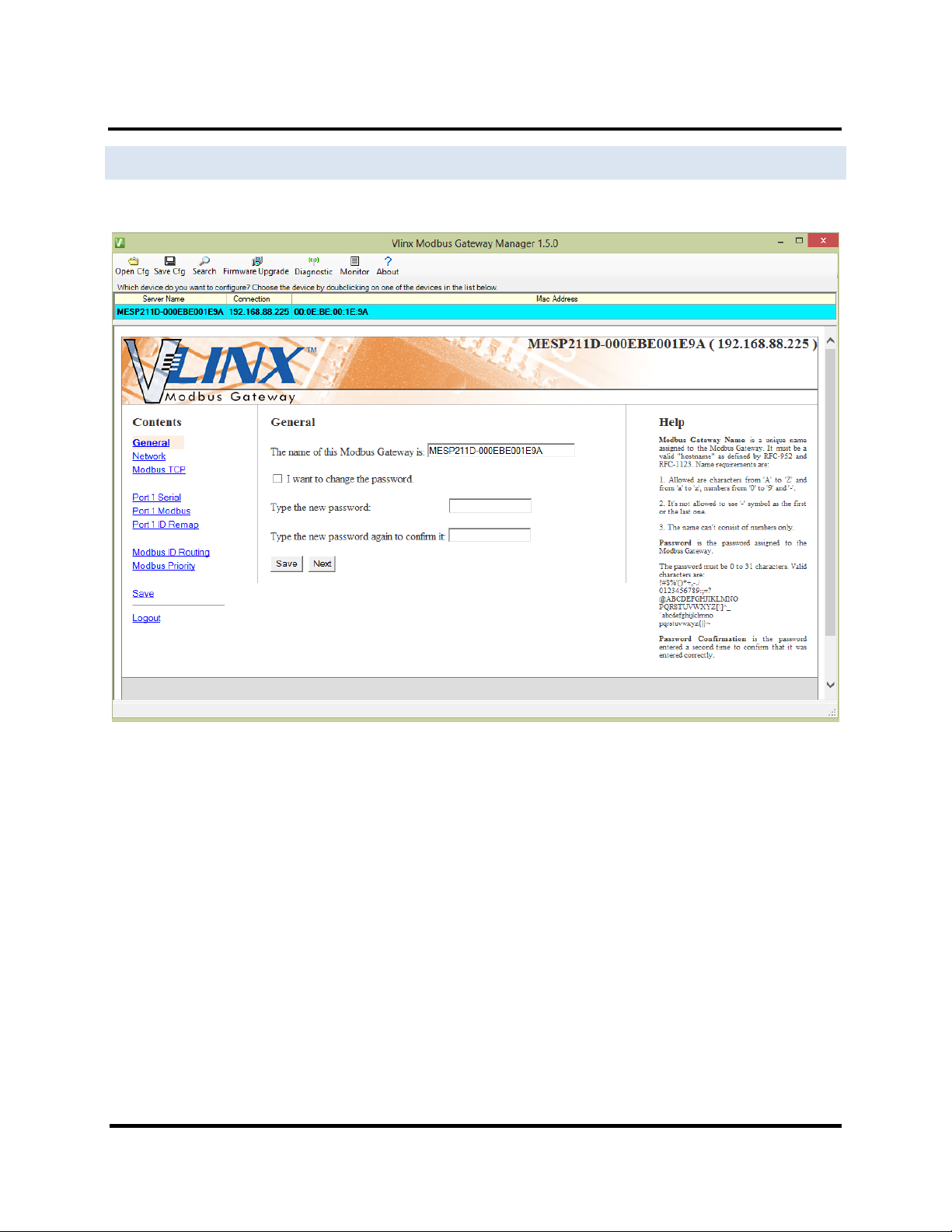

General Settings ................................................................................................................................................................. 23

Configuring the MESP211 on Networks without a DHCP Server .......................................................... 38

Configuring the MESP211 via the Serial Port (Console Mode) ............................................................. 41

MESP211 Operational Connections ............................................................................................................................... 43

Using MESP211 Modbus Gateways in Direct IP Mode .............................................................................. 43

Initiating a Hardware Reset on the Modbus Gateway ............................................................................................... 44

Reloading Factory Defaults ............................................................................................................................................ 44

4. Upgrading Firmware ....................................................................................................................................... 45

Downloading Firmware Files .......................................................................................................................................... 46

Uploading the Firmware to the Modbus Gateway ...................................................................................................... 46

5. Diagnostics ......................................................................................................................................................... 47

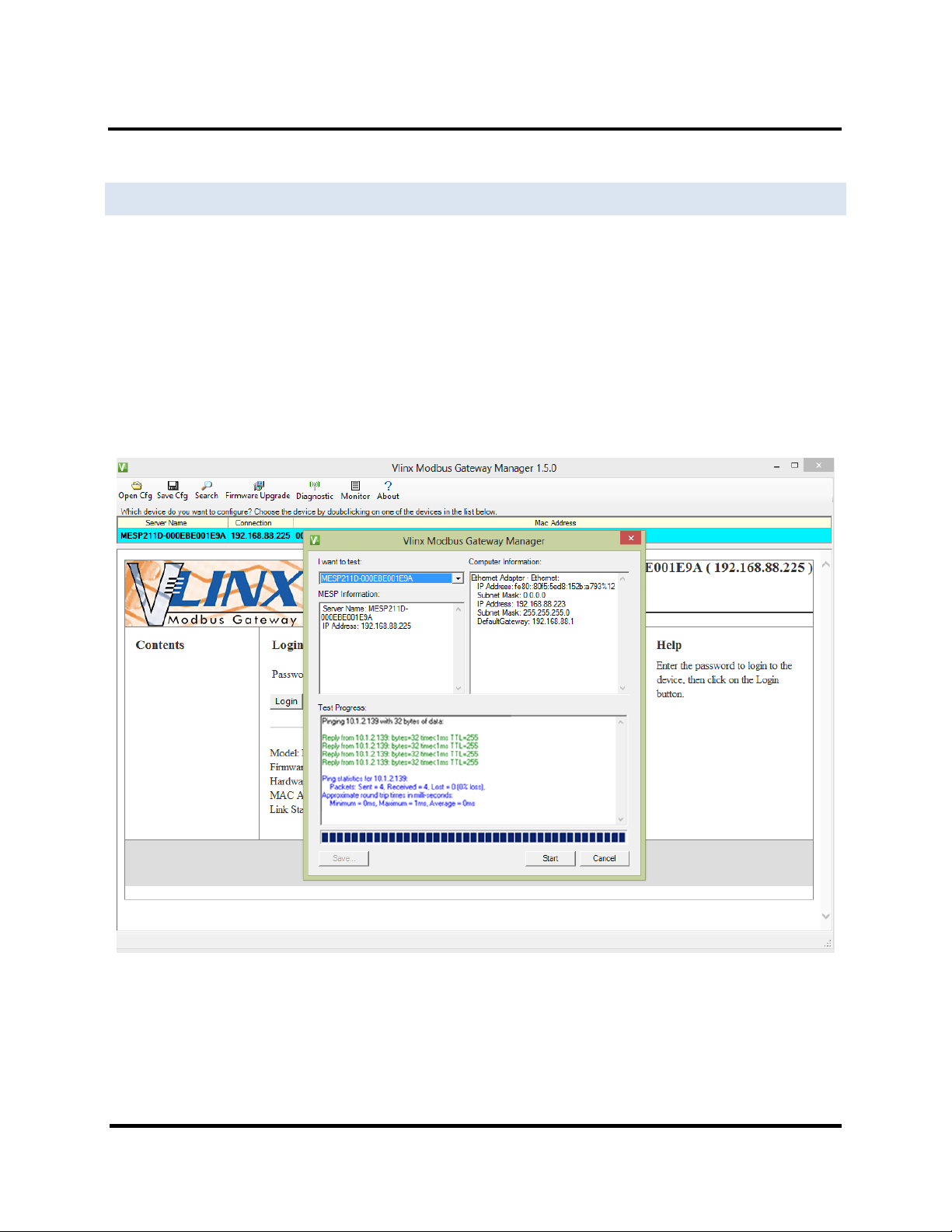

Testing a Modbus Gateway Connection ....................................................................................................................... 48

Monitor Function .............................................................................................................................................................. 49

6. Setup Examples ................................................................................................................................................ 50

7. Modbus Help ...................................................................................................................................................... 55

Modbus ASCII/RTU Basics .............................................................................................................................................. 55

Hints and Tips .................................................................................................................................................................. 56

8. Appendices ......................................................................................................................................................... 57

Appendix A: Default Gateway Settings ........................................................................................................................ 58

Appendix B: Product Specifications .............................................................................................................................. 59

Introduction Vlinx MESP211 Modbus Gateway

General Specifications ......................................................................................................................................... 60

Controls, Indicators and Connector Specifications ................................................................................... 61

Approvals and Certifications .............................................................................................................................. 62

Serial Interface Specifications .......................................................................................................................... 63

Network Specifications ........................................................................................................................................ 64

Appendix C: Dimensional Diagram ............................................................................................................................... 65

Appendix D: Connector Pinouts .................................................................................................................................... 66

MESP211 Serial Port Pinouts ............................................................................................................................. 66

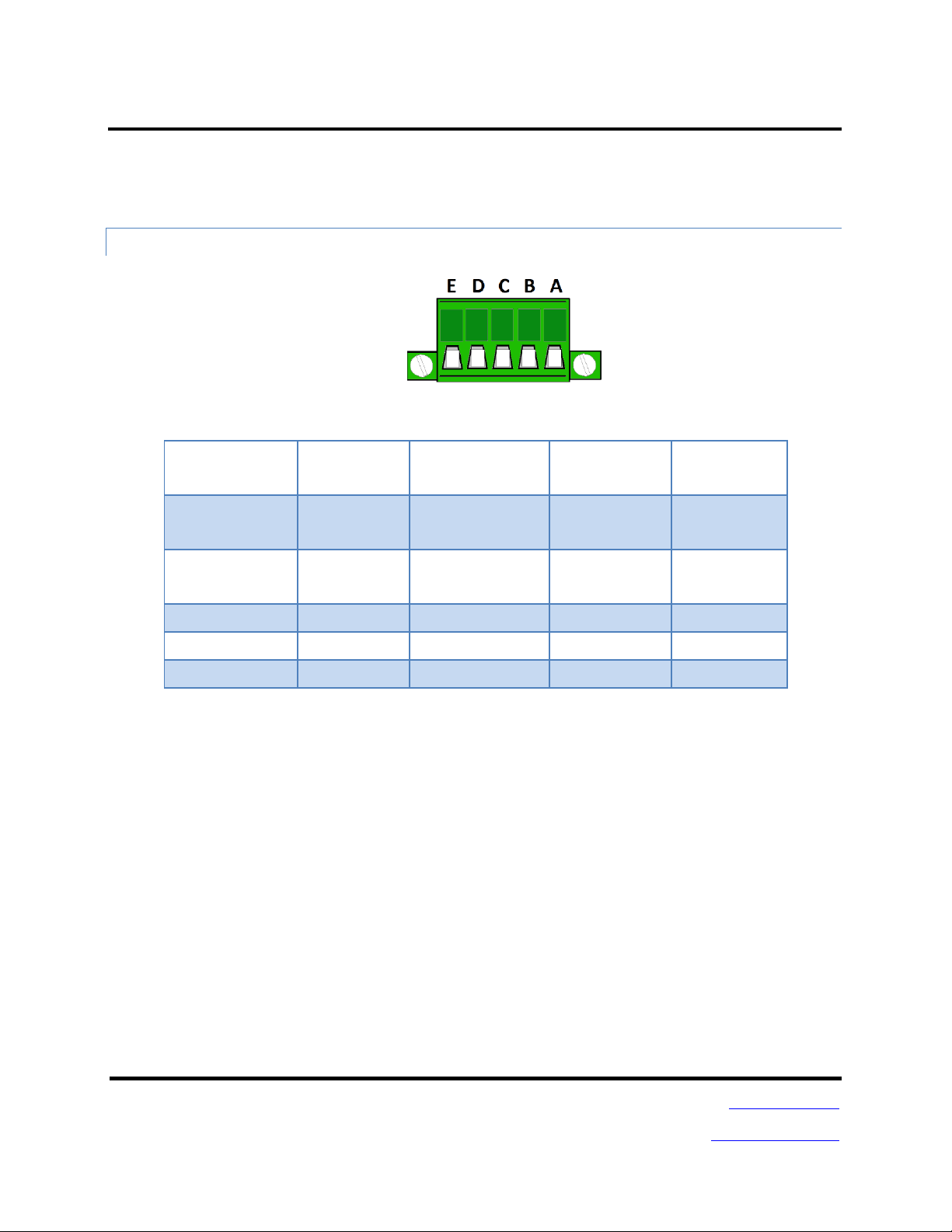

MESP211 Terminal Block Pinouts .................................................................................................................... 67

Introduction Vlinx MESP211 Modbus Gateway

Model Number

Serial Protocol

Serial port

Ethernet Port

MESP211D

RS-232/422/485

DB9M

RJ45

MESP211T

RS-232/422/485

Removable Terminal Block

RJ45

1. INTRODUCTION

Thank you for purchasing an MESP211 product. This product has been manufactured to the highest standards of quality and performance to ensure your complete satisfaction.

ABOUT MESP211 MODBUS GATEWA Y S

MESP211 Modbus Gateways connect Modbus networks (RS-232, RS-422 or RS-485) to Ethernet networks, allowing the Modbus network to become a node on the network. The serial ports can be accessed over a LAN/WAN using Direct IP Mode connections. MESP211 Modbus Gateways feature 10BaseT or 100BaseTX copper network media options, depending upon the model.

MESP211 Modbus Gateways are built for use in industrial environments, featuring an IP30 slim line panel mountable case with DIN rail mounting option. They accept 10 – 30 VDC power and feature barrel jack power connectors. An external power supply is included.

MESP211 MODEL NUMBERING

Introduction Vlinx MESP211 Modbus Gateway

MESP211 FEATURES

 DB9M and pluggable terminal block serial port connector options  Software selectable as RS-232, RS-422 or RS-485 2- or 4-wire  Configuration of Ethernet and serial port settings using software  Configuration can be done via network, web page or direct serial connection  Slim line panel mountable case with DIN rail mount option  Accepts 10 – 30 VDC power  10/100 Mbps Ethernet with Auto Selection, Auto MDI/MDIX  LAN and WAN Communications  Modbus TCP Client or Modbus TCP Server - configurable  Firmware Upload for future revisions/upgrades  Software Support - Windows XP (32/64 bit), 2003 Server (32/64 bit), Vista

(32/64 bit), 2008 Server (32/64 bit), Windows 7 (32/64 bit), Windows 8 (32/64 bit), Windows Server 2012

CONFIGURATION SOFTWARE

The configuration software enables you to find connected Modbus Gateways, configure them, upgrade Modbus Gateway firmware, and save/load configuration files. It features a graphical user interface (GUI) that is convenient and easy to use.

Hardware Vlinx MESP211 Modbus Gateway

2. MESP211 HARDWARE

MESP211 Modbus Gateways are enclosed in panel mountable cases with DIN rail mount options and feature LED indicators, power, Ethernet and serial connectors and a recessed Reset/Mode switch.

PA CKAGE CHECKLIST

MESP211 Modbus Gateways are shipped with the following items included:

 MESP211 Modbus Gateway Module  Quick Start Guide  CD with configuration software  Power supply

MESP211 ENCLOSURES AND MOUNT ING

All MESP211 models are built into similar enclosures. Modules are panel mountable with DIN rail options.

LED INDICATORS

MESP211 Modbus Gateways have a Power LED, a Ready LED and Data LEDs.

LEDs Figure 1.

Hardware Vlinx MESP211 Modbus Gateway

MODE SWITCH

A recessed momentary reset switch is located on the front left side of the enclosure. To activate the switch, insert a small plastic tool through the hole in the enclosure and press gently.

Mode/Reset Switch Figure 2.

The Mode/Reset switch can be used to:

 Initiate a Hardware Reset  Enter Console Mode  Reload factory defaults

Note: Refer to Section 3: Modbus Gateway Setup and Connections for more information on using the Mode switch.

Hardware Vlinx MESP211 Modbus Gateway

ETHERNET CONNECTOR

Modbus Gateway models using 10BaseT/100BaseTX network connections use an RJ45 receptacle. The Modbus Gateway is connected to a standard Ethernet network drop using a straight-through RJ45 (male) Ethernet cable.

Ethernet Connector. Figure 3.

Note: Refer to Appendix D for connection pin-outs.

SER I A L P O R T C O N NECTO RS

The MESP211 has either a DB9M serial connector or a 5-position terminal block connector.

DB-9 Serial Port Connector (MESP211D) Figure 4.

Five-Position Pluggable Terminal Block (MESP211T) Figure 5.

Hardware Vlinx MESP211 Modbus Gateway

POWER CONNECTOR

Power Connection Figure 6.

MOUNTING HARDWARE

An optional DIN rail mount adapter is available from B&B Electronics.

DIN Clip for Modbus Gateway Module. Figure 7.

Setup and Connections Vlinx MESP211 Modbus Gateway

3. SETUP AND CONNECTIONS

Note: In this section devices to be connected to the Modbus Gateway’s serial connection are simply referred to as the “Modbus network”.

CONNECTING THE POWER SUPPLY

Connect a DC power supply to Modbus Gateway. Acceptable voltages are between 10 VDC and 30 VDC. The power supply must be capable of supplying 4 watts.

MESP211 Power Connection Figure 8.

Figure 9.

CONNECTING MESP211 MODBUS GATEW AYS TO MODBUS NETWORKS

MESP211 Modbus Gateways can be configured to connect to Modbus networks using RS232, RS-422, RS-485 2-wire or RS-485 4-wire.

For the MESP211D

RS-232 connections support eight signal lines plus Signal Ground. Signals are single ended and referenced to Ground. Default communications parameters are 9600, 8, N, 1. RS422/485 connections are also supported with the DB9 connector.

For the MESP211T

RS-422 4-wire connections support two signal pairs: RXA(-), RXB(+) and TXA(-), TXB(+), plus GND. The data lines are differential pairs (A & B) in which the B line is positive relative to the A line in the idle (mark) state. Ground provides a common mode reference. RS-232 connections are also supported with the terminal block connector.

RS-485 connections support 2-wire or 4-wire operation.

When configured for 4-wire operation the connection supports two signal pairs: RXA(-), RXB(+) and TXA(-), TXB(+), plus GND. This makes full-duplex operation possible. The data

Setup and Connections Vlinx MESP211 Modbus Gateway

lines are differential pairs (A & B) in which the B line is positive relative to the A line in the idle (mark) state. Ground provides a common mode reference.

When configured for 2-wire operation the connection supports one signal pair: Data B(+) and Data A(-) signal channels using half-duplex operation. The data lines are differential with the Data B line positive relative to Data A in the idle (mark) state. Ground provides a common mode reference.

CONNECTING THE MESP211

The MESP211 has either a DB9M serial connector or a 5-position terminal block connector.

If you select RS-232 mode when you configure the Modbus Gateway, you must connect the Modbus serial network to the Modbus Gateway via a serial cable. The MESP211 is a DTE. If the Modbus network is a DTE, use a null modem (cross-over) cable. If the Modbus network is a DCE, use a straight-through cable. DTE and DCE ports are complementary, the Output signals on a DTE port are Inputs to a DCE port, and Output signals on a DCE port are Inputs to a DTE port. The signal names match each other and connect pin for pin. Signal flow is in the direction of the arrows

MESP211 Serial Connections Figure 10.

Setup and Connections Vlinx MESP211 Modbus Gateway

MESP211 Connections Figure 11.

CONNECTING MESP211 MODBUS GATEW AYS TO A NETWORK

Network Connection (10BaseT/100BaseTX)

When connecting a Modbus Gateway equipped with a 10BaseT/100BaseTX network connection (RJ45 connector) a standard network cable is connected from the

Modbus Gateway to a network drop. PCs configuring and/or communicating with the Modbus Gateway are also connected to the network.

Setup and Connections Vlinx MESP211 Modbus Gateway

MESP211 CONFIGURATION CONNEC TIONS

MESP211 Modbus Gateways can be configured over the network or via a serial port.

INSTAL LING MODBUS GATEWAY MANAGER SOFTWARE

1. The Modbus Gateway Manager Software is contained on the CD which is

packaged with the product. Insert the CD into your CD ROM drive. The software should automatically begin the installation process. If AUTO RUN is disabled on your computer, open the CD drive and double click on the executable file.

a. The following screen will be displayed on your computer.

Modbus Gateway Manager Installation Welcome Screen Figure 12.

b. Click “Next.” The License Agreement Screen will be displayed on your

computer.

Setup and Connections Vlinx MESP211 Modbus Gateway

Figure 13.

c. Click “Next.” The User Information Screen will be displayed on your computer.

Enter your name and organization (optional) and select if the software will be accessible to your account or anyone who uses the computer.

Modbus License Acceptance Screen

User Information Screen Figure 14.

d. Click “Next.” The Destination Folder Screen will be displayed on your

computer. The default directory is: C:\Program Files\B&B Electronics\Vlinx\Modbus Gateway Manager

If desired, you can select another location by pressing the “Browse” button.

Setup and Connections Vlinx MESP211 Modbus Gateway

Destination Folder Screen Figure 15.

e. Click “Next.” The Ready to Install Application Screen will be displayed on your

computer. You can select the “Back” button to change destination folder.

Ready to Install Application Screen Figure 16.

Setup and Connections Vlinx MESP211 Modbus Gateway

f. Click “Next.” The software will begin installing.

Software Installing Screen Figure 17.

g. Click “Next.” The Installation Complete screen will be displayed on your

computer. Click “Finish” to finish the installation.

Installation Complete Screen Figure 18.

Setup and Connections Vlinx MESP211 Modbus Gateway

CONFIGURING THE MESP211 VIA THE NETWORK CONNECTION

When configuring via the network, either Modbus Gateway Manager software or the web interface can be used.

CONFIGURING THE MODBUS GATEWA Y MANAGER

MESP211 Modbus Gateways can be configured over the network Modbus Gateway Manager software running on a PC.

To open Modbus Gateway Manager:

1. From the Desktop, click Start  Programs  B&B Electronics  Vlinx  Vlinx

Modbus Gateway ManagerModbus Gateway Manager. An alternate method is to double click the shortcut installed on the desktop.

Opening Vlinx Modbus Gateway Manager Figure 19.

Setup and Connections Vlinx MESP211 Modbus Gateway

Vlinx Modbus Gateway Manager Shortcut Icon Figure 20.

The Vlinx Modbus Gateway Manager Device Discovery window appears.

Modbus Gateway Manager Discovery Window Figure 21.

If you do not know the IP address, check the “Network” and “I don’t know the IP address of this device” selections and press the “Connect Button.” The software

will discover any MESP211 Gateways on the network. The configuration manager screen will be displayed on your computer. All available devices will be listed on the top portion of this screen. If you know the IP address, you may select “The Device is located at this IP address” and input the address in the box provided.

Setup and Connections Vlinx MESP211 Modbus Gateway

Configuration Manager Screen Figure 22.

2. All Modbus Gateways on the network will be displayed in the top portion of the

screen. To select a gateway, simply click the appropriate device on the top portion of the screen.

a. The main portion of the screen displays the Model, Firmware version,

Hardware Version, MAC Address, and Link Status. The IP Address is also displayed on the top portion of the screen and title graphic area.

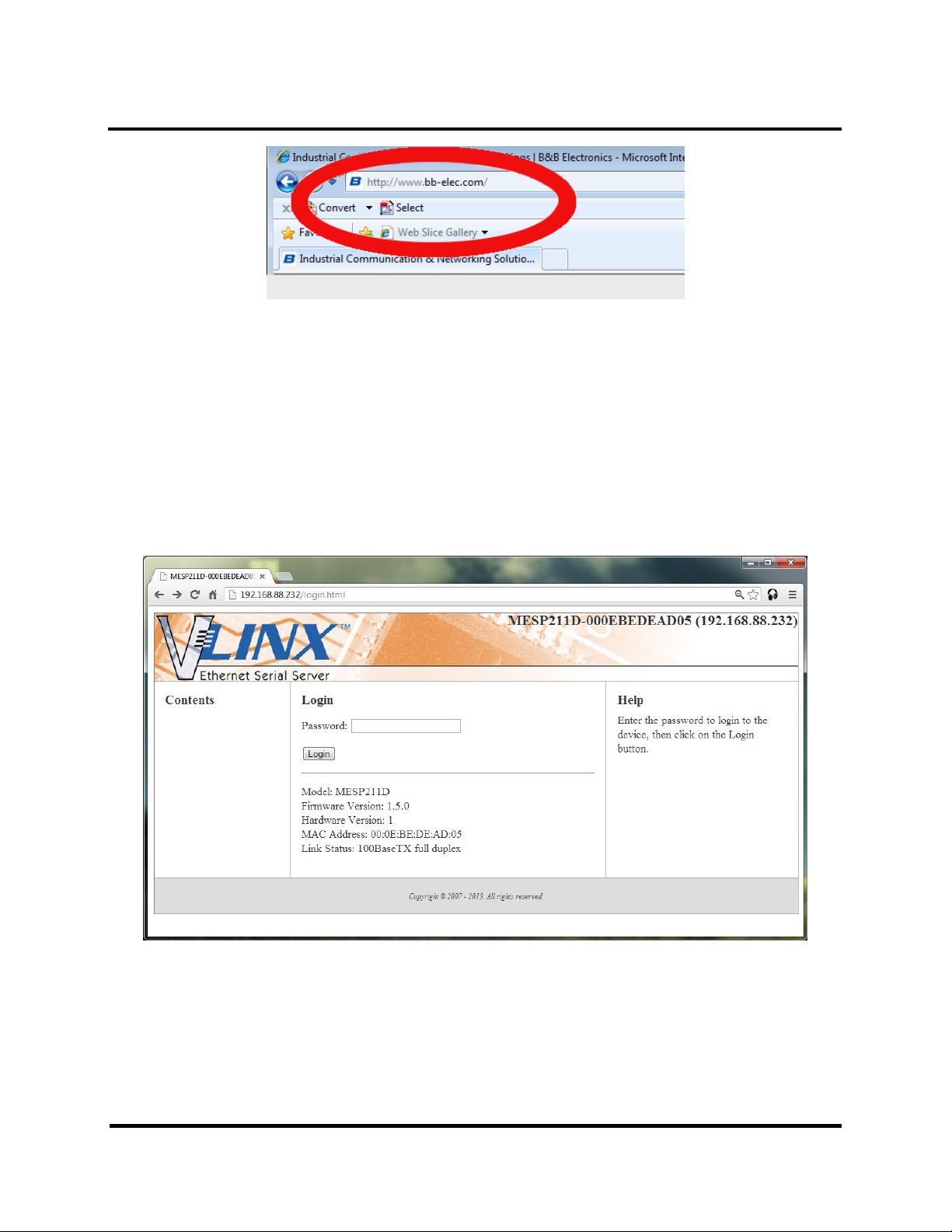

3. There is no password unless you choose to enter one. The default password is no

password at all. Click the “Login” button. The “General” Settings screen will be displayed on your computer.

Vlinx Modbus Manager Settings Screen Overview

+ 47 hidden pages
