APPLICATIONS ASSISTANCE

This manualis designedto provide the necessary information for trouble-free installation andoperation
of your new Operator Interface Terminal (OIT). However, if you need assistance, please call Maple
Systems at 425-745-3229 or visit our web site at www.maple-systems.com.

INSTALLATION MANUAL 3

Read Me First!

Your new Maple Systems OIT comes from the factory configured with the default
communication settings: 9600 baud, no parity, 8 data bits, 1 stop bit, no

handshaking, no turn-around delay, 90° viewing angle, interactive mode, CR line

terminator, underline cursor, 1 space tab width, local echo enabled, local setup
enabled, local keyboard enabled, key click enabled, block echo enabled. You can
change these settings through the MAP450D’s local setup menus or by using the
STEPware-100 configuration software (sold separately). If you want to store
messages in the MAP450D, you must use STEPware-100.

To ensure that the OIT meets CE compliance, it is necessary to follow all
installation procedures described in this manual.

Introduction

Thank you for purchasing a Maple Systems MAP450D. You have selected a
rugged, reliable, and powerful operatorinterface for your application. This booklet
describes the steps necessary to ensure trouble-free OIT system operation. Please

read this booklet carefully!!

Static Awareness

It is best NOT to remove the rear cover on the OIT except when accessing the
terminal block pins or panel mounting the OIT. When the rear cover is removed,
the circuitry inside is exposed to possible damage by electrostatic discharge during
handling. Minimize the possibility of electrostatic discharge by:

CAUTION

• Discharging personal static by grounding yourself prior to handling the OIT.

• Handling the OIT at static-free, grounded work stations.

• Connecting the chassis of the OIT to a clean ground.

• Placing the OIT into an anti-static bag during transport.

Unpacking the Unit

Carefully unpack the OIT. Please read any instructions or cautions that appear on
the shipping container. Check all material in the container against the enclosed
packing list. Maple Systems, Inc., will not accept responsibility for shortages
against the packing list unless notified within 30 days. The equipment and its
accessories were inspected and tested by MapleSystems before shipment; all of the
equipment should be in good working order. Examine the equipment carefully; if
any shipping damage is evident, notify the carrier immediately. You are
responsible for claim negotiations withthe carrier. Save the shipping containerand
packing material in case the equipment needs to be stored, returned to Maple
Systems, or transported for any reason.

1010-0046A, REV 00

4 MAP450D

TABLE OF CONTENTS

1. Control Panel Design Guidelines ...................................5

1.1. Control Panel Grounding ....................................5

1.2. Power Supply Selection .....................................5

1.3. OIT Cable Routing .........................................6

1.4. Other Steps to Improve Noise Immunity ........................6

2. Connecting the MAP450D to a Host Controller........................7

2.1. RS-232 (Interactive & Block modes) ...........................9

2.2. RS-422/485 (Interactive & Block modes)........................9

2.3. RS-422/485 (Network mode) ................................10

2.4. Set Jumper for 3-Wire RS-422/485............................13

3. Mounting the MAP450D ........................................14

3.1. Panel Mount .............................................14

3.2. Pedestal/Pendent Mount ....................................15

3.3. Benchtop Mount ..........................................16

4. Configuring the MAP450D.......................................17

4.1. Connecting the MAP450D to a PC ............................17

Appendix A: OIT Hardware Specifications.............................18

Appendix B: Differences Between MAP450D and MAP450B..............20

1010-0046A, REV 00

INSTALLATION MANUAL 5

1. Control Panel Design Guidelines

Pay careful attention to the placement of system components and associated cable
routing. These items can significantly enhance the performance and integrity of
your control application.

SHIELDED
COMMUNICATION
CABLE

GROUND
STRAP

OIT OPERATING

CABLE

OIT REAR
COVER

QUIET
GROUND

OIT

OIT
POWER
SUPPLY

Figure 1 Control Panel Example

1.1. Control Panel Grounding

• The control panel should be connected to a good, high-integrity earth ground
both for safety considerations and shielding purposes. This must be a reliable
earth ground with a low-resistance path. The ideal earth ground would be a
copper grounding rod located close to the OIT and the control panel.

• Hinged doors on control panels do not provide a long term electrical connection
to the rest of the enclosure. Corrosion develops over time and prevents good
electrical contact. For this reason, a separate wire braid should be installed from
the hinged control panel to the rest of the enclosure.

1.2. Power Supply Selection

• The power supply used to power the OIT should have an output between +12
and +30 VDC. The voltage should measure between +12 and +30V at the OIT
between Pins 2 and 3 of the OIT terminal block. A 24 VDC, 0.5 amp linear
power supply dedicated to the OIT is recommended.

• The power leads on the operating cable for the OIT should be 18AWG
2-conductor wire with a shield wire and protective shield foil. The shield of the
OIT operating cable must be connected to earth ground atboth ends of the cable.
Please refer to Section 2.

LINE

FILTER

CONTROLLER

I / O CONTROL LINES

GROUND WIRES

QUIET GROUND(ISOLATED)

CONTROL PANEL
TIED TO RELIABLE
EARTH GROUND

POWER LINE
FILTER

1010-0046A, REV 00

6 MAP450D

• A power line filter installed at the AC input to the OIT power supply is highly
recommended as a safeguard against conducted RF noise, which is often present
on factory power lines. The wires connecting the output of the power line filter
to the power supply should be kept as short as possible to minimize any
additional noise pickup. The case of the power line filter should be connected to
a quiet earth ground. The powerline filter should have a current ratingof at least
three amps with common mode and differential mode attenuation.

POWER SUPPLY

GND

AC

AC

TO EARTH

GROUND

"QUIET" GROUND

WHITE TO

110VAC NEUTRAL

BLACK TO

110VAC LOAD(HOT)

Figure 2 Power Line Filter Connection

N

G

LINE FILTER

L

N

AC

L

KEEP SHORT

GREEN

WHITE

BLACK

• The power supply that provides power to the OIT should not be used to power
switching relays orsolenoids unless noisefilter caps areconnected to each relay.

1.3. OIT Cable Routing

• Always route the OIT operating cable away from any AC voltage or host
controller wires.

• Never bundle the OIT cables together with 120 VAC power wires or with relay
wiring.

• Try to keep at least 8 inches (20 cm) of separation between the OIT cables and
other power wiring. If voltages greater than 120 VAC are used in the system,
greater separation is required.

• If theOIT cables mustcome near ACwiring, make sure theycross at 90degrees.

• Running AC power wires in a separate grounded conduit is the preferred method
for electrical noise reduction.

• Keep the lengths of the OIT cables as short as possible. Do not coil excess cable
and place it next to AC powered equipment.

1.4. Other Steps to Improve Noise Immunity

1010-0046A, REV 00

• Always install the OIT’s rear cover. This provides a shield against electrical
noise which can be generated in thecontrol panel by relays, motors, power lines,
and/or high frequency equipment. Ensure that all rear cover mounting screws
are properly secured.

• Any equipment used in the enclosure that operates at high frequency or high
current levels can be covered with a grounded metal shield.

INSTALLATION MANUAL 7

y

2. Connecting the MAP450D to a Host Controller

It is necessary to follow all installation procedures described in this chapter for
electrical noise immunity and CE compliance.

Host/Controller

OIT Operating
Cable

Terminal
Block

Operating Cable
specific for the
Host/Controller

Install the
ferrite coil here

Figure 3 MAP450D Cable Connections

Tighten

OIT Power Suppl

Output

Case GND

STEPS

1. Remove the four screws from the back of the OIT enclosure and open the two

halves.

2. A strain relief is provided for wiring access and sealing. The cable must be

inserted through the strain relief and into the cover.

3. Remove the black heatshrink tubing from the end of the OIT operating cable.

4. Slide the ferrite coil over the OIT operating cable. This usually requires

rotating the ferrite coil back and forth while simultaneously pulling on the
OIT operating cable.

5. Slide the ferrite coil up against the inside wall of the OIT enclosure and pull

through enough additional cable to reconnect the OIT operating cable wires.

1010-0046A, REV 00

8 MAP450D

6. Connect the OIT operating cable wires to the terminal block. Refer to

sections 2.1 through 2.3 and Figure 4.

Function

Pin #

1
+24V
COM
RXD+

2

3

4

Ferrite coil

RXD- 5
TXD+
TXD­RTN
RXD
TXD
CTS
RTS

Connection to
communication
wires of
Host/Controller

6

7

8

9

10
11
12

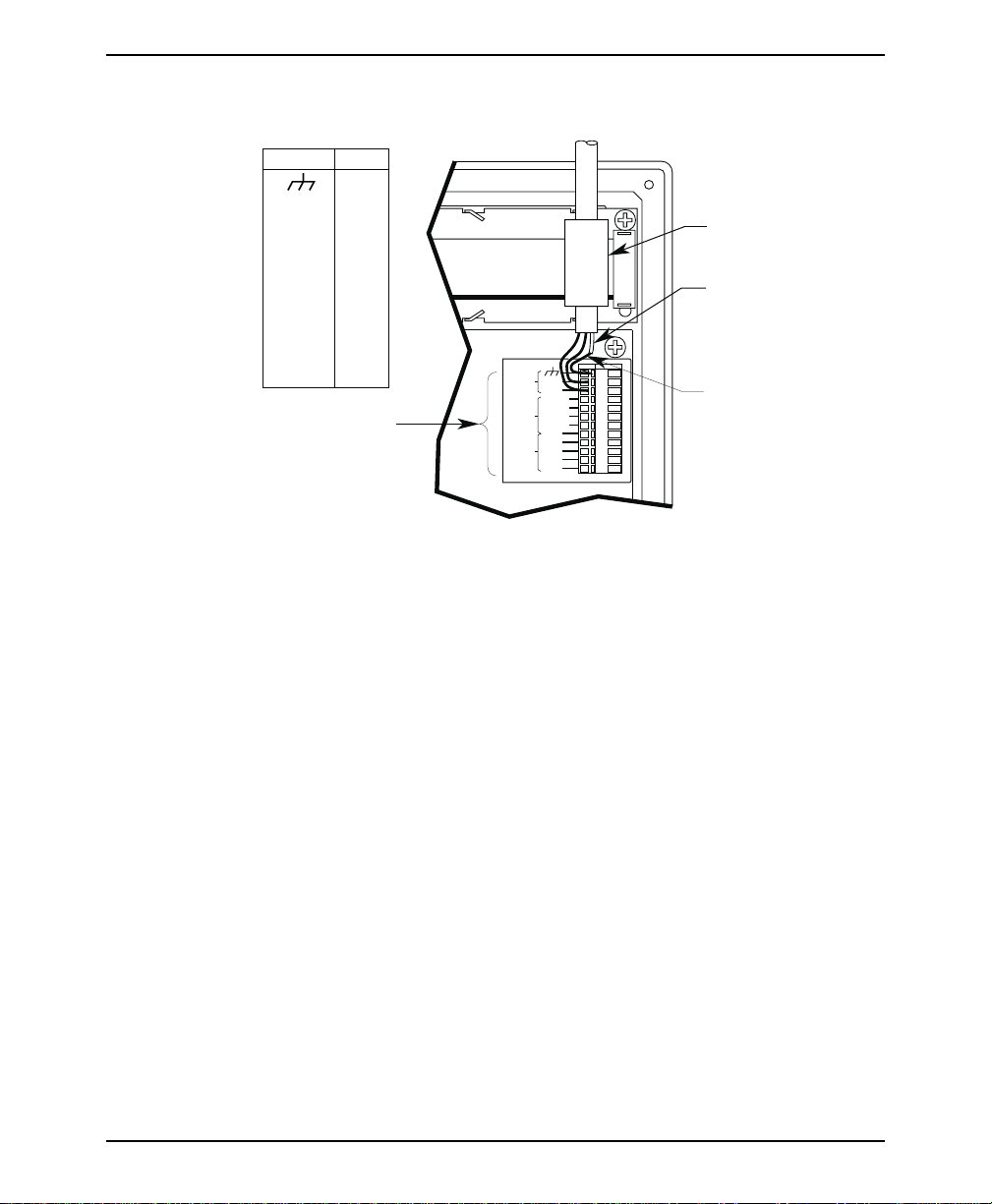

Figure 4 Terminal Block Pinout Connection

POWER

RS485

RS232

+24V
COM

RXD+
RXD­TXD+
TXD­RTN
RXD
TXD
CTS
RTS

TB1

Heatshrink tubing

1
2
3
4
5
6
7
8

9
10
11
12

Chassis shield wire

7. Pull out any slack from the OIT operating cable.

8. Rotate the rear of the OIT enclosure back into position while gently pulling
out the new slack generated in the cable as you proceed.

CAUTION: Due to the large size of the ferrite coil, it must be positioned very
carefully. Make sure that when the OIT enclosure halves are brought together, the
ferrite coil is positioned sothere is no internal interference. The ferritecoil must be
positioned up against the inside wall of the OIT enclosure with the protruding OIT
operating cable kept short.

9. Tighten the cable strain relief nut.

10. Re-install the four screws into the back of the OIT enclosure

11. Route the operating cable to the host controller and connect.

12. Route the power pigtail to the OIT power supply.

13. Install the wires into the power supply as follows:

RED +output

BLACK -output

SHIELD case ground.

1010-0046A, REV 00

INSTALLATION MANUAL 9

2.1. RS-232 (Interactive & Block modes)

Interactive and Block modes support the 3-wire RS-232 configuration with TXD,
RXD and signal common. The cable requires an overall shield to protect against
electrical noise. Xon and Xoff can be used for communication handshaking.

3-Wire RS-232

Host Controller MAP450D Terminal Block

TXD

RXD

Signal Ground

Pin 9 - RXD
Pin 10 - TXD
Pin 8 - Return

2.2. RS-422/485 (Interactive & Block modes)

Interactive and Block modes support the 3-wire and 5-wire RS-422/485
configurations. The 3-wire configuration has both transmit andreceive on the same
pair of wires plus a signal common. The 5-wire configuration has differential signal
pairs for transmit and receive plus a signal common. In both configurations the
signal pairs must be twisted and surrounded by an overall shield.

NOTE: When using 3-wire RS-422/485, Jumper JP4 must be in position “B”.
Refer to section 2.4 for instructions.

3-Wire RS-422/485

Host Controller MAP450D Terminal Block

TXD+ & RXD+

TXD- & RXD-

Signal Ground

Pins 4 & 6 - RXD+ & TXD+
Pins 5 & 7 - RXD- & TXD­Pin 8 - Return

5-Wire RS-422/485

Host Controller MAP450D Terminal Block

TXD+

TXD-

RXD+

RXD-

Signal Ground

Pin 4 - RXD+
Pin 5 - RXD­Pin 6 - TXD+
Pin 7 - TXD­Pin 8 - Return

1010-0046A, REV 00

10 MAP450D

2.3. RS-422/485 (Network mode)

Network mode supports the 3-wire and 5-wire RS-422/485 configurations. The
3-wire configuration has both transmit and receive on the same pair of wires plus a
signal common. The 5-wire configuration has differential signal pairs for transmit
and receive plus a signal common. In both configurations the signal pairs must be
twisted and surrounded by an overall shield.

Power Supply

+24V

OIT

*

*

TB1

+24V
COM
RXD+
RXD­TXD+
TXD­RTN

RTNand COM are internallyconnected in OIT.*

Shield

1
2
3
4
5
6
7
8

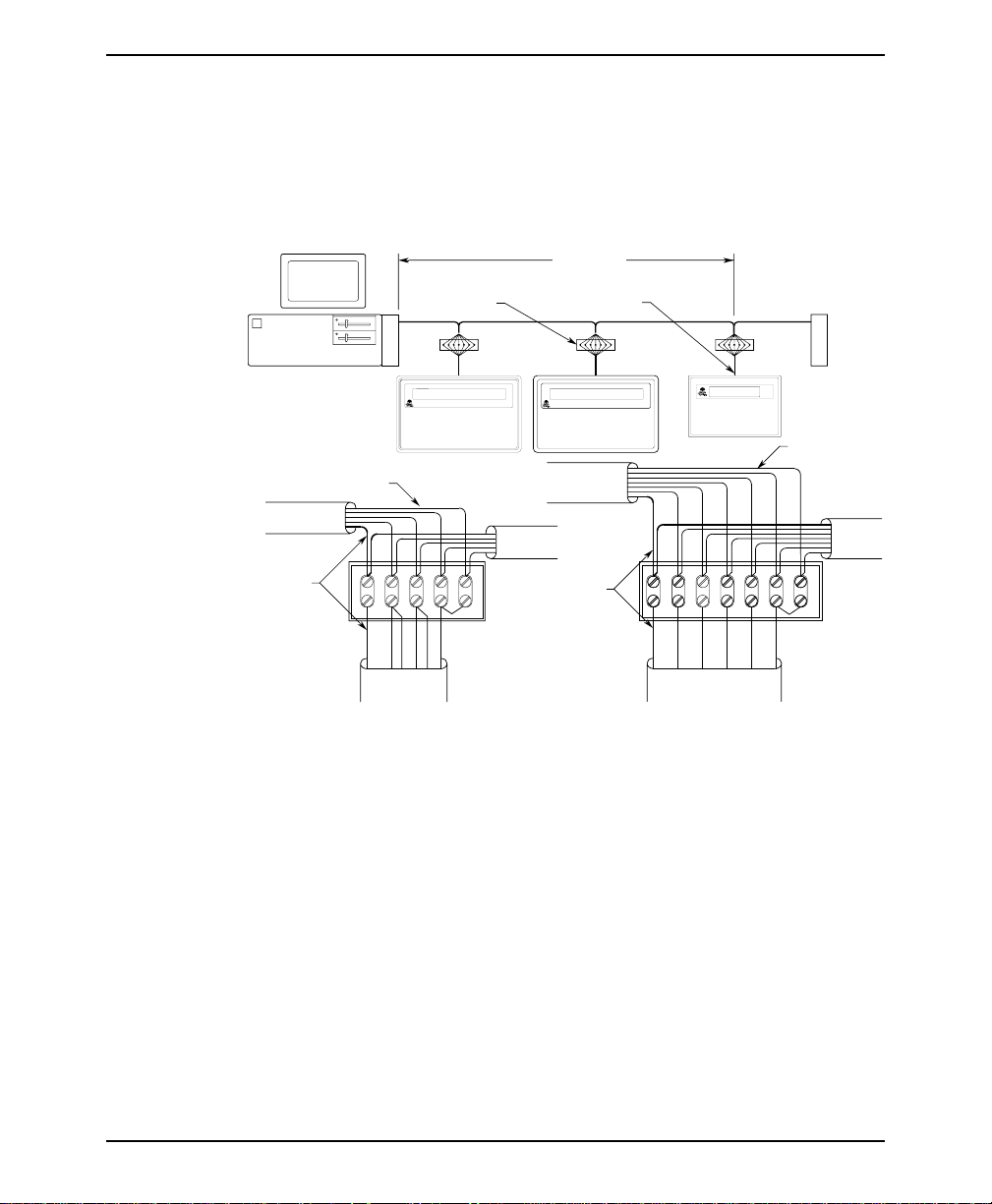

Figure 5 3-Wire RS-422/485 (Network mode)

NOTE: When using 3-wire RS-422/485, Jumper JP4 must be in position “B”.
Refer to section 2.4 for instructions.

OIT

TB1

+24V
COM

*

RXD+
RXD­TXD+
TXD­RTN

*

RTNand COM are internallyconnected in OIT.*

Figure 6 5-Wire RS-422/485 (Network mode)

Shield

1
2
3
4
5
6
7
8

GND

From or To

Host or OIT

CHASSIS GND
RXD+/TXD+
RXD-/TXD-

SIG GND
SIG GND

Power Supply

+24V
GND

From or To

Host or OIT

CHASSIS GND
TXD+

TXD­RXD+
RXD­SIG GND
SIG GND

1010-0046A, REV 00

5-wire RS-422/485 supports full-duplex communications; which means that the
host controller can trasmit data to the OITs and receive data from the OITs at the
same time. 3-wire RS-422/485 only supports half-duplex communications; which
means that the host controller cannot transmit and receive data at the same time.
Although 3-wire RS-422/485 installations may be less costly than 5-wire
installations, the increased complexity in programming the host controller for
3-wire RS-422/485 may increase development time.

INSTALLATION MANUAL 11

There are several different forms of communications networks. Maple Systems’
OITs utilize the multidrop format. The host controller, located at oneof the network
ends, is connected to the OITs via a continuous com-link. Each OIT is connected to
the network by locally tapping into the com-link with short stub cables. The end of
the com-link must be properly terminated to reduce noise pickup and interference.
The total length of the com-link, from the host controller to the network cable
terminator, can be up to 4,000 feet.

Less than

HOST

See

DetailA&B

4000'

Less than 12"

Shielded Cable

2 Pair Twisted

Shielded Cable

24 Gage Wire

From Host or
Previous OIT

Drain

Wires

TERMINATOR

OIT #1

SIG GND

RXD-/TXD-

RXD+/TXD+

CHASSIS GND

TXD+

RXD-

TXD-

RXD+

TO OIT

SIG GND

CHASSIS

GND

Detail A

5WireTermination

SIG GND

To M or e

OITs

OIT #2

From Host or
Previous OIT

Drain
Wires

OIT #100

TXD-

TXD+

CHASSIS GND

RXD+

TO OIT

Detail B

5WireTermination

3 Pair Twisted
Shielded Cable
24 Gage Wire

RXD-

SIG GND

SIG GND

TERMINATOR

To M or e

OITs

If you decide to use 3-wire RS-422/485, the following limitations apply:

• The host controller must disable or tri-state its RS-485 transmitter when it is not

sending data to the OITs on the network. To simplify programming, the host
should disable or tri-state its RS-485 receiver whenever transmitting.

• The ability to stay logged on to a particular OIT by sending the command terminator

instead of the line terminator is not available in this mode. Therefore, each command
sent from the host controller should end with the appropriate line terminator.

• If the host controller sends acommand that requires aresponse from the OIT,the

host controller must wait for a response from the OIT before sending another
command. Otherwise, a situation can occur in which the OIT and the host
controller attempt to transmit at the same time cuasing unpredictable results.

• The ASCII strings sent by the OIT’s function keys should not include any

control characters which the other OITs on the network could misinterpret, such
as the line terminator or command terminator.

1010-0046A, REV 00

12 MAP450D

Network Termination

The com-link cable must be properly terminated to reduce the amount of
interference and noise pickup from the surrounding environment. This is
accomplished by using a termination circuit at both ends of the network cable. The
following figure shows a typical termination circuit. The host termination is only
needed if the host controller’s RS-422/485 adapter does not contain any built-in
terminator circuitry. The end termination must be done at the extreme end of the
com-link cable.

HOST

TERMINATOR

END TERMINATION

120 Ohm
to
240 Ohm

DO NOT

CONNECT

Vcc

Rx+

SIGNAL GND

CHASSIS GND

HOST TERMINATION

Tx+

Tx-

Rx-

470 Ohm
to
10 KOhm

120 Ohm
to
240 Ohm

470 Ohm
to
10 KOhm

TERMINATOR

EARTH
GROUND

OIT3600

MAP460D OIT3160

FROM HOST +

FROM HOST -

TO HOST +

TO HOST -

SIGNAL GND

SHIELD

Network Grounding

To communicate properly, serious attention must be paid to the grounding scheme
of the devices connected to the com-link. Improper grounding, improper
termination, and faulty shielding of the com-link are the most common causes of
system failure in a multidrop network.

Shield

Signal Ground

From Host +

From Host -

To Host +

To Host -

Shield

Signal Ground
From Host

To Host

1010-0046A, REV 00

To OI T To OI T

INSTALLATION MANUAL 13

The cable shield must not be used as the signal ground.

It is tempting to try and reduce the cost of 5-wire cabling by using a 4-wire cable
with the shield used as the signal ground. DON’T DO IT. The initial cost savings
are always exceeded by the maintenance costs once the system is operating under
field conditions. It is often necessary to completely replace the network com-link
with the propercable (5-wire plusshield) to eliminatenoise problems in the system.

The signal ground must not be connected to the chassis or earth ground.

The chassis or earth ground is intended as a safety ground for power supplies, EMI
filters, voltage spikeprotection circuits, 120 VAC neutral returns, andall manner of
AC and DC driven devices. As a result, the chassis or earth ground can carry large
voltage potentials and currents. Connecting the signal ground to chassis or earth
ground can damage the devices connected to the com-link.

2.4. Set Jumper for 3-Wire RS-422/485

This step is required only if the OIT will be communicating with the host controller
using RS-485 half-duplex 3-wire communication.

JP4

(Display)

A
B

A

JP4

(CPU Board)

JP4

A

B

Position "A",

Normal

Half-Duplex 3-Wire

B

Position "B",

RS485

Figure 7 MAP450D Jumper Installation

STEPS

1. Remove the protective cover from the rear of the unit.

CAUTION: When the rear cover is removed, the circuitry inside is exposed to
possible damage byelectrostatic discharge. Refer to StaticAwareness on page4.

2. Locate jumper “JP4” using Figure 7 as a guide. The jumper is installed on
the upper two pins of a 3-pin header. This is called Position “A”.

3. Move the jumper to the lower two pins of the 3-pin header (Position “B”).
Ensure that the jumper is pressed fully into place.

4. Replace the rear cover and the four retaining screws.

1010-0046A, REV 00

14 MAP450D

3. Mounting the MAP450D

3.1. Panel Mount

The OIT is installed in a panel by separating the front and rear covers of the OIT,
and then sandwichingthe panel betweenthe two. The gasketed surfaceof the OIT’s
front cover provides the environmental seal to NEMA 4 and NEMA 12 standards.
The rear cover helps shield the OIT from dust, dirt, induced electrical noise, and
physical damage.

The OIT is mounted using four
#6-32UNC screws sandwiching
the OIT halves to panel. Screw
length is equal to panel thickness
plus 1/2 inch.

NOTE: The mounting screws
must not be torqued to
more than 18 pound-inches.
Over-torquing can strip the
threads in the front half.

1010-0046A, REV 00

Figure 8 MAP450D Panel Mounting

Figure 9 shows the dimensions of the panel cutout required for proper panel
installation. The panel cutout should be cleaned and deburred before the OIT is
installed.

7.580 +/-0.010

0.156 dia., 4 holes

0.180 +/-0.015

0.060 +/-0.015

7.460 +/-0.015

C

L

4.100

R 0.03 max.,
4 places

C

L

+/-0.015

4.460

+/-0.010

FRONT VIEW

Figure 9 MAP450D Panel Cutout Dimensions

INSTALLATION MANUAL 15

p

IMPORTANT: When panel mounting the MAP450D, do not catch the display
connector on the panel cutout. The display is exposed while panel mounting and
extra care should be taken. The display can be damaged if the display cable
connector, which protrudes from the panel cutout, is touching the panel when
tightened. To avoid damage, place the MAP450D gently onto the panel while
monitoring for this condition.

3.2. Pedestal/Pendent Mount

The OIT is installed onto a pedestal/pendent by removing the four rubber feet from
the rear cover of the OIT, then attaching the OIT to a mounting plate using the four
pre-tapped holes inthe rear cover. TheOIT enclosure andcable strain relief provide
the environmental seal to NEMA 4 and NEMA 12 standards.

Four #6 external tooth
star lockwashers provide
chassis ground

Four #6-32UNC mounting
screws secure OIT to

Figure 10 MAP450D Pedestal Mounting

edestal

Figure 11 shows the minimum dimensions of the pedestal/pendant mounting plate.
The area on the pedestal/pendant mounting plate around themounting holes (where
the heads of the screws make contact) should have any existing paint or plating
removed to allow for a good chassis ground connection. The mounting screws are
installed using externaltooth star washersto ensure apositive ground connection.

1010-0046A, REV 00

16 MAP450D

5.400 +/-0.015
2 places

0.156 dia. nominal,
4 holes(clearance

for #6 screws)

PEDESTAL

4.600 +/-0.015
2 places

Figure 11 Pedestal/Pendant Mounting Plate Dimensions

MOUNTING

PLATE

(1/8" thick min. recommended)

6.00 nominal

5.00 nominal

The OIT is connected to the mounting plate with four #6-32UNC screws. The
length of the mounting screws is equal to the plate thickness plus 1/4 inch.

NOTE: The mounting screws must not be torqued to more than 18 pound-inches.
Over-torquing can strip the threads in the enclosure.

3.3. Benchtop Mount

1010-0046A, REV 00

The MAP450D’s rear cover has two legs set at a five degree angle to give the display
and keypad a sloped front while sitting on a bench. Four rubber feet are attached to
the legs to prevent slippage as well as damage to the surface of the bench.

Figure 12 MAP450D Benchtop Mounting

INSTALLATION MANUAL 17

4. Configuring the MAP450D

The MAP450D has many operating parameters that control how it communicates
to the host controller. These operating parameters can be changed in three ways:
from the MAP450D’s keyboard when it is in Configuration mode, when the host
controller sends a Configuration Control Command, or by downloading a
STEPware-100 project. This chapter explains how to connect the MAP450D to a
PC so youcan download aproject from theSTEPware-100 configuration software.

4.1. Connecting the MAP450D to a PC

First, remove the operating cable from the terminal block pins. Next, connect an
RS-232 serial communications cable (Maple Systems P/N 7431-0048) to the
proper COM port on your computer and the terminal block pins on the MAP450D.
See Figure 13 below for pin assignments.

Power

Supply

GND

TXD

RXD

DCD

DTR

DSR

RTS

CTS

Red

Black

9S

5

3

2

1

4

6

7

8

Black

Shield
Red

Blk

Green

White

TB1

1
2
3

9

10

OIT

+24V
COM

RXD
TXD

+24V

GND

PC

PC

Printer

Com2

OIT Power Supply

-+

GND

Figure 13 MAP450D to PC RS-232 Communication

Com1

Maple Systems
OIT to PC cable
(If mouse is using
Com 1, use Com2)

OIT

Back

of

OIT

7431-0048

1010-0046A, REV 00

18 MAP450D

Appendix A

OIT Hardware Specifications

Mechanical

Material: Cast aluminum enclosure sealed to NEMA 4/12

Mounting: Panel, pedestal, pendant, or benchtop

Wiring: Unit is field-wired by user to internal terminal block pins

Weight: 2 pounds (0.90 kg)

Environmental

Operating Temp: +32 to +122°F (0 to +50°C)

Storage Temp: -4 to +158°F (-20 to +70°C)

Electric Noise Immunity

Emissions: EN55011 (Group 1, Class B) — Generic commercial, light, and heavy industrial environments

EN50081-1 — Generic domestic and light industrial environments
EN50081-2 — Generic heavy industrial environment

Immunity: EN50082-1 — Generic domestic and light industrial environments

EN50082-2 — Generic heavy industrial environment

Power Requirements

Input Voltage: 12 to 30 VDC

Power Usage: 2.5 watts typical

Display

Display Type (MAP450D-003): Liquid Crystal Display (LCD)—5 x 7 dot matrix with cursor

Display Type (MAP450D-004): Backlit Liquid Crystal Display (LCD)—5 x 7 dot matrix with cursor

Display Character Size: 2 lines by 40 characters, 0.2 inches (5 mm) high

Display Viewing Angle: Approximately 120 degrees

Keypad

Key Type: Membrane switch

Feedback: Internal buzzer

Layout: 42 alphanumeric keys arranged in 4 rows of 11 keys

Operational Life: Five million operations, minimum

Customizing: Custom keypad overlay available

Communications

Serial Port: RS-232, RS-422, or RS-485

Baud Rates: 300, 600, 1200, 2400, 4800, 9600, or 19.2k

Internal Features

Memory: 128K x 8 Flash PROM for firmware, protocol and configuration data—no battery required

1010-0046A, REV 00

INSTALLATION MANUAL 19

Appendix A (con’t)

Dimensional Outline

8.12 [206]

7.10 [180]

Waterproof strain relief
for operating cable entry

5.75

[146]

5.00

[127]

FRONT VIEW

6-32UNC x 0.50 [12.7]
screw, 4 placesSS,

REAR VIEW

1.70 [43]
overall

Free-Standing & Pedestal-Mount

Dimensions are in inches[mm].

SIDE VIEW,

0.90 [23]
depth behind the
front of a panel

6-32UNC x 0.30 [7.6]
deep threads, for
Pedestal Mounting only

(Panel)

SIDE VIEW,

Panel-Mount

1010-0046A, REV 00

20 MAP450D

Appendix B

Differences Between MAP450D and MAP450B

The MAP450D uses the same enclosure, display, keyboard and overlay as the MAP450B, but
includes the following differences:

1. The MAP450D can be configured using the Windows-based STEPware-100 configuration
software.

2. The MAP450D stores and displays up to 500 user-definable messages.

3. The MAP450D stores the configuration parameters and user-definable messages in flash
memory.

4. The MAP450D is CE certified; it passes strenuous tests for noise immunity and emissions.

5. Local setup mode is entered by pressing and holding the Clear key instead of the S key
while the <<<Initializing>>> prompt is on the display. Local setup mode can also be
entered after initialization by pressing the Enter key three times.

6. The power supply input requirement is +12 to 30 VDC instead of +5or 8 to 13 VDC.

7. The MAP450D offers 2 LCD viewing angles instead of 10.

8. The MAP450D uses a non-removable terminal block instead of a removable terminal block
for both the communications and power wiring.

9. The Set Serial Interface Command (ESC S) is no longer supported. To maintain backwards
compatibility the command is recognized but ignored.

1010-0046A, REV 00
