Chapter 1 – Introduction

Description

The ESW205/208 series are plug-and-play, Class 1 Div 2, heavy Industrial
Ethernet switches with a compact IP30 DIN rail case. Switch
configurations support 5 and 8 ports, all copper or with ST, SC fiber ports.

They will support IEEE 802.3 for 10BaseT (10 Mbps), IEEE 802.3u for
100BaseTX and 100BaseFX (100 Mbps), and IEEE 802.3x, 10/100 Mbps,
full and half duplex, MDI/MDX auto sensing.

The ESW205/208 series uses dual power inputs that accept 12 to 36 VDC
or 10 to 24 VAC with removable terminal blocks. The acceptable
operating temperature range is -10C to 60C or (-T models) -40 to 75°C with
an ambient relative humidity rating of 10 to 95% (Non-condensing).

The ESW205/208 series has 7 different mounting options. One being din
rail and 6 different panel mounted options. Panel mount adapters are
shipped with switches.

Package Checklist

The ESW205/208 will ship with the following items.

B&B Ethernet switch with attached din rail clip
Quick Start Guide
4 - Panel mount clips with screws

Quick Start Guide Documentation Number: ESW200series-1112qsg 1

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

ESW205/208 features

10BaseT, 100BaseTX, 100BaseFX
10/100 Mbps, full and half duplex, MDI/MDX auto sensing.
Full / Half Duplex Back Pressure Flow Control
Store and forward architecture
Broadcast Storm control
RJ45 shielded connectors
Single mode, multi mode, ST, SC, 100BaseFX fiber connectors
Compact IP 30 enclosure
UL/cUL Class I Div 2 Groups A,B,C, and D
Heavy Industrial Level3, EN61000-6-2 certified
Shock, Vibration, and Free Fall
Din rail and panel mountable

-10C to 60C or (-T models) -40 to 75°C operating temperature

2 Quick Start Guide Documentation Number: ESW200series-1112qsg

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

ESW205/208 Overview

Front Panel

1. P1 power LED

2. P2 power LED

3. L1 fiber port Link, Activity LED

4. 100BaseFX, SC or ST Fiber Port

5. Speed LED

6. 10/100BaseT(X) RJ45 Port

7. Link LED

8. Power Terminal Block, P1 and P2

Quick Start Guide Documentation Number: ESW200series-1112qsg 3

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

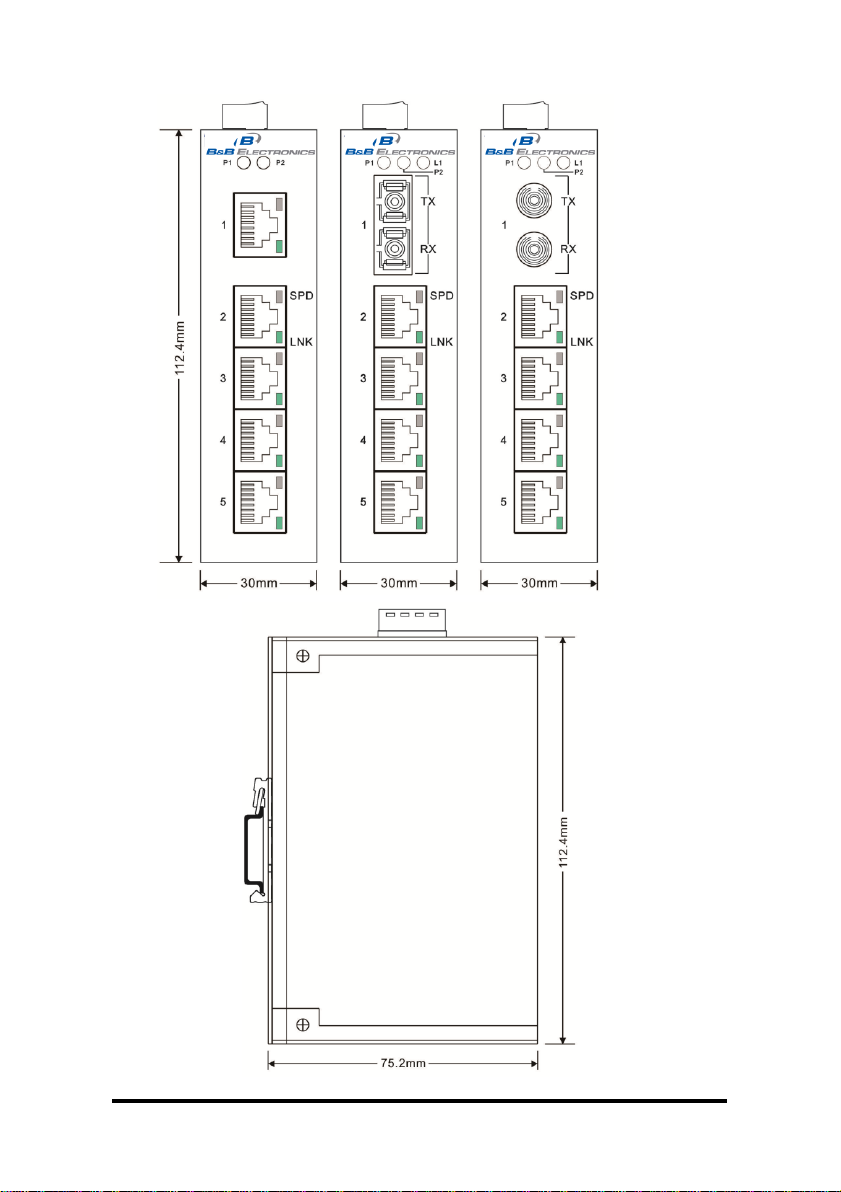

Dimensional Drawing ESW205 Series

4 Quick Start Guide Documentation Number: ESW200series-1112qsg

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

Dimensional Drawing ESW208-2xx Series

Quick Start Guide Documentation Number: ESW200series-1112qsg 5

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

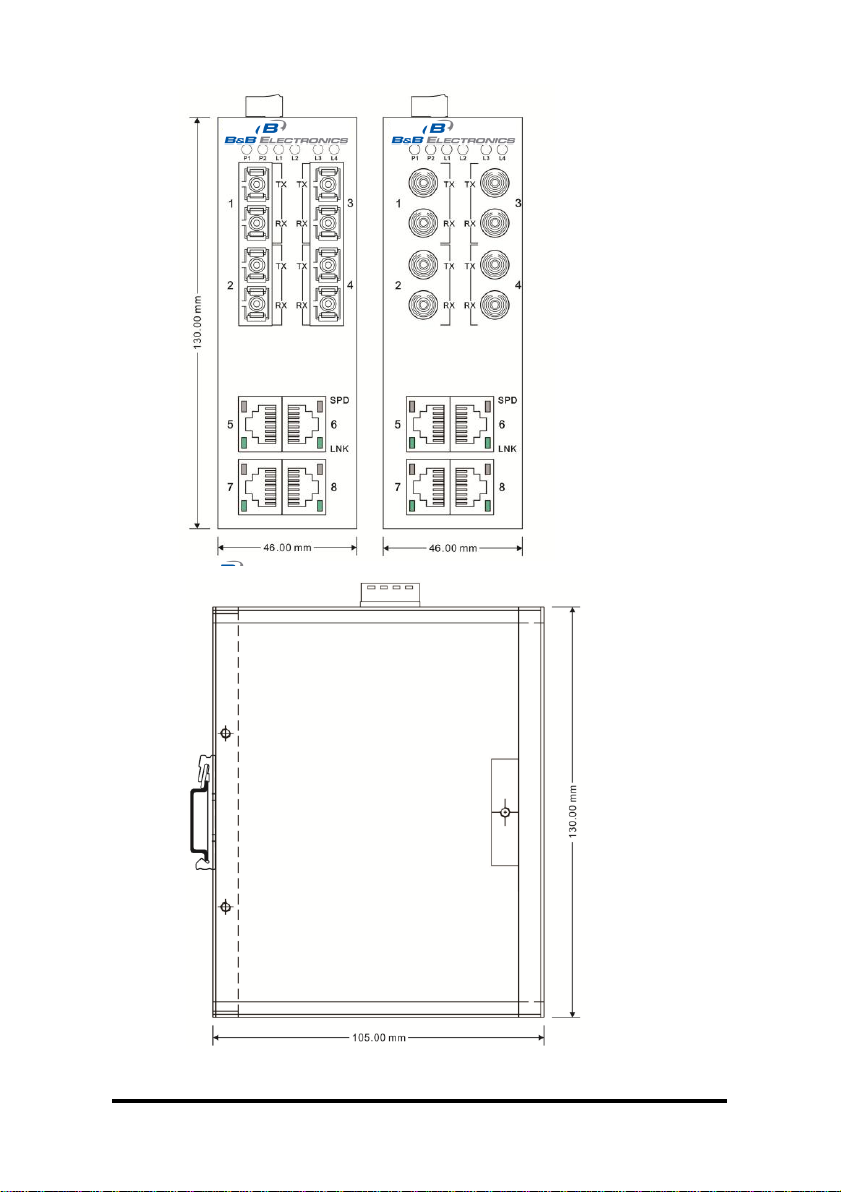

Dimensional Drawing ESW208-4xx Series

6 Quick Start Guide Documentation Number: ESW200series-1112qsg

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

LED

Status

Description

PWR

Green ON

Power Applied

Off

No power

Speed LED

Green ON

100Mbps

Off

10Mbps

Link / Activity LED

Green ON

Link

Blinking

Activity

Off

Not connected to network

Fiber LED

Green ON

Link

Blinking

Activity

Off

Not connected to network

LED Indicators

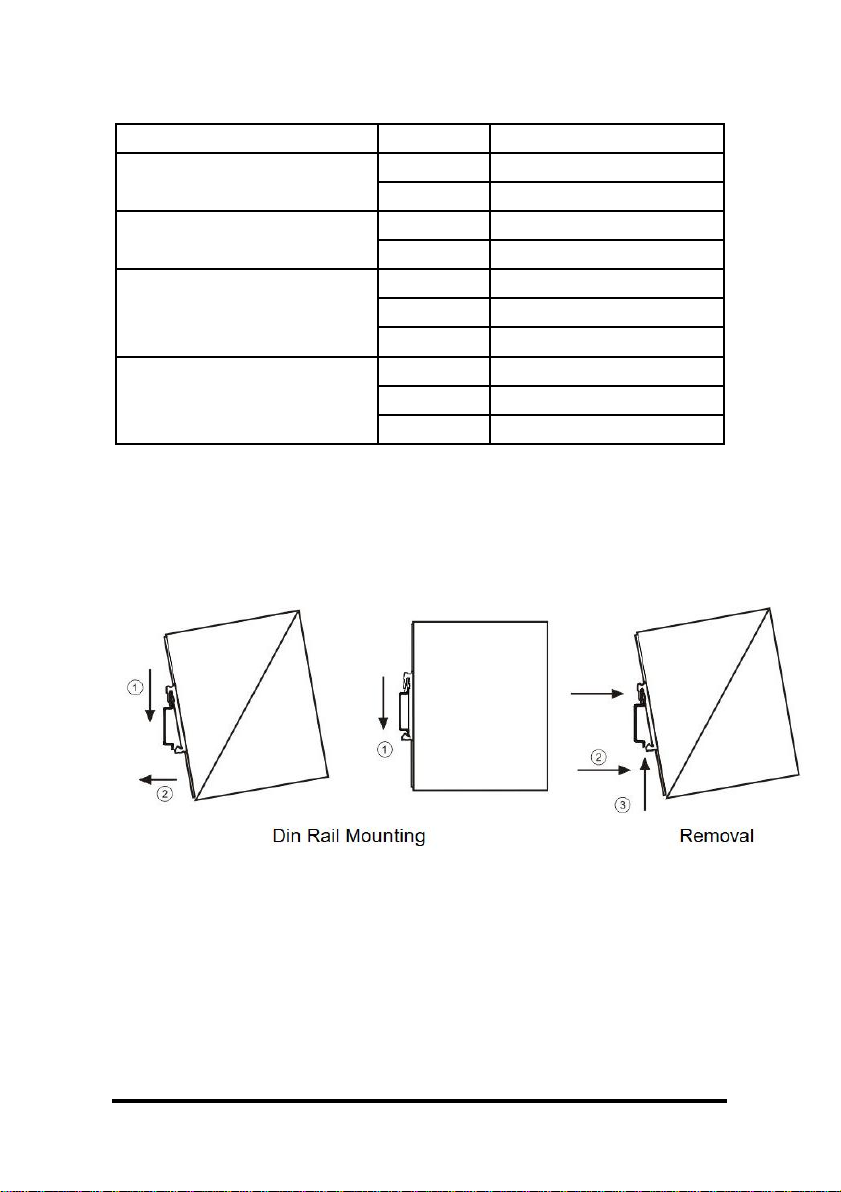

Din Rail Mounting

The din rail mounting clips are connected to the switch when shipped and

ready to be mounted on a 35mm size din rail.

Quick Start Guide Documentation Number: ESW200series-1112qsg 7

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

Panel Mounting

The switch ships with 4 panel mount clips giving the user 6 different ways
to panel mount the unit.

8 Quick Start Guide Documentation Number: ESW200series-1112qsg

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

RJ45 Ethernet Connections

The ESW200 series RJ45 connectors will support 10BaseT and 100BaseTX
communications. Each RJ45 port supports full or half duplex and
MDI/MDX auto sensing.

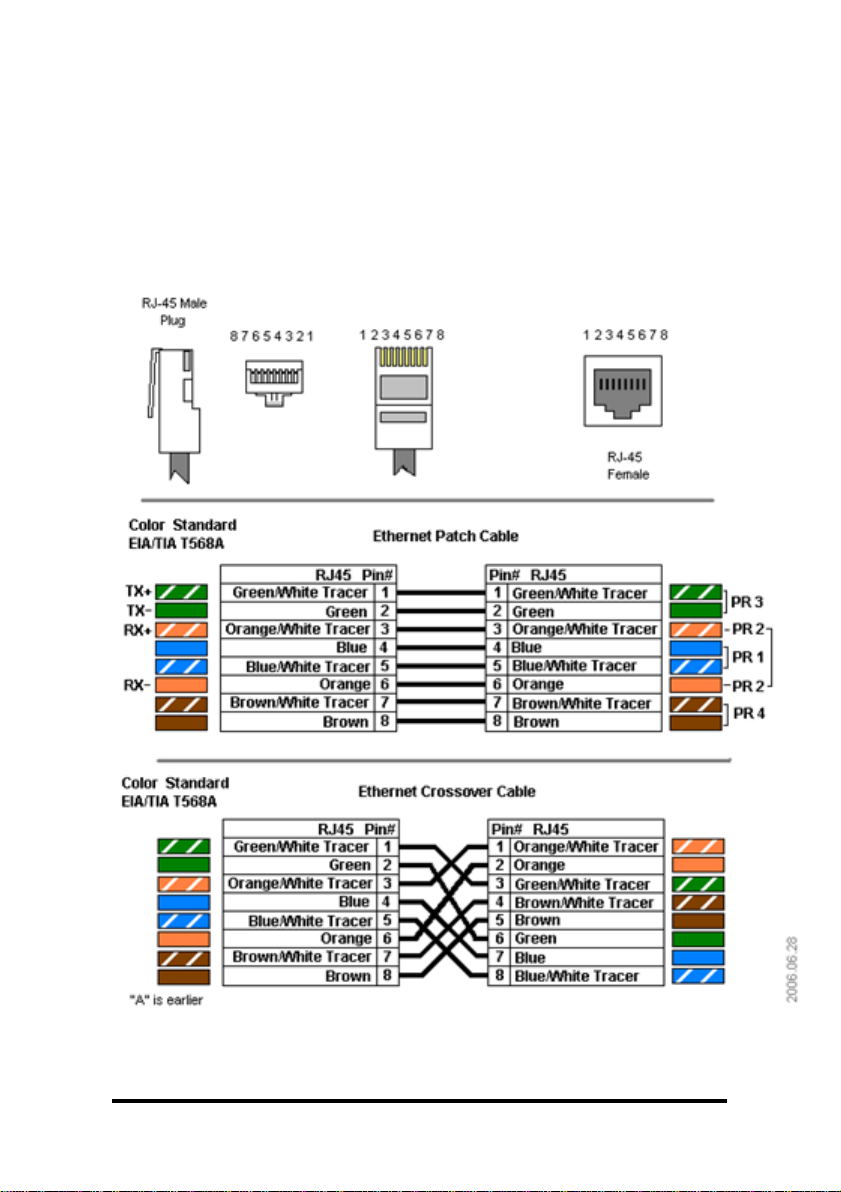

Below are the EIA/TIA T568A / B color standard and RJ45 pin out along
with standard and crossover cable connections.

Quick Start Guide Documentation Number: ESW200series-1112qsg 9

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

100BaseFX Ethernet SC / ST Fiber Port

The use of fiber optics has become prevalent in Industrial Ethernet data
communications systems. Extending distance, high data rate capabilities,
noise rejection and electrical isolation are just a few of the important
characteristics that make fiber optic technology ideal for use in industrial
applications.

Each fiber port has a TX (transmit) and RX (receive) connection fixed at
100Mbps speed. The fiber ports will support multi mode or single mode
fiber dependant on the model number ordered.

10 Quick Start Guide Documentation Number: ESW200series-1112qsg

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

INPUT: ESW208, ESW208-XX

Power: 24VDC@5.7 W

8 Copper 12 – 36 VDC@10.0W max
1 Fiber 12 – 36 VDC@10.6W max
4 Fiber 12 – 36 VDC@12.5W max.

8 Copper 12 – 36 VAC@10.0W max
1 Fiber 12 – 36 VAC@10.6W max
4 Fiber 12 – 36 VAC@12.5W max.
47 – 63Hz

INPUT: ESW205, ESW205-XX

Power: 24VDC@ 4.7W
12 – 36 VDC@6.5W max.
10 – 24VAC@6.5W max
47 – 63Hz

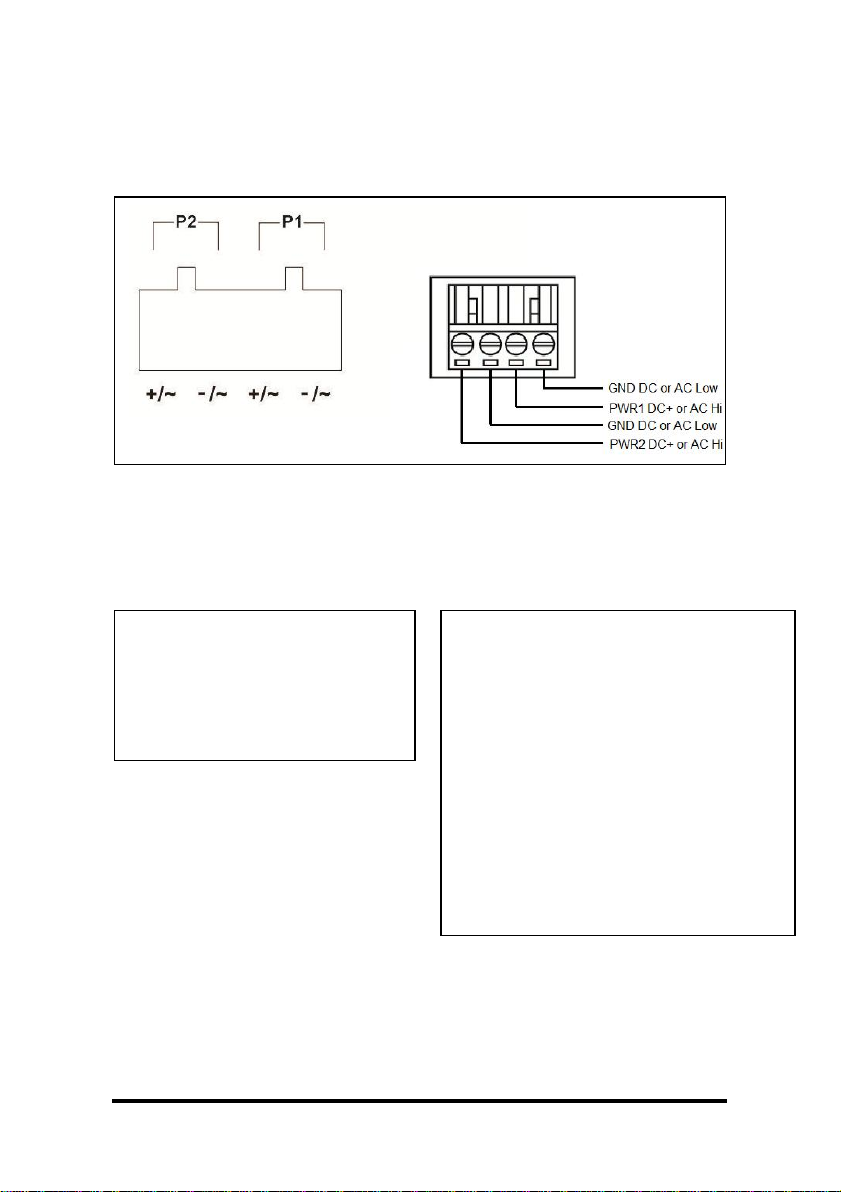

Power Input Connections

The ESW205/208 series accepts 12 to 36 VDC or 10 to 24 VAC input
voltage using removable terminal blocks.

UL Installation Information

Electrical Ratings

OUTPUT: All Models – Low Voltage, Limited Energy communications
protocol.

Quick Start Guide Documentation Number: ESW200series-1112qsg 11

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

Wiring Terminals:

One Conductor Per Terminal
Use Copper wire only
Wire Range: 25 to 12 AWG
Tightening Torque: 4.5 Lb-in
Temperature rating of field wiring - 105℃ minimum (Sized for

60℃ Ampacity)

Ambient Temperature:

Standard Temperature Models –

-10℃ to 60℃ minimum/maximum surrounding air ambient. T4(or T4A)

This equipment is suitable for use in Class 1, Division 2, Groups A, B, C
and D hazardous locations, Or nonhazardous locations only.

WARNING – EXPLOSION HAZARD – Substitution of component may
impair suitability for Class 1, Division 2.

UL File Number: E245458

12 Quick Start Guide Documentation Number: ESW200series-1112qsg

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

Power Requirements

Low Voltage Range:

12 - 36 VDC

10 - 24 VAC

Connection

Power

Removable Terminal
Block

Protection

Reverse Polarity
Protection

Redundant Power
connectors

RJ45 Ports

Shielded

10Base-T / 100Base-TX

Auto-sensing

Full / Half Duplex

MDI / MDI-X auto­Negotiate

Multi Mode Fiber

100Base-FX

Distance

2 km

Wavelength

1310 nm

Cable

50/125 um, 62.5/125 um

TX power

-23.5-14 dBm

Rec Sensitivity

-35 dBm

Connector Type

ST or SC

Cover

ST or SC

Single Mode Fiber

100Base-FX

Specifications

Quick Start Guide Documentation Number: ESW200series-1112qsg 13

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

14 Quick Start Guide Documentation Number: ESW200series-1112qsg

Distance

20 km

Wavelength

1310 nm

Cable

9/125

TX power

-15 - 8 dBm

Rec Sensitivity

-35 dBm

Connector Type

ST or SC

Cover

ST or SC

LED Indicators

Power

Green ON solid

Power applied

Speed

Green ON solid

100 Mbps

Speed

Off

10Mbps

Link/Activity

Green ON Solid

Link

Link/Activity

Green flashing

Activity

Fiber Port

Green ON solid

100Mbps Link

Fiber Port

Green flashing

100Mbps Activity

Slim Metal Enclosure

Material

aluminum or steel

Rating

IP30

DIN Rail

35mm - installed on
switch

QTY 1

Panel Mounting

Bracket and screws ­included with switch

QTY 4

DIN and Panel
Accessories

DIN Rail and Panel mount
with screws.

Enclosure Dimensions

See Dimensional
Drawings

IEEE Standards

IEEE802.3

10Base-T Ethernet

IEEE802.3u

100BaseTX, 100Base FX

IEEE802.3x

Flow Control

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

Transfer Rate:

14,880bps (10Base-T),
148,800bps (100-Base-T)

Packet buffer

64k Byte

Address Table Size:

2K Processing Type

Store and Forward

Broadcast Storm Control

Automatic

Flow Control

Full / Half Duplex Back
Pressure Flow Control

Agency Approvals

Hazardous Location

UL/cUL Class I Div 2 Groups A,B,C, and D

EMI

FCC Part 15, CISPR (EN55022)

Generic Standard for
(Heavy) Industrial
Environments

per EN61000-6-2

EMC

EN61000-4-2 (ESD),level 3

Contact +/- 6kv

Enclosure Air
+/- 8kv

EMC

EN61000-4-3 (RS),
level 3

10V/meter

EMC

EN61000-4-4 (EFT),
level 3

Signal ports

+/- 1kV

D.C. Power ports

+/- 2kV

A.C. Power ports

+/- 2kV

Earth ground ports3

NA

EMC

EN61000-4-5(Surge),
level3

Signal ports

+/- 1kV

D.C. Power ports

+/- 2kV

A.C. Power ports

+/- 2kV

EMC

EN61000-4-6 (CS),
level 3

Signal ports

10 V rms

D.C. Power ports

10 V rms

A.C. Power ports

10 V rms

Quick Start Guide Documentation Number: ESW200series-1112qsg 15

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

Earth ground ports3

NA

Shock

IEC 60068-2-27

Vibration

IEC 60068-2-6

Free Fall

IEC 60068-2-32

Certifications

Certifications

IP30

Certifications

RoHS

Certifications

WEEE

Environment Limits

Standard Temp Models

-10˚C to 60˚C

Heavy
Industrial
Standard temp

Extended Temp (-T)
Models

-40˚C to 75˚C

Heavy
Industrial wide
temp

Storage Temperature

-40 to 85˚C

Ambient Relative
Humidity

10 to 95%(Non-condensing)

16 Quick Start Guide Documentation Number: ESW200series-1112qsg

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com
